CyberTAN Technology MM200M User Manual

MM200-M / IEEE 802.11b/g MiniCard

MM200-M

IEEE 802.11b/g MiniCard

User Manual

Rev 0.1

MM200-M / IEEE 802.11b/g MiniCard

National Communications Commission Interference Statement

This equipment includes wireless RF module, and must be labeled in a visible area with the following:

Contains NCC ID:

MM200-M / IEEE 802.11b/g MiniCard

Table of contents

Introduction…………………………………………… 1
Hardware Installation……………………………….. 4
Using the Wireless Utility…………………………… 5

ii

MM200-M / IEEE 802.11b/g MiniCard

Chapter 1

Introduction

Thank you for using the Wireless MiniCard. The MM200-M is a single-band, quad-mode wireless net­work adapter that works on all the frequencies allocated for WLAN operation everywhere in the world. It
is in compliance with the IEEE802.11g, 802.11b standards. MM200-M features the compactness and
high bus speed of the Minicard specifications which gives users of laptops, notebooks, tablet PCs, and
other mobile computing devices transparent Internet access anywhere in the world through any WiFi
network without software changes or additional hardware.

Able to provide greater than 54Mbps real world throughput using high-speed spatial multiplexing
modes, the MM200-M provides the freedom to work as you wish, wherever you wish, using whatever kind
of application you wish to use. The adapter installs directly in any host device with a Mini PCI slot: just
plug it in and you’re ready to access local resources and/or the Internet at the highest speed the WLAN,
the location, and the host computer can provide. It is ready to work “out of the box” in any embedded de­vice or in any computer running Microsoft® Windows Vista, or XP. The MM200-M MiniCard is truly a
“must-have” for every productivity-sensitive laptop, notebook, or tablet PC user and any bandwidth­sensitive embedded design.

Features and Benefits

• Standard Mini Card Connector with Multiple Interface Support

Module’s 30.0 mm × 30.0 mm footprint and minicard slot make it ideal for daughter board attachment to
an UMPC. Pin-selectable SPI and SDIO interfaces.

• Seamless Wireless Connectivity

The modules support the IEEE 802.11b/g standards for high speed and transparent interoperations with
most home and business WLANs and all public hot spots around the world.

• Up-to-date, High-level Security

WEP, WPA, and WPA2 are supported to ensure maximum data privacy.

• Dynamic Rate Shifting

Wireless transmission speed is automatically adjusted on the basis of signal strength to achieve maxi­mum availability and link reliability.

• BT and Cellular Coexistence

Industrial Bluetooth coexistence logics are included. There is one antenna for WLAN. Coexist with cel­lular GSM, DCS, PCS and W-CDMA bands.

• Ultra Low Power Consumption

Excellent standby and Power Saving Mode current consumptions.

1

MM200-M / IEEE 802.11b/g MiniCard

What is Wireless LAN?

Wireless Local Area Network (WLAN) systems offer a great number of advantages over traditional wired
systems. WLANs are flexible and easy to setup and manage. They are also more economical than wired
LAN systems.

Using radio frequency (RF) technology, WLANs transmit and receive data through the air. WLANs com­bine data connectivity with user mobility. For example, users can roam from a conference room to their
office without being disconnected from the LAN.

Using WLANs, users can conveniently access shared information, and network administrators can con­figure and augment networks without installing or moving network cables.

WLAN technology provides users with many convenient and cost saving features:

• Mobility: WLANs provide LAN users with access to real-time information anywhere in their organi-
zation, providing service opportunities that are impossible with wired networks.

• Ease of Installation: Installing is easy for novice and expert users alike, eliminating the need to
install network cables in walls and ceilings.

• Scalability: WLANs can be configured in a variety of topologies to adapt to specific applications
and installations. Configurations are easily changed and range from peer-to-peer networks suitable
for a small number of users to full infrastructure networks of thousands of users roaming over a
broad area.

LAN Modes

Wireless LANs can be configured in one of two ways:

Ad-hoc
Networking

Infrastructure
Networking

Also known as a peer-to-peer network, an ad-hoc net­work is one that allows all workstations and computers
in the network to act as servers to all other users on the
network. Users on the network can share files, print to
a shared printer, and access the Internet with a shared
modem. However, with ad-hoc networking, users can
only communicate with other wireless LAN computers
that are in the wireless LAN workgroup, and are within
range.

Infrastructure networking differs from ad-hoc network­ing in that it includes an access point. Unlike the ad­hoc structure where users on the LAN contend the
shared bandwidth, on an infrastructure network the
access point can manage the bandwidth to maximize
bandwidth utilization.

Additionally, the access point enables users on a wire­less LAN to access an existing wired network, allowing
wireless users to take advantage of the wired networks
resources, such as Internet, email, file transfer, and
printer sharing.

Infrastructure networking has the following advantages
over ad-hoc networking:

• Extended range: each wireless LAN computer

• Roaming: the access point enables a wireless

• Wired to wireless LAN connectivity: the access

Table 1: LAN modes

within the range of the access point can commu­nicate with other wireless LAN computers within
range of the access point.

LAN computer to move through a building and still
be connected to the LAN.

point bridges the gap between wireless LANs and
their wired counterparts.

2

—Introduction

Notes on wireless LAN configuration

When configuring a wireless LAN (WLAN), be sure to note the following points:

• Optimize the performance of the WLAN by ensuring that the distance between access points is not
too far. In most buildings, WLAN cards operate within a range of 100 ~ 300 feet, depending on the
thickness and structure of the walls.

• Radio waves can pass through walls and glass but not metal. If there is interference in transmitting
through a wall, it may be that the wall has reinforcing metal in its structure. Install another access
point to circumvent this problem.

• Floors usually have metal girders and metal reinforcing struts that interfere with WLAN transmis­sion.

3

MM200-M / IEEE 802.11b/g MiniCard

Chapter 2

Hardware Installation

This chapter covers how to installing the Wireless card in your embedded system.

Hardware description

The Wireless MiniCard has a standard Minicard interface for attaching to the Minicard connector on
embedded system.

And this module has IPEX connector to connect to external antenna.

Outlook

Following is the Minicard outlook

Figure 1: MM200-M outlook

4

MM200-M / IEEE 802.11b/g MiniCard

Chapter 3

Using the Wireless Utility

This module also come with a wireless utility, following describe how to use the utility.

Configuration Utility for 802.11b/g

The Client Card Configuration Utility allows configuration of MM200-M high throughput client cards
through the following tabs:

•Network Status—displays the status of the network to which the user is connected. The Configura­tion Utility initializes on this page.

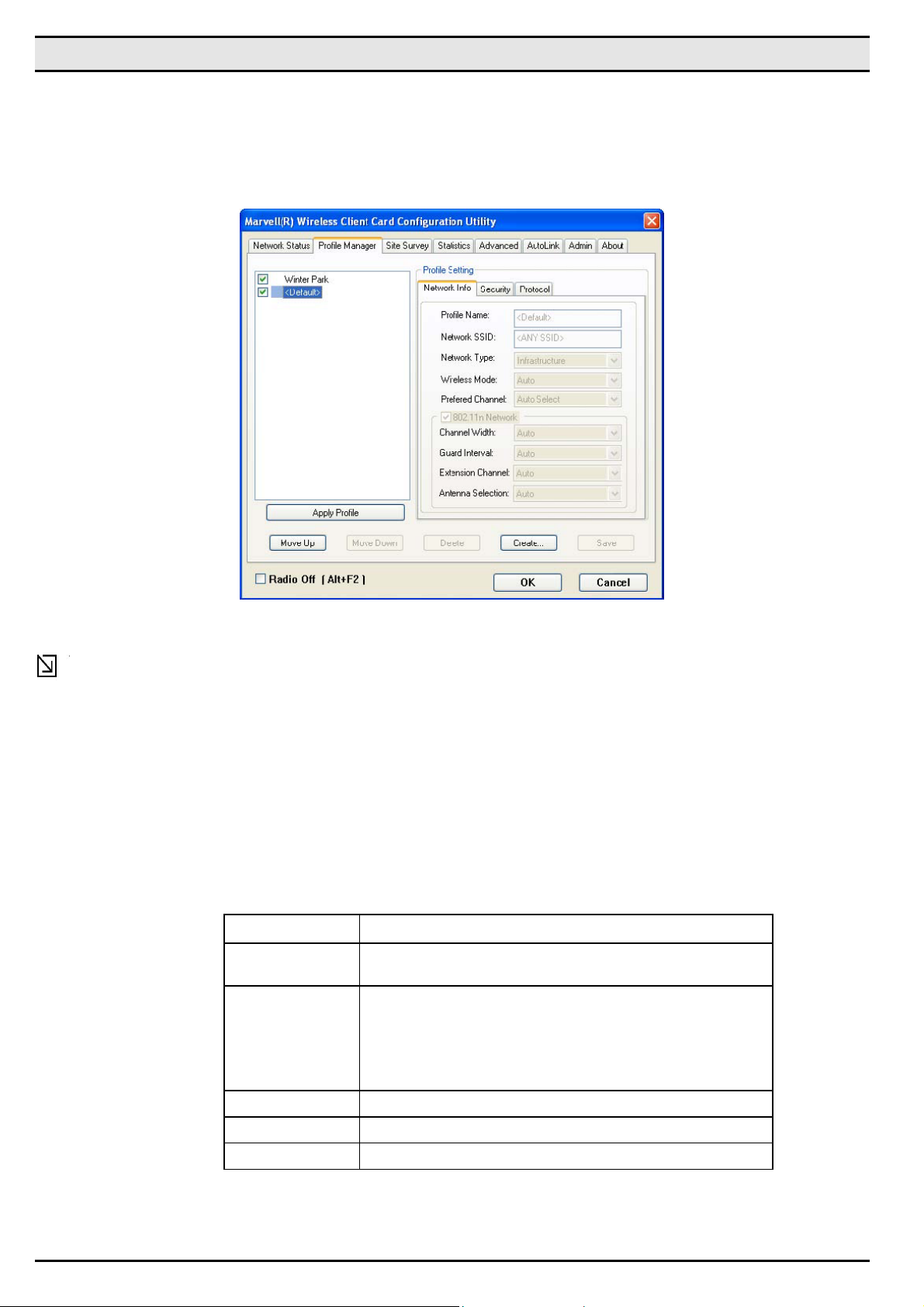

•Profile Manager—displays the current profiles and allows the user to set attributes for network type,
security options, and protocols, as well as create/modify/delete profiles.

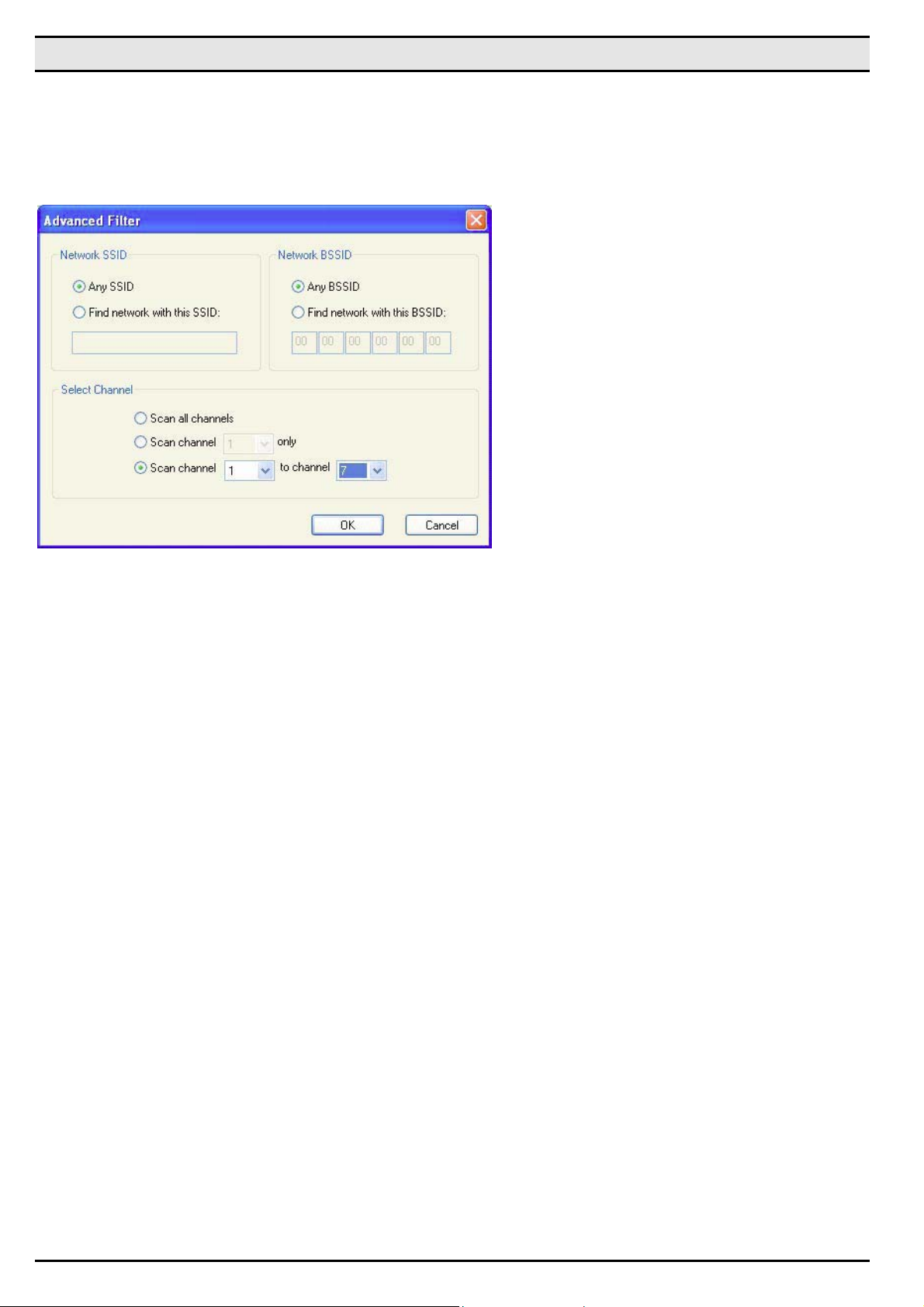

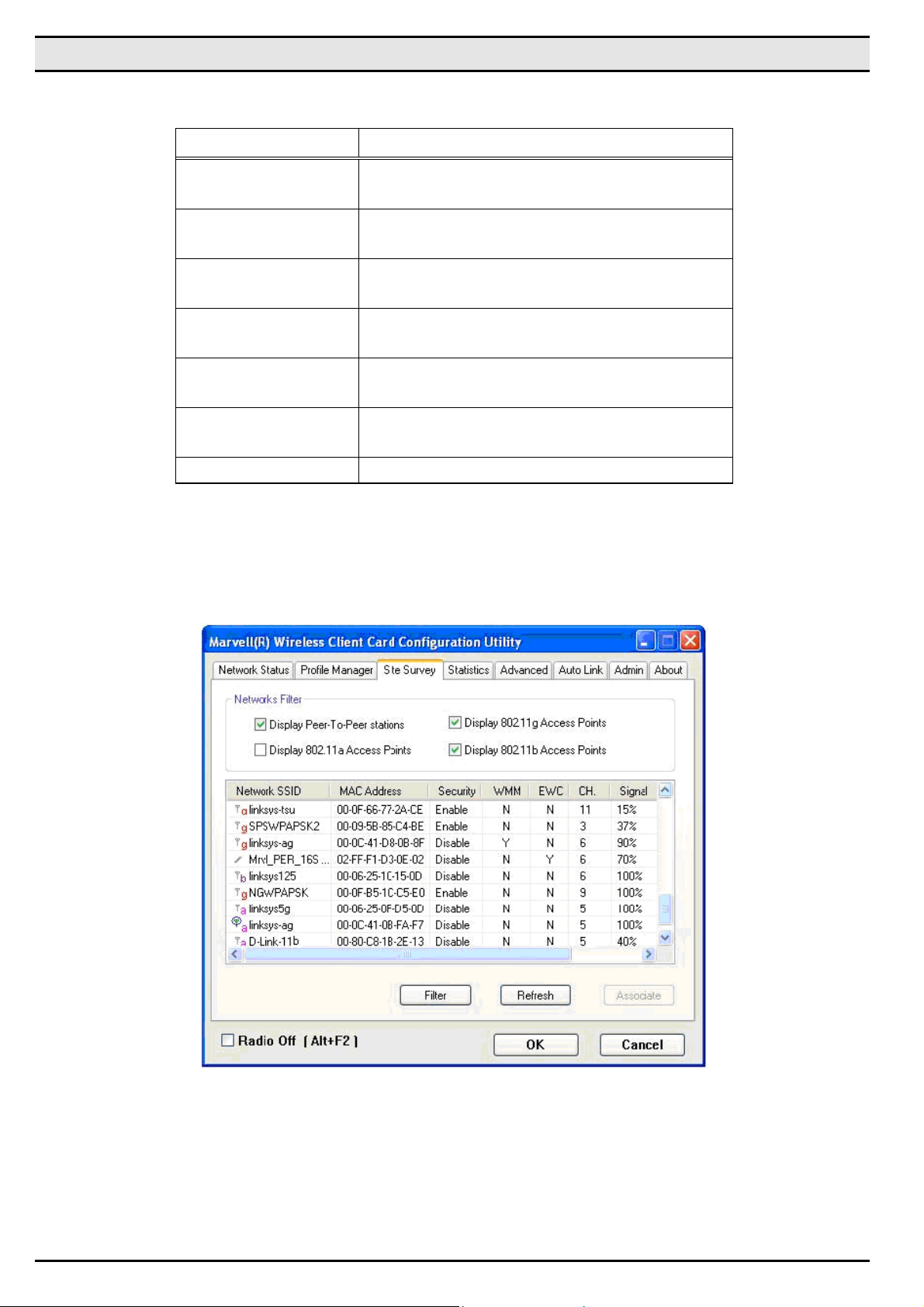

•Site Survey—displays site survey information.

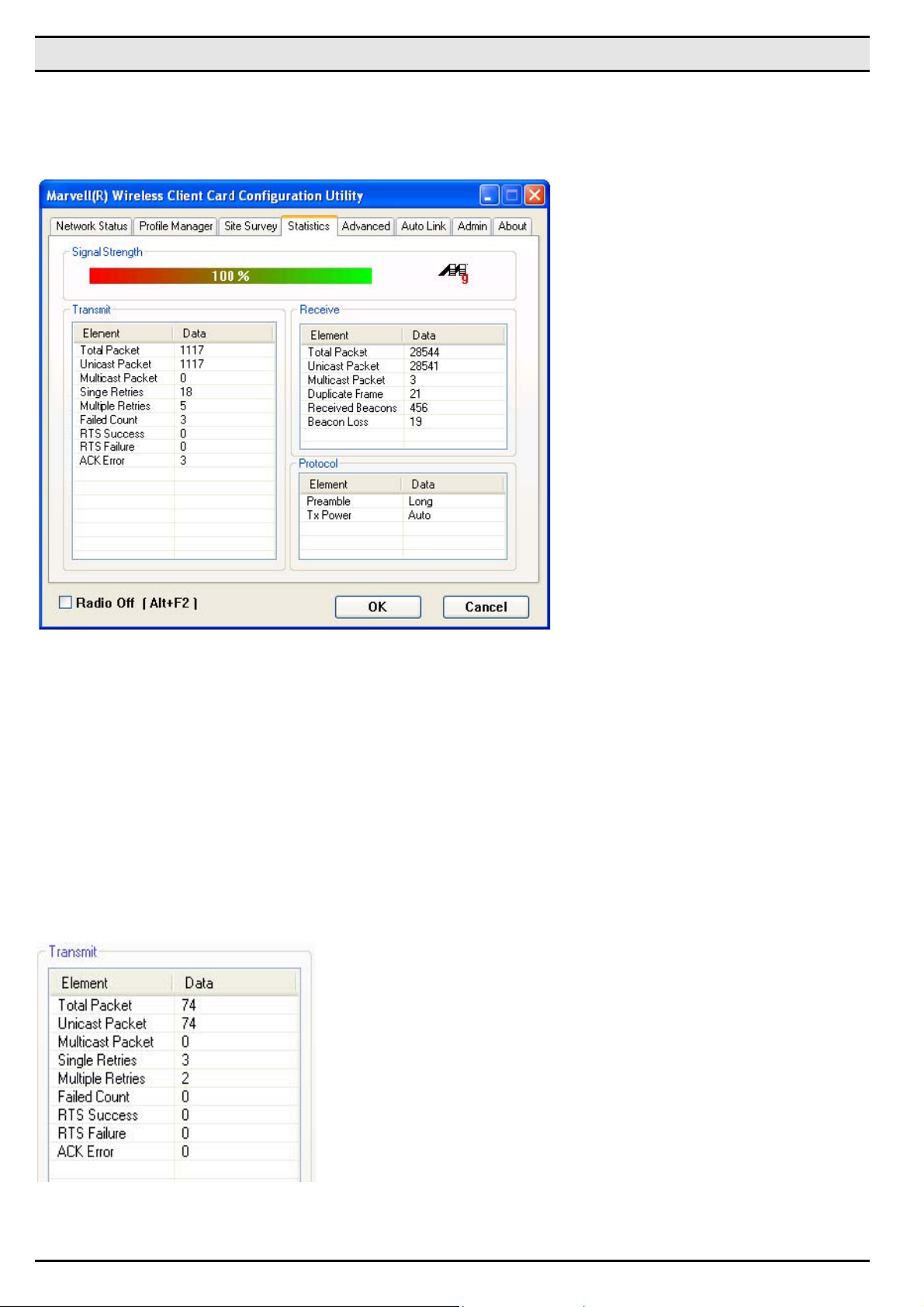

•Statistics—displays the statistics of the current session.

•Advanced—used to set protocol parameters.

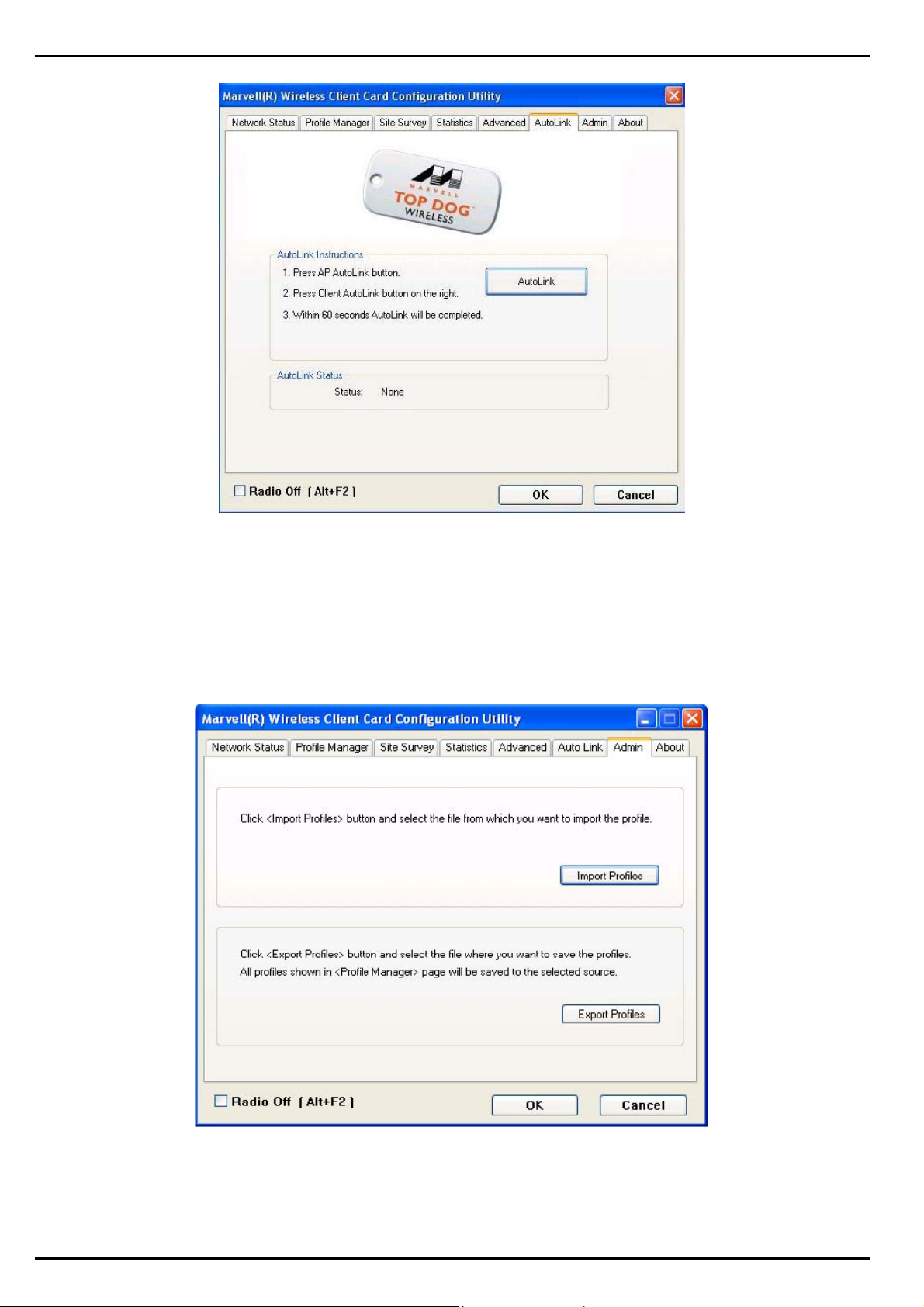

•AutoLink—to set AutoLink connection

•Admin—used to import and export profiles.

•About—provides the information for the driver version number, firmware version number, Configura-

tion Utility version number, and Medium Access Controller (MAC) address of the client card.

3.1 Network Status Tab

The Network Status tab displays the status of the network. When the Wireless client card Configuration Util­ity initializes, it displays the Network Status tab.

Figure 2 :Network Status tab

5

MM200-M / IEEE 802.11b/g MiniCard

3.1.1 Select Profile

The Select Profile section displays the name of the profile in use. Additional information about the profile is
provided in the Profile Manager.

Select one of the profiles previously defined by clicking the down arrow and highlighting a profile from the
pull-down list.

Figure 3: Select Profile

Profiles are created, modified, and deleted through the ProfileManager.

Note

This feature is disabled when Windows Zero Configuration Utility is enabled.

3.1.2 Link Information

The Link Information section contains the current information about the wireless connection.

Figure 4: Link Information Section

Table 2:Link Information

Field Description

Status Status of the wireless network connection:

Network SSID

• Card Unplugged Client card is not plugged in, or client card

is plugged in but not recognized.

• Connected

Client card is plugged in and connected to a wireless network.

• No Connection

Client card is plugged in, but no wireless connection.

• No Radio

Client card is plugged in, but the radio is turned off. Clear the

Radio Off check box to turn the radio on.

• Scanning for Scanning for available APs and wireless sta-

tions in the area.

• Waiting for peer Waiting for a peer station to connect to the

wireless network (Ad-Hoc network only).

Network SSID label (i.e., Network Name). The Network Name is
a text string of up to
32 characters.

6

Field Description

Network Type Type of environment connected to:

• Infrastructure Mode In this mode, wireless clients send and
receive information through APs. When a wireless client com­municates with another, it transmits to the AP. First the AP
receives the information and rebroadcasts it, then other devices
receive the information. The APs are strategically located within
an area to provide optimal coverage for wireless clients. A large
WLAN uses multiple APs to provide coverage over a wide area.
APs can connect to a LAN through a wired Ethernet connection.
APs send and receive information from the LAN through the
wired connection.

• Ad-Hoc Mode In this mode, wireless clients send and receive

information to other wireless clients without using an AP. This
type of WLAN only contains wireless clients. Use Ad-Hoc mode
to connect network computers at home or in small office, or to
set up a temporary wireless network for a meeting.

Network BSSID Network Basic Service Set Identifier. The BSSID is a 48-bit

identity used to identify a particular BSS within an area. In Infra­structure BSS networks, the BSSID is the MAC

Security

Tx/Rx Rates Current Tx Rate and Rx Rate of the channel being monitored.

address of the AP. In independent BSS or Ad-Hoc networks,
the BSSID is generated randomly.

Reports the type and level of security set. The security level is
set through the Profile
Setting of the Profile Manager tab. Configure security settings
also through the Site

Survey tab when connecting to a network.

3.1.3 Signal Strength / Wireless Mode Indicator

Appendix B Error Messages of Enabler Program

The color-coded Signal Strength bar displays the signal strength of the last packet received by the client

card.

Figure 5: Signal Strength

Signal strength is reported as a percentage. A signal in the red indicates a bad connection. A signal in the
green indicates a good connection.
The Wireless Mode indicator shows the data rates the client card operates. There are two modes:
. • 802.11b
. • 802.11g (backward compatible to 802.11b)

7

MM200-M / IEEE 802.11b/g MiniCard

3.1.4 Internet Protocol (TCP/IP)

The Internet Protocol specifies the format of packets, also called datagrams, and the addressing scheme.
Most networks combine IP with a higher-level protocol called TCP, which establishes a virtual connection be­tween a destination and a source.

Figure 6:Internet Potocol Section

Table 3 Internet Protocol Section Description

Field Description

DHCP Option Dynamic Host Configuration Protocol. Either enabled or dis-

abled.

IP Address

Subnet Mask

Default Gateway The default node on a network that serves as an entrance to

An identifier for a computer or device on a TCP/IP network. The
format of an IP address
is a 32-bit numeric address written as four numbers separated
by periods. Each number
can be 0 to 255.

A mask used to determine what subnet an IP address belongs
to. An IP address has two
components, the network address and the host address. The
first two numbers represent the Class B network address, and
the second two numbers identify a particular host on
this network.

another network. In enterprises, the gateway is the computer
that routes the traffic from a workstation to the outside network
that is serving the Web pages. In homes, the gateway is the ISP
that connects the user to the Internet.

3.1.5 Actual Throughput Performance

This section of the Network Status tab displays the Current Tx Rate and the Current Rx Rate of the channel
being monitored.

Figure 7: actual throughput diagrams
