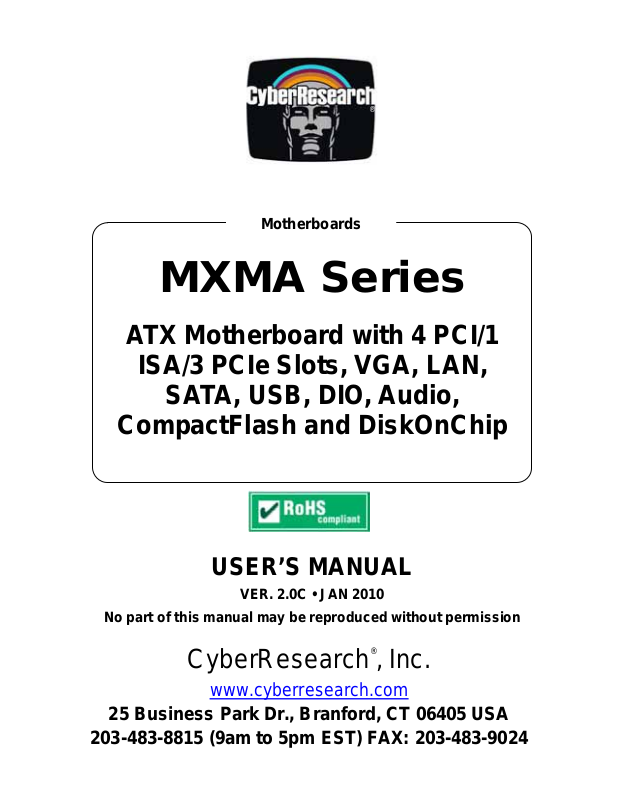

CyberResearch MXMA series User Manual

Page 1
Motherboards
MXMA Series
ATX Motherboard with 4 PCI/1
ISA/3 PCIe Slots, VGA, LAN,
CompactFlash and DiskOnChip
®
USER’S MANUAL
VER. 2.0C • JAN 2010
No part of this manual may be reproduced without permission
CyberResearch®,Inc.
www.cyberresearch.com
25 Business Park Dr., Branford, CT 06405 USA
203-483-8815 (9am to 5pm EST) FAX: 203-483-9024
Page 2
Page 3
CyberResearch® Motherboards MXMA Series
©Copyright 2010
All Rights Reserved.
January 19, 2010
The information in this document is subject to change without prior notice in order to improve reliability, design, and function and does not represent a commitment on the part of CyberResearch, Inc.
In no event will CyberResearch, Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of or inability to use the product or documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of CyberResearch, Inc.
Trademarks
“CyberResearch,” and “MXMA Series,” are trademarks of CyberResearch, Inc. Other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
• NOTICE •
CyberResearch, Inc. does not authorize any CyberResearch product for use in life support systems, medical equipment, and/or medical devices without the written approval of the President of CyberResearch, Inc. Life support devices and systems are devices or systems which are intended for surgical implantation into the body, or to support or sustain life and whose failure to perform can be reasonably expected to result in injury. Other medical equipment includes devices used for monitoring, data acquisition, modification, or notification purposes in relation to life support, life sustaining, or vital statistic recording. CyberResearch products are not designed with the components required, are not subject to the testing required, and are not submitted to the certification required to ensure a level of reliability appropriate for the treatment and diagnosis of humans.
CyberResearch, Inc. 1
25 Business Park Drive P: (203) 643-5000; F: (203) 643-5001 Branford, CT USA www.cyberresearch.com
Page 4
MXMA Series CyberResearch® Motherboards
Revision History
Revision # Description Date of Issue
1.0 Initial Release May 30th 2006
2.0C Revision January 19, 2010
2 ©Copyright 2010 CyberResea
rch, Inc.
Page 5
CyberResearch®Motherboards MXMA Series
Packing List
Please check package component before you use our products.
Hardware:
MXMA industrial motherboard x 1
Cable Kit:
40-pin ATA100 IDE flat cable x 1
Serial ATA ribbon cable x 2
I/O Shield x 1
Other Accessories:
Drivers CD (including User’s Manual) x 1 User’s Manual x 1
COM port Cable x 1
CyberResearch, Inc. 3
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 6
CyberResearch
®
Motherboards MXMA Series
Index
Chapter1 <Introduction>......................................................................................7
1.1 <Product Overview>.................................................................................7
1.2 <Product S pecification>...........................................................................8
1.3 <Component Placement> ......................................................................10
1.4 <Block Diagram>.................................................................................... 1 1
1.5<Mechanial Drawing>………………………………………….......12
Chapter 2 <Hardware Setup>.............................................................................13
2.1 <Connector Location>............................................................................13
2.2 <Jumper Reference> .............................................................................14
2.3 <Connector Reference>.........................................................................15
2.3.1 <Internal Connectors>................................................................15
2.3.2 <External Connectors>...............................................................15
2.4 <CPU and Memory Setup>....................................................................16
2.4.1 <CPU installation>......................................................................16
2.4.2 <Memory installation> ................................................................17
2.5 <CMOS Setup>......................................................................................18
2.6 <Enhanced IDE interface>.....................................................................19
2.7 <Serial ATA installation>.........................................................................20
2.8 <Floppy Installation>..............................................................................21
2.9 <LAN installation>..................................................................................22
2.10 <Audio Installation>..............................................................................23
2.11 <Display Installation>...........................................................................25
2.12 <IEEE1394 and USB Installation>.......................................................26
2.13 <Power and Fan Installation> ..............................................................28
2.14 <GPIO interface>.................................................................................30
2.15 <Serial Port> ........................................................................................31
2.16 <Switch and Indicator>.........................................................................32
CyberResearch, Inc. 4
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 7
CyberResearch
®
Motherboards MXMA Series
2.17 <Expansion Interface>.........................................................................33
Chapter 3 <System Configuration>...................................................................35
3.1 <SATA configuration>.............................................................................35
3.2 <SATA RAID Configuration>..................................................................38
3.3 <Audio Configuration> ...........................................................................42
3.4 <Video Memory Setup> .........................................................................43
3.5 <Display Properties Setting>..................................................................45
Chapter 4 <BIOS Setup> .................................................................................... 47
Appendix A <I/O Port Pin Assignment>............................................................49
A.1 IDE Port .................................................................................................49
A.2 <Serial ATA Port>...................................................................................49
A.3 <Floppy Port> ........................................................................................50
A.4 <IrDA Port>............................................................................................50
A.5 <Serial Port>..........................................................................................51
A.6 <VGA Port>............................................................................................51
A.7 <LAN Port>............................................................................................52
A.8<SMbus>………………………………………………………………………52 A.9<LPT Port>……………………………………… ………… ……………..……53
Appendix B <System Resources>……………………………………………………54
B.1 I/O Port Address Map......................................................................54
B.2 Memory Address Map.....................................................................56
B.3 System IRQ&DMA Resources…………………………………..…….57
Appendix C <How to setting RS-422/485>………………………………………..58 Appendix D
<Flash BIOS>............................
.....................................................59
Appendix E <Programming GPIO's>………………………………………………60 Appendix F
<Watchdog Timer Setting>……
…………………………...…
………61
CyberResearch, Inc. 5
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 8
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc. 6
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 9
CyberResearch®Motherboards MXMA Series
Chapter1 <Introduction>
1.1 <Product Overview>
MXMA is based on a motherboard built with Intel desktop technology and an industrial
form factor. Using the Intel 945G and ICH7R, the board integrates a new Pentium 4 processor 775-pin socket, DDR2 memory slot, Intel Graphic Media Accelerator 950 technology, PCI express interface and Serial ATA II with RAID function for a powerful desktop system.
Intel LGA775 processor
The Intel Pentium 4 processor now comes with a new form factor: 775-pin PLGA package, for 533/800/1066MHz front-side-bus, 2MB L2 cache, and for 90nm manufacturing technology, the PLGA processor without a pin header on the solder side of the board makes for easier intstallation.
Intel 945G and ICH7R chipset
The Intel 945G integrates DDR2 400/533/667MHz for memory, and Graphic Media Accelerator (GMA) 950 technology for a new graphic engine. It can provide up to 224MB of frame buffer when you install it over 256MB of system memory. The ICH7R integrates with up to 8 USB2.0 interfaces, and serial ATA II interface with RAID functionality.
One Marvell E8053
One Gigabit LAN with Marvell E8053, the MXMA comes with powerful network functionality for fast and large data transfer; ideal for a NAS system or Server platform.
PCI-Express interface
MXMA integr ates one x16, x4 and x1 PCI-Express interface, it can provide up to 8GB/s of bandwidth ( AGP 8x can only provide up to 2GB/s).
Multimedia interfaces
MXMA also integrates 7.1 channel HD audio, PCI-Express, PCI and ISA interface, for these
flexible function, system integrator can built more powerful systems for many applications.
CyberResearch, Inc. 7
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 10
CyberResearch®Motherboards MXMA Series
1.2 <Product Specification>
General Specification
Form Factor Industrial motherboard CPU IntelPentium 4 /Pentium D/ Celeron D/ Core 2 Duo
processor with LGA775 package type: 775 pin PLGA Front side bus: 533/800/1066MT/s (133/200/266MHz x 4) Intel Hyper-Threading Technology and Dual Core supported
Memory 4 x 240-pin DDR2 400/533/667MHz SDRAM up to 4GB
Up to 8GB/s of bandwidth with dual-channel interleaved mode Dual-Channel technology supported
Unbufferred, none-ECC memory supported only Chipset Intel 945G (Northbridge) and ICH7R (Southbridge) BIOS Phoenix-Award v6.00PG 4Mb PnP flash BIOS Green Function Power saving mode includes doze, standby and suspend modes.
ACPI version 1.0 and APM version 1.2 compliant Watchdog Timer System reset programmable watchdog timer with 1 ~ 255
sec./min. of timeout value Real Time Clock Intel ICH7R built-in RTC with lithium battery Enhanced IDE Enhanced IDE interface supports dual channels and up to 2
ATAPI devices at Ultra DMA100
One 40-pin IDE port onboard Serial ATAII Intel ICH7R integrates 4 Serial ATA II interface
RAID 0, 1,5,10 Intel Matrix Storage Technology supported
Multi-I/O Port
Chipset Intel 82801GR ICH7R with Winbond W83627THG controller Serial Port Five internal RS-232 and one external RS-232 serial port USB Port Eight Hi-Speed USB 2.0 ports with 480Mbps of transfer rate Parallel Port One LPT port on rear I/O panel Floppy Port One Floppy port IrDA Port One IrDA compliant Infrared interface supports SIR K/B & Mouse External PS/2 keyboard and mouse ports on rear I/O panel GPIO One 12-pin Digital I/O connector with 8-bit programmable I/O
interface Smart Fan One CPU fan connectors for fan speed controllable
VGA Display Interface
Chipset Intel 945G GMCH (Graphic Memory Controller Hub) Core Frequency 400MHz Memory Intel DVMT 3.0 with up to 224MB shared with system memory Display Type CRT, LCD monitor with analog display Connector External DB15 female connector on rear I/O panel
CyberResearch, Inc. 8
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 11
CyberResearch®Motherboards MXMA Series
Ethernet Interface
Chipset 10/100/1000MT LAN interface with Marvell E8053 Type 10Base-T / 100Base-TX/1000Base-T,
auto-switching Fast Ethernet Full duplex, IEEE802.3U compliant
Connector one External RJ45 connectors with LED on rear I/O panel
Audio Interface
Chipset Intel ICH7R with Realtek ALC880 codec
Intel High Definition Audio compliance Interface 7.1 channels sound output Connector External Audio phone jack for Line-out, Line-in, MIC-in, Surround,
Center and Backsurround
Onboard audio connector with pin header (built-in amplifier for
speaker out)
Onboard CD-IN and S/PDIF connector
Expansive Interface
PCI-Express One x16 PCI-Express slot (compatible with x1 slot)
One x4 PCI-Express slot
One x1 PCI-Express slot
Up to 8GB/s of transfer bandwidth
Power supply: +3.3V, +12V PCI Four-PCI slot (32-bit, 33MHz)
Power supply: +3.3V, +5V ISA One ISA slot
Power and Environment
Power Requirement
Standard ATX 24-pin (20-pin is compatible) power supply
Additional +12V 8-pin(4-pin is compatible) power connector Dimension 307mm x 244mm (L x W) Temperature Operating within 0 ~ 60oC (32 ~ 140oF)
Storage within -20 ~ 85
o
C (-4 ~ 185oF)
Ordering Code
MXMA Supports Intel Pentium 4 LGA775 with DDRII, Onboard VGA, One
Marvell Gigabit LAN ,8 x USB2.0, Realtek ALC880 HD Audio, 6 x COM Ports, GPIO, SATA, CF and ISA slot.
The specifications may vary slightly from your model. For further detail visit our website: http://www.cyberresearch.com
CyberResearch, Inc. 19
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 12
CyberResearch®Motherboards MXMA Series
1.3 <Component Placement>
ATX
DIMM
CF
COM port
SATA II
PCI
PS2
LPT
Serial port VGA
PCI-Express
LAN
Audio
ISA DOC
CyberResearch, Inc. 10
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 13
CyberResearch®Motherboards MXMA Series
1.4 <Block Diagram>
Intel Pentium 4 with 775 pin PLGA processor
6.4GB/s
Intel GMA950 Graphics
PCI-Express 16x
8GB/s
SMBus 2.0
8 x USB2.0 ports
1 x IDE
ALC 880 AC97 7.1CH Codec
Intel 945G
GMCH
DMI2GB/s
ICH7R
4 x 240-pin DDR2 400/533/667MHz up to 4GB
4 x Serial ATA II ports
300MB/s
1 x Marvell E8053
Gigabit LAN
4x & 1x PCI-Express
4 x PCI bus
6 x Serial ports
1 x Floppy port
BIOS
8-bit GPIO
1 x LPT Port
1 x ISA bus
CyberResearch, Inc. 11
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 14
CyberResearch®Motherboards MXMA Series
1.5 <Mechanical Drawing >
CyberResearch, Inc. 12
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 15
CyberResearch®Motherboards MXMA Series
Chapter 2 <Hardware Setup>
2.1 <Connector Location>
CPUFAN
ATX
IDE1 FDD
CF
JP2
JCSEL1 JCSEL2
SYSFAN JFRNT CN_ Audio
CN_DIO
JRTC
CN_USB1/2
CN_IR
CN_12V JP1
CD_IN SPDIF
NBFAN CN_SMBUS
DOC
JDOC
ISA
CyberResearch, Inc. 13
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 16
CyberResearch®Motherboards MXMA Seriess
2.2 <Jumper Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting JCFSEL Compact Flash Address Setting JCSEL1 Setting RS232/422/485 JCSEL2 Setting RS232/422/485 JDOC Setting address JP1 Setting COM Port Voltage JP2 Setting COM Port Voltage
JCFSEL JP2 JCSEL1
JP1
JRTC JCSEL2
JDOC
CyberResearch, Inc. 14
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 17
CyberResearch®Motherboards MXMA Series
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU LGA775 CPU socket Standard DDRII1/2/3/4 240 -pin DDR2 SDRAM DIMM socket Standard IDE1 40-pin primary IDE connector Standard FDD 34-pin floppy connector Standard S_ATAII1/2/3/4 7-pin Serial ATA II connector Standard ATX 24-pin power supply connector Standard CN_12V 8-pin +12V additional power supply connector Standard CN_AUDIO 5 x 2-pin audio connector Standard CDIN 4-pin CD-ROM audio input connector Standard CN_DIO 6 x 2-pin digital I/O connector Standard CN_USB1/2 10-pin USB connector Standard CPUFAN 4-pin CPU cooler fan connector Standard SYSFAN 3-pin system cooler fan connector Standard NBFAN 3-pin Northbridge cooler fan connector Standard CN_IR 5-pin IrDA connector Standard CN_SMBUS 4-pin I2C connector Standard JFRNT 14-pin front panel switch/indicator connector Standard SPDIF Digital audio optical interface Standard DOC 32-pin DiskOnChip Socket Standard
2.3.2 <External Connectors>
Connector Function Remark
VGA DB15 VGA connector Standard USB Dual USB Port Standard COM DB7 Serial port connector Standard PS2 PS/2 Keyboard/Mouse connector Standard AUDIO Audio connectors Standard USB_RJ45_A/B Dual USB and RJ45 LAN connector Standard
CyberResearch, Inc. 15
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 18
CyberResearch®Motherboards MXMA Series
2.4 <CPU and Memory Setup>
2.4.1 <CPU installation>
MXMA has an LGA775 CPU socket onboard; please read the following steps to install
the processor properly. Attention: If the MXMA needs an RMA, please Keep CPU socket cover on the CPU Socket.
Intel Pentium 4 processor Package type: 775 pin PLGA L2 Cache: Up to 2M FSB: 533/800/1066MHz (266MHz x 4) Manufacturing: 90nm Intel Hyper Threading Technology
1. Lift this bar
And Dual core support
Check point
3. Place the CPU on the top of
2. Uncover this plate
4. Lock this bar
Note: To avoid bending CPU pins, place CPU CAREFULLY
the pins
3. Cover this plate
CyberResearch, Inc. 16
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 19
CyberResearch®Motherboards MXMA Series
2.4.2 <Memory installation>
The MXMA has Four 240-pin DDR2 DIMMs which support up to 4GB of memory capacity. The memory frequency supports 400/533/667MHz .Only Non-ECC memory is supported.
Dual-Channel technology is supported while applying two of the same modules.
DDRII4 (DIMM4) DDRII3 (DIMM3) DDRII2(DIMM2) DDRII1(DIMM1)
128-pin 112-pin
Please check the pin number to match the socket side prior to installing memory module.
CyberResearch, Inc. 17
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 20
CyberResearch®Motherboards MXMA Series
2.5 <CMOS Setup>
The board’s CMOS data can be setting in the BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values.
Jumper: JRTC Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS 2-3 Normal Operation
Default setting
1
3
JRTC
CyberResearch, Inc. 18
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 21
CyberResearch®Motherboards MXMA Series

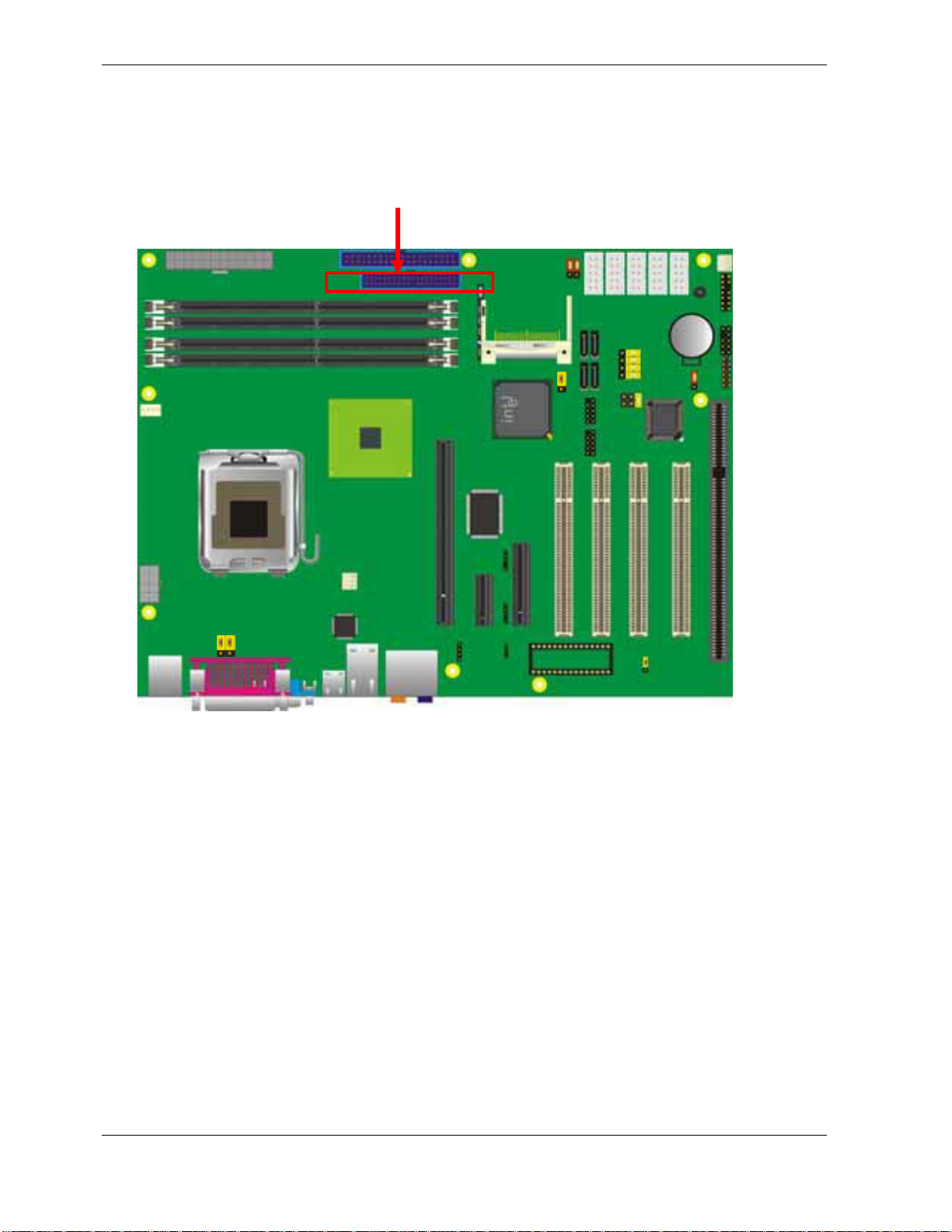

2.6 <Enhanced IDE interface>
The Intel ICH7R (south bridge chip) supports one enhanced IDE interface, dual channel for two ATAPI devices with ATA100. Based on this function, MXMA has one 40-pin IDE connector with jumper selectable for pin-20 +5V supported.
The board supports 32-pin DiskOnChip 20 00
. The onboard 32-pin socket, DOC, supports DiskOnChip2000 single chip flash disk in 32-pin DIP JEDEC with jumper selectable address on jumper JDOC.
IDE1
DOC
Jumper: JDOC
Type: onboard 3-pin header
3
JDOC
1
JDOC
JDOC DiskOnChip Address
1-2 D800h 2-3 D000h
Default setting
Jumper: JCFSEL
Type: onboard 3-pin header
3
JCFSEL
1
JCFSEL Compact Flash Address Setting
1-2 Master 2-3 Slave
Default setting
CyberResearch, Inc. 19
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 22
CyberResearch®Motherboards MXMA Series
2.7 <Serial ATA installation>
MXMA has four Serial ATA II interfaces with RAID functionality, the transfer rate of the Serial
ATA II can be up to 300MB/s. Please go to
http://www.serialata.org/ for more about Serial ATA
technology information. Based on Intel ICH7R, the MXMA supports Intel Matrix Storage Technology with a combination of RAID 0,1,5 and 10. The main features of RAID on ICH7R are listed below:
1. Intel® Matrix Storage Technology supported.
2. Support for two, two-hard drive RAID arrays on any of four Serial ATA ports.
3. Support for Serial ATA ATAPI devices.
4. Support for RAID spares and automatic rebuild.
5. Support on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the SATA configuration chapter.

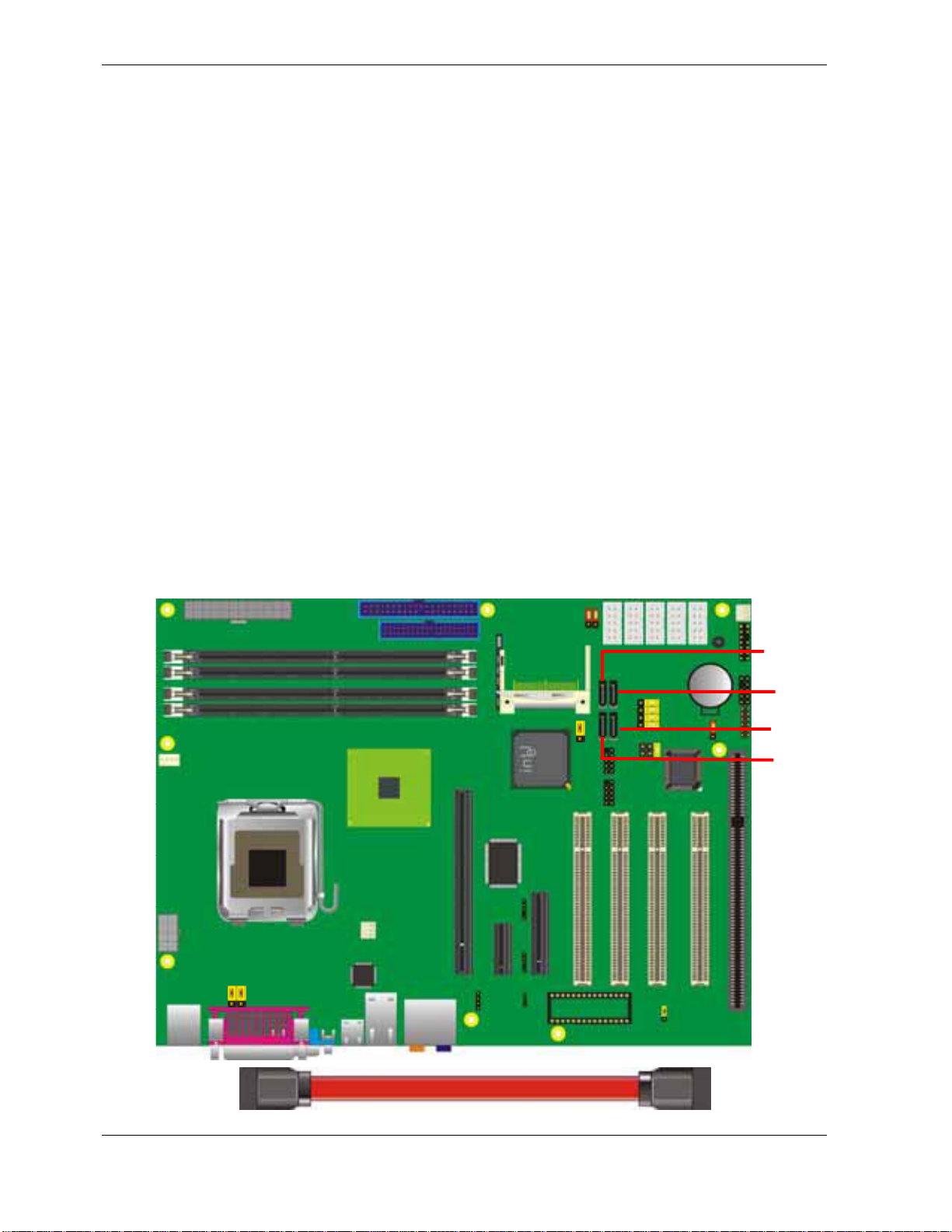

S_ATA3
S_ATA4 S_ATA2
S_ATA1
(Associate accessory)
CyberResearch, Inc. 20
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 23
CyberResearch®Motherboards MXMA Series
2.8 <Floppy Installation>
MXMA has one 34-pin floppy interface, up to 2 floppy drives.
FDD
CyberResearch, Inc. 21
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 24
CyberResearch®Motherboards MXMA Series
2.9 <LAN installation>
MXMA integrates a one Gigabit LAN interface with Marvell E8053 chipset; they provide a
standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX and 10BASE-T applications. MXMA provides one RJ45 connector on the rear I/O panel.

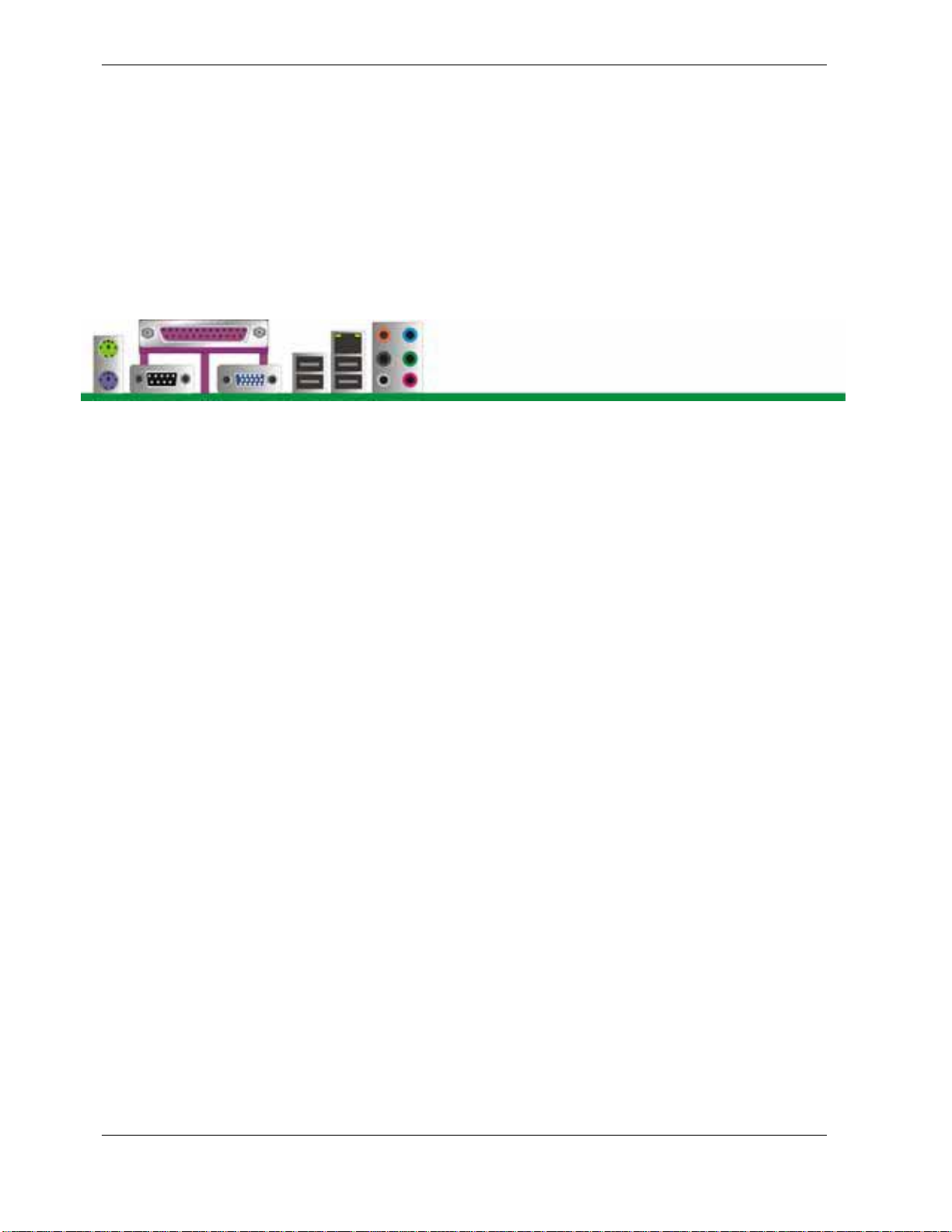

LAN
CyberResearch, Inc. 122
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 25
CyberResearch®Motherboards MXMA Series

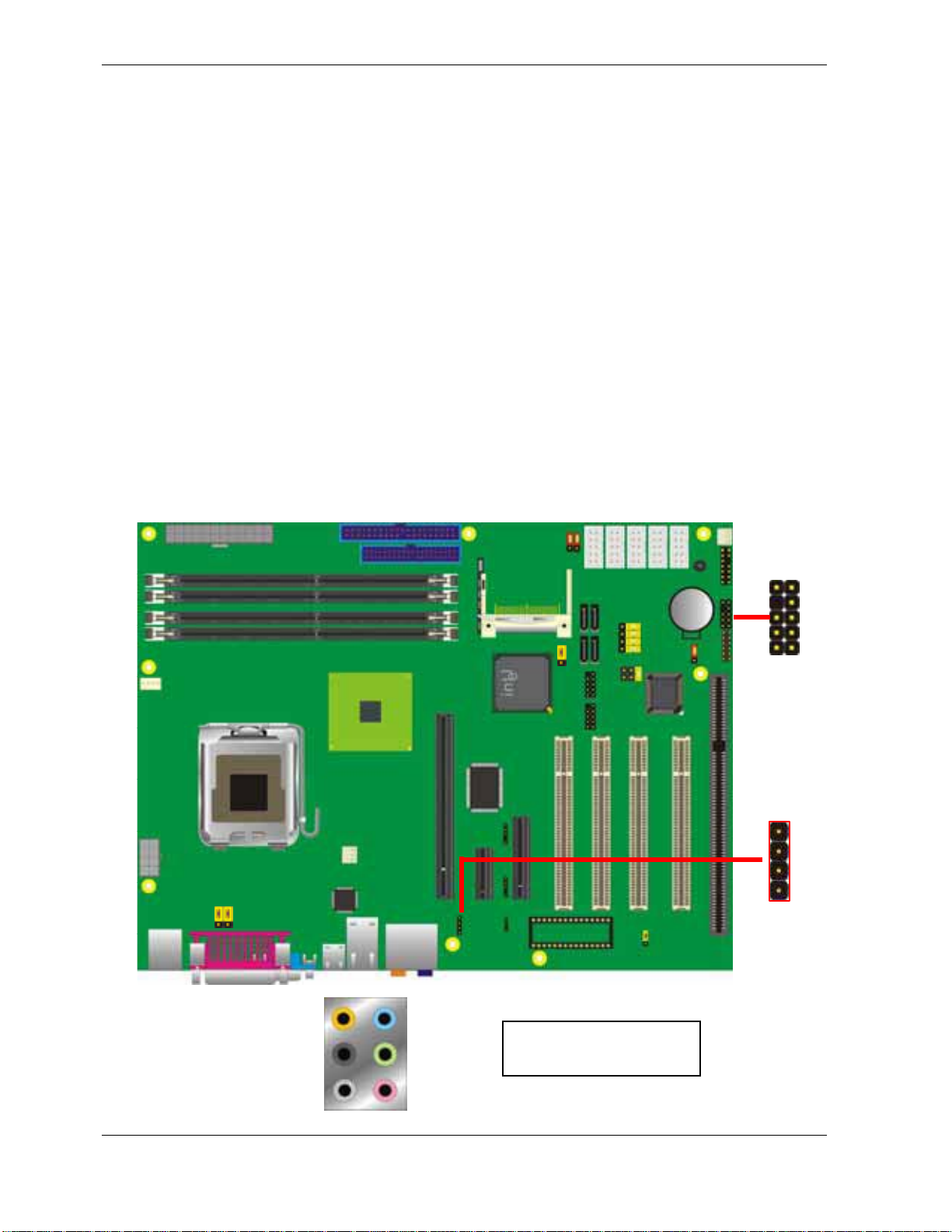

2.10 <Audio Installation>
The board integrates onboard audio interface with the REALTEK ALC880 codec, with Intel next generation audio standard High Definition Audio, it offers more vivid sound and performance than the former AC97 audio compliance. The main specifications of ALC880 are:
z High-performance DACs with 100dB S/N ratio z 8 DAC channels support 16/20/24-bit PCM format for 7.1 audio solution z 16/20/24-bit S/PDIF-OUT supports 44.1K/48K/96kHz sample rate z Compatible with AC'97 z Meets Microsoft WHQL/WLP 2.0 audio requirements
The board provides 7.1 channel, audio phone jacks on rear I/O port, and amplified speaker out and Line-in/MIC-in ports for front I/O panel through optional cable.
Center
LINE-IN
10
2
9
1
CN_AUDIO
4
1
CDIN
Rear Speaker
Side Speaker
LINE-OUT MIC-IN
Rear I/O phone jacks
CyberResearch, Inc. 123
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 26
CyberResearch®Motherboards MXMA Series
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.00mm)
Pin Description Pin Description
1 MIC_L 2 Ground 3 MIC_R 4 VCC 5 Front_R 6 MIC_JD 7 Sense 8 N/C 9 Front_L 10 Line_JD
Connector: CDIN
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1 CD – Left 2 Ground 3 Ground 4 CD – Right
Connector: SPDIF
Type: 4-pin header (pitch = 2.54mm)
Pin Description
1+5V 2N/C 3 SPDIFO 4 Ground
4
SPDIF
1
CyberResearch, Inc. 124
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 27
CyberResearch®Motherboards MXMA Series
2.11 <Display Installation>

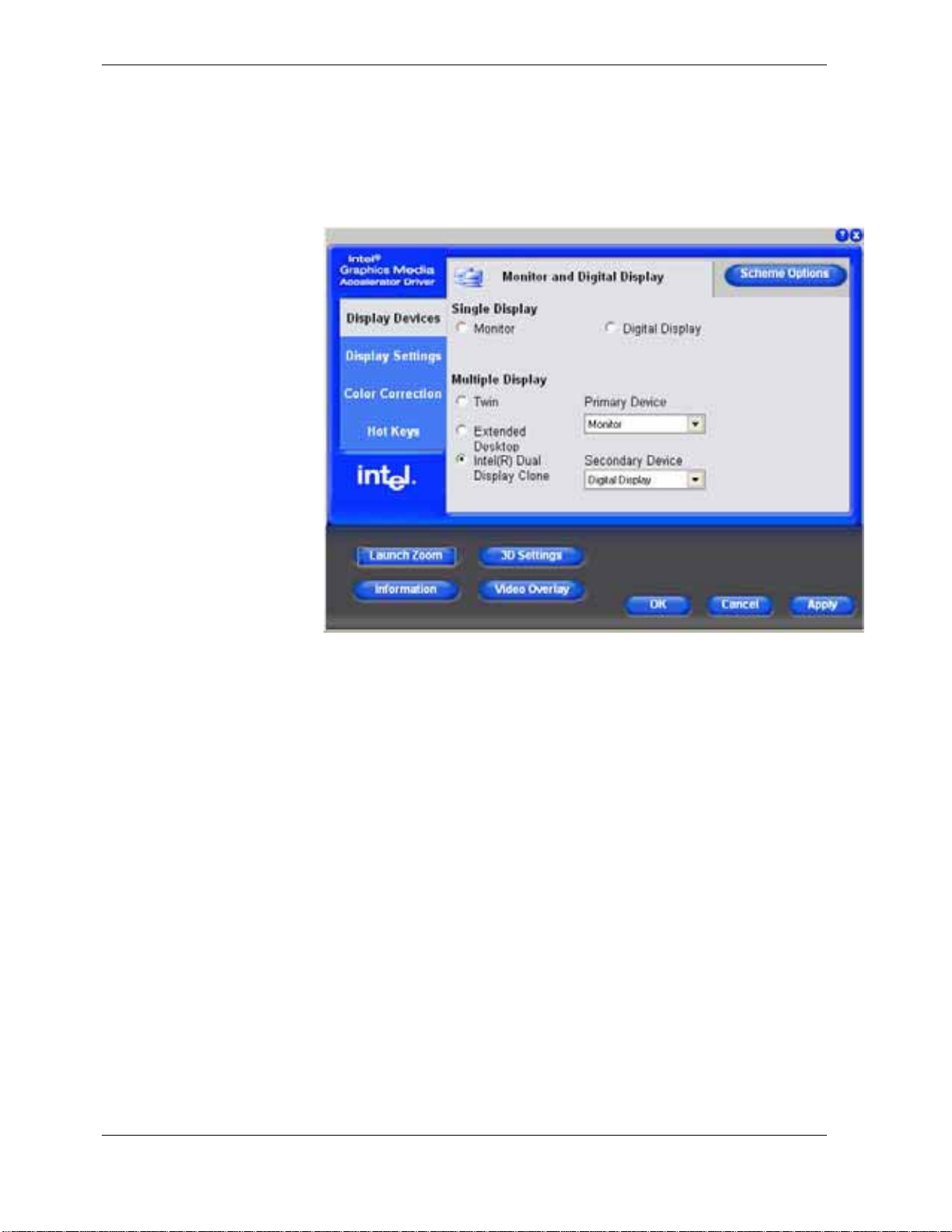

MXMA integrates Intel 945G GMCH for Intel Graphic Media Accelerator (GMA) 950
technology. It supports Intel DVMT (Dynamic Video Memory Technology) 3.0 with up to 224MB frame buffer size shared with system memory. With a 400MHz core and DirectX 9 and OpenGL acceleration, MXMA provides a powerful onboard graphics interface without an additional graphic card.
(More information please visit Intel’s website)
For more information on configuring the frame buffer size, please check the video memory configuration chapter.

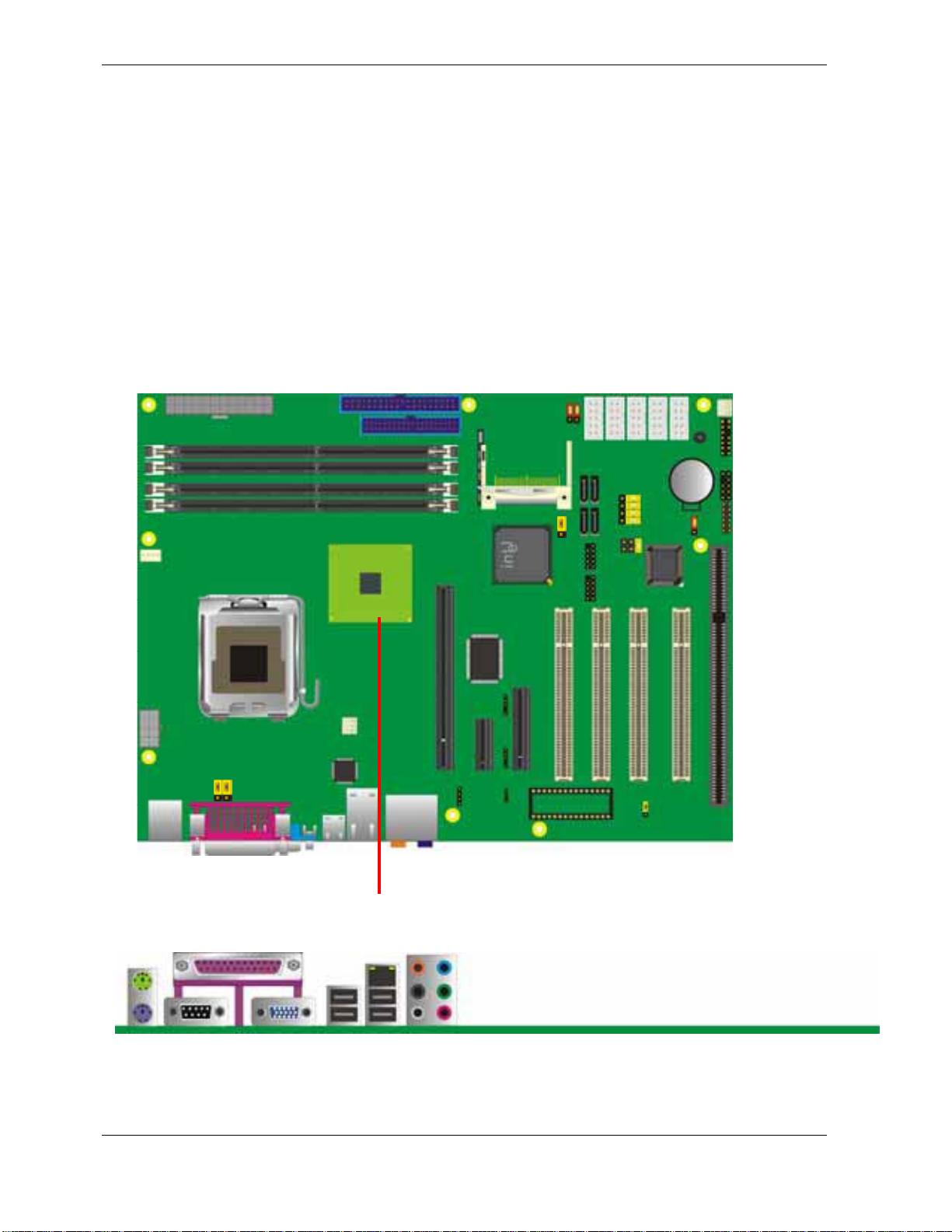

Intel 945G GMCH
VGA (DB15)
CyberResearch, Inc. 125
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 28
CyberResearch®Motherboards MXMA Series

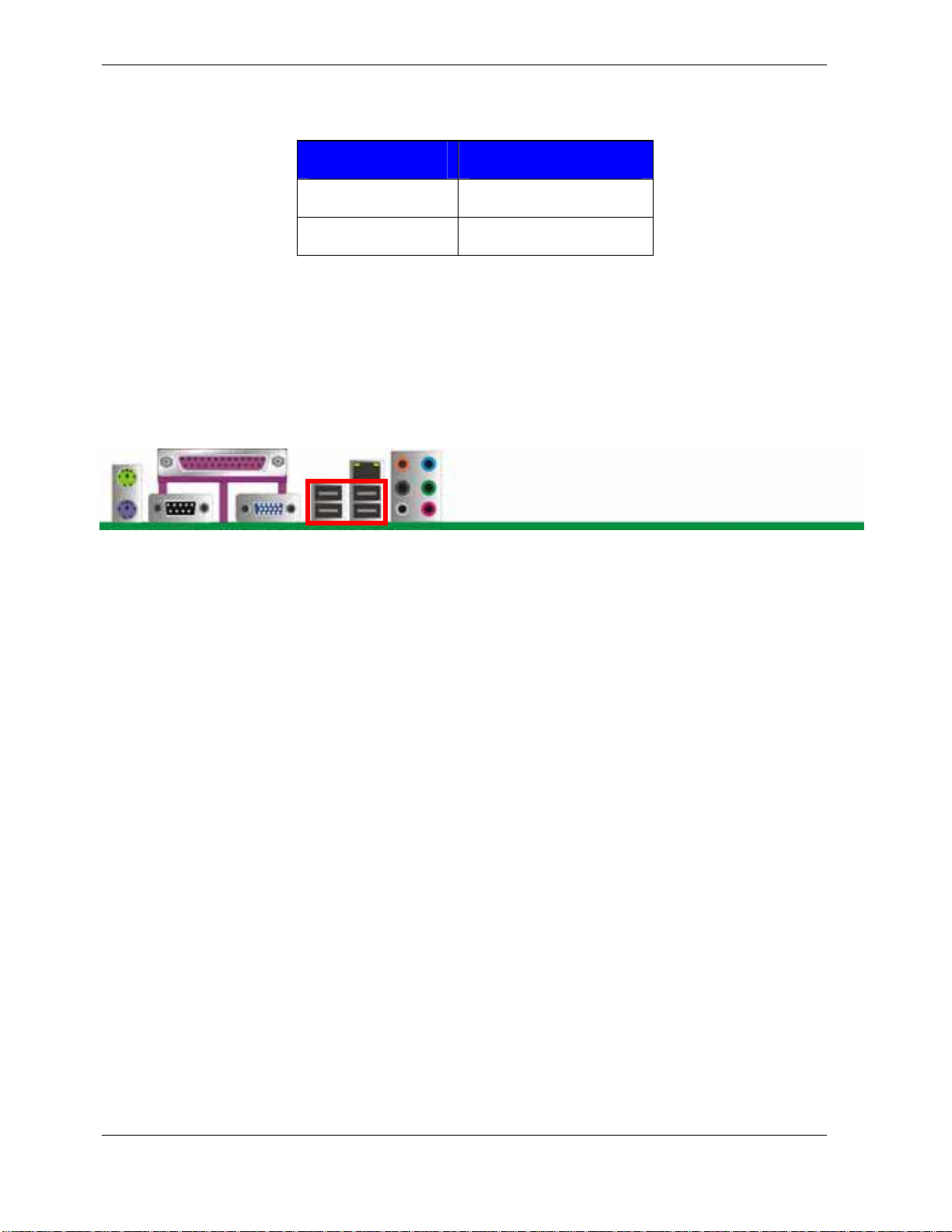

2.12 <USB Installation>
MXMA integrates eight USB 2.0 ports. The specifications USB2.0 are listed below:
Interface USB2.0
Controller Intel ICH7R
Transfer Rate Up to 480Mb/s The Intel ICH7R contains and Enhanced Host Controller Interface (EHCI) and four Universal Host Controller Interfaces (UHCI), it can determine whether your connected device compliant with USB 1.1 or USB 2.0, and change the transfer rate automatically.
USB
CyberResearch, Inc. 26
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 29
CyberResearch®Motherboards MXMA Series

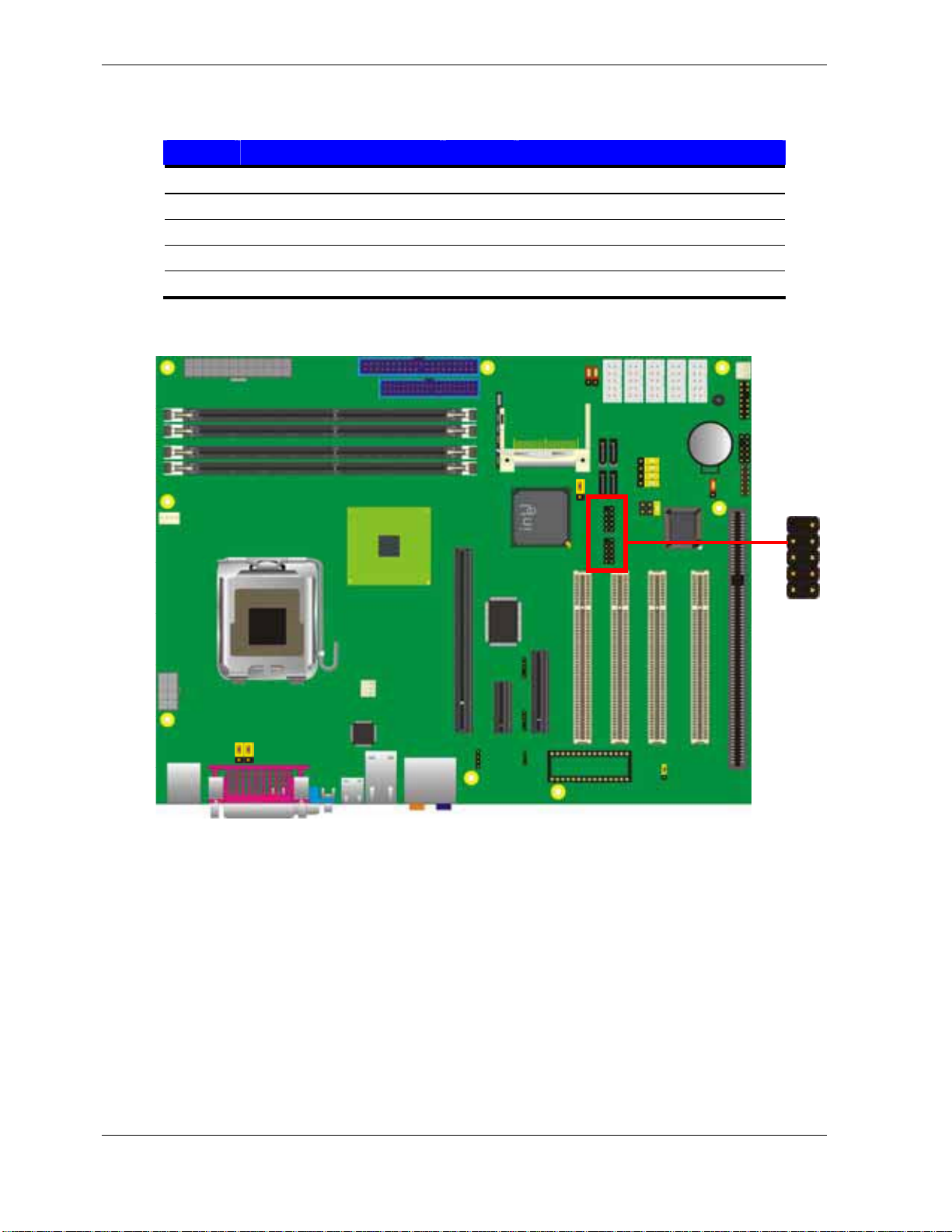

Connector: CN_USB1/2 Type: 10-pin (5 x 2) header for USB1/2 Ports
Pin Description Pin Description
1 VCC 2 VCC 3 Data0- 4 Data1­5 Data0+ 6 Data1+ 7 Ground 8 Ground 9 Ground 10 N/C
10
2
CN_USB1/2
9
1
CyberResearch, Inc. 27
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 30
CyberResearch®Motherboards MXMA Series
2.13 <Power and Fan Installation>
The MXMA provides a standard ATX power supply with 24-pin ATX connector and additional 12V connector, and the board provides one 4-pin fan connector supporting smart fan for the CPU cooler and two 3-pin cooler fan connectors for thesystem and the Northbridge chip. The 8-pin additional power connector is necessary for CPU power; please connect this before finishing the system setup.
CPUFAN
13
ATX14 1
12
24
1
3
SYSFAN
4
CN_12V
8
NBFAN
21
1
3
CyberResearch, Inc. 28
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 31
CyberResearch®Motherboards MXMA Series
Connector: ATX Type: 24-pin ATX power connector
PIN assignment
1 3.3V 13 3.3V 2 3.3V 14 -12V 3 GND 15 GND 4 5V 16 PS_ON 5 GND 17 GND 6 5V 18 GND 7 GND 19 GND 8 PW_OK 20 -5V
9 5V_SB 21 5V 10 12V 22 5V 11 12V 23 5V 12 3.3V 24 GND
Connector: CN_12V Type: 8-pin standard Pentium 4 additional +12V power connector
Pin Description Pin Description
1 Ground 2 +12V
3 Ground 4 +12V 5 Ground 6 +12V 7 Ground 8 +12V
Connector: CPUFAN Type: 4-pin fan wafer connector
Pin Description Pin Description
1 Ground 2 +12V
3 Fan Speed Detection 4 Sense
Connector: NBFAN, SYSFAN Type: 3-pin fan wafer connector
Pin Description Pin Description Pin Description
1 Ground 2 +12V 3 Sense
CyberResearch, Inc. 129
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 32
CyberResearch®Motherboards MXMA Series

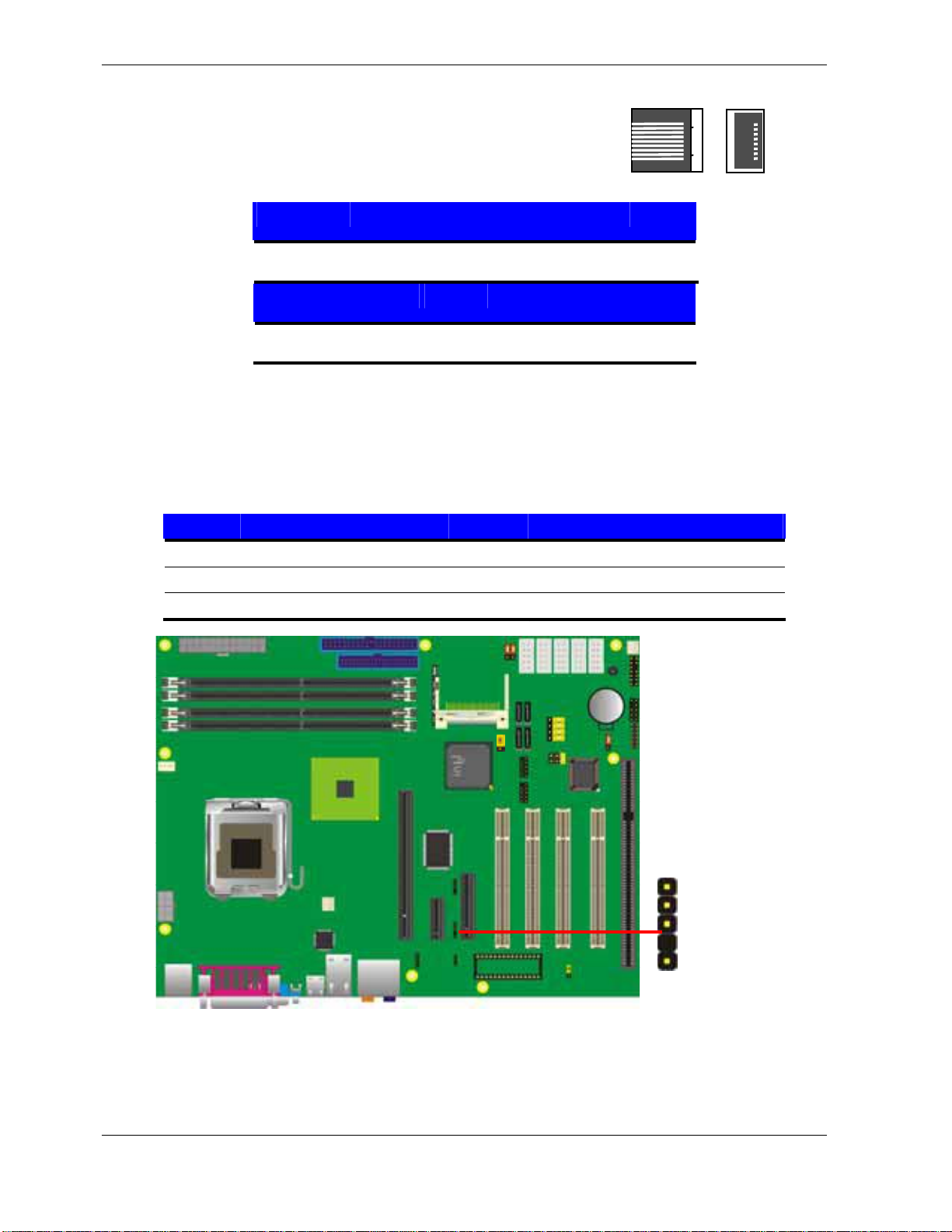

2.14 <GPIO interface>
The board provides a programmable 8-bit digital I/O interface, and a SMBus (System management bus) interface for control panel application.
Connector: CN_DIO Type: onboard 2 x 6-pin header, pitch=2.0mm
Pin Description Pin Description
1 Ground 2 Ground
3 GP10 4 GP14
5 GP11 6 GP15
7 GP12 8 GP16
9 GP13 10 GP17
11 VCC 12 +12V
11 12
2
W83627THG Assignment CN_DIO
PIN 121 GPSA2/GP17 PIN 10
PIN 122 GPSB2/GP16 PIN 8
PIN 123 GPY1/GP15 PIN 6
PIN 124 GPY2/P16/GP14 PIN 4
CN_DIO
1
PIN 125 GPX2/P15/GP13 PIN 9
PIN 126 GPX1/P14/GP12 PIN 7
PIN 127 GPSB1/P13/GP11 PIN 5
PIN 128 GPSA1/P12/GP10 PIN 3
CyberResearch, Inc. 130
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 33
CyberResearch®Motherboards MXMA Series

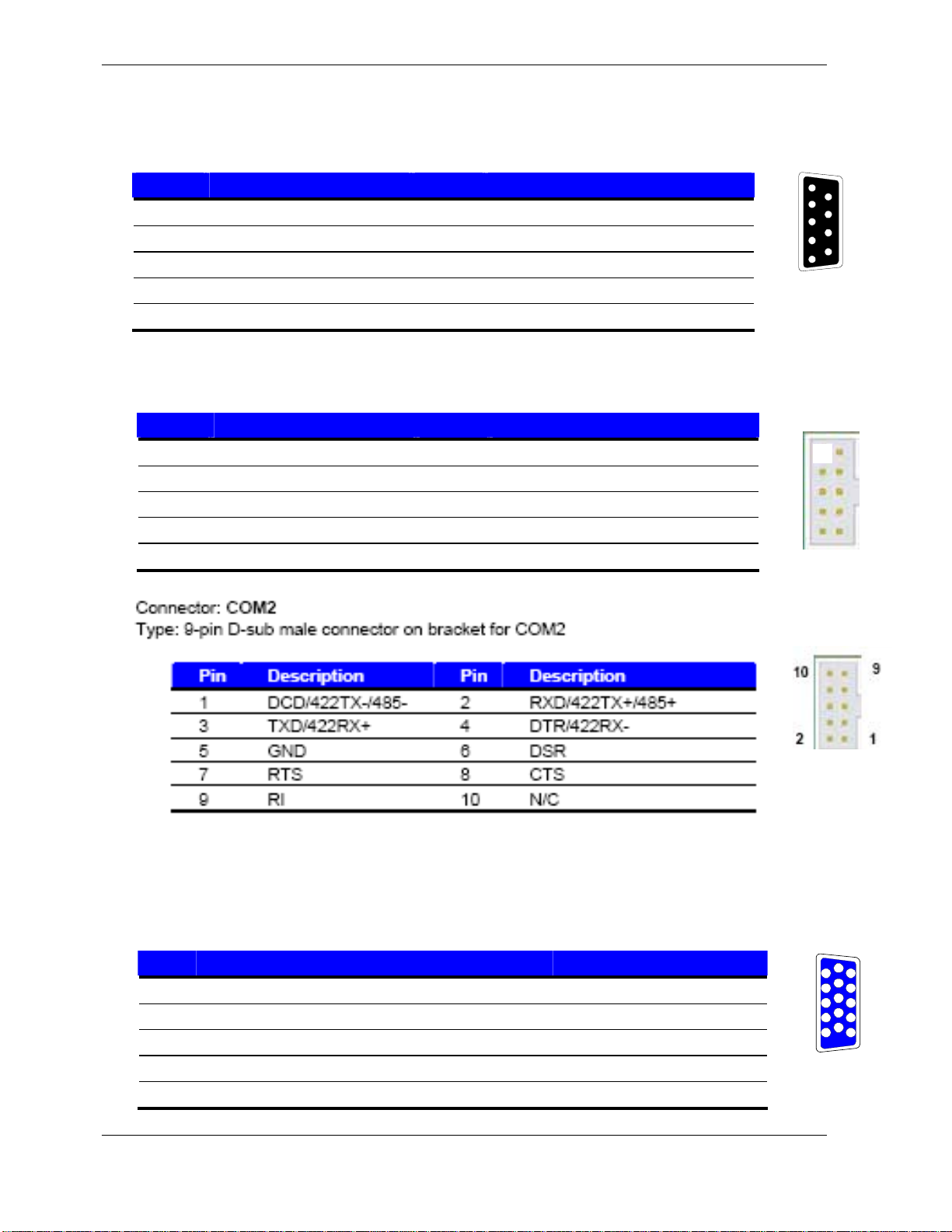

2.15 <Serial Port>
The board has one RS-232 serial port on real I/O panel, and five onboard serial ports . COM2 supports RS232/422/485. For jumper settings please refer to Page 58.
Internal Serial port
This Pin header provides: +5V/+12V for COM1/COM2 Pin1,Pin 9.
Jumper: JP1/2 Type: onboard 6-pin header
12 56
Pin Description Pin Description
1VCC 2+12V
3 COM1/2 pin1 4 COM1/2 pin9
5 MDCD1- 6 MRI2-
COM1
CyberResearch, Inc. 31
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 34
CyberResearch®Motherboards MXMA Series

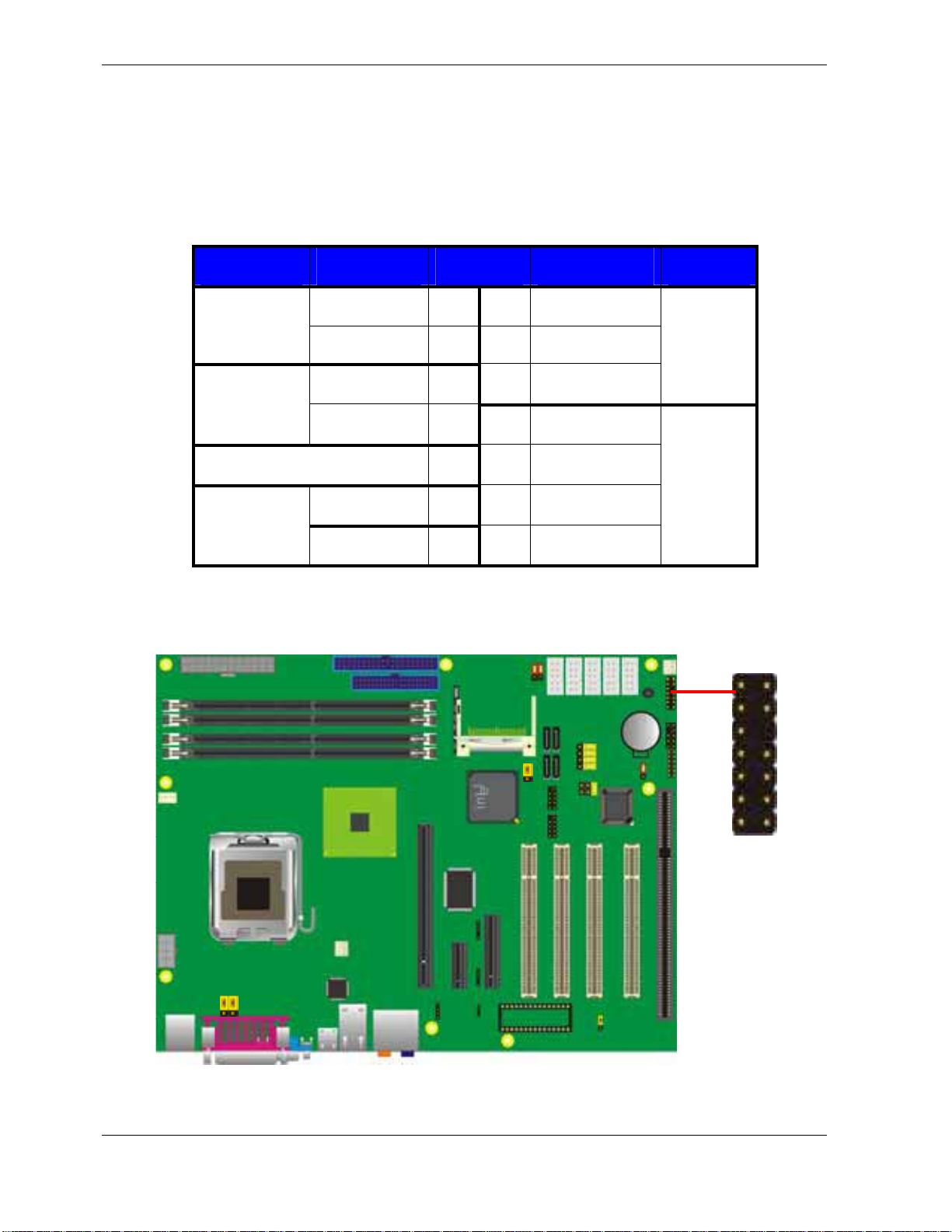

2.16 <Switch and Indicator>

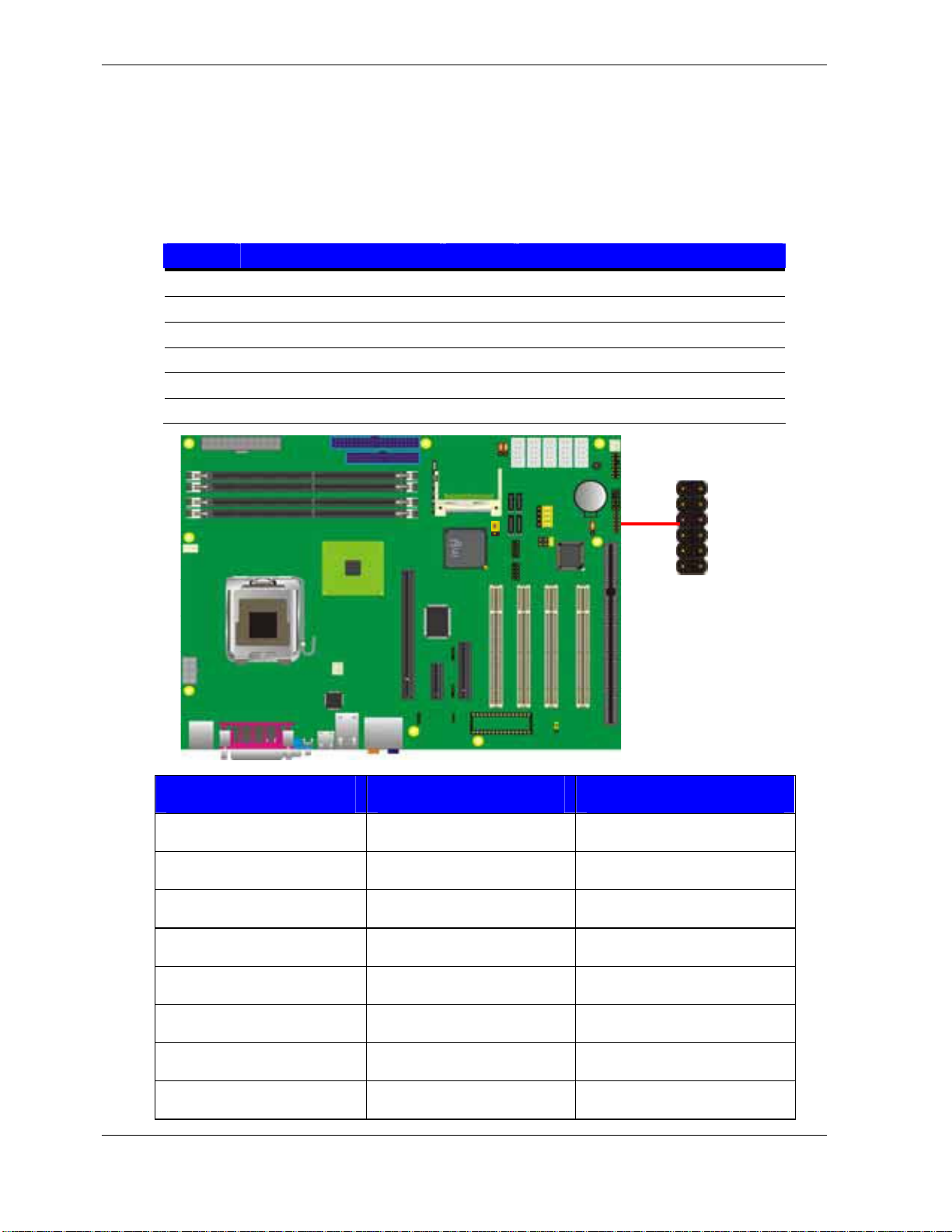

The JFRNT provides front control for a chassis, such as power button, reset and beeper, etc.
Connector: JFRNT Type: onboard 14-pin (2 x 7) 2.54-pitch head er
Function Signal PIN Signal Function
HDLED+ 1 2 PWDLED+
IDE LED
Reset
Power
HDLED- 3 4 N/C
Reset+ 5 6 PWDLED-
Reset- 7 8 SPKIN+
N/C 9 10 N/C
PWRBT+ 11 12 N/C
Power
LED
Speaker
Button
PWRBT- 13 14 SPKIN-
14
13
JFRNT
2
1
CyberResearch, Inc. 32
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 35
CyberResearch®Motherboards MXMA Series
2.17 <Expansion Interface>

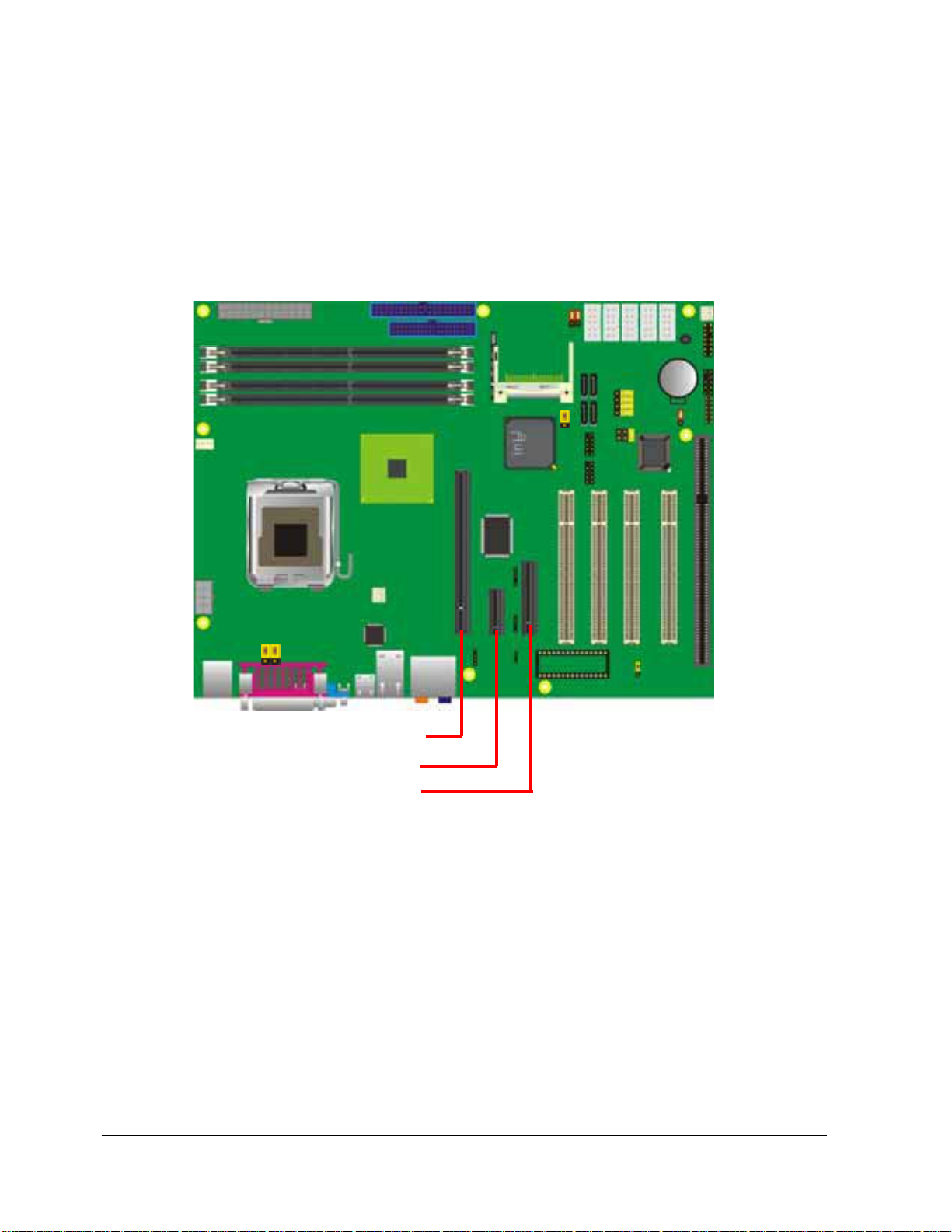

MXMA has one 16x , 4x and 1x PCI-Express slot. PCI-Express is the last expansion
interface technology, for its serial data transfer scheme, each lane will be up to 500MB/s (duplex), and the 16x (16 lane) can be up to 8GB/s more than 2GB/s as AGP 8x bus transfer rate. The 16x slot can be also for 1x compatible use.
PCIE (PCI-Express 16x slot) PCIE (PCI-Express 1x slot) PCIE (PCI-Express 4x slot)
CyberResearch, Inc. 33
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 36
CyberResearch®Motherboards MXMA Series
Intentionally Blank
CyberResearch, Inc. 34
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 37
CyberResearch®Motherboards MXMA Series
Chapter 3 <System Configuration>
3.1 <SATA configuration>
Based on Intel ICH7R Southbridge chip, the board supports 4 Serial ATA II ports; please follow the guide to set up your Serial ATA devices.
Windows 98/SE/ME, Windows NT4.0 and DOS systems only support up to 4 IDE
devices including SATA devices; Windows 2000/XP/Server2003 have no such limitation.
Parallel ATA Ser i al AT A Operating
System
(Support Mode)
Windows
2000/XP
(Enhance Mode)
Windows
98/ME/NT4.0
Primary
(2 Devices)
SATA1 SATA2 SATA3 SATA4
{ { { { {
Type 1
(Combine Mode)
Type 2
(Combine Mode)
Type 3
(SATA only)
The following BIOS setup screen shows how to setup your ATAPI devices with each mode.
{
(Primary)
{
(Secondary){(Primary)
X
X
{
(Primary)
(Master)
(Table 3.1.1)
{
(Secondary)
X
{
(Secondary)
(Master)
X
{
(Primary)
{
(Primary)
(Slave)
{
(Secondary)
X
{
(Secondary)
(Slave)
CyberResearch, Inc. 35
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 38
CyberResearch®Motherboards MXMA Series

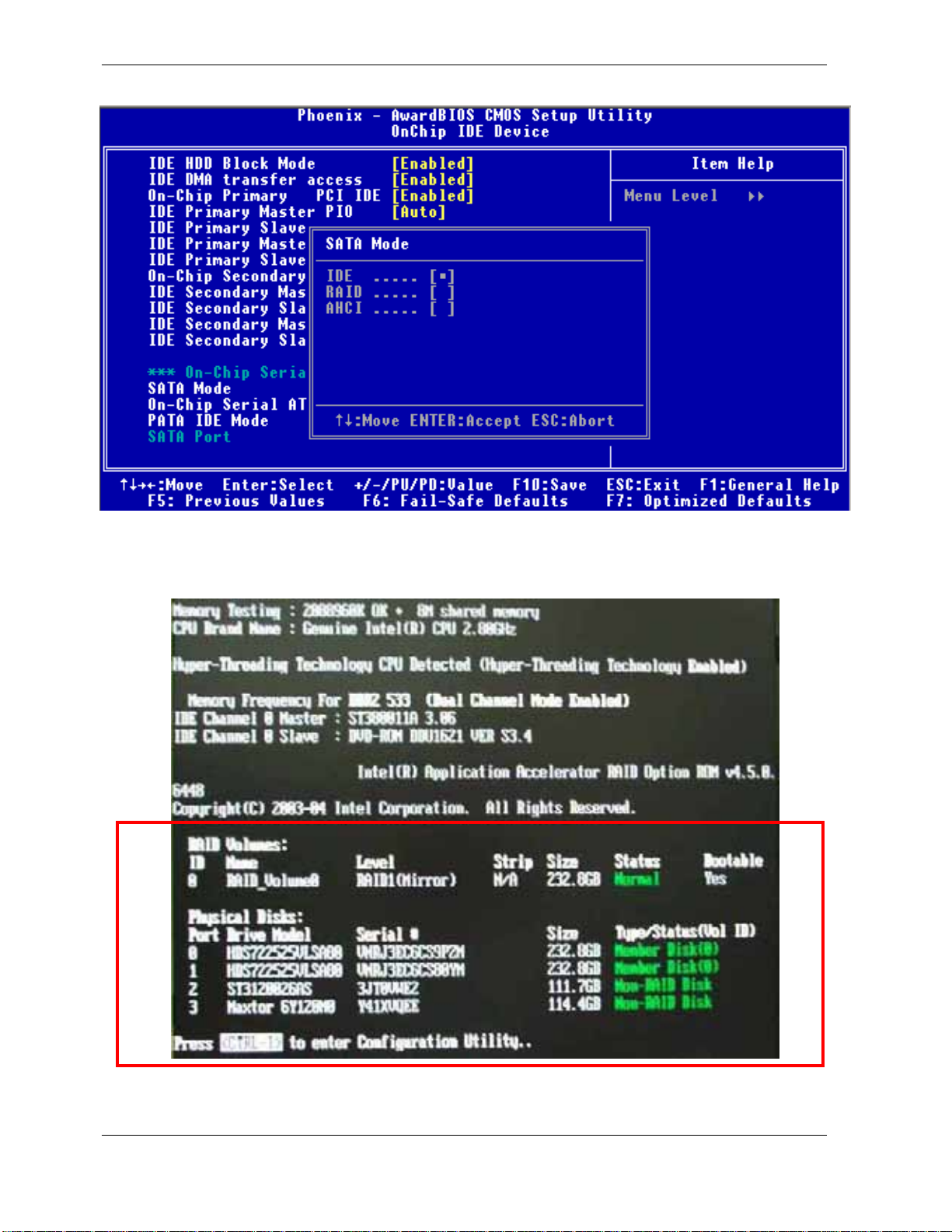

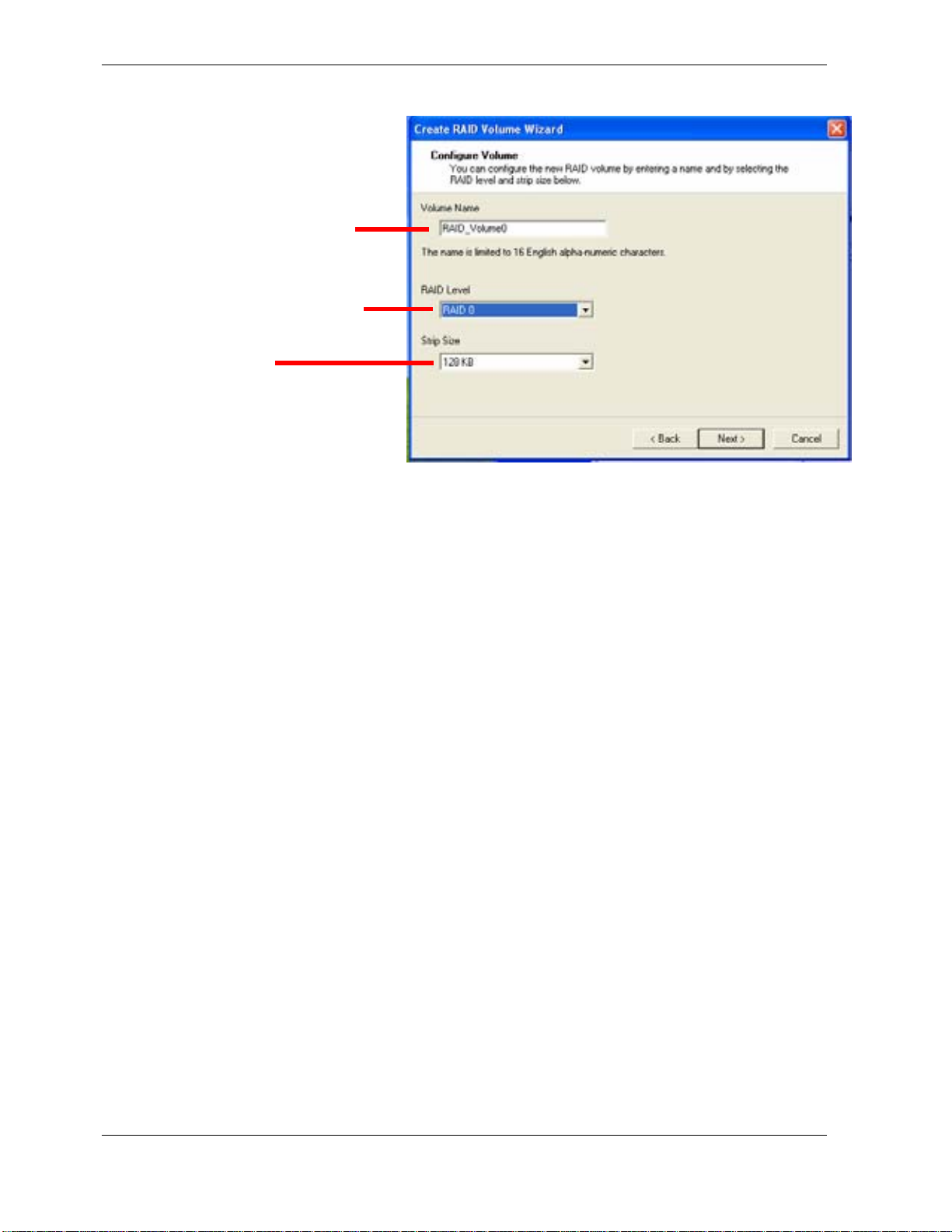

SATA Mode:
This option lets you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode needs more than one HDD applied.
Once RAID mode is enabled, the boot-up screen shows the RAID configuration options for setup.
.
CyberResearch, Inc. 36
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 39
CyberResearch®Motherboards MXMA Series

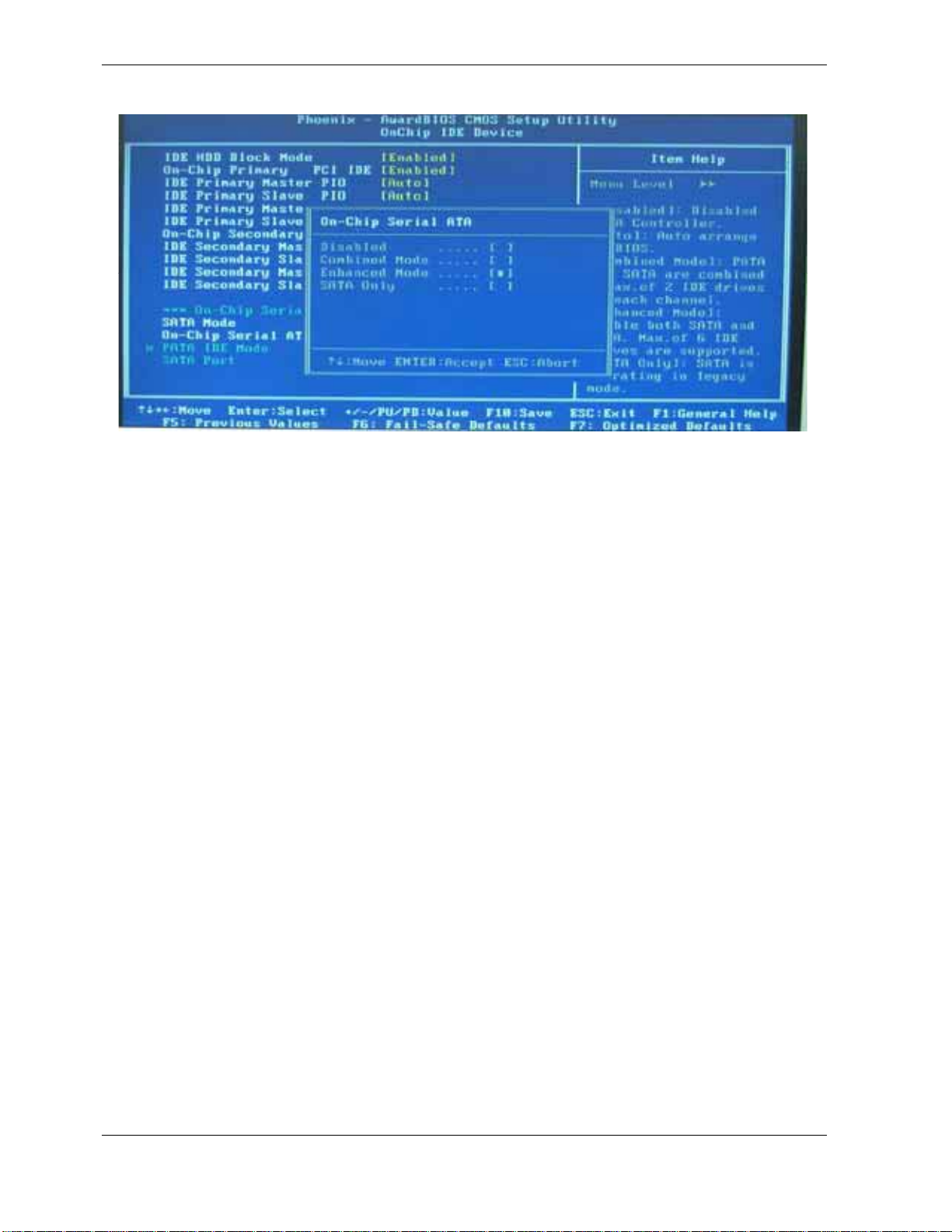

On-Chip Serial ATA mode:
This option lets you select operation modes for Serial ATA drives.
Disabled: To disable the onboard SerialATA controller. Auto: Allows the system tp select automatically. Combined mode: PATA and SATA work as two channels for supporting two drives on each
channel.
Enhanced mode: Max supported of PATA and SATA for up to 6 drives. SATA Only: To disable the PATA and only apply the SATA drives.
Note: Combined mode and Enhanced mode features are dependant upon your operating system, please check page 35 for relative information.
CyberResearch, Inc. 37
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 40
CyberResearch®Motherboards MXMA Series
3.2 <SATA RAID Configuration>
The board integrates Intel ICH7R with RAID function for Serial ATA II drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. Requires two unused drives. RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if one drive fails, the system can access the applications through the workable drive. This requires two unused drives, or one used and one un used drive. T he second drive must be the same or larger size than first one.
RAID 5 (striping with parity)
A RAID 5 array contains three or more hard drives where the data is divided into manageable blocks called strips. Parity is a mathematical method for recreating data that was lost from a single drive, which increases fault-tolerance. The data and parity are striped across all the hard drives in the array. The parity is striped in a rotating sequence to reduce bottlenecks associated with the parity calculations.
RAID 10 (RAID 0+1)
A RAID 10 array uses four hard drives to create a combination of RAID levels 0 and 1. The data is striped across a two-drive array forming the RAID 0 component. Each of the drives in the RAID 0 array is then mirrored by a RAID 1 component. Intel Matrix Storage Technology : This technology would allow you to use RAID 0+1 mode on only two drives (4 drives needed on traditional RAID 0+1). It will create two partitions on each hard drive to simulate RAID 0 and RAID 1. It also can let you modify the partition size without re-formatted.
For more information of Intel Matrix Storage Technology, please visit Intel’s website.
If you need to install an operating system on the RAID set, please use the supplied driver disk when prompted for the RAID drivers during installation.
CyberResearch, Inc. 38
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 41
CyberResearch®Motherboards MXMA Series
Please press <CTRL+I> to enter the RAID configuration menu. You can set up the RAID using Microsoftoperating systems: Windows XP SP1 or Windows 2000 SP4 version, please install the IntelʳApplication Accelerator Ver.4.5 later to support a RAID configuration with Intel Matrix Storage Technology.
1. After installing the Intel Application Accelerator, please execute Intel Storage Utility.
Demo configuration for 2 SATA Drives and set as Intel Matrix Storage Technology set
CyberResearch, Inc.
CyberResearch, Inc. 39
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 42
CyberResearch®Motherboards MXMA Series
2. Select Actions to Create RAID Volume
Rename the Volume name
Select RAID Level as 0
Left as default
CyberResearch, Inc. 40
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 43
CyberResearch®Motherboards MXMA Series
3. Please select two hard drives to prepare to set the RAID volume
4. Specify the Volume size
Tune this bar to specify the volume size, if you specify the volume size lower than maximum, you can create a second volume for another RAID set. (Make RAID 0+1 on only two hard drives)
5. Repeat the step 1 to create second volume as RAID Level 1.
For other configuration settongs please click Help on tool bar.
CyberResearch, Inc. 41
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 44
CyberResearch®Motherboards MXMA Series
3.3 <Audio Configuration>
The board integrates Intel ICH7R with REALTEKALC880 codec. It can support 7.1 channel sound under system configuration. Please follow the steps below to set up your sound system.

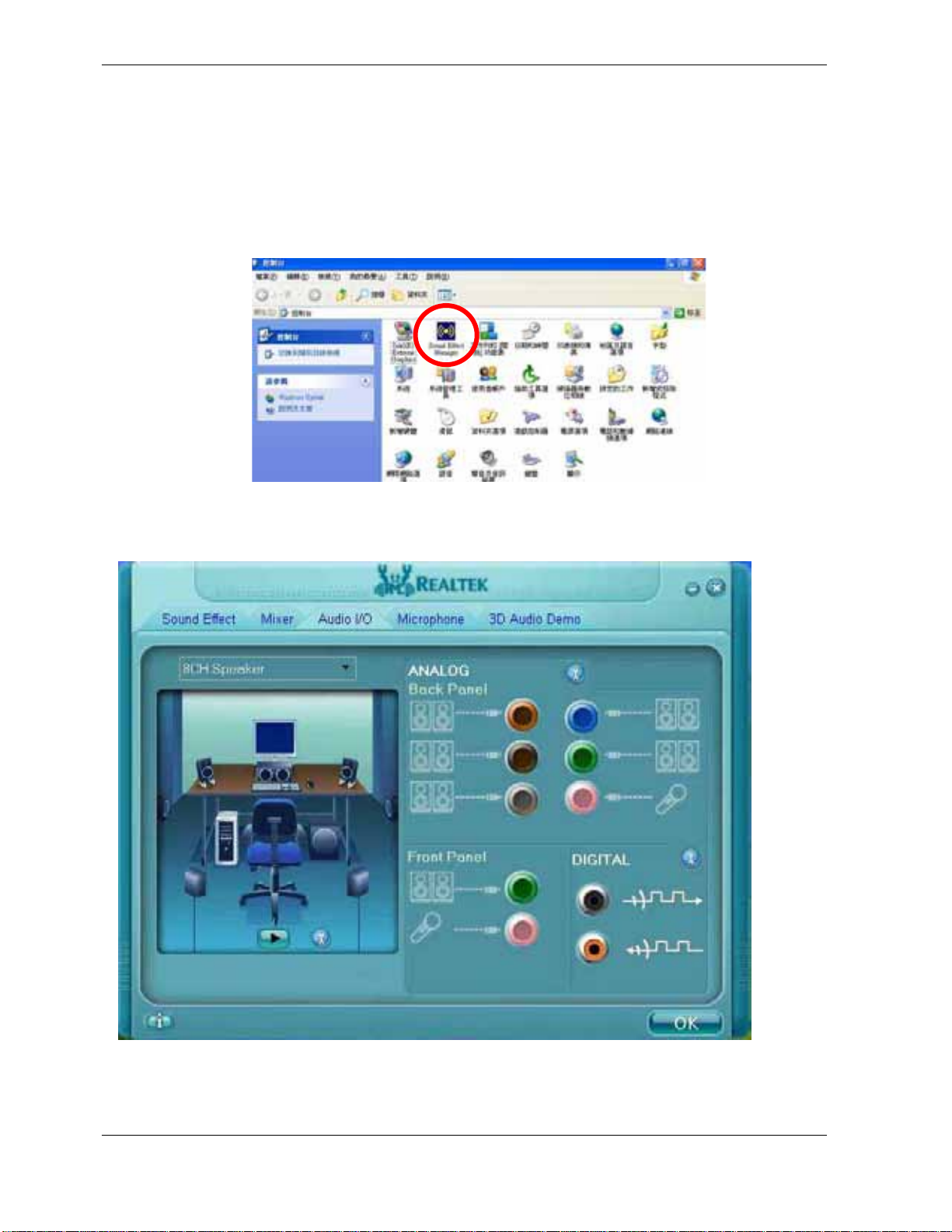

1. Install REAL TEK AC97 Audio driver .
2. Launch the control panel and Sound Effect Manager.
3. Select Speaker Configuration
4. Select the sound mode to meet your speaker system.
CyberResearch, Inc. 42
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 45
CyberResearch®Motherboards MXMA Series
3.4 <Video Memory Setup>
Based on Intel 945G chipset with GMA (Graphic Media Accelerator) 950, the board supports Intelʳ DVMT (Dynamic Video Memory Technology) 3.0, which would allow the video memory be triggered up to 224MB. To support DVMT, you need to install the Intel GMA 950 Driver with supported OS.

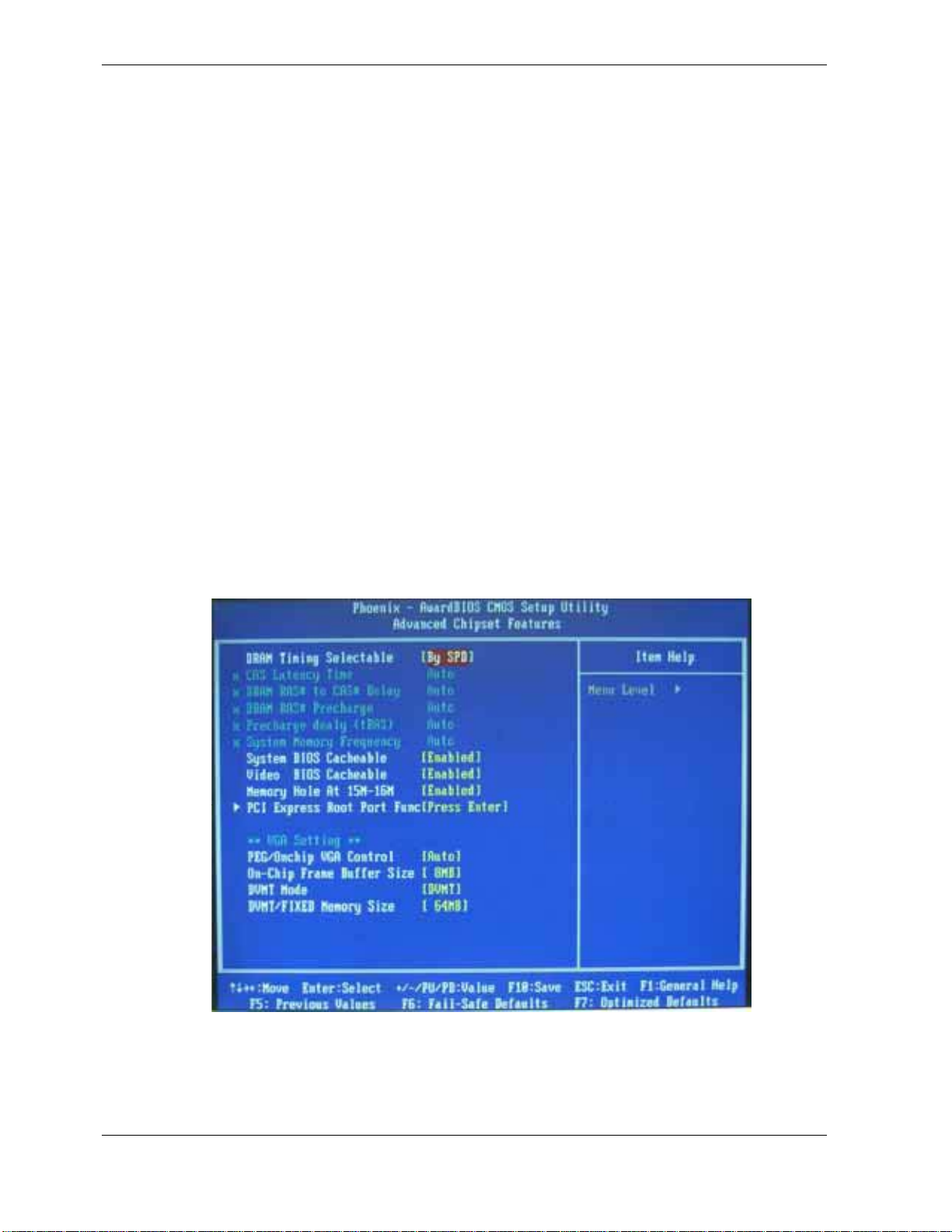

BIOS Setup: On-Chip Video Memory Size: This option combines three items below for setup. On-Chip Frame Buffer Size:
This item can let you select video memory which been allocated for legacy VGA and SVGA graphics support and compatibility. The available option is 1MB and 224MB.
DVMT Memory Size:
This item can let you select a maximum size of dynamic amount usage of video memory, the system configuration for video memory depends on your application, this item is strongly recommend to be selected as MAX DVMT.
CyberResearch, Inc. 43
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 46
CyberResearch®Motherboards MXMA Series
System
Memory
128MB~255MB
256MB~511MB
512MB upper
On-Chip
Frame
Buffer Size
Fixed
Memory
Size
DVMT
Memory
Size
1MB 32MB 0MB 32MB 1MB 0MB 32MB 32MB 8MB 32MB 0MB 32MB 8MB 0 32MB 32MB 1MB 64MB 0MB 64MB 1MB 0 64MB 64MB 1MB 128MB 0MB 128MB 1MB 0 128MB 128MB 1MB 64MB 64MB 128MB 8MB 64MB 0MB 64MB 8MB 0 64MB 64MB 8MB 128MB 0MB 128MB 8MB 0 128MB 128MB 8MB 64MB 64MB 128MB 1MB 64MB 0 64MB 1MB 0 64MB 64MB 1MB 128MB 0 128MB 1MB 0 128MB 128MB 1MB 64MB 64MB 128MB 1MB 0 224MB 224MB 8MB 64MB 0 64MB 8MB 0 64MB 64MB 8MB 128MB 0 128MB 8MB 0 128MB 128MB 8MB 64MB 64MB 128MB 8MB 0 224MB 224MB
Total Graphic Memory
Notice:
1. The On-Chip Frame Buffer Size is included in the Fixed Memory.
2. Please select the memory size according to this table.
CyberResearch, Inc. 44
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 47
CyberResearch®Motherboards MXMA Series
3.5 <Display Properties Setting>
Based on Intel 945G GMCH with GMA 950 (Graphic MediaAccelerator), the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before starting setup display devices.
1. Click right button on the desktop to lunch display properties
2. Click the Advanced button for more specific setup.
Click Graphics Properties... for advanced setup
CyberResearch, Inc. 45
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 48
CyberResearch®Motherboards MXMA Series
3. These set-up options let you define each device setting.
Notice: The dual display needs a PCIE-SDVO adapter to support more than one display device.
Click Digital Display to set the DVI monitor's Colors, and Resolution
Click Monitor to set the CRT monitor's Colors, Resolution and Refresh Rate
Click Extended Desktop to set the dual display mode as one display
Click Intel® Dual Display
Clone to setup to view
two identical desktops.
Set the main display device here
CyberResearch, Inc. 46
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 49
CyberResearch®Motherboards MXMA Series
Chapter 4 <BIOS Setup>
The motherboard uses the Award BIOS for the system configuration. The Award BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. The BIOS provides critical low-level support for the system central processing, memory and I/O sub-systems.
The BIOS setup program of the single board computer let the customers modify the basic configuration setting. The settings are stored in a dedicated battery-backed memory, NVRAM, retains the information when the power is turned off. If the battery runs out of the power, then the settings of BIOS will come back to the default setting.
The BIOS section of the manual is subject to change without notice and is provided here for reference purpose only. The settings and configurations of the BIOS are current at the time of print, and therefore they may not be exactly the same as that displayed on your screen.
To activate CMOS Setup program, press ІDELЇ key immediately after you turn on the system. The following message “Press DEL to enter SETUP” should appear in the lower left hand corner of your screen. When you enter the CMOS Setup Utility, the Main Menu will be displayed as Figure 4-1. You can use arrow keys to select your function, press ІEnterЇ key to accept the selection and enter the sub-menu.

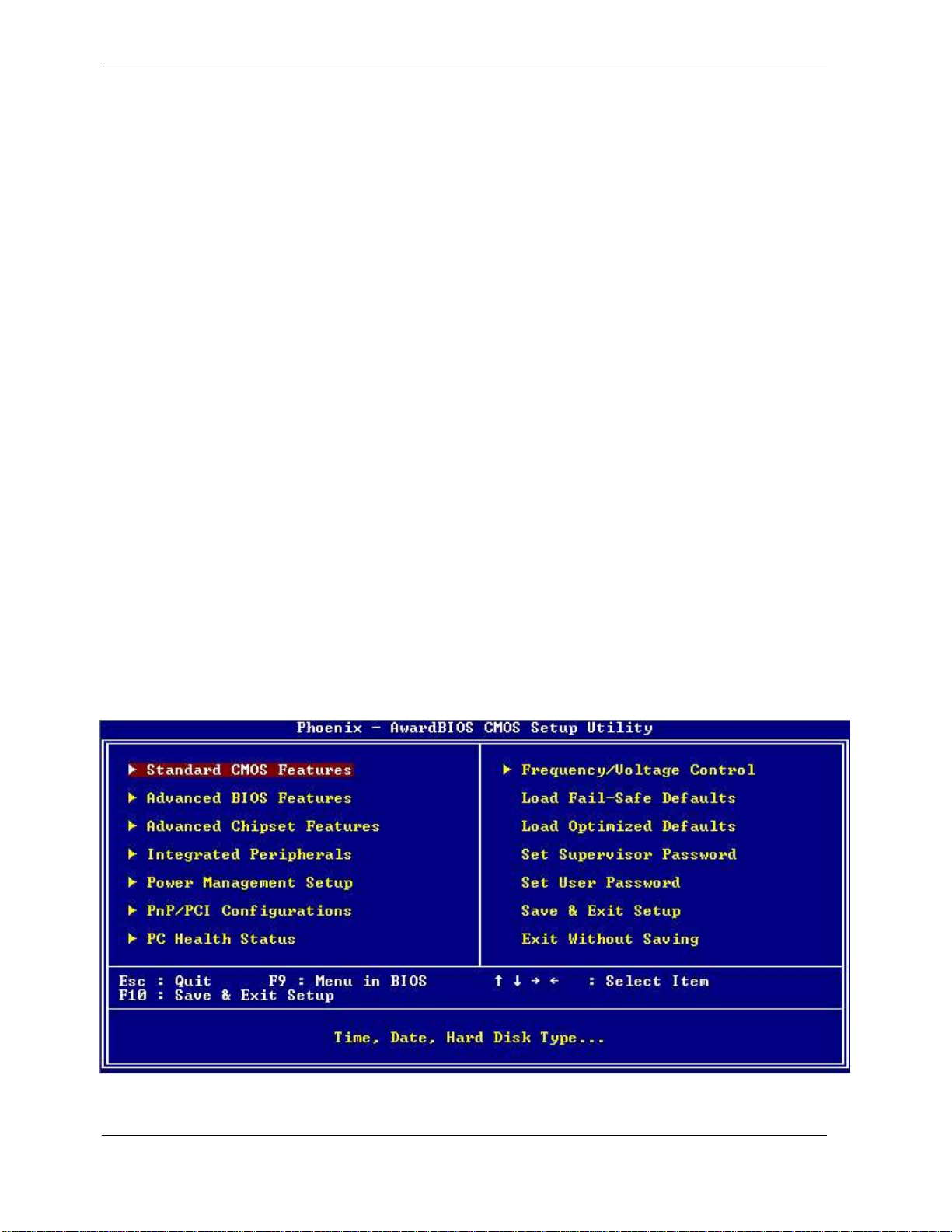

Figure 4-1 CMOS Setup Utility Main Screen
CyberResearch, Inc. 47
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 50
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc. 48
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 51
CyberResearch®Motherboards MXMA Series
Appendix A <I/O Port Pin Assignment>

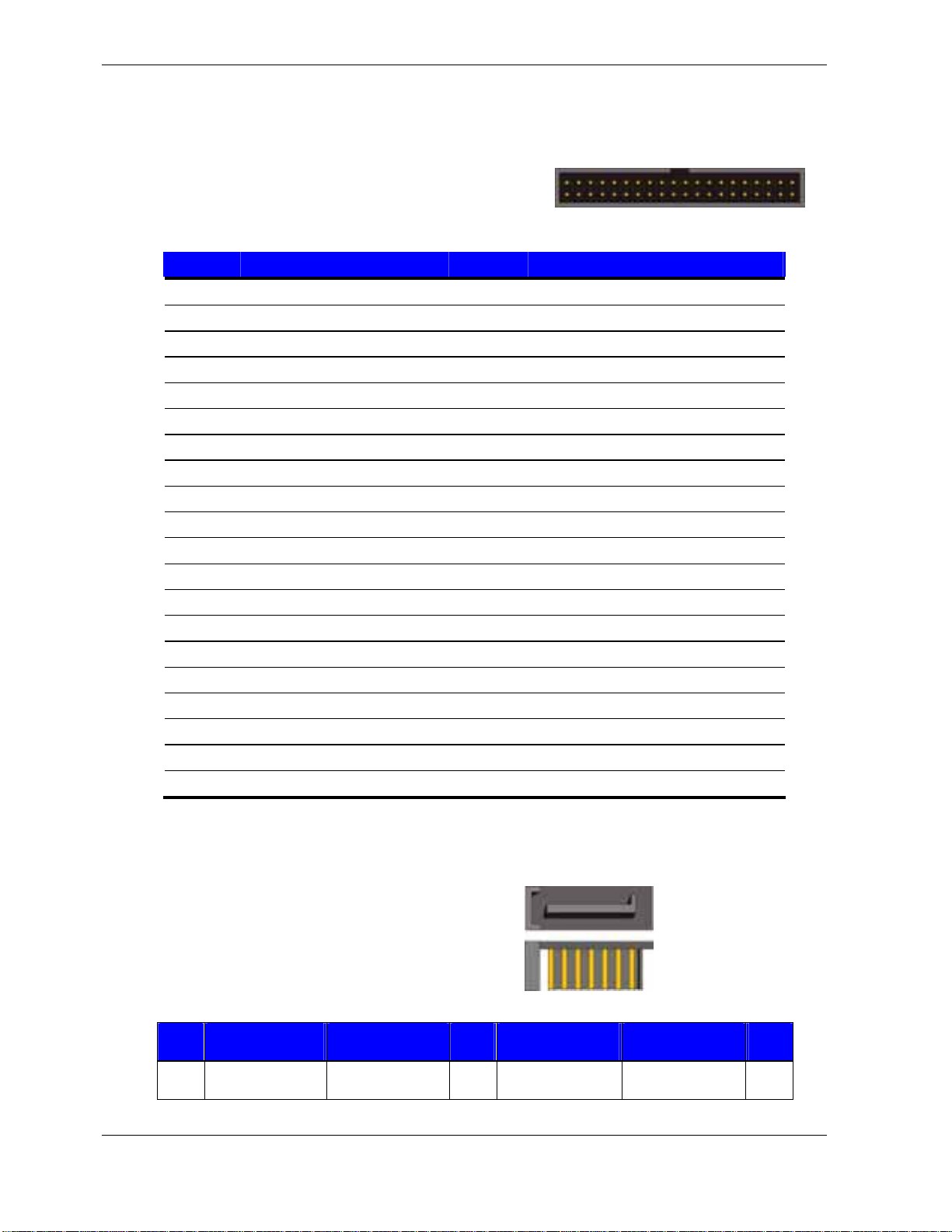

A.1 IDE Port
Connector: IDE1 Type: 40-pin (20 x 2) box header
Pin Description Pin Description
1 Reset 2 Ground 3D7 4 D8 5D6 6 D9 7D5 8 D10 9D4 10D11 11 D3 12 D12 13 D2 14 D13 15 D1 16 D14 17 D0 18 D15 19 Ground 20 VCC 21 REQ 22 Ground 23 IOW-/STOP 24 Ground 25 IOR-/HDMARDY 26 Ground 27 IORDY/DDMARDY 28 IDE66#/IDE33 29 DACK- 30 Ground 31 IRQ 32 N/C 33 A1 34 CBLID 35 A0 36 A2 37 CS0 (MASTER CS) 38 CS1 (SLAVE CS) 39 LED ACT- 40 Ground
39 1
40 2
A.2 <Serial ATA Port>
Connector: S_ATA1/2/3/4 Type: 7-pin wafer connector
1 7
1 2 3 4 5 6 7
GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND
CyberResearch, Inc. 49
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 52
CyberResearch®Motherboards MXMA Series
A.3 <Floppy Port>
Connector: FDD Type: 34-pin (2 x 17) 2.54-pitch header
Pin Description Pin Description 1 Ground 2 DRIVE DENSITY SELECT 0
3 Ground 4 DRIVE DENSITY SELECT 1 5 Ground 6 N/C 7 Ground 8 INDEX­9 Ground 10 MOTOR ENABLE A­11 Ground 12 DRIVER SELECT B­13 Ground 14 DRIVER SELECT A­15 Ground 16 MOTOR ENABLE B­17 Ground 18 DIRECTION­19 Ground 20 STEP­21 Ground 22 WRITE DATA­23 Ground 24 WRITE GATE­25 Ground 26 TRACK 0­27 Ground 28 WRITE PROTECT­29 Ground 30 READ DATA­31 Ground 32 HEAD SELECT­33 Ground 34 DISK CHANGE-
33 1
34
2

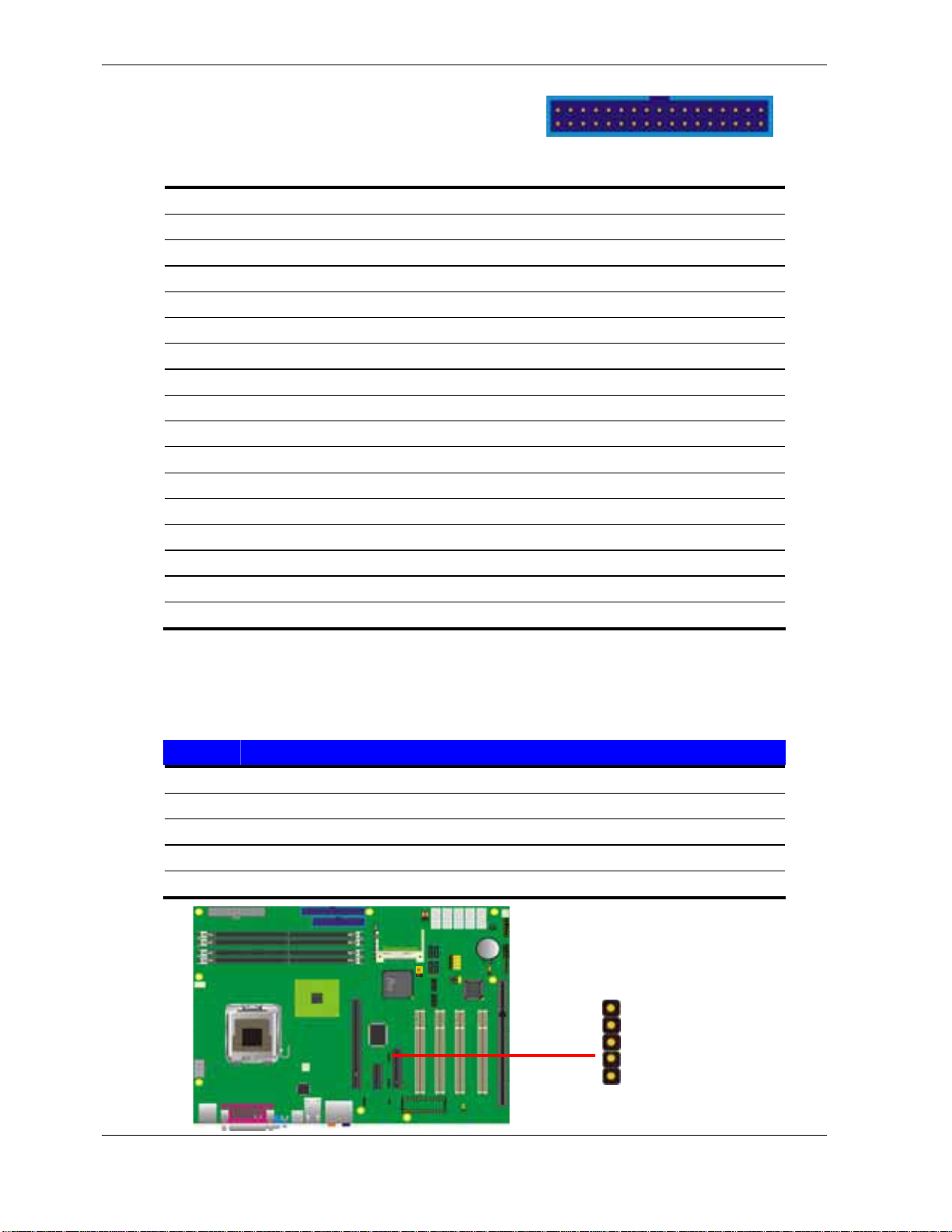

A.4 <IrDA Port>
Connector: CN_IR Type: 5-pin header for SIR Ports
Pin Description
1 VCC 2 N/C 3 IRRX 4 Ground 5 IRTX
5
1
CyberResearch, Inc. 50
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 53
CyberResearch®Motherboards MXMA Series
A.5 <Serial Port>
Connector: COM1 Type: 9-pin D-sub male connector on I/O Panel
Pin Description Pin Description
1DCD 6DSR
2 SIN 7 RTS
3SO 8CTS
4DTR 9RI
5 Ground
Connector: COM2/3/4/5/6 Type: 9-pin D-sub male connector on bracket
Pin Description Pin Description
1 DCD- 6 DSR­2SIN- 7RTS­3 SO- 8 CTS­4DTR- 9RI 5 Ground 10 N/C
1 2 3 4 5
10
21
6 7 8 9
9
A.6 <VGA Port>
Connector: VGA Type: 15-pin D-sub female connector on I/O Panel
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C 2 GREEN 7 Ground 12 5VCDA 3 BLUE 8 Ground 13 HSYNC 4 N/C 9 LVGA5V 14 VSYNC 5 Ground 10 Ground 15 5VCLK
CyberResearch, Inc. 51
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
1 2 3 4 5
6
11 12 13 14 15
10
Page 54
CyberResearch®Motherboards MXMA Series
A.7 <LAN Port>
Connector: RJ45 Type: RJ45 connector with LED on I/O Panel
Pin 1 2 3 4 5
Description TRD0+ TRD0- TRD1+ TRD1- NC
Pin 6 7 8 9 10
Description NC TRD2+ TRD2- TRD3+ TRD3-

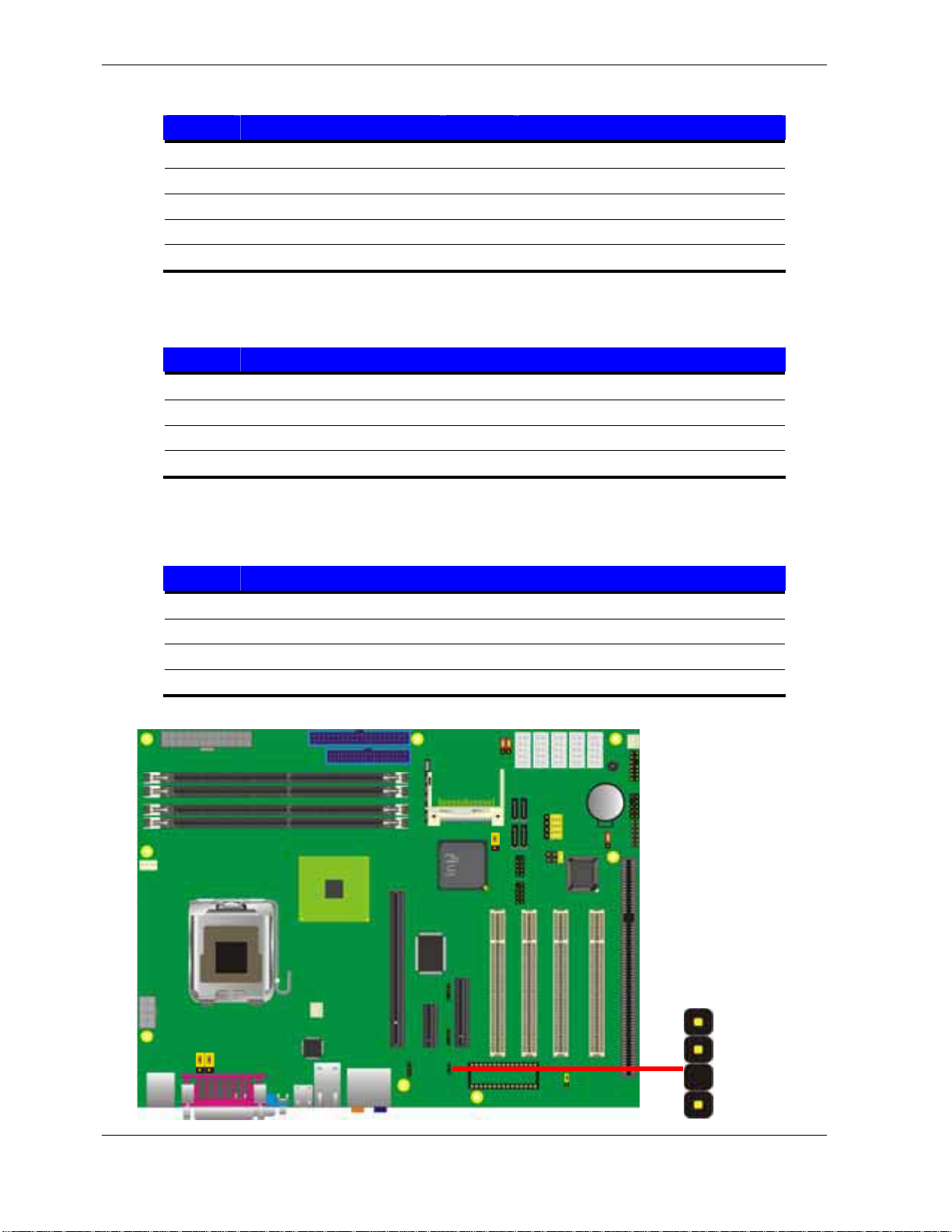

A.8 <SMBus>
Connector: CN_SMBUS Type: 4-pin SMBus connector
Pin Description Pin Description
1 VCC 2 N/C 3 SMBDATA 4 SMBCLK 5 Ground
5
1
CyberResearch, Inc. 152
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 55
CyberResearch®Motherboards MXMA Series

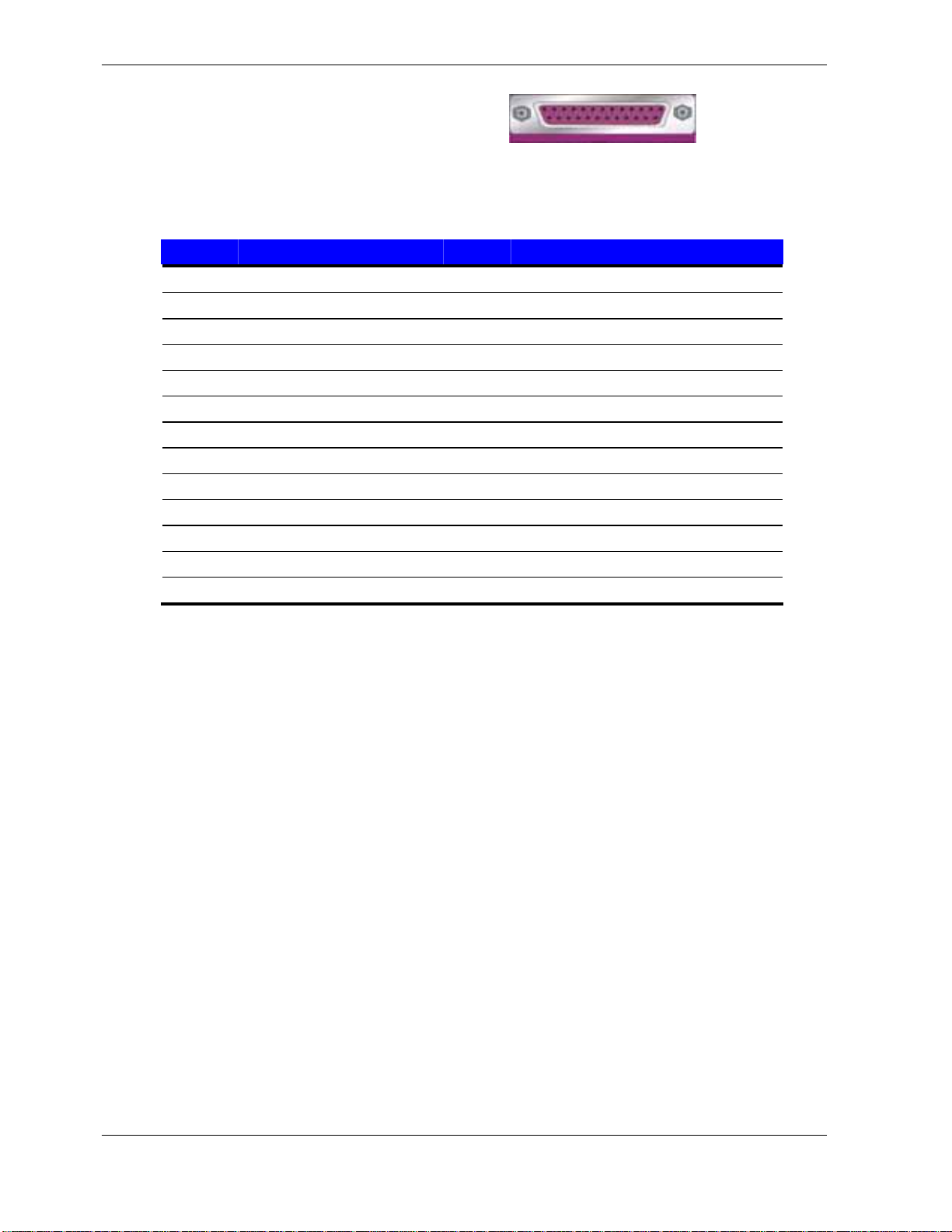

A.9 <LPT Port >
Connector : LPT
Type :26-Pin D-Sub female Connector on I/O Panel
Pin Description Pin Description
1 -PSTB 2 PRO0 3 PRO1 4 PRO2 5 PRO3 6 PRO4 7 PRO5 8 PRO6 9 PRO7 10 ACK­11 BUSY 12 PE 13 SLCT 14 AFD­15 ERR- 16 INT­17 SLIN- 18 Ground 19 Ground 20 I/O Ground 21 Ground 22 Ground 23 Ground 24 Ground 25 Ground 26 N/C
CyberResearch, Inc. 53
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 56
CyberResearch®Motherboards MXMA Series
Appedix B <System Resources>

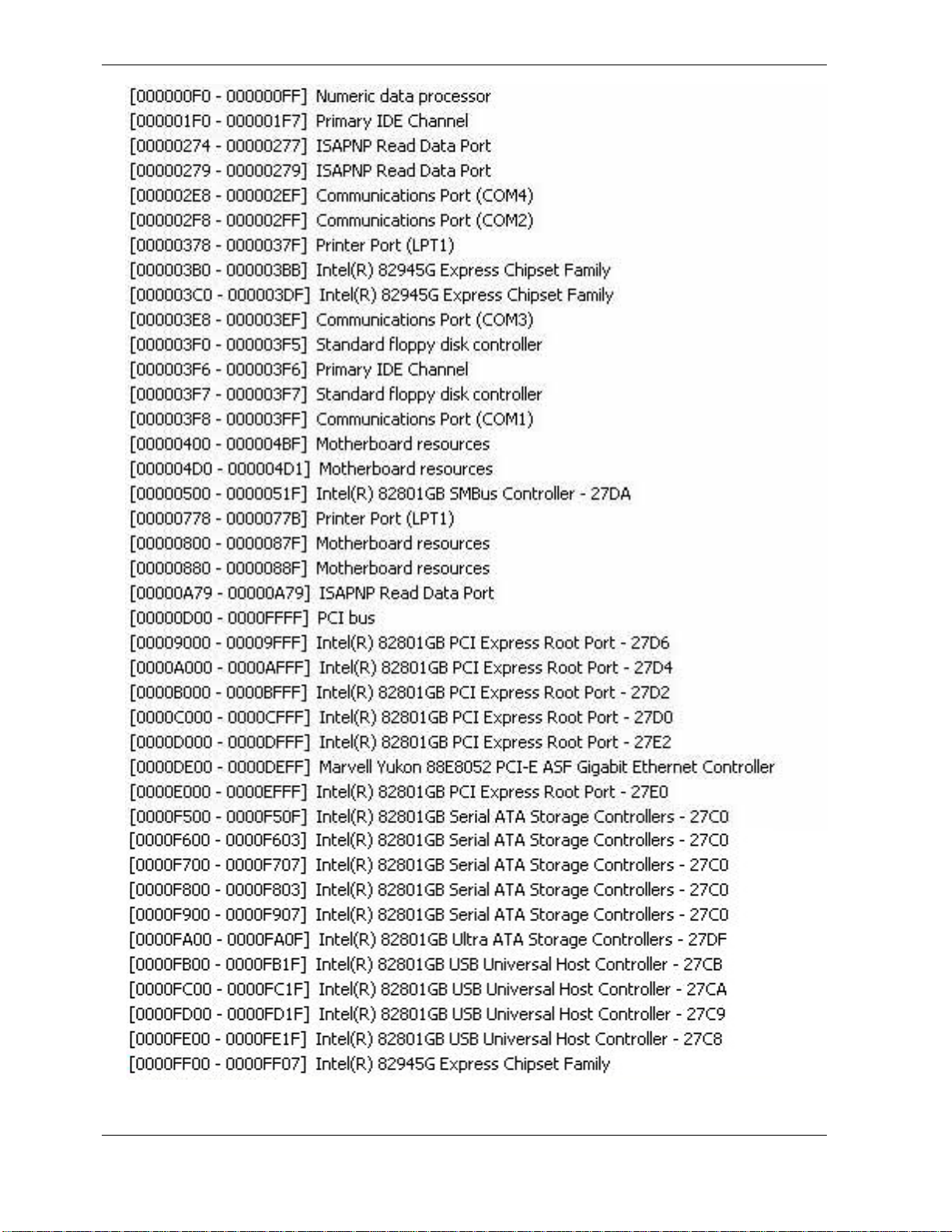

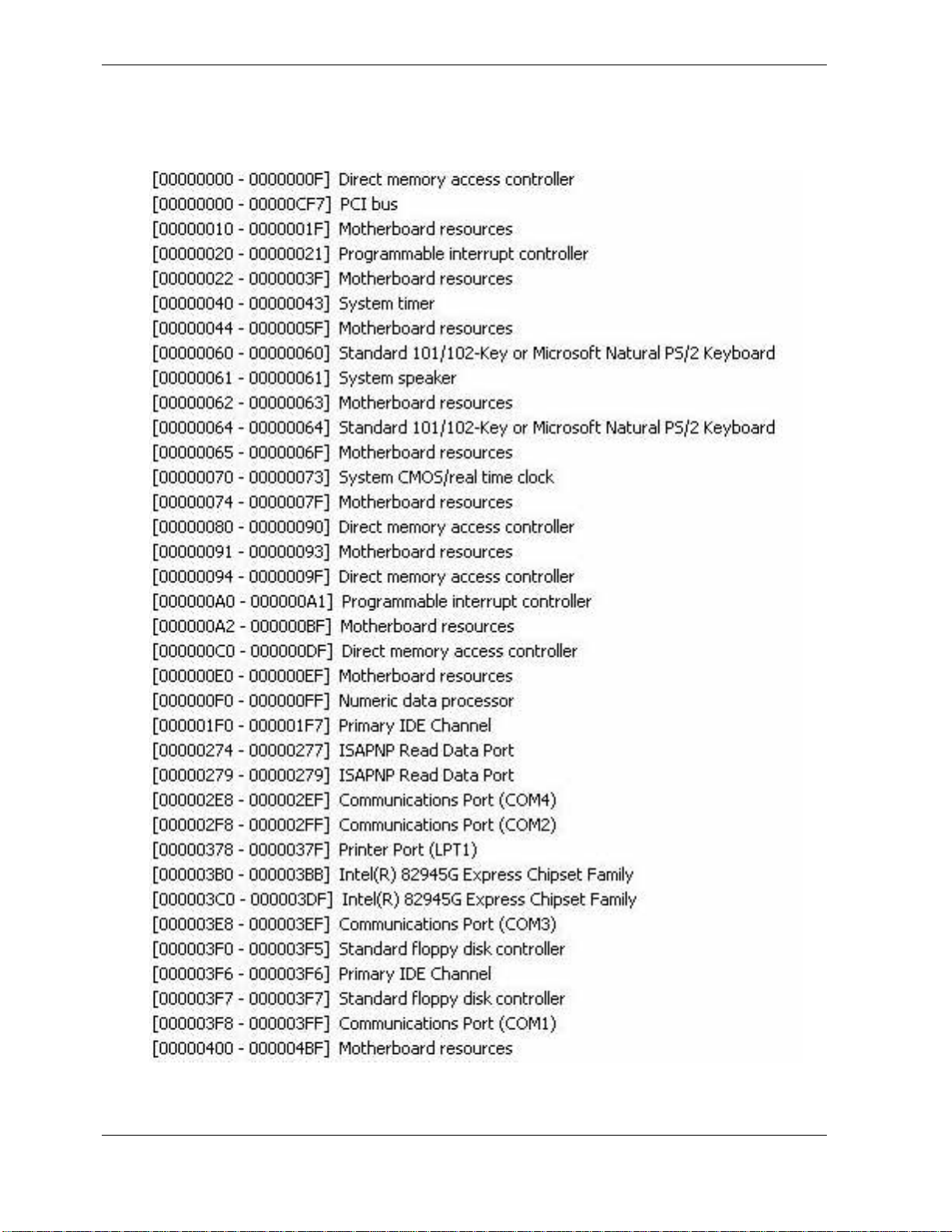

B1.<I/O Port Address Map>
CyberResearch, Inc. 54
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 57
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc. 55
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 58
CyberResearch®Motherboards MXMA Series

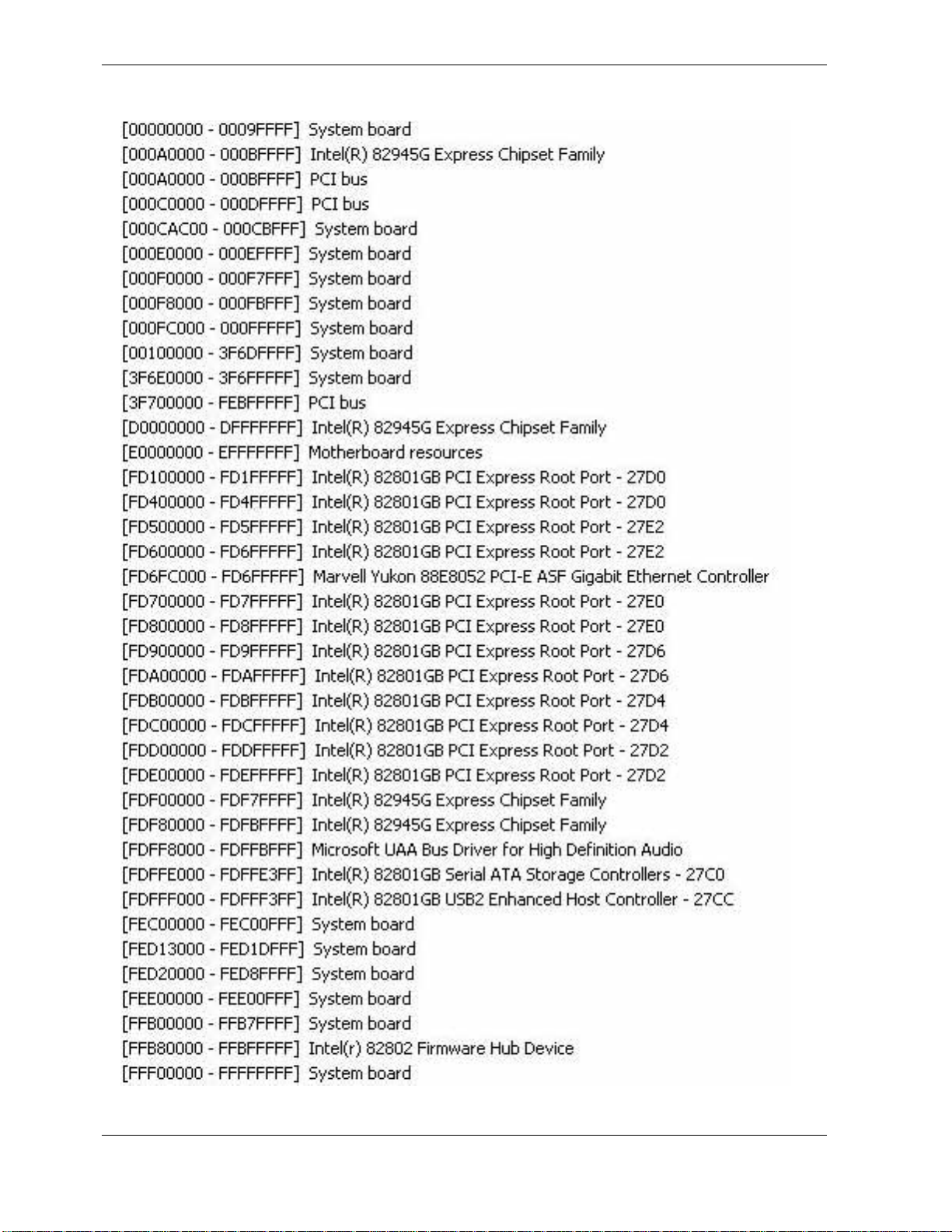

B2.<Memory Address Map>
CyberResearch, Inc. 56
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 59
CyberResearch®Motherboards MXMA Series

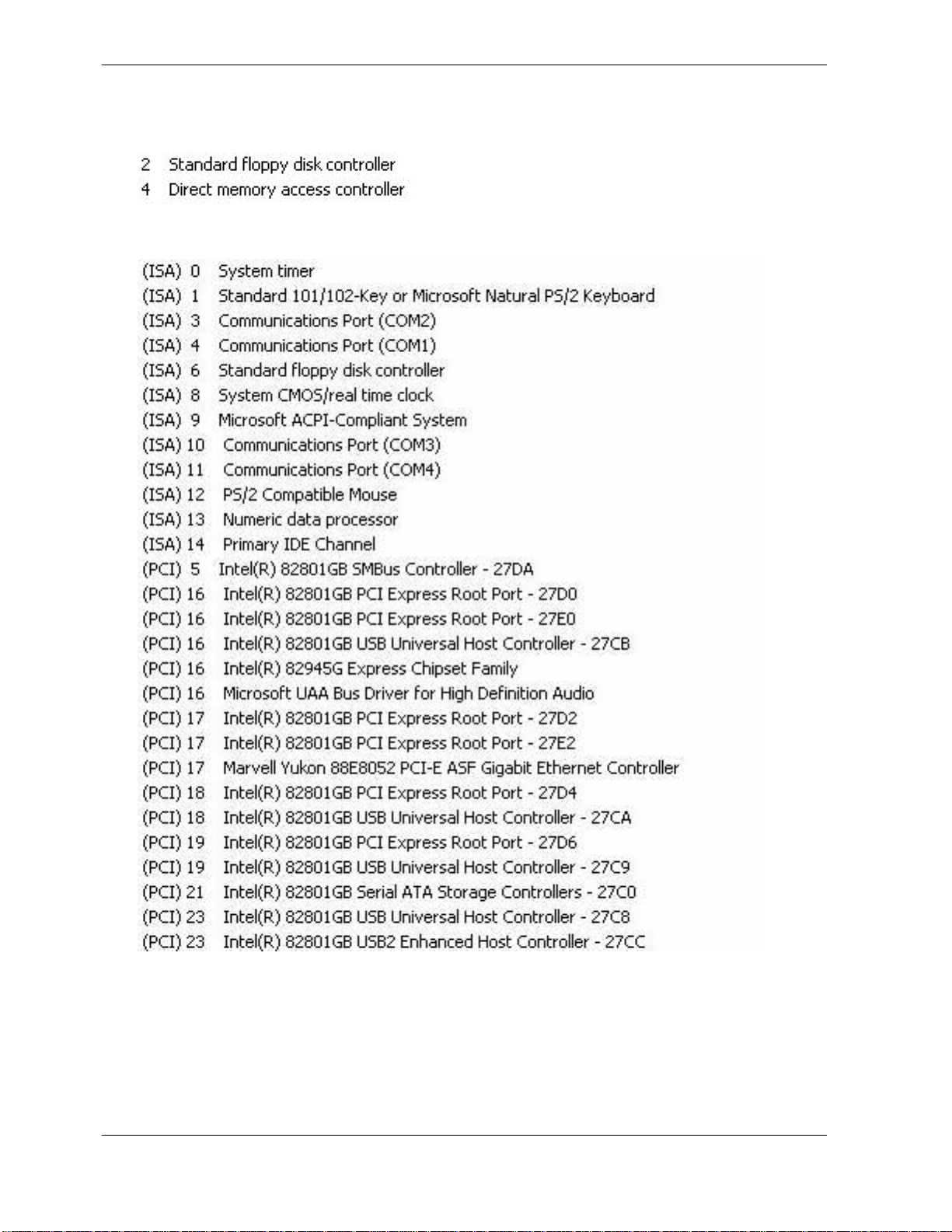

B3.<System IRQ & DMA Resources> DMA:
IRQ :
CyberResearch, Inc. 57
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 60
CyberResearch®Motherboards MXMA Series

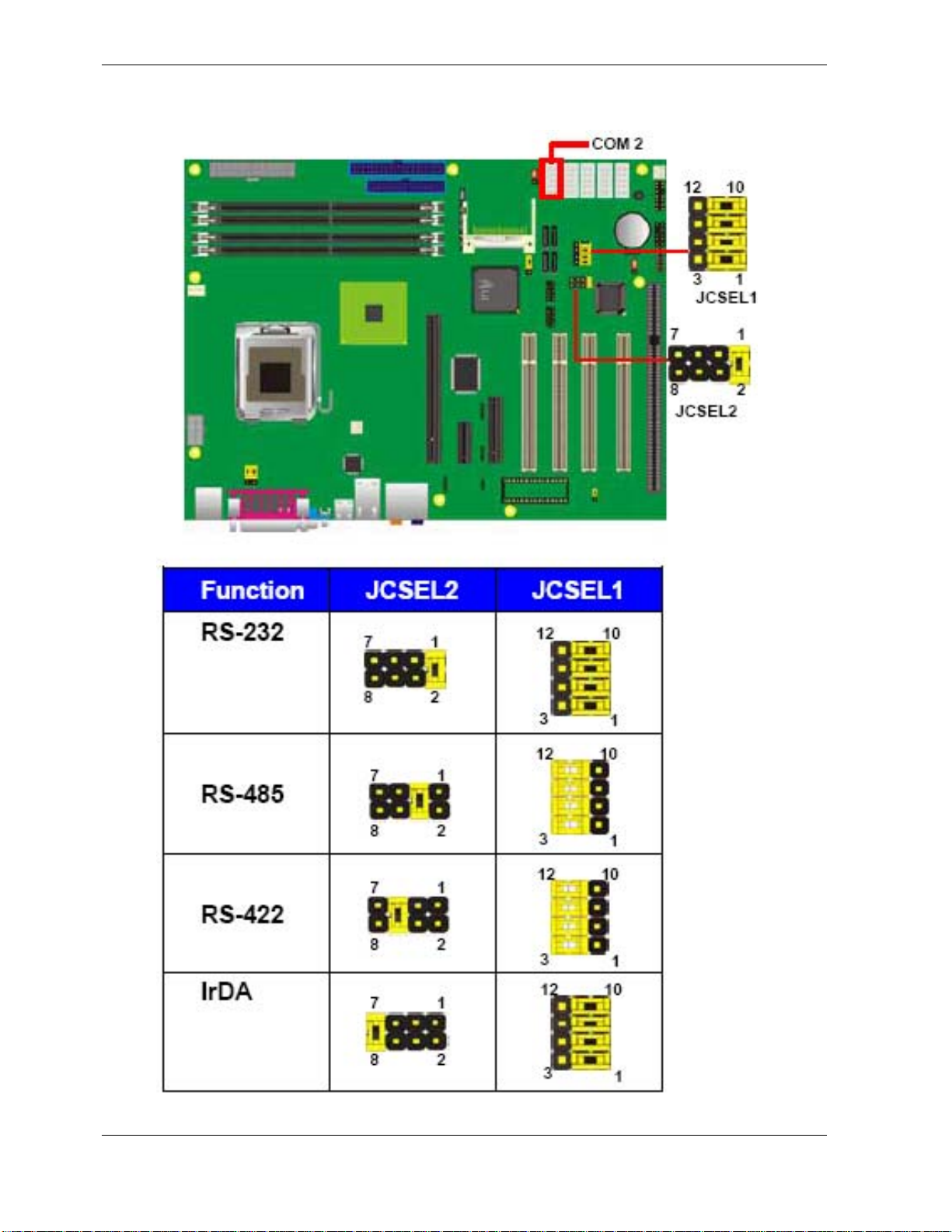

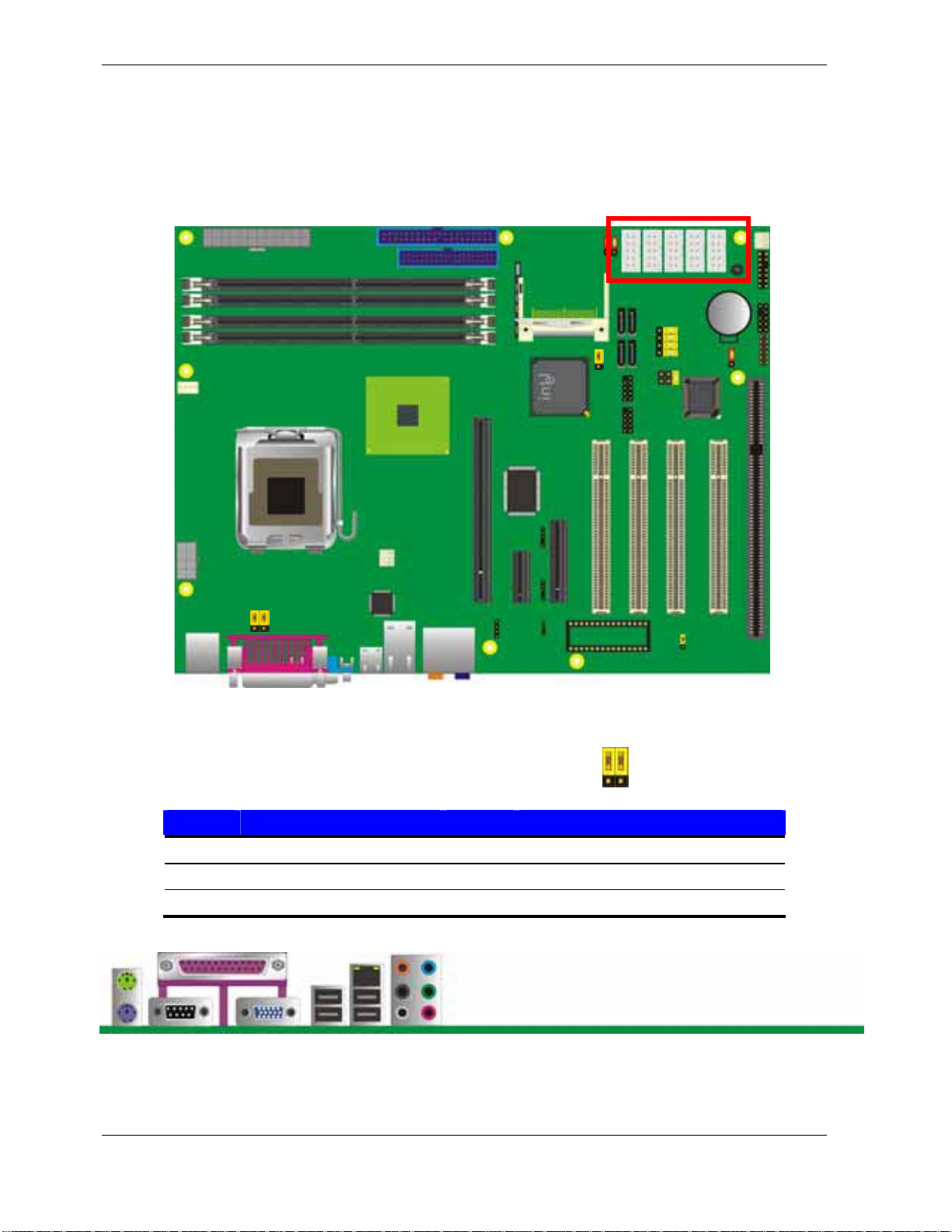

Appedix C How to set Jumpers: RS-232/422/485/IrDA
CyberResearch, Inc. 58
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 61
CyberResearch®Motherboards MXMA Series
Appedix D <Flash BIOS>
D.1 BIOS Auto Flash Tool
The board is based on Award BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below:
http://www.award.com http://www.cyberresearch.com.(and navigate to the MXMA detailed spec. page)
File name of the tool is “awdflash.exe”, it’s the utility that can write the data into the BIOS flash ship and update the BIOS.
D.2 Flash Method
1. Please make a bootable floppy disk.
2. Get the last .bin files you want to update and copy it into the disk.
3. Copy awardflash.exe to the disk.
4. Power on the system and flash the BIOS. (Example: C:/ awardflash XXX.bin)
5. Re-star the system.
Any question about the BIOS re-flash should be directed to CyberResearch, Inc.
CyberResearch, Inc. 59
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 62
CyberResearch®Motherboards MXMA Series
Appendix E <Programming GPIO’s>
The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands.The following lines show an example how to do this.
GPIO0…..GPIO7 bit0……bit7
-o 2E 87 ;enter configuration
-o 2E 87
-o 2E 29
-o 2E 40 ;enale GPIO function
-o 2E 07
-o 2E 07 ;enable GPIO configuration
-o 2E F0
-o 2F xx ;set GPIO as input/output; set ‘1’ for input,’0’for output
-o 2E F1
-o 2F xx ;if set GPIO’s as output,in this register its value can be set
Optional :
-o 2E F2
-o 2F xx ; Data inversion register ; ‘1’ inverts the current valus of the bits ,’0’ leaves them as they are
-o 2E 30
-o 2F 01 ; active GPIO’s
For further information ,please refer to Winbond W83627THF datasheet.
CyberResearch, Inc. 60
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 63
CyberResearch®Motherboards MXMA Series
Appendix F <Watchdog timer Setting >
The watchdog timer makes the system auto- reset if the system haults for any reason. The integrated watchdog timer can be setupto reset your system using the following programming:
Timeout Value Range
- 1 to 255
- Second or Minute
Program Sample
Watchdog timer setup as system reset with 5 second of timeout
2E, 87 2E, 87 2E, 07 2F, 08 Logical Device 8 2E, 30 Activate 2F, 01 2E, F5 Set as Second* 2F, 00 2E, F6 Set as 5 2F, 05
* Minute: bit 3 = 0; Second: bit 3 = 1

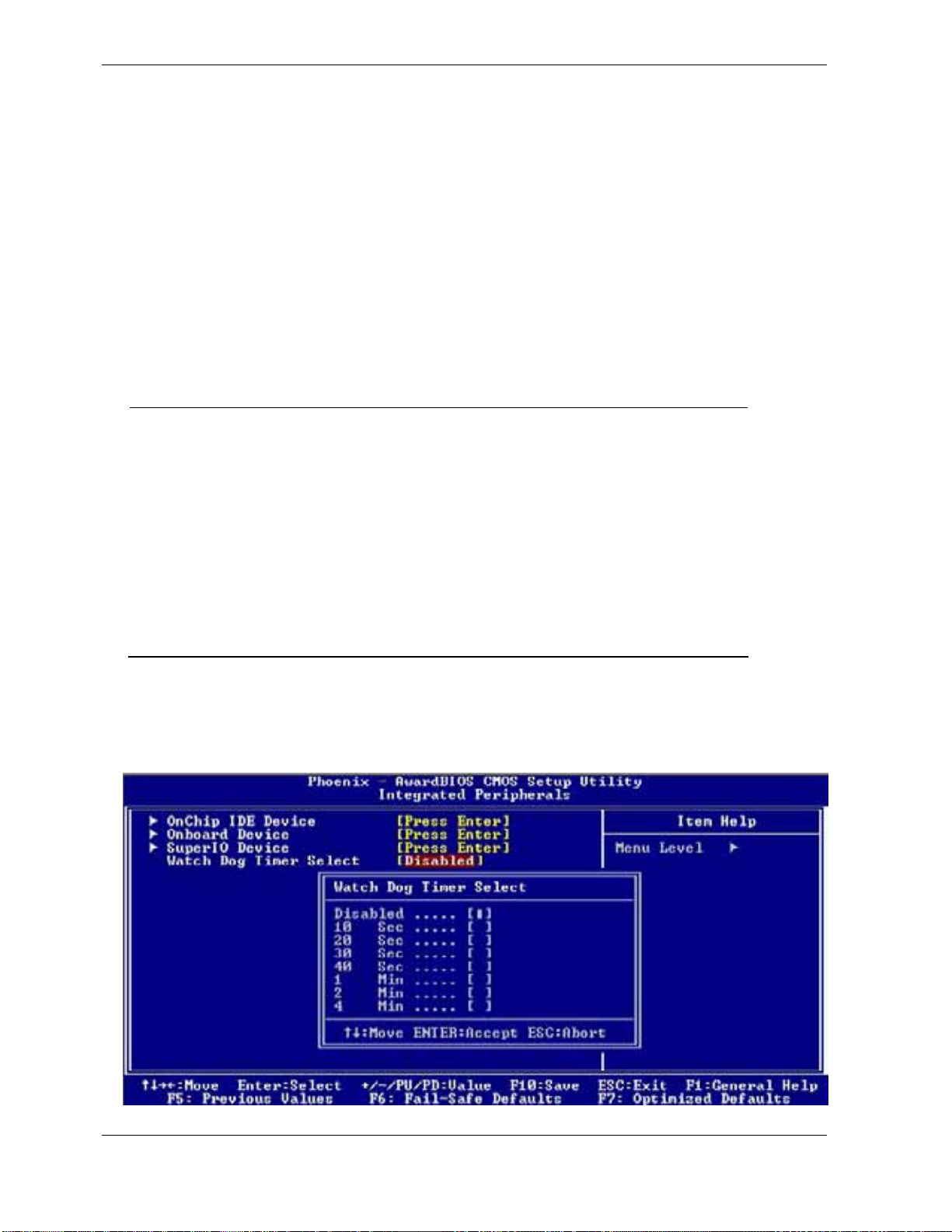

You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection.
CyberResearch, Inc. 61
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 64
CyberResearch®Motherboards MXMA Series
CyberResearch, Inc. 62
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 65
CyberResearch® Motherboards MXMA Series
Product Service
Diagnosis and Debug
CyberResearch, Inc. maintains technical support lines staffed by experienced Applications Engineers and Technicians. There is no charge to call and we will return your call promptly if it is received while our lines are busy. Most problems encountered with data acquisition products can be solved over the phone. Signal connections and programming are the two most common sources of difficulty. CyberResearch support personnel can help you solve these problems, especially if you are prepared for the call.
To ensure your call’s overall success and expediency:
1) Have the phone close to the PC so you can conveniently and quickly take action that the Applications Engineer might suggest.
2) Be prepared to open your PC, remove boards, report back-switch or jumper settings, and possibly change settings before reinstalling the modules.
3) Have a volt meter handy to take measurements of the signals you are trying to measure as well as the signals on the board, module, or power supply.
4) Isolate problem areas that are not working as you expected.
5) Have the source code to the program you are having trouble with available so that preceding and prerequisite modes can be referenced and discussed.
6) Have the manual at hand. Also have the product’s utility disks and any other relevant disks nearby so programs and version numbers can be checked.
Preparation will facilitate the diagnosis procedure, save you time, and avoid repeated calls. Here are a few preliminary actions you can take before you call which may solve some of the more common problems:
1) Check the PC-bus power and any power supply signals.
2) Check the voltage level of the signal between SIGNAL HIGH and SIGNAL LOW, or SIGNAL+ and SIGNAL– . It CANNOT exceed the full scale range of the board.
3) Check the other boards in your PC or modules on the network for address and interrupt conflicts.
4) Refer to the example programs as a baseline for comparing code.
CyberResearch, Inc. 63
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 66
MXMA Series CyberResearch® Motherboards
Intentionally Blank
64 ©Copyright 2010 CyberResearch, Inc.
Page 67
CyberResearch® Motherboards MXMA Series
Warranty Notice
CyberResearch, Inc. warrants that this equipment as furnished will be free from defects in material and workmanship for a period of one year from the confirmed date of purchase by the original buyer and that upon written notice of any such defect, CyberResearch, Inc. will, at its option, repair or replace the defective item under the terms of this warranty, subject to the provisions and specific exclusions listed herein.
This warranty shall not apply to equipment that has been previously repaired or altered outside our plant in any way which may, in the judgment of the manufacturer, affect its reliability. Nor will it apply if the equipment has been used in a manner exceeding or inconsistent with its specifications or if the serial number has been removed.
CyberResearch, Inc. does not assume any liability for consequential damages as a result from our products uses, and in any event our liability shall not exceed the original selling price of the equipment.
The equipment warranty shall constitute the sole and exclusive remedy of any Buyer of Seller equipment and the sole and exclusive liability of the Seller, its successors or assigns, in connection with equipment purchased and in lieu of all other warranties expressed implied or statutory, including, but not limited to, any implied warranty of merchant ability or fitness and all other obligations or liabilities of seller, its successors or assigns.
The equipment must be returned postage prepaid. Package it securely and insure it. You will be charged for parts and labor if the warranty period has expired.
Returns and RMAs
If a CyberResearch product has been diagnosed as being non-functional, is visibly damaged, or must be returned for any other reason, please call for an assigned RMA number. The RMA number is a key piece of information that lets us track and process returned merchandise with the fastest possible turnaround time.
PLEASE CALL FOR AN RMA NUMBER!
Packages returned without an RMA number will be refused!
In most cases, a returned package will be refused at the receiving dock if its contents are not known. The RMA number allows us to reference the history of returned products and determine if they are meeting your application’s requirements. When you call customer service for your RMA number, you will be asked to provide information about the product you are returning, your address, and a contact person at your organization.
Please make sure that the RMA number is prominently
displayed on the outside of the box.
• Thank You •
CyberResearch, Inc. 65
25 Business Park Drive P: (203) 483-8815; F: (203) 483-9024 Branford, CT USA www.cyberresearch.com
Page 68
MXMA Series CyberResearch® Motherboards
Intentionally Blank
66 ©Copyright 2010 CyberResearch, Inc.
Page 69
Page 70
CyberResearch, Inc.
25 Business Park Drive
Branford, CT 06405 USA
P: (203) 483-8815; F: (203) 483-9024
www.cyberresearch.com
Loading...
