OL2200RTXL2UN SMART APP ONLINE UPS

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

The CyberPower OL2200RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL2200RTXL2UN oers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and conﬁguration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.

SPECIFICATIONS

TYPICAL APPLICATIONS

• Corporate and Enterprise Servers

• Network and Storage Devices

• Edge Closets

• PBX and VoIP Installations

FE AT U R E S

• 2200VA / 1800W

• Double Conversion Topology

• Sine wave output, zero transfer time

• Conﬁgurable Output - 100, 110, 115, 120, 125 V, 50/60 Hz

• GreenPower UPS™ ECO Mode

• RM205CARD for remote monitoring

• 2U Rack Mount/Tower Convertible

• Outlets: (6) NEMA 5-20R, (1) NEMA L5-20R

• PowerPanel® Business Edition Management Software

GENERAL

UPS Topology Double Conversion

Energy Saving Yes, ECO Mode Eciency >95%

Energy Star Qualiﬁed Yes

OUTPUT

Watts

Rated Power Factor 0.82

2,200 VA at 120, 125 V 1,9 80 VA at 115 , 110 V 1,760 VA at 10 0 V 1,8 00 W at 120, 125 V 1,620 W at 115 , 110 V 1,4 40 W at 10 0 V

INPUT

60 – 69 VAC for 0– 60% load

Input Voltage Ran ge

Frequency Range 40 – 70 Hz (auto sensing)

Input Power Factor 0.99

Cold Start Yes

Plug Type NEMA 5 -20P

Cord Length (ft) 10

Cord Length (m) 3

©2020 Cyber Power Systems (USA), Inc. CyberPower is a registered trademark and brand of Cyber Power Systems (USA), Inc. All rights reserved. All other trademarks are the property of their respective owners. CyberPower reserves the right to change, without notice, marketing programs, product offerings and specifications. www.cyberpowersystems.com

70 – 79 VAC for 0–70% load 80 – 89 VAC for 0 –80% load 90 – 95 VAC for 0 –90 % load 96 – 150 VAC for 0–10 0% load

On Battery Waveform Sine wave

On Battery Voltage

On Battery Frequency

Harmonic Distortion

Crest Factor 3:1

Outlet s - Total 7

Ou t let Type NEMA 5 -20R (6), NEMA L5 -20R (1)

100, 110, 115, 120, 125 V ± 2 % (conﬁgurable)

50/60 Hz ± 0. 25 Hz (auto-sensing or conﬁgurable)

THD < 3% at Linear Load, < 5% at Non -linear Load

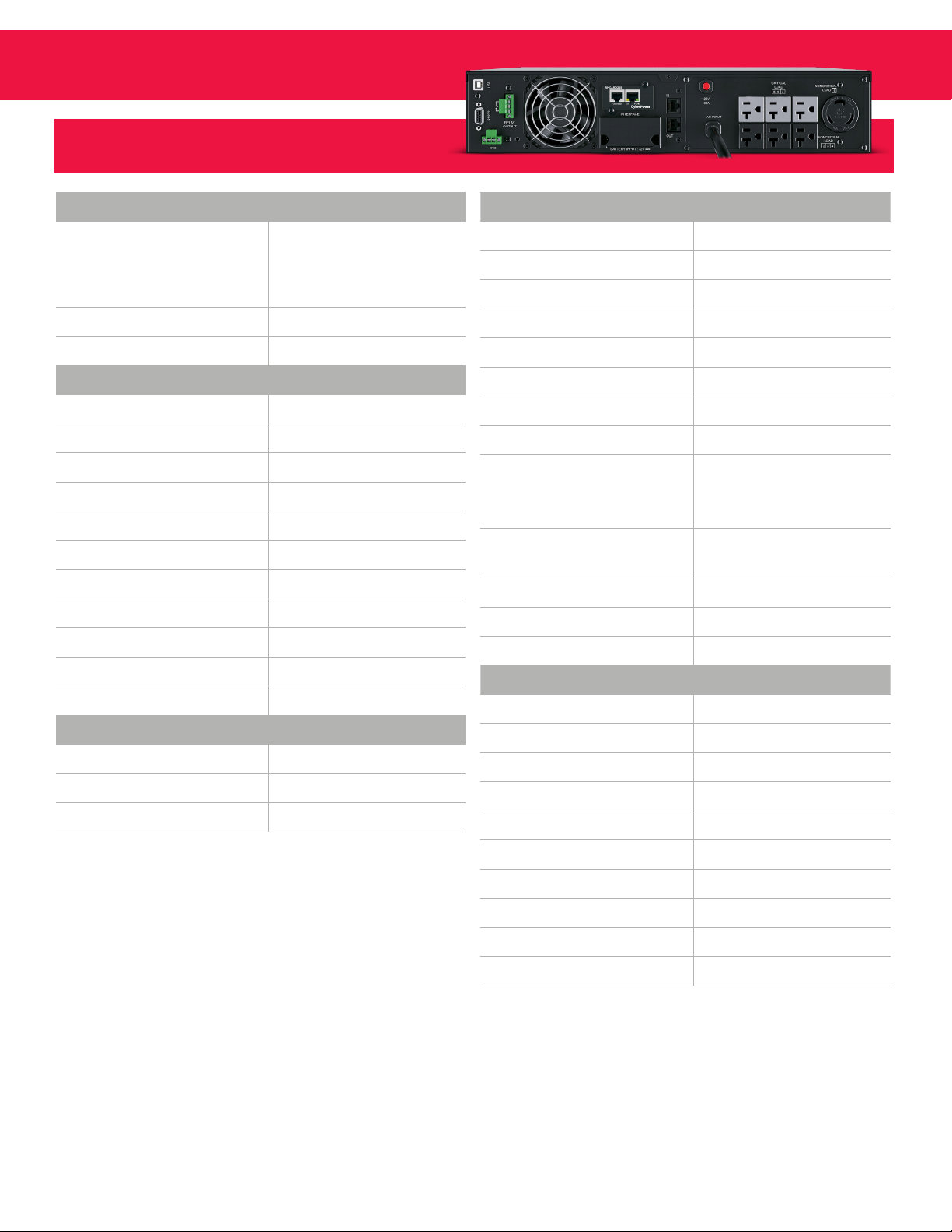

Page 2

OL2200RTXL2UN SMART APP ONLINE UPS

SPECIFICATIONS CONT.

OUTPUT - CONT.

Line Mode: 105% to 125% load for 1 min

Overload Protec tion

Bypass

Transfer Time 0ms

126% to 15 0% loa d for 10 sec

Battery Mode: 105% to 130% loa d for 10 sec 131% to 1 50% lo ad for 2 se c

Internal Bypass (Automatic and Manual)

BAT TE RY

Runtime at Half Load 20 minutes

Runtime at Full Load 6. 5 minutes

Ba t ter y Typ e Sealed Lead-Acid

Battery Size 1 2V/9A h

Battery Quantity 6

Replacement Battery Cartridge RB1290X6A

Replacement Battery Cartridge Quantity

Hot Swappable Yes

Typical Recharge Time 4 h (0% to 90%)

Smart Battery Management (SBM) Mode

Extended B attery Option BP72V60ART2U

Yes

SURGE PROTECTION & FILTERING

Surge Protection

Phone RJ11 / Eth ernet RJ45 1-In / 1-Out (Combo)

EMI/RFI Filtration Yes

1335 Joules , per IEC 610 00 -4- 5 Level 3

MANAGEMENT & COMMUNICATIONS

LCD Multifunction LCD

Rotatable LCD Control Panel Option

Removable LCD Control Panel Option

HID Compliant USB Port Yes

Serial Port Yes

EPO Por t Yes

Dry Contacts Yes

Cables Included USB Cable, Serial Cable

LED Indicators

Audible Alarms

Software PowerPanel® Business Edition

Upgradeable Firmware Yes

Expansion Slot RMCARD205 pre-installed

Yes

Yes - Requires a separate DB26 Cable

Power On (white) Line Mo de (green) Battery Mode (yellow) Bypass Mode (yellow) Fau lt (re d) Replace Batte ry (red) Battery Mode Battery Low Overload UPS Fault

PHYSICAL

Form Factor Rack/Tower

Color Black

Enclosure Construction Steel

Mounting Hardware Included Yes

Physical Dimensions - (WxHxD) (cm) 43.18 x 8.89 x 59.99 (cm)

Physical Dimensions - (WxHxD) (in) 17 x 3.5 x 23.62 (in)

Physical Dimensions - (WxHxD) (mm) 432 x 89 x 600 (mm)

Weight (lbs) 68.2

Weight (kg) 30.93

Rack Size 2U

Page 3

OL2200RTXL2UN SMART APP ONLINE UPS

SPECIFICATIONS CONT.

SHIPPING DIMENSIONS

Shipping - Dimensions (WxHxD, in) 22.0 x 9.25 x 3 4.5 (in)

Shipping - Dimensions (WxHxD, mm) 571 .5 x 228.6 x 876.3 (mm)

Shipping - Weight (lb) 87. 0 8

Shipping - Weight (kg) 39.5

Shipping Dimensions - (WxHxD) (cm) 57.15 x 22. 86 x 87.63 (cm)

ENVIRONMENTAL

Operating Temperature 32 – 104 ° F (0 – 40 °C)

Operating Relative Humidity 0 – 90% (non -con densing)

Operating Elevation 0 – 10,0 00 ft (0 – 3,00 0 m)

Storage Temperature -4°F to 113 °F (-20°C to 45 °C)

Storage Relative H umidity 0 – 95% (non- cond ensing)

Storage Elevation 0 – 50,000 f t (0 – 15,0 00 m)

UPS Online Th ermal Dissipation 541 BTU/hr

ECO Mode Thermal Dissipation (10 0% Load)

Audible noise at 1m from surface of unit 38 to 55 dBA (0 to 100% load)

249 BTU/ h

CERTIFICATIONS

Safety

Environmental RoHS Compliant

UL 1778 CSA C22. 2 NO.107.3 FCC Part 15 Class A

WARRANTY

Product Warranty 3 Years Limited

Extended 2-Year Warranty Optional WEXT5YR-U4B

Connected Equipment Guarantee Lifetime

CEG Amo unt $400,000
