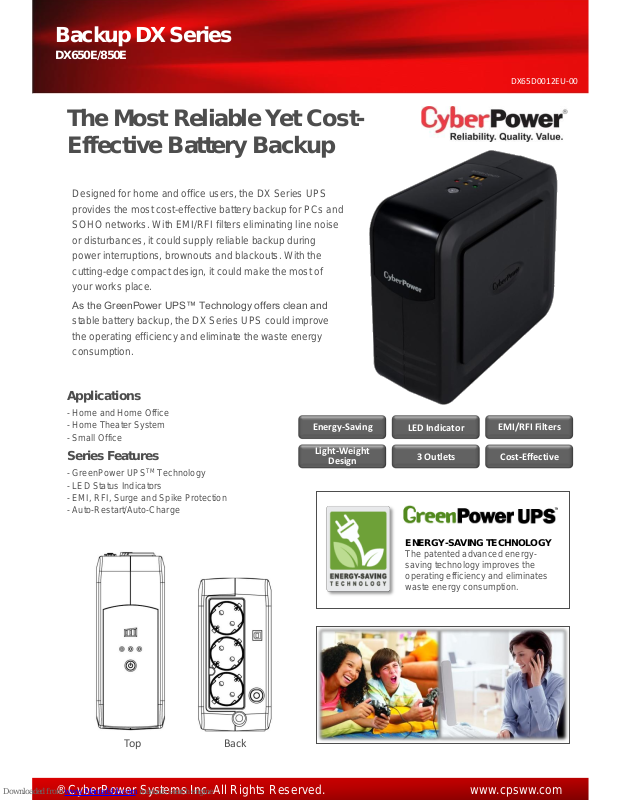

CyberPower DX650E, DX850E Specifications

® CyberPower Systems Inc. All Rights Reserved. www.cpsww.com

The Most Reliable Yet Cost­Effective Battery Backup

Applications

- Home and Home Office

- Home Theater System

- Small Office

Series Features

- GreenPower UPSTM Technology

- LED Status Indicators

- EMI, RFI, Surge and Spike Protection

- Auto-Restart/Auto-Charge

3 Outlets

EMI/RFI Filters

LED Indicator

Light-Weight

Design

Cost-Effective

Energy-Saving

Designed for home and office users, the DX Series UPS
provides the most cost-effective battery backup for PCs and
SOHO networks. With EMI/RFI filters eliminating line noise
or disturbances, it could supply reliable backup during
power interruptions, brownouts and blackouts. With the
cutting-edge compact design, it could make the most of
your works place.

As the GreenPower UPS™ Technology offers clean and

stable battery backup, the DX Series UPS could improve

the operating efficiency and eliminate the waste energy

consumption.

Backup DX Series

DX650E/850E

Top Back

DX65D0012EU-00

ENERGY-SAVING TECHNOLOGY

The patented advanced energy­saving technology improves the
operating efficiency and eliminates
waste energy consumption.

® CyberPower Systems Inc. All Rights Reserved. www.cpsww.com

DISTRIBUTED BY:

CyberPower’s

Manufacturing

Facilities are

ISO 9001:2000,
ISO 14000, and

QC080000

Approved

Technical Specification

#All specifications are subject to change without notice. © 2012 CyberPower Systems. All Trademarks are the property of their owners.

Model DX650E DX850E
Configuration
Capacity (VA / Watts) 650 / 360 850 / 490
Energy-Saving Technology

Yes
Input
Frequency Range

47 Hz – 63 Hz (Auto Sensing)
Output
UPS Outlets (Numbers)

(3) Schuko Socket
On Battery Output Voltage Simulated Sinewave at 230 Vac +/- 5%
On Battery Output Frequency 50 Hz / 60 Hz +/- 1%
Transfer Time (Typical) 4ms

Overload Protection

On Utility: Circuit Breaker & Internal Current Limiting

On Battery: Internal Current Limiting

Surge Protection and Filtering
Surge Protection Yes
Physical
Dimensions (H x W x D) (mm) 235 x 90 x 190
Weight (kg) 2.7 2.9
Battery
Sealed Maintenance Free Lead Acid Battery 12V / 4.5AH x 1 12V / 7AH x 1
Typical Recharge Time 8 Hours
Runtimes
Half-load / Full-load (mins) 6 / 1 7 / 2
Status Indicators
Indicators Using AC, Using Battery, Fault, Battery Capacity
Audible Alarms On Battery, Low Battery, Overload
Management
Auto-Charge / Auto-Restart Yes

Packaging Content:

User Manual

Warranty Card

Product Unit

Backup DX Series

DX650E/850E
