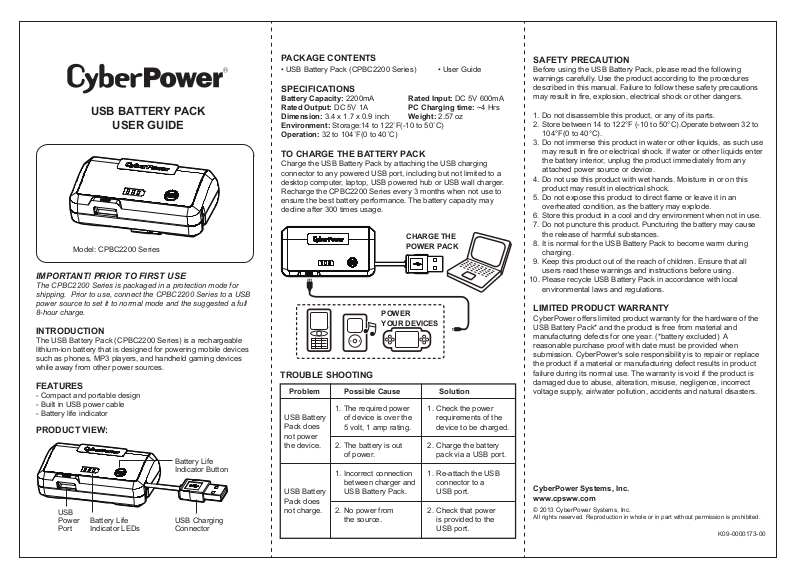

USB BATTERY PACK
USER GUIDE
Model: CPBC2200 Series
IMPORTANT! PRIOR TO FIRST USE
The CPBC2200 Series is packaged in a protection mode for
shipping. Prior to use, connect the CPBC2200 Series to a USB
power source to set it to normal mode and the suggested a full
8-hour charge.
INTRODUCTION
The USB Battery Pack (CPBC2200 Series) is a rechargeable
lithium-ion battery that is designed for powering mobile devices
such as phones, MP3 players, and handheld gaming devices
while away from other power sources.
FEATURES
- Compact and portable design
- Built in USB power cable
- Battery life indicator
PRODUCT VIEW:
Battery Life
Indicator Button
USB
Power
Port
Battery Life
Indicator LEDs
USB Charging
Connector
PACKAGE CONTENTS
• USB Battery Pack (CPBC2200 Series) • User Guide
SPECIFICATIONS
Battery Capacity: 2200mA Rated Input: DC 5V 600mA
Rated Output: DC 5V 1A PC Charging time: ~4 Hrs
Dimension: 3.4 x 1.7 x 0.9 inch Weight: 2.57 oz
Environment: Storage:14 to 122˚F(-10 to 50˚C)
Operation: 32 to 104˚F(0 to 40˚C)
TO CHARGE THE BATTERY PACK
Charge the USB Battery Pack by attaching the USB charging
connector to any powered USB port, including but not limited to a
desktop computer, laptop, USB powered hub or USB wall charger.
Recharge the CPBC2200 Series every 3 months when not use to
ensure the best battery performance. The battery capacity may
decline after 300 times usage.
CHARGE THE
POWER PACK
POWER
YOUR DEVICES
TROUBLE SHOOTING
SolutionPossible CauseProblem
USB Battery
Pack does
not power
the device.
USB Battery
Pack does
not charge.
1. The required power
of device is over the
5 volt, 1 amp rating.
2. The battery is out
of power.
1. Incorrect connection
between charger and
USB Battery Pack.
2. No power from
the source.
1. Check the power
requirements of the
device to be charged.
2. Charge the battery
pack via a USB port.
1. Re-attach the USB
connector to a
USB port.
2. Check that power
is provided to the
USB port.
SAFETY PRECAUTION
Before using the USB Battery Pack, please read the following
warnings carefully. Use the product according to the procedures
described in this manual. Failure to follow these safety precautions
may result in fire, explosion, electrical shock or other dangers.
1. Do not disassemble this product, or any of its parts.
2. Store between 14 to 122°F (-10 to 50°C).Operate between 32 to
104°F(0 to 40°C).
3. Do not immerse this product in water or other liquids, as such use
may result in fire or electrical shock. If water or other liquids enter
the battery interior, unplug the product immediately from any
attached power source or device.
4. Do not use this product with wet hands. Moisture in or on this
product may result in electrical shock.
5. Do not expose this product to direct flame or leave it in an
overheated condition, as the battery may explode.
6. Store this product in a cool and dry environment when not in use.
7. Do not puncture this product. Puncturing the battery may cause
the release of harmful substances.
8. It is normal for the USB Battery Pack to become warm during
charging.
9. Keep this product out of the reach of children. Ensure that all
users read these warnings and instructions before using.
10. Please recycle USB Battery Pack in accordance with local
environmental laws and regulations.
LIMITED PRODUCT WARRANTY
CyberPower offers limited product warranty for the hardware of the
USB Battery Pack* and the product is free from material and
manufacturing defects for one year. (*battery excluded) A
reasonable purchase proof with date must be provided when
submission. CyberPower's sole responsibility is to repair or replace
the product if a material or manufacturing defect results in product
failure during its normal use. The warranty is void if the product is
damaged due to abuse, alteration, misuse, negligence, incorrect
voltage supply, air/water pollution, accidents and natural disasters.
CyberPower Systems, Inc.
www.cpsww.com
© 2013 CyberPower Systems, Inc.
All rights reserved. Reproduction in whole or in part without permission is prohibited.
K09-0000173-00
