CyberPower CP900EPFCLCD, 1300EPFCLCD, 1500EPFCLCD, CP1300EPFCLCD, CP1500EPFCLCD Technical Specification

® CyberPower Systems Inc. All Rights Reserved. www.cpsww.eu

PowerPanel® Personal Edition Management S/W

AUTO-SHUTDOWN SOFTWARE

CyberPower PowerPanel

®

Personal Edition Management
Software, is compatible with
Windows7, Vista, XP, 2000 Pro.,
ME, 98, Windows Server 2008,
2003, Mac and Linux.

Applications

- Home and Home Office

- Home Theater System

- Small Office

- Medium Business

Series Features

- GreenPower UPSTM Technology

- Automatic Voltage Regulator (AVR)

- EMI, RFI, Surge and Spike Protection

- Phone/Fax/Modem/DSL/Network Protection

- Auto-Restart/Auto-Charge

- LCD Status Monitor

- USB & Serial Connectivity Ports

- User-Replaceable Batteries

- PowerPanel® Personal Edition Software

LCD Display

Surge

Protection

PFC Compatible

Phone Line

Protection

USB & Serial

Energy-Saving

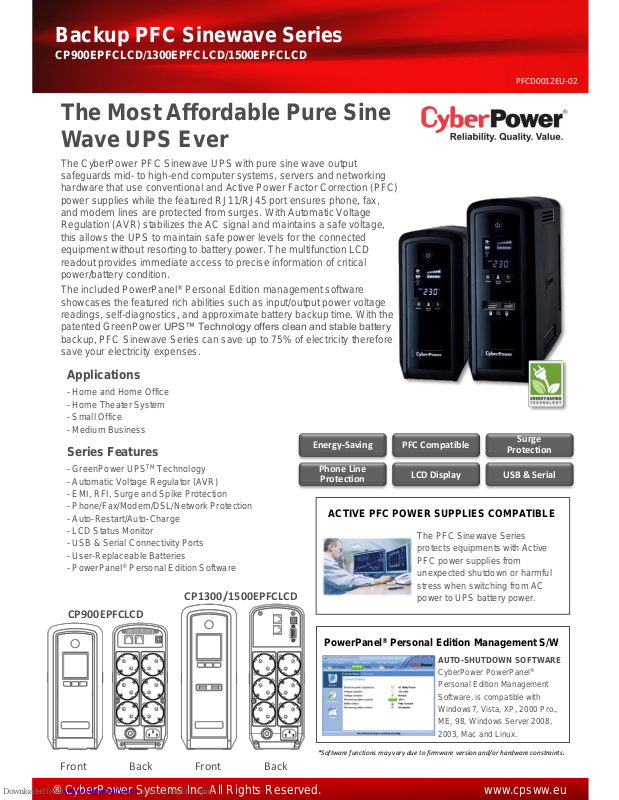

Backup PFC Sinewave Series

CP900EPFCLCD/1300EPFCLCD/1500EPFCLCD

The CyberPower PFC Sinewave UPS with pure sine wave output
safeguards mid- to high-end computer systems, servers and networking
hardware that use conventional and Active Power Factor Correction (PFC)
power supplies while the featured RJ11/RJ45 port ensures phone, fax,

and modem lines are protected from surges. With Automatic Voltage

Regulation (AVR) stabilizes the AC signal and maintains a safe voltage,
this allows the UPS to maintain safe power levels for the connected
equipment without resorting to battery power. The multifunction LCD
readout provides immediate access to precise information of critical
power/battery condition.

The included PowerPanel® Personal Edition management software
showcases the featured rich abilities such as input/output power voltage
readings, self-diagnostics, and approximate battery backup time. With the
patented GreenPower UPS™ Technology offers clean and stable battery
backup, PFC Sinewave Series can save up to 75% of electricity therefore
save your electricity expenses.

The Most Affordable Pure Sine
Wave UPS Ever

Back Front

CP900EPFCLCD

Front Back

CP1300/1500EPFCLCD

The PFC Sinewave Series
protects equipments with Active
PFC power supplies from
unexpected shutdown or harmful
stress when switching from AC
power to UPS battery power.

ACTIVE PFC POWER SUPPLIES COMPATIBLE

PFCD0012EU-02

*Software functions may vary due to firmware version and/or hardware constraints.

® CyberPower Systems Inc. All Rights Reserved. www.cpsww.eu

DISTRIBUTED BY:

CyberPower’s

Manufacturing

Facilities are

ISO 9001:2000,
ISO 14000, and

QC080000

Approved

Technical Specification

Packaging Content:

Model CP900EPFCLCD CP1300EPFCLCD CP1500EPFCLCD

Configuration
Capacity (VA / Watts)

900 / 540 1300 / 780 1500 / 900

Energy-Saving Technology

Yes

Input
Frequency Range 47 Hz – 63 Hz (Auto Sensing)

Input Plug Type IEC 320 C14
Output

UPS Outlets (Numbers)

(3) Battery Backup & Surge Protected Outlets

(3) Full-Time Surge Protected Outlets
On Battery Output Voltage Pure Sinewave at 230 Vac +/- 10%
On Battery Output Frequency 50 Hz / 60 Hz +/- 1%
Transfer Time (Typical) 4ms

Overload Protection

On utility: Internal Current Limiting & Circuit Breaker

On battery: Internal Current Limiting
AVR Single Boost
Surge Protection and Filtering
Surge Protection Yes

DSL/Phone/Fax/Modem Protection RJ45 x 2 (One In / One Out)
Physical

Dimensions (H x W x D) (mm)

230 x 100 x 275 265 x 100 x 370
Weight (kg) 6.6 9.5 10.9
Battery
Sealed Maintenance Free Lead Acid Battery 12V / 8.5AH x 1 12V / 7AH x 2 12V / 8.5.AH x 2
User Replaceable Yes
Typical Recharge Time 8 Hours
Status Indicators
Indicators Power On
Audible Alarms Battery Discharge, Battery Low, Overload (Battery Mode), Fault
Multi-function LCD Readout Yes
Communication
PowerPanel® Personal Edition Windows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Management
Auto-Charge / Auto-Restart Yes
Connectivity Ports USB USB, Serial

USB Cable Phone Cable User Manual Software CD Product Unit

CP900EPFCLCD/1300EPFCLCD/1500EPFCLCD

Backup PFC Sinewave Series
