VoIP V3 Paging Server
The IP Endpoint Company
Operations Guide
SIP Compliant
Part #011146
Document Part #930427B
for Firmware Version 6.2.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601
Operations Guide 930427B
Technical Support
The fastest way to get technical support for your VoIP product is to
submit a VoIP Technical Support form at the following website:
http://www.cyberdata.net/support/contactsupportvoip.html
We have several technical support staff monitoring this form and they will
contact you within 12 hours after receiving a submission.
Phone: (831) 373-2601, Ext. 333
Email: support@cyberdata.net
Fax: (831) 373-4193
Company and product information is at www.cyberdata.net.
SIP Compliant 011146
COPYRIGHT NOTICE:
© 2011, CyberData Corporation, ALL RIGHTS RESERVED.
This manual and related materials are the copyrighted property of CyberData Corporation. No part
of this manual or related materials may be reproduced or transmitted, in any form or by any means
(except for internal use by licensed customers), without prior express written permission of
CyberData Corporation. This manual, and the products, software, firmware, and/or hardware
described in this manual are the property of CyberData Corporation, provided under the terms of an
agreement between CyberData Corporation and recipient of this manual, and their use is subject to
that agreement and its terms.
DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by
CyberData Corporation, CyberData Corporation makes no representation or warranty, express or
implied, including any warranty or merchantability or fitness for any purpose, with respect to this
manual or the products, software, firmware, and/or hardware described herein, and CyberData
Corporation assumes no liability for damages or claims resulting from any use of this manual or
such products, software, firmware, and/or hardware. CyberData Corporation reserves the right to
make changes, without notice, to this manual and to any such product, software, firmware, and/or
hardware.
OPEN SOURCE STATEMENT: Certain software components included in CyberData products are
subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL)
“open source” or “free software” licenses. Some of this Open Source Software may be owned by
third parties. Open Source Software is not subject to the terms and conditions of the CyberData
COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open
Source Software is determined by the terms of the GPL, LGPL, or third party, according to who
licenses that software.
Software or firmware developed by Cyberdata that is unrelated to Open Source Software is
copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied,
modified, reverse-engineered, or otherwise altered without explicit written permission from
CyberData Corporation.
TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are
trademarks of CyberData Corporation. Other product names, trademarks, and service marks may be
the trademarks or registered trademarks of their respective owners.
The IP Endpoint Company
CyberData Corporation 930427B Operations Guide
Revision Information
Revision 930427B, which corresponds to firmware version 6.2.0, was released on September 12, 2011,
and has the following changes:
•Updates Section 2.3.1.1, “Pin 1 and 2—Fault Sense Input (Common/Sense)”.
CyberData Corporation 930427B Operations Guide
Important Safety Instructions
GENERAL ALERT
GENERAL ALERT
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
13. Prior to installation, consult local building and electrical code requirements.
Warning
Electrical H azard: This product should be install ed by a li censed electrician
according to al l local electrical and buildin g codes.
Warning
Electrical H azard: To prevent injury, this apparatus must be securely attached to
the floor/wall in accordance with the installation instructions.
CyberData Corporation 930427B Operations Guide
Pictorial Alert Icons
GENERAL ALERT
Hazard Levels
Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This is limited to the most extreme situations.
Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
General Alert
This pictoral alert indicates a potentially hazardous situation. This alert will be
followed by a haza rd level heading and more specific information about the
hazard.
Ground
This pictora l alert indicates the Earth grounding connection point.
Caution: Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury. It may also alert users against unsafe practices.
Notice: Indicates a statement of company policy (that is, a safety policy or protection of property).
The safety guidelines for the equipment in this manual do not purport to address all the safety
issues of the equipment. It is the responsibility of the user to establish appropriate safety, ergonomic,
and health practices and determine the applicability of regulatory limitations prior to use. Potential
safety hazards are identified in this manual through the use of words Danger, Warning, and
Caution, the specific hazard type, and pictorial alert icons.
CyberData Corporation 930427B Operations Guide
Abbreviations and Terms
Abbreviation or Term Definition
A-law A standard companding algorithm, used in European digital
communications systems to optimize, i.e., modify, the dynamic range of an
analog signal for digitizing.
AVP Audio Video Profile
Cat 5 TIA/EIA-568-B Category 5
DHCP Dynamic Host Configuration Protocol
LAN Local Area Network
LED Light Emitting Diode
Mbps Megabits per second.
NTP Network Time Protocol
PBX Private Branch Exchange
PoE Power over Ethernet (as per IEEE 802.3af standard)
RTFM Reset Test Function Management
SIP Session Initiated Protocol
u-law A companding algorithm, primarily used in the digital telecommunication
UC Unified Communications
VoIP Voice over Internet Protocol
CyberData Corporation 930427B Operations Guide
Contents
Chapter 1 Product Overview 1
1.1 How to Identify This Product ..............................................................................................................1
1.2 Product features .....................................................................................................................................2
1.3 Supported ................................................................................................................................................ 2
1.4 Product Specifications ...........................................................................................................................3
Chapter 2 Setting Up the V3 Paging Server 4

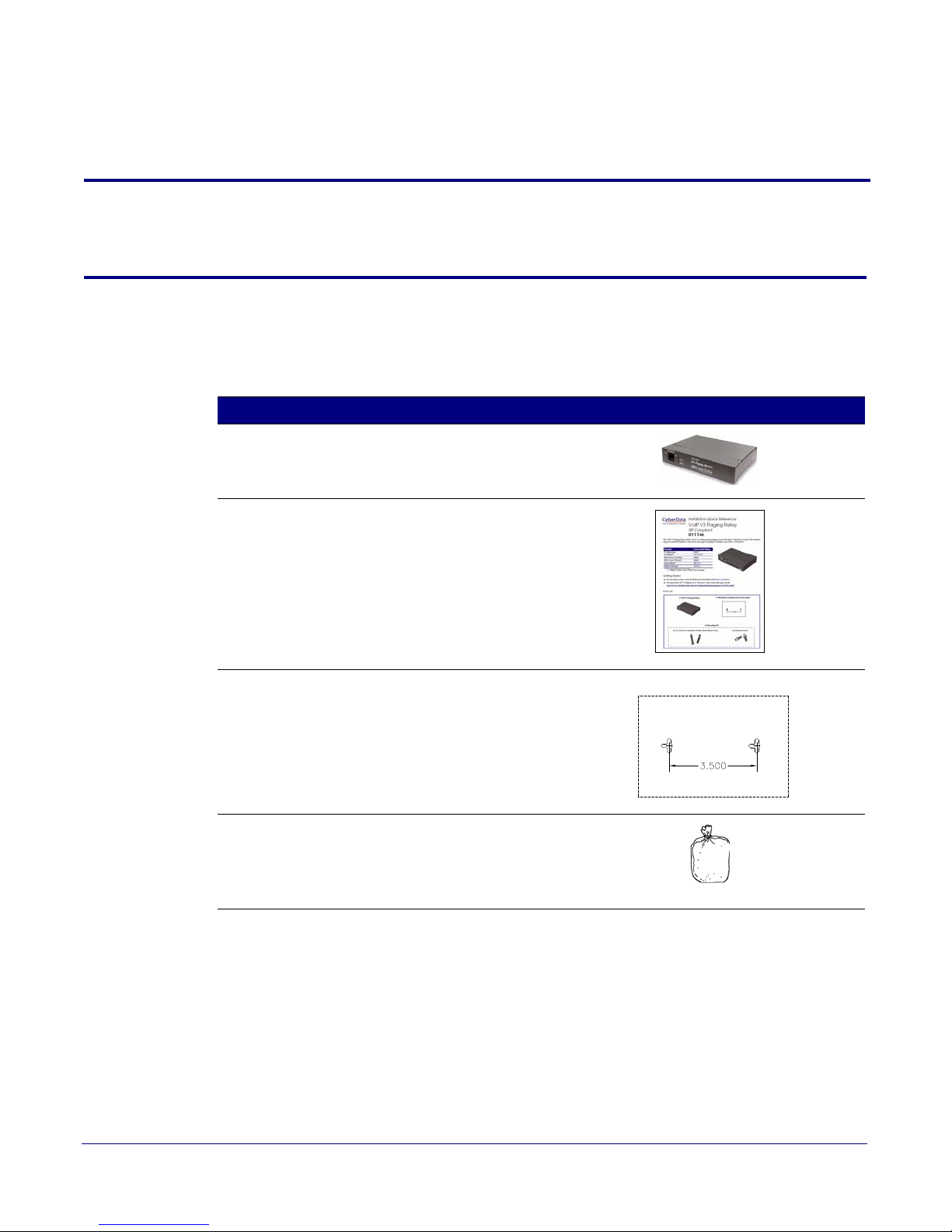

2.1 Parts List ..................................................................................................................................................4

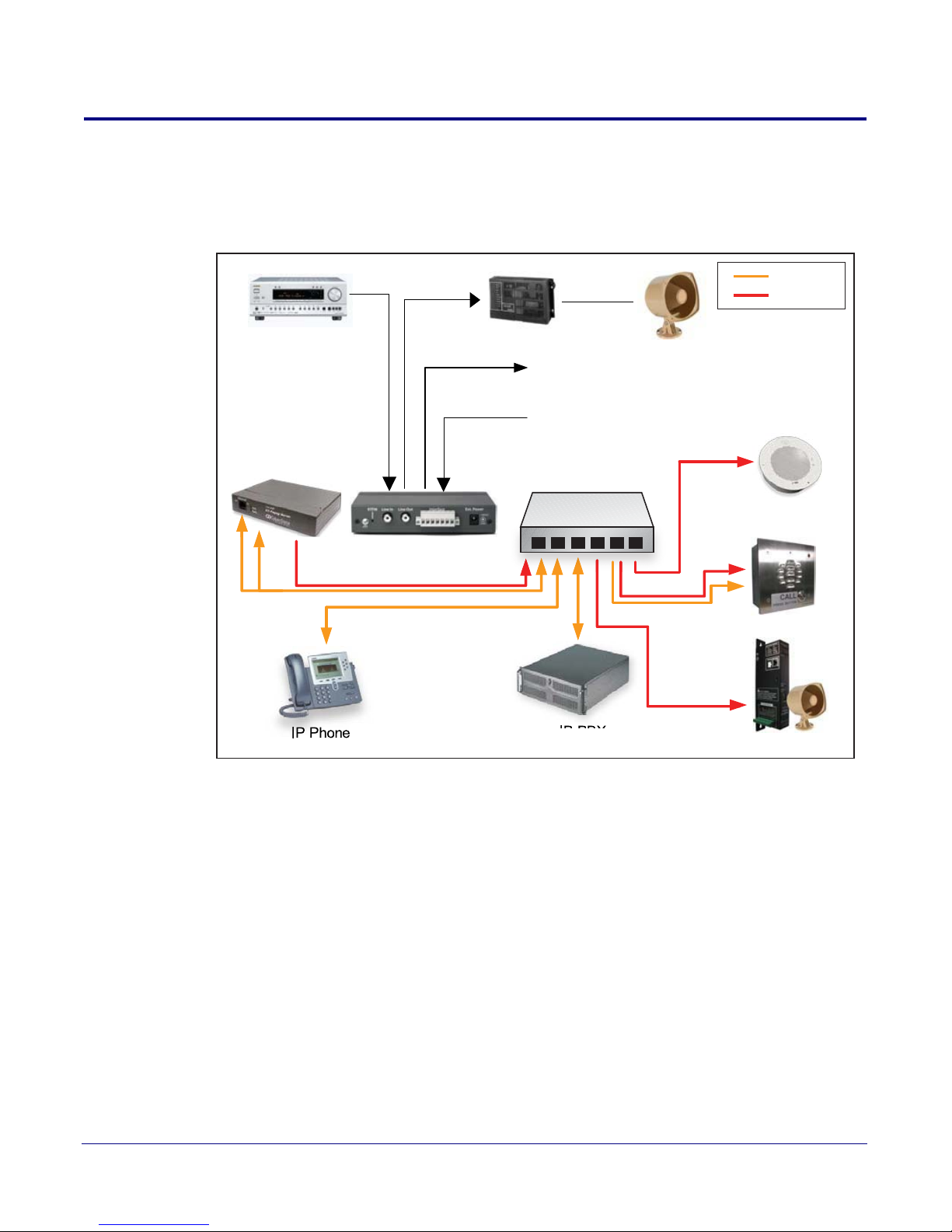

2.2 Typical Installation .................................................................................................................................5
2.3 Connecting the V3 Paging Server ........................................................................................................6
2.4 Configuring the V3 Paging Server ....................................................................................................12
2.5 Upgrading the Firmware ................................................................................................................... 48
i
2.3.1 Connection Options ....................................................................................................................6
Pin 1 and 2—Fault Sense Input (Common/Sense) ..................................................................7
Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio Output/Audio Ground Reference .7
Pin 6 and 7—Relay Contact (Common/Normally Open) ......................................................7

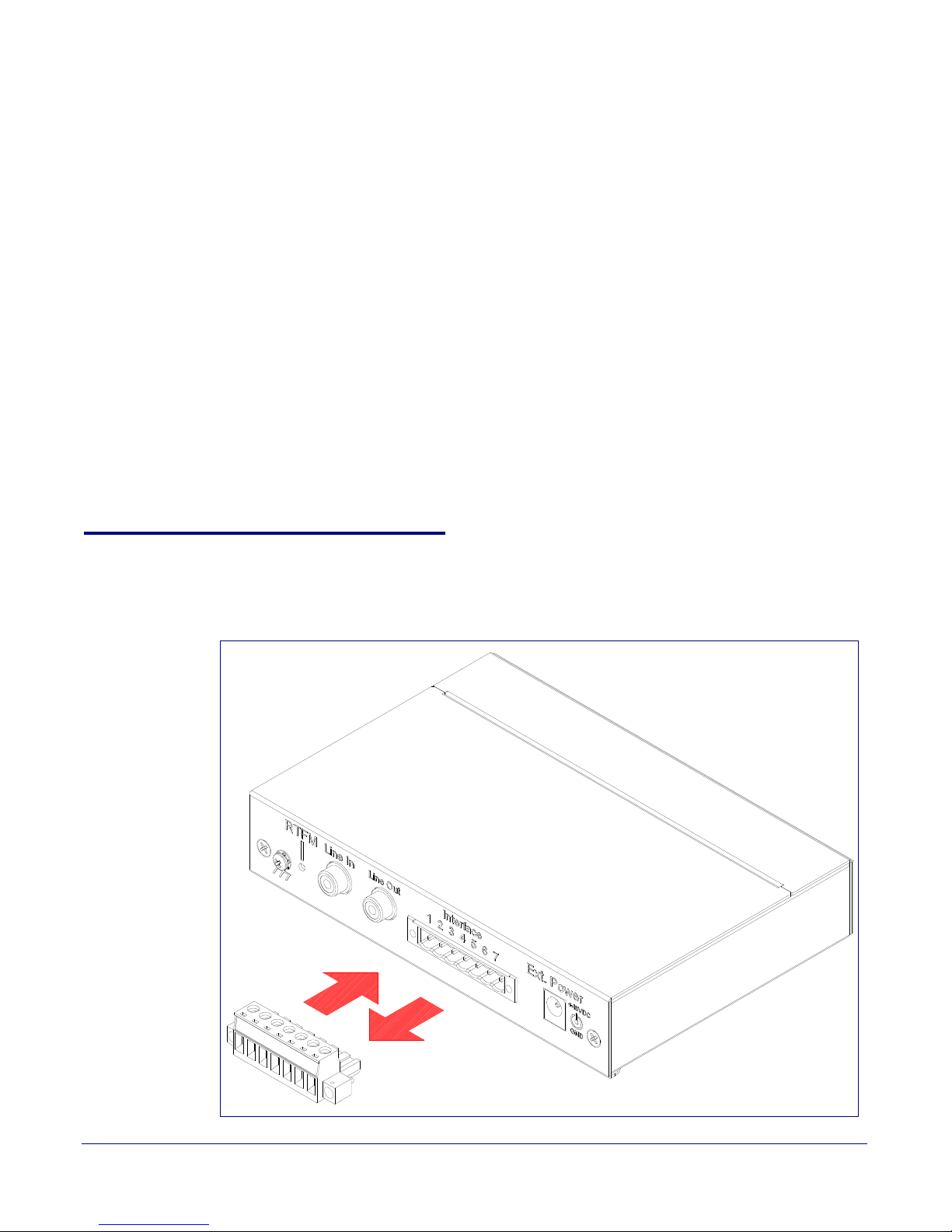

2.3.2 Removable Connector ................................................................................................................7

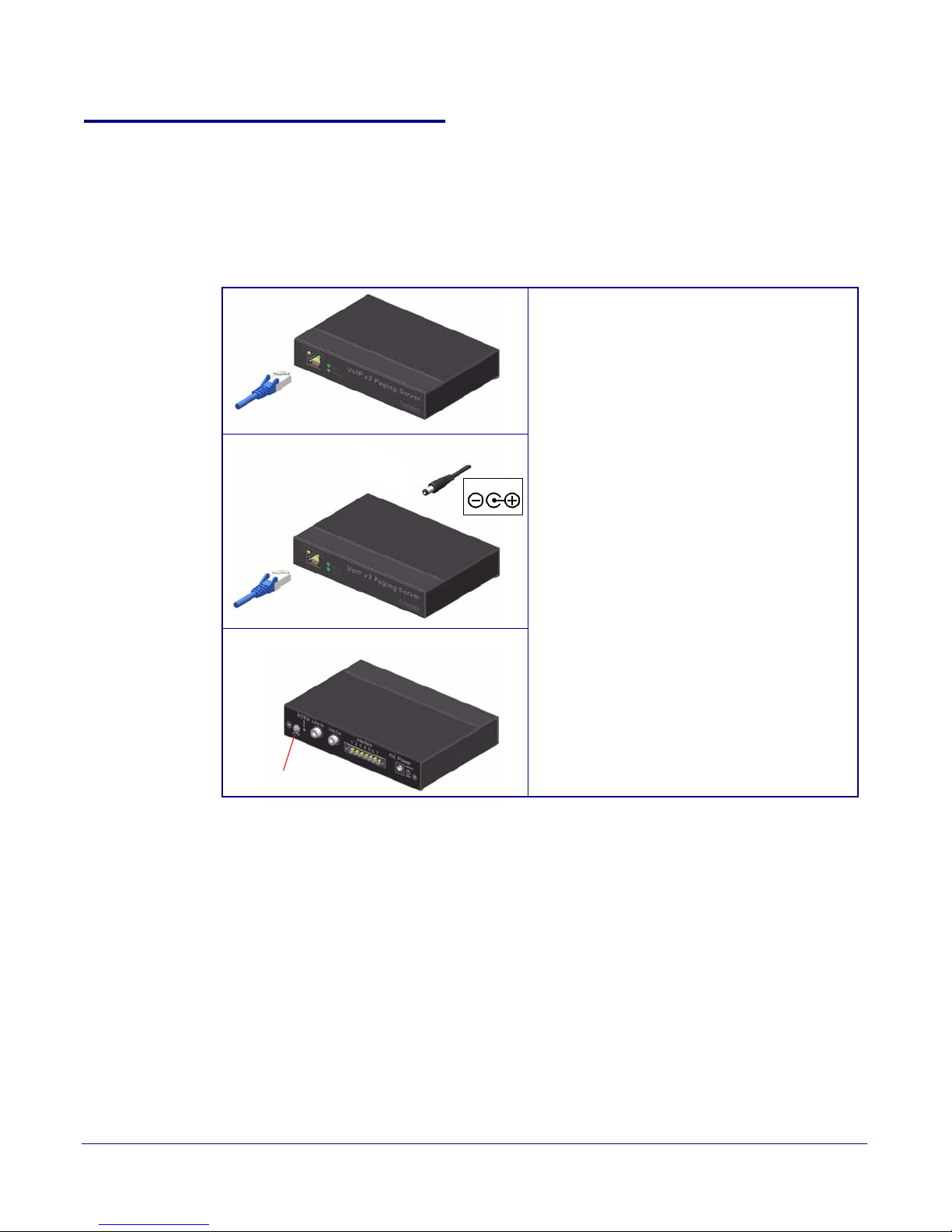

2.3.3 Connect to the Power Source ................................................................................................... 8
Poe ..................................................................................................................................................8
Non-Poe .........................................................................................................................................8
Chassis Ground .............................................................................................................................8

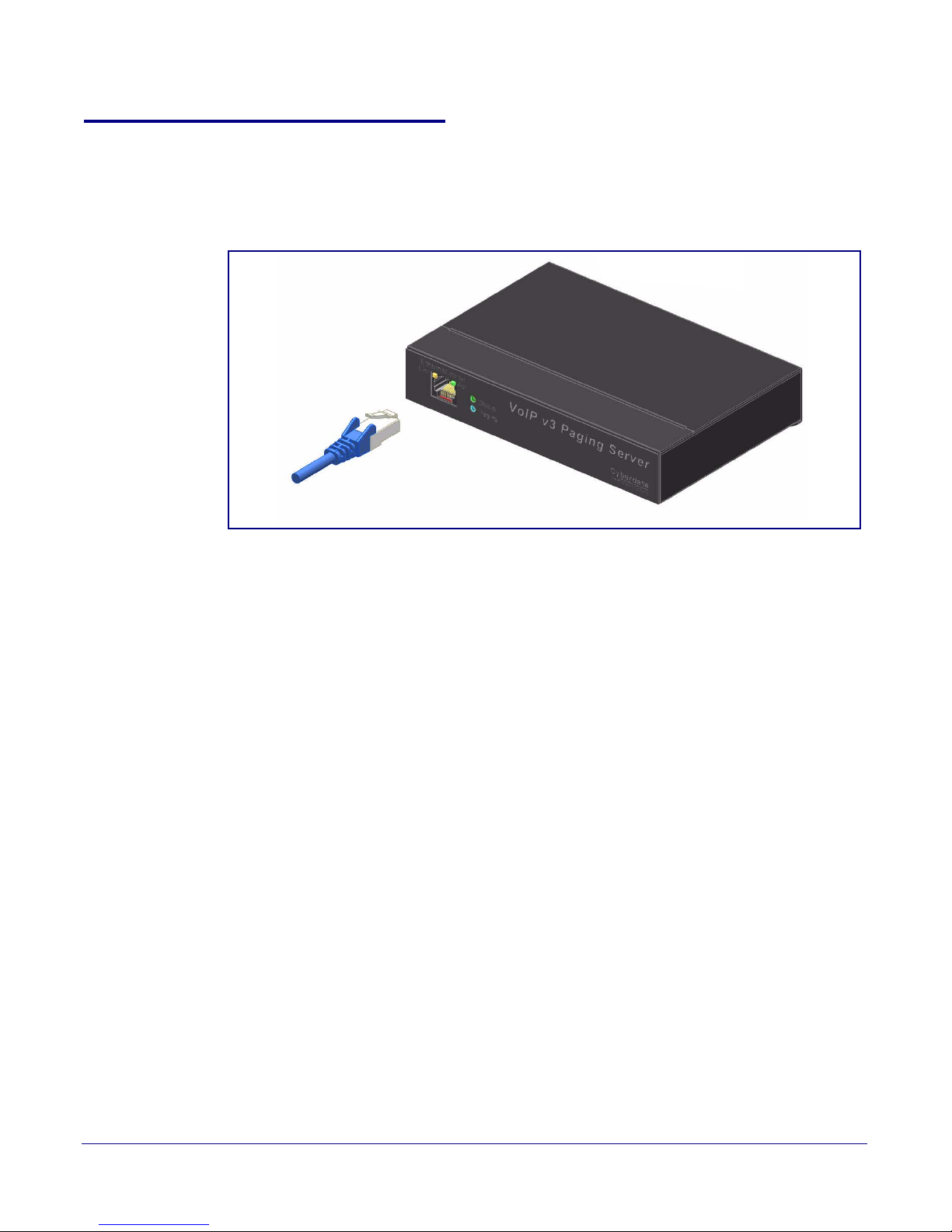

2.3.4 Connect to the Network ............................................................................................................9
2.3.5 Confirm that the V3 Paging Server is Up and Running ..................................................... 10
Confirm Power on, Network Connectivity, and Connection Speed .................................. 10
Verify Network Activity ...........................................................................................................10
2.3.6 Announcing the IP Address ....................................................................................................10

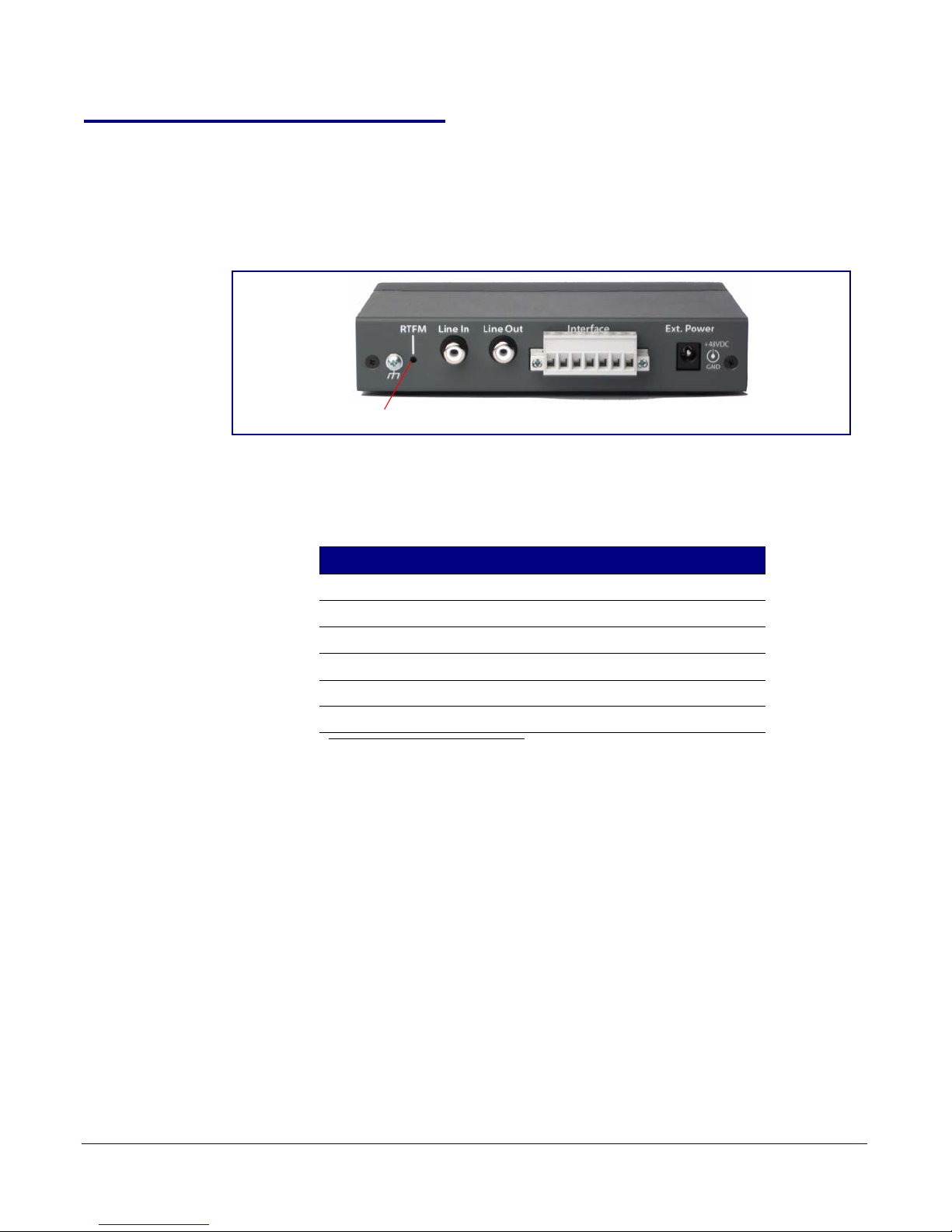

2.3.7 Restore the Factory Default Settings ......................................................................................11
2.4.1 Gather the Required Configuration Information ................................................................12
Static or DHCP Addressing? ....................................................................................................12
Username and Password for Configuration GUI .................................................................12
SIP Settings ................................................................................................................................. 12

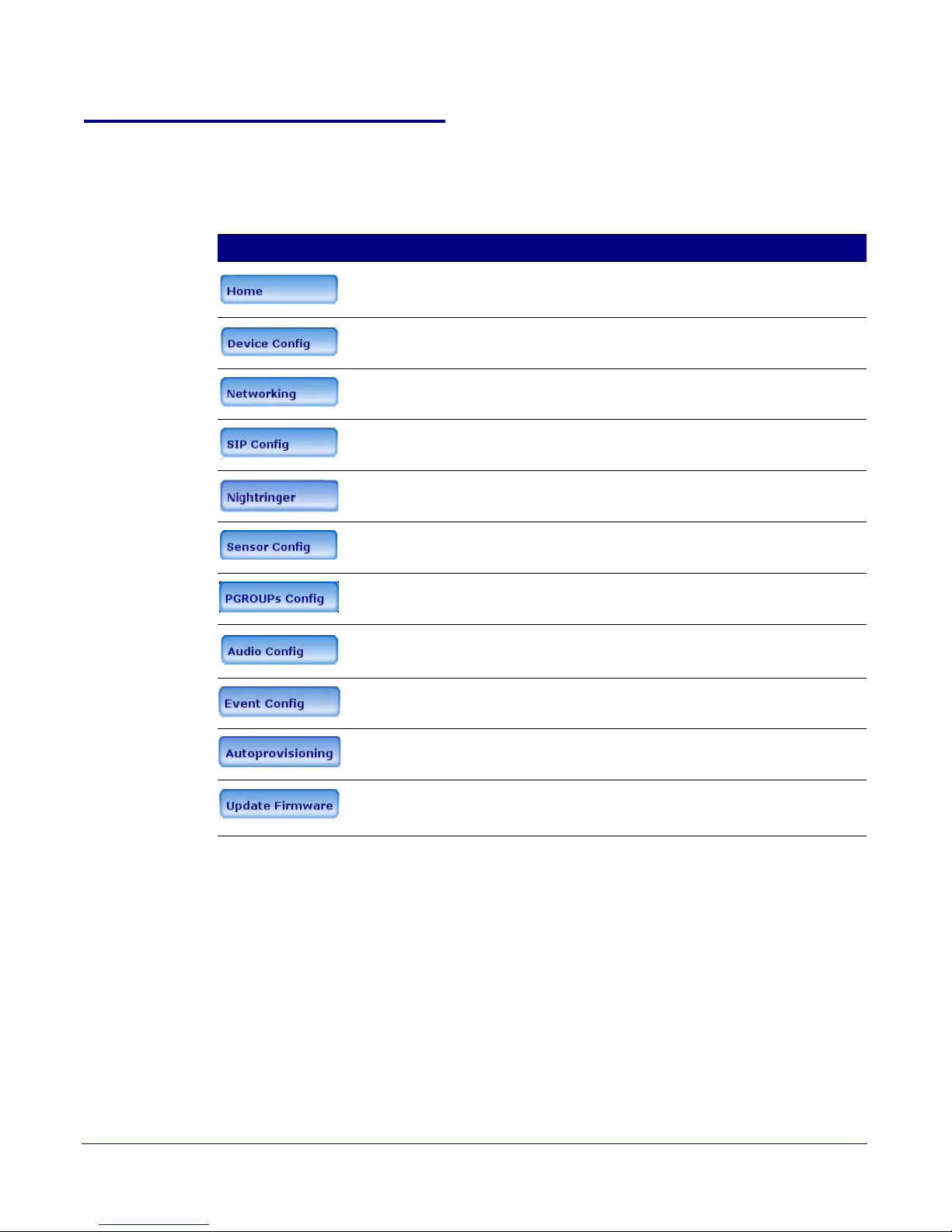

2.4.2 V3 Paging Server Web Page Navigation ................................................................................13
2.4.3 Log in to the Configuration GUI ............................................................................................14

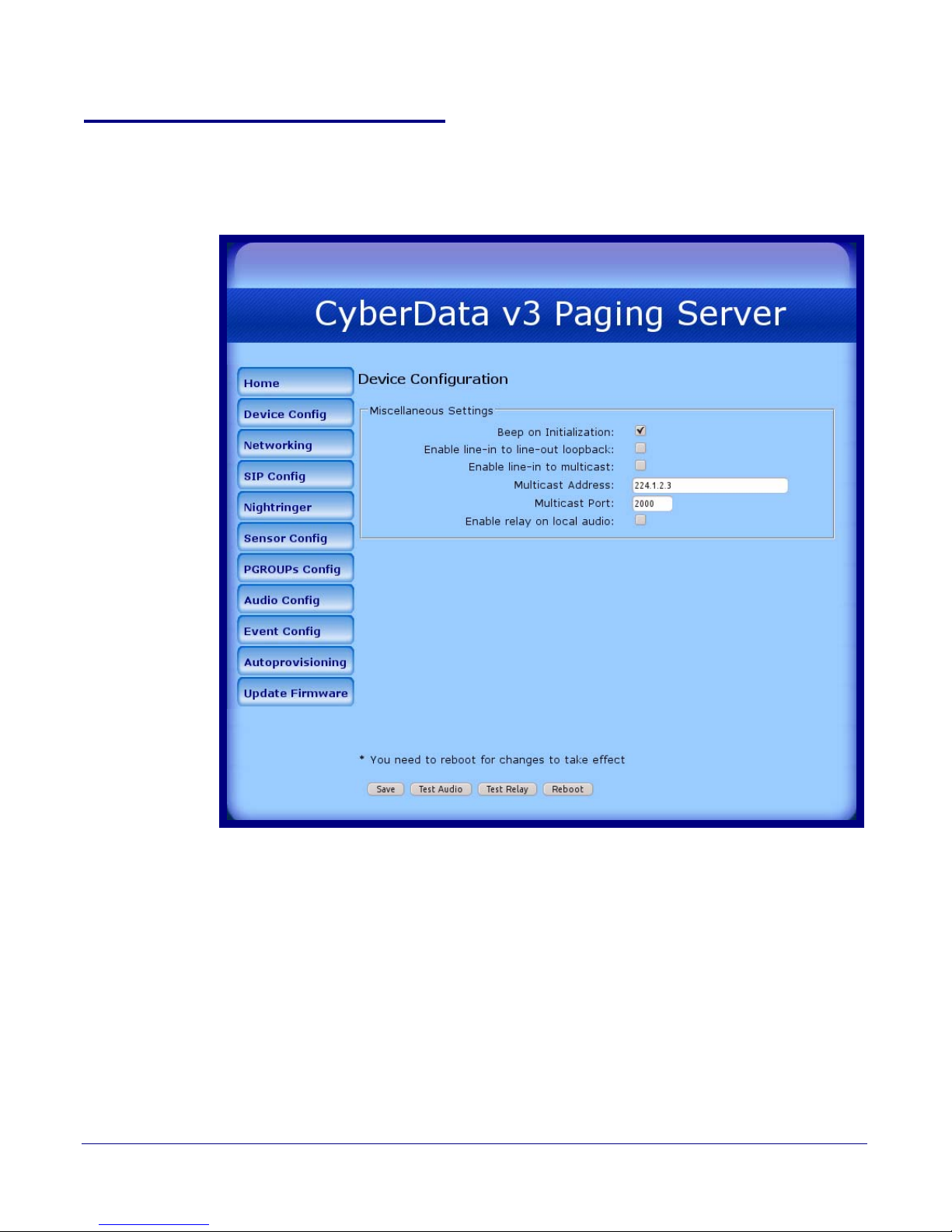

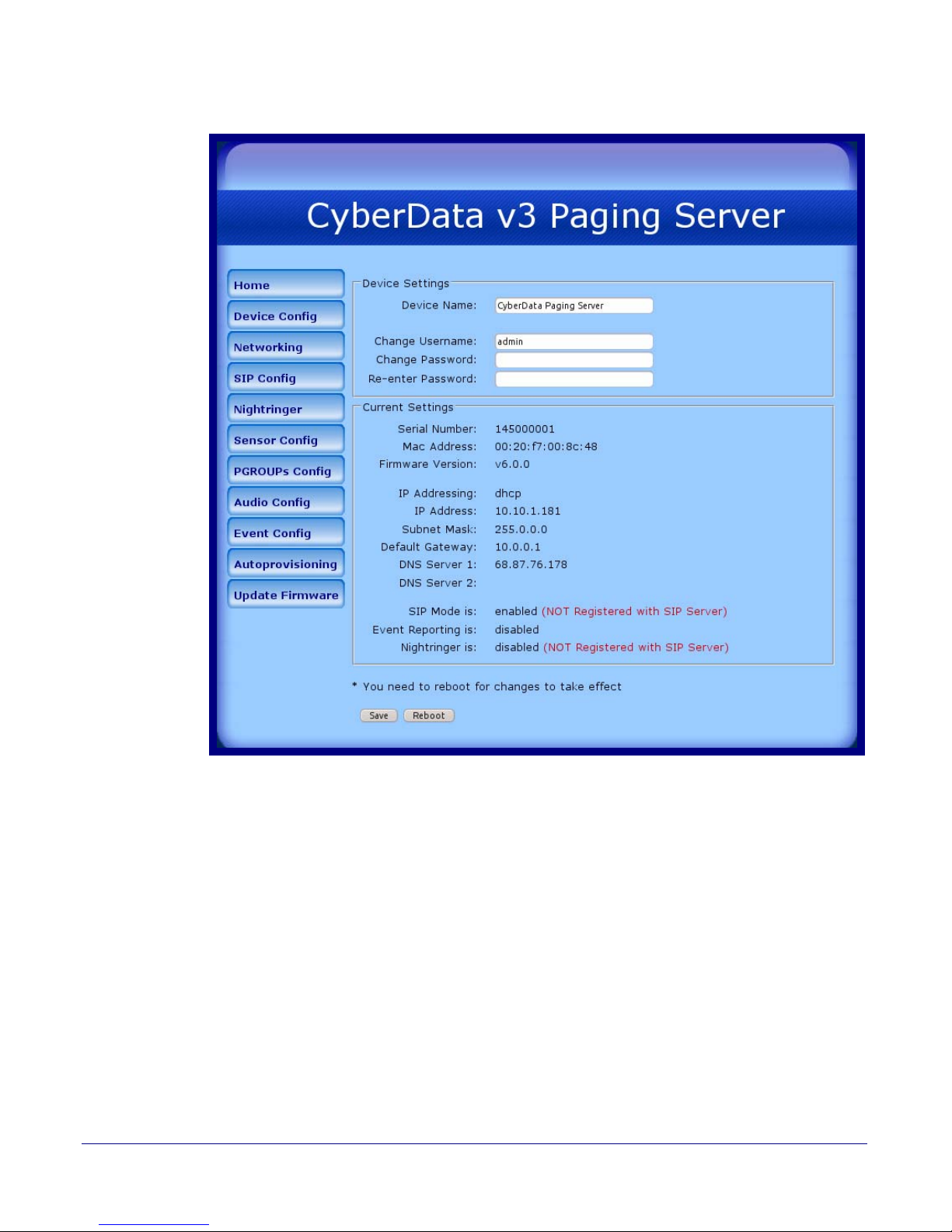

2.4.4 Configure the Device Parameters ...........................................................................................17

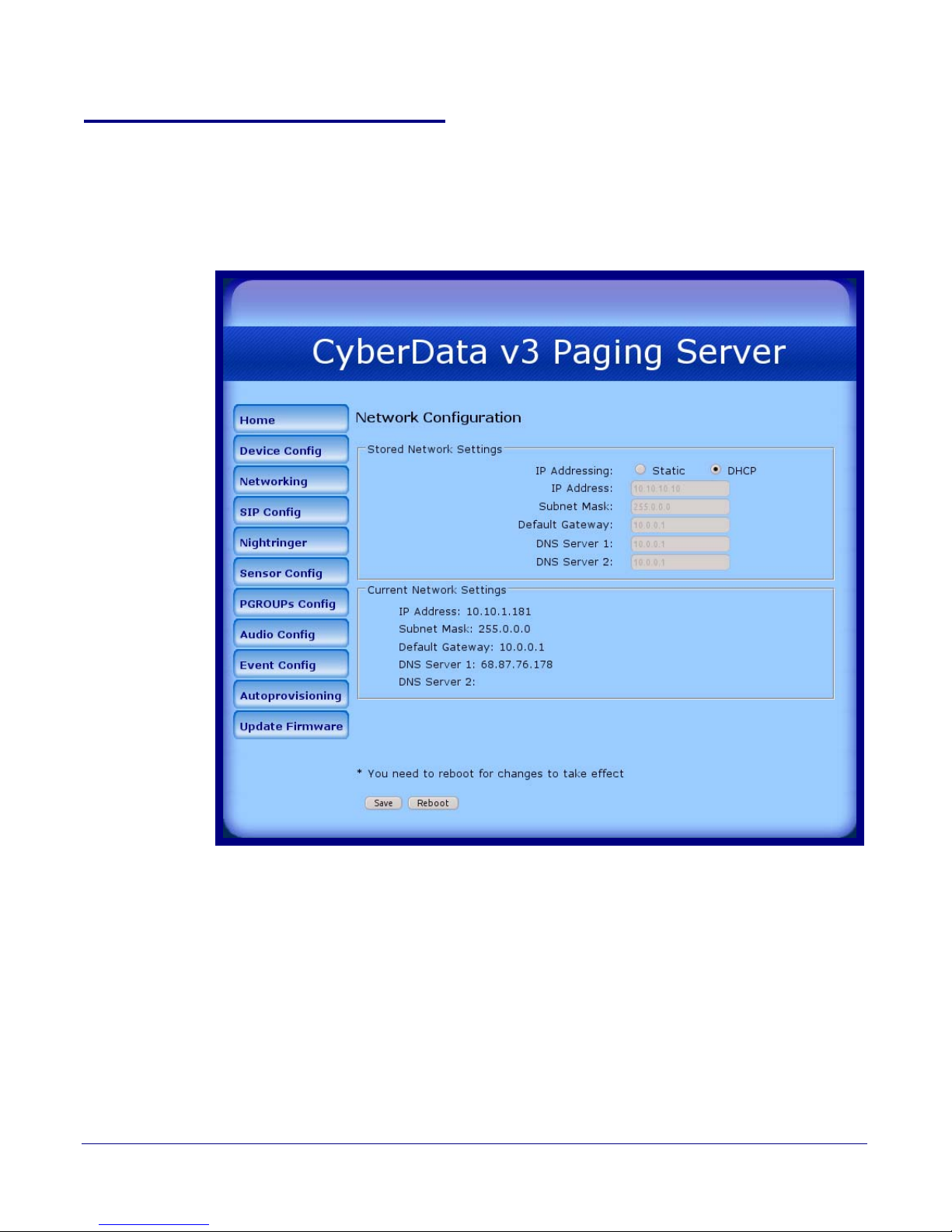

2.4.5 Configure the Network Parameters ......................................................................................19

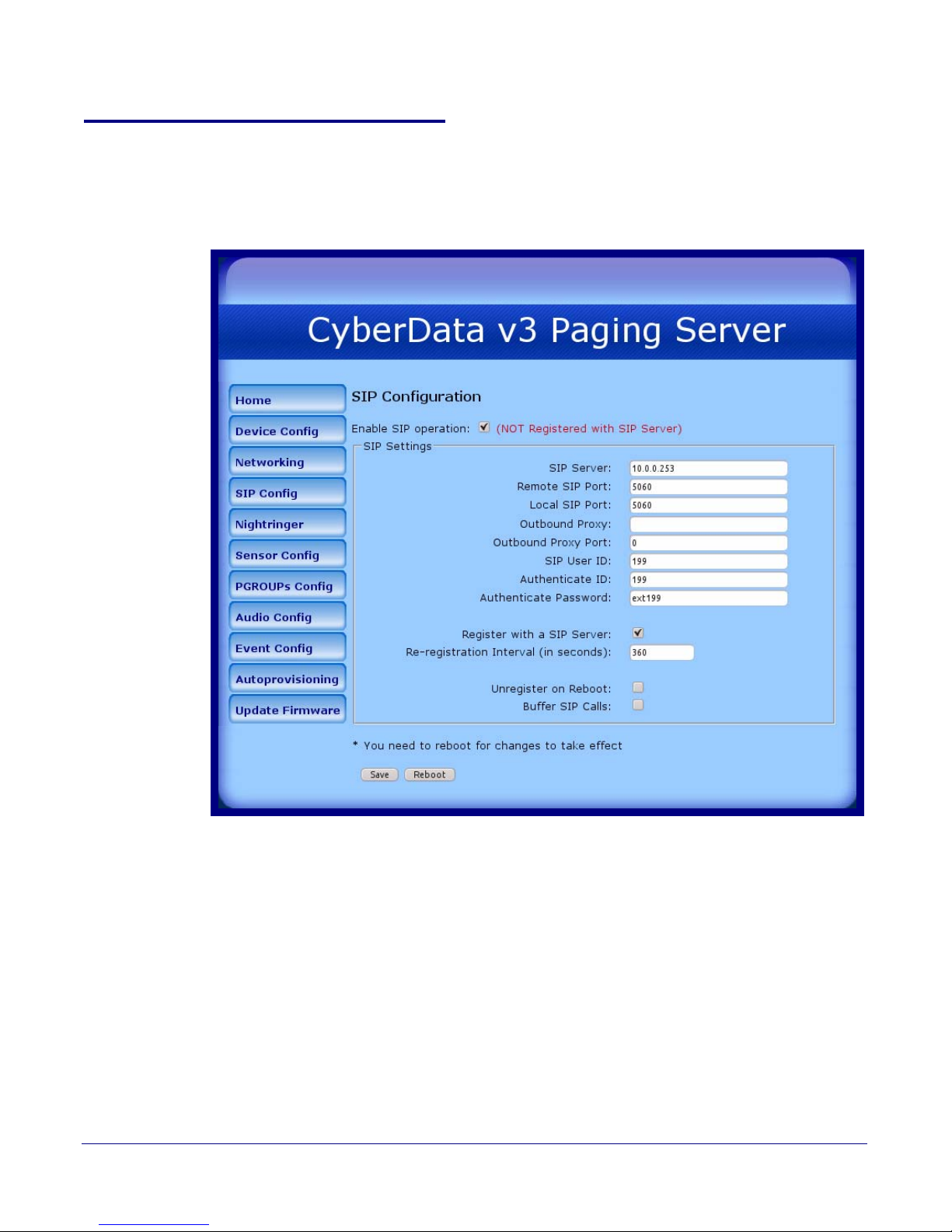

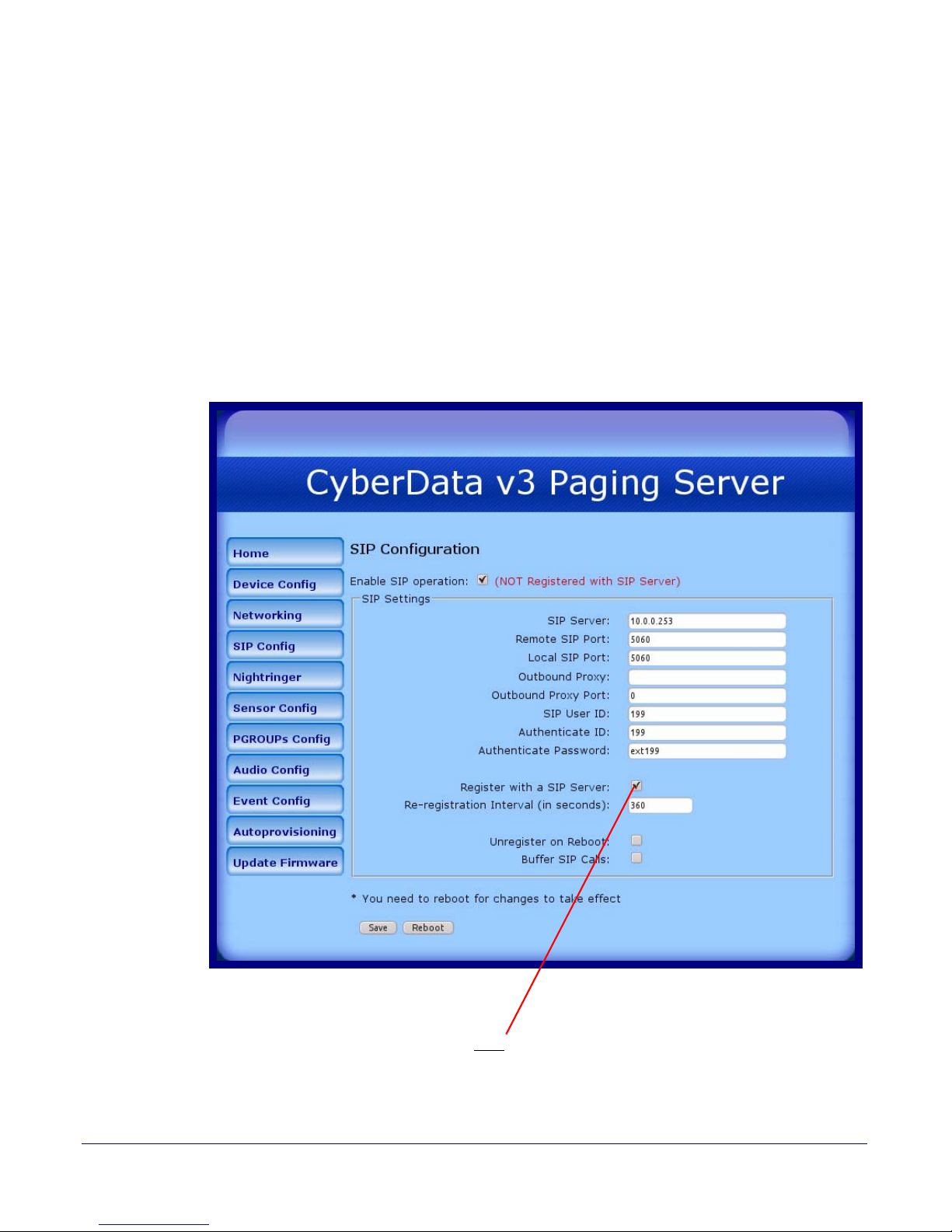

2.4.6 Configure the SiP Parameters ................................................................................................. 21
Point-to-Point Configuration ....................................................................................................24

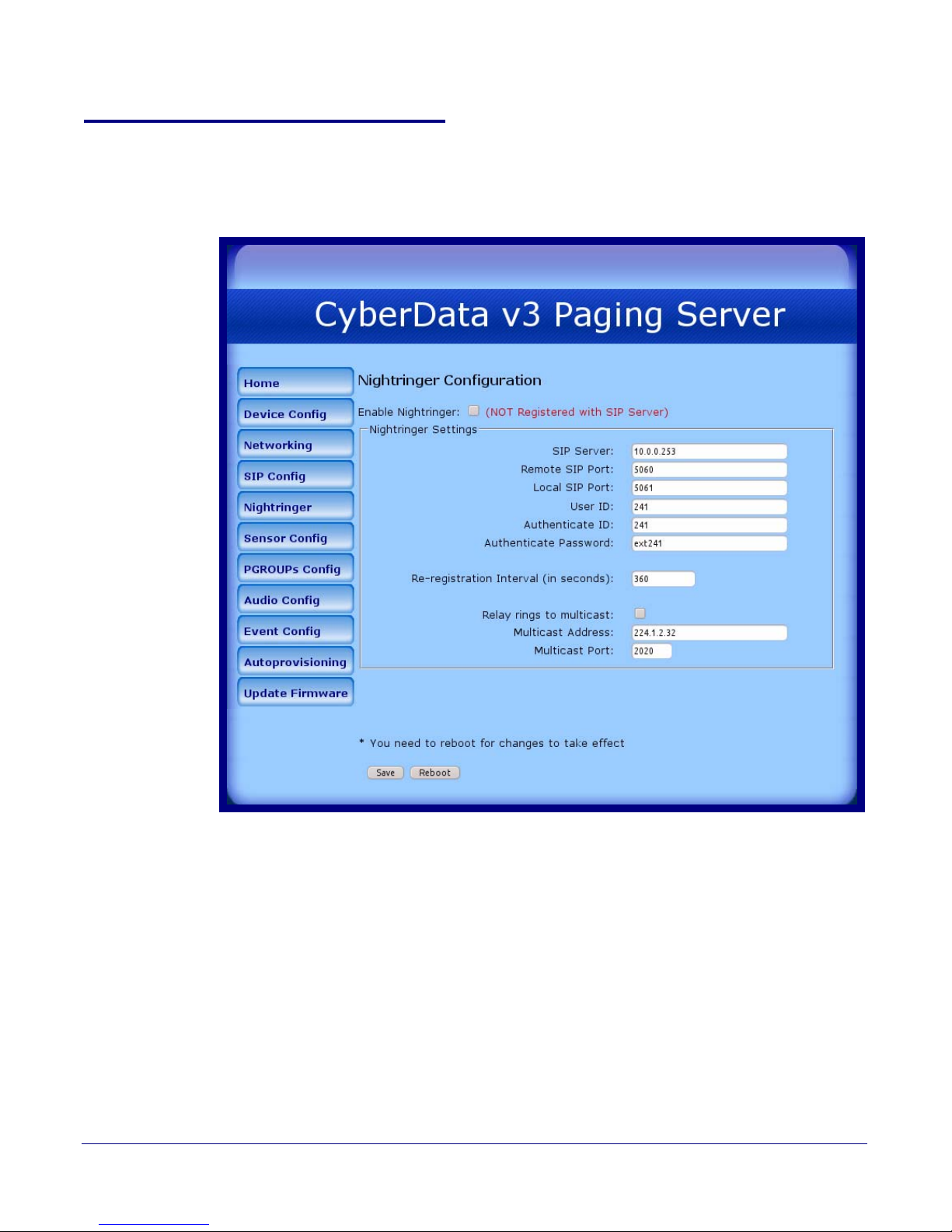

2.4.7 Configure the Night Ringer Parameters ................................................................................25

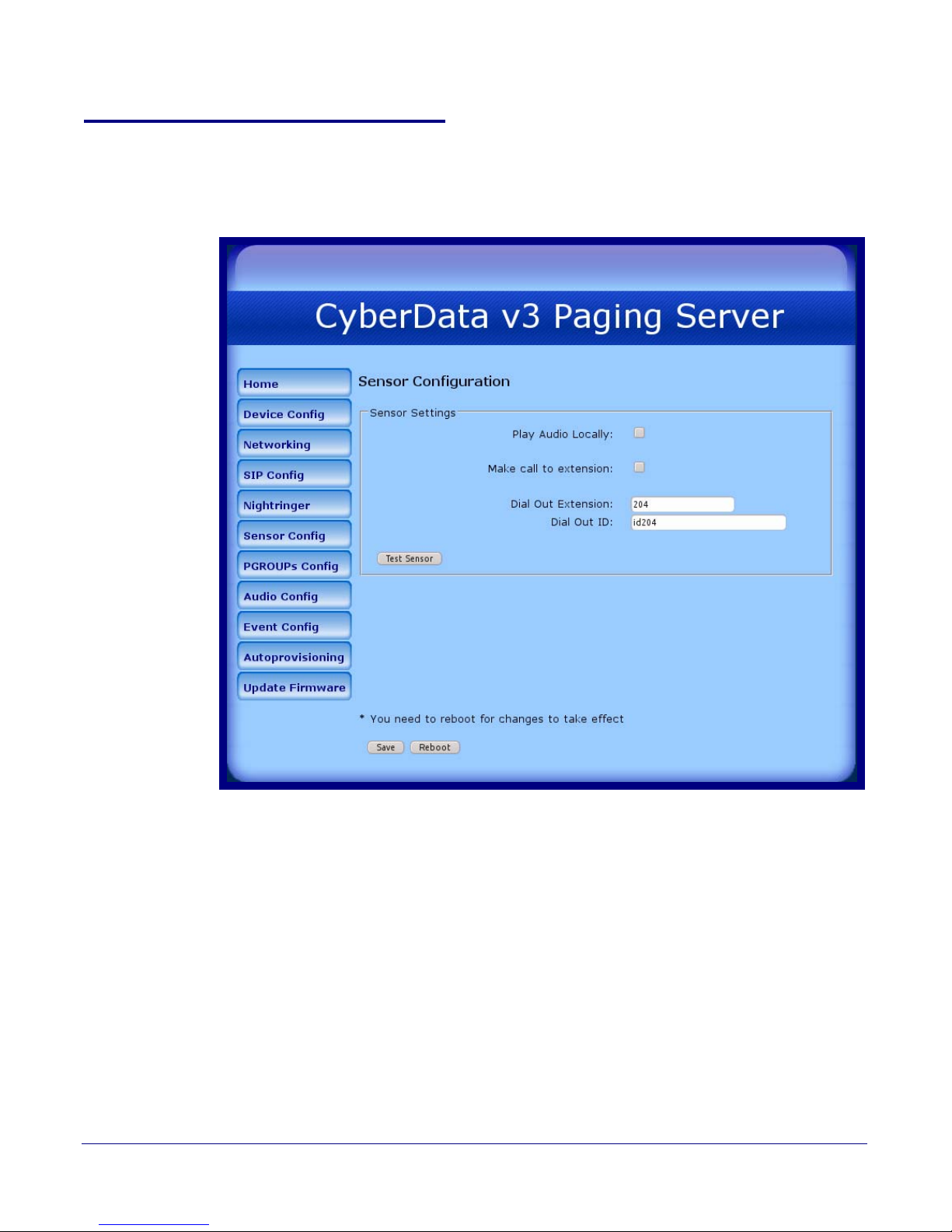

2.4.8 Configure the Sensor Parameters ...........................................................................................27

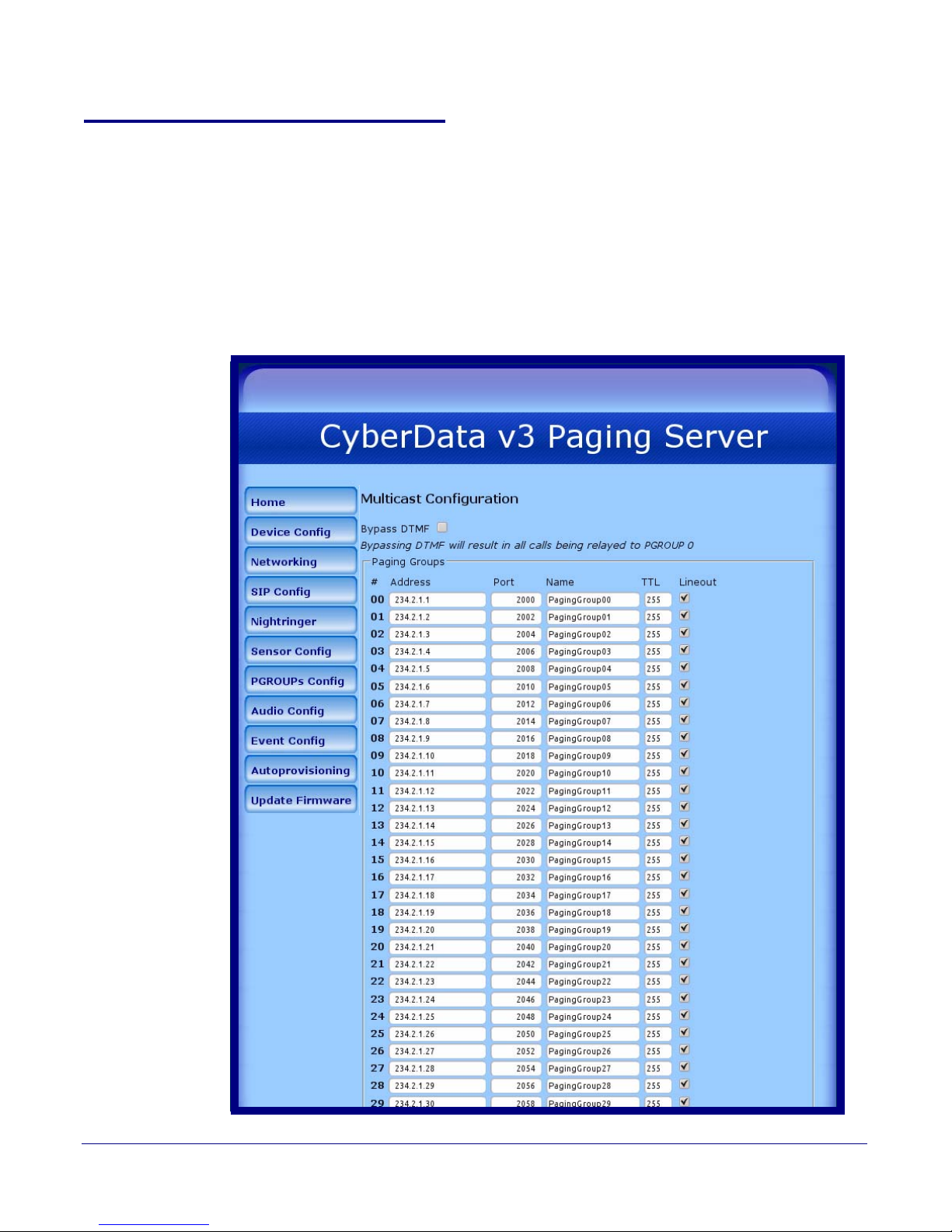

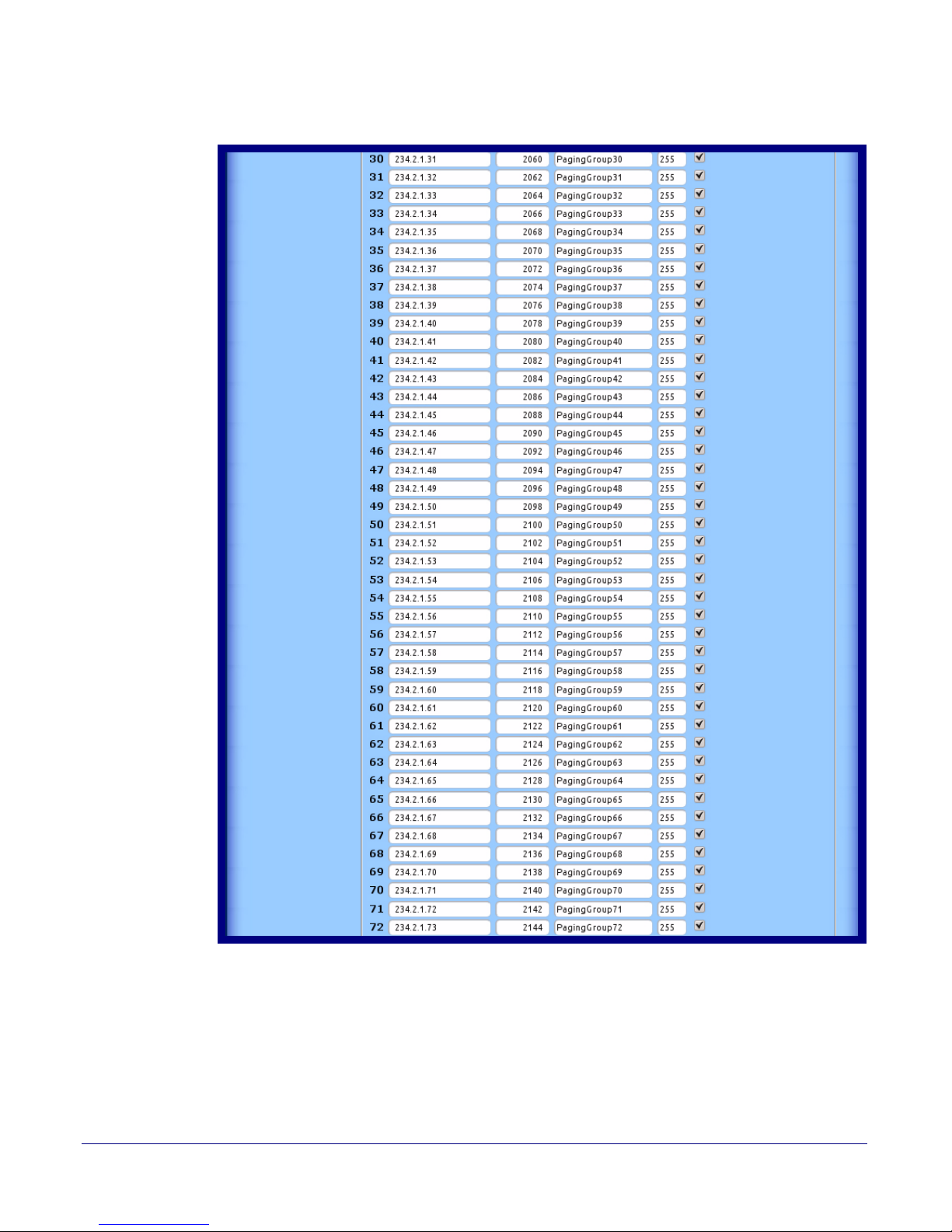

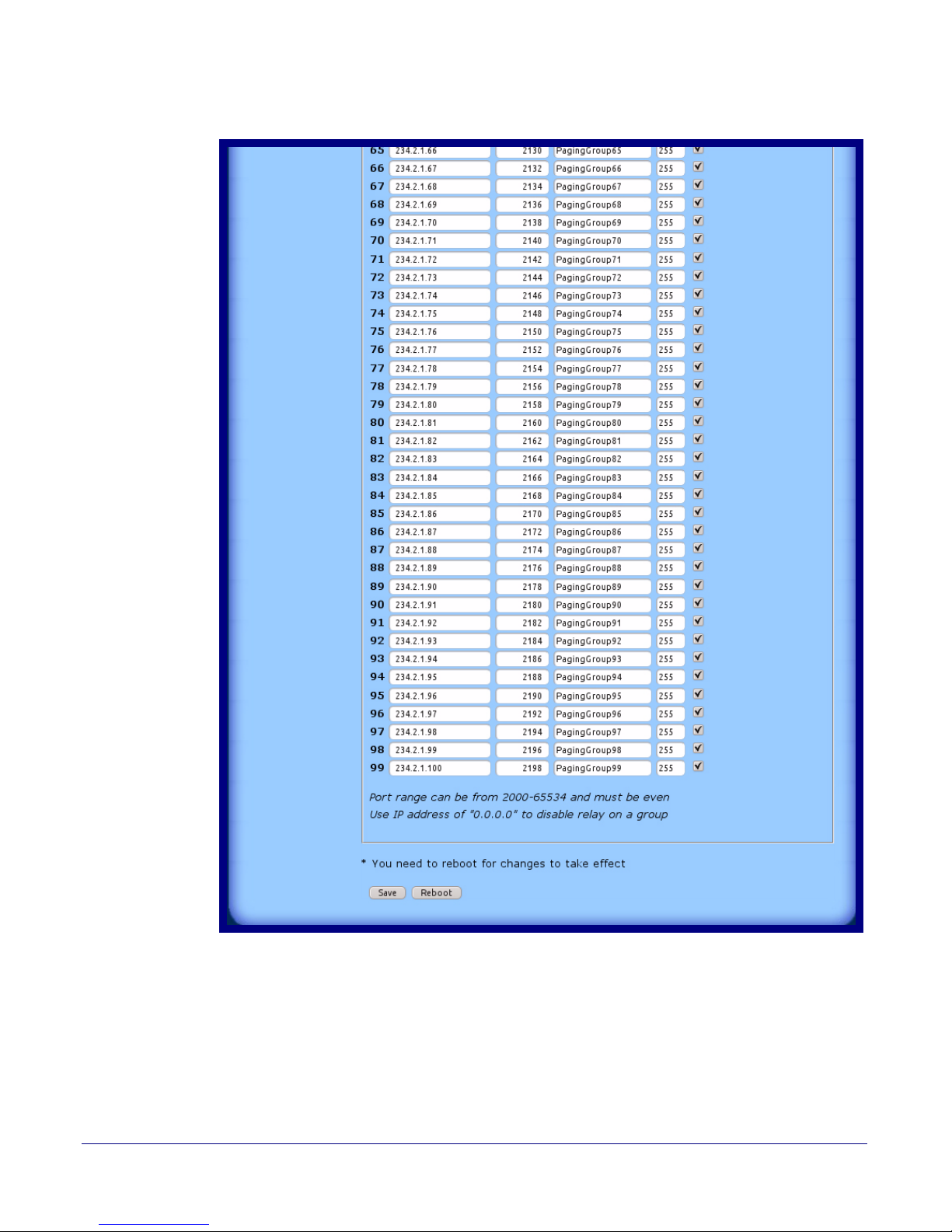

2.4.9 Configure the Paging Groups (PGROUPS) Parameters ......................................................29
2.4.10 Operating the Paging Server ................................................................................................. 32
2.4.11 Configure the Audio Parameters ..........................................................................................33

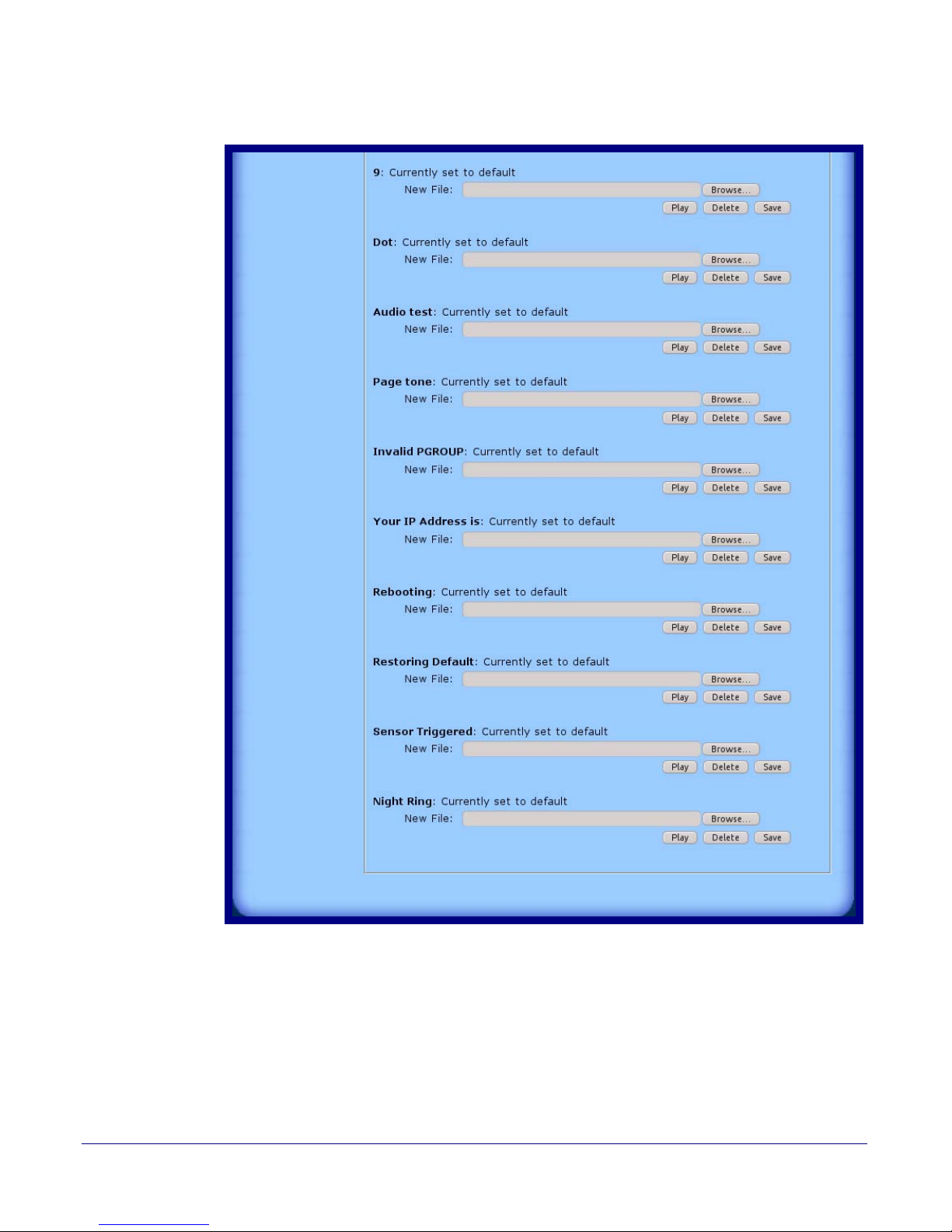

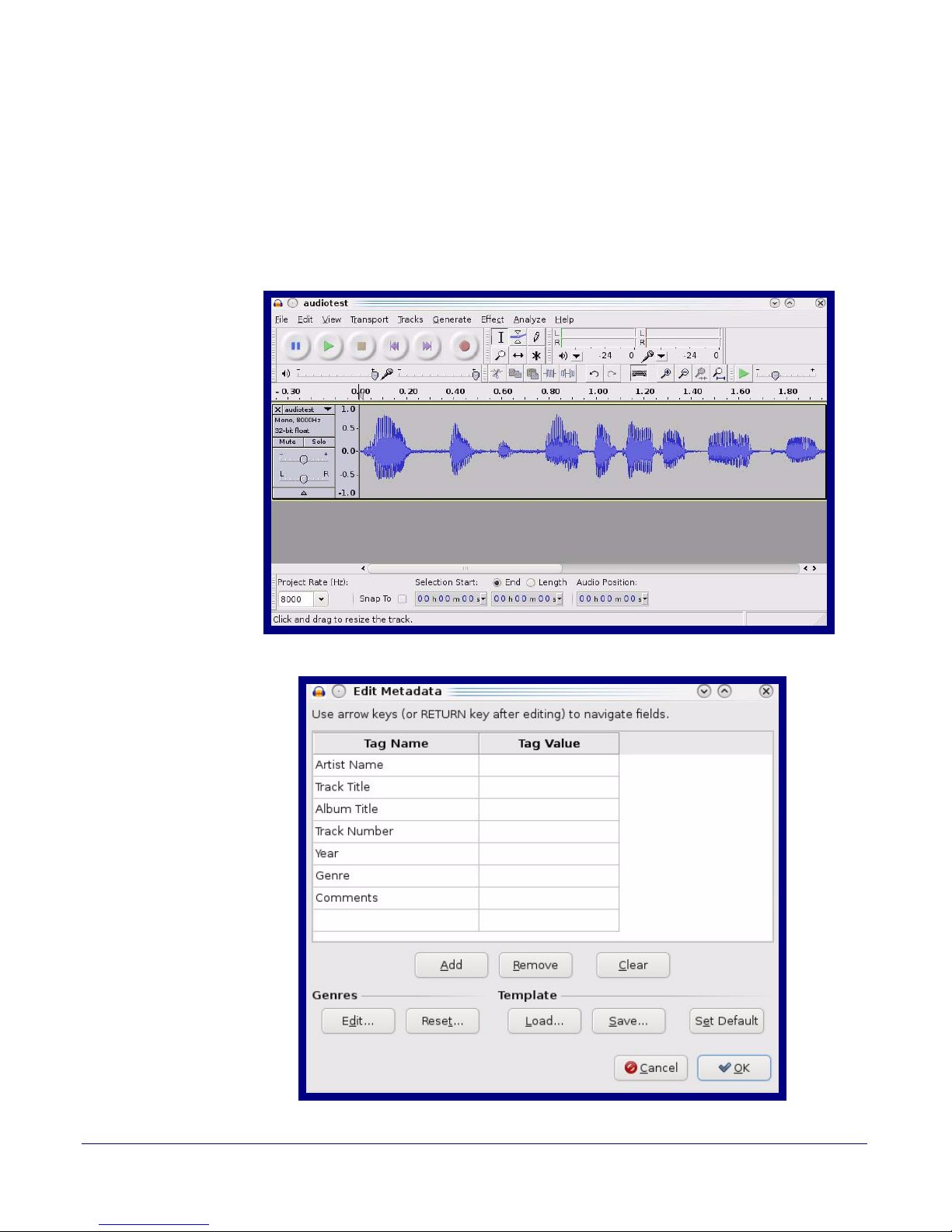

User-created Audio Files ...........................................................................................................36

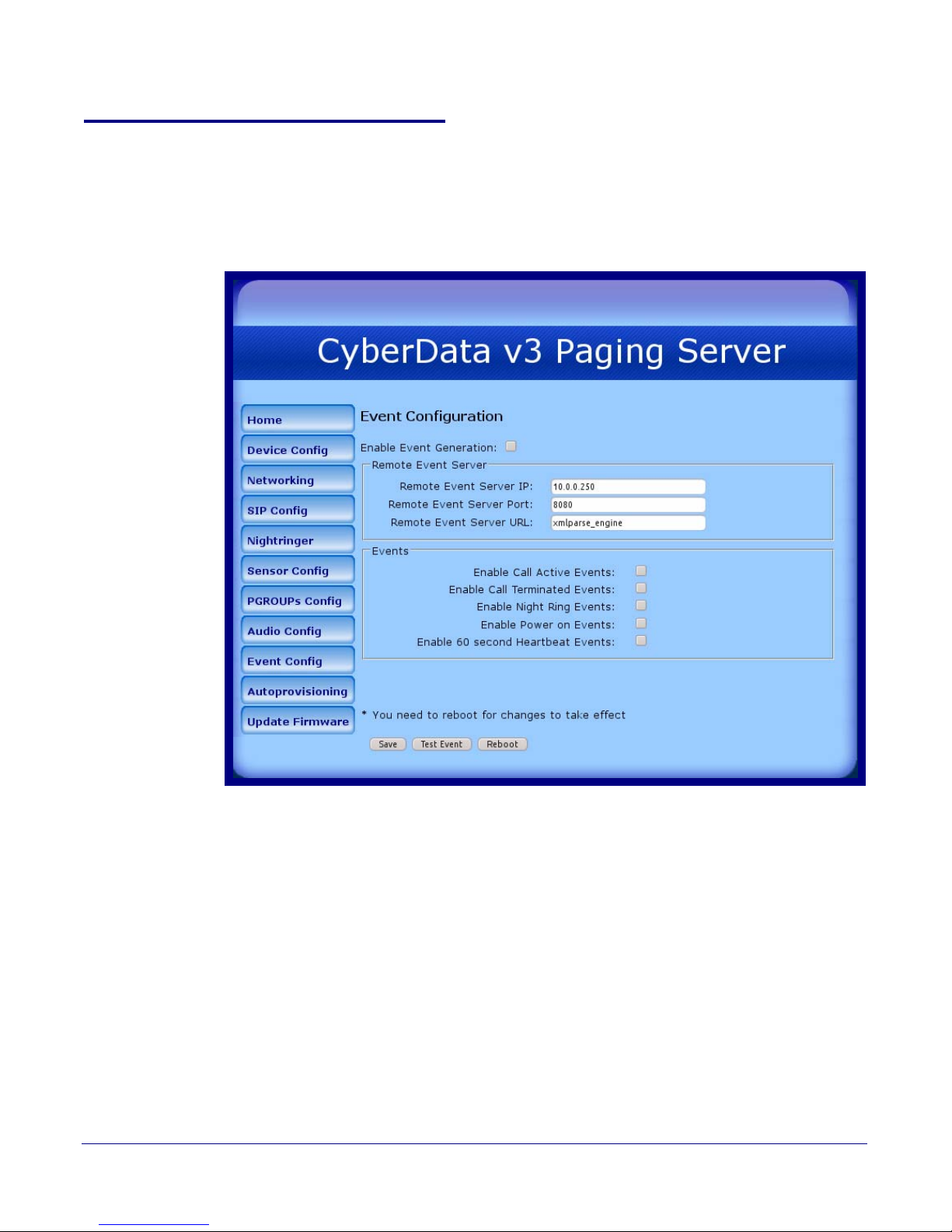

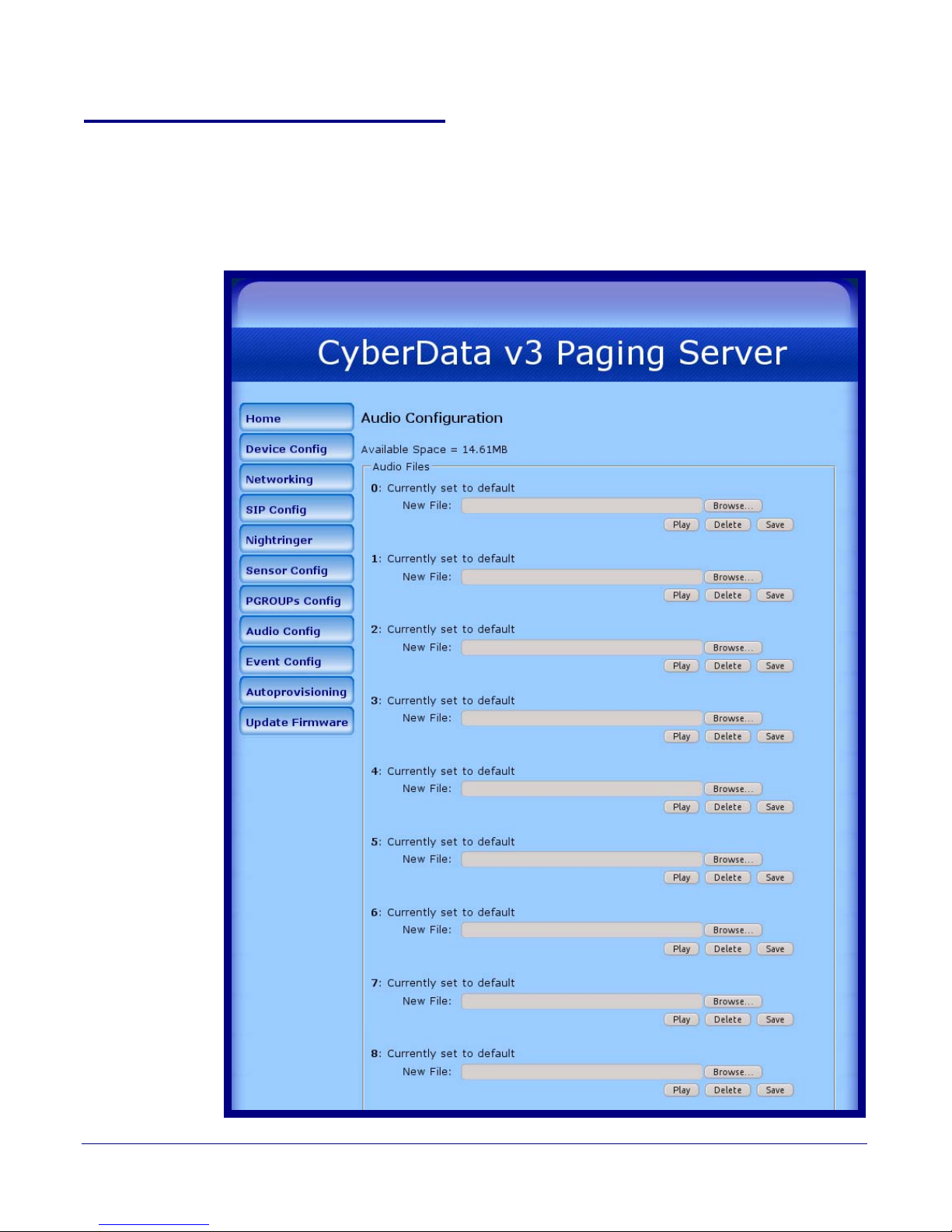

2.4.12 Configure the Event Parameters ...........................................................................................38
Example Packets for Events ......................................................................................................40

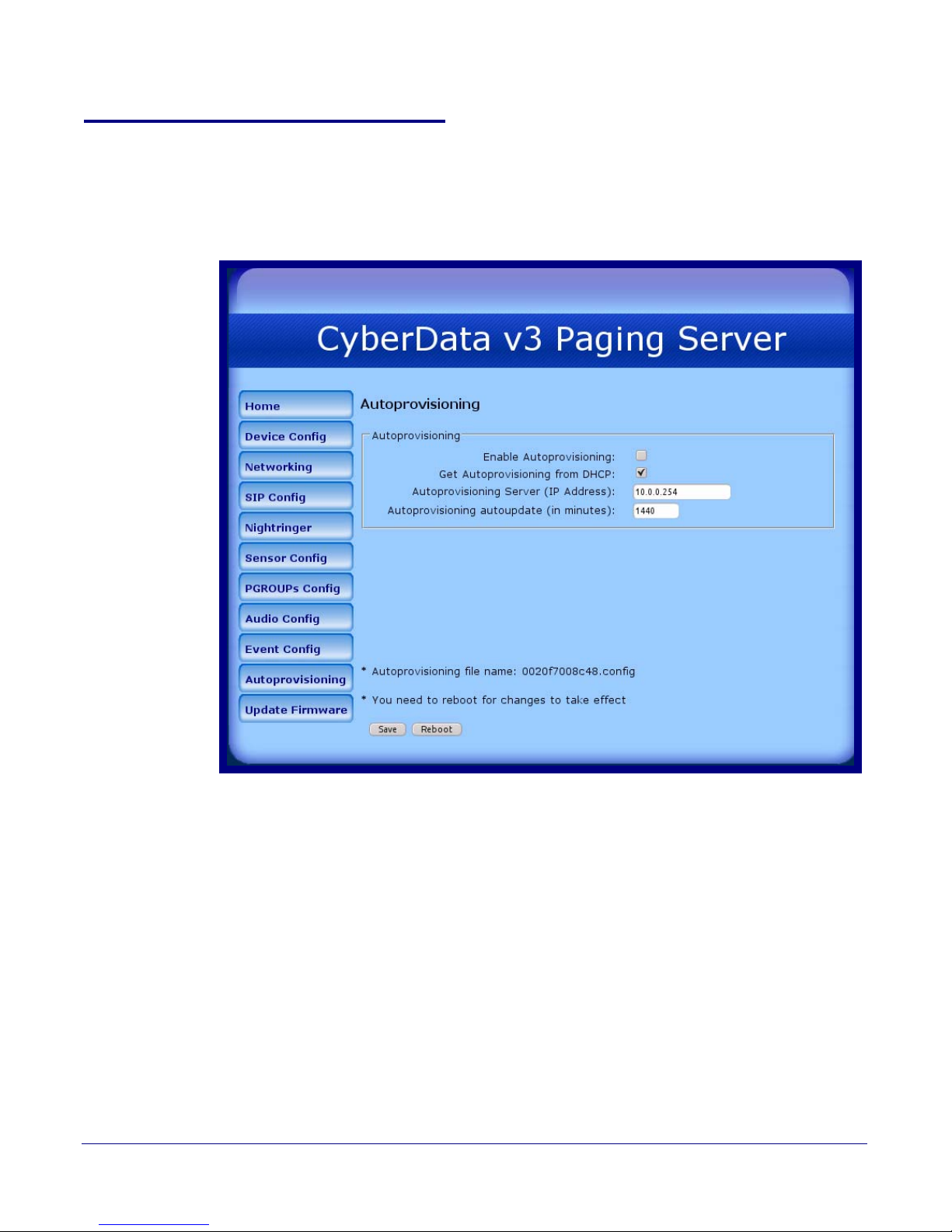

2.4.13 Configure the Autoprovisioning Parameters ...................................................................... 43
Autoprovisioning .......................................................................................................................45

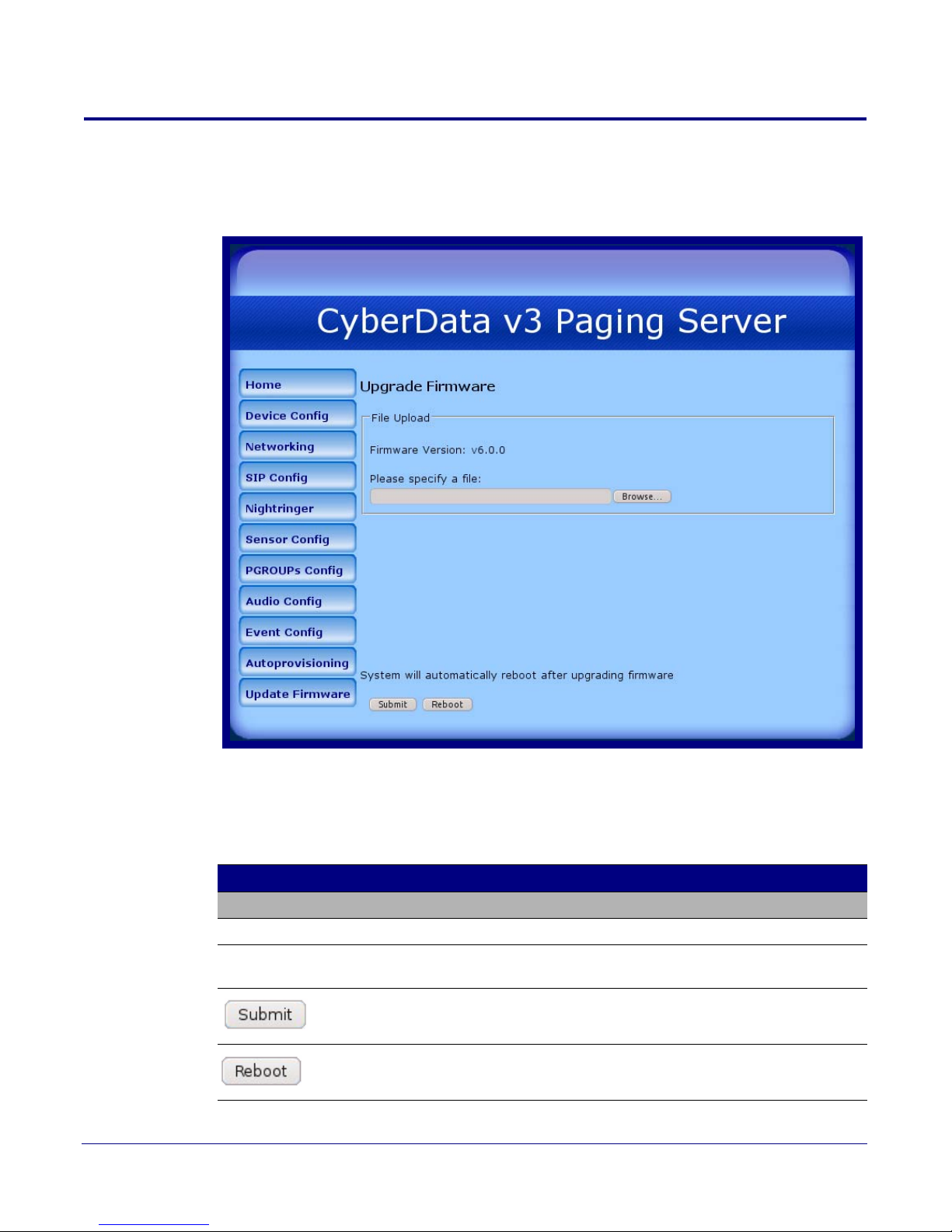

Upgrade the Firmware .............................................................................................................. 49
Appendix A Setting Up a TFTP Server 50
CyberData Corporation 930427B Operations Guide
A.1 Set up a TFTP Server ..........................................................................................................................50
A.1.1 In a LINUX Environment ........................................................................................................50
A.1.2 In a Windows Environment ................................................................................................... 50
Appendix B Troubleshooting/Technical Support 51
B.1 Frequently Asked Questions (FAQ) ..................................................................................................51
B.1.1 Documentation ..........................................................................................................................51
B.2 Contact Information ............................................................................................................................52
B.3 Warranty ...............................................................................................................................................53
B.3.1 Warranty & RMA Returns within the United States ...........................................................53
B.3.2 Warranty & RMA Returns Outside of the United States ....................................................53
B.3.3 Spare in the Air Policy .............................................................................................................53
B.3.4 Return and Restocking Policy .................................................................................................54
B.3.5 Warranty and RMA Returns Page ..........................................................................................54
ii
CyberData Corporation 930427B Operations Guide
1 Product Overview
V3 VoIP PAGING SERVER
RoHS COMPLIANT
011146B / 021059C
Model number
WWW.CYBERDATA.NET
146000001
The VoIP V3 Paging Server is a POE-enabled, single SIP-endpoint enabling user defined paging
zones through a multicasting connection to CyberData VoIP speakers.
SIP compliant IP-PBX's that do not support grouping of SIP endpoints or paging can now support
up to 100 different paging zones.
1.1 How to Identify This Product

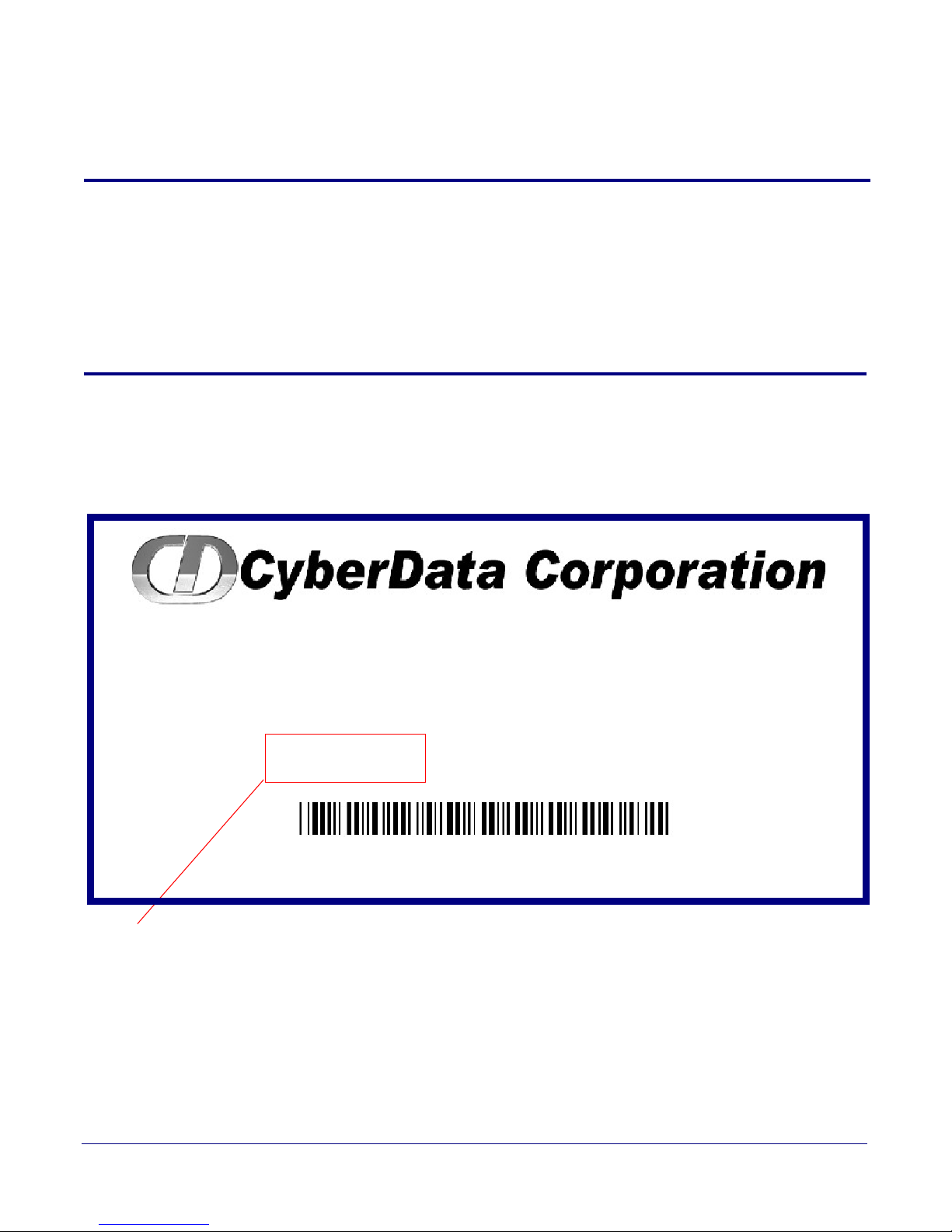

To identify the VoIP V3 Paging Server, look for a model number label similar to the one shown in
Figure 1-1. The model number on the label should be 011146.
Figure 1-1. Model Number Label
1
CyberData Corporation 930427B Operations Guide
1.2 Product features
● SIP RFC 3261 compatible
● Multicast output
● Two SIP endpoints (one for Night Ringer)
● DTMF control of zone selection
● Page Start Relay contacts
● Remote amp fault sensor
● Delayed page support
● Line-In connection for music-on-hold multicasting
● Line-out connection to support analog Amps
● User uploadable audio files
● Web-based configuration and firmware upload
● PoE 802.3af enabled (Power-over-Ethernet)
● 19-inch Rack mount option
Product Overview
Product features
2
1.3 Supported
● HTTP Web-based configuration
Provides an intuitive GUI for easy system configuration and verification of speaker operations.
● DHCP Client
● TFTP Client
● RTP Version 2 Multicast and Unicast
● Audio Codec
• G.711 U-law
•DTMF detection
CyberData Corporation 930427B Operations Guide
1.4 Product Specifications
Table 1-1. Product Specifications
Specifications
Regulatory Compliance FCC Class A, UL 60950, CE
Power Requirement PoE or 48V DC
Connection Speed 10/100 Mbps
Protocol SIP compliant
Page Port Output Balanced 600 Ohm 10VPP
Line In:
Input Signal Amplitudes
Input Impedance
Line Out:
Output Signal Amplitudes
Output Level
Total Harmonic Distortion
Output Impedance
Part Number 011146
2.0 VPP maximum
10k Ohm
2.0 VPP maximum
+2dBm nominal
0.5% maximum
10k Ohm
Product Overview
Product Specifications
3
Dimensions 6.11” L x 4.05” W x 1.15” H
Weight 1.2 pounds
CyberData Corporation 930427B Operations Guide
2 Setting Up the V3 Paging Server
The topics in this chapter provide information on setting up, configuring, and using the VoIP V3
Paging Server.
2.1 Parts List
The packaging for the V3 Paging Server includes the parts in Tab le 2-2.
Table 2-2. Parts List
Quantity Part Name Illustration
1 V3 Paging Server
1 Installation Quick Reference Guide
4
1 Mounting Template (located on the last
page of the Installation Quick
Reference)
1 Mounting Kit (part #070057A)
which includes:
(2) #4-6 x 7/8" Mounting Anchors
(2) #4 x 1-1/4" Round Phillips Wood
Screws
CyberData Corporation 930427B Operations Guide
2.2 Typical Installation
SIP
Multicast
IP PBX
Amplifier
IP Phone
V3 Paging Server
PoE Switch
SIP
Multicast
Line In
Music Source
Line Out
SIP/Multicast
1 23456
IP Speakers
Multicast
SIP/Multicast
V3 Paging Server (Back View)
Page Start Relay Output
Fault Sense Input
Figure 2-2 illustrates how the V3 Paging Server is normally installed as part of a paging system.
Figure 2-2. Typical Installation
Setting Up the V3 Paging Server
Typical Installation
5
CyberData Corporation 930427B Operations Guide

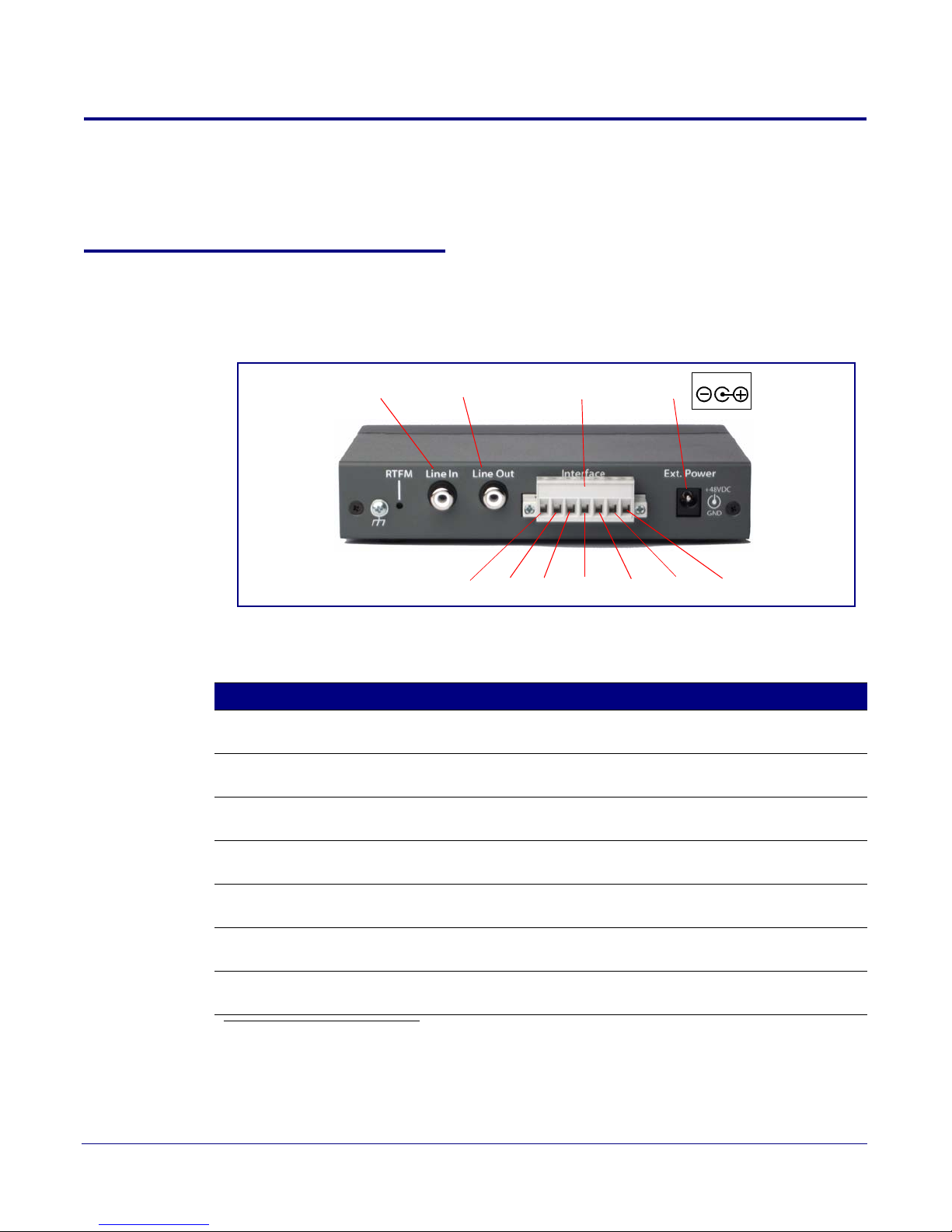

2.3 Connecting the V3 Paging Server
Pin 1 Pin2 Pin 3 Pin 4 Pin 5
Line In Line Out PowerPage Port Output
Pin 6 Pin 7
48VDC
Before you connect the V3 Paging Server, be sure that you have received all of the parts described in
Section 2.1, "Parts List".
2.3.1 Connection Options
See Figure 2-3 and Ta b le 2-1 for the connection options that are available for the V3 Paging Server.
Figure 2-3. Connection Options
Setting Up the V3 Paging Server
Connecting the V3 Paging Server
6
Table 2-1. Page Port Output Connections
Pin Description
1 Fault Sense Input (Common). See Section 2.3.1.1, "Pin 1 and 2—Fault Sense Input
(Common/Sense)".
2 Fault Sense Input (Sense). See Section 2.3.1.1, "Pin 1 and 2—Fault Sense Input
(Common/Sense)".
3 Positive 600-Ohm Audio Outputa. See Section 2.3.1.2, "Pin 3, 4, and 5—Positive/Negative 600-
Ohm Audio Output/Audio Ground Reference".
4 Negative 600-Ohm Audio Output.a. See Section 2.3.1.2, "Pin 3, 4, and 5—Positive/Negative 600-
Ohm Audio Output/Audio Ground Reference".
5 Audio Ground Reference. See Section 2.3.1.2, "Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio
Output/Audio Ground Reference".
6 Relay Contact - Commonb. See Section 2.3.1.3, "Pin 6 and 7—Relay Contact (Common/Normally
Open)".
7 Relay Contact - Normally Openb. See Section 2.3.1.3, "Pin 6 and 7—Relay Contact
(Common/Normally Open)".
a. Th e 600-Ohm audio output of the page port is also suited for interfaces with lower input
impedances.
b. 1 Amp at 30 VDC for continuous loads
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Connecting the V3 Paging Server
2.3.1.1 Pin 1 and 2—Fault Sense Input (Common/Sense)
This input was designed as a method of monitoring an external amplifier that is equipped with a
fault sense relay.
When enabled via the web interface (Section 2.4.8, "Configure the Sensor Parameters"), this input
(when closed) will play a user uploadable audio file out of the line-out connection and/or place a
SIP call to a pre-determined extension and play that file.
2.3.1.2 Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio Output/Audio Ground
Reference
This output allows direct connection to paging amplifiers requiring a "Page Port" type input that
meets a balanced 600 Ohm 10Vpp signal.
2.3.1.3 Pin 6 and 7—Relay Contact (Common/Normally Open)
When enabled on the web interface (Section 2.4.4, "Configure the Device Parameters"), every time an
audio file is played out of the local line-out or 600 Ohm output, the relay will close, thereby enabling
amplifiers with a remote turn-on capability to become active.
7
2.3.2 Removable Connector
Figure 2-4 shows the connector that is removable on the V3 Paging Server.
Figure 2-4. Removable Connector
CyberData Corporation 930427B Operations Guide
2.3.3 Connect to the Power Source
Non PoE (with 48 VDC power supply)
Chassis Ground
Chassis Ground
PoE
To set up the V3 Paging Server, connect the
device to your network:
Poe
● For PoE, plug one end of an 802.3af Ethernet
cable into the V3 Paging Server Ethernet
port. Plug the other end of the Ethernet cable
into your network. See the figure on the left.
Non-Poe
● For Non-PoE, connect the V3 Paging Server
to a 48VDC power supply. See the figure on
the left.
Chassis Ground
● If required, connect the earth grounding wire
to the Chassis Ground. See the figure on the
left.
48VDC
To use PoE, plug a Cat 5 Ethernet cable from the V3 Paging Server Ethernet port to your network.
As an alternative to PoE, you can plug one end of a +48V DC power supply into the Paging Server,
and plug the other end into a receptacle. If required, connect the earth grounding wire to the chassis
ground on the back of the unit. See
Figure 2-5. Connecting to the Power Source
Figure 2-5.
Setting Up the V3 Paging Server
Connecting the V3 Paging Server
8
CyberData Corporation 930427B Operations Guide
2.3.4 Connect to the Network
Plug one end of a standard Ethernet cable into the Paging Server Ethernet port. Plug the other end
into your network.
Figure 2-6. Connecting to the Ne twork
Setting Up the V3 Paging Server
Connecting the V3 Paging Server
9
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Status
(GREEN/BLUE LED)
Paging
(GREEN LED)
Link
(GREEN/
AMBER LED)
Activity
(GREEN LED)
RTFM Switch
Connecting the V3 Paging Server
2.3.5 Confirm that the V3 Paging Server is Up and Running

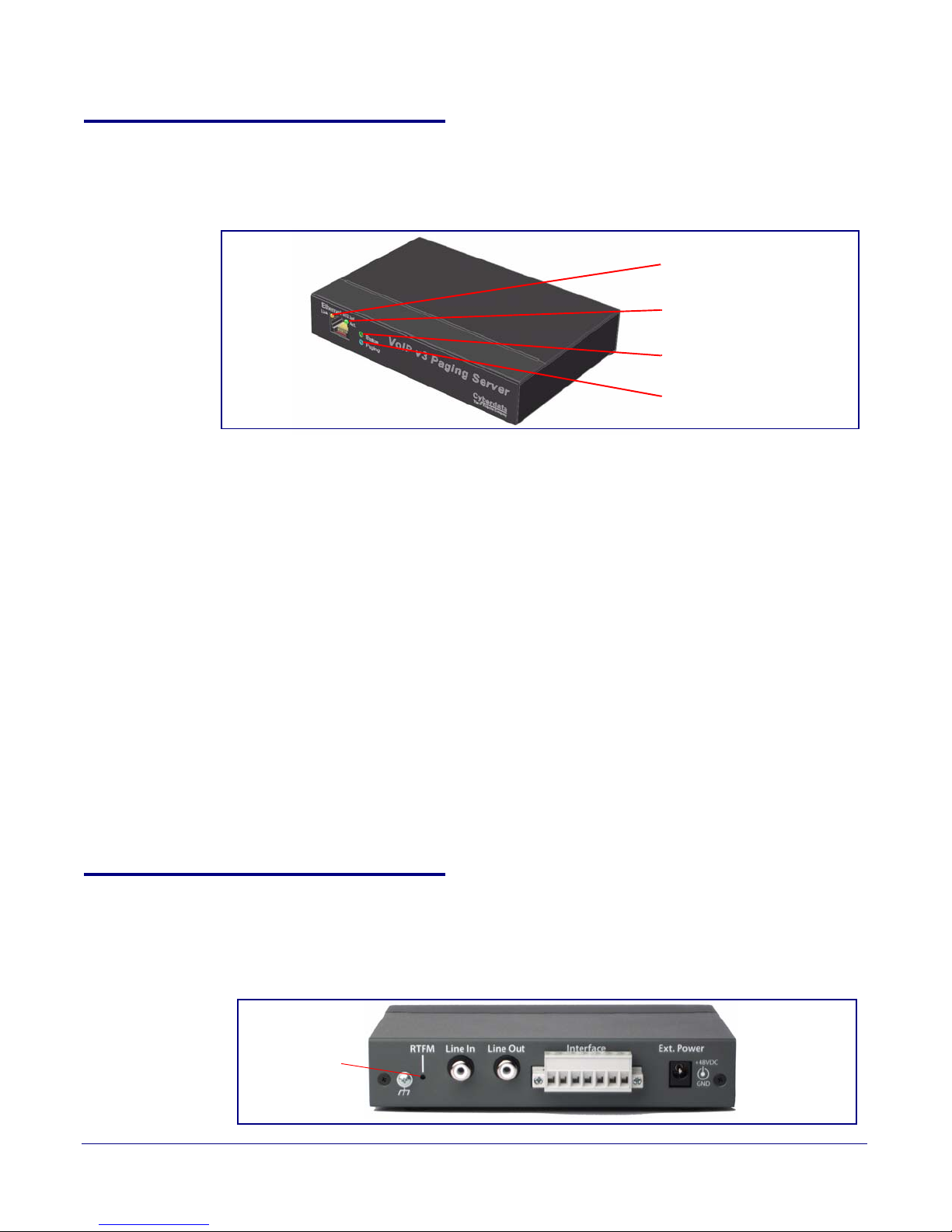

The LEDs on the front of the V3 Paging Server verify the unit’s operations.
Figure 2-7. Paging Server LEDs
2.3.5.1 Confirm Power on, Network Connectivity, and Connection Speed
When you plug in the Ethernet cable or power supply:
•The round, GREEN/BLUE Status LED on the front of the V3 Paging Server comes on indicating
that the power is on. Once the device has been initialized, this LED blinks at one second
intervals.
• The square, GREEN/AMBER Link LED above the Ethernet port indicates that the network
connection has been established. The Link LED changes color to confirm the auto-negotiated
connection speed:
• The Link LED is GREEN at 10 Mbps.
• The Link LED is AMBER at 100 Mbps.
•The GREEN Paging LED comes on after the device is booted and initialized. This LED blinks
when a page is in progress. You can disable Beep on Initialization on the Device Configuration
page.
10
2.3.5.2 Verify Network Activity
The square, GREEN Activity LED blinks when there is network traffic.
2.3.6 Announcing the IP Address
To announce the IP address for the V3 Paging Server, briefly press and then quickly release the
RTFM switch. See
CyberData Corporation 930427B Operations Guide
Figure 2-8.
Figure 2-8. RTFM Switch
2.3.7 Restore the Factory Default Settings
RTFM Switch
The V3 Paging Server is delivered with factory set default values for the parameters in Ta b le 2-3. Use
the RTFM switch (see Figure 2-9) on the back of the unit to restore these parameters to the factory
default settings.
Figure 2-9. RTFM Switch
Note When you perform this procedure, the factory default settings are restored. The default
parameters for access are shown in
Ta bl e 2-3.
Setting Up the V3 Paging Server
Connecting the V3 Paging Server
11
Table 2-3. Factory Default Settings
Parameter Factory Default Setting
IP Addressing DHCP
IP Address
Web Access Username admin
Web Access Password admin
Subnet Mask
Default Gateway
a
a
a
10.10.10.10
255.0.0.0
10.0.0.1
a. Default if there is not a DHCP server present.
To restore these parameters to the factory default settings:
1. Press and hold the RTFM switch until the status and paging lights come on.
2. Continue to press the switch until after the indicator lights go off, and then release it.
3. The V3 Paging Server settings are restored to the factory defaults.
CyberData Corporation 930427B Operations Guide
2.4 Configuring the V3 Paging Server
Use this section to configure the VoIP paging server.
2.4.1 Gather the Required Configuration Information
Have the following information available before you configure the V3 Paging Server.
2.4.1.1 Static or DHCP Addressing?
Know whether your system uses static or dynamic (DHCP) IP addressing. If it uses static
addressing, you also need to know the values to assign to the following V3 Paging Server
parameters:
• IP Address
•Subnet Mask
•Default Gateway
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
12
2.4.1.2 Username and Password for Configuration GUI
Determine the Username and Password that will replace the defaults after you initially log in to the
configuration GUI.
• The Username is case-sensitive, and must be from four to 25 alphanumeric characters long.
• The Password is case-sensitive, and must be from four to 20 alphanumeric characters long.
2.4.1.3 SIP Settings
To configure the SIP parameters, determine whether you want to register with the server. If you do,
determine the number of minutes the registration lease remains valid, and whether you want to
automatically unregister when you reboot. To configure the SIP parameters, you also need to
determine the values for these parameters:
• SIP Server IP Address
• Remote and Local SIP Port Numbers
• SIP User ID, and Authenticate ID and Password for this User ID
CyberData Corporation 930427B Operations Guide
2.4.2 V3 Paging Server Web Page Navigation
Ta bl e 2-4 shows the navigation buttons that you will see on every V3 Paging Server web page.
Table 2-4. V3 Paging Amplifier Web Page Navigation
Web Page Item Description
Link to the Home page.
Link to the Device Configuration page.
Link to the Networking page.
Link to go to the SIP Configuration page.
Link to go to the Nightringer page.
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
13
Link to go to the Sensor Configuration page.
Link to go to the Paging Groups Configuration page.
Link to the Audio Configuration page.
Link to the Event Configuration page.
Link to the Autoprovisioning Configuration page.
Link to the Update Firmware page.
CyberData Corporation 930427B Operations Guide
2.4.3 Log in to the Configuration GUI
1. Open your browser to the V3 Paging Server IP address.
Note If the network does not have access to a DHCP server, the device will default to an IP
address of 10.10.10.10.
Note Make sure that the PC is on the same IP network as the V3 Paging Server.
Note You may also download CyberData’s VoIP Discovery Utility program which allows you to
easily find and configure the default web address of the CyberData VoIP products.
CyberData’s VoIP Discovery Utility program is available at the following website address:
http://www.cyberdata.net/support/voip/discovery_utility.html
The unit ships in DHCP mode. To get to the Home page, use the discovery utility to scan for
the device on the network and open your browser from there.
Note To work with the V3 Paging Server configuration after the initial configuration, log in using
the IP address you assign to the device.
provides instructions for entering the IP address.
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
Section 2.4.5, "Configure the Network Parameters"
14
Change the
Default Username
and Password
2. When prompted, use the following default Username and Password to open the configuration
Home page:
Username: admin
Password: admin
To change the default Web access Username and Password:
1. Enter the new Username from four to 25 alphanumeric characters in the Change Username
field. The Username is case-sensitive.
2. Enter the new Password from four to 20 alphanumeric characters in the Change Password field.
The Password is case-sensitive.
3. Enter the new password again in the Re-enter New Password field.
Click Save Settings.
CyberData Corporation 930427B Operations Guide
Figure 2-10. Home Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
15
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
4. On the Home Page, review the setup details and navigation buttons described in Tab le 2-5.
Table 2-5. Home Page Overview
Web Page Item Description
Device Settings
Device Name Shows the device name (25 character limit).
Change Username Type in this field to change the username (25 character limit).
Change Password Type in this field to change the password (19 character limit).
Re-enter Password Type the password again in this field to confirm the new password
(19 character limit).
Current Settings
Serial Number Shows the device serial number.
Mac Address Shows the device Mac address.
Firmware Version Shows the current firmware version.
IP Addressing Shows the current IP addressing setting (DHCP or Static).
IP Address Shows the current IP address.
16
Subnet Mask Shows the current subnet mask address.
Default Gateway Shows the current default gateway address.
DNS Server 1 Shows the current DNS Server 1 address.
DNS Server 2 Shows the current DNS Server 2 address.
SIP Mode is Shows the current status of the SIP Mode.
Event Reporting is Shows the current status of the Event Reporting.
Nightring is Shows the current status of the Nightringer.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
At this point you can:
• Review the V3 Paging Server’s Current Settings. Use the RTFM switch to restore the factory
default settings. See
2.3.7 "Restore the Factory Default Settings".
• Configure the network parameters. Click Network Setup and refer to Section 2.4.5, "Configure
the Network Parameters" for instructions.
• Configure the SIP parameters. Click SIP Setup and see Section 2.4.6, "Configure the SiP
Parameters".
• Configure the PGROUPS parameters. Click PGROUPS Setup and see Section 2.4.9, "Configure
the Paging Groups (PGROUPS) Parameters" for instructions.
Note Click the Upgrade Firmware button any time you need to upload new versions of the
firmware. Refer to
CyberData Corporation 930427B Operations Guide
Section 2.5, "Upgrading the Firmware" for instructions.
2.4.4 Configure the Device Parameters
1. Click the Device Configuration button to open the Device Configuration page. See Figure 2-11.
Figure 2-11. Device Configuration Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
17
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
2. On the Device Configuration page, you may enter values for the parameters indicated in
Ta bl e 2-6.
Table 2-6. Device Configuration Parameters
Web Page Item Description
Miscellaneous Settings
Beep on Initialization When selected, you will hear a beep when the speaker initializes.
18
Enable Line In to Line Out
When selected, audio is sent from the line -in to the line-out output.
Loopback
Enable Line-In to Multicast When selected, the line-in audio will be multicast to the address and
port specified on the web page.
Note: Ideally, the specified address and port will match that of a low
priority MGROUP (such as background music) on the speakers or
paging amplifiers.
Note: When line-in to multicast is selected, do not set that multicast
address and port to the same multicast address and port that is used
by one of your PGROUPS. Otherwise, when you call the PGROUP,
the Paging Server will be unable to send the new audio stream
because the port will already be in use by the line-in to multicast
stream.
Multicast Address Type the Multicast address.
Multicast Port Type the Multicast port number.
Enable Relay on Local Audio When selected, the relay will be closed any time that audio is played
out of the line-out/page port. This setting is for legacy analog
amplifiers that are often connected to the page port. Analog amplifiers
will often have a noticeable hum if they are turned on while there is no
audio being played. The relay closure causes these amplifiers to turn
on only when audio is sent to them.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Test Audio button to do an audio test. When the Test
Audio button is pressed, you will hear a voice message for testing the
device audio quality and volume.
Click on the Reboot button to reboot the system.
3. After changing the parameters, click the Save button.
CyberData Corporation 930427B Operations Guide
2.4.5 Configure the Network Parameters
Configuring the network parameters enables your network to recognize the V3 Paging Server and
communicate with it. Click Network Setup on the Home page to open the Network Configuration
page.
Figure 2-12. Network Setup Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
19
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
On the Network Setup page, enter values for the parameters indicated in Tab le 2-7.
Table 2-7. Network Configuration Parameters
Web Page Item Description
Stored Network Settings Shows the settings stored in non-volatile memory.
IP Addressing Select either DHCP IP Addressing or Static IP Addressing by
marking the appropriate radio button. If you select Static, configure
the remaining parameters indicated in
go to Step 3.
IP Address Enter the Static IP address.
Subnet Mask Enter the Subnet Mask address.
Default Gateway Enter the Default Gateway address.
DNS Server 1 Enter the DNS Server 1 address.
DNS Server 2 Enter the DNS Server 2 address.
Current Network Settings Shows the current network settings.
IP Address Shows the current Static IP address.
Table 2-7. If you select DHCP,
20
Subnet Mask Shows the current Subnet Mask address.
Default Gateway Shows the current Default Gateway address.
DNS Server 1 Shows the current DNS Server 1 address.
DNS Server 2 Shows the current DNS Server 2 address.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
On this page:
1. Specify whether you use Static or DHCP IP Addressing by marking the appropriate radio
button. Then, if you select Static, go to
Step 2.
2. For Static IP Addressing, also enter values for the following parameters:
• The V3 Paging Server’s IP Address: The V3 Paging Server is delivered with a factory default
IP address. Change the default address to the correct IP address for your system.
•The Subnet Mask.
•The Default Gateway.
3. Click Save when you are finished.
4. Click Reboot for the new settings to take effect.
CyberData Corporation 930427B Operations Guide
2.4.6 Configure the SiP Parameters
The SIP parameters enable the V3 Paging Server to contact and register with the SIP server. On the
Home page, click SIP Config to open the SIP Configuration page.
Figure 2-13. SIP Configuratio n Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
21
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
5. On the SIP Setup page, enter values for the parameters indicated in Tab l e 2-8.
Table 2-8. SIP Configuration Parameters
Web Page Item Description
SIP Settings
SIP Server Type the SIP server represented as either a numeric IP address
in dotted decimal notation or the fully qualified host name (255
character limit [FQDN]).
Remote SIP Port Type the Remote SIP Port number (default 5060)
(8 character limit).
Local SIP Port Type the Local SIP Port number (default 5060)
(8 character limit).
Outbound Proxy Type the Outbound Proxy as either a numeric IP address in
dotted decimal notation or the fully qualified host name
(255 character limit [FQDN]).
Outbound Proxy Port Type the Outbound Proxy Port number (8 character limit).
SIP User ID Type the SIP User ID (up to 64 alphanumeric characters).
Authenticate ID Type the Authenticate ID
(up to 64 alphanumeric characters).
22
Authenticate Password Type the Authenticate Password (up to 64 alphanumeric
characters).
Register with a SIP Server Enable or disable SIP Registration.
For information about Point-to-Point Configuration, see Section
2.4.6.1, "Point-to-Point Configuration".
Re-registration Interval (in seconds) Type the SIP Registration lease time in seconds (default is 60
minutes) (8 character limit). Re-registration Interval (in seconds)
Unregister on Reboot When selected, on boot, the device will first register with a SIP
server with a expiration delay of 0 seconds. This has the effect
of unregistering any current devices on this extension.
Buffer SIP Calls When this is enabled, SIP calls to the device will be stored in
memory and will play when either the call is terminated or the
buffer is full. The receive buffer is 2MB in size and this is equal
to about four minutes of ulaw encoded audio.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
1. Enter the IP address of the SIP Server.
2. Enter the port numbers used for SIP signaling:
a. Remote SIP Port
b. Local SIP Port
3. Enter the SIP registration parameters:
a. SIP User ID
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
b. Authenticate ID
c. Authenticate Password
4. For SIP Registration, designate whether you want the VoIP Paging Server to register with your
SIP server.
5. At Unregister on Reboot:
a. Select Yes to automatically unregister the V3 Paging Server when you reboot it.
b. Select No to keep the V3 Paging Server registered when you reboot it.
6. In the Register Expiration field, enter the number of seconds the V3 Paging Server registration
lease remains valid with the SIP Server. The V3 Paging Server automatically re-registers with
the SIP server before the lease expiration timeout.
7. Click Save.
8. Click Reboot for the new settings to take effect.
23
CyberData Corporation 930427B Operations Guide
2.4.6.1 Point-to-Point Configuration
Device is set to NOT register with a SIP server
When the board is set to not register with a SIP server, it's possible to set the device to dial out to a
single endpoint. To do this, do the following:
1. On the SIP Configuration page (Figure 2-14), make sure that the Register with a SIP Server
parameter is not selected.
2. Type the IP address of the remote device that you want to contact into the Dial out Extension
field
Note The delayed DTMF functionality is available in the Point-to-Point Mode.
Note Establishing point-to-point SiP calls may not work with all phones.
Figure 2-14. SIP Configuration Page Set to Point-to-Point Mode
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
24
CyberData Corporation 930427B Operations Guide
2.4.7 Configure the Night Ringer Parameters
1. Click on the Nightringer button to open the Nightringer Configuration page. See Figure 2-15.
Figure 2-15. Nightringer Configuration Setup
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
25
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
2. On the Nightringer Configuration page, enter values for the parameters indicated
in Tabl e 2-9.
Table 2-9. Nightringer Configuration Parameters
Web Page Item Description
Enable Nightringer When the nightringer is enabled, the unit will attempt to
register a second extension with the SIP server. Any calls
made to this extension will play a ringtone.
Nightringer Settings
SIP Server Type the SIP server represented as either a numeric IP
address in dotted decimal notation.
Remote SIP Port Type the Remote SIP Port number (default 5060)
(8 character limit).
Local SIP Port Type the Local SIP Port number (default 5061)
(8 character limit).
Note: This value cannot be the same as the Local SIP Port
found on the SIP Configuration Page.
User ID Type the User ID (up to 64 alphanumeric characters).
Authenticate ID Typ e the Authenticate ID (up to 64 alphanumeric
characters).
Authenticate Password Type the Authenticate Password (up to 64 alphanumeric
characters).
26
Re-registration Interval (in seconds) Type the SIP Registration lease time in seconds (default is
60 minutes) (8 character limit). Re-registration Interval (in
seconds)
Relay Rings to Multicast When selected, a user-defined audio file is sent to the
specified multicast address and port when the night ringer is
activated.
Multicast Address Type the Multicast address.
Multicast Port Type the Multicast port number.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
3. After changing the parameters, click on the Save button.
4. Click Reboot for the new settings to take effect.
CyberData Corporation 930427B Operations Guide
2.4.8 Configure the Sensor Parameters
1. Click on the Sensor Config button to open the Sensor Configuration page. See Figure 2-16.
Figure 2-16. Sensor Configuration Setup
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
27
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
2. On the Sensor Configuration page, enter values for the parameters indicated
in Tabl e 2-10.
Table 2-10. Nightringer Configuration Parameters
Web Page Item Description
Sensor Settings
Play Audio Locally When selected, when the sensor is triggered, the audio file
for "Sensor Triggered" will play out of the line-out and 600Ohm connectors.
Make Call to Extension When selected, when the sensor is triggered, the Paging
Server will call the
Dial Out Extension and play the "Sensor
Triggered" audio file when someone answers.
Dial Out Extension Enter the Dial Out Extension that you want the Paging
Server to call when the sensor is triggered.
Dial Out ID Enter the caller ID for Dial Out Extension.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
28
3. After changing the parameters, click on the Save button.
4. Click Reboot for the new settings to take effect.
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
2.4.9 Configure the Paging Groups (PGROUPS) Parameters
Note A PGROUP is a way of assigning multicast addresses and port numbers when configuring
multicast paging speakers.
To assign a multicast address, you must first configure the CyberData VoIP speakers that
you want to put into a paging zone by entering a particular multicast address and port
number combination in the web configuration for these speakers.
1. Click on the PGROUPS Setup button to open the PGROUPS Setup page. See Figure 2-17.
Figure 2-17. PGROUPS Setup
29
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
Figure 2-18. PGROUPS Setup (continued)
30
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
Figure 2-19. PGROUPS Setup (continued)
31
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
2. On the PGROUPS Setup page, enter values for the parameters indicated in Ta bl e 2-11.
Table 2-11. PGROUPS Setup Parameters
Web Page Item Description
Bypass DTMF When selected, bypassing the DTMF will result in all calls
being relayed to PGROUP 0.
# Shows the paging group number.
Address Enter the IP address of the PGROUP.
Por t Enter the port number of the PGROUP.
Name Enter a name for the PGROUP.
TTL The TTL field allows you to adjust the TTL. TTL is "time to
live" and it describes how many networks (routers) a packet
will go through before it is discarded. For more information,
see
Appendix C, ”How to Use the Multicast Extensions.
Lineout The Lineout field determines whether or not the V3 Paging
Server will play audio out of the line-out port in addition to
forwarding it to the Pgroup.
3. After changing the parameters, click Save Settings.
32
2.4.10 Operating the Paging Server
• When you call to make a page, the V3 Paging Server generates a tone over the phone.
• When you hear this tone, enter the two-digit code for the zone that you want to page.
• The V3 Paging Server establishes a connection to a zone.
• The V3 Paging Server generates another tone to the phone.
• When you hear this tone, you can begin speaking.
Note For page-all, you simply configure all speakers with a particular multicast address and port
number combination, which represents one of the 100 zones that the paging server will
support initially. Each speaker can still be part of 100 other paging zones in addition to the
one page-all zone.
CyberData Corporation 930427B Operations Guide
2.4.11 Configure the Audio Parameters
Click the Audio Config button to open the Audio Configuration page. See Figure 2-20. The Audio
Configuration page is used to add custom audio to the board. User uploaded audio will take
precedence over the audio files shipped with the Intercom.
Figure 2-20. Audio Configuration Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
33
CyberData Corporation 930427B Operations Guide
Figure 2-21. Audio Configuration Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
34
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
On the Audio Configuration page, enter values for the parameters indicated in Ta bl e 2-12.
Note Each entry on the Audio Configuration page replaces one of the stock audio files on the
board. When the input box displays the word default, the V3 Paging Server is using the
stock audio file. If that file is replaced with a user file, it will display the uploaded filename.
Table 2-12. Audio Configuration Parameters
Web Page Item Description
Audio Files
0-9 The name of the audio configuration option is the same as the spoken
audio that plays on the board (24 character limit).
'0' corresponds to the spoken word “zero.”
'1' corresponds to the spoken word “one.”
'2' corresponds to the spoken word “two.”
'3' corresponds to the spoken word “three.”
'4' corresponds to the spoken word “four.”
'5' corresponds to the spoken word “five.”
'6' corresponds to the spoken word “six.”
'7' corresponds to the spoken word “seven.”
'8' corresponds to the spoken word “eight.”
'9' corresponds to the spoken word “nine.”
35
Dot Corresponds to the spoken word “dot.” (24 character limit).
Audiotest Corresponds to the message “This is the CyberData IP speaker test
message...” (24 character limit).
Pagetone Corresponds to a simple tone that is unused by default (24 character limit).
Invalid PGROUP Corresponds to the message “Invalid PGROUP” (24 character limit).
Your IP Address is Corresponds to the message “Your IP address is...” (24 character limit).
Rebooting Corresponds to the spoken word “Rebooting” (24 character limit).
Restoring default Corresponds to the message “Restoring default” (24 character limit).
Sensor Triggered Corresponds to the message “Sensor Triggered” (24 character limit).
Night Ring Specifies the ringtone for nightring. By default this parameter uses the
same audio file that is selected for the Ring Tone parameter.
The Browse button will allow you to navigate to and select an audio file.
The Play button will play that audio file.
The Delete button will delete any user uploaded audio and restore the
stock audio file.
The Save button will download a new user audio file to the board once
you've selected the file by using the Browse button. The Save button will
delete any pre-existing user-uploaded audio files.
CyberData Corporation 930427B Operations Guide
2.4.11.1 User-created Audio Files
User created audio files should be saved in the following format:
RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz
You can use the free utility Audacity to convert audio files into this format. See Figure 2-22 through
Figure 2-24.
Figure 2-22. Audacity 1
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
36
Figure 2-23. Audacity 2
CyberData Corporation 930427B Operations Guide
When you export an audio file with Audacity, save the output as:
WAV (Microsoft) signed 16 bit PCM
• WAV (Microsoft) signed 16 bit PCM.
Figure 2-24. WAV (Microsoft) signed 16 bit PCM
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
37
CyberData Corporation 930427B Operations Guide
2.4.12 Configure the Event Parameters
Click the Event Config button to open the Event Configuration page (Figure 2-25). The Event
Configuration page specifies a remote server that can be used to receive HTTP POST events when
actions take place on the board.
Figure 2-25. Event Configuration Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
38
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
Ta bl e 2-13 shows the web page items on the Event Configuration page.
Table 2-13. Event Configuration
Web Page Item Description
Enable Event Generation When selected, Event Generation is enabled.
Remote Event Server
Remote Event Server IP Type the Remote Event Server IP address.
(64 character limit)
Remote Event Server Port Type the Remote Event Server port number.
(8 character limit)
Remote Event Server URL Type the Remote Event Server URL.
(127 character limit)
Events
Enable Call Active Events When selected, Call Active Events are enabled.
Enable Call Terminated Events When selected, Call Terminated Events are enabled.
Enable Night Ring Events When selected, there is a notification when the unit
receives a night ring.
Enable Power On Events When selected, Power On Events are enabled.
39
Enable 60 Second Heartbeat Events When selected, 60 Second Heartbeat Events are
enabled.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Test Event button to test an event.
Click on the Reboot button to reboot the system.
CyberData Corporation 930427B Operations Guide
2.4.12.1 Example Packets for Events
The server and port are used to point to the listening server and the 'Remote Event Server URL' is
the destination URL (typically the script running on the remote server that's used to parse and
process the POST events).
Note The XML is URL-encoded before transmission so the following examples are not completely
accurate.
Here are example packets for every event:
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>POWERON</event>
</cyberdata>
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
40
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 199
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>HEARTBEAT</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 196
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>BUTTON</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 201
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>CALL_ACTIVE</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 205
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>CALL_TERMINATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RINGING</event>
</cyberdata>
41
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>MULTICAST_START</event>
<index>8</index>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 233
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>MULTICAST_STOP</event>
<index>8</index>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RELAY_ACTIVATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RELAY_DEACTIVATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>NIGHTRINGING</event>
</cyberdata>
42
CyberData Corporation 930427B Operations Guide
2.4.13 Configure the Autoprovisioning Parameters
1. Click the Autoprovisioning button to open the Autoprovisioning Configuration page.
See Figure 2-26.
Figure 2-26. Autoprovisioning Configuration Page
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
43
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
2. On the Autoprovisioning Configuration page, you may enter values for the parameters
indicated in
Ta bl e 2-14.
Table 2-14. Autoprovisioning Configuration Parameters
Web Page Item Description
Autoprovisioning
Enable Autoprovisioning See Section 2.4.13.1, "Autoprovisioning".
Get Autoprovisioning from DHCP See Section 2.4.13.1, "Autoprovisioning".
Autoprovisioning Server (IP Address) See Section 2.4.13.1, "Autoprovisioning" (15 character limit).
44
Autoprovisioning Autoupdate
(in minutes)
Type the desired time (in minutes) that you want the
Autoprovisioning feature to update (6 character limit).
Autoprovisioning file name Displays the Autoprovisioning file name.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
3. After changing the parameters, click the Save button.
CyberData Corporation 930427B Operations Guide
2.4.13.1 Autoprovisioning
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
45
Enable
Autoprovisioning
Option
Networking
Get
Autoprovisioning
from DHCP
With autoprovisioning enabled, the board will get its configuration from a remote TFTP server on
startup or periodically on a scheduled delay. Autoprovisioned values will override values stored in
on-board memory and will be visible on the web page. The board gets its autoprovisioning
information from an XML-formatted file hosted from a TFTP server. CyberData will provide a
template for this XML file and the user can modify it for their own use.
To use autoprovisioning, create a copy of the autoprovisioning template with the desired settings
and name this file with the mac address of the device to configure (for example:
0020f7350058.config). Put this file into your TFTP server directory and manually set the TFTP server
address on the board.
It is not necessary to set every option found in the autoprovisioning template. As long as the XML is
valid, the file can contain any subset. Options not autoprovisioned will default to the values stored
in the on board memory. For example if you only wanted to modify the device name, the following
would be a valid autoprovisioning file:
<?xml version="1.0" encoding="utf-8" ?>
<specific>
<MiscSettings>
<DeviceName>auto V3 Paging Server</DeviceName>
</MiscSettings>
</specific>
The board will only apply networking settings or firmware upgrades after a reboot.
When this option is checked, the device will automatically fetch its autoprovisioning server address
from the DHCP server. The device will use the address specified in OPTION 150 (TFTP-servername) or OPTION 66. If both options are set, the device will use OPTION 150.
Refer to the documentation of your DHCP server for setting up OPTION 150.
CyberData Corporation 930427B Operations Guide
Setting Up the V3 Paging Server
Configuring the V3 Paging Server
To set up a Linux DHCPD server to serve autoprovisioning information (in this case using both
option 66 and 150), here's an example dhcpd.conf:
# dhcpd.conf
#
# Configuration file for ISC dhcpd (see 'man dhcpd.conf')
#
ddns-update-style ad-hoc;
option option-150 code 150 = ip-address;
subnet 10.0.0.0 netmask 255.0.0.0 {
max-lease-time 120;
default-lease-time 120;
option routers 10.0.0.1;
option subnet-mask 255.0.0.0;
option domain-name "voiplab";
option domain-name-servers 10.0.0.1;
option time-offset -8; # Pacific Standard Time
46
Autoprovisioning
Server (IP Address)
Autoprovisioning
Autoupdate
Autoprovisioned
Firmware Upgrades
option tftp-server-name "10.0.0.254";
option option-150 10.0.0.254;
range 10.10.0.1 10.10.2.1;}
Instead of using DHCP to provide the autoprovisioning tftp server address, you can specify an
address manually.
If Autoprovisioning is enabled and the Autoprovisioning Autoupdate value is something other
