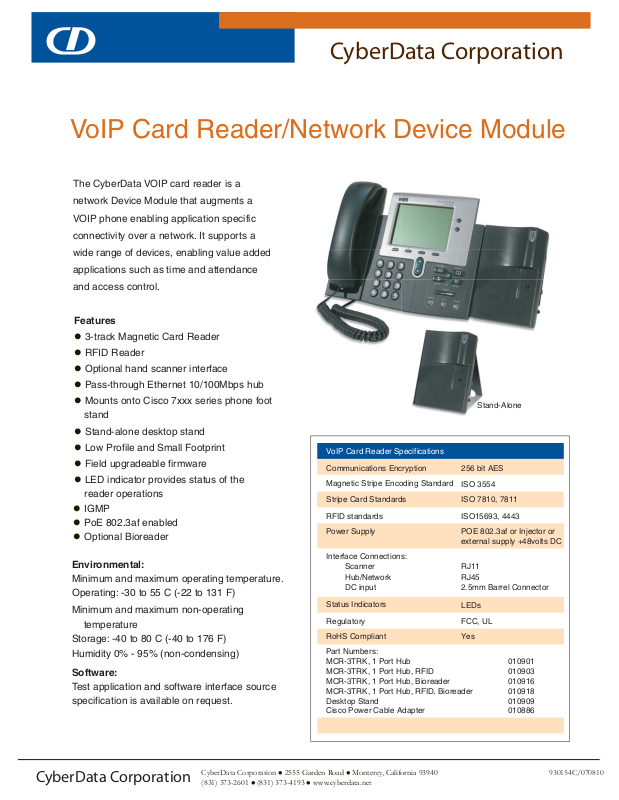

VoIP Card Reader/Network Device Module

The CyberData VOIP card reader is a

network Device Module that augments a

VOIP phone enabling application specific

connectivity over a network. It supports a

wide range of devices, enabling value added

applications such as time and attendance

and access control.

Features

 3-track Magnetic Card Reader

 RFID Reader

 Optional hand scanner interface

 Pass-through Ethernet 10/100Mbps hub

 Mounts onto Cisco 7xxx series phone foot

stand

 Stand-alone desktop stand

 Low Profile and Small Footprint

 Field upgradeable firmware

 LED indicator provides status of the

reader operations

 IGMP
 PoE 802.3af enabled
 Optional Bioreader

Environmental:

Minimum and maximum operating temperature.
Operating: -30 to 55 C (-22 to 131 F)

Minimum and maximum non-operating

temperature

Storage: -40 to 80 C (-40 to 176 F)

Humidity 0% - 95% (non-condensing)

Software:

Test application and software interface source
specification is available on request.

VoIP Card Reader Specifications

Communications Encryption

Magnetic Stripe Encoding Standard

Stripe Card Standards ISO 7810, 7811

RFID standards

Power Supply

Interface Connections:
Scanner RJ11
Hub/Network RJ45
DC input 2.5mm Barrel Connector

Status Indicators

Regulatory

RoHS Compliant

Part Numbers:
MCR-3TRK, 1 Port Hub 010901
MCR-3TRK, 1 Port Hub, RFID 010903
MCR-3TRK, 1 Port Hub, Bioreader 010916
MCR-3TRK, 1 Port Hub, RFID, Bioreader 010918
Desktop Stand 010909
Cisco Power Cable Adapter 010886

Stand-Alone

256 bit AES

ISO 3554

ISO15693, 4443

POE 802.3af or Injector or
external supply +48volts DC

LEDs

FCC, UL

Yes

CyberData Corporation

CyberData Corporation  2555 Garden Road  Monterey, California 93940

[phone]  [phone]  www.cyberdata.net

930154C/070810
