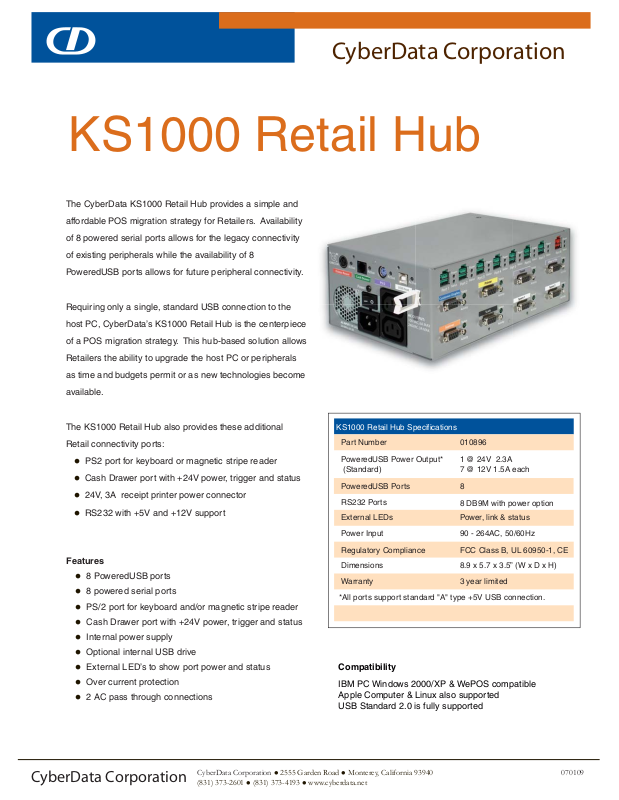

KS1000 Retail Hub
The CyberData KS1000 Retail Hub provides a simple and
affordable POS migration strategy for Retailers. Availability
of 8 powered serial ports allows for the legacy connectivity
of existing peripherals while the availability of 8
PoweredUSB ports allows for future peripheral connectivity.
Requiring only a single, standard USB connection to the
host PC, CyberData’s KS1000 Retail Hub is the centerpiece
of a POS migration strategy. This hub-based solution allows
Retailers the ability to upgrade the host PC or peripherals
as time and budgets permit or as new technologies become
available.
The KS1000 Retail Hub also provides these additional
Retail connectivity ports:
PS2 port for keyboard or magnetic stripe reader
Cash Drawer port with +24V power, trigger and status
24V, 3A receipt printer power connector
RS232 with +5V and +12V support
Features
8 PoweredUSB ports
8 powered serial ports
PS/2 port for keyboard and/or magnetic stripe reader
Cash Drawer port with +24V power, trigger and status
Internal power supply
Optional internal USB drive
External LED’s to show port power and status
Over current protection
2 AC pass through connections
KS1000 Retail Hub Specifications
010896Part Number
PoweredUSB Power Output*
(Standard)
PoweredUSB Ports 8
RS232 Ports
External LEDs
Power Input 90 - 264AC, 50/60Hz
Regulatory Compliance
Warranty
*All ports support standard "A" type +5V USB connection.
Compatibility
IBM PC Windows 2000/XP & WePOS compatible
Apple Computer & Linux also supported
USB Standard 2.0 is fully supported
1 @ 24V 2.3A
7 @ 12V 1.5A each
8 DB9M with power option
Power, link & status
FCC Class B, UL 60950-1, CE
8.9 x 5.7 x 3.5” (W x D x H)Dimensions
3 year limited
CyberData Corporation
CyberData Corporation 2555 Garden Road Monterey, California 93940
(831) 373-2601 (831) 373-4193 www.cyberdata.net
070109
Typical Installation
KS1000 Retail Hub
+24V Out
+24V/2.3A
PC Host
Cash
Drawer
Cash Drawer PS/2 USB HostPrinter Power
Power
1 0
Scanner
Display
RS232 Signature Capture Pad
PS/2Legacy
USB Host
I/F
AC OUTPUT:
100 VAC, 6A MAX
240VAC, 3A MAX
PoweredUSB Connectivity
Power
ActiveActiveActiveActive
Status
Port 1 Port 2 Port 3 Port 4 Port 5 Port 6 Port 7 Port 8
Customer Display Printer Touchscreen Chip ‘n’ Pin
Scanner Scale Spare 1 Spare 2
Status
Activity
Status
Power
Status
Power
Status
Power
Status
Status
Activity
Status
Power
Status
Printer
Power
Status
Status
Activity
Status
Power
Status
Power
Status
Status
Activity
Status
AC INPUT: 100-240V,
50-60Hz, 6A-3A
Power
Switch
AC
Input
AC
Output
2x
Legacy
Serial
Display
Legacy
Serial
Scanner
Activity
Legacy
Serial
Printer
Legacy
Serial
Scale
Activity
Legacy
Serial
Touch I/F
Spare
COM Port
Activity
Legacy
Serial
Pin Pad
License note:
The Powered-USB controller board contains specific technology covered by a patent held by IBM Corporation. CyberData has obtained a license from IBM that
permits CyberData Corporation, among other things, to make or sell products that incorporate this technology. The license also permits these products to be
resold by an entity after they have been initially sold by CyberData.
CyberData Corporation
CyberData Corporation 2555 Garden Road Monterey, California 93940
(831) 373-2601 (831) 373-4193 www.cyberdata.net
Activity
Spare
COM Port
