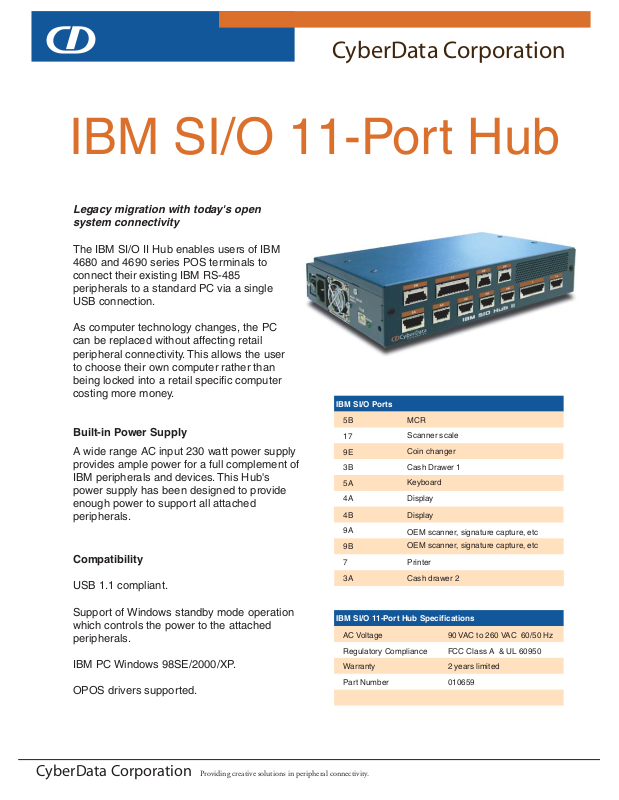

CyberData Corporation
IBM SI/O 11-Port Hub
Legacy migration with today's open
system connectivity
The IBM SI/O II Hub enables users of IBM
4680 and 4690 series POS terminals to
connect their existing IBM RS-485
peripherals to a standard PC via a single
USB connection.
As computer technology changes, the PC
can be replaced without affecting retail
peripheral connectivity. This allows the user
to choose their own computer rather than
being locked into a retail specific computer
costing more money.
IBM SI/O Ports
MCR
Scanner scale
Coin changer
Cash Drawer 1
Keyboard
Display
Display4B
OEM scanner, signature capture, etc
OEM scanner, signature capture, etc
Cash drawer 2
Built-in Power Supply
A wide range AC input 230 watt power supply
provides ample power for a full complement of
IBM peripherals and devices. This Hub's
power supply has been designed to provide
enough power to support all attached
peripherals.
Compatibility
USB 1.1 compliant.
5B
17
9E
3B
5A
4A
9A
9B
7 Printer
3A
Support of Windows standby mode operation
which controls the power to the attached
peripherals.
IBM PC Windows 98SE/2000/XP.
IBM SI/O 11-Port Hub Specifications
AC Voltage 90 VAC to 260 VAC 60/50 Hz
Regulatory Compliance
Warranty
OPOS drivers supported.
CyberData Corporation Providing creative solutions in peripheral connectivity.
FCC Class A & UL 60950
2 years limited
010659Part Number
IBM SI/O 11-Port Hub
Typical Installation
PC Host
Display
Front View
MCR Scanner/Scale
Scanner
Signature Capture
Cash Drawer
SI/O-Powered USB Hub
Printer Cash Drawer
Left Side View
On/Off FanAC In
AC Cable
The AC connection is a standard IEC type.
Input Requirements:
Voltage: 100 ~120 VAC or 200 ~ 240 VAC Auto Switching
Frequency: 50 / 60 Hz
Input Current: 6.0A (RMS) for 115VAC or 3.0A (RMS) for 230VAC
Host Connector
The Host connector is a standard USB "A" to "B" type cable. Maximum length is 6 meters (20 feet) with good quality cable.
Host connect LED
USB Host computer
CyberData Corporation
CyberData Corporation 2555 Garden Road Monterey, California 93940
(831) 373-2601 (831) 373-4193 www.cyberdata.net
