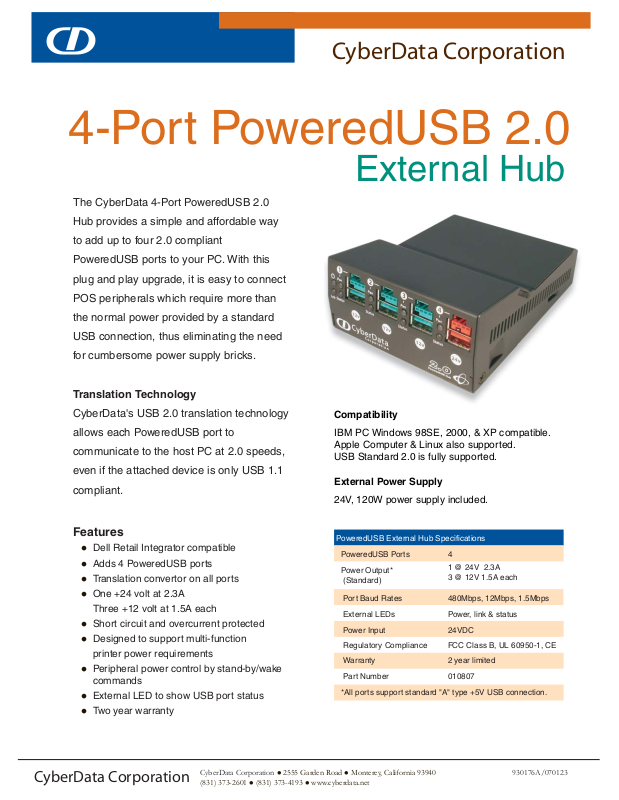

CyberData Corporation
4-Port PoweredUSB 2.0
External Hub
The CyberData 4-Port PoweredUSB 2.0
Hub provides a simple and affordable way
to add up to four 2.0 compliant
PoweredUSB ports to your PC. With this
plug and play upgrade, it is easy to connect
POS peripherals which require more than
the normal power provided by a standard
USB connection, thus eliminating the need
for cumbersome power supply bricks.
Translation Technology
CyberData's USB 2.0 translation technology
allows each PoweredUSB port to
communicate to the host PC at 2.0 speeds,
even if the attached device is only USB 1.1
compliant.
Features
Dell Retail Integrator compatible
Adds 4 PoweredUSB ports
Translation convertor on all ports
One +24 volt at 2.3A
Three +12 volt at 1.5A each
Short circuit and overcurrent protected
Designed to support multi-function
printer power requirements
Peripheral power control by stand-by/wake
commands
External LED to show USB port status
Two year warranty
Compatibility
IBM PC Windows 98SE, 2000, & XP compatible.
Apple Computer & Linux also supported.
USB Standard 2.0 is fully supported.
External Power Supply
24V, 120W power supply included.
PoweredUSB External Hub Specifications
PoweredUSB Ports 4
Power Output*
(Standard)
Port Baud Rates
External LEDs
Power Input 24VDC
Regulatory Compliance
Warranty
*All ports support standard "A" type +5V USB connection.
1 @ 24V 2.3A
3 @ 12V 1.5A each
480Mbps, 12Mbps, 1.5Mbps
Power, link & status
FCC Class B, UL 60950-1, CE
2 year limited
010807Part Number
CyberData Corporation
CyberData Corporation 2555 Garden Road Monterey, California 93940
(831) 373-2601 (831) 373-4193 www.cyberdata.net
930176A/070123
PC Host
4-Port PoweredUSB 2.0
External Hub

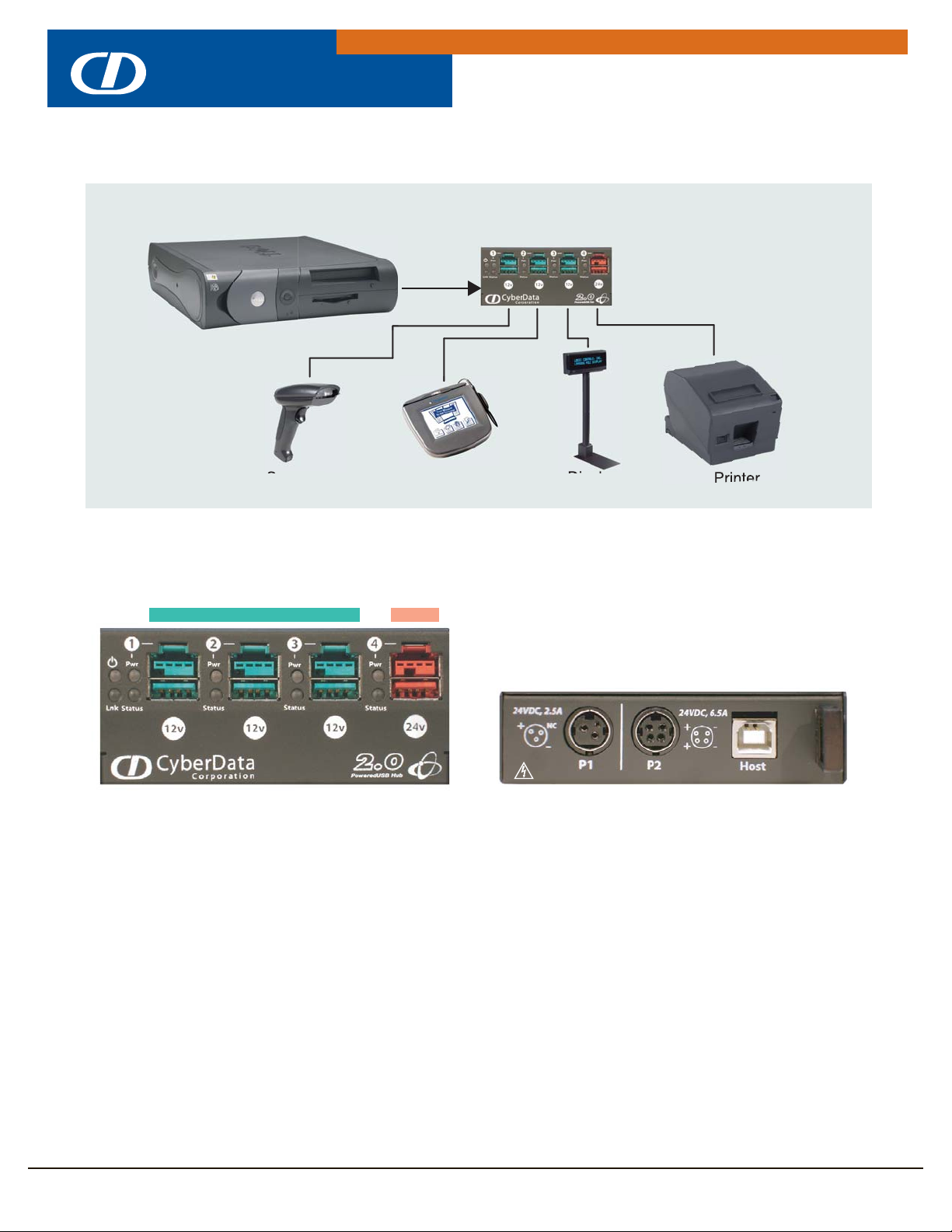

Typical Installation
PoweredUSB Hub
Scanner
+12V +24V
Front Back
Host Connector
The Host connector is a standard USB "A" to "B" type cable. Maximum length is 5 meters (16.5 feet) with good quality
cable.
Signature Capture Pad
Display
Caution: Do not connect both P1 & P2 simultaneously
Printer
CyberData high quality 2.0 compliant PoweredUSB cables
http://www.cyberdata.net/products/poweredusb/pusbcables.html
License note:
The Powered-USB controller board contains specific technology covered by a patent held by IBM Corporation. CyberData has obtained a license from IBM that
permits CyberData Corporation, among other things, to make or sell products that incorporate this technology. The license also permits these products to be
resold by an entity after they have been initially sold by CyberData.
