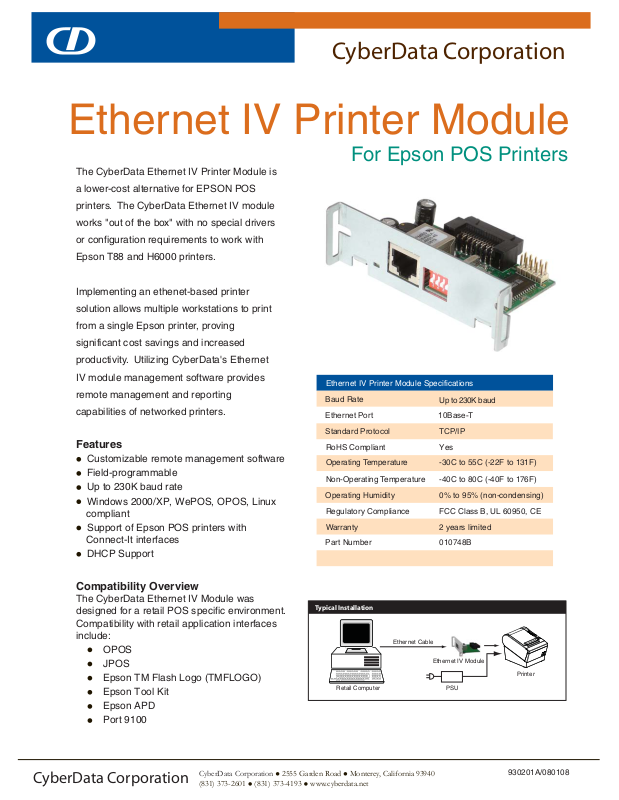

CyberData Corporation
Ethernet IV Printer Module
For Epson POS Printers
The CyberData Ethernet IV Printer Module is
a lower-cost alternative for EPSON POS
printers. The CyberData Ethernet IV module
works "out of the box" with no special drivers
or configuration requirements to work with
Epson T88 and H6000 printers.
Implementing an ethenet-based printer
solution allows multiple workstations to print
from a single Epson printer, proving
significant cost savings and increased
productivity. Utilizing CyberData's Ethernet
IV module management software provides
remote management and reporting
capabilities of networked printers.
Features
Customizable remote management software
Field-programmable
Up to 230K baud rate
Windows 2000/XP, WePOS, OPOS, Linux
compliant
Support of Epson POS printers with
Connect-It interfaces
DHCP Support
Ethernet IV Printer Module Specifications
Baud Rate
Ethernet Port
Standard Protocol TCP/IP
RoHS Compliant Yes
Operating Temperature -30C to 55C (-22F to 131F)
Non-Operating Temperature -40C to 80C (-40F to 176F)
Regulatory Compliance FCC Class B, UL 60950, CE
Up to 230K baud
10Base-T
0% to 95% (non-condensing)Operating Humidity
2 years limitedWarranty
010748BPart Number
Compatibility Overview
The CyberData Ethernet IV Module was
designed for a retail POS specific environment.
Compatibility with retail application interfaces
include:
OPOS
JPOS
Epson TM Flash Logo (TMFLOGO)
Epson Tool Kit
Epson APD
Port 9100
CyberData Corporation
Typical Installation
Ethernet Cable
Retail Computer
CyberData Corporation 2555 Garden Road Monterey, California 93940
(831) 373-2601 (831) 373-4193 www.cyberdata.net
Ethernet IV Module
Printer
PSU
930201A/080108
