GENERAL ALERT
The IP Endpoint Company
MOH OUT (ZONE 2)
MOH ASSIGN MUTE RECEIVE MANUAL
UNIT
BREAKER
2A
PUSH
RESET
600ȍ
H C E LEVEL
1. MIC/LINE
1
2. LINE 2
3. LINE 3
OFF
ON
4.
- - - - -
5. LINE 2
6. LINE 3
MUTE
SENSE
MUTE MIC / LINE 1
+ - H C E
0 10
0 10
7. AUTO MUTE
(MIC/LINE
1)
8. MIC (ON)/LINE
(OFF)
SPEAKER OUT
(ZO NE 1)
COM
4ȍ 25V
70V
18ȍ 140ȍ
LINE OUT
600ȍ
H E
LINE 3
H E
LINE
2
H E
CLASS 2 WIRING
DO NOT USE THESE 4ȍ , 25V AND 70V
TERMINALS AT THE SAME
TIME.

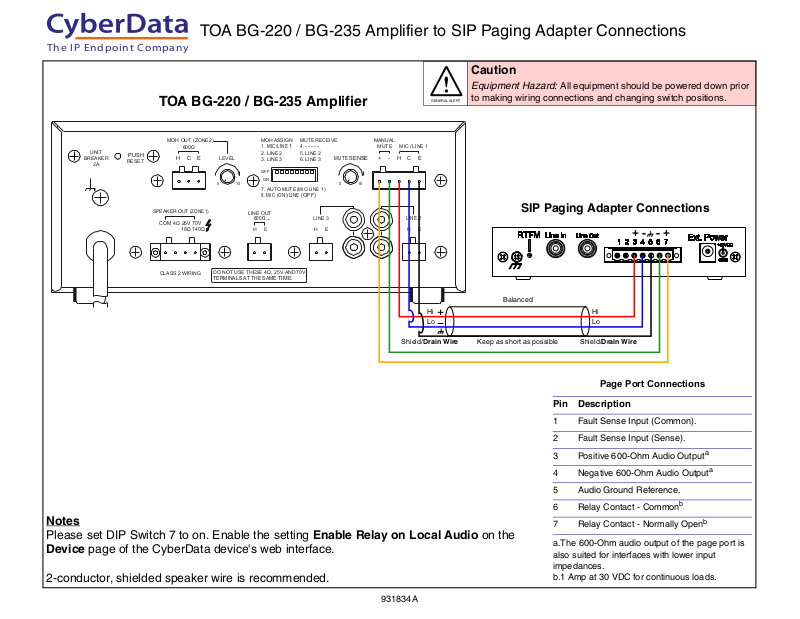

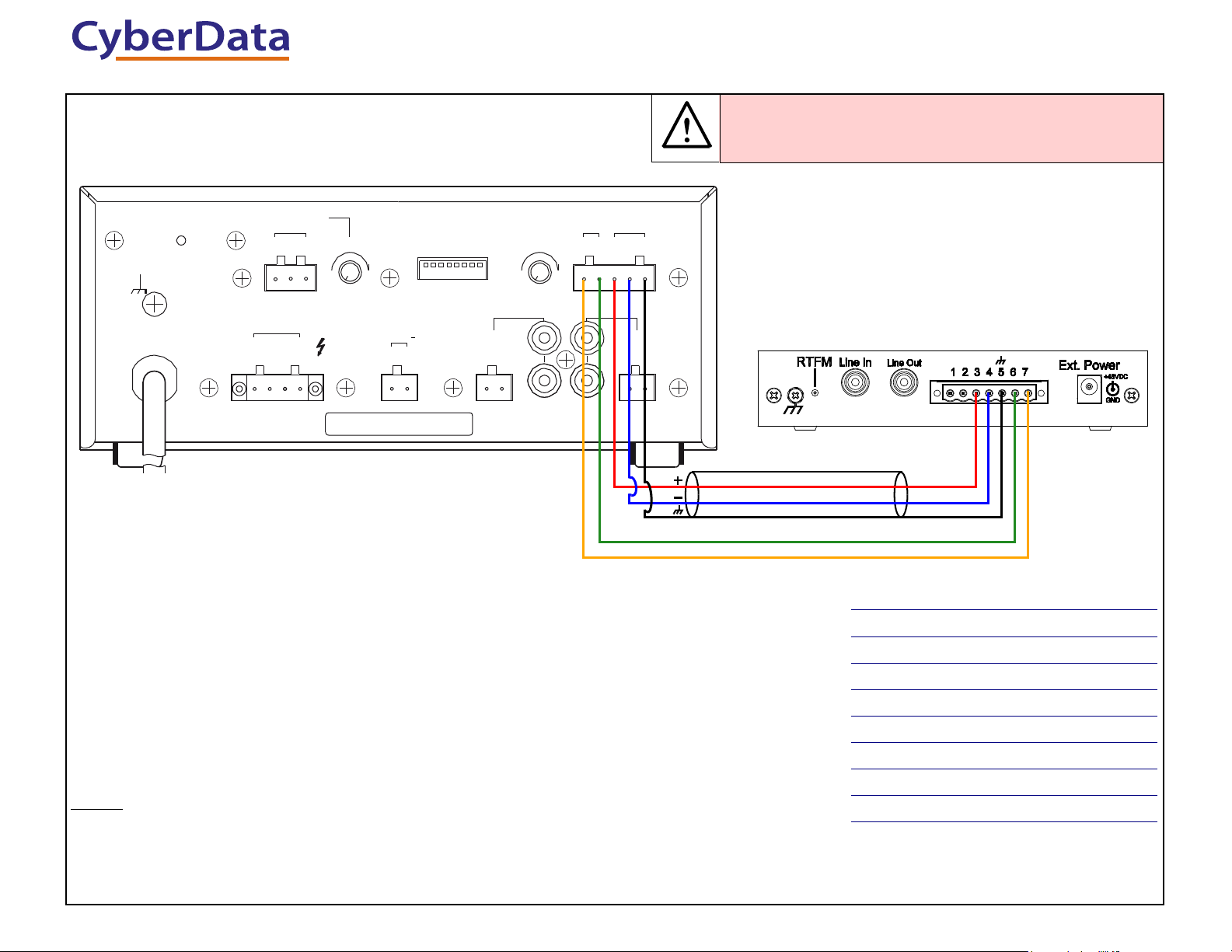

TOA BG-220 / BG-235 Amplifier to SIP Paging Adapter Connections
TOA BG-220 / BG-235 Amplifier
Caution
Equipment Hazard: All equipment should be powered down prior
to making wiring connections and changing switch positions.
SIP Paging Adapter Connections
+
-+-
Balanced
Hi
Lo
Hi
Lo
Notes
Please set DIP Switch 7 to on. Enable the setting Enable Relay on Local Audio on the
Device page of the CyberData device's web interface.
2-conductor, shielded speaker wire is recommended.
931834A
Shield/Drain Wire Shield/Drain Wire
Keep as short as possible
Page Port Connections
Pin Description
1 Fault Sense Input (Common).
2 Fault Sense Input (Sense).
3 Positive 600-Ohm Audio Output
4 Negative 600-Ohm Audio Output
5 Audio Ground Reference.
6 Relay Contact - Common
7 Relay Contact - Normally Open
a.The 600-Ohm audio output of the page port is
also suited for interfaces with lower input
impedances.
b.1 Amp at 30 VDC for continuous loads.
a
a
b
b
