Revision Information
Revision 930622F, which corresponds to firmware version 7.0.0, was released on September 11,
2013, and has the following changes:
• Updates Section 1.2, “Product features”.
• Adds the following text to Ta bl e 2-5, "Home Page Overview"“
“The user can export and edit the device's configuration (in XML format), and then reload it
to a device (or devices) instead of making changes through the web interface.”
• Adds the DTMF duration (milliseconds) setting to Ta bl e 2-6, "Device Configuration
Parameters".
• Updates the description for the Beep on page setting inTa bl e 2-6, "Device Configuration
Parameters".
• Adds the Bypass DTMF Menus (Go straight to page) setting to Ta bl e 2-6, "Device
Configuration Parameters".
• Adds the Send pre-configured DTMF for Analog setting to Tab le 2-6, "Device Configuration
Parameters".
• Adds the Zone (field) setting to Ta bl e 2-6, "Device Configuration Parameters".
• Adds the Zone (box) setting to Ta bl e 2-6, "Device Configuration Parameters".
• Adds the Manual DTMF Entry for Analog Zone setting to Ta bl e 2-6, "Device Configuration
Parameters".
• Adds the VLAN ID (0-4095) setting to Ta bl e 2-7, "Network Configuration Parameters".
• Adds the VLAN Priority (0-7) setting to Ta bl e 2-7, "Network Configuration Parameters".
• Adds the following text to Ta bl e 2-7, "Network Configuration Parameters"“
“Note: The device supports 802.11Q VLAN tagging support. The switch port connected to
the device will need to be in “trunking mode” for the VLAN tags to propagate.”
• Adds the Download Protocol setting to Ta bl e 2-14, "Autoprovisioning Configuration
Parameters".
• Adds the Disable rport Discovery setting to Ta b l e 2-8, "SIP Configuration Parameters".
• Adds the Terminate call after delay (in seconds) setting to Ta bl e 2-8, "SIP Configuration
Parameters".
• Adds the Buffer setting to Ta bl e 2-9, "Multicast Configuration Parameters".
• Adds the Beep setting to Ta bl e 2-9, "Multicast Configuration Parameters".
• Adds the Enter Zone setting to Ta bl e 2-12, "Audio Configuration Parameters".
• Adds the Autoprovision at time (HHMMSS) setting to Tab le 2-14, "Autoprovisioning
Configuration Parameters".
• Adds the Autoprovision when idle (in minutes > 10) setting to Tab le 2-14, "Autoprovisioning
Configuration Parameters".
• Adds the NTP Server setting to Ta bl e 2-14, "Autoprovisioning Configuration Parameters".
• Adds the Posix Timezone String setting to Ta b le 2-14, "Autoprovisioning Configuration
Parameters".
• Adds the Set Time with External NTP Server on boot setting to Ta bl e 2-14,
"Autoprovisioning Configuration Parameters".
• Adds the Periodically update with time server setting to Ta bl e 2-14, "Autoprovisioning
Configuration Parameters".
CyberData Corporation930622FOperations Guide
Page 4
• Adds the Time update period (in hours) setting to Ta b le 2-14, "Autoprovisioning
Configuration Parameters".
• Adds the Set Time from NTP Server button to Ta bl e 2-14, "Autoprovisioning Configuration
Parameters".
• Adds the Current Time (UTC) in 24 hour format (HHMMSS) setting to Ta bl e 2-14,
"Autoprovisioning Configuration Parameters".
• Adds the Set Time button to Ta bl e 2-14, "Autoprovisioning Configuration Parameters".
• Updates Section 2.3.5.1, “Confirm Power on, Network Connectivity, and Connection Speed”.
The following browsers have been tested against firmware version 7.0.0:
• Internet Explorer (version: 10)
• Firefox (also called Mozilla Firefox) (version: 22.0)
• Chrome (version: 27.0.1453.116)
• Safari (version: 6.0.5)
CyberData Corporation930622FOperations Guide
Page 5
Important Safety Instructions
GENERAL ALERT
GENERAL ALERT
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(includin
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
tw
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles
g amplifiers) that produce heat.
o blades with one wider than the other. A grounding type plug has two blades and a third
, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
een damaged in any way, such as power-supply cord or plug is damaged, liquid has been
b
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
13. Prior to installation, consult local building and electrical code requirements.
Warning
Electrical Hazard: This product should be installed by a licensed electrician
according to all local electrical and building codes.
Warning
Electrical Hazard: To prevent injury, this apparatus must be securely attached to
the floor/wall in accordance with the installation instructions.
CyberData Corporation930622FOperations Guide
Page 6
Pictorial Alert Icons
GENERAL ALERT
Hazard Levels
Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This is limited to the most extreme situations.
Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
ser
ious injury.
General Alert
This pictorial alert indicates a potentially hazardous situation. This alert will be
followed by a hazard level heading and more specific information about the
hazard.
Ground
This pictorial alert indicates the Earth grounding connection point.
Caution: Indicates a potentially hazardous situation which, if not a
moderate injury. It may also alert users against unsafe practices.
Notice: Indicates a statement of company policy (tha
The safety guidelines for the equipment in this manual do not purport to address all the safety issues
he equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and
of t
health practices and determine the applicability of regulatory limitations prior to use. Potential safety
hazards are identified in this manual through the use of words Danger, Warning, and Caution, the
specific hazard type, and pictorial alert icons.
t is, a safety policy or protection of property).
voided, could result in minor or
CyberData Corporation930622FOperations Guide
Page 7
Abbreviations and Terms
Abbreviation or TermDefinition
A-lawA standard companding algorithm, used in European digital
communications systems to optimize, i.e., modify, the dynamic range of an
analog signal for digitizing.
AVPAudio Video Profile
Cat 5TIA/EIA-568-B Ca
DHCPDynamic Host Configuration Protocol
LANLocal Area Network
LEDLight Emitting Diode
MbpsMegabits per second.
NTPNetwork Time Protocol
PBXPrivate Branch Exchange
PoEPower over Ethernet (as per IEEE 802.3af standard)
RTFMReset Test Function Management
SIPSession Initiated Protocol
u-lawA companding algorithm, primarily used in the digital telecommunication
UCUnified Communications
VoIPVoice over Internet Protocol
tegory 5
CyberData Corporation930622FOperations Guide
Page 8
Contents
Chapter 1 Product Overview 1
1.1 How to Identify This Product .....................................................................................................2
1.2 Product features .......................................................................................................................3
B.3.1 Warranty & RMA Returns within the United States ......................................................70
B.3.2 Warranty & RMA Returns outside of the United States ...............................................70
B.3.3 Spare in the Air Policy ..................................................................................................71
B.3.4 Return and Restocking Policy ......................................................................................71
B.3.5 Warranty and RMA Returns Page ................................................................................71
ii
CyberData Corporation930622FOperations Guide
Page 10
1 Product Overview
The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with
SIP and Multicast-based audio sources.
The SIP Paging Adapter (SPA) can be configured to support two separate SIP extensions. SIP
extension one passes audio through to the analog output spoken from the caller’s handset.
When called, SIP extension two plays a bell audio that can be used as a night ringer when
configured in a night ring group.
The SPA supports up to 9 user-uploadable messages that can be played by a DTMF command.
The SPA supports a line-In input for playing MOH. During a page or night ring, this input is muted
with its output restored once the page has stopped.
1
CyberData Corporation930622FOperations Guide
Page 11
1.1 How to Identify This Product
SIP PAGING ADAPTER
RoHS COMPLIANT
011233A / 021059H
Model number
WWW.CYBERDATA.NET
233000001
To identify the SIP Paging Adapter, look for a model number label similar to the one shown in Figure
1-1. The model number on the label should be 011233.
Figure 1-1. Model Number Label
Product Overview
How to Identify This Product
2
CyberData Corporation930622FOperations Guide
Page 12
1.2 Product features
Product Overview
Product features
3
● Two SIP extensions
● SIP RFC 3261
● Two SIP endpoints (one for Night Ringer)
● Menu system to allow for live pages or playing pre-recorded audio
● RTP Version 2 Multicast and Unicast
● 10k Ohm line out and 600 Ohm connectors for interfacing with analog amplifiers
● Audio Codecs
1
•G.711 U-law
•G.711 A-law
•Speex
•DTMF detection (via RFC 2833)
● Cisco SRST support
● 802.11Q VLAN support
● Ability to import and export configuration
● Auto Provisioning
● Support for NTP server for time keeping
•TFTP or HTTP
•Update at certain times of day
•Update after a certain amount of idle time
● HTTP command interface
● Remote amp fault sensor
● Web-based configuration and firmware upload
● User uploadable audio files
● PoE 802.3af enabled (Power-over-Ethernet)
● 19-inch Rack mount option
1.One of these extensions is a dedicated "night ringer," which is not capable of answering a call, and
will only play a stored message while the call is ringing.
CyberData Corporation930622FOperations Guide
Page 13
1.3 Product Specifications
Table 1-1. Product Specifications
Specifications
ProtocolSIP RFC 3261 Compatible
Power RequirementPoE or 48V DC
Ethernet I/F10/100 Mbps
Power InputPoE 802.3af or 48VDC
Operating Temperature-10o C to 50o C (14o F to 122o F)
Payload TypesG711
Regulatory ComplianceFCC Class A, UL 60950
Page Port OutputBalanced 600 Ohm 10VPP
Line In:
Input Signal Amplitudes
Input Impedance
2.0 VPP maximum
10k Ohm
Product Overview
Product Specifications
4
Line Out:
Output Signal Amplitudes
Output Level
Total Harmonic Distortion
Output Impedance
Dimensions6.11” L x 4.05” W x 1.15” H
Weight1.2 pounds
Boxed Weight1.8 pounds
Part Number011233
2.0 VPP maximum
+2dBm nominal
0.5% maximum
10k Ohm
CyberData Corporation930622FOperations Guide
Page 14
2 Setting Up the SIP Paging Adapter
The topics in this chapter provide information on setting up, configuring, and using the SIP Paging
Adapter.
2.1 Parts List
The packaging for the SIP Paging Adapter includes the parts in Ta b l e 2-2.
Table 2-2. Parts List
QuantityPart NameIllustration
1SIP Paging Adapter
1Installation Quick Reference Guide
5
1Mounting Template (located on the last
of the Installation Quick
page
Reference)
1Mounting Kit (part #070057A)
which includes:
(2) #4-6 x 7/8" Mo
(2) #4 x 1-1/4" Round Phillips Wood
rews
Sc
unting Anchors
CyberData Corporation930622FOperations Guide
Page 15
2.2 Typical Installation
Typical SPA Configuration (600 Ohm output with Supervision switch)
Figure 2-2 illustrates how the SIP Paging Adapter is normally installed as part of a paging system.
Figure 2-2. Typical Installation
Setting Up the SIP Paging Adapter
6
CyberData Corporation930622FOperations Guide
Page 16
2.3 Connecting the SIP Paging Adapter
Pin 1 Pin2 Pin 3 Pin 4 Pin 5
Line InLine OutPowerPage Port Output
Pin 6Pin 7
48VDC
Before you connect the SIP Paging Adapter, be sure that you have received all of the parts
described in
2.3.1 Connection Options
See Figure 2-3 and Ta bl e 2-1 for the connection options that are available for the SIP Paging
Adapter.
Section 2.1, "Parts List".
Figure 2-3. Connection Options
Setting Up the SIP Paging Adapter
Connection Options
7
Table 2-1. Page Port Output Connections
Pin Description
1Fault Sense Input (Common). See Section 2.3.1.1, "Pin 1 and 2—Fault Sense Input
(Common/Sense)".
2Fault Sense Input (Sense). See Section 2.3.1.1, "Pin 1 and 2—Fault Sense Input
(Common/Sense)".
3Positive 600-Ohm Audio Output
Ohm Audio Output/Audio Ground Reference".
4Negative 600-Ohm Audio Output.
Ohm Audio Output/Audio Ground Reference".
5Audio Ground Reference. See Section 2.3.1.2, "Pin 3, 4, and 5—Positive/Negative 600-Ohm Audio
Output/Audio Ground Reference".
6Relay Contact - Common
Open)".
7Relay Contact - Normally Open
(Common/Normally Open)".
a. The 600-Ohm audio output of the page port is also suited for interfaces with lower input
impedances.
b. 1 Amp at 30 VDC for continuous loads
a
. See Section 2.3.1.2, "Pin 3, 4, and 5—Positive/Negative 600-
a
. See Section 2.3.1.2, "Pin 3, 4, and 5—Positive/Negative 600-
b
. See Section 2.3.1.3, "Pin 6 and 7—Relay Contact (Common/Normally
b
. See Section 2.3.1.3, "Pin 6 and 7—Relay Contact
CyberData Corporation930622FOperations Guide
Page 17
Setting Up the SIP Paging Adapter
Removable Connector
2.3.1.1 Pin 1 and 2—Fault Sense Input (Common/Sense)
This input was designed as a method of monitoring an external amplifier that is equipped with a fault
sense relay.
When enabled via the web interface (Section 2.4.9, "Configure the Fault Detection Parameters"), this
input (when closed) will play a user uploadable audio file out of the line-out connection and/or place
a SIP call to a pre-determined extension and play that file.
This output allows direct connection to paging amplifiers requiring a "Page Port" type input that
meets a balanced 600 Ohm 10Vpp signal.
2.3.1.3 Pin 6 and 7—Relay Contact (Common/Normally Open)
When enabled on the web interface (Section 2.4.4, "Configure the Device Parameters"), every time
an audio file is played out of the local line-out or 600 Ohm output, the relay will close, thereby
enabling amplifiers with a remote turn-on capability to become active.
8
2.3.2 Removable Connector
Figure 2-4 shows the connector that is removable on the SIP Paging Adapter.
Figure 2-4. Removable Connector
CyberData Corporation930622FOperations Guide
Page 18
2.3.3 Connect to the Power Source
To set up the SIP Paging Adapter, connect
the device to your network:
Poe
•For PoE, plug one end of an 802.3af
Ethernet cable into the SIP Paging
Adapter Ethernet port. Plug the other
end of the Ethernet cable into your
network. See the figure on the left.
Non-Poe
•For Non-PoE, connect the SIP Paging
Adapter to a 48VDC power supply.
See the figure on the left.
Chassis Ground
•If required, connect the earth
grounding wire to the Chassis Ground. See the figure on the left.
Chassis ground
Chassis Ground
PoE
Non PoE with 48 VDC Power Supply
To use PoE, plug a Cat 5 Ethernet cable from the SIP Paging Adapter Ethernet port to your network.
As an alternative to PoE, you can plug one end of a +48V DC power supply into the SIP Paging
Adapter, and plug the other end into a receptacle. If required, connect the earth grounding wire to
the chassis ground on the back of the unit. See
Figure 2-5. Connecting to the Power Source
Figure 2-5.
Setting Up the SIP Paging Adapter
Connect to the Power Source
9
CyberData Corporation930622FOperations Guide
Page 19
2.3.4 Connect to the Network
Plug one end of a standard Ethernet cable into the SIP Paging Adapter Ethernet port. Plug the other
end into your network.
Setting Up the SIP Paging Adapter
Figure 2-6. Connecting to the Network
Connect to the Network
10
CyberData Corporation930622FOperations Guide
Page 20
Setting Up the SIP Paging Adapter
Status
(GREEN/BLUE LED)
Paging
(GREEN LED)
Link
(GREEN/AMBER LED)
Activity
(GREEN LED)
Confirm that the SIP Paging Adapter is Up and Running
2.3.5 Confirm that the SIP Paging Adapter is Up and Running
The LEDs on the front of the SIP Paging Adapter verify the unit’s operations.
Figure 2-7. SIP Paging Adapter LEDs
2.3.5.1 Confirm Power on, Network Connectivity, and Connection Speed
When you plug in the Ethernet cable or power supply:
•The GREEN/BLUE Status LED and the GREEN Paging LED both blink at a rate of 10 times
per second during the initial network setup.
•The round, GREEN/BLUEStatus LED on the front of the SIP Paging Adapter comes on
indicating that the power is on. Once the device has been initialized, this LED blinks at one
second intervals.
•The square, GREEN/AMBERLink LED above the Ethernet port indicates that the network
connection has been established. The Link LED changes color to confirm the auto-negotiated
connection speed:
•The Link LED is GREEN at 10 Mbps.
•The Link LED is AMBER at 100 Mbps.
•The GREENPaging LED comes on after the device is booted and initialized. This LED blinks
when a page is in progress. You can disable Beep on Initialization on the Device Configuration page.
11
2.3.5.2 Verify Network Activity
The square, GREENActivity LED blinks when there is network traffic.
CyberData Corporation930622FOperations Guide
Page 21
2.3.6 Announcing the IP Address
RTFM Switch
To announce the IP address for the SIP Paging Adapter, briefly press and then quickly release the
RTFM switch. See
NoteThe IP address announcement can be heard if a speaker or amplified speaker is connected
to the unit.
Figure 2-8.
Figure 2-8. RTFM Switch
Setting Up the SIP Paging Adapter
Announcing the IP Address
12
CyberData Corporation930622FOperations Guide
Page 22
2.3.7 Restore the Factory Default Settings
RTFM Switch
The SIP Paging Adapter is delivered with factory set default values for the parameters in Ta bl e 2-3.
Use the RT
factory default settings.
FM switch (see Figure 2-9) on the back of the unit to restore these parameters to the
Figure 2-9. RTFM Switch
Setting Up the SIP Paging Adapter
Restore the Factory Default Settings
13
NoteWh
en you perform this procedure, the factory default settings are restored. The default
parameters for access are shown in Ta bl e 2-3.
Table 2-3. Factory Default Settings
ParameterFactory Default Setting
IP AddressingDHCP
IP Address
Web Access Usernameadmin
Web Access Passwordadmin
Subnet Mask
Default Gateway
a
a
a
10.10.10.10
255.0.0.0
10.0.0.1
a. Default if there is not a DHCP server present.
To restore these parameters to the factory default settings:
1. Press and hold the RT
FM switch until the status and paging lights come on.
2. Continue to press the switch until after the indicator lights go off, and then release it.
NoteThe “Restoring Defaults
” announcement can be heard if a speaker or amplified speaker is
connected to the unit.
3. The SIP Paging Adapter settings are restored to the factory defaults.
CyberData Corporation930622FOperations Guide
Page 23
Gather the Required Configuration Information
2.4 Configuring the SIP Paging Adapter
Use this section to configure the SIP Paging Adapter.
2.4.1 Gather the Required Configuration Information
Have the following information available before you configure the SIP Paging Adapter.
2.4.1.1 Static or DHCP Addressing?
Know whether your system uses static or dynamic (DHCP) IP addressing. If it uses static
addressing, you also need to know the values to assign to the following SIP Paging Adapter
parameters:
•IP Address
•Subnet Mask
•Default Gateway
Setting Up the SIP Paging Adapter
14
2.4.1.2 Username and Password for Configuration GUI
Determine the Username and Password that will replace the defaults after you initially log in to the
configuration GUI.
•The Username is case-sensitive, and must be from four to 25 alphanumeric characters long.
•The Password is case-sensitive, and must be from four to 20 alphanumeric characters long.
2.4.1.3 SIP Settings
To configure the SIP parameters, determine whether you want to register with the server. If you do,
determine the number of minutes the registration lease remains valid, and whether you want to
automatically unregister when you reboot. To configure the SIP parameters, you also need to
determine the values for these parameters:
•SIP Server IP Address
•Remote and Local SIP Port Numbers
•SIP User ID, and Authenticate ID and Password for this User ID
CyberData Corporation930622FOperations Guide
Page 24
2.4.2 SIP Paging Adapter Web Page Navigation
Ta bl e 2-4 shows the navigation buttons that you will see on every SIP Paging Adapter web page.
Table 2-4. V3 Paging Amplifier Web Page Navigation
Web Page ItemDescription
Link to the Home page.
Link to the Device Configuration page.
Link to the Networking page.
Link to go to the SIP Configuration page.
Link to the Multicast Configuration page.
Setting Up the SIP Paging Adapter
SIP Paging Adapter Web Page Navigation
15
Link to go to the Nightringer page.
Link to go to the Fault Detection page.
Link to the Audio Configuration page.
Link to the Event Configuration page.
Link to the Autoprovisioning Configuration page.
Link to the Upgrade Firmware page.
CyberData Corporation930622FOperations Guide
Page 25
2.4.3 Log in to the Configuration GUI
1. Open your browser to the SIP Paging Adapter IP address.
NoteIf the network does not have access to a DHCP server, the device will default to an IP
address of 10.10.10.10.
NoteMake sure that the PC is on the same IP network as the SIP Paging Adapter.
NoteYou may also download CyberData’s VoIP Discovery Utility program which allows you to
easily find and configure the default web address of the CyberData VoIP products.
CyberData’s VoIP Discovery Utility program is available at the following website address:
The unit ships in DHCP mode. To get to the Home page, use the discovery utility to scan for
the device on the network and open your browser from there.
NoteTo work with the SIP Paging Adapter configuration after the initial configuration, log in using
the IP address you assign to the device.
provides instructions for entering the IP address.
Setting Up the SIP Paging Adapter
Log in to the Configuration GUI
Section 2.4.5, "Configure the Network Parameters"
16
Change the
Default Username
and Password
2. When prompted, use the following default Username and Password to open the configuration
Home page:
Username: admin
Password: admin
To change the default Web access Username and Password:
1. Enter the new Username from four to 25 alphanumeric characters in the Change Username
field. The Username is case-sensitive.
2. Enter the new Password from four to 20 alphanumeric characters in the Change Password
field. The Password is case-sensitive.
3. Enter the new password again in the Re-enter New Password field.
Click Save Settings.
CyberData Corporation930622FOperations Guide
Page 26

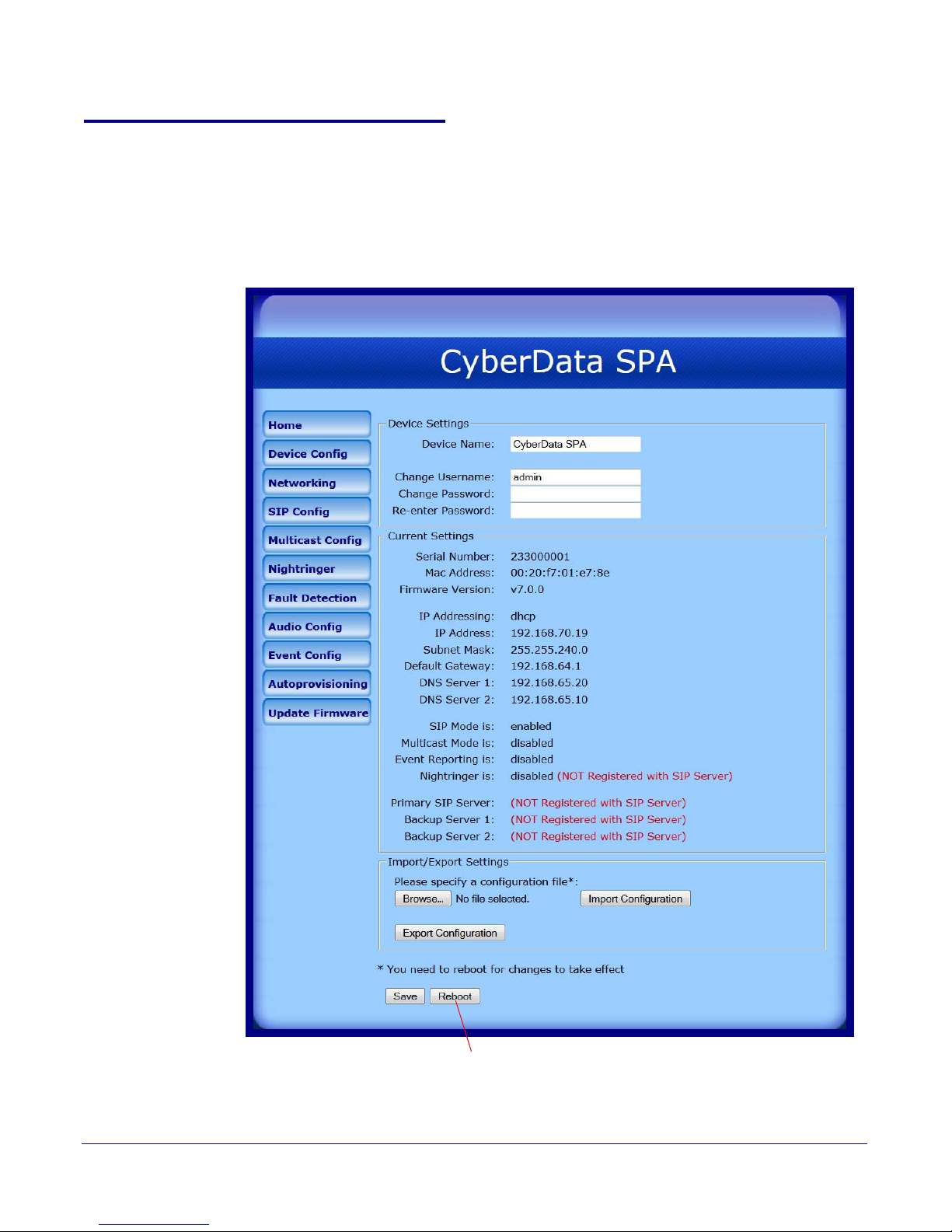

Figure 2-10. Home Page
Setting Up the SIP Paging Adapter
Log in to the Configuration GUI
17
CyberData Corporation930622FOperations Guide
Page 27
Setting Up the SIP Paging Adapter
Log in to the Configuration GUI
4. On the Home Page, review the setup details and navigation buttons described in Ta b le 2-5.
Table 2-5. Home Page Overview
18
Web Page Item
Description
Device Settings
Device NameShows the device name (25 character limit).
Change UsernameType in this field to change the username (25 character limit).
Change PasswordType in this field to change the password (20 character limit).
Re-enter Password
Type the password again in this field to confirm the new password
(20 character limit).
Current Settings
Serial NumberShows the device serial number.
Mac AddressShows the device Mac address.
Firmware VersionShows the current firmware version.
IP AddressingShows the current IP addressing setting (D
HCP or Static).
IP AddressShows the current IP address.
Subnet MaskShows the current subnet mask address.
Default GatewayShows the current default gateway address.
DNS Server 1Shows the current DNS Server 1 address.
DNS Server 2Shows the current DNS Server 2 address.
SIP Mode isShows the current status of the SIP Mode.
Multicast Mode isShows the current status of the Multicast Mode.
Event Reporting isShows the current status of the Event Reporting.
Nightring isShows the current status of the Nightringer.
Primary SIP ServerShows the current status of the Primary SIP Server.
Backup Server 1Shows the current status of Backup Server 1.
Backup Server 2
Shows the current status of Backup Server 2.
Import/Export SettingsThe user can export and edit the device's configuration (in XML
format), and then reload it to a device (or devices) instead of
making changes through the web interface.
Press the Browse button to select a configuration file to import.
Press the Import Configuration button to save a board
configuration to the board. Note: The board will have to be reset before changes will take
effect.

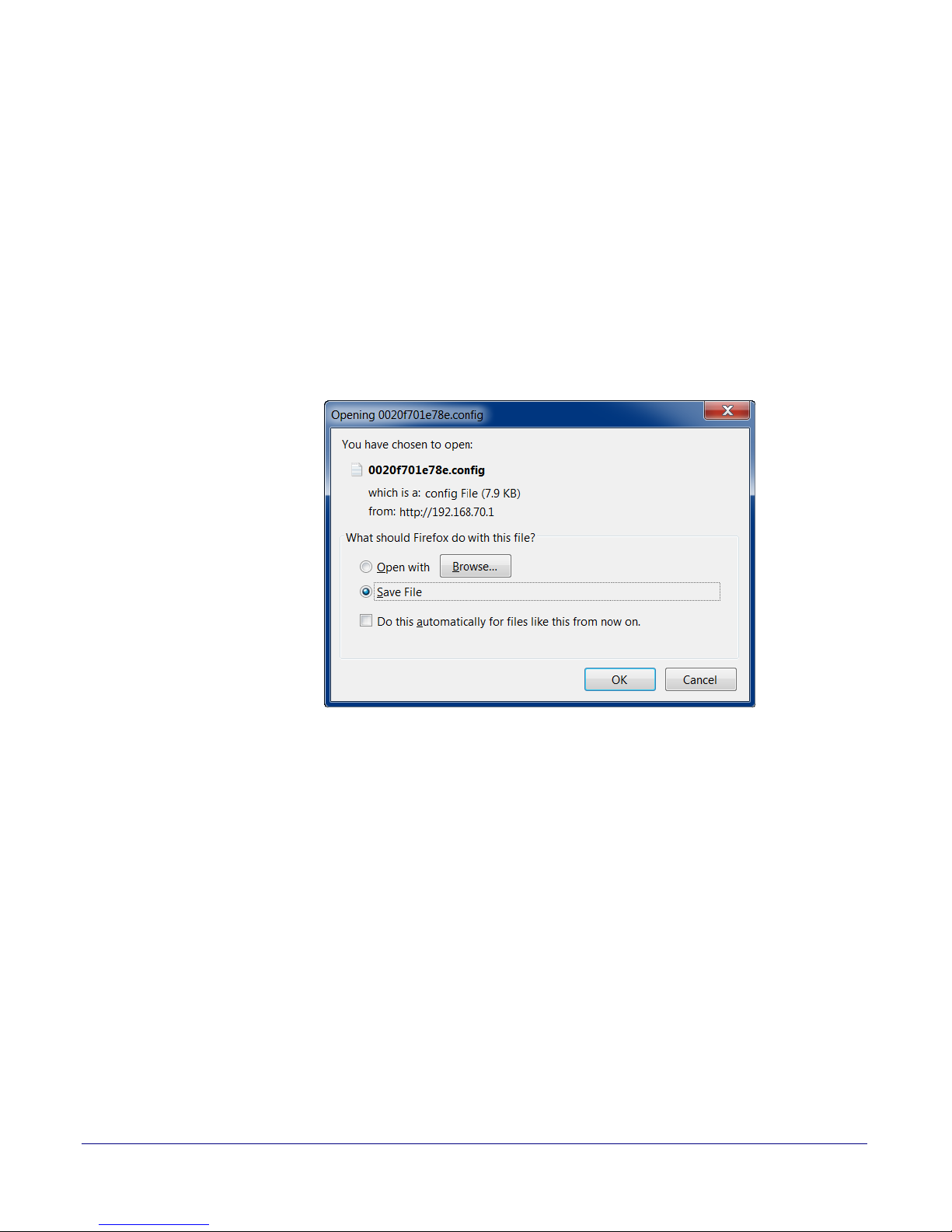

Press the Export Configuration button to download the current
board configuration.
Click the Save button to save your configuration settings.
ou need to reboot for changes to take effect.
Note: Y
Click on the Reboot button to reboot the system.
CyberData Corporation930622FOperations Guide
Page 28
Setting Up the SIP Paging Adapter
Log in to the Configuration GUI
At this point you can:
•Review the SIP Paging Adapter’s Current Settings. Use the RTFM switch to restore the factory
default settings. See
Section 2.3.7, "Restore the Factory Default Settings".
•Configure the device parameters. Click on the Device Config button and see Section 2.4.4,
"Configure the Device Parameters".
•Configure the network parameters. Click on the Networking button and refer to Section 2.4.5,
"Configure the Network Parameters" for instructions.
•Configure the SIP parameters. Click on the SIP Config button and see Section 2.4.6,
"Configure the SIP Parameters".
•Configure the multicast parameters. Click on the Multicast Config button and see Section
2.4.7, "Configure the Multicast Parameters" for instructions.
•Configure the Night Ringer parameters. Click on the Nightringer button and see Section 2.4.8,
"Configure the Night Ringer Parameters".
•Configure the fault detection parameters. Click on the Fault Detection button and see Section
2.4.9, "Configure the Fault Detection Parameters".
•Configure the audio parameters. Click on the Audio Config button and see Section 2.4.10,
"Configure the Audio Parameters" for instructions.
•Configure the event parameters. Click on the Event Config button and see Section 2.4.11,
"Configure the Event Parameters" for instructions.

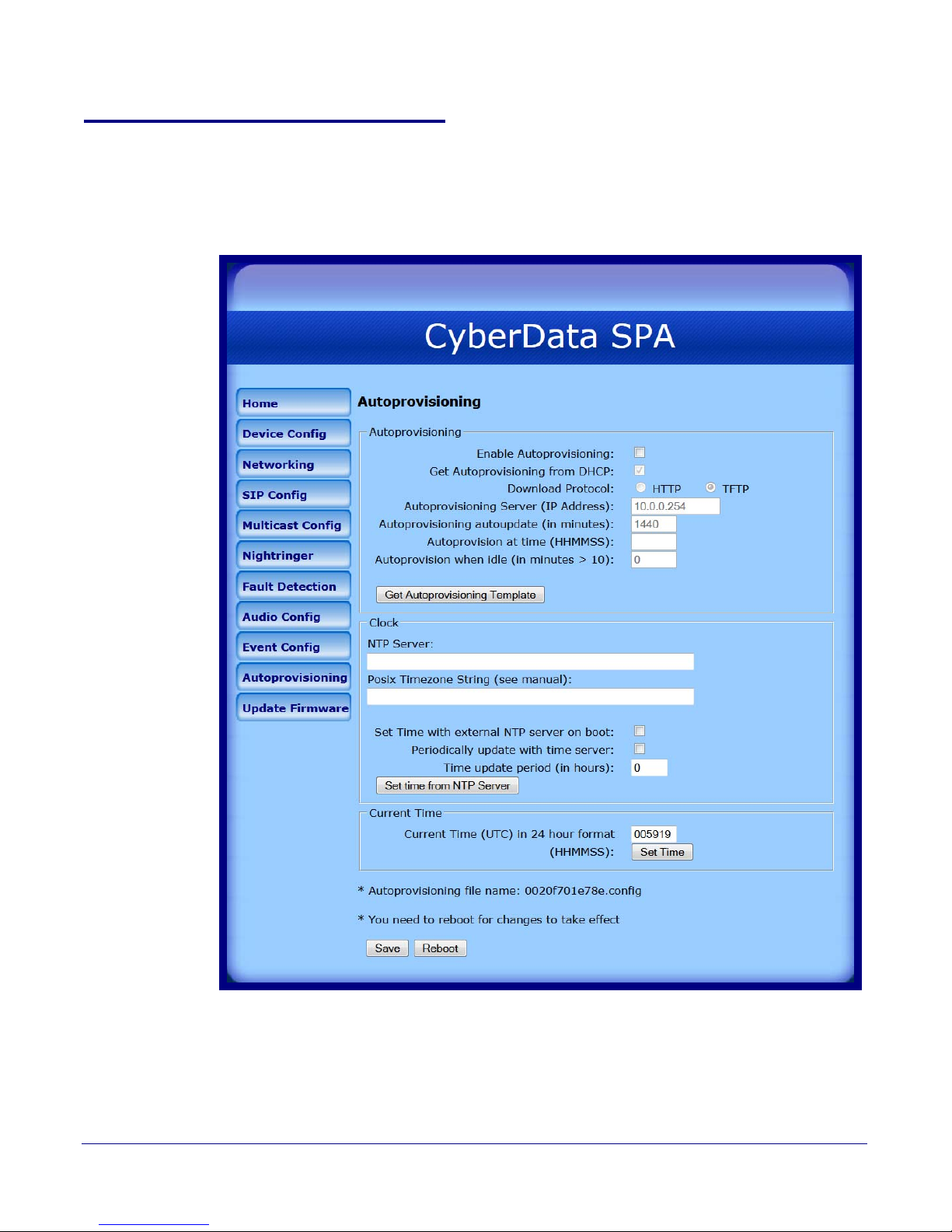

•Configure the autoprovisioning parameters. Click on the Autoprovisioning button and see
Section 2.4.12, "Configure the Autoprovisioning Parameters" for instructions.
19
NoteClick on the Update Firmware button any time you need to upload new versions of the
firmware. See
Section 2.5, "Upgrading the Firmware" for instructions.
CyberData Corporation930622FOperations Guide
Page 29
2.4.4 Configure the Device Parameters
1. Click on the Device Configuration button to open the Device Configuration page. See Figure
2-11.

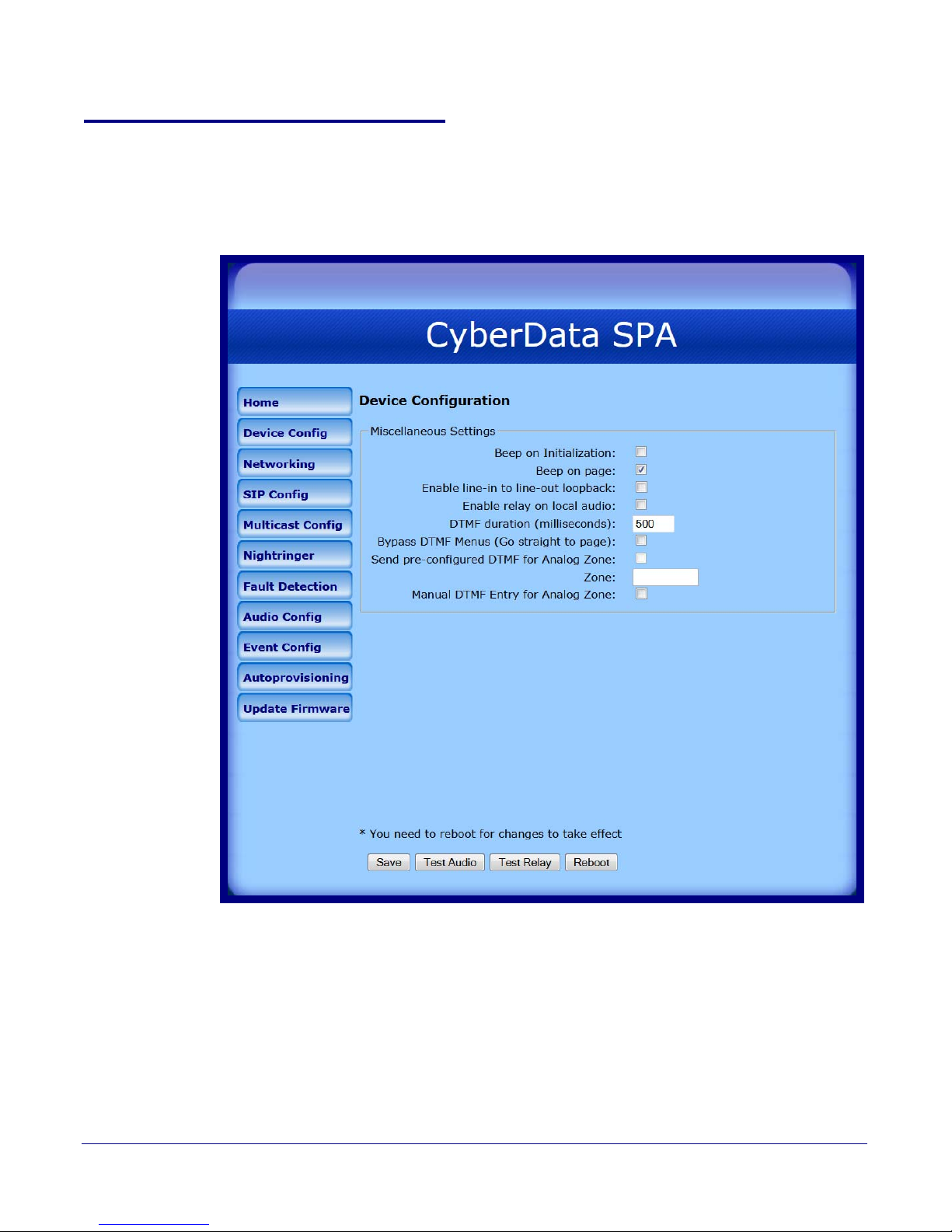

Figure 2-11. Device Configuration Page
Setting Up the SIP Paging Adapter
Configure the Device Parameters
20
CyberData Corporation930622FOperations Guide
Page 30
Setting Up the SIP Paging Adapter
Configure the Device Parameters
2. On the Device Configuration page, you may enter values for the parameters indicated in
Ta bl e 2-6.
Table 2-6. Device Configuration Parameters
21
Web Page Item
Description
Miscellaneous Settings
Beep on InitializationWhen selected, you will hear a beep when the device initializes.
Beep on pageWhen selected, the device will play a beep before a page is sent to the
a
nalog ports when "Lineout" is enabled on a paging group (works for
both buffered and live pages).
Enable line in to line out
loop
back
When selected, audio is sent from the line -in to the line-out output.
Enable relay on local audioWhen selected, the relay will be closed any time that audio is played
ut of the line-out/page port. This setting is for legacy analog
o
amplifiers that are often connected to the page port. Analog amplifiers
will often have a noticeable hum if they are turned on while there is no
audio being played. The relay closure causes these amplifiers to turn
on only when audio is sent to them.
DTMF duration (milliseconds)Type the DTMF sound duration (in milliseconds).
Bypass DTMF Menus
(Go straight to page)
When selected, the DTMF menu options are bypassed when a page
s sent, and the device begins a live/buffered page (no ability to send
i
stored messages).
Send pre-configured DTMF for
An
alog
When selected, a pre-configured DTMF sequence is sent to activate
an analog zone when the Bypass DTMF Menus (Go straight to
page) setting is enabled.
Zone (field)Type the pre-configured DTMF sequ
Note:
This setting is only enabled when the Send pre-configured
ence for the analog zone.
DTMF for Analog setting is enabled.
Zone (box)When selected, the device will send the DTMF zone in the "Zone" field
ut of the analog audio ports to enable the zone on the analog
o
amplifier.
This setting is only enabled when the Bypass DTMF Menus
Note:
(Go straight to page) setting is not enabled.
Manual DTMF Entry for Analog
e
Zon
When selected, the device will prompt the caller to enter a DTMF
sequence to activate an analog zone before prompting the caller to
press 1 through 9 to send a stored message or press 0 to page.
Click the Save button to save your configuration settings.
ou need to reboot for changes to take effect.
Note: Y
When the Test Audio button is pressed, you will hear a voice
message for testing the device audio quality and volume.
3. After changing the parameters, click the Sa
CyberData Corporation930622FOperations Guide
Click on the Test Relay button to do a relay test.
Click on the Reboot button to reboot the system.
ve button.
Page 31
2.4.5 Configure the Network Parameters
Configuring the network parameters enables your network to recognize the SIP Paging Adapter and
communicate with it. Click on the Networking button to open the Network Configuration page.

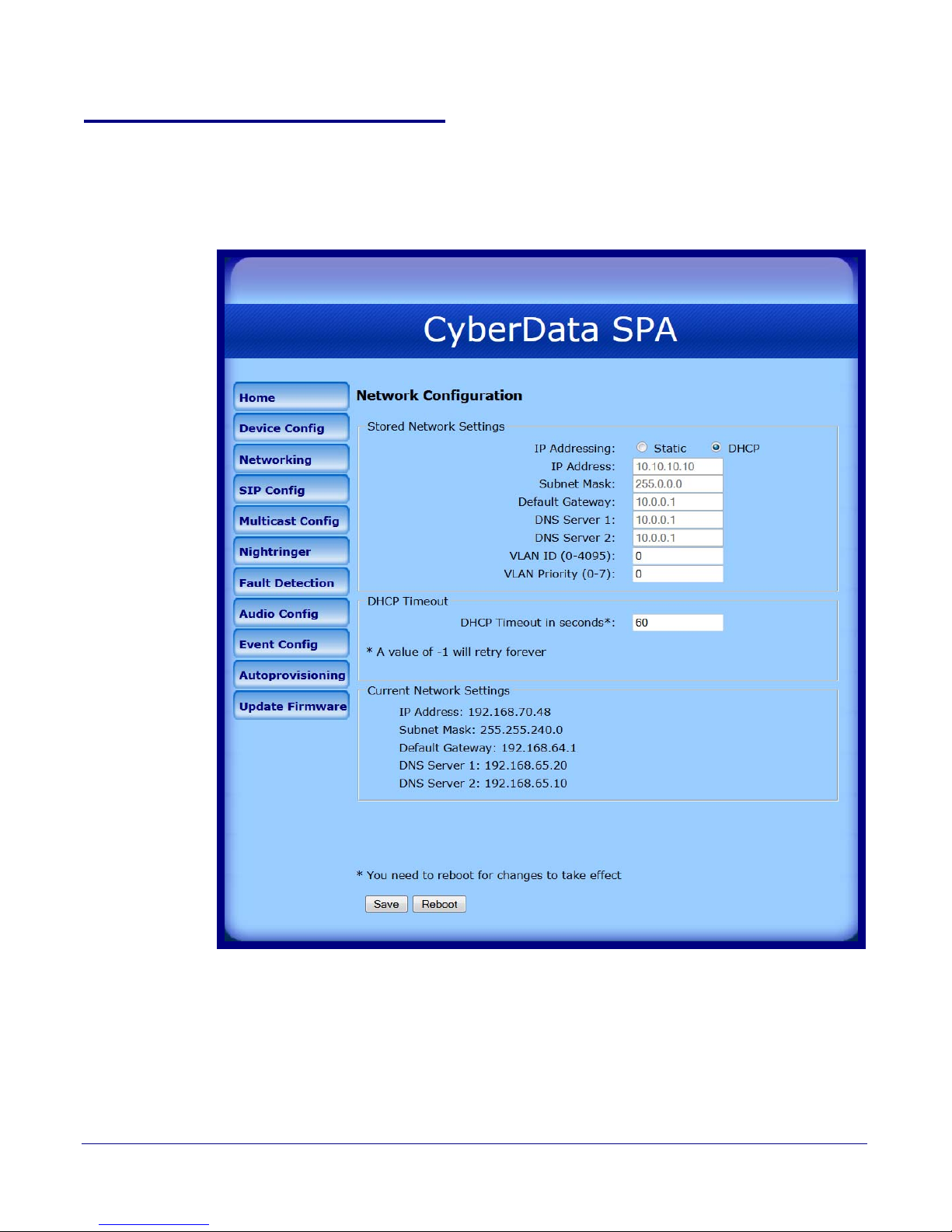

Figure 2-12. Network Configuration Page
Setting Up the SIP Paging Adapter
Configure the Network Parameters
22
CyberData Corporation930622FOperations Guide
Page 32
Setting Up the SIP Paging Adapter
Configure the Network Parameters
On the Network Configuration page, enter values for the parameters indicated in Tabl e 2-7.
Table 2-7. Network Configuration Parameters
Web Page ItemDescription
Stored Network SettingsShows the settings stored in non-volatile memory.
IP AddressingSelect either DHCP IP Addressing or Static IP Addressing by
marking the appropriate radio button. If you select Static, configure
the remaining parameters indicated in
go to Step 3.
IP AddressEnter the Static IP address.
Subnet MaskEnter the Subnet Mask address.
Default GatewayEnter the Default Gateway address.
DNS Server 1Enter the DNS Server 1 address.
DNS Server 2Enter the DNS Server 2 address.
VLAN ID (0-4095)Enter the VLAN ID number.
Note: The device supports 802.11Q VLAN tagging support. The
switch port connected to the device will need to be in “trunking mode”
for the VLAN tags to propagate.
VLAN Priority (0-7)Enter the VLAN priority number.
Table 2-7. If you select DHCP,
23
DHCP Timeout
DHCP Timeout in secondsEnter the desired timeout duration (in seconds) that the device will
wait for a response from the DHCP server before defaulting back to
the stored static IP address.
Note: A value of -1 will cause the device to retry indefinitely and a
value of 0 will cause the device to reset to a default of 60 seconds.
Current Network SettingsShows the current network settings.
IP AddressShows the current Static IP address.
Subnet MaskShows the current Subnet Mask address.
Default GatewayShows the current Default Gateway address.
DNS Server 1Shows the current DNS Server 1 address.
DNS Server 2Shows the current DNS Server 2 address.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
On this page:
1. Specify whether you use Static or DHCPIP Addressing by marking the appropriate radio
button. Then, if you select Static, go to
Step 2.
2. For Static IP Addressing, also enter values for the following parameters:
•The SIP Paging Adapter’s IP Address: The SIP Paging Adapter is delivered with a factory
default IP address. Change the default address to the correct IP address for your system.
CyberData Corporation930622FOperations Guide
Page 33
•The Subnet Mask.
•The Default Gateway.
3. Click Save when you are finished.
4. Click Reboot for the new settings to take effect.
Setting Up the SIP Paging Adapter
Configure the Network Parameters
24
CyberData Corporation930622FOperations Guide
Page 34
2.4.6 Configure the SIP Parameters
The SIP parameters enable the SIP Paging Adapter to contact and register with the SIP server. Click
on the SIP Config button to open the SIP Configuration page.

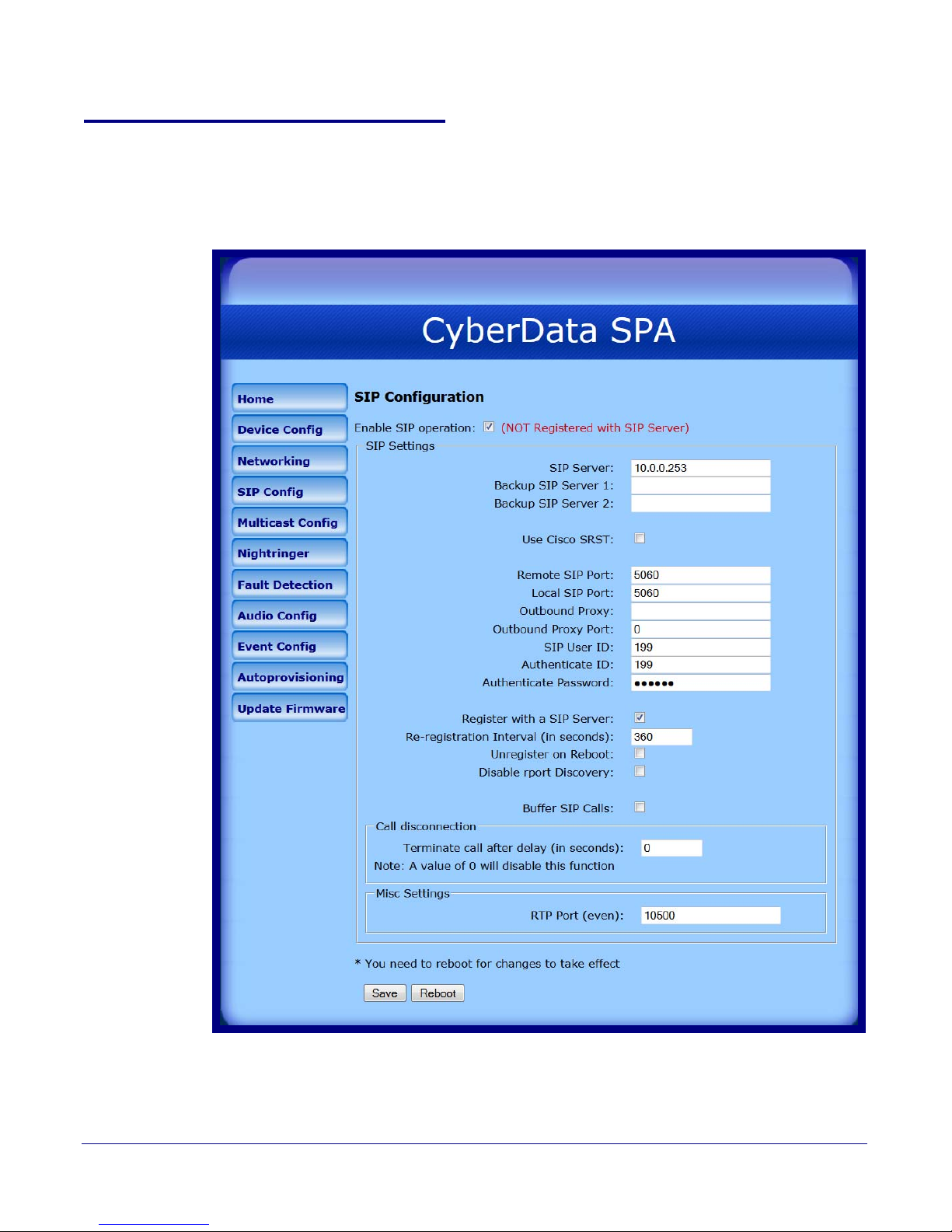

Figure 2-13. SIP Configuration Page
Setting Up the SIP Paging Adapter
Configure the SIP Parameters
25
CyberData Corporation930622FOperations Guide
Page 35
Setting Up the SIP Paging Adapter
Configure the SIP Parameters
5. On the SIP Configuration page, enter values for the parameters indicated in Ta bl e 2-8.
Table 2-8. SIP Configuration Parameters
Web Page ItemDescription
Enable SIP OperationEnables or disables SIP operation.
SIP Settings
SIP ServerType the SIP server represented as either a numeric IP address
in dotted decimal notation or the fully qualified host name (255
character limit [FQDN]).
26
Backup SIP Server 1
Backup SIP Server 2
• If all of the SIP Server and Backup SIP Server fields are
populated, the device will attempt to stay registered with all
three servers all of the time. You can leave the Backup SIP Server 1 and Backup SIP Server 2 fields blank if they are not
needed.
• In the event of a registration failure on the Primary SIP Server,
the device will use the next highest priority server for outbound
calls (Backup SIP Server 1). If Backup SIP Server 1 fails, the
device will use Backup SIP Server 2.
• If a higher priority SIP Server comes back online, the device
will switch back to this server.
Use Cisco SRSTWhen selected, the backup servers are handled according to
Cisco SRST (Survivable Remote Site Telephony).
Remote SIP PortType the Remote SIP Port number (default 5060)
(5 character limit [values from 1 to 65535]).
Local SIP PortType the Local SIP Port number (default 5060)
(5 character limit [values from 2000 to 65535]).
Outbound ProxyType the Outbound Proxy as either a numeric IP address in
dotted decimal notation or the fully qualified host name
(255 character limit [FQDN]).
Outbound Proxy PortType the Outbound Proxy Port number (5 character limit
[values from 1 to 65535]).
SIP User IDType the SIP User ID (up to 64 alphanumeric characters).
Authenticate IDType the Authenticate ID
(up to 64 alphanumeric characters).
Authenticate PasswordType the Authenticate Password (up to 64 alphanumeric
Register with a SIP ServerEnable or disable SIP Registration.
Re-registration Interval (in seconds)Type the SIP Registration lease time in seconds (default is 60
Unregister on RebootWhen selected, on boot, the device will first register with a SIP
Disable rport DiscoveryPrevents the device from including the public WAN IP address in
CyberData Corporation930622FOperations Guide
characters).
minutes) (4 character limit [values from 30 to 3600]). Reregistration Interval (in seconds)
server with a expiration delay of 0 seconds. This has the effect
of unregistering any current devices on this extension.
the contact information sent to remote SIP servers. This will
generally only need to be enabled when using an SBC in
conjunction with a remote SIP server.
Buffer SIP CallsWhen this is enabled, SIP calls to the device will be stored in
memory and will play when either the call is terminated or the
buffer is full. The receive buffer is 2MB in size and this is equal
to about four minutes of ulaw encoded audio.
Call Disconnection
Terminate call after delay (in seconds) Type the desired number of seconds that you want to transpire
after a connection delay before a call is terminated.
Note: A value of 0 will disable this function.
Misc Settings
RTP Port (even)Specify the port number used for the RTP stream after
establishing a SIP call. This port number has to be an even
number and defaults to 10500 (values from 2000 to 65534).
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
27
1. Enter the IP address of the SIP Server.
2. Enter the port numbers used for SIP signaling:
a. Remote SIP Port
b. Local SIP Port
3. Enter the SIP registration parameters:
a. SIP User ID
b. Authenticate ID
c. Authenticate Password
4. For SIP Registration, designate whether you want the SIP Paging Adapter to register with your
SIP server.
5. At Unregister on Reboot:
a. Select Yes to automatically unregister the SIP Paging Adapter when you reboot it.
b. Select No to keep the SIP Paging Adapter registered when you reboot it.
6. In the Register Expiration field, enter the number of seconds the SIP Paging Adapter
registration lease remains valid with the SIP Server. The SIP Paging Adapter automatically reregisters with the SIP server before the lease expiration timeout.
7. Click Save.
8. Click Reboot for the new settings to take effect.
CyberData Corporation930622FOperations Guide
Page 37
2.4.7 Configure the Multicast Parameters
Multicast groups use multicasting to create public address paging zones. Multicasting is based on
the concept of a group. Multicast addresses specify an arbitrary group of IP hosts that have joined
the group and want to receive traffic sent to the group. Group members send IGMP messages to
their local multicast routers, allowing the group traffic traversal from the source.
The Multicast Configuration page allows the device to join up to 10 paging zones for receiving
ulaw/alaw encoded RTP audio streams. A paging zone can consist of one or many CyberData
multicast group-enabled products. There is no limit to how many devices can be in a given paging
zone. Each multicast group is defined by a multicast address and port number. Each multicast group
is assigned a priority, allowing simultaneously arriving pages to be serviced based on importance.
Multicast groups are compatible with IGMP through version three. The device supports simultaneous
SIP and Multicast.
1. Click on the Multicast Configuration button to open the Multicast Configuration page. See
Figure 2-14.

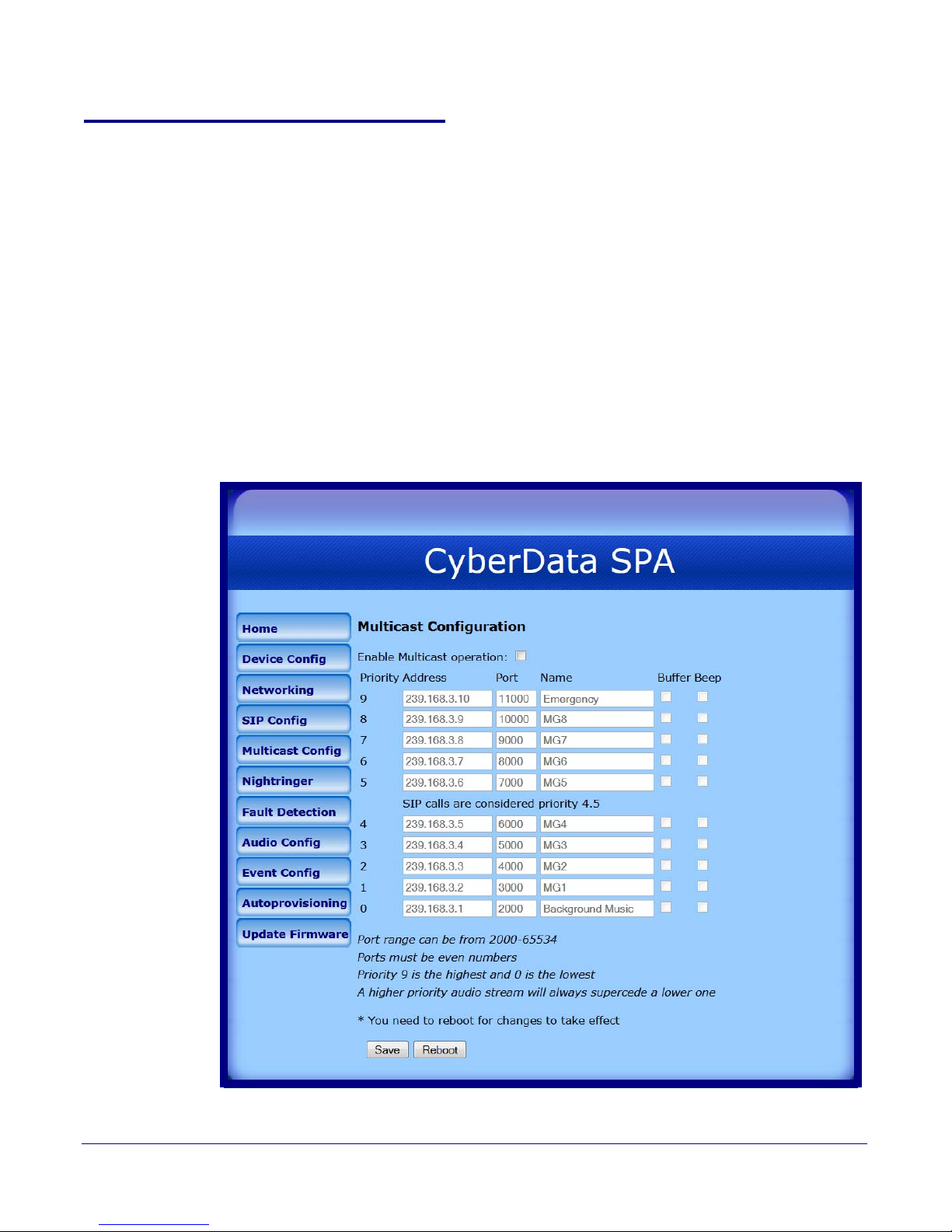

Figure 2-14. Multicast Configuration Page
Setting Up the SIP Paging Adapter
Configure the Multicast Parameters
28
CyberData Corporation930622FOperations Guide
Page 38
Setting Up the SIP Paging Adapter
Configure the Multicast Parameters
2. On the Multicast Configuration page, enter values for the parameters indicated in Ta bl e 2-9.
Table 2-9. Multicast Configuration Parameters
Web Page ItemDescription
Enable Multicast OperationEnables or disables multicast operation.
Device Settings
PriorityIndicates the priority for the multicast group. Priority 9 is the
highest (emergency streams). 0 is the lowest (background
music). SIP calls are considered priority 4.5. See Section
2.4.7.1, "Assigning Priority" for more details.
AddressEnter the multicast IP Address for this multicast group (15
character l
Port (range can be from 2000 to 65535)Enter the port number for this multicast group (5 character
limi
Note: The multicast ports have to be even values. The
webpage will enforce this restriction.
NameAssign a descriptive name for this multicast group (25
character l
BufferWhen this is enabled, multicast pages to the device will be
stored in memor
terminated or the buffer is full. The receive buffer is 2MB in
size and this is equal to about four minutes of ulaw encoded
audio.
BeepWhen selected, the device will play a beep before multicast
dio is sent.
au
imit).
t).
imit).
y and will play when either the page is
29
3. After changing the parameters, click on the Sa
2.4.7.1 Assigning Priority
When playing multicast streams, audio on different streams will preempt each other according to
their priority in the list. An audio stream with a higher priority will interrupt a stream with a lower
priority.
If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will
interr
upt multicast streams with priority 0 through 4 and will be interrupted by multicast streams with
priority 5 through 9.
NoteSIP calls
prioritized.
Ringtones and
Nightringtones
Ringtones all play at the same priority level. This means that it is possible to have a nightring tone
and a normal ringtone playing at the same time.
Click the Save button to save your configuration settings.
Note: Y
ou need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
ve button.
, multicast streams, ring tones, ringback tones, and nightring tones are all
CyberData Corporation930622FOperations Guide
Page 39
2.4.8 Configure the Night Ringer Parameters
1. Click on the Nightringer button to open the Nightringer Configuration page. See Figure 2-15.

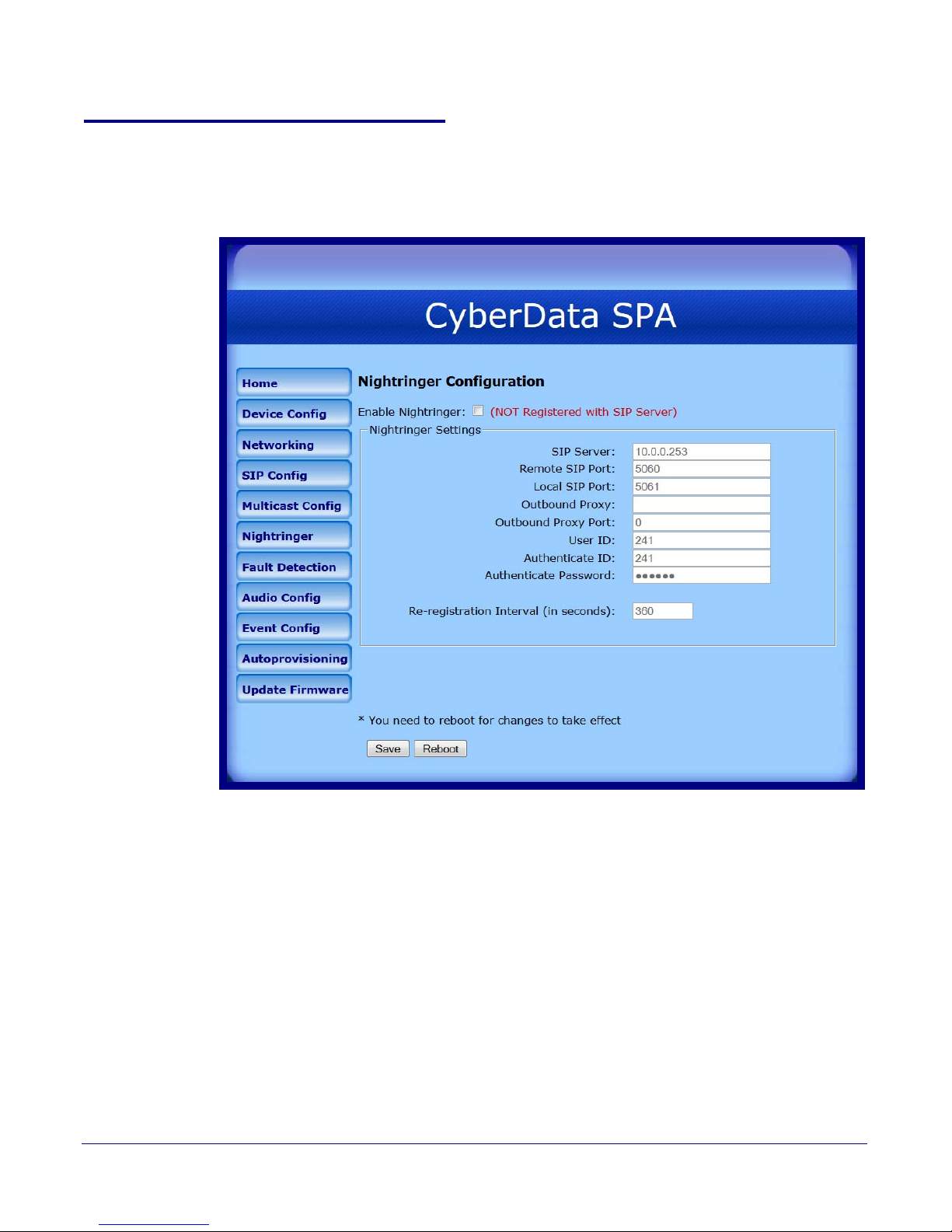

Figure 2-15. Nightringer Configuration Page
Setting Up the SIP Paging Adapter
Configure the Night Ringer Parameters
30
CyberData Corporation930622FOperations Guide
Page 40
Setting Up the SIP Paging Adapter
Configure the Night Ringer Parameters
2. On the Nightringer Configuration page, enter values for the parameters indicated
in Ta bl e 2-10.
Table 2-10. Nightringer Configuration Parameters
Web Page ItemDescription
Enable NightringerWhen the nightringer is enabled, the unit will attempt to
register a second extension with the SIP server. Any calls
made to this extension will play a ringtone.
Nightringer Settings
SIP ServerType the SIP server represented as either a numeric IP
address in dotted decimal notation.
Remote SIP PortType the Remote SIP Port number (default 5060)
(5 character limit [values from 1 to 65535]).
Local SIP PortType the Local SIP Port number (default 5061)
(5 character limit [values from 2000 to 65535]).Note: Th
is value cannot be the same as the Local SIP Port
found on the SIP Configuration Page.
User IDType the Us
Authenticate IDTy pe the A
er ID (up to 64 alphanumeric characters).
uthenticate ID (up to 64 alphanumeric
characters).
Authenticate PasswordType the A
uthenticate Password (up to 64 alphanumeric
characters).
31
Re-registration Interval (in seconds)Type the SIP Registration lease time in seconds (default is
60 min
utes) (4 character limit [values from 30 to 3600]). Re-
registration Interval (in seconds)
Click the Save button to save your configuration settings.
Note: Y
ou need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
3. After changing the parameters, click on the Sa
4. Click Rebo
ot for the new settings to take effect.
ve button.
CyberData Corporation930622FOperations Guide
Page 41
2.4.9 Configure the Fault Detection Parameters
1. Click on the Fault Detection button to open the Fault Detection Configuration page. See

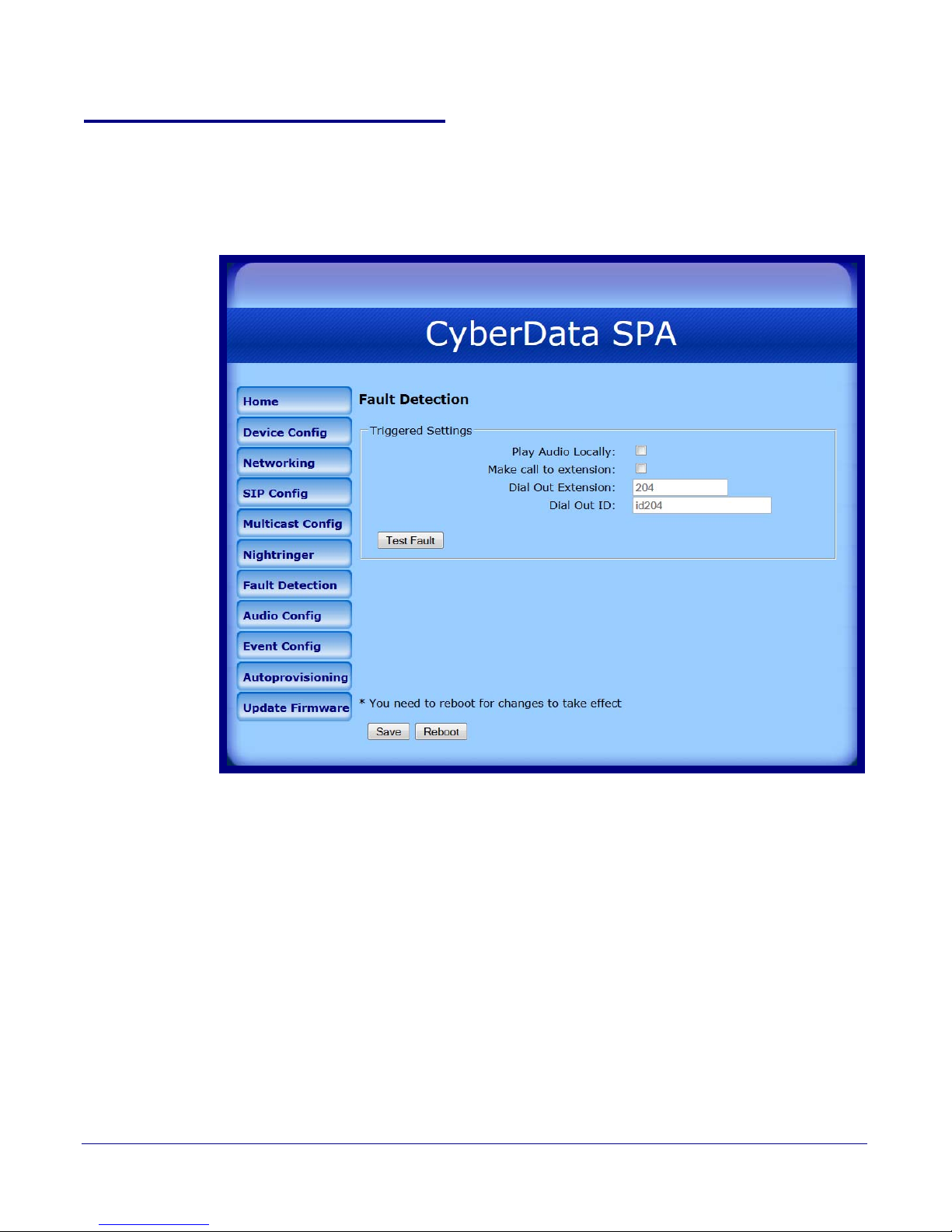

Figure 2-16.
Figure 2-16. Fault Detection Configuration Page
Setting Up the SIP Paging Adapter
Configure the Fault Detection Parameters
32
CyberData Corporation930622FOperations Guide
Page 42
Setting Up the SIP Paging Adapter
Configure the Fault Detection Parameters
2. On the Fault Detection Configuration page, enter values for the parameters indicated
in Ta bl e 2-11.
Play Audio LocallyWhen selected, when the sensor is triggered, the audio file
for "Sensor Triggered" will play out of the line-out and 600Ohm connectors.
Make call to extensionWhen selected, when the sensor is triggered, the SIP
aging Adapter will call the Dial Out Extension and play the
P
"Sensor Triggered" audio file when someone answers.
Dial Out ExtensionEnter the Dial Out Extension that y
ou want the SIP Paging
Adapter to call when the sensor is triggered.
Dial Out IDEnter the caller ID for Dial Out Extension.
Click on the Test Fault button to test the fault detection
feature.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
3. After changing the parameters, click on the Sa
4. Click Rebo
ot for the new settings to take effect.
ve button.
CyberData Corporation930622FOperations Guide
Page 43
2.4.10 Configure the Audio Parameters
Click on the Audio Config button to open the Audio Configuration page. See Figure 2-17. The
Audio Configuration page is used to add custom audio to the board. User uploaded audio will take
precedence over the audio files shipped with the device.

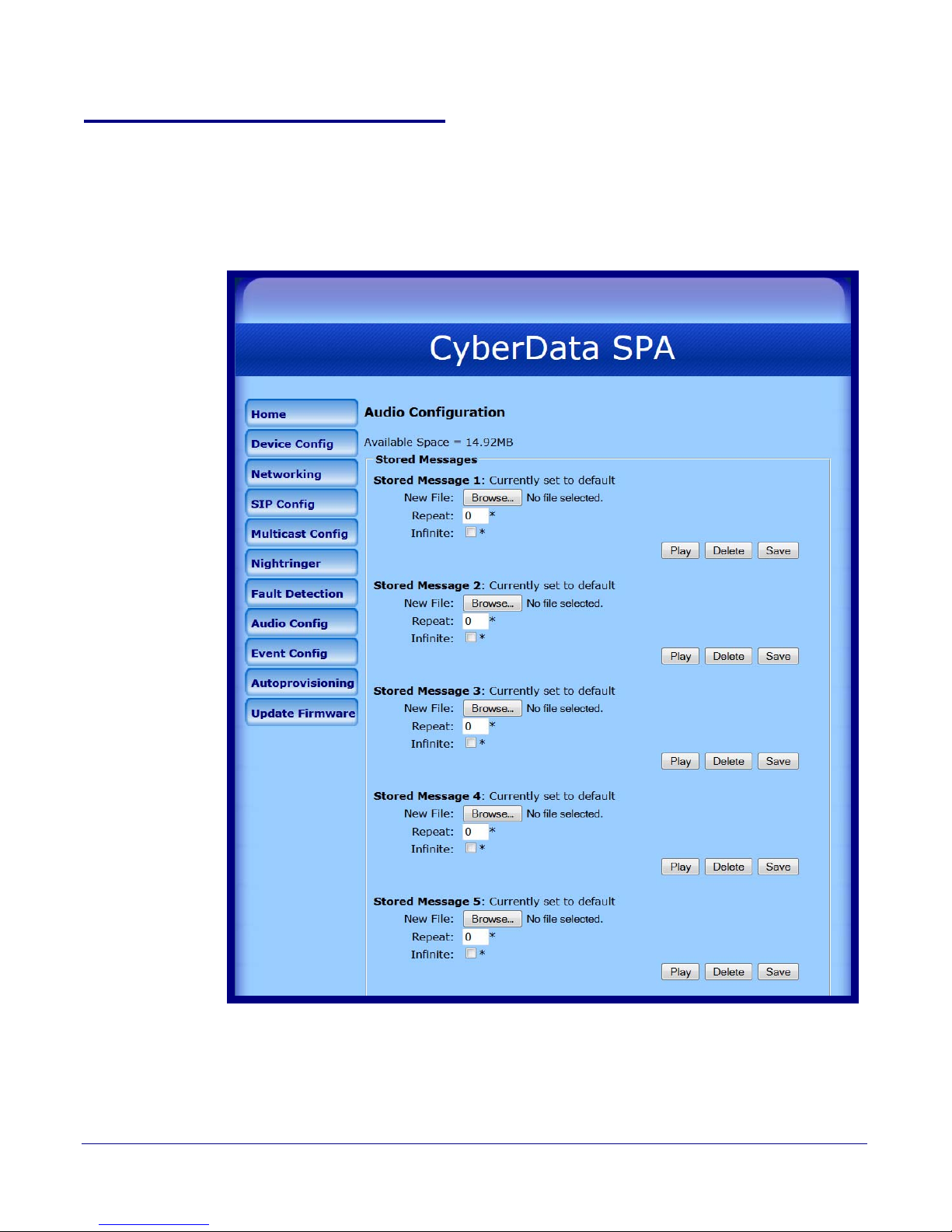

Figure 2-17. Audio Configuration Page
Setting Up the SIP Paging Adapter
Configure the Audio Parameters
34
CyberData Corporation930622FOperations Guide
Page 44
Setting Up the SIP Paging Adapter
Configure the Audio Parameters

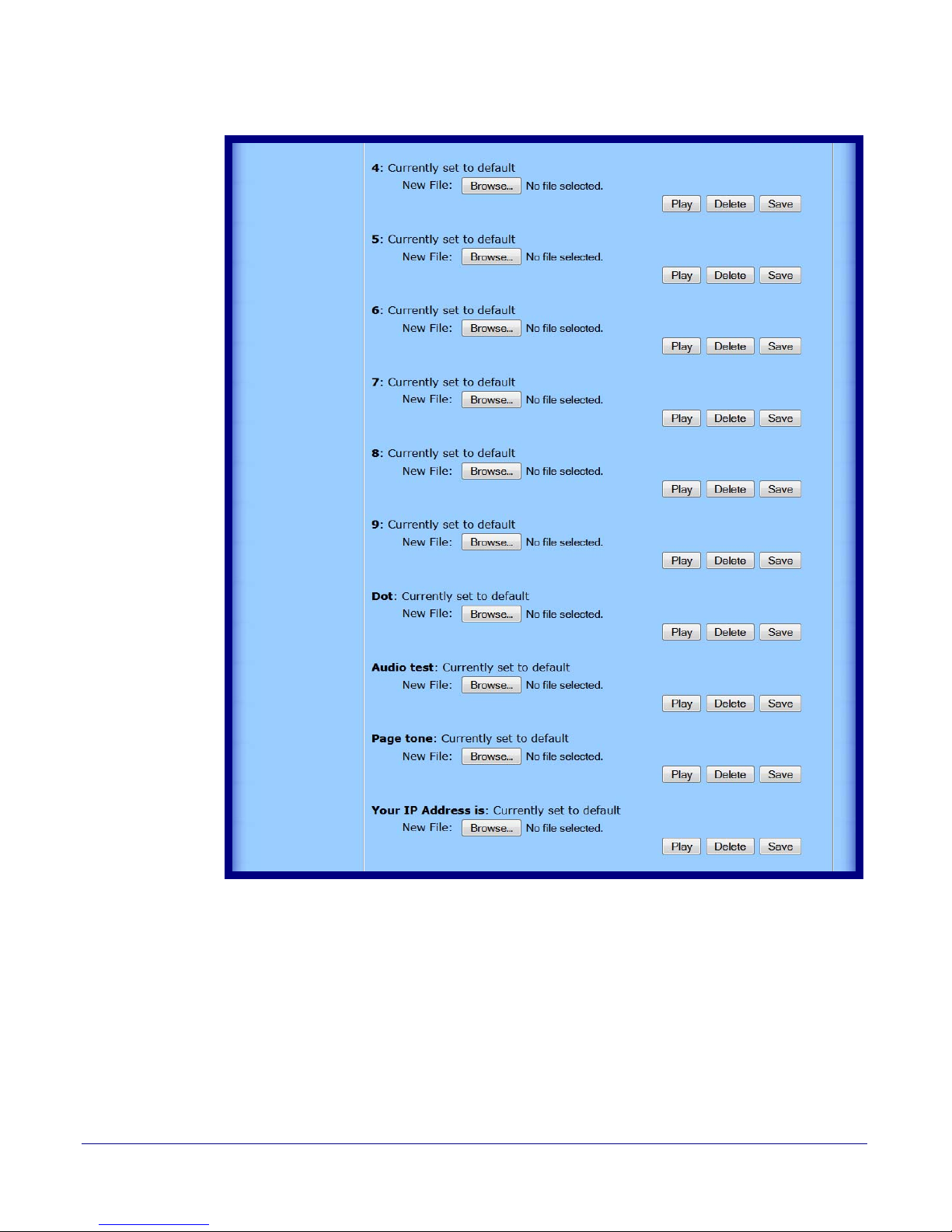

Figure 2-18. Audio Configuration Page (continued)
35
CyberData Corporation930622FOperations Guide
Page 45
Setting Up the SIP Paging Adapter
Configure the Audio Parameters

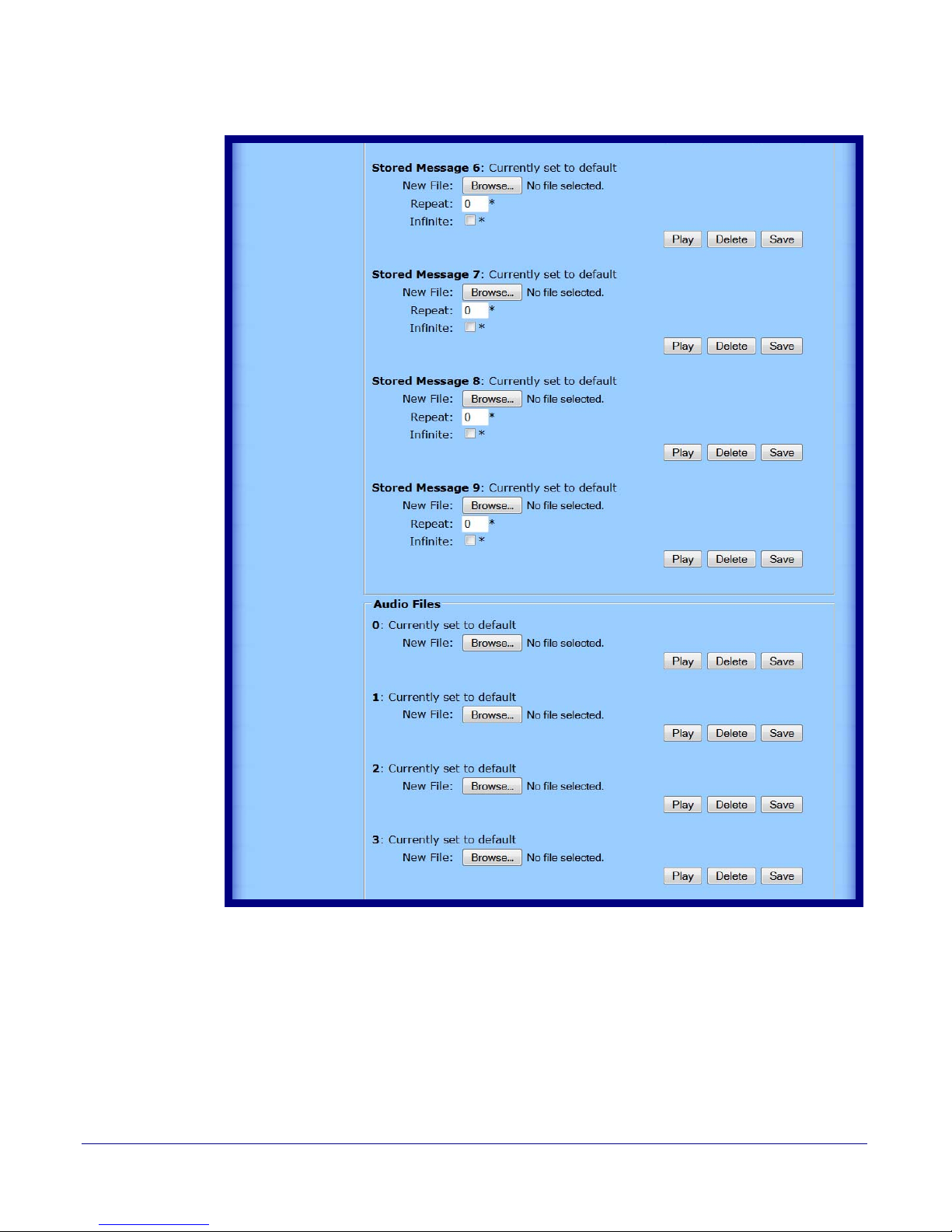

Figure 2-19. Audio Configuration Page (continued)
36
CyberData Corporation930622FOperations Guide
Page 46
Setting Up the SIP Paging Adapter
Configure the Audio Parameters

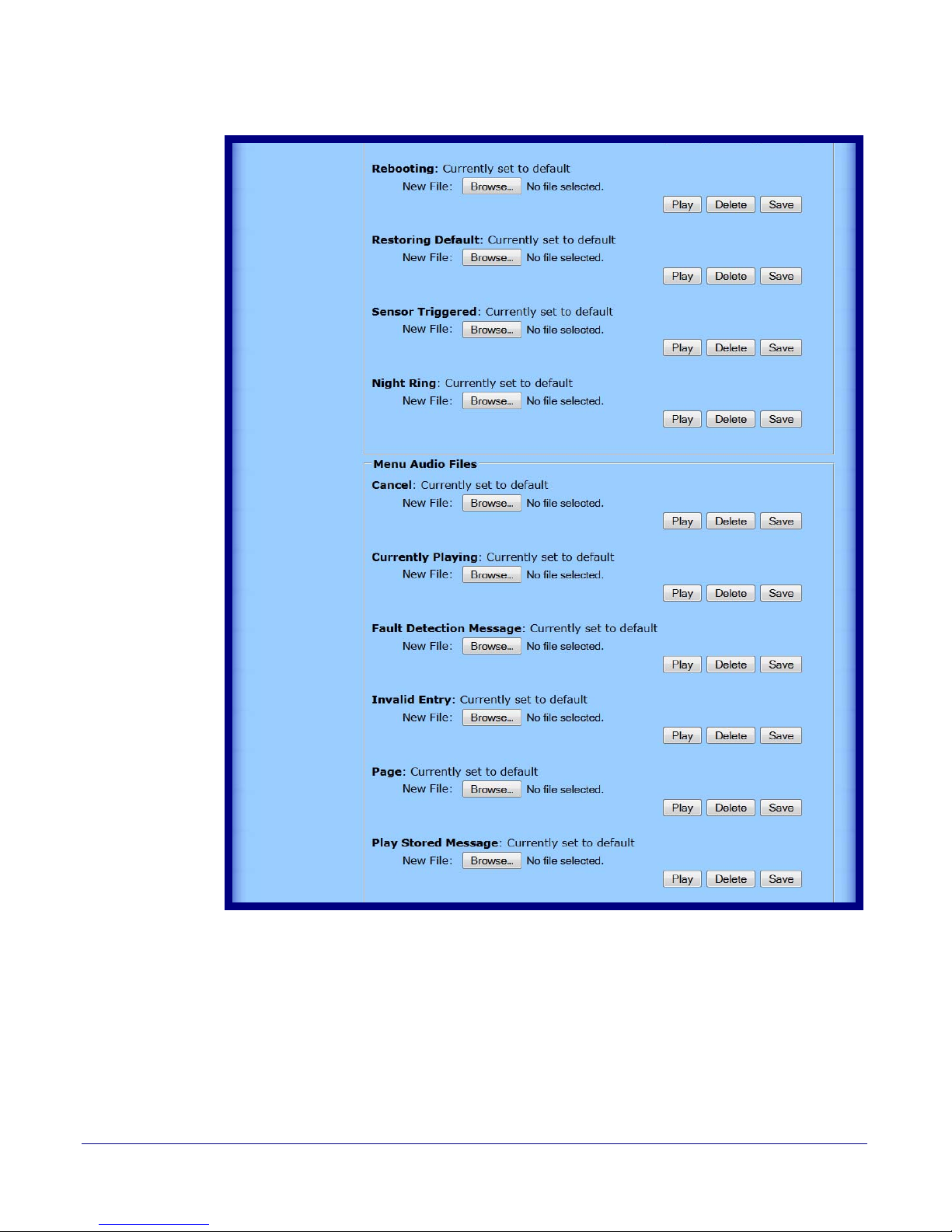

Figure 2-20. Audio Configuration Page (continued)
37
CyberData Corporation930622FOperations Guide
Page 47
Setting Up the SIP Paging Adapter
Configure the Audio Parameters

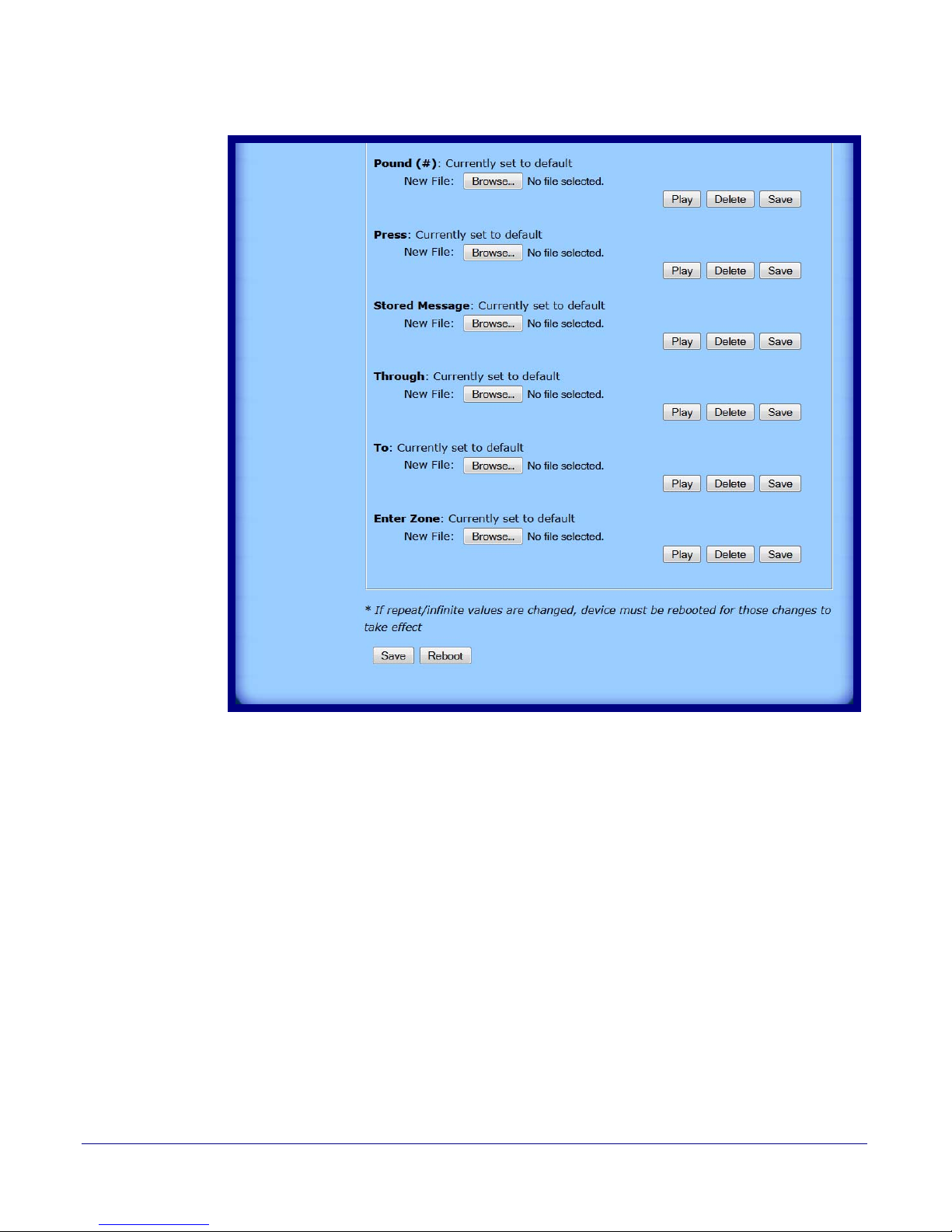

Figure 2-21. Audio Configuration Page (continued)
38
CyberData Corporation930622FOperations Guide
Page 48
Setting Up the SIP Paging Adapter
Configure the Audio Parameters
On the Audio Configuration page, enter values for the parameters indicated in Tabl e 2-12.
NoteEach entry on the Audio Configuration page replaces one of the stock audio files on the
board. When the input box displays the word default, the SIP Paging Adapter is using the
stock audio file. If that file is replaced with a user file, it will display the uploaded filename.
Table 2-12. Audio Configuration Parameters
Web Page ItemDescription
Stored MessagesStored Messages are user-uploadable messages that the caller can choose to play by pressing
1 through 9 on a phone keypad after calling the device.
Stored Message 1 through 9 Stored Message 1 corresponds to the message played after pressing 1 on a phone keypad.
Stored Message 2 corresponds to the message played after pressing 2 on a phone keypad.
Stored Message 3 corresponds to the message played after pressing 3 on a phone keypad.
Stored Message 4 corresponds to the message played after pressing 4 on a phone keypad.
Stored Message 5 corresponds to the message played after pressing 5 on a phone keypad.
Stored Message 6 corresponds to the message played after pressing 6 on a phone keypad.
Stored Message 7 corresponds to the message played after pressing 7 on a phone keypad.
Stored Message 8 corresponds to the message played after pressing 8 on a phone keypad.
Stored Message 9 corresponds to the message played after pressing 9 on a phone keypad.
RepeatType the number of times that you want the specific Stored Message to repeat. A value of 0
means the message will play once (no repeat). A value of 1 means the message will play twice
(one repeat).
InfiniteWhen selected, the specific Stored Message will repeat indefinitely after pressing the specific
number key on a phone keypad.
39
Audio FilesThe name of the audio configuration option is the same as the spoken audio that plays on the
board (24 character limit).
0-90 corresponds to the spoken word “zero.”
1 corresponds to the spoken word “one.”
2 corresponds to the spoken word “two.”
3 corresponds to the spoken word “three.”
4 corresponds to the spoken word “four.”
5 corresponds to the spoken word “five.”
6 corresponds to the spoken word “six.”
7 corresponds to the spoken word “seven.”
8 corresponds to the spoken word “eight.”
9 corresponds to the spoken word “nine.”
DotCorresponds to the spoken word “dot.” (24 character limit).
Audio testCorresponds to the message “This is the CyberData IP speaker test message...” (24 character
limit).
Page toneCorresponds to a simple tone that is unused by default (24 character limit).
Your IP Address isCorresponds to the message “Your IP address is...” (24 character limit).
RebootingCorresponds to the message “Rebooting” (24 character limit).
Restoring defaultCorresponds to the message “Restoring default” (24 character limit).
Sensor TriggeredCorresponds to the message “Sensor Triggered” (24 character limit).
Night RingSpecifies the ringtone for nightring. By default this parameter uses the same audio file that is
selected for the Ring Tone parameter.
Menu Audio FilesMenu Audio Files are user-uploadable messages that create the audio menu played to the
caller.
CancelCorresponds to the word "Cancel" used in the audio menu played to the caller. (24 character
limit).
Currently PlayingCorresponds to the words "Currently Playing" used in the audio menu played to the caller. (24
character limit).
Fault Detection MessageCorresponds to the words "Fault Detection Message" used in the audio menu played to the
caller. (24 character limit).
Invalid EntryCorresponds to the words "Invalid Entry" used in the audio menu played to the caller. (24
character limit).
PageCorresponds to the word "Page" used in the audio menu played to the caller. (24 character limit).
Play Stored MessageCorresponds to the words "Play Stored Message" used in the audio menu played to the caller.
(24 character limit).
Pound (#)Corresponds to whatever word or phrase the user wishes to call the pound key in the audio
menu played to the caller (24 character limit).
40
PressCorresponds to the word "Press" used in the audio menu played to the caller. (24 character
limit).
Stored MessageCorresponds to the words "Stored Message" used in the audio menu played to the caller. (24
character limit).
ThroughCorresponds to the word "Through" used in the audio menu played to the caller. (24 character
limit).
ToCorresponds to the word "To" used in the audio menu played to the caller. (24 character limit).
Enter ZoneCorresponds to the words "Enter Zone" used in the audio menu played to the caller. (24
character limit).
The Browse button will allow you to navigate to and select an audio file.
The Play button will play that audio file.
The Delete button will delete any user uploaded audio and restore the stock audio file.
The Save button will download a new user audio file to the board once you've selected the file by
using the Choose File button. The Save button will delete any pre-existing user-uploaded audio
files.
Click on the Reboot button to reboot the system.
CyberData Corporation930622FOperations Guide
Page 50
2.4.10.1 User-created Audio Files
User-created audio files must be saved in one of the following formats:
•RIFF (little-endian) data,
•WAVE audio, Microsoft PCM
•16 bit, mono 8000 Hz
NoteThese audio format restrictions are enforced by the webpage.
You can use the free utility Audacity to convert audio files into this format. See Figure 2-22 through
Figure 2-24.

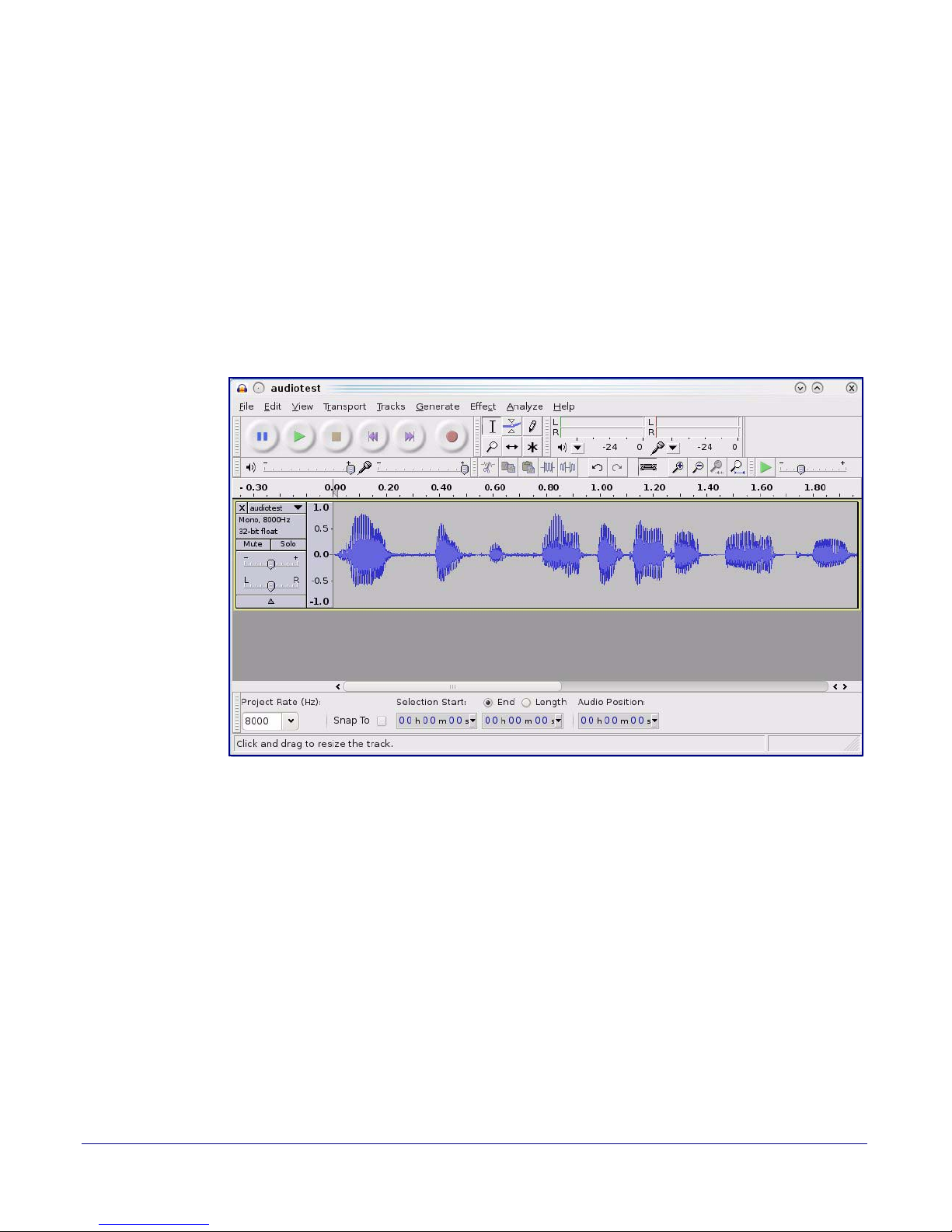

Figure 2-22. Audacity 1
Setting Up the SIP Paging Adapter
Configure the Audio Parameters
41
CyberData Corporation930622FOperations Guide
Page 51

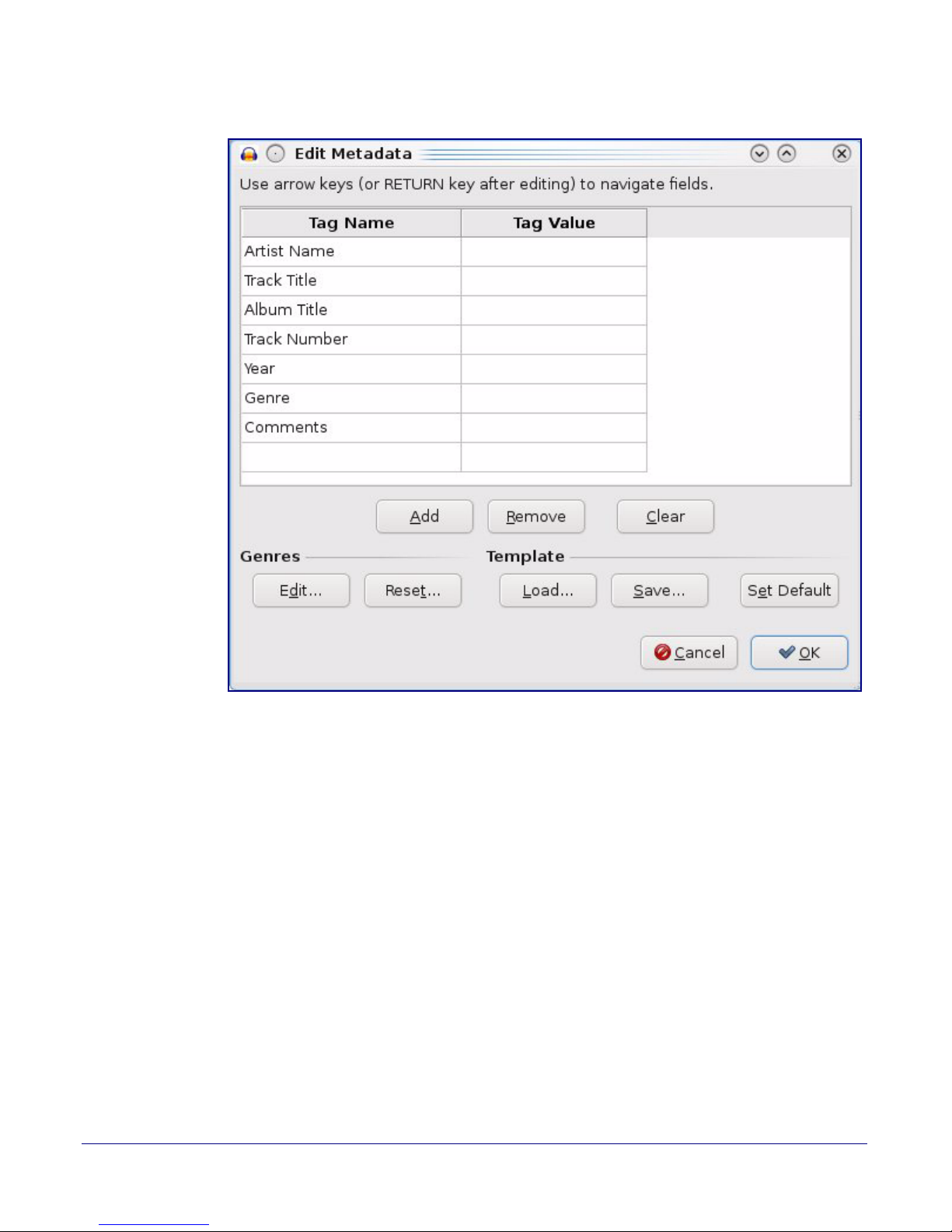

Figure 2-23. Audacity 2
Setting Up the SIP Paging Adapter
Configure the Audio Parameters
42
CyberData Corporation930622FOperations Guide
Page 52
When you export an audio file with Audacity, save the output as:
WAV (Microsoft) signed 16 bit PCM
•WAV (Microsoft) signed 16 bit PCM.

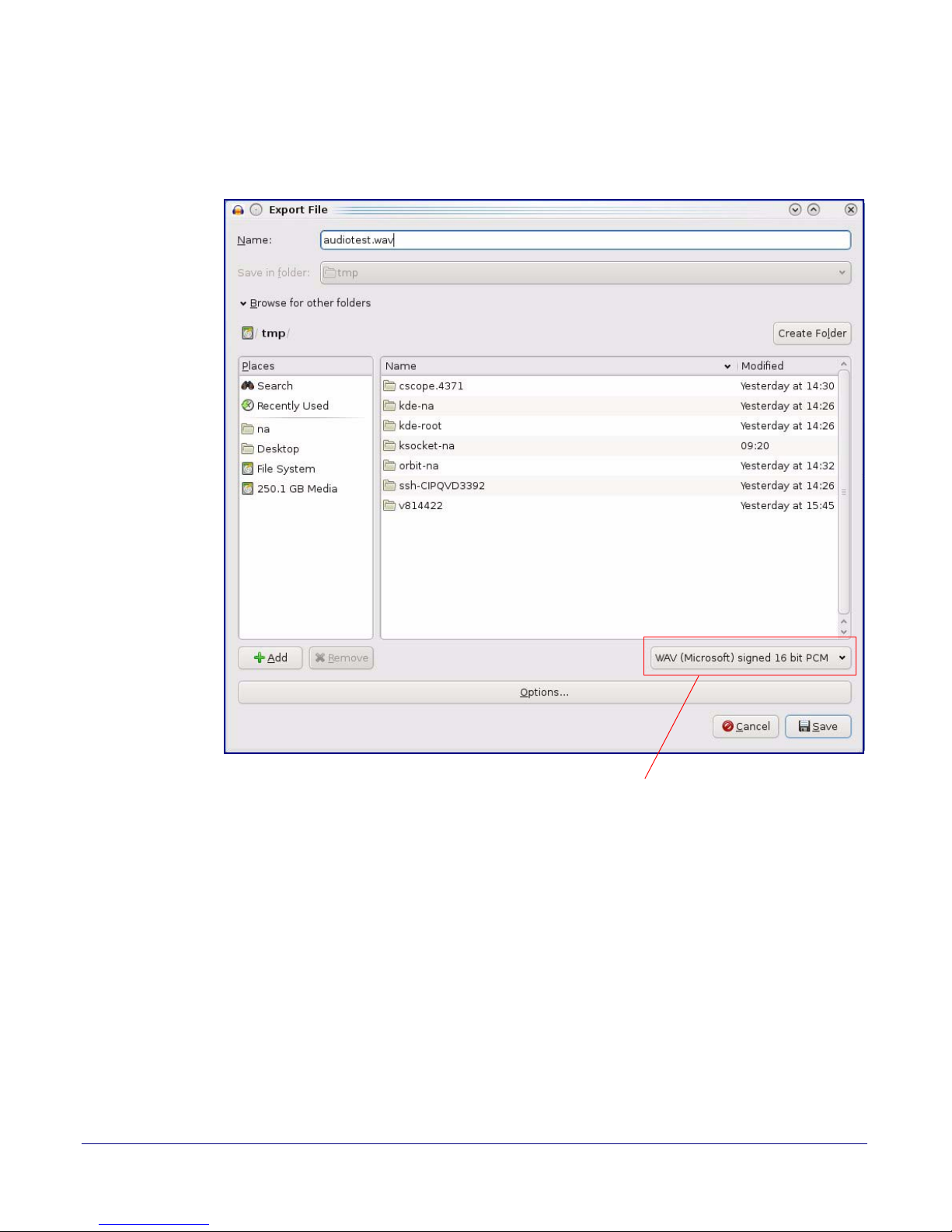

Figure 2-24. WAV (Microsoft) signed 16 bit PCM
Setting Up the SIP Paging Adapter
Configure the Audio Parameters
43
CyberData Corporation930622FOperations Guide
Page 53
2.4.11 Configure the Event Parameters
Click on the Event Config button to open the Event Configuration page (Figure 2-25). The Event
Configuration page specifies a remote server that can be used to receive HTTP POST events
when actions take place on the board.

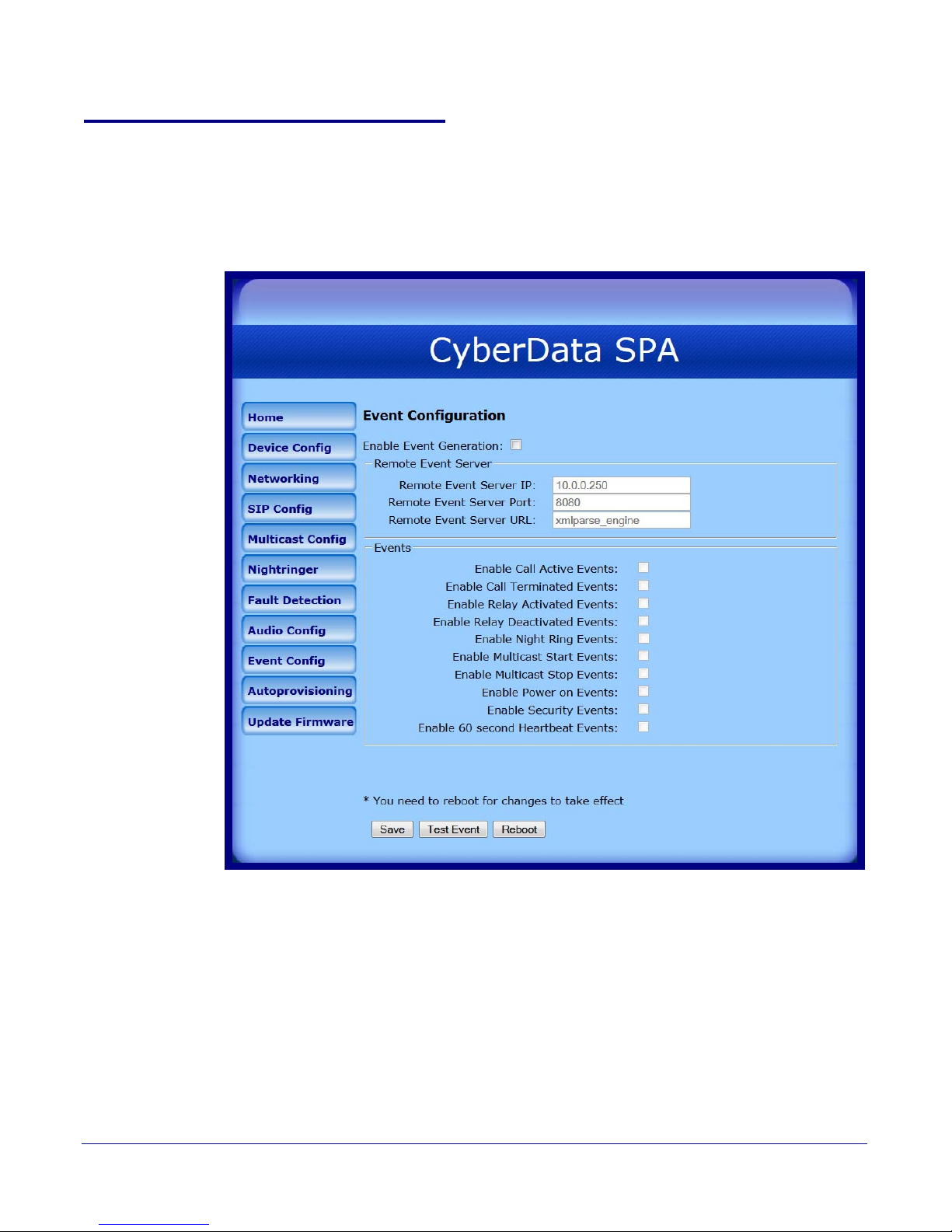

Figure 2-25. Event Configuration Page
Setting Up the SIP Paging Adapter
Configure the Event Parameters
44
CyberData Corporation930622FOperations Guide
Page 54
Setting Up the SIP Paging Adapter
Configure the Event Parameters
Ta bl e 2-13 shows the web page items on the Event Configuration page.
Table 2-13. Event Configuration
Web Page ItemDescription
Enable Event GenerationWhen selected, Event Generation is enabled.
Remote Event Server
Remote Event Server IPType the Remote Event Server IP address.
(64 character limit)
Remote Event Server PortType the Remote Event Server port number.
(8 character limit)
Remote Event Server URLType the Remote Event Server URL.
(127 character limit)
Events
Enable Call Active EventsWhen selected, Call Active Events are enabled.
Enable Call Terminated EventsWhen selected, Call Terminated Events are enabled.
Enable Relay Activated EventsWhen selected, Relay Activated Events are enabled.
Enable Relay Deactivated EventsWhen selected, Relay Deactivated Events are enabled.
45
Enable Night Ring EventsWhen selected, there is a notification when the unit
receives a night ring.
Enable Multicast Start EventsWhen selected, Multicast Start Events are enabled.
Enable Multicast Stop EventsWhen selected, Multicast Stop Events are enabled.
Enable Power On EventsWhen selected, Power On Events are enabled.
Enable Security EventsWhen selected, Security Events are enabled.
Enable 60 Second Heartbeat EventsWhen selected, 60 Second Heartbeat Events are
enabled.
Click on the Save button to save your configuration
settings.
Note: You need to reboot for changes to take effect.
Click on the Test Event button to test an event.
Click on the Reboot button to reboot the system.
CyberData Corporation930622FOperations Guide
Page 55
2.4.11.1 Example Packets for Events
The server and port are used to point to the listening server and the 'Remote Event Server URL' is
the destination URL (typically the script running on the remote server that's used to parse and
process the POST events).
NoteThe XML is URL-encoded before transmission so the following examples are not completely
Get Autoprovisioning from DHCPSee Section 2.4.12.1, "Autoprovisioning".
Download ProtocolAllows you to select whether the autoprovisioning file is acquired
via TFTP or HTTP.
Autoprovisioning Server (IP Address) See Section 2.4.12.1, "Autoprovisioning" (15 character limit).
Autoprovisioning autoupdate
(in minutes)
Type the desired time (in minutes) that you want the
Autoprovisioning feature to update (6 character limit).
Autoprovision at time (HHMMSS)Type the desired time of day that you want the Autoprovisioning
f
eature to update (must be 6 characters).
Autoprovision when idle
(in minutes > 10)
Type the desired time (in minutes greater than 10) that you want
utoprovisioning feature to update after a certain amount of
the A
idle time (6 character limit).
Press the Get Autoprovisioning Template button to create an
autoprovisioning file for this unit. See Section 2.4.12.2, "Get
Autoprovisioning Template Button"
Clock
NTP ServerAllows you to select the NTP server (64 character limit).
Posix Timezone StringSee Section 2.4.12.3, "Time Zone Strings"
(43 character limit).
Set Time with External NTP Server on
boot
When selected, the time is set with an external NTP server when
the device restarts.
Periodically update with time serverWhen selected, the time is periodically updated with a time
ver.
ser
Time update period (in hours)Allows you to select the time updated period (in hours)
(4 character limit).
Allows you to set the time from the NTP server.
Current Time
Current Time (UTC) in 24 hour format
(HHMMSS)
Allows you to input the current time in the 24 hour format.
(6 character limit)
Click on this button to set the clock after entering the current
time.
Autoprovisioning file nameDisplays the Autoprovisioning file name.
Click on the Save button to save your configuration settings.
Note: Y
ou need to reboot for changes to take effect.
Click on the Reboot button to reboot the system.
3. After changing the parameters, click the Sa
ve button.
CyberData Corporation930622FOperations Guide
Page 60
2.4.12.1 Autoprovisioning
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
51
Enable
Autoprovisioning
Option
Get
Autoprovisioning
from DHCP
With autoprovisioning enabled, the board will get its configuration from a remote TFTP or HTTP
server on startup or periodically on a scheduled delay. Autoprovisioned values will override values
stored in on-board memory and will be visible on the web page. The board gets its autoprovisioning
information from an XML-formatted file hosted from a TFTP or HTTP server. The user generates or
downloads a template for this XML file through the web interface and the user can then modify it for
their own use.
To use autoprovisioning, create a copy of the autoprovisioning template with the desired settings and
name this file with the mac address of the device to configure (for example: 0020f7350058.config).
Put this file into your TFTP or HTTP server directory and manually set the TFTP or HTTP server
address on the board.
It is not necessary to set every option found in the autoprovisioning template. As long as the XML is
valid, the file can contain any subset. Options not autoprovisioned will default to the values stored in
the on board memory. For example if you only wanted to modify the device name, the following
would be a valid autoprovisioning file:
When this option is checked, the device will automatically fetch its autoprovisioning server address
from the DHCP server. The device will use the address specified in OPTION 150 (TFTP-servername) or OPTION 66. If both options are set, the device will use OPTION 150.
Refer to the documentation of your DHCP server for setting up OPTION 150.
CyberData Corporation930622FOperations Guide
Page 61
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
To set up a Linux DHCPD server to serve autoprovisioning information (in this case using both
option 66 and 150), here's an example dhcpd.conf:
# dhcpd.conf
#
# Configuration file for ISC dhcpd (see 'man dhcpd.conf')
#
ddns-update-style ad-hoc;
Instead of using DHCP to provide the autoprovisioning tftp server address, you can specify an
address manually.
If Autoprovisioning is enabled and the Autoprovisioning Autoupdate value is something other
than 0 minutes, a service is started on startup that will wait the configured number of minutes and
then try to re-download its autoprovisioning file. It will compare its previously autoprovisioned file
with this new file and if there are differences, it will reboot the board.
An Autoprovisioned firmware upgrade only happens after a reboot, will take roughly three minutes,
and the web page will be unresponsive during this time.
The 'FirmwareVersion' value in the xml file must match the version stored in the 'FirmwareFile'.
If these values are mismatched, the board can get stuck in a loop where it goes through the following
sequence of actions:
1. The board downloads and writes a new firmware file.
2. After the next reboot, the board recognizes that the firmware version does not match.
3. The board downloads and writes the firmware file again.
CyberData has timed a firmware upgrade at 140 seconds. Therefore, if you suspect the board is
stuck in a loop, either remove or comment out the FirmwareVersion line in the XML file and let the
board boot as it normally does.
CyberData Corporation930622FOperations Guide
Page 62
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
NoteFor information about TFTP servers, see Appendix A, ”Setting Up a TFTP Server.
53
Autoprovisioned
Audio Files
Audio files are stored in non-volatile memory and an autoprovisioned audio file will only have to be
downloaded once for each device. Loading many audio files to the device from the web page could
cause it to appear unresponsive. If this happens, wait until the transfer is complete and then refresh
the page.
The device uses the file name to determine when to download a new audio file. This means that if
you used autoprovisioning to upload a file and then changed the contents of this file at the TFTP
server, the device will not recognize that the file has changed (because the file name is the same).
Since audio files are stored in non-volatile memory, if autoprovisioning is disabled after they have
been loaded to the board, the audio file settings will not change. You can force a change to the audio
files on the board by one of the following two ways:
•Click Delete for each file that you want to restore to the factory default audio file on the Audio Configuration page.
•Change the autoprovisioning file with the word “default” set as the file name.
CyberData Corporation930622FOperations Guide
Page 63
2.4.12.2 Get Autoprovisioning Template Button
The Get Autoprovisioning Template button allows the user to generate, download, edit, and then
store an autoprovisioning template on the server that serves the autoprovisioning files for devices.
To generate an autoprovisioning template directly from the device, complete the following steps:
1. On the Autoprovisioning page, click on the Get Autoprovisioning Template button.
2. You will see a window prompting you to save a configuration file (.config) to a location on your
computer (Figure 2-27). The configuration file is the basis for the default configuration settings
for your unit).
3. Choose a location to save the configuration file and click on OK. See Figure 2-27.
Figure 2-27. Configuration File
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
54
4. At this point, you can open and edit the autoprovisioning template to change the configuration
settings in the template for the unit.
5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be
loaded onto other devices.
CyberData Corporation930622FOperations Guide
Page 64
2.4.12.3 Time Zone Strings
The posix time zone string tells the internal date and time utilities how to handle daylight savings
time for different time zones. Ta bl e 2-15 shows some common strings.
Time ZoneTime Zone String
US Pacific timePST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00
US Mountain timeMST7MDT,M3.2.0/2:00:00,M11.1.0/2:00:00
US Eastern TimeEST5EDT,M3.2.0/2:00:00,M11.1.0/2:00:00
Phoenix Arizona
US Central TimeCST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00
a.Phoenix, Arizona does not use daylight savings time.
Ta bl e 2-16 shows a breakdown of the parts that constitute the following time zone string:
● CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
55
Table 2-15. Common Time Zone Strings
a
MST7
Table 2-16. Time Zone String Parts
Time Zone String
rt
Pa
Meaning
CST6CDTThe time zone offset from GMT and three character identifiers for the time zone.
CSTCentral Standard Time
6The (hour) offset from GMT/UTC
CDT
Central Daylight Time
M3.2.0/2:00:00The date and time when daylight savings begins.
M3The third month (March)
.2The 2nd occurrence of the day (next item) in the month
.0 Sunday
/2:00:00
Time of day to change
M11.1.0/2:00:00The date and time when daylight savings ends.
M11The eleventh month (November)
.1The 1st occurrence of the day (ne
xt item) in the month
.0 Sunday
/2:00:00 Time of day to change
CyberData Corporation930622FOperations Guide
Page 65
Setting Up the SIP Paging Adapter
PST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00
Three or four character time zone identifier at the beginning of the time zone string.
The identifier can be any three or four letter or number combination chosen by the user.
Configure the Autoprovisioning Parameters
56
Time Zone String
Examples
Time Zone Identifier
Ta bl e 2-17 has some more examples of time zone strings.
Table 2-17. Time Zone String Examples
Time ZoneTime Zone String
a
Tokyo
Berlin
b
IST-9
CET-1MET,M3.5.0/1:00,M10.5.0/1:00
a.Tokyo does not use daylight savings time.
b.For Berlin, daylight savings time starts on the last Sunday in March at
01:00 UTC, and ends on the last Sunday in October at 01:00 UTC, and is one
hour ahead of UTC.
A user-definable three or four character time zone identifier (such as PST, EDT, IST, MUT, etc) is
needed at the beginning of the posix time zone string to properly set the time. However, the specific
letters or numbers used for the time zone identifier are not important and can be any three or four
letter or number combination that is chosen by the user. However, the time zone identifier cannot be
blank.
Figure 2-28. Three or Four Character T
ime Zone Identifier
You can also use the following URL when a certain time zone applies daylight savings time:
http://www.timeanddate.com/time/dst/2011.html
World GMT Table
Ta bl e 2-18 has information about the GMT time in various time zones.
Table 2-18. World GMT Table
Time ZoneCity or Area Zone Crosses
GMT-12Eniwetok
GMT-11Samoa
GMT-10Hawaii
GMT-9Alaska
GMT-8PST, Pacific US
GMT-7MST, Mountain US
GMT-6CST, Central US
GMT-5EST, Eastern US
GMT-4Atlantic, Canada
GMT-3Brazilia, Buenos Aries
GMT-2Mid-Atlantic
GMT-1Cape Verdes
GMTGreenwich Mean Time, Dublin
CyberData Corporation930622FOperations Guide
Page 66
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
Table 2-18. World GMT Table (continued)
Time ZoneCity or Area Zone Crosses
GMT+1Berlin, Rome
GMT+2Israel, Cairo
GMT+3Moscow, Kuwait
GMT+4Abu Dhabi, Muscat
GMT+5Islamabad, Karachi
GMT+6Almaty, Dhaka
GMT+7Bangkok, Jakarta
GMT+8Hong Kong, Beijing
GMT+9Tokyo, Osaka
GMT+10Sydney, Melbourne, Guam
GMT+11Magadan, Soloman Is.
GMT+12Fiji, Wellington, Auckland
57
CyberData Corporation930622FOperations Guide
Page 67
2.5 Upgrading the Firmware
1. Click on the Update Firmware button to open the Upgrade Firmware page. See Figure 2-29.
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
58
Figure 2-29. Upgrade Firmware Pa
ge
Ta bl e 2-19 shows the web page items on the Upgrade Firmware page
.
Table 2-19. Upgrade Firmware Parameters
Web Page ItemDescription
File Upload
Firmware VersionShows the current firmware version.
Please specify a fileClick on the Choose
application firmware file that you want to upload.
The Browse button will allow you to navigate to and
select an application firmware file.
Click on the Submit button to automatically upload the
selected firmware and reboot the system.
CyberData Corporation930622FOperations Guide
File button to navigate to the
Page 68
2.5.0.1 Upgrade the Firmware
To upload the firmware from your computer:
1. Retrieve the latest SIP Paging Adapter firmware from the SIP Paging Adapter Downloads page
at:
2. Unzip the SIP Paging Adapter version file. This file may contain the following:
•Firmware file
•Release notes
3. Log in to the SIP Paging Adapter home page as instructed in Section 2.4.3, "Log in to the
Configuration GUI".
4. Click on the Update Firmware button to open the Upgrade Firmware page. See Figure 2-29.
5. Click Browse, and then navigate to the location of the SIP Paging Adapter firmware file.
6. Click Submit.
NoteThis starts the upload process. Once the SIP Paging Adapter has uploaded the file, the
Uploading Firmware countdown page appears, indicating that the firmware is being written
to flash. The SIP Paging Adapter will automatically reboot when the upload is complete.
When the countdown finishes, the Upgrade Firmware page will refresh. The uploaded
firmware filename should be displayed in the system configuration (indicating successful
upload and reboot).
Setting Up the SIP Paging Adapter
Configure the Autoprovisioning Parameters
59
CyberData Corporation930622FOperations Guide
Page 69
2.5.1 Reboot the SIP Paging Adapter
Reboot
To reboot a SIP Paging Adapter, log in to the web page as instructed in Section 2.4.3, "Log in to the
Configuration GUI".
1. Click Reboot (Figure 2-30). A normal restart will occur.
Figure 2-30. Home Page
Setting Up the SIP Paging Adapter
Reboot the SIP Paging Adapter
60
CyberData Corporation930622FOperations Guide
Page 70
Setting Up the SIP Paging Adapter
Command Interface Post Commands
2.6 Command Interface
Some functions on the device can be activated using simple POST commands to the web interface.
The examples in
can send HTTP POST commands to the device should work.
2.6.1 Command Interface Post Commands
The commands in Ta bl e 2-20 require an authenticated session (a valid username and password to
work).
a.Type and enter all of each http POST command on one line.
b.This command will only stop the playback of stored audio messages.
CyberData Corporation930622FOperations Guide
Page 76
Appendix A: Setting Up a TFTP Server
A.1 Set up a TFTP Server
Autoprovisioning requires a TFTP server for hosting the configuration file.
A.1.1 In a LINUX Environment
To set up a TFTP server on LINUX:
1. Create a directory dedicated to the TFTP server, and move the files to be uploaded to that
directory.
2. Run the following command where /tftpboot/ is the path to the directory you created in
Step 1: the directory that contains the files to be uploaded. For example:
in.tftpd -l -s /tftpboot/your_directory_name
67
A.1.2 In a Windows Environment
You can find several options online for setting up a Windows TFTP server. This example explains
how to use the Solarwinds freewareSIP Paging Adapter TFTP server, which you can download at:
The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most
importantly, the Support Form tells us which PBX system and software version that you are
using, the make and model of the switch, and other important information. This information is
essential for troubleshooting. Please also include as much detail as possible in the Comments
section of the Support Form.
When returning a product to CyberData, an approved CyberData RMA number must be printed
on the outside of the original shipping package. Also, RMA numbers require an active VoIP
Technical Support ticket number. A product will not be accepted for return without an approved
RMA number. Send the product, in its original package, to the following address:
If you need to inquire about the repair status of your product(s), please use the CyberData RMA
Status form at the following web address:
http://www.cyberdata.net/support/rmastatus.html
CyberData Corporation930622FOperations Guide
Page 79
B.3 Warranty
CyberData warrants its product against defects in material or workmanship for a period of two
years from the date of purchase. Should the product fail Within Warranty, CyberData will repair
or replace the product free of charge. This warranty includes all parts and labor.
Should the product fail Out of the Warranty period, a flat rate repair charge of one half of the
purchase price of the product will be assessed. Repairs that are Within Warranty period but are
damaged by improper installation, modification, or abuse are deemed Out of Warranty and will
be charged at the Out of Warranty rate. A device is deemed Out of Warranty when its purchase
date is longer than two years or when the device has been damaged due to human error during
installation, modification, or abuse. A replacement unit will be offered at full cost if the device
cannot be repaired.
End of Life Devices are included under this policy. End of Life devices are devices that are no
longer produced or sold. Technical support is still available for these devices. However, no
firmware revisions or updates will be provided. If an End of Life device cannot be repaired, the
replacement offered may be the current version of the device.
Products shipped to CyberData, both within and out of warranty, are shipped at the expense of
the customer. CyberData will pay return shipping charges for repaired products.
Warranty
70
CyberData shall not under any circumstances be liable to any person for any special, incidental,
indirect or consequential damages, including without limitation, damages resulting from use or
malfunction of the products, loss of profits or revenues or costs of replacement goods, even if
CyberData is informed in advance of the possibility of such damages.
B.3.1 Warranty & RMA Returns within the United States
If service is required, you must contact CyberData Technical Support prior to returning any
products to CyberData. Our Technical Support staff will determine if your product should be
returned to us for further inspection. If Technical Support determines that your product needs to
be returned to CyberData, an RMA number will be issued to you at this point.
Your issued RMA number must be printed on the outside of the shipping box. No product will be
accepted for return without an approved RMA number. The product in its original package
should be sent to the following address:
CyberData Corporation
3 Justin Court.
Monterey, CA 93940
Attn: RMA "xxxxxx"
B.3.2 Warranty & RMA Returns outside of the United States
If you purchased your equipment through an authorized international distributor or reseller,
please contact them directly for product repairs.
CyberData Corporation930622FOperations Guide
Page 80
B.3.3 Spare in the Air Policy
CyberData now offers a Spare in the Air no wait policy for warranty returns within the United
States and Canada. More information about the Spare in the Air policy is available at the
following web address:
For our authorized distributors and resellers, please refer to your CyberData Service
Agreement for information on our return guidelines and procedures.
For End Users, please contact the company that you purchased your equipment from for their
return policy.
B.3.5 Warranty and RMA Returns Page
Warranty
71
The most recent warranty and RMA information is available at the CyberData Warranty and
RMA Returns Page at the following web address:
verifying11
connections7
connector (removable)8
contact information69
contact information for CyberData69
Current Network Settings23
current network settings23
current settings, reviewing19
CyberData contact information69
16
D
default
gateway13
IP address13
subnet mask13
username and password13
default gateway13, 23
default gateway for static addressing24
default login address16
default password for configuration GUI16
default settings, restoring13
default username and password for configuration GUI16
device configuration20
changing for web configuration access20
DHCP addressing14, 23
DHCP IP addressing23
CyberData Corporation930622FOperations Guide
Page 82
73
dimensions4
discovery utility program16
DNS server23
door sensor39, 40
download protocol, HTTP or TFTP50
E
enable night ring events45
ethernet port9
event configuration
enable night ring events45
expiration time for SIP server lease26, 27, 31
export configuration button18
export settings18
F
fault sense input, sensor8
features3
Firefox (web browser)4
firmware
where to get the latest firmware59
firmware upgrade parameters58
firmware, upgrade58
IP address13, 23
SIP server27
IP addressing23
default
IP addressing setting13
L
lease, SIP server expiration time26, 27, 31
lengthy pages29
line input specifications4
line output specifications4
line-in7
line-out7
link light11
Linux, setting up a TFTP server on67
local SIP port26, 27
log in address16
logging in to configuration GUI16
M
MGROUP
MGROUP Name29
Mozilla Firefor (web browser)4
Multicast IP Address29
G
get autoprovisioning template button50, 51
GMT table56
GMT time56
GUI username and password16
H
hazard levels6
http POST command61
I
identifier names (PST, EDT, IST, MUT)56
identifying your product2
import configuration button18
import settings18
import/export settings18
input specifications4
Internet Explorer (web browser)4
user ID for login26
SIP server parameters, configuring14
SIP settings26, 27
SIP setup button25
Spare in the Air Policy71
specifications4
SRST26
static addressing14, 23
static IP addressing23
status light11
Stored Network Settings23
subnet mask13, 23
subnet mask static addressing24
supported protocols4
T
tech support69
technical support, contact information69
TFTP server67
time zone string examples56
S
Safari (web browser)4
safety instructions5
CyberData Corporation930622FOperations Guide
U
unregister from SIP server27
upgrade firmware58
Page 84
user ID
for SIP server login26
user ID for SIP server registration27
username
changing for web configuration access20
restoring the default13
username for configuration GUI14, 16
warranty70
warranty & RMA returns outside of the United States70
warranty and RMA returns page71
warranty policy at CyberData70
web access password13
web access username13
web browsers supported4
web configuration log in address16
web page
navigation15
web page navigation15
weight4
wget, free unix utility61
Windows, setting up a TFTP server on67
CyberData Corporation930622FOperations Guide
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
