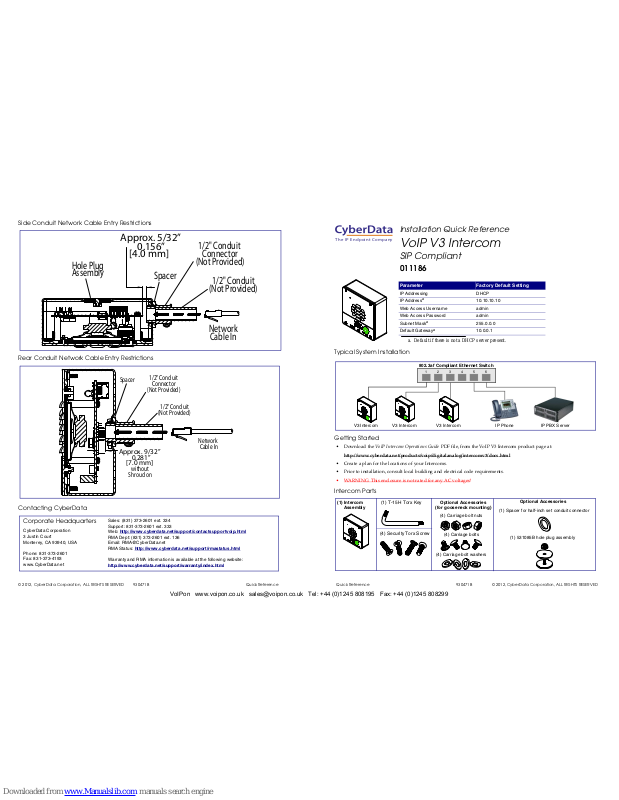

CyberData 11186 Installation Quick Reference

Quick Reference 930471B © 2012, CyberData Corpora tion, ALL RIGHTS RESERVED© 2012, CyberDa ta Corporation, ALL RIGH TS RESERVED 930471B Quick Reference

Typical System Installation

Getting Started

• Download th e VoIP Intercom Operations Guide PDF file, from the VoIP V3 Intercom produ ct page at:

http://www.cyberdata.net/products/voip/digitalanalog/intercomv3/docs.html

• Create a plan for the locations of your Intercoms.

• Prior to installation, consult local building and electrical code requirements.

• WARNING: This enclosure is not rated for any AC voltages

!

Intercom Parts

Parame ter Factory Default Setting

IP Addressing DHCP

IP Address

a

10.10.10.10

Web Access Username admin

Web Access Password admin

Subnet Mask

a

255.0.0.0

Default Gateway

a

10.0.0.1

a. Default if there is not a DHCP server present.

802.3af Compliant Ethernet Switch

V3 Intercom IP Phone IP PBX Server

123 4 56

V3 Intercom V3 Intercom

(1) Interco m
Assembly

(1) Spacer for half-inch set conduit connector

(1) 531085B hole plug assembly

Optional Accessories

(for gooseneck mounting)

(1) T-15H Torx Key

(4) Security Torx Screw

(4) Carriage bolts

(4) Carriage bolt nuts

(4) Carriage bolt washers

Optional Accessories

Side Conduit Network Cable Entry Restrictions

Rear Conduit Network Cable Entry Restrictions

Contacting CyberData

Spacer

(Not Provided)

1/2" Conduit

1/2" Conduit

(Not Provided)

Connector

Assembly

Hole Plug

Network
Cable In

Approx. 5/32”

[4.0 mm]

0.156”

1/2" Conduit

(Not Provided)

Spacer

Connector

1/2" Conduit

(Not Provided)

Cable In

Network

Approx. 9/32”

[7.0 mm]

without

Shroud on

0.281”

Sales: [phone] ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.html
RMA Dept: [phone] ext. 136
Email: [e-mail]
RMA Status: http://www.cyberdata.net/support/rmastatus.html

Warranty and RMA information is available at the following website:

http://www.cyberdata.net/support/warranty/index.html

Corporate Headquarters

CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA

Phone: [phone]
Fax: [phone]
www.CyberData.net

The IP Endpoint Company

Installation Quick Reference

VoIP V3 Intercom

SIP Compliant

011186

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

© 2012, CyberD ata Corporation, ALL RIG HTS RESERVED 930471B Quick Reference Quick Referenc e 930471B © 2012, Cyb erData Corporation, ALL RIGHTS RESERVED

Dimensions

Intercom Connections

Alternate Power Input:
1 = +5 VDC at 1000 mA
2 = Power Ground

Relay Contact:
(1A at 30 VDC for Continuous Loads)
3 = Normally Open Common
4 = Normally Open Contact
5 = Door Sense Input
6 = Door Sense Ground Reference

3

4

Wire (IN)

Terminal Block

can accept

16 AWG wire

J3 Terminal Block

Mounting

Ground Wire Installation

Torx Key

Tor x Sc rew s

Faceplate &

PCB Assembly

2-Gang Box

GENERAL ALERT

(1) Tamper-resistant

T-15H Torx Key needed

for Security Torx Screws

Note: To mount the intercom, use methods

compliant with local electrical codes.

Caution

Equipment Hazard: Do not use an electric or power
screwdrive r to f as t en th e f ac e plat e and PCB assemb l y to th e
gang box. To prevent over-torque damage to the gasket, do
not apply more than 10 inch-pounds force. Over-t orquing
will cause the gasket to tear , risk moisture intrusion, and
effectively void the manufacturer's warranty.

2-Gang Box

Ground Wire

(Not Provided)

Ground Lug

Nut

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Quick Reference 930471B © 2012, CyberData Corpora tion, ALL RIGHTS RESERVED© 2012, CyberDa ta Corporation, ALL RIGH TS RESERVED 930471B Quick Reference

Dimensions and Intrusion Sensor Range

Contacting CyberData

5.118 [130.00]

5.118 [130.00]

DIMENSIONS ARE IN INCHES [MILLIMETER]

0.156" [4.0] THROUGH HOLE
82 DEGREES COUNTERSUNK (4 PLACES)

Intrustion

Sensor

1.986 [50.45]

4.000 [101.60]

4.580 [116.33]

0.118 [3.0]

0.551 [14.0]

Eective Range for

Intrusion Sensor to Function

Ax Reective Surface Above

from 3 mm (Minimum)

Intrusion Sensor

to 14 mm (Maximum)

Sales: [phone] ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.html
RMA Dept: [phone] ext. 136
Email: [e-mail]
RMA Status: http://www.cyberdata.net/support/rmastatus.html

Warranty and RMA information is available at the following website:

http://www.cyberdata.net/support/warranty/index.html

Corporate Headquarters

CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA

Phone: [phone]
Fax: [phone]
www.CyberData.net

Weather Shroud Dimensions

The IP Endpoint Company

Installation Quick Reference

VoIP V3 Intercom

Optional Weather Shroud (Sold Separately)

011188

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

© 2012, CyberD ata Corporation, ALL RIG HTS RESERVED 930471B Quick Reference Quick Referenc e 930471B © 2012, Cyb erData Corporation, ALL RIGHTS RESERVED

Rear Conduit Network Cable Entry Restrictions (with Optional Weather Shroud)

Optional Conduit Mounting

To mount the intercom, use methods compliant with local electrical codes.

Cable In

Network

(Not Provided)

1/2" Conduit

1/2" Conduit

Spacer

Connector

(Not Provided)

Approx. 23/64”

[9.0 mm]

with Optional

Shroud on

0.359”

(Optional)

Shroud

Rotate the 2- Gang Box in the
desired direction for the conduit

Rotate the 2-Gang Box in the
desired direction for the Conduit

Optional Goose Neck Mounting

To mount the intercom, use methods compliant with local electrical codes.

Ground Cable Installation for Goose Neck Mounting

Remove the hole plug assembly
from the 2-Gang Box before
fastening it to the Shroud and/or
Gooseneck
