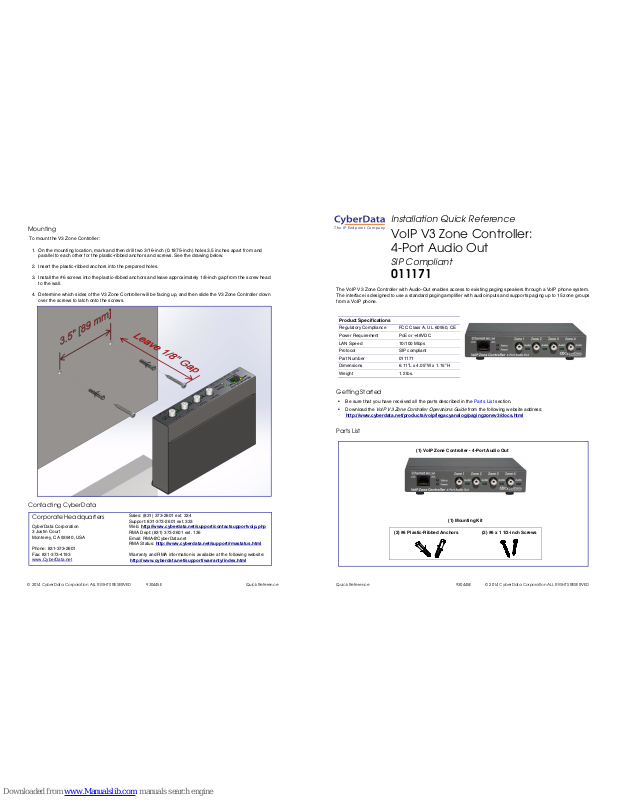

CyberData V3, 11171 Installation Quick Reference

The IP Endpoint Company

Installation Quick Reference

VoIP V3 Zone Controller:
4-Port Audio Out

SIP Compliant

011171

Quick Reference 930445E © 2014 CyberData Corporation ALL RIGHTS RESERVED© 2014 CyberData Corporation ALL RIGHTS RESERVED 930445E Quick Reference

Mounting

Contacting CyberData

To mount the V3 Zone Controller:

1. On the mounting location, mark and then drill two 3/16-inch (0.1875-inch) holes 3.5 inches apart from and
parallel to each other for the plastic-ribbed anchors and screws. See the drawing below.

2. Insert the plastic-ribbed anchors into the prepared holes.

3. Install the #6 screws into the plastic-ribbed anchors and leave approximately 1/8-inch gap from the screw head
to the wall.

4. Determine which sides of the V3 Zone Controller will be facing up, and then slide the V3 Zone Controller down
over the screws to latch onto the screws.

Sales: [phone] ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.php
RMA Dept: [phone] ext. 136
Email: [e-mail]
RMA Status: http://www.cyberdata.net/support/rmastatus.html

Warranty and RMA information is available at the following website:

http://www.cyberdata.net/support/warranty/index.html

Corporate Headquarters

CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA

Phone: [phone]
Fax: [phone]

www.CyberData.net

The VoIP V3 Zone Controller with Audio-Out enables access to existing paging speakers through a VoIP phone system.
The interface is designed to use a standard paging amplifier with audio inputs and supports paging up to 15 zone groups
from a VoIP phone.

Getting Started

• Be sure that you have received all the parts described in the Parts List section.

• Download the VoIP V3 Zone Controller Operations Guide from the following website address:

http://www.cyberdata.net/products/voip/legacyanalog/pagingzonev3/docs.html

Parts List

Product Specifications

Regulatory Compliance FCC Class A, UL 60950, CE

Power Requirement PoE or +48VDC

LAN Speed 10/100 Mbps

Protocol SIP compliant

Part Number 011171

Dimensions 6.11”L x 4.05”W x 1.15” H

Weight 1.2 lbs.

(2) #6 Plastic-Ribbed Anchors (2) #6 x 1 1/2-inch Screws

(1) Mounting Kit

(1) VoIP Zone Controller - 4-Port Audio Out

© 2014 CyberData Corporation ALL RIGHTS RESERVED 930445E Quick Reference Quick Reference 930445E © 2014 CyberData Corporation ALL RIGHTS RESERVED

Verifying Operations and Settings

To restore the V3 Zone Controller’s factory default
settings:

1. Use a paper clip to press and hold the RTFM
switch while all of the indicator LEDs turn off.
See the picture on the right.

2. Continue to press the RTFM switch until after
the indicator LEDs turn back on.

3. Release the RTFM switch. All of the V3 Zone
Controller settings will be restored to the
factory default settings.

4. You will hear the "Restoring defaults..." audio
message play through all ports before the
device reboots.

Front View with LEDs

Back View with RTFM Switch

Status
(GREEN LED)

Power Status
(BLUE LED)

Link
(YELLOW LED)

Activity
(GREEN LED)

The round, BLUE Power Status LED on the front of the V3 Zone Controller comes on indicating that the
power is on.

The square, YELLOW Link LED above the Ethernet port indicates that the network connection has been
established. The Link LED changes color to confirm the auto-negotiated connection speed:

• This LED is YELLOW at 10 Mbps.

• This LED is ORANGE at 100 Mbps.

The square, GREEN Activity LED above the Ethernet port blinks when there is network activity.

The round, GREEN Status LED comes on after the device is booted and initialized. This LED blinks when
the unit is operational.

The square, GREEN Audio Activity LEDs turn on solid when a Zone is being paged.

Paper clip RTFM switch

Audio Activity
(GREEN LED)

Typical Zone Controller Setup Using the V3 Zone Controller

Setting Up the VoIP V3 Zone Controller

Generic PoE Switch

123 4 56

IP Phone

IP PBX Server

VoIP V3 Zone Controller 4-Port Audio Out

Analog Amplifiers

Paging Speakers

Non PoE (with 48 VDC power supply)

Chassis Ground

Chassis Ground

PoE

To set up the V3 Zone Controller, connect the
device to your network:

Poe

•For PoE , plug one end of an 802.3af Ethernet
cable into the V3 Zone Controller Ethernet port.
Plug the other end of the Ethernet cable into
your network. See the figure on the left.

Non-Poe

•For Non-PoE, connect the V3 Zone Controller
to a 48VDC power supply. See the figure on
the left.

Chassis Ground

• If required, connect the earth grounding wire to
the Chassis Ground. See the figure on the
left.
