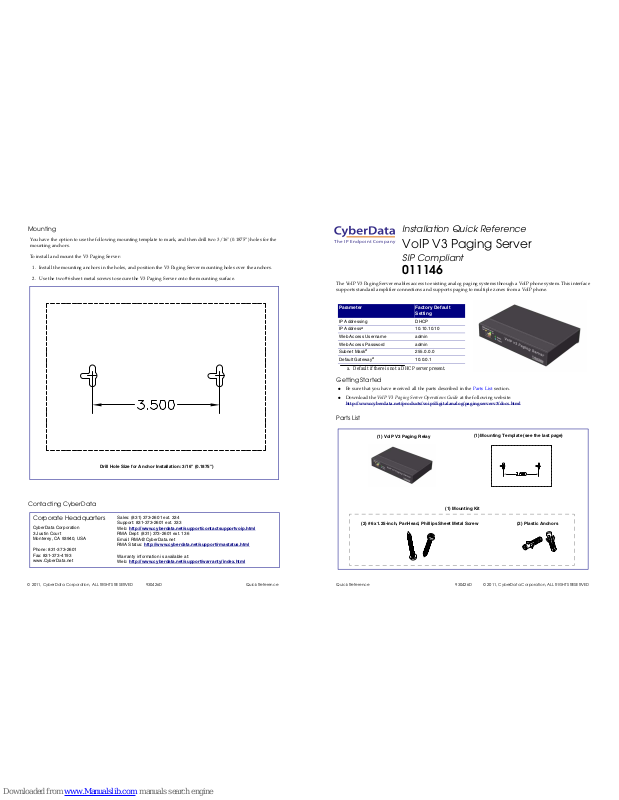

CyberData 11146 Installation Quick Reference
Installation Quick Reference
VoIP V3 Paging Server
SIP Compliant
011146
Quick Reference 930426D © 2011, CyberData Corpora tion, ALL RIGHTS RESERVED© 2011, CyberDa ta Corporation, ALL RIGH TS RESERVED 930426D Quick Reference
The IP Endpoint Company
Mounting
Contacting Cy berData
Drill Hole Size for Anchor Installation: 3/16" (0.1875")
You have the option to use the following mounting template to mark, and then drill two 3/16" (0.1875”) holes for the
mounting anchors.
To install and mount the V3 Paging Server:
1. Install the mounting anchors in the holes, and position the V3 Paging Server mounting holes over the anchors.
2. Use the two #6 sheet metal screws to secure the V3 Paging Server onto the mounting surface.
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.html
RMA Dept: (831) 373-2601 ext. 136
Email: RMA@CyberData.net
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Warranty information is available at:
Web: http://www.cyberdata.net/support/warranty/index.html
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
www.CyberData.net
The VoIP V3 Paging Server enables access to existing analog paging systems through a VoIP phone system. This interface
supports standard amplifier connections and supports paging to multiple zones from a VoIP phone.
Getting Started
● Be sure that you have received all the parts describ ed in the Parts List section.
● Download th e VoIP V3 Paging Server Operations Guide at the fo llowing website:
http://www.cyberdata.net/products/voip/digitalanalog/pagingserverv3/docs.html
Parts List
Parame ter Factory Default
Setting
IP Addressing DHCP
IP Address
a
10.10.10.10
Web Access Username admin
Web Access Password admin
Subnet Mask
a
255.0.0.0
Default Gateway
a
10.0.0.1
a. Default if there is not a DHCP server present.
(2) Plastic Anchors(2) #6 x1.25-inch, PanHead, Phillips Sheet Metal Screw
(1) Mounting Template (see the last page)
(1) VoIP V3 Paging Relay
(1) Mounting Kit
© 2011, CyberD ata Corporation, ALL R IGHTS RESERVED 930426D Quick Reference Quick Referenc e 930426D © 2011, Cy berData Corporation, ALL RIG HTS RESERVED
Connections
Dimensions
RTFM Switch
Pin 1 Pin2 Pin 3 Pin 4 Pin 5
Line In Line Out Power
Page Port Output Connections
Pin Description
1 Fault Sense Input (Common)
2 Fault Sense Input (Sense)
3 Positive 600-Ohm Audio Output
a
a. The 600-Ohm audio output of the
page port is also suited for interfaces
with lower input impedances.
4 Negative 600-Ohm Audio Output
a
5 Audio Ground Reference
6 Relay Contact - Common
b
b. 1 Amp at 30 VDC for continuous loads
7 Relay Contact - Normally Open
b
Page Port Output
Pin 6 Pin 7
48VDC
6.0 [152]
1.2 [29]
Dimensions are in Inches [Millimeter]
4.1 [104]
Dimensions a re in Inches [Millim eters]
To restore the V3 Paging Server’s factory default
settings, press and hold the RTFM switch while
all the indicator lights turn off. Continue to press
the switch until after the indicator lights turn back
on, and then release the switch. All V3 Paging
Server settings are restored to the factory defaults,
and the unit reboots.
Back View with RTFM Switch
RTFM Switch
Verifying Operations and Settings
Setting Up the VoIP V3 Paging Server
When you plug in the Ethernet cable or power
supply:
•The round, GREEN/BLUE Status LED on the
front of the V3 Paging Server comes on
indicating that the power is on. Once the device
has been initialized, this LED blinks at one
second intervals.
•The square, GREEN/AMBER Link LED above
the Ethernet port indicates that the network
connection has been established. The Link LED
changes color to confirm the auto-negotiated
connection speed:
• The Link LED is
GREEN at 10 Mbps.
• The Link LED is AMBER at 100 Mbps.
•The GREEN Paging LED comes on after the
device is booted and initialized. This LED blinks
when a page is in p rogress. You ca n disable Beep
on Initialization on the Device Configuration
page.
Status
(GREEN/BLUE LED)
Pagin g
(GREEN LED)
Front View with LEDs
Link
(GREEN/
AMBER LED)
Activity
(GREEN LED)
Non PoE (with 48 VDC power supply)
Chassis Ground
Chassis Ground
PoE
To set up the V3 Paging Server, connect the device
to your network:
Poe
● For PoE, plug one end of an 802.3af Ethernet
cable into the V3 Paging Server Ethernet port.
Plug the other end of the Ethernet cable into
your network. See the figure on the left.
Non-Poe
● For Non-PoE, connect the V3 Paging Server to
a 48VDC power supply. See the figure on the
left.
Chassis Ground
● If required, connect the earth grounding wire
to the Chassis Ground. See the figure on the
left.
48VDC
