The CyberData SIP-enabled Voice-over IP (VoIP) Paging Amplifier providesan easy method for
implementing an IP-based overhead paging system for both new and legacy installations.
1
The Amplifier provides direct drive of a standard Horn speaker and supports a
for connection to an external amplifier. The interface is compatible with most SIP-based IP PBX
servers that comply with the SIP RFC 3261. For non-SIP environments, the Paging Amplifier can be
configured to listen to multicast address and port number combinations toform paging zones.
1.1 Typical System Installation
Figure 1 illustrates how the VoIP Paging Amplifier (PoE) is normally installed as part of a public
address system.
Figure 1. Typical Installation
line out connector
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
Page 10
Product Overview
CyberData VoIP Paging Amplifier Speakers Set in MGROUPS Mode
Sensitivity96dB/1W/1M S.P. Level
OutputWith one 8-ohm speaker, up to 8 watts
output
With ex
#010867) and one 8 ohm speaker, up to 10
watts output.
With external PoE power injector(Part
#010867) and two 8 ohm speakers in
parallel, up to 20 watts output.
Port Baud Rate10/100 Mbps
Power Requirement802.3af compliant
ProtocolSIP RFC 3261
Part Number010965
Dimensions1.26” x 9.45” x 3.13”
Weight
Lineout
2.2 lbs.
Output Signal Amplitudes 2.0
Output Level +2dBm nominal
Total Harmonic Distortion 0.5% maximum
ternal PoE power injector (Part
VPP maximu
Product Overview
Product Specifications
m
5
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
JP7ON -> High Power (21V)
JP8ON -> High Power (21V)
JP9Position A -> High Power
a.If set to high power, the unit will not power ON with 802.3af compliant hub/switch. You
must use a power injector in this mode (CyberData part number 010867A).

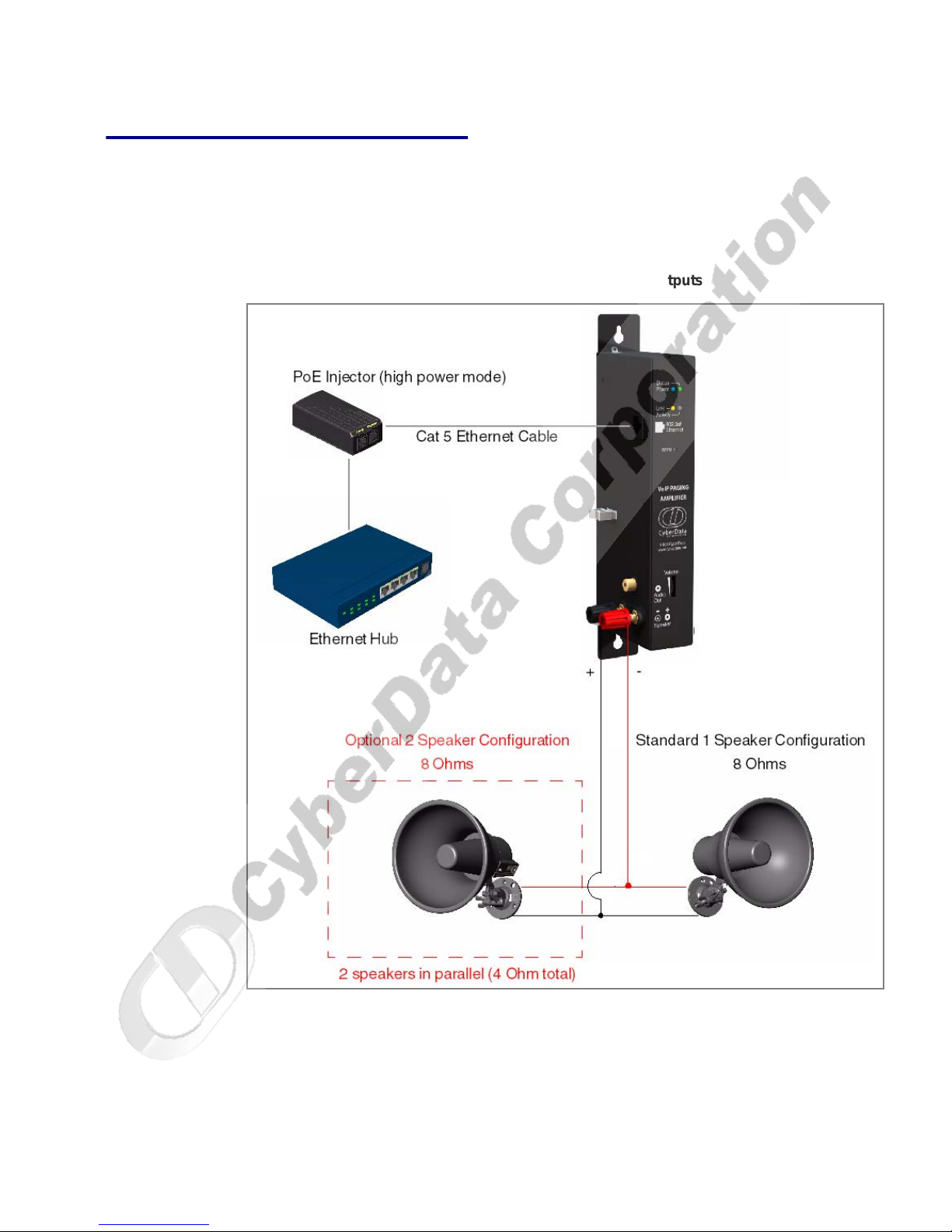

Using the amplified output, you may connect a loudspeaker to a Paging Amplifier with a good
quality speaker cable that is limited to 25 feet in length.
Installing the VoIP Paging Amplifier
Paging Amplifier Setup
13
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
After connecting the Paging Amplifier to the ethernet hub, use the LEDs on the Paging Amplifier
face to confirm that the Paging Amplifier is operational and linked to the network.
Figure 2-7. Paging Amplifier LEDs—Power and Link
Figure 2-8. Paging Amplifier LEDs—Status and Activity
2.2.6 Confirm the IP Address, Test the Audio, and Check the Volume
Table 2-6. Paging Amplifier LEDs
LEDColorFunction
PowerBlue/GreenThe power LED is illu m i n ated a steady blue when the power is
on and blue/green when the amplifier is in the high power mode.
StatusGreenAfter supplying power to the Paging Amplifier:
1. The g
seconds to indicate the start of the firmware verification and load
process.
2. After approximately 15 seconds, the Status LED begins to
blink at one second intervals to indicate the start of the firmware
boot process.
3. After approximately 35 seconds, the Paging Amplifier beeps
once to indicate tha
4. The Status LED willcontinue to blink atone second intervals
to indicate normal operation.
LinkGreen/YellowThe
yellow/green for a100Mb link when the network link to the
Paging Amplifier is established.
ActivityGreenThe Activity LED blinks to indic
reen Status L
Link LED is illuminated green for a 10Mb link or
ED illuminates after approximately five
t it is operational.
at
e network traffic.
15
When the Paging Amplifier is operational and linked to the network, use the Reset Test Function
Management (RTFM) switch(Figure 2-9) on the Paging Amplifier face to announce and confirm the
Paging Amplifier’s IP Address, test that the audio is working,
and check the volume.
Figure 2-9. RTFM Switch
Toannounce a Paging Amplifier’s current IP address:
1.Press and hold the RT
FM switc
h until it beeps (after one second).
2.Release the switch to hear the IP address announcement, and check the Paging Amplifier
me.
volu
Caution
Equipment Caution: Pressing and holding the RTFM switch for longer than 20 seconds will
restore the Paging Amplifier to the factory default settings. See
Factory Default Settings"
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
3. On the Home Page, review the setup details and navigation buttons described in Ta bl e 2-8.
Table 2-8. Home Page Overview
Web Page ItemDescription
Device NameShows the device name.
RunningShows the current speaker function.
Serial #Device serial number.
Ethernet AddressDevice ethernet address.
IP AddressingShows the current IP addressing setting (DHCP or static).
IP AddressShows the current IP address.
Subnet MaskShows the current subnet mask address.
Default GatewayShows the current default gateway address.
1. Click the Network Setup button to open the Network Setup page (Figure 2-12).
Figure 2-12. Network Setup Page
Installing the VoIP Paging Amplifier
Configure the Paging Amplifier Parameters
19
2.On the NetworkSetup page,
Web Page ItemDescription
IP Addressing*Select either DHCP IP Addressing or Static IP Addressing by
IP Address*Enter the static IP address.
Subnet MaskEnter the Subnet Mask address.
Default GatewayEnter the Default Gateway address.
DNS Server 1*Enter the DNS Server 1 address.
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
enter values for the parameters indicated in Tab le 2-9.
Table 2-9. Network Setup Parameters
marking the appropriate radio button. If you select Static, configure
the remaining parameters indicated in
go to Step 3.
1. Click the Speaker Setup button to open the Speaker Setup page.
Configure the Paging Amplifier Parameters
Figure 2-13. Paging Amplifier Setup
Installing the VoIP Paging Amplifier
21
2. On the Paging Amp
Web Page ItemDescription
Device NameEnter a descriptive name for this device (if desired).
Select Speaker FunctionSelect SIP or MGROUPS.
Change Web Access UsernameUse this field to change the Web Access Username.
Change Web Access PasswordUse this field to change the Web Access Password.
Re-enter New PasswordUse this field to re-enter a new password.
Speaker Tone Before PagingEnable/Disable the speaker tone (beep) before each page.
Speaker Tone After InitializationEnable/Disable the speaker tone (beep)
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
lifier Setup page, enter values for the parameters indicated in Tab le 2-10.
Enable/Disable the speaker tone (beep) and audio
associated with the RTFM switch.
Click on this button to save your configuration settings.
Changing a parameter that has anasterisk next to it will
cause a system reboot when saved.
Click on this button to do an audiotest. Generates avoice
message for testing the speaker audio quality and volume.
Link to the Network Setup page.
Link to the SIP Setup page.
Link tothe MGROUPS Setup page.
Link to the Upgrade Firmware page.
a.If you select No for RTFM Announcement, you will not hear a beep or associated RTFM audio.
However, the return to default settings function remains active. If you wish to return to default
settings, hold the RTFM button atleast20 seconds, then release the button.
3. After changing the parameters, click Save Settings.
2.3.4 Configure the SIP Parameters

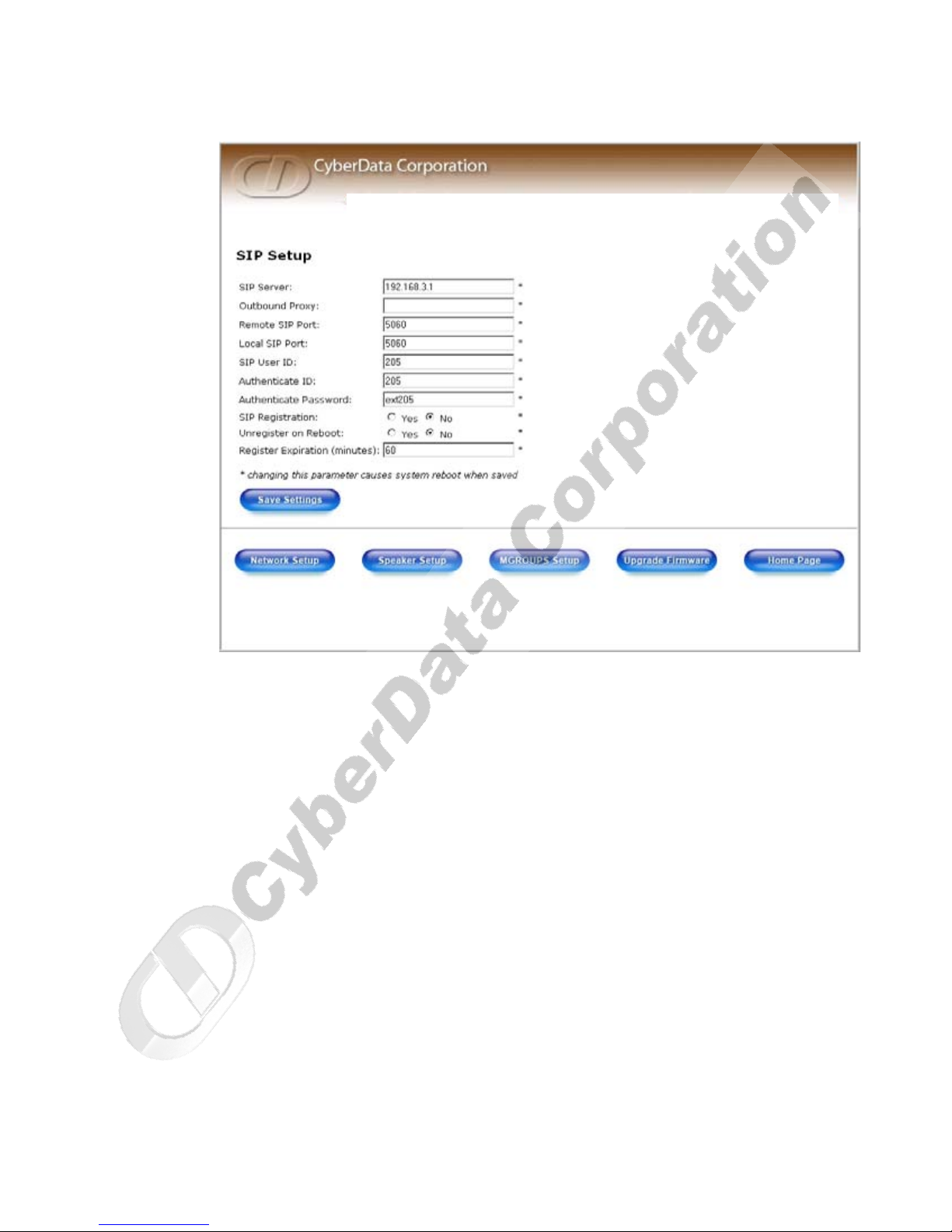

1. Click SIP Setup to open the SIP Setup page (Figure 2-14).
2. On the SIP Setup page, enter values for the parameters indicated in Ta bl e 2-11.
Web Page ItemDescription
SIP Server*Enter the SIP server represented as either a numeric IP
Outbound ProxyEnter the Outbound Proxy as either a numeric IP address
Remote SIP Port*Enter the Remote SIP Port number (default 5060).
Local SIP Port*Enter the Local SIP Port number (default 5060).
SIP User ID*Enter the SIP User ID(upto 25 alphanumeric characters).
Authenticate ID*Enter theAuthenticate ID (up to25 alphanumeric
Authenticate Password*EntertheAuthenticate Password (up to 25 alphanumeric
SIP Registration*Enable/Disable SIP Registration.
Unregister on Reboot*•Select Yes to automatically unregister the paging
Register Expiration*EntertheSIP Registration lease time in minute s (defa ult 60
Table 2-11. SIP Setup Parameters
address in dotted decimal notation or thefully qualified
host name (FQHN) up to 64 characters.
in dotted decimal notation or the fully qualifiedhost name
(FQHN) up to 64 characters.
characters).
characters).
amplifier when it is rebooted.
•SelectNoto keep the paging amplifier registered when it
is rebooted.
minutes).
Click this button to save your configuration settings.
Changing a parameter that has an asterisk next to it will
cause a system reboot when saved.
Link to the Speaker Setup page.
Link to the MGROUPS Setup page.
Link to the Network Setup page.
Link to the Upgrade Firmware page.
Link to the Home page.
3. After changing the parameters, click Save Settings.
MGROUPS uses multicasting to create Public Address Paging Zones. Multicasting is based on the
concept of a group. Multicast addresses specify an arbitrary group of IP hosts that have joined the
group and want to receive traffic sent to the group. Group members send IGMP messages to their
local multicast routers, allowing the group traffic traversal from the source.
Installing the VoIP Paging Amplifier
Set up the MGROUPS
25
MGROUPS Setup provides the ability to join up to 10 Paging Zones.
one, or many, CyberData MGROUPS-enabled speakers. There is no limit to how many speakers can
be in a given Paging Zone. Each MGROUP is defined by a multicast address and port number. Each
MGROUP is also assigned a priority, allowing simultaneously arriving pages to be serviced based
on importance. MGROUPS are compatible with IGMP through version 3.
1. Click on the MGROUPS Setu
p button to open the MGROUPS Setup page. See Figure 2-15.
Figure 2-15. MGROUPS Setup
A Paging Zone can consist of
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
2. On the MGROUPS Setup page, enter values for the parameters indicated in Tab le 2-12.
Web Page ItemDescription
Device NameDisplays the device name.
MG-EmergencyUse MG-Emergency for the MGROUP with the highest
MG-(1-8)Use MG-(1-8) to assign MGROUPS 1 through8.
MG-BackgroundUse MG-Background for the MGROUPwiththe lowest
Multicast IP AddressEnter the multicast IP Address for this MGROUP.
Port 2000-65535Enter the port number forthis MGROUP.
Priority Assign the priority to a MGROUP (the higher the number,
MGROUP NameAssign a descriptive namefor this MGROUP.
BeepCheck this box if you want a beep to precede a page.
Table 2-12. MGROUPS Setup Parameters
prio
rity.
priority (background audio for example).
the higher the pr
iority).
Click this button to save your configuration settings.
Click this button to reboot the system.
Link to theNetwork Setup page.
Link to the Speaker Setup page.
Link to the SIP Setup page.
Link to the Upgrade Firmware page.
Link to the Home page.
3.After changing the parameters, click Save Settings.
Upgrade the Firmware and Reboot the Paging Amplifier

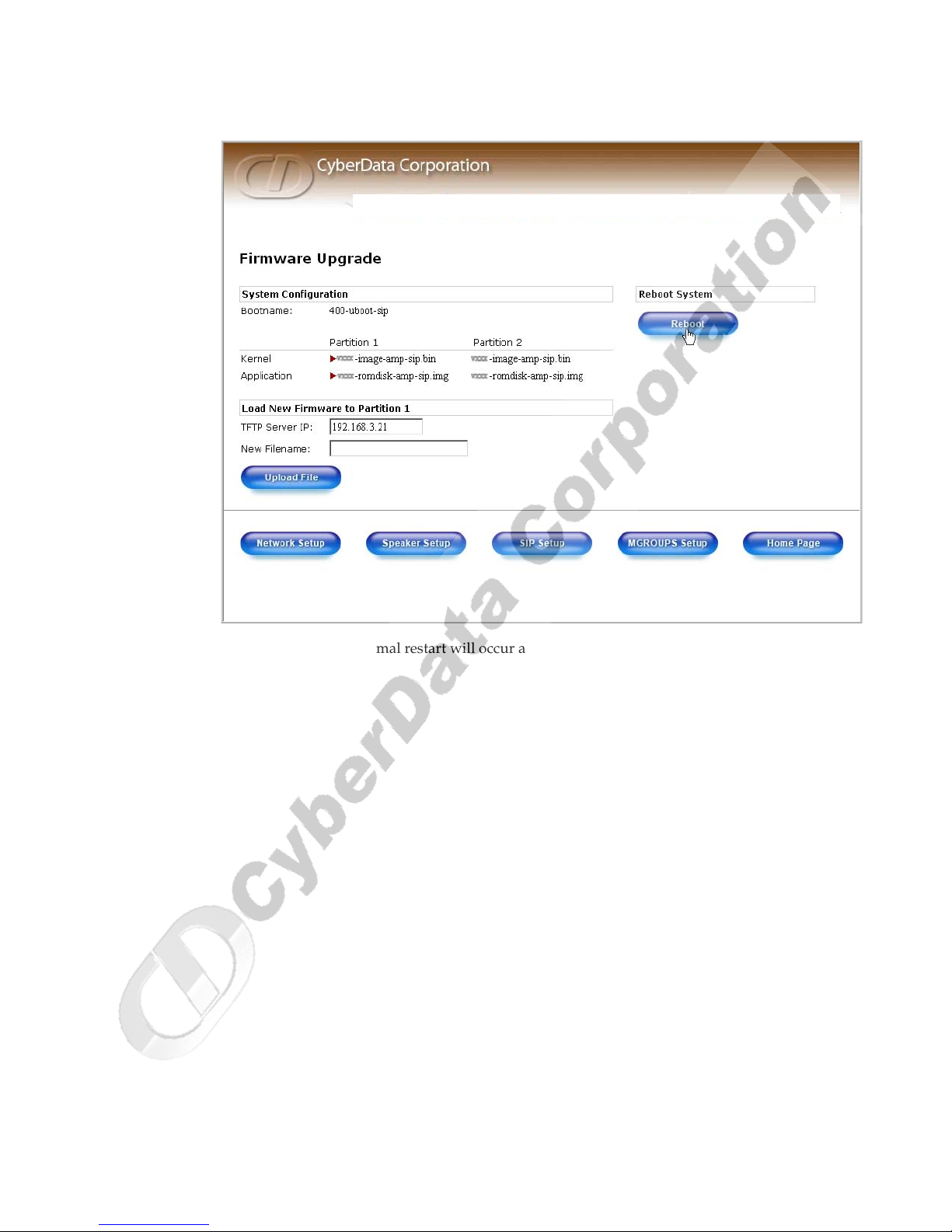

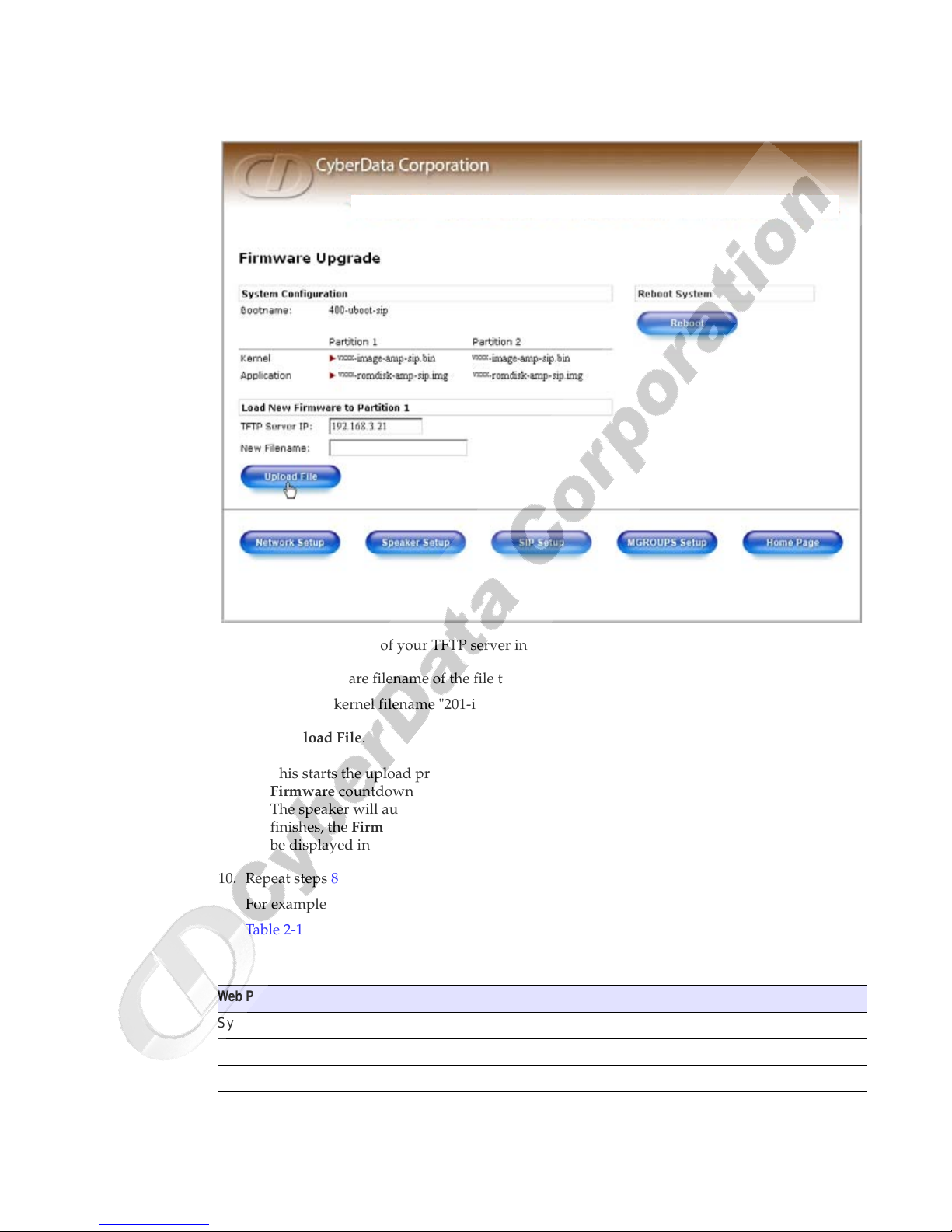

Figure 2-16. Firmware Upgrade Page
7. Enter the IP addressof your TFTP serverinto the TFTP Server IP parameter field.
8. Enter the firmwarefilenameof the file to be uploaded into the New Filename par
For example, kernel filename "201-image-spk-sip.bin".
9. Click Uploa
NoteThis starts the upload process.
Firmware countdown page appears, indicating that the firmware is being written to flash.
10.Repeat steps 8and 9 if you are uploading the Kernel and Application files.
Web Page ItemDescription
System ConfigurationShows the current configuration.
BootnameShows the current boot loader filename.
KernelShows the current kernel filename for partition 1 and 2.
The speaker will automatically reboot when the upload is complete. When the countdown
finishes, the Firmware Upgrade page will refresh. The uploaded firmware filename should
be displayed in the system configuration (indicating successful upload and reboot).
Fo
r example, Application filename
Table2-13 shows the web page items on the Firm
d File.
Once the speaker has uploaded the file, the Uploading
Upgrading the VoIP Paging Amplifier firmware requires a TFTP server on which you access the
Web interface where you can upload the firmware files.
B.0.1 In a LINUX Environment
To set up a TFTP server on LINUX:
35
1. Create a directory dedicated to the TFTP server, andm
directory.
2. Run the following command where /tftpboot/ is the path to
Step 1: the directory that contains the files to be uploaded. For example:
i
n.tftpd -l -s /tftpboot/your_directory_name
B.0.2 In a Windows Environment
You can find several options online for setting up a Windows TFTP server. This example explains
how to use the Solarwinds freeware TFTPserver, which you can download at:
http://www.CyberData.net/support/voip
To set up a TFTP server on Windows:
1. Install and start the software.
2. Select File
3.Make a note ofthedefault directory name, and then move the firmware files to be uploaded to
that di
/Configure/Security tab/Transmit Only.
rectory.
ove the files to be uploaded to that
the directory you created in
4.You can find several options online for setting up a Solarwinds server. This example
how to use the Solarwinds freeware TFTP server, which you can download at:
http://www.CyberData.net/support/voip
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
When returning a product to CyberData, an approved CyberData RMA number must be printed on
the outside of the original shipping
approved RMA number. Send the product, in its original package, to the following address:
package. No product will be accepted for return without an
CyberData warrants its product against defects in material or workmanship for a period of two
years from the date of purchase. Should the product fail within the warranty period, CyberData will
repair or replace the product free of charge. This warranty includes all parts and labor.
If the product is out-of-warranty and fails, a flat rate r
price will be assessed. Repair costs for products that are in warranty, but damaged by improper
modifications or abuse, will be charged at the out-of-warranty rate. Products returned to CyberData,
both in and out-of-warranty, are shipped to CyberData at the expense of the customer. Charges for
shipping repaired products back to the customer will be paid by CyberData.
enclosure, mounting 33
expiration time for SIP server lease24
F
factory defaultsettings31
firmware upgrades35
H
home page17http web-basedconfiguration 4
I
illustration of amplifier mounting process 33
installation 1
IP address 8, 17, 19, 31
IP addressing 19
J
jumpers, settings 10
D
default
gateway 8, 17, 31
IP address8, 17, 31
subnet mask8, 17, 31
username and password8, 17, 31
web login username and password 17
default gateway8, 17, 19, 31
default IP settings17
default login address17
default settings31
DHCP Client4
DHCP IP addressing 19
dimensions 5
DNS server 19
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
L
lease, SIP server expiration time 24
LEDs 14, 15
link LED 15
Linux, setting up a TFTP server on 35
local SIP port 24
log in address 17
loudspeaker, cabling/wiring 13
loudspeaker, type 12
packet time 4
paging amplifer setup 21
paging amplifier operations, verifying 21
part number 5
parts list 7
password
changing for web configuration access21
for SIP server login 24
login 17
restoring the default 8, 17, 31
port
local SIP 24
remote SIP 24
port baud rate 5
power LED 15
power requirement 5
power, connecting to paging amplifier11
product
configuring17
mounting33
parts list7
product features3
product overview
product features3
product specifications 5
supported protocols 4
supported SIP servers 4
typical system installation 1
product specifications 5
protocols supported 4
R
reboot 29, 31
registration and expiration, SIP serverlease24
remote SIP port 24
reset test function management switch15
resetting the IP address to the default33, 37
restoring factory default settings31
RMA returned materials authorization37
RTFM switch 15, 31
RTP/AVP 4
S
sensitivity5
server address, SIP24
setting up a TFTP server35
settings, default31
SIP (session initiationprotocol) 4
SIP Configuration22SIP configuration
SIP Server24SIP registration 24
SIP server24
SIP servers supported 4
static IP addressing 19
status LED 15
subnet mask 8, 17, 19, 31
supported protocols 4
T
technical support, contact information 37
TFTP server 4, 35
network link and activity 14
paging amplifier operations 21
power on to loudspeaker amplifer 14
W
warranty 38
web access password 8, 17, 31
web access username 8, 17, 31
web configuration log in address 17
web-based paging amplifier configuration 17
weight 5
Windows, setting up a TFTP server on 35
41
VoIP Paging Amplifier Operations Guide930185BCyberData Corporation
