CyberData 011399, 011400 Quick Start Manual

Quick Start Guide 931257A

The IP Endpoint Company

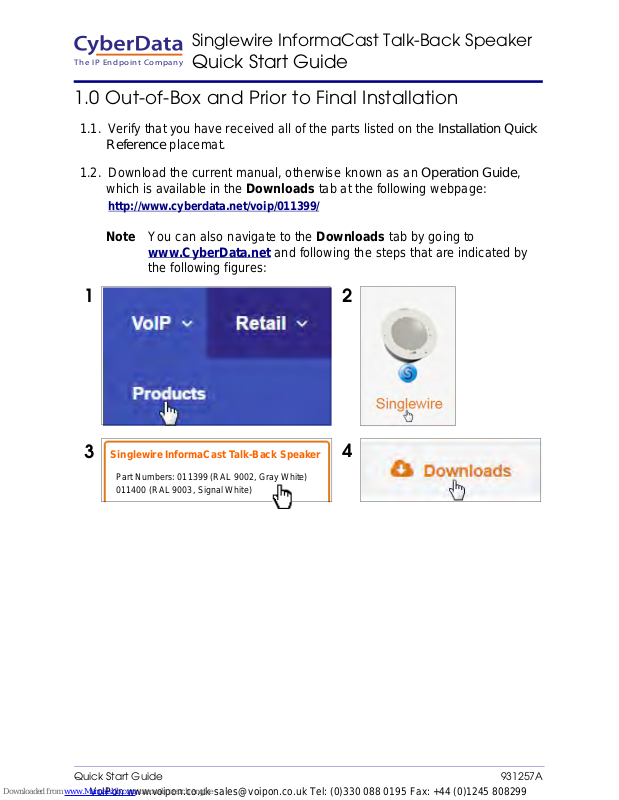

1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick
Reference placemat.

1.2. Download the current manual, otherwise known as an Operation Guide,
which is available in the Downloads tab at the following webpage:

http://www.cyberdata.net/voip/011399/

Note You can also navigate to the Downloads tab by going to

www.CyberData.net

and following the steps that are indicated by

the following figures:

1

3

4

2

Singlewire InformaCast Talk-Back Speaker

Part Numbers: 011399 (RAL 9002, Gray White)
011400 (RAL 9003, Signal White)

Singlewire InformaCast Talk-Back Speaker

Quick Start Guide

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Quick Start Guide 931257A

2.0 Select Power Source

3.0 Power Test

3.1. Plug in the CyberData device and monitor the LED activity on the front of
the device. See the following figure:

IEEE 802.3af or 802.3at PoE Switch IEEE 802.3af or 802.3at PoE Injector

Set PoE po wer type to IEEE 802.3af

Power Class 0 (15.4W)

a

OR

for high power PoE+ set Class 4 = 30W

a.When initiating the device for the first time, we recommend manually adjusting the PoE
switch port power setting to Class 3 to ensure sufficient power allocation. Once the initial
setup has been completed and the device is SIP enabled, the Administrator may prefer a
final power setting adjustment to Class 0.

CAT6 cable recommended—for longer

distances

Be sure you are using a non-PoE switch or port

Make sure port is not in trunk mode

Set port to full duplex/ 100mbps

Spanning Tree Protocol (STP) must be disabled or Portfast enabled

Speaker
Status
(Green LED)

Network
Link/Activity
(Yellow LED)
