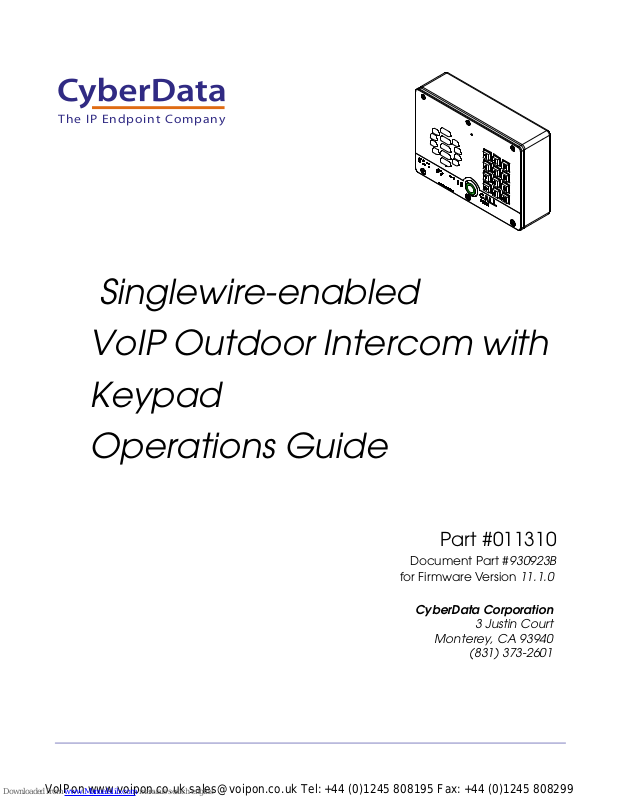

CyberData 011310 Operation Manual

Singlewire-enabled

The IP Endpoint Company

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]



VoIP Outdoor Intercom with
Keypad



Operations Guide

Part #011310

Document Part #930923B

for Firmware Version 11.1.0

CyberData Corporation

3 Justin Court

Monterey, CA 93940

[phone]

PoE VoIP Intercom Operations Guide 930923B

The IP Endpoint Company

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Part # 011310

COPYRIGHT NOTICE:
© 2015, CyberData Corporation, ALL RIGHTS RESERVED.

This manual and related materials are the copyrighted property of CyberData Corporation. No part of
this manual or related materials may be reproduced or transmitted, in any form or by any means
(except for internal use by licensed customers), without prior express written perm ission of
CyberData Corporation. This manual, and the products, software, firmware, and/or hardware
described in this manual are the property of CyberData Corporation, provided under the terms of an
agreement between CyberData Corporation and recipient of this manual, and their use is subject to
that agreement and its terms.

DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by
CyberData Corporation, CyberData Corporation makes no representation or warranty, express or
implied, including any warranty or merchantability or fitness for any purpose, with respect to this
manual or the products, software, firmware, and/or hardware described herein, and CyberData
Corporation assumes no liability for damages or claims resulting from any use of this manual or such
products, software, firmware, and/or hardware. CyberData Corporation reserves the right to make
changes, without notice, to this manual and to any such product, software, firmware, and/or
hardware.

OPEN SOURCE STATEMENT: Certain software components included in CyberData products are
subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL)
“open source” or “free software” licenses. Some of this Open Source Software ma y be o wned by third
parties. Open Source Software is not subject to the terms and conditions of the CyberData
COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open
Source Software is determined by the terms of the GPL, LGPL, or third party, according to who
licenses that software.

Software or firmware developed by CyberData that is unrelated to Open Source Software is
copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied,
modified, reverse-engineered, or otherwise altered without explicit written permission from
CyberData Corporation.

TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are
trademarks of CyberData Corporation. Other product names, trademarks, and service marks may be
the trademarks or registered trademarks of their respective owners.

CyberData Corporation 930923B Operations Guide

Pictorial Alert Icons

GENERAL ALERT

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Hazard Levels

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury. This is limited to the most extreme situations.

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.

Caution: Indicates a potentially hazardous situation which, if not avoided, could result in minor or
moderate injury. It may also alert users against unsafe practices.

Notice: Indicates a statement of company policy (that is, a safety policy or protection of property).
The safety guidelines for the equipment in this man ual do not purport to address all the safety issues

of the equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and
health practices and determine the applicability of regulatory limitations prior to use. Potential safety
hazards are identified in this manual through the use of words Danger, Warning, and Caution, the
specific hazard type, and pictorial alert icons.

General Alert

This pictoral alert indicates a potentially hazardous situation. This alert will be
followed by a hazard level heading and more specific information about the
hazard.

Ground

This pictoral alert indicates the Earth grounding connection point.

CyberData Corporation 930923B Operations Guide

Important Safety Instructions

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.

13. Prior to installation, consult local building and electrical code requirements.

14. WARNING: The VoIP Outdoor Intercom with Keypad enclosure is not rated for any AC

voltages!

Warning

Electrical Hazard: This product should be installed by a licensed electrician

according to all local electrical and building codes.

Warning

Electrical Hazard: To prevent injury, this apparatus must be securely attached to

the floor/wall in accordance with the installation instructions.

Warning

The PoE connector is intended for intra-building connections only and does not
route to the outside plant.

CyberData Corporation 930923B Operations Guide

Revision Information

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Revision 930923B, which corresponds to firmware version 11.1.0, was released on January 16,
2014, and has the following changes:

• Updates Figure 2-15, "Home Page"

• Updates Figure 2-16, "Device Configuration Page"

• Updates Figure 2-18, "Button Configuration Page"

• Updates Figure 2-19, "Network Configuration Page"

• Updates Figure 2-20, "SIP Configuration Page"

• Updates Figure 2-21, "SIP Page Set to Point-to-Point Mode"

• Updates Figure 2-22, "Multicast Configuration Page"

• Updates Figure 2-23, "Sensor Configuration Page"

• Updates Figure 2-24, "Audiofiles Configuration Page"

• Updates Figure 2-25, "Audiofiles Configuration Page (continued)"

• Updates Figure 2-29, "Event Configuration Page"

• Updates Figure 2-30, "DSR Page"

• Adds Figure 2-31, "Relay Status Section"

• Adds Figure 2-32, "DSR Page Device Configuration Page"

• Updates Figure 2-33, "Autoprovisioning Page"

• Updates Figure 2-34, "Configuration File"

• Updates Figure 2-35, "Firmware Page"

• Updates Figure 2-36, "Reboot System Section"

• Updates Table 2-5, "Web Page Navigation"

• Updates Table 2-6, "Home Page Overview"

• Updates Table 2-7, "Device Configuration Parameters"

• Updates Table 2-12, "Button Configuration Parameters"

• Updates Table 2-15, "Network Configuration Parameters"

• Updates Table 2-16, "SIP Configuration Parameters"

• Updates Table 2-17, "Multicast Configuration Parameters"

• Updates Table 2-18, "Sensor Configuration Parameters"

• Updates Table 2-19, "Audiofiles Configuration Parameters"

• Updates Table 2-20, "Events Configuration Parameters"

• Adds Table 2-21, "DSR Configuration Parameters"

• Adds Table 2-23, "Autoprovisioning Configuration Parameters"

• Updates Table 2-25, "Firmware Parameters"

• Updates Table 2-26, "Command Interface Post Commands"

Operations Guide 930923B CyberData Corporation

Browsers Supported

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The following browsers have been tested against firmware version 11.1.0:

• Internet Explorer (version: 10)

• Firefox (also called Mozilla Firefox) (version: 23.0.1 and 25.0)

• Chrome (version: 29.0.1547.66 m)

• Safari (version: 5.1.7)

Operations Guide 930923B CyberData Corporation

Contents

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Chapter 1 Product Overview 1

1.1 How to Identify This Product .....................................................................................................1

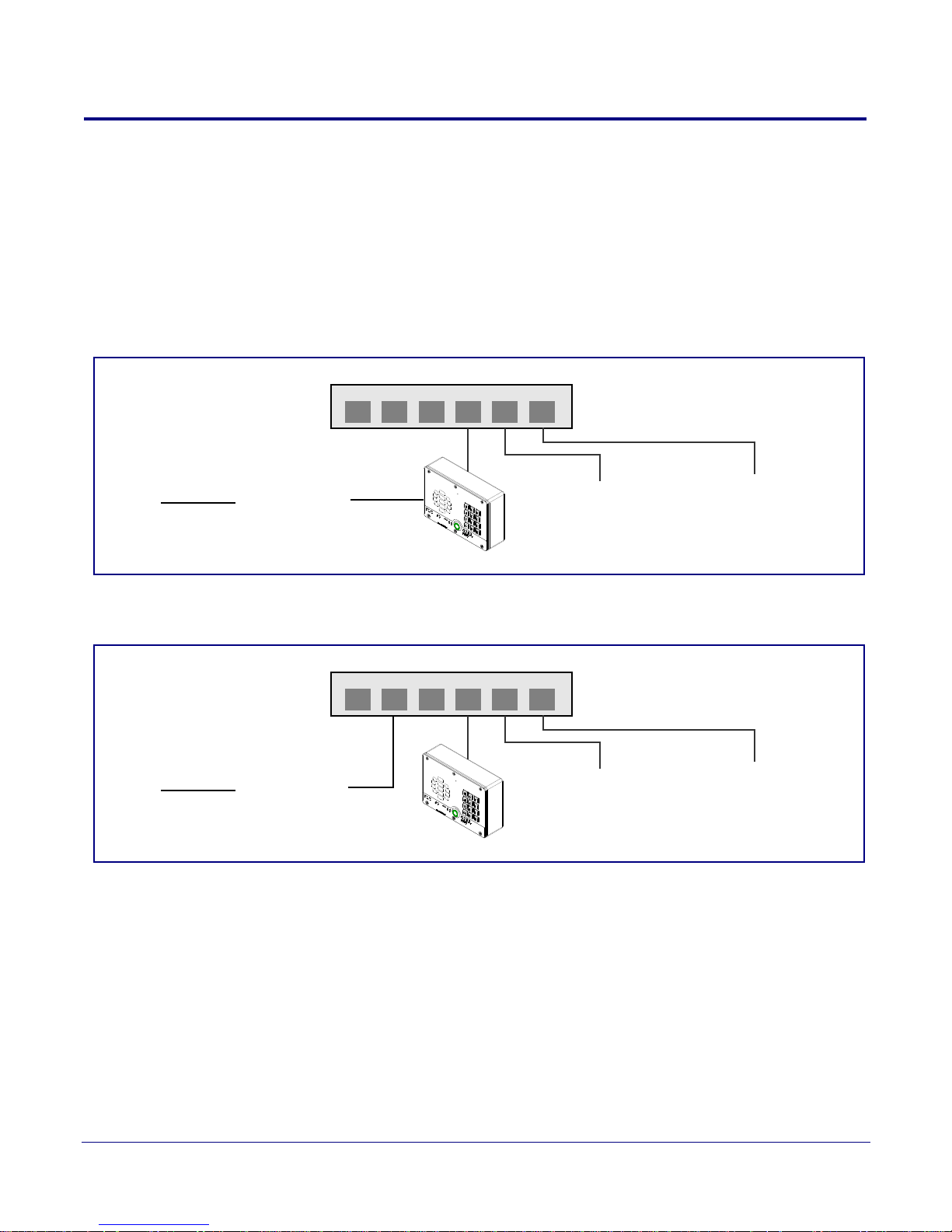

1.2 Typical System Installation .......................................................................................................2

.3 Product Features ......................................................................................................................3

1
1

.4 Supported Protocols .................................................................................................................4

1

.5 Supported SIP Servers .............................................................................................................4

.6 Product Specifications ..............................................................................................................5

1
2

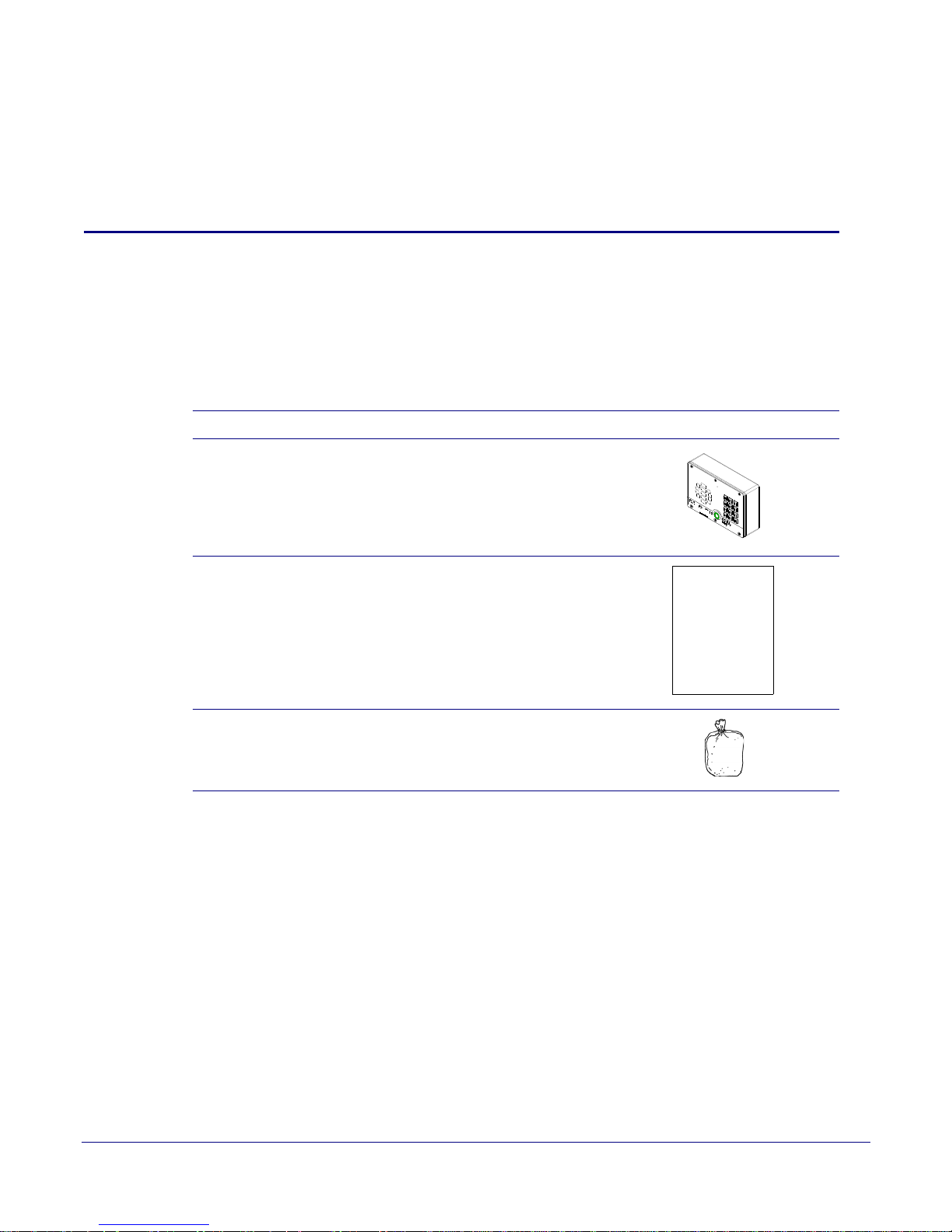

.1 Parts List ..................................................................................................................................6

Chapter 2 Installing the VoIP Outdoor Intercom with Keypad 6

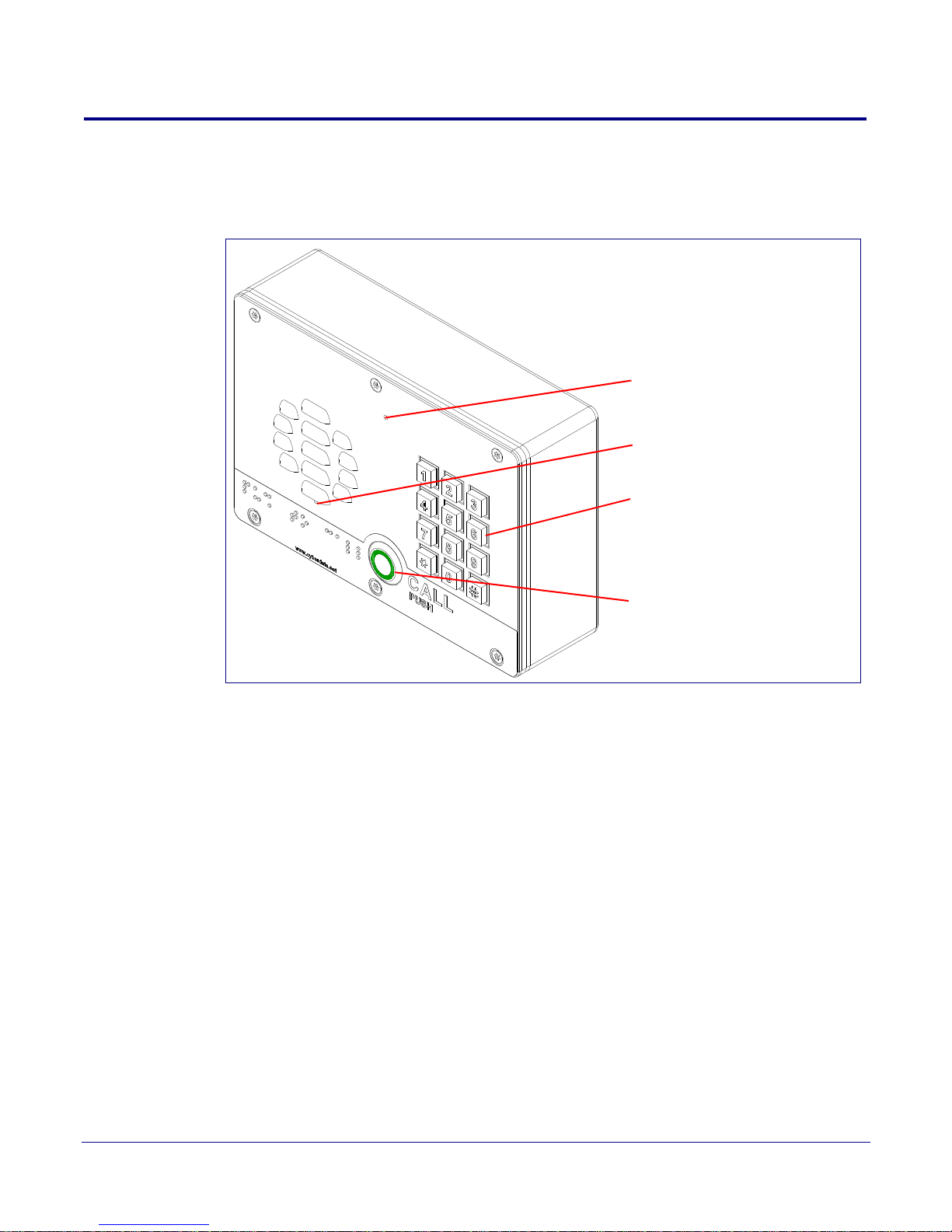

2.2 Intercom Components ..............................................................................................................7

2.3 Intercom Setup .........................................................................................................................9

2

.4 Configure the Intercom Parameters ......................................................................................19

2.5 Upgrade the Firmware and Reboot the Intercom ...................................................................83

.6 Command Interface ................................................................................................................86

2

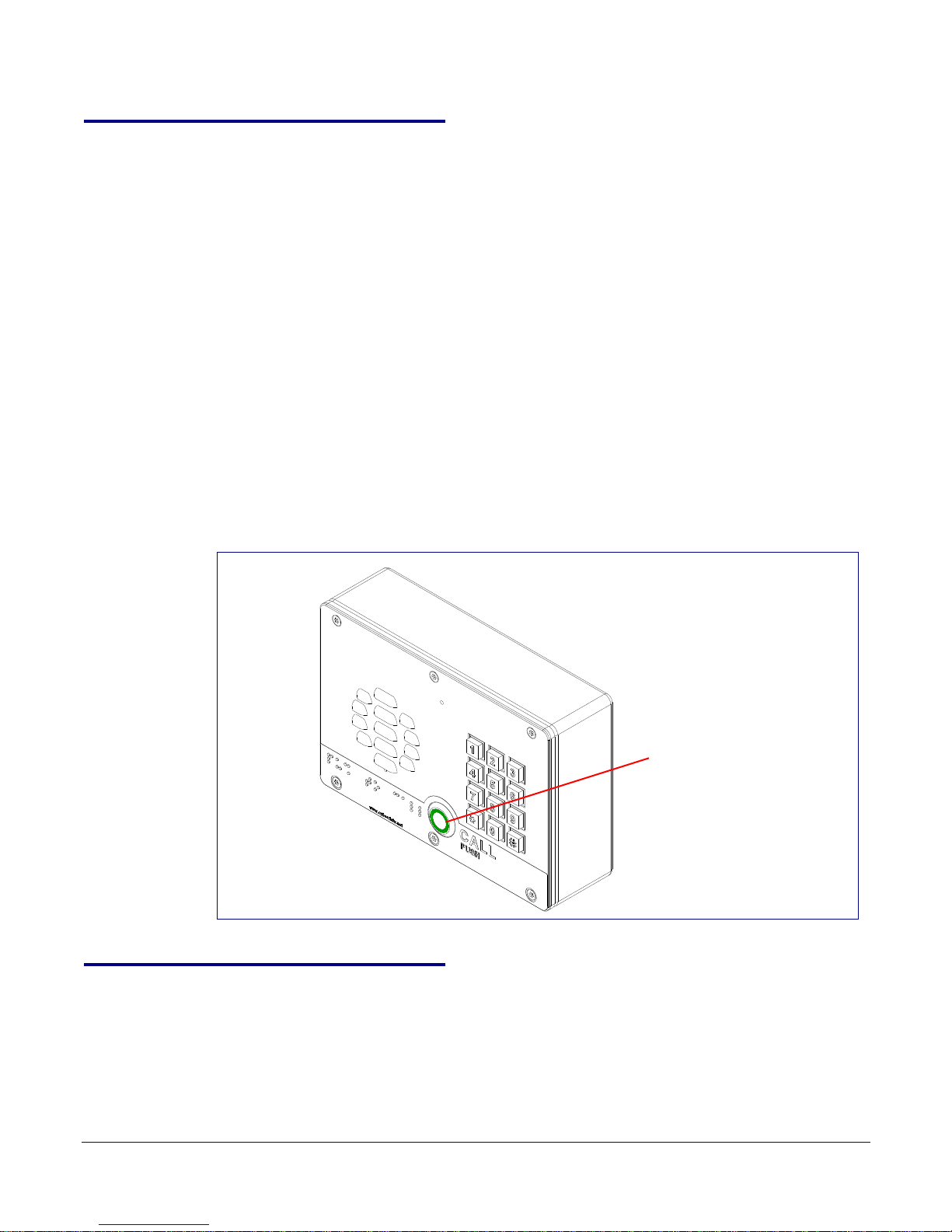

2.2.1 Call Button and Call Button LED ....................................................................................8

2.2.2 Dialing from the Keypad .................................................................................................8

2.3.1 Intercom C

2.3.2 Using the On-Board Relay ...........................................................................................10

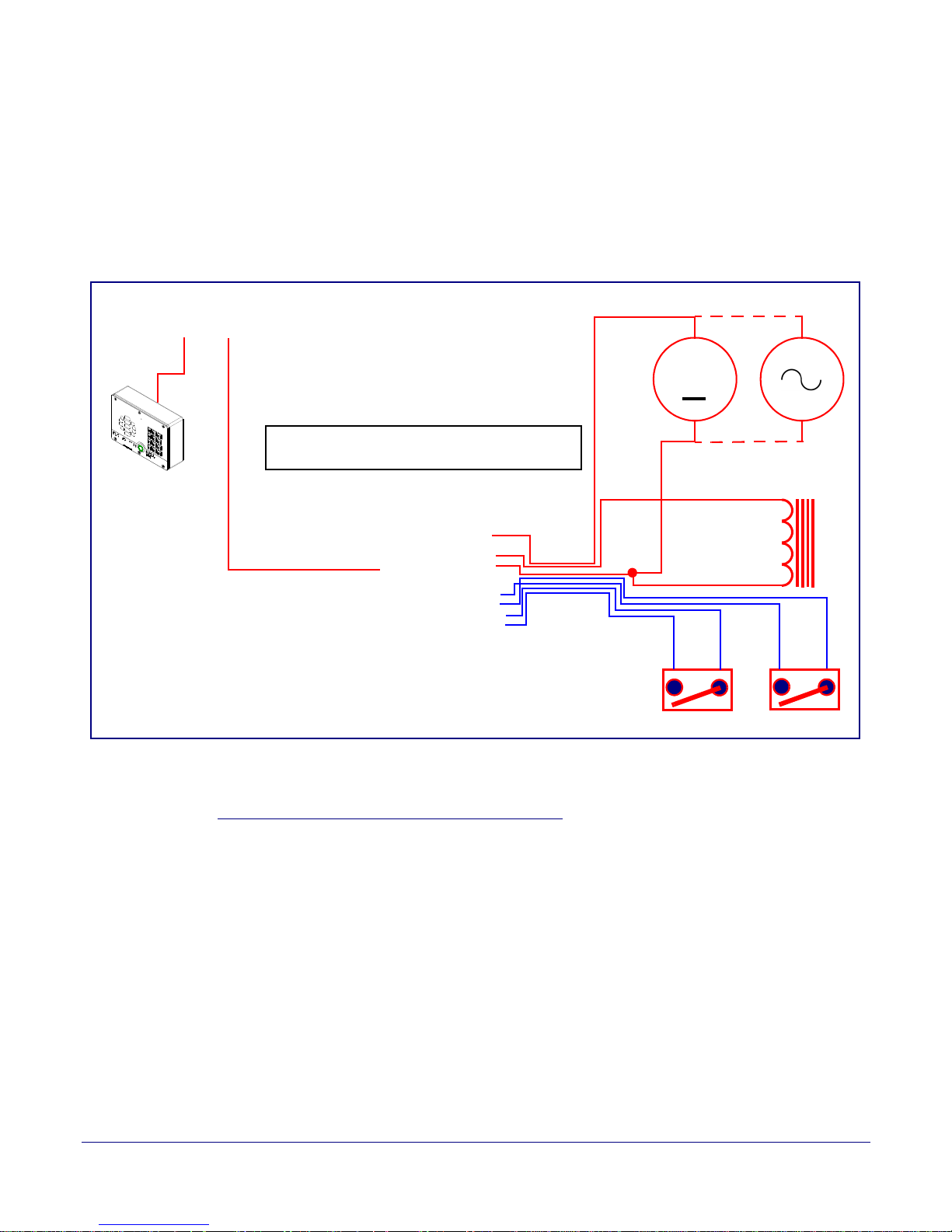

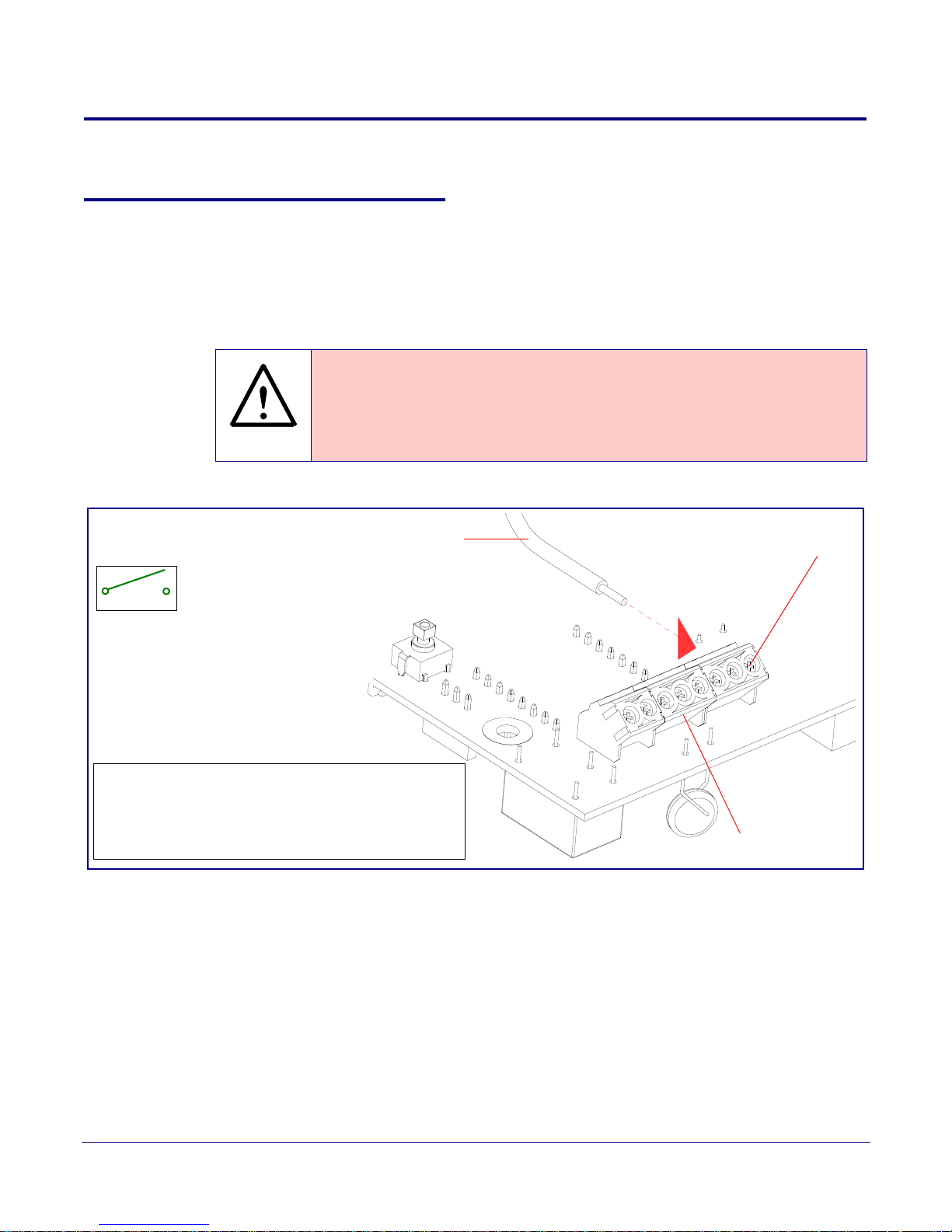

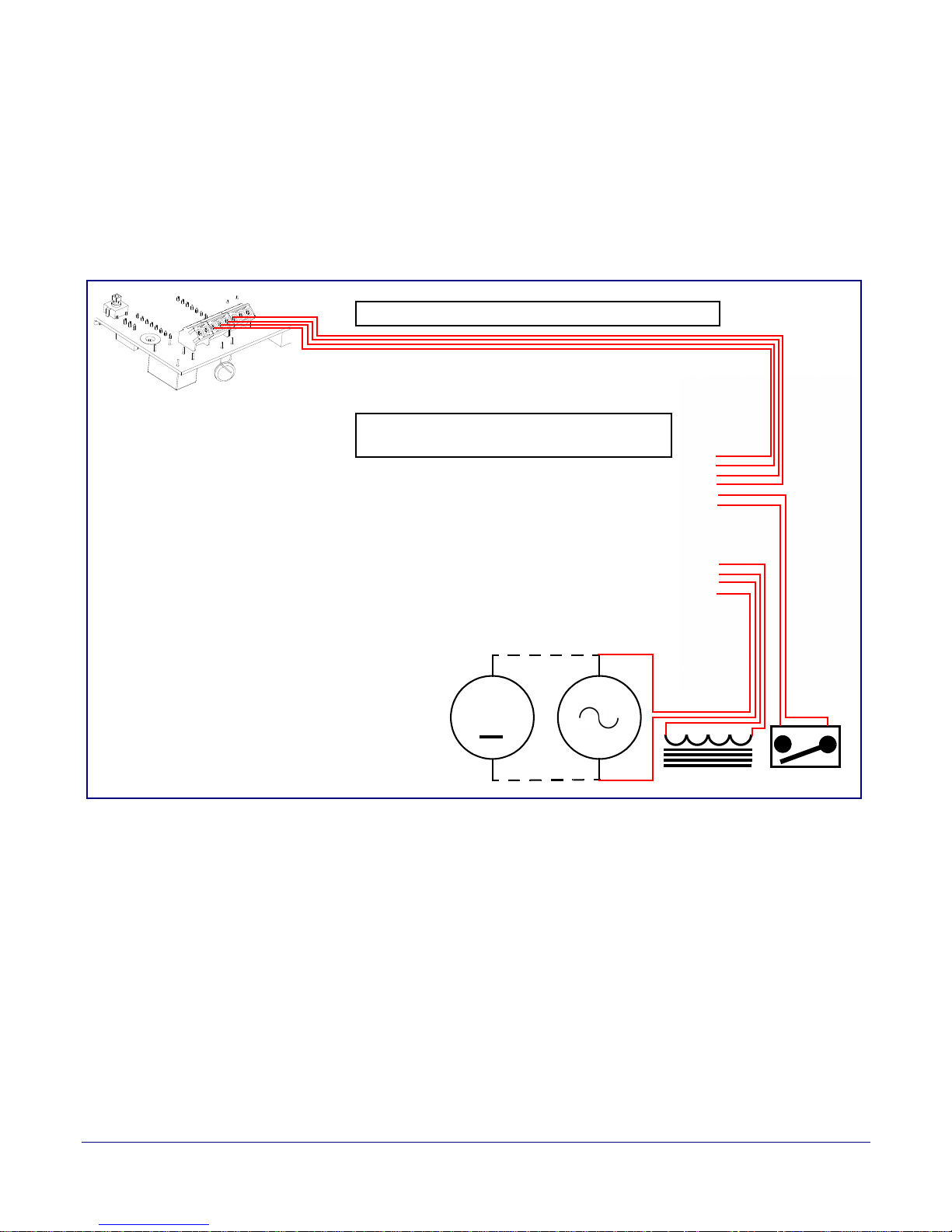

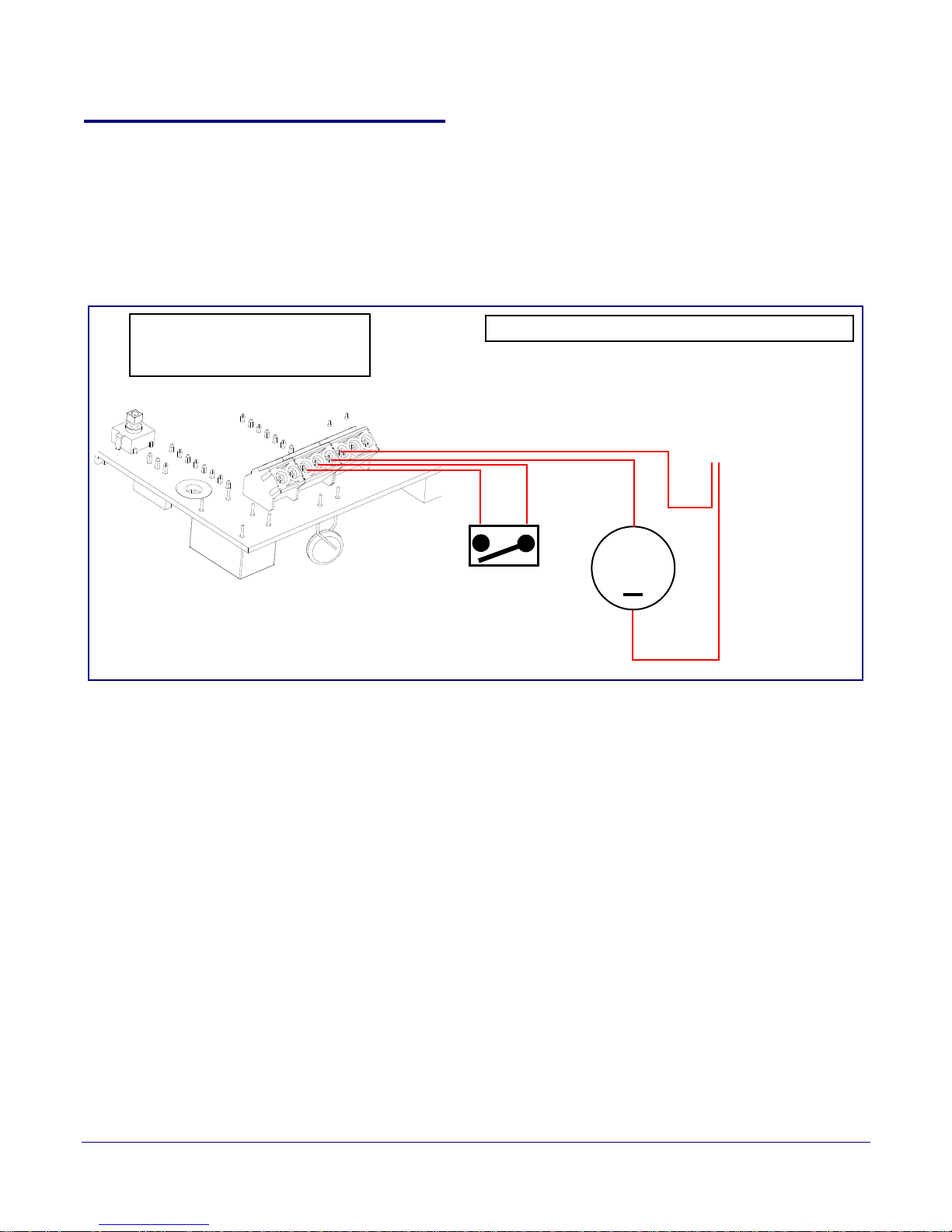

2.3.3 Wiring the Circuit ..........................................................................................................11

2.3.4 Identifying the Connector L

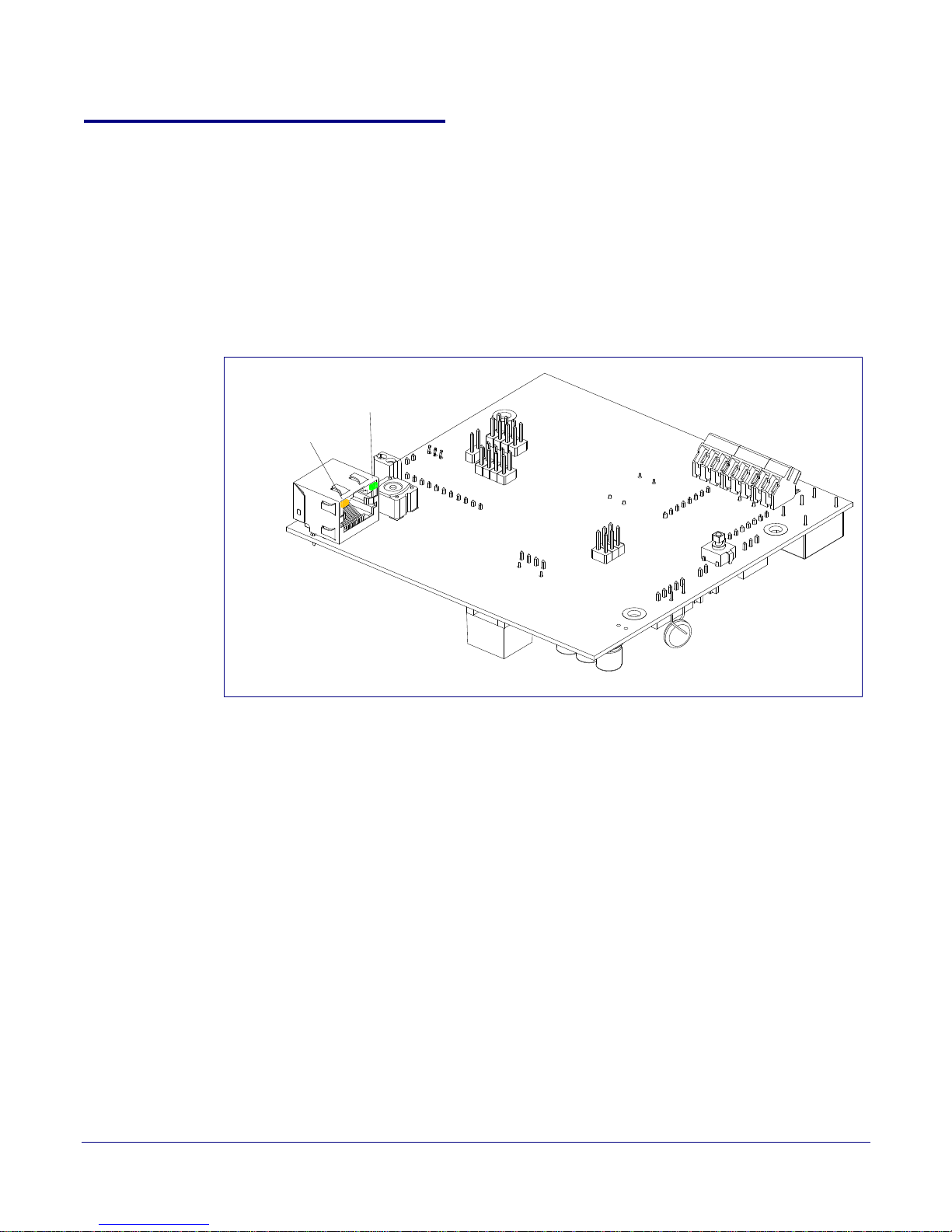

2.3.5 Activity and Link LEDs .................................................................................................16

2.3.6 RTFM Button ................................................................................................................17

2.3.7 Adj

2.4.1 Factory Default Settings ...............................................................................................19

2.4.2 Intercom Web Page Navigation ....................................................................................20

2.4.3 Using the Toggle Help Button .......................................................................................21

2.4.4 Log in to the Configuration Home Page .......................................................................23

2.4.5 Configure the Device ....................................................................................................27

2.4.6 Configure the Button Parameters .................................................................................34

2.4.7 Configure the Network Parameters .............................................................................39

2.4.8 Configure the SIP Parameters .....................................................................................42

2.4.9 Configure the Multicast Parameters .............................................................................48

2.4.10 Configure the Sensor Configuration Parameters ........................................................50

2.4.11 Configure the Audio Configuration Parameters ..........................................................53

2.4.12 Configure the Events Parameters ..............................................................................59

2.4.13 Configure the Door Strike Relay .................................................................................65

2.4.14 Configure the Device (on the DSR page) ...................................................................69

2.4.15 Configure the Autoprovisioning Parameters ...............................................................72

2.5.1 Uploading the Firmware ...............................................................................................83

2.5.2 Reboot the Device ........................................................................................................8

2.6.1 Command In

ust the Volume ........................................................................................................18

onnections ....................................................................................................9

ocations and Functions .....................................................14

terface Post Commands ..........................................................................86

i

5

Appendix A Mounting the VoIP Outdoor Intercom with Keypad 90

A.1 Mount the Intercom ................................................................................................................90

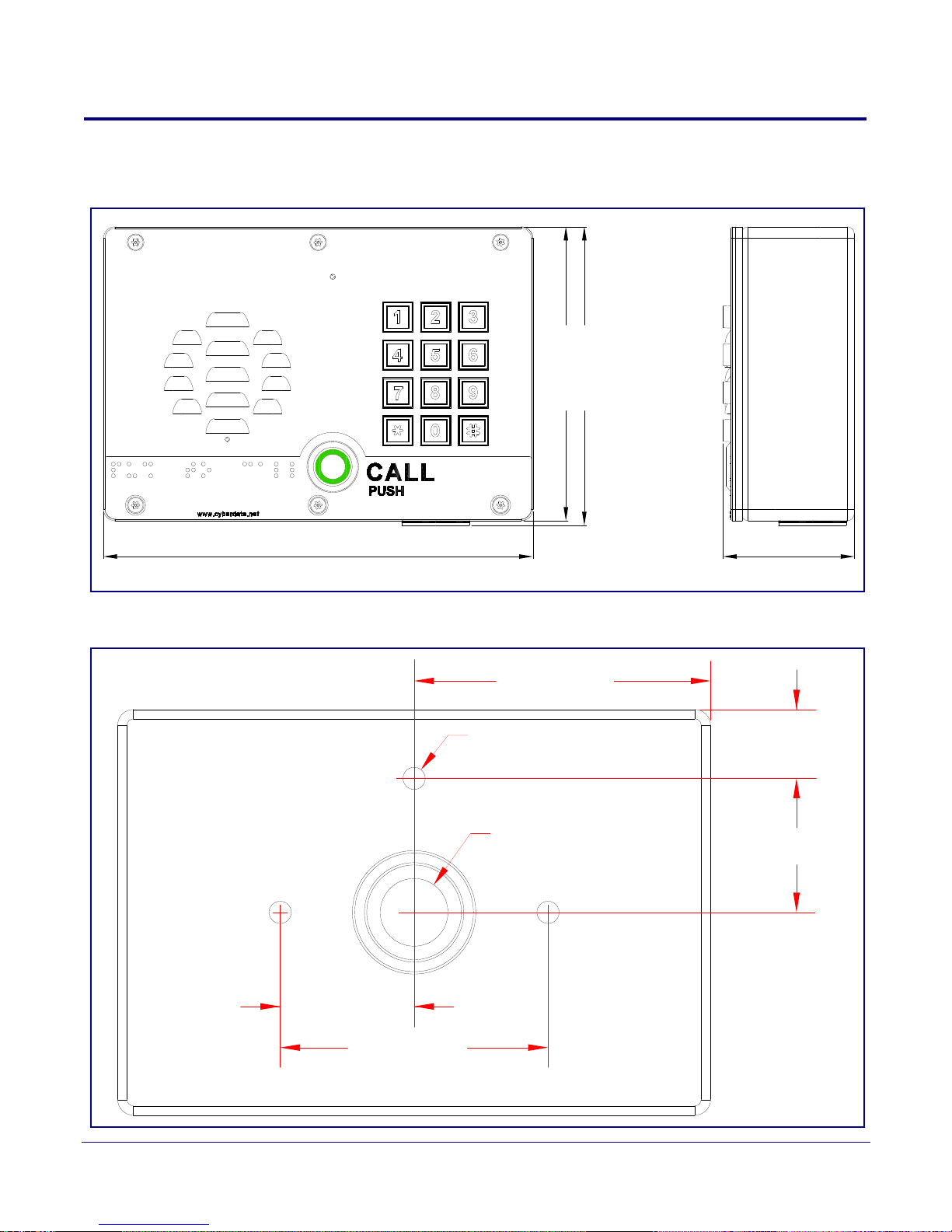

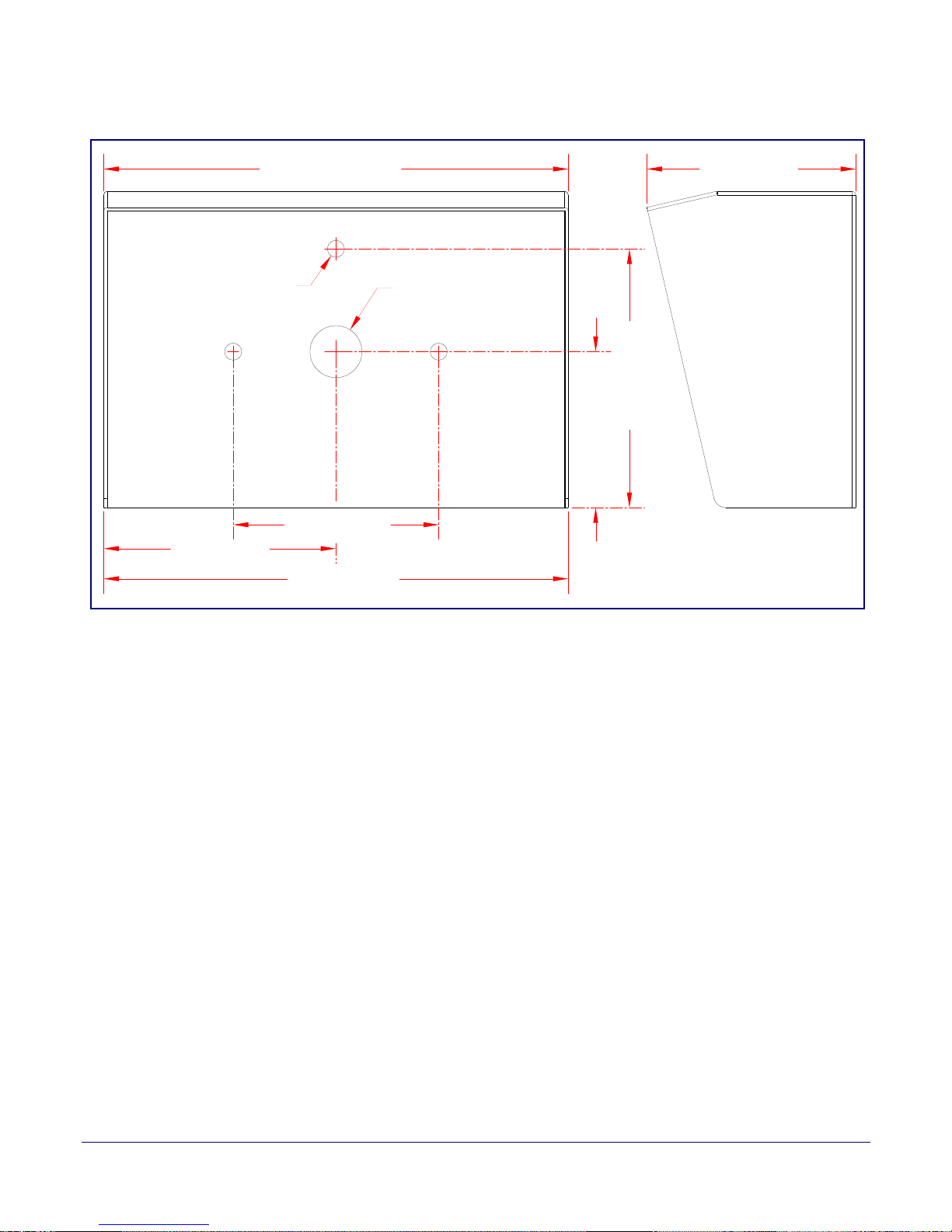

A.2 Dimensions ............................................................................................................................91

A.3 Ov

erview of Installation Types ................................................................................................95

A.4 Netw

A.5 Service Loop Cable Routing ..................................................................................................97

A.6 Secur
A.7 Additi

Operations Guide 930923B CyberData Corporation

ork Cable Entry Restrictions ..........................................................................................96

A.4.1 Rear Conduit Network Cable Entry Restrictions (without Shroud) ..............................96

A.4.2 Rear Conduit Network Cable Entry Restrictions (with Shroud) ...................................96

ing the Intercom ............................................................................................................98

onal Mounting Options ..................................................................................................99

A.7.1 Rear C

A.7.2 Concrete Wall Mounting Option (Not Provided) .........................................................100

A.7.3 Goose Neck Mounting Option (Not Provided) ............................................................101

onduit Mounting Option (Not Provided) ............................................................99

Appendix B Setting up a TFTP Server 102

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

B.1 Set up a TFTP Server ..........................................................................................................102

B.1.1 In a LINUX Environment ............................................................................................102

B.1.2 In a Windows Environment .......................................................................................102

Appendix C Troubleshooting/Technical Support 103

C.1 Frequently Asked Questions (FAQ) ......................................................................................103

C.2 Documentation .....................................................................................................................103

C

.3 Contact Information ..............................................................................................................104

C

.4 Warranty ...............................................................................................................................105

.4.1 Warranty & RMA Returns within the United States ....................................................105

C

C.4.2 Warranty & RMA Returns outside of the United States .............................................106

C.4.3 Spare in the Air Policy ................................................................................................106

C.4.4 Return and Restocking Policy ....................................................................................106

C.4.5 Warranty and RMA Returns Page .............................................................................106

Index 107

ii

Operations Guide 930923B CyberData Corporation

1 Product Overview

INTERCOM,V3 OUTDOOR KEYPAD, PoE,

SINGLEWIRE, RoHS

011310B / 021106C

Model number

WWW.CYBERDATA.NET

310100001

Serial number begins with 3101

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1.1 How to Identify This Product

To identify the Singlewire-enabled VoIP Outdoor Intercom with Keypad, look for a model number
label similar to the one shown in Figure 1-1. Confirm the following:

• The model number on the label should be 011310.

• The serial number on the label should begin with 3101.

Figure 1-1. Model Number Label

1

Operations Guide 930923B CyberData Corporation

1.2 Typical System Installation

Intercom

802.3af Compliant Ethernet Switch

IP Phone IP PBX Server

1234 56

Door Strike

Door Strike Intermediate
Relay Module

Intercom

802.3af Compliant Ethernet Switch

IP Phone IP PBX Server

1234 56

Door Strike

Networked Door Strike
Intermediate Relay Module

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Singlewire-enabled Voice-over-IP (VoIP) Intercom is a Power-over-Ethernet (PoE 802.3af) and
VoIP two-way communications device that easily connects into existing local area networks (LANs)
with a single cable connection. The intercom is compatible with most SIP-based IP PBX servers that
comply with SIP RFC 3261.

The following figures illustrate how the VoIP Outdoor Intercom with Keypad can be installed as part
of a V

oIP phone system.

Figure 1-2. Typical Installation—Door Strike Intermediate Relay Module

Product Overview

Typical System Installation

2

Figure 1-3. T

ypical Installation—Networked Door Strike Intermediate Relay Module

Operations Guide 930923B CyberData Corporation

1.3 Product Features

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Singlewire-enabled VoIP Outdoor Intercom with Keypad has the following features:

• InformaCast compliant

• InformaCast CK compliant

• 12-key keypad with backlight

• Programmable speed dial

• Optional Weather Shroud for even greater weather protection

• Supports SRST (Survivable Remote Site Telephony) in a Cisco environment. SRST parameters
r

e entered statically into the CyberData product's internal webpage.

a

•SIP

• Dual speeds of 10 Mbps and 100 Mbps

• 802.3af compliant

• 2 gang outlet box size

• Adaptive full duplex voice operation

• Network/Web management

• Network adjustable speaker volume adjustment

• Network configurable door or intrusion sensor settings

• Network configurable relay activation settings

• Dial Out Extension supports the addition of comma delimited pauses before sending additional

DTMF tones

• Network configurable microphone input sensitivity adjustment

• Network downloadable product firmware

• Doubles as a paging speaker

• Call button

• Call activity indicator (light)

• Tamper proof design

• One dry contact relay for auxiliary control

• Autoprovisioning

• Configurable audio files

• Night Ringer

• Peer-to-peer capable

• Door closure and tamper alert signal

• Optional Torx screws with driver kit

• An active call is indicated by the Call Button LED blinking at one second intervals.

Product Overview

Product Features

3

Operations Guide 930923B CyberData Corporation

1.4 Supported Protocols

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Intercom supports:

•SIP

• HTTP Web-based configuration

• Provides an intuitive user interface for easy system configuration and verification of Intercom

ations.

oper

• DHCP Client

• Dynamically assigns IP addresses in addition to the option to use static addressing.

• TFTP Client

• Facilitates hosting for the Autoprovisioning configuration file.

•RTP

• RTP/AVP - Audio Video Profile

• Audio Encodings

PCMU (G.711 mu-law)
PCMA (G.711 A-law)
Packet Time 20 ms

Product Overview

Supported Protocols

4

1.5 Supported SIP Servers

The following link contains information on how to configure the device for the supported SIP servers:

http://www.cyberdata.net/support/server/index.html

Operations Guide 930923B CyberData Corporation

1.6

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Product Specifications

Category Specification

Output 1 Watt Peak Po wer
Ethernet I/F 10/100 Mbps
Protocol SIP RFC 3261 Compatible
Power Input PoE 802.3af compliant or 8 to 12 VDC at 1000 mA
Operating Temperature -40° C to +55° C (-40° F to 131° F)
Payload Types G711, A-law and µ-law
Regulatory Compliance FCC Class A, UL 60950
Dimensions 6.5” x 4.5” x 1.5” (H x W x D)
Warranty 2 years limited
Part Number 011310

011215 Weather Shroud (sold separately)

Table 1. Product Specifications

Product Overview

Product Specifications

5

Auxiliary Relay 1A at 30 VDC

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Parts List

2 Installing the VoIP Outdoor Intercom with
Keypad

2.1 Parts List

Table 2-1 illustrates the parts for the VoIP Outdoor Intercom with Keypad.

Note See Appendix A, "Mounting the VoIP Outdoor Intercom with Keypad" for

physical mounting information.

Table 2-1. Parts List

6

Quantity P

1 VoIP Outdoor Intercom with Keypad Assembly

1 Installation Quick Reference Guide

1 Mounting Accessory Kit

art Name Illustration

Operations Guide 930923B CyberData Corporation

2.2 Intercom Components

Call Button

Microphone Hole

Speaker Drain Hole

See Section 2.2.1, "Call Button

and Call Button LED" for 

information about the functionality
of the Call Button.

Keypad

See Section 2.2.2, "Dialing from

the Keypad" for 

information about the functionality
of the keypad.

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Figure 2-1 shows the components of the Intercom.

Figure 2-1. Intercom Components

Installing the VoIP Outdoor Intercom with Keypad

Intercom Components

7

Operations Guide 930923B CyberData Corporation

2.2.1 Call Button and Call Button LED

Call button and Call Button LED

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.2.1.1 Call Button LED Function

• Upon initial power or reset, the Call Button LED will illuminate.

• During network setup the Call Button LED will blink 10 times per second until the de vice can find

ork address. This can take from 5 to 60 seconds.

a netw

• The device “autoprovisions” by default, and the initial process may take several minutes as the

d

vice searches for and downloads updates. The Call Button LED will blink during this process.

e

During the initial provisioning, or after the factory defaults have been reset, the device may
download firmware twice. The device will blink, remain solid for 10 to 20 seconds, and then
resume blinking. This process will take longer if there are many audio files downloading.

• When the software has finished initialization, the Call Button LED will blink twice.

• When a call is established (not just ringing), the Call Button LED will blink.

• On the De

Idle. This option sets the normal state for the Call Button LED. The Call Button LED will still blink
during initialization and calls.

• The Call Button LED flashes briefly at the beginning of RTFM mode.

vice Conf

iguration Page, there is an option called Button and Keypad Lit when

Installing the VoIP Outdoor Intercom with Keypad

Intercom Components

8

Figure 2-2. Call Button and Call Button LED

2.2.2 Dialing from the Keypad

• See the Enable Telephone Operation setting in Section 2.4.6, "Configure the Button

Parameters".

Operations Guide 930923B CyberData Corporation

2.3 Intercom Setup

GENERAL ALERT

J3 Terminal Block

Wire (IN)

can accept 16 AWG wire

*Contacts 1 and 2 on the J3 terminal block are only for
powering the Intercom from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
Intercom and void the product warranty.

Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground

2 = Power Ground*

1 = 8 to 12 VDC at 1000 mA*

3

4

Alternate Power Input:

7 = Reserved for Future Use
8 = Reserved for Future Use

1

8

Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.3.1 Intercom Connections

Figure 2-3 shows the pin connections on the J3 (terminal block). This terminal block can accept 

16 AWG gauge wire.
Note As an alternative to using PoE power, you can supply 8 to 12 VDC at 1000 mA into the

terminal block.

Caution

Equipment Hazard: Contacts 1 and 2 on the J3 terminal block are only for

powering the Intercom from a non-PoE 12 VDC power source as an alternative to
Network PoE power. Use of these contacts for any other purpose will damage the
Intercom and void the product warranty.

Figure 2-3. Intercom Connections

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

9

Operations Guide 930923B CyberData Corporation

2.3.2 Using the On-Board Relay

GENERAL ALERT

GENERAL ALERT

GENERAL ALERT

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Warning

Electrical Hazard: This product should be installed by a licensed electrician

according to all local electrical and building codes.

Warning

Electrical Hazard: The relay contacts are dry and provided for a normally open

and momentarily closed configuration. Neither the alternate power input nor PoE
power can be used to drive a door strike.

Warning

Electrical Hazard: The relay does not support AC powered door strikes.

Any use of this relay beyond its normal operating range
product and is not covered under our warranty policy.

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

can cause damage to the

10

The device has a built-in relay that can be activated by a web configurable DTMF string that can be
received from a VoIP phone supporting out of band (RFC2833) DTMF as well as a number of other
triggering events. See the Device Configuration Page on the web interface for relay settings.

This relay can be used to trigger low current devices like strobes and security camera input signals
as long

as the load is not an inductive type and the relay is limited to a maximum of 
1 Amp @ 30 VDC. Inductive loads have caused excessive “hum” and can interfere with the unit’s
electronics

We highly recommend that inductive load and high current de

.

vices use our Door Strike Intermediate
Relay product (CD# 011269) (see Section 2.3.3.2, "Connecting the Door Strike Intermediate Relay

Module").

This relay interface also has a general purpose input port that can be used to monitor an external
switch and generate an e

vent.

For more information on the sensor options, see the Sensor Configuration Page on the web
interface.

Operations Guide 930923B CyberData Corporation

2.3.3 Wiring the Circuit

DC Source

+

1 A @ 30 VDC

Sense Input

Strobe Light

J3 Terminal Block of the CyberData Device

1

8

1

8

The J3 terminal block can accept 16 AWG stranded wire.

Pin 3 - Relay Common
Pin 4 - Relay Normally Open Contact
Pin 5 - Sense Input
Pin 6 - Sense Ground

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.3.3.1 Devices Less than 1A at 30 VDC

If the power for the device is less than 1A at 30 VDC and is not an inductive load, then see

Figure 2-4 for the wiring diagram.

Figure 2-4. Wiring Diagram

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

11

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

Door Lock Sense Input

The J3 terminal block can accept 16 AWG stranded wire.

DC Source

AC Source

OR

+

1

8

J3 Terminal Block

Please refer to the Door Strike Intermediate Relay
Operations Guide for connection specifics.

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.3.3.2 Connecting the Door Strike Intermediate Relay Module

For wiring an electronic door strike, we recommend the use of our external Door Strike Intermediate
Relay (CD# 011269).

This product provides an easier method of connecting standard door strikes as well as AC and
hi

gher voltage devices. See Figure 2-5 for the wiring diagram.

Figure 2-5. Wiring Diagram

Intercom Setup

12

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

Door Lock

Sense Input

DC Source

AC Source

OR

+

802.3af Compliant Ethernet Switch

CyberData

Aux Button

Device

See Section 2.4.13, "Configure the Door Strike

Relay" for configuration options.

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.3.3.3 Connecting the Networked Door Strike Intermediate Relay

For wiring an electronic door strike to work over a network, we recommend the use of our external
Networked Door Strike Intermediate Relay (CD# 011270).

This product provides an easier method of connecting standard door strikes as well as AC and
hi

gher voltage devices. See Figure 2-6 for the wiring diagram.

Figure 2-6. Wiring Diagram

Intercom Setup

13

please contact our support department.

If you have questions about connecting door strikes or setting up the w

eb configurable options,

http://www.cyberdata.net/support/voip/index.html

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

JP1

J1

J5

J12

J4

J3

SW1

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

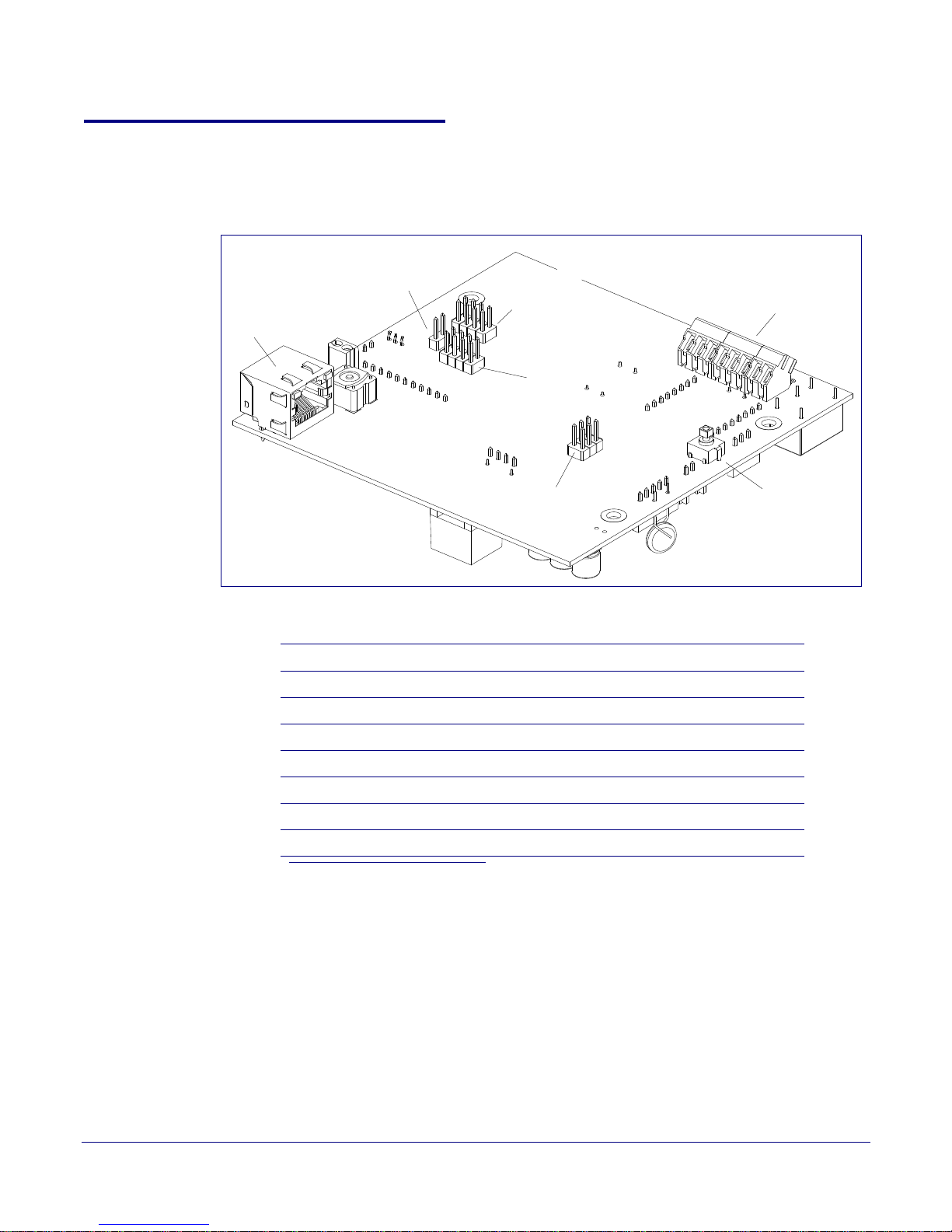

2.3.4 Identifying the Connector Locations and Functions

See the following figures and tables to identify the board connector locations and functions.

Figure 2-7. Connector Locations

Intercom Setup

14

Table 2-2. Connector Functions

Connector Function

J1 PoE Network Connection (RJ-45 ethernet)
J3 Terminal Block (see Figure 2-3)
J4 Console Port (Factory Use Only)
J5 JTAG (Factory Use Only)
J12 Reserved (Factory Use Only)
JP1 Reset jumper
SW1 See Section 2.3.6, "RTFM Button"

a.Do not install a jumper. Momentary short to reset. Permanent installation
of a jumper would prevent the board from running all together.

a

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

J9

J7

J6

J2

J8

JP10

J10

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

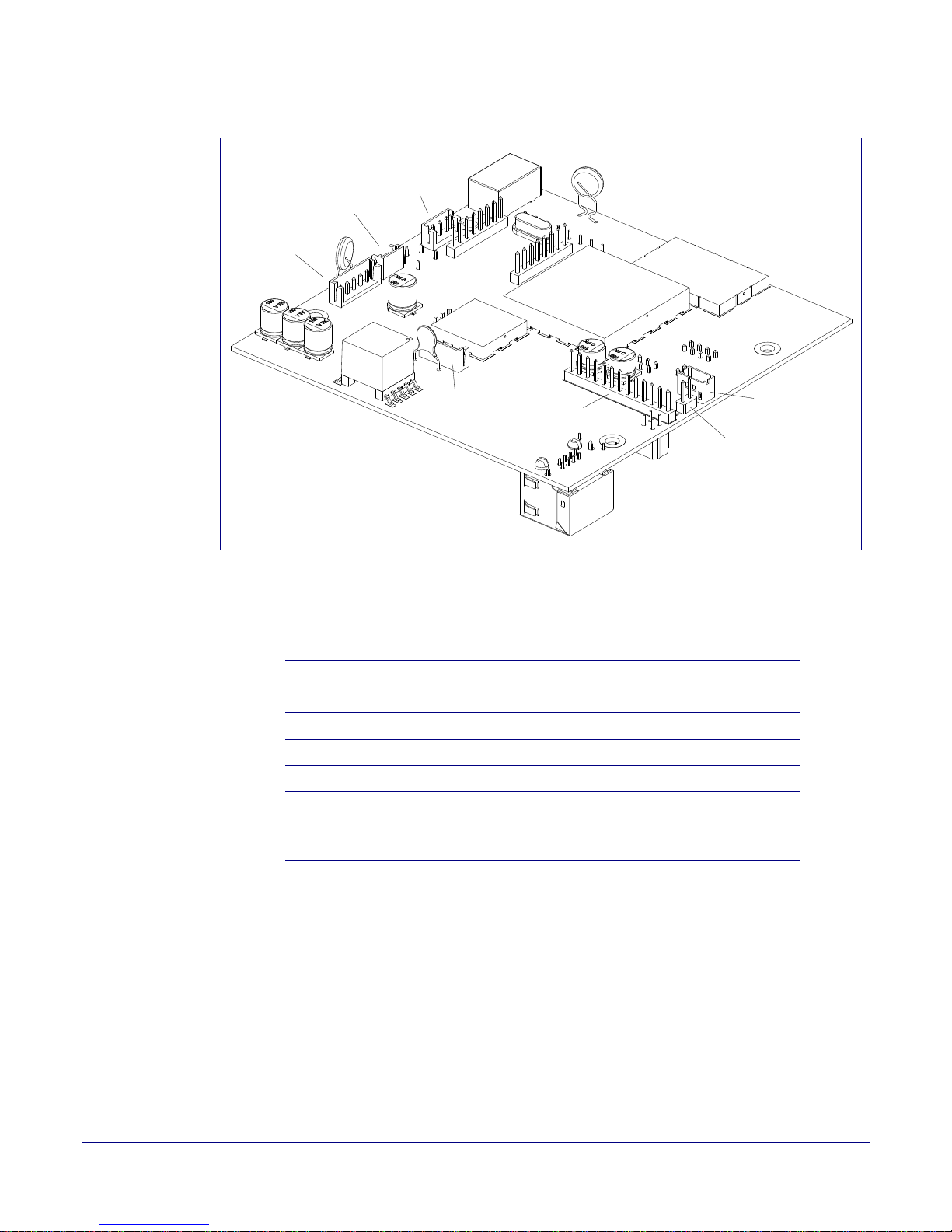

Figure 2-8. Connector Locations

Intercom Setup

15

Table 2-3. Connector Functions

Connector Function

J2 Call Button LED Interface
J6 Microphone Interface
J7 Speaker Interface
J8 Keypad Interface
J9 Auxiliary Strobe Con nector — Not Used
J10 Proximity Sensor Interface — Not Used
JP10 Disables the intrusion sensor when installed.

Note: Placing a jumper on JP10 will disable the intrusion
detection circuit.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

Activity

Link

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

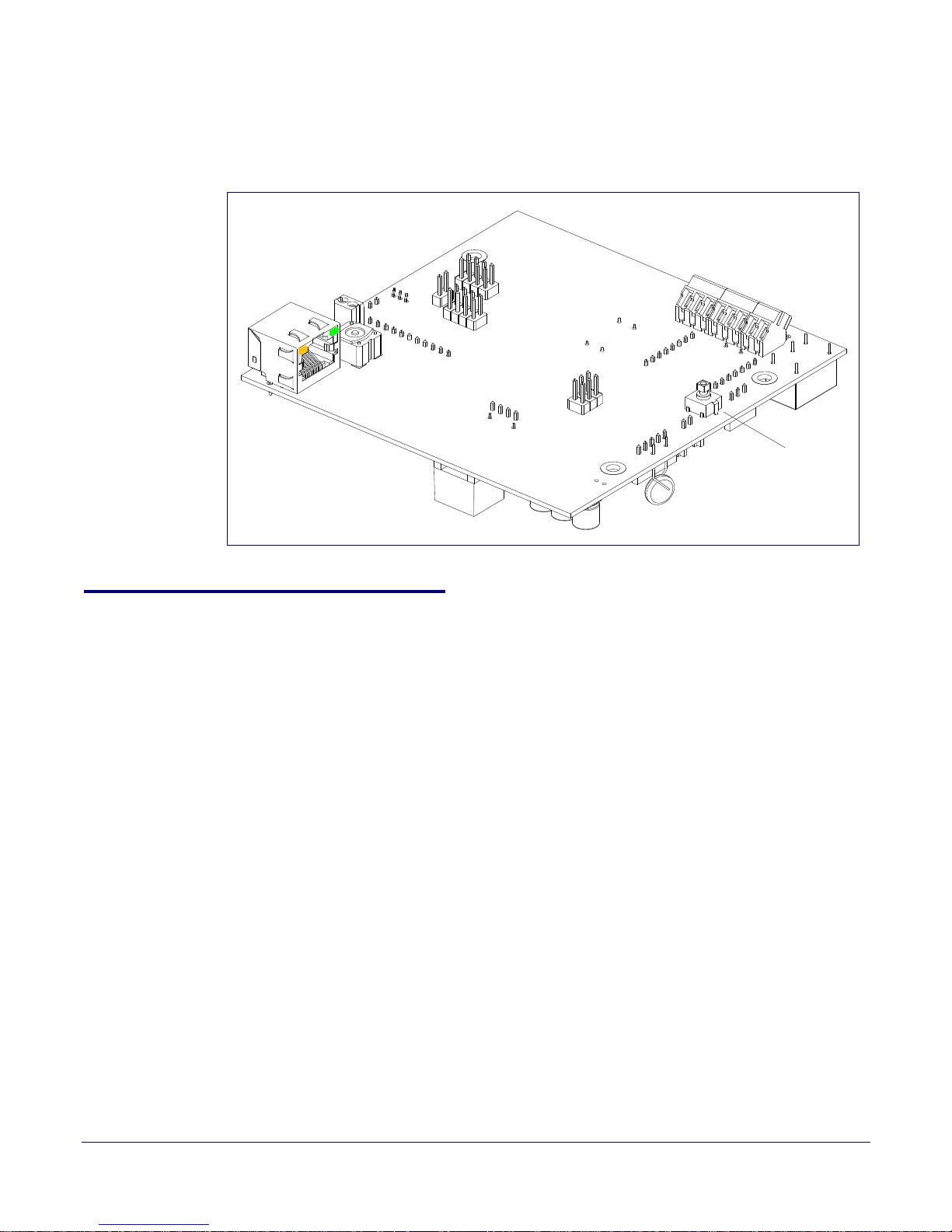

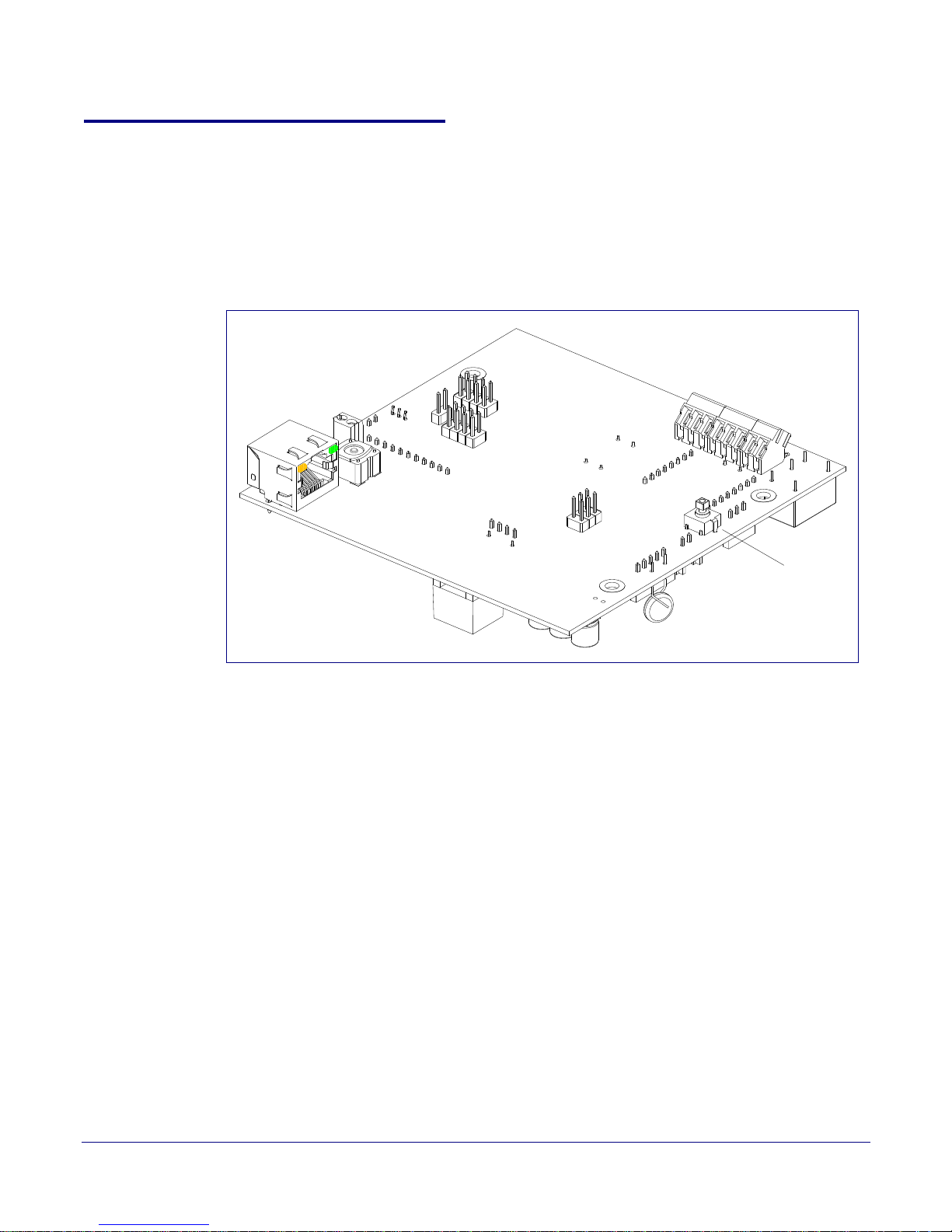

2.3.5 Activity and Link LEDs

2.3.5.1 Verifying the Network Connectivity and Data Rate

When you plug in the Ethernet cable or power supply to the Intercom, the following occurs:

• The square, YELLO

• The square, GREEN
has been established (see Figure 2-9).

W Activity LED blinks when there is network activity (see Figure 2-9).

Link LED above the Ethernet port indicates that the network connection

Figure 2-9. Activity and Link LED

Intercom Setup

16

Operations Guide 930923B CyberData Corporation

2.3.6 RTFM Button

SW1

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

When the Intercom is operational and linked to the network, use the Reset Test Function
Management (RTFM) button (see SW1 in Figure 2-10) on the Intercom board to announce and
confirm the Intercom’s IP Address and test that the audio is working.

Note You must do this test prior to final assembly.

Installing the VoIP Outdoor Intercom with Keypad

Figure 2-10. RTFM Button

Intercom Setup

17

2.3.6.1 Announcing the IP Address

To announce a device’s current IP address:

1. Press and release the RTFM button (SW1) within a five second window.

Note The device will use DHCP to obtain the new IP address

to 10.10.10.10 if a DHCP server is not present).

Note Pressi

ng and holding the RTFM button for longer than five seconds will restore the device to

the factory default settings.

(DHCP-assigned address or default

2.3.6.2 Restoring the Factory Default Settings

When troubleshooting configuration problems, it is sometimes convenient to restore the device to a
known state.

Note Each Intercom is delivered with factory set default values.
To restore the factory default settings:

1. Press and hold the RT

2. The device announces that it is restoring the factory default settings.

Operations Guide 930923B CyberData Corporation

FM button (SW1) for more than five seconds.

Installing the VoIP Outdoor Intercom with Keypad

SW1

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Note The device will use DHCP to obtain the new IP address (DHCP-assigned address or default

to 10.10.10.10 if a DHCP server is not present).

Figure 2-11. RTFM Button

18

2.3.7 Adjust the Volume

You can adjust the volume through the Device Configuration Page.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.4 Configure the Intercom Parameters

To configure the Intercom online, use a standard web browser.

Intercom Setup

19

Configure each Intercom and verify its operation before y
an Intercom, refer to

Appendix A, "Mounting the VoIP Outdoor Intercom with Keypad" for instructions.

2.4.1 Factory Default Settings

All Intercoms are initially configured with the following default IP settings:
When configuring more than one Intercom, attach the Intercoms to the network and configure one at

a time to av

Parameter Factory Default Setting

IP Addressing DHCP
IP Address
Web Access Username admin
Web Access Password admin
Subnet Mask
Default Gateway

a. Default if there is not a DHCP server present.

oid IP address conflicts.

a

a

a

ou mount it. When you are ready to mount

Table 2-4. Factory Default Settings

10.10.10.10

255.0.0.0

10.0.0.1

Operations Guide 930923B CyberData Corporation

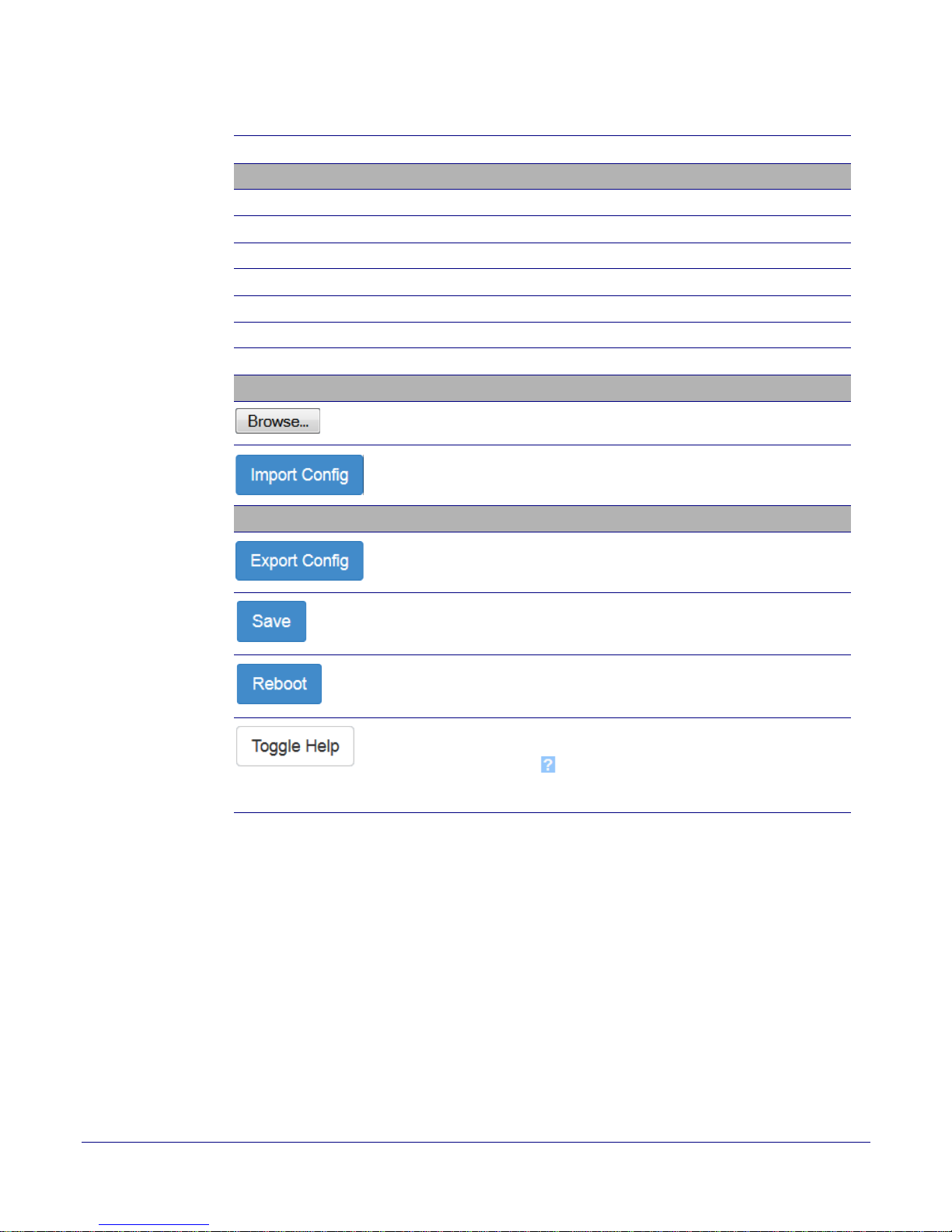

2.4.2 Intercom Web Page Navigation

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Table 2-5 shows the navigation buttons that you will see on every Intercom web page.

Table 2-5. Web Page Navigation

Web Page Item Description

Installing the VoIP Outdoor Intercom with Keypad

Link to the Home page.

Link to the Device page.

Intercom Setup

20

Link to the Buttons page

Link to the Network p

Link to go to the SIP page.

Link to the Multicast page.

Link to the Sensor page.

Link to the Audiofiles page.

Link to the Events page.

Link to the Door Strike Relay pa

Link to the Auto

provisioning page.

.

age.

ge.

Link to the Firmware page.

Operations Guide 930923B CyberData Corporation

2.4.3 Using the Toggle Help Button

Toggle Help button

Question mark 
appears next to the
web page items

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Toggle Help button allows you to see a short description of some of the settings on the
webpage. To use the Toggle Help button, do the following:

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

21

1. Click on the Tog

gle Help button that is on the UI webpage. See Figure 2-12 and Figure 2-13.

Figure 2-12. Toggle/Help Button

2. You will see a question mark (

) appear next to each web page item that has been provided

with a short description by the Help feature. See Figure 2-13.

Figure 2-13. Toggle Help Button and Question Marks

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

A short description of the 
web page item will appear

Question mark

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

3. Move the mouse pointer to hover o v er the question mark ( ), and a short description of the web
page item will appear. See Figure 2-14.

Figure 2-14. Short Description Provided by the Help Feature

22

Operations Guide 930923B CyberData Corporation

2.4.4 Log in to the Configuration Home Page

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Open your browser to the Intercom IP address.

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

23

Note If the network does not hav

e access to a DHCP server, the device will default to an IP

address of 10.10.10.10.

Note Make sure that the PC is on the same IP network as the Intercom.
Note You may also

download CyberData’s VoIP Discovery Utility program which allows you to

easily find and configure the default web address of the CyberData VoIP products. 



CyberData’s VoIP Discovery Utility program is available at the following website address:

http://www.cyberdata.net/support/voip/discovery.html

Note The Intercom ships in DHCP mode. To get to the Home page, use the discovery utility to

scan for the device on the network and open your browser from there.

2. When prompted, use the following default Web Acc

ess Username and Web Access

Password to access the Home Page (Figure 2-15):

Web Access Username: admin
Web Access Password: admin

Operations Guide 930923B CyberData Corporation

Figure 2-15. Home Page

310100452

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

24

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

3. On the Home page, review the setup details and navigation buttons described in Table 2-6.

25

Note The question mark icon (

after the Toggle Help bu

) in the following table shows which web page items will be defined

tton is pressed.

Table 2-6. Home Page Overview

Web Page Item

Admin Settings

Username The username to access the web interface. Enter up to 25 characters.
Password
Confirm Password

Current Status

Serial Number Shows the device serial number.
Mac Address Shows the device Mac address.
Firmware Version Shows the current firmware version.
IP Addressing Shows the current IP addressing setting (DHCP or st

IP Address Shows the current IP address.
Subnet Mask Shows the current subnet mask address.
Default Gateway Shows the current default gateway address.
DNS Server 1 Shows the current DNS Server 1 address.

Description

The password to access the web interface. Enter up to 25 characters.
Confirm the web interface password.

atic).

DNS Server 2 Shows the current DNS Server 2 address.
SIP Volume Shows the current SIP volume level.
Multicast Volume Shows the current Multicast volume level.
Ring Volume Shows the current Ring volume level.
Sensor Volume Shows the current Sensor volume le vel.
Volume Boost Shows the current Volume Boost level.
Microphone Gain Sho ws the current microphone gain level.
SIP Mode Shows the current status of the SIP mode.
Multicast Mode Shows the current status of the Multicast mode.
Event Reporting Shows the current status of the Event Reporting mode.
Nightringer Shows the current status of the Nightringer mode.
Primary SIP Server Shows the current status of the Primary SIP Server.
Backup Server 1 Shows the current status of Backup Server 1.
Backup Server 2 Shows the current status of Backup Server 2.
Nightringer Server Shows the current status of Nightringer Server.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Table 2-6. Home Page Overview (continued)

Web Page Item Description

Singlewire Settings

Boot Time Shows the boot time.
Current Time Shows the current time.
IC Servers Shows the InformaCast server IP addresses.
Configuration File Shows the configuration file.
B’casts Accepted Shows the number of B’casts accepted.
B’casts Rejected Sho ws the number of B’casts rejected.
B’casts Active

Shows the number of active B’casts.

Import Settings

Use this button to select a configuration file to import.

After selecting a configuration file, click Import to import the
configuration from the selected file. Then, click Save and Reboot to
store changes.

Export Settings

Intercom Setup

26

Click Export to export the current configuration to a file.

Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of
the web page items. First click on the Toggle Help button, and you will
see a question mark (

) appear next to some of the web page items.
Move the mouse pointer to hover over a question mark to see a short
description of a specific web page item.

Operations Guide 930923B CyberData Corporation

2.4.5 Configure the Device

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Click the Device menu button to open the Device page. See Figure 2-16.

Figure 2-16. Device Configuration Page

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

27

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

2. On the Device page, you may enter values for the parameters indicated in Table 2-7.

28

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-7. Device Configuration Parameters

Web Page Item Description

Volume Settings (0-9)

SIP Volume Set the speaker volume for a SIP call. A value of 0 will mute the

speaker during SIP calls.

Multicast Vo lume

Set the speaker volume for multicast audio streams. A v alue of 0 will
mute the speaker during multicasts.

Ring Volume

Set the ring volume for incoming calls. A value of 0 will mute the
speaker instead of playing the ring tone when Auto-Answer Incoming
Calls is disabled.

Sensor Volume

Set the speaker volume for playing sensor activ ated audio. A v alue of

0 will mute the speaker during sensor activated audio.
Microphone Gain
Volume Boost:

No Volume Boost
Volume Boost 1
Volume Boost 2
Volume Boost 3

Set the microphone gain level.

Set the Boost level to increase the volume output of the speaker.

Using Volume Boost ma y introduce audio clips or cause the device to

drop from full duplex to half duplex operation.

Normal operation of the product can be met with volume levels 0

through 9. 0 being mute and 9 being the loudest volume that in a

normal arm's length and average background noise, will enable full

duplex operation and give the best quality of sound output.

The volume boost options increase the output of the speaker by:

3db for Boost level 1

6db for Boost level 2

9db for Boost level 3

If the user would like a higher output from the speaker, the Boost

settings are available. However, operation in Boost Mode may

overdrive or clip the audio if, for example, the phone that is

connected has a high microphone gain or if the person has a loud

voice talking too close to the microphone.

The acoustic echo canceller also has a harder time maintaining full

operation when in the Boost Mode. The product may drop

duplex

from full duplex operation into half/duplex mode while in Boost

Mode.

Contact CyberData support for additional information if needed.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-7. Device Configuration Parameters (continued)

Web Page Item Description

Relay Settings

Activate Relay with DTMF Code Activates the relay when the DTMF Activ ation Code is entered on the

phone during a SIP call with the device. RFC2833 DTMF payload

types are supported.
DTMF Activation Code

Activation code used to activate the relay when entered on a phone

during a SIP call with the device. Activate Relay with DTMF Code

must be enabled. Enter up to 25 digits 

(* and # are supported).
DTMF Activation Duration (in seconds)

The length of time (in seconds) during which the relay will be

activated when the DTMF Activation Code is detected. Enter up to 5

digits.

NOTE: A DTMF activation duration of 0 will toggle the relay

tely or until the activation code is sent again

indefini
Play tone during DTMF Activation

When selected, the device will play a tone out of the speaker upon

DTMF relay activation. The tone plays for the DTMF Activation

Duration (in seconds).
Activate Relay During Ring

When selected, the relay will be activated for as long as the device is

ringing. When Auto-Answer Incoming Calls is enabled, the device will

not ring and this option does nothing.
Activate Relay During Night Ring

When selected, the relay will be activated as long as the Nightringer

extension is ringing.
Activate Relay While Call Active

When selected, the relay will be activated as long as the SIP call is

active.

29

Activate Relay on Button Press

When selected, the relay will be activated when the Call button is

pressed.
Relay on Button Press Duration

The length of time (in seconds) during which the relay will be

activated when the Call button is pressed. Enter up to 5 digits. A

Relay on Button Press Duration value of 0 will pulse the relay once

when the Call button is pressed.

Clock Settings

Set Time with NTP Server on boot When selected, the time is set with an external NTP server when the

device restarts.
NTP Server

Use this field to set the address (in IPv4 dotted decimal notation or

as a canonical name) for the NTP Server. This field can accept

canonical names of up to 64 characters in length.
Posix Timezone String

See Section 2.4.5.1, "Time Zo ne Strings" for information about how

to use the Posix Timezone String to specify time zone and daylight

saving

s time where applicable. Enter up to 63 characters.

Periodically sync time with server

When selected, the time is periodically updated with the NTP server

at the configured interval below.
Time update period (in hours)

The time interval after which the device will contact the NTP server to

update the time. Enter up to 4 digits.
Current Time Allows you to input the current time. (6 character

limit)

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Table 2-7. Device Configuration Parameters (continued)

Web Page Item Description

Misc Settings

Device Name Type the device name. Enter up to 25 characters.
Auto-Answ er Incoming Calls

Button Lit When Idle

When selected, the device will automatically answer incoming calls.

When Auto-Answer Incoming Calls is disabled, the device will play a

ring tone (corresponds to Ring Tone on the Audiofiles page) out of

the speaker until someone presses the Call button to answer the call

or the caller disconnects before the call can be answered.

When selected, the Call button LED is illuminated while the device is

idle (a call is not in progress).

Intercom Setup

30

Button Brightness (0-255)

Play Ringback Tone

Disable HTTPS (NOT recommended)

The desired Call button LED brightness level. Acceptable values are

0-255, where 0 is the dimmest and 255 is the brightest. Enter up to

three digits.

When selected, the device will play a ringback tone (corresponds to

Ringback Tone on the Audiofiles page) out of the speaker while

placing an outbound call. The Ringback Tone will play until the call is

answered.

Disables the encrypted connection to the webpage. We do not

recommend disabling HTTPS for security reasons.

Click on the Test Audio button to do an audio test. When the Test

Audio button is pressed, you will hear a voice message for testing

the device audio quality and volume.

Click on the T est Micr ophone b utton to do a microphone test. When

the Test Microphone button is pressed, the following occurs:

1. The device will immediately start recording 3 seconds of audio.

2. The device will beep (indicating the end of recording).

3. The device will play back the recorded audio.

Click on the Test Relay button to do a relay test.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the T ogg le Help button to see a short description of some of

the web page items. First click on the Toggle Help button, and you

will see a question mark (

items. Move the mouse pointer to hover over a question mark to see

a short

description of a specific web page item.

) appear next to some of the web page

Note You can change the SIP Volume, Multicast Volume, Ring Volume, Sensor Volume, and

Microphone Gain without rebooting the device. You must save and reboot the device for

other changes to take effect.

Operations Guide 930923B CyberData Corporation

2.4.5.1 Time Zone Strings

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The posix time zone string tells the internal date and time utilities how to handle daylight savings
time for different time zones. Table 2-8 shows some common strings.

Time Zone Time Zone String

US Pacific time PST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00
US Mountain time MST7MDT,M3.2.0/2:00:00,M11.1.0/2:00:00
US Eastern Time EST5EDT,M3.2.0/2:00:00,M11.1.0/2:00:00
Phoenix Arizona
US Central Time CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

a.Phoenix, Arizona does not use daylight savings time.

Table 2-9 shows a breakdown of the parts that constitute the following time zone string:

● CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

31

Table 2-8. Common Time Zone Strings

a

MST7

Table 2-9. Time Zone String Parts

Time Zone String

Meaning

Part

CST6CDT The time zone offset from GMT and three character identifiers for the time zone.
CST Central Standard Time
6 The (hour) offset from GMT/UTC
CDT
M3.2.0/2:00:00 The date and time when daylight savings begins.
M3 The third month (March)
.2 The 2nd occurrence of the day (next item) in the month
.0 Sunday
/2:00:00
M11.1.0/2:00:00 The date and time when daylight savings ends.
M11 The eleventh month (November)
.1 The 1st occurrence of the day (ne
.0 Sunday
/2:00:00 Time of day to change

Central Daylight Time

Time of day to change

xt item) in the m

onth

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

32

Time Zone String
Examples

Time Zone Identifier

Table 2-10 has some more examples of time zone strings.

Table 2-10. Time Zone String Examples

Time Zone Time Zone String

a

Tokyo
Berlin

b

IST-9
CET-1MET,M3.5.0/1:00,M10.5.0/1:00

a.Tokyo does not use daylight savings time.
b.For Berlin, daylight savings time starts on the last Sunday in March at
01:00 UTC, and ends on the last Sunday in October at 01:00 UTC, and is one
hour ahead of UTC.

A user-definable three or four character time zone identifier (such as PST, EDT, IST, MUT, etc) is
needed at the beginning of the posix time zone string to properly set the time. However, the specific
letters or numbers used for the time zone identifier are not important and can be any three or four
letter or number combination that is chosen by the user. Ho w ever, the time z one identifier cannot be
blank.

Figure 2-17. Three or Four Character Time Zone Identifier

You can also use the f

ollowing URL when a certain time zone applies daylight savings time:

http://www.timeanddate.com/time/dst/2011.html

World GMT Table

Table 2-11 has information about the GMT time in various time zones.

Table 2-11. World GMT Table

Time Zone City or Area Zone Crosses

GMT-12 Eniwetok
GMT-11 Samoa
GMT-10 Hawaii
GMT-9 Alaska
GMT-8 PST, Pacific US
GMT-7 MST, Mountain US
GMT-6 CST, Central US
GMT-5 EST, Eastern US
GMT-4 Atlantic, Canada
GMT-3 Brazilia, Buenos Aries
GMT-2 Mid-Atlantic
GMT-1 Cape Verdes
GMT Greenwich Mean Time, Dublin
GMT+1 Berlin, Rome
GMT+2 Israel, Cairo
GMT+3 Moscow, Kuwait
GMT+4 Abu Dhabi, Muscat

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Table 2-11. World GMT Table (continued)

Time Zone City or Area Zone Crosses

GMT+5 Islamabad, Karachi
GMT+6 Almaty, Dhaka
GMT+7 Bangkok, Jakarta
GMT+8 Hong Kong, Beijing
GMT+9 Tokyo, Osaka
GMT+10 Sydney, Melbourne, Guam
GMT+11 Magadan, Soloman Is.
GMT+12 Fiji, Wellington, Auckland

Intercom Setup

33

Operations Guide 930923B CyberData Corporation

2.4.6 Configure the Button Parameters

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Click the Button Config button to open the Button Configuration page. See Figure 2-18.

Figure 2-18. Button Configuration Page

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

34

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

2. On the Button Configuration page, you may enter values for the parameters indicated in

Table 2-12.

Table 2-12. Button Configuration Parameters

35

Web Page Item

Dial Mode
Enable Telephone Operation Dial extensions like a normal telephone. Pressing the call

Enable Cellphone Operation Enter your extension and press the call button to start the

Enable Speed Dial Operation In speed dial mode every button can be configured to call

Enable Security Operation

Security Mode Settings
Security Code 0 Up to eight digits using characters 0 through 9 and *.

Security Code 1 Up to eight digits using characters 0 through 9 and *.

Security Code 2 Up to eight digits using characters 0 through 9 and *.

Description

button will start a dial tone. Pressing the call button in a
call will cancel a call.

. Press the

call

ff

erent extension when pressed.

a di
Security mode works like telephone mode. Pressing the

call button will start a dial tone and allow a user to dial an
extension. In security mode the user can enter up to ten
different security codes to activate the local or network
attached relay.

Security codes start with the pound key (#) and will be
recognized when the user stops pressing buttons or hits
the pound key again.

Security codes start with the pound key (#) and will be

n

recog
the pound key again.

Security codes start with the pound key (#) and will be

nized when the user stops pressing buttons or hits

recog
the pound key again.

call button again to cancel the call.

ized when the user stops pressing buttons or hits

Security Code 3 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be
recogn

ized when the user stops pressing buttons or hits

the pound key again.

Security Code 4 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be

n

ized when the user stops pressing buttons or hits

recog
the pound key again.

Security Code 5 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be

nized when the user stops pressing buttons or hits

recog
the pound key again.

Security Code 6 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be
recogn

ized when the user stops pressing buttons or hits

the pound key again.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-12. Button Configuration Parameters (continued)

Web Page Item Description

Security Code 7 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be

ized when the user stops pressing buttons or hits

recogn
the pound key again.

Security Code 8 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be
recogn

ized when the user stops pressing buttons or hits

the pound key again.

Security Code 9 Up to eight digits using characters 0 through 9 and *.

Security codes start with the pound key (#) and will be

nized when the user stops pressing buttons or hits

recog
the pound key again.

Activate DSR Activate a network attached relay instead of the relay on

the device

.

Relay Activation Timeout The time in seconds to activate the relay when a security

is entered. Up to five numerical digits.

code
Play Tone While Relay Active Play a tone when the relay is activated by a security code.
Allow Telephone Dialout Allow the option to use the keypad to dial extensions.

36

Call Button Dial this extension when the call button is pressed. Up to

cha

racters.

64
ID Type the desired Extension ID. Up to 64 characters.
Security Code (0 through 9) Enter the desired security code number (7 character limit).

When a security code is entered on the keypad that

matches one of the seven-digit fields specified on the

page, the relay will be activated.
Speed Dial Settings
Speed Dial Timeout The amount of time you must hold the button before it calls

the configured extension. When this is set to 0 the phone

will dial the configured extension as soon as the button is

released.
Keypad 1 Dial this extension when the 1 key is pressed.
Keypad 2 Dial this extension when the 2 key is pressed.
Keypad 3 Dial this extension when the 3 key is pressed.
Keypad 4 Dial this extension when the 4 key is pressed.
Keypad 5 Dial this extension when the 5 key is pressed.
Keypad 6 Dial this extension when the 6 key is pressed.
Keypad 7 Dial this extension when the 7 key is pressed.
Keypad 8 Dial this extension when the 8 key is pressed.
Keypad 9 Dial this extension when the 9 key is pressed.
Keypad 0 Dial this extension when the 0 key is pressed.
Keypad * Dial this extension when the * key is pressed.
Keypad # Dial this extension when the # key is pressed.
Call Button Dial this extension when the call button is pressed.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-12. Button Configuration Parameters (continued)

Web Page Item Description

Button Tones
Play Button Tones Play a tone when the keypad buttons are pressed.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Start button to start a button test.

Click on the T og gle Help button to see a short description

of some of the web page items. First click on the Toggle

Help button, and you will see a question mark (

next to some of the web page items. Move the mouse

pointer to hover over a question mark to see a short

description of a specific web page item.

37

) appear

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.4.6.1 Dial Out Extension Strings and DTMF Tones (using rfc2833)

On the Button Configuration page, dial out extensions support the addition of comma delimited
pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three
seconds after a call is first established with a remote device. Subsequent commas will pause for 2
seconds. A pause of one second will be sent after each numerical digit.

Table 2-13. Examples of Dial-Out Extension Strings

Extension String Resulting Action

302 Dial out extension 302 and establish a call
302,2 Dial out extension 302 and establish a call, wait 3 seconds then send the

DTMF tone '2'

302,25,,,4,,1 Dial out extension 302 and establish a call, wait 3 seconds then send the

DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF
tone 4, wait 4 seconds, send out DTMF tone 1

Note The maxi

mum number of total characters in the dial-out field is 25.

Operations Guide 930923B CyberData Corporation

2.4.6.2 Triggering a Dial Out Call or Security Code

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

You can instantly trigger a dial out call or security code by pressing the # ke y after dialing a number.

Table 2-14 shows the various actions that result from different keypad input.

Table 2-14. Triggering a Dial Out Call or Security Code

Allow Telephone Dialout Option Enabled (in security mode with default security settings)
Input Resulting Action

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

38

Dialing 123 
(and waiting for several seconds)

Dialing #123 
(and waiting for several seconds)

Dialing #1234560 
(and waiting for several seconds)

Dialing #124560# The device will instantly activate the relay for 6 seconds.
Dialing 123#

The device will call extension 123 through the default SIP server.

The device will do nothing. The entry is an unrecognized security
entry.

The device will activate the relay for Security Code 0 for 6 seconds.

The device will instantly call extension 123 through the default SIP
server.

Allow Telephone Dialout Option Disabled (in security mode with default security settings)
Input Resulting Action

Dialing 123
(and waiting for several seconds)

4560 

The device will activate the relay for Security Code 0 for 6 seconds.

Operations Guide 930923B CyberData Corporation

2.4.7 Configure the Network Parameters

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Click the Network menu button to open the Network page (Figure 2-19).

Figure 2-19. Network Configuration Page

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

39

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the Network page, enter values for the parameters indicated in Table 2-15.

Intercom Setup

40

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-15. Network Configuration Parameters

Web Page Item Description

Stored Network Settings

Addressing Mode Select either DHCP IP Addressing or Static Addressing by marking

the appropriate radio button. DHCP Addressing mode is enabled on
default and the device will attempt to resolve network addressing with
the local DHCP server upon boot. If DHCP Addressing fails, the
device will revert to the last known IP address or the factory default
address if no prior DHCP lease was established. See Section 2.4.1,

"Factory Default Settings" for f actory default settings. Be sure to click

Save and Reboot to store changes when configuring a Static
address.

Hostname This is the hostname provided by the DHCP server. See the DHCP/

DNS server documentation for more information. Enter up to 64

characters.
IP Address Enter the Static IPv4 network address in dotted decimal notation.
Subnet Mask Enter the Subnet Mask in dotted decimal notation.
Default Gateway Ente r the Default Gateway IPv4 address in dotted decimal notation.
DNS Server 1 Enter the primary DNS Server IPv4 address in dotted decimal

notation.
DNS Server 2 Enter the secondary DNS Server IPv4 address in dotted decimal

notation.
DHCP Timeout in seconds Specify the desired time-out duration (in seconds) that the device will

wait for a response from the DHCP server before reverting back to

the stored static IP address. The stored static IP address may be the

last known IP address or the factory default address if no prior DHCP

lease was established. Enter up to 8 characters. A value of -1 will

retry forever.

VLAN Settings

VLAN ID (0-4095) Specify the IEEE 802.1Q VLAN ID number. Enter up to 4 digits.

Note: The device supports 802.1Q VLAN tagging support. The

switch port connected to the device will need to be in “trunking mode”

for the VLAN tags to propagate.
VLAN Priority (0-7) Specify the IEEE 802.1p VLAN priority level. Enter 1 digit. A value of

0 may cause the VLAN ID tag to be ignored.
Current Network Settings Shows the current network settings.
IP Address Shows the current Static IP address.
Subnet Mask Shows the current Subnet Mask address.
Default Gateway Shows the current Default Gateway address.
DNS Server 1 Shows the current DNS Server 1 address.
DNS Server 2 Shows the current DNS Server 2 address.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-15. Network Configuration Parameters (continued)

Web Page Item Description

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of some of

the web page items. First click on the Toggle Help button, and you

will see a question mark ( ) appear next to some of the web page

items. Move the mouse pointer to hover over a question mark to see

a short description of a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

41

Operations Guide 930923B CyberData Corporation

2.4.8 Configure the SIP Parameters

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Click on the SIP menu button to open the SIP page (Figure 2-20).

Figure 2-20. SIP Configuration Page

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

42

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the SIP page, enter values for the parameters indicated in Table 2-16.

Intercom Setup

43

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-16. SIP Configuration Parameters

Web Page Item Description

SIP Settings

Enable SIP Operation When enabled, the device will transmit, receive, and process SIP

messages according to the configured SIP settings below.

Register with a SIP Server When enabled, the device will attempt to register to the configured SIP

Server(s) on this page. To configure the device to send and receive point­to-point SIP calls, enable SIP Operation and disable Register with a SIP
Server (see Section 2.4.8.1, "Point-to-Point Configuration").

Use Cisco SRST When enabled, the backup servers are handled according to Cisco SRST

(Survivable Remote Site Telephony). It is required for use in clustered
Cisco Unified Communications Manager topologies.

Primary SIP Server Enter the SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes
the host portion of the SIP-URI for the device's extension on the primary
SIP server. This field can accept entries of up to 255 characters in length.

Primary SIP User ID Specify the SIP User ID for the Primary SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the
primary SIP server. Enter up to 64 alphanumeric characters.

Primary SIP Auth ID Specify the Authenticate ID for the Primary SIP Server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Primary SIP Auth Password Specify the Authenticate Password for the Primary SIP Server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Backup SIP Server 1 Enter the backup SIP server address as an IPv4 address in dotted

decimal notation or a fully qualified domain name. This parameter also
becomes the host portion of the SIP-URI for the device's extension on the
backup SIP server. This field can accept entries of up to 255 characters in
length.

Backup SIP User ID 1 Specify the SIP User ID for the first backup SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the
first backup SIP server. Enter up to 64 alphanumeric characters.

Backup SIP Auth ID 1 Specify the Authenticate ID for the first backup SIP server. This parameter

is required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Backup SIP Auth Password 1 Specify the Authenticate Password for the first backup SIP server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Backup SIP Server 2 Enter a second backup SIP server address as an IPv4 address in dotted

decimal notation or a fully qualified domain name. This parameter also
becomes the host portion of the SIP-URI for the device's extension on the
second backup SIP server. This field can accept entries of up to 255
characters in length.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-16. SIP Configuration Parameters (continued)

Web Page Item Description

Backup SIP User ID 2 Specify the SIP User ID for the second backup SIP Server. This parameter

becomes the user portion of the SIP-URI for the device's extension on the
second backup SIP server. Enter up to 64 alphanumeric characters.

Backup SIP Auth ID 2 Specify the Authenticate ID for the second backup SIP server. This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Backup SIP Auth Password 2 Specify the Authenticate Pass word f or the second backup SIP server . This

parameter is required for SIP registration authentication. Enter up to 64
alphanumeric characters.

Remote SIP Port The Remote SIP Port is the port number the device will use as the

destination port when sending SIP messages. The default Remote SIP
Port is 5060. The supported range is 0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP

messages. The default Local SIP Port is 5060. The supported range is 0-

65536. Enter up to 5 digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal

notation or a fully qualified domain name (FQDN). When an IP address is
configured, the device will send all SIP messages to this IP address.
When an FQDN is configured, the device will run DNS NAPTR, SRV, and
A queries on the FQDN to resolve an IP address to which it will send all
SIP messages. This field can accept entries of up to 255 characters in
length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port

when sending SIP messages to the outbound proxy. A value of 0 will
default to 5060. The supported range is 0-65536. Enter up to 5 digits.

Disable rport Discovery Disabling rpo rt Discovery will prevent the device from including the public

WAN IP address and port number in the contact information that is sent to
the remote SIP servers. This will generally only need to be enabled when
using an SBC or SIP ALG in conjunction with a remote SIP server.

Re-registration Interval (in seconds) The SIP Re-registration interval (i n seconds) i s the SIP Re gistr ation l ease

time, also known as the expiry. The supported range is 30-3600 seconds.
Enter up to 4 digits.

Unregister on Boot When enabled, the de vice will send one registration with an expiry of 0 on

boot.

Keep Alive Period The minimum time in milliseconds between keep-alive pack ets sent for nat

traversal. A value of 0 will disable keep alive pac kets.

44

Nightringer Settings

Enable Nightringer When Nightringer is enabled, the device will attempt to register a second

extension with the SIP server. Any calls made to this extension will play a
ringtone (corresponds to Night Ring on the Audiofiles page). By design,
it is not possible to answer a call to the Nightringer extension.

SIP Server Enter the SIP server address as an IPv4 address in dotted decimal

notation or a fully qualified domain name. This parameter also becomes
the host portion of the SIP-URI for the device's Nightringer extension on
the SIP server. This field can accept entries of up to 255 characters in
length.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-16. SIP Configuration Parameters (continued)

Web Page Item Description

Remote SIP Port The Remote SIP Port is the port number the device will use as the

destination port when sending SIP messages for the Nightringer
extension. The default Remote SIP Port is 5060. The supported range is
0-65536. Enter up to 5 digits.

Local SIP Port The Local SIP Port is the port number the device will use to receive SIP

messages for the Nightringer extension. This value cannot be the same as
the Local SIP Port for the primary extension. The default Local SIP Port is

5061. The supported range is 0-65536. Enter up to 5 digits.

Outbound Proxy Enter the Outbound Proxy address as an IPv4 address in dotted decimal

notation or a fully qualified domain name (FQDN). When an IP address is
configured, the device will send all SIP messages to this IP address for the
Nightringer extension. When an FQDN is configured, the device will run
DNS NAPTR, SRV, and A queries on the FQDN to resolve an IP address
to which it will send all SIP messages for the Nightringer extension. This
field can accept entries of up to 255 characters in length.

Outbound Proxy Port The Outbound Proxy Port is port number used as the destination port

when sending SIP messages to the outbound proxy for the Nightringer
extension. A value of 0 will default to 5060. The supported range is 0-

65536. Enter up to 5 digits.

User ID Specify the SIP User ID for the SIP server. This parameter becomes the

user portion of the SIP-URI for the device's Nightringer extension. Enter
up to 64 alphanumeric characters.

Authenticate ID Specify the Authenticate ID for the SIP Server. This para meter is required

for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Authenticate Password Specify the Authenticate Password for the SIP Server. This parameter is

required for SIP registration authentication. Enter up to 64 alphanumeric
characters.

Re-registration Interval (in seconds) The SIP Re-registration Interval (in seconds) is the SIP Registration lease

time, also known as the expiry. The supported range is 30-3600 seconds.
Enter up to 4 digits.

RTP Settings

RTP Port (even) Specify the port number used for the RTP stream after establishing a SIP

call. This port number must be an even number and defaults to 10500.
The supported range is 0-65536. Enter up to 5 digits.

Call Disconnection

45

Terminate Call After Delay Automatically terminate an active call after a given delay in seconds. A

value of 0 will disable this function. Enter up to 8 digits.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Operations Guide 930923B CyberData Corporation

Table 2-16. SIP Configuration Parameters (continued)

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Web Page Item Description

Click on the To ggle Help button to see a short description of some of the
web page items. First click on the Toggle Help button, and you will see a
question mark ( ) appear next to some of the web page items. Move the
mouse pointer to hover over a question mark to see a short description of
a specific web page item.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

46

Note For sp

http://www.cyberdata.net/support/server/index.html

ecific server configurations, go to the following website address:

Operations Guide 930923B CyberData Corporation

2.4.8.1 Point-to-Point Configuration

Device is set to NOT register with a SiP server

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

When the device is set to not register with a SIP server (see Figure 2-21), it is possible to set the
device to dial out to a single endpoint.

In this case, the dial-out extension should be the IP address of the remote device. The device can
al

so receive Point-to-Point calls. The delayed DTMF functionality is available in the Point-to-Point

Mode.
Note Receiving point-to-point SiP calls may not work with all phones.

Figure 2-21. SIP Page Set to Point-to-Point Mode

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

47

Operations Guide 930923B CyberData Corporation

2.4.9 Configure the Multicast Parameters

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Multicast Configuration page allows the device to join up to ten paging zones for receiving
ulaw/alaw encoded RTP audio streams.

A paging zone can consist of one or many CyberData multicast group-enab led products. There is no
limit to ho
multicast address and port number.

Each multicast group is assigned a priority, allowing simultaneously arriving pages to be serviced
bas
supports simultaneous SIP and Multicast.

w many speakers can be in a given paging zone. Each multicast group is defined by a

ed on importance. Multicast groups are compatible with IGMP through version 3. The device

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

48

1. Click on the Multicast menu

Figure 2-22. Multicast Configuration Page

button to open the Multicast page. See Figure 2-22.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the Multicast page, enter values for the parameters indicated in Table 2-17.

Intercom Setup

49

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-17. Multicast Configuration Parameters

Web Page Item Description

Enable Multicast Operation Enables or disables multicast operation.
Priority Indicates the priority for the multicast group. Priority 9 is the

highest (e
music). SIP calls are considered priority 4.5. See Section

2.4.9.1, "Assigning Priority" for more details.

Address Enter the multicast IP Address for this multicast group (15

character l

Po

rt Enter the port number for this multicast group (5 character

limit [rang
Note: The multicast ports have to be even values. The

webpage will enforce this restriction.

Name Assign a descriptive name for this multicast group (25

character limit).

Beep Wh

au
Clic

Note: You need to reboot for changes to take effect.

mergency streams). 0 is the lowest (background

imit).

e can be from 2000 to 65535]).

en selected, the device will play a beep before multicast

dio is sent.

k the Save bu

tton to save your configuration settings.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

2.4.9.1 Assigning Priority

The device will prioritize simultaneous audio streams according to their priority in the list.
If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will

interrupt mu
priority 5 through 9.

During priority 9 multicast streams, t
Note SIP calls, multica

prioritized.

Ringtones and
Nightringtones

Ringtones all play at the same priority level. This means that it is possible to have a nightring tone
and a normal ringtone playing at the same time.

Clic

k on the Reboot b

utton to reboot the system.

lticast streams with priority 0 through 4 and will be interrupted by multicast streams with

he volume is set to maximum.

st streams, ring tones, ringback tones, and nightring tones are all

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.4.10 Configure the Sensor Configuration Parameters

The door sensor (pins 5 and 6) on the header can be used to monitor a door's open or closed state.
There is an option on the Sensor page to trigger on an open or short condition on these pins. The
door sensor alarm will be activated when the Door Open Timeout parameter has been met.

The intrusion sensor is an optical sensor installed on the Intercom board and will be activated when
the Intercom is remo

Each sensor can trigger up to five different actions:

• Flash the LED until the sensor is deactivated (roughly 10 times/second)

• Activate the relay until the sensor is deactivated

• Loop an audio file out of the Intercom speaker until the sensor is deactivated

• Call an extension and establish two way audio

• Call an extension and play a pre-recorded audio file

ved from the case.

Intercom Setup

50

Note Calling a pr

delayed DTMF tones.

1. Click Sensor men

eset extension can be set up as a point-to-point call, but currently can't send

u button to open the Sensor page (Figure 2-23).

Figure 2-23. Sensor Configuration Page

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the Sensor page, enter values for the parameters indicated in Table 2-18.

Intercom Setup

51

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-18. Sensor Configuration Parameters

Web Page Item Description

Door Sensor Settings

Door Sensor Normally Closed Select the inactive state of the door sensor. The door sensor is

also known as the Sense Input on the device's terminal block.

Door Open Timeout (in seconds) The time (in seconds) the device will wait before it performs an

action when the on-board door sensor is activated. The action(s)
performed are based on the configured Door Sensor Settings
below. Enter up to 5 digits.

Flash Button LED When selected, the Call button LED will flash until the on-board

door sensor is deactivated (roughly 10 times/second).

Activate Relay When selected, the device's on-board relay will be activ ated until

the on-board door sensor is deactivated.

Play Audio Locally When selected, the device will loop an audio file out of the

speaker until the door sensor is deactivated.

Make call to extension When selected, the device will call an extension when the on-

board door sensor is activated. Use the Dial Out Extension field
below to specify the extension the device will call.

Dial Out Extension Specify the extension the de vice will call when the on-board door

sensor is activated. Enter up to 64 alphanumeric characters.

Dial Out ID An additional Caller identification string added to outbound calls.

Enter up to 64 alphanumeric characters.

Play recorded audio When selected, the device will call the Dial Out Extension and

play an audio file to the phone answering the SIP call
(corresponds to Door Ajar on the Audiofiles page).

Intrusion Sensor Settings

Flash Button LED When selected, the Call button LED will flash until the intrusio n

sensor is deactivated (roughly 10 times/second).

Activate Relay When selected, the device's on-board relay will be activ ated until

the intrusion sensor is deactivated.

Play Audio Locally When selected, the device will loop an audio file out of the

speaker until the intrusion sensor is deactivated.

Make call to extension When selected, the device will call an extension when the

intrusion sensor is activated. Use the Dial Out Extension field
below to specify the extension the device will call.

Dial Out Extension Specify the extension the device will call when the intrusion

sensor is activated. Enter up to 64 alphanumeric characters.

Dial Out ID An additional Caller identification string added to outbound calls.

Enter up to 64 alphanumeric characters.

Play recorded audio When selected, the device will call the Dial Out Extension and

play an audio file (corresponds to Intrusion Sensor Triggered
on the Audiofiles page) to the phone answering the SIP call
when the intrusion sensor is activated.

Operations Guide 930923B CyberData Corporation

Table 2-18. Sensor Configuration Parameters (continued)

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Web Page Item Description

Click the Test Door Sensor button to test the door sensor.

Click the Test Intrusion Sensor button to test the Intrusion
sensor.

Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the T og gle Help
button, and you will see a question mark ( ) appear next to
some of the web page items. Move the mouse pointer to hover
over a question mark to see a short description of a specific web
page item.

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

52

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.4.11 Configure the Audio Configuration Parameters

The Audiofiles page is used to add custom audio to the board. User uploaded audio will take
precedence over the audio files shipped with the Intercom.

Intercom Setup

53

1. Click on the Au

Figure 2-24. Audiofiles Configuration Page

diofiles menu button to open the Audiofiles page (Figure 2-24).

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Figure 2-25. Audiofiles Configuration Page (continued)

Intercom Setup

54

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the Audiofiles page, enter values for the parameters indicated in Table 2-19.

Intercom Setup

55

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-19. Audiofiles Configuration Parameters

Web Page Item Description

Ava i l able Space Shows the space available for the user to save custom audio files if

they want to change the message when the door or sensor is
triggered.

o

0-9 The name of the audio configuration

ption is the same as the

spoken audio that plays on the board (24 character limit).
'0' corresponds to the spoken word “zero.”
'1' corresponds to the spoken word “one. ”
'2' corresponds to the spoken word “two.”
'3' corresponds to the spoken word “three.”
'4' corresponds to the spoken word “four.”
'5' corresponds to the spoken word “five.”
'6' corresponds to the spoken word “six.”
'7' corresponds to the spoken word “seven.”
'8' corresponds to the spoken word “eight.”

'9' corresponds to the spoken word “nine.”
Dot Corresponds to the spoken word “dot.” (24 character limit)
Audiotest Corresponds to the message “This

is the CyberData IP speaker

test message...” (24 character limit)

Page tone Corresponds to a simple tone used for beep on initialization and

beep on

page (24 character limit).

Your IP Address is Corresponds to the message “Your IP address is...” (24 character

limit).

oting Corresponds to the spoken word “Rebooting” (24 character limit).

Rebo
Restoring default Correspond s to the message “Restoring default” (24 character

mit).

li

back Tone This is the ringback tone that plays when calling a remote

Ring

xtensio

e

n 

(24 character limit).
Ring Tone This is the tone that plays when set to ring when receiving a call 

(24 character limit).
Intrusion Sensor Triggered Corresponds to the message “Intrusion Sensor Triggered” (24

character limit).
Door Ajar Co

rresponds to the message “Door Ajar” (24 character limit).

Night Ring Specifies the ringtone for nightring. By default this parameter uses

the same audio file that is se

lected for the Ring Tone parameter.

Click on the Browse button to navigate to and select an audio file.

Operations Guide 930923B CyberData Corporation

Table 2-19. Audiofiles Configuration Parameters (continued)

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Web Page Item Description

The Play button will play that audio file.

The Delete button will delete any user uploaded audio and restore

the stock audio file.

The Save button will download a new user audio file to the board

once you've selected the file by using the Browse button. The

Save button will delete any pre-existing user-uploaded audio files.

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

56

Operations Guide 930923B CyberData Corporation

2.4.11.1 User-created Audio Files

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

User created audio files should be saved in the following format:
RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

57

You can use the free utility Audacity to con

Figure 2-28.

Figure 2-26. Audacity 1

Figure 2-27. Audacity 2

vert audio files into this format. See Figure 2-26 through

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

WAV (Microsoft) signed 16 bit PCM

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

When you export an audio file with Audacity, save the output as:

• WAV (Microsoft) signed 16 bit PCM.

Figure 2-28. WAV (Microsoft) signed 16 bit PCM

Intercom Setup

58

Operations Guide 930923B CyberData Corporation

2.4.12 Configure the Events Parameters

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Events page specifies a remote server that can be used to receive HTTP POST events when
actions take place on the board.

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

59

1. Click on the Events menu

Figure 2-29. Event Configuration Page

button to open the Events page (Figure 2-29).

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the Events page, enter values for the parameters indicated in Table 2-20.

Intercom Setup

60

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-20. Events Configuration Parameters

Web Page Item Description

Enable Event Generation The device will send HTTP POST events to the specified remote

server and port number whenever a certain action takes place.
Select an event type below to generate an HTTP POST event.

Events

Enable Button Events When selected, the device will report Call button presses.
Enable Call Start Events
Enable Call Terminated Events
Enable Relay Activated Events
Enable Relay Deactivated Events
Enable Ring Events

When selected, the device will report the start of a SIP call.
When selected, the device will report the end of a SIP call.
When selected, the device will report relay activation.
When selected, the device will report relay deactivation.
When selected, the device will report when it starts ringing upon an

incoming SIP call. A Ring Event will not be generated when Auto-
Answer Incoming Calls is enabled on the Device page.

Enable Night Ring Events

When selected, the device will report when it starts ringing upon an
incoming SIP call to the Nightringer extension. As a reminder, the
Nightringer extension always rings upon an incoming SIP call and it
is not possible to alter this behavior.

Enable Multicast Start Events When selected, the device will report when the device starts playing

a multicast audio stream.

Enable Multicast Stop Events

When selected, the device will report when the device stops playing

a multicast audio stream.
Enable Power On Events
Enable Sensor Events

When selected, the device will report when it boots.

When selected, the device will report when the on-board sensor is

activated.
Enable Remote Relay Events

When selected, the device will report when the remote relay (DSR)

is activated.
Enable Security Events

When enabled, the device will report when the intrusion sensor is

activated.
Enable 60 Second Heartbeat

When enabled, the device will report a Heartbeat event every 60

seconds. SIP registration is not required to generate Heartbeat

events.

k A

Check All Click on Chec
Uncheck All Click on Unchec

ll to select all of the events on the page.

k All to de-select all of the events on the page.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-20. Events Configuration Parameters(continued)

Web Page Item Description

Event Server

Server IP Address The IPv4 address of the event server in dotted decimal notation.
Server Port

Specify the event server port number. The supported range is 0-

65536. Enter up to 5 digits.

Server URL

Generally, the destination URL is the name of the application that

receives the events and the string in the HTTP POST command. It

can be a script used to parse and process the HTTP POST events.

Enter up to 127 characters.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Click on the T ogg le Help button to see a short description of some

of the web page items. First click on the Toggle Help button, and

you will see a question mark ( ) appear next to some of the web

page items. Move the mouse pointer to hover o ver a question mark

e a short description of a specific web page item.

to se

61

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Operations Guide 930923B CyberData Corporation

2.4.12.1 Example Packets for Events

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The server and port are used to point to the listening server and the 'Remote Event Server URL' is
the destination URL (typically the script running on the remote server that's used to parse and
process the POST events).

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

62

Note The XML is URL-encoded befo

re transmission so the following examples are not completely

accurate.

Here are example packets for every event:

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>POWERON</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 199
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>HEARTBEAT</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 196
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>BUTTON</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 201
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>CALL_ACTIVE</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

User-Agent: CyberData/1.0.0
Content-Length: 205
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>CALL_TERMINATED</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 197
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RINGING</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded

Intercom Setup

63

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>MULTICAST_START</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 233
Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>MULTICAST_STOP</event>
<index>8</index>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RELAY_ACTIVATED</event>
</cyberdata>
POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>RELAY_DEACTIVATED</event>
</cyberdata>

POST xmlparse_engine HTTP/1.1
Host: 10.0.3.79
User-Agent: CyberData/1.0.0
Content-Length: 234
Content-Type: application/x-www-form-urlencoded
<?xml version="1.0" encoding="ISO-8859-1"?>
<cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'>
<event>NIGHTRINGING</event>
</cyberdata>

Intercom Setup

64

Operations Guide 930923B CyberData Corporation

2.4.13 Configure the Door Strike Relay

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Door Strike Relay (DSR) is a network device designed to control an electronic door strike. The
DSR is meant to be used as a replacement for (or an addition to) the on-board relay. In addition to
being a drop-in 12 Amp relay, the DSR can monitor and record when the door is open or closed.

The DSR can be configured to trigger in the following ways: on the entry of a DTMF code, during
di

fferent call events, manually through the web interface, or by using a Windows application.

1. Click on the DSR menu button to open the DSR page (Figure 2-30).

Figure 2-30. DSR Page

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

65

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2. On the DSR page, enter values for the parameters indicated in Table 2-21.

Intercom Setup

66

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-21. DSR Configuration Parameters

Web Page Item Description

Remote Relay Settings The settings in this section will activate an associated door

strike relay.

Activate Relay with DTMF Code Activates the remote relay (DSR) when the DTMF Activation

Code is entered on the phone during a SIP call with the device.
RFC2833 DTMF payload types are supported.

DTMF Activation Code Activation code used to activate the remote relay (DSR) when

entered on a phone during a SIP call with the device. Activate
Remote Relay with DTMF Code must be enabled. Enter up to
25 digits (* and # are supported).

DTMF Activation Duration (in seconds) The length of time (in seconds) during which the remote relay

(DSR) will be activated when the DTMF Activation Code is
detected. Enter up to 5 digits.

Activate Remote Relay During Ring When selected, the remote relay (DSR) will be activated for as

long as the device is ringing. When Auto-Answer Incoming Calls
is enabled, the device will not ring and this option does nothing.
When selected, the network relay will be activated for as long as
the call is active.

Activate Remote Relay During Night Ring When selected, the remote relay (DSR) will be activated as long

as the Nightringer extension is ringing.

Activate Remote Relay While Call Active When selected, the remote rela y (DSR) will be activ ated as long

as the call is active.

Activate Remote Relay on Button Press When se lected, the remote relay (DSR) will be activated when

the Call Button is pressed.

Remote Relay on Button Press Duration 
(in seconds)

The length of time (in seconds) during which the remote relay
(DSR) will be activated when the Call button is pressed. Enter
up to 5 digits. A Remote Relay on Button Press Duration value
of 0 will pulse the remote relay (DSR) once when the Call button
is pressed.

Listen Port for Remote Relay Status Specify the port to listen for remote relay (DSR) status packets.

Remote Door Sensor Settings

Door Open Timeout (in seconds) The time (in seconds) the device will wait before it performs an

action when the remote (DSR) door sensor is activated. The
action(s) performed are based on the configured Remote Door
Sensor Settings below.

Flash Button LED When selected, the Call button LED will flash until the remote

(DSR) door sensor is deactivated (roughly 10 times/second).

Activate Local Relay When selected, the device's on-board relay will be activated

until the remote (DSR) door sensor is deactivated.

Play Audio Locally When selected, the device will loop an audio file out of the

speaker until the remote (DSR) door sensor is deactivated.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-21. DSR Configuration Parameters (continued)

Web Page Item Description

Make call to extension When selected, the device will call an extension when the

remote (DSR) door sensor is activated. Use the 'Dial Out
Extension' field below to specify the extension the device will
call.

Play recorded audio When selected, the device will call the Dial Out Extension and

play an audio file to the phone answering the SIP call
(corresponds to Door Ajar on the Audiofiles page) when the
remote (DSR) door sensor is activated.

Dial Out Extension Specify the extension the device will call when the remote

(DSR) door sensor is activated. Enter up to 64 alphanumeric
characters.

Dial Out ID An additional Caller identification string added to outbound

calls. Enter up to 64 alphanumeric characters.
Click the Save button to save your configuration settings.
Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

67

Click on the Toggle Help button to see a short description of
some of the web page items. First click on the Toggle Help
button, and you will see a question mark ( ) appear next to
some of the web page items. Move the mouse pointer to hover
over a question mark to see a short description of a specific
web page item.

Discovered Remote Relays

Product Type Displays the product type of the remote relay.
IP Address Displays the IP address of the remote relay.
MAC Address Displays the MAC address of the remote relay.
Serial Number Displays the serial number of the remote relay.
Name Displays the name of the remote relay.
Version Displays the version of the remote relay.

Use this button to search for and find any remote rela ys that are
available on the network.

Use this button to view the settings of a remote relay that has
been “discovered” after pressing the Discover button.

Use this button to associate the remote relay with the device.
Only one relay may be associated with a device.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-21. DSR Configuration Parameters (continued)

Web Page Item Description

Relay Status Note: The Relay Status section and settings (Figure 2-31) only

appear on the webpage when there is an associated door strike

relay.
Door Shows the status of the door.
Relay Shows the status of the remote relay.

Click on the Kick Remote Relay button to activate the remote

relay for a specified time. The time is equal to the DTMF

timeout.

Click on the Activate Remote Relay button to activate the

remote relay until the Deactivate Remote Relay button is

pressed.

Click on the Deactivate Remote Relay button to deactivate the

remote relay.

Click on the Refresh button to refresh the web page and

accurately display the status of the remote relay (activ e/inactive)

and door (open/closed).

68

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Figure 2-31. Relay Status Section

Operations Guide 930923B CyberData Corporation

2.4.14 Configure the Device (on the DSR page)

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

1. Click the View button on the DSR page to open the Device Configuration page (Figure 2-32).

Figure 2-32. DSR Page Device Configuration Page

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

69

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

2. On the Device Configuration page, enter values for the parameters indicated in Table 2-22.

70

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-22. DSR Page Device Configuration Parameters

Web P

age Item Description

Serial Number Displays the serial number of the door strike relay.
MAC Address Displays the mac address of the door strike relay.
Version Displays the firmware version of the door strike relay.
Device Name Displays the name of the door strike relay. The default na me is "LO C K,"

followed by the 9 digit ASCII serial number. The maximum name length is
13 characters. The unit will always respond to its default name.

Addressing Mode Determines whether an IP address will be manually assigned through

Static mode or dynamically assigned through a DHCP server.
IP Address Displays the IP address of the door strike relay.
Subnet Mask Displays the subnet mask of the door strike relay.
Default Gateway Displays the default gateway of the door strike relay.
Command Port This shows the port on which the door strike relay sends status packets to

the device (defaults to 49999).
Send Events When enabled, events can be sent to the associated device.
Event IP Address The IP address of the associated device.
Event Port This is the port by which the door strike relay receives commands

(defaults to 59999).
Energize Time This is the number of seconds that the relay will be energized.
DST Allows you to either enable or disable the Daylight Savings Time feature.
DST Start Sets the Daylight Savings Time starting time in the following format:

M3.2.0/02:00:00

M3 is the third month (March).

.2 is the second occurrence of the day in the month.

.0 is Sunday.

/02:00:00 is the time.

Note: When the occurrence is set to 5, the final occurrence of the day in

the specified month is used.
DST End Sets the Daylight Savings Time ending time in the following format:

M11.1.0/02:00:00

M11 is the eleventh month (November).

.1 is the first occurrence of the day in the month.

.0 is Sunday.

/02:00:00 is the time.

Note: When the occurrence is set to 5, the final occurrence of the day in

the specified month is used.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-22. DSR Page Device Configuration Parameters (continued)

Web Page Item Description

Current Time Sets the current time.

Note: Be sure to save the current t ime by clicking on the Set Time b utton.
Encryption Encryption can either be set to None or AES-256.
Encryption Key Sets the AES encryption key. If encryption is currently enabled, the

response to this command will be sent using the “old” key. The new key

should be sent as 64 ASCII hexadecimal characters.
Door State This field displays the current door state and is not configurable.
Relay State This field displays the current relay state and is not configurable.
Button State This field displays the current button state and is not configurable.
LED This field displays the current LED state and is not configurable.
Alarm State This field displays the current alarm state and is not configurable.
JP4, 6, 9, 10 This shows whether jumpers JP4, JP6, JP9, or JP10 are either enabled or

disabled through the four digit sequence (0000). The 0 turns to 1 for an

enabled jumper. For example, 0011 would mean jumpers JP9 and JP10

are activated, but JP4 and JP9 are not.

Click on the Refresh button to refresh the Device Configuration page.

71

Click on the Get Log button to get a log of the associated door strike relay

activity. The door strike rela y has 128Kb non-volatile storage for log data,

storing an average of 10 days' worth of log data before it is overwritten.

Click on the Clear Log button to clear the log from the door strike relay

Click on the Reboot button to reboot any “discovered” remote relays and

clear any associated devices.

Click on the Set Time button to change the time.

Click on the Save Changes button to sa ve any changes that are made to

the Device Configuration page.

Note: The time setting must be saved by pressing the Set Time button.

Click on the Cancel button to cancel any changes that were made to the

Configure Device page and return to the DSR page.

Click on the Browse button to navigate through your computer and find

firmware files.

Click on the Upgrade button to upgrade the firmware of the door strike

relay.

Note You must click on the Save button and then the Reboot button for the changes to take

effect.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

2.4.15 Configure the Autoprovisioning Parameters

Autoprovisioning can be used to automatically configure your device. The autoprovisioning file is an
xml file with the device configuration. Values found in this file will override values stored in on-board
memory.

Intercom Setup

72

Note By default, the devi

1. Click the Aut

oprov menu button to open the Autoprovisioning page. See Figure 2-33.

Figure 2-33. Autoprovisioning Page

ce will try to set up its configuration with autoprovisioning.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

2. On the Autoprovisioning page, you may enter values for the parameters indicated in Table 2-

23.

73

Note The question mark icon (

after the Toggle Hel

p button is pressed.

) in the following table shows which web page items will be defined

Table 2-23. Autoprovisioning Configuration Parameters

Web Page Item Description

Disable Autoprovisioning Prevent the device from automatically trying to download a configuration file. See

Section 2.4.15.1, "Autoprovisioning" for more information.

Autoprovisioning Server
Autoprovisioning Filename

Use tftp The device will use TFTP (instead of http) to do
Autoprovisioning Autoupdate 

(in minutes)

Autoprovision at time (HHMMSS)

Autoprovision when idle
(in minutes > 10)

Enter the IPv4 address of the provisioning server in dotted decimal notation.

The autoprovisioning filename is the configuration filename. The default

autoprovisioning filename is in the format of <mac address>.xml.

Supported filename extensions are .txt, and .xml. The current filename is denoted

by an asterisk at the bottom of the Autoprovisioning Page. Enter up to 256

characters.

A file may have any name with an xml extension. If a file name is entered, the

device will look for the specified file name, and only that file.

wnload au

The reoccurring time (in minutes) the device will wait before checking for new

autoprovisioning files. Enter up to 6 digits. A value of 0 will disable this option.

Note: To use the auto update options, enable the Set Time with NTP Server on

boot setting on the Device Configuration Page page (see Table 2-7).

The time of day the device will check f or a new autopro visioning file. The time must

be 6 characters in length and in HHMMSS format. An empty value will disable this

option.

Note: To use the auto update options, enable the Set Time with NTP Server on

boot setting on the Device Configuration Page page (see Table 2-7).

The idle time (in minutes greater than 10) after which the device will check for a

new autoprovisioning file. Enter up to 6 digits. A value of 0 will disable this option.

Note: To use the auto update options, enable the Set Time with NTP Server on

boot setting on the Device Configuration Page page (see Table 2-7).

toprovisioning files.

Click the Save bu

Note: You need to reboot for changes to take effect.

Clic

k on the Reboot b

Click on the Togg

page items. First click on the Toggle Help button, and you will see a question

mark (

hover over a question mark to see a short description of a specific web page item.

Press the Down
device. See Section 2.4.15.3, "Download Template Button"

Autoprovisioning log

Operations Guide 930923B CyberData Corporation

The autoprovisioning log provides information about the latest autoprovisioning

attempt (i.e. dhcp options and server accessed and files parsed or not found).

) appear next to some of the web page items. Move the mouse pointer to

tton to save your configuration settings.

utton to reboot the system.

le Help button to see a short description of some of the web

load Template button to create an autoprovisioning file for the

Note You must click on the Save button and then the Reboot button for the changes to take

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

effect.

2.4.15.1 Autoprovisioning

On boot, the device will look for an autoprovisioning server configured on the A utopro visioning Page
or specified as a DHCP option. When it finds a server, it will try to download the following (in order of

eference):

pr

1. The file configured on the autoprovisioning page.

2. A file named according to it's mac address (for example: 0020f7350058.xml).

3. The file 000000cd.xml

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

74

The file can be hosted using a standard web server (like apache

, IIS, or nginx), and the device can
download over SSL. The file server can be an ipv4 address in dotted decimal notation or a fully
qualified domain name.

By default, the device will get its autoprovisioning server from the DHCP options. See Section

2.4.15.2, "Sample dhcpd.conf" for an example of how to configure dhcpd to offer autoprovisioning

server addresses. If multiple options are set, the device will attempt to download autoprovisioning
fi

les from every server.

The DHCP option determines the protocol used to download the autoprovisioning file. The device
looks for DHCP options in the f

ollowing order:

1. Option 43 - a FQDN or an IP address to an http server

2. Option 72 - an IP address to an http server

3. Option 150 - an IP address to a tftp server

4. Option 66 - an IP address to a tftp server or if the entry starts with 'http', a FQDN to a http server.

You can download an autoprovisioning template file from the Autoprovisioning Page using the
Download Template button

(see Table 2-23). This file contains every configuration option that can

be set on the board.
Autoprovisioning files can contain the whole configuration or a subset of this file. The first

autopro

visioning file can also contain links to other autoprovisioning files.

The <MiscSettings> section contains some examples of additional autoprovisioning files:

<MiscSettings>
<DeviceName>CyberData VoIP Intercom</DeviceName>
<!-- <AutoprovFile>common.xml</AutoprovFile>-->
<!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->
<!-- <AutoprovFile>audio[macaddress]</AutoprovFile>-->
<!-- <AutoprovFile>device[macaddress].xml</AutoprovFile>-->
</MiscSettings>

After downloading the first autoprovisioning file, the device will step through up to twenty additional
<AutoprovFile> entries and try to download these files from the same server.

When the device finds a filename with the string [macaddress], it will replac

e this string with the

mac address.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

As an example, the user has configured option 43 on their DHCP server to “http://example.com,” and
on their server, they have a file named 0020f7123456.xml (the same as the mac address of the
device).

The file 0020f7123456.xml contains:

<?xml version="1.0" encoding="utf-8" ?>
<specific>

<MiscSettings>

<DeviceName>Newname</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>
<AutoprovFile>audio[macaddress]</AutoprovFile>
<AutoprovFile>device.xml</AutoprovFile>

</MiscSettings>

</specific>

1. The device will first set it's name to 'Newname'.

2. It will try to download http://example.com/common.xml.

3. It will try to download http://example.com/sip_reg0020f7123456.xml.

4. It will try to download http://example.com/audio0020f7123456.

75

Checking for New
Autoprovisioning
Files after Boot

5. It will try to download http://example.com/device.xml.

The device is reconfigured every time it downloads a new file so if two files configure the same

n the last one will be the one that is saved.

optio
It is possible to autoprovision autoprovisioning values (for e

xample, to disable autoprovisioning or to

configure a time to check for new files).

The device will always check for an autoprovisioning files on boot but it can be configured to also
check after a periodic delay, when idle, or at a specified time. When one of these options is set, the
device will download its autoprovisioning files again, and if it finds any differences from the files it
downloaded on boot, it will force a reboot and reconfigure.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

76

The
Autoprovisioning
Filename

The autoprovisioning filename can contain a file, a file path, or a directory.

Table 2-24. Autoprovisioning File Name

Autoprovisioning
Filename

config.xml
/path/to/config.xml

subdirectory/path/ 10.0.1.3 10.0.1.3/subdirectory/path/0020f7020002.xml

Autoprovisioning

File Downloaded

Server

10.0.1.3 10.0.1.3/config.xml

10.0.1.3 10.0.1.3/path/to/config.xml

TFTP options may not support subdirectories. If a directory is set in the filename field, firmware and
audio files will also be do

wnloaded from this subdirectory.
If the filename ends with a forward slash “/,” the device will treat it as a subdirectory.
For example:
The autoprovisioning server is set to “https://www.example.com”
The autoprovisioning filename is set to “cyberdata/”
On boot, the device will try to download:
https://www.example.com/cyberdata/0020f7123456.xml
...and if this fails:
https://www.example.com/cyberdata/000000cd.xml
Audio files and firmware files will also add “cyberdata” to the URL before downloading.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

77

Autoprovisioning
Firmware Updates

<FirmwareSettings>

<FirmwareFile>505-uImage-ceilingspeaker</FirmwareFile>
<FirmwareServer>10.0.1.3</FirmwareServer>
<OutdoorIntercom30>firmware_file_v9.3.0</OutdoorIntercom30>
<OutdoorIntercom31>firmware_file_v10.3.0</OutdoorIntercom31>
<CallButton31>firmware_file_v10.3.0</CallButton31>

</FirmwareSettings>

In the <FirmwareSettings> section, the <FirmwareServer> element can be used to specify a
different server for hosting firmware files. When this element is not available, the device will try to
download the file from the autoprovisioning server.

The device will use the filename to determine when to autoprovision firmware updates. The default
configur

ation is blank, so the first time you set a value in your autoprovisioning file, it may force a

firmware update even if the firmware version has not changed.
The <FirmwareFile> name can contain path elements (i.e. /path/to/firmware/10.3.0-uImage-

[d

evice_file_name]).

The device also supports product strings for downloading firmware. If the <FirmwareFile> option is
not set, the de

vice will look for its particular product string for a firmware filename. In this way, a

generic autoprovisioning file can specify unique firmware for a range of products.
The list of valid product strings:

<ProductString>CallButton31</ProductString>

<ProductString>EmergencyIntercom31</ProductString>
<ProductString>EmergencyIntercom31SW</ProductString>
<ProductString>IndoorIntercom31</ProductString>
<ProductString>IndoorIntercom31SW</ProductString>
<ProductString>IndoorKeypad31</ProductString>
<ProductString>IndoorKeypad31SW</ProductString>
<ProductString>OfficeRinger31</ProductString>
<ProductString>OfficeRinger31SW</ProductString>
<ProductString>OutdoorIntercom31</ProductString>
<ProductString>OutdoorIntercom31SW</ProductString>
<ProductString>OutdoorKeypad31</ProductString>
<ProductString>OutdoorKeypad31SW</ProductString>
<ProductString>Strobe31</ProductString>
<ProductString>Strobe31SW</ProductString>

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

78

Autoprovisioning
Example 1

Here's a simple example using four autoprovisioning files to configure two devices:
We boot up two devices with mac addresses 00:20:f7:02:00:01 and

00:20:f7:02:00:02 (Device1

and Device2).
The devices are set to use DHCP and that server provides an autoprovisioning server address with

opti

on 43. The address is “https://autoprovtest.server.net.” The files on this server are as follows:

000000cd.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
<AutoprovFile>sip_common.xml</AutoprovFile>
<AutoprovFile>sip_[macaddress].xml</AutoprovFile>
</MiscSettings>

sip_common.xml

<SIPSettings>
<SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

sip_0020f7020001.xml

<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>

sip_0020f7020002.xml

<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>

On boot, Device1 tries to fetch the file 0020f7023614.xml from “https://autoprovtest.server.net”. This
file is not availab le, so de vice1 then tries to f etch the file 000000cd.xml. This file e xists, and Device1
parses the three elements.

1. Device1 changes its device name to CyberData Au

toprovisioned.

2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device
ownloads sip_common.xml from “https://autoprovtest.server.net,” and imports this

d
configuration, setting the sip server to 10.0.0.253 and the remote port to 5060.3.

3. Device1 finds another AutoprovFile element containing the filename sip_[macad

dress].xml.
The device replaces the [macaddress] with its own mac address value creating
sip_0020f7020001.xml, downloads this file from “https://autoprovtest.server.net,” and imports
this configuration. This sets the user ID to 198, the password to ext198, and the dialout
extension to 204. Device1 is now finished with autoprovisioning.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Device2 goes through the same steps by setting its device name to CyberData Autoprovisioned,
its SIP server to 10.0.0.253, and its port to 5060. When Device2 “sees” sip_[macaddress].xml,
Device2 replaces it with its own mac address and downloads sip_0020f7020002.xml from
“https://autoprovtest.server.net.” Device2 sets the SIP User ID to 500, the password to ext500, and
the dialout extension to 555.

79

Autoprovisioning
Example 2

Here is another example of setting up your autoprovisioning files:
We boot up two devices with mac addresses 00:20:f7:02:00:01 and

00:20:f7:02:00:02 (Device1
and Device2) and boot them on a network with a DHCP server configured with an autoprovisioning
server at 10.0.1.3 on option 150. Our TFTP server has three files:

0020f7020001.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>198</SIPUserID>
<SIPAuthPassword>ext198</SIPAuthPassword>
<DialoutExtension0>204</DialoutExtension0>
</SIPSettings>

0020f7020002.xml

<MiscSettings>
<AutoprovFile>common_settings.xml</AutoprovFile>
</MiscSettings>
<SIPSettings>
<SIPUserID>500</SIPUserID>
<SIPAuthPassword>ext500</SIPAuthPassword>
<DialoutExtension0>555</DialoutExtension0>
</SIPSettings>

common_settings.xml

<MiscSettings>
<DeviceName>CyberData Autoprovisioned</DeviceName>
</MiscSettings>
<SIPSettings> <SIPServer>10.0.0.253</SIPServer>
<RemoteSIPPort>5060</RemoteSIPPort>
</SIPSettings>

1. On boot, Device1 downloads 0020f7020001.xml from 10.0.1.3 and imports these values. The SIP
User ID is 198, the password is ext198, and the dialout extension is 204.

2. Device1 then gets the filename common_settings.xml

from the AutoprovFile element and
downloads this file from the TFTP server at 10.0.1.3. and imports these settings. The device name is
set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Device2 does the same except it downloads 0020f7020002.xml on boot and imports these v

alues
instead. The Sip User ID is 500, password is ext500, and dialout extension is 555. Device2 then
downloads the common_settings.xml file and imports those values. The device name is set to
CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

80

XML Files

Autoprovisioned
Audio Files

XML files can contain <AutoprovFile> elements. If multiple DHCP options are specified, the device
will try to download autoprovisioning files from each in turn. The device will only look for
<AutoprovFile> elements in the first file downloaded from each server. You can specify up to 20
<AutoprovFile> elements in the first autoprovisioning file.

There are numerous ways to change an element of the configuration(xml) file. U

sing sip ext as an

example, the extension can be changed:
Within the device-specific xml, i.e. [macaddress].xml, via

the AutoprovFile

element:<SIPSettings>/<SIPExt>
From the device specific xml, a pointer to a sip_common file
From the device specific xml, a pointer to the device specific sip_[macaddress].xml
From the common file, a pointer to sip_common.xml
From the common file, a pointer to the device specific (sip_[macaddress].xml)

Audio files are stored in non-volatile memory and an autoprovisioned audio file will only have to be
downloaded once for each device. Loading many audio files to the device from the web page could
cause it to appear unresponsive. If this happens, wait until the transfer is complete and then refresh
the page.

The device uses the file name to determine when to download a new audio file. This means that if
you used autopro

visioning to upload a file and then changed the contents of this file at the TFTP

server, the device will not recognize that the file has changed (because the file name is the same).
Since audio files are stored in non-volatile memory, if autoprovisioning is disabled after they have

been l

oaded to the board, the audio file settings will not change. You can f orce a change to the audio
files on the board by clicking Restore Default on the Audio Configuration page or by changing the
autoprovisioning file with “default” set as the file name.

Operations Guide 930923B CyberData Corporation

2.4.15.2 Sample dhcpd.conf

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

#
# Sample configuration file for ISC dhcpd for Debian
#

ddns-update-style none;

option domain-name "voiplab";
option domain-name-servers 10.0.0.252;
option option-150 code 150 = ip-address;
option ntp-servers north-america.pool.ntp.org;
option space VendorInfo;
option VendorInfo.text code 10 = { text };
authoritative;
log-facility local7;

subnet 10.0.0.0 netmask 255.0.0.0 {
max-lease-time 3600;
default-lease-time 3600;

option routers 10.0.0.1;
option subnet-mask 255.0.0.0;

option domain-name "voiplab";
option domain-name-servers 10.0.0.252;

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

81

option time-offset -8; # Pacific Standard Time

# option www-server 99.99.99.99; # OPTION 72

# option tftp-server-name "10.0.1.52"; # OPTION 66
# option tftp-server-name "http://test.cyberdata.net"; # OPTION 66

# option option-150 10.0.0.252; # OPTION 150

# These two lines are needed for option 43
# vendor-option-space VendorInfo; # OPTION 43
# option VendorInfo.text "http://test.cyberdata.net"; # OPTION 43

range 10.10.0.1 10.10.2.1; }

Operations Guide 930923B CyberData Corporation

2.4.15.3 Download Template Button

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

The Download Template button allows the user to generate, download, edit, and then store an
autoprovisioning template on the server that serves the autoprovisioning files for devices.

To generate an autoprovisioning template directly from the device, complete the following steps:

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

82

1. On the Au

toprovisioning page, click on the Download Template button.

2. You will see a window prompting you to save a configuration file (.xml) to a location on your
computer (Figure 2-34). The

configuration file is the basis for the default configuration settings

for your unit).

3. Choose a location to save the configuration file and click on OK. See Figure 2-34.

Figure 2-34. Configuration File

4. At this point, you can open and edit the autoprovisioning template to change the configuration
settings in the te

mplate f

or the unit.

5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be
loaded onto other de

Operations Guide 930923B CyberData Corporation

vices.

Installing the VoIP Outdoor Intercom with Keypad

GENERAL ALERT

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

2.5 Upgrade the Firmware and Reboot the Intercom

Caution

Equipment Hazard: Devices with a serial number that begins with 3101xxxxx can
only run firmware versions 10.0.0 or later.

2.5.1 Uploading the Firmware

To upload the firmware from your computer:

1. Retrieve the latest Intercom firmware file from the VoIP Outdoor Intercom with Keypad
Downloads page at:

http://www.cyberdata.net/products/voip/digitalanalog/singlewireoutdoorintercomkeypad/downloads.html

2. Unzip the firmware version file. This file may contain the following:

• Firmware file

• Release notes

83

3. Log in to the Intercom home page as instructed in Section 2.4.4, "Log in to the Configuration

Home Page".

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

GENERAL ALERT

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

4. Click on the Firmware menu button to open the Firmware page. See Figure 2-35.

Caution

Equipment Hazard: CyberData strongly recommends that you first reboot the
device before attempting to upgrade the firmware of the device. See Section 2.5.2,

"Reboot the Device".

Figure 2-35. Firmware Page

Intercom Setup

84

5. Click on the Browse

button, and then navigate to the location of the firmware file.

6. Select the firmware file.

7. Click on the Upload button.

Note Do not reboot the d

ev

ice after clicking on the Upload button.

Note This starts the upgrade process. Once the Intercom has uploaded the file, the Uploading

Firm

ware countdown page appears, indicating that the firmware is being written to flash.

The Intercom will automatically reboot when the upload is complete. When the countdown
finishes, the Firmware page will refresh. The uploaded firmware filename should be
displayed in the system configuration (indicating successful upload and reboot).

8. Table 2-25 shows the web page items on the Firmware page

.

Table 2-25. Firmware Parameters

Web Page Item Description

Current Firmware Version Shows the current firmware version.

Use the Browse bu
Intercom firmware file that you want to upload.

Click on the Upload button to automatical
firmware and reboot the system.

tton to navigate to the location of the

ly upload the selected

Operations Guide 930923B CyberData Corporation

2.5.2 Reboot the Device

310100452

Reboot

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

To reboot a Intercom, log in to the web page as instructed in Section 2.4.4, "Log in to the

Configuration Home Page".

Installing the VoIP Outdoor Intercom with Keypad

Intercom Setup

85

1. Click on the Reboot b

Figure 2-36. Reboot System Section

utton on the Home page (Figure 2-36). A normal restart will occur.

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

2.6 Command Interface

Some functions on the device can be activated using simple POST commands to the web interf ace.
The examples in Table 2-26 use the free unix utility, wget commands. Ho
can send HTTP POST commands to the device should work.

2.6.1 Command Interface Post Commands

Note These commands require an authenticated session (a valid username and password to

work).

Table 2-26. Command Interface Post Commands

Device Action HTTP Post Command

Trigger relay (for configured delay) wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
command.cgi" --post-data "test_relay=yes"

Place call to extension (example: extension 130) wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
command.cgi" --post-data "call=130"

b

Place point-to-point call
(example: IP phone address = 10.0.3.72)

Terminate active call wget --user admin --password admin --auth-no-challenge --no-

Force reboot wget --user admin --password admin --auth-no-challenge --no-

Test Audio button wget --user admin --password admin --auth-no-challenge --no-

Announce IP address wget --user admin --password admin --auth-no-challenge --no-

Play the "0" audio file wget --user admin --password admin --auth-no-challenge --no-

Play the "1" audio file wget --user admin --password admin --auth-no-challenge --no-

Play the "2" audio file wget --user admin --password admin --auth-no-challenge --no-

Play the "3" audio file wget --user admin --password admin --auth-no-challenge --no-



wget --user admin --password admin --auth-no-challenge --no­check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
command.cgi" --post-data "call=10.0.3.72"

k-cer

chec
command.cgi" --post-data "terminate=yes"

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
command.cgi" --post-data "reboot=yes"

chec
command.cgi" --post-data "test_audio=yes"

chec
command.cgi" --post-data "speak_ip_address=yes"

chec
audioconfig.cgi" --post-data "play_0=yes"

chec
audioconfig.cgi" --post-data "play_1=yes"

chec
audioconfig.cgi" --post-data "play_2=yes"

chec
audioconfig.cgi" --post-data "play_3=yes"

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

k-cer

k-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

k-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

k-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

k-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

k-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

a

wever, any program that

86

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-26. Command Interface Post Commands (continued)

Device Action HTTP Post Command

a

Play the "4" audio file wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
audioconfig.cgi" --post-data "play_4=yes"

Play the "5" audio file wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
audioconfig.cgi" --post-data "play_5=yes"

Play the "6" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_6=yes"

Play the "7" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_7=yes"

Play the "8" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_8=yes"

Play the "9" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_9=yes"

87

Play the "Dot" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_d=yes"

Play the "Audio Te st" audio file (from Audio Config) wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_audiotest=yes"

Play the "Page Tone" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_pagetone=yes"

Play the "Your IP Address Is" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_youripaddressis=yes"

Play the "Rebooting" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_rebooting=yes"

Play the "Restoring Default" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_restoringdefault=yes"

Play the "Ringback tone" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_ringback=yes"

Play the "Ring tone" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_ringtone=yes"

Play the "Intrusion Sensor Triggered" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_intrusionsensortriggered=yes"

Play the "Door Ajar" audio file wget --user admin --password admin --auth-no-challenge --no-

k-cer

chec

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "play_doorajar=yes"

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-26. Command Interface Post Commands (continued)

Device Action HTTP Post Command

a

Play the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
audioconfig.cgi" --post-data "play_nightring=yes"

Delete the "0" audio file wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
audioconfig.cgi" --post-data "delete_0=yes"

Delete the "1" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_1=yes"

Delete the "2" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_2=yes"

Delete the "3" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_3=yes"

Delete the "4" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_4=yes"

88

Delete the "5" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_5=yes"

Delete the "6" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_6=yes"

Delete the "7" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_7=yes"

Delete the "8" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_8=yes"

Delete the "9" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_9=yes"

Delete the "Audio Test" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_audiotest=yes"

Delete the "Page Tone" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_pagetone=yes"

Delete the "Your IP Address Is" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_youripaddressis=yes"

Delete the "Rebooting" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_rebooting=yes"

Delete the "Restoring Default" audio file wget --user admin --password admin --auth-no-challenge --no-

k-cer

chec

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_restoringdefault=yes"

Operations Guide 930923B CyberData Corporation

Installing the VoIP Outdoor Intercom with Keypad

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom Setup

Table 2-26. Command Interface Post Commands (continued)

Device Action HTTP Post Command

a

Delete the "Ringback tone" audio file wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
audioconfig.cgi" --post-data "delete_ringback=yes"

Delete the "Ring tone" audio file wget --user admin --password admin --auth-no-challenge --no-

check-certificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/
audioconfig.cgi" --post-data "delete_ringtone=yes"

Delete the "Intrusion Sensor Triggered" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_intrusionsensortriggered=yes"

Delete the "Door Ajar" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_doorajar=yes"

Delete the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

audioconfig.cgi" --post-data "delete_nightring=yes"

Trigger the Door Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

sensorconfig.cgi" --post-data "doortest=yes"

89

Trigger the Intrusion Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --no-

check-cer

tificate --quiet -O /dev/null "https://10.0.3.71/cgi-bin/

sensorconfig.cgi" --post-data "intrusiontest=yes"

a.Type and enter all of each http POST command on one line.
b. Must be in point-to-point mode see Section 2.4.8.1, "Point-to-Point Configuration"

Operations Guide 930923B CyberData Corporation

Appendix A: Mounting the VoIP Outdoor

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Intercom with Keypad

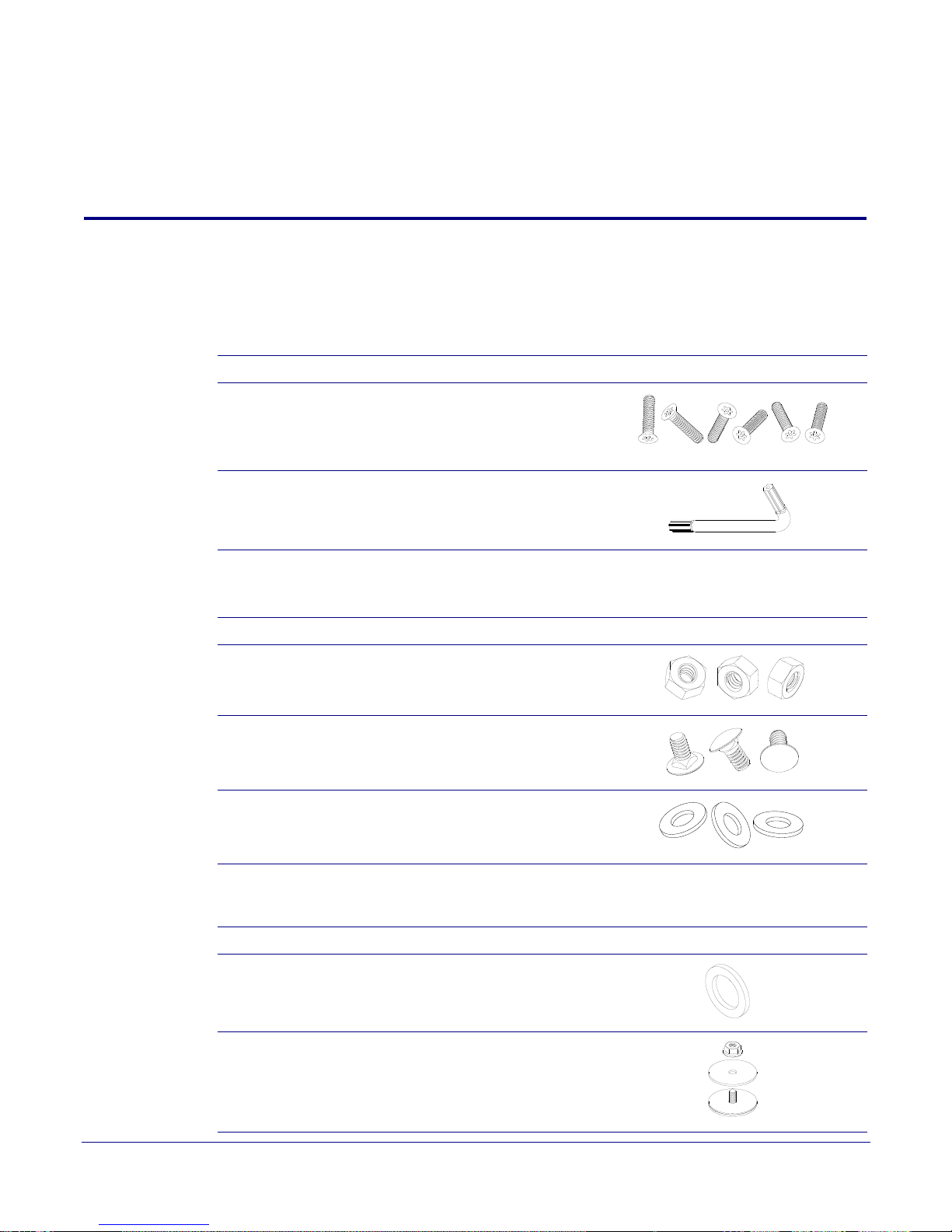

A.1 Mount the Intercom

Before you mount the Intercom, make sure that you have received all the parts for each Intercom.
Refer to Table A-1.

Quantity Part Name Illustration

6 Accessory Kit Security Torx MS

1 Mounting Component Security Torx Key

See Table A-2 and Table A-3 for optional accessories.

Table A-1. Mounting Components (Part of the Accessory Kit)

90

Table A-2. Optional Accessories (for gooseneck mounting)

Quantity Part Name Illustration

3 Carriage bolt nuts

3 Carriage bolts

3 Carriage bolt washers

Table A-3. Optional Accessories

Quantity Part Name Illustration

1 Spacer for Half-inch Set Screw Connector

1 531085B Hole Plug Assembly

Operations Guide 930923B CyberData Corporation

A.2 Dimensions

7.480 [190.00]

DIMENSIONS ARE IN INCHES [MILLIMETER]

2.284 [58.01]

5.118 [130.00]

5.198 [132.03]

ø0.280 [ø7.11]

3.740 [95.00]

1.690 [42.93]

0.869 [22.07]

3.380 [85.85]

1.690

(3 Places)

[42.93]

ø0.854 [ø21.69]

Dimensions are in Inches [Millimeter]

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Figure A-1. Unit Dimensions—Front and Side View

Mount the Intercom

91

Figure A-1. Unit Dimensions—Rear View with Mounting Hole Locations

Operations Guide 930923B CyberData Corporation

Figure A-2. Shroud Dimensions and Mounting Hole Locations

ø0.854 [ø21.69]

ø0.280 [ø7.11]

(3 PLACES)

7.638 [194.00]

3.819 [97.00]

3.380 [85.85]

7.638 [194.00]

4.254 [108.06]

3.434 [87.23]

2.564 [65.13]

Dimensions are in Inches [Millimeter]

VoIPon www.voipon.co.uk [e-mail] Tel: [phone] Fax: [phone]

Mount the Intercom

92
