Push-to-Talk V2 Speaker Operations Guide

Part #011180, RAL 9002, Gray White, Standard

Part #011181, RAL 9003, Signal White, Optional

Document Part #930468A

for Firmware Version 6.4.0

CyberData Corporation

3 Justin Court

Monterey, CA 93940

(831) 373-2601

Page 2

Push-to-Talk V2 Speaker Operations Guide 930468A

Technical Support

The fastest way to get technical support for your VoIP product is to submit a VoIP Technical Support form at the following website:

http://www.cyberdata.net/support/contactsupportvoip.html

Phone: (831) 373-2601, Ext. 333 Email: [email protected] Fax: (831) 373-4193 Company and product information is at www.cyberdata.net.

Part # 011180 Part # 011181

This manual and related materials are the copyrighted property of CyberData Corporation. No part of this manual or related materials may be reproduced or transmitted, in any form or by any means (except for internal use by licensed customers), without prior express written permission of CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.

DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by CyberData Corporation, CyberData Corporation makes no representation or warranty, express or implied, including any warranty or merchantability or fitness for any purpose, with respect to this manual or the products, software, firmware, and/or hardware described herein, and CyberData Corporation assumes no liability for damages or claims resulting from any use of this manual or such products, software, firmware, and/or hardware. CyberData Corporation reserves the right to make changes, without notice, to this manual and to any such product, software, firmware, and/or hardware.

OPEN SOURCE STATEMENT: Certain software components included in CyberData products are subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL) “open source” or “free software” licenses. Some of this Open Source Software may be owned by third parties. Open Source Software is not subject to the terms and conditions of the CyberData COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open Source Software is determined by the terms of the GPL, LGPL, or third party, according to who licenses that software.

Software or firmware developed by CyberData that is unrelated to Open Source Software is copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied, modified, reverse-engineered, or otherwise altered without explicit written permission from CyberData Corporation.

TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are trademarks of CyberData Corporation. Other product names, trademarks, and service marks may be the trademarks or registered trademarks of their respective owners.

The IP Endpoint Company

CyberData Corporation 930468A Operations Guide

Page 3

Revision Information

Revision 930468A, which corresponds to firmware version 6.4.0, was released on November 13,

2012.

Operations Guide 930468A CyberData Corporation

Page 4

Important Safety Instructions

GENERAL ALERT

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. Prior to installation, consult local building and electrical code requirements.

Warning

Electrical Hazard: This product should be install ed by a licensed electr ician according to all local electric al and building codes .

Warning

Electrical Hazard: To prevent injury, this apparatus must be securely atta ched to the fl o o r /wall in accordance with the installation instruct io n s.

CyberData Corporation 930468A Operations Guide

Page 5

Pictorial Alert Icons

GENERAL ALERT

Hazard Levels

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This is limited to the most extreme situations.

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

General Alert

This pictor al alert indicates a potentially hazardous situation. Thi s alert will be followed by a hazard level heading and more specific information about the hazard.

Ground

This pictor al alert indicates the Earth grounding connection point.

Caution: Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It may also alert users against unsafe practices.

Notice: Indicates a statement of company policy (that is, a safety policy or protection of property).

The safety guidelines for the equipment in this manual do not purport to address all the safety issues of the equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and health practices and determine the applicability of regulatory limitations prior to use. Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons.

CyberData Corporation 930468A Operations Guide

Page 6

Abbreviations and Terms

Abbreviation or Term Definition

A-law A standard companding algorithm, used in European digital

communications systems to optimize, i.e., modify, the dynamic range of an analog signal for digitizing.

AVP Audio Video Profile

Cat 5 TIA/EIA-568-B Category 5

DHCP Dynamic Host Configuration Protocol

LAN Local Area Network

LED Light Emitting Diode

Mbps Megabits per Second.

NTP Network Time Protocol

PBX Private Branch Exchange

PoE Power over Ethernet (as per IEEE 802.3af standard)

RTFM Reset Test Function Management

SIP Session Initiated Protocol

u-law A companding algorithm, primarily used in the digital telecommunication

UC Unified Communications

VoIP Voice over Internet Protocol

CyberData Corporation 930468A Operations Guide

Page 7

Contents

Chapter 1 Product Overview 1

1.1 How to Identify This Product ..............................................................................................................1

1.2 Installation ...............................................................................................................................................2

1.3 Product Features .....................................................................................................................................2

1.4 Supported Protocols ..............................................................................................................................3

1.5 Supported SIP Servers ...........................................................................................................................3

1.6 Product Specifications ...........................................................................................................................4

1.7 Optional Connections (J9 and J10) .......................................................................................................5

1.8 Dimensions .............................................................................................................................................5

1.9 Push-To-Talk Speaker Modes ...............................................................................................................6

1.9.1 Normal Mode ..............................................................................................................................6

1.9.2 Monitor Mode ..............................................................................................................................8

Chapter 2 Installing the VoIP V2 Speaker 10

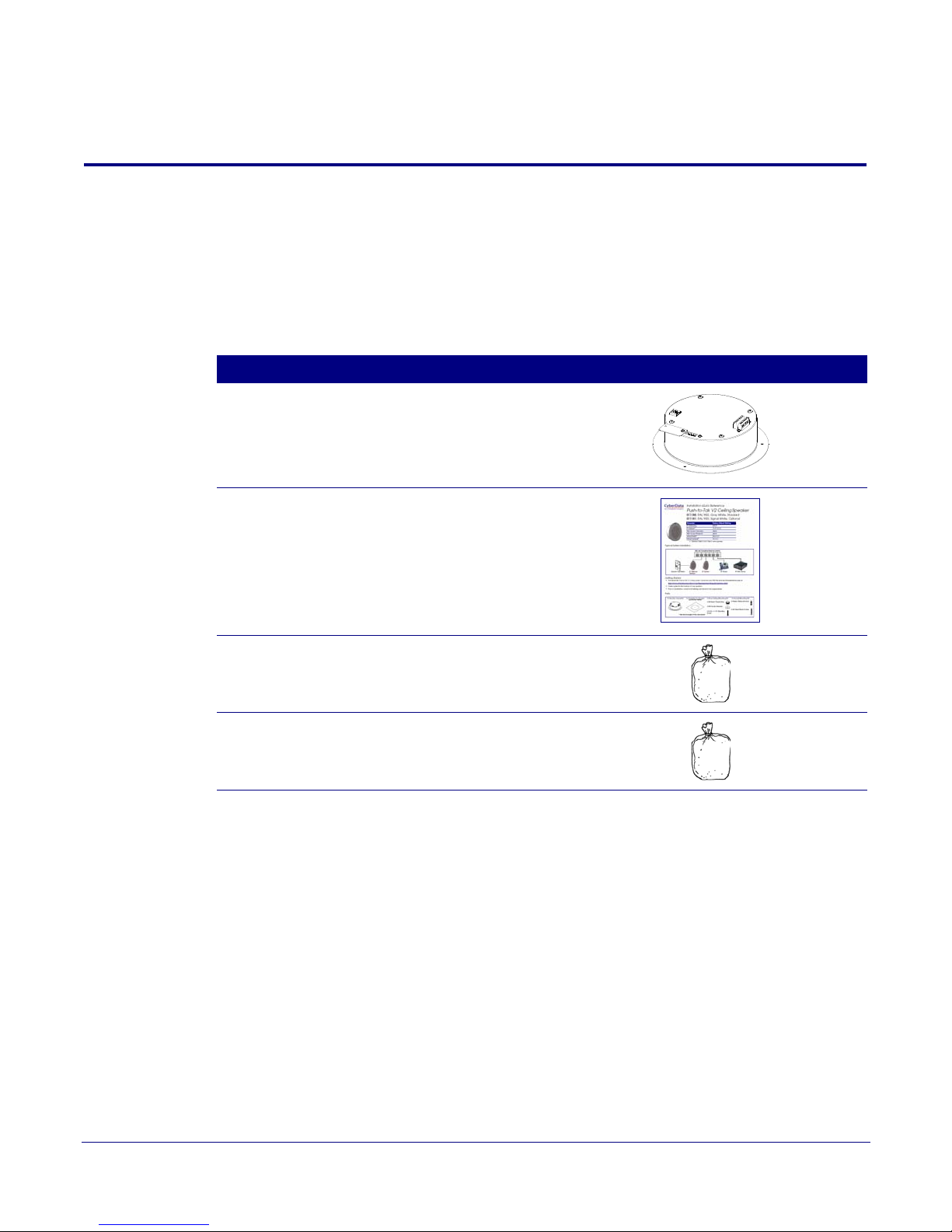

2.1 Parts List ................................................................................................................................................10

2.2 Device Configuration ..........................................................................................................................11

2.2.1 Connect Power to the Speaker ...............................................................................................12

2.2.2 Installation Options ..................................................................................................................15

2.2.3 Confirm that the Speaker is Operational and Linked to the Network .............................20

2.2.4 Confirm the IP Address and Test the Audio .........................................................................21

2.2.5 Adjust the Volume ....................................................................................................................22

2.2.6 How to Set the Factory Default Settings ................................................................................23

2.3 Configure the Speaker Parameters ...................................................................................................24

2.3.1 Talkback Speaker Web Page Navigation ...............................................................................25

2.3.2 Log in to the Configuration Home Page ................................................................................26

2.3.3 Configure the Device Parameters ...........................................................................................29

2.3.4 Configure the Network Parameters .......................................................................................32

2.3.5 Configure the SIP Parameters .................................................................................................34

2.3.6 Configure the Night Ringer Parameters ................................................................................39

2.3.7 Configure the Multicast Parameters .......................................................................................41

2.3.8 Configure the Audio Parameters ............................................................................................44

2.3.9 Configure the NTP Server and Clock Parameters ................................................................50

2.3.10 Configure the Event Parameters ...........................................................................................55

2.3.11 Configure the Autoprovisioning Parameters ......................................................................60

2.3.12 Upgrade the Firmware and Reboot the Talkback Speaker ...............................................65

2.4.1 Command Interface Post Commands ....................................................................................70

Appendix A Mounting the Speaker 75

A.1 Mount the Speaker .............................................................................................................................75

Appendix B Setting up a TFTP Server 78

B.1 Set up a TFTP Server ...........................................................................................................................78

B.1.1 In a LINUX Environment ........................................................................................................78

B.1.2 In a Windows Environment ...................................................................................................78

Appendix C Troubleshooting/Technical Support 79

C.1 Frequently Asked Questions (FAQ) .................................................................................................79

C.2 Documentation ....................................................................................................................................79

C.3 Contact Information ............................................................................................................................80

C.4 Warranty ...............................................................................................................................................81

C.4.1 Warranty & RMA Returns within the United States ...........................................................81

C.4.2 Warranty & RMA Returns Outside of the United States ....................................................81

C.4.3 Spare in the Air Policy .............................................................................................................81

C.4.4 Return and Restocking Policy ................................................................................................82

Operations Guide 930468A CyberData Corporation

Page 8

C.4.5 Warranty and RMA Returns Page .........................................................................................82

Index 83

Operations Guide 930468A CyberData Corporation

Page 9

1 Product Overview

GENERAL ALERT

SPEAKER,V2 PAGING,SIP PTT,

CEILING/WALL MNT,RAL9002,RoHS

011180A / 021037D

WWW.CYBERDATA.NET

180000001

Model number

The CyberData SIP-enabled V2 Speaker is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address loudspeaker that easily connects into existing local area networks with a single CAT5 cable connection. The speaker is compatible with most SIP-based IP PBX. In a non-SIP environment, the speaker is capable of receiving broadcast audio via multicast. Its small footprint and low height allows the speaker to be discretely mounted almost anywhere.

Note Prior to installation, create a plan for the locations of your speakers.

General Alert

Consult local building and electrical code requirements prior to installation.

1.1 How to Identify This Product

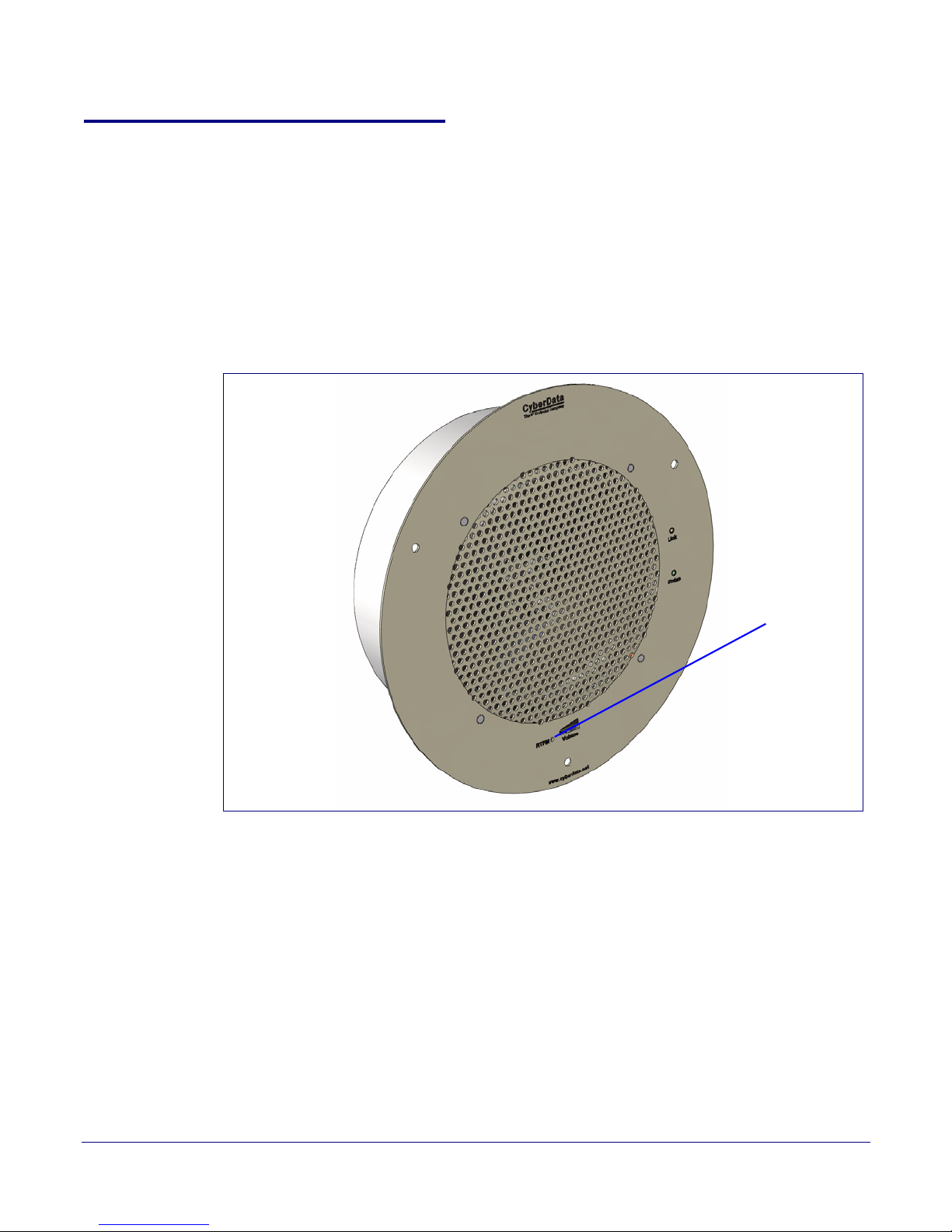

To identify the VoIP V2 Speaker, look for a model number label similar to the one shown in Figure 1-1. The model number on the label should be one of the following:

• 011180, RAL 9002, Gray White, Standard Color

• 011181, RAL 9003, Signal White, Optional Color

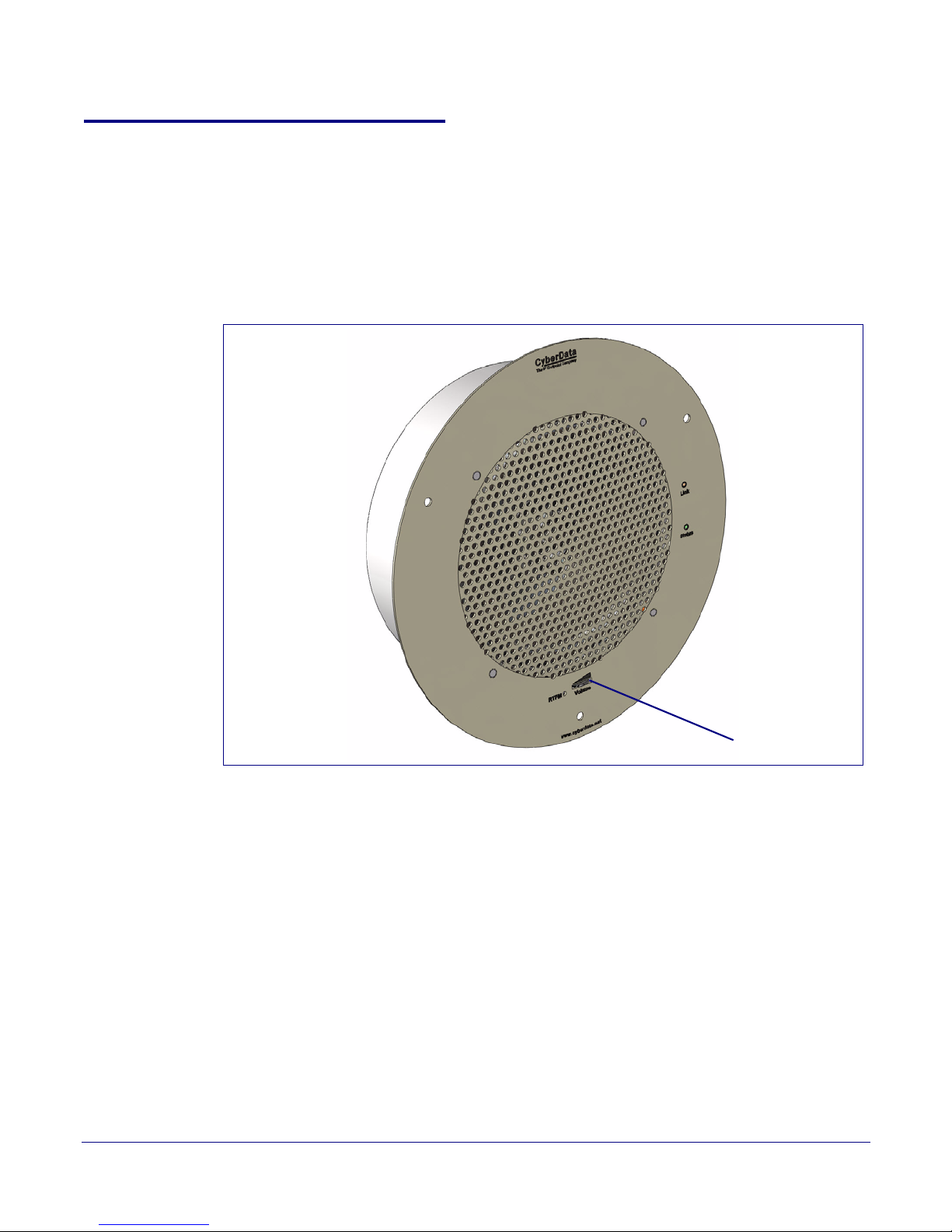

Figure 1-1. Model Number Label

Operations Guide 930468A CyberData Corporation

Page 10

1.2 Installation

802.3af Compliant Ethernet Switch

IP Phone

12 34 56

IP Talkback IP PBX ServerIP SpeakerRemote Call Button Speaker

• SIP (RFC 3261) compatible

• Web-based configuration

• Web-based firmware upgradeable

• Autoprovisioning support

• Small footprint

• High efficiency speaker driver

• PoE 802.3af Enabled (Powered-overEthernet)

• Network and external speaker volume control

• Peer-to-peer capability

• User-uploadable ring and alert tones

• Auto detect for CyberData Clock kit

• Nightringer

•Buffered page

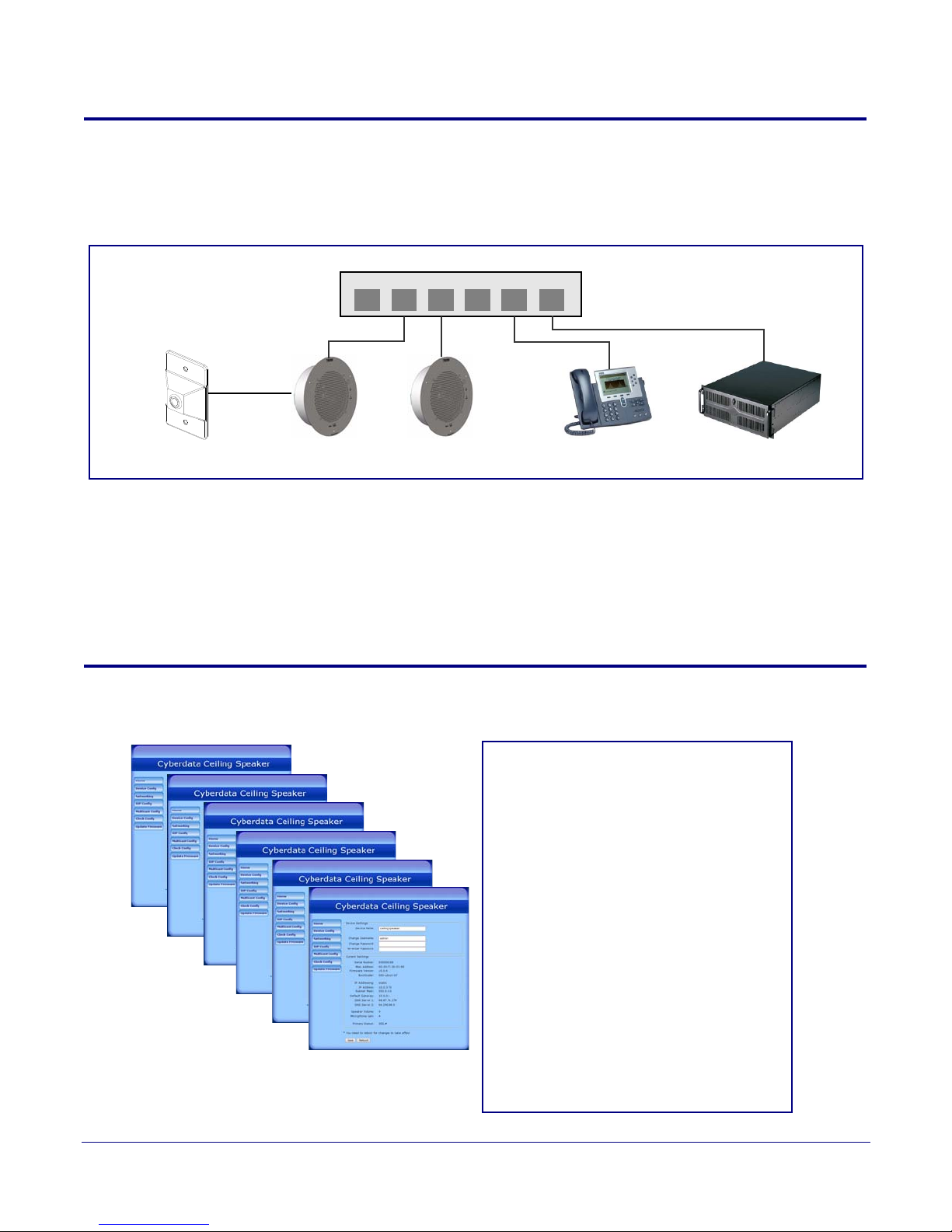

Figure 1-2 illustrates a typical configurations for the VoIP V2 Speaker.

See the following sections for other installation options:

• Section 2.2.1.3, "Running the Talkback Speaker with Auxiliary Power"

• Section 2.2.2.2, "Talkback Speaker with an External Device"

• Section 2.2.2.3, "Talkback Speaker with Auxiliary Speaker Connection"

• Section 2.2.2.4, "Talkback Speaker with Line Out"

Figure 1-2. Typical Installation

Product Overview

Installation

1.3 Product Features

Operations Guide 930468A CyberData Corporation

Page 11

1.4 Supported Protocols

The V2 Speaker supports:

•SIP

•Multicast

• HTTP Web-based configuration

Provides an intuitive user interface for easy system configuration and verification of speaker operations.

•DHCP Client

Dynamically assigns IP addresses in addition to the option to use static addressing.

• HTTP TCP Post auto-updating event notification in XML format

•TFTP Client

Facilitates hosting for the configuration file for Autoprovisioning.

•Audio Encodings

PCMU (G.711 mu-law)

PCMA (G.711 A-law)

Packet Time 20 ms

Product Overview

Supported Protocols

1.5 Supported SIP Servers

The following link contains information on how to configure the speaker for the supported SIP servers:

http://www.cyberdata.net/support/server/index.html

Operations Guide 930468A CyberData Corporation

Page 12

Product Overview

Product Specifications

1.6 Product Specifications

Table 1-1. Product Specifications

Category Specification

Audio sensitivity 96dB/1W/1M S.P. Level

Audio output 10 Watts Peak Power

Operating temperature -30 to 55 C (-22 to 131 F)

Ethernet port baud rate 10/100 Mbps

Protocol SIP RFC 3261 Compatible

Power Input (J1) PoE 802.3af (as per IEEE 802.3af standard from a UL-listed, LPS-rated limited power source)

44-57 VDC (48 VDC nominal) at 350mA

or Auxiliary Power Inputa (Terminal Block J10)

Payload types G711, A-law and µ-law

Regulatory compliance FCC Class B, CE

Warranty 2 years limited

Dimensions 9” x 2.4”

Weight 2.8 lbs./shipping weight of 3.8 lbs.

Part number 011180, RAL 9002, Gray White, Standard Color

12 VDC at 1A (from a UL-listed, LPS-rated power supply)

(1.3 kg/shipping weight of 1.7 kg)

011181, RAL 9003, Signal White, Optional Color

a.Auxiliary power input for use when PoE power is not available. 12 VDC @ 1A. Do not use auxiliary power input when speaker J1 is connected to a PoE power source.

Operations Guide 930468A CyberData Corporation

Page 13

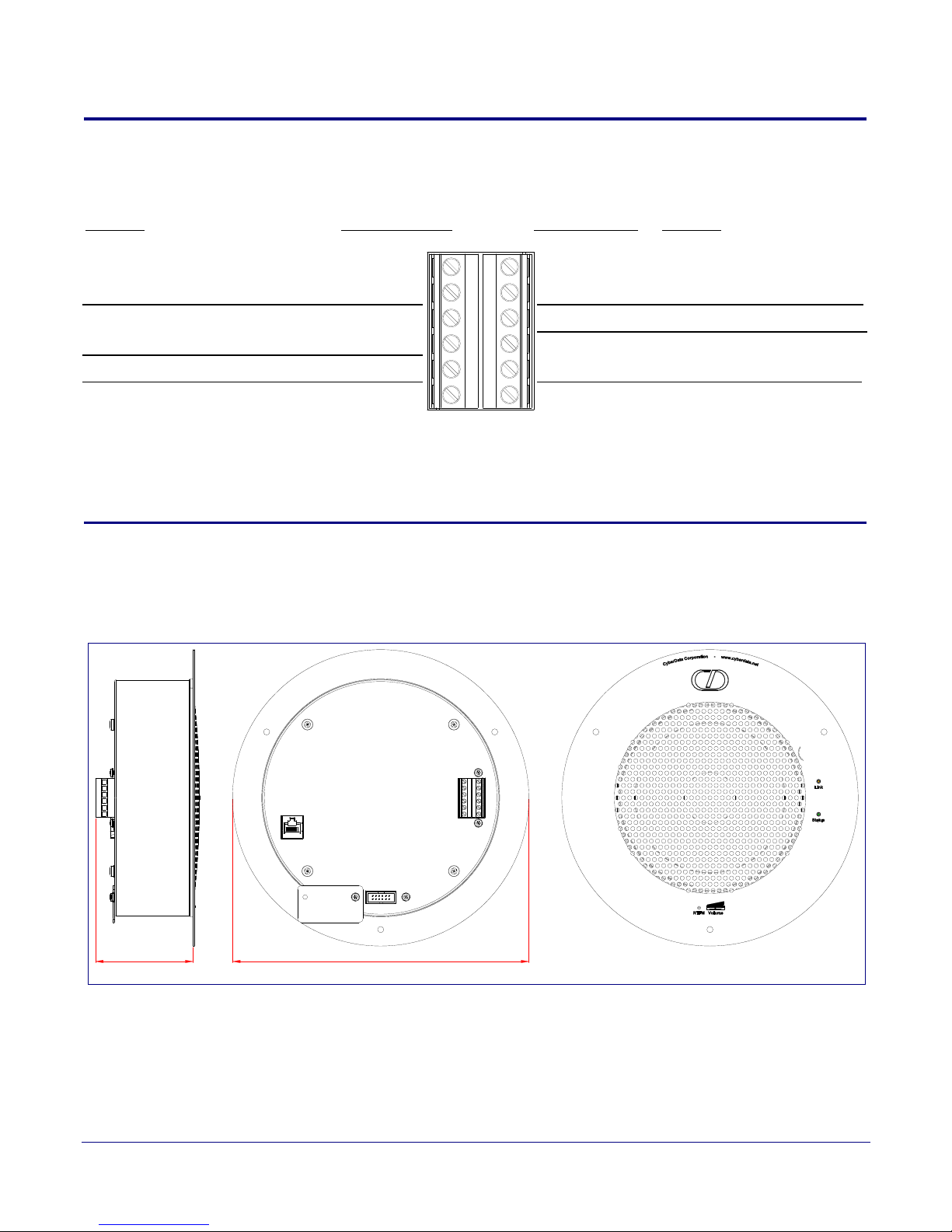

1.7 Optional Connections (J9 and J10)

AUX SPEAKER (-) AUX SPEAKER (+)

BTN SENSE GND LINE OUT (-)

LINE OUT (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

*Auxiliary power input for use when PoE power is not available. 12 VDC @ 1A.

Relay contacts rated at 30 VDC @ 1A.

Auxiliary 8-Ohm speaker connection (not to be used when the Clock is connected.

Audio line - level output to external audio amplifier. 2v P-P into 10k Ohms.

*Do not use auxiliary power input when speaker J1 is connected to a PoE power source.

Function

FunctionJ10 Connections J9 Connections

BUTTON LED (-)

BUTTON LED (+)

BTN SENSE

9.0 [229]

3.0 [75] Dimensions are in Inches [Millimeter]

Figure 1-3. Optional Connections (J9 and J10)

Product Overview

Optional Connections (J9 and J10)

1.8 Dimensions

Figure 1-4 shows the dimensions for the V2 Speaker.

Figure 1-4. Dimensions

Operations Guide 930468A CyberData Corporation

Page 14

1.9 Push-To-Talk Speaker Modes

IP Phone

Ta l k ba c k Speaker

Push the Call Button

Talkback Speaker makes a call or dials a SIP extension.

Phone user dials the Talkback Speaker.

Push the Call Button

1.9.1 Normal Mode

•In Normal Mode, a person can use the Remote Call Button and the Talkback Speaker to call an IP phone or a phone user can call the talkback speaker. See

Figure 1-5. Normal Mode

Figure 1-5.

Product Overview

Push-To-Talk Speaker Modes

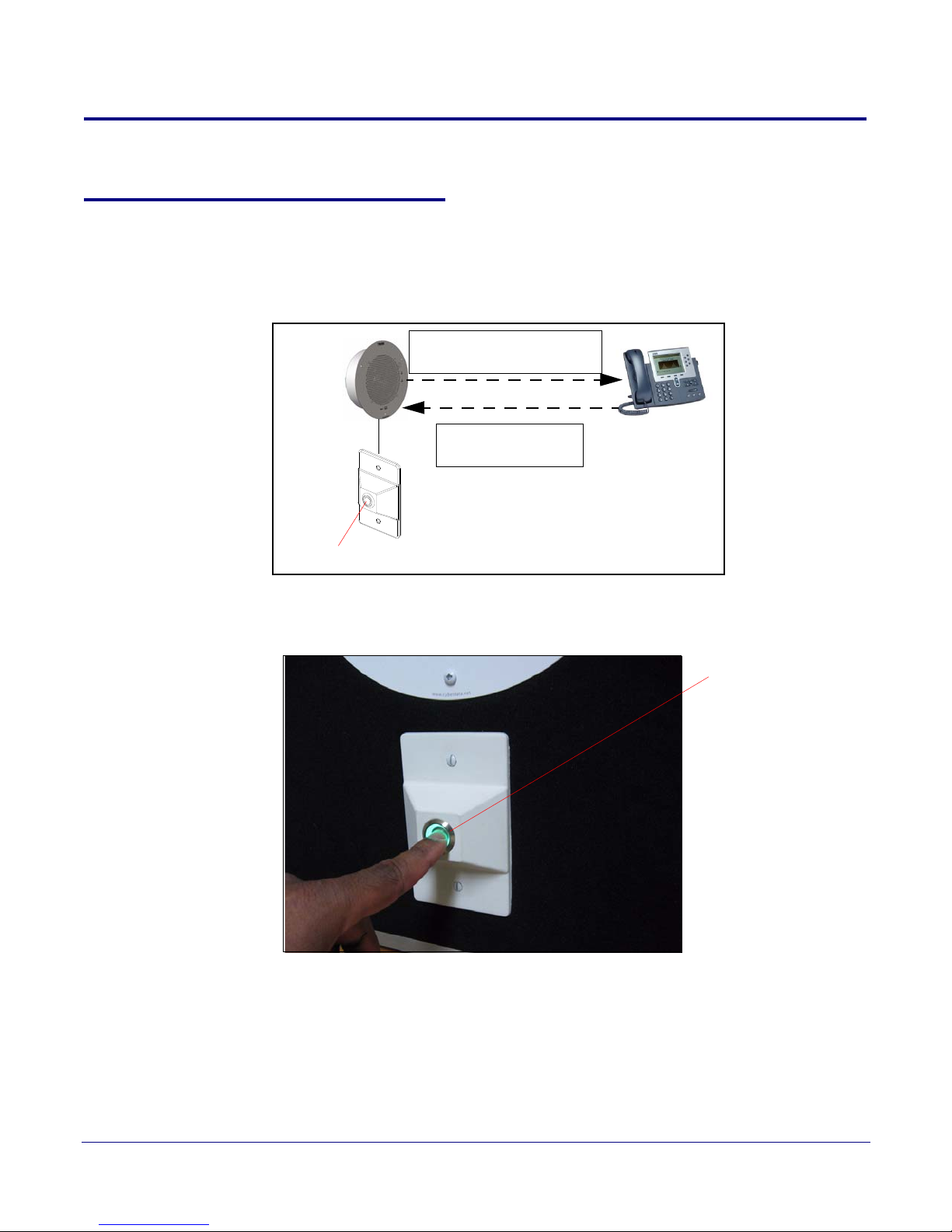

• Push the Call Button to make a call or dial the SIP extension. See Figure 1-6.

Figure 1-6. Push the Call Button to Make a Call

Operations Guide 930468A CyberData Corporation

Page 15

Product Overview

Hold down the Call Button while talking

Release the Call Button while listening

Push-To-Talk Speaker Modes

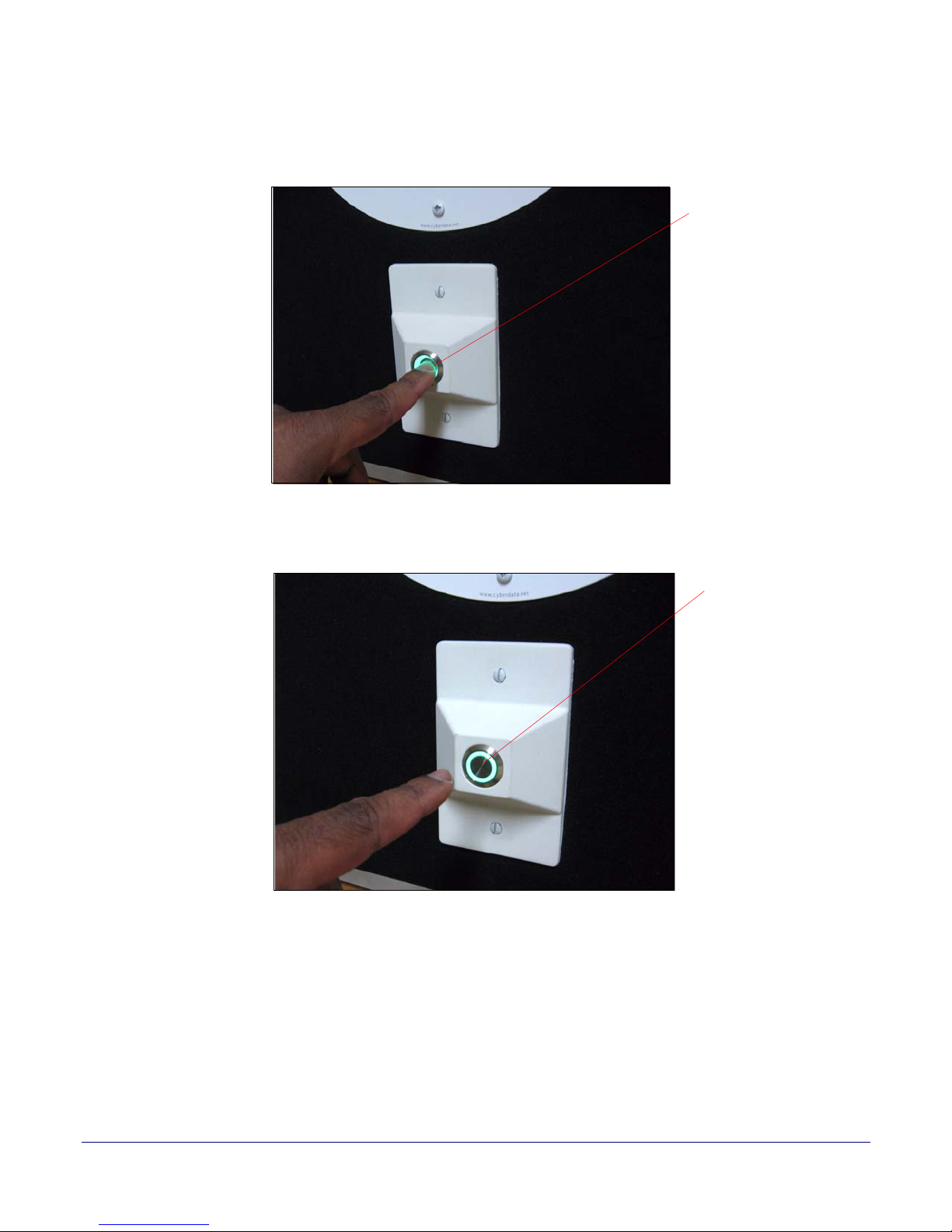

• To talk to someone on the other end, the person at the V2 Speaker, must hold down the Call Button while they are talking to the person on the other end. See

Figure 1-7.

Figure 1-7. Hold Down the C a ll Button While Talking

• To listen to someone talking on the other end, the person at the V2 Speaker must release the Call Button. See

Figure 1-8.

Figure 1-8. Release the Call Button While Listening

Operations Guide 930468A CyberData Corporation

Page 16

1.9.2 Monitor Mode

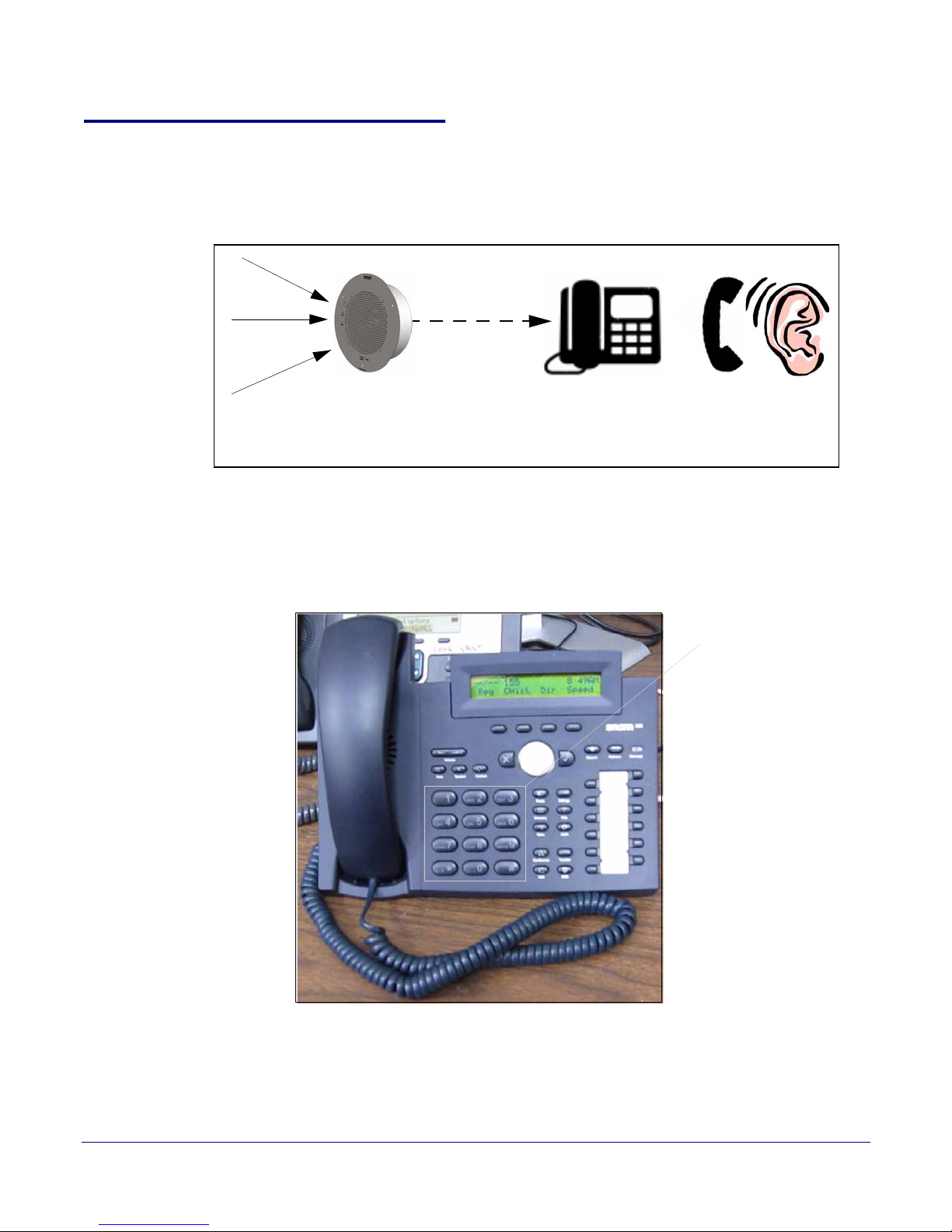

IP Phone

Ta l k ba c k

Speaker Sound, noise, or activity near the V2 Speaker

Dial the pre-programmed Monitor Extension

•In Monitor Mode, the person on the phone can listen to any activity that is occurring near the Push-to-Talk Speaker. See

• The Call Button is not used during Monitor Mode.

• Monitor Mode is controlled by the phone instead of the Push-to-Talk Speaker.

• To initiate the Monitor Mode, someone on a phone must dial the pre-programmed Monitor Extension. See

Figure 1-9.

Figure 1-9. Monitor Mode

Figure 1-10.

Product Overview

Push-To-Talk Speaker Modes

Figure 1-10. Dial the Monitor Extensio n

Operations Guide 930468A CyberData Corporation

Page 17

Product Overview

Talking and listening modes are controlled by the phone keypad

Push-To-Talk Speaker Modes

•In Monitor Mode, the "talking mode" and the "listening mode" are controlled by one of the pre- programmed buttons on the phone keypad. Therefore, if someone is in the "listening mode," they must press a pre-programmed keypad button to enter the "talking mode." Conversely, if someone is in the "talking mode," they must press a pre-programmed keypad button to enter the "listening mode."

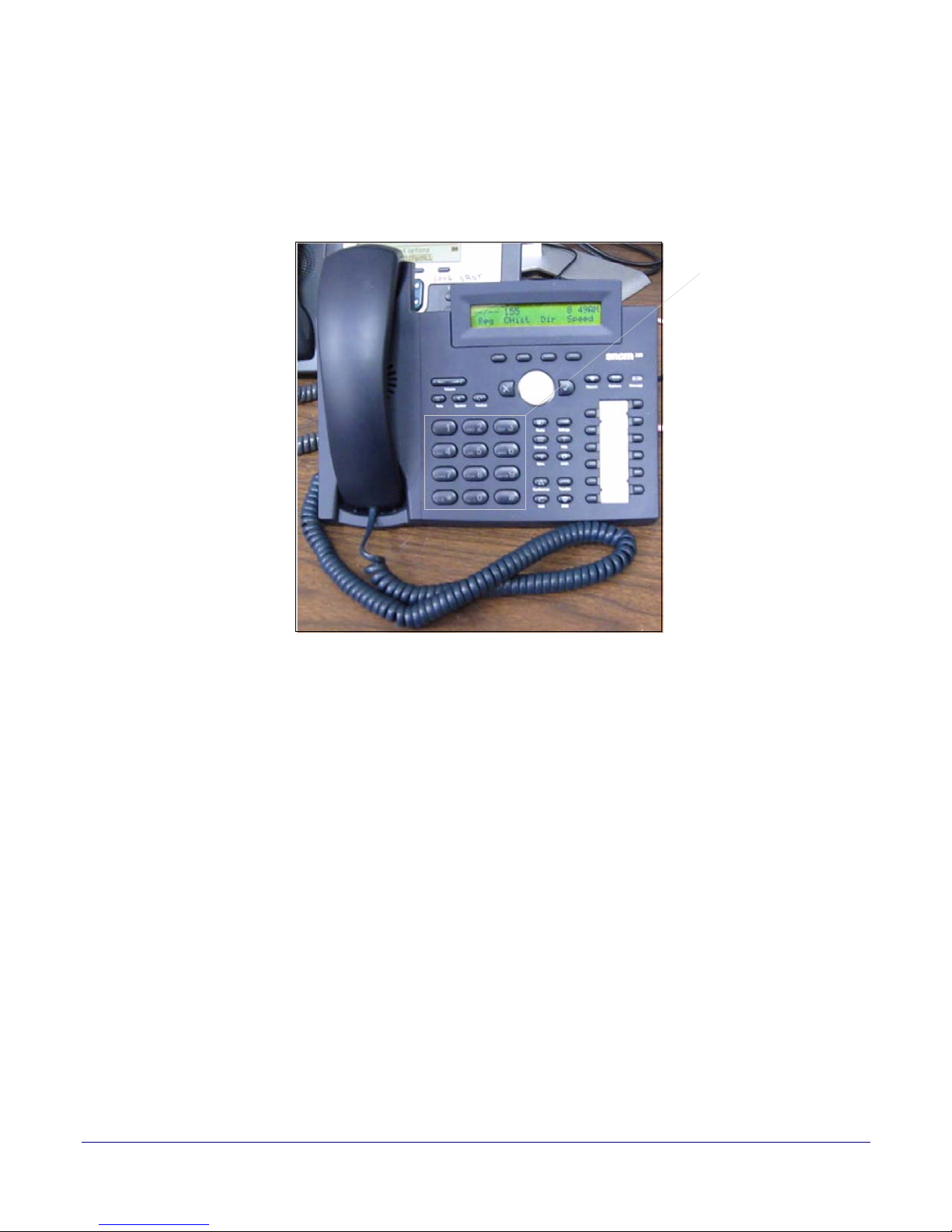

Figure 1-11. Talking and Listening Modes are Controlled by the Phone Keypad

Operations Guide 930468A CyberData Corporation

Page 18

2 Installing the VoIP V2 Speaker

2.1 Parts List

Ta bl e 2-1 illustrates the parts for each speaker and includes kits for the drop ceiling and drywall

mounting.

Note The installation template for the Talkback Speaker is located on the Installation Quick

Reference Guide that is included in the packaging with each speaker.

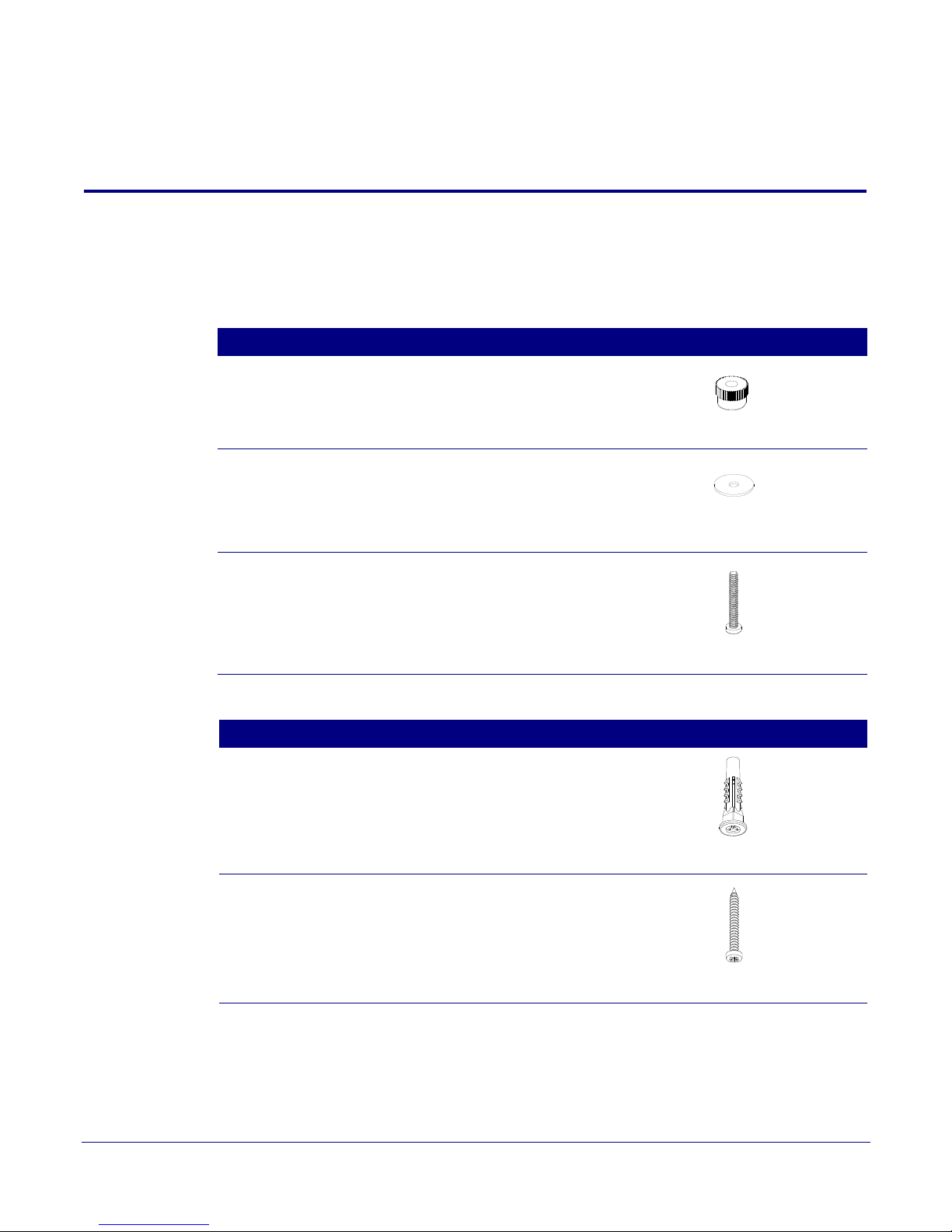

Table 2-1. Parts

Quantity Part Name Illustration

1 Talkback Speaker Assembly

1 Installation Quick Reference Guide

1 Speaker Mounting Accessory Kit

(Part #070054A)

1 Remote Call Button Accessory Kit

(Part #071011A)

Operations Guide 930468A CyberData Corporation

Page 19

2.2 Device Configuration

Set up and configure each speaker before you mount it.

CyberData delivers each speaker with the following factory default values:

Table 2-2. Factory Network Default Settings—Default of Network

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

a. Default if there is not a DHCP server present.

10.10.10.10

255.0.0.0

10.0.0.1

Installing the VoIP V2 Speaker

Operations Guide 930468A CyberData Corporation

Page 20

2.2.1 Connect Power to the Speaker

802.3af Compliant PoE Switch

Cat 5 Ethernet cable

VoIP V2 Speaker

Figure 2-1 through Figure 2-3 illustrates how to connect power to the VoIP V2 Speaker.

2.2.1.1 Push-to-Talk V2 Speaker to a 802.3af Compliant PoE Switch

Figure 2-1 illustrates how to connect the VoIP V2 Speaker to a 802.3af compliant PoE switch via a Cat

5 Ethernet cable.

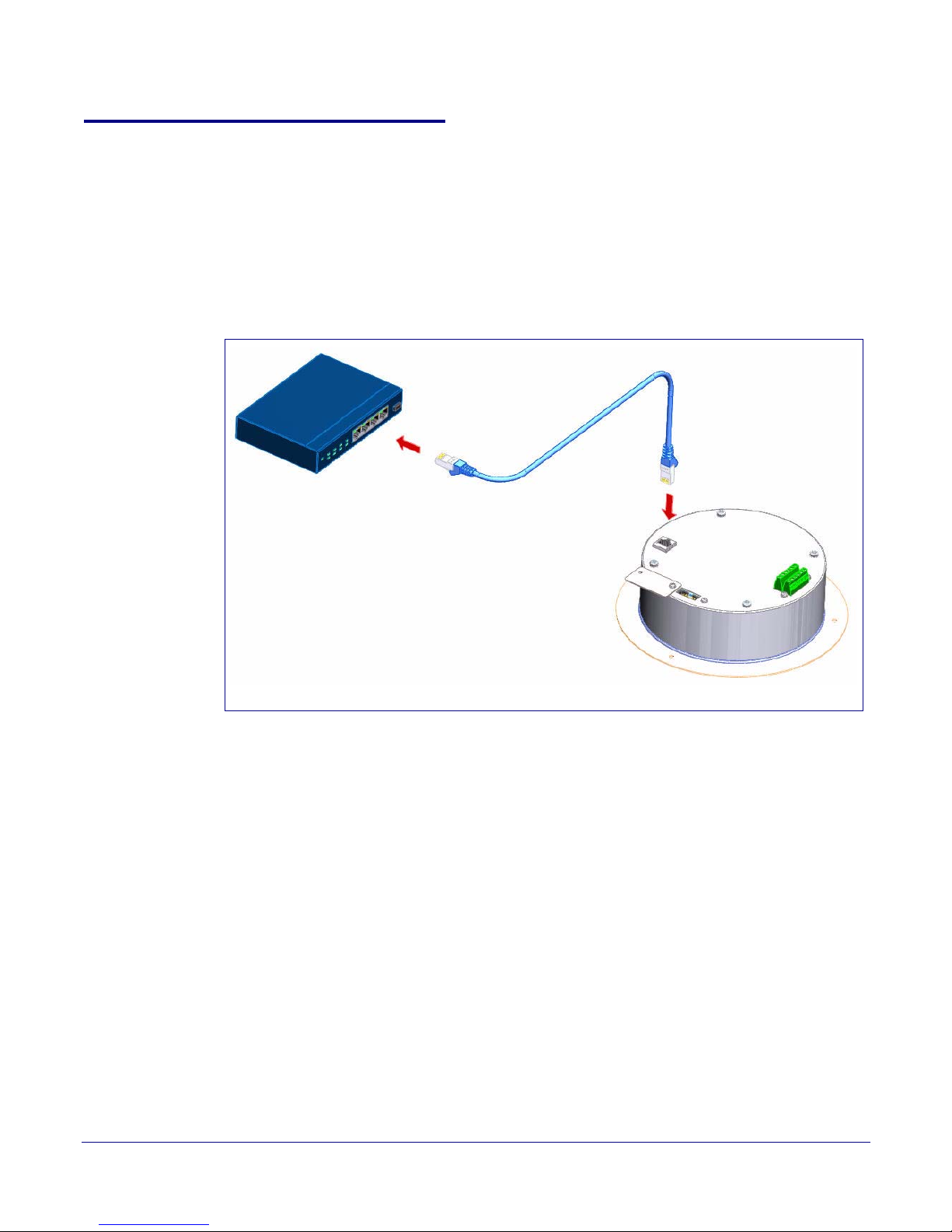

Figure 2-1. Push-to-Talk V2 Speaker to a 802.3af Compliant PoE Switch

Installing the VoIP V2 Speaker

Connect Power to the Speaker

Operations Guide 930468A CyberData Corporation

Page 21

Installing the VoIP V2 Speaker

PoE Injector (Part #010867A)

Non PoE Switch

VoIP V2 Speaker

Cat 5 Ethernet cable

Connect Power to the Speaker

2.2.1.2 Push-to-Talk V2 Speaker (with PoE Injector) to a 802.3af Compliant PoE Switch

In Figure 2-2, if a PoE switch is not available, you will need a PoE Injector, part #010867A (ordered separately). A PoE Injector is a power supply solution for those who have a standard Non PoE Switch.

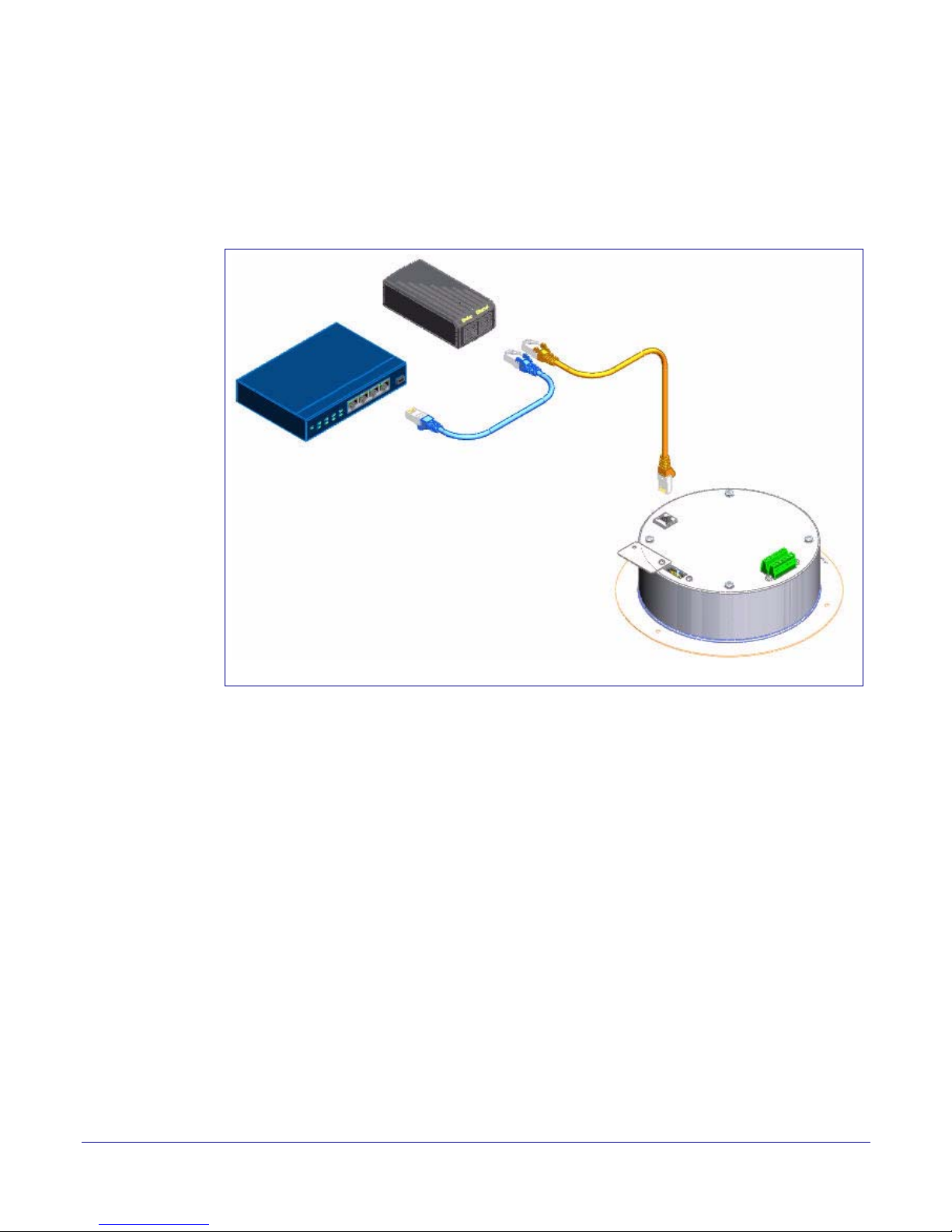

Figure 2-2. Push-to-Talk V2 Speaker (with PoE Injector) to a Non PoE Switch

Operations Guide 930468A CyberData Corporation

Page 22

2.2.1.3 Running the Talkback Speaker with Auxiliary Power

GENERAL ALERT

GND

AC adaptor +12 VDC @ 1 Amps (UL-listed, LPS-rated)

+12 VDC

Speaker

AUX SPEAKER (-) AUX SPEAKER (+) BTN SENSE GND LINE OUT (-) LINE OUT (+) BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

In Figure 2-3, the power for the Talkback Speaker can either come from an 802.3af Network connection or from an external source.

Caution

Operational Note: Do not connect an auxiliary power supply when the Talkback Speaker is connected to a PoE power source through J1. Improper operation or equipment damage m ay occur.

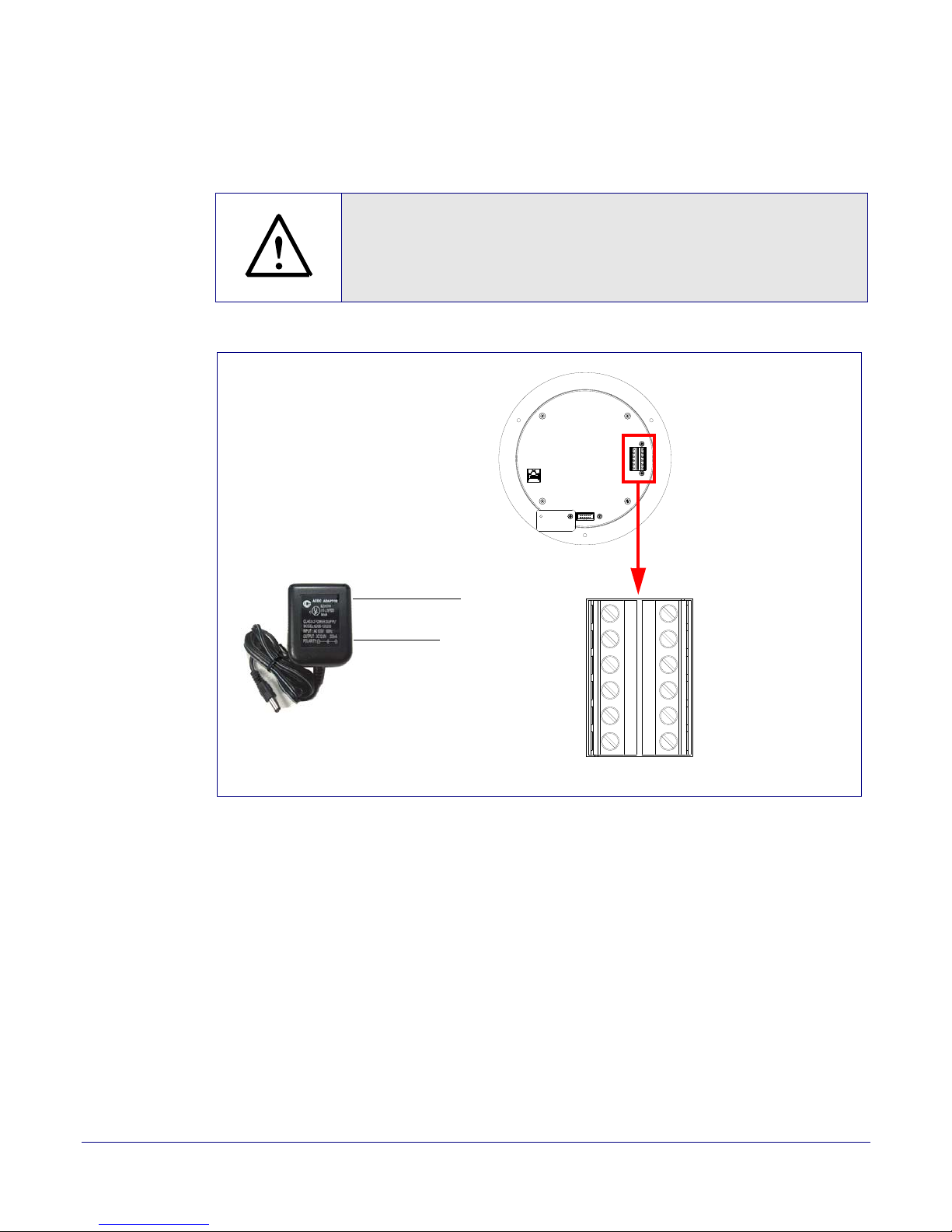

Figure 2-3. Running the V2 Speaker with Auxiliary Power

Installing the VoIP V2 Speaker

Connect Power to the Speaker

Operations Guide 930468A CyberData Corporation

Page 23

2.2.2 Installation Options

AUX SPEAKE R (-) AUX SPEAKE R (+) BTN SENSE GND LINE OUT (-) LINE OUT (+)

BUTTON LED (+)

RELAY NO

RELA Y COM

AUX POW E R (- )

AUX POWER (+)

(+12VDC @ 1A)

J10

Speaker

Back View

BTN SENSE

BUTTON LED (-)

This section shows various installation options for the Talkback Speaker.

2.2.2.1 Running the Talkback Speaker with a Remote Call Button

In Figure 2-3, the VoIP Remote Call Button enables calls to the SIP Talkback Speaker that can be initiated or answered from a remotely-mounted switch. When enabled through the web interface, if the Remote Call Button is pressed, the speaker would initiate a SIP call to a predetermined extension.

When the SIP Talkback Speaker is called from a remote phone and Auto-Answer is not enabled within the unit’s Web interface, the LED on the Remote Button will blink. The call will be answered when the button is pressed.

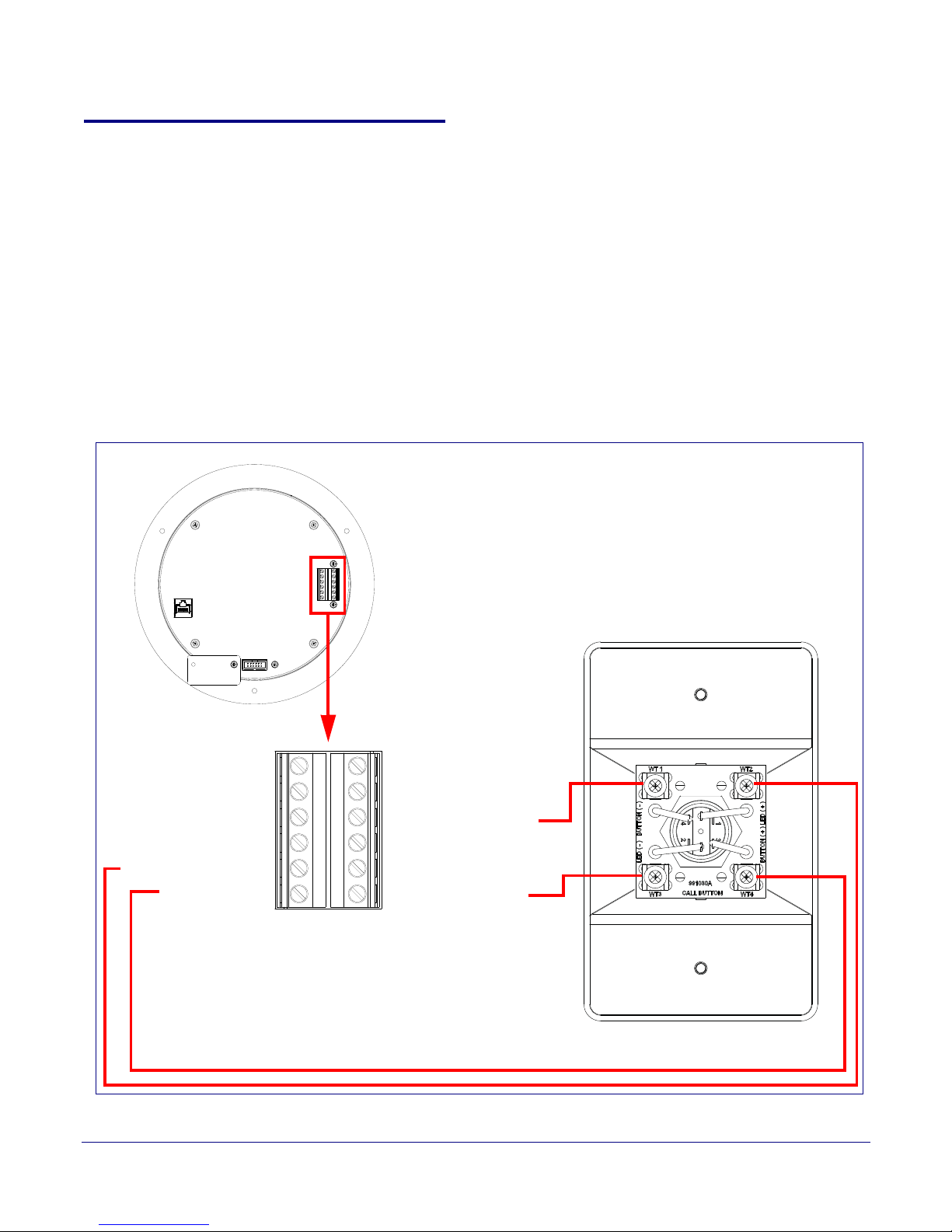

Figure 2-4. Running the V2 Speaker with a Remote Call Button

Installing the VoIP V2 Speaker

Installation Options

Operations Guide 930468A CyberData Corporation

Page 24

2.2.2.2 Talkback Speaker with an External Device

Alert Strobe

High PIV Ultrafast Switching Diode

Output Contacts AC or DC-rated depending upon controlled device requirements

DC Power Supply (Max. 30 VDC @ 1A)

Solid State or Mechanical Relay

AC or DC Power Source as required by an external device

OUT

External device such as an electric door strike or strobe light

Speaker

AUX SPEAKER (-) AUX SPEAKER (+) BTN SENSE GND LINE OUT (-) LINE OUT (+) BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX PO W ER (+)

(+12VDC @ 1A)

J10

In Figure 2-5, when the Talkback Speaker is called from a remote phone, the relay on the speaker can be programmed to drive an external device such as an alert strobe. This external device may also be addressed from a separate Unified Communication (UC) server.

Figure 2-5. Talkback Speaker with an External Device

Installing the VoIP V2 Speaker

Installation Options

Operations Guide 930468A CyberData Corporation

Page 25

2.2.2.3 Talkback Speaker with Auxiliary Speaker Connection

GENERAL ALERT

8 Ohm Auxiliary Speaker

High-purity copper 16-gauge wire and a maximum length of 20 feet

Speaker

(Part #011120, RAL 9002)

*When using the second speaker connection,

the analog volume control needs to be disabled.

*Because of the limitations of PoE power,

when running the V2 Speaker with a second auxiliary speaker, the analog or digital volume level setting must not exceed a setting of 6.

(Part #011121, RAL 9003)

AUX SPEAKER (-) AUX SPEAKER (+) BTN SENSE GND LINE OUT (-) LINE OUT (+) BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELAY NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

GENERAL ALERT

In Figure 2-6, the Talkback Speaker supports an amplified audio output for a second analog speaker. While the total speaker wattage is the same, by connecting a low cost analog speaker, additional coverage can be realized.

Caution

Operational Note: Be cause of the limitat ions of PoE power, when running the Talkback Speaker with a second auxiliary speaker, the analog or digit al volume level setting must not exceed a setting of 6.

Figure 2-6. Talkback Speaker with Auxiliary Speaker Connection

Installing the VoIP V2 Speaker

Installation Options

Operations Guide 930468A CyberData Corporation

Caution

Operational Note: You must not use the Talkback Speaker in combination with both a Clock Kit and an auxiliary speaker. The V2 Speaker may only be used separately with an auxiliary speake r or used separately with a Cloc k Kit. See

Figure 2-7, "Clock Kit with Extr a Speaker Connection is NOT ALLOWED."

Page 26

Installing the VoIP V2 Speaker

8 Ohm Analog Speaker

16 gauge wire and a maximum length of 20 feet

(CD Part Number 011072)

NOT ALLOWED

VoIP Clock Kit (Wall Mount Version)

Installation Options

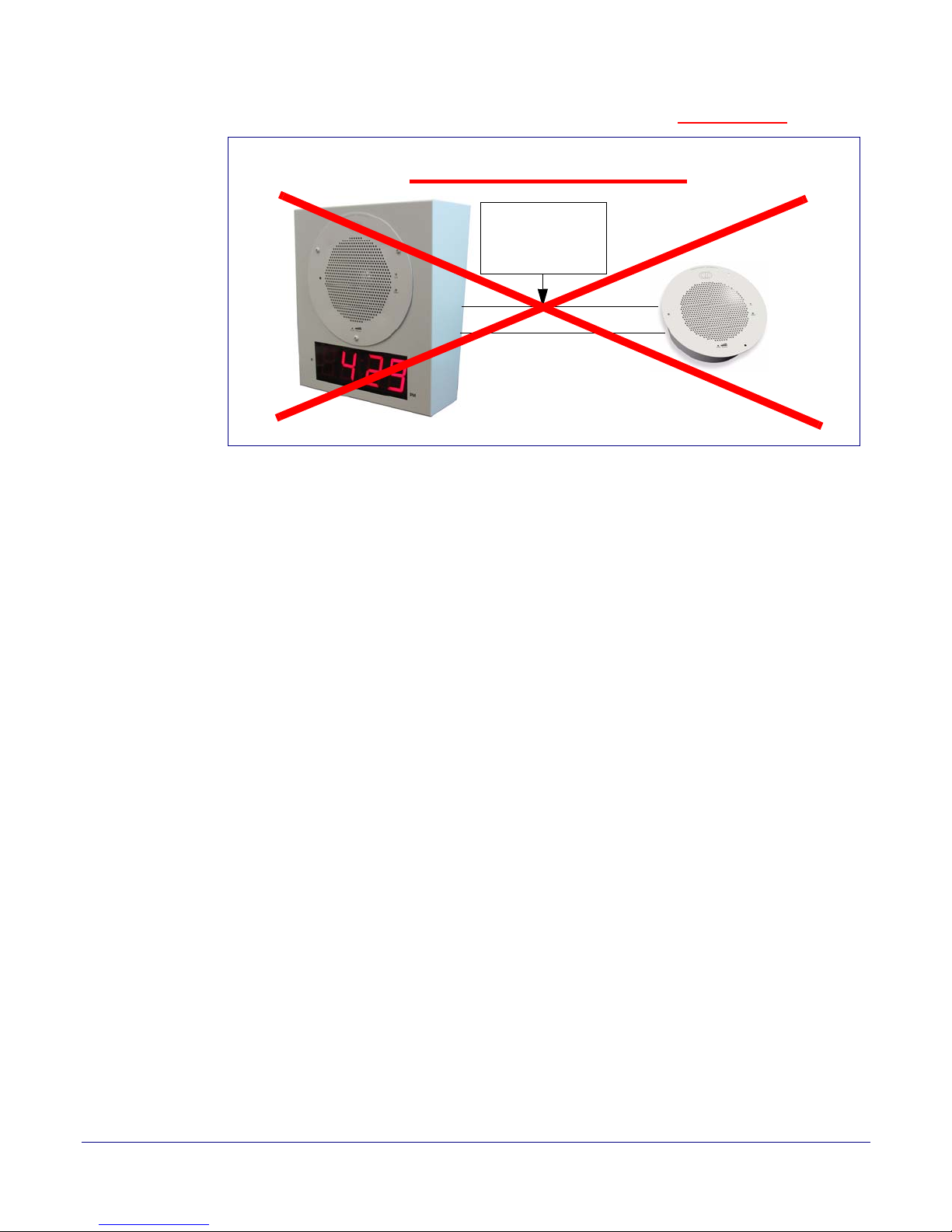

Figure 2-7. Clock Kit with Extra Speaker Connection is NOT ALLOWED.

Operations Guide 930468A CyberData Corporation

Page 27

2.2.2.4 Talkback Speaker with Line Out

AUX SPEAKER (-) AUX SPEAKER (+) BTN SENSE GND LINE OUT (-) LINE OUT (+) BUTTON LED (-)

BTN SENSE

BUTTON LED (+)

RELA Y NO

RELAY COM

AUX POWER (-)

AUX POWER (+)

(+12VDC @ 1A)

J10

Office area in Factory

Factory Floor

Amplifier

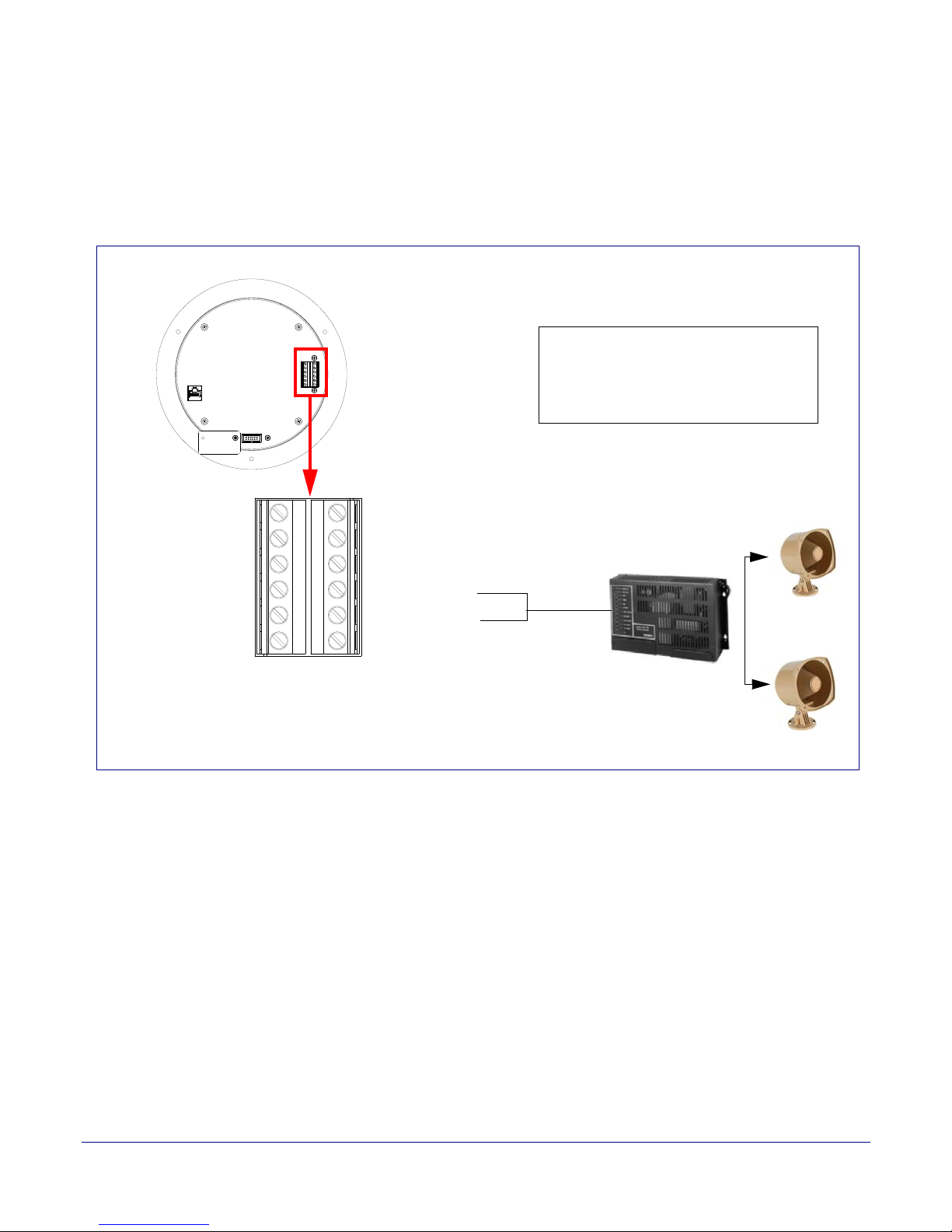

Line Out: Output Signal Amplitudes 2.0 VPP maximum Output Level +2dBm nominal Total Harmonic Distortion 0.5% maximum Output Impedance 10k ohm

Speaker

In Figure 2-8, for areas that require more speaker volume, the Talkback Speaker can be connected directly to an auxiliary amplifier to drive additional horns or speakers. This is done through the lineout connection.

Figure 2-8. Talkback Speaker with Line Out

Installing the VoIP V2 Speaker

Installation Options

Operations Guide 930468A CyberData Corporation

Page 28

Installing the VoIP V2 Speaker

Speaker Status (Green)

Network Link/Activity (Yellow)

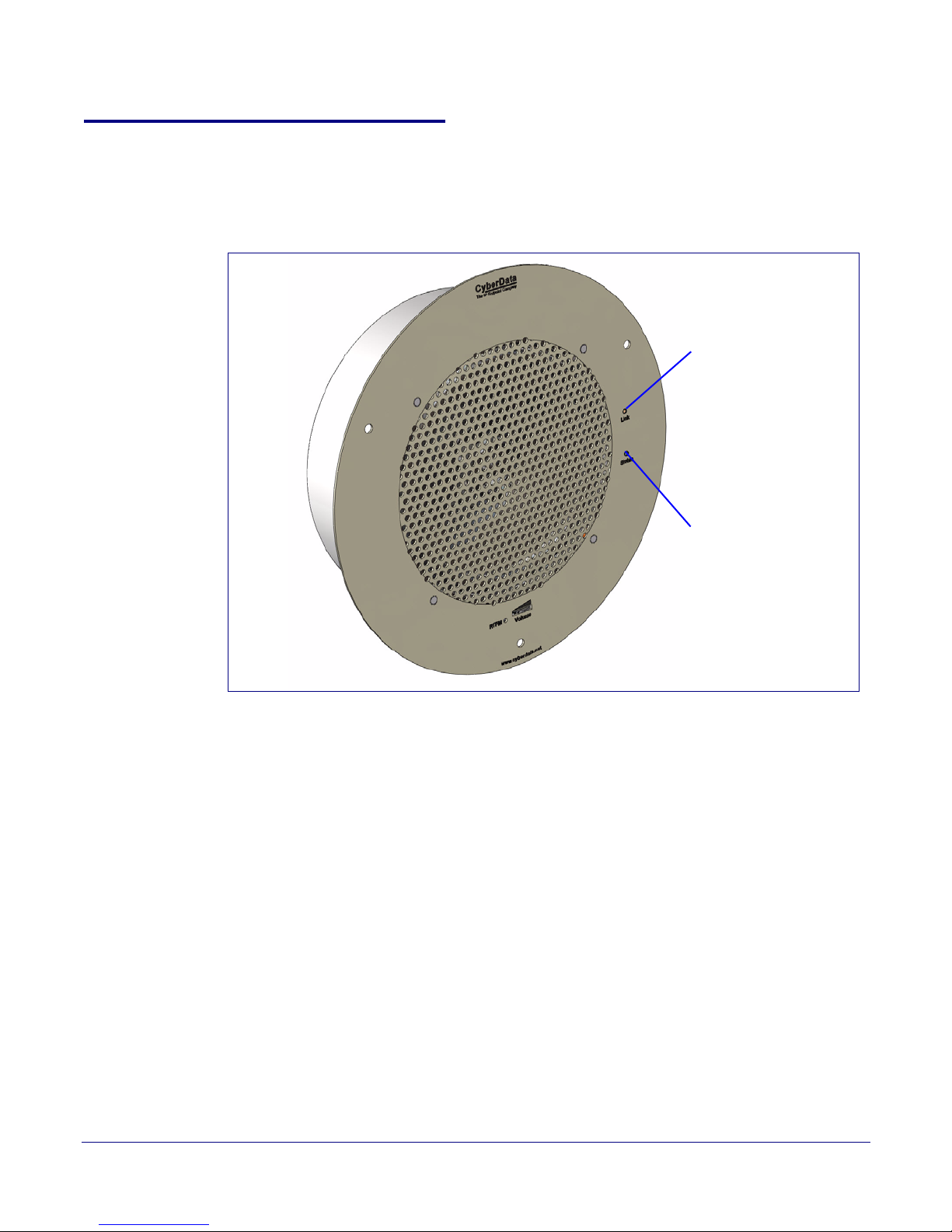

Confirm that the Speaker is Operational and Linked to the Network

2.2.3 Confirm that the Speaker is Operational and Linked to the Network

After connecting the speaker to the 802.3af compliant Ethernet hub, the LEDs on the speaker face confirm that the speaker is operational and linked to the network.

Figure 2-9. Status and Activity LEDs

2.2.3.1 Status LED

After supplying power to the speaker:

1. The green power/status LED and the yellow network LED comes on immediately.

2. After about 23 seconds with a static IP address (or 27 seconds if the board is set to use DHCP), the green LED will blink twice to indicate that the board is fully booted. The speaker will beep at this time if the

Beep on Initialization option is enabled on the Device Configuration Page

(see Section 2.3.3, "Configure the Device Parameters").

Note If the board is set to use DHCP and there is not a DHCP server available on the network, it

will try 12 times with a three second delay between tries and eventually fall back to the programmed static IP address (by default 10.10.10.10). This process will take approximately 80 seconds.

Note The front power/status LED will remain solid on during operation.

2.2.3.2 Link LED

•The Link LED is illuminated when the network link to the speaker is established.

•The Link LED blinks to indicate network traffic.

Operations Guide 930468A CyberData Corporation

Page 29

2.2.4 Confirm the IP Address and Test the Audio

RTFM button

2.2.4.1 Reset Test Function Management (RTFM) Button

When the speaker is operational and linked to the network, use the Reset Test Function Management (RTFM) button ( speaker’s IP Address and test that the audio is working.

Note Using the RTFM button will lock the digital volume level to 4 and disable the analog

volume control dial.

Figure 2-10) on the speaker face to announce and confirm the

Figure 2-10. RTFM Button

Installing the VoIP V2 Speaker

Confirm the IP Address and Test the Audio

To announce a speaker’s current IP address, press and release the RTFM button within a five second window.

Note The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or

default to 10.10.10.10 if a DHCP server is not present).

Note Pressing and holding the RTFM button for longer than five seconds will restore the speaker

to the factory default settings.

Operations Guide 930468A CyberData Corporation

Page 30

2.2.5 Adjust the Volume

Volume control dial

To adjust the speaker volume, turn the Vo l u m e control dial (Figure 2-11) on the speaker face.

Note The Talkback Speaker has two volume controls: Internal (web-based) and External (volume

knob). The external volume control can be disabled from the web interface by selecting

Digital Volume Control on the Device Configuration Page (see Section 2.3.3, "Configure

the Device Parameters").

Figure 2-11. Volume Control

Installing the VoIP V2 Speaker

Adjust the Volume

Use

Operations Guide 930468A CyberData Corporation

Page 31

2.2.6 How to Set the Factory Default Settings

RTFM button

2.2.6.1 RTFM Button

When the speaker is operational and linked to the network, use the Reset Test Function Management (RTFM) button (

Figure 2-12) on the speaker face to set the factory default settings.

Figure 2-12. RTFM Button

Installing the VoIP V2 Speaker

How to Set the Factory Default Settings

To set the factory default settings:

1. Press and hold the RTFM button for more than five seconds.

2. The speaker announces that it is restoring the factory default settings.

Note The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or

default to 10.10.10.10 if a DHCP server is not present).

Operations Guide 930468A CyberData Corporation

Page 32

2.3 Configure the Speaker Parameters

To configure the speaker online, use a standard web browser.

Configure each speaker and verify its operation before you mount it. When you are ready to mount a speaker, refer to

All speakers are initially configured with the default IP settings indicated in Ta bl e 2-3:

Note When configuring more than one speaker, attach the speakers to the network and configure

one at a time to avoid IP address conflicts

Parameter Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

Appendix A, "Mounting the Speaker" for instructions.

Table 2-3. Factory Network Default Settings—Default of Network

10.10.10.10

255.0.0.0

10.0.0.1

Installing the VoIP V2 Speaker

How to Set the Factory Default Settings

a. Default if there is not a DHCP server present.

Operations Guide 930468A CyberData Corporation

Page 33

2.3.1 Talkback Speaker Web Page Navigation

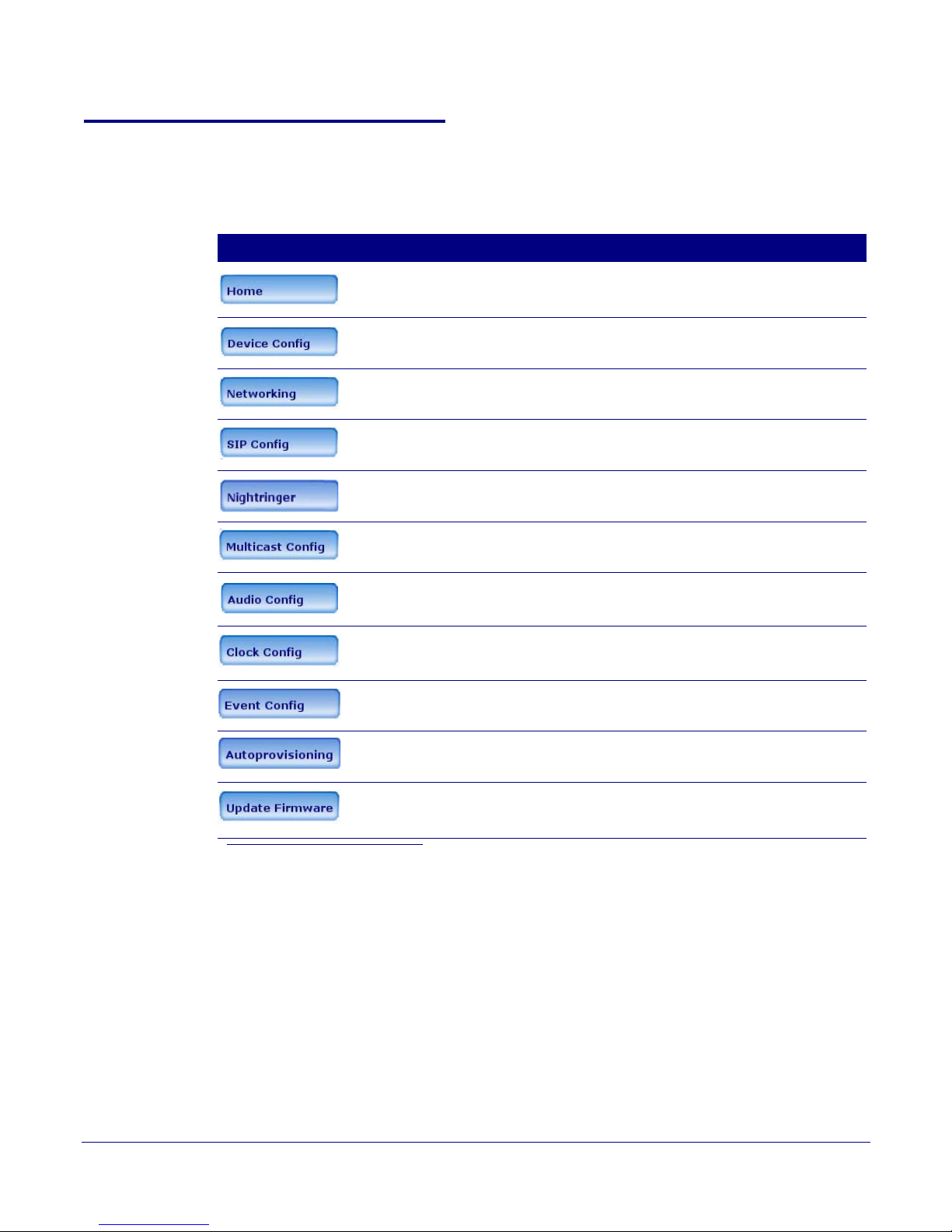

Ta bl e 2-4 shows the navigation buttons that you will see on every Talkback Speaker web page.

Table 2-4. V2 Paging Amplifier Web Page Navigation

Web Page Item Description

Link to the Home page.

Link to the Device Configuration page.

Link to the Networking page.

Link to go to the SIP Configuration page.

Link to go to the Nightringer page.

Installing the VoIP V2 Speaker

Talkback Speaker Web Page Navigation

Link to the Multicast Configuration page.

Link to the Audio Configuration page.

Link to the Clock Configuration page.

Link to the Event Configuration page.

Link to the Autoprovisioning Configuration page.

Link to the Update Firmware page.

a.This page is used only i f the Cyb erData Clo ck Kit (part number 011023 [wal l-mounted version] or 011024 [flush-mounted version]) is installed.

Operations Guide 930468A CyberData Corporation

Page 34

2.3.2 Log in to the Configuration Home Page

1. Open your browser to the Talkback Speaker IP address.

Note If the network does not have access to a DHCP server, the device will default to an IP

address of 10.10.10.10.

Note Make sure that the PC is on the same IP network as the Talkback Speaker.

Note You may also download CyberData’s VoIP Discovery Utility program which allows you to

easily find and configure the default web address of the CyberData VoIP products.

CyberData’s VoIP Discovery Utility program is available at the following website address:

http://www.cyberdata.net/support/voip/discovery_utility.html

Note The Speaker ships in DHCP mode. To get to the Home page, use the discovery utility to

scan for the device on the network and open your browser from there.

Installing the VoIP V2 Speaker

Operations Guide 930468A CyberData Corporation

Page 35

Installing the VoIP V2 Speaker

2. When prompted, use the following default Web Access Username and Web Acces s Password to access the Home Page (

Figure 2-13):

Web Access Username: admin

Web Access Password: admin

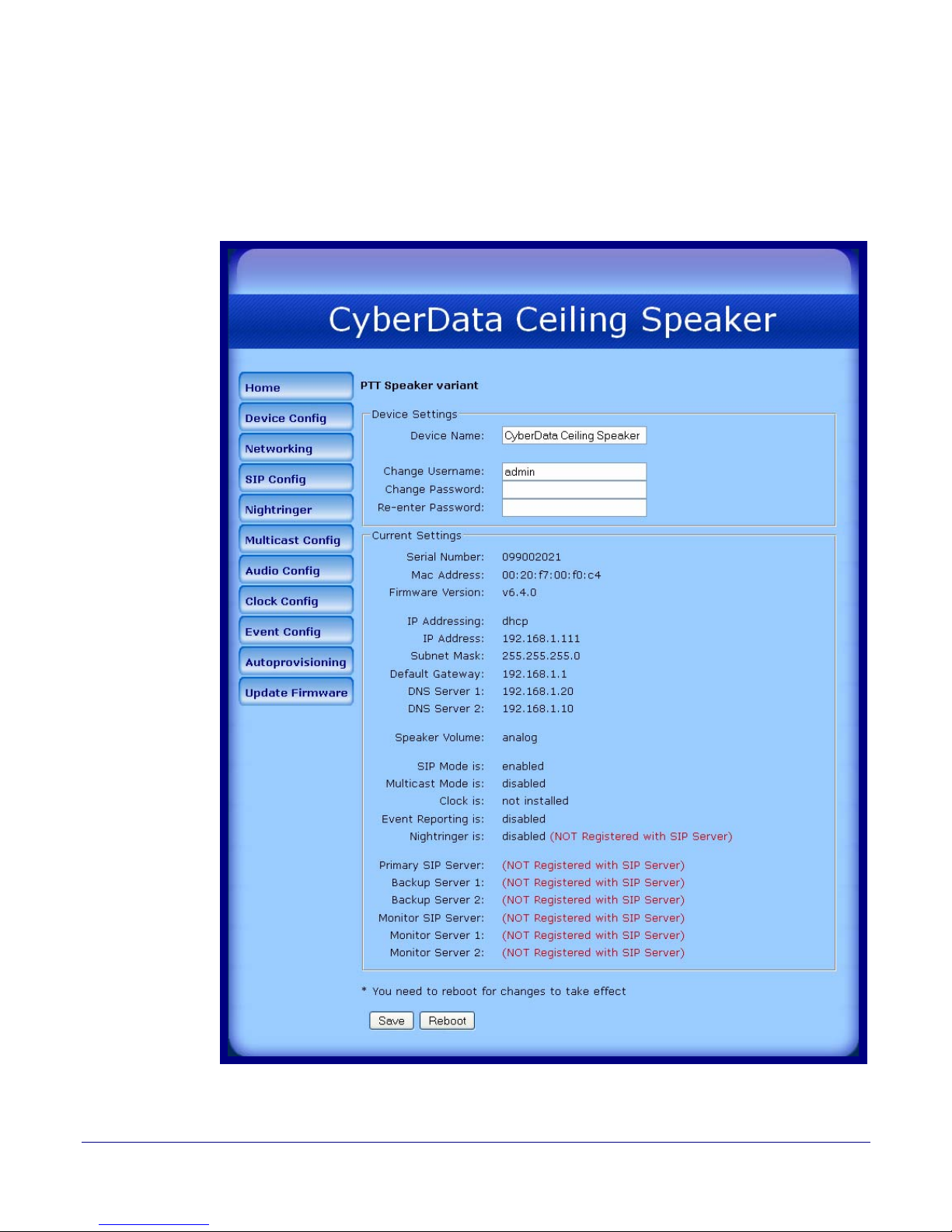

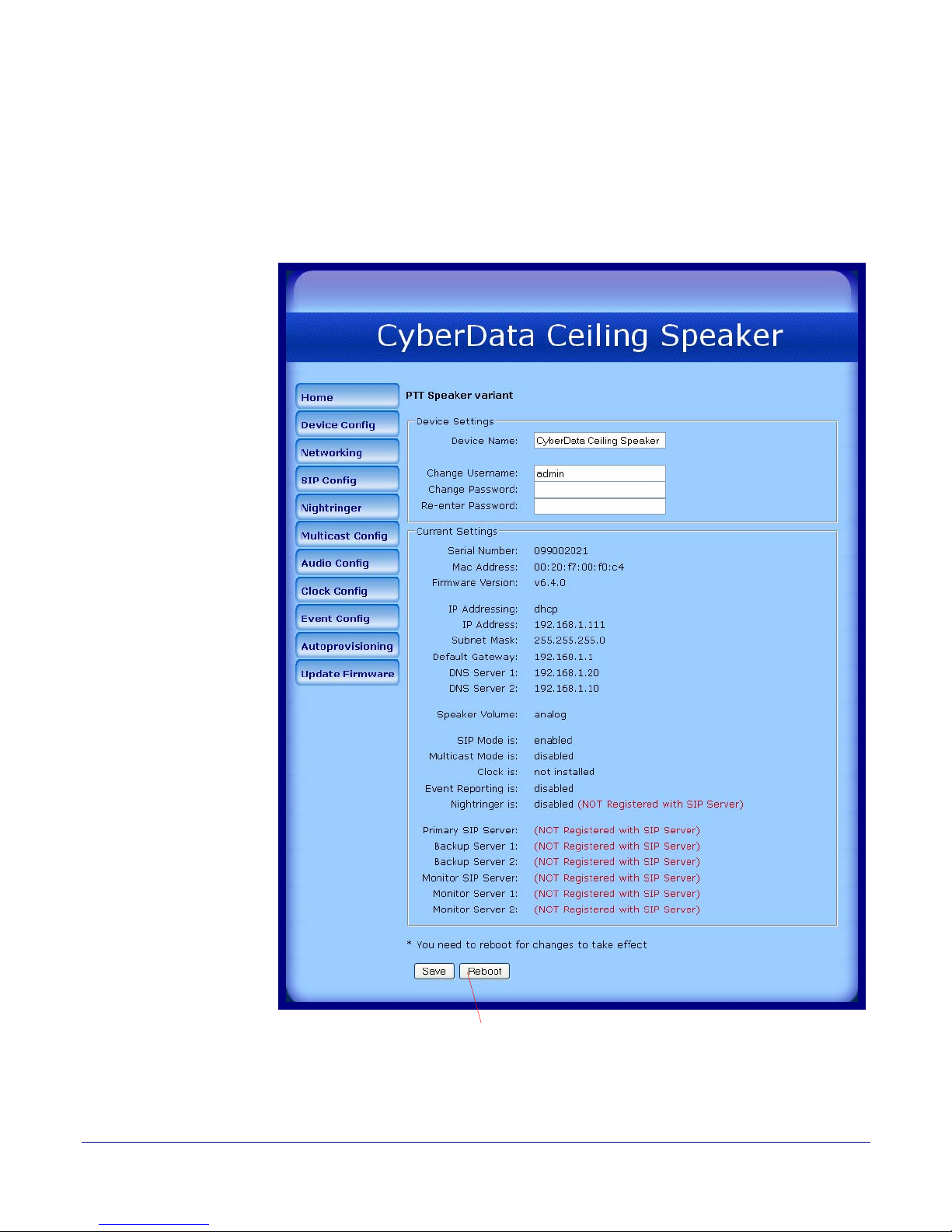

Figure 2-13. Home Page

Operations Guide 930468A CyberData Corporation

Page 36

Installing the VoIP V2 Speaker

3. On the Home Page, review the setup details and navigation buttons described in Tab le 2-5.

Table 2-5. Home Page Overview

Web Page Item Description

Device Settings

Device Name Shows the device name (25 character limit).

Change Username Type in this field to change the username (25 character limit).

Change Password Type in this field to change the password (19 character limit).

Re-enter Password Type the password again in this field to confirm the new password

(19 character limit).

Current Settings

Serial Number Shows the device serial number.

Mac Address Shows the device Mac address.

Firmware Version Shows the current firmware version.

IP Addressing Shows the current IP addressing setting (DHCP or Static).

IP Address Shows the current IP address.

Subnet Mask Shows the current subnet mask address.

Default Gateway Shows the current default gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

Speaker Volume Shows the current speaker volume mode:

Digital (web page) or Analog (volume knob).

SIP Mode is Shows the current status of the SIP Mode.

Multicast Mode is Shows the current status of the Multicast Mode.

Clock is Shows the current status of the Clock.

Event Reporting is Shows the current status of the Event Reporting.

Nightringer is Shows the current status of the Nightringer.

Primary SIP Server Shows the current status of the Primary SIP Server.

Backup Server 1 Shows the current status of Backup Server 1.

Backup Server 2 Shows the current status of Backup Server 2.

Monitor SIP Server Shows the current status of the Monitor SIP Server.

Monitor Server 1 Shows the current status of Monitor Server 1.

Monitor Server 2 Shows the current status of Monitor Server 2.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Operations Guide 930468A CyberData Corporation

Click on the Reboot button to reboot the system.

Page 37

2.3.3 Configure the Device Parameters

1. Click the Device Configuration button to open the Device Configuration page. See Figure 2-14.

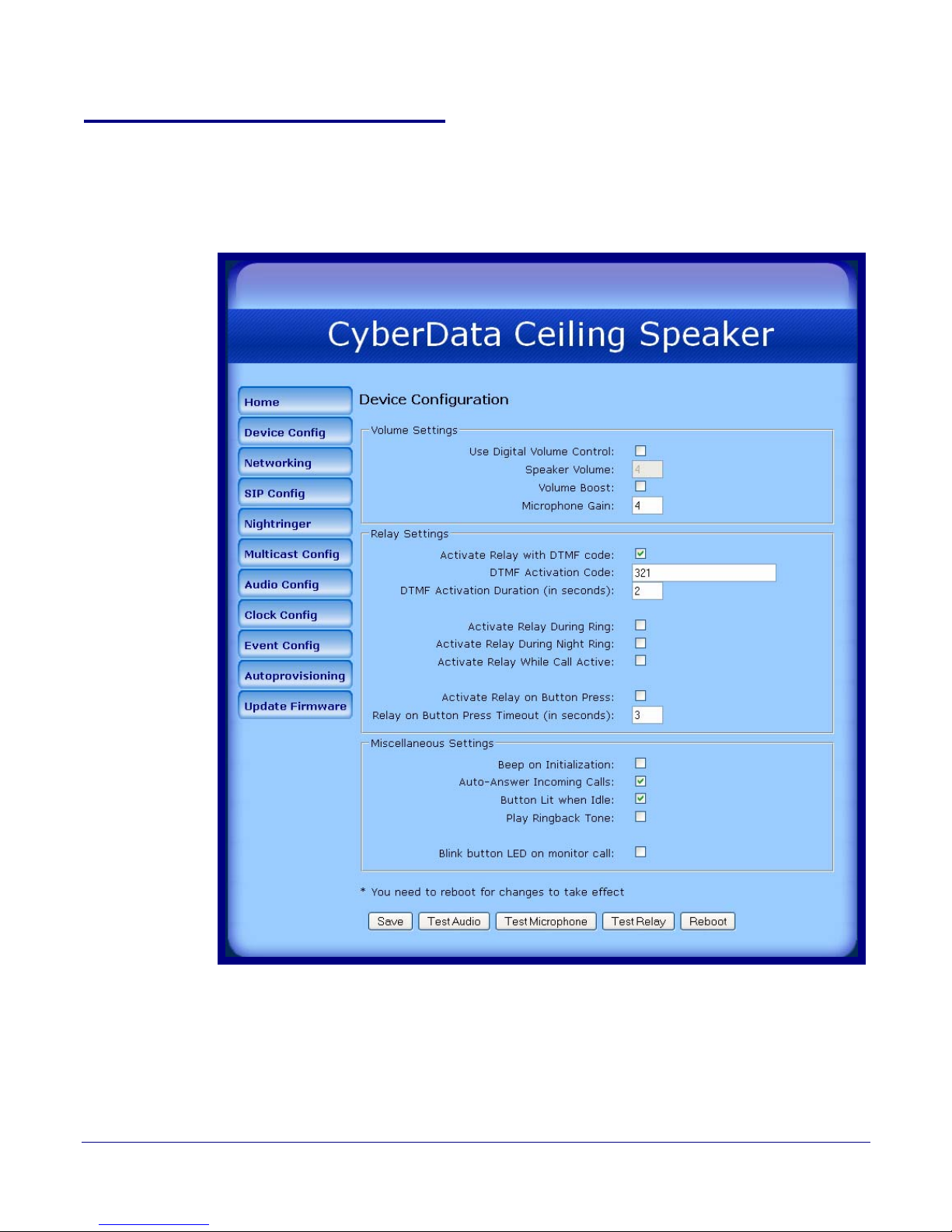

Figure 2-14. Device Configuration Page

Installing the VoIP V2 Speaker

Configure the Device Parameters

Operations Guide 930468A CyberData Corporation

Page 38

Installing the VoIP V2 Speaker

Configure the Device Parameters

2. On the Device Configuration page, you may enter values for the parameters indicated in

Ta bl e 2-6.

Table 2-6. Device Configuration Parameters

Web Page Item Description

Volume Settings

Use Digital Volume Control When selected, you can bypass the analog volume knob on the front

of the speaker. The volume level will only be determined by the digital Speaker Volume setting on the Device Configuration page.

Speaker Volume Type the desired speaker volume level into this field

(1 character limit).

Volume Boost When Volume Boost is enabled, the device will play at a higher

volume at the risk of having the audio clip at very high levels.

Microphone Gain Type the desired microphone gain level into this field.

Relay Settings

Activate Relay with DTMF Code When selected, the relay can be activated with a DTMF code.

DTMF Activation Code Type the desired DTMF activation code (25 character limit).

DTMF Activation Duration (in seconds)

Type the desired DTMF activation duration (in seconds) (2 character limit [activation times now go up to 99 seconds]).

NOTE: A DTMF activation duration of 0 will toggle the relay indefinitely or until the activation code is sent again

Activate Relay During Ring When selected, the relay will be activated for as long as the call is

active.

NOTE: When the phone is set to Auto Answer, it will not ring and this option does nothing.

Activate Relay During Night Ring Check this box to activate the relay for as long as a Night Ring tone is

ringing.

Activate Relay While Call Active When selected, the relay will be activated for as long as the call is

active.

Activate Relay on Button Press When selected, the relay will be activated when the Call Button is

pressed.

Relay on Button Press Timeout (in seconds)

Type the desired time (in seconds) that you want the relay to activate after the Call Button is pressed (1 character limit).

Miscellaneous Settings

Beep on Initialization When selected, you will hear a beep when the speaker initializes.

Auto-Answer Incoming Calls When selected, the device will automatically answer incoming calls.

When Auto Answer is Off, the device will play a ringtone through the speaker.

Button Lit When Idle When selected, the Call Button remains lit when idle.

Play Ringback Tone When selected, you will hear a ringback tone while making a call.

Blink button LED on monitor call When selected, the button LED will flash on and off during a monitor

Operations Guide 930468A CyberData Corporation

call.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Page 39

Table 2-6. Device Configuration Parameters (continued)

Web Page Item Description

Click on the Test Audio button to do an audio test. When the Test Audio button is pressed, you will hear a voice message for testing the

device audio quality and volume.

Click on the Test Microphone button to do a microphone test. When the Test Microphone button is pressed, the following occurs:

1. The device will immediately start recording 3 seconds of audio.

2. The device will beep (indicating the end of recording).

3. The device will play back the recorded audio.

Click on the Test Relay button to do a relay test.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click the Save button.

Installing the VoIP V2 Speaker

Configure the Device Parameters

Operations Guide 930468A CyberData Corporation

Page 40

2.3.4 Configure the Network Parameters

1. Click the Networking button to open the Network Configuration page (Figure 2-15).

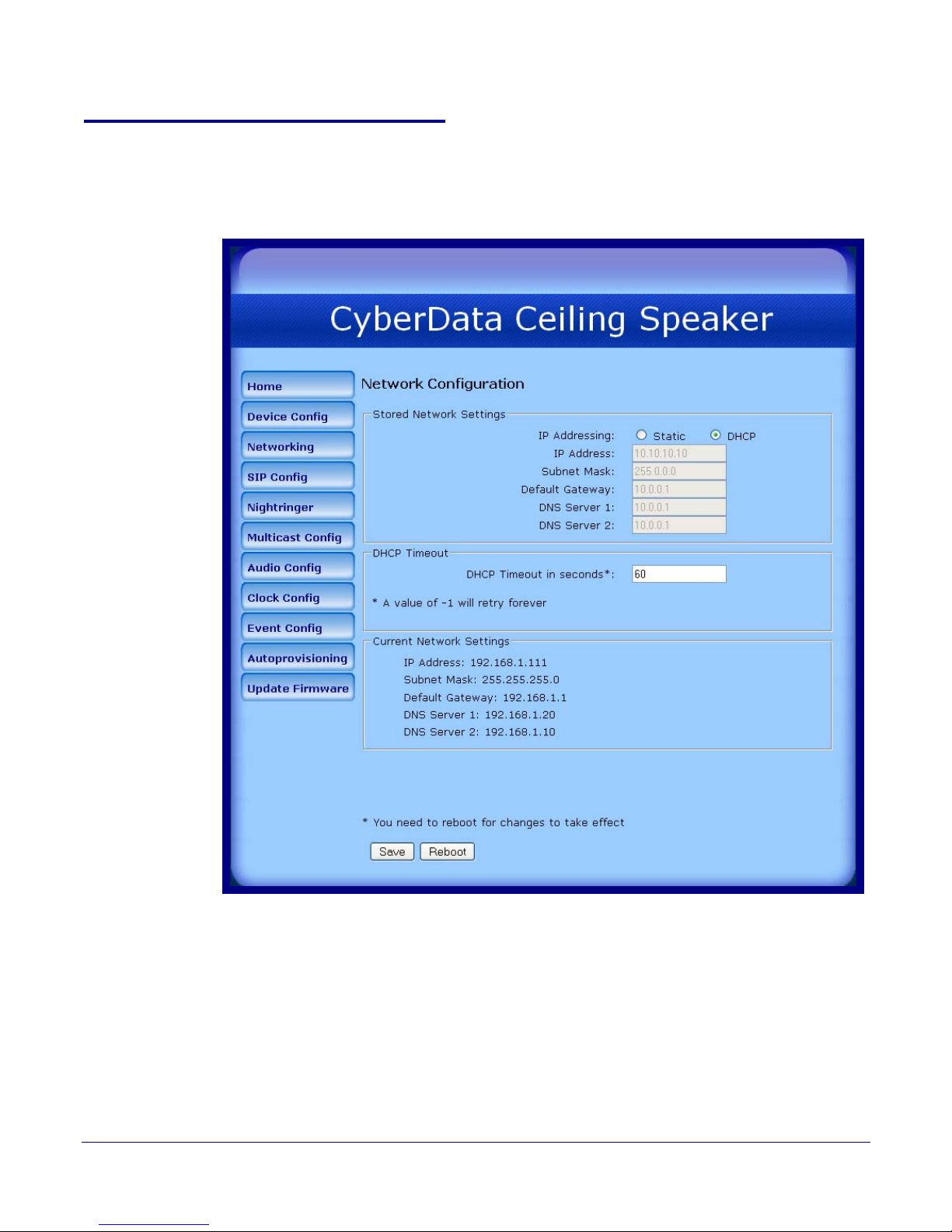

Figure 2-15. Network Configuration Page

Installing the VoIP V2 Speaker

Configure the Network Parameters

Operations Guide 930468A CyberData Corporation

Page 41

Installing the VoIP V2 Speaker

Configure the Network Parameters

2. On the Network Configuration page, enter values for the parameters indicated in Tab le 2-7.

Table 2-7. Network Configuration Parameters

Web Page Item Description

Stored Network Settings Shows the settings stored in non-volatile memory.

IP Addressing Select either DHCP IP Addressing or Static IP Addressing by

marking the appropriate radio button. If you select Static, configure the remaining parameters indicated in

Table 2-7. If you select DHCP,

go to Step 3.

IP Address Enter the Static IP address.

Subnet Mask Enter the Subnet Mask address.

Default Gateway Enter the Default Gateway address.

DNS Server 1 Enter the DNS Server 1 address.

DNS Server 2 Enter the DNS Server 2 address.

DHCP Timeout

DHCP Timeout in seconds Enter the desired timeout duration (in seconds) that the device will

wait for a response from the DHCP server before defaulting back to the stored static IP address.

Note: A value of -1 will cause the device to retry indefinitely and a value of 0 will cause the device to reset to a default of 60 seconds.

Current Network Settings Shows the current network settings.

IP Address Shows the current Static IP address.

Subnet Mask Shows the current Subnet Mask address.

Default Gateway Shows the current Default Gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click Save Settings. This updates the changed parameters and reboots the Talkback Speaker if appropriate.

4. Connect the Talkback Speaker to the target network.

5. From a system on the same network as the Talkback Speaker, open a browser with the new IP address of the Talkback Speaker.

Operations Guide 930468A CyberData Corporation

Page 42

2.3.5 Configure the SIP Parameters

1. Click SIP Config to open the SIP Configuration page (Figure 2-17).

Note For specific server configurations, go to the following website address:

http://www.cyberdata.net/support/server/index.html

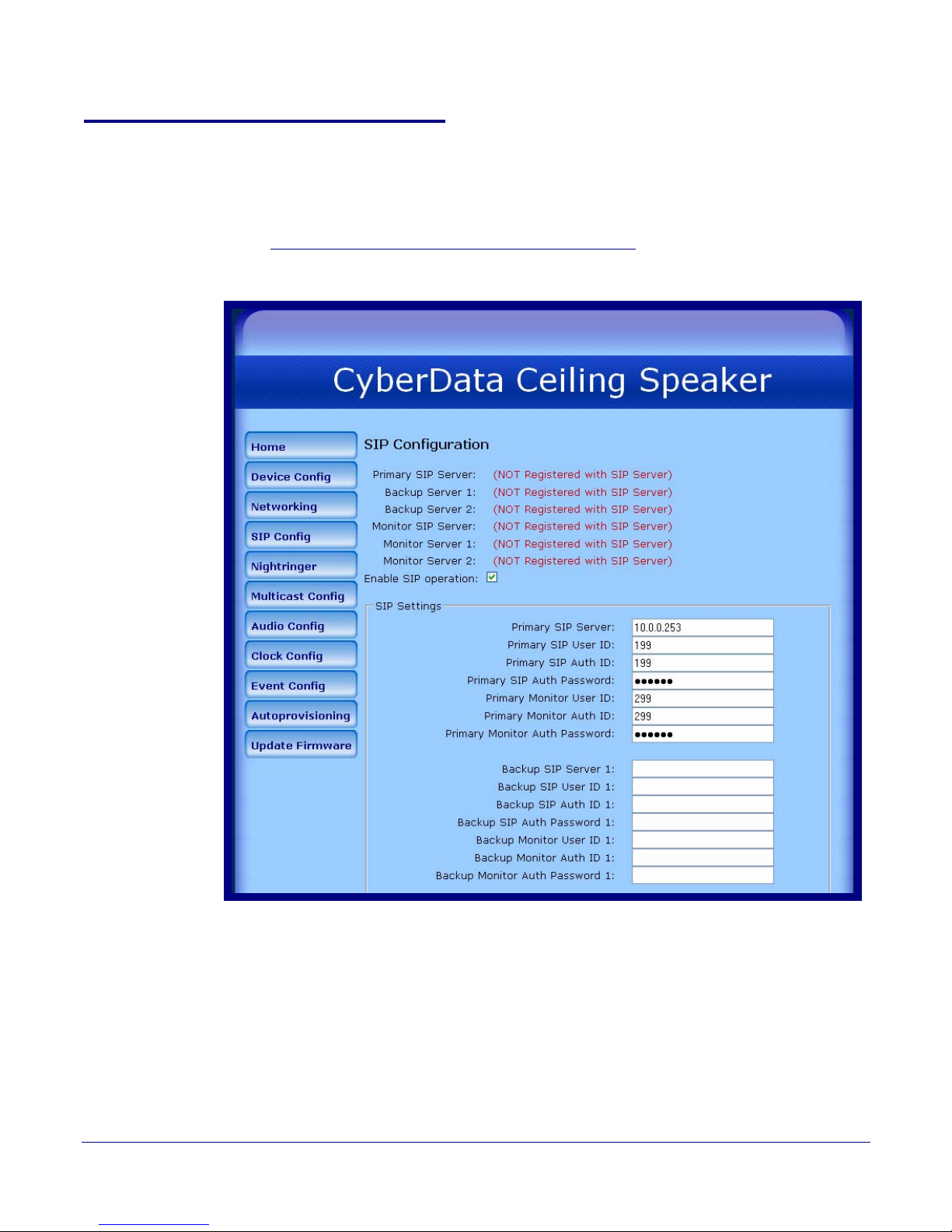

Figure 2-16. SIP Configuration Page (continued)

Installing the VoIP V2 Speaker

Configure the SIP Parameters

Operations Guide 930468A CyberData Corporation

Page 43

Installing the VoIP V2 Speaker

Configure the SIP Parameters

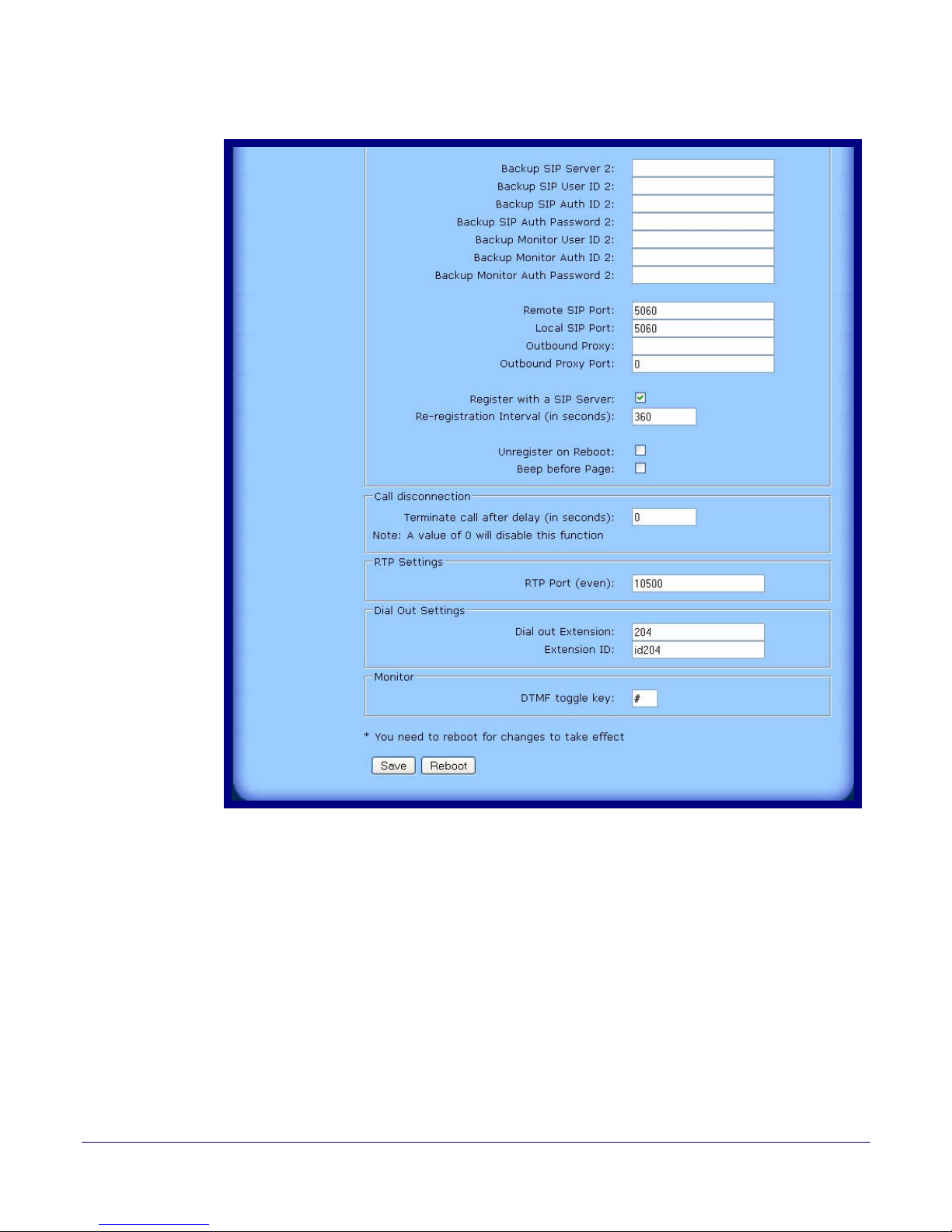

Figure 2-17. SIP Configuration Page (continued)

Operations Guide 930468A CyberData Corporation

Page 44

Installing the VoIP V2 Speaker

Configure the SIP Parameters

2. On the SIP Configuration page, you may enter values for the parameters indicated in Tab le 2-8.

Table 2-8. SIP Configuration Parameters

Web Page Item Description

Primary SIP Server Shows the current status of the Primary SIP Server.

Backup Server 1 Shows the current status of Backup Server 1.

Backup Server 2 Shows the current status of Backup Server 2.

Monitor SIP Server Shows the current status of the Monitor SIP Server.

Monitor Server 1 Shows the current status of Monitor Server 1.

Monitor Server 2 Shows the current status of Monitor Server 2.

Enable SIP Operation Enables or disables SIP operation.

SIP Settings

Primary SIP Server Use this field to set the address (in dotted decimal notation or as

a canonical name) for the Primary SIP Server. This field can accept canonical names of up to 255 characters in length.

Primary SIP User ID Type the SIP User ID for the Primary SIP Server

(up to 64 alphanumeric characters).

Primary Auth ID Type the Authenticate ID for the Primary SIP Server

(up to 64 alphanumeric characters).

Primary Auth Password Type the Authenticate Password for the Primary SIP Server

(up to 64 alphanumeric characters).

Primary Monitor User ID Type the Monitor User ID for the Primary SIP Server

(up to 64 alphanumeric characters).

Primary Monitor Auth ID Type the Monitor Authenticate ID for the Primary SIP Server

(up to 64 alphanumeric characters).

Primary Monitor Auth Password Type the Monitor Authenticate Password for the Primary SIP

Server (up to 64 alphanumeric characters).

Backup SIP Server 1

Backup SIP Server 2

• If all of the Primary SIP Server and Backup SIP Server fields are populated, the device will attempt to stay registered with all three servers all of the time. You can leave the Backup SIP Server 1 and Backup SIP Server 2 fields blank if they are not needed.

• In the event of a registration failure on the Primary SIP Server, the device will use the next highest priority server for outbound calls (Backup SIP Server 1). If Backup SIP Server 1 fails, the device will use Backup SIP Server 2.

• If a higher priority SIP Server comes back online, the device will switch back to this server.

Backup SIP User ID 1

Backup SIP User ID 2

Type the SIP User ID for the Backup SIP Server (up to 64 alphanumeric characters).

Backup SIP Auth ID 1

Backup SIP Auth ID 2

Backup SIP Auth Password 1

Backup SIP Auth Password 2

Operations Guide 930468A CyberData Corporation

Type the SIP Authenticate ID for the Backup SIP Server (up to 64 alphanumeric characters).

Type the SIP Authenticate Password for the Backup SIP Server (up to 64 alphanumeric characters).

Page 45

Table 2-8. SIP Configuration Parameters (continued)

Web Page Item Description

Installing the VoIP V2 Speaker

Configure the SIP Parameters

Backup Monitor User ID 1

Backup Monitor User ID 2

Backup Monitor Auth ID 1

Backup Monitor Auth ID 2

Backup Monitor Auth Password 1

Backup Monitor Auth Password 2

Type the Monitor User ID for the Backup SIP Server (up to 64 alphanumeric characters).

Type the Monitor Authenticate ID for the Backup SIP Server (up to 64 alphanumeric characters).

Type the Monitor Authenticate Password for the Backup SIP Server (up to 64 alphanumeric characters).

Remote SIP Port Type the Remote SIP Port number (default 5060)

(8 character limit).

Local SIP Port Type the Local SIP Port number (default 5060)

(8 character limit).

Outbound Proxy Type the Outbound Proxy as either a numeric IP address in

dotted decimal notation or the fully qualified host name (255 character limit [FQDN]).

Outbound Proxy Port Type the Outbound Proxy Port number (8 character limit).

Re-registration Interval (in seconds) Type the SIP Registration lease time in minutes (default is 60

minutes) (8 character limit). Re-registration Interval (in seconds)*

Unregister on Reboot When selected, on boot, the speaker will first register with a SIP

server with a expiration delay of 0 seconds. This has the effect of unregistering any current devices on this extension.

Beep before Page When selected, the device will play a beep before a page is sent

on SIP calls (works for both buffered and live pages).

Call Disconnection

Terminate call after delay (in seconds) Type the desired number of seconds that you want to transpire

before a call is terminated.

Note: A value of 0 will disable this function.

RTP Settings

RTP Port (even) Specify the port number used for the RTP stream after

establishing a SIP call. This port number has to be an even number and defaults to 10500.

Dial Out Settings

Dial Out Extension Type the dial out extension number (64 character limit).

Note: For information about dial-out extension strings and DTMF tones, see Section 2.3.5.1, "Dial Out Extension Strings

and DTMF Tones (using rfc2833)".

Extension ID Type the desired Extension ID (64 character limit).

Monitor

DTMF toggle key Specify the phone keypad button that you want to use to toggle

back and forth between the talking and listening mode when the device is in Monitor Mode.

Operations Guide 930468A CyberData Corporation

Page 46

Table 2-8. SIP Configuration Parameters (continued)

Web Page Item Description

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click on the Save button.

2.3.5.1 Dial Out Extension Strings and DTMF Tones (using rfc2833)

On the SIP Configuration Page (continued), dial out extensions support the addition of comma delimited pauses and sending additional DTMF tones (using rfc2833). The first comma will pause three seconds after a call is first established with a remote device. Subsequent commas will pause for 2 seconds. A pause of one second will be sent after each numerical digit.

Table 2-9. Examples of Dial-Out Extension Strings

Extension String Resulting Action

Installing the VoIP V2 Speaker

Configure the SIP Parameters

302 Dial out extension 302 and establish a call

302,2 Dial out extension 302 and establish a call, wait 3 seconds then send the

DTMF tone '2'

302,25,,,4,,1 Dial out extension 302 and establish a call, wait 3 seconds then send the

DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF tone 4, wait 4 seconds, send out DTMF tone 1

Note The maximum number of total characters in the dial-out field is 64.

Operations Guide 930468A CyberData Corporation

Page 47

2.3.6 Configure the Night Ringer Parameters

1. Click on the Nightringer button to open the Nightringer Configuration page. See Figure 2-18.

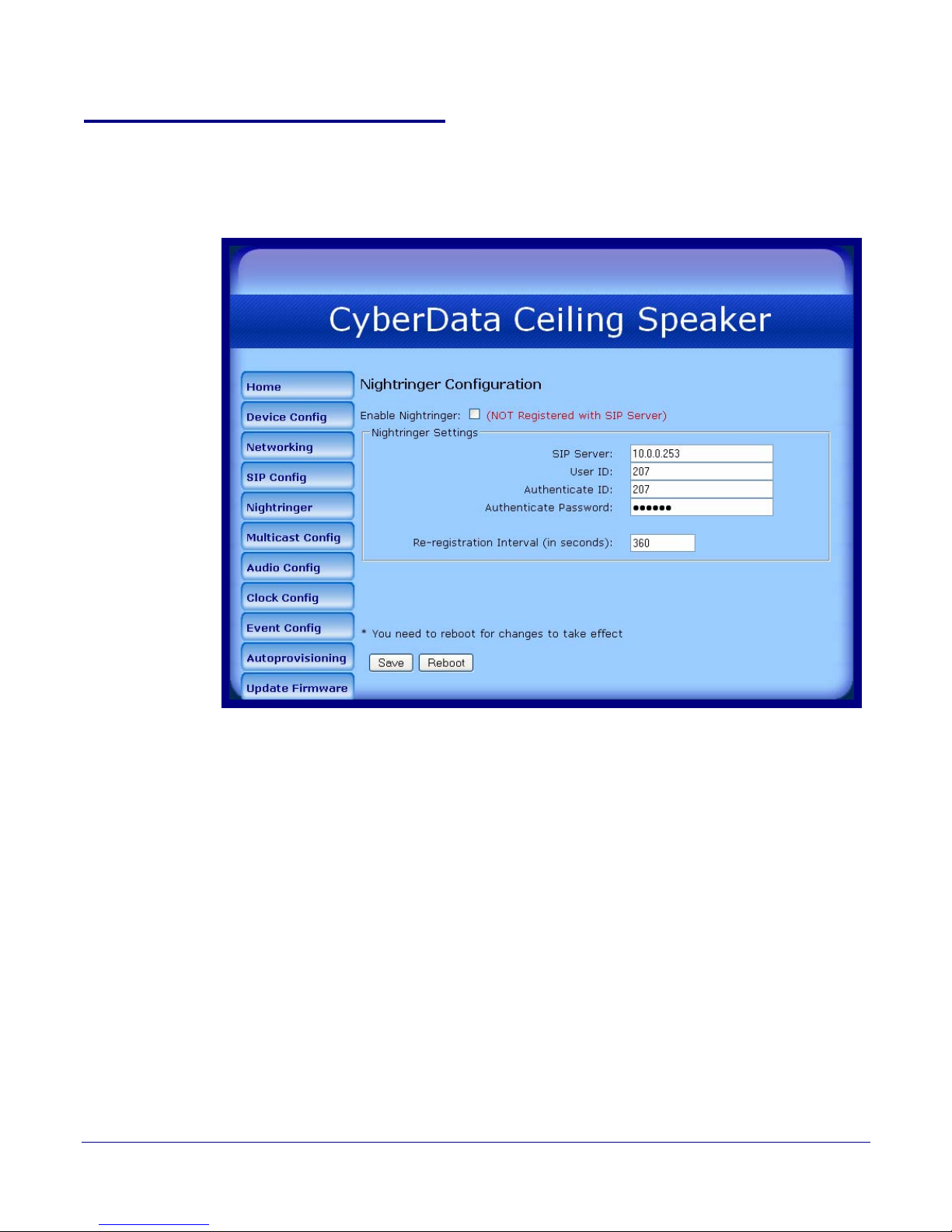

Figure 2-18. Nightringer Configuration Setup

Installing the VoIP V2 Speaker

Configure the Night Ringer Parameters

Operations Guide 930468A CyberData Corporation

Page 48

Installing the VoIP V2 Speaker

Configure the Night Ringer Parameters

2. On the Nightringer Configuration page, enter values for the parameters indicated in Tabl e 2-10.

Table 2-10. Nightringer Configuration Parameters

Web Page Item Description

Enable Nightringer When the nightringer is enabled, the ceiling speaker will

attempt to register a second extension with the SIP server. Any calls made to this extension will play a ringtone.

Nightringer Settings

SIP Server Type the SIP server represented as either a numeric IP

address in dotted decimal notation.

User ID Type the User ID (up to 64 alphanumeric characters).

Authenticate ID Ty pe the Authenticate ID (up to 64 alphanumeric

characters).

Authenticate Password Type the Authenticate Password (up to 64 alphanumeric

characters).

Re-registration Interval (in seconds)* Type the SIP Registration lease time in minutes (default is

60 minutes) (8 character limit). Re-registration Interval (in seconds)*

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click on the Save button.

Operations Guide 930468A CyberData Corporation

Page 49

2.3.7 Configure the Multicast Parameters

1. Click on the Multicast Configuration button to open the Multicast Configuration page. See

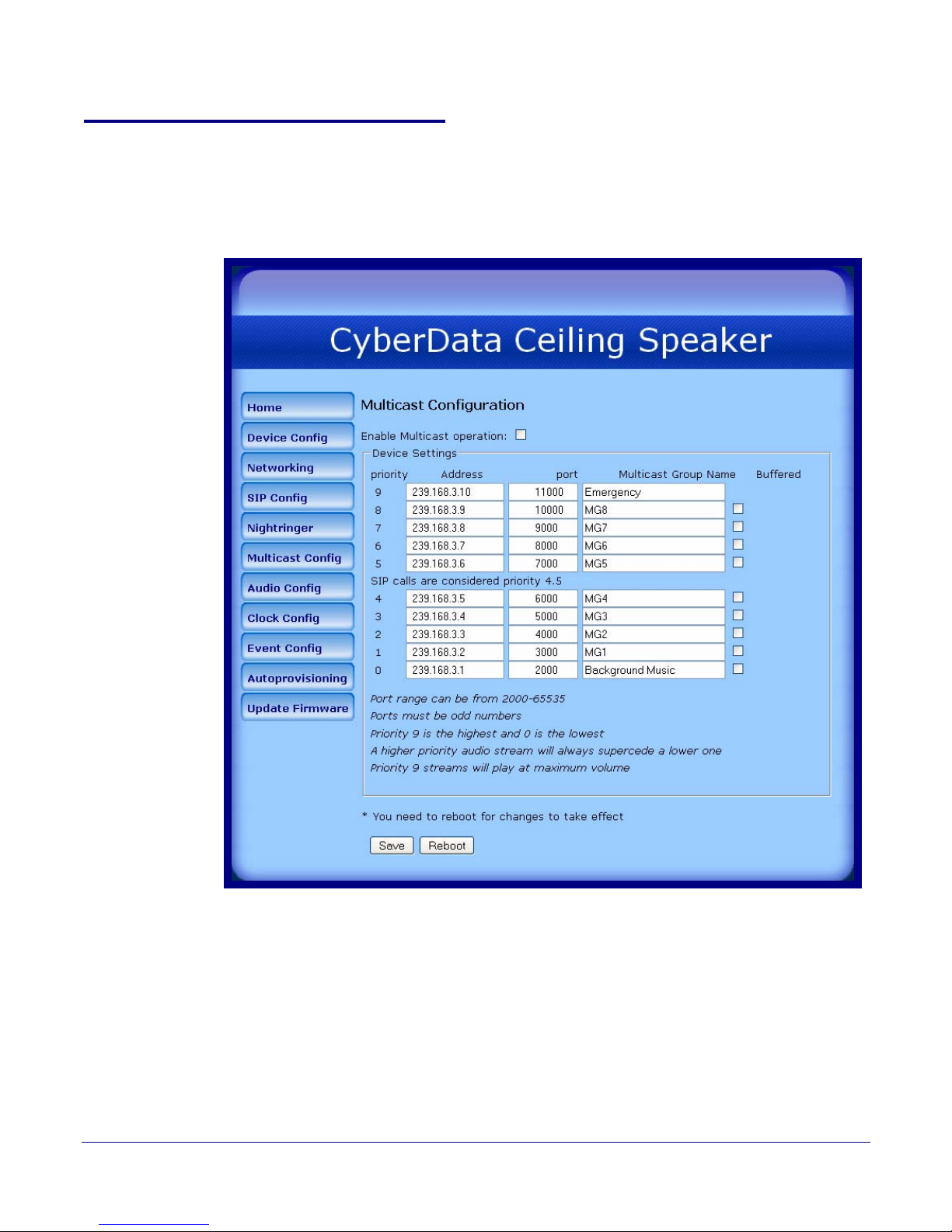

Figure 2-19.

Figure 2-19. Multicast Configuration Setup

Installing the VoIP V2 Speaker

Configure the Multicast Param eters

Operations Guide 930468A CyberData Corporation

Page 50

Installing the VoIP V2 Speaker

Configure the Multicast Param eters

2. On the Multicast Configuration page, enter values for the parameters indicated in Tab le 2-11.

Table 2-11. Multicast Configuration Parameters

Web Page Item Description

Enable Multicast Operation Enables or disables multicast operation.

Device Settings

Priority Indicates the priority for the multicast group. Priority 9 is the

highest (emergency streams). 0 is the lowest (background music). See details.

Address Enter the multicast IP Address for this multicast group (15

character limit).

Port (range can be from 2000 to 65535) Enter the port number for this multicast group (5 character

limit).

Note: The multicast ports have to be even values. The webpage will enforce this restriction.

Multicast Group Name Assign a descriptive name for this multicast group (25

character limit).

Section 2.3.7.1, "Assigning Priority" for more

Buffered When buffering is enabled for a multicast stream, it will store

3. After changing the parameters, click on the Save button.

2.3.7.1 Assigning Priority

When playing multicast streams, audio on different streams will preempt each other according to their priority in the list. An audio stream with a higher priority will interrupt a stream with a lower priority.

If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will interrupt multicast streams with priority 0 through 4 and will be interrupted by multicast streams with priority 5 through 9.

During priority 9 multicast streams, the analog volume control is bypassed and the volume level is set to maximum.

any audio received on this socket to memory and play it back when the stream is stopped or the buffer is full.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Note SIP calls, buffered SIP calls, multicast streams, buffered multicast streams, ring tones,

ringback tones, and nightring tones are all prioritized.

Ringtones and Nightringtones

Ringtones all play at the same priority level. This means that it is possible to have a nightring tone and a normal ringtone playing at the same time.

The maximum ringtone duration is 2 MB or about four minutes of ulaw audio.

Operations Guide 930468A CyberData Corporation

Page 51

Installing the VoIP V2 Speaker

Configure the Multicast Param eters

Lengthy Pages

Buffered Audio

Concerning how lengthy pages are handled (where someone puts the phone down for 15 minutes), after the 2MB limit is reached, further data will be thrown away while the audio file is played back. When the file is done playing, it will stop throwing away input and begin buffering data for another four minutes.

Therefore, with the buffered mode enabled on a stream playing background music, you will hear the following sequence of events:

1. Four minutes of silence.

2. Music from 0:00 through 4:00.

3. Four minutes of silence.

4. Music from 8:00 through 12:00 and so on.

When the speaker is playing back buffered audio and this buffered audio is interrupted by a higher priority stream, once the higher priority streams is finished, the speaker will restart the lower priority stream from the beginning.

Operations Guide 930468A CyberData Corporation

Page 52

2.3.8 Configure the Audio Parameters

Click the Audio Config button to open the Audio Configuration page. See Figure 2-20 and Figure

2-21. The Audio Configuration page is used to add custom audio to the board. User uploaded audio

will take precedence over the audio files shipped with the Intercom.

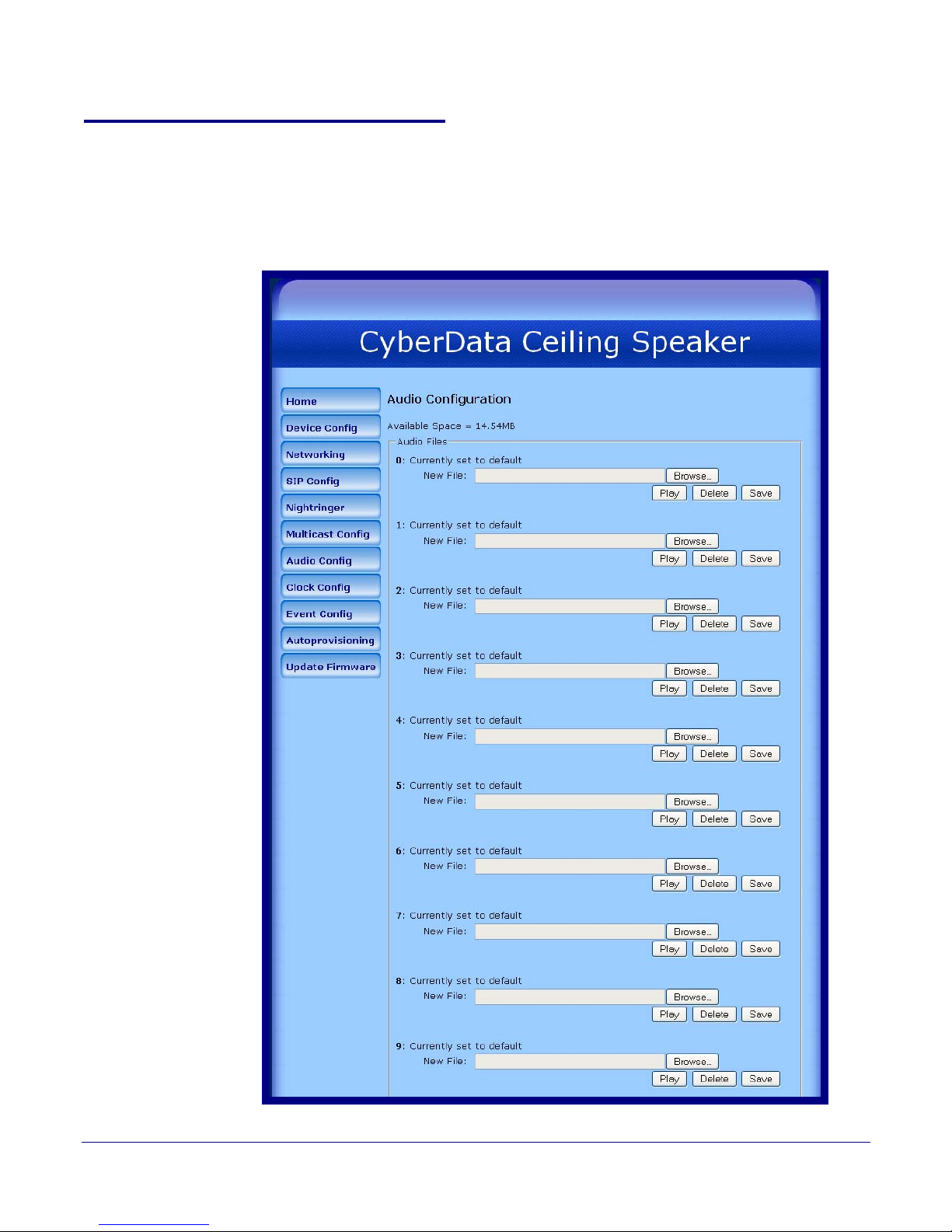

Figure 2-20. Audio Configuration Page

Installing the VoIP V2 Speaker

Configure the Audio Parameters

Operations Guide 930468A CyberData Corporation

Page 53

Installing the VoIP V2 Speaker

Configure the Audio Parameters

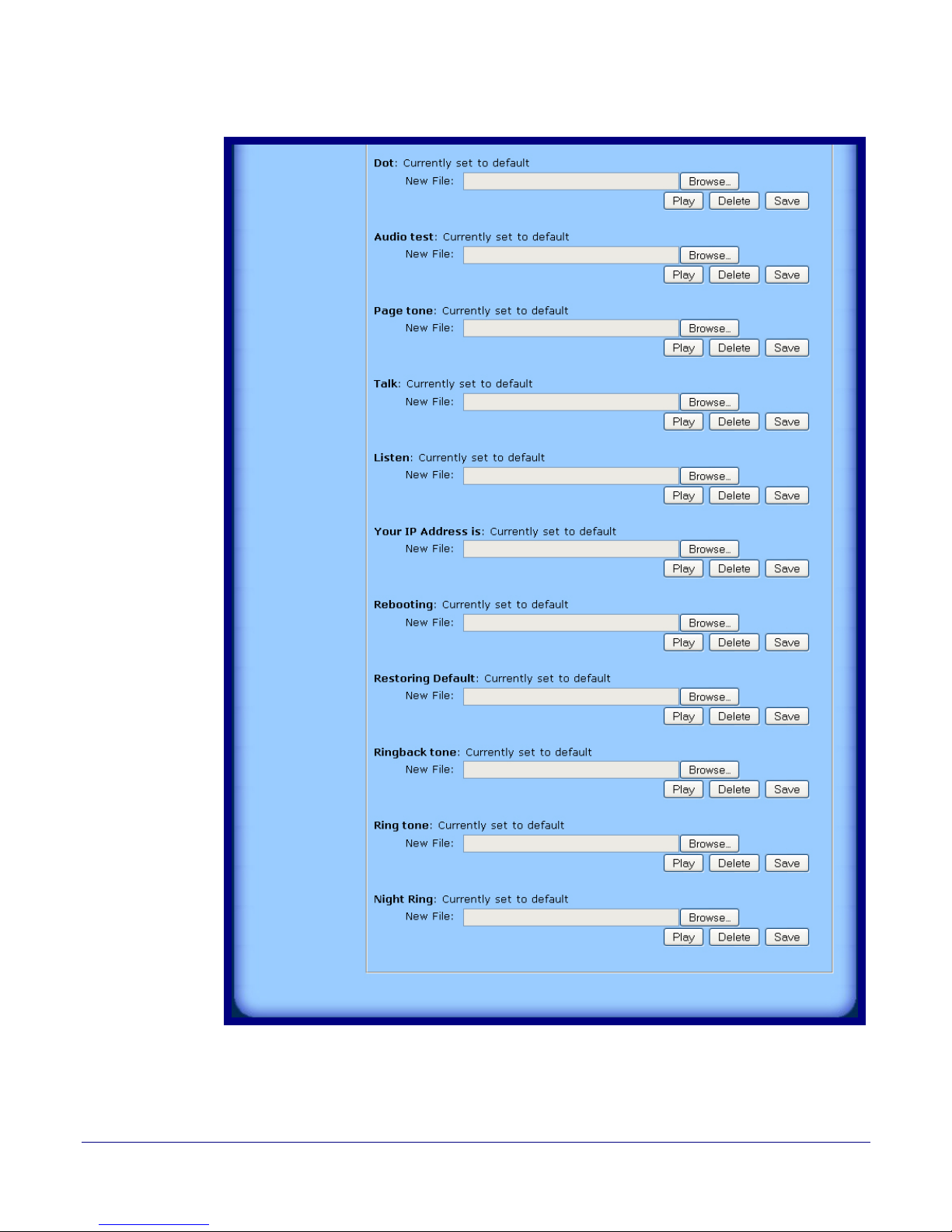

Figure 2-21. Audio Configuration Page (continued)

Operations Guide 930468A CyberData Corporation

Page 54

Installing the VoIP V2 Speaker

Configure the Audio Parameters

On the Audio Configuration page, enter values for the parameters indicated in Ta bl e 2-12.

Note Each entry on the Audio Configuration page replaces one of the stock audio files on the

board. When the input box displays the word default, the Talkback Speaker is using the stock audio file. If that file is replaced with a user file, it will display the uploaded filename.

Table 2-12. Audio Configuration Parameters

Web Page Item Description

Audio Files

0-9 The name of the audio configuration option is the same as the spoken audio that

plays on the board (24 character limit).

'0' corresponds to the spoken word “zero.”

'1' corresponds to the spoken word “one.”

'2' corresponds to the spoken word “two.”

'3' corresponds to the spoken word “three.”

'4' corresponds to the spoken word “four.”

'5' corresponds to the spoken word “five.”

'6' corresponds to the spoken word “six.”

'7' corresponds to the spoken word “seven.”

'8' corresponds to the spoken word “eight.”

'9' corresponds to the spoken word “nine.”

Dot Corresponds to the spoken word “dot.” (24 character limit)

Audiotest Corresponds to the message “This is the CyberData IP speaker test message...”

(24 character limit)

Pagetone Corresponds to a simple tone used for beep on initialization and beep on page

(24 character limit).

Talk While in Monitor Mode, the person at the phone will hear the word “talk” when they

are switching from the “listening mode” to the “talking mode.”

Listen While in Monitor Mode, the person at the phone will hear the word “listen” when

they are switching from the “talking mode” to the “listening mode.”

Your IP Address is Corresponds to the message “Your IP address is...” (24 character limit).

Rebooting Corresponds to the spoken word “Rebooting” (24 character limit).

Restoring default Corresponds to the message “Restoring default” (24 character limit).

Ringback Tone This is the ringback tone that plays when calling a remote extension

(24 character limit).

Ring Tone This is the tone that plays when set to ring when receiving a call

(24 character limit).

Night Ring Specifies the ringtone for nightring. By default this parameter uses the same audio

file that is selected for the Ring Tone parameter.

The Browse button will allow you to navigate to and select an audio file.

Operations Guide 930468A CyberData Corporation

The Play button will play that audio file.

Page 55

Table 2-12. Audio Configuration Parameters (continued)

Web Page Item Description

The Delete button will delete any user uploaded audio and restore the stock audio file.

The Save button will download a new user audio file to the board once you've selected the file by using the Browse button. The Save button will delete any pre- existing user-uploaded audio files.

Installing the VoIP V2 Speaker

Configure the Audio Parameters

Operations Guide 930468A CyberData Corporation

Page 56

2.3.8.1 User-created Audio Files

User created audio files should be saved in the following format:

RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz

You can use the free utility Audacity to convert audio files into this format. See Figure 2-22 through

Figure 2-24.

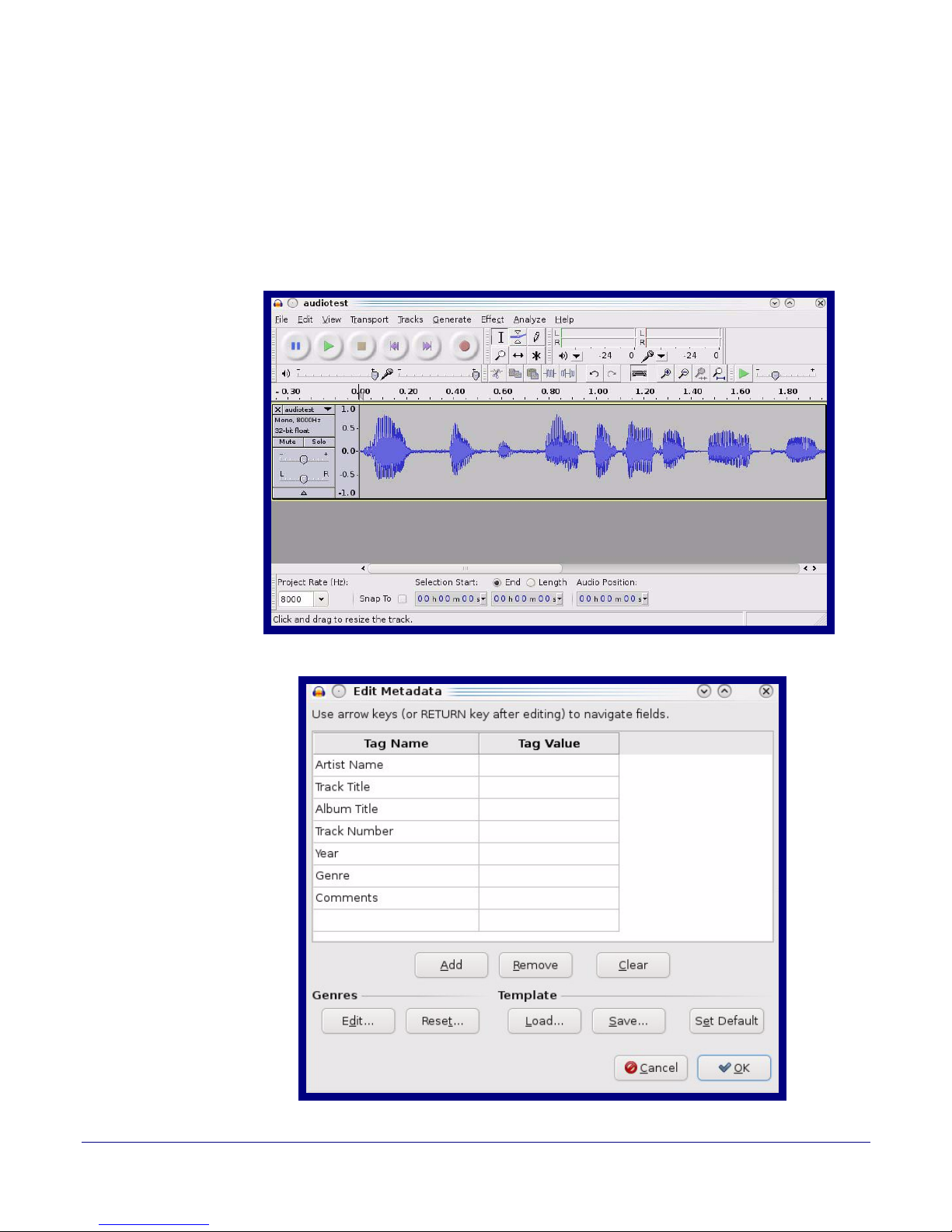

Figure 2-22. Audacity 1

Installing the VoIP V2 Speaker

Configure the Audio Parameters

Figure 2-23. Audacity 2

Operations Guide 930468A CyberData Corporation

Page 57

When you export an audio file with Audacity, save the output as:

WAV (Microsoft) signed 16 bit PCM

● WAV (Microsoft) signed 16 bit PCM.

Figure 2-24. WAV (Microsoft) signed 16 bit PCM

Installing the VoIP V2 Speaker

Configure the Audio Parameters

Operations Guide 930468A CyberData Corporation

Page 58

Configure the NTP Server and Clock Parameters

2.3.9 Configure the NTP Server and Clock Parameters

Click the Clock Config button to open the NTP Server and Clock Configuration page. See Figure 2-25.

Note The Clock Configuration page is always visible. If a clock is not installed, the Clock Status

will indicate NOT INSTALLED. Otherwise it shows INSTALLED.

Figure 2-25. NTP Server and Clock Configuration P age

Installing the VoIP V2 Speaker

Operations Guide 930468A CyberData Corporation

Page 59

Installing the VoIP V2 Speaker

Configure the NTP Server and Clock Parameters

Ta bl e 2-13 shows the web page items on the NTP Server and Clock Configuration page.

Table 2-13. NTP Server and Clock Configuration

Web Page Item Description

Clock Status Displays the current clock status.

Clock Firmware Displays the current clock firmware version.

NTP Settings

NTP Server Allows you to select the NTP server (64 character limit).

Posix Time Zone String See Section 2.3.9.1, "Time Zone Strings"

(43 character limit).

Set Time with External NTP Server on boot When selected, the time is set with an exter nal NTP

server when the speaker restarts.

Periodically update with time server When selected, the time is periodically updated with a

time server.

Time update period (in hours) Allows you to select the time updated period (in hours)

(4 character limit).

Allows you to set the time from the NTP server.

Clock Settings

Clock Brightness (0-14) Allows you to select the clock brightness level (0-14)

(2 character limit)

Use Ambient Light Sensor Enables or disables the ambient light sensor.

Clock Colon Type Allows you to select the clock colon type (Off, On, or

Blink)

Clock Time Format Allows you to select the clock format (12 or 24 hour)

Current Time

Current Time in 24 hour format (HHMMSS) Allows you to input the current time in the 24 hour format.

(6 character limit)

Click on this button to set the clock after entering the current time.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Operations Guide 930468A CyberData Corporation

Page 60

2.3.9.1 Time Zone Strings

The posix time zone string tells the internal date and time utilities how to handle daylight savings time for different time zones.

Time Zone Time Zone String

US Pacific time PST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00

US Mountain time MST7MDT,M3.2.0/2:00:00,M11.1.0/2:00:00

US Eastern Time EST5EDT,M3.2.0/2:00:00,M11.1.0/2:00:00

Phoenix Arizona

US Central Time CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

a.Phoenix, Ari zona does not use daylight sa vings time.

Ta bl e 2-15 shows a breakdown of the parts that constitute the following time zone string:

● CST6DST,M3.2.0/2:00:00,M11.1.0/2:00:00

Installing the VoIP V2 Speaker

Configure the NTP Server and Clock Parameters

Tab le 2-14 shows some common strings.

Table 2-14. Common Time Zone Strings

MST7

Table 2-15. Time Zone String Parts

Time Zone String

Meaning

Part

CST6CDT The time zone offset from GMT and three character identifiers for the time zone.

CST Central Standard Time

6 The (hour) offset from GMT/UTC

CDT Central Daylight Time

M3.2.0/2:00:00 The date and time when daylight savings begins.

M3 The third month (March)

.2 The 2nd occurrence of the day (next item) in the month

.0 Sunday

/2:00:00 Time of day to change

M11.1.0/2:00:00 The date and time when daylight savings ends.

M11 The eleventh month (November)

.1 The 1st occurrence of the day (next item) in the month

.0 Sunday

/2:00:00 Time of day to change

Operations Guide 930468A CyberData Corporation

Page 61

Installing the VoIP V2 Speaker

PST8PDT,M3.2.0/2:00:00,M11.1.0/2:00:00

Three or four character time zone identifier at the beginning of the time zone string. The identifier can be any three or four letter or number combination chosen by the user.

Configure the NTP Server and Clock Parameters

Time Zone String Examples

Time Zone Identifier

Ta bl e 2-16 has some more examples of time zone strings.

Table 2-16. Time Zone String Examples

Time Zone Time Zone String

Tokyo

Berlin

IST-9

CET-1MET,M3.5.0/1:00,M10.5.0/1:00

a.Tokyo does not us e da ylight savings time. b.For Berlin, daylight savings time starts on the last Sunday in March at 01:00 UTC, and ends on the last S unday in October at 01:00 UTC, and is one hour ahead of UTC.

A user-definable three or four character time zone identifier (such as PST, EDT, IST, MUT, etc) is needed at the beginning of the posix time zone string to properly set the time. However, the specific letters or numbers used for the time zone identifier are not important and can be any three or four letter or number combination that is chosen by the user. However, the time zone identifier cannot be blank.

Figure 2-26. Three or Four Character Time Zone Identifier

World GMT Table

You can also use the following URL when a certain time zone applies daylight savings time:

http://www.timeanddate.com/time/dst/2011.html

Ta bl e 2-17 has information about the GMT time in various time zones.

Table 2-17. World GMT Table

Time Zone City or Area Zone Crosses

GMT-12 Eniwetok

GMT-11 Samoa

GMT-10 Hawaii

GMT-9 Alaska

GMT-8 PST, Pacific US

GMT-7 MST, Mountain US

GMT-6 CST, Central US

GMT-5 EST, Eastern US

GMT-4 Atlantic, Canada

GMT-3 Brazilia, Buenos Aries

GMT-2 Mid-Atlantic

GMT-1 Cape Verdes

Operations Guide 930468A CyberData Corporation

Page 62

Configure the NTP Server and Clock Parameters

Table 2-17. World GMT Table (continued)

Time Zone City or Area Zone Crosses

GMT Greenwich Mean Time, Dublin

GMT+1 Berlin, Rome

GMT+2 Israel, Cairo

GMT+3 Moscow, Kuwait

GMT+4 Abu Dhabi, Muscat

GMT+5 Islamabad, Karachi

GMT+6 Almaty, Dhaka

GMT+7 Bangkok, Jakarta

GMT+8 Hong Kong, Beijing

GMT+9 Tokyo, O s a ka

GMT+10 Sydney, Melbourne, Guam

GMT+11 Magadan, Soloman Is.

GMT+12 Fiji, Wellington, Auckland

Installing the VoIP V2 Speaker

Operations Guide 930468A CyberData Corporation

Page 63

2.3.10 Configure the Event Parameters

Click the Event Config button to open the Event Configuration page (Figure 2-27). The Event Configuration page specifies a remote server that can be used to receive HTTP POST events when

actions take place on the board.

Figure 2-27. Event Configuration Page

Installing the VoIP V2 Speaker

Configure the Event Parameters

Operations Guide 930468A CyberData Corporation

Page 64

Installing the VoIP V2 Speaker

Configure the Event Parameters

Ta bl e 2-18 shows the web page items on the Event Configuration page.

Table 2-18. Event Configuration

Web Page Item Description

Enable Event Generation When selected, Event Generation is enabled.

Remote Event Server

Remote Event Server IP Type the Remote Event Server IP address.

(64 character limit)

Remote Event Server Port Type the Remote Event Server port number.

(8 character limit)

Remote Event Server URL Type the Remote Event Server URL.

(127 character limit)

Events

Enable Button Events When selected, Button Events are enabled.

Enable Call Active Events When selected, Call Active Events are enabled.

Enable Call Terminated Events When selected, Call Terminated Events are enabled.

Enable Monitor Call Active Events When selected, Monitor Call Active Events are enabled.

Enable Monitor Call Terminated Events When selected, Monitor Call Terminated Events are enabled.

Enable Relay Activated Events When selected, Relay Activated Events are enabled.

Enable Relay Deactivated Events When selected, Relay Deactivated Events are enabled.

Enable Ring Events When selected, Ring Events are enabled.

Enable Night Ring Events When selected, there is a notification when the speaker

receives a night ring.

Enable Multicast Start Events When selected, Multicast Start Events are enabled.

Enable Multicast Stop Events When selected, Multicast Stop Events are enabled.

Enable Power On Events When selected, Power On Events are enabled.

Enable 60 Second Heartbeat Events When selected, 60 Second Heartbeat Events are enabled.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Test Event button to test an event.

Click on the Reboot button to reboot the system.

Operations Guide 930468A CyberData Corporation

Page 65

2.3.10.1 Example Packets for Events

The server and port are used to point to the listening server and the 'Remote Event Server URL' is the destination URL (typically the script running on the remote server that's used to parse and process the POST events).

Note The XML is URL-encoded before transmission so the following examples are not completely

accurate.

Here are example packets for every event:

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata>

Installing the VoIP V2 Speaker

Configure the Event Parameters

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>HEARTBEAT</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 201 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_ACTIVE</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata>

POST xmlparse_engine HTTP/1.1

Operations Guide 930468A CyberData Corporation

Page 66

Installing the VoIP V2 Speaker

Configure the Event Parameters

Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RINGING</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>MULTICAST_START</event> <index>8</index> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 233 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>MULTICAST_STOP</event> <index>8</index> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_ACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0

Operations Guide 930468A CyberData Corporation

Page 67

Installing the VoIP V2 Speaker

Configure the Event Parameters

Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>NIGHTRINGING</event> </cyberdata>

Operations Guide 930468A CyberData Corporation

Page 68

2.3.11 Configure the Autoprovisioning Parameters

1. Click the Autoprovisioning button to open the Autoprovisioning Configuration page. See Figure 2-28.

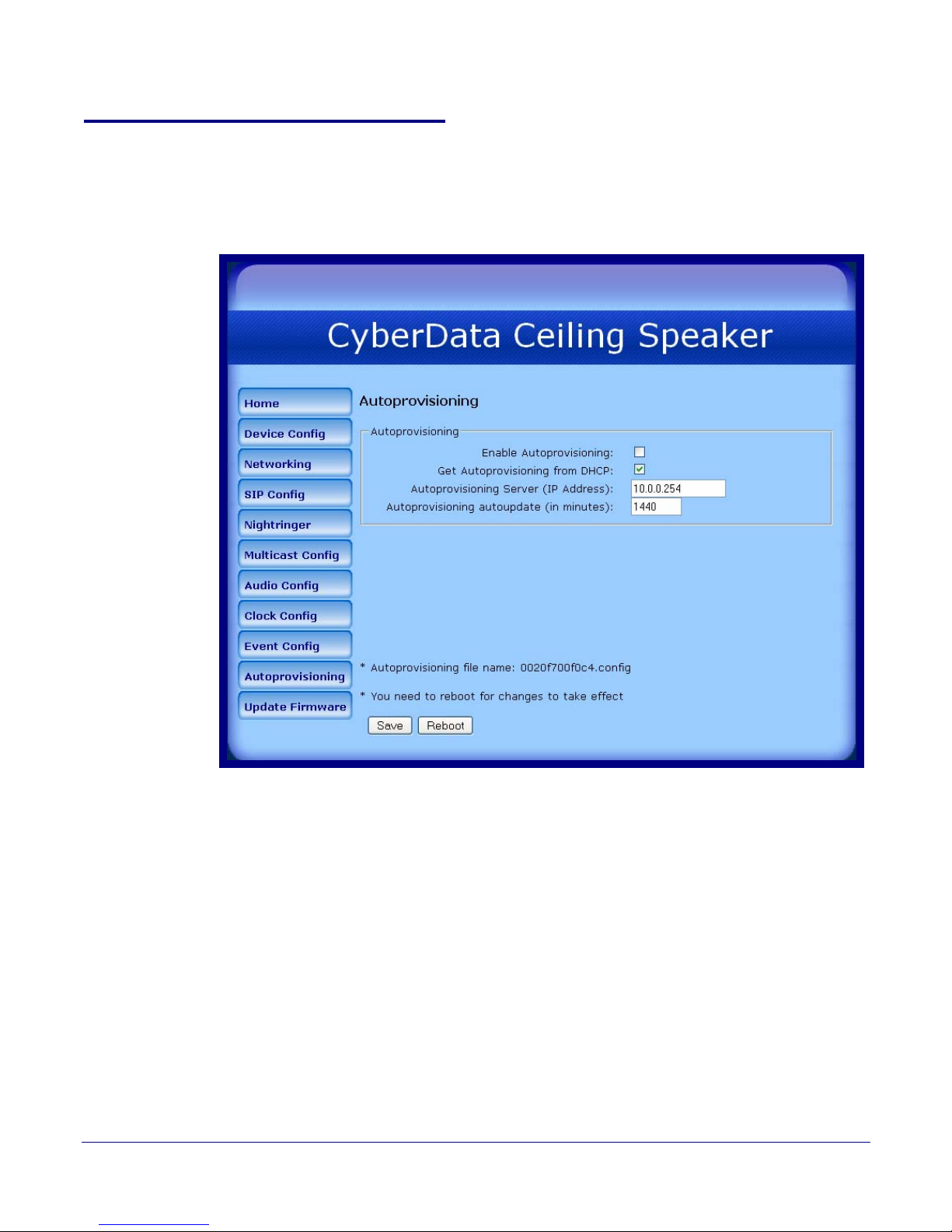

Figure 2-28. Autoprovisioning Configuration Page

Installing the VoIP V2 Speaker

Configure the Autoprovisioning Parameters

Operations Guide 930468A CyberData Corporation

Page 69

Installing the VoIP V2 Speaker

Configure the Autoprovisioning Parameters

2. On the Autoprovisioning Configuration page, you may enter values for the parameters indicated in

Ta bl e 2-19.

Table 2-19. Autoprovisioning Configuration Parameters

Web Page Item Description

Autoprovisioning

Enable Autoprovisioning See Section 2.3.11.1, "Autoprovisioning".

Get Autoprovisioning from DHCP See Section 2.3.11.1, "Autoprovisioning".

Autoprovisioning Server (IP Address) See Section 2.3.11.1, "Autoprovisioning" (15 character limit).

Autoprovisioning Autoupdate (in minutes)

Type the desired time (in minutes) that you want the Autoprovisioning feature to update (6 character limit).

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click the Save button.

Operations Guide 930468A CyberData Corporation

Page 70

2.3.11.1 Autoprovisioning

Installing the VoIP V2 Speaker

Configure the Autoprovisioning Parameters

Enable Autoprovisioning Option

Networking

Get Autoprovisioning from DHCP

With autoprovisioning enabled, the board will get its configuration from a remote TFTP server on startup or periodically on a scheduled delay. Autoprovisioned values will override values stored in on-board memory and will be visible on the web page. The board gets its autoprovisioning information from an XML-formatted file hosted from a TFTP server. CyberData will provide a template for this XML file and the user can modify it for their own use.

To use autoprovisioning, create a copy of the autoprovisioning template with the desired settings and name this file with the mac address of the device to configure (for example: 0020f7350058.config). Put this file into your TFTP server directory and manually set the TFTP server address on the board.

It is not necessary to set every option found in the autoprovisioning template. As long as the XML is valid, the file can contain any subset. Options not autoprovisioned will default to the values stored in the on board memory. For example if you only wanted to modify the device name, the following would be a valid autoprovisioning file:

<?xml version="1.0" encoding="utf-8" ?> <specific>

<DeviceName>auto Ceiling Speaker</DeviceName>

</MiscSettings>

</specific>

The board will only apply networking settings or firmware upgrades after a reboot.

When this option is checked, the device will automatically fetch its autoprovisioning server address from the DHCP server. The device will use the address specified in OPTION 150 (TFTP-servername) or OPTION 66. If both options are set, the device will use OPTION 150.

Refer to the documentation of your DHCP server for setting up OPTION 150.

Operations Guide 930468A CyberData Corporation

Page 71

Installing the VoIP V2 Speaker

Configure the Autoprovisioning Parameters

To set up a Linux DHCPD server to serve autoprovisioning information (in this case using both option 66 and 150), here's an example dhcpd.conf:

# dhcpd.conf # # Configuration file for ISC dhcpd (see 'man dhcpd.conf') # ddns-update-style ad-hoc;

option option-150 code 150 = ip-address;

subnet 10.0.0.0 netmask 255.0.0.0 { max-lease-time 120; default-lease-time 120;

option routers 10.0.0.1; option subnet-mask 255.0.0.0;

option domain-name "voiplab"; option domain-name-servers 10.0.0.1;

option time-offset -8; # Pacific Standard Time

Autoprovisioning Server (IP Address)

Autoprovisioning Autoupdate

Autoprovisioned Firmware Upgrades

option tftp-server-name "10.0.0.254";

option option-150 10.0.0.254;

range 10.10.0.1 10.10.2.1;}

Instead of using DHCP to provide the autoprovisioning tftp server address, you can specify an address manually.

If Autoprovisioning is enabled and the Autoprovisioning Autoupdate value is something other than 0 minutes, a service is started on startup that will wait the configured number of minutes and then try to re-download its autoprovisioning file. It will compare its previously autoprovisioned file with this new file and if there are differences, it will reboot the board.

An Autoprovisioned firmware upgrade only happens after a reboot, will take roughly three minutes, and the web page will be unresponsive during this time.

The 'FirmwareVersion' value in the xml file must match the version stored in the 'FirmwareFile'.

<FirmwareVersion>v5.0.5b01</FirmwareVersion> <FirmwareFile>505b01-uImage-ceilingspeak</FirmwareFile>

If these values are mismatched, the board can get stuck in a loop where it goes through the following sequence of actions:

1. The board downloads and writes a new firmware file.

2. After the next reboot, the board recognizes that the firmware version does not match.

3. The board downloads and writes the firmware file again.

CyberData has timed a firmware upgrade at 140 seconds. Therefore, if you suspect the board is stuck in a loop, either remove or comment out the FirmwareVersion line in the XML file and let the board boot as it normally does.

Operations Guide 930468A CyberData Corporation

Page 72

Installing the VoIP V2 Speaker

Configure the Autoprovisioning Parameters

Autoprovisioned Audio Files

Audio files are stored in non-volatile memory and an autoprovisioned audio file will only have to be downloaded once for each device. Loading many audio files to the device from the web page could cause it to appear unresponsive. If this happens, wait until the transfer is complete and then refresh the page.

The device uses the file name to determine when to download a new audio file. This means that if you used autoprovisioning to upload a file and then changed the contents of this file at the TFTP server, the device will not recognize that the file has changed (because the file name is the same).

Since audio files are stored in non-volatile memory, if autoprovisioning is disabled after they have been loaded to the board, the audio file settings will not change. You can force a change to the audio files on the board by clicking Restore Default on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name.

Operations Guide 930468A CyberData Corporation

Page 73

Installing the VoIP V2 Speaker

GENERAL ALERT

Upgrade the Firmware and Reboot the Talkback Speaker

2.3.12 Upgrade the Firmware and Reboot the Talkback Speaker

2.3.12.1 Upgrade the Firmware

Caution

When upgrading to firmware version 6.x.x from version 5.x.x or earlier, your device config uration settings will be lost because the way that the device stores the configuration settings is different in version 6.x.x.

To upload the firmware from your computer:

1. Retrieve the latest Talkback Speaker firmware from the VoIP V2 Speaker Downloads page at:

http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2ptt/downloads.html

2. Unzip the Talkback Speaker version file. This file may contain the following:

•Firmware file

• Release notes

3. Log in to the Talkback Speaker home page as instructed in Section 2.3.2, "Log in to the

Configuration Home Page".

Operations Guide 930468A CyberData Corporation

Page 74

Installing the VoIP V2 Speaker

Upgrade the Firmware and Reboot the Talkback Speaker

4. Click the Update Firmware button to open the Upgrade Firmware page. See Figure 2-29.

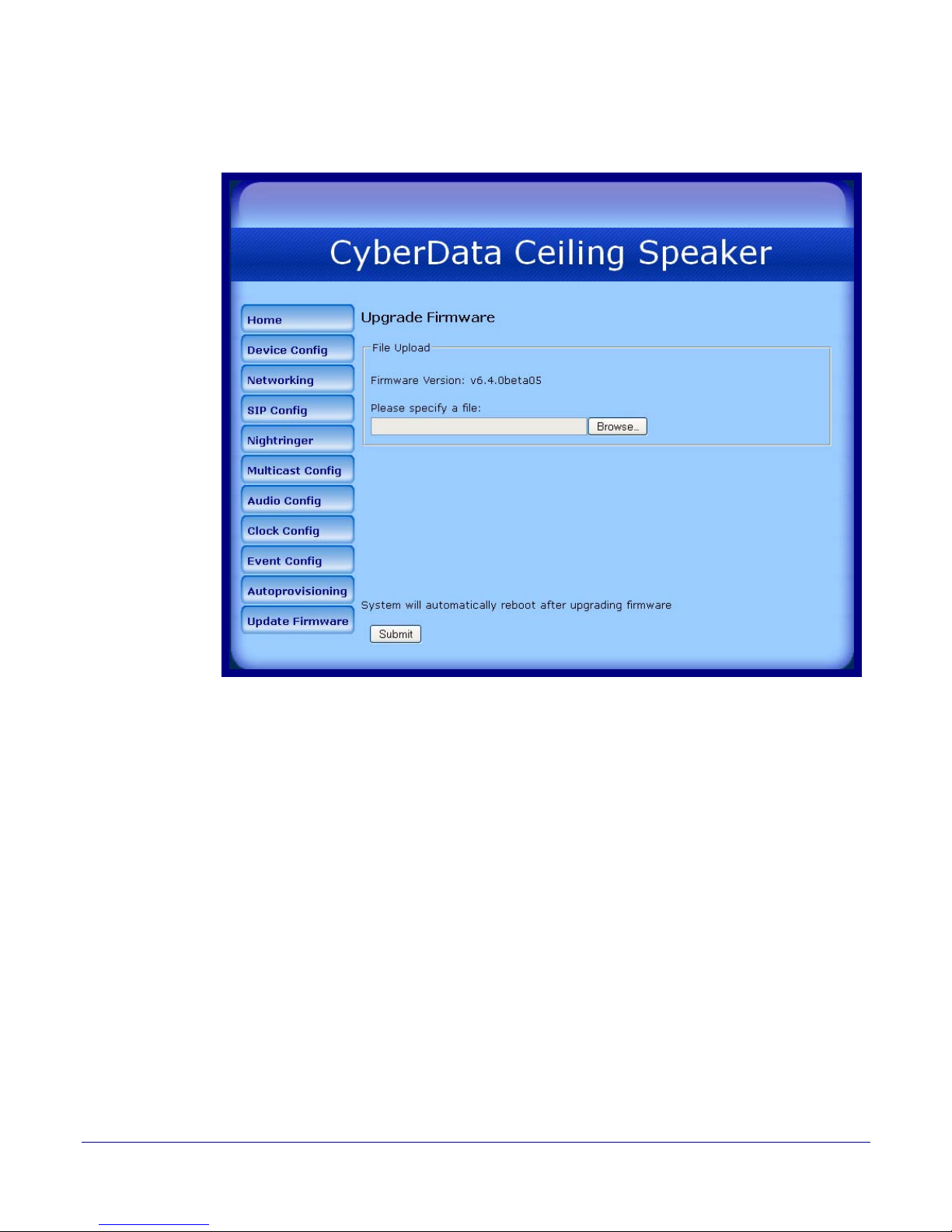

Figure 2-29. Upgrade Firmware P a ge

5. Click Browse, and then navigate to the location of the Talkback Speaker firmware file.

6. Click Submit.

Note This starts the upload process. Once the Talkback Speaker has uploaded the file, the

Uploading Firmware countdown page appears, indicating that the firmware is being

written to flash. The Talkback Speaker will automatically reboot when the upload is complete. When the countdown finishes, the Upgrade Firmware page will refresh. The uploaded firmware filename should be displayed in the system configuration (indicating successful upload and reboot).

Note The way that the integrity of the configuration file is validated has changed. There is no

problem with updating the firmware but if you downgrade (or downgrade, make some changes, and then upgrade again) the device may think that the configuration is corrupt and restore defaults.

Operations Guide 930468A CyberData Corporation

Page 75

Installing the VoIP V2 Speaker

Upgrade the Firmware and Reboot the Talkback Speaker

Ta bl e 2-20 shows the web page items on the Upgrade Firmware page.

Table 2-20. Upgrade Firmware Parameters

Web Page Item Description

File Upload

Firmware Version Firmware Version

Please specify a file Refer to the Browse button description.

Use the Browse button to navigate to the location of the Intercom firmware file that you want to upload.

Click on the Submit button to automatically upload the selected firmware and reboot the system.

Operations Guide 930468A CyberData Corporation

Page 76

2.3.12.2 Reboot the Talkback Speaker

Reboot

To reboot a Talkback Speaker,

1. Log in to the Home Page as instructed in Section 2.3.2, "Log in to the Configuration Home

Page". See Figure 2-30.

Upgrade the Firmware and Reboot the Talkback Speaker

Figure 2-30. Home Page

Installing the VoIP V2 Speaker

2. Click the Reboot button. See Figure 2-30.

Operations Guide 930468A CyberData Corporation

Page 77

Installing the VoIP V2 Speaker

Upgrade the Firmware and Reboot the Talkback Speaker

3. A normal restart will occur and you will see the following Reboot page.

Figure 2-31. Reboot Page

Operations Guide 930468A CyberData Corporation

Page 78

Installing the VoIP V2 Speaker

Command Interface Post Commands

2.4 Command Interface

Some functions on the device can be activated using simple POST commands to the web interface. The examples in commands to the device should work.

2.4.1 Command Interface Post Commands

Note These commands require an authenticated session (a valid username and password to

work).

Device Action HTTP Post Command

Trigger relay (for configured delay) wget --user admin --password admin --auth-no-challenge --quiet -

Place call to extension (example: extension 130) wget --user admin --password admin --auth-no-challenge --quiet -

Table 2-21 use the free unix utility, wget, but any program that can send http POST

Table 2-21. Command Interface Post Commands

O /dev/null "http://10.0.3.71/cgi-bin/command.cgi" --post-data "test_relay=yes"

O /dev/null "http://10.0.3.71/cgi-bin/command.cgi" --post-data "call=130"

Terminate active call wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/command.cgi" --post-data "terminate=yes"

Force reboot wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/command.cgi" --post-data "reboot=yes"

Test Audio button

Announce IP address wget --user admin --password admin --auth-no-challenge --quiet -

Play the "0" audio file wget --user admin --password admin --auth-no-challenge --quiet -

Play the "1" audio file wget --user admin --password admin --auth-no-challenge --quiet -

Play the "2" audio file wget --user admin --password admin --auth-no-challenge --quiet -

Play the "3" audio file wget --user admin --password admin --auth-no-challenge --quiet -

wget --user admin --password admin --auth-no-challenge --quiet O /dev/null "http://10.0.3.71/cgi-bin/command.cgi" --post-data "test_audio=yes"

O /dev/null "http://10.0.3.71/cgi-bin/command.cgi" --post-data "speak_ip_address=yes"

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_0=yes"

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_1=yes"

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_2=yes"

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_3=yes"

Play the "4" audio file wget --user admin --password admin --auth-no-challenge --quiet -

Operations Guide 930468A CyberData Corporation

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_4=yes"

Page 79

Installing the VoIP V2 Speaker

Command Interface Post Commands

Table 2-21. Command Interface Post Commands (continued)

Device Action HTTP Post Command

Play the "5" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_5=yes"

Play the "6" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_6=yes"

Play the "7" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_7=yes"

Play the "8" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_8=yes"

Play the "9" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_9=yes"

Play the "Dot" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_d=yes"

Play the "Audio Test" audio file (from Audio Config) wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_audiotest=yes"

Play the "Page Tone" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_pagetone=yes"

Play the "Your IP Address Is" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_youripaddressis=yes"

Play the "Rebooting" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_rebooting=yes"

Play the "Restoring Default" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_restoringdefault=yes"

Play the "Ringback tone" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_ringback=yes"

Play the "Ring tone" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_ringtone=yes"

Play the "Intrusion Sensor Triggered" audio file wget --user admin --password admin --auth-no-challenge --quiet -

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_intrusionsensortriggered=yes"

Play the "Door Ajar" audio file wget --user admin --password admin --auth-no-challenge --quiet -

Play the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --quiet -

Operations Guide 930468A CyberData Corporation

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_doorajar=yes"

O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_nightring=yes"

Page 80
