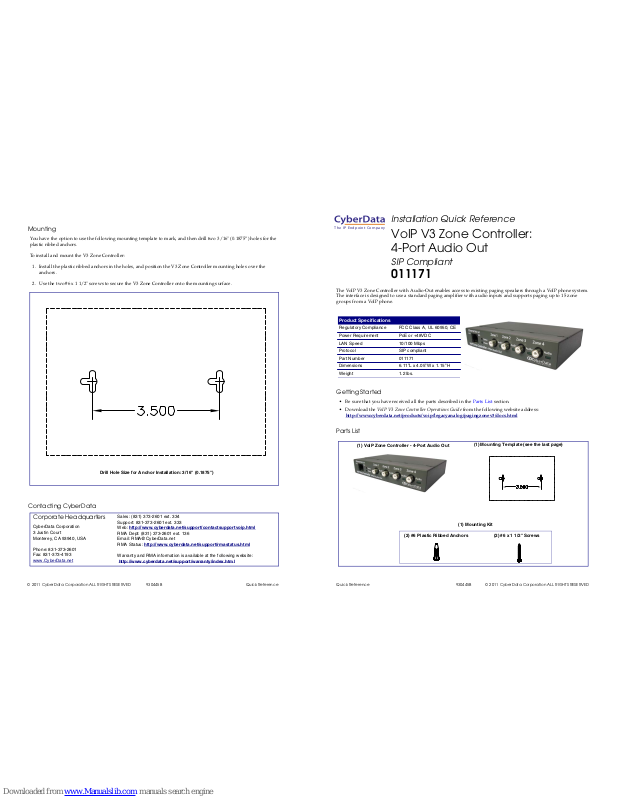

CyberData 011171 Installation Quick Reference

The IP Endpoint Company

Installation Quick Reference

VoIP V3 Zone Controller:
4-Port Audio Out

SIP Compliant

011171

Quick Reference 930445B © 2011 CyberData Corporation A LL RIGHTS RESERVED© 2011 CyberDa ta Corporation ALL RIG HTS RESERVED 930445B Quick Reference

Mounting

Contacting Cy berData

Drill Hole Size for Anchor Installation: 3/16" (0.1875")

You have the option to use the following mounting template to mark, and then drill two 3/16" (0.1875”) holes for the
plastic ribbed anchors.

To install and mount the V3 Zone Controller:

1. Install the plastic ribbed anchors in the holes, and position the V3 Zone Controller mounting holes over the
anchors.

2. Use the two #6 x 1 1/2" screws to secure the V3 Zone Controller onto the mounting surface.

Sales: [phone] ext. 334
Support: 831-373-2601 ext. 333
Web: http://www.cyberdata.net/support/contactsupportvoip.html
RMA Dept: [phone] ext. 136
Email: [e-mail]
RMA Status: http://www.cyberdata.net/support/rmastatus.html

Warranty and RMA information is available at the following website:

http://www.cyberdata.net/support/warranty/index.html

Corporate Headquarters

CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA

Phone: [phone]
Fax: [phone]

www.CyberData.net

The VoIP V3 Zone Controller with Audio-Out enables access to existing paging speakers through a VoIP phone system.
The interface is designed to use a standard paging amplifier with audio inputs and supports paging up to 15 zone
groups from a VoIP phone.

Getting Started

• Be sure that you have received all the parts described in the Parts List section.

• Download t he VoIP V3 Zone Controller Operations Guide from the following website address:

http://www.cyberdata.net/products/voip/legacyanalog/pagingzonev3/docs.html

Parts List

Product Specifications

Regulatory Compliance FCC Class A, UL 60950, CE

Power Requirement PoE or +48VDC

LAN Speed 10/100 Mbps

Protocol SIP compliant

Part Number 011171

Dimensions 6.11”L x 4.05”W x 1.15” H

Weight 1.2 lbs.

(2) #6 Plastic Ribbed Anchors (2) #6 x 1 1/2" Screws

(1) Mounting Template (see the last page)

(1) Mounting Kit

(1) VoIP Zone Controller - 4-Port Audio Out

© 2011 CyberData Corporation ALL RIGHTS RESERVED 930445B Quick Reference Quick Reference 930445B © 2011 Cyb erData Corporation ALL RIGHTS RESERVED

Verifying Operations and Settings

To restore the V3 Zone Controller’s factory default
settings:

1. Use a paper clip to press and hold the RTFM
switch while all of the indicator LEDs turn off.
See the picture on the right.

2. Continue to press the RTFM switch until after
the indicator LEDs turn back on.

3. Release the RTFM switch. All of the V3 Zone
Controller settings will be restored to the
factory default settings.

4. The unit reboots.

Front View with LEDs

Back View with RTFM Switch

Status
(GREEN LED)

Power Status
(BLUE LED)

Link
(YELLOW LED)

Activity
(GREEN LED)

The round, BLUE Power Status LED on the front of the V3 Zone Controller comes on indicating that the
power is on.

The square, YELLOW Link LED above the Ethernet port indicates that the network connection has been
established. The Link LED changes color to confirm the auto-negotiated connection speed:

•This LED is YELLOW at 10 Mbps.

•This LED is ORANGE at 100 Mbps.

The GREEN Status LED comes on after the device is booted and initialized. This LED blinks when a page
is in progress.

The square, GREEN Activity LED blinks when there is network activity.

Paper clip RTFM switch

Typical Zone Controller Setup Using the V3 Zone Controller

Setting Up the VoIP V3 Zone Controller

Generic PoE Switch

123 4 56

IP Phone

IP PBX Server

VoIP V3 Zone Controller 4-Port Audio Out

Analog Amplifiers

Paging Speakers

Non PoE (with 48 VDC power supply)

Chassis Ground

Chassis Ground

PoE

To set up the V3 Zone Controller, connect the
device to your network:

Poe

•For PoE, plug one end of an 802.3af Ethernet
cable into the V3 Zone Controller Ethernet
port. Plug the other end of the Ethernet cable
into your network. See the figure on the left.

Non-Poe

•For Non-PoE, connect the V3 Zone Controller
to a 48VDC power supply. See the figure on
the left.

Chassis Ground

• If required, connect the earth grounding wire
to the Chassis Ground. See the figure on the
left.

48VDC
