CyberData 011097 Operation Manual

Download

VoIP V2 Loudspeaker

The IP Endpoint Company

Amplifier (PoE) Operations Guide

Part #011097

Document Part #930362J

for Firmware Version 6.2.0

CyberData Corporation

3 Justin Court

Monterey, CA 93940

(831) 373-2601

VoIP V2 Paging Amplifier Operations Guide 930362J

Technical Support

The fastest way to get technical support for your VoIP product is to submit a VoIP Technical Support form at the following website:

http://www.cyberdata.net/support/contactsupportvoip.html

Phone: (831) 373-2601, Ext. 333 Email: support@cyberdata.net Fax: (831) 373-4193 Company and product information is at www.cyberdata.net.

The IP Endpoint Company

Part # 011097

This manual and related materials are the copyrighted property of CyberData Corporation. No part of this manual or related materials may be reproduced or transmitted, in any form or by any means (except for internal use by licensed customers), without prior express written permission of CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.

DISCLAIMER: Except as expressly and specifically stated in a written agreement executed by CyberData Corporation, CyberData Corporation makes no representation or warranty, express or implied, including any warranty or merchantability or fitness for any purpose, with respect to this manual or the products, software, firmware, and/or hardware described herein, and CyberData Corporation assumes no liability for damages or claims resulting from any use of this manual or such products, software, firmware, and/or hardware. CyberData Corporation reserves the right to make changes, without notice, to this manual and to any such product, software, firmware, and/or hardware.

OPEN SOURCE STATEMENT: Certain software components included in CyberData products are subject to the GNU General Public License (GPL) and Lesser GNU General Public License (LGPL) “open source” or “free software” licenses. Some of this Open Source Software may be owned by third parties. Open Source Software is not subject to the terms and conditions of the CyberData COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open Source Software is determined by the terms of the GPL, LGPL, or third party, according to who licenses that software.

Software or firmware developed by CyberData that is unrelated to Open Source Software is copyrighted by CyberData, subject to the terms of CyberData licenses, and may not be copied, modified, reverse-engineered, or otherwise altered without explicit written permission from CyberData Corporation.

TRADEMARK NOTICE: CyberData Corporation and the CyberData Corporation logos are trademarks of CyberData Corporation. Other product names, trademarks, and service marks may be the trademarks or registered trademarks of their respective owners.

Operations Guide 930362J CyberData Corporation

Revision Information

Revision 930362J, released on August 8, 2012, corresponds to firmware version 6.2.0 and has the following changes:

•Updates Figure 2-21, "Home Page".

•Updates Ta ble 2-11, "Home Page Overview".

•Updates Figure 2-22, "Device Configuration Page".

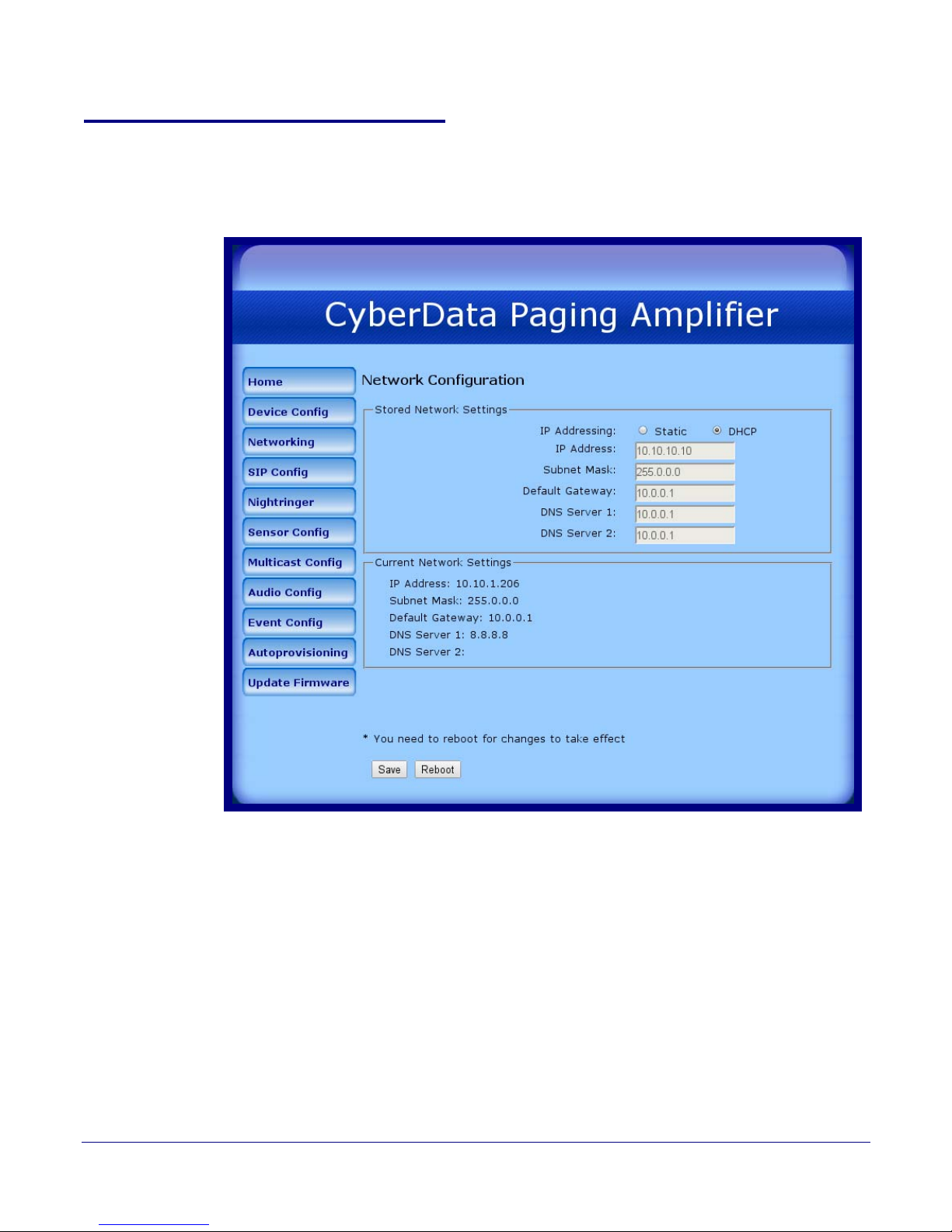

•Updates Figure 2-23, "Network Configuration Page".

•Updates Figure 2-24, "SIP Configuration Page".

•Updates Ta ble 2-14, "SIP Configuration Parameters".

•Updates Figure 2-25, "Night Ringer Configuration Setup".

•Updates Figure 2-26, "Sensor Configuration Page".

•Updates Figure 2-27, "Multicast Configuration Setup".

•Updates Figure 2-28, "Audio Configuration Page".

•Updates Figure 2-29, "Audio Configuration Page (continued)".

•Updates Figure 2-33, "Event Configuration Page".

•Updates Figure 2-34, "Autoprovisioning Configuration Page".

•Updates Figure 2-35, "Firmware Upgrade Page".

•Updates Figure 2-36, "Home Page".

Operations Guide 930362J CyberData Corporation

Important Safety Instructions

GENERAL ALERT

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. Prior to installation, consult local building and electrical code requirements.

Warning

Electrical H az ard: This product should be installed by a licensed electrician according to al l local electrical and building codes.

Warning

Electrical H az ard: To prevent injury, this apparatus must be securely attac hed to the floor/wall in accordance with the installation instructions.

Operations Guide 930362J CyberData Corporation

Pictorial Alert Icons

GENERAL ALERT

Hazard Levels

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. This is limited to the most extreme situations.

Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

General Alert

This pictoral alert indicates a potentially hazardous situation. This aler t will be followed by a haza rd level heading and more specific information about the hazard.

Ground

This pictora l alert indicates the Earth grounding connection point.

Caution: Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. It may also alert users against unsafe practices.

Notice: Indicates a statement of company policy (that is, a safety policy or protection of property).

The safety guidelines for the equipment in this manual do not purport to address all the safety issues of the equipment. It is the responsibility of the user to establish appropriate safety, ergonomic, and health practices and determine the applicability of regulatory limitations prior to use. Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons.

Operations Guide 930362J CyberData Corporation

Abbreviations and Terms

Abbreviation or Term Definition

A-law A standard companding algorithm, used in European digital

communications systems to optimize, i.e., modify, the dynamic range of an analog signal for digitizing.

AVP Audio Video Profile

Cat 5 TIA/EIA-568-B Category 5

DHCP Dynamic Host Configuration Protocol

LAN Local Area Network

LED Light Emitting Diode

Mbps Megabits per Second.

NTP Network Time Protocol

PBX Private Branch Exchange

PoE Power over Ethernet (as per IEEE 802.3af standard)

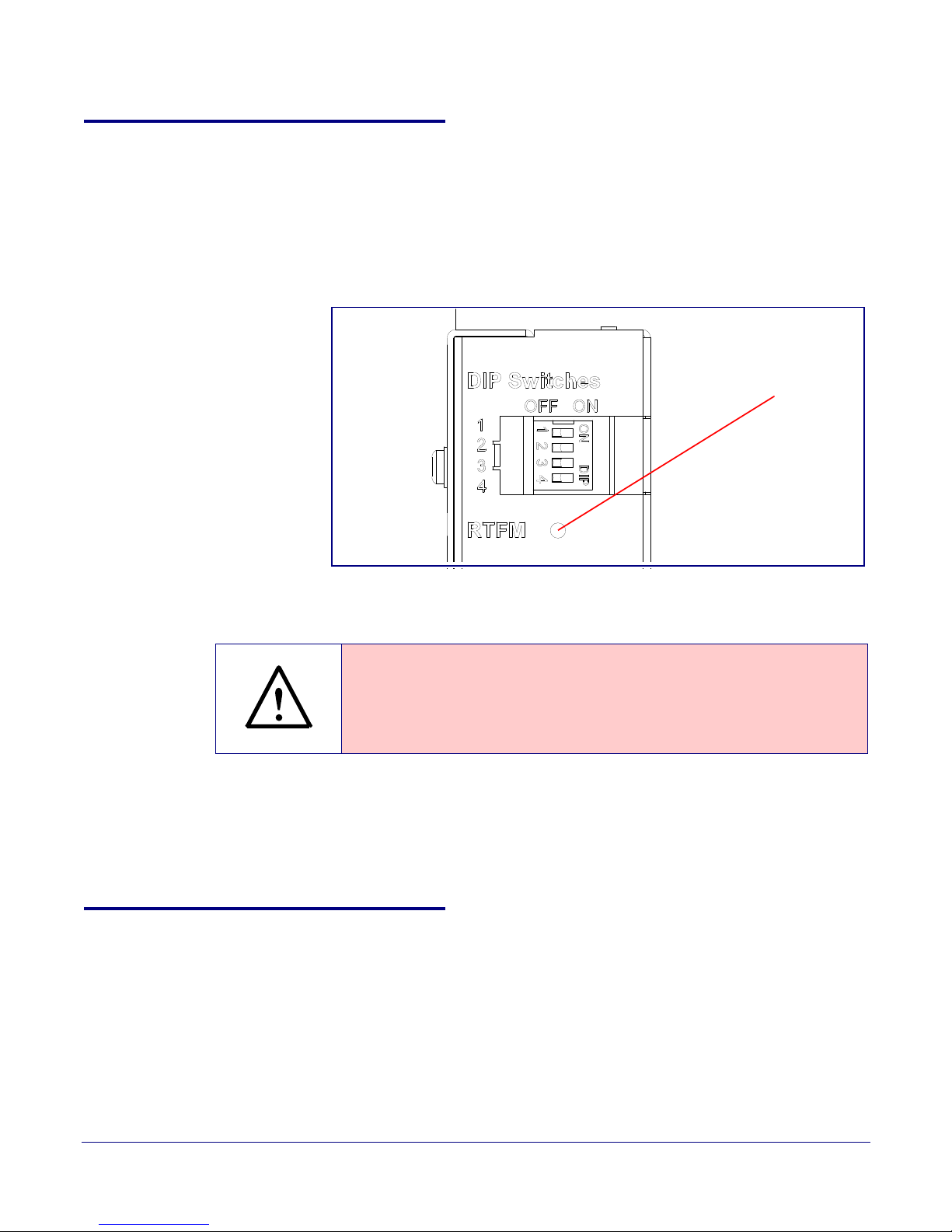

RTFM Reset Test Function Management

SIP Session Initiated Protocol

u-law A companding algorithm, primarily used in the digital telecommunication

UC Unified Communications

VoIP Voice over Internet Protocol

Operations Guide 930362J CyberData Corporation

Contents

Chapter 1 Product Overview 1

1.1 How to Identify This Product ..............................................................................................................1

1.2 Typical System Installation ...................................................................................................................2

1.3 Product Features .....................................................................................................................................2

1.4 Supported Protocols ..............................................................................................................................3

1.5 Supported SIP Servers ...........................................................................................................................3

1.6 Product Specifications ...........................................................................................................................4

1.7 Dimensions .............................................................................................................................................5

Chapter 2 Installing the VoIP V2 Loudspeaker Amplifier 6

2.1 Parts List ..................................................................................................................................................6

2.2 Loudspeaker Amplifier Setup ..............................................................................................................7

2.3 Configure the Loudspeaker Amplifier Parameters .........................................................................20

2.2.1 Loudspeaker Amplifier Components ......................................................................................8

2.2.2 Loudspeaker Amplifier NEMA Box Components .................................................................9

2.2.3 Connecting the Loudspeaker Amplifier ...............................................................................10

2.2.4 Loudspeaker Amplifier DIP Switches ...................................................................................12

2.2.5 VoIP V2 Loudspeaker Amplifier System Installation and Connection Options ..............13

2.2.6 Loudspeaker Amplifier Jumpers ............................................................................................15

2.2.7 Ethernet Connection .................................................................................................................15

2.2.8 Loudspeaker Type .....................................................................................................................16

2.2.9 Cabling/Wiring .........................................................................................................................16

2.2.10 Confirm Operation ..................................................................................................................17

2.2.11 Confirm the IP Address and Test the Audio .......................................................................18

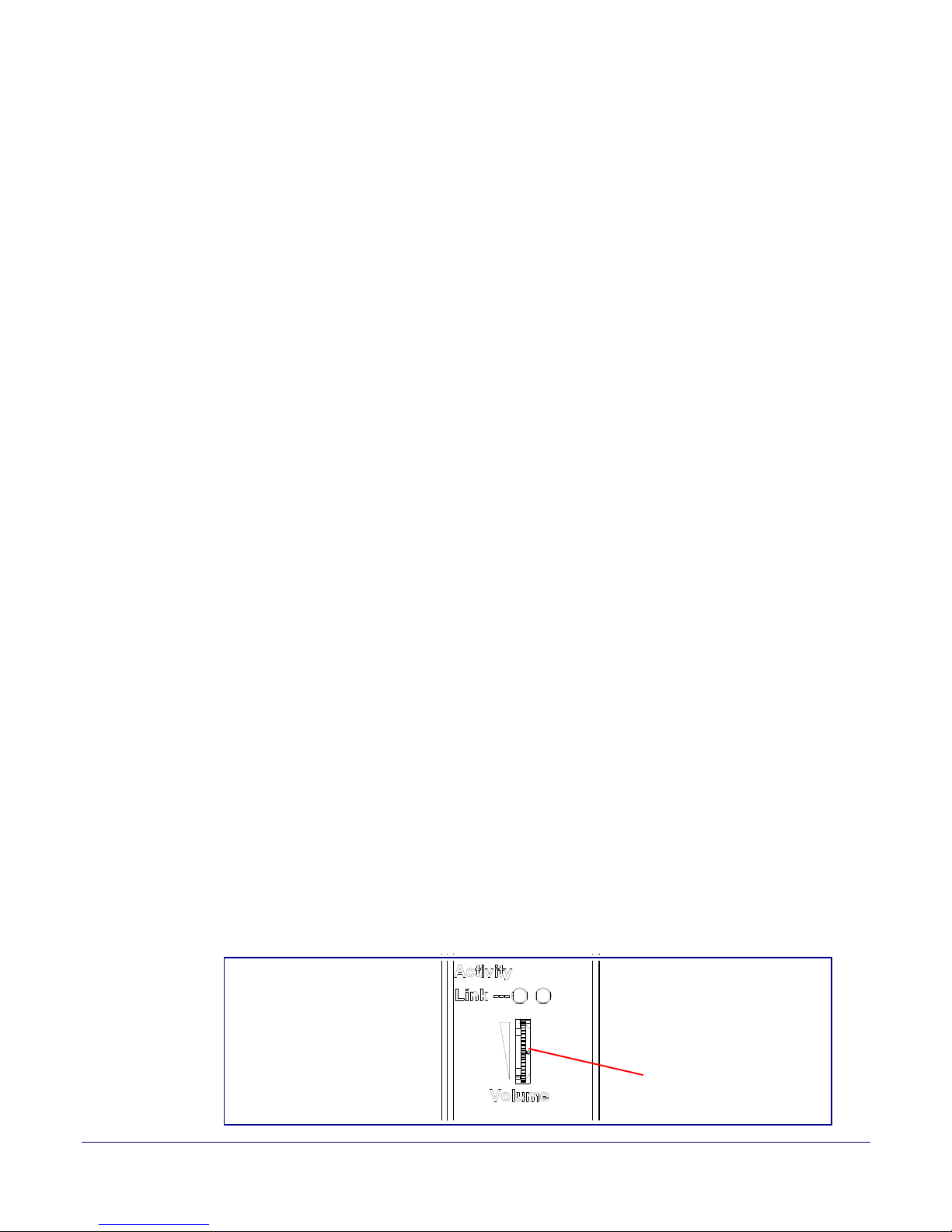

2.2.12 Adjust the Volume ..................................................................................................................18

2.3.1 Loudspeaker Amplifier Web Page Navigation .....................................................................21

2.3.2 Log in to the Configuration Home Page ................................................................................22

2.3.3 Configure the Device Parameters ...........................................................................................25

2.3.4 Configure the Network Parameters .......................................................................................28

2.3.5 Configure the SIP Parameters .................................................................................................30

2.3.6 Configure the Nightringer Parameters ..................................................................................33

2.3.7 Configure the Sensor Configuration Parameters .................................................................35

2.3.8 Configure the Multicast Configuration Parameters ............................................................37

2.3.9 Configure the Audio Parameters ............................................................................................41

2.3.10 User-created Audio Files ........................................................................................................45

2.3.11 Configure the Event Parameters ...........................................................................................47

2.3.12 Configure the Autoprovisioning Parameters ......................................................................52

2.3.13 Upgrading the Firmware .......................................................................................................57

2.3.14 Reboot the Loudspeaker Amplifier ......................................................................................60

Appendix A Mounting the Amplifier 62

A.1 Mount the Loudspeaker Amplifier .................................................................................................62

Appendix B Setting up a TFTP Server 64

B.1 Set up a TFTP Server ...........................................................................................................................64

B.1.1 In a LINUX Environment ........................................................................................................64

B.1.2 In a Windows Environment ...................................................................................................64

Appendix C Troubleshooting/Technical Support 65

C.1 Frequently Asked Questions (FAQ) .................................................................................................65

C.2 Documentation ....................................................................................................................................65

C.3 Contact Information ............................................................................................................................66

C.4 Warranty ...............................................................................................................................................67

C.4.1 Warranty & RMA Returns within the United States ...........................................................67

C.4.2 Warranty & RMA Returns Outside of the United States ....................................................67

C.4.3 Spare in the Air Policy .............................................................................................................67

C.4.4 Return and Restocking Policy ................................................................................................68

Operations Guide 930362J CyberData Corporation

C.4.5 Warranty and RMA Returns Page .........................................................................................68

Index 69

Operations Guide 930362J CyberData Corporation

1 Product Overview

AMPLIFIER,V2 VoIP LOUDSPEAKER,

PoE, RoHS COMPLIANT

011097B / 021047G

Model number

WWW.CYBERDATA.NET

097000001

The CyberData SIP-enabled VoIP V2 Loudspeaker Amplifier (PoE) provides an easy method for implementing an IP-based overhead paging system for both new and legacy installations.

With up to 25 watts of driving power (802.3at), the Amplifier provides direct drive of a standard Horn speaker and supports a line-out connector for connection to an external amplifier. The interface is compatible with most SIP-based IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the Loudspeaker Amplifier can be configured to listen to multicast address and port number combinations to form paging zones.

1.1 How to Identify This Product

To identify the VoIP V2 Loudspeaker Amplifier (PoE), look for a model number label similar to the one shown in

Figure 1-1. The model number on the label should be 011097.

Figure 1-1. Model Number Label

Operations Guide 930362J CyberData Corporation

1.2 Typical System Installation

802.3af Compliant Ethernet Switch

VoIP Phone SIP Server

12 34 56

Loudspeaker Amplifier

PoE Injector

(High Power Mode w ith Injector)

Loudspeaker Amplifier

• SIP (RFC 3261) compatible

• Dual-speed ethernet 10/100 Mbps

• Web-based configuration

• Web-based firmware upgradeable

• PoE 802.3at and 802.3af-enabled

•IGMP

• Line-out connector

• DTMF controlled relay with open sense

• Direct speaker drive

• User-uploadable tones

• Simultaneous SIP and Multicast

• Autoprovisioning

•Line-In capability

• Nightringer (can use outbound proxy)

• Weather-resistant NEMA enclosure

• Multiple credentials for registering with multiple SIP servers

Figure 1-2 illustrates how the VoIP V2 Loudspeaker Amplifier is normally installed as part of a

public address system.

Figure 1-2. Typical Installation

Product Overview

Typical System Installation

1.3 Product Features

Operations Guide 930362J CyberData Corporation

1.4 Supported Protocols

The Loudspeaker Amplifier supports:

•SIP

•Multicast

• HTTP Web-based configuration

Provides an intuitive user interface for easy system configuration and verification of Loudspeaker Amplifier operations.

•DHCP Client

Dynamically assigns IP addresses in addition to the option to use static addressing.

•TFTP Client

Facilitates Web-based firmware upgrades of the latest Loudspeaker Amplifier capabilities.

•RTP

• RTP/AVP - Audio Video Profile

•SPEEX

• Audio Encodings

PCMU (G.711 mu-law)

PCMA (G.711 A-law)

Packet Time 20 ms

Product Overview

Supported Protocols

1.5 Supported SIP Servers

The following link contains information on how to configure the Loudspeaker Amplifier for the supported SIP servers:

http://www.cyberdata.net/support/server/index.html

Operations Guide 930362J CyberData Corporation

1.6 Product Specifications

Table 1. Product Specifications

Category Specification

Ethernet I/F 10/100 Mbps

Power Input PoE 802.3at or 802.3af

Operating Temperature -30 to 55 C (-22 to 131 F)

Protocol SIP RFC 3261

Payload Types G711, SPEEX

Regulatory Compliance FCC Class A, CE

Warranty 2 Years Limited

Dimensions 14” x 10” x 4”

Audio Output 802.3af - up to 10 Watts (default, 50% duty

cycle [one second on and one second off]).

802.3at - up to 22 Watts (default, 50% duty cycle [one second on and one second off])

Product Overview

Product Specifications

Line In:

Input Signal Amplitudes

Input Impedance

Line Out:

Output Signal Amplitudes

Output Level

Total Harmonic Distortion

Output Impedance

Par t Numb er 011097

2.0 VPP maximum

10k Ohm

2.0 VPP maximum

+2dBm nominal

0.5% maximum

10k Ohm

Operations Guide 930362J CyberData Corporation

Product Overview

Dimensions

Operations Guide 930362J CyberData Corporation

1.7 Dimensions

Figure 1-3. Dimensions

2 Installing the VoIP V2 Loudspeaker Amplifier

2.1 Parts List

Ta ble 2-1 illustrates the parts for each Loudspeaker Amplifier and includes a kit for mounting.

Table 2-1. Parts List

QuantityPart Name Illustration

1 Loudspeaker Amplifier Assembly

1 Enclosure

1 Installation Quick Reference Guide

1 Loudspeaker Amplifier Mounting Accessory Kit,

RoHS (part #071057A) which includes:

(3)Plastic Ribbed Anchors

(3) #6 Sheet Metal Screws

Operations Guide 930362J CyberData Corporation

2.2 Loudspeaker Amplifier Setup

Set up and configure each Loudspeaker Amplifier before you mount it.

CyberData delivers each Loudspeaker Amplifier with the factory default values indicated in

Table 2-2:

Table 2-2. Factory Default Settings—Default of Network

Paramet er Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

Web Access Password admin

Subnet Mask

Default Gateway

a. Default if there is not a DHCP server present.

Installing the VoIP V2 Loudspeaker Amplifier

10.10.10.10

255.0.0.0

10.0.0.1

Loudspeaker Amplifier Setup

Operations Guide 930362J CyberData Corporation

2.2.1 Loudspeaker Amplifier Components

DIP Switches

Speaker Volume

Network Link LED (GREEN/YELLOW)

Status LED (GREEN)

A steady LED confirms that the Loudspeaker Amplifier is operational. The LED will blink during a page when it is online.

Network Activity LED (GREEN)

Power LED (GREEN/BLUE)

The power LED is a steady green in low power mode and a steady blue during high power mode. The power LED will only blink either during a boot up or a phone call.

RTFM Switch

To broadcast a Loudspeaker Amplifier’s current IP address, press and hold the RTFM switch for a couple of seconds and then release it.

To restore the factory defaults, complete the following steps:

1. Press and hold the RTFM switch until you hear the Loudspeaker Amplifier announce the words, “restoring defaults” and “rebooting”.

2. Release the RTFM switch. The Loudspeaker Amplifier will be restored to the factory default settings.

Figure 2-4 shows the components of the Loudspeaker Amplifier .

Figure 2-4. Loudspeaker Amplifier Components

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Speaker Connection

Ethernet Connection

DIP Switches

RTFM Switch

Volum e

LEDs

2.2.2 Loudspeaker Amplifier NEMA Box Components

Figure 2-5 shows all of the NEMA box components of the loudspeaker amplifier.

Figure 2-5. Loudspeaker Amplifier Components—AC pow ered

Loudspeaker Amplifier Setup

Operations Guide 930362J CyberData Corporation

2.2.3 Connecting the Loudspeaker Amplifier

802.3af PoE Injector (low power mode)

Note: You can use an 802.3af compliance switch instead of an

802.3af power injector and hub.

Standard 1 Speaker Configuration

(802.3af mode)

8 Ohms

16 gauge wire

Use 16 gauge wire coming out of screw terminals.

Note

: The maximum wire length from the amplifier

to the speaker should not be more than 25 feet.

Cat 5 Ethernet Cable

Non-PoE Ethernet Switch

2.2.3.1 Using the Amplified Outputs

Figure 2-6 and Figure 2-7 illustrates how to connect the VoIP V2 Loudspeaker Amplifier and use the

amplified outputs in low and high power mode.

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

Low Power Mode

Figure 2-6. Using the Amplified O utputs—Low Power Mode

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Cat 5 Ethernet Cable

Non-PoE Ethernet Switch

802.3at PoE Injector (high power mode)

2 speakers in parallel (4 Ohm total)

Note: Use wire nuts to connect wire from the speakers to 16 gauge wire.

Note: You can use an 802.3at compliance switch instead of an

802.3at power injector and hub.

Twist wire nuts

Optional 2 Speaker Configuration

(802.3at mode)

8 Ohms

Standard 1 Speaker Configuration

(802.3af mode)

8 Ohms

16 gauge wire

25 feet maximum distance

Use 16 gauge wire coming out of screw terminals.

Note: Make sure that the wire length going to the wire nuts is kept short (approximately 6 inches).

Loudspeaker Amplifier Setup

High Power Mode

Figure 2-7. Using the Amplified Outputs—High Power Mode

Operations Guide 930362J CyberData Corporation

2.2.4 Loudspeaker Amplifier DIP Switches

See Figure 2-8 to identify the DIP Switches.

Figure 2-8. DIP Switches

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

See Table 2-3 and Table 2-4 for the DIP Switch settings.

Table 2-3. DIP Switch Settings—Low Power—802.3af Compliant (Default)

DIP Switch Setting Description

1 OFF Sets PoE for 802.3af class.

2 N/A Not applicable for power setting.

3 ON Switch mode current set to LOW.

4 OFF Low gain amplifier setting.

Table 2-4. DIP Switch Settings—High Power—Non-PoE Compliant

DIP Switch Setting Description

1 ON Sets PoE for 802.3at class.

2 N/A Not applicable for power setting.

3 OFF Switch mode current set to HIGH.

4 ON Force high gain amplifier.

a. If set to high power, the unit will not power ON with 802.3af compliant switch. You must use a power injector in this mode (CyberData part number 010867A).

Table 2-5. DIP Switch 2 Settings

DIP Switch Setting Description

2 OFF Manual Vol. The speaker volume is set manually by the analog volume

2 ON Bypass. Bypasses the manual volume control of the analog volume

Operations Guide 930362J CyberData Corporation

trimmer.

trimmer and uses the web page volume settings.

Installing the VoIP V2 Loudspeaker Amplifier

1-Sense (+) 2-GND

3-Relay COM 4-Relay NO

5-Line-In(+) 6-Line-In(-) 7-Line-Out(+)

8-Line-Out(-) 9-Spkr Out(+)

10-Spkr Out (-)

CLASS II WIRING

See Figure 2-10

See Figure 2-11

See Figure 2-12

See Figure 2-13

See Figure 2-14

Amplifier

+12V Strobe

When the Loudspeaker Amplifier is called from a remote phone, the relay on the Loudspeaker Amplifier can be programmed to blink and drive an Alert Strobe.

High PIV Ultrafast Switching Diode

Output Contacts

AC or DC-rated

depending upon

controlled device

requirements

DC Power Supply (Max. 30 VDC @ 1A)

Solid State or Mechanical Relay

AC or DC

Power

Source

OUT

Amplifier

When line-in is enabled on the V2 Amplifier, the audio received from the line-in connection will be played to the speaker(s) and lineout connection as the lowest priority audio.

Line Plug

Loudspeaker Amplifier Setup

2.2.5 VoIP V2 Loudspeaker Amplifier System Installation and Connection Options

The following figures show the connection options for the VoIP V2 Loudspeaker Amplifier.

Figure 2-9. Loudspeaker Amplifier Connections

Figure 2-10. Sensor Connectio n

Operations Guide 930362J CyberData Corporation

Figure 2-11. Relay or Strobe Alert Connection

Figure 2-12. Line-In Connection

Installing the VoIP V2 Loudspeaker Amplifier

Generic Ethernet Switch

IP Phone IP PBX Server

12 34 56

Existing Loudspeaker

Existing Amplifier

Line-out Connection

(up to 25 watts)

Loudspeaker Amplifier

VoIP Phone

12 34 56

011068 Loudspeaker

PoE Injector

(High power mode with Injector)

IP PBX Server

802.3af Compliant Ethernet Switch High Power PoE Switch

(up to 25 watts)

Loudspeaker Amplifier

Figure 2-13. Line Out C onnection

Figure 2-14. Speaker Out Connection

Loudspeaker Amplifier Setup

Operations Guide 930362J CyberData Corporation

2.2.6 Loudspeaker Amplifier Jumpers

JP5

JP3

JP1

JP6

JP4

JP1 JP2 JP3

JP9

JP8

JP7

JP10

See Figure 2-15 for the jumper locations.

Figure 2-15. Jumper Locations

See Table 2-6 for the jumper descriptions.

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

Jumper Description

JP1 Factory Only—Not Used

JP2 Factory Only—Not Used

JP3 Factory Only—Not Used

JP4 Manual Reset—Not Used

JP5 Watch Dog Timer Enable—Not Used

JP6 Audio Enable—Factory Only

JP7 Factory Only—Not Used

JP8 Factory Only—Not Used

JP9 Factory Only—Not Used

JP10 Relay Connection Option—Wire link in position-A.

J7 JTAG Interference—Factor y Only

J8 Console Port—Factory Only

2.2.7 Ethernet Connection

Table 2-6. Jumper Descriptions

See Table 2-7 for details about the Loudspeaker Amplifier connection.

Connection Connection Details Location

Ethernet Use a RJ 45 cable. VoIP V2 Loudspeaker Amplifier

Operations Guide 930362J CyberData Corporation

Table 2-7. Loudspeaker Amplifier Connection

2.2.8 Loudspeaker Type

Using the amplified output, the CyberData VoIP V2 Loudspeaker Amplifier supports the 011068 Loudspeaker or equivalent unamplified loudspeaker.

Installing the VoIP V2 Loudspeaker Amplifier

Figure 2-16. 011068 Loudspeaker

Loudspeaker Amplifier Setup

2.2.9 Cabling/Wiring

Using the amplified output, you may connect a 011068 loudspeaker or equivalent unamplified speaker to a Loudspeaker Amplifier with good quality speaker wire that is 16 gauge and limited to 25 feet in length.

Operations Guide 930362J CyberData Corporation

2.2.10 Confirm Operation

Power LED (blue/green)

Link LED (green/yellow)

Status LED (green)

Activity LED (green)(yellow)

After connecting the Loudspeaker Amplifier to the ethernet hub, use the LEDs on the Loudspeaker Amplifier face to confirm that the Loudspeaker Amplifier is operational and linked to the network.

LED Color Function

Power Blue/Green The power LED is illuminated a steady green when the power is on and in

Status Green After supplying power to the Loudspeaker Amplifier, a steady LED confirms

Link Green/Ye l l ow The Link LED is illuminated green for a 10Mb link or yellow/green for a

Activity Green The Activity LED blinks to indicate network traffic.

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

Table 2-8. Loudspeaker Amplifier LEDs

low power mode. The power LED is illuminated a steady blue when the amplifier is in high power mode. The power LED will blink during a boot up or a phone call.

that the Loudspeaker Amplifier is operational. The status LED will blink during a page when it is online.

100Mb link when the network link to the Loudspeaker Amplifier is established.

Figure 2-17. Loudspeaker Amplifier LEDs—Power and Link

Figure 2-18. Loudspeaker Amplifier LEDs—Status and Activity

Operations Guide 930362J CyberData Corporation

2.2.11 Confirm the IP Address and Test the Audio

RTFM switch

GENERAL ALERT

2.2.11.1 RTFM Switch

When the Loudspeaker Amplifier is operational and linked to the network, use the Reset Test Function Management (RTFM) switch ( and confirm the Loudspeaker Amplifier’s IP Address and test the audio to verify that it is working.

Figure 2-19) on the Loudspeaker Amplifier face to announce

Figure 2-19. RTFM Switch

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

Announcing the IP Address

Restoring the Factory Default Settings

To announce a Loudspeaker Amplifier’s current IP address:

• Press and hold the RTFM switch for a couple of seconds and then release it.

To restore the factory default settings, complete the following steps:

1. Press and hold the RTFM switch until you hear the Paging Amplifier announce the words, “restoring defaults” and “rebooting”.

2. Release the RTFM switch. The Paging Amplifier will be restored to the factory default settings.

2.2.12 Adjust the Volume

There are two ways to adjust the volume for the Loudspeaker Amplifier:

•The Speaker Volume (0-9) setting on the Device Configuration page

•The external Vo lume dial on the Loudspeaker Amplifier face

Caution

Equipment Caution: Pressing and holding the RTFM switch for more than five seconds will restore the V2 Paging Amplifier to the f actory default settings. See the “

Restoring the Factory Default Settings” section.

Operations Guide 930362J CyberData Corporation

2.2.12.1 The “Speaker Volume (0-9)” Setting

External volume dial

To adjust the Loudspeaker Amplifier volume with the Speaker Volume (0-9) setting on the Device Configuration page, complete the following steps:

1. Make sure that dip switch 2 is set to ON.

2. Go to the Loudspeaker Amplifier Home page.

3. Select the Device Configuration page.

4. In the Speaker Volume (0-9) box, type a number between 0 (lowest) and 9 (highest).

5. Select Save.

6. Select Reboot.

2.2.12.2 The “Line-In Volume (0-9)” Setting

To adjust the Loudspeaker Amplifier volume with the Line-In Playback Volume (0-9) setting on the Device Configuration page, complete the following steps:

Installing the VoIP V2 Loudspeaker Amplifier

Loudspeaker Amplifier Setup

1. Make sure that dip switch 2 is set to ON.

2. Go to the Loudspeaker Amplifier Home page.

3. Select the Device Configuration page.

4. In the Line-In Playback Volume (0-9) box, type a number between 0 (lowest) and 9 (highest).

5. Select Save.

6. Select Reboot.

2.2.12.3 External Volume Dial

To adjust the Loudspeaker Amplifier volume with the external volume dial, complete the following steps:

1. Make sure that dip switch 2 is set to OFF.

2. Turn the external Vol um e dial (Figure 2-20) on the Loudspeaker Amplifier face.

Note For the lineout volume, the volume is fixed and the volume control is adjusted through an

external amplifier.

Figure 2-20. External Volume Dial

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2.3 Configure the Loudspeaker Amplifier Parameters

To configure the Loudspeaker Amplifier online, use a standard web browser.

Configure each Loudspeaker Amplifier and verify its operation before you mount it. When you are ready to mount a Loudspeaker Amplifier enclosure, refer to instructions.

All Loudspeaker Amplifier are initially configured with the default IP settings indicated in Table 2-9.

When configuring more than one Loudspeaker Amplifier, attach the Loudspeaker Amplifiers to the network one at a time to avoid IP address conflicts.

Table 2-9. Factory Default Settings

Paramet er Factory Default Setting

IP Addressing DHCP

IP Address

Web Access Username admin

10.10.10.10

Appendix A, "Mounting the Amplifier" for

Web Access Password admin

Subnet Mask

Default Gateway

255.0.0.0

10.0.0.1

a. Default if there is not a DHCP server present.

Operations Guide 930362J CyberData Corporation

Configure the Loudspeaker Amplifier Parameters

2.3.1 Loudspeaker Amplifier Web Page Navigation

Ta ble 2-10 shows the navigation buttons that you will see on every Loudspeaker Amplifier web

page.

Table 2-10. Loudspeaker Amplifier Web Page Navigation

Web Page Item Description

Link to the Home page.

Link to the Device Configuration page.

Link to the Networking page.

Link to the SIP Configuration page.

Link to the Nightringer page.

Installing the VoIP V2 Loudspeaker Amplifier

Link to the Sensor Configuration page.

Link to the Multicast Configuration page.

Link to the Audio Configuration page.

Link to the Event Configuration page.

Link to the Autoprovisioning Configuration page.

Link to the Update Firmware page.

Operations Guide 930362J CyberData Corporation

2.3.2 Log in to the Configuration Home Page

1. Open your browser to the Loudspeaker Amplifier IP address.

Note If the network does not have access to a DHCP server, the device will default to an IP

address of 10.10.10.10.

Note Make sure that the PC is on the same IP network as the Loudspeaker Amplifier.

Note You may also download CyberData’s VoIP Discovery Utility program which allows you to

easily find and configure the default web address of the CyberData VoIP products.

CyberData’s VoIP Discovery Utility program is available on the VoIP V2 Loudspeaker Amplifier product page at:

http://www.cyberdata.net/support/voip/discovery_utility.html

The Loudspeaker Amplifier ships in DHCP mode. To get to the Home page, use the discovery utility to scan for the device on the network and open your browser from there.

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. When prompted, use the following default Web Access Username and Web Acce ss Password to access the Home Page (

Figure 2-21):

Web Access Username: admin

Web Access Password: admin

Figure 2-21. Home Page

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

3. On the Home Page, review the setup details and navigation buttons described in Tab le 2-11.

Table 2-11. Home Page Overview

Web Page Item Description

Device Settings

Device Name Shows the device name (25 character limit).

Change Username Type in this field to change the username (25 character limit).

Change Password Type in this field to change the password (19 character limit).

Re-enter Password Type the password again in this field to confirm the new password

(19 character limit).

Current Settings

Serial Number Shows the device serial number.

Mac Address Shows the device Mac address.

Firmware Version Shows the current firmware version.

IP Addressing Shows the current IP addressing setting (DHCP or Static).

IP Address Shows the current IP address.

Subnet Mask Shows the current subnet mask address.

Default Gateway Shows the current default gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

Speaker Volume Shows the current Loudspeaker Amplifier volume mode:

Digital (web page) or Analog (volume knob).

High Power Mode is Shows the current status of High Power mode.

SIP Mode is Shows the current status of the SIP Mode.

Multicast Mode is Shows the current status of the Multicast Mode.

Event Reporting is Shows the current status of the Event Reporting.

Nightringer is Shows the current status of the Nightringer.

Primary SIP Server Shows the current status of the Primary SIP Server.

Backup Server 1 Shows the current status of Backup Server 1.

Backup Server 2 Shows the current status of Backup Server 2.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

Operations Guide 930362J CyberData Corporation

2.3.3 Configure the Device Parameters

1. Click the Device Configuration button to open the Device Configuration page. See Figure 2-22.

Figure 2-22. Device Configuration Page

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Device Configuration page, you may enter values for the parameters indicated in

Ta ble 2-12.

Table 2-12. Device Configuration Parameters

Web Page Item Description

Volume Settings

Speaker Volume Shows the current speaker volume mode (Analog or Digital)

Speaker Volume (0-9) Type the desired Loudspeaker Amplifier volume level into this field

(range is 0 - 9).

Line-In Playback Volume (0-9) Type the desired line-in playback volume level into this field

(range is 0 - 9).

Relay Settings

Activate Relay with DTMF Code When selected, the relay can be activated with a DTMF code.

DTMF Activation Code Type the desired DTMF activation code (25 character limit).

DTMF Activation Duration (in seconds)

Type the desired DTMF activation duration (in seconds) (1 character limit).

Activate Relay During Ring When selected, the relay will be activated for as long as the phone is

ringing.

NOTE: When the phone is set to Auto Answer, it will not ring and this option does nothing.

Activate Relay During Night Ring

When selected, the relay will be activated for as long as a night ring tone is playing.

Activate Relay While Call Active When selected, the relay will be activated for as long as the call is

active.

Miscellaneous Settings

Two Speakers Connected Select this option if two speakers are connected to the Loudspeaker

Amplifier.

Beep on Initialization When selected, you will hear a beep when the Loudspeaker Amplifier

initializes.

Auto-Answer Incoming Calls When selected, the Loudspeaker Amplifier automatically answers

incoming calls.

Play Ringback Tone Check this box to enable the device to play a ringtone while the remote

device is ringing.

Enable Line In Playback When selected, whatever audio source that you have selected (mp3

player, internet stream, etc.) will be played.

Note: The line in audio will be treated as low priority audio that will only play if there is no other audio playing. When higher priority audio is playing, the line in audio will be muted.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Test Audio button to do an audio test. Generates a voice message for testing the device audio quality and volume. It plays the audio at the volume you have configured the paging amp for

Note: If the test audio button is pressed while music is playing via the Enabled Line In feature, the music will be muted during the test audio

message.

Operations Guide 930362J CyberData Corporation

Table 2-12. Device Configuration Parameters (continued)

Web Page Item Description

Click on the Test Relay button to do a relay test.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click the Save button.

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

2.3.4 Configure the Network Parameters

1. Click the Networking button to open the Network Configuration page (Figure 2-23).

Figure 2-23. Network Configuration Page

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Network Configuration page, enter values for the parameters indicated in Tab le 2-13.

Table 2-13. Network Configuration Parameters

Web Page Item Description

Stored Network Settings

IP Addressing* Select either DHCP IP Addressing or Static IP Addressing by

marking the appropriate radio button. If you select Static, configure the remaining parameters indicated in

Table 2-13. If you select

DHCP, go to Step 3.

IP Address* Enter the Static IP address.

Subnet Mask Enter the Subnet Mask address.

Default Gateway Enter the Default Gateway address.

DNS Server 1* Enter the DNS Server 1 address.

DNS Server 2* Enter the DNS Server 2 address.

Current Network Settings Shows the current network settings.

IP Address Shows the current IP address.

Subnet Mask Shows the current Subnet Mask address.

Default Gateway Shows the current Default Gateway address.

DNS Server 1 Shows the current DNS Server 1 address.

DNS Server 2 Shows the current DNS Server 2 address.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click Save Settings. This updates the changed parameters. The Loudspeaker Amplifier must be rebooted for changes to take effect.

4. Connect the Loudspeaker Amplifier to the target network.

5. From a system on the same network as the Loudspeaker Amplifier, open a browser with the new IP address of the Loudspeaker Amplifier.

Operations Guide 930362J CyberData Corporation

2.3.5 Configure the SIP Parameters

1. Click SIP Config to open the SIP Configuration page (Figure 2-24).

Note For specific server configurations, go to the IP-PBX Server Compatibility page at:

http://www.cyberdata.net/support/server/index.html

Figure 2-24. SIP Configuratio n Page

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the SIP Configuration page, you may enter values for the parameters indicated in Ta b le 2-14.

Table 2-14. SIP Configuration Parameters

Web Page Item Description

Enable SIP Operation Enables or disables SIP operation.

SIP Settings

Primary SIP Server Use this field to set the address of the Primary SIP Server (in dotted

decimal notation or as a canonical name). This field can accept canonical names of up to 255 characters in length.

Primary SIP User ID Type the SIP User ID of the Primary SIP Server (up to 25

alphanumeric characters).

Primary Authenticate ID Type the Authenticate ID of the Primary SIP Server (up to 25

alphanumeric characters).

Primary Authenticate Password Type the Authenticate Password of the Primary SIP Server (up to 25

alphanumeric characters).

Backup SIP Server 1

Backup SIP Server 2

• If all of the Primary SIP Server and Backup SIP Server fields are populated, the device will attempt to stay registered with all three servers all of the time. You can leave the Backup SIP Server 1 and Backup SIP Server 2 fields blank if they are not needed.

• In the event of a registration failure on the Primary SIP Server, the device will use the next highest priority server for outbound calls (Backup SIP Server 1). If Backup SIP Server 1 fails, the device will use Backup SIP Server 2.

• If a higher priority SIP Server comes back online, the device will switch back to this server.

Backup SIP User ID 1

Backup SIP User ID 2

Backup Authenticate ID 1

Backup Authenticate ID 2

Backup Authenticate Password 1

Backup Authenticate Password 2

Type the SIP User ID of the Backup SIP Server (up to 25 alphanumeric characters).

Type the Authenticate ID of the Backup SIP Server (up to 25 alphanumeric characters).

Type the Authenticate Password of the Backup SIP Server (up to 25 alphanumeric characters).

Remote SIP Port Type the Remote SIP Port number (default 5060) (0 - 65535).

Local SIP Port* Type the Local SIP Port number (default 5060) (0 - 65535).

Outbound Proxy Type the Outbound Proxy as either a numeric IP address in dotted

decimal notation or the fully qualified host name (64 character limit [FQDN]).

Outbound Proxy Port Type the Outbound Proxy Port number (0 - 65535).

Re-registration Interval (in seconds)*

Unregister on Reboot* • When selected, the Loudspeaker Amplifier automatically unregisters

Operations Guide 930362J CyberData Corporation

Type the SIP Registration lease time in seconds (default is 120 seconds) (range is 100 - ?).

when it is rebooted.

• When not selected, the Loudspeaker Amplifier remains registered

when it is rebooted.

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Table 2-14. SIP Configuration Parameters (continued)

Web Page Item Description

Buffer SIP Calls When this is enabled, SIP calls to the speaker will be stored in

memory and will play when either the call is terminated or the buffer is full. The receive buffer is 2MB in size and this is equal to about four minutes of ulaw encoded audio.

Beep Before Page Enable/Disable the tone (beep) before each page.

RTP Settings

RTP Port (even) Specify the port number used for the RTP stream after establishing a

SIP call. The RTP port has to be an even number between 0 and

65534. This port can be programmed for people who are not working

on a local LAN, but who want to have outside access. Instead of RTP port being a random port, it will be set up so that only two ports can be opened in a firewall.

Note: The RTP port number has to be an even number because the control port is always one port number higher. Therefore, audio will go through the port number that you enter into the RTP port field, but the RTP control signals will go through a port that is one number higher than the RTP port field.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click Save to save the settings.

Operations Guide 930362J CyberData Corporation

2.3.6 Configure the Nightringer Parameters

GENERAL ALERT

Caution

Nightringer requires SIP Registration. Ni ghtringer cannot be used in peer to peer m ode.

1. Click on the Nightringer button to open the Nightringer Configuration page. See Figure 2-27.

Figure 2-25. Night Ringer Configuration Setup

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Nightringer Configuration page, enter values for the parameters indicated in Table 2-17.

Table 2-15. Nightringer Configuration Parameters

Web Page Item Description

Enable Nightringer When the nightringer is enabled, the device will attempt to

Nightringer Settings

SIP Server Type the SIP server represented as either a numeric IP

address in dotted decimal notation.

Remote SIP Port Type the Remote SIP Port number (default 5060)

(8 character limit).

Local SIP Port Type the Local SIP Port number (default 5060)

(8 character limit). Note: This value cannot be the same as the Local SIP Port* found on the SIP Configuration Page.

User ID Type the User ID (up to 64 alphanumeric characters).

Authenticate ID Ty pe the Authenticate ID (up to 64 alphanumeric

characters).

Authenticate Password Type the Authenticate Password (up to 64 alphanumeric

characters).

Re-registration Interval (in seconds)* Type the SIP Registration lease time in minutes (default is

60 minutes) (8 character limit). Re-registration Interval (in seconds)*

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click on the Save button.

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2.3.7 Configure the Sensor Configuration Parameters

The sensor (pins 1 and 2) on the header can be used to monitor something’s open or closed state. There is an option on the Sensor Configuration page to trigger on an open or short condition on these pins.

For the sensor there are three actions that the Loudspeaker Amplifier can do:

• Activate the relay until the sensor is deactivated

• Loop an audio file until the sensor is deactivated

• Call a preset extension and play a pre-recorded audio file (loops until user hangs up)

Note Calling a preset extension can be set up as a point-to-point call, but currently can't send

delayed DTMF tones.

1. Click Sensor Config to open the Sensor Configuration page (Figure 2-26).

Figure 2-26. Sensor Configuration Page

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Sensor Configuration page, enter values for the parameters indicated in Ta b le 2-16.

Table 2-16. Sensor Configuration Parameters

Web Page Item Description

Sensor Settings

Sensor Normally Closed Select the inactive state of the sensors.

Activate Relay Check this box to activate the relay until the sensor is

deactivated.

Play Audio Locally Check this box to loop an audio file until the sensor is

deactivated.

Play Audio Remotely Check this box to make only one call to a preset extension

and play a pre-recorded audio file repeatedly.

Dial Out Extension Enter the dial-out extension number.

Use this button to test the sensor.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click Save Settings.

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2.3.8 Configure the Multicast Configuration Parameters

Multicast groups use multicasting to create public address paging zones. Multicasting is based on the concept of a group. Multicast addresses specify an arbitrary group of IP hosts that have joined the group and want to receive traffic sent to the group. Group members send IGMP messages to their local multicast routers, allowing the group traffic traversal from the source.

Multicast configuration provides the ability to join up to 10 paging zones. A paging zone can consist of one, or many, CyberData multicast group-enabled Loudspeaker Amplifiers. There is no limit to how many Loudspeaker Amplifiers can be in a given paging zone. Each multicast group is defined by a multicast address and port number. Each multicast group is also assigned a priority, allowing simultaneously arriving pages to be serviced based on importance. Multicast groups are compatible with IGMP through version 3.

Note The Loudspeaker Amplifier supports simultaneous SIP and Multicast.

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

1. Click on the Multicast Configuration button to open the Multicast Configuration page. See

Figure 2-27.

Figure 2-27. Multicast Configuration Setup

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Multicast Configuration page, enter values for the parameters indicated in Tab le 2-17.

Table 2-17. Multicast Configuration Parameters

Web Page Item Description

Enable Multicast Operation Enables or disables multicast operation.

Priority Indicates the priority for the multicast group. Priority 9 is the

highest (emergency streams). 0 is the lowest (background music). See

Section 2.3.8.1, "Assigning Priority" for more

details.

Address Enter the multicast IP Address for this multicast group

(15 character limit).

Port (range can be from 2000 to 65535) Enter the port number for this multicast group (5 character

limit).

Note: The multicast ports have to be even values. The webpage will enforce this restriction.

Name Assign a descriptive name for this multicast group (25

character limit).

Buffer When buffering is enabled for a multicast stream, it will store

any audio received on this socket to memory and play it back when the stream is stopped or the buffer is full.

Beep Enable or disable the tone (beep) for a multicast stream.

Relay Enable or disable the relay for a multicast stream.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click on the Save button.

Operations Guide 930362J CyberData Corporation

2.3.8.1 Assigning Priority

When playing multicast streams, audio on different streams will preempt each other according to their priority in the list. An audio stream with a higher priority will interrupt a stream with a lower priority.

If both SIP and Multicast is enabled, SIP audio streams are considered priority 4.5. SIP audio will interrupt multicast streams with priority 0 through 4 and will be interrupted by multicast streams with priority 5 through 9.

During priority 9 multicast streams, the analog volume control is bypassed and the volume level is set to maximum.

Line In audio is considered the lowest priority, so it will be muted if there are any multicast or SIP audio streams playing.

For example, if the test audio button on the Device Config page is pressed while music is playing via the Enabled Line In feature, the music will be muted during the test audio message.

Note SIP calls, buffered SIP calls, multicast streams, buffered multicast streams, ring tones,

ringback tones, and nightring tones are all prioritized.

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Ringtones and Nightringtones

Lengthy Pages

Buffered Audio

Ringtones all play at the same priority level. This means that it is possible to have a nightring tone and a normal ringtone playing at the same time.

The maximum ringtone duration is 2,097,152 bytes or about four minutes of ulaw audio.

Concerning how lengthy pages are handled (where someone puts the phone down for 15 minutes), after the 2MB limit is reached, further data will be thrown away while the audio file is played back. When the file is done playing, it will stop throwing away input and begin buffering data for another four minutes.

Therefore, with the buffered mode enabled on a stream playing background music, you will hear the following sequence of events:

1. Four minutes of silence.

2. Music from 0:00 through 4:00.

3. Four minutes of silence.

4. Music from 8:00 through 12:00 and so on.

When the device is playing back buffered audio and this buffered audio is interrupted by a higher priority stream, once the higher priority streams is finished, the device will restart the lower priority stream from the beginning.

Operations Guide 930362J CyberData Corporation

2.3.9 Configure the Audio Parameters

Click the Audio Config button to open the Audio Configuration page. The Audio Configuration page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the Loudspeaker Amplifier.

Figure 2-28. Audio Configuration Page

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Figure 2-29. Audio Configuration Page (continued)

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

On the Audio Configuration page, enter values for the parameters indicated in Ta bl e 2-18.

Note Each entry on the Audio Configuration page replaces one of the stock audio files on the

board. When the input box displays the word default, the Loudspeaker Amplifier is using the stock audio file. If that file is replaced with a user file, it will display the uploaded filename.

Table 2-18. Audio Config uration Parameters

Web Page Item Description

Audio Files

0-9 The name of the audio configuration option is the same as the spoken

audio that plays on the board (24 character limit).

'0' corresponds to the spoken word “zero.”

'1' corresponds to the spoken word “one.”

'2' corresponds to the spoken word “two.”

'3' corresponds to the spoken word “three.”

'4' corresponds to the spoken word “four.”

'5' corresponds to the spoken word “five.”

'6' corresponds to the spoken word “six.”

'7' corresponds to the spoken word “seven.”

'8' corresponds to the spoken word “eight.”

'9' corresponds to the spoken word “nine.”

Dot Corresponds to the spoken word “dot.” (24 character limit)

Audiotest Corresponds to the message “This is the CyberData IP speaker test

message...” (24 character limit)

Pagetone Corresponds to a simple tone that is unused by default (24 character limit).

Your IP Address is Corresponds to the message “Your IP address is...” (24 character limit).

Rebooting Corresponds to the spoken word “Rebooting” (24 character limit).

Restoring default Corresponds to the message “Restoring default” (24 character limit).

Ringback Tone Corresponds to the ringback tone that plays when calling a remote

extension (24 character limit).

Ring Tone Corresponds to the tone that plays when set to ring when receiving a call

(24 character limit).

Sensor Triggered Corresponds to the sensor when it is triggered (24 character limit).

Night Ring Specifies the ringtone for Night Ringer. By default this parameter uses the

same audio file that is selected for the Ring Tone parameter.

The Choose File button will allow you to navigate to and select an audio file.

The Play button will play that audio file.

The Delete button will delete any user uploaded audio and restore the stock audio file.

Operations Guide 930362J CyberData Corporation

Table 2-18. Audio Config uration Parameters (continued)

Web Page Item Description

The Save button will download a new user audio file to the board once you've selected the file by using the Browse button. The Save button will delete any pre-existing user-uploaded audio files.

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

2.3.10 User-created Audio Files

User created audio files should be saved in the following format:

RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz

You can use the free utility Audacity to convert audio files into this format. See Figure 2-30 through

Figure 2-32.

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Figure 2-30. Audacity 1

Figure 2-31. Audacity 2

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

WAV (Microsoft) signed 16 bit PCM

Configure the Loudspeaker Amplifier Parameters

When you export an audio file with Audacity, save the output as:

• WAV (Microsoft) signed 16 bit PCM.

Figure 2-32. WAV (Microsoft) signed 16 bit PCM

Operations Guide 930362J CyberData Corporation

2.3.11 Configure the Event Parameters

Click the Event Config button to open the Event Configuration page (Figure 2-33). The Event Configuration page specifies a remote server that can be used to receive HTTP POST events when

actions take place on the board.

Figure 2-33. Event Configuration Page

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Ta ble 2-19 shows the web page items on the Event Configuration page.

Table 2-19. Event Configur ation

Web Page Item Description

Enable Event Generation When selected, Event Generation is enabled.

Remote Event Server

Remote Event Server IP Type the Remote Event Server IP address.

(64 character limit)

Remote Event Server Port Type the Remote Event Server port number.

(0 - 65535)

Remote Event Server URL Type the Remote Event Server URL.

(127 character limit)

Events

Enable Call Active Events When selected, Call Active Events are enabled.

Enable Call Terminated Events When selected, Call Terminated Events are enabled.

Enable Relay Activated Events When selected, Relay Activated Events are enabled.

Enable Relay Deactivated Events When selected, Relay Deactivated Events are enabled.

Enable Ring Events When selected, Ring Events are enabled.

Enable Night Ring Events When selected, there is a notification when the device

receives a night ring.

Enable Multicast Start Events When selected, Multicast Start Events are enabled.

Enable Multicast Stop Events When selected, Multicast Stop Events are enabled.

Enable Power On Events When selected, Power On Events are enabled.

Enable Sensor Events When selected, Sensor Events are enabled.

Enable 60 Second Heartbeat Events When selected, 60 Second Heartbeat Events are

enabled.

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Test Event button to test an event.

Click on the Reboot button to reboot the system.

Operations Guide 930362J CyberData Corporation

2.3.11.1 Example Packets for Events

The server and port are used to point to the listening server and the 'Remote Event Server URL' is the destination URL (typically the script running on the remote server that's used to parse and process the POST events).

Note The XML is URL-encoded before transmission so the following examples are not completely

accurate.

Here are example packets for every event:

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata>

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>HEARTBEAT</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 196 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>BUTTON</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 201 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_ACTIVE</event> </cyberdata> POST xmlparse_engine HTTP/1.1

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RINGING</event> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>MULTICAST_START</event> <index>8</index> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 233 Content-Type: application/x-www-form-urlencoded

<?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>MULTICAST_STOP</event> <index>8</index> </cyberdata>

POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_ACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata>

Operations Guide 930362J CyberData Corporation

Configure the Loudspeaker Amplifier Parameters

2.3.12 Configure the Autoprovisioning Parameters

1. Click the Autoprovisioning button to open the Autoprovisioning Configuration page. See Figure 2-22.

Figure 2-34. Autoprovisioning Configuration Page

Installing the VoIP V2 Loudspeaker Amplifier

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Autoprovisioning Configuration page, you may enter values for the parameters indicated in

Ta ble 2-12.

Table 2-20. Autoprovisioning Configuration Parameters

Web Page Item Description

Autoprovisioning

Enable Autoprovisioning See Section 2.3.12.1, "Autoprovisioning".

Get Autoprovisioning from DHCP See Section 2.3.12.1, "Autoprovisioning".

Autoprovisioning Server (IP Address) See Section 2.3.12.1, "Autoprovisioning" (15 character limit).

Autoprovisioning Autoupdate (in minutes)

Type the desired time (in minutes) that you want the Autoprovisioning feature to update (6 character limit).

Click the Save button to save your configuration settings.

Note: You need to reboot for changes to take effect.

Click on the Reboot button to reboot the system.

3. After changing the parameters, click the Save button.

Operations Guide 930362J CyberData Corporation

2.3.12.1 Autoprovisioning

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Enable Autoprovisioning Option

Networking

Get Autoprovisioning from DHCP

With autoprovisioning enabled, the board will get its configuration from a remote TFTP server on startup or periodically on a scheduled delay. Autoprovisioned values will override values stored in on-board memory and will be visible on the web page. The board gets its autoprovisioning information from an XML-formatted file hosted from a TFTP server. CyberData will provide a template for this XML file and the user can modify it for their own use.

To use autoprovisioning, create a copy of the autoprovisioning template with the desired settings and name this file with the mac address of the device to configure (for example: 0020f7350058.config). Put this file into your TFTP server directory and manually set the TFTP server address on the board.

It is not necessary to set every option found in the autoprovisioning template. As long as the XML is valid, the file can contain any subset. Options not autoprovisioned will default to the values stored in the on board memory. For example if you only wanted to modify the device name, the following would be a valid autoprovisioning file:

<?xml version="1.0" encoding="utf-8" ?> <specific>

<DeviceName>auto V2 Paging Amplifier</DeviceName>

</MiscSettings>

</specific>

The board will only apply networking settings or firmware upgrades after a reboot.

When this option is checked, the device will automatically fetch its autoprovisioning server address from the DHCP server. The device will use the address specified in OPTION 150 (TFTP-servername) or OPTION 66. If both options are set, the device will use OPTION 150.

Refer to the documentation of your DHCP server for setting up OPTION 150.

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

To set up a Linux DHCPD server to serve autoprovisioning information (in this case using both option 66 and 150), here's an example dhcpd.conf:

# dhcpd.conf # # Configuration file for ISC dhcpd (see 'man dhcpd.conf') # ddns-update-style ad-hoc;

option option-150 code 150 = ip-address;

subnet 10.0.0.0 netmask 255.0.0.0 { max-lease-time 120; default-lease-time 120;

option routers 10.0.0.1; option subnet-mask 255.0.0.0;

option domain-name "voiplab"; option domain-name-servers 10.0.0.1;

option time-offset -8; # Pacific Standard Time

Autoprovisioning Server (IP Address)

Autoprovisioning Autoupdate

Autoprovisioned Firmware Upgrades

option tftp-server-name "10.0.0.254";

option option-150 10.0.0.254;

range 10.10.0.1 10.10.2.1;}

Instead of using DHCP to provide the autoprovisioning tftp server address, you can specify an address manually.

If Autoprovisioning is enabled and the Autoprovisioning Autoupdate value is something other than 0 minutes, a service is started on startup that will wait the configured number of minutes and then try to re-download its autoprovisioning file. It will compare its previously autoprovisioned file with this new file and if there are differences, it will reboot the board.

An Autoprovisioned firmware upgrade only happens after a reboot, will take roughly three minutes, and the web page will be unresponsive during this time.

The 'FirmwareVersion' value in the xml file must match the version stored in the 'FirmwareFile'.

<FirmwareVersion>v5.0.5b01</FirmwareVersion> <FirmwareFile>505b01-uImage-ceilingspeak</FirmwareFile>

If these values are mismatched, the board can get stuck in a loop where it goes through the following sequence of actions:

1. The board downloads and writes a new firmware file.

2. After the next reboot, the board recognizes that the firmware version does not match.

3. The board downloads and writes the firmware file again.

CyberData has timed a firmware upgrade at 140 seconds. Therefore, if you suspect the board is stuck in a loop, either remove or comment out the FirmwareVersion line in the XML file and let the board boot as it normally does.

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Autoprovisioned Audio Files

Audio files are stored in non-volatile memory and an autoprovisioned audio file will only have to be downloaded once for each device. Loading many audio files to the device from the web page could cause it to appear unresponsive. If this happens, wait until the transfer is complete and then refresh the page.

The device uses the file name to determine when to download a new audio file. This means that if you used autoprovisioning to upload a file and then changed the contents of this file at the TFTP server, the device will not recognize that the file has changed (because the file name is the same).

Since audio files are stored in non-volatile memory, if autoprovisioning is disabled after they have been loaded to the board, the audio file settings will not change. You can force a change to the audio files on the board by clicking the Delete button on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name.

Operations Guide 930362J CyberData Corporation

2.3.13 Upgrading the Firmware

To upload the Loudspeaker Amplifier firmware from your PC:

1. Retrieve the latest Loudspeaker Amplifier firmware from the VoIP V2 Loudspeaker Amplifier Downloads page at:

http://www.cyberdata.net/products/voip/digitalanalog/loudspeakerampv2/downloads.html

2. Unzip the Loudspeaker Amplifier version file. This file may contain the following:

•Firmware file

• Release notes

3. Log in to the Loudspeaker Amplifier home page as instructed in Section 2.3.2, "Log in to the

Configuration Home Page".

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Choose File button Submit button

Configure the Loudspeaker Amplifier Parameters

4. Click the Update Firmware button to open the Upgrade Firmware page. See Figure 2-35.

Figure 2-35. Firmware Upgrade Pa ge

5. Click the Choose File button, and then navigate to the location of the Loudspeaker Amplifier firmware file.

6. Click the Submit button. This starts the upload process. Once the Loudspeaker Amplifier has uploaded the file, the Uploading Firmware countdown page appears, indicating that the firmware is being written to flash.

7. The Loudspeaker Amplifier will automatically reboot when the upload is complete.

8. When the countdown finishes, the Upgrade Firmware page will refresh. The uploaded firmware filename should be displayed in the system configuration (indicating a successful upgrade and reboot).

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Ta ble 2-21 shows the web page items on the Upgrade Firmware page.

Table 2-21. Firmware Upgrade Parameters

Web Page Item Description

File Upload

Firmware Version Shows the current firmware version.

Use the Choose File button to navigate to the location of the Intercom firmware file that you want to upload.

Click on the Submit button to automatically upload the selected firmware and reboot the system.

Operations Guide 930362J CyberData Corporation

2.3.14 Reboot the Loudspeaker Amplifier

Reboot button

To reboot a Loudspeaker Amplifier, log in to the web page as instructed in Section 2.3.2, "Log in to

the Configuration Home Page".

1. On the Home Page, click the Reboot button. See Figure 2-36.

Figure 2-36. Home Page

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Operations Guide 930362J CyberData Corporation

Installing the VoIP V2 Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. A normal restart will occur and you will see the following Reboot page (Figure 2-37).

Figure 2-37. Reboot Page

Operations Guide 930362J CyberData Corporation

Appendix A: Mounting the Amplifier

A.1 Mount the Loudspeaker Amplifier

Before you mount the enclosure, make sure that you have received all of the parts for each enclosure. Refer to

Quantity Part Name Illustration

3 #6 Plastic Ribbed Anchors

3 #6 Sheet Metal Screws

Tab le A-22.

Table A-22. Wall Mounting Components (Part of the A ccessory Kit)

Note The Loudspeaker Amplifier was designed for indoor use. Mounting it on the external part

of a building will require additional hardware for weatherproofing, cabling access, and lightning suppression. Consult a certified electrician for details.

Note For mounting, use the three #6 SHEET METAL SCREWS to secure the enclosure.

Operations Guide 930362J CyberData Corporation

A.1.1 Mounting the Enclosure

071057A

PHILLIP SCREW (3x)

#6x1 1/4" PAN HEAD

#6 PLASTIC ANCHOR (3x)

151014

531032

To mount the enclosure:

1. Prepare holes for the screws.

2. Plug in the power adapter and use the green Power light to verify that the power is on.

3. Plug the Ethernet cable into the Loudspeaker Amplifier. The yellow Link light verifies the network connection.

4. For wall mounting, use the three #6 x 1-1/4-inch Pan Head Phillip screws to secure the speaker.

Figure A-1..

See

Figure A-1. Mounting the Enclosure

Mount the Loudspeaker Amplifier

Operations Guide 930362J CyberData Corporation

Appendix B: Setting up a TFTP Server

B.1 Set up a TFTP Server

Autoprovisioning requires a TFTP server for hosting the configuration file.

B.1.1 In a LINUX Environment

To set up a TFTP server on LINUX:

1. Create a directory dedicated to the TFTP server, and move the files to be uploaded to that directory.

2. Run the following command where /tftpboot/ is the path to the directory you created in

Step 1: the directory that contains the files to be uploaded. For example:

in.tftpd -l -s /tftpboot/your_directory_name

B.1.2 In a Windows Environment

You can find several options online for setting up a Windows TFTP server. This example explains how to use the Solarwinds freeware TFTP server, which you can download at:

http://www.cyberdata.net/support/voip/solarwinds.html

To set up a TFTP server on Windows:

1. Install and start the software.

2. Select File/Configure/Security tab/Tr an s m i t O nl y.

3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory.

Operations Guide 930362J CyberData Corporation

Appendix C: Troubleshooting/Technical Support

C.1 Frequently Asked Questions (FAQ)

To see a list of frequently asked questions for your product, do the following:

1. Go to the following URL:

http://www.cyberdata.net/products/voip/digitalanalog/loudspeakerampv2/faqs.html

2. Go to the support page for your product, and click on the FAQs tab.

C.2 Documentation

The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation by doing the following:

1. Go to the following URL:

http://www.cyberdata.net/products/voip/digitalanalog/loudspeakerampv2/docs.html

2. Go to the support page for your product, and click on the Documentation tab.

Operations Guide 930362J CyberData Corporation

C.3 Contact Information

Contact CyberData Corporation

3 Justin Court Monterey, CA 93940 USA

www.CyberData.net

Phone: 800-CYBERDATA (800-292-3732) Fax: 831-373-4193

Sales Sales 831-373-2601 Extension 334

Contact Information

Technical Support

Returned Materials Authorization

RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA

The fastest way to get technical support for your VoIP product is to submit a VoIP Technical Support form at the following website:

http://www.cyberdata.net/support/contactsupportvoip.html

Phone: (831) 373-2601, Ext. 333 Email: support@cyberdata.net

To return the product, contact the Returned Materials Authorization (RMA) department:

Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net

When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:

CyberData Corporation 3 Justin Court Monterey, CA 93940 Attention: RMA "your RMA number"

Status form at the following web address:

http://www.cyberdata.net/support/rmastatus.html

Operations Guide 930362J CyberData Corporation

C.4 Warranty

CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor.

Should the product fail out-of-warranty, a flat rate repair charge of one half of the purchase price of the product will be assessed. Repairs that are in warranty but are damaged by improper modifications or abuse, will be charged at the out-of-warranty rate. Products shipped to CyberData, both in and out-of-warranty, are shipped at the expense of the customer. Shipping charges for repaired products shipped back to the customer by CyberData, will be paid by CyberData.

CyberData shall not under any circumstances be liable to any person for any special, incidental, indirect or consequential damages, including without limitation, damages resulting from use or malfunction of the products, loss of profits or revenues or costs of replacement goods, even if CyberData is informed in advance of the possibility of such damages.

C.4.1 Warranty & RMA Returns within the United States

Warranty

If service is required, you must contact CyberData Technical Support prior to returning any products to CyberData. Our Technical Support staff will determine if your product should be returned to us for further inspection. If Technical Support determines that your product needs to be returned to CyberData, an RMA number will be issued to you at this point.

Your issued RMA number must be printed on the outside of the shipping box. No product will be accepted for return without an approved RMA number. The product in its original package should be sent to the following address:

CyberData Corporation

3 Justin Court.

Monterey, CA 93940

Attn: RMA "xxxxxx"

C.4.2 Warranty & RMA Returns Outside of the United States

If you purchased your equipment through an authorized international distributor or reseller, please contact them directly for product repairs.

C.4.3 Spare in the Air Policy

CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address:

http://www.cyberdata.net/support/warranty/spareintheair.html

Operations Guide 930362J CyberData Corporation

C.4.4 Return and Restocking Policy

For our authorized distributors and resellers, please refer to your CyberData Service Agreement for information on our return guidelines and procedures.

For End Users, please contact the company that you purchased your equipment from for their return policy.

C.4.5 Warranty and RMA Returns Page

The most recent warranty and RMA information is available at the CyberData Warranty and RMA Returns Page at the following web address:

http://www.cyberdata.net/support/warranty/index.html

Warranty

Operations Guide 930362J CyberData Corporation

Index

Symbols

#6 sheet metal screws 62

Numerics

1 speaker configuration 10, 11 16 gauge wire 10, 11 2 speaker configuration 11

802.3af compliance switch 10

802.3af mode 10, 11

802.3af power injector (low power mode) 10

802.3at compliance switch 11

802.3at mode 11

802.3at power injector (high power mode) 11

accessory kit 6 activate relay (door sensor) 36 activity LED 17 address, configuration login 22 amplified outputs 10, 11

high power mode 11 how to use and connect 10

low power mode 10 announcing an IP address 18 audio (buffered) 40 audio configuration 41

night ring tone parameter 43 audio configuration page 41 audio encodings 3 audio files, user-created 45 audio parameters 41 audio test 18 audio, buffered 40 autoprovisioning 54

autoprovisioned audio files 56

autoprovisioned firmware upgrades 55

autoprovisioning autoupdate 55

autoprovisioning enabled option 54

autoprovisioning from DHCP 54

autoprovisioning server (IP address) 55

networking 54 autoprovisioning configuration 52, 53

backup SIP server 1 31 backup SIP server 2 31 backup SIP servers 31 buffered audio 40

cabling 16 components 9 components of the device 8 configurable parameters 24, 26 configuration

default IP settings 20 door sensor 35 intrusion sensor 35 network 28 SIP 30

using Web interface 20 configuration home page 23 configuration page

configurable parameters 24, 26 connecting the amplified outputs 10 connecting the device 10 connection options 13 connections 9, 13 connections inside of the NEMA box 9 contact information 66 contact information for CyberData 66 Current Network Settings 29 current network settings 29 CyberData contact information 66

default

gateway 7, 20

IP address 7, 20

subnet mask 7, 20

username and password 7, 20

web login username and password 23 default gateway 7, 20, 29 default IP settings 20 default login address 22 default settings 7 device configuration

device configuration parameters 53

Operations Guide 930362J CyberData Corporation

the device configuration page 52 device configuration page 25 device configuration parameters 26 device parameters, configuration 20, 25 device, reboot 60 DHCP Client 3 DHCP IP addressing 29 dial out extension (door sensor) 36 dimensions 4, 5 DIP switch settings 12 DIP switches 12 discovery utility program 22 distortion, total harmonic 4 DNS server 29 door sensor 35, 43

activate relay 36

dial out extension 36

play audio locally 36

play audio remotely 36

enable night ring events 48 enclosure, mounting 62 ethernet I/F 4 event configuration 47

enable night ring events 48 event parameter configuration 47 events 49 example packets 49 expiration time for SIP server lease 31, 34

factory defaults 8, 18 features 2 firmware

where to get the latest firmware 57 firmware upgrade parameters 59 firmware, upgrading 57

identifying your product 1 illustration of amplifier mounting process 62 input specifications 4 installation 2 IP address 7, 20, 29 IP address announcement 18 IP address confirmation 18 IP addressing 29

default

IP addressing setting 7, 20

IP-PBX server compatibility 30

jumper descriptions 15 jumper locations 15

label, model number 1 lease, SIP server expiration time 31, 34 LEDs 17 lengthy pages 40 line input specifications 4 line output specifications 4 line-in connection 13 line-in volume settings 19 link LED 17 linux DHCPD server setup 55 Linux, setting up a TFTP server on 64 local SIP port 31 log in address 22 loudspeaker type 16 loudspeaker, cabling/wiring 16 low power mode (amplified outputs) 10

harmonic distortion 4 hazard levels 5 high power mode (amplified outputs) 11 home page 22, 23 http web-based configuration 3

Operations Guide 930362J CyberData Corporation

maximum distance between speakers 11 maximum wire length for single speaker

configuration 10 maximum wire length for two speaker configuration 11 MGROUP

MGROUP Name 39 model number label 1 mounting an amplifier 62 multicast 37 multicast configuration 37

Multicast IP Address 39

navigation (web page) 21 navigation table 21 NEMA box components 9 network activity LED 8 network configuration 28 network link activity, verifying 17 network link LED 8 network setup 28 nightring tones 40 Nightringer 33 Nightringer in peer to peer mode (cannot be used) 33 nightringer settings 34 Nightringer, SIP registration required 33 nightringtones 40

one speaker configuration 10, 11 operating temperature 4 optional two speaker configuration 11 outbound proxy 31 output impedance 4 output level 4 output signal amplitudes 4 output specifications 4 overview 1

assigning 40 product

configuring 20

mounting 62

parts list 6 product features 2 product overview 1

product features 2

product specifications 4

supported protocols 3

supported SIP servers 3 product specifications 4 protocol 4 protocols supported 3

reboot 59, 60 registration and expiration, SIP server lease 31 regulatory compliance 4 relay connection 13 remote SIP port 31 reset test function management switch 18 resetting the IP address to the default 62 restoring the factory defaults 8, 18 return and restocking policy 68 ringtones 40

lengthy pages 40 RMA returned materials authorization 66 RMA status 66 RTFM switch 8, 18 RTP port 32 RTP/AVP 3

packet time 3 pages (lengthy) 40 part number 4 parts list 6 password

for SIP server login 31 login 23

restoring the default 7, 20 payload types 4 play audio locally (door sensor) 36 play audio remotely (door sensor) 36 port

local SIP 31

remote SIP 31 power input 4 power LED 8, 17 power, connecting to loudspeaker amplifier 10 priority

Operations Guide 930362J CyberData Corporation

safety instructions 4 sales 66 sensor

sensor normally closed 36 sensor configuration 35 sensor connection 13 sensor settings 36 sensor setup page 35 sensor setup parameters 35 server address, SIP 31 server configuration 30 servers supported 3 service 66 SIP

enable SIP operation 31

local SIP port 31

user ID 31 SIP (session initiation protocol) 3 SIP configuration 30

SIP Server 31 SIP configuration parameters

registration and expiration, SIP server lease 34 SIP registration 31 SIP remote SIP port 31 SIP server 31

backups 31

password for login 31

SIP servers supported 3

unregister from 31

user ID for login 31 SIP server backups 31 SIP servers supported 3 SIP settings 31 Spare in the Air Policy 67 speaker cable 16 speaker configuration 10, 11 speaker configuration for two speakers 11 speaker volume setting 19 speaker wire 16 standard 1 speaker configuration 10, 11 static IP addressing 29 status LED 8, 17 strobe alert connection 13 subnet mask 7, 20, 29 supported protocols 3 system installation 2

verifying

network link and activity 17

power on 17 volume 19 volume adjustment 18 volume dial 19 volume settings 19

warranty 67 warranty & RMA returns outside of the United States 67 warranty & RMA returns within the United States 67 warranty and RMA returns page 68 warranty policy at CyberData 67 web access password 7, 20 web access username 7, 20 web configuration log in address 22 web page

navigation 21 web page navigation 21 web-based configuration 20 Windows, setting up a TFTP server on 64 wire gauge 10, 11 wire length for single speaker configuration 10 wire length going to wire nuts for two speaker

configuration 11 wire nuts to connect wire 11 wiring 16

tech support 66 technical support, contact information 66 test audio 18 test audio button 26 TFTP server 3, 64 two speaker configuration 11

xml 49

user ID

for SIP server login 31 user ID, SIP 31 username

default for web configuration access 23

restoring the default 7, 20 using the amplified outputs 10

Operations Guide 930362J CyberData Corporation

CyberData 011097 Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
