1 Product Overview
The Voice-over-IP (VoIP) Loudspeaker Amplifier (PoE) uses a single cable to connect to existing
LANs, and Session Initiation Protocol (SIP) to broadcast messages over your public address system.
The small footprint and low height makes this an ideal loudspeaker amplifier to discreetly mount
almost anywhere.
1.1 Typical System Installation

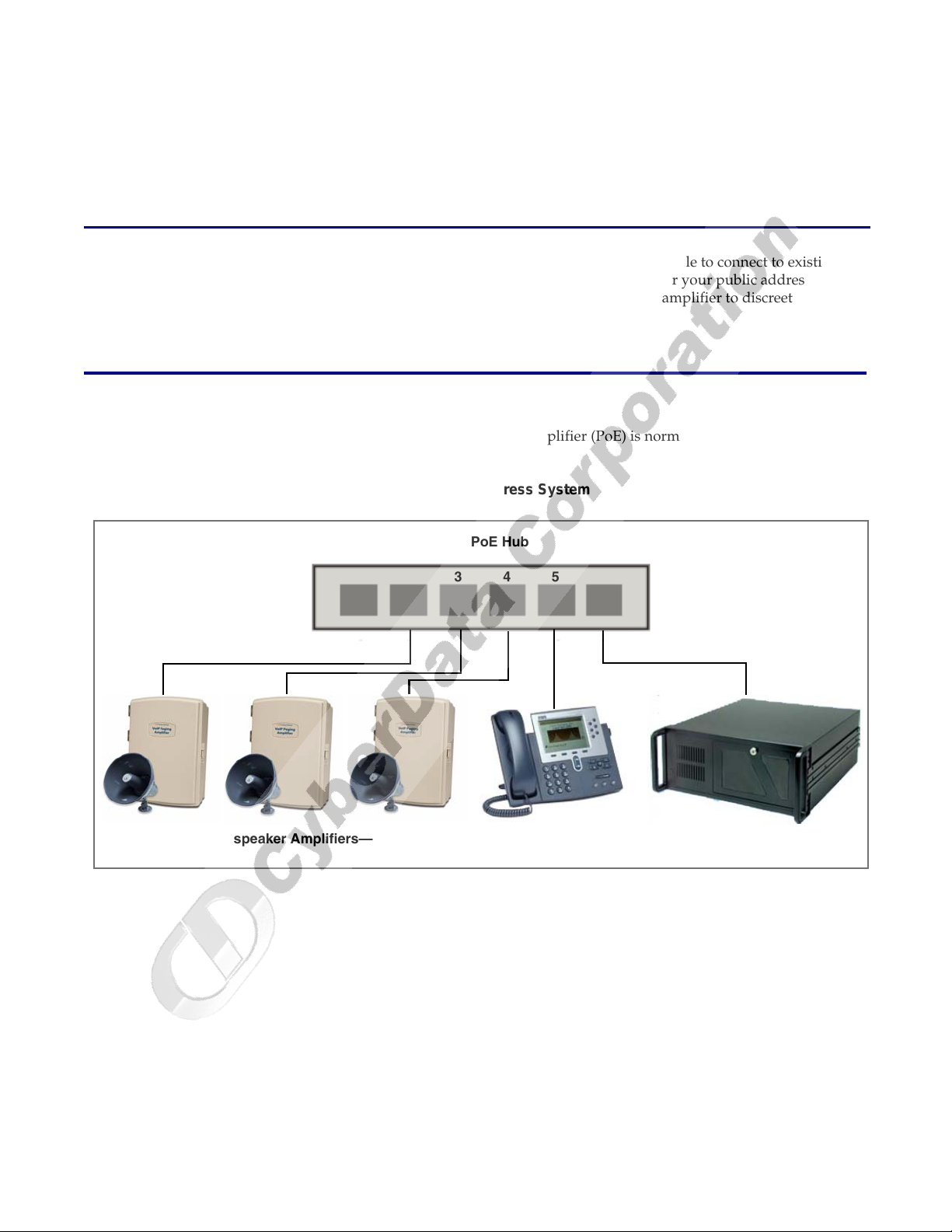

Figure 1 illustrates how the VoIP Loudspeaker Amplifier (PoE) is normally installed as part of a
public address system.
Figure 1. Public Address System
1
1 23456
VoIP Loudspeaker Amplifiers—PoE
Generic PoE Hub
VoIP Phone
Server
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Product Overview
2
1.2 Product Features
VoIP Loudspeaker Amplifier
●
SIP (RFC 3261) compatible
●
Dual-Speed 10/100 Mbps
●
Web-based configuration
●
Web-based firmware upgradeable
●
High-efficiency speaker driver
●
PoE (Power-over-Ethernet)
●
8W output under PoE
●
16W max. output (Non-PoE)
●
Supports 8 ohm horn speakers
●
Moisture-proof NEMA enclosure
1.3 Supported Protocols
The Loudspeaker Amplifier supports:
● SIP
● HTTP Web-based configuration
Provides an intuitive user interface for easy system configuration and verification of
loudspeaker amplifier operations.
● DHCP Client
Dynamically assigns IP addresses in addition to the option to use static addressing.
● TFTP Client
Facilitates Web-based firmware upgrades of the latest loudspeaker amplifier capabilities.
● RTP
● RTP/AVP - Audio Video Profile
● Audio Encodings
PCMU (G.711 mu-law)
PCMA (G.711 A-law)
Packet Time 20 ms
1.4 Supported SIP Servers
The following link contains information on how to configure the loudspeaker amplifier for the
supported SIP servers:
http://www.CyberData.net/support/voip
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
1.5 Product Specifications
Category Specification
Sensitivity 96dB/1W/1M S.P. Level
Output 8 W PoE/16 W with internal power supply
Port Baud Rate 10/100 Mbps
Power Requirement 802.3af compliant
Protocol SIP RFC 3261
Part Number 010859
Dimensions 14” x 10” x 4”
Weight 4.4 lbs.
Product Overview
3
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Product Overview
4
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
2 Installing the VoIP Loudspeaker Amplifier
2.1 Parts List
Ta bl e 2-1 illustrates the parts for each loudspeaker amplifier and includes a kit for mounting.

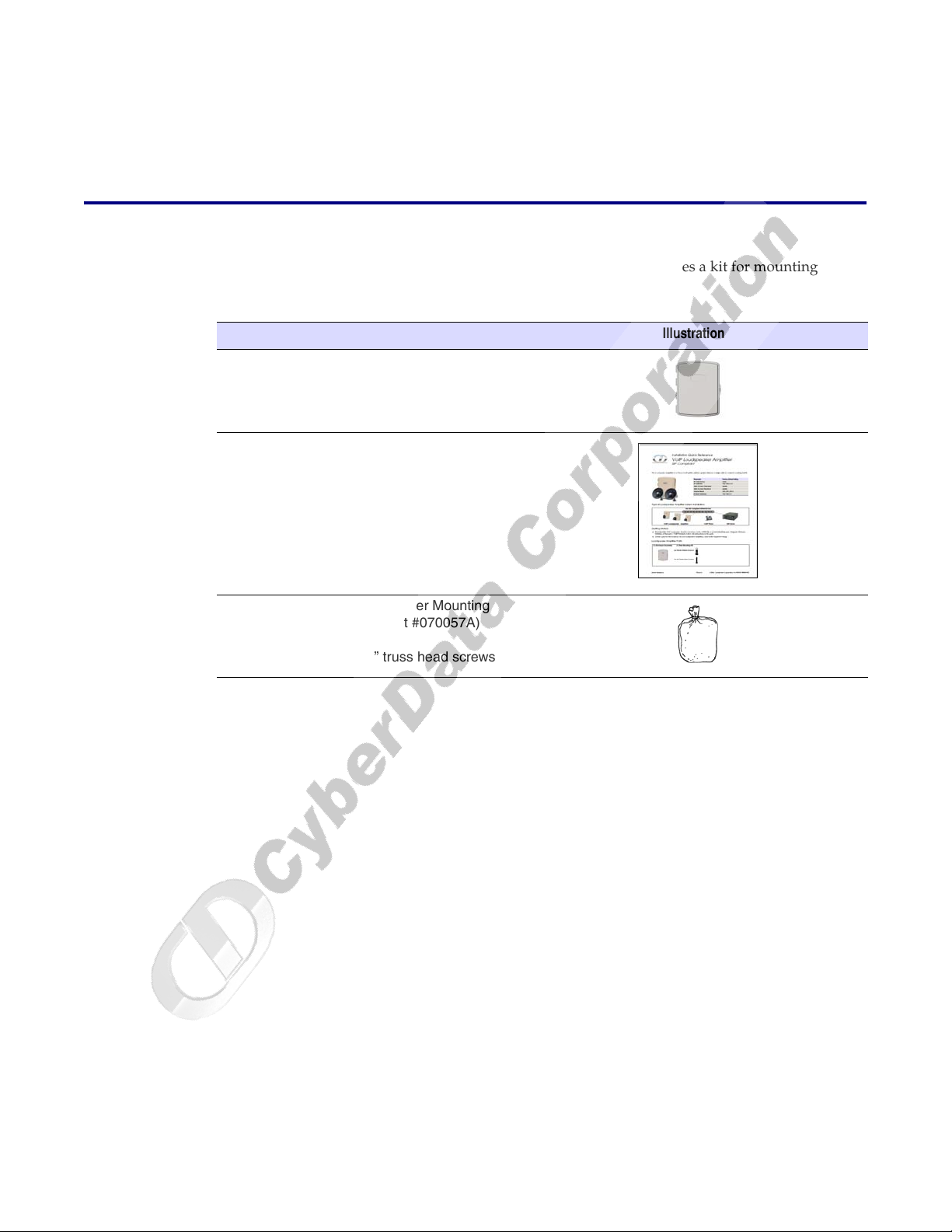

Table 2-1. Parts List
Quantity Part Name Illustration
1 Loudspeaker Amplifier Assembly
1 Installation Quick Reference Guide
5
1 Loudspeaker Amplifier Mounting
Accessory Kit (part #070057A)
which includes:
3 x #8 x 1-1/4” truss head screws
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
6

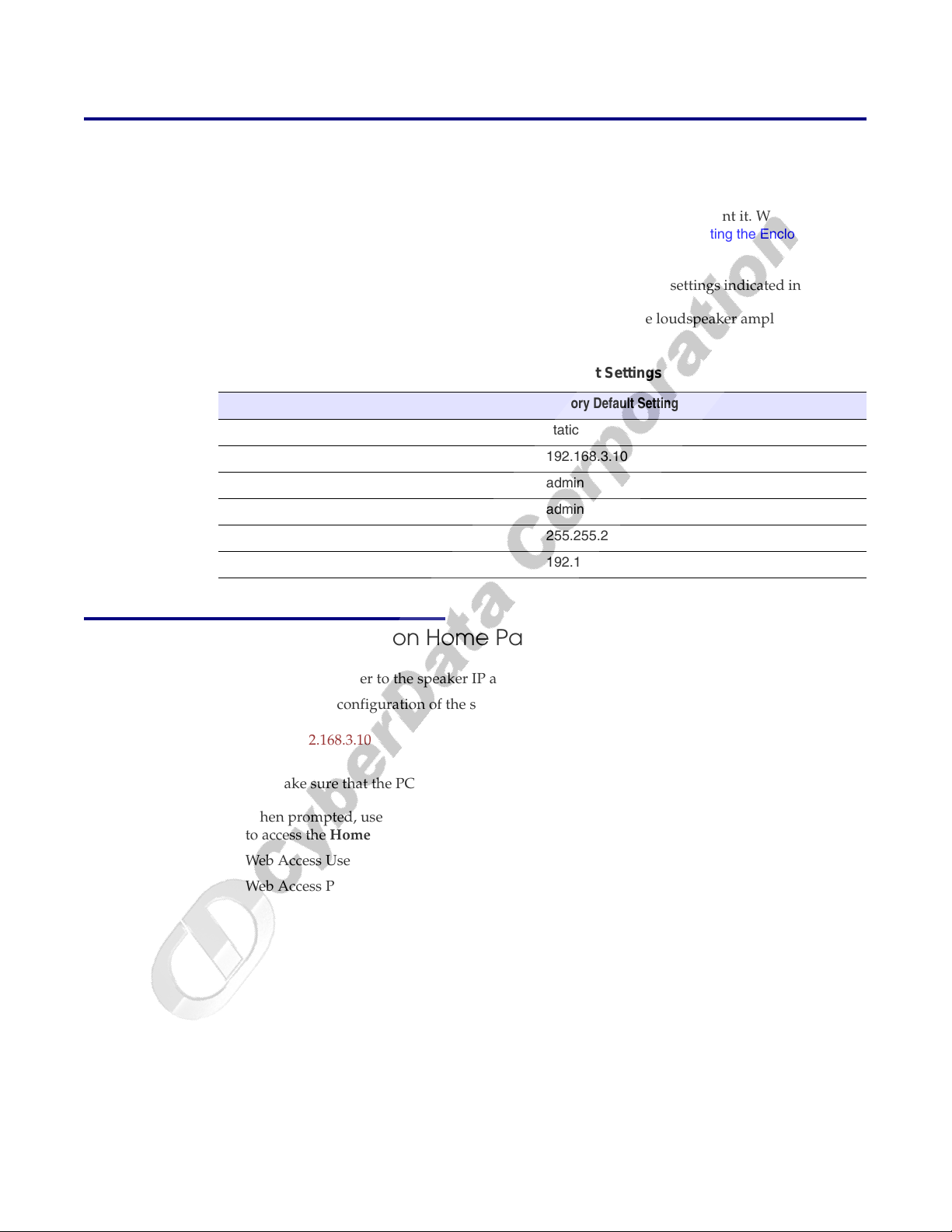

2.2 Loudspeaker Amplifier Setup
Set up and configure each loudspeaker amplifier before you mount it.
CyberData delivers each loudspeaker amplifier with the factory set default values indicated in
Table 2-2:
Table 2-2. Factory Default Settings
Parame ter Factory Default Setting
IP Addressing static
IP Address 192.168.3.10
Web Access Username admin
Web Access Password admin
Subnet Mask 255.255.255.0
Default Gateway 192.168.3.1
2.2.1 Loudspeaker Amplifier Components
Figure 2-1 shows the components of the loudspeaker amplifier (PoE).

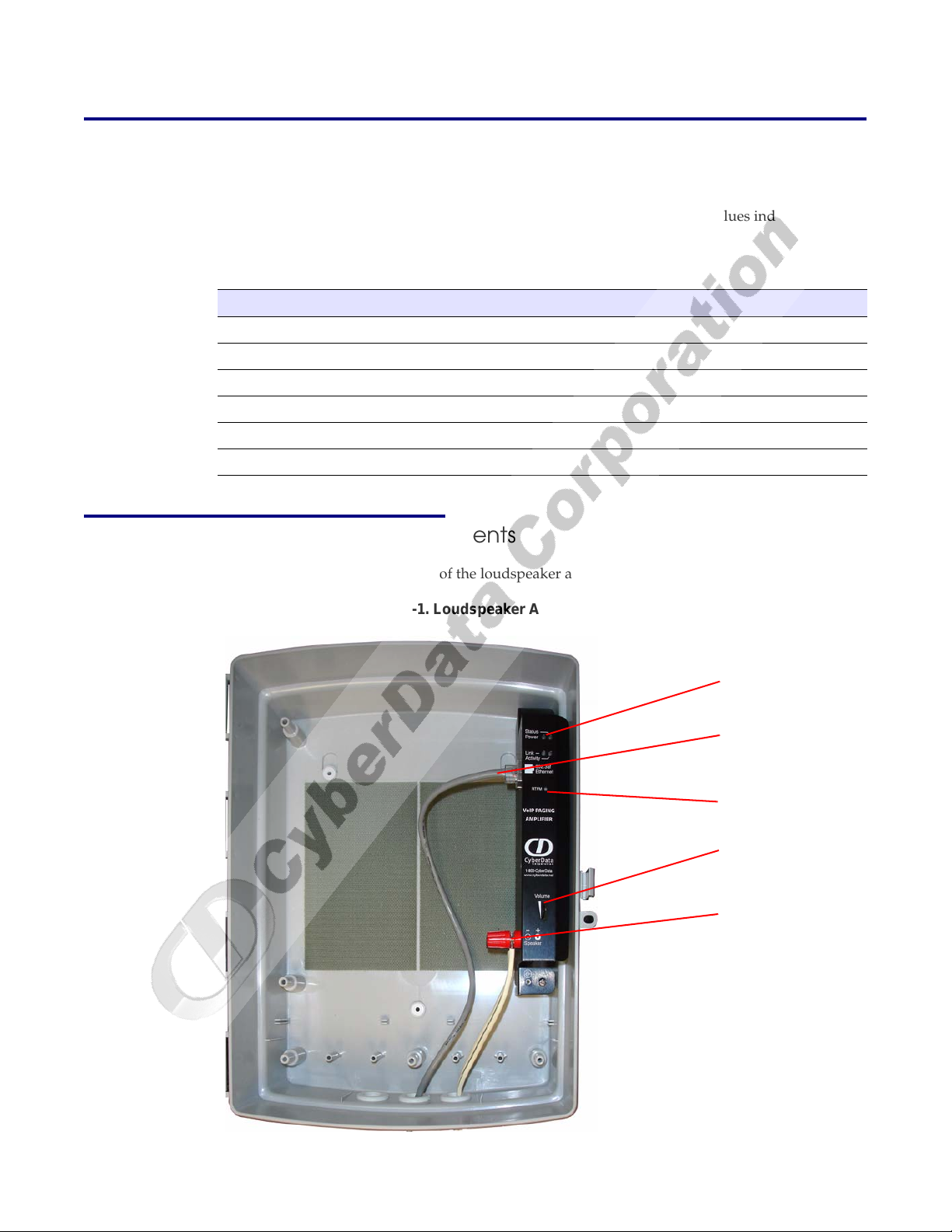

Figure 2-1. Loudspeaker Amplifier Components—PoE
LEDs
Ethernet connection
RTFM switch
Volu me
Speaker connection
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
2.2.2 Loudspeaker Amplifier Jumpers
See Figure 2-2 to identify the jumper and component locations.

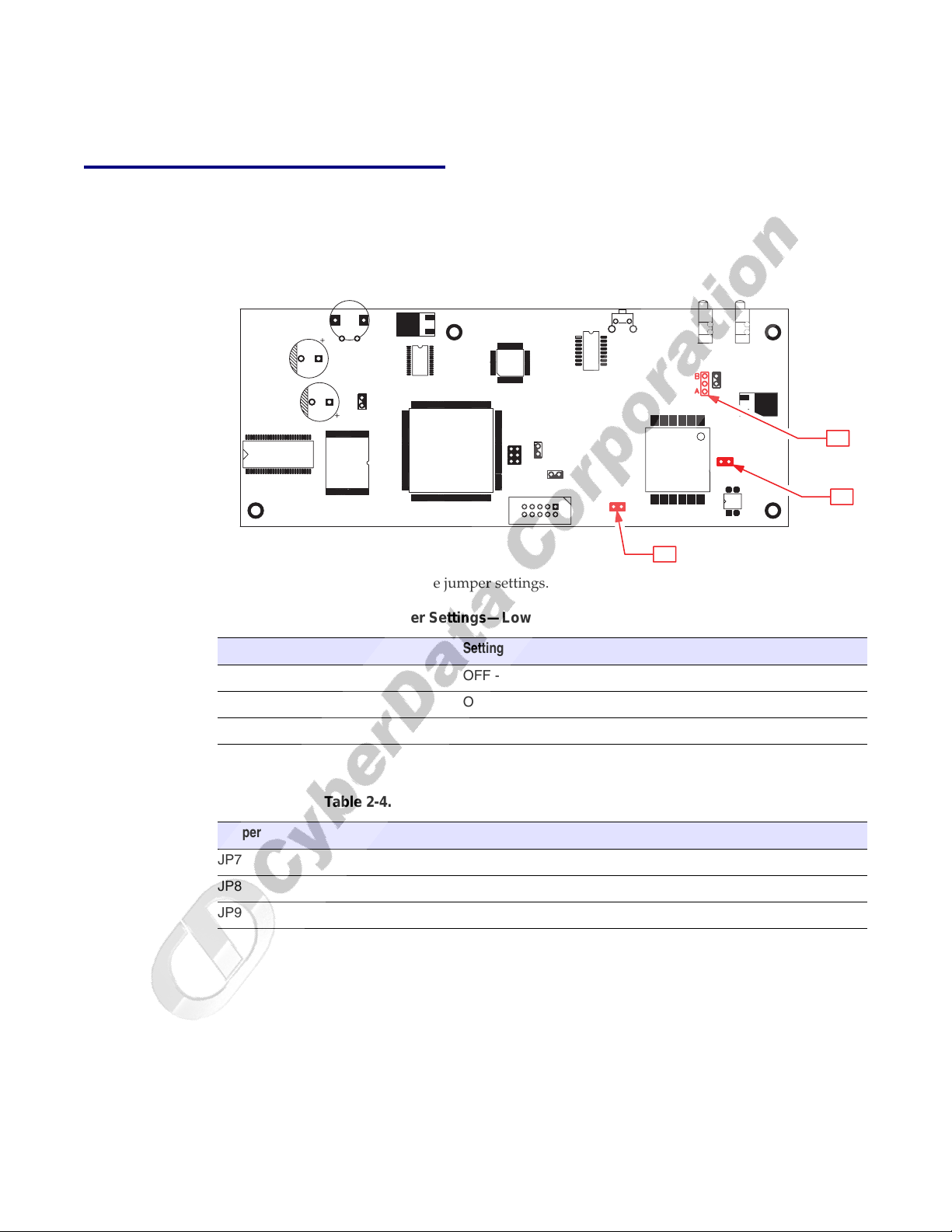

Figure 2-2. Jumper Locations
Installing the VoIP Loudspeaker Amplifier
JP9
JP8
7
See Table 2-3 and Table 2-4 for the jumper settings.
Table 2-3. Jumper Settings—Low Power—802.3af Compliant (Default)
Jumper Setting
JP7 OFF -> Low Power (21V)
JP8 OFF -> Low Power (21V)
JP9 Position B -> Low Power
Table 2-4. Jumper Settings—High Power—Non-PoE Compliant
Jumper Setting
JP7 ON -> High Power (21V)
JP8 ON -> High Power (21V)
JP9 Position A -> High Power
JP7
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
8
2.2.3 Connect the Loudspeaker Amplifier
Figure 2-3 illustrates how to connect the VoIP Loudspeaker Amplifier (PoE).

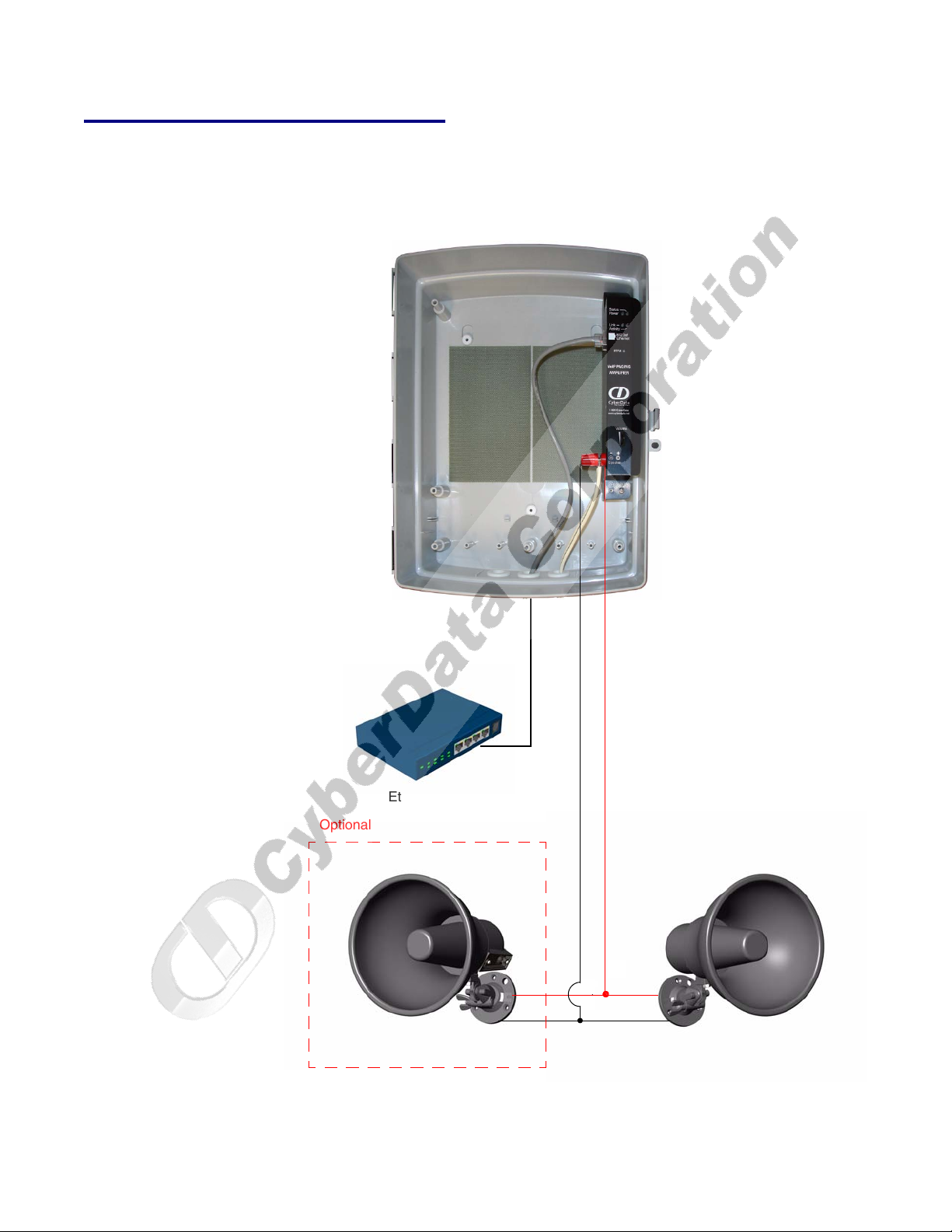

Figure 2-3. Connect a Loudspeaker
Ethernet Hub
Optional 2 Speaker Configuration
8 Ohms
+
-
Standard 1 Speaker Configuration
8 Ohms
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Installing the VoIP Loudspeaker Amplifier
See Table 2-5 for details about connecting the loudspeaker amplifier.
Table 2-5. Loudspeaker Amplifier Connections
Connection Connection Details Location
9
Loudspeaker
Ethernet
a
AC
a.Consult a licensed electrician for local electrical code requirements.
2.2.3.1 Loudspeaker Type
The CyberData VoIP Loudspeaker Amplifier supports an 8 Ohm Bogen or equivalent unamplified
loudspeaker. See
● Use two binding posts for up to 0.083 inch
diameter loudspeaker wire.
● Use a RJ 45 cable.
● For a phase connection, use a press-down
connector for 14 AWG solid copper wire.
● For a neutral connection, use a press-down
connector for 14 AWG solid copper wire.
● For an earth/ground connection, use a screw-
down connector for 14 AWG solid copper wire.
Figure 2-4.

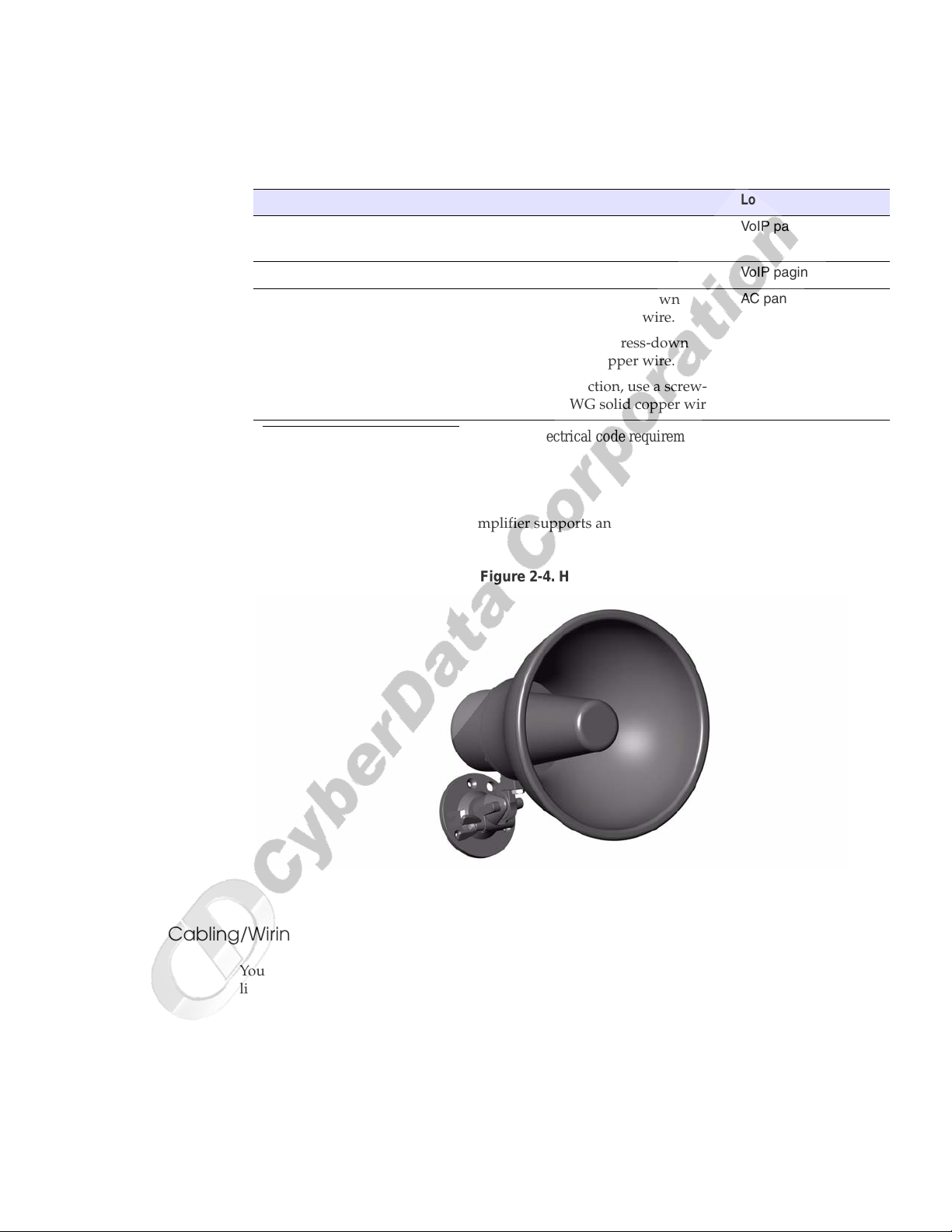

Figure 2-4. Hornspeaker
VoIP paging amplifier
VoIP paging amplifier
AC panel
2.2.3.2 Cabling/Wiring
You may connect a loudspeaker to a loudspeaker amplifier with a good quality speaker cable that is
limited to 25 feet in length.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
10
2.2.4 Confirm Operation
After connecting the loudspeaker amplifier to the ethernet hub, use the LEDs on the loudspeaker
amplifier face to confirm that the loudspeaker amplifier is operational and linked to the network.

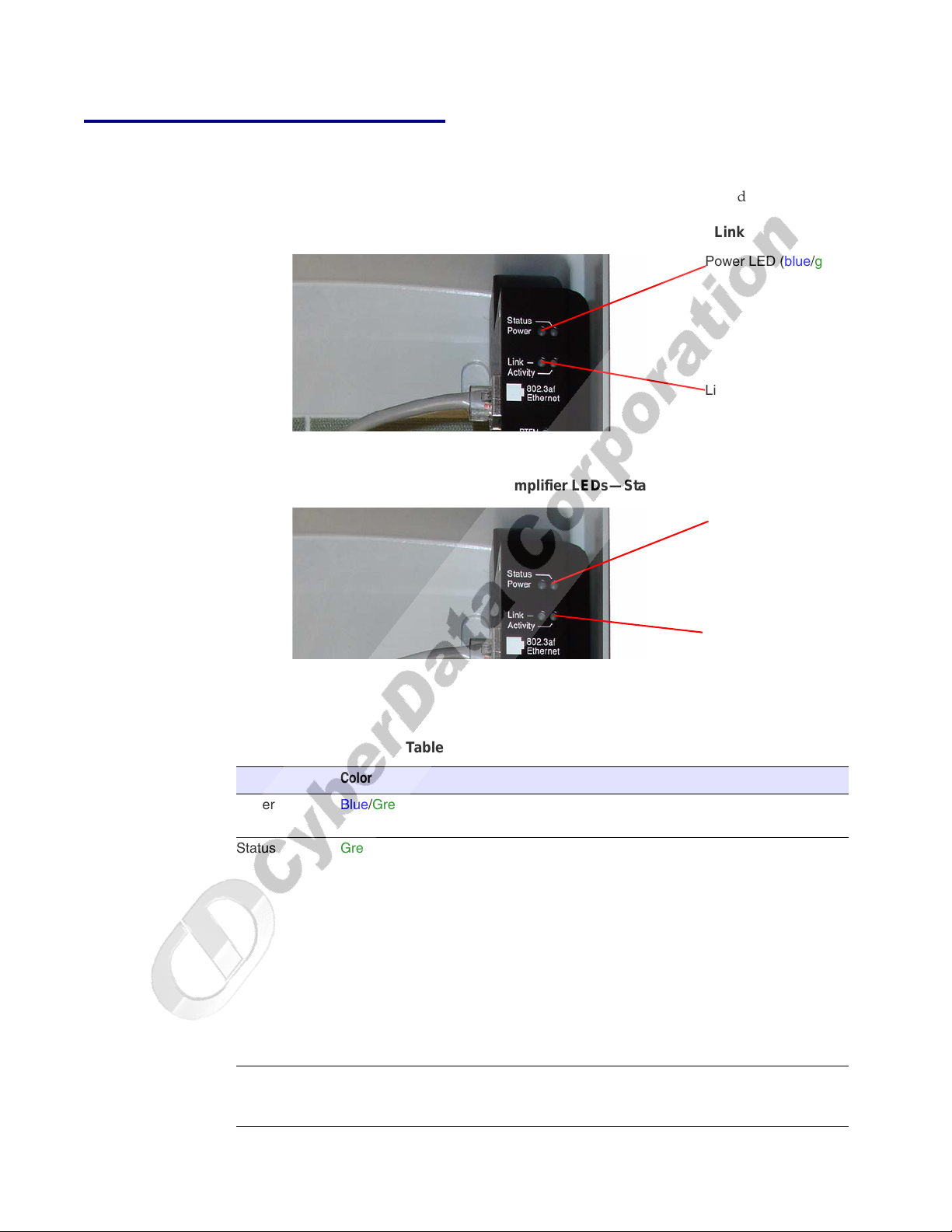

Figure 2-5. Loudspeaker Amplifier LEDs—Power and Link
Power LED (blue/green)
Link LED (green/yellow)
Figure 2-6. Loudspeaker Amplifier LEDs—Status and Activity
Status LED (green)
Activity LED (green)
Table 2-6. Loudspeaker Amplifier LEDs
LED Color Function
Power Blue/Green The power LED is illuminated a steady blue when the power is
on and blue/green when the amplifier is in the high power mode.
Status Green After supplying power to the loudspeaker amplifier:
1. The green Status LED illuminates after approximately five
seconds to indicate the start of the firmware verification and load
process.
2. After approximately 15 seconds, the Status LED begins to
blink at one second intervals to indicate the start of the firmware
boot process.
3. After approximately 35 seconds, the loudspeaker amplifier
beeps once to indicate that it is operational.
4. The Status LED will continue to blink at one second intervals
to indicate normal operation.
Link Green/Ye l l o w The Link LED is illuminated green for a 10Mb link or
yellow/green for a 100Mb link when the network link to the
loudspeaker amplifier is established.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Installing the VoIP Loudspeaker Amplifier
Table 2-6. Loudspeaker Amplifier LEDs (continued)
LED Color Function
Activity Green The Activity LED blinks to indicate network traffic.
2.2.5 Confirm the IP Address, Test the Audio, and Check the Volume
When the loudspeaker amplifier is operational and linked to the network, use the Reset Test
Function Management (RTFM) switch (
and confirm the loudspeaker amplifier’s IP Address, test that the audio is working, and check the
volume.
Figure 2-7) on the loudspeaker amplifier face to announce
Figure 2-7. RTFM Switch
11
RTFM switch
To announce a loudspeaker amplifier’s current IP address:
1. Press and hold the RTFM switch until it beeps (after one second).
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
12
2. Release the switch to hear the IP address announcement, and check the loudspeaker amplifier
volume.
Caution
Equipment Caution: Pressing and holding the RTFM switch for longer than
20 seconds will restore the loudspeaker amplifier to the factory default
settings. See
2.2.6 Adjust the Volume
To adjust the loudspeaker amplifier volume, turn the Vo l u m e dial (Figure 2-8) on the loudspeaker
amplifier face.
Section 2.5, "Restore the Factory Default Settings".

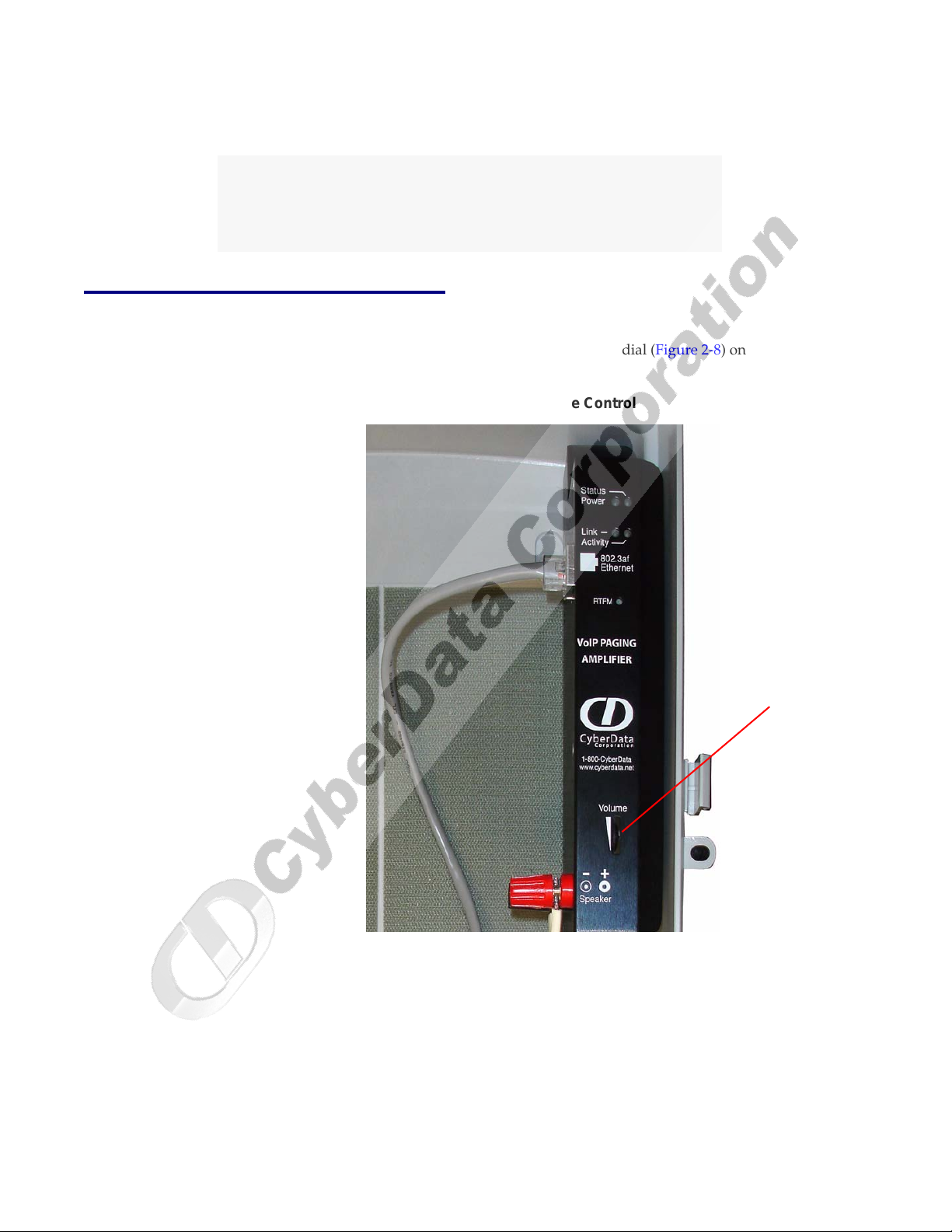

Figure 2-8. Volume Control
Volume control
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Installing the VoIP Loudspeaker Amplifier
2.3 Configure the Loudspeaker Amplifier Parameters
To configure the loudspeaker amplifier online, use a standard web browser.
Configure each loudspeaker amplifier and verify its operation before you mount it. When you are
ready to mount a loudspeaker amplifier enclosure, refer to
instructions.
All loudspeaker amplifiers are initially configured with the default IP settings indicated in Table 2-7.
When configuring more than one loudspeaker amplifier, attach the loudspeaker amplifiers to the
network one at a time to avoid IP address conflicts.
Table 2-7. Factory Default Settings
Parameter Factory Default Setting
IP Addressing static
IP Address 192.168.3.10
Web Access Username admin
Web Access Password admin
Subnet Mask 255.255.255.0
Chapter 3, “Mounting the Enclosure” for
13
Default Gateway 192.168.3.1
2.3.1 Log in to the Configuration Home Page
1. Open your browser to the speaker IP address.
For the initial configuration of the speaker, open your browser to the default IP address:
http://192.168.3.10
Note Make sure that the PC is on the same IP network as the loudspeaker amplifier.
2. When prompted, use the following default Web Access Username and Web Access Password
to access the Home Page (
Web Access Username: admin
Web Access Password: admin
Figure 2-9):
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
14
Figure 2-9. Home Page
VoIP Loudspeaker Amplifier

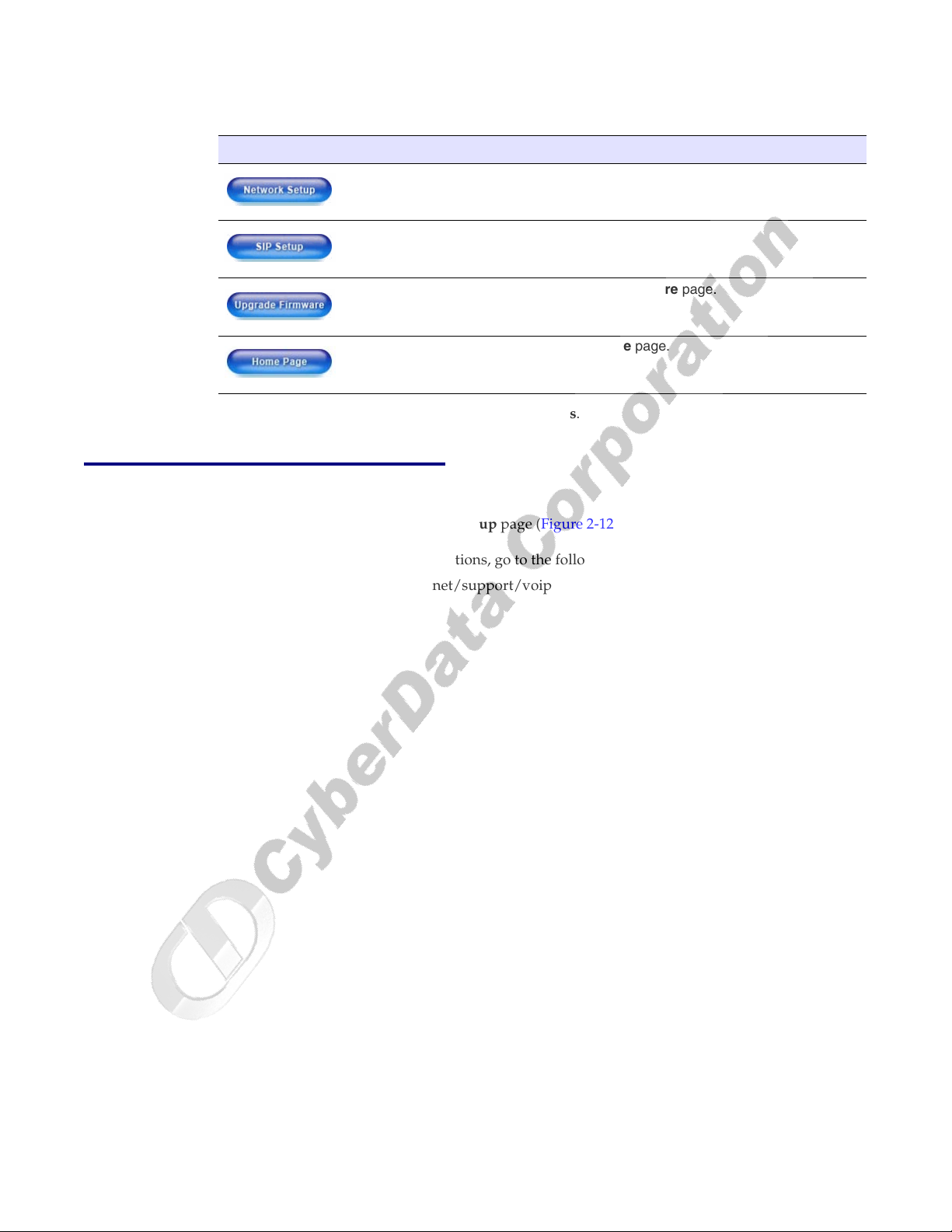

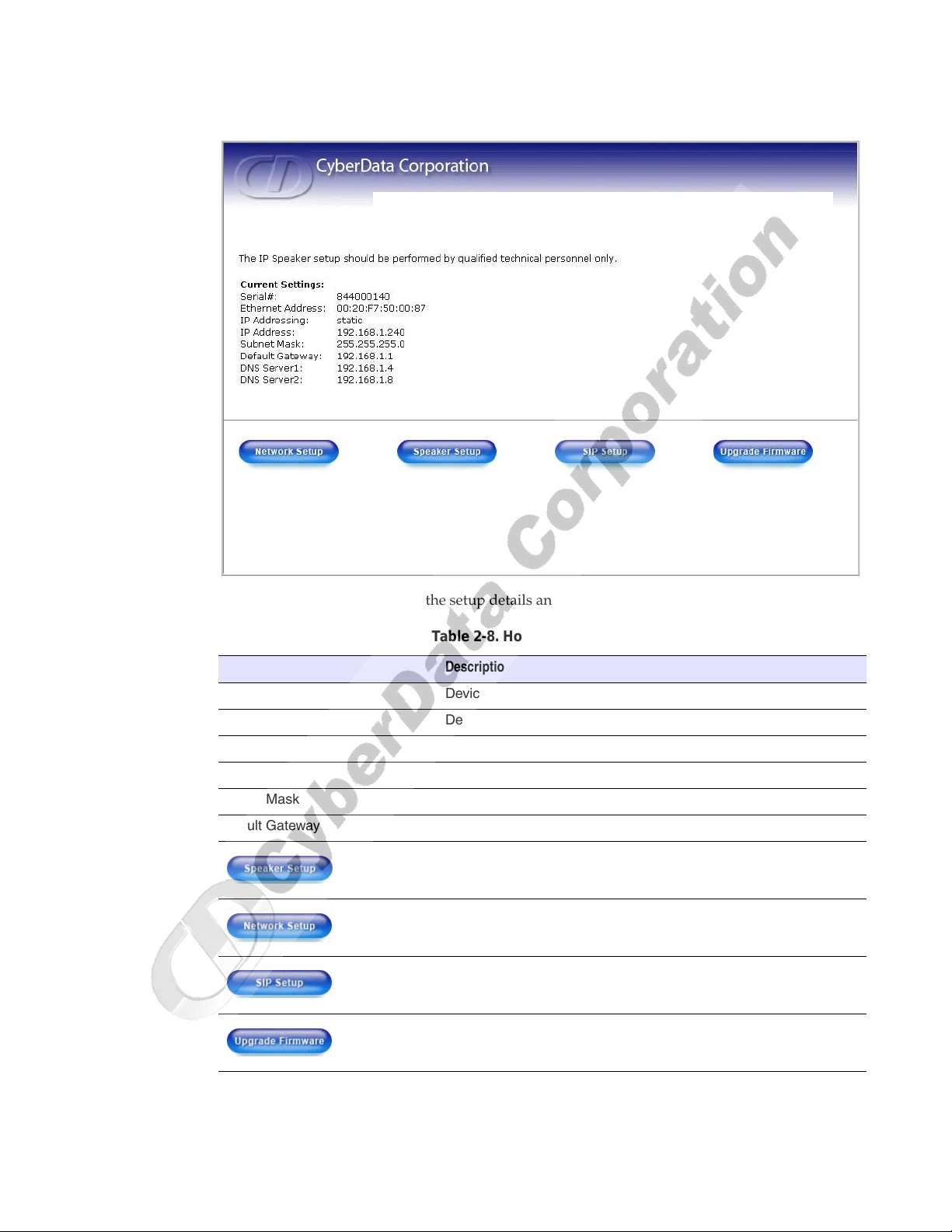

3. On the Home Page, review the setup details and navigation buttons described in Ta bl e 2-8.
Table 2-8. Home Page Overview
Web Page Item Description
Serial # Device serial number.
Ethernet Address Device ethernet address.
IP Addressing Shows the current IP addressing setting (DHCP or static).
IP Address Shows the current IP address.
Subnet Mask Shows the current subnet mask address.
Default Gateway Shows the current default gateway address.
Link to the Speaker Setup page.
Link to the Network Setup page.
Link to the SIP Setup page.
Link to the Upgrade Firmware web page.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
2.3.2 Configure the Network Parameters
1. Click the Network Setup button to open the Network Setup page (Figure 2-10).

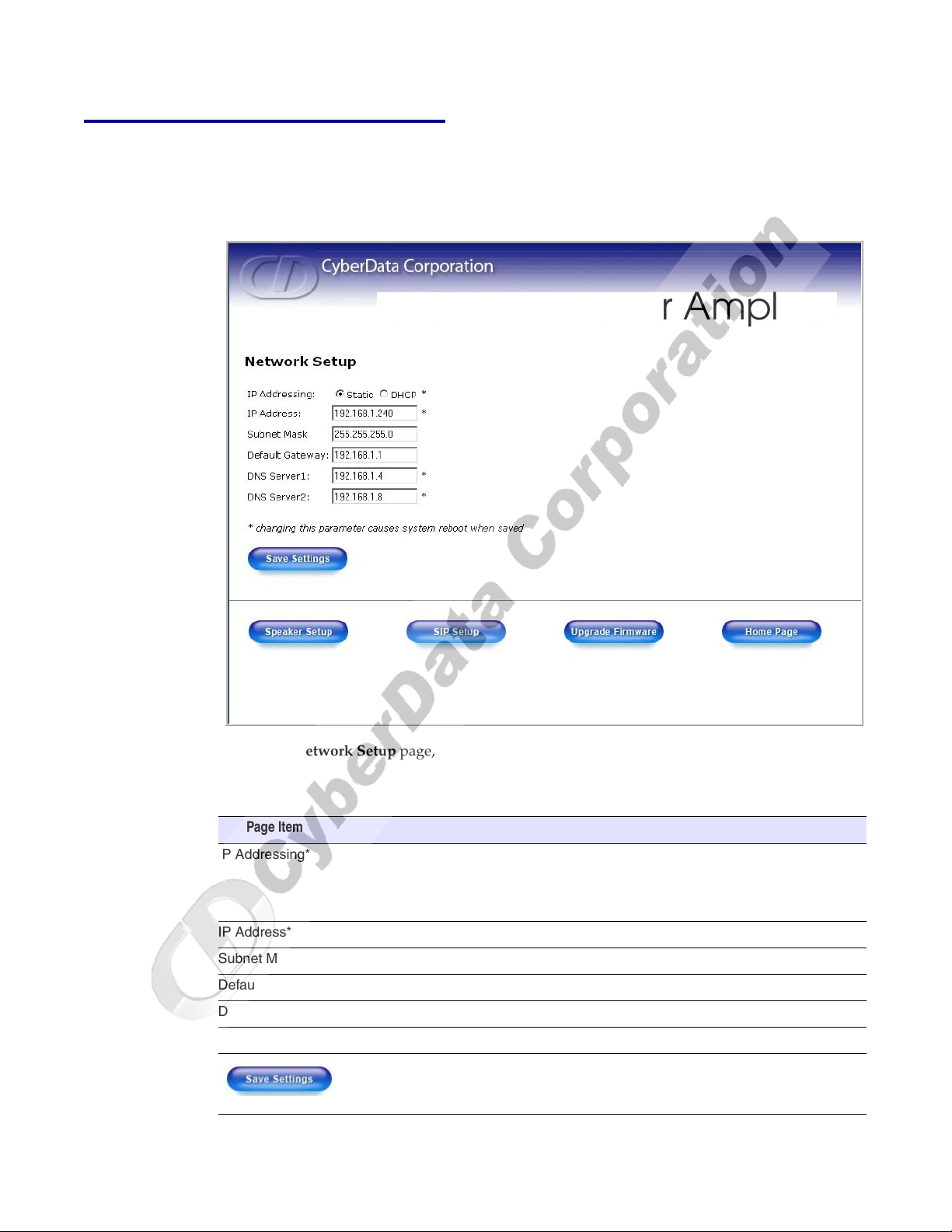

Figure 2-10. Network Setup Page
VoIP Loudspeaker Amplifier
Installing the VoIP Loudspeaker Amplifier
15
2. On the Network Setup page, enter values for the parameters indicated in Ta bl e 2-9.
Table 2-9. Network Setup Parameters
Web Page Item Description
IP Addressing* Select either DHCP IP Addressing or Static IP Addressing by
marking the appropriate radio button. If you select Static, configure
the remaining parameters indicated in
go to Step 3.
IP Address* Enter the static IP address.
Subnet Mask Enter the Subnet Mask address.
Default Gateway Enter the Default Gateway address.
DNS Server 1* Enter the DNS Server 1 address.
DNS Server 2* Enter the DNS Server 2 address.
Click on this button to save your configuration settings. Changing a
parameter that has an asterisk next to it will cause a system reboot
when saved.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Table 2-9. If you select DHCP,
Installing the VoIP Loudspeaker Amplifier
16
Web Page Item Description
3. After changing the parameters, click Save Settings. This updates the changed parameters and
reboots the speaker if appropriate.
4. Connect the speaker to the target network.
5. From a system on the same network as the speaker, open a browser with the new IP address of
the speaker.
Table 2-9. Network Setup Parameters (continued)
Link to the Speaker Setup page.
Link to the SIP Setup page.
Link to the Upgrade Firmware page.
Link to the Home page.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
2.3.3 Set up the Loudspeaker Amplifier
1. Click on the Speaker Setup button to open the Speaker Setup page. See Figure 2-11

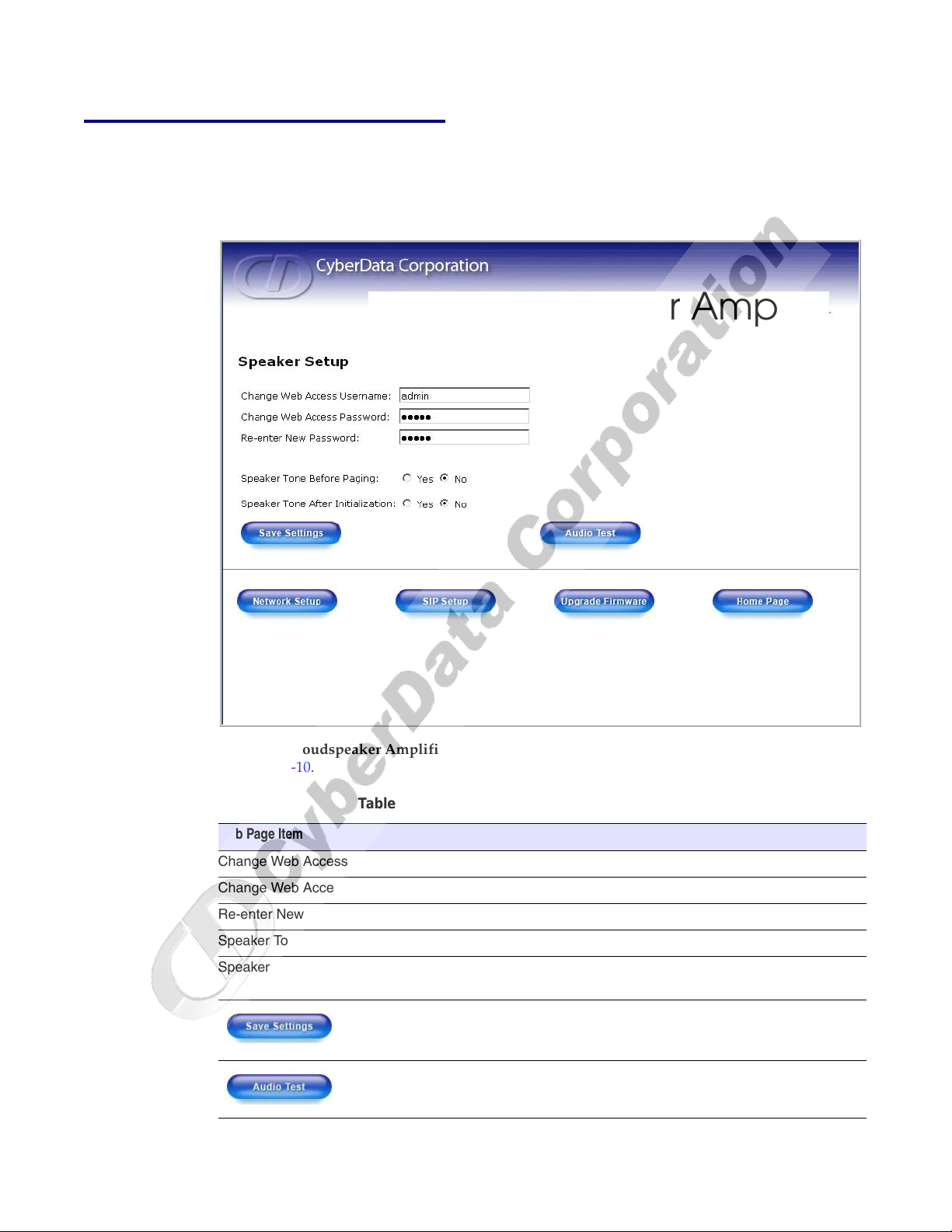

Figure 2-11. Loudspeaker Amplifier Setup
VoIP Loudspeaker Amplifier
Installing the VoIP Loudspeaker Amplifier
17
2. On the Loudspeaker Amplifier Setup page, enter values for the parameters indicated in
Ta bl e 2-10.
Table 2-10. Loudspeaker Amplifier Setup Parameters
Web Page Item Description
Change Web Access Username Use this field to change the Web Access Username
Change Web Access Password Use this field to change the Web Access Password
Re-enter New Password Use this field to re-enter a new password
Speaker Tone Before Paging Enable/Disable the speaker tone (beep) before each page.
Speaker Tone After Initialization Enable/Disable the speaker tone (beep) after the system
startup.
Click on this button to save your configuration settings.
Changing a parameter that has an asterisk next to it will
cause a system reboot when saved.
Click on this button to do an audio test. Generates a voice
message for testing the speaker audio quality and volume.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
18
Table 2-10. Loudspeaker Amplifier Setup Parameters (continued)
Web Page Item Description
3. After changing the parameters, click Save Settings.
2.3.4 Configure the SIP Parameters
Link to the Network Setup page.
Link to the SIP Setup page.
Link to the Upgrade Firmware page.
Link to the Home Page page.
1. Click SIP Setup to open the SIP Setup page (Figure 2-12).
Note For specific server configurations, go to the following URL:
http://www.CyberData.net/support/voip
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Installing the VoIP Loudspeaker Amplifier

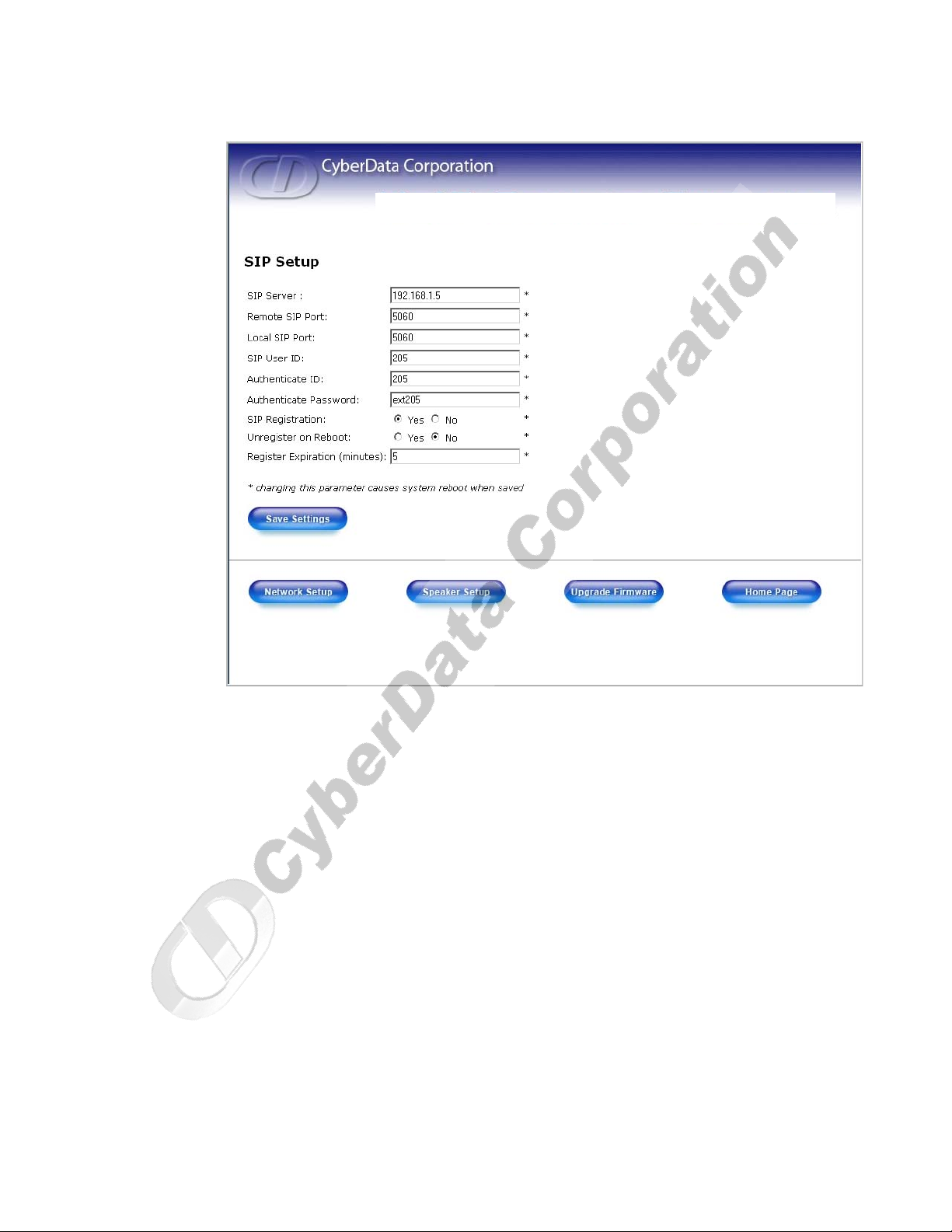

Figure 2-12. SIP Setup Page
VoIP Loudspeaker Amplifier
19
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
20
2. On the SIP Setup page, enter values for the parameters indicated in Ta bl e 2-11.
Web Page Item Description
SIP Server* Enter the SIP server represented as either a numeric IP
Remote SIP Port* Enter the Remote SIP Port number (default is 5060).
Local SIP Port* Enter the Local SIP Port number (default is 5060).
SIP User ID* Enter the SIP User ID (up to 30 alphanumeric characters).
Authenticate ID* Enter the Authenticate ID (up to 30 alphanumeric
Authenticate Password* Enter the Authenticate Password (up to 30 alphanumeric
SIP Registration* Enable/Disable SIP Registration.
Unregister on Reboot* • Select Ye s to automatically unregister the paging
Register Expiration* Enter the SIP Registration lease time in minutes (default is
Table 2-11. SIP Setup Parameters
address in dotted decimal notation or the fully qualified
host name (FQHN) up to 64 characters.
characters).
characters).
amplifier when it is rebooted.
•Select No to keep the paging amplifier registered when it
is rebooted.
60 minutes).
Click on this button to save your configuration settings.
Changing a parameter that has an asterisk next to it will
cause a system reboot when saved.
Link to the Speaker Setup page.
Link to the Network Setup page.
Link to the Upgrade Firmware page.
Link to the Home page.
3. After changing the parameters, click Save Settings.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Installing the VoIP Loudspeaker Amplifier
2.4 Upgrade the Firmware and Reboot the Loudspeaker Amplifier
To upload the speaker firmware from your PC:
1. Set up a TFTP server.
If you do not already have a TFTP server running on your network, see Chapter 4, “Setting up a
TFTP Server”.
2. Retrieve the latest speaker firmware from the CyberData website:
www.CyberData.net/support/voip
3. Unzip the speaker version file. This file may contain the following:
• Kernel firmware file: xxx-image-xxx-xxx.bin
• Application firmware file: xxx-romdisk-xxx-xxx.img
• Release notes
4. Copy the firmware files to be upgraded to the appropriate TFTP server directory:
• c:\tftp-root\ (for Windows)
• /tftpboot/ (for Linux)
21
5. Log in to the speaker home page as instructed in Section 2.3.1, "Log in to the Configuration
Home Page".
6. Click the Upgrade Firmware button to open the Firmware Upgrade page. See Figure 2-13.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
22

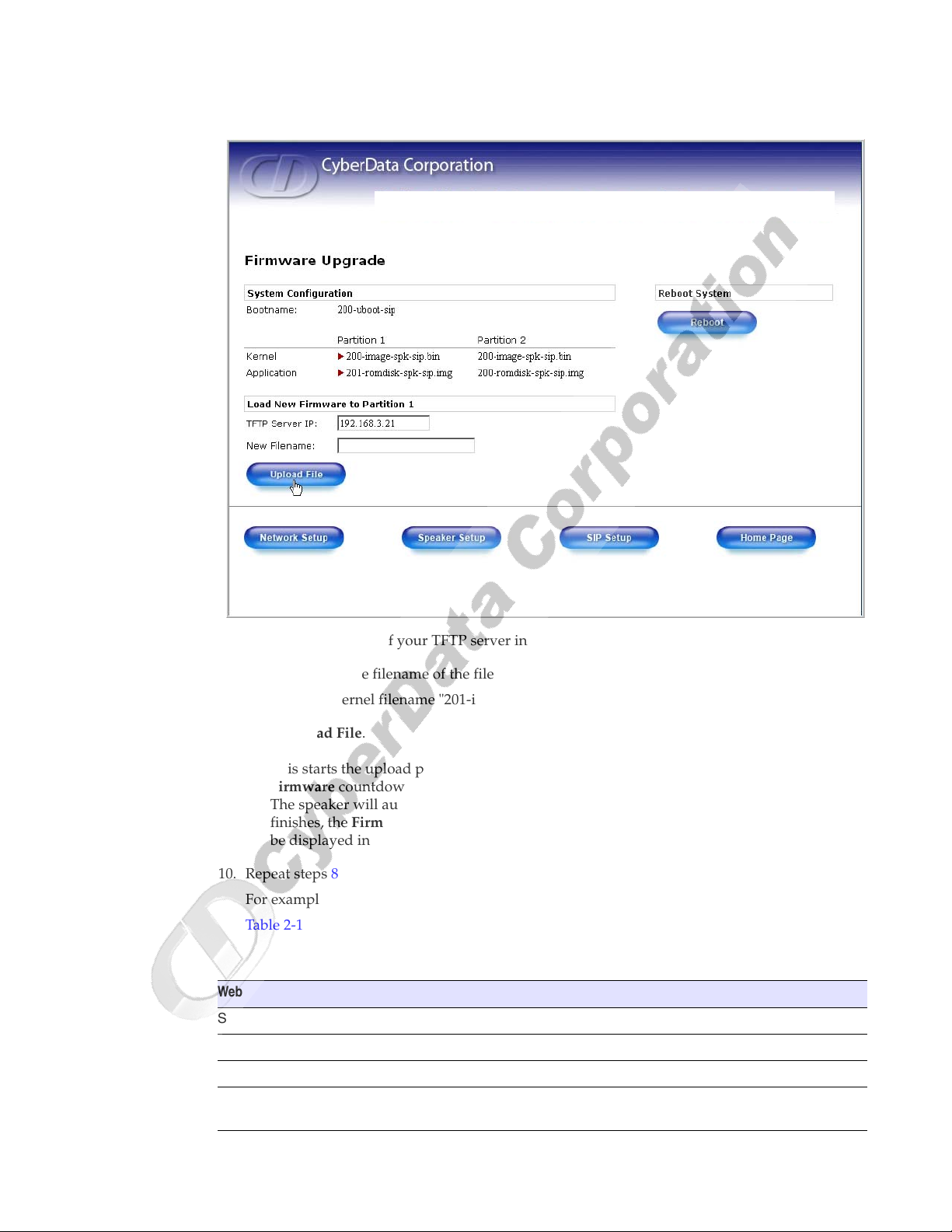

Figure 2-13. Firmware Upgrade Page
VoIP Loudspeaker Amplifier
7. Enter the IP address of your TFTP server into the TFTP Server IP parameter field.
8. Enter the firmware filename of the file to be uploaded into the New Filename parameter field.
For example, kernel filename "201-image-spk-sip.bin".
9. Click Upload File.
Note This starts the upload process. Once the speaker has uploaded the file, the Uploading
Firmware countdown page appears, indicating that the firmware is being written to flash.
The speaker will automatically reboot when the upload is complete. When the countdown
finishes, the Firmware Upgrade page will refresh. The uploaded firmware filename should
be displayed in the system configuration (indicating successful upload and reboot).
10. Repeat steps 8 and 9 if you are uploading the Kernel and Application files.
For example, Application filename "201-romdisk-spk-sip.img".
Ta bl e 2-12 shows the web page items on the Firmware Upgrade page.
Table 2-12. Firmware Upgrade Parameters
Web Page Item Description
System Configuration Shows the current configuration.
Bootname Shows the current boot loader filename.
Kernel Shows the current kernel filename for partition 1 and 2.
Application Shows the current application filename for partition 1
and 2.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Installing the VoIP Loudspeaker Amplifier
Table 2-12. Firmware Upgrade Parameters (continued)
Web Page Item Description
Load new firmware to Partition 1 Enter the TFTP Server IP address.
New Filename Enter the new file name for the kernel or application
firmware file that you are uploading.
Click on this button to automatically upload the selected
firmware and reboot the system.
Link to the Speaker Setup page.
Link to the Network Setup page.
Link to go to the SIP Setup page.
Link to the Home page.
23
2.4.1 Reboot the Loudspeaker Amplifier
To reboot a loudspeaker amplifier, log in to the web page as instructed in Section 2.3.1, "Log in to the
Configuration Home Page".
1. Click Upgrade Firmware to open the Firmware Upgrade page (Figure 2-14). Use the Reboot
System section on the right side of the page.
Click on this button to reboot the system.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
24

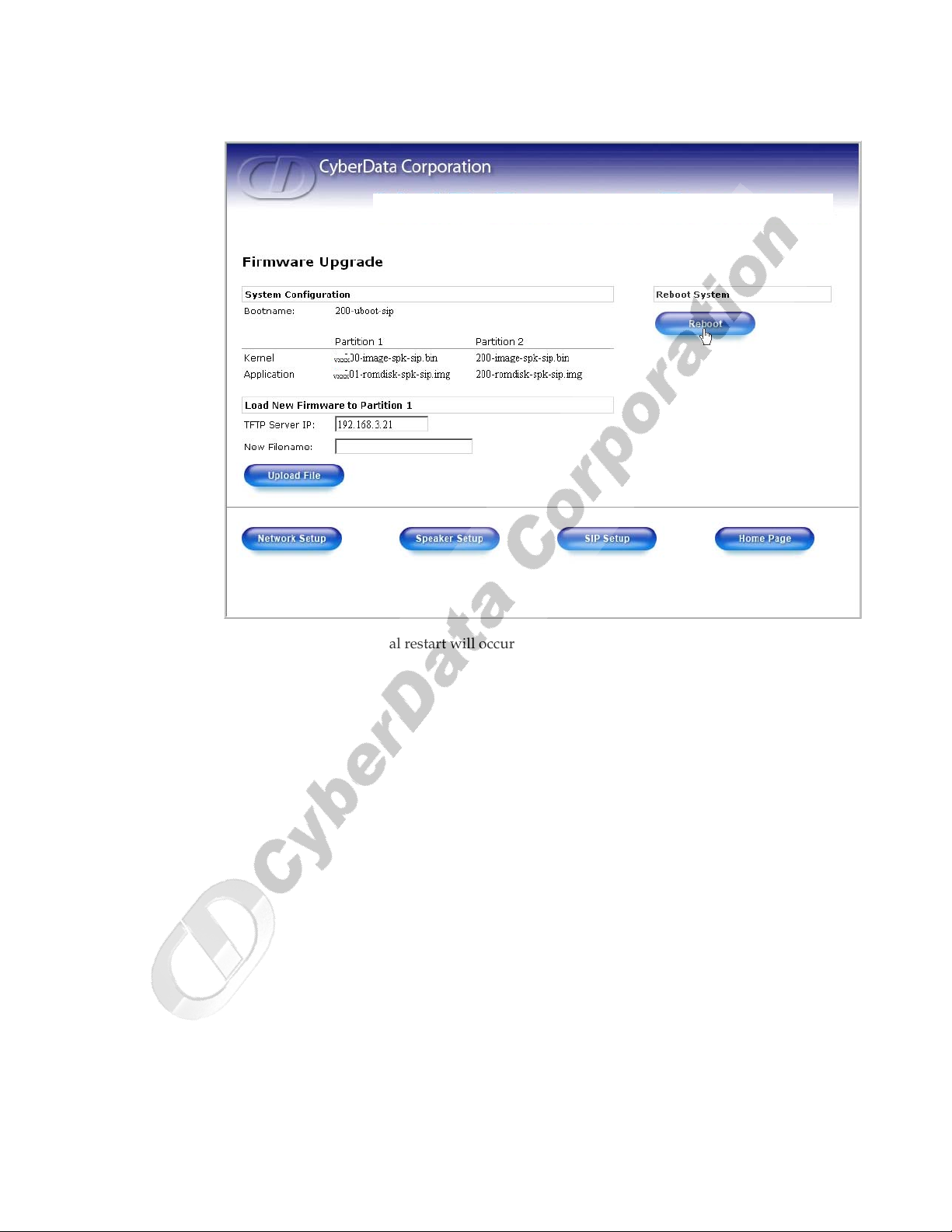

Figure 2-14. Reboot System Section
VoIP Loudspeaker Amplifier
2. Click Reboot. A normal restart will occur as per the Status LED section of Tabl e 2-6.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
2.5 Restore the Factory Default Settings
When troubleshooting configuration problems, it is sometimes convenient to restore the device to a
known state.
Each loudspeaker amplifier is delivered with factory set default values for the parameters indicated
Table 2-13. Use the RTFM switch on the loudspeaker amplifier face to restore these parameters to
in
the factory default settings.
When you use the RTFM switch, the factory default settings are restored for only the parameters
indicated in
will remain unchanged.
Parameter Factory Default Setting
IP Addressing static
IP Address 192.168.3.10
Web Access Username admin
Table 2-13. The other parameters in the current loudspeaker amplifier configuration
Table 2-13. Factory Default Settings
Installing the VoIP Loudspeaker Amplifier
25
Web Access Password admin
Subnet Mask 255.255.255.0
Default Gateway 192.168.3.1
To restore these parameters to the factory default settings:
1. Press and hold the RTFM switch for 20 seconds.
2. The loudspeaker amplifier will beep after one second. Continue to hold the switch until the
loudspeaker amplifier beeps again after 20 seconds.
3. Release the switch. The following occurs:
• A voice message announces that the factory default settings are being restored.
• Once the settings are restored, a voice message announces the restored default IP address:
192.168.3.10
• A voice message announces that the loudspeaker amplifier is rebooting.
• The loudspeaker amplifier reboots.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Installing the VoIP Loudspeaker Amplifier
26
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
3 Mounting the Enclosure
3.0 Mount the Enclosure
Before you mount the enclosure, make sure that you have received all of the parts for each
enclosure. Refer to
Quantity Part Name Illustration
3 #8 Sheet Metal Screws
Tab le 3-14.
Table 3-14. Wall Mounting Components (Part of the Accessory Kit)
27
Note The loudspeaker amplifier was designed for indoor use. Mounting it on the external part of
a building will require additional hardware for weatherproofing, cabling access, and
lightning suppression. Consult a certified electrician for details.
See Figure 3-1 to mount the enclosure.
Note For mounting, use the three #8 SHEET METAL SCREWS to secure the enclosure.
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Mounting the Enclosure
28

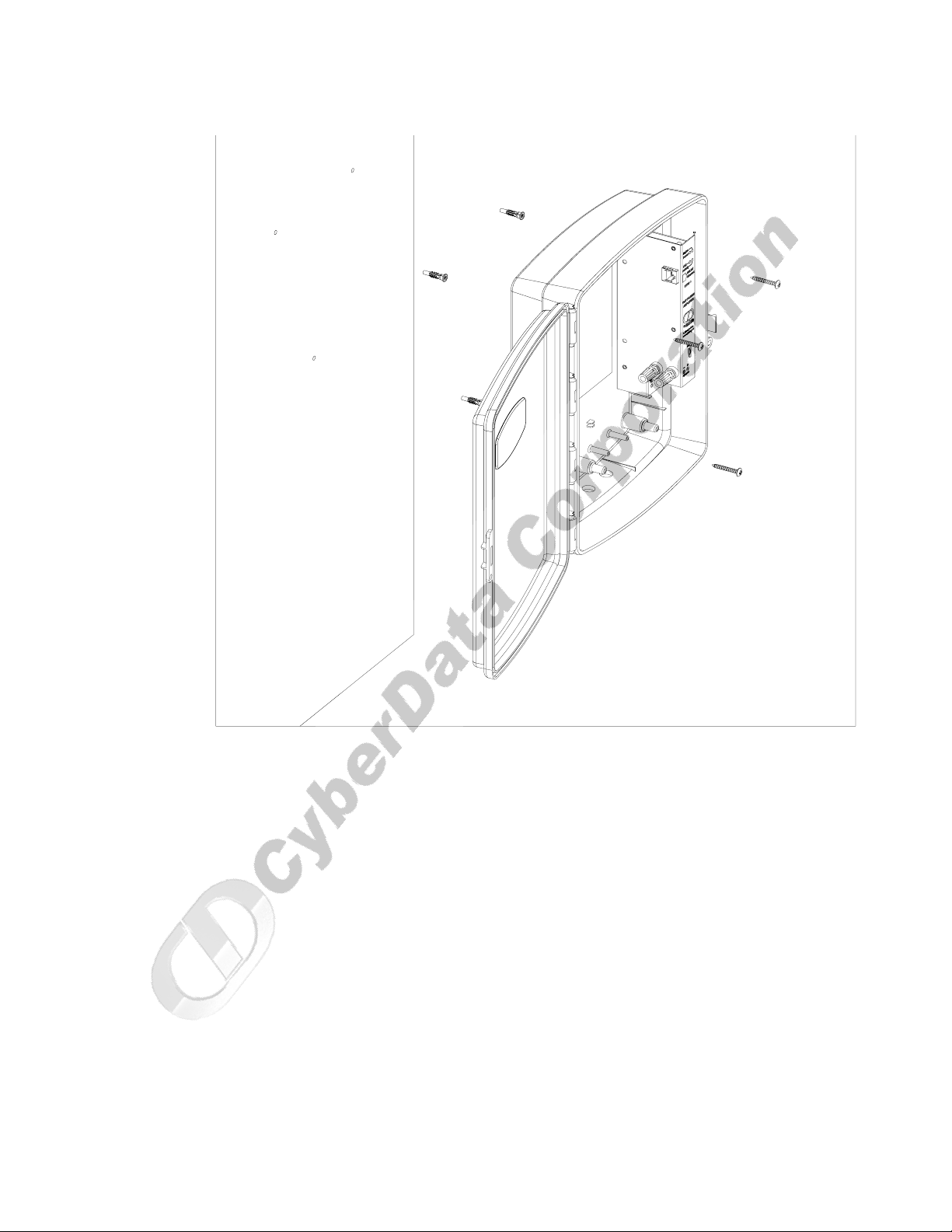

Figure 3-1. Loudspeaker Amplifier Enclosure Assembly
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
4 Setting up a TFTP Server
4.0 Set up a TFTP Server
Upgrading the VoIP Loudspeaker Amplifier firmware requires a TFTP server on which you access
the Web interface where you can upload the firmware files.
4.0.1 In a LINUX Environment
To set up a TFTP server on LINUX:
1. Create a directory dedicated to the TFTP server, and move the files to be uploaded to that
directory.
2. Run the following command where /tftpboot/ is the path to the directory you created in
Step 1: the directory that contains the files to be uploaded. For example:
29
in.tftpd -l -s /tftpboot/your_directory_name
4.0.2 In a Windows Environment
You can find several options online for setting up a Windows TFTP server. This example explains
how to use the Solarwinds freeware TFTP server, which you can download at:
http://www.CyberData.net/support/voip
To set up a TFTP server on Windows:
1. Install and start the software.
2. Select File/Configure/Security tab/Transmit Only.
3. Make a note of the default directory name, and then move the firmware files to be uploaded to
that directory.
4. You can find several options online for setting up a Solarwinds server. This example explains
how to use the Solarwinds freeware TFTP server, which you can download at:
http://www.CyberData.net/support/voip
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Setting up a TFTP Server
30
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
5 Troubleshooting/Technical Support
5.1 Frequently Asked Questions (FAQ)
Go to the following URL to see CyberData’s list of frequently asked questions:
http://www.CyberData.net/support/voip
5.2 Documentation
The documentation for this product is released in an English language version only. You can
download PDF copies of CyberData product documentation at:
www.CyberData.net—>Support—>Drivers, Utilities & Manuals—>VoIP Products
31
5.3 Contact Information
Contact CyberData Corporation
2555 Garden Road
Monterey, CA 93940
USA
www.CyberData.net
Phone: 800-CYBERDATA (800-292-3732)
Fax: 831-373-4193
Sales Sales (831) 373-2601 Extension 334
Technical Support
Returned Materials Authorization
Phone: 831-373-2601 Extension 333
Email: support@CyberData.net
To return the product, contact the CyberData Returned Materials Authorization (RMA) department
at:
Phone: 831-373-2601, Extension 136
Email: RMA@CyberData.net
When returning a product to CyberData, an approved CyberData RMA number must be printed on
the outside of the original shipping package. No product will be accepted for return without an
approved RMA number. Send the product, in its original package, to the following address:
CyberData Corporation
2555 Garden Road
Monterey, CA 93940
Attention: RMA "your RMA number"
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
Troubleshooting/Technical Support
32
5.4 Warranty
CyberData warrants its product against defects in material or workmanship for a period of two
years from the date of purchase. Should the product fail within the warranty period, CyberData will
repair or replace the product free of charge. This warranty includes all parts and labor.
If the product is out-of-warranty and fails, a flat rate repair charge of one half the product purchase
price will be assessed. Repair costs for products that are in warranty, but damaged by improper
modifications or abuse, will be charged at the out-of-warranty rate. Products returned to CyberData,
both in and out-of-warranty, are shipped to CyberData at the expense of the customer. Charges for
shipping repaired products back to the customer will be paid by CyberData.
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Index
33
Symbols
#8 sheet metal screws 27
Numerics
3 x #8 x 1-1/4” truss head screws 5
A
accessory kit 5
activity LED 11
address, configuration login 13
announcing a loudspeaker amplifier’s IP address 11
asterisk 15, 17
audio encodings 2
C
changing
the web access password 17
configurable parameters 14, 15, 17, 20, 22
configuration
default IP settings 13
network 15
SIP 18
using Web interface 13
configuration home page 13
CyberData contact information, corporate, sales, tech
support, service 31
DHCP Client 2
DHCP IP addressing 15
dimensions 3
DNS server 15
E
enclosure, mounting 27
expiration time for SIP server lease 20
F
factory default settings 25
firmware upgrades 29
H
home page 13
http web-based configuration 2
I
illustration of enclosure mounting process 27
installation, typical loudspeaker amplifier system 1
IP address 6, 13, 15, 25
IP addressing 15
J
D
jumpers, settings 7
default
gateway 6, 13, 25
IP address 6, 13, 25
loudspeaker amplifier settings 33
subnet mask 6, 13, 25
username and password 6, 13, 25
web login username and password 13
default gateway 6, 13, 15, 25
default IP settings 13
default login address 13
default loudspeaker amplifier settings 25
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
L
lease, SIP server expiration time 20
LEDs 10
link LED 10
Linux, setting up a TFTP server on 29
local SIP port 20
log in address 13
loudspeaker amplifer configuration page
configurable parameters 17
34
loudspeaker amplifer setup 17
loudspeaker amplifier configuration
default IP settings 13
loudspeaker amplifier configuration page
configurable parameters 14, 15, 20, 22
loudspeaker amplifier operations, verifying 17
loudspeaker, cabling/wiring 9
loudspeaker, type 9
M
mounting an enclosure 27
N
network configuration of loudspeaker amplifier 15
network link activity, verifying 10
Network Setup 15
O
output 3
P
packet time 2
part number 3
parts
#8 sheet metal screws 27
parts list 5
password
changing for web configuration access 17
for SIP server login 20
login 13
restoring the default 6, 13, 25
port
local SIP 20
remote SIP 20
port baud rate 3
power LED 10
power requirement 3
power, connecting to loudspeaker amplifier 8
product
configuring 13
mounting 27
parts list 5
product features 2
product overview
product features 2
product specifications 3
supported protocols 2
supported SIP servers 2
typical system installation 1
product specifications 3
protocols supported 2
R
reboot 23, 25
registration and expiration, SIP server lease 20
remote SIP port 20
reset test function management switch 11
resetting the IP address to the default 27, 31
restoring factory default settings 25, 33
RMA returned materials authorization 31
RTFM switch 11, 25
RTP/AVP 2
S
sensitivity 3
server address, SIP 20
setting up a TFTP server 29
settings, default 25
SIP (session initiation protocol) 2
SIP Configuration 18
SIP configuration
SIP Server 20
SIP registration 20
SIP server 20
SIP servers supported 2
static IP addressing 15
status LED 10
subnet mask 6, 13, 15, 25
supported protocols 2
T
technical support, contact information 31
TFTP server 2, 29
truss head screws 5
U
unregister, from SIP server 20
user ID
for SIP server login 20
user ID, SIP 20
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
username
changing for web configuration access 17
default for web configuration access 13
restoring the default 6, 13, 25
V
verifying
loudspeaker amplifier operations 17
network link and activity 10
power on to loudspeaker amplifer 10
W
warranty 32
web access password 6, 13, 25
web access username 6, 13, 25
web configuration log in address 13
web-based loudspeaker amplifier configuration 13
weight 3
Windows, setting up a TFTP server on 29
35
VoIP Loudspeaker Amplifier Operations Guide 930106A CyberData Corporation
36
CyberData Corporation 930106A VoIP Loudspeaker Amplifier Operations Guide
Loading...
