1 Product Overview

Generic PoE Hub

Server

VoIP Phone

1 23456

VoIP Loudspeaker Amplifiers—AC Required

The Voice-over-IP (VoIP) Loudspeaker Amplifier (AC powered) uses a single cable to connect to existing LANs to broadcast digital audio over your public address system. The small footprint and low height makes this an ideal loudspeaker amplifier to discreetly mount almost anywhere.

1.1 Typical System Installation

Figure 1-1 illustrates how the VoIP Loudspeaker Amplifier (AC Powered) is normally installed as

part of a public address system. Prior

● Create a plan for the locations of your loudspeaker amplifiers.

● Consult local building and electrical code requirements.

to installation, do the following:

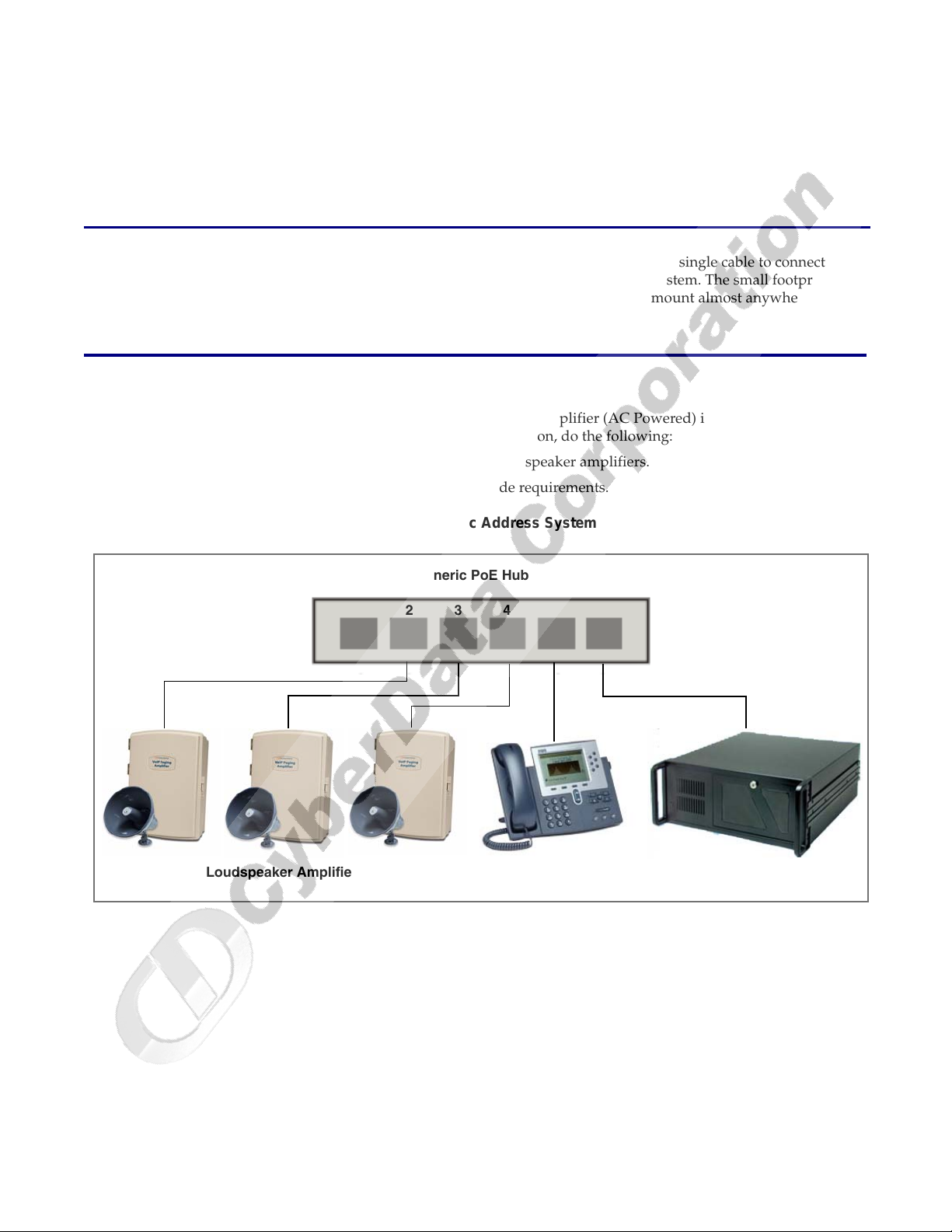

Figure 1-1. Public Address System

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Product Overview

CyberData VoIP Loudspeaker Amplifier Speakers Set in MGROUPS Mode

●

Multicast support

●

SIP (RFC 3261) compatible

●

Dual-Speed 10/100 Mbps

●

Web-based configuration

●

Web-based firmware upgradeable

●

High-efficiency speaker driver

●

PoE (Power-over-Ethernet)

●

8W output under PoE

●

16W max. output (Non-PoE)

●

Supports 8 ohm Horn speakers

●

Moisture-proof NEMA enclosure

Product Features

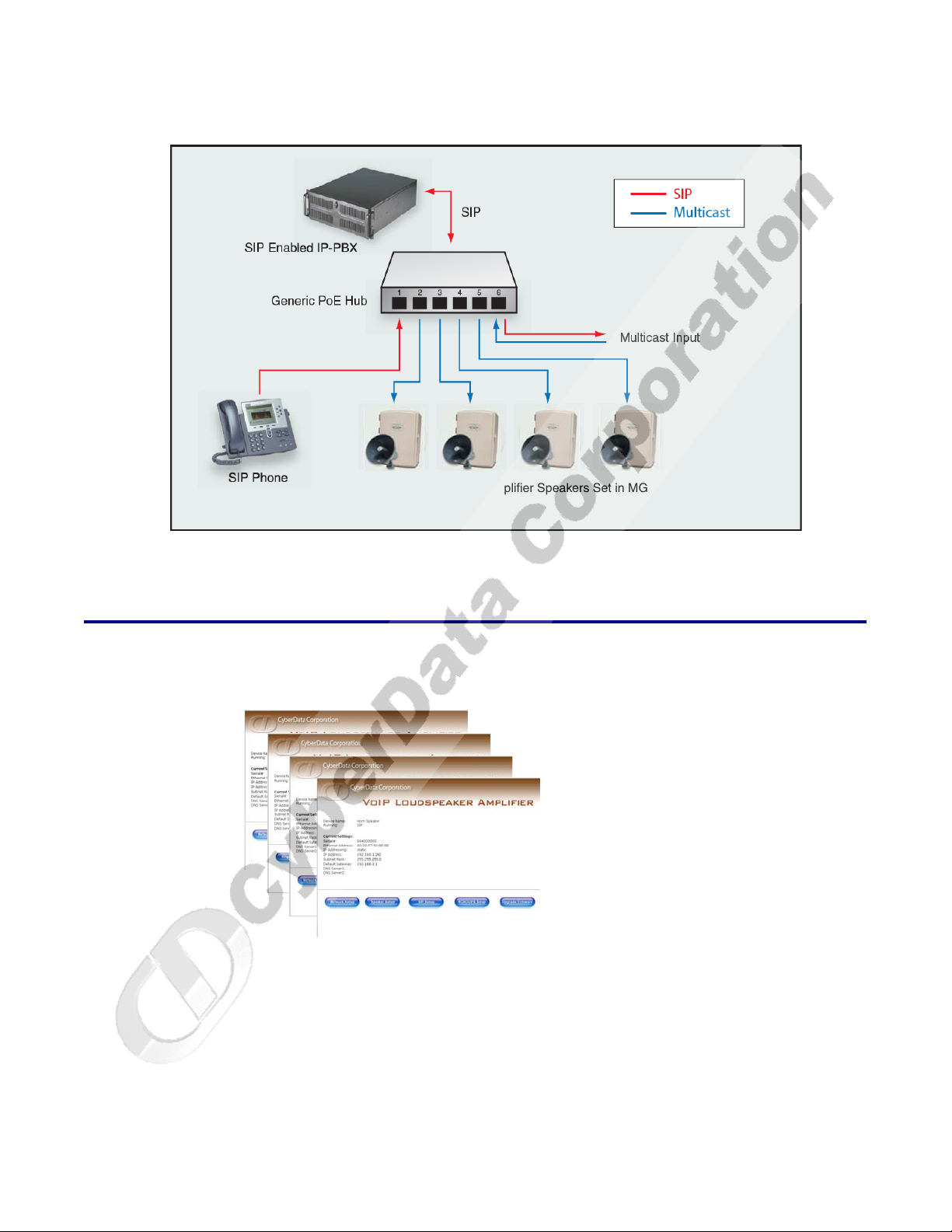

Figure 1-2. Public Address System—Multicast

1.2 Product Features

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

1.3 Supported Protocols

The Loudspeaker Amplifier supports:

● SIP

● Multicast

● HTTP Web-based configuration

Provides an intuitive user interface for easy system loudspeaker amplifier operations.

● DHCP Client

Dynamically assigns IP addresses in addition to the option to use static addressing.

● TFTP Client

Facilitates Web-based firmware upgrades of the

● RTP

● RTP/AVP - Audio Video Profile

● Audio Encodings

PCMU (G.711 mu-law)

PCMA (G.711 A-law)

Packet Time 20 ms

Product Overview

Supported Protocols

configuration and verification of

latest loudspeaker amplifier capabilities.

1.4 Supported SIP Servers

The following link contains information on how to configure the loudspeaker amplifier for the supported SIP servers:

http://www.CyberData.net/support/voip

1.5 Product Specifications

Category Specification

Sensitivity 96dB/1W/1M S.P. Level

Output 8 W PoE/16 W with internal power supply

Port Baud Rate 10/100 Mbps

Power Requirement 802.3af compliant

Protocol SIP RFC 3261

Part Number 010859

Dimensions 14” x 10” x 4”

Weight 4.4 lbs.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Product Overview

Product Specifications

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2 Installing the VoIP Loudspeaker Amplifier

2.1 Parts List

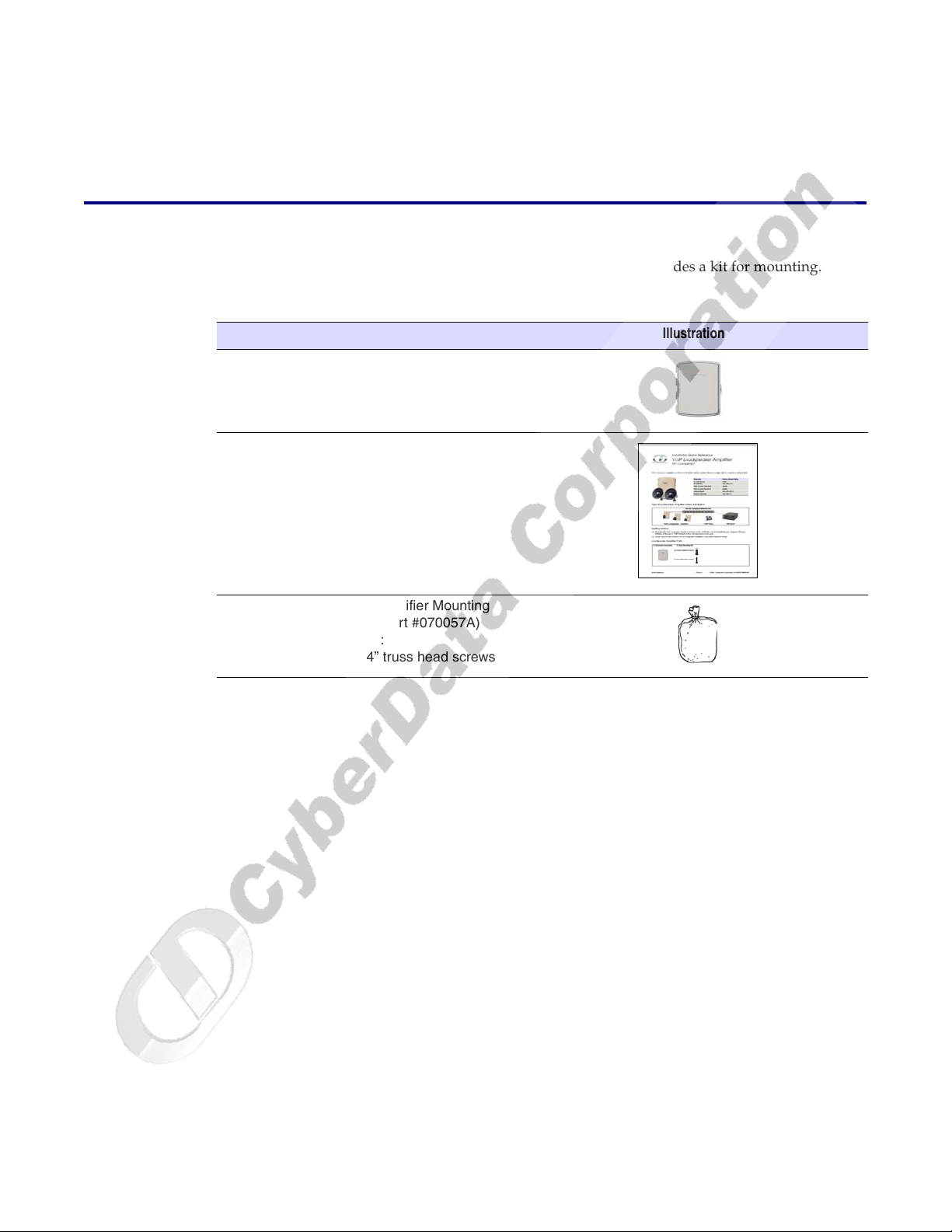

Ta bl e 2-1 illustrates the parts for each loudspeaker amplifier and includes a kit for mounting.

Table 2-1. Parts List

Quantity Par t N ame Illustration

1 Loudspeaker Amplifier Assembly

1 Installation Quick Reference Guide

1 Loudspeaker Amplifier Mounting

Accessory Kit (part #070057A) which includes: 3 x #8 x 1-1/4” truss head screws

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Speaker connection

Ethernet connection

LEDs

RTFM switch

Volu me

AC power

Injector

Audio Out

Loudspeaker Amplifier Setup

2.2 Loudspeaker Amplifier Setup

Set up and configure each loudspeaker amplifier before you mount it.

CyberData delivers each loudspeaker amplifier with the factory def

Table 2-2:

Table 2-2. Factory Default Settings

Parame ter Factory Default Setting

IP Addressing static

IP Address 192.168.3.10

Web Access Username admin

Web Access Password admin

Subnet Mask 255.255.255.0

Default Gateway 192.168.3.1

2.2.1 Loudspeaker Amplifier Components

Figure 2-3 shows the components of the loudspeaker amplifier (AC powered).

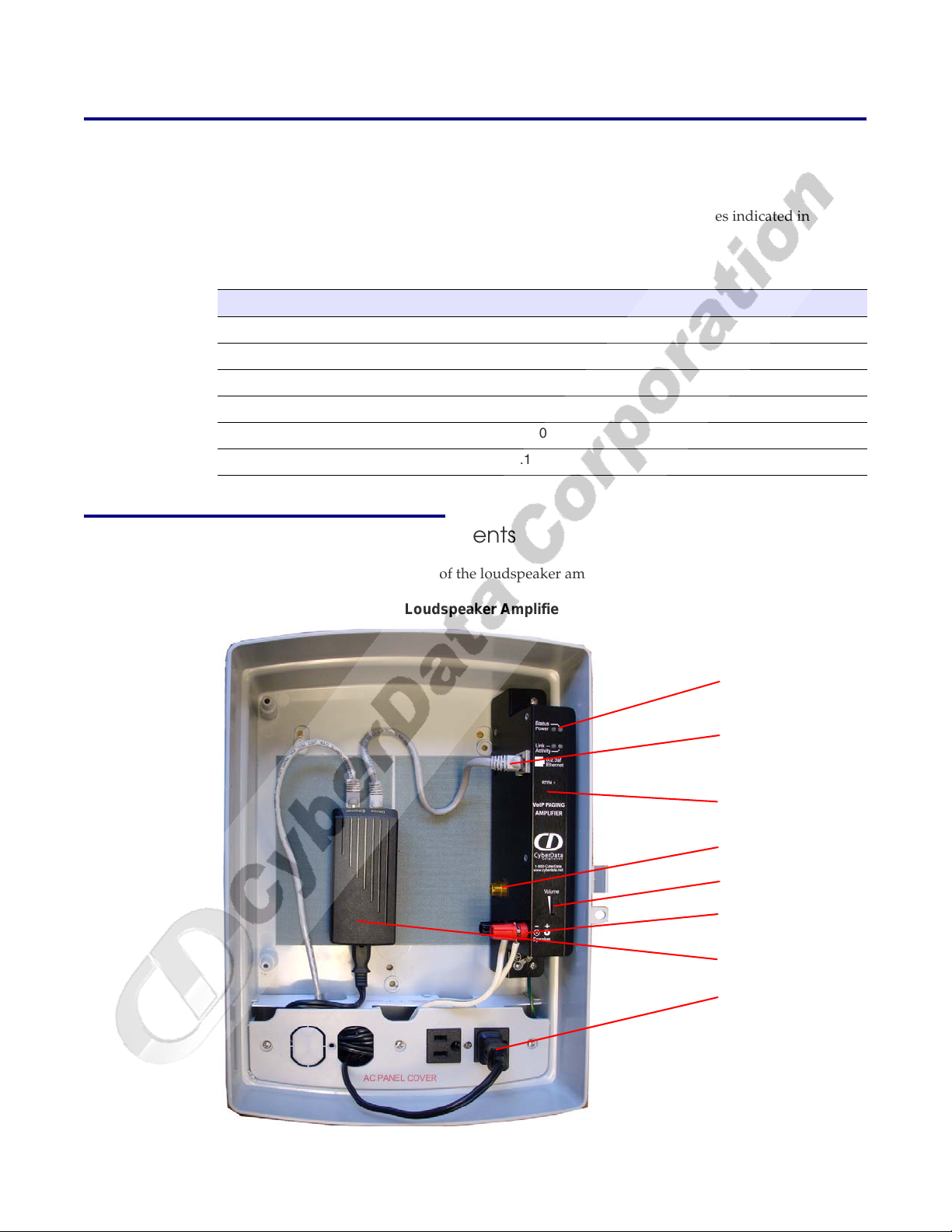

Figure 2-3. Loudspeaker Amplifier Components—AC powered

ault values indicated in

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2.2.2 Loudspeaker Amplifier Jumpers

JP9

JP8

JP7

See Figure 2-4 to identify the jumper and component locations.

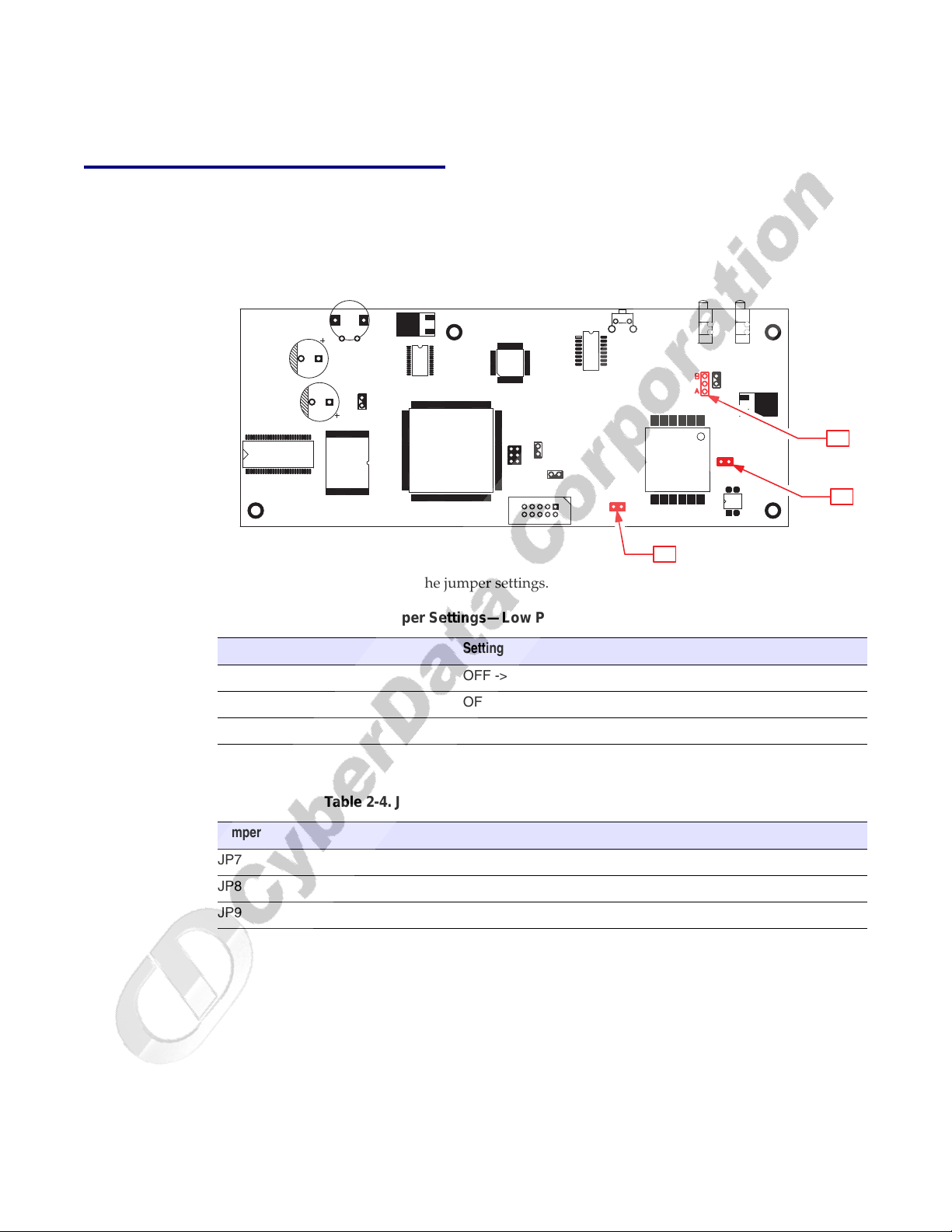

Figure 2-4. Jumper Locations

Installing the VoIP Loudspeaker Amplifier

Loudspeaker Amplifier Setup

See Table 2-3 and Table 2-4 f

or the jumper settings.

Table 2-3. Jumper Settings—Low Power—802.3af Compliant (Default)

Jumper Setting

JP7 OFF -> Low Power (21V)

JP8 OFF -> Low Power (21V)

JP9 Position B -> Low Power

Table 2-4. Jumper Settings—High Power—Non-PoE Compliant

Jumper Setting

JP7 ON -> High Power (21V)

JP8 ON -> High Power (21V)

JP9 Position A -> High Power

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

8 Ohms

AC Input*

Cat 5 Ethernet

Optional 2 Speaker Configuration

Standard 1 Speaker Configuration

Non PoE Hub

*This AC connection needs to be installed by a certified electrician.

Loudspeaker Amplifier Setup

2.2.3 Connect the Loudspeaker Amplifier

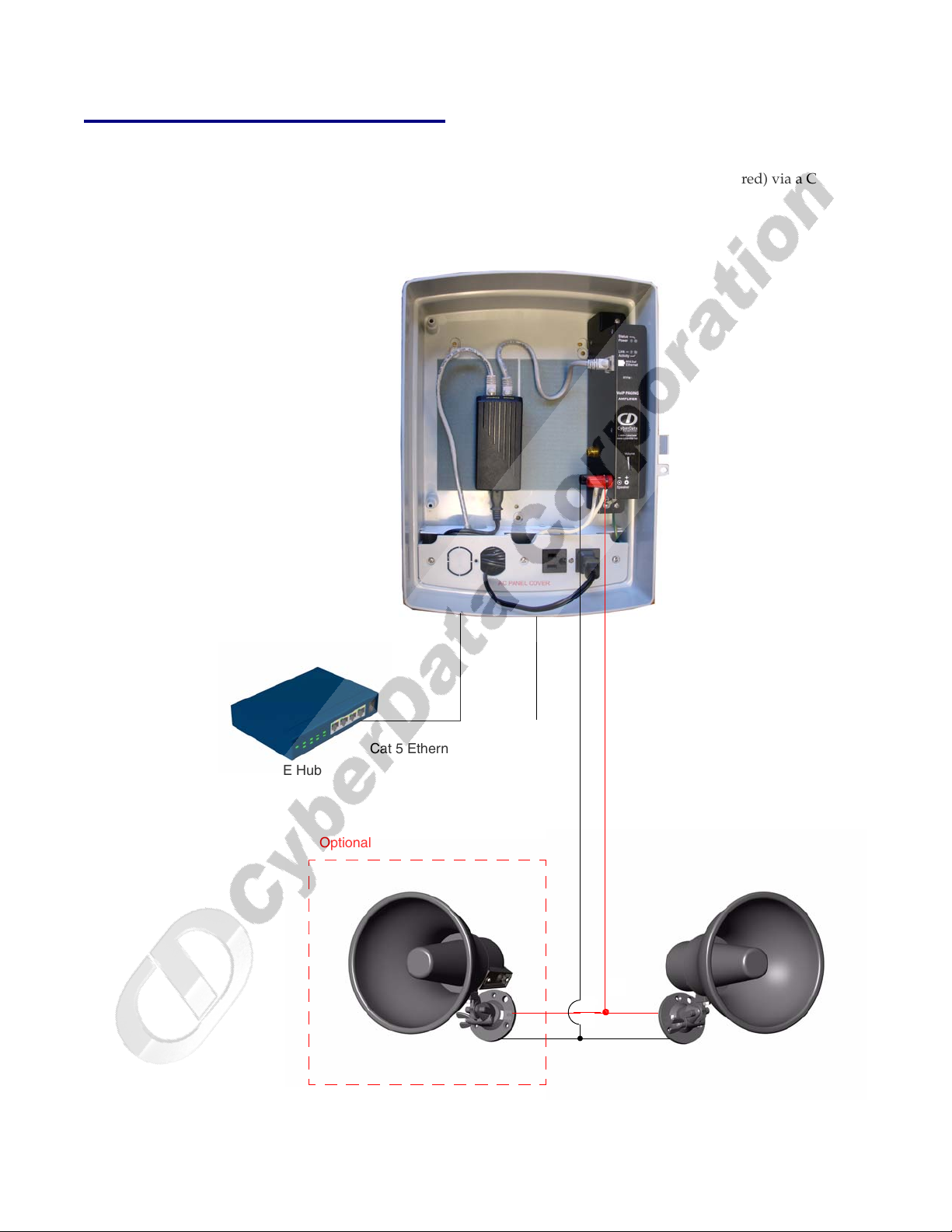

Figure 2-5 illustrates how to connect the VoIP Loudspeaker Amplifier (AC-powered) via a Cat 5

Ethernet Connector.

Figure 2-5. Connect a Loudspeaker

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Installing the VoIP Loudspeaker Amplifier

Loudspeaker Amplifier Setup

See Table 2-5 for details about connecting the loudspeaker amplifier.

Table 2-5. Loudspeaker Amplifier Connections

Connection Connection Details Location

Loudspeaker

Ethernet

a.Prior to installation, consult local building/electrical code requirements.

2.2.3.1 Using the Line Out Output

● Use two binding posts for up to 0.083 inch

diameter loudspeaker wire.

● Use a RJ 45 cable.

● For a phase connection, use a press-down

connector for 14 AWG solid copper wire.

● For a neutral connection, use a press-down

connector for 14 AWG solid copper wire.

● For an earth/ground connection, use a screw-

down connector for 14 AWG solid copper wire.

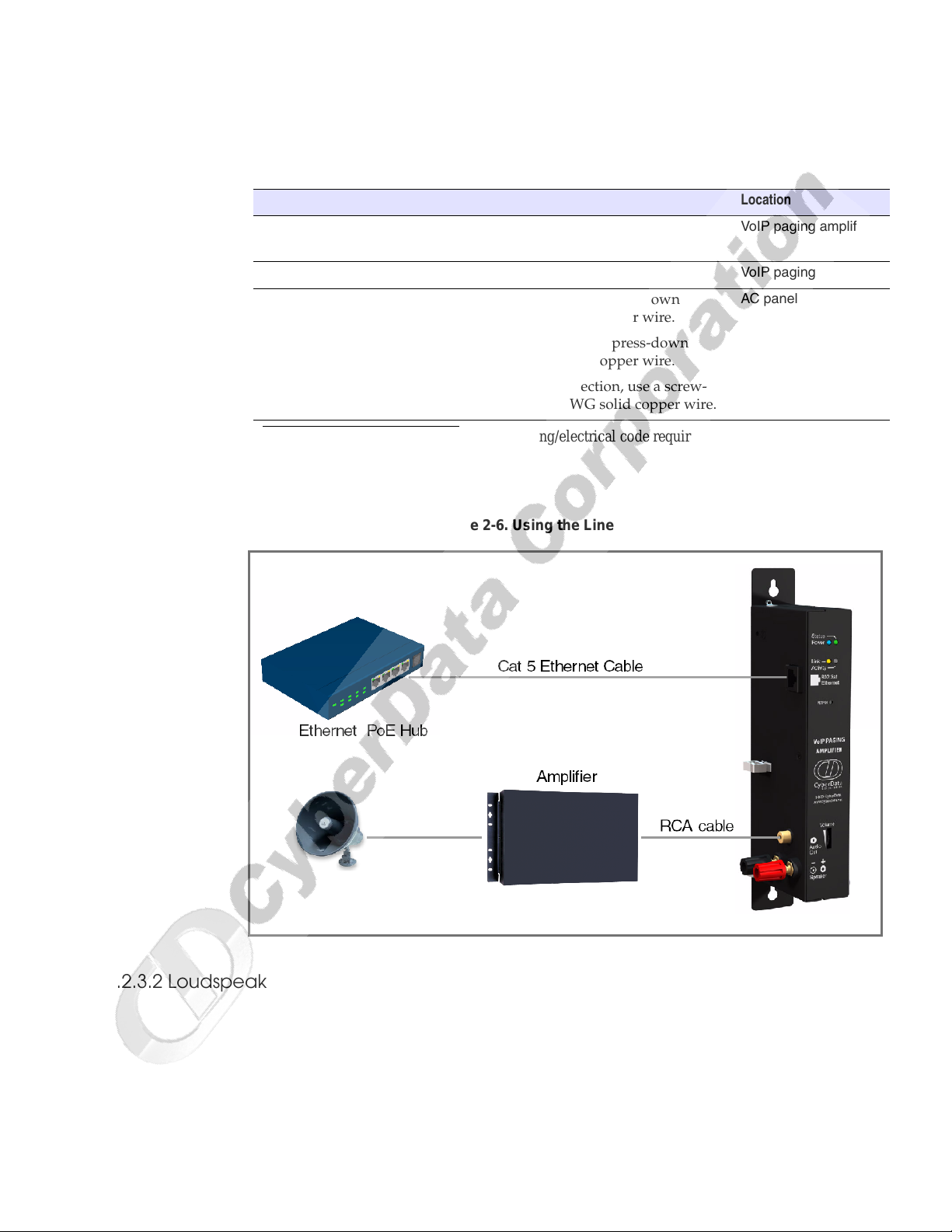

Figure 2-6. Using the Line Out Output

VoIP paging amplifier

AC panel

2.2.3.2 Loudspeaker Type

The CyberData VoIP Loudspeaker Amplifier supports an 8 Ohm Bogen or equivalent unamplified loudspeaker. See Figure 2-7.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Loudspeaker Amplifier Setup

2.2.3.3 Cabling/Wiring

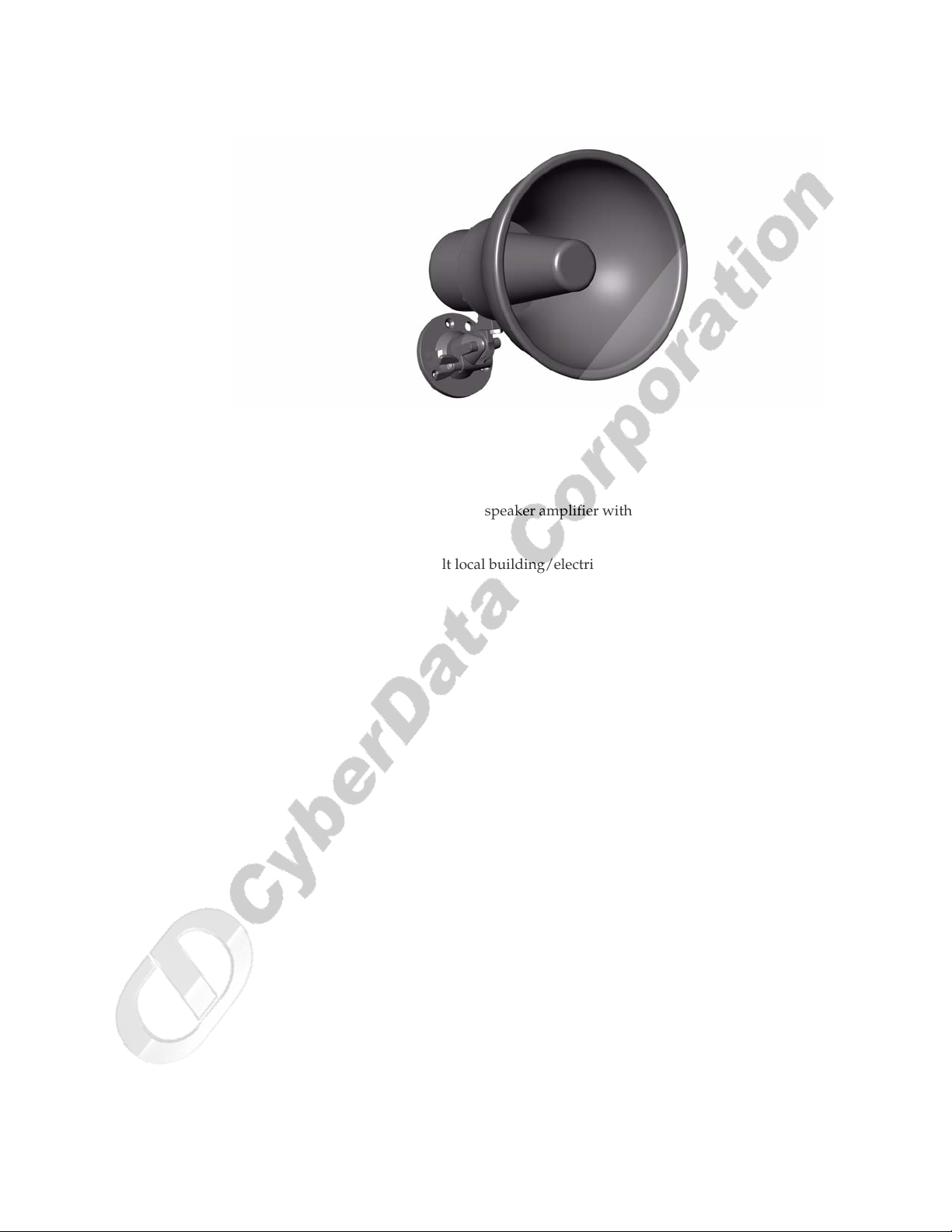

Figure 2-7. Hornspeaker

You may connect a loudspeaker to a loudspeaker amplifier with a good quality speaker cable that is limited to 25 feet in length.

Note Prior to

installation, consult local building/electrical code requirements.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2.2.4 Confirm Operation

Power LED (blue/green)

Link LED (green/yellow)

Status LED (green)

Activity LED (green)

After connecting the loudspeaker amplifier to the 802.3af compliant ethernet hub, use the LEDs on the loudspeaker amplifier face to confirm that the loudspeaker amplifier is operational and linked to the network.

Installing the VoIP Loudspeaker Amplifier

Loudspeaker Amplifier Setup

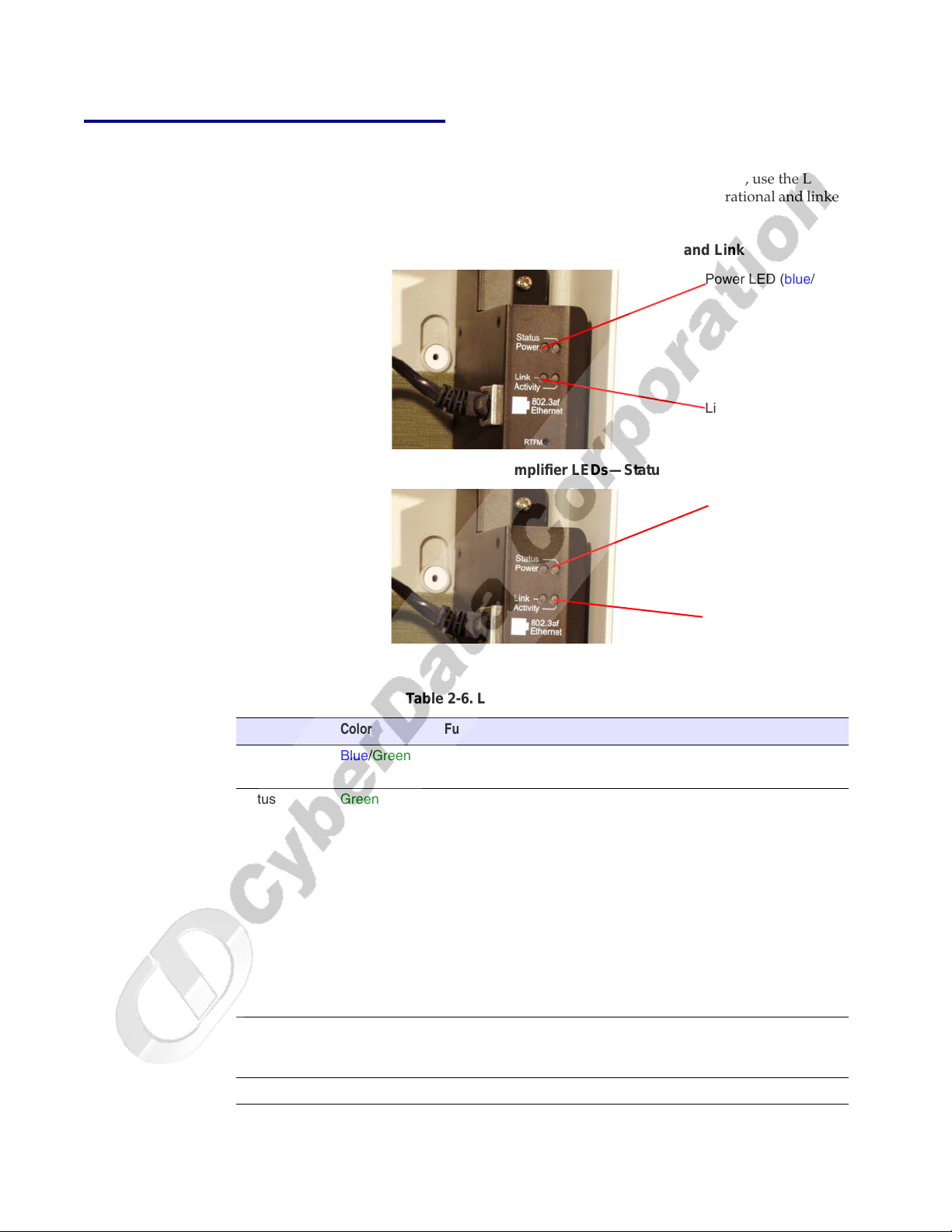

Figure 2-8. Loudspeaker Amplifier LEDs—Power and Link

Figure 2-9. Loudspeaker Amplifie

r LEDs—Status and Activity

Table 2-6. Loudspeaker Amplifier LEDs

LED Color Function

Power Blue/Green The power LED is illuminated a steady blue when the power is

on and blue/green when the amplifier is in the high power mode.

Status Green After supplying power to the loudspeaker amplifier:

1. The gr seconds to indicate the start of the firmware verification and load process.

2. After approximately 15 seconds, the Status LED begins to link at one second intervals to indicate the start of the firmware

b boot process.

3. After approximately 35 seconds, the loudspeaker amplifier

eeps once to indicate that it is operational.

4. The Status LED will continue to blink at one second intervals

to indicate normal operation.

Link Green/Ye

Activity Green The Activity LED blinks to indicate network traffic.

l l o w The Link LED is illuminated green for a 10Mb link or

yellow/green for a 100Mb link when the network link to the

loudspeaker amplifier is established.

een Status LED illuminates after approximately five

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

RTFM switch

Loudspeaker Amplifier Setup

2.2.5 Confirm the IP Address, Test the Audio, and Check the Volume

When the loudspeaker amplifier is operational and linked to the network, use the Reset Test Function Management (RTFM) switch (Figure 2-10) on the loudspeaker amplifier face to announce and confirm the loudspeaker amplifier’s IP Address, volume.

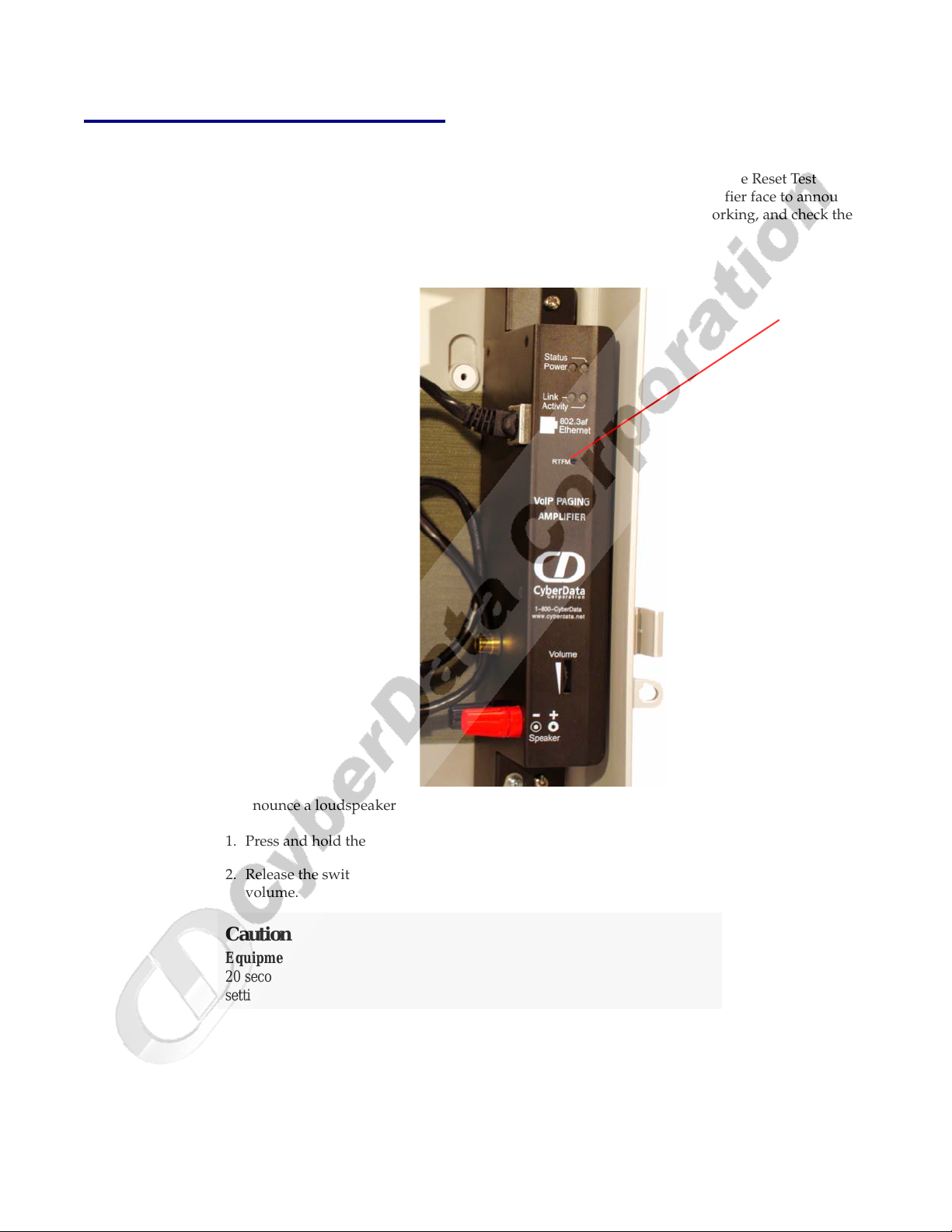

Figure 2-10. RTFM Switch

test that the audio is working, and check the

To announce a loudspeaker amplifier’s current IP address:

1. Press and hold the RT

2. Release the switch to hear the IP address announcement, and volume.

FM switch until it beeps (after one second).

check the loudspeaker amplifier

Caution

Equipment Caution: Pressing and holding the RTFM switch for longer than 20 seconds will restore the loudspeaker amplifier to the factory default settings. See

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Section 2.6, "Restore the Factory Default Settings".

2.2.6 Adjust the Volume

Volume control

To adjust the loudspeaker amplifier volume, turn the Vo l u m e dial (Figure 2-11) on the loudspeaker amplifier face.

Installing the VoIP Loudspeaker Amplifier

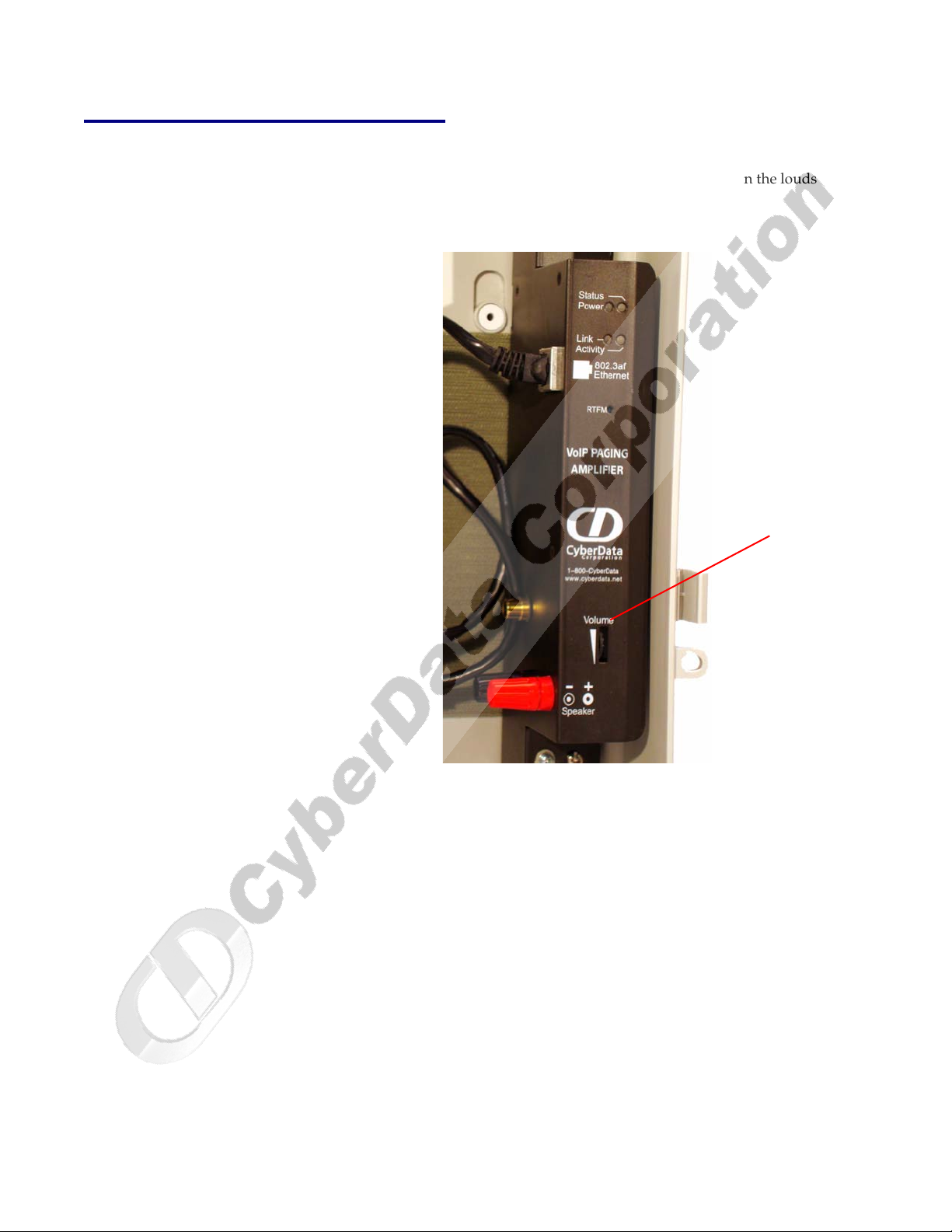

Figure 2-11. Volume Control

Loudspeaker Amplifier Setup

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2.3 Configure the Loudspeaker Amplifier Parameters

To configure the loudspeaker amplifier online, use a standard web browser.

Configure each loudspeaker amplifier ready to mount a loudspeaker amplifier enclosure, refer to instructions.

All loudspeaker amplifiers are initially configure

When configuring more than one loudspeaker amplifier network one at a time to avoid IP address conflicts.

Parameter Factory Default Setting

IP Addressing static

IP Address 192.168.3.10

Web Access Username admin

Web Access Password admin

Subnet Mask 255.255.255.0

Default Gateway 192.168.3.1

and verify its operation before you mount it. When you are

d with the default IP settings indicated in Table 2-7.

Table 2-7. Factory Default Settings

2.3.1 Log in to the Configuration Home Page

Chapter A, “Mounting the Enclosure” for

, attach the loudspeaker amplifiers to the

1. Open your browser to the speaker IP address.

For the initial configuration of the speaker, open

http://192.168.3.10

Note Make sure that the PC

2. When prompted, use the following default W to access the Home Page (Figure 2-12):

Web Access Username: admin

Web Access Password: ad

is on the same IP network as the loudspeaker amplifier.

min

your browser to the default IP address:

eb Access Username and Web Ac c ess Password

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Configure the Loudspeaker Amplifier Parameters

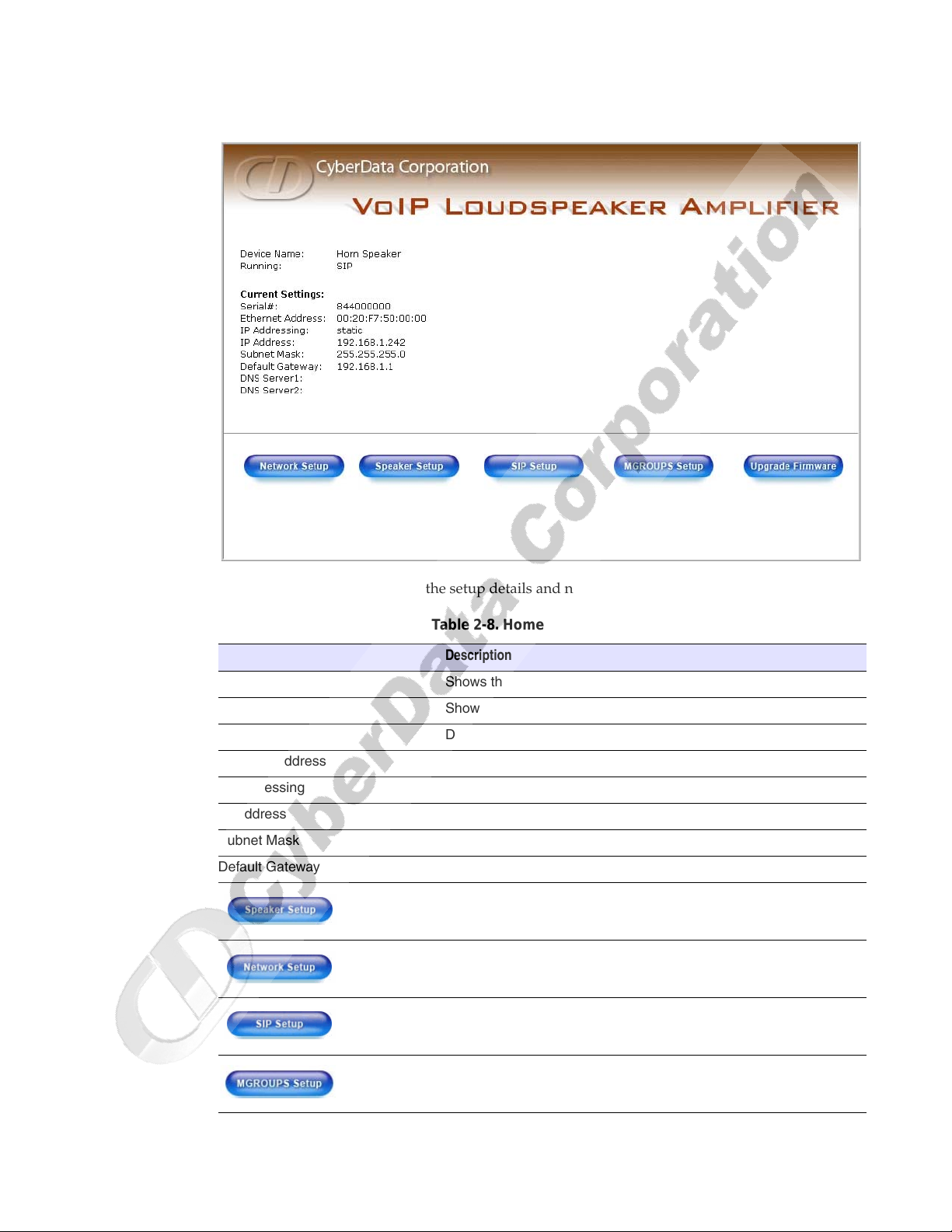

Figure 2-12. Home Page

Installing the VoIP Loudspeaker Amplifier

3. On the Home Page, review the setup details and navigation buttons described in Ta bl e 2-8.

Table 2-8. Home Page Overview

Web Page Item Description

Device Name Shows the device name.

Running Shows the current speaker function.

Serial # Device serial number.

Ethernet Address Device ethernet address.

IP Addressing Shows the current IP addressing setting (DHCP or static).

IP Address Shows the current IP address.

Subnet Mask Shows the current subnet mask address.

Default Gateway Shows the current default gateway address.

Link to the Speaker Setup page.

Link to the Network Setup page.

Link to the SIP Setup page.

Link to the MGROUPS Setup page.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Web Page Item Description

Table 2-8. Home Page Overview (continued)

Link to the Upgrade Firmware web page.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2.3.2 Configure the Network Parameters

1. Click the Network Setup button to open the Network Setup page (Figure 2-13).

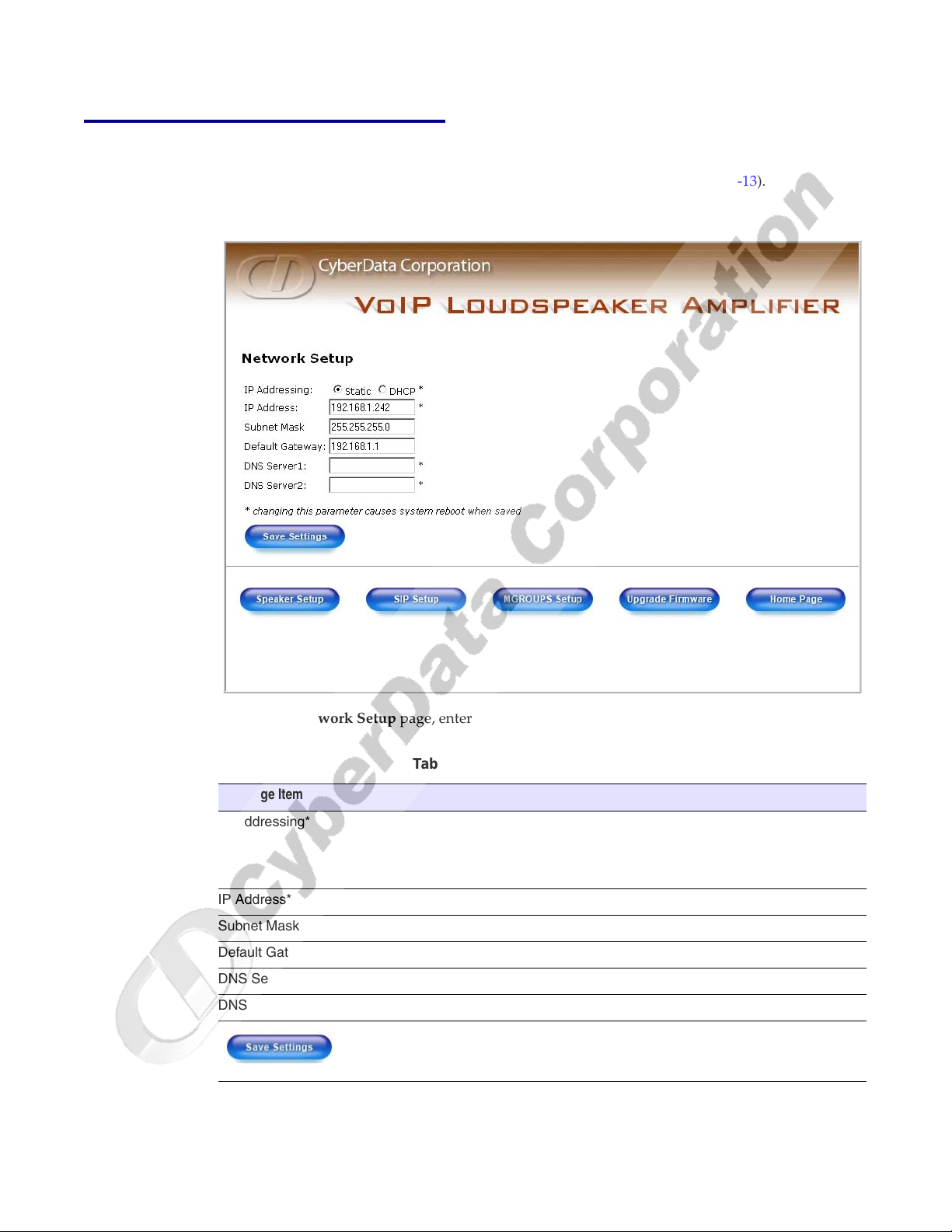

Figure 2-13. Network Setup Page

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Networ

k Setup page, enter values for the parameters indicated in Tab le 2-9.

Table 2-9. Network Setup Parameters

Web Page Item Description

IP Addressing* Select either DHCP IP Addressing or Static IP Addressing by

marking the appropriate radio button. If you select Static, configure the remaining parameters indicated in go to Step 3.

IP Address* Enter the static IP address.

Subnet Mask Enter the Subnet Mask address.

Default Gateway Enter the Default Gateway address.

DNS Server 1* Enter the DNS Server 1 address.

DNS Server 2* Enter the DNS Server 2 address.

Click this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Table 2-9. If you select DHCP,

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Web Page Item Description

3. After changing the parameters, click Save Settings. This updates the changed parameters and reboots the speaker if appropriate.

Table 2-9. Network Setup Parameters (continued)

Link to the Speaker Setup page.

Link to the SIP Setup page.

Link to the MGROUPS Setup page.

Link to the Upgrade Firmware page.

Link to the Home page.

4. Connect the speaker to the target network.

5. From a system on the same network as the speaker the speaker.

, open a browser with the new IP address of

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2.3.3 Set up the Loudspeaker Amplifier

1. Click the Speaker Setup button to open the Speaker Setup page. See Figure 2-14

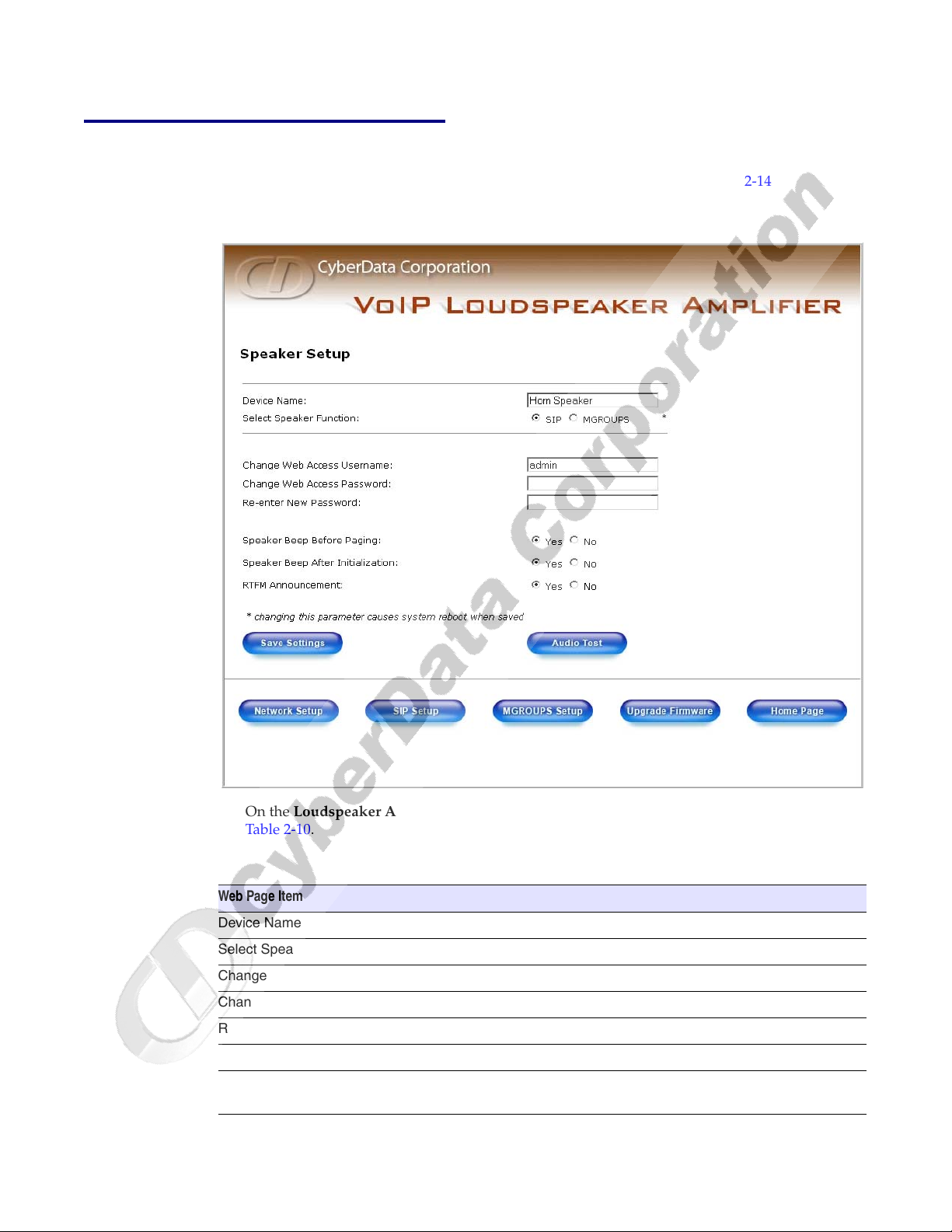

Figure 2-14. Loudspeaker Amplifier Setup

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the Loud

speaker Amplifier Setup page, enter values for the parameters indicated in

Ta bl e 2-10.

Table 2-10. Loudspeaker Amplifier Setup Parameters

Web Page Item Description

Device Name Enter a descriptive name for this device (if desired).

Select Speaker Function Select SIP or MGROUPS.

Change Web Access Username Use this field to change the Web Access Username

Change Web Access Password Use this field to change the Web Access Password

Re-enter New Password Use this field to re-enter a new password

Speaker Tone Before Paging Enable/Disable the speaker tone (beep) before each page.

Speaker Tone After Initialization Enable/Disable the speaker tone (beep)

startup.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

after the system

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

Table 2-10. Loudspeaker Amplifier Setup Parameters (continued)

Web Page Item Description

RTFM Announcement

Enable/Disable the speaker tone (beep) and audio associated with the RTFM switch.

Click on this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved.

Click on this button to do an audio test. Generates a voice message for testing the speaker audio quality and volume.

Link to the Network Setup page.

Link to the SIP Setup page.

Link to the MGROUPS Setup page.

Link to the Upgrade Firmware page.

a.If you select No for RTFM Announcement, you will not hear a beep or associated RTFM audio. However, the return to default settings function remains active. If you wish to return to default settings, hold the RTFM button at least 20 seconds, then release the button.

3. After changing the parameters, click Save Settings.

2.3.4 Configure the SIP Parameters

1. Click SIP Setup to open the SIP Setup page (Figure 2-15).

Note For spec

http://www.CyberData.net/support/voip

ific server configurations, go to the following URL:

Link to the Home Page page.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

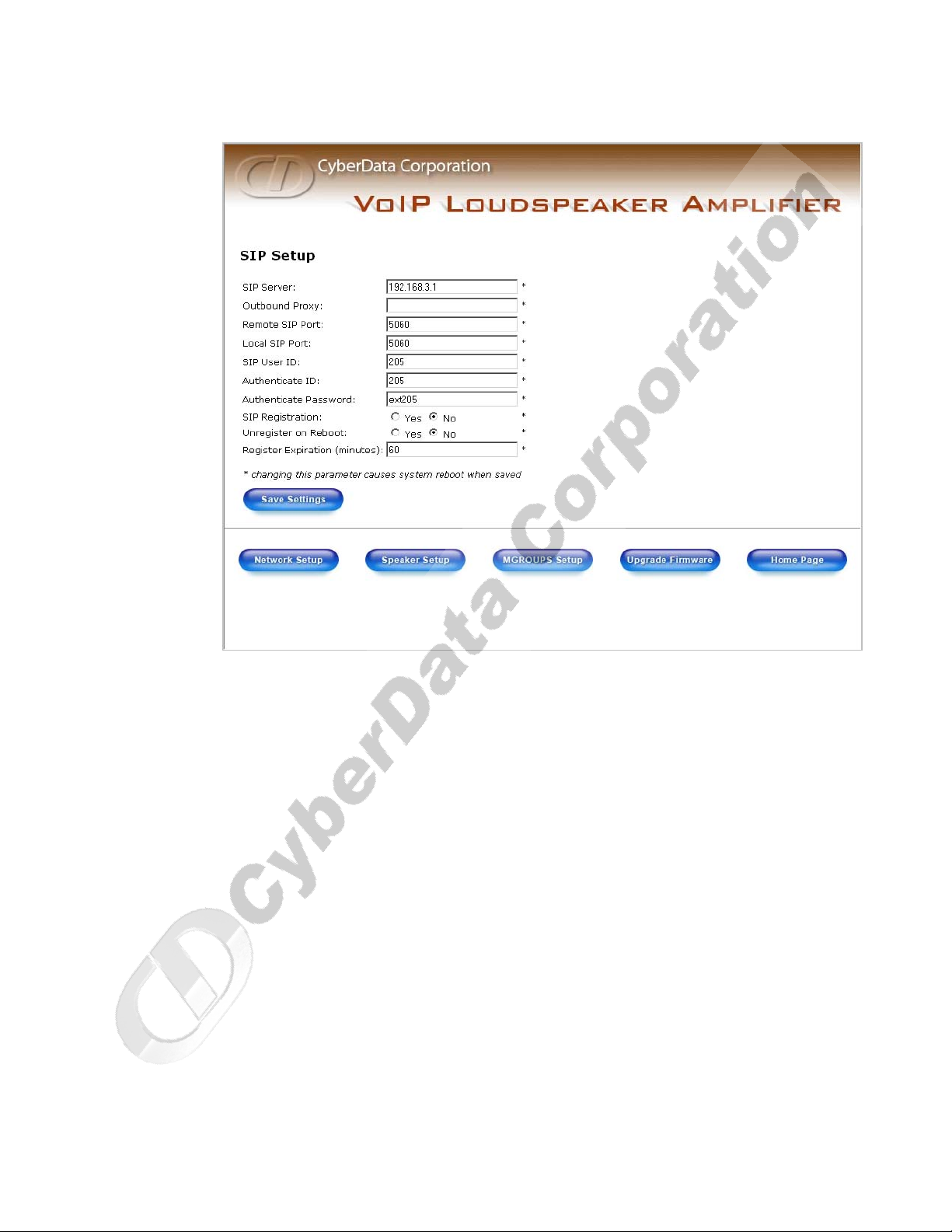

Figure 2-15. SIP Setup Page

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Configure the Loudspeaker Amplifier Parameters

2. On the SIP Setup page, enter values for the parameters indicated in Ta bl e 2-11.

Web Page Item Description

SIP Server* Enter the SIP server represented as either a numeric IP

Outbound Proxy Enter the Outbound Proxy as either a numeric IP address

Remote SIP Port* Enter the Remote SIP Port number (default 5060).

Local SIP Port* Enter the Local SIP Port number (default 5060).

SIP User ID* Enter the SIP User ID (up to 25 alphanumeric characters).

Authenticate ID* Enter the Authenticate ID (up to 25 alphanumeric

Authenticate Password* Enter the Authenticate Password (up to 25 alphanumeric

SIP Registration* Enable/Disable SIP Registration.

Unregister on Reboot* • Select Ye s to automatically unregister the paging

Table 2-11. SIP Setup Parameters

address in dotted decimal notation or the fully qualified host name (FQHN) up to 64 characters.

in dotted decimal notation or the fully qualified host name (FQHN) up to 64 characters.

characters).

amplifier when it is rebooted.

•Select No to keep the paging amplifier registered when it is rebooted.

minutes).

Click this button to save your configuration settings. Changing a parameter that has an asterisk next to it will cause a system reboot when saved.

Link to the Speaker Setup page.

Link to the MGROUPS Setup page.

Link to the Network Setup page.

Link to the Upgrade Firmware page.

Link to the Home page.

3. After changing the parameters, click Save Settings.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2.4 Set up the MGROUPS

MGROUPS uses multicasting to create Public Address Paging Zones. Multicasting is based on the concept of a group. Multicast addresses specify an arbitrary group of IP hosts that have joined the group and want to receive traffic sent to the group. Group members send IGMP messages to their local multicast routers, allowing the group traffic traversal from the source.

Installing the VoIP Loudspeaker Amplifier

Set up the MGROUPS

MGROUPS Setup provides the ability to join up to one, or many, CyberData MGROUPS-enabled speakers. There is no limit to how many speakers can be in a given Paging Zone. Each MGROUP is defined by a multicast address and port number. Each MGROUP is also assigned a priority, allowing simultaneously arriving pages to be serviced based on importance. MGROUPS are compatible with IGMP through version 3.

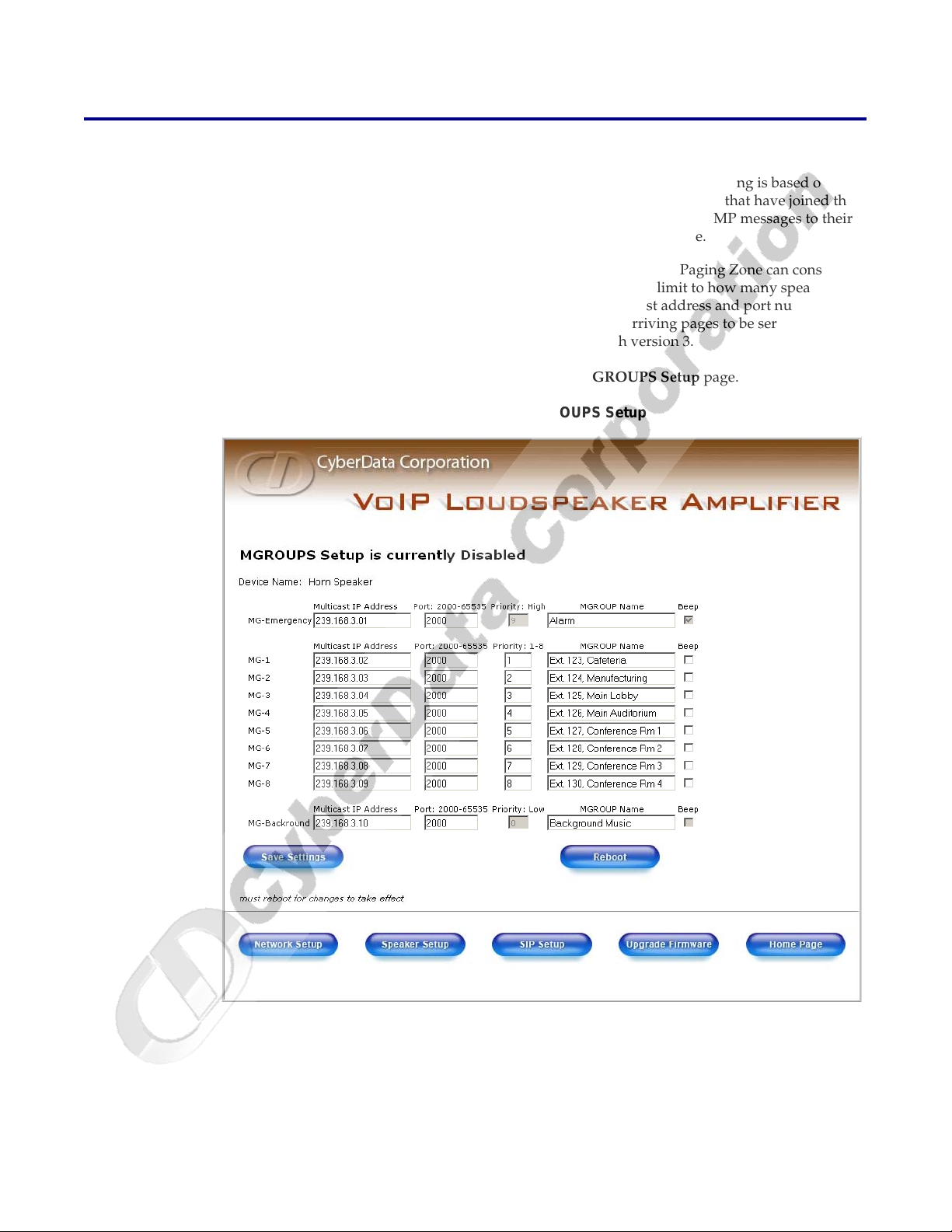

1. Click on the MG

ROUPS Setup button to open the MGROUPS Setup page. See Figure 2-16.

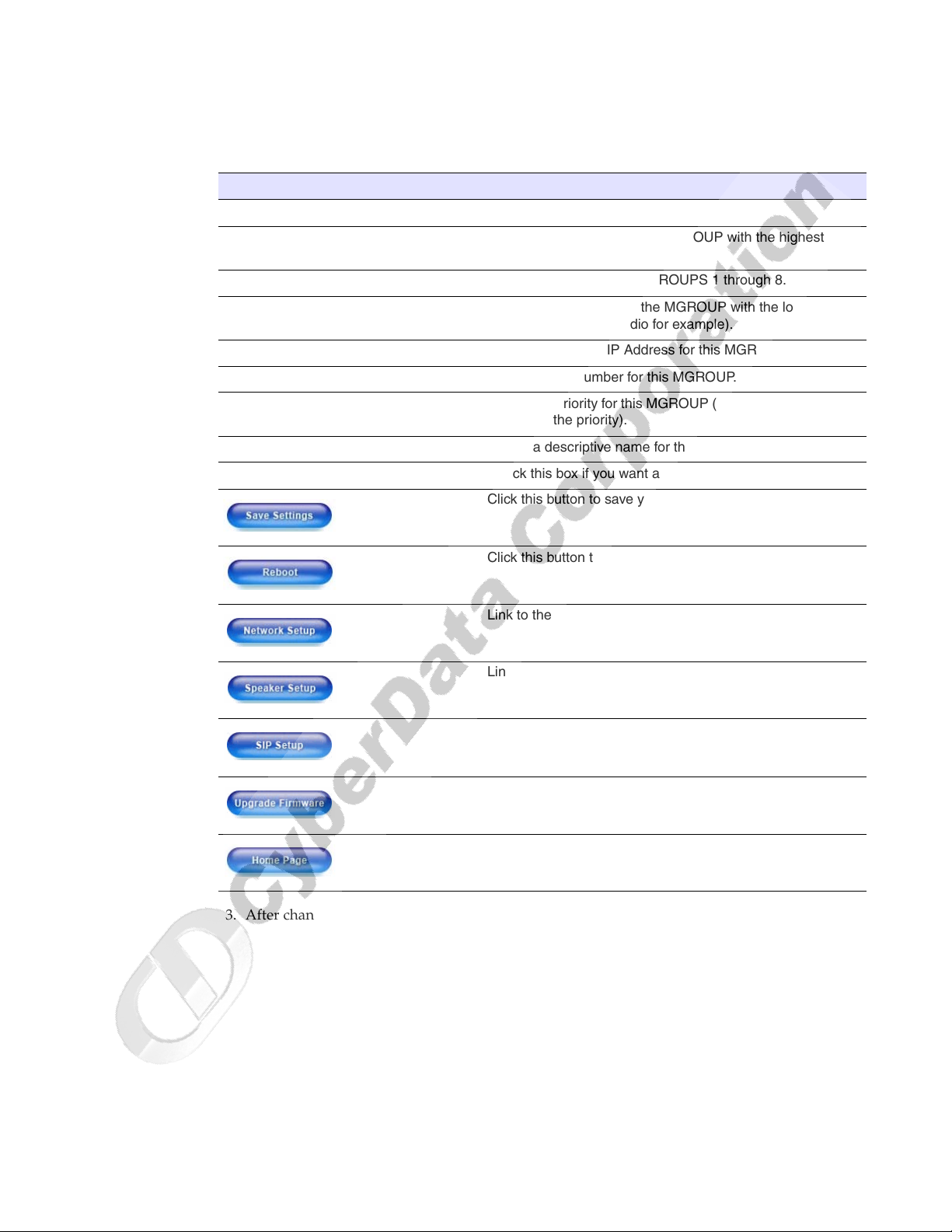

Figure 2-16. MGROUPS Setup

10 Paging Zones. A Paging Zone can consist of

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Set up the MGROUPS

2. On the MGROUPS Setup page, enter values for the parameters indicated in Tab le 2-12.

Web Page Item Description

Device Name Displays the device name.

MG-Emergency Use MG-Emergency for the MGROUP with the highest

MG-(1-8) Use MG-(1-8) to assign MGROUPS 1 through 8.

MG-Background Use MG-Background for the MGROUP with the lowest

Multicast IP Address Enter the multicast IP Address for this MGROUP.

Port 2000-65535 Enter the port number for this MGROUP.

Priority Assign the priority for this MGROUP (the higher the number,

MGROUP Name Assign a descriptive name for this MGROUP.

Beep Check this box if you want a beep to precede a page.

Table 2-12. MGROUPS Setup Parameters

iority.

priority (background audio for example).

her the priority).

the hig

Click this button to save your configuration settings.

Click this button to reboot the system.

Link to the Network Setup page.

Link to the Speaker Setup page.

Link to the SIP Setup page.

Link to the Upgrade Firmware page.

Link to the Home page.

3. After changing the parameters, click Save Sett

ings.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Installing the VoIP Loudspeaker Amplifier

Upgrade the Firmware and Reboot the Loudspeaker Amplifier

2.5 Upgrade the Firmware and Reboot the Loudspeaker Amplifier

To upload the speaker firmware from your PC:

1. Set up a TFTP server.

If you do not already have a TFTP server r

TFTP Server”.

2. Retrieve the latest speaker firmware from the CyberData website:

ww.CyberData.net/support/voip

3. Unzip the speaker version file. This file may contain the following:

• Kernel firmware file: xxx-image-xxx-xxx.bin

• Application firmware file:

• Release notes

xxx-romdisk-xxx-xxx.img

unning on your network, see Chapter B, “Setting up a

4. Copy the firmware files to be upgraded to the

• c:\tftp-root\ (for Windows)

• /tftpboot/ (for Linux)

5. Log in to the speaker home page as instructed in Section 2.3.1, "Log in to the Configuration

Home Page".

6. Click the U

pgrade Firmware button to open the Firmware Upgrade page. See Figure 2-17.

appropriate TFTP server directory:

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Upgrade the Firmware and Reboot the Loudspeaker Amplifier

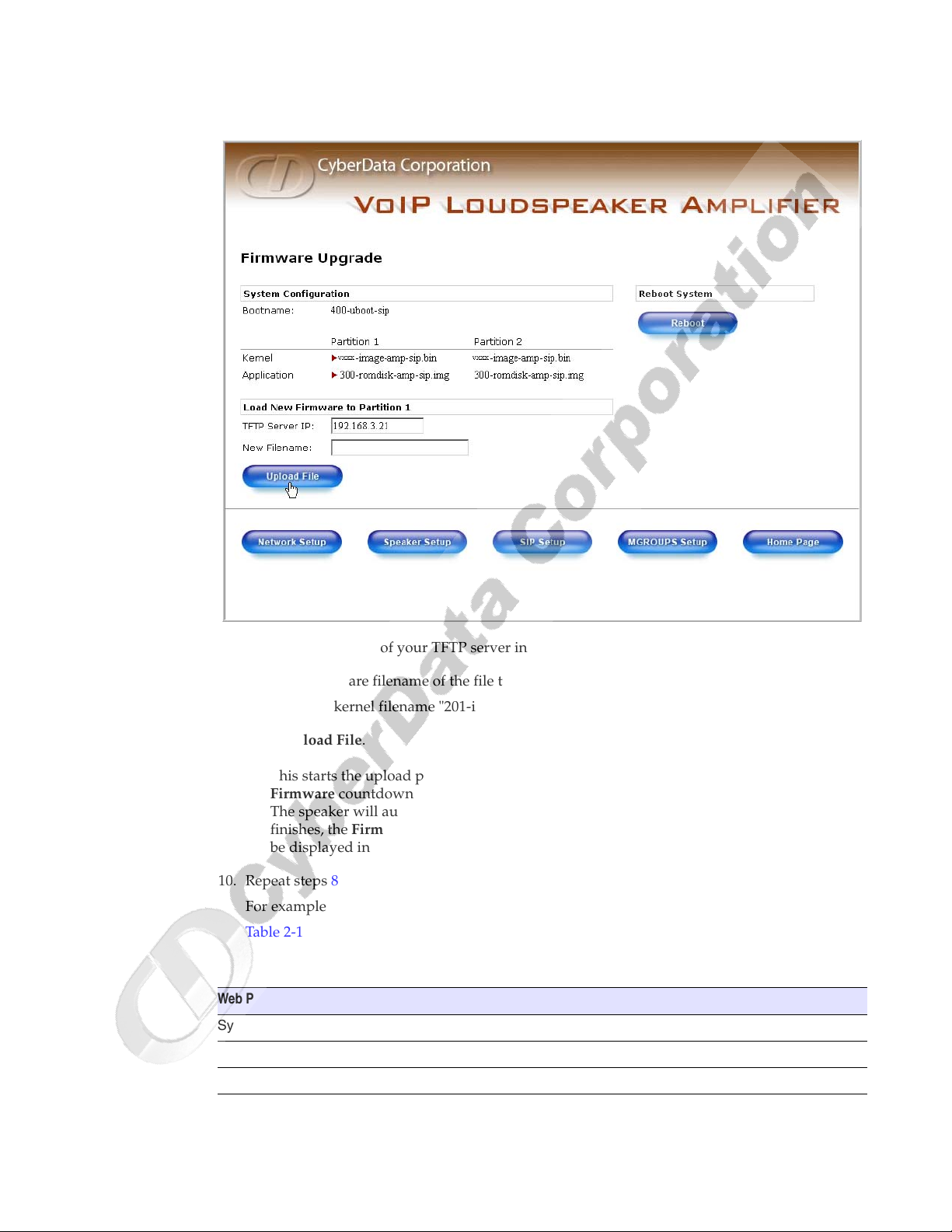

Figure 2-17. Firmware Upgrade Page

7. Enter the IP address of your TFTP server into the TFTP Server IP parameter field.

8. Enter the firmware filename of the file to be uploaded into the New Filen

ame parameter field.

For example, kernel filename "201-image-spk-sip.bin".

9. Click Up

Note This

load File.

starts the upload process. Once the speaker has uploaded the file, the Uploading

Firmware countdown page appears, indicating that the firmware is being written to flash.

The speaker will automatically reboot when the upload is complete. When the countdown finishes, the Firmware Upgrade page will refresh. The uploaded firmware filename should be displayed in the system configuration (indicating successful upload and reboot).

10. Repeat steps 8 and 9 if you are uploading the Kernel and Applic

For example, App

Ta bl e 2-13 sh

lication filename "201-romdisk-spk-sip.img".

ows the web page items on the Firmware Upgrade page.

ation files.

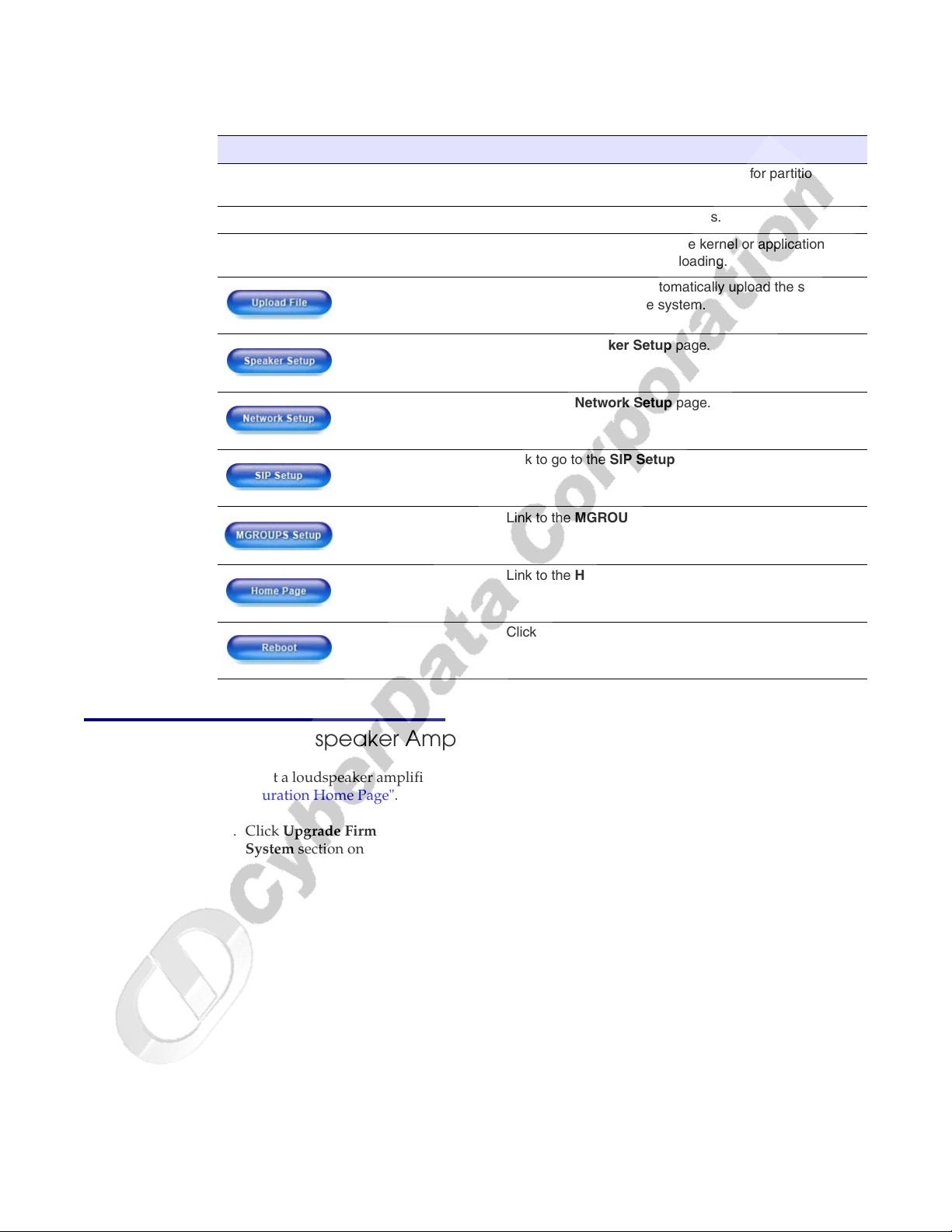

Table 2-13. Firmware Upgrade Parameters

Web Page Item Description

System Configuration Shows the current configuration.

Bootname Shows the current boot loader filename.

Kernel Shows the current kernel filename for partition 1 and 2.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Installing the VoIP Loudspeaker Amplifier

Upgrade the Firmware and Reboot the Loudspeaker Amplifier

Table 2-13. Firmware Upgrade Parameters (continued)

Web Page Item Description

Application Shows the current application filename for partition 1

and 2.

Load new firmware to Partition 1 Enter the TFTP Server IP address.

New Filename Enter the new file name for the kernel or application

rmware file that you are uploading.

Click on this button to automatically upload the selected firmware and reboot the system.

Link to the Speaker Setup page.

Link to the Network Setup page.

Link to go to the SIP Setup page.

2.5.1 Reboot the Loudspeaker Amplifier

To reboot a loudspeaker amplifier, log in to the web page as instructed in Section 2.3.1, "Log in to the

Configuration Home Page".

1. Click U

System section on the right side of

pgrade Firmware to open the Firmware Upgrade page (Figure 2-18). Use the Reboot

the page.

Link to the MGROUPS Setup page.

Link to the Home page.

Click on this button to reboot the system.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Upgrade the Firmware and Reboot the Loudspeaker Amplifier

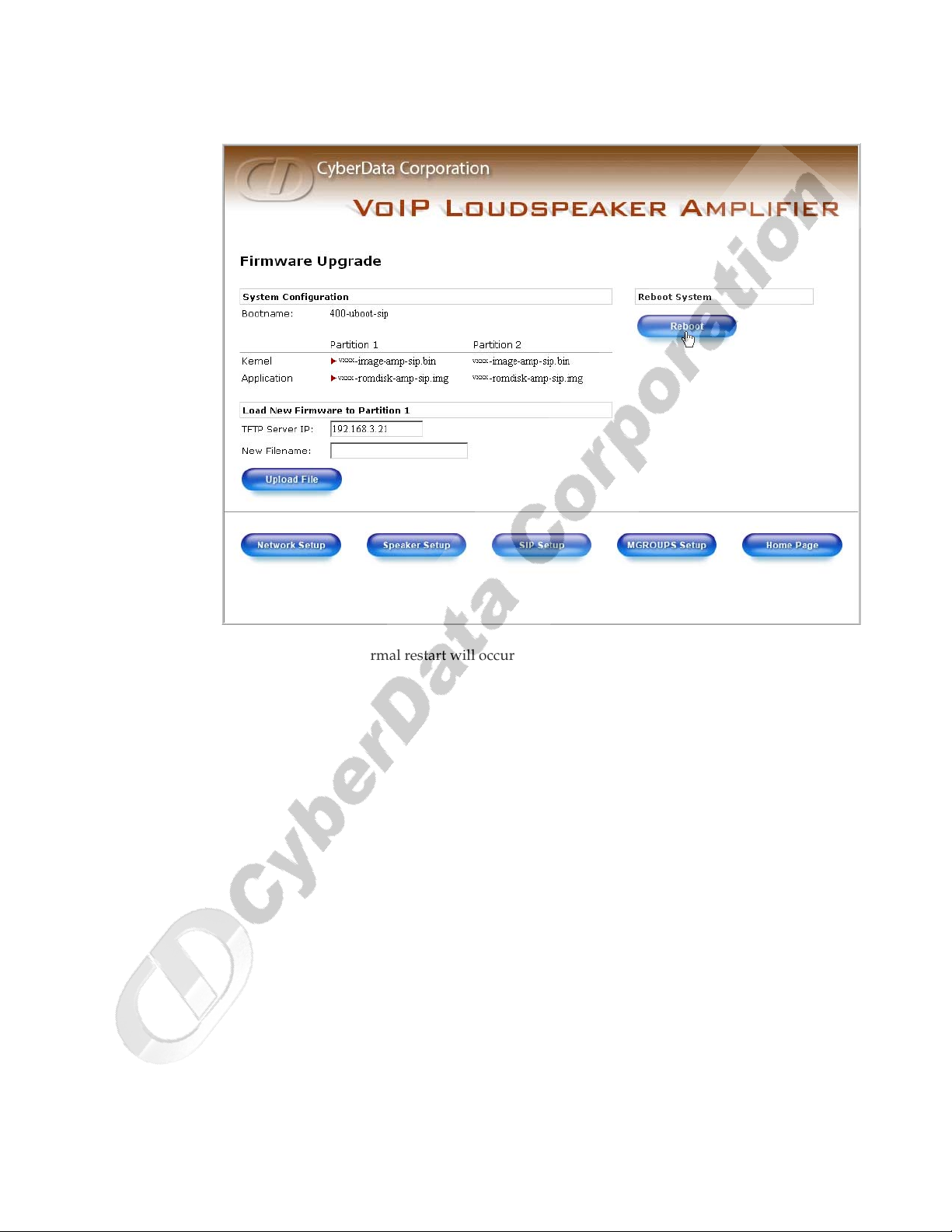

Figure 2-18. Reboot System Section

2. Click Reboot. A normal restart will occur as per the Status LED section of Tab le 2-6.

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

2.6 Restore the Factory Default Settings

When troubleshooting configuration problems, it is sometimes convenient to restore the device to a known state.

Installing the VoIP Loudspeaker Amplifier

Restore the Factory Default Settings

Each loudspeaker amplifier is delivered with factory se in Table 2-14. Use the RT

FM switch on the loudspeaker amplifier face to restore these parameters to

t default values for the parameters indicated

the factory default settings.

When you use the RTFM switch, the factor

y default settings are restored for only the parameters

indicated in Table 2-14. The other parameters in the current loudspeaker amplifier will remain unchanged.

Table 2-14. Factory Default Settings

Parameter Factory Default Setting

IP Addressing static

IP Address 192.168.3.10

Web Access Username admin

Web Access Password admin

Subnet Mask 255.255.255.0

Default Gateway 192.168.3.1

To restore these parameters to the factory default settings:

1. Press and hold the RTFM

2. The loudspeaker amplifier will beep after one sec

switch for 20 seconds.

ond. Continue to hold the switch until the

loudspeaker amplifier beeps again after 20 seconds.

configuration

3. Release the switch. The following occurs:

• A voice message announces that the factory default

• Once the settings are restored, a voice message

settings are being restored.

announces the restored default IP address:

192.168.3.10

• A voice message announces that the loudspeaker amplifier is rebooting.

• The loudspeaker amplifier reboots.

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Installing the VoIP Loudspeaker Amplifier

Restore the Factory Default Settings

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Appendix A: Mounting the Enclosure

A.1 Mount the Enclosure

Before you mount the enclosure, make sure that you have received all of the parts for each enclosure. Refer to Table A-15.

Table A-15. Wall Mounting Components (Part of the Accessory Kit)

Quantity Part Name Illustration

3 #8 Sheet Metal Screws

Note The loudspeaker amplifier

a building will require additional hardware for weatherproofing, cabling access, and lightning suppression. Consult a certified electrician for details.

See Figur

Note Fo

e A-1 to mount the enclosure.

r mounting, use the three #8 SHEET METAL SCREWS to secure the enclosure.

was designed for indoor use. Mounting it on the external part of

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Mount the Enclosure

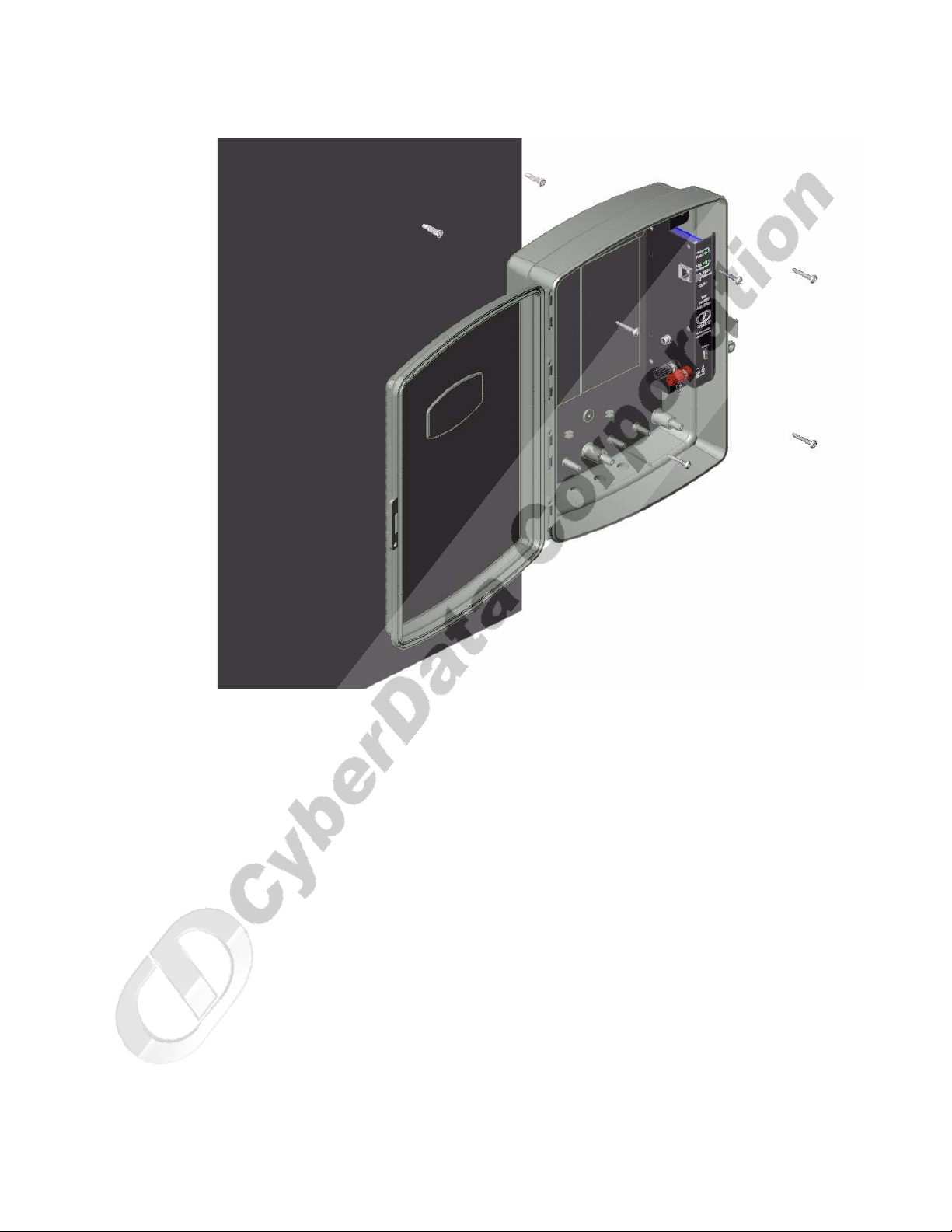

Figure A-1. Loudspeaker Amplifier Enclosure Assembly

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Appendix B: Setting up a TFTP Server

B.1 Set up a TFTP Server

Upgrading the VoIP Loudspeaker Amplifier firmware requires a TFTP server on which you access the Web interface where you can upload the firmware files.

B.1.1 In a LINUX Environment

To set up a TFTP server on LINUX:

1. Create a directory dedicated to the TFTP server, and directory.

2. Run the following command where /tftpboot

Step 1: the directory that contains the files

in.tftpd -l -s /tftpboot/your_direc

B.1.2 In a Windows Environment

You can find several options online for setting up a Windows TFTP server. This example explains how to use the Solarwinds freeware TFTP server, which you can download at:

http://www.CyberData.net/support/voip

To set up a TFTP server on Windows:

1. Install and start the software.

2. Select F

3. Make a note of the default directory name, and then move the firmware files to be uploaded to that

ile/Configure/Security tab/Transmit Only.

directory.

move the files to be uploaded to that

/ is the path to the directory you created in

to be uploaded. For example:

tory_name

4. You can find several options online for setting up a how to use the Solarwinds freeware TFTP server, which you can download at:

http://www.CyberData.net/support/voip

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

Solarwinds server. This example explains

Set up a TFTP Server

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Appendix C: Troubleshooting/Technical Support

C.1 Frequently Asked Questions (FAQ)

Go to the following URL to see CyberData’s list of frequently asked questions:

http://www.CyberData.net/support/voip

C.2 Documentation

The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation at:

www.CyberData.net—>Support—>Drivers, Utilities & Manuals—>VoIP Products

C.3 Contact Information

Contact CyberData Corporation

2555 Garden Road Monterey, CA 93940 USA www.CyberData.net Phone: 800-CYBERDATA (800-292-3732) Fax: 831-373-4193

Sales Sales (831) 373-2601 Extension 334

Technical Support

Returned Ma

terials

Authorization

Phone: 831-373-2601 Extension 333 Email: support@CyberData.net

To return the product, contact the CyberData Returned Materials Authorization (RMA) department at:

Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net

When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside approved RMA number. Send the product, in its original package, to the following address:

of the original shipping package. No product will be accepted for return without an

CyberData Corporation 2555 Garden Road Monterey, CA 93940 Attention: RMA "you

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

r RMA number"

Warranty

C.4 Warranty

CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor.

If the product is out-of-warranty and fails, a price will be assessed. Repair costs for products that are in warranty, but damaged by improper modifications or abuse, will be charged at the out-of-warranty rate. Products returned to CyberData, both in and out-of-warranty, are shipped to CyberData at the expense of the customer. Charges for shipping repaired products back to the customer will be paid by CyberData.

flat rate repair charge of one half the product purchase

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

Index

Symbols

#8 sheet metal screws 31

Numerics

3 x #8 x 1-1/4” truss head screws 5

accessory kit 5 activity LED 11 address, configuration login 14 announcing a loudspeaker amplifier’s IP address 12 asterisk 17, 20 audio encodings 3 audio line out 9

changing

the web access password 19 configurable parameters 15, 17, 19, 22, 26 configuration

default IP settings 14

network 17

SIP 20

using Web interface 14 configuration home page 14 CyberData contact information, c

support, service 35

orporate, sales, tech

default loudspeaker amplifier settings 29 DHCP Client 3 DHCP IP addressing 17 dimensions 3 DNS server 17

electrical code requirements 1 enclosure, mounting 31 expiration time for SIP server lease 22

factory default settings 29 firmware upgrades 33

home page 14 http web-based configuration 3

illustration of enclosure mounting process 31 installation, typical loudspeaker amplifier system 1 IP address IP addressing 17

6, 14, 17, 29

default

gateway 6, 14, 29

IP address 6, 14, 29

loudspeaker amplifier settings 37

subnet mask 6, 14, 29

username and password 6, 14, 29

web login username and password 14 default gateway 6, 14, 17, 29 default IP settings 14 default login address 14

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

jumpers, settings 7

lease, SIP server expiration time 22 LEDs 11 line out output 9 link LED 11 Linux, setting up a TFTP server on 33 local SIP port 22

configurable parameters 19 loudspeaker amplifer setup 19 loudspeaker amplifier configuration

default IP settings 14 loudspeaker amplifier configuration page

configurable parameters 15, 17, 22, 26 loudspeaker amplifier operations, verifying 19 loudspeaker, cabling/wiring 10 loudspeaker, type 9

MGROUP

MG-(1-8) 24

MG-Background 24

MG-Emergency 24

MGROUP Name 24

Multicast IP Address 24 mounting an enclosure 31

network configuration of loudspeaker amplifier 17 network link activity, verifying 11 Network Setup 17

power LED 11 power requirement 3 power, connecting to loudspeaker amplifier 8 product

configuring 14 mounting 31

parts list 5 product features 2 product overview

product features 2

product specifications 3

supported protocols 3

supported SIP serv

typical system installation product specifications 3 protocols supported 3

ers 3

reboot 27, 29 registration and expiration, SIP server lease 22 remote SIP port 22 reset test function management switch 12 resetting the IP address to the default 31, 35 restoring factory default settings 29, 37 RMA returned materials authorization 35 RTFM switch 12, 29 RTP/AVP 3

outbound proxy 22 output 3

packet time 3 part number 3 parts

#8 sheet metal screws 31 parts list 5 password

changing for web configuration access 19

for SIP server login 22

restoring the default 6, 14, 29 port

local SIP 22

remote SIP 22 port baud rate 3

sensitivity 3 server address, SIP 22 setting up a TFTP server 33 settings, default 29 SIP (session initiation protocol) 3 SIP Configuration 20 SIP configuration

SIP Server 22 SIP registration 22 SIP server 22

SIP servers supported 3 static IP addressing 17 status LED 11 subnet mask 6, 14, 17, 29 supported protocols 3

technical support, contact information 35 TFTP server 3, 33

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

truss head screws 5

unregister, from SIP server 22 user ID

for SIP server login 22 user ID, SIP 22 username

changing for web configuration access 19

default for web configuration access 14

restoring the default 6, 14, 29

verifying

loudspeaker amplifier operations 19

network link and activity 11

power on to loudspeaker amplifer 11

warranty 36 web access password 6, 14, 29 web access username 6, 14, 29 web configuration log in address 14 web-based loudspeaker amp weight 3 Windows, setting up a TFTP server on 33 wiring 1 wiring, electrical code 9, 10

lifier configuration 14

VoIP Loudspeaker Amplifier Operations Guide 930111F CyberData Corporation

CyberData Corporation 930111F VoIP Loudspeaker Amplifier Operations Guide

CyberData 010859 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

1 Product Overview

1.1 Typical System Installation

1.2 Product Features

1.3 Supported Protocols

1.4 Supported SIP Servers

1.5 Product Specifications

2 Installing the VoIP Loudspeaker Amplifier

2.1 Parts List

2.2 Loudspeaker Amplifier Setup

2.2.1 Loudspeaker Amplifier Components

2.2.2 Loudspeaker Amplifier Jumpers

2.2.3 Connect the Loudspeaker Amplifier

2.2.3.1 Using the Line Out Output

2.2.3.2 Loudspeaker Type

2.2.3.3 Cabling/Wiring

2.2.4 Confirm Operation

2.2.5 Confirm the IP Address, Test the Audio, and Check the Volume

2.2.6 Adjust the Volume

2.3 Configure the Loudspeaker Amplifier Parameters

2.3.1 Log in to the Configuration Home Page

2.3.2 Configure the Network Parameters

2.3.3 Set up the Loudspeaker Amplifier

2.3.4 Configure the SIP Parameters

2.4 Set up the MGROUPS

2.5 Upgrade the Firmware and Reboot the Loudspeaker Amplifier

2.5.1 Reboot the Loudspeaker Amplifier

2.6 Restore the Factory Default Settings

Appendix A: Mounting the Enclosure

A.1 Mount the Enclosure

Appendix B: Setting up a TFTP Server

B.1 Set up a TFTP Server

B.1.1 In a LINUX Environment

B.1.2 In a Windows Environment

Appendix C: Troubleshooting/Technical Support

C.1 Frequently Asked Questions (FAQ)

C.2 Documentation

C.3 Contact Information

Contact CyberData Corporation

Sales Sales (831) 373-2601 Extension 334

Technical Support

C.4 Warranty

Index
