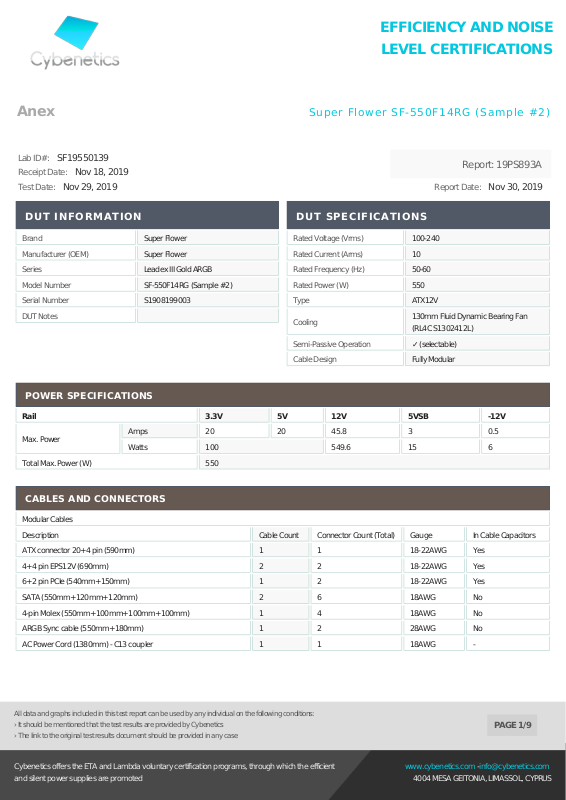

Page 1
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
Lab ID#: SF19550139 Receipt Date: Nov 18, 2019
Super Flower SF-550F14RG (Sample #2)
Report: 19PS893A
Test Date: Nov 29, 2019 Report Date: Nov 30, 2019
DUT INFORMATION
Brand Super Flower Manufacturer (OEM) Super Flower Series Leadex III Gold ARGB Model Number SF-550F14RG (Sample #2) Serial Number S1908199003 DUT Notes
DUT SPECIFICATIONS
Rated Voltage (Vrms) 100-240 Rated Current (Arms) 10 Rated Frequency (Hz) 50-60 Rated Power (W) 550 Type ATX12V
Cooling
Semi-Passive Operation ✓ (selectable) Cable Design Fully Modular
130mm Fluid Dynamic Bearing Fan (RL4C S1302412L)
POWER SPECIFICATIONS
Rail 3.3V 5V 12V 5VSB -12V
Max. Power
Total Max. Power (W) 550
Amps 20 20 45.8 3 0.5 Watts 100 549.6 15 6
CABLES AND CONNECTORS
Modular Cables Description Cable Count Connector Count (Total) Gauge In Cable Capacitors ATX connector 20+4 pin (590mm) 1 1 18-22AWG Yes 4+4 pin EPS12V (690mm) 2 2 18-22AWG Yes 6+2 pin PCIe (540mm+150mm) 1 2 18-22AWG Yes SATA (550mm+120mm+120mm) 2 6 18AWG No 4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No ARGB Sync cable (550mm+180mm) 1 2 28AWG No AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 1/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS
Page 2
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
Super Flower SF-550F14RG (Sample #2)
General Data
Manufacturer (OEM) Super Flower Platform Model Leadex III PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 2x X caps, 2x CM chokes, 1x MOV Inrush Protection NTC Thermistor & Relay Bridge Rectifier(s) 1x APFC MOSFETS 2x InfineonIPA50R280CE(550V, 11.4A @ 100°C, 0.28Ohm) & 1xSPN5003FET (for reduced no-load consumption) APFC Boost Diode 1x STMicroelectronicsSTTH8R06D(600V, 8A @ 130°C) Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2,000h @ 105°C,KMQ) Main Switchers 2x InfineonIPA50R199CP(550V, 11A @ 100°C, 0.199Ohm) APFC Controller SF29603 & S9602 Resonant Controllers SF29605
Topology
Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x InfineonIPP041N04N(40V, 80A @ 100°C, 4.1mOhm)
5V & 3.3V
Filtering Capacitors
Supervisor IC SF29603 &LM339A Fan controller STMicroelectronics STM8S003F3 Fan Model Globe Fan S1302412L (130mm, 12V, 0.25A, Fluid Dynamic Bearing Fan)
DC-DC Converters:4x Alpha & OmegaAON6516(30V, 25A @ 100°C, 8mOhm @ 125°C) PWM Controllers: 2x ON SemiconductorNCP1587A
Electrolytics: 6x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 9x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nippon Chemi­Con(1-2,000h @ 105°C,KMG), 6x Nichicon (1,000h @ 105°C, RZ) Polymers: 5x FPCAP, 2x United Chemi-Con, 2x Jamicon
5VSB Circuit
Rectifier 1x PFC PFR20L60CT SBR (60V, 20A) Standby PWM Controller SF29604
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 2/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS
Page 3
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
Super Flower SF-550F14RG (Sample #2)
RESULTS
Temperature Range (°C /°F) 30-32 / 86-89.6 Average Efficiency 89.229 Efficiency With 10W (≤500W) or 2% (>500W) Load -115V 68.252 Average Efficiency 5VSB 80.662 Standby Power Consumption (W) -115V 0.0427734 Standby Power Consumption (W) -230V 0.0675512 Average PF 0.987 ErP Lot 3/6 Ready ✓ (EU) No 617/2013 Compliance ✓ Avg Noise Output 19.35 Efficiency Rating (ETA) ETA-A Noise Rating (LAMBDA) LAMBDA-A+
TEST EQUIPMENT
Chroma 63601-5 x4
Electronic Loads
AC Sources Chroma 6530, Keysight AC6804B Power Analyzers N4L PPA1530 x2 Sound Analyzer Bruel & Kjaer 2270 G4 Microphone Bruel & Kjaer Type 4955-A Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2 Tachometer UNI-T UT372 x2 Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD UPS CyberPower OLS3000E 3kVA x2 Transformer 3kVA x2
Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
PAGE 3/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS

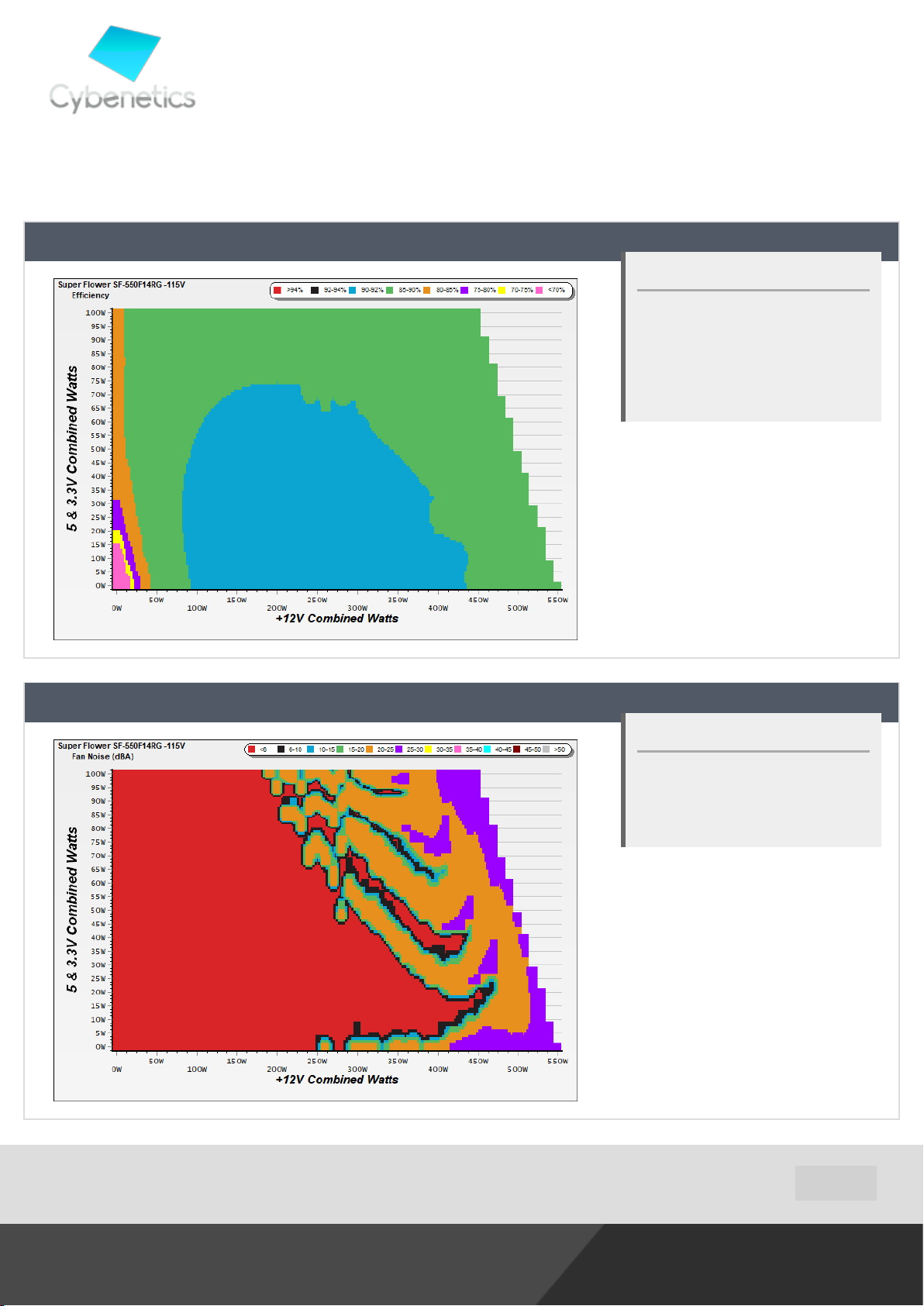

Page 4
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
EFFICIENCY GRAPH
Super Flower SF-550F14RG (Sample #2)
INFO
This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
NOISE GRAPH
INFO
The PSU’s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 4/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS

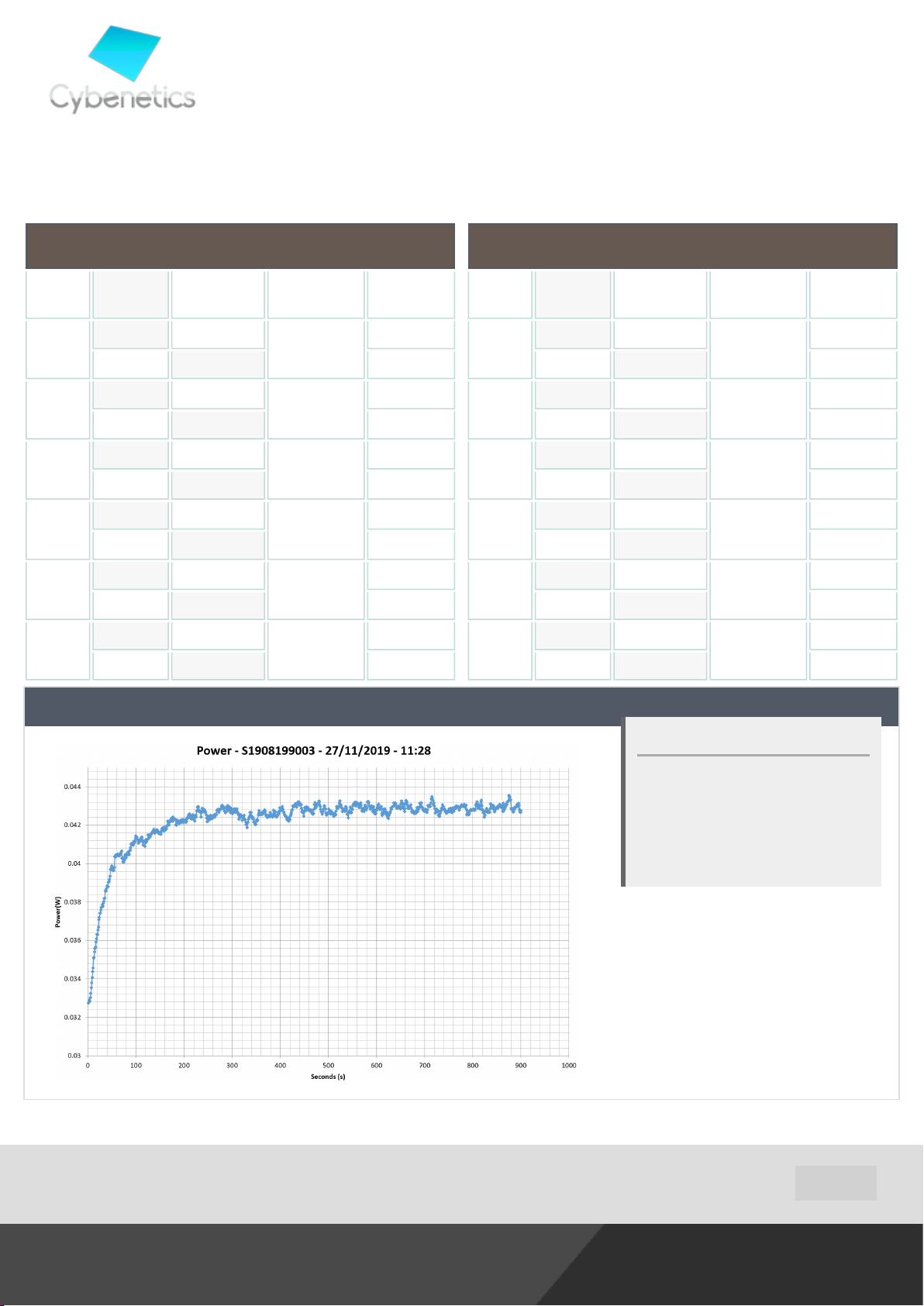

Page 5
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.231
1
5.128V 0.322 115.16V
0.090A 0.461
2
5.127V 0.603 115.16V
0.550A 2.815
3
5.117V 3.508 115.14V
1.000A 5.108
4
5.108V 6.305 115.14V
1.500A 7.645
5
5.096V 9.414 115.14V
DC/AC (Watts)
Efficiency PF/AC Volts
71.739%
76.451%
80.245%
81.015%
81.209%
0.038
0.070
0.286
0.366
0.410
Super Flower SF-550F14RG (Sample #2)
5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.231
1
5.127V 0.352 230.37V
0.090A 0.461
2
5.127V 0.642 230.39V
0.550A 2.815
3
5.117V 3.596 230.37V
1.000A 5.108
4
5.107V 6.411 230.37V
1.500A 7.644
5
5.095V 9.533 230.38V
DC/AC (Watts)
Efficiency PF/AC Volts
0.013
65.625%
0.023
71.807%
0.118
78.281%
0.190
79.676%
0.246
80.185%
6
3.000A 15.169
5.057V 18.990 115.14V
VAMPIRE POWER -115V
79.879%
0.467
6
3.000A 15.181
80.866%
5.061V 18.773 230.37V
0.336
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 5/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS

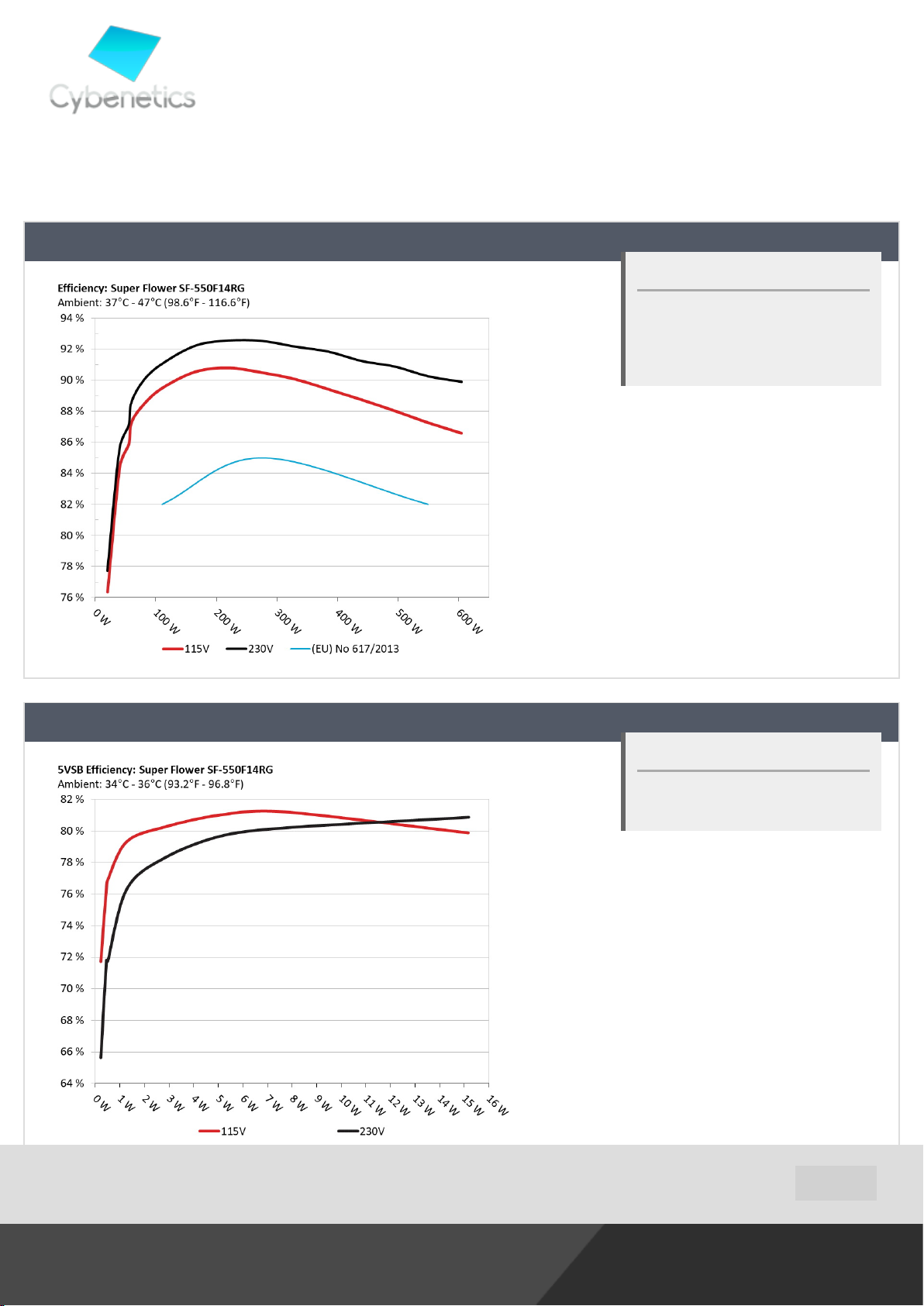

Page 6
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE
Super Flower SF-550F14RG (Sample #2)
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB EFFICIENCY
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
PAGE 6/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS
Page 7
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
10-110% LOAD TESTS
Test #
1
2
3
4
5
12V 5V 3.3V 5VSB
2.743A 1.984A 1.989A 0.981A 54.959
12.162V 5.042V 3.316V 5.096V 64.014 40.13°C 115.17V
6.510A 2.976A 2.989A 1.180A 110.025
12.155V 5.039V 3.312V 5.085V 122.951 40.52°C 115.16V
10.619A 3.475A 3.489A 1.380A 165.023
12.146V 5.035V 3.309V 5.074V 182.251 41.28°C 115.16V
14.731A 3.975A 3.993A 1.580A 220.023
12.139V 5.032V 3.306V 5.063V 242.333 41.89°C 115.16V
18.505A 4.973A 4.995A 1.782A 275.012
12.132V 5.029V 3.303V 5.052V 303.889 48.50°C 115.16V
DC/AC (Watts)
Super Flower SF-550F14RG (Sample #2)
Fan
Efficiency
85.855% 0 <6.0
89.487% 0 <6.0
90.547% 0 <6.0
90.794% 0 <6.0
90.498% 877 22.8
Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
43.46°C 0.958
44.93°C 0.974
46.16°C 0.985
47.51°C 0.990
42.01°C 0.993
PF/AC Volts
6
7
8
9
10
11
CL1
CL2
22.277A 5.968A 6.001A 1.984A 330.017
90.068% 977 25.8
12.129V 5.028V 3.301V 5.042V 366.410 49.38°C 115.16V
26.058A 6.966A 7.006A 2.187A 385.096
89.420% 994 26.4
12.126V 5.026V 3.298V 5.030V 430.660 50.67°C 115.16V
29.824A 7.966A 8.011A 2.392A 440.083
88.744% 1056 28.3
12.127V 5.023V 3.294V 5.019V 495.904 51.58°C 115.15V
33.963A 8.465A 8.507A 2.394A 494.582
88.033% 1243 32.7
12.133V 5.021V 3.292V 5.013V 561.814 52.80°C 115.15V
37.914A 8.969A 9.026A 3.005A 549.824
87.269% 1428 35.5
12.136V 5.018V 3.289V 4.994V 630.032 54.49°C 115.15V
42.455A 8.973A 9.035A 3.008A 605.039
86.590% 1621 38.4
12.138V 5.016V 3.288V 4.988V 698.742 56.58°C 115.14V
0.115A 11.998A 12.000A 0.000A 101.286
84.413% 0 <6.0
12.137V 5.031V 3.294V 5.095V 119.989 42.33°C 115.16V
45.830A 1.001A 0.999A 1.000A 570.266
87.981% 1473 36.2
12.151V 5.026V 3.305V 5.053V 648.169 54.91°C 115.16V
42.42°C 0.994
43.09°C 0.995
43.39°C 0.996
44.17°C 0.996
45.34°C 0.996
46.69°C 0.996
48.36°C 0.974
45.67°C 0.996
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 7/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS
Page 8
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
20-80W LOAD TESTS
Test # 12V 5V 3.3V 5VSB
1.222A 0.495A 0.496A 0.195A 19.990
1
12.149V 5.047V 3.320V 5.120V 26.177 115.18V
2.439A 0.991A 0.993A 0.391A 39.981
2
12.172V 5.045V 3.318V 5.113V 47.391 115.18V
3.666A 1.487A 1.492A 0.588A 60.011
3
12.155V 5.043V 3.317V 5.106V 68.726 115.18V
4.884A 1.984A 1.992A 0.785A 79.960
4
12.152V 5.042V 3.315V 5.099V 90.398 115.18V
RIPPLE MEASUREMENTS
DC/AC (Watts)
Super Flower SF-550F14RG (Sample #2)
Efficiency
76.365% 0 <6.0
84.364% 0 <6.0
87.319% 0 <6.0
88.453% 0 <6.0
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
0.832
0.930
0.967
0.965
Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.9 mV 4.1 mV 15.5 mV 11.5 mV Pass 20% Load 6.3 mV 3.8 mV 17.0 mV 11.2 mV Pass 30% Load 6.7 mV 4.2 mV 16.9 mV 11.2 mV Pass 40% Load 6.8 mV 4.3 mV 15.4 mV 11.2 mV Pass 50% Load 7.6 mV 4.4 mV 15.1 mV 11.0 mV Pass 60% Load 7.5 mV 4.7 mV 15.4 mV 11.5 mV Pass 70% Load 7.6 mV 5.0 mV 15.9 mV 11.8 mV Pass 80% Load 8.3 mV 5.2 mV 17.5 mV 18.0 mV Pass 90% Load 8.1 mV 5.6 mV 16.7 mV 11.6 mV Pass 100% Load 10.6 mV 6.3 mV 18.4 mV 13.0 mV Pass 110% Load 10.7 mV 6.3 mV 18.1 mV 13.3 mV Pass Crossload 1 7.9 mV 4.5 mV 17.0 mV 15.1 mV Pass Crossload 2 10.7 mV 6.0 mV 17.4 mV 13.6 mV Pass
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 8/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS

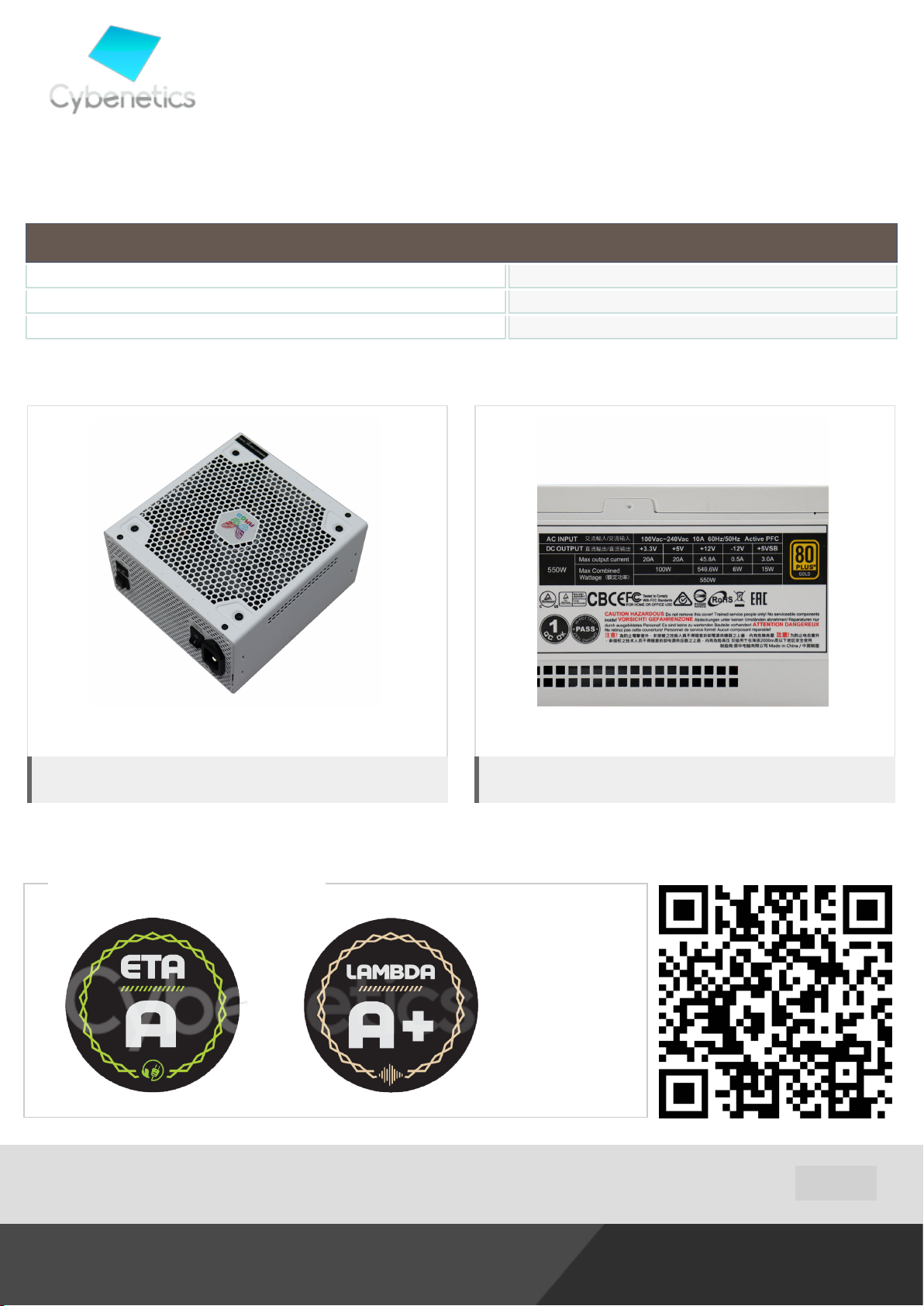

Page 9
EFFICIENCY AND NOISE
Top side
Power specifications label
LEVEL CERTIFICATIONS
Anex
Super Flower SF-550F14RG (Sample #2)
HOLD-UP TIME & POWER OK SIGNAL (230V)
Hold-Up Time (ms) 24.80 AC Loss to PWR_OK Hold Up Time (ms) 23.20 PWR_OK Inactive to DC Loss Delay (ms) 1.60
CERTIFICATIONS
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 9/9
www.cybenetics.com - [email protected]
4004 MESA GEITONIA, LIMASSOL, CYPRUS
