Page 1
YUV Video Extender
Quick Reference
&
Setup Guide
.
Page 2
CYAN YUV VIDEO EXTENDER
Contents
Chapter Page
1. Specifications...................................................................................................2
2. Introduction ........................................….........................................................3
2.1 Overview................................................................................….................3
2.2 Equipment You May Also Need..........................................................…....3
2.3 Compatible Cabling ........................................................................…...….3
3. Setup and Installation.......................................… ......................................….4
3.1 Making the Connections.......................................................... ... .... ..…....5
3.1.1 Connections and Setup in General .......................................……......5
3.1.2 Connections on the Extender……………………..............………..…..5
4. Troubleshooting...........................................................................................…6
4.1 Common Problems ....................................................................................6
Appendix A. Cabling Pinouts.........................................….....................................6
© 2009 by Magenta Research. All rights reserved.
Magenta Research
128 Litchfield Rd
New Milford, CT. 06776 USA
This document and the Magenta Research products to which it relates, and the copyright in each, is the
property of Magenta Research. Neither the document nor the products may be reproduced by any
means, in whole or in part, without the prior written permission of Magenta Research. Magenta Research
makes no warranty or representation, either expressed or implied, with respect to this software or
documentation, including the quality, performance, merchantability, or fitness for a particular purpose.
As a result, this software or documentation are licensed "as is" and you, the licensee, are assuming the
entire risk as to the quality and performance.
In no event will Magenta Research be liable for direct, indirect, special, incidental, or consequential
damages arising out of the use of or inability to use the software or documentation.
Cyan and the Cyan logo are trademarks of Magenta Research.
All other brands, product names, and trademarks are the property of their respective owners
1
Page 3
Specifications
.
1.Specifications
Cable Required: Category 5, 5e, 6 twisted pair (UTP)
Maximum Distance: 328 ft (100m)
Video Support: YPbPr, YUV, HDTV
Video Resolution: Up to 1080P
Connectors: Tx: (3) RCA , (1) RJ-45, (1) power
Rx: (3) RCA , (1) RJ-45
Temperature
Tolerance: Operating: 32 to 104°F (0 to 40°C);
Storage: -4 to +140°F (-20 to +60°C)
Humidity
Tolerance: Up to 80% noncondensing
Enclosure: Metal
Size: 0.94"H x 2.6"W x 2.9"D (2.4 x 6.6 x 7.4 cm) each unit
(mounting tab not included in above dimensions)
Weight: 0.4 lb. (0.18 kg) - each unit
Power: 9 VDC/ 300mA (transmitter)
Receiver powered by transmitter
Compliance: RoHS, CE; FCC Class A
2
Page 4
CYAN YUV VIDEO EXTENDER
2. Introduction
2.1 Overview
The Cyan YUV Video extenders extend component video signals over Category
5/5e/6 cable.
WARNING
This equipment is not intended for, nor does it support, distribut ion
through an Ethernet network. Do not connect these devices to any sort
2.2 Equipment You May Also Need
• RCA video cables
2.3 Compatible Cabling
Cyan extender products are compatible with Cat5/5e/6 data cabling.
CAT5/5e/6 cabling for the Cyan extende r mus t be pinned to the TIA-E IA T568B
wiring specification (see appendix A). We also hi ghly recommend that all
CAT5/5e/6 cables be pre-terminated and tested. Cables terminated on-site or in an
existing infrastructure should be t ested before use to ensure compliance with the
TIA-EIA T568B specification. Using incorrectly terminated CAT5/5e/6 cables can
damage the units.
of networking or telecommunications equipment!
3
Page 5
CHAPTER 3: SETUP & INSTALLATION
.
3.1 Making the Connections
3.1.1 CONNECTIONS AND SETUP IN GENERAL
3. Setup and Installation
This section contains figures showing connections with the specific Cyan
Extenders. In general th e c onnection and setup pr ocedure at both transmit t er and
receiver ends is as follows:
At the sender end:
1. Connect the source video to the Cyan Extender Y, Pb, Pr video input ports.
2. Connect the CAT5/5e/6 cables to the sender.
3. Connect power supply
At the recei ver end :
1. Connect the display to the Cyan Extender Y, Pb, Pr video ou tput ports.
2. Connect the CAT5/5e/6 cables to the UTP connection.
3.1.2
CONNECTIONS ON THE CYAN VIDEO EXTENDER:
Figure 3-1 shows the Cyan transmitter connections and Figure 3-2 shows the
receiver co nnections.
Figure 3-1. Connections on the Cyan YUV Video Extender Transmitter
Figure 3-2. Connections on the Cyan YUV Video Extend er Receiver
4
Page 6
CYAN YUV VIDEO EXTENDER
4. T roubleshooting
4.1 Common Problems
In most cases, nearly every issue with the Cyan Extenders can be resolved by checking
the CAT5/5e/6 termination and making sure that it’s pinned to the T568B wiring
specification. However, there may be other problems that cause the system to not
perform as it’s designed. Below are solutions to the most common installation errors.
Problem:
No video signal at the receiver.
Solution: • Check that both units are powered. Note that the receiver is
powered via the transmitter over the cat5 cable. The power is on
pair 4, pins 7,8. Ensure this pair is terminated correctly (see
Appendix A).
• Make sure the CAT5 cable is terminated correctly per the
568B wiring specification.
• Is the display device powered on and functioning?
Problem:
Poor video quality.
Solution: • Check all cable connections.
5
Page 7
Appendix A. Cabling Pinouts

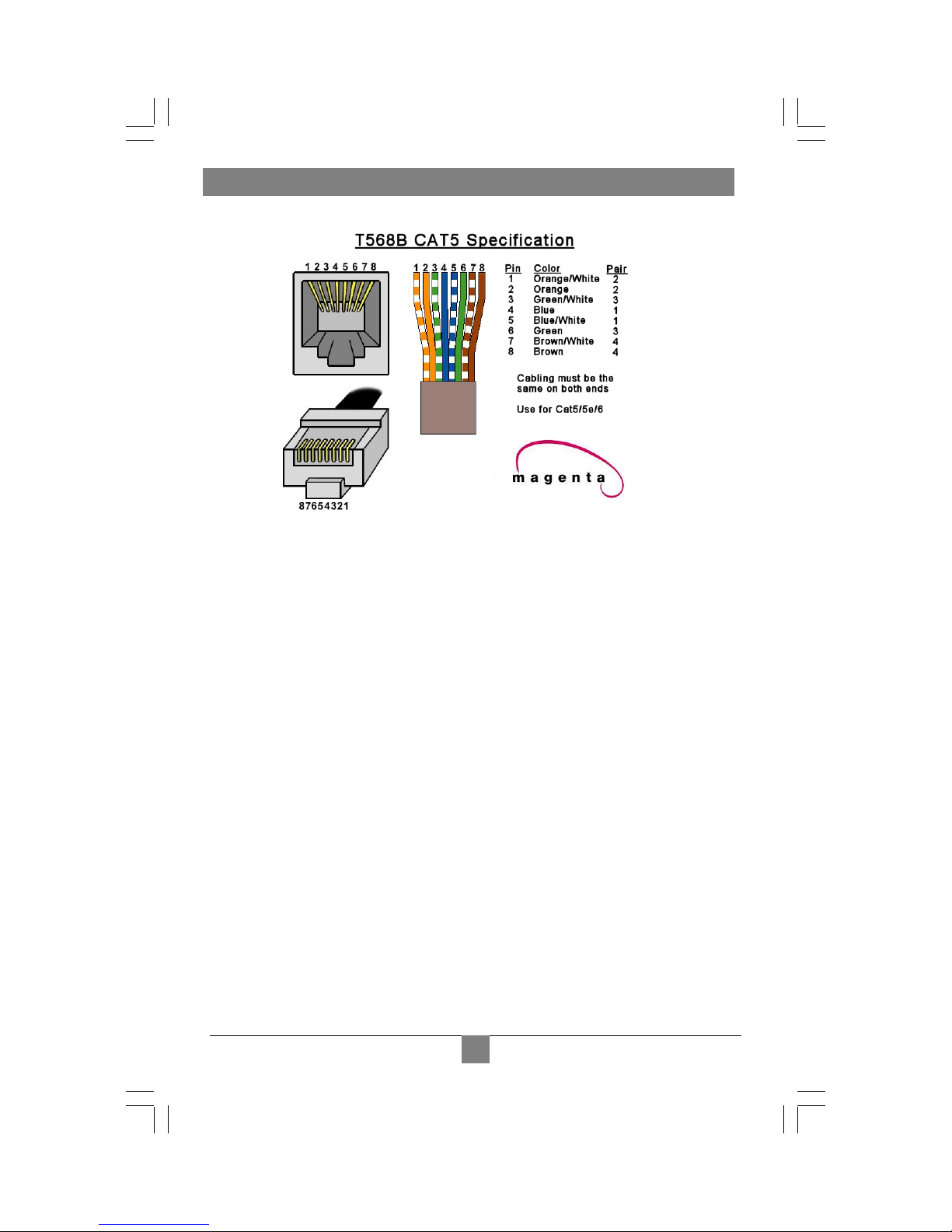

Table A-1. T568B CAT5 pinout
APPENDIX A
.
6
Page 8
CYAN YUV VIDEO EXTENDER
Magenta Research
128 Litchfield Road, New Milford, CT 06776 USA
(860) 210-0546 FAX (860) 210-1758
www.magenta-research.com
PN: 5310226-01, Rev 01, 2/09
