User Manual
Version:1.5

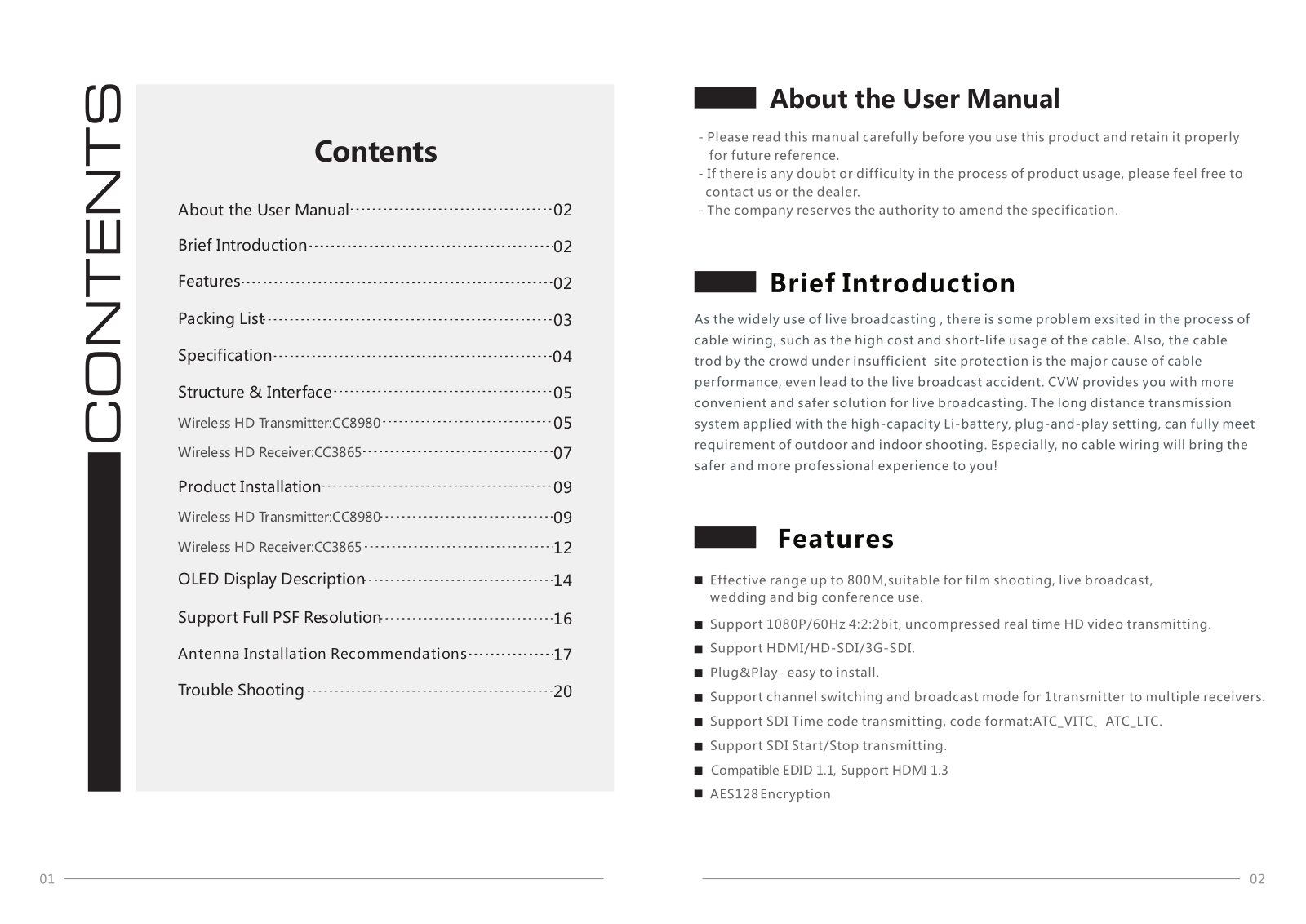

Contents

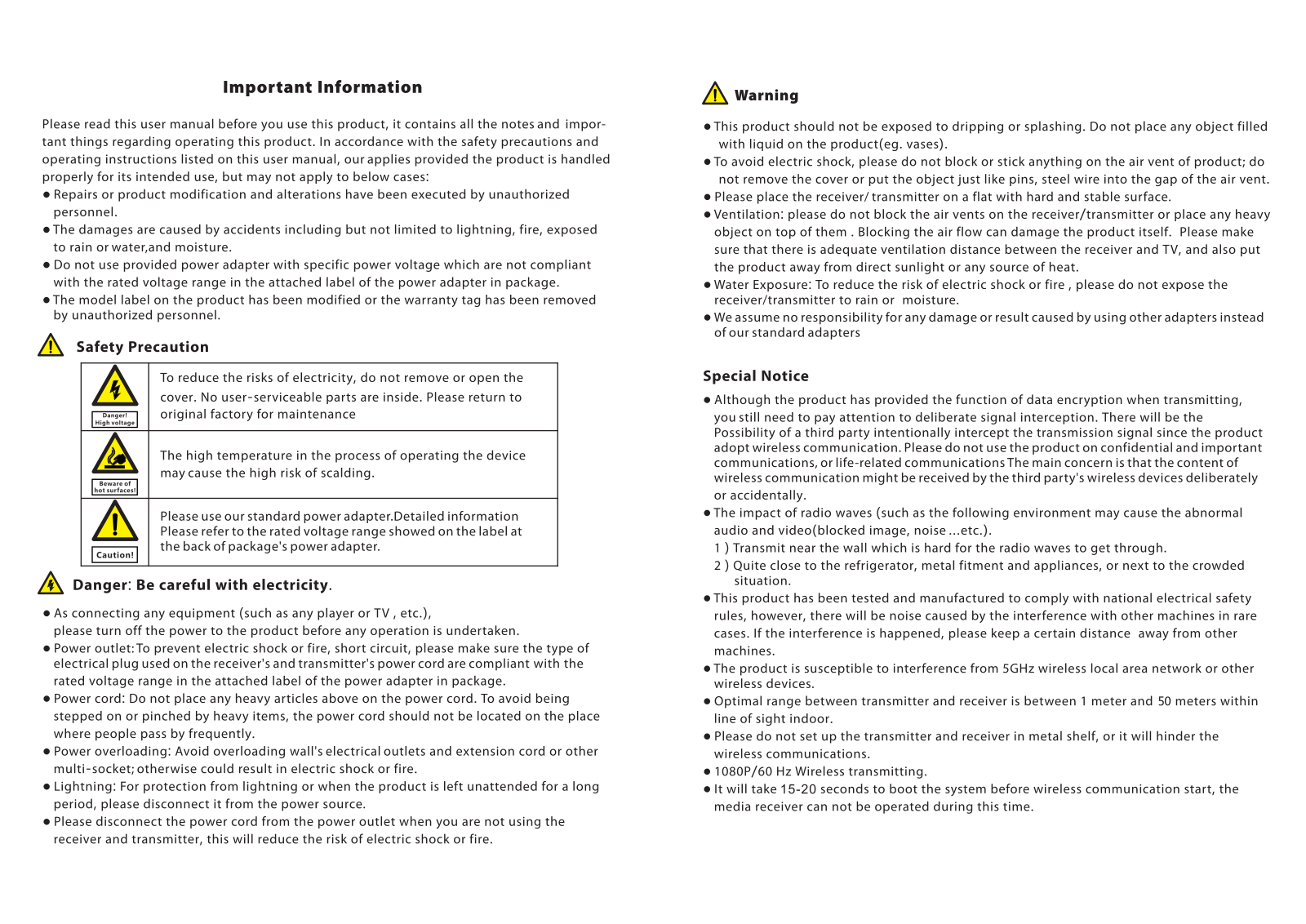

About the User Manual
About the User Manual
Brief Introduction
Features

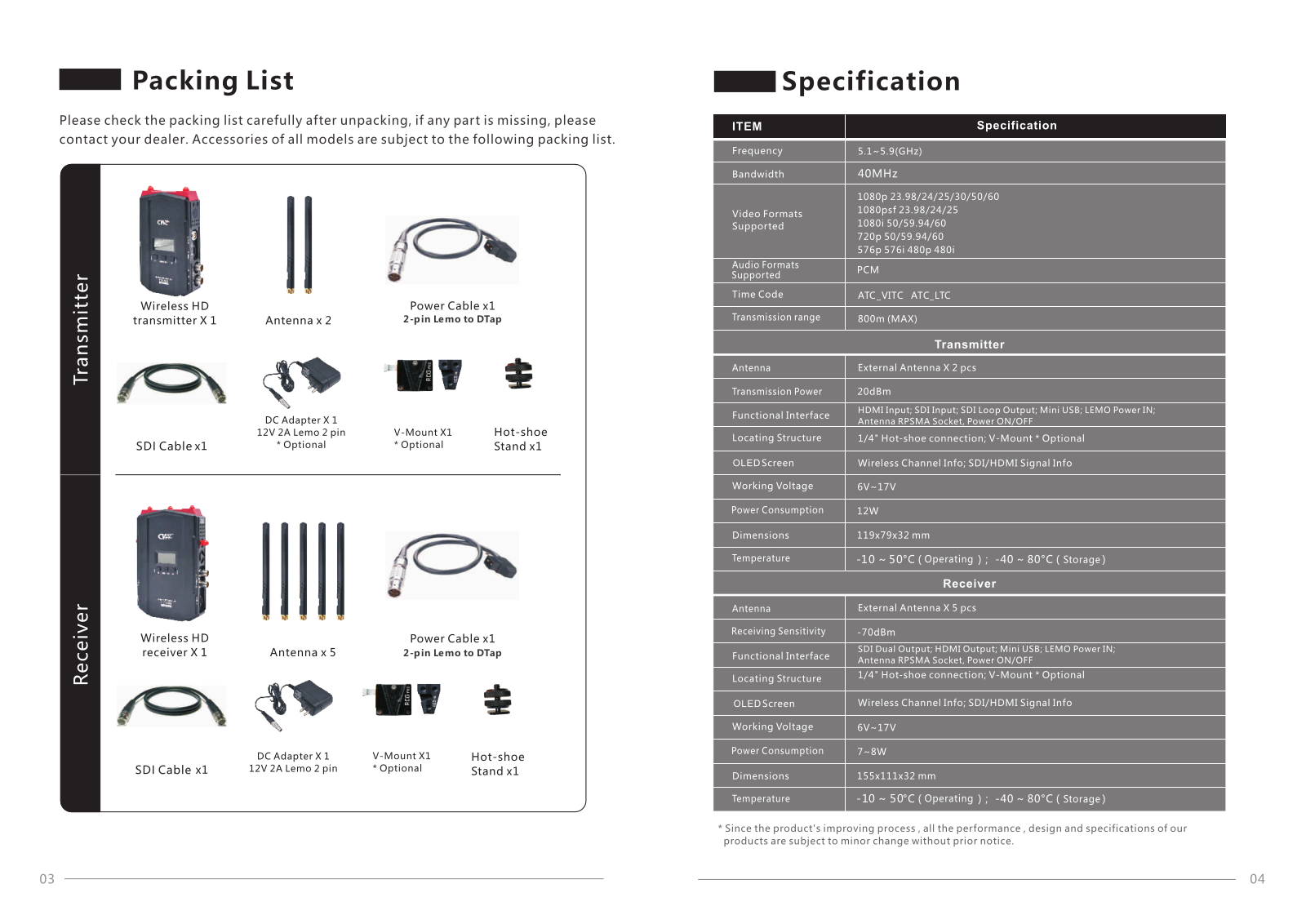

Packing List
Specification
Structure & Interface
Wireless HD Transmitter:CC8980
Wireless HD Receiver:CC3865
Product Installation

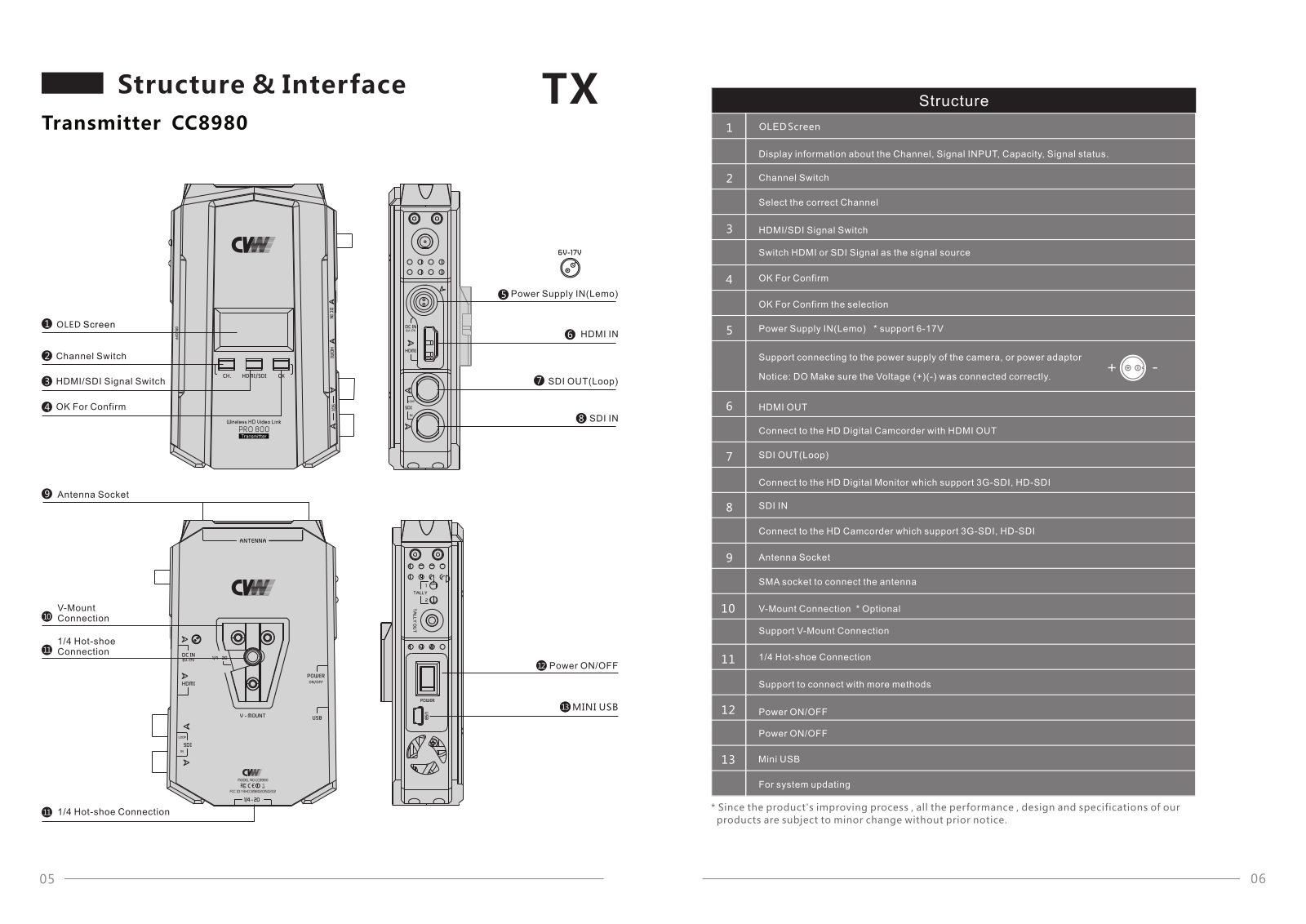

Wireless HD Transmitter:CC8980

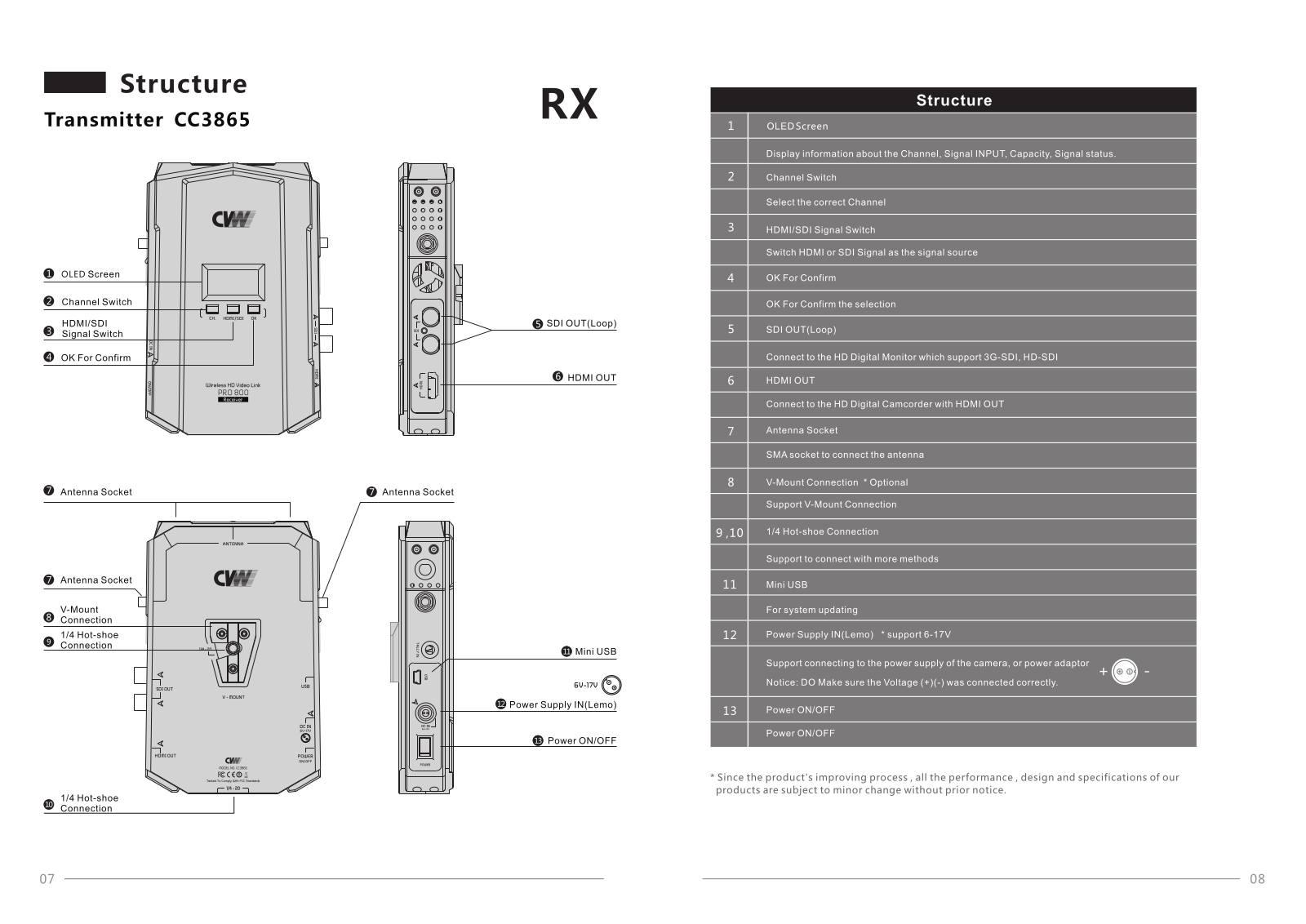

Wireless HD Receiver:CC3865
OLED Display Description
Support Full PSF Resolution
Antenna Installation Recommendations
02
02
02
03
04
05
05
07
09
09
12
14
16
17

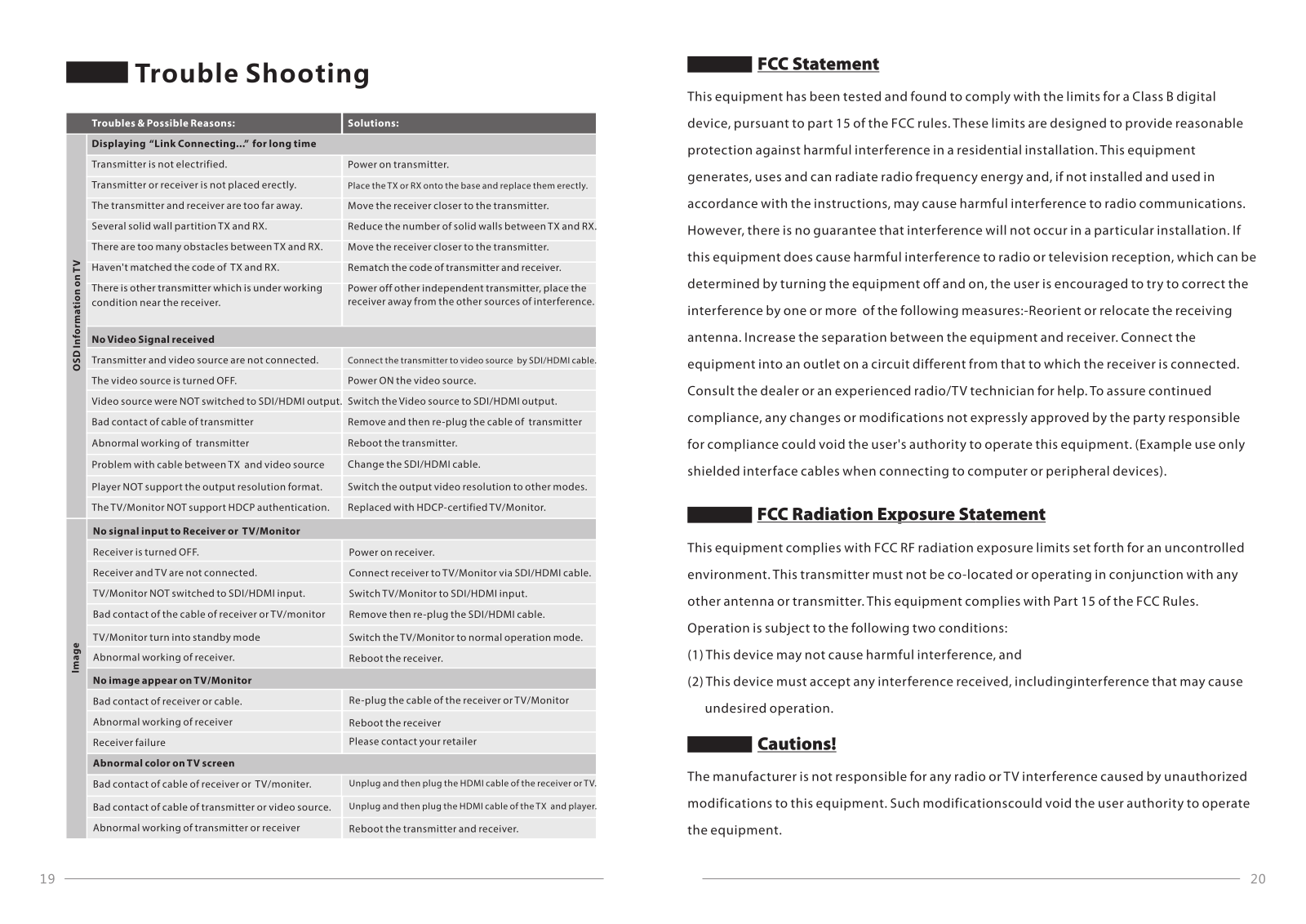

Trouble Shooting
20
Compatible EDID 1.1, Support HDMI 1.3
2-pin Le mo to DTap
2-pin Le mo to DTap
ATC_V ITC ATC_ LTC
-10 ~ 50
-10 ~ 50

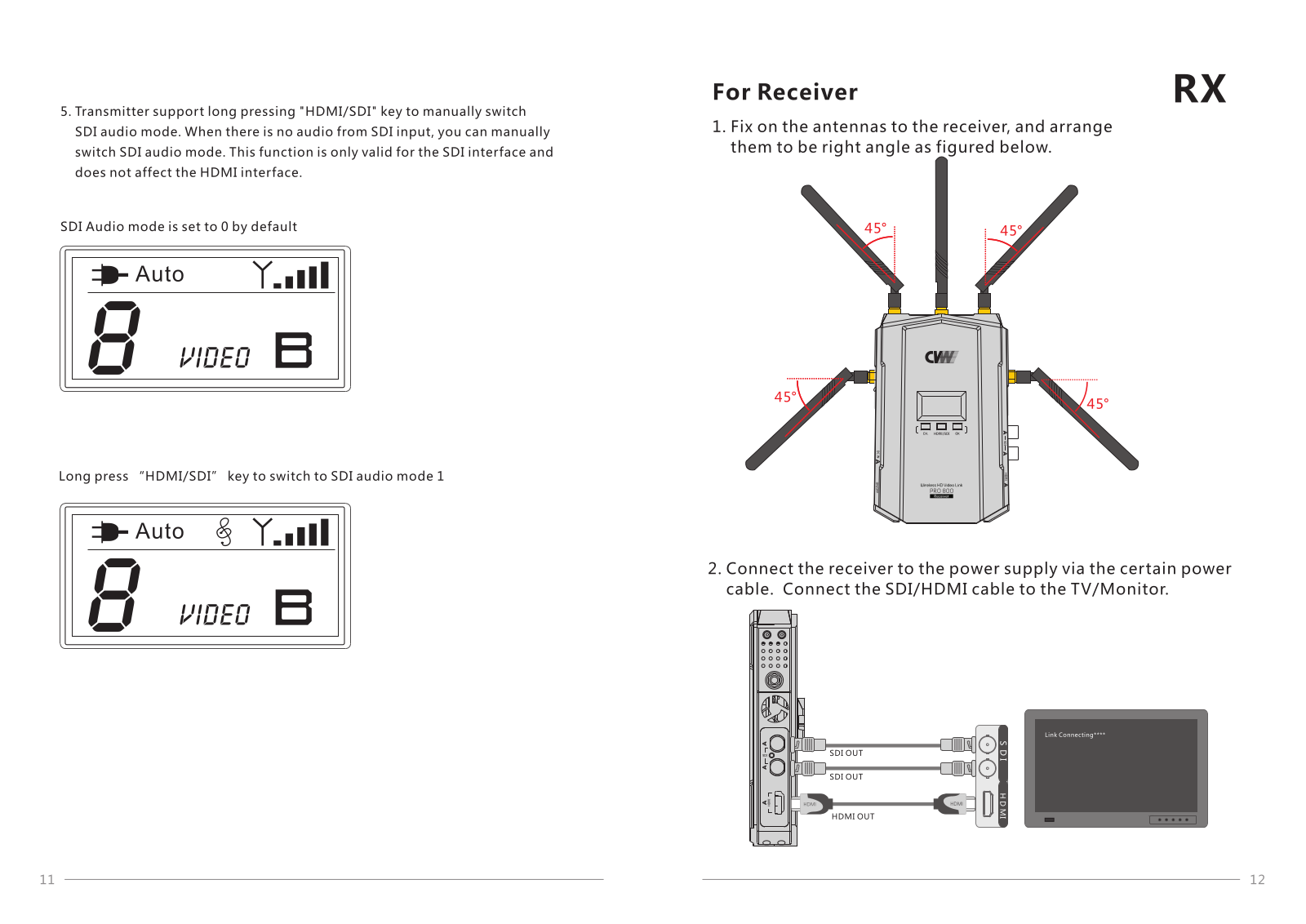

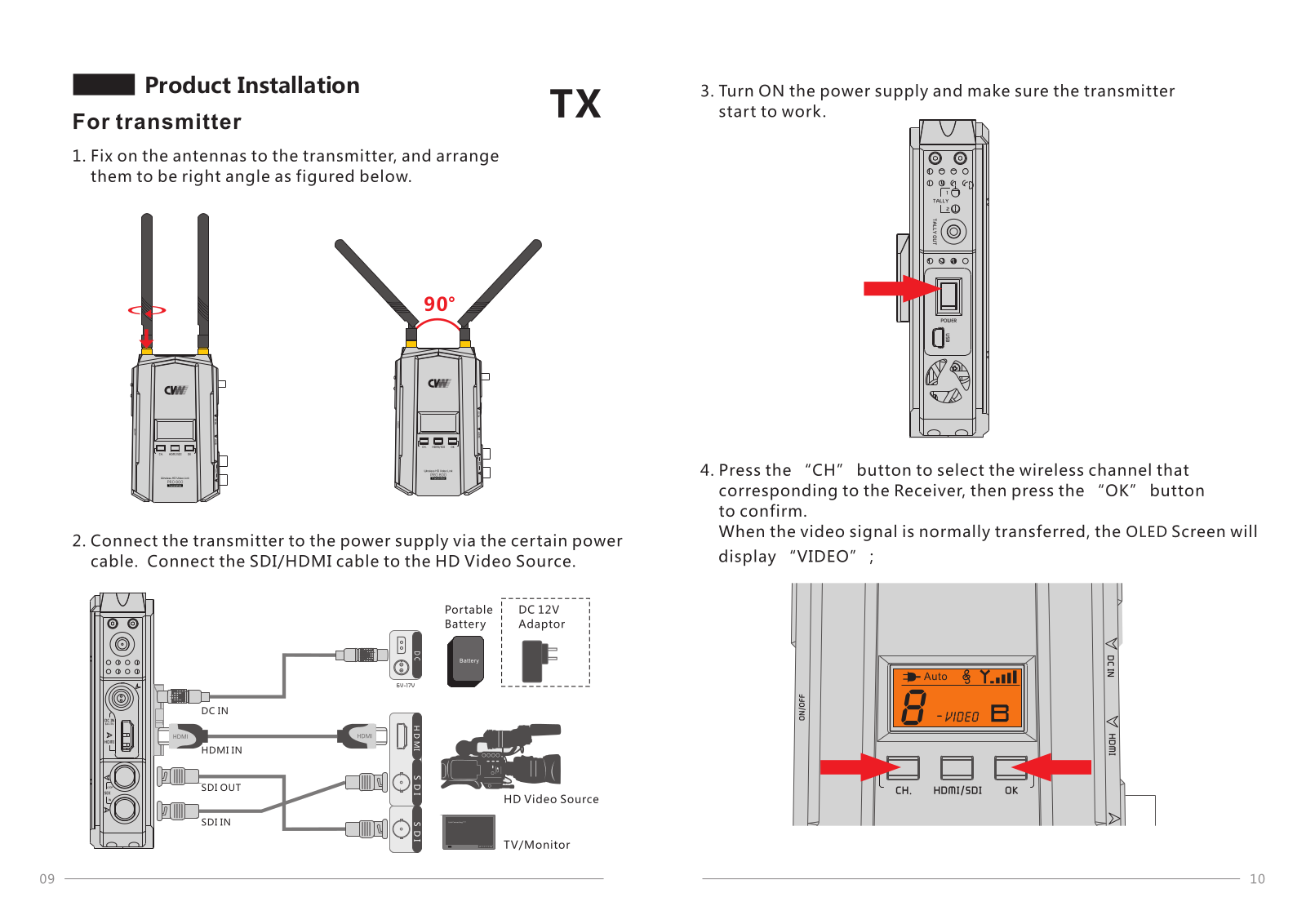

Product Installation

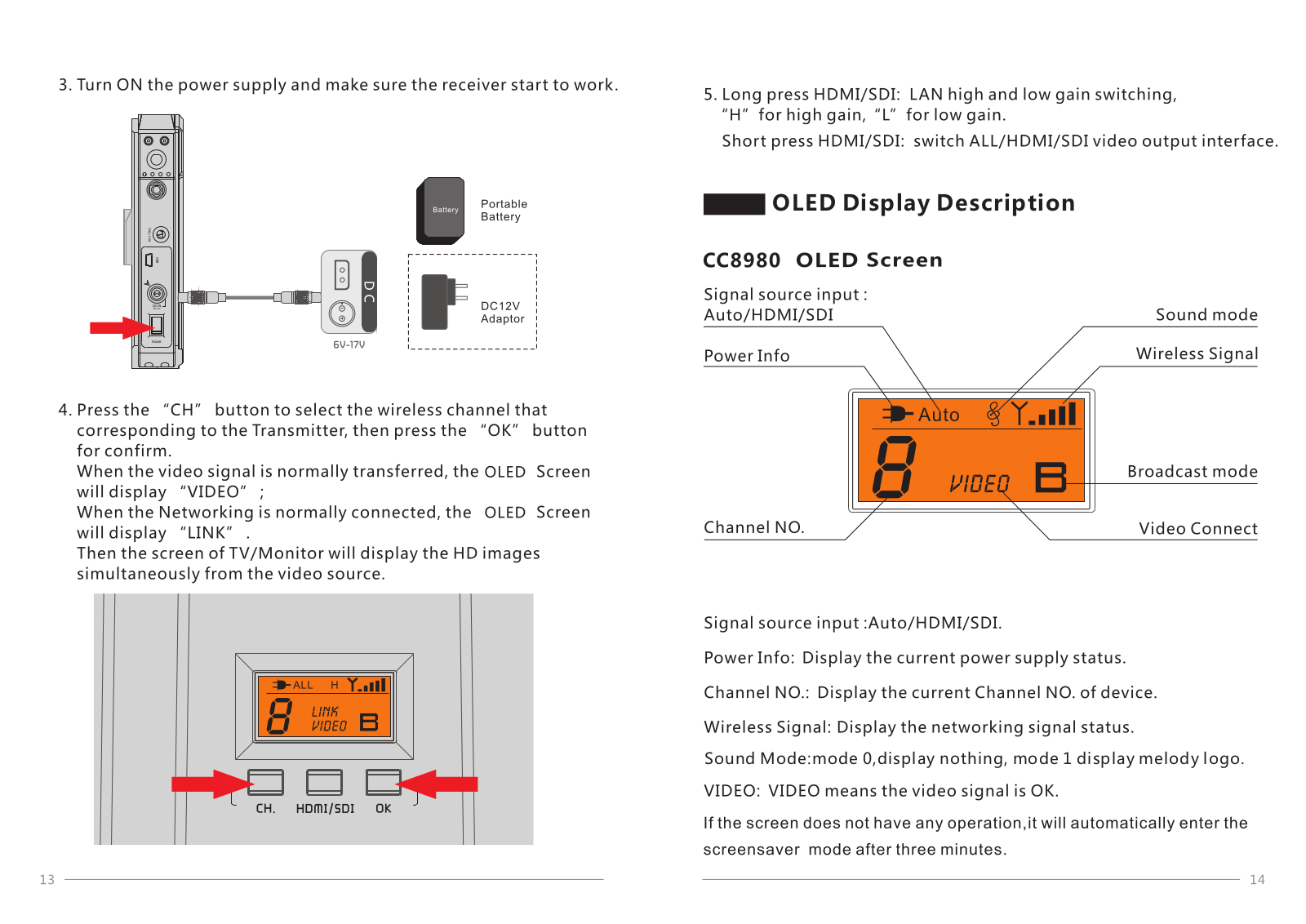

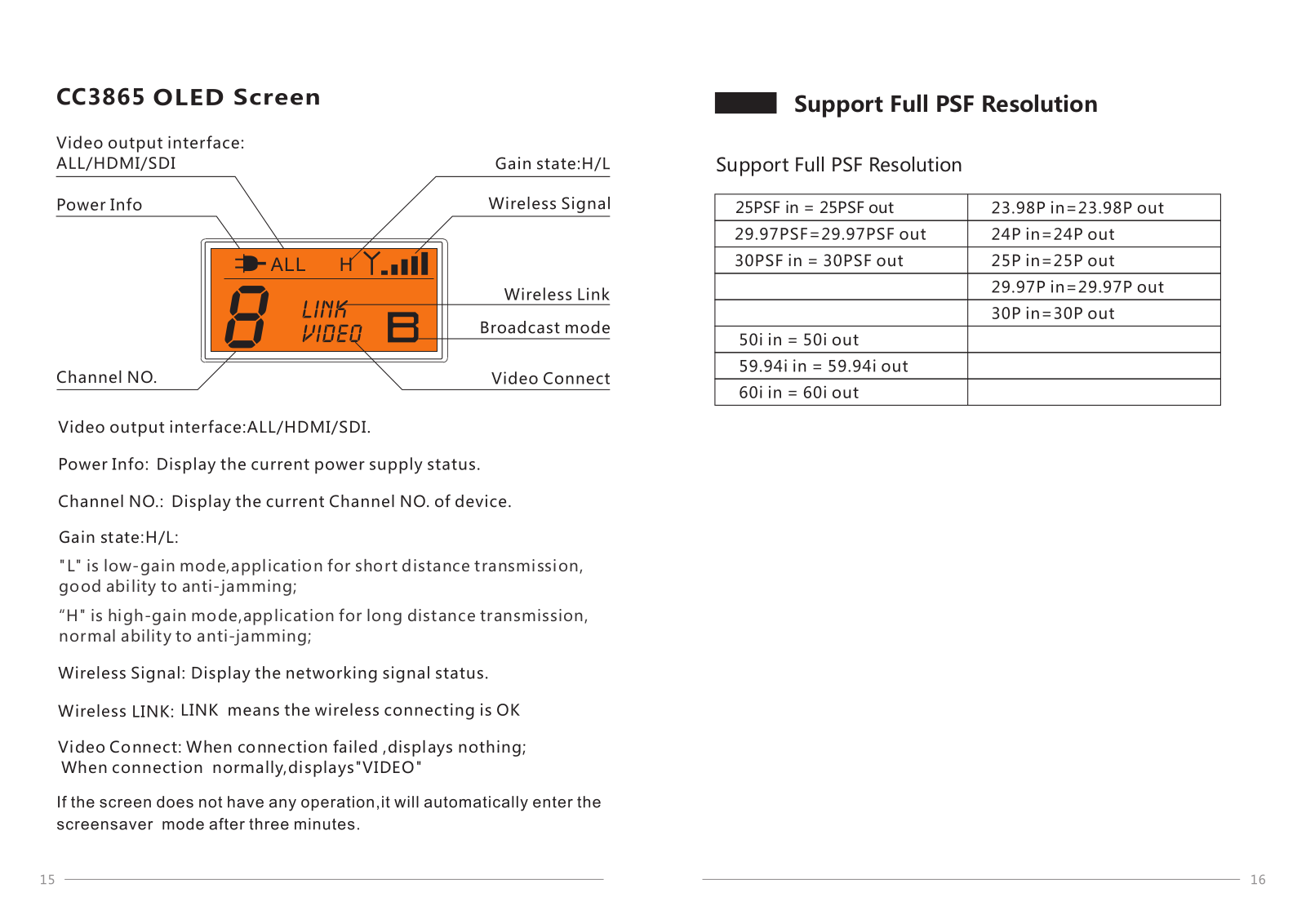

OLED Display Description
Sound Mode:mode 0,display nothing, mode 1 display melody logo.
Gain state:H/L:
"L" is low-gain mode,application for short distance transmission,
good ability to anti-jamming;
Support Full PSF Resolution
Support Full PSF Resolution
25PSF in = 25PSF out
“H" is high-gain mode,application for long distance transmission,
normal ability to anti-jamming;
Wireless
Video Connect: When connection failed ,displays nothing;
When connection normally,displays"VIDEO"

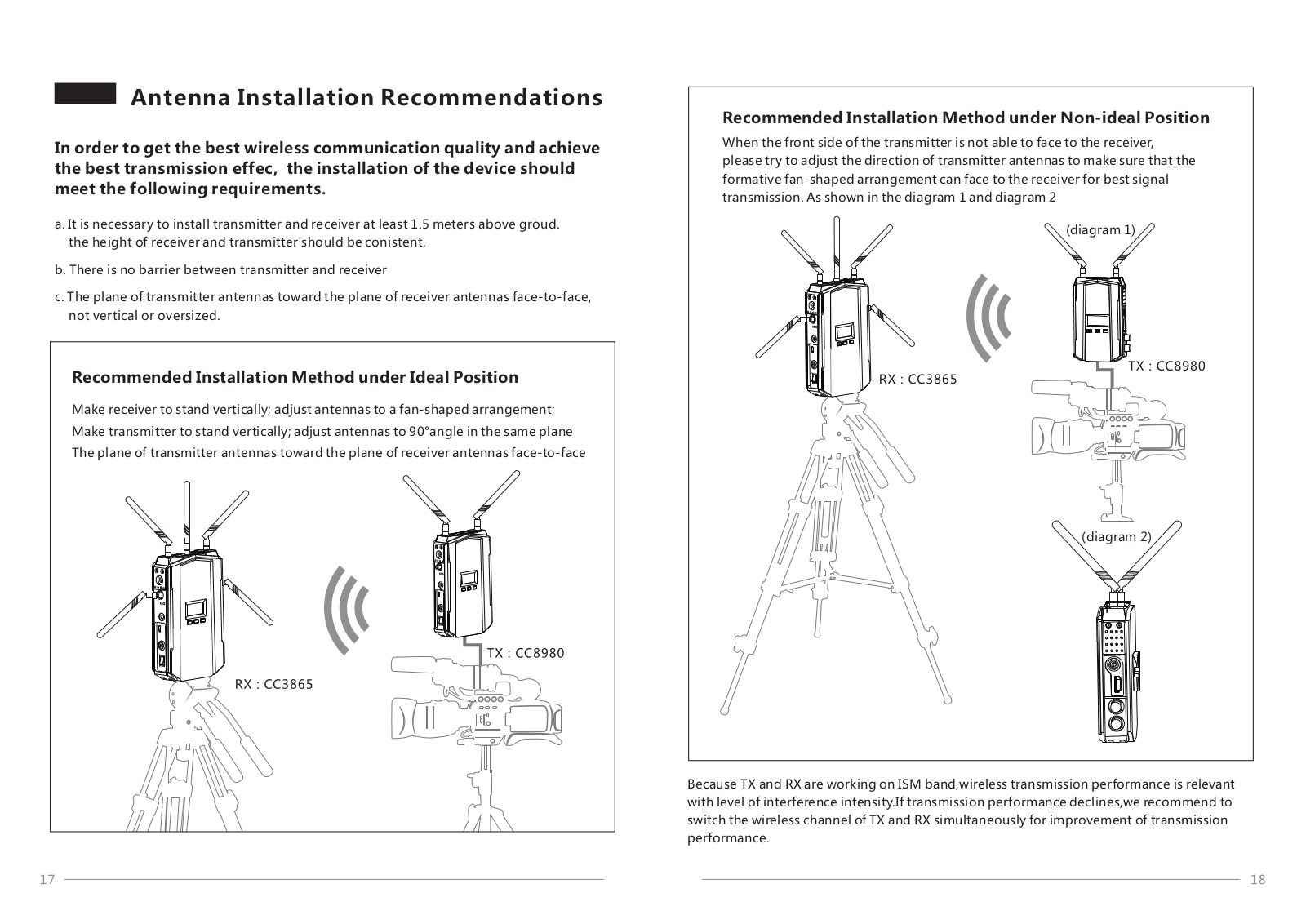

Antenna Installation Recommendations
In order to get the best wireless communication quality and achieve
the best transmission effec, the installation of the device should
meet the following requirements.
a. It is necessary to install transmitter and receiver at least 1.5 meters above groud.
the height of receiver and transmitter should be conistent.
b. There is no barrier between transmitter and receiver
c. The plane of transmitter antennas toward the plane of receiver antennas face-to-face,
not vertical or oversized.
Recommended Installation Method under Ideal Position
Make receiver to stand vertically; adjust antennas to a fan-shaped arrangement;
Make transmitter to stand vertically; adjust antennas to 90°angle in the same plane
The plane of transmitter antennas toward the plane of receiver antennas face-to-face
Recommended Installation Method under Non-ideal Position
When the front side of the transmitter is not able to face to the receiver,
please try to adjust the direction of transmitter antennas to make sure that the
formative fan-shaped arrangement can face to the receiver for best signal
transmission. As shown in the diagram 1 and diagram 2
(diagram 1)
(diagram 2)
Because TX and RX are working on ISM band,wireless transmission performance is relevant
with level of interference intensity.If transmission performance declines,we recommend to
switch the wireless channel of TX and RX simultaneously for improvement of transmission
performance.
