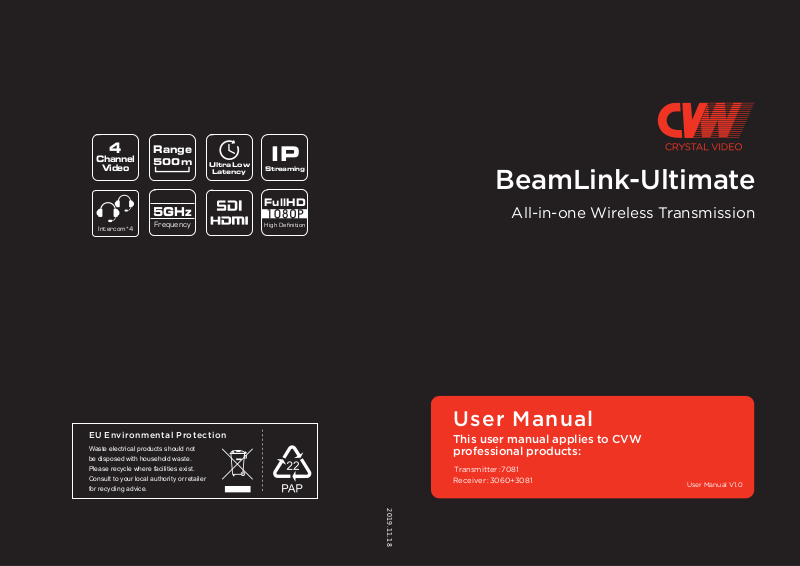

BeamLink-Ultimate
All-in-one Wireless Transmission
User Manual
This user manual applies to
professional products:
Transmitter:7081
Receiver:3060+3081
CVW
User Manual V1.0
2019.11.18
Contents
About the User Manual
Prod uct Features
Brief Introd uct ion
Packing List
Machanism & Inter face
Wireless HD Tran smi tter 7081
Wireless HD R eceiver 3 060 +30 81
Prod uct I nstallation
Wireless HD Tran smi tter 7081
Wireless HD R eceiver 3 060 +30 81
Prod uct A ppl ication
OLED Display D esc ription
Functional Inst ruc tio ns
01
01
01
02
03
03
05
07
07
09
14
16
19
Parameter s Configuration
Wireless So ftware Upgra de
Specification
Troubleshooting
22
24
27
29
Thank you for choosing CVW's professional wireless HD audio
and video transmission product. Read the following precautions
carefully before using this product:
* Do not use this product for a long ti me in t he su n or du sty place.
* Be sure to use this product within the temperature and humidity ranges.
Do not operate the p roduc t und er vi brati on or strong magnetic fields.*
* Do not put co ndu cti ve m ateri als i n the p ro duc t ve nts .
* Do not open the product yourself without the gui dan ce of our professio nal s.
* Before power- on, make sure th at the adapter in put vol tag e is AC110V-2 20V,
and that the output voltag e and c urren t mee t the p roduc t spe cif ications.
* Before power- on, make sure th at the anten nas a re inst alled.
* This p roduct is a 5GHz WiFi device . When there are dev ices with th e sam e
freq uen cy arou nd, t here may be m utu al in terfe rence. In this case ,
solve the pro blem by switching the freq uency channel of the product.
About the User Manual
This M anu al de tai ls th e produ ct sp eci fications, instr uct ions for use,
prec aut ion s, and troub les hooting. Read t he Ma nua l caref ull y before using
the produ ct. I f you have a ny questio ns or d iff iculties in using this product,
cont act t he company o r the s eller in time.
Product Features
BeamLink-U lti mate is a n upg ra ded ver sio n of the BeamLink Quad that
adds voice in tercom ca pab ili tie s. It i s a set of 4TX- to-1RX full-HD au dio
and video wire less transmissi on system a nd wire less voice interco m system.
The 4- cha nne l ima ge tran smi ssion and voice interco m sha re o ne wi re less
channel and supports the highe st vi deo res olu tion of 1080P/60Hz. This
system is based on 5G wireless net work technology for tran smi ssion, along
with adva nced 4× 4 MIM O and B eam -Forming technology. Image proces sing
is performed u sin g H.2 64 technology, and thus the im age s has h igh er reso lut ion
and the latency is lower. It is th e best co mpa nion for the director to shoot,
using advanced Vo IP tech nol ogy, integrated w ith voi ce intercom function,
which is clear in voice a nd ea sy to carry. The transmitteris CP708 1, and the
receiver is the combination of CP3060 an d CP3 081 , whi ch are connected vi a
a network c able.
Special Precautions
When inst all ing t he machine with the double-thread screw supplied with
the produ ct, t ighte n the p roduct wit h the fastening screw p late. Do not
hold the machine fo r rotary tig htening to p revent the sc rew from being
unable to b e removed from the machine.
The RS 232 a nd Tall y function inte rface s of this prod uct a re n on- standard
physical inter faces. If you need this function, communicate with the
sales staff.
01
Brief Introduction
High-quality an d ultra low latency
This p rodu ct supp or ts HD-S DI&3G -SDI inpu t and out put as well as HD MI full -H D
inpu t and out put, wi th t he high est re solut io n of 1080 P/60H z. With hig hest
comp ress ratio a nd best vid eo res oluti on usin g H. 264 techn ology, and the l atency
is as low as 70m s.
4 transmit ters and 1 rece iver share on e wireless cha nnel
This p rodu ct supp or ts 4 vide o st re ams inp ut simu lt aneou sly, wi th resolu tion
up to 10 80 P60 per c hanne l. 4 v ideo st ream s share one w irel ess chann el,
whic h greatly saves spe ct rum resou rces a nd p rovi de s great conven ience for
user s to p erfor m mu lti-c amera shoot ing.
02
Beam-Forming
Comb ined with 4 ×4 MIMO a nd Beam-F or ming tech nolog y, this p ro duct ha s
advant ages ove r ot her WiFi prod ucts in the m arket in term s of t ra nsmissi on
dist ance and vi de o re solut io n. Beam -Formin g te chnol og y makes wireles s signals
more concent ra te d and stronge r in t he direct io n from whic h they a re t ra nsmitte d
to the receiver, allowing t he m to t ra nsmit far ther and be l ess suscept ible to
inte rf eren ce fro m other s ignal s, t hus mak ing the m mo re s table.
Support RS232/422
This p rodu ct supp or ts transp aren t transm ission devi ce v ia R S232/ 422
inte rf ac e, which is conveni en t for use rs t o co nt ro l the remote device t hrou gh the
loca l device at the receivi ng termin al, such as t he PTZ.
cont roll ing
Standard mode an d streaming mo de
This p rodu ct supp or ts switch in g between t wo ope rati ng mode s, name ly s tanda rd
mode a nd RTSP streami ng mode. In sta ndard mod e, t his product s uppor ts
4TX-to-1R X, and th e video o ut puts in te rface are HDMI an d 3G -SDI. I n RTSP streamin g
mode , this produc t suppo rt s 4TX- to -Multip le RX, an d the vid eo s trea ming in te rface is
LAN po rt(RJ 45 ) ..
Packing List
The foll ow in g items are inc luded in th e product p ac kage
Transmitter
*4 pieces
Antenna
* 16 pieces
Doub le Ball H ead
Arm Mo unt
RS232 cable
*4 pieces
SDI cable
*4 pieces
Power supply
cable*4 pieces
Headphones
*4 pieces
Voice intercom
Each v ideo tran sm itter and recei ver term inal of t he pro duct is e quipp ed w ith a
3.5m m vo ic e interc om interface. One -to-one f ull-dup lex in te rc om o r one-to- many
broadc ast can be pe rformed o n the transmi tter and receiver termi nals. The recei ver
hand s-free ca ll m ode is au to matic al ly disa ctived when t he headph ones are pl ug ged in.
The he ad phone j ack sup po rts the m ainstream fou r-seg me nt 3.5m m mobil e phone
head phone s on the ma rket .
03
Receiver
*1 piece
Receiver
3081 *1 piece
Antenna
* 4 pieces
RS232 cable
*4 pieces
Network cable
*1 pieces
Power adapter
(12V/2A) *1 piece
Power adapter
*1 piece
Goos en ec k
Microphone
Metal Stand *1 piece
Headphones
*4 pieces
Notice: The transmitter comes with the Sony NP-F type battery do ck and has
preassembled V-moun t con necto r. The receiver ha s preassembled V-
mount battery plate and V-mount conn ector.
User s can cho ose sin gl e-ear h eadph on es or dou ble-e ar h eadph ones
when o rd ering .
04
Structure & Interface
Transmitter Key Operation
TX: 7081
Antenna Interfa ce
BeamLink-
Ulti mate
tX
LED
CALL
VOL +
VOL -
MIC/S PK
V-M OU NT
OLED D is pl ay
RESE T
WPS
LNA ON /OF F
SDI LOO P ou t
SDI In
DC-IN
Pow er Swi tch
Tally out
LINE I n
RS23 2/42 2
HDMI I n
Function
High -g ai n an d
low -g ai n mo de
switc hing
External Audio
Code matc hing
Standard and
strea mi ng mode
switc hing
Reset the
encoding board
Call request
Increase the
vol um e
Decrease the
vol um e
LED
Operation Description
“L” (L ow-gain mode) :I t is s ui ta bl e fo r sh or t di st an ce a nd
complex e nv ironment, with stro ng a nt i-inte rf eren ce ability.
Hold the “LNA
on/off” button
for 3 seconds to
switch the mode.
Press t he
“LNA O N/ O FF ”
button for about 6s
Press t he “ WPS/
RTSP ” bu tton
for about 3s
Press t he “ WPS
” button
RTSP
for about 6s
Press t he
“RES ET ” bu tton
for about 3s
Shor t press the
CALL” bu tt on“
Shor t press
the button“+”
Shor t press
the button“-”
After s wi tc hi ng to “L mode” , "L " le tter will be d is pl aye d on
OLED s creen.
“H” (H ig h- ga in m od e):It is suitabl e for long distance,
and it s an ti -i nter feren ce a bi li ty i s we aker than "L" mode.
The string will disappear on OLE D sc reen afte r
switc hing to “H m od e” .
The audio signal in the vi de o is f rom the “LINE IN” in terface ,
the mi crophone icon display s be si de t he t ransmitter number
on OLE D sc reen.
In the code matching process of the transmitter and
receiver, the word “WPS” will always be displayed on
the OLED display, and the string will disappear after
the code matching complete. The transmitter and
receiver need to be in code matching status at the
same time for code matching.
When switch in g to s treaming mode, the wo rd “ RTSP ”
/
will b e di sp layed o n th e OL ED d is play, and the
product will enter st re am in g mo de .
During the reset of the encoding board, the
“RESET” string will always be displayed on the
OLED display of the transmitter, and the string
will disappear after the reset.
Making call request to director actively.
Increase the volume
Decrease the volume
Operation Description
Soli d Yellow
Soli d Orange
Blin king in Yel low
Blin king in Red
Duri ng boot ing process
Successf ul Boot up
Call ing
Low Battery War ni ng
05
06
RX: 3060
Receiver Key Operation
Antenna Interface
Antenna Interface
V-mount Plate
Tally(DB9)
RS232/422
RJ-45
SDI Out
DC-IN
OLED D is pl ay
LNA ON/OFF
CH/WPS
Reset
Power Button
HDMI Out
Function
Freque ncy
chan nel
switch in g
High -gain a nd
low-gain m ode
switch in g
Code m at ch ing
OLED d isplay
switch in g
betwee n
land scape
mode a nd
port ra it mode
Operation De scription
Channel number increases one cycle from
Shor t press
the “C H/WPS ”
butt on a bout 1S
Hold t he “LNA
on/off” bu tton for
3 seco nd s to
switch t he m ode.
OLED w ith “L”
lett er m eans
low-gain m ode.
OLED w ithou t “L”
lett er m eans
high -gain m ode.
Press th e “C H/
WPS” b utton for
abou t 3s
Shor t press the
“LNA O N/OF F”
butt on f or
abou t 1s
CH1 to CH11 when each short pressing. After
receiver frequency switching, transmitters
will automatically display the updated channel
number.
Line -of-s ight scen ar ios:
TX- to -RX <20 0m /6 56 ft: L(l ow-g ain)
mode i s re co mmend ed.
RX- to -LX >=2 00 m/65 6ft: H( high- ga in)
mode i s re co mmend ed.
None -line -of-s ig ht scenar ios
(Hum an or wall bl ocking si gnal) :
H(hi gh-ga in) mod e is recom mende d.
Duri ng the code m atching p rocess o f th e
transm itter and recei ver, the word “WPS”
will a lways be b link di sp laye d on t he OLED
disp lay, an d the strin g wi ll disa ppear a fter
the co de m atched. The t ra ns mitter an d
receiver nee d to b e in c ode matchin g
stat us a t the sam e time to ach ieve
code m atch ing success .
Shor t press the “LN A ON/O FF” b ut to n,
and th e displ ay w ill switch be twee n
land scape m ode and p or trait mod e.
07
V-M ou nt
Rese t decode
board
First, short p ress th e
[RES ET ] bu tton for
cyc li ca l se lection
amon g 1, 2 , 3 an d 4 to
reset the
corre sp od in g deco de
board. Th en p re ss
and ho ld t he [ RE SE T]
button for 3s to
confirm the res ta rt .
After long p re ss ing the b utton to confir m,
the “R ESET” str ing wil l be displayed on
the OL ED disp lay fo r 3s, and t he s tring
will d isapp ear after t he d ecoding b oard
begi ns to re set.
08
RX: 3081
Intercom Receiver
Pow er Swi tch
ALL
1 2 3 4
DC-IN
RJ45
BeamLink-
Inter com
MUTE
Director mute1-4 Intercom switchBroadcast
Ult ima te
RX
Tally In
Function
Broadcast call
One-to one
full-duplex call
Increase the
Decrease the
Hands-free mode
Headphone mode
-
Mute
volume
volume
Operation De scription
Short press the
ALL” button“
Short press one of
the 1~4” buttons“
Short press the
MUTE” button“
Shor t press
the butt on“+”
Shor t press
the “- ”button
Pu ll o ut
the he adpho nes
Inse rt the
head phone s
Enter the broadcast call mode, the receiver
speak, and all the transmitters listen.
Receiver makes a single full duplex call to the
one of the selected transmitter.
Whether in one-to-one or broadcast mode,
the microphone at the live production terminal
is turned off. At this time, the live production
can hear the voice from the transmitting terminal,
but the transmitting terminal cannot hear the
voice from receiver.
Increase the volume, the system will remember
the current settings, and no resetting is
required next time.
Decrease the volume, the system will remember
the current settings, and no resetting is required
next time.
Hands-free microphone and speaker
will be activated.
Hands-free microphone and speaker will be
turned off, and the headphones will be activated.
09
MIC MIC/SPK
SPK
/
OLED Display
+
-
VOL+VOL- Speaker
10
BeamLink-
Ultimate
tX
BeamLink-
Ultimate
tX
BeamLink-
Ultimate
tX
BeamLink-
Ultimate
tX
Product Installation
For transmitter
1. Please install all the antennas on the transmitter and make them in a fan shape
as shown in the picture.
Distance>1m Distance>1m Distance>1m
above floor.
around 1.5 to 2 meters
Transmitter at a height of
3. Please connect the transmitter and camera with SDI or HDMI cable.
BeamLink-
Ulti mate
tX
BeamLink-
Ulti mate
tX
2. Please fix the transmitter via the screw at the bottom or the V-mount at the back,
and place it at a height of around 1.5 to 2 meters above floor. Please make sure
that the distance between each transmitter is more than 1 meter.
10
SDI Input
HDMI Input
S DI
H D MI
H D MI
11
B: Vertical placement
Receiver Installation
1. Please install all the antennas on the receiver, and make them in a fan shape
as shown in the picture.
2. Please place the receiver at a height of around 1.5 to 2 meters above floor.
Receiver can be placed in vertical or horizontal positions, and can be fixed via
the screw at the bottom or V-mount at the back. Please install the affiliated
metal stand before placing the receiver in vertical position.
A: Horizontal placement
Place the receiver at a
height of around 1.5 to
2 meters above floor.
install the
affiliated
metal stand
3. Please connect the receiver and video switch console or monitor
with SDI or/and HDMI cable.
HDMI Out
HD MIHD MIHD M IHDM I
Receiver:3060
HDMI Out
HDMI Out
HDMI Out
SDI Out
SDI Out
SDI Out
SDI Out
HD MIHD MIHD M IHDM I
SD I
SD I
SD I
SD I SDI
0
0:0
00:0
12
Receiver:3081
headphone
13
4. The receiver can be powered by both the V-mount lithium battery and DC-IN port via
the affiliated power adapter. If the mentioned two types of power supply are
connected at the same time, the lithium battery is prioritized in power supplying,
and the battery will switch to the power adapter for power supplying automatically
after the battery power is exhausted.
Product Application
Standard mode
In standard mode, the four channel video sources a re connected to the fou r
tran smi tters v ia HD MI or S DI ca ble res pec tivel y. The rece iver wi ll receive the fou r
channel signals and transport them to swi tch con sol e or/and mo nitor via
HDMI SDI.or/and
Power
Li-battery
This system supports tally function. When tally input is connected to GND, tally out
will be 5V voltage, which can provide 200mA max source current. And when tally
input is OPEN(disconnected to GND), tally out will be low.
Headphone
Camera-1
Headphone
Camera-2
Headphone
Camera-3 TX-3
Headphone
Camera-4 TX-4
TX-1
TX-2
500m/1640ft
Four channel
Full-HD in One
RF Channel
RX-1
*Tally
*RS232/422
HDMI/SDI
HDMI/SDI
Switch Console
Monitor
RTSP
RX-2
Live Streaming network
Headphone
14
15
Streaming mode
OLED Display Description
In streaming mode, th e four channel video source s are connec to
ted
the four transmitters via HDMI or SDI cable respectively. Th e re ceiver will
receive the fou r RTSP from t he four transmitters a nd se nd
them to the switch console through the LAN port.
streamings
You ca n als o connect
the re ceiver with mo bil e devices such as your mobile phone, t ablet and
PC via WiFi , and PC
and wa tch the live vid eo on t he mo bil e pho ne, tablet .
Note: In stream mode, an additional router with three RJ45 ports to be needed.
Headphone
Camera-1
Headphone
Camera-2
Headphone
Camera-3 TX-3
Headphone
Camera-4
TX-1
TX-2
TX-4
500m/1640ft
Four channel
Full-HD in One
RF Channel
RX-2
RX-1
RJ45
Router
Headphone
Switch Console
PC
Live Video Cloud Center
Monitoring on
Mobile Devices
TX:7081
Gain mode
Transmitter ID
Icon
Transmitter ID
Gain Mode
Volume icon
Signal Icon
Video
Reset & Reboot
Frequency Channel
L1
VIDEO
RESET
CH 2
Content
Numbers 1~4
Microp hone icon
L
Blan k
Volume bar
X
Signal bar
Blank
VIDEO
WPS
Reset
RTSP
Blank
CH*
Volume icon
Signal icon
Video
Reset & Reboot
Frequency Channel
Status
Four transmitters are numbered 1, 2, 3 and 4, respectively
Exte rn al audi o input m od e
Low-gain mode
High -gain m ode
Disp lay the intercom volume o f the transmi tter
Connecting not complete
Successful network connection
No video signal input
Video signal input connected
In code matching status
The device is resetting and rebooting
The device is Streaming mode
Stan dard mode
Display current frequency channel (1~11)
16 17
RX:3060
Intercom Receiver:3081
Signal Icon
Freq uen cy Channel
Tran smi tter ID
Icon
Tran sm itter ID
Frequency Channel
Sign al Icon
Video
CH2
1
VIDEO
2
VIDEO
3
VIDEO
4
VIDEO
Content
Numb ers 1~4
CH*
X
Sign al bar
Blan k
VIDE O
Signal Icon
Vide o
Status
Four t rans mitters a re n um bered 1, 2, 3
and 4, res pecti vely
Disp lay current f requ ency ch an nel (1~ 11)
Conn ecting no t co mplete
Successf ul network conn ectio n
No vid eo sign al rec eive d from TX
Video si gnal received from TX
Tran smi tter ID
1 2
Call stat us
Icon
Tran sm itter ID
Call s tatus
Sign al status “X” or signal bar
Volum e
1 2
Content
Numb ers 1~4
Telephone symbol
Blan k
Display volume
Volume icon
Status
Display the status of the corresponding
transmitters respectively.
When the phone is displayed, it indicates
that the channel voice call is connected.
Corres po nding t ra ns mitter is i n the idl e st atus.
The signal bar is displayed when the wireless
signal at the corresponding transmitting
terminal is connected, otherwise “X”
is displayed.
Display the current relative volume
18
19
Functional Instructions
Tally function
The DB9 header of the Tally input interface is
defined as follows:
Insert the Tally ligh t into the transmitter ’s Tall y out put interface fir st,
then conn ect t he to the receiver ’s Tall y input inte rface,
and then co ntrol the Tall y lig ht of t he four transmitters throug h the swi tch
cons ole . When tally inpu t is connected to GND,tal ly ou t wil l be 5V voltage,
which can provide 200mA max source cu rrent.And whe n tal ly in put i s OPE N
(disco nne cted to G ND),tal ly ou t wil l be low.
Tally inter face of the tran smitter an d receiver: The tran smi tter’s Tally
inte rface i s a standard φ3.5 headphone inte rface. Th e re ceiver’s Tally
inte rface i s a DB9 female.
switch cons ole
Tally light output interface:
J16
PHONEJACK STEREO SW
1
2
3
4
5
6
D13
RCLamp0521PA
Tally_Red
Tally_Green
D12
RCLamp0521PA
DB9_FEMALE
J15
5
GP8
GP7
GP6
GP5
GP4
GP3
GP2
GP1
9
4
8
SH1
SH2
3
7
2
6
1
Note:
Both the 3060 and the 3081 tally por ts are avai lable, but only o ne of t hem
can be used at same time.
DB9 pin
1
6
2
7
3
8
4
9
5
Tally定义
1R
1G
2R
2G
3R
3G
4R
4G
GND
说明
Chan nel 1 red
Chan nel 1 green
Chan nel 2 red
Chan nel 2 green
Chan nel 3 red
Chan nel 3 green
Chan nel 4 red
Chan nel 4 green
Ground C on necti on
20
21
RS232/RS422 transparent transmission
Streaming Function
Description:
This i nterface defaul ts to RS2 32 fu nct ion . For RS422 funct ion , contact the
sales staff in a dvance for customized informatio n!
1 3
RS232
Pin No
Attach ed : Baud rate set ti ngs
Log in to th e backp la ne parame te r se tting s page to cha nge the bau d ra te s ettings :
(For s pe cific o pera ting steps, ref er t o “V id eo Parameter Se tting s” )
Name
1
2
3
4
5
6
NC N C
P12V
NC N C
TXD
GND
RXD
Desc ripti on
No vo lt ag e output by de fa ul t
(Reserve 12 V volt ag e ou tp ut )
Tran sm it d at a TX
Ground
Receive d at a RX
2
456
RS422
Name
RXD-
P12V
TXD-
TXD+
GND
RXD+
Desc ripti on
Receive d at a RX-
No vo lt age output by de fa ul t
(Reserve 12 V vo lt ag e ou tp ut )
Tran sm it d at a TX-
Tran sm it d at a TX +
Ground
Receive d at a RX +
When the rece iver is s et to strea min g mod e, the transmitte r nee ds to
switch to strea min g mod e. At this time, t he word “RTSP” i s dis played
on the tran smitter’s OLED dis play, the SDI and HDMI ports at th e receiver
have no vi deo o utp ut, and the video is transmitted to the strea min g med ia
software th rough the LAN por t of th e receiver for decoding .
In this mode,video is decoded using software . And t here are lo ts of I P bas ed
deco din g sof tware on market. The following is an exam ple o f commo n VLC
streaming media software :After the transmitter a nd receiver build a
network connec tio n, th e trans mit ter network indicator is always on,
the re ceiver network connection display normal; the transmitter i s connected to
the HDMI or SDI video source, and the receiver’s network port is con necte d
to the s tream ing d ev ice.
Take the VLC on PC as an example. Afte r run ning VLC, select to turn on
the netwo rk stream.Fill in the address “ rts p://xx.xx.xx.xx/media/live/0
”,
where xx. xx. xx.xx is the correspon din g trans mit ter IP address . Cli ck “P lay”
to sta rt.
Note t hat t he tran smi tter must be connected to th e vid eo so urce, and t he
IP address of the device ru nin g VLC (s uch a s a computer) must be
the same network segment as the IP address of t he en coding board.
Otherwise, t he st re ami ng wi ll fail .
22
23
Open inte rne t browser, and enter transmi tter’s e ncode r or rece iver’s
deco der I P add ress in t he address bar to enter the parameter se ttings page.
Encoder/Decoder Configuration and Upgrading
Each tran smitter ha s one e ncoder, and its configuration and software
upgradi ng need to be im ple men ted on its encoder . Since t he receiver has
four deco ders, the co nfi gurat ion a nd software up gradi ng ne ed to be
implemente d on it s eac h decoder respectively.
Keep the comp uter co nne cted to the receiver through LAN port,
and ke ep th e re ceiver co nnected wi th al l trans mit ters normally.
Each tran smitter ha s one w irele ss tran smission modu le an d one e ncoder.
Rece iver has one wirele ss transmiss ion m odu le an d four decoders.
All modules and each encode r/de coder have their respective IP address as
follows, an d all config urati on an d upg ra din g ope ra tion must be
implemente d und er it s ow n IP ad dress.
Trans mitter
Wireless
transm ission
modu le IP
(WiF i IP )
Enco der I P
Wireless
transm ission
modu le IP
(WiF i IP )
Deco der I P
192.168.1. 201, 192.168.1.202, 192 .168 .1.203, 1 92.1 68.1 .20 4
192.168.1.111, 1 92.1 68.1.112, 192 .168.1.113 , 192.168 .1.114
Receiver
192.168.1.100
192.168.1. 211，1 92.168.1 .21 2，192.168.1.2 13，192.16 8.1. 214
All trans mitte r ’s enco der and receiver’s need to be configured
deco der s
one by o ne, please refer to the foll owing configuration case.
Transmit ter Encoder Case ( transmitter 2) :
IP ETH AD DR
192 .168.1.1 12
GROU P
222 2
Standa rd Mode Bitra te
800 0
RTSP Bitrat e
SDI Audio Mode
Seri al B au d Ra te
File U pl oa d:
Save th e co nf ig uration and then re bo ot ...
Save E nviro nme nt
选择文 件
Rece iver module: (Since th e re ceiver has fou r decoders, there are four
corresponding IP ad dress es ne ed to be co nfigured )
Tran sm it ter IP a dd ress(192.168.1.11 1~ 11 4) . Do n ot c ha ng e th e IP,
othe rw is e th e wi reless co nnection will be shut down .
Tran sm it ter ID ( four devi ce s co rrespond to 1111, 2222,
3333 a nd 4 44 4, respective ly ), D o not change the ID, o th er wi se t he w ir el ess
connection will be s hu t down
Range (1 00 0-250 00 )
Range (1 00 0-1 50 00)
0
1
240 0 96 00 19 20 0 384 00 5760 0 115 20 0
未选择 任何文件
1
2
Soft ware up gr ad e: ① S el ec t a fi le ; ② Cl ic k Sa ve
(Sele ct A L ocal Fi le )
Tran sm is si on b it rate
RTSP st re am in g bi trate
Seri al b au d rate
Re ceiver Deco der Case (De coder 2) :
Version:CM306 0V 3. 15
IP ETH AD DR
192 .168.1. 212
GROU P
222 2
LATE NC Y_ MO DE
1
Seri al B au d Ra te
File U pl oa d:
Save th e co nf ig uration and then re bo ot ...
Save E nviro nme nt
240 0 96 00 19 20 0 384 00 5760 0 115 20 0
未选择 任何文件
选择文 件
1
2
Soft ware versio n
Deco de r IP address (1 92 .168 .1.211 ~214)
Corresponding transmitter ID (1111/2222/3333/4444)
Seri al baud rate
(Sele ct A L ocal Fi le )
Soft ware up gr ad e:
① Sele ct t he f il e to be up graded
② Clic k Save to complete the upgra de
24
25
Wireless Transmission Module Upgrading
Each tran smitter ha s one w irele ss tran smission modu le, a nd the software
upgradi ng needs to be i mpl eme nted on each t ransmitter. Receiver also has
one wirel ess transmissio n mod ule, and the software up gradi ng needs to be
implemente d on it a ccordin gly.
1. The t ransm itter operates th e sam e as the wirel ess software u pgrad e
of the receiver.
2. The b ack o f eac h device’s body will be labeled with t he IP a ddres s of
WiFi a nd th e IP ad dress o f the encode r/decoder. The d efault IP
addresses are as follows:
Trans mitter
Wireless
transm ission
modu le IP
(WiF i IP )
Enco der I P
Wireless
transm ission
modu le IP
(WiF i IP )
Deco der I P
192.168.1. 201, 192.168.1.202, 192 .168 .1.203, 1 92.1 68.1 .20 4
192.168.1.111, 1 92.1 68.1.112, 192 .168.1.113 , 192.168 .1.114
Receiver
192.168.1.100
192.168.1. 211，1 92.168.1 .21 2，192.168.1.2 13，192.16 8.1. 214
First, co nnect the co mpu ter to th e LAN p ort of the receiver;
Then e nter the device’s WiFi IP (wireless transmiss ion m odule IP) in the
address bar to enter the login p age :
Enter username: admin
Enter password: admin
After success ful l ogi n, en ter the WiFi board para meter page o f the d ev ice:
(Take the following figure as an example: The d ev ice’s operating mode,
WiFi I P(w ireless tran smi ssion module IP), an d IP of t he En coder/Decoder
can be found.)
Informatio n lab el on t ra nsm itter:
Mode:STA
WiFi IP:192.168.1.201
Encoder IP:192.168.1.111
26
27
Select the “Upgrade” option in the “System” column.
ITEM
Freque ncy
Product Specifications
TX:7060
5190 H z( 1), 5230 Hz(2 ), 5270 Hz(3 ), 5 31 0 Hz (4),
5510 H z(5), 5 550 Hz( 6) , 5590 Hz (7 ), 5630 H z( 8),
5670 Hz(9) , 5755 Hz( 10), 579 5 Hz(11)
RX:3060/3 081
On the “Upgrade” settings page:
The so ftware for the p roduct WiFi board c an be u pgrad ed:
1. Select the software fil e to be upgraded
2. Click to u pgrad e
Ante nn a
Modu latio n mo de
Transmission Power
EVM
Receiving Sensitivity
Bandwidth
Wireless
Network encryption
Network model
Transmission Distance
Transmission Delay
code function
HDMI Protocol
Video Format
4*4 MI MO 5dBi E xternal a nt en na
OFDM
19dB m
≤-28dB
≤-70dBm
40MH z
802.1 1n
WPA2/ WPS
Poin t to p oint, RTS P
500m(video code rate: 8Mbps per channel)
70ms(min)
Support automatically code matching
Supp ort HDM I 1.4
SDI：
SMPT E 296M 720p 50, 72 0p59.94 , 72 0p60,
SMPT E 274M 10 80i50, 10 80 i59.94, 1 080i6 0, 1 08 0p23. 98,
1080 p24, 1080p2 5, 1080 p29.97, 108 0p30
SMPT E424M 1080p 50, 1080p 59 .94, 10 80 p60
HDMI :
720p 50, 72 0p 59.94, 720p 60, 1080i 50 , 10 80i59.9 4,
1080 i60, 1080 p23.98, 1 080p24, 108 0p25, 1 080p29. 97,
1080 p30, 1080 p50, 1 080p5 9. 94, 108 0p60
28
Audio Format
SDI/ HD MI Embedd ed a ud io
Audi o via video w ireless trans mi ssion : PC M
Samp ling rate: 48KH z Numbe r of bits: 16 bit
Inte rcom aud io: 3.5 mm interface an alog inpu t and out put
29
Video Compression
Format
Remote control
IO port signal return
Interface
Power Consumption
Operating Power Supply
Temperature
Operat in g vo ltage
H.26 4
RS23 2/RS4 22
Supp ort Tally s ig nal retur n
SDI in * 1; HDMI in * 1;
Tally output * 1;
Lemo power coordinates *1;
Antenna sub *4; Key * 3;
Ship type power switch *1;
OLED display screen *1;
Np-F970 battery holder *1
10W
DC 12V/2A DC 12V/3 A
-10°C - 5 0° C(Work ing)；-40°C - 80° C(Storage)
7-17V
SDI output *4; HDMI output *4;
DB9(Tally in) * 1; Antenna sub *4;
Power supply coordinate *1;
Metal power switch *1;
Display screen *1; Key * 3;
Battery button connection seat *1
20W
Trouble Shooting
If mosaic, jams, smear
or frame loss appear
during use
If in/ out video
resolution not
matching or display
compatibility related
SolutionsTroubl e
Lift t he transm it te r and receiver as hig h as possib le,
to 1.5 -2 m or more;
The an te nn as are instal led in fan- shape a nd f ac ing for
ward to rec ei ve r, and th e tran smiss io n effec t is t he best;
The LN A mo de is set i n H (high -g ain mod e);
When m ultiple t ra nsmitte rs wor k at the same t ime,
ensu re t hat the trans mitters a re at le ast 1m apar t from
each o ther;
If the re i s st ill a mos aic or a ja m, s wi tch the produ ct
freque ncy to the ot he r frequen cy c hanne l.
Conf irm the sof tware vers ion of th e
and co nt act the tec hnici an i n time. I f th e software versio n
is con fi rmed to be too ol d, it is ne ce ss ary to upgrad e
the so ftware.
enco de r and decod er
30
If the re i s no
conn ec tion
duri ng use,
It is di vided
into 2 c as es:
When the receiving
terminal cannot hear
the other party’s
voice when speaking
one-on-one
In clo se range ( , if the t ra nsmit te r
and receiver a re conne cted to 4 antenna s, the di st ance
need s to b e ex te nded to 5m, a nd t he LNA mo de shou ld
be set t o L (l ow -g ain mod e); wh en mult iple transm itters
work at th e sa me time , en sure that t he t ra nsmit te rs
are at lea st 1 m apart f ro m ea ch othe r;
In the l ong-d istance sit uation, l ift the t rans mitter an d
receiver as hi gh a s possi bl e, to 1.5-2 m or m ore; the
ante nn a is fan-sh aped an d fa cing for ward,the LNA m ode
is set t o H (h igh-g ain mod e); wh en multip le transm it te rs
works at t he s ame tim e, e nsure tha t th e transmi tt ers
are at lea st 1 m apart f ro m ea ch othe r.
a: Con firm whet her it is i n one-to- on e mode;
b: Press t he “ALL” button a ga in, and t hen press the
butt on a t the corresp on ding tran sm ittin g te rmina l;
c: Whe ther the he adpho nes are loose ; and
d: Whe ther the he adpho nes malfu nctio n, try ag ai n after
replac ing the h ea dphon es.
situ ation TX- to -RX<2 m)
31
Precautions
1. If trans mitte r or/ and receiver use HDMI cable:( a~f )
a. Do not plug in or pull out the HDMI cab le of t he tran smi tter and recei ve r
during normal use.
b. Con nec t the t ra nsm itter to the video source an d connect receiver to
a monitor v ia HD MI an d the n powe r on th e trans mit ter and receiver.
c. When the OSD prompts t hat code matching fail s after tryi ng code matc hing,
rebo ot th e trans mit ter and receiver to see whe the r they ca n be connected
normally. Perfo rm code matc hing again when it is st ill u nab le to be
conn ected afte r re sta rting.
d. When there is no video appear on d isp lay after change video resolution
para meters on transmi tter, pull out and then plug in th e HDM I cab le of t he
tran smi tter or receiver.If there is still no video appear, power off and rest art
the trans mitte r and receiver.
e. Whe n the n etwor k can not b e conne cted for a lon g tim e after switching
freq uen cy channel, reboot the transmitter an d re ceiver.
f. Wh en th e trans mit ter and receiver dev ices are co nne cted norma lly,
there is no o utp ut on the monitor a t the receiver, or the video o utp ut is
abnormal, re -plug the HDMI cable of the receiver a nd ch eck whether the
monitor i s cha nge d to stan dby mod e. If it is stil l una ble to output normal ly
afte r the a bove o perat ion , try to replace t he display d ev ice.
2. If there i s a pic ture ja m or mo sai c during use, it is g ene ra lly c aus ed by
inte rfe re nce in the network. Therefore, try sw itching th e net wo rk frequency
channel to avoid the interference ban d. For the frequency swi tching
operation,please refer s to the frequ ency swi tching operation
instructio ns.
31
channel
channel
Loading...
