CVS Controls Series 627
Pressure Regulator
The CVS Series 627 regulator is a high and
low pressure, direct operated pressure
reducing regulator. Suitable for use in many
applications, including air, natural gas and
other fuel gas sources.
CVS Series 627 Regulators are easy to
maintain, reducing cost of ownership and
valuable downtime. Internal components
may be replaced without the need to
remove the regulator from the applications
installation. The two bolt design between
the body and diaphragm case allows for
simple removal to do maintenance or
repairs.
The diaphragm case and or the regulator
body may be rotated in any of four
positions to allow for versatile installation
options.
The adjustment set screw and lock nut
come standard with a protective cap to
discourage unwanted adjustments of the
desired pressure output.
Three configurations available:
CVS 627 - Direct Operated Pressure
Reducing
CVS627R – Internal relief
CVS627H – High Pressure
All are sour or NACE capable.
INSTRUCTION MANUAL
Head Office
3900 101 Street
Edmonton, Alberta
T6E 0A5
Canada
Office: (780) 437-3055
Fax: (780) 436-5461
Calgary Sales Office
3516 114 Avenue SE
Calgary, Alberta
T2Z 3V6
Canada
Office: (403) 250-1416
Fax: (403) 291-9487
Website: www.cvs-controls.com Email: info@cvs-controls.com
2 | P a g e
Specifications:
Body Size
(in)
End
Connection
Standard
Construction
1 and 2
NPT
LCC Steel
Note: The pressure limits specified in this
manual should not be exceeded
Maximum Inlet Pressure (body)
NPT Steel: 2000 psig
Ductile Iron: 1000 psig
Maximum Outlet Pressure (operating)
Determined by spring selection and orifice
size. See Table 1
Maximum Spring and Diaphragm Casing
Pressure
See Table 2
Note: The CVS 627 is limited by the
maximum diaphragm casing pressure
Orifice Sizes
See Table 1
Regulator Capacities
See Table 3
Flow Coefficients
See Table 4
Temperature Capabilities
Material
Disk/Diaphragm
Temperature
Co
Fo
Nitrile (NBR)
Disk/Diaphragm
-40 to 82
-40 to 180
Nylon (PA)
Disk
Neoprene
(CR)
Diaphragm
Construction Materials:
Body:
Ductile Steel Standard
LCC- Optional for
Sour or NACE service.
Spring Case and Diaphragm Case:
LCC Steel
Orifice:
Standard is Aluminum.
Stainless Steel, optional
Disk Holder with Valve Disk:
2000 psig: Aluminum or Stainless Steel with
Nylon (PA)
1000 psig: Aluminum (standard), or
Stainless Steel (optional) with Nitrile (NBR)
O-Rings:
Nitrile (NBR)
Diaphragm:
Neoprene (CR)
Pressure Registration:
Internal
Spring Case Vent Connection:
3/4” NPT with screened vent removed
Approximate Shipping Weight:
LCC Steel – 10 lbs
3 | P a g e
Installation:
Note: Do not exceed the pressure and temperature limits referenced in this manual. Ensure
proper safety procedures are followed when installing or maintenance is required. Only
qualified personnel should install, operate and maintain this component.
1. If the CVS 627 regulator has been shipped as an individual component, inspect for debris
or foreign materials upon un-packaging.
2. Ensure all piping and tubing connections are free of debris and have been blown free.
3. The 627 Regulator may be installed in any direction, as long as the flow direction is
adhered to as marked on the body.
4. A three-way valve may be utilized should continued operation be required during
inspection and maintenance procedures. (not supplied)
5. Position the body and diaphragm spring case in a manner that prevents the screened
vent from collecting debris or moisture.
Note: This regulator may ventilate some gas to atmosphere. If installed in a hazardous or
flammable gas application, ensure proper venting procedures are followed. Vent the
regulator to a safe location away from any hazardous area. Keep the vent line clear of debris
and or condensation.
Remote Venting Installation:
The CVS Series 627 Regulator comes standard with a screened vent installed in the 3/4" NPT
spring case vent. When necessary to remotely vent the regulator the screened vent may be
removed to install a remote vent line.
Always ensure the remote vent line is installed using proper piping procedures. Keep the vent
line free of debris and or any condensation, and periodically inspect the vent line for proper
regulator operation.
Overpressure Protection:
The outlet pressure rating on the Series 627 Regulator is lower than the inlet pressure rating. If
the inlet pressure exceeds the outlet pressure on the CVS 627H, a pressure limiting or pressure
relieving device must be installed as there is no internal relief. Internal damage may occur if this
step is not followed.
4 | P a g e
Startup and Adjustments:
The CVS Series 627 Regulator is set to the midpoint of the spring range upon assembly, unless
otherwise specified by the customer. Initial adjustments may be required at point of installation
to suit the application.
During startup, release downstream pressure to prevent an overpressure condition. It is
recommended pressure gauges be utilized to monitor pressures during startup.
1. Open upstream shutoff valve slowly.
2. Open downstream shutoff valve slowly.
3. Inspect all connections for leaks.
4. Should any final control spring adjustments be needed refer to the Adjustment portion
of this manual.
Adjustments:
1. Remove the Adjustment Screw Cap.
2. Loosen the Adjustment Screw Lock Nut.
3. It is recommended a pressure gauge be used when making final adjustments to the
regulator.
4. To increase the CVS 627 Regulator outlet pressure, turn the adjustment screw clockwise.
To decrease the outlet pressure, turn the adjustment screw counter clockwise.
5. Once the final pressure has been achieved, while holding the adjustment screw, tighten
the adjustment screw locknut.
6. Replace the adjustment screw cap that was removed in step 1.
5 | P a g e
Shutdown and Maintenance:
Shutdown:
Avoid an overpressure condition on the regulator by first releasing downstream pressure to
avoid equipment damage or personal injury.
1. Close upstream shut off valve.
2. Close downstream shut off valve.
3. Vent line between the regulator installation and the closest downstream shut off valve.
4. The CVS 627H Regulator will open to release the pressure between the upstream shut
off valve and the regulator.
Maintenance:
Always follow proper shutdown procedures prior to performing any maintenance. Isolate the
regulator from all system pressure to avoid personal injury and/or equipment damage.
Periodic inspections of the CVS 627 regulator are recommended, and field maintenance may be
required should the inspection reveal damaged or worn parts due to normal operation, or
damage from external sources. Severe operating conditions may require more frequent
inspections.
Common items to inspect for wear or damage include the orifice, disk assembly, diaphragm,
and o-rings. These procedures may also be used to inspect and replace other regulator items as
required.
6 | P a g e
Body Maintenance:
*The following procedures refer to the CVS 627H, for CVS 627 and CVS 627R refer to assembly drawings for correct
item identification.
The following procedures may be used to access the disk assembly, orifice, stem assembly and
diaphragm casing o-ring. Ensure all pressure has been released from the diaphragm casing prior
to performing the following procedures.
Replace the Orifice or Disk Assembly: (Key #12, and Key #14)
1. Using a 5/16 hex wrench, remove the two cap screws (key 13), and separate the body
from the diaphragm casing.
2. Inspect orifice (Key 12) for visible damage and remove/replace if necessary using a 7/8
socket wrench. If the orifice has been removed, lubricate the threads before replacing
and torque to 25 ft/lbs.
3. Inspect the disk assembly (Key 14). If replacement is necessary, the disk assembly may
be remove by using needle nose pliers to first remove the hair pin clip (Key 15).
Stem Assembly replacement if necessary: (Key 16)
1. Remove the Boost Body (key 11), Stabilizer (key 17), and Stem Guide (key 8) from the
diaphragm case. The Stem (key 16) may be removed by unhooking it from the lever
inside the diaphragm case.
2. Remove and inspect the diaphragm case o-ring (key 9), replace as required.
7 | P a g e
Maintenance:
Stem Assembly Replacement, continued:
3. Apply an o-ring lubricant to the diaphragm casing o-ring (key 9) prior to assembly.
4. When re-assembling, the pitot tube tab must be on the inside of the outlet side of the
regulator body.
5. Lubricate the Stem (key 16) and insert into the diaphragm case, making sure to hook
back onto the Lever (key 22).
6. Insert the Stem Guide (key 8) back into case by sliding over the Stem Assembly. Insert
the Stabilizer (key 17) back onto the Stem Assembly. Slide the Boost Body (key 11) back
into diaphragm case.
7. Install the Disk Assembly (key 14) by sliding it into the Stem Assembly and lining up the
holes to install the Hair Pin Clip (key 15).
8. Reposition the Body back onto the Diaphragm Case in the correct position for the
application. Install the Cap Screws (key 13) back on to secure the Body to the Diaphragm
Case, torque to 25 ft/lbs.
8 | P a g e
Maintenance:
Spring Case and Diaphragm Maintenance:
The following procedures may be used to inspect and maintain the Diaphragm Assembly (key
28), Main Control Spring (key 34), and Lever Assembly (key 22). Remove spring pressure from
the diaphragm case prior to performing the procedures.
1. Remove the Adjustment Screw Cap (key 35) and loosen the Lock Nut (key 2) using a 3/4
wrench. Turn the Adjusting Screw (key 1) counter clockwise to remove spring
compression on the Control Spring (key 34) until it is loose.
2. Remove the 8 Spring Case Cap Screws (key29) using a 9/16 wrench. The Spring Case (key
3) may now be lifted off the Diaphragm Case (key 5). If spring replacement or
repositioning of the spring case is all that is necessary, do so accordingly and reassemble
in reverse order. Torque Spring Case Cap Screws to 7 ft/lbs in a cross pattern till all have
been installed and torqued.
Diaphragm area Maintenance:
1. Remove the Diaphragm Limiter o-ring (key 27) and the Diaphragm Limiter (key 7).
Remove the Diaphragm Assembly (key 28) by tilting it so it will slide off the Lever (key
22)
9 | P a g e
Maintenance:
Diaphragm area maintenance continued:
1. The Lever Assembly (key 22) may be removed by using a 7/16 nut driver or similar if
inspection reveals damage or wear. A new Lever (key 22) may be installed by first
removing the Pin (key 21) to remove the old Lever, then install a new Lever and insert
the Pin. The Lever Assembly may now be reinstalled by securing the two Lever Cap
Screws (key 24) and torque to 7 ft/lbs.
Diaphragm Maintenance: (key 28)
1. If inspection reveals wear or damage to the diaphragm, it must be replaced. Remove the
Diaphragm Head Screw (key 31) using a 1/2 wrench. Remove the 2 Pusher Post o-rings
(key 26). Separate the Diaphragm (key 28).
2. Install the Diaphragm in the reverse order as listed above. Do not fully tighten the
Diaphragm Head Screw.
3. The Diaphragm Assembly may be reinstalled and the Diaphragm must be aligned to the
case holes prior to the Diaphragm Head Screw being fully tightened. Once aligned,
remove the assembly from the lever once again and tighten the Head Screw to 14 ft/lbs.
4. Install the Diaphragm Assembly back into the Diaphragm Case by tilting in a manner so
the Pusher Post properly sets into the Lever.
10 | P a g e
Maintenance:
Diaphragm Area Maintenance Reassembly:
1. The Diaphragm Limiter and Diaphragm Limiter o-ring may now be installed. Set the
Diaphragm Limiter onto the Diaphragm; align so that the Spring Case Cap Screws may be
installed. Set the Diaphragm Limiter o-ring back into the groove.
2. Install the Spring (key 34) and Upper Spring Seat (key 4) onto the Diaphragm Limiter
(key 7).
3. Install the Spring Case (key 3), align the vent assembly in the correct position for the
application.
4. Insert the Spring Case Cap Screws (key29) and finger tighten. Screw in the Adjusting
Screw (key 1) to put slack on the Diaphragm. Use a cross pattern to complete tightening
of the Spring Case Cap Screws to 7 ft/lbs.
5. Make final adjustments as required, if necessary; refer to Startup and Adjustments
section. Once final adjustments are complete, tighten the Adjustment Lock Nut and
install the Adjustment Screw Cap.
11 | P a g e
Dimensions
12 | P a g e

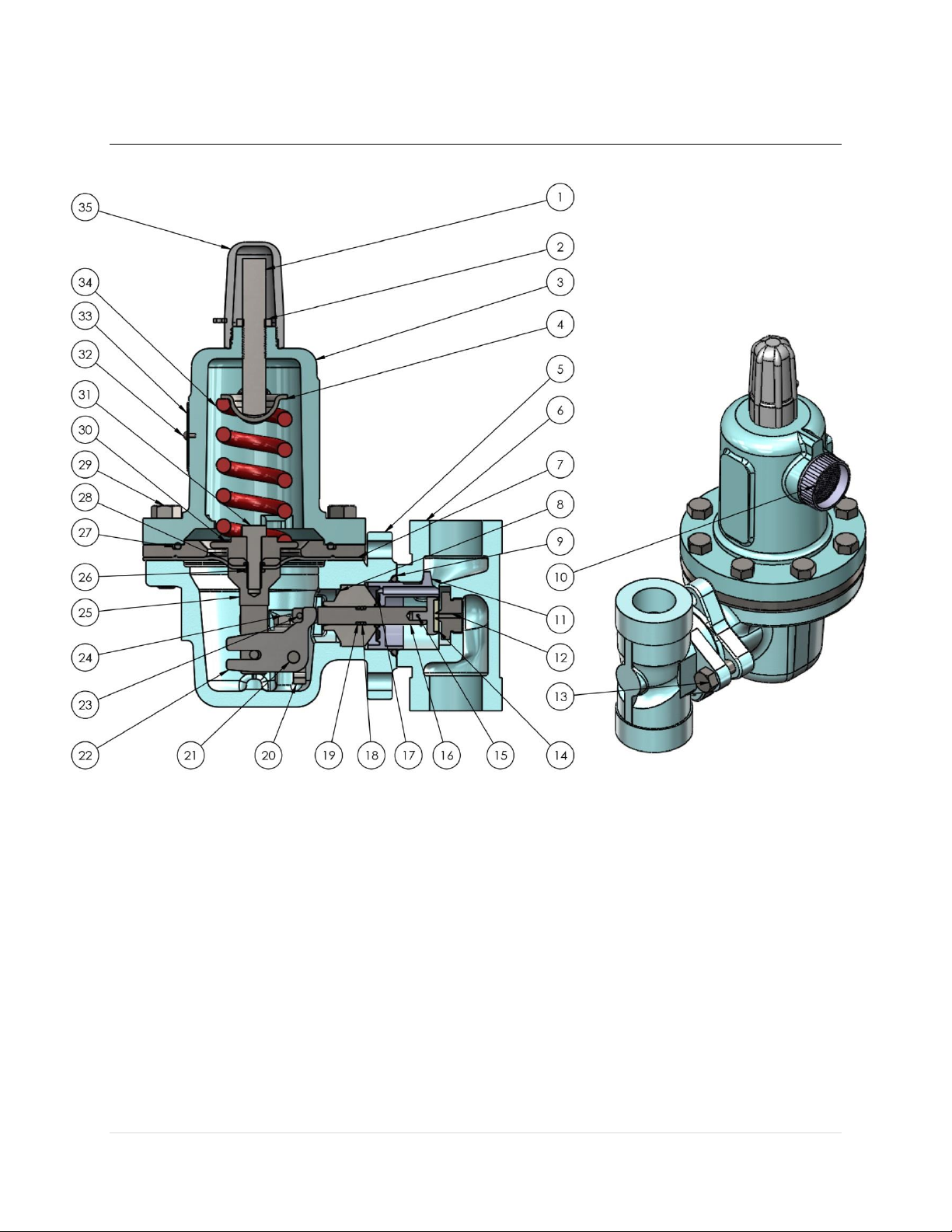

Assembly CVS 627H – Parts Listing
Item
Number
PART NUMBER
DESCRIPTION
QTY.
1
CVS 10B3081X012
ADJUSTING SCREW
1
2
CVS 1D667728982
LOCK NUT
1
3
CVS 30B3102X012
SPRING CASE
1
4
CVS 1D667125072
UPPER SPRING SEAT
1
5
CVS 30B3104X012
DIAPHRAGM CASE
1
6
CVS 30B3051X012
BODY
1
7
CVS 22B0176X012
DIAPHRAGM LIMITER
1
8
CVS 20B3061X012
STEM GUIDE
1
9
CVS 17A2325X022
DIAPHRAGM CASE O-RING 221
1
10
CVS 10B3093X012
SCREENED VENT ASSEMBLY
1
11
CVS 30B3056X012
BOOST BODY
1
12
CVS 0R044109022
ORIFICE 1 13
CVS 1C403024052
CAP SCREW, 3/8-16, 1.25 LONG
1
14
CVS 1C4248X00A2
DISK ASSEMBLY
1
15
CVS 10B3058X012
HAIR PIN CLIP
1
16
CVS 10B3059X012
STEM
1
17
CVS 10B3060X012
STABILIZER
1
18
CVS 1D687506992
STEM O-RING 010
1
19
CVS 1K786806992
STEM BACKUP RING
2
20
CVS 30B3097X012
LEVER RETAINER
1
21
CVS 10B3083X012
LEVER PIN, .25" DIA, .63" LONG
1
22
CVS 20B3063X012
LEVER 1 23
CVS 1H3671X0012
DRIVE PIN, .125" DIA, .52" LONG, GROOVED
1
24
CVS 10B7454X012
LEVER CAP SCREW, 1/4-20, .50" LONG
2
25
CVS 10B3098X032
PUSHER POST
1
26
CVS 1C853806992
PUSHER POST O-RING 011
2
27
CVS 1K877606992
DIAPHRAGM LIMITER O-RING 235
1
28
CVS 12B0178X012
DIAPHRAGM
1
29
CVS 1A346424052
SPRING CASE CAP SCREW, 3/8-16, 1.50 LONG
8
30
CVS 12B0175X012
DIAPHRAGM HEAD
1
31
CVS 1C379124052
DIAPHRAGM HEAD SCREW, 5/16-18, 1 1/8 LONG
1
32
CVS 1A368228982
3/32 REVIT, .18" LONG
2
33
CVS 10B3679X022
NAME PLATE
1
34
CVS 10B3079X012
CONTROL SPRING – Red – 240-500
1
35
CVS 20B3082X012
ADJUSTING SCREW CAP
1
13 | P a g e
Assembly – CVS 627H
CVS 627H Assembly
14 | P a g e
Assembly CVS 627R – Parts Listing
Item
Number
PART NUMBER
DESCRIPTION
QTY. 1 CVS 10B3081X012
ADJUSTING SCREW
1 2 CVS 1D667728982
LOCK NUT
1
3
CVS 40B3086X012
SPRING CASE
1 4 CVS 1D667125072
UPPER SPRING SEAT
1 5 CVS 40B3084X012
DIAPHRAGM CASE
1 6 CVS 30B3048X012
BODY-627H 1``NPT 1000psig
1
7
CVS 10B3068X012
DIAPHRAGM
1 8 CVS 20B3061X012
STEM GUIDE
1
9
CVS 17A2325X022
DIAPHRAGM CASE O-RING 221
1
10
CVS 10B3093X012
SCREENED VENT ASSEMBLY
1
11
CVS 30B3100X012
RELIEF INDICATOR
1
12
CVS 10B3679X022
NAME PLATE
1
13
CVS 1A368228982
3/32 RIVET X .18”
2
14
CVS 18A1087X012
5/16-18 HEX BOLT 1.38 LONG
2
15
CVS 1A928809012
ORIFICE 1/2"
1
16
CVS 1C4248X0212
DISK ASSEMBLY
1
17
CVS 10B3058X012
HAIR PIN CLIP
1
18
CVS 30B3057X012
BOOST BODY
1
19
CVS 10B3060X012
STABILIZER
1
20
CVS 1K786806992
STEM BACKUP RING
2
21
CVS 1D687506992
STEM 0-RING 010
1
22
CVS 10B3059X012
STEM
1
23
CVS 30B3097X012
LEVER RETAINER
1
24
CVS 10B3083X012
LEVER PIN .25”X .63”
1
25
CVS 1H3671X0012
DRIVE PIN .125” X .52”, GROOVED
1
26
CVS 10B3098X022
PUSHER POST ASSEMBLY
1
27
CVS 20B3063X012
LEVER 1 28
CVS 1A391724062
1/4" SPRING WASHER
2
29
CVS 10B7454X012
LEVER CAP SCREW, ¼-20 X .50” LONG
2
30
CVS 10B7445X012
RELIEF SEAL RETAINER
1
31
CVS 1J108506992
O-RING 117
1
32
CVS 28B8832X012
DIAPHRAGM CONNECTOR
1
33
CVS 10B3071X012
DIAPHRAGM HEAD
1
34
CVS 1A391724052
¼-20 HEX SCREW .75 LONG
8
35
CVS 10B7449X012
DIAPHRAGM CONNECTOR NUT
1
36
CVS 20B3073X012
LOWER SPRING SEAT
1
37
CVS 1D682506992
0-RING 009
1
38
CVS 10B6757X012
RELIEF SPRING
1
39
CVS 10B7446X012
RELIEF SPRING SEAT
1
40
CVS 10B7450X012
GUIDE RETAINER
1
41
CVS 10B3076X012
CONTROL SPRING
1
42
CVS 20B3082X012
ADJUSTING SCREW CAP
1
15 | P a g e
Assembly – CVS 627R
CVS 627R Assembly
16 | P a g e
Assembly CVS 627 – Parts Listing
Item
Number
PART NUMBER
DESCRIPTION
QTY. 1 CVS 10B3081X012
ADJUSTING SCREW
1 2 CVS 1D667728982
LOCK NUT
1
3
CVS 10B3078X012
CONTROL SPRING
1 4 CVS 1D666625072
LOWER SPRING SEAT 627
1 5 CVS 1K920724052
DIAPHRAGM HEAD CAP SCREW ¼-20 X .63 LONG
1 6 CVS 40B3086X012
SPRING CASE
1
7
CVS 1A953228982
DRIVE PIN .125” X .52” LONG, GROOVED
1 8 CVS 1K786806992
STEM BACKUP RING
1
9
CVS 10B3058X012
HAIR PIN CLIP
1
10
CVS 18A1087X012
CAP SCREW 5/16-18 X 1.38 LONG – not shown
1
11
CVS 10B3059X012
STEM 1 12
CVS 0R044109022
ORIFICE
1
13
CVS 1C4248X00A2
DISK ASSEMBLY
2
14
CVS 30B3056X012
BOOST BODY
2
15
CVS 30B3048X012
1” NPT BODY, 1000PSIG
1
16
CVS 17A2325X022
DIAPHRAGM CASE O-RING 221
1
17
CVS 10B3060X012
STABILIZER
1
18
CVS 20B3061X012
STEM GUIDE
1
19
CVS 1D687506992
STEM O-RING 010
1
20
CVS 30B3097X012
LEVER RETAINER
2
21
CVS 40B3084X012
DIAPHRAGM CASE
1
22
CVS 20B3063X012
LEVER
1
23
CVS 10B3083X012
LEVER PIN .25”X .63”
1
24
CVS 10A3098-BARA
POST PUSHER
1
25
CVS 10B7454X012
LEVER CAP SCREW, ¼-20 X .50 LONG
1
26
CVS 10B3069X012
DIAPHRAGM
1
27
CVS 1A391724052
CAP SCREW, ¼-20 X .81 LONG
1
28
CVS 1D666428982
DIAPHRAGM HEAD
2
29
CVS 1A368228982
3/32 RIVET X .18 LONG
2
30
CVS 10B3679X022
NAME PLATE
1
31
CVS 10B3093X012
SCREENED VENT ASSEMBLY
1
32
CVS 1D667125072
UPPER SPRING SEAT
1
33
CVS 20B3082X012
ADJUSTING CAP SCREW
1
17 | P a g e
Assembly – CVS 627
CVS 627 Assembly
18 | P a g e
Technical Data
Table 1: Maximum Inlet Pressures and Outlet Pressure Range
Model
Outlet
Pressure
Range,
Color Code,
Spring Part
Number
Orifice Size
Maximum Inlet Pressure
Nylon Disk (PA)
Nitrile Disk (NBR)
Mm
Inches
Bar
Psig
Bar
Psig
CVS 627H
140-250psig
(1.0-2.8bar)
Blue
CVS
10B3078X012
2.4
3/32
138
2000
69
1000
3.2
1/8
138
2000
69
1000
4.8
3/16
121
1750
69
1000
6.4
1/4
103
1500
69
1000
9.5
3/8
69
1000
20.7
300
13
1/2
51.7
750
13.8
200
240-500psig
(16.5-34.5bar)
Red
CVS
10B3079X012
2.4
3/32
138
2000
69
1000
3.2
1/8
138
2000
69
1000
4.8
3/16
121
1750
69
1000
6.4
1/4
103
1500
69
1000
9.5
3/8
69
1000
69
1000
13
1/2
51.7
750
51.7
750
CVS 627R
*5-20psig
(.34-1.4bar)
Yellow
CVS
10B3076X012
2.4
3/32
138
2000
69
1000
3.2
1/8
69
1000
69
1000
4.8
3/16
51.7
750
51.7
750
6.4
1/4
34.5
500
34.5
500
9.5
3/8
20.7
300
20.7
300
13
1/2
13.8
200
13.8
200
15-40psig
(1-2.8bar)
Green
CVS
10B3077X012
2.4
3/32
138
2000
69
1000
3.2
1/8
103
1500
69
1000
4.8
3/16
69
1000
69
1000
6.4
1/4
51.7
750
51.7
750
9.5
3/8
20.7
300
20.7
300
13
1/2
13.8
200
13.8
200
35-80psig
(2.4-5.5bar)
Blue
CVS
10B3078X012
2.4
3/32
138
2000
69
1000
3.2
1/8
121
1750
69
1000
4.8
3/16
69
1000
69
1000
6.4
1/4
51.7
750
51.7
750
9.5
3/8
20.7
300
20.7
300
13
1/2
13.8
200
13.8
200
70-150psig
(4.8-10.3bar)
Red
CVS
10B3079X012
2.4
3/32
138
2000
69
1000
3.2
1/8
69
1000
69
1000
4.8
3/16
34.5
500
34.5
500
6.4
1/4
20.7
300
20.7
300
9.5
3/8
13.8
200
13.8
200
13
1/2
13.8
200
13.8
200
19 | P a g e
Technical Data
Table 1: Maximum Inlet Pressures and Outlet Pressure Range
Model
Outlet
Pressure
Range,
Color Code,
Spring Part
Number
Orifice Size
Maximum Inlet Pressure
Nylon Disk (PA)
Nitrile Disk (NBR)
Mm
Inches
Bar
Psig
Bar
Psig
CVS 627
*5-20psig
(.34-1.4bar)
Yellow
CVS
10B3076X012
2.4
3/32
138
2000
69
1000
3.2
1/8
69
1000
69
1000
4.8
3/16
51.7
750
51.7
750
6.4
1/4
34.5
500
34.5
500
9.5
3/8
20.7
300
20.7
300
13
1/2
17.2
250
17.2
250
15-40psig
(1-2.8bar)
Green
CVS
10B3077X012
2.4
3/32
138
2000
69
1000
3.2
1/8
103
1500
69
1000
4.8
3/16
69
1000
69
1000
6.4
1/4
51.7
750
51.7
750
9.5
3/8
34.5
500
34.5
500
13
1/2
20.7
300
20.7
300
35-80psig
(2.4-5.5bar)
Blue
CVS
10B3078X012
2.4
3/32
138
2000
69
1000
3.2
1/8
138
2000
69
1000
4.8
3/16
121
1750
69
1000
6.4
1/4
103
1500
69
1000
9.5
3/8
69
1000
69
1000
13
1/2
51.7
750
51.7
750
70-150psig
(4.8-10.3bar)
Red
CVS
10B3079X012
2.4
3/32
138
2000
69
1000
3.2
1/8
138
2000
69
1000
4.8
3/16
138
2000
69
1000
6.4
1/4
121
1750
69
1000
9.5
3/8
86.2
1250
69
1000
13
1/2
51.7
750
51.7
750
20 | P a g e
Table 2: Spring and Diaphragm Casing Pressure
Maximum Pressure Condition
Diaphragm Casing Material
CVS 627H
CVS 627R
CVS 627
Bar
Psig
Bar
Psig
Bar
Psig
Maximum pressure to diaphragm
casing to prevent leak to
atmosphere.
Die Cast Aluminum
17.2
250
17.2
250
Ductile Iron
Steel or Stainless Steel
55.2
800
Maximum pressure to spring and
diaphragm casing to prevent
burst under abnormal operation
Die Cast Aluminum
25.9
375
25.9
375
Ductile Iron
32.1
465
32.1
465
Steel or Stainless Steel
103
1500
103
1500
103
1500
Maximum diaphragm case
overpressure condition, above
setpoint.
All Materials
8.3
120
8.3
120
4.1
60
Internal parts and damage may occur if pressures listed are exceeded
Ordering Information:
21 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627H, 1 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
140-250 psig
(9.6 – 17.2 bar)
Blue
CVS
10B3078X012
150
(10.3)
200 (13.8)
1760
(1)
(47.2)
3200
(1)
(85.8)
7290 (195)
11500 (308)
21600 (579)
31000 (831)
250 (17.2)
2260
(1)
(60.6)
4100
(1)
(110)
9200 (247)
15400 (413)
28600 (766)
40000 (1072)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
19300 (517)
31000 (831)
46000 (1233)
400 (27.6)
3600 (96.5)
6500 (174)
14800 (397)
25000 (670)
40000 (1072)
50000 (1340)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32000 (858)
51000 (1367)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
46000 (1233)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
57000 (1528)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
140-250 psig
(0.6 – 17.2 bar)
Blue
CVS
10B3078X012
200
(13.8)
250 (17.2)
2160
(1)
(57.9)
3850
(1)
(103)
8400 (225)
15000 (402)
31000 (831)
41000 (1099)
300 (20.7)
2700
(1)
(72.4)
4910
(1)
(132)
11200 (300)
19500 (523)
36000 (965)
52000 (1394)
400 (27.6)
3600 (96.5)
6500 (174)
14800 (397)
26500 (710)
52000 (1394)
68000 (1822)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
33000 (884)
61000 (1635)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
250
(17.2)
300 (20.7)
2500
(1)
(67)
4500
(1)
(121)
9900 (265)
18500 (496)
37000 (992)
52000 (1394)
400 (27.6)
3600 (96.5)
6400
(1)
(172)
14300 (383)
26000 (697)
55000 (1474)
74000 (1983)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
33000 (884)
64000 (1715)
87000 (2332)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
93000 (2492)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
1 – A ±15 psig (1.0 bar) setpoint shift may occur due to small orifices and low pressure drops
240 to 500 psig continued next page,
22 | P a g e
Technical Data
Table 3 continued: Regulator Capacities for CVS 627H, 1 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
240-500 psig
(16.5-34.5 bar)
Red
CVS
10B3079X012
250
(17.2)
300 (20.7)
2500
(1)
(67)
4500
(1)
(121)
9300 (249)
14000 (375)
25000 (670)
37000 (992)
400 (27.6
3600 (96.5)
6400
(1)
(172)
14300 (383)
21400 (574)
36000 9965)
49000 (1313)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
26300 (705)
42000 (1126)
62000 (1662)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
37100 (994)
57000 (1528)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
47400 (1270)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
57000 (1528)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
300
(20.7)
350 (24.1)
2900
(1)
(77.7)
5150
(1)
(138)
11300 (303)
18400 (493)
31000 (831)
45000 (1206)
400 (27.6)
3500
(1)
(93.8)
6200
(1)
(166)
13700 (367)
23400 (627)
40000 (1072)
52000 (1394)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32000 (858)
53000 (1420)
67000 (1796)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48000 (1286)
80000 (2144)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
62000 (1662)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
79000 (2117)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
400
(27.6)
450 (31)
3600 (96.5)
6400
(1)
(172)
14000 (375)
25000 (670)
47000 (1260)
67000 (1796)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32000 (858)
54000 (1447)
77000 (2064)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
91000 (2439)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
500
(34.5)
550 (37.9)
4300
(1)
(115)
7700(1) (206)
16800 (450)
33000 (884)
62000 (1662)
90000 (2412)
600 (41.4)
4900
(1)
(131)
8800
(1)
(236)
19400 (520)
37000 (992)
70000 (1876)
104000
(2787)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
88000 (2358)
140000
(3752)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
130000
(3484)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
97000 (2600)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
1 – A ±15 psig (1.0 bar) setpoint shift may occur due to small orifices and low pressure drops
23 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627H, 2 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
140-250 psig
(9.6 – 17.2 bar)
Blue
CVS
10B3078X012
150
(10.3)
200 (13.8)
1760
(1)
(47.2)
3200
(1)
(85.8)
7290 (195)
13700 (367)
24100 (646)
31000 (831)
250 (17.2)
2260
(1)
(60.6)
4100
(1)
(110)
9200 (247)
16100 (431)
28600 (766)
40000 (1072)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
19300 (517)
31000 (831)
46000 (1233)
400 (27.6)
3600 (96.5)
6500 (174)
14800 (397)
25000 (670)
40000 (1072)
50000 (1340)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32000 (858)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48000 (1286)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
140-250 psig
(9.6 – 17.2 bar)
Blue
CVS
10B3078X012
200
(13.8)
250 (17.2)
2160
(1)
(57.9)
3850
(1)
(103)
8400 (225)
16100 (431)
33000 (884)
41000 (1099)
300 (20.7)
2700
(1)
(72.4)
4910
(1)
(132)
11200 (300)
20100 (539)
36000 (965)
52000 (1394)
400 (27.6)
3600 (96.5)
6500 (174)
14800 (397)
26500 (710)
52000 (1394)
68000 (1822)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
33000 (884)
61000 (1635)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
250
(17.2)
300 (20.7)
2500
(1)
(67)
4500
(1)
(121)
9900 (265)
18500 (496)
37000 (992)
75000 (2010)
400 (27.6)
3600 (96.5)
6400
(1)
(172)
14300 (383)
26000 (697)
55000 (1474)
81000 (2171)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
33000 (884)
64000 (1715)
95000 (2546)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
10200 (2734)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
1 – A ±15 psig (1.0 bar) setpoint shift may occur due to small orifices and low pressure drops
24 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627H, 2 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
240-500 psig
(16.5-34.5 bar)
Red
CVS
10B3079X012
250
(17.2)
300 (20.7)
2500
(1)
(67)
4500
(1)
(121)
9300 (249)
14000 (375)
25000 (670)
37000 (992)
400 (27.6
3600 (96.5)
6400
(1)
(172)
14300 (383)
21400 (574)
36000 9965)
49000 (1313)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
26300 (705)
42000 (1126)
62000 (1662)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
37100 (994)
57000 (1528)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
47400 (1270)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
57000 (1528)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
300
(20.7)
350 (24.1)
2900
(1)
(77.7)
5150
(1)
(138)
11300 (303)
18400 (493)
31000 (831)
45000 (1206)
400 (27.6)
3500
(1)
(93.8)
6200
(1)
(166)
13700 (367)
23400 (627)
40000 (1072)
52000 (1394)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32000 (858)
53000 (1420)
67000 (1796)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48000 (1286)
80000 (2144)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
62000 (1662)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
79000 (2117)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
400
(27.6)
450 (31)
3600 (96.5)
6400
(1)
(172)
14000 (375)
25000 (670)
47000 (1260)
67000 (1796)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32000 (858)
54000 (1447)
77000 (2064)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
91000 (2439)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
500
(34.5)
550 (37.9)
4300
(1)
(115)
7700(1) (206)
16800 (450)
33000 (884)
62000 (1662)
90000 (2412)
600 (41.4)
4900
(1)
(131)
8800
(1)
(236)
19400 (520)
37000 (992)
70000 (1876)
104000
(2787)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
49000 (1313)
88000 (2358)
140000
(3752)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
130000
(3484)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
97000 (2600)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
1 – A ±15 psig (1.0 bar) setpoint shift may occur due to small orifices and low pressure drops
25 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627R, 1 and 2 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
5-20 psig
(.34-1.4 bar)
Yellow
CVS
10B3076X012
5
(.34)
10 (.69)
170 (4.6)
330 (8.8)
710 (19)
1080 (28.9)
2000 (53.6)
2150 (57.6)
15 (1.0)
240 (6.4)
390 (10.5)
890 (23.9)
1500 (40.2)
2350 (63)
3000 (80.4)
20 (1.4)
290 (7.8)
500 (13.4)
1160 (31.1)
1900 (50.9)
2750 (73.7)
3900 (105)
30 (2.1)
380 (10.2)
690 (18.5)
1500 (40.2)
2500 (67)
3600 (96.5)
4900 (131)
60 (4.1
640 (17.2)
1170 (31.4)
2460 (65.9)
3690 (98.9)
5650 (151)
6900 (185)
75 (5.2)
770 (20.6)
1410 (37.8)
2880 (77.2)
4150 (111)
6450 (173)
7490 (201)
100 (6.9)
990 (26.5)
1800 (48.2)
3540 (94.9)
5790 (155)
7520 (202)
8150 (218)
10
(.69)
15 (1.0)
210 (5.6)
390 (10.5)
840 (22.5)
1480 (39.7)
2300 (61.6)
2930 (78.5)
20 (1.4)
280 (7.5)
500 (13.4)
1100 (29.5)
1880 (50.4)
2700 (72.4)
3830 (103)
30 (2.1)
380 (10.2)
690 (18.5)
1500 (40.2)
2460 (65.9)
3550 (95.1)
4840 (130)
60 (4.1)
640 (17.2)
1170 (31.4)
2460 (65.9)
3690 (98.9)
5650 (151)
6900 (185)
75 (5.2)
770 (20.6)
1410 (37.8)
2880 (77.2)
4150 (111)
6450 (173)
7490 (201)
100 (6.9)
990 (26.5)
1800 (48.2)
3540 (94.9)
4790 (128)
7520 (202)
8150 (218)
150 (10.3)
1420 (38.1)
2580 (69.1)
4660 (125)
5680 (152)
9980 (267)
10800 (289)
200 (13.8)
1850 (49.6)
3370 (90.3)
5620 (151)
6360 (170)
11000 (295)
12900 (346)
300 (20.7)
2700 (72.4)
4880 (131)
6890 (185)
7780 (209)
13600 (364)
500 (34.5)
4400 (118)
6720 (180)
8570 (230)
11600 (311)
750 (51.7)
5400 (145)
8850 (237)
9000 (241)
1000 (69.0)
5800 (155)
9500 (255)
1250 (86.2)
6300 (169)
1500 (103)
6600 (177)
1750 (121)
6800 (182)
2000 (138)
7600 (204)
20
(1.4)
30 (2.1)
350 (9.4)
600 (16.1)
1390 (37.3)
2580 (69.1)
4350 (117)
6290 (169)
50 (3.4)
550 (14.7)
1000 (26.8)
2250 (60.3)
4090 (110)
7600 (204)
8000 (214)
60 (4.1)
640 (17.2)
1170 (31.4)
2630 (70.5)
4750 (127)
7800 (209)
10600 (284)
100 (6.9)
990 (26.5)
1800 (48.2)
4070 (109)
7310 (196)
10800 (289)
13400 (359)
150 (10.3)
1420 (38.1)
2580 (69.1)
5720 (153)
10300 (276)
13500 (362)
14000 (375)
200 (13.8)
1850 (49.6)
3370 (90.3)
7050 (189)
10500 (281)
14000 (375)
14400 (386)
300 (20.7)
2700 (72.4)
4910 (132)
9250 (248)
10800 (289)
14900 (399)
500 (34.5)
4400 (118)
7830 (210)
11800 (316)
13300 (356)
750 (51.7)
6600 (177)
9000 (241)
12000 (322)
1000 (69)
8700 (233)
9660 (259)
1250 (86.2)
10000 (268)
1500 (103)
10400 (279)
1750 (121)
12000 (322)
2000 (138)
14000 (375)
15-40 psig
(1-2.8 bar)
Green
CVS
10B3077X012
40
(2.8)
60 (4.1)
610 (16.3)
1090 (29.2)
2430 (65.1)
4510 (121)
9200 (247)
9400 (252)
75 (5.2)
760 (20.4)
1370 (36.7)
3080 (82.5)
5640 (151)
10800 (289)
16300 (437)
100 (6.9)
990 (26.5)
1790 (48)
4070 (109)
7310 (196)
13500 (362)
17600 (472)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
18000 (482)
22200 (595)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
11000 (295)
21400 (574)
24600 (659)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
14900 (399)
24400 (654)
500 (34.5)
4400 (118)
8090 (217)
16300 (437)
21800 (584)
750 (51.7)
6600 (177)
12000 (322)
20200 (541)
23600 (632)
1000 (69)
8700 (233)
16000 (429)
23200 (622)
1250 (86.2)
11000 (295)
19000 (509)
1500 (103)
13000 (348)
21000 (563)
1750 (121)
15000 (402)
2000 (138)
17000 (456)
1 – A ±15 psig (1.0 bar) setpoint shift may occur due to small orifices and low pressure drops
26 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627R, 1 and 2 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
35-80 psig
(2.4-5.5 bar)
Blue
CVS
10B3078X012
60
(4.1)
75 (5.2)
700 (18.8)
1230 (33)
2760 (74)
4860 (130)
8600 (230)
12800 (343)
100 (6.9)
970 (26)
1740 (46.6)
3910 (105)
7000 (188)
12500 (335)
16700 (448)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
16800 (450)
23000 (616)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
20900 (560)
27700 (742)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
28100 (753)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
28500 (764)
750 (51.7)
6600 (177)
12000 (322)
22800 (611)
29500 (791)
1000 (69)
8700 (233)
16000 (429)
26800 (718)
1250 (86.2)
11000 (295)
19000 (509)
1500 (103)
13000 (348)
22000 (590)
1750 (121)
15000 (402)
25000 (670)
2000 (138)
17000 (456)
80
(5.5)
100 (6.9)
900 (24.1)
1630 (43.7)
3570 (95.7)
6650 (178)
12000 (322)
17400 (466)
150 (10.3)
1410 (37.8)
2580 (69.1)
5750 (154)
10500 (281)
20100 (539)
26000 (697)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
25100 (673)
31800 (852)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
32600 (874)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
30300 (812)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
37400 (1002)
1000 (69)
8700 (233)
16000 (429)
33300 (892)
1250 (86.2)
11000 (295)
19000 (509)
1500 (103)
13000 (348)
22000 (590)
1750 (121)
15000 (402)
25000 (670)
2000 (138)
17000 (456)
75-150 psig
(4.8-10.3 bar)
Red
CVS
10B3079X012
100
(6.9
150 (10.3)
1170 (31.4)
2510 (67.3)
5540 (148)
8310 (223)
15500 (415)
20300 (544)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
12000 (322)
20100 (539)
26700 (716)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
18200 (488)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
750 (51.7)
6600 (177)
12000 (322)
1000 (69)
8700 (233)
16000 (429)
1250 (86.2)
11000 (295)
1500 (103)
13000 (348)
1750 (121)
15000 (402)
2000 (138)
17000 (456)
125
(8.6)
150 (10.3)
1250 (33.5)
2330 (62.4)
5090 (136)
9470 (254)
15700 (421)
20800 (557)
200 (13.8)
1830 (49)
3320 (89)
7360 (197)
13400 (359)
23600 (632)
31300 (839)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
19700 (528)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
750 (51.7)
6600 (177)
12000 (322)
1000 (69)
8700 (233)
16000 (429)
1250 (86.2)
11000 (295)
1500 (103)
13000 (348)
1750 (121)
15000 (402)
2000 (138)
17000 (456)
150
(10.3)
200 (13.8)
1760 (47.2)
3200 (85.8)
7020 (188)
12900 (346)
21400 (574)
33300 (892)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
17200 (461)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
750 (51.7)
6600 (177)
12000 (322)
1000 (69)
8700 (233)
16000 (429)
1250 (86.2)
11000 (295)
1500 (103)
13000 (348)
1750 (121)
15000 (402)
2000 (138)
17000 (456)
1 – A ±15 psig (1.0 bar) setpoint shift may occur due to small orifices and low pressure drops
27 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627, 1 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
5-20 psig
(.34-1.4 bar)
Yellow
CVS
10B3076X012
5
(.34)
10 (.69)
170 (4.6)
330 (8.8)
710 (19)
1100 (29.5)
1900 (50.9)
2500 (67)
15 (1)
240 (6.4)
390 (10.5)
890 (23.9)
1600 (42.9)
2500 (67)
3350 (89.8)
20 (1.4)
290 (7.8)
500 (13.4)
1160 (31.1)
2060 (55.2)
3400 (91.1)
4450 (119)
30 (2.1)
380 (10.2)
670 (18)
1560 (41.8)
2800 (75)
4750 (127)
6900 (185)
60 (4.1)
640 (17.2)
1170 (31.4)
2600 (69.7)
4710 (126)
8140 (218)
13700 (367)
75 (5.2)
770 (20.6)
1410 (37.8)
3150 (84.4)
5710 (153)
9790 (262)
14500 (389)
100 (6.9)
990 (26.5)
1800 (48.2)
4070 (109)
7310 (196)
12500 (335)
16000 (429)
10
(0.7)
15 (1)
210 (5.6)
375 (10.1)
880 (23.6)
1590 (42.6)
2480 (66.5)
3300 (88.4)
20 (1.4)
280 (7.5)
490 (13.1)
1150 (30.8)
2050 (54.9)
3380 (90.6)
4410 (118)
30 (2.1)
380 (10.2)
670 (18)
1560 (41.8)
2800 (75)
4720 (126)
6840 (183)
60 (4.1)
640 (17.2)
1170 (31.4)
2600 (69.7)
4710 (126)
8140 (218)
13700 (367)
75 (5.2)
770 (20.6)
1410 (37.8)
3150 (84.4)
5710 (153)
9790 (262)
14500 (389)
100 (6.9)
990 (26.5)
1800 (48.2)
4070 (109)
7310 (196)
12500 (335)
16000 (429)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
17000 (456)
18000 (382)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
18000 (482)
18500 (496)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
19800 (531)
20000 (536)
500 (34.5)
4400 (118)
8090 (217)
15700 (421)
20000 (536)
750 (51.7)
5400 (145)
12000 (322)
18000 (482)
1000 (69)
5800 (155)
14000 (375)
1250 (86.2)
6300 (169)
1500 (103)
6600 (177)
1750 (121)
6800 (182)
2000 (138)
7600 (204)
20
(1.4)
30 (2.1)
350 (9.4)
620 (16.6)
1450 (38.9)
2580 (69.1)
4360 (117)
6290 (169)
50 (3.4)
550 (14.7)
1000 (26.8)
2280 (61.2)
4090 (110)
7870 (211)
14100 (378)
60 (4.1)
640 (17.2)
1170 (31.4)
2640 (70.8)
4750 (127)
9690 (260)
14500 (389)
100 (6.9)
990 (26.5)
1800 (48.2)
4070 (109)
7310 (196)
13900 (373)
23300 (624)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
17700 (474)
34200 (917)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
26600 (713)
39100 (1048)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
37000 (992)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
750 (51.7)
6600 (177)
12000 (322)
23600 (632)
1000 (69)
8900 (239)
16000 (429)
1250 (86.2)
10000 (268)
1500 (103)
10400 (279)
1750 (121)
12000 (322)
2000 (138)
14000 (375)
15-40 psig
(1-2.8 bar)
Green
CVS
10B3077X012
40
(2.8)
60 (4.1)
610 (16.3)
1090 (29.2)
2530 (67.8)
4510 (121)
9290 (249)
9420 (252)
75 (5.2)
760 (20.4)
1370 (36.7)
3080 (82.5)
5640 (151)
10800 (289)
16500 (442)
100 (6.9)
990 (26.5)
1790 (48)
4070 (109)
7310 (196)
14700 (394)
21900 (587)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
20500 (549)
34500 (925)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
27100 (726)
46400 (1244)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
40100 (1075)
67100 (1798)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
63900 (1713)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
39400 (1056)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
1250 (86.2)
11000 (295)
19000 (509)
1500 (103)
13000 (348)
22000 (590)
1750 (121)
15000 (402)
2000 (138)
17000 (456)
28 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627, 1 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
35-80 psig
(2.4-5.5 bar)
Blue
CVS
10B3078X012
60
(4.1)
75 (5.2)
700 (18.8)
1230 (33)
2760 (74)
4880 (131)
8630 (231)
16100 (431)
100 (6.9)
970 (26)
1740 (46.6)
4010 (107)
7000 (188)
13000 (348)
19300 (517)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
18900 (507)
32800 (879)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
24000 (643)
42200 (1131)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
32500 (871)
69100 (1852)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
64000 (1715)
94300 (2527)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
43380 (1163)
66000 (1769)
130000(3484)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
50300 (1348)
67700 (1814)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
57000 (1528)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
63000 (1688)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
80
(5.5)
100 (6.9)
900 (24.1)
1600 (42.9)
3750 (101)
6650 (178)
12200 (327)
18600 (498)
150 (10.3)
1410 (37.8)
2580 (69.1)
5850 (157)
10500 (281)
21100 (565)
33600 (900)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
28400 (761)
44100 (1182)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
43300 (1160)
75400 (2021)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
71600 (1919)
110000(2948)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
105500(2827)
135000(3618)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
64900 (1739)
118000(3162)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
80000 (2144)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
96000 (2573)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
70-150 psig
(4.8-10.3 bar)
Red
CVS
10B3079X012
100
(6.9)
150 (10.3)
1170 (31.4)
2510 (67.3)
5540 (148)
8710 (233)
16000 (429)
24000 (643)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
12000 (322)
21300 (571)
34100 (914)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
19400 (520)
30100 (807)
53200 (1426)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
31800 (852)
66500 (1782)
83900 (2249)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
47300 (1268)
95300 (2554)
117000(3136)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
59700 (1600)
100000(2680)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
72000 (1930)
114000(3055)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
86000 (2305)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
95000 (2546)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
125
(8.6)
150 (10.3)
1250 (33.5)
2340 (62.7)
5340 (142)
9470 (254)
15700 (421)
20800 (557)
200 (13.8)
1830 (49.0)
3320 (89)
7550 (202)
13400 (359)
28100 (753)
32800 (879)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
36300 (973)
52600 (1410)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
70800 (1897)
109000(2921)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
104000(2787)
158000(4234)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
64800 (1737)
138000(3698)
160000(4288)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
80000 (2144)
145000(3886)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
96000 (2573)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
112000(3002)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
150
(10.3)
200 (13.8)
1760 (47.2)
3200 (85.8)
7290 (195)
12900 (346)
21400 (574)
33600 (900)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
17200 (461)
40100 (1075)
55900 (1498)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
70300 (1884)
111000(2975)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
104000(2787)
160000(4288)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
64800 (1737)
138000(3698)
162000(4342)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
80000 (2144)
150000(4020)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
96000 (2573)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
112000(3202)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
29 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627, 2 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
5-20 psig
(.34-1.4 bar)
Yellow
CVS
10B3076X012
5
(.34)
10 (.69)
170 (4.6)
330 (8.8)
710 (19)
1080 (28.9)
1700 (45.6)
2400 (64.3)
15 (1)
240 (6.4)
390 (10.5)
890 (23.9)
1250 (33.5)
1900 (50.9)
2700 (72.4)
20 (1.4)
290 (7.8)
500 (13.4)
1160 (31.1)
1900 (50.9)
2650 (71)
3900 (105)
30 (2.1)
380 (10.2)
670 (18)
1560 (41.8)
2800 (75)
3680 (98.6)
6500 (174)
60 (4.1)
640 (17.2)
1170 (31.4)
2600 (69.7)
4750 (127)
7250 (194)
17800 (477)
75 (5.2)
770 (20.6)
1410 (37.8)
3150 (84.4)
5700 (153)
8060 (216)
22400 (600)
100 (6.9)
990 (26.5)
1790 (48)
4070 (109)
7310 (196)
16200 (434)
28700 (769)
10
(0.69)
15 (1)
210 (5.6)
375 (10.1)
880 (23.6)
1220 (32.7)
1860 (49.8)
2670 (71.6)
20 (1.4)
280 (7.5)
490 (13.1)
1150 (30.8)
1880 (50.4)
2610 (69.9)
3830 (103)
30 (2.1)
380 (10.2)
670 (18)
1560 (41.8)
2760 (74)
3640 (97.6)
6460 (173)
60 (4.1)
640 (17.2)
1170 (31.4)
2600 (69.7)
4750 (127)
7250 (194)
17800 (477)
75 (5.2)
770 (20.6)
1410 (37.8)
3150 (84.4)
5700 (152)
8060 (216)
22400 (600)
100 (6.9)
990 (26.5)
1790 (48)
4070 (109)
7310 (196)
16200 (434)
28700 (769)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
23300 (624)
25900 (694)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
22700 (608)
24000 (643)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
10300 (276)
12800 (343)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
21000 (563)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
1000 (69)
8700 (233)
16000 (429)
1250 (86.2)
11000 (295)
1500 (103)
13000 (348)
1750 (121)
15000 (402)
2000 (138)
6300 (169)
20
(1.4)
30 (2.1)
350 (9.4)
620 (16.6)
1450 (38.9)
2350 (63)
4300 (115)
6110 (164)
50 (3.4)
550 (14.7)
1000 (26.8)
2280 (61.2)
4040 (108)
7100 (190)
12800 (343)
60 (4.1)
640 (17.2)
1170 (31.4)
2640 (70.8)
4750 (127)
8400 (225)
15700 (421)
100 (6.9)
990 (26.5)
1800 (48.2)
4070 (109)
7310 (196)
16200 (434)
28700 (769)
150 (10.3)
1420 (38.1)
2580 (48.2)
5850 (157)
10500 (281)
23300 (624)
29000 (777)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
24000 (643)
33000 (884)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
19600 (525)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
1000 (69)
8700 (233)
16000 (429)
1250 (86.2)
11000 (295)
1500 (103)
13000 (348)
1750 (121)
15000 (402)
2000 (138)
6300 (169)
15-40 psig
(1-2.8 bar)
Green
CVS
10B3077X012
40
(2.8)
60 (4.1)
610 (16.3)
1090 (29.2)
2530 (67.8)
4370 (117)
8680 (233)
13300 (356)
75 (5.2)
760 (20.4)
1370 (36.7)
3080 (82.5)
5540 (148)
11900 (319)
19300 (517)
100 (6.9)
990 (26.5)
1800 (48.2)
4070 (109)
7310 (196)
16200 (434)
25400 (681)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
23300 (624)
41300 (1107)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
30400 (815)
53900 (1445)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
44600 (1195)
46000 (1233)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
22000 (590)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
28000 (750)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
1250 (86.2)
11000 (295)
19000 (509)
1500 (103)
13000 (348)
22000 (590)
1750 (121)
15000 (402)
2000 (138)
17000 (456)
30 | P a g e
Technical Data
Table 3: Regulator Capacities for CVS 627, 2 Inch NPS
Outlet Pressure
Range,
Color Code,
Spring Part
Number
Outlet
Pressure
Setting
psig (bar)
Inlet
Pressure
psig (bar)
Capacities – SCFH (Nm3/h) of 0.6 Specific Gravity Natural Gas
(based on 20% droop)
Orifice Size In (mm)
3/32 (2.4)
1/8 (3.2)
3/16 (4.8)
1/4 (6.4)
3/8 (9.5)
1/2 (13)
35-80 psig
(2.4-5.5 bar)
Blue
CVS
10B3078X012
60
(4.1)
75 (5.2)
700 (18.8)
1260 (33.8)
2760 (74)
4900 (131)
9000 (241)
12300 (330)
100 (6.9)
970 (26)
1740 (46.6)
4010 (107)
7000 (188)
15000 (402)
20400 9547)
150 (10.3)
1420 (38.1)
2580 (69.1)
5850 (157)
10500 (281)
23300 (624)
35200 9943)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
30400 (815)
53900 (1445)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
44600 (1195)
79000 (2117)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
73000 (1956)
38800 (1040)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
53000 (1420)
32000 (858)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
43000 (1152)
52000 (1394)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
70000 (1876)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
43000 (1152)
1750 (121)
15000 (402)
25000 (670)
26000 (697)
2000 (138)
17000 (456)
28000 (750)
80
(5.5)
100 (6.9)
900 (24.1)
1630 (43.7)
3750 (101)
6400 (172)
12800 (343)
20400 (547)
150 (10.3)
1410 (37.8)
2580 (69.1)
5850 (157)
10500 (281)
23300 (624)
41300 (1107)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
30400 (815)
53900 (1445)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
44600 (1195)
79000 (2117)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
73000 (1956)
48000 (1286)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
87000 (2332)
44000 (1179)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
65000 (1742)
63000 (1688)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
63000 (1688)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
86000 (2305)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
2000 (138)
17000 (456)
28000 (750)
70-150 psig
(4.8-10.3 bar)
Red
CVS
10B3079X012
100
(6.9)
150 (10.3)
1170 (31.4)
2510 (67.3)
5540 (148)
8600 (230)
16000 (429)
22000 (590)
200 (13.8)
1850 (49.6)
3370 (90.3)
7630 (204)
13700 (367)
22000 (590)
33000 (884)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
35000 (938)
65300 (1750)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
73000 (1956)
129000(3457)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
108000(2894)
59000 (1581)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
64800 (1737)
82000 (2198)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
80000 (2144)
110000(2948)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
96000 (2573)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
112000(3002)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
125
(8.6)
150 (10.3)
1250 (33.5)
2340 (62.7)
5340 (142)
8600 (230)
16000 (429)
24000 (643)
200 (13.8)
1830 (49.0)
3320 (89)
7550 (202)
13700 (367)
24000 (643)
36000 (965)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
39000 (1045)
65300 (1750)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
73000 (1956)
129000(3457)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
108000(2894)
59000 (1581)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
64800 (1737)
58000 (1554)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
80000 (2144)
75000 (2010)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
96000 (2573)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
112000(3002)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
150
(10.3)
200 (13.8)
1760 (47.2)
3200 (85.8)
7290 (195)
13000 (348)
24000 (643)
38000 (1018)
300 (20.7)
2700 (72.4)
4910 (132)
11200 (300)
20100 (539)
44600 (1195)
64200 (1721)
500 (34.5)
4400 (118)
8090 (217)
18300 (490)
32900 (882)
73000 (1956)
129000(3457)
750 (51.7)
6600 (177)
12000 (322)
27200 (729)
48900 (1311)
108000(2894)
62000 (1662)
1000 (69)
8700 (233)
16000 (429)
36100 (967)
64800 (1737)
144000(3859)
1250 (86.2)
11000 (295)
19000 (509)
45000 (1206)
80000 (2144)
81000 (2171)
1500 (103)
13000 (348)
22000 (590)
54000 (1447)
96000 (2573)
1750 (121)
15000 (402)
25000 (670)
63000 (1688)
112000(3202)
2000 (138)
17000 (456)
28000 (750)
71000 (1903)
31 | P a g e
Technical Data
Table 4: Flow Coefficients
Orifice
Size
Inch
(mm)
NPS 1 Inch
NPS 2 Inch
Wide Open C
g
For External
Relief Sizing
Wide Open Cv
for External
Relief Sizing
C1
Wide Open C
g
For External
Relief Sizing
Wide Open Cv
for External
Relief Sizing
C1
3/32
(2.4)
6.9
0.24
28.5
6.9
0.23
29.7
1/8
(3.20
12.5
0.43
29.4
12.5
0.42
29.5
3/16
(4.8)
29
0.93
31.2
29
1.02
28.5
1/4 (6.5)
50
1.71
29.3
52
1.66
31.3
3/8 (9.5)
108
3.42
31.6
115
3.39
33.9
1/2 (13)
190
5.29
35.9
200
5.01
39.9
Table 5: IEC Sizing Coefficients
Orifice Size
XT
FD
FL
Inch
mm
NPS 1 Inch Body
NPS 2 Inch Body
Ft lbs
Nm
3/32
2.4
0.514
0.558
0.50
0.85
1/8
3.2
0.547
0.539
0.79
3/16
4.8
0.616
0.514
0.85
1/4
6.4
0.543
0.620
0.87
3/8
9.5
0.632
0.727
0.89
1/2
13
0.815
1.01
0.86
Table 6: Torque Values
Item Number
Description
Torque Value
627H
627R
627
Ft lbs
Nm
12
15
12
Orifice
25
34
13
14
10
Cap Screw (alum casing)
16
22
Cap Screw (steel casing)
25
34
24
29
25
Lever Cap Screw
7
9.5
29
34
27
Spring Case Cap Screw (alum diaphragm casing)
7
9.5
Spring Case Cap Screw (steel diaphragm casing)
35
47
31 5
Diaphragm Head Screw CVS 627H
14
19
Diaphragm Head Screw CVS 627
7
9.5
40
Guide Retainer (CVS 627R only)
3
4.1
Refer to page 12 through 17 for assembly drawing and item number reference
CVS Controls Ltd. strives for the highest levels of quality and accuracy. The information included in this publication is presented for
informational purposes only. CVS Controls Ltd. reserves the right to modify or change, and improve design, process, and specifications
without written notice. Under no circumstance is the information contained to be interpreted to be a guarantee/warranty with regard
to our products or services, applicability or use.
Selection, use and maintenance are the sole responsibility of the end user and purchaser. CVS Controls assumes no liability for the
selection use and maintenance of any product.
32 | P a g e
Head Office
3900 101 Street
Edmonton, Alberta
T6E 0A5
Canada
Office: (780) 437-3055
Fax: (780) 436 5461
Calgary Sales Office
3516 114 Avenue SE
Calgary, Alberta
T2Z 3V6
Canada
Office: (403) 250-1416
Fax: (403) 291-9487
Website: www.cvs-controls.com Email: info@cvs-controls.com
Feb 2019
Loading...
