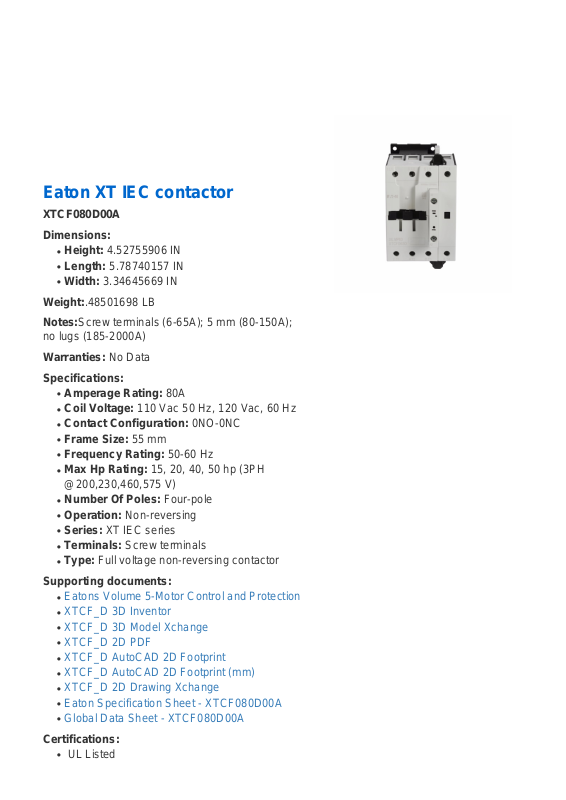

Cutler Hammer, Div of Eaton Corp XTCF080D00A Data Sheet

Eaton XT IEC contactor

XTCF080D00A
Dimensions:

●

Height: 4.52755906 IN

●

Length: 5.78740157 IN

●

Width: 3.34645669 IN
Weight:.48501698 LB
Notes:Screw terminals (6-65A); 5 mm (80-150A);

no lugs (185-2000A)

Warranties: No Data
Specifications:

●

Amperage Rating: 80A

●

Coil Voltage: 110 Vac 50 Hz, 120 Vac, 60 Hz

●

Contact Configuration: 0NO-0NC

●

Frame Size: 55 mm

●

Frequency Rating: 50-60 Hz

●

Max Hp Rating: 15, 20, 40, 50 hp (3PH

@200,230,460,575 V)

●

Number Of Poles: Four-pole

●

Operation: Non-reversing

●

Series: XT IEC series

●

Terminals: Screw terminals

●

Type: Full voltage non-reversing contactor
Supporting documents:

●

Eatons Volume 5-Motor Control and Protection

●

XTCF_D 3D Inventor

●

XTCF_D 3D Model Xchange

●

XTCF_D 2D PDF

●

XTCF_D AutoCAD 2D Footprint

●

XTCF_D AutoCAD 2D Footprint (mm)

●

XTCF_D 2D Drawing Xchange

●

Eaton Specification Sheet - XTCF080D00A

●

Global Data Sheet - XTCF080D00A

Certifications:

●

UL Listed

●

CSA Certified

●

IEC 60947

●

EN 60947

Product compliance:

●

CE Marked

●

RoHS Compliant
