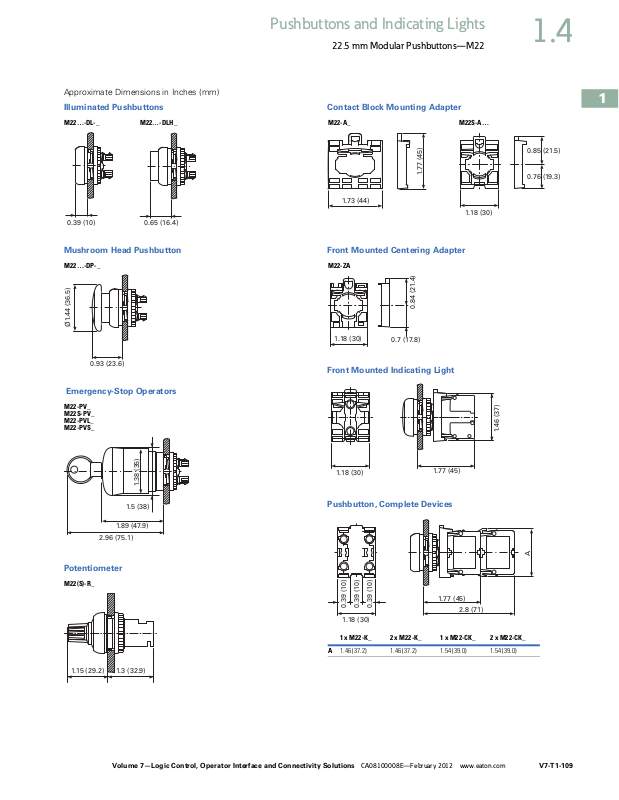

Cutler Hammer, Div of Eaton Corp M22-R Dimensional Sheet

0.65 (16.4)

M22…-DL-_ M22…-DLH_

M22…-DP-_

2.96 (75.1)

1.89 (47.9)

1.5 (38)

1.38 (35)

M22-PV_
M22S-PV_
M22-PVL_
M22-PVS_

1.15 (29.2) 1.3 (32.9)

M22(S)-R_

1.73 (44)

1.77 (45)

M22-A_ M22S-A…

M22-ZA

0.39 (10)

0.39 (10)

0.39 (10)

1.18 (30)

2.8 (71)

1.77 (45)

1 x M22-K_ 2 x M22-K_ 1 x M22-CK_ 2 x M22-CK_

A 1.46 (37.2) 1.46 (37.2) 1.54 (39.0) 1.54 (39.0)

Potentiometer
