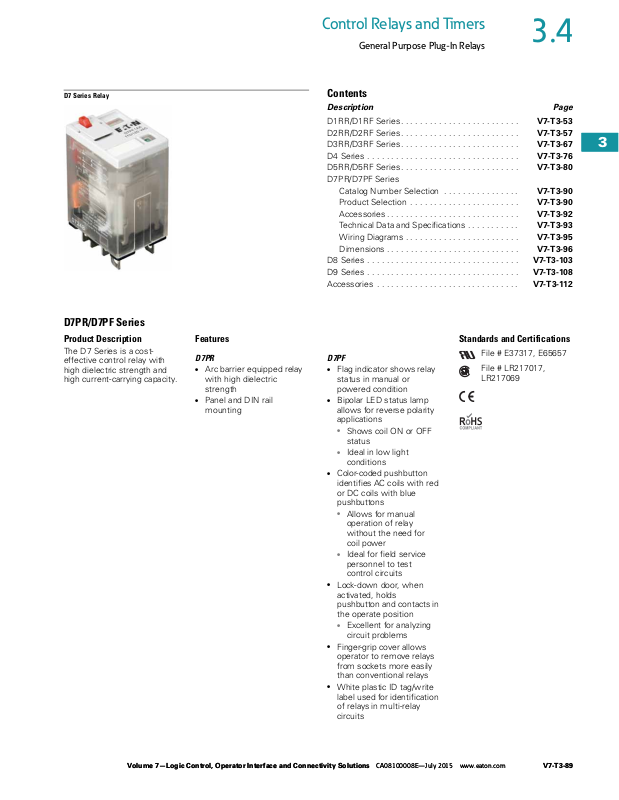

Control Relays and Timers
D7 Series Relay
General Purpose Plug-In Relays
3.4
D7PR/D7PF Series
Product Description
The D7 Series is a costeffective control relay with
high dielectric strength and
high current-carrying capacity.
Features
D7PR
●
Arc barrier equipped relay
with high dielectric
strength
●
Panel and DIN rail
mounting
Contents
Description Page
D1RR/D1RF Series . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-53
D2RR/D2RF Series . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-57
D3RR/D3RF Series . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-67
D4 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-76
D5RR/D5RF Series . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-80
D7PR/D7PF Series
Catalog Number Selection . . . . . . . . . . . . . . . . V7-T3-90
Product Selection . . . . . . . . . . . . . . . . . . . . . . . V7-T3-90
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-92
Technical Data and Specifications . . . . . . . . . . . V7-T3-93
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-95
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-96
D8 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-103
D9 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-108
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V7-T3-112
Standards and Certifications
D7PF
●
Flag indicator shows relay
status in manual or
powered condition
●
Bipolar LED status lamp
allows for reverse polarity
applications
●
Shows coil ON or OFF
status
●
Ideal in low light
conditions
●
Color-coded pushbutton
identifies AC coils with red
or DC coils with blue
pushbuttons
●
Allows for manual
operation of relay
without the need for
coil power
●
Ideal for field service
personnel to test
control circuits
●
Lock-down door, when
activated, holds
pushbutton and contacts in
the operate position
●
Excellent for analyzing
circuit problems
●
Finger-grip cover allows
operator to remove relays
from sockets more easily
than conventional relays
●
White plastic ID tag/write
label used for identification
of relays in multi-relay
circuits
File # E37317, E65657
File # LR217017,
LR217069
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-89
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-89
Page 2
Control Relays and Timers
D 7 P R 1 1 A
Contact Configuration
2 = DPDT
3 = 3PDT
4 = 4PDT
Options
Blank = Plain cover (D7PR only)
A = LED test button, flag indicator,
lock-down door, finger-grip cover,
ID tag (D7PF only)
Family Type
D7PR = Standard relay
D7PF = Full featured relay
Coil Voltage
A = 120 Vac
A1 = 110 Vdc
B = 240 Vac
R1 = 12 Vdc
T = 24 Vac
T1 = 24 Vdc
W1 = 48 Vdc
3.4
Catalog Number Selection
3
3
D7 Series
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Product Selection
3
3
D7 Relay/Socket Quick Reference
Relay
3
3
Type Socket/Adapter Clip
D7PR2, D7PF2 D7PAA PQC-1342 B — —
3
3
3
3
D7PR3, D7PF3 D7PAB PQC-1783 A — —
3
3
3
3
D7PR4, D7PF4 D7PAD PQC-1784 A — —
3
3
3
3
General Purpose Plug-In Relays
Module
Type ID Tag Jumper
PQC-1349 B — —
D7PA9 PQC-1342 None — —
PFC-D2D72 — None — —
PMC-1783 A — —
PFC-D73 — None — —
PMC-1784 A — —
PFC-D74 — None — —
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
V7-T3-90 Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com
V7-T3-90 Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com
Page 3
Control Relays and Timers
D7 Series Relay
General Purpose Plug-In Relays
3.4
D7 Series
Coil
Voltage
Full Featured
120 Vac DPDT 4430 D7PF2AA
110/125 Vdc DPDT 11,000 D7PF2AA1
220/240 Vac DPDT 15,720 D7PF2AB
12 Vdc DPDT 160 D7PF2AR1
24 Vac DPDT 180 D7PF2AT
24 Vdc DPDT 650 D7PF2AT1
24 Vac 3PDT 103 D7PF3AT
24 Vdc 3PDT 400 D7PF3AT1
120 Vac 4PDT 2220 D7PF4AA
110/125 Vdc 4PDT 7340 D7PF4AA1
240 Vac 4PDT 9120 D7PF4AB
12 Vdc 4PDT 96 D7PF4AR1
24 Vac 4PDT 84.5 D7PF4AT
24 Vdc 4PDT 388 D7PF4AT1
48 Vac 4PDT 410 D7PF4AW1
Plain Cover
120 Vac DPDT 4430 D7PR2A
110/125 Vdc DPDT 11,000 D7PR2A1
12 Vdc DPDT 160 D7PR2R1
24 Vac DPDT 180 D7PR2T
24 Vdc DPDT 650 D7PR2T1
120 Vac 3PDT 2770 D7PR3A
240 Vac 3PDT 12,100 D7PR3B
12 Vdc 3PDT 100 D7PR3R1
24 Vac 3PDT 103 D7PR3T
24 Vdc 3PDT 400 D7PR3T1
120 Vac 4PDT 2220 D7PR4A
110/125 Vdc 4PDT 7340 D7PR4A1
240 Vac 4PDT 9120 D7PR4B
24 Vac 4PDT 84.5 D7PR4T
24 Vdc 4PDT 388 D7PR4T1
Contact
Configuration
Coil Resistance
(Ohms)
Catalog
Number
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-91
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-91
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Page 4
Control Relays and Timers
3.4
Accessories
3
3
D7 Sockets and Accessories
3
3
Typ e
3
3
Socket B 300 16 DIN rail/panel 12/14 (2) AWG, 4/2.5 (2) mm
3
3
3
3
Flange mount adapter — — — Flange — — 25 PFC-D2D72
3
3
3
3
Metal spring clip — — — — — — 25 PQC-1342
Plastic ID clip — — — — — — 10 PQC-1349
3
3
Metal spring clip — — — — — — 25 PQC-1784
3
3
Plastic ID clip — — — — — — 10 PMC-1784
Hold-down spring — — — — — — 25 PYC-B2
3
3
Metal spring clip — — — — — — 10 PQC-1783
Plastic ID clip — — — — — — 10 PMC-1783
3
3
Protection diode A 6 to 250 Vdc — — — — 20 MOD-AD250
LED indicator A 24 Vac/Vdc — — — — 20 MOD-ALG24
3
3
3
3
MOV suppressor A 120 Vac/Vdc — — — — 20 MOD-AMV120
3
3
R/C suppressor A 6 to 24 Vac/Vdc — — — — 20 MOD-RC24
3
3
Protection diode B 6 to 250 Vdc — — — — 20 MOD-BD250
3
3
LED indicator B 24 Vac/Vdc — — — — 20 MOD-BLG24
3
3
MOV suppressor B 120 Vac/Vdc — — — — 20 MOD-BMV120
3
3
3
3
Plastic DIN rail end stop — — — — — — 25 PFP-P
3
3
Note
1
3
3
Protection category (finger safe), EN 60529: IP20.
General Purpose Plug-In Relays
Module
Size
None 300 10 DIN rail/panel 12/14 (2) AWG, 4/2.5 (2) mm2Screw clamping 1 D7PA9
A 300 16 DIN rail/panel 12/14 (2) AWG, 4/2.5 (2) mm
A 300 16 DIN rail/panel 12/14 (2) AWG, 4/2.5 (2) mm2Screw clamping — D7PAB
— — — Flange — — 25 PFC-D73
— — — Flange — — 25 PFC-D74
A 120/240 Vac/Vdc — — — — 20 MOD-ALG240
A 24 Vac/Vdc — — — — 20 MOD-AMV24
A240 Vac/Vdc—— — — 20MOD-AMV240
A 110 to 240 Vac/Vdc — — — — 20 MOD-RC240
B 120/240 Vac/Vdc — — — — 20 MOD-BLG240
B 24 Vac/Vdc — — — — 20 MOD-BMV24
B240 Vac/Vdc —— — — 20MOD-BMV240
Nominal Voltage
(Max. for Sockets)
Nominal
Current Mounting Style Wire Size
Wire
Connection
2
Screw clamping — D7PAA
2
Screw clamping — D7PAD
Standard
Pack
Catalog
Number
1
1
1
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
V7-T3-92 Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com
V7-T3-92 Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com
Page 5
Control Relays and Timers
General Purpose Plug-In Relays
3.4
Technical Data and Specifications
D7PR Relay
Description D7PR (DPDT) D7PR (3PDT) D7PR (4PDT)
Contact Characteristics
Contact rating 15 A 15 A 15 A
Terminal style Plug-in Plug-in Plug-in
Contact materials Silver alloy Silver alloy Silver alloy
Maximum switching voltage 300 V 300 V 300 V
Switching current at voltage—resistive 15 A at 120 Vac 50/60 Hz 15 A at 120 Vac 50/60 Hz 15 A at 120 Vac 50/60 Hz
12 A at 277 Vac 50/60 Hz 12 A at 277 Vac 50/60 Hz 12 A at 277 Vac 50/60 Hz
10 A at 277 Vac 50/60 Hz — —
12 A at 28 Vdc 12 A at 28 Vdc 12 A at 28 Vdc
Switching current at voltage 1/2 hp at 120 Vac 1/2 hp at 120 Vac 1/2 hp at 120 Vac
1 hp at 250 Vac 3/4 hp at 250 Vac 3/4 hp at 250 Vac
Pilot duty B300 B300 B300
Minimum switching requirement 100 mA at 5 Vdc (0.5 W) 100 mA at 5 Vdc (0.5 W) 100 mA at 5 Vdc (0.5 W)
Coil Characteristics
Operating range
% of nominal (AC) 85 to 110% 85 to 110% 85 to 110%
% of nominal (DC) 80 to 110% 80 to 110% 80 to 110%
Average consumption 1.2 VA 1.5 VA 1.5 VA
0.9 W 1.4 W 1.5 W
Dropout voltage threshold 15% (AC) 15% (AC) 15% (AC)
10% (DC) 10% (DC) 10% (DC)
Performa nce
Electrical life (UL 508) operations at rated current 100,000 operations 200,000 operations 200,000 operations
Mechanical life operations unpowered 10,000,000 operations 10,000,000 operations 10,000,000 operations
Response time 20 ms 20 ms 20 ms
Dielectric strength
Between coil and contact Vac (rms) 2500 V (rms) 2500 V (rms) 2500 V (rms)
Between poles Vac (rms) 1500 V (rms) 2500 V (rms) 2500 V (rms)
Environment
Ambient air temperature around the device
Operation –40 °F to +131 °F
Storage –40 °F to +185 °F
Vibration resistance—operational 3 g-n at 10–55 Hz 3 g-n at 10–55 Hz 3 g-n at 10–55 Hz
Shock resistance 10 g-n 10 g-n 10 g-n
Degree of protection IP40 IP40 IP40
Features
Cover options Plain cover Plain cover Plain cover
Features Mechanical flag indicator
Product certifications RoHS/UL/CE/CSA RoHS/UL/CE/CSA RoHS/UL/CE/CSA
(–40 °C to +55 °C)
(–40 °C to +85 °C)
(optional LED)
–40 °F to +131 °F
(–40 °C to +55 °C)
–40 °F to +185 °F
(–40 °C to +85 °C)
Mechanical flag indicator
(optional LED)
–40 °F to +131 °F
(–40 °C to +55 °C)
–40 °F to +185 °F
(–40 °C to +85 °C)
Mechanical flag indicator
(optional LED)
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-93
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-93
3
3
3
3
3
3
3
3
Page 6
Control Relays and Timers
3.4
D7PF Relay
3
3
Description D7PF (DPDT) D7PF (3PDT) D7PF (4PDT)
Contact Characteristics
3
3
Contact rating 15 A 15 A 15 A
Terminal style Plug-in Plug-in Plug-in
3
3
Contact materials Silver alloy Silver alloy Silver alloy
3
3
Maximum switching voltage 300 V 300 V 300 V
Switching current at voltage—resistive
3
3
3
3
3
3
Switching current at voltage 1/2 hp at 120 Vac 3/4 hp at 250 Vac 1/2 hp at 120 Vac
3
3
Pilot duty B300 B300 B300
3
3
Minimum switching requirement 100 mA at 5 Vdc (0.5 W) 100 mA at 5 Vdc (0.5 W) 100 mA at 5 Vdc (0.5 W)
Coil Characteristics
3
3
Operating range
3
3
% of nominal (AC) 85 to 110% 85 to 110% 85 to 110%
% of nominal (DC) 80 to 110% 80 to 110% 80 to 110%
3
3
Average consumption 1.2 VA 1.5 VA 1.5 VA
3
3
Dropout voltage threshold 15% (AC) 15% (AC) 15% (AC)
3
3
Performa nce
3
3
Electrical life (UL 508) operations at rated current 100,000 operations 200,000 operations 200,000 operations
Mechanical life operations unpowered 10,000,000 operations 10,000,000 operations 10,000,000 operations
3
3
Response time 20 ms 20 ms 20 ms
Dielectric strength
3
3
Between coil and contact Vac (rms) 2500 V (rms) 2500 V (rms) 2500 V (rms)
3
3
Between poles Vac (rms) 1500 V (rms) 2500 V (rms) 2500 V (rms)
Environment
3
3
Ambient air temperature around the device
Operation –40 °F to +131 °F
3
3
Storage –40 °F to +185 °F
3
3
Vibration resistance—operational 3 g-n at 10–55 Hz 3 g-n at 10–55 Hz 3 g-n at 10–55 Hz
3
3
Shock resistance 10 g-n 10 g-n 10 g-n
Degree of protection IP40 IP40 IP40
3
3
Features
Cover options Full featured Full featured Full featured
3
3
Features Locking pushbutton/
3
3
3
3
Product certifications RoHS/UL/CE/CSA RoHS/UL/CE/CSA RoHS/UL/CE/CSA
3
3
General Purpose Plug-In Relays
15 A at 120 Vac 50/60 Hz 15 A at 120 Vac 50/60 Hz 15 A at 120 Vac 50/60 Hz
12 A at 277 Vac 50/60 Hz 12 A at 277 Vac 50/60 Hz 12 A at 277 Vac 50/60 Hz
10 A at 277 Vac 50/60 Hz — —
12 A at 28 VDC 12 A at 28 Vdc 12 A at 28 Vdc
1 hp at 250 Vac 1/2 hp at 120 Vac 3/4 hp at 250 Vac
0.9 W 1.4 W 1.5 W
10% (DC) 10% (DC) 10% (DC)
(–40 ° to 55 °C)
(–40 ° to 85 °C)
Bipolar LED/
Removable ID tag/
Mechanical flag indicator
–40 °F to +131 °F
(–40 ° to 55 °C)
–40 °F to +185 °F
(–40 ° to 85 °C)
Locking pushbutton/
Bipolar LED/
Removable ID tag/
Mechanical flag indicator
–40 °F to +131 °F
(–40 ° to 55 °C)
–40 °F to +185 °F
(–40 ° to 85 °C)
Locking pushbutton/
Bipolar LED/
Removable ID tag/
Mechanical flag indicator
3
3
3
3
3
3
V7-T3-94 Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com
V7-T3-94 Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com
Page 7
Control Relays and Timers
42
44
12
14
A1
11
A2
41
IEC
4
8
1
5
13
12
14
9
NEMA
11
A1
14
21
24
12
22
41
44
42
A2
IEC
9
13
5
10
6
1
2
12
8
4
14
NEMA
A1
A2
11
21
14
24
31
34
22
12
32
44
41
42
IEC
13
14
10
9
11
5
6
1
2
7
3
12
4
8
NEMA
General Purpose Plug-In Relays
3.4
Wiring Diagrams
D7PR2/D7PF2
D7PR3/D7PF3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
D7PR4/D7PF4
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-95
Volume 7—Logic Control, Operator Interface and Connectivity Solutions CA08100008E—July 2015 www.eaton.com V7-T3-95
Loading...
