Custom Engineering TK300II User Manual

PRINTER READY

28/04/08 11:03:50

USER’S GUIDE

GUIDA OPERATIVA

GUIDE D’UTILISATION

BEDIENUNGSANLEITUNG

GUIA OPERATIVA

TKT

Commands reference: DOMC-0005E

GB

The CE mark affi xed to the product certify that the product satisfi es the basic safety
requirements.

I

F

D

E

GB

I

Il marchio CE applicato al prodotto certifi ca che il prodotto stesso soddisfa i requisi-
ti base di sicurezza.

Le label CE appliqué sur le produit certifi e que le produit même satisfait les qualités
requises de securité

Die sicherheit dieses Produkts werden durch die CE Kennzeichnung
bescheinigt,die am Produkt angebracht ist.

La marca CE applicada al producto certifi ca que el mismo producto tiene los requi-
sitos de seguridad.

Your attention is drawn to the following actions that could compromise the characteristics of the product:

Read and retain the instructions which follow;•
Follow all indications and instructions given on the printer;•
Make sure that the surface on which the printer rests is stable. If it is not, the printer could fall, seriously damaging it;•
Make sure that the printer rests on a hard (non-padded) surface and that there is suffi cient ventilation;•
When positioning the printer, make sure its cables will not be damaged;•
Use the type of electrical power supply indicated on the printer label. If uncertain, contact your dealer;•
Make sure the electrical system that supplies power to the printer is equipped with a ground wire and is protected by a differential switch;•
If power is supplied to the printer using an extension cord, make sure that the total electrical input of the connected devices does not exceed the maximum current •
permitted by the type of extension in use;
Do not block the ventilation openings;•
Do not insert objects inside the printer as this could cause short-circuiting or damage components that could jeopardize printer functioning;•
Do not carry out repairs on the machine yourself, except for the normal maintenance operations given in the user manual;•
Make sure that there is an easily-accessible outlet with a capacity of no less than 15A in the vicinity of where the printer is to be installed;•
Periodically perform scheduled maintenance on the printer to avoid dirt build-up that could compromise the correct, safe operation of the unit.•
Using a serial cable it’s better to install a ferrite at the end of the same cable.•

Si richiama l’attenzione sulle seguenti azioni che possono compromettere la conformità sopra attestata, oltre, naturalmente, le caratteristiche del prodotto:

Leggete e conservate le istruzioni seguenti;•
Seguite tutti gli avvisi e le istruzioni indicate sulla stampante;•
Non collocate la stampante su una superfi cie instabile. Essa potrebbe cadere e danneggiarsi seriamente;•
Non collocate la stampante su superfi ci morbide o in ambienti che non garantiscono la necessaria ventilazione;•
Collocate la stampante in modo da evitare che i cavi ad essa collegati possano essere danneggiati;•
Utilizzate il tipo di alimentazione elettrica indicato sull’etichetta della stampante;•
Assicuratevi che l’impianto elettrico che alimenta la stampante sia provvisto del conduttore di terra e che sia protetto da interruttore differenziale;•
Se la stampante è alimentata tramite una prolunga, assicuratevi che l’assorbimento totale degli apparecchi collegati non superi la corrente massima ammessa •
dal tipo di prolunga;
Non ostruite le aperture per la ventilazione;•
Non introducete oggetti all’interno della stampante in quanto essi possono cortocircuitare o danneggiare parti che potrebbero compromettere il funzionamento •
della stampante;
Non intervenite personalmente sulla stampante, eccetto che per le operazioni di ordinaria manutenzione, espressamente riportate nel manuale utente;•
Assicurarsi che nel luogo in cui si vuole installare la stampante, vi sia una presa di corrente facilmente accessibile e di capacità non inferiore ai 15A;•
Eseguire periodicamente la manutenzione ordinaria della stampante al fi ne di evitare che accumuli di sporcizia possano compromettere il corretto e sicuro fun-•
zionamento dell’unità.
Nel caso di utilizzo di cavo seriale, si consiglia il montaggio di una ferrite sulla parte terminale dello stesso cavo.•

D

E

Nous attirons l’attention sur certaines opérations qui pourraient compromettre la conformité attestée ci-dessus et le caractéristiques du produit même:

F

Lire et conserver les instructions suivantes;•
Suivre tous les avertissements et les instructions indiqués sur l’imprimante;•
Ne pas positionner l’imprimante sur une surface instable. Elle pourrait tomber et s’endommager sérieusement;•
Ne pas positionner l’imprimante sur des surfaces molles ou dans des atmosphères où la ventilation nécessaire n’est pas assurée;•
Mettre en place l’imprimante de manière à éviter que les câbles qui y sont raccordés puissent être endommagés;•
Utiliser le type d’alimentation électrique indiqué sur l’étiquette de l’imprimante;•
Vérifi er que le circuit électrique qui alimente l’imprimante est muni d’un câble de terre et qu’il est protégé par un interrupteur différentiel;•
Si l’imprimante est alimentée par une rallonge, vérifi er que l’absorption totale des appareils raccordés ne dépasse pas le courant maximal admis pour ce type de •
rallonge;
Ne pas obstruer les ouvertures servant à la ventilation;•
Ne pas introduire d’objets à l’intérieur de l’imprimante car ils peuvent court-circuiter ou endommager des pièces qui pourraient compromettre le fonctionnement •
de l’imrpimante;
Ne pas intervenir personnellement sur l’imprimante, excepté pour les opérations d’entretien ordinaire expressément indiquées dans le manuel utilisateur;•
Vérifi er que le lieu d’installation de l’imprimante est équipé d’une prise de courant facilement accessible et d’une capacité non inférieure à 15A;•
Procéder régulièrement à l’entretien ordinaire de l’imprimante afi n d’éviter qu’un excès de saleté ne compromette le bon fonctionnement et la sécurité de l’appa-•
reil.
On utilisé un câble sériel il vaut mieux monter une ferrite sur le côte terminal du même cable.•

Wir möchten Sie darauf hinweisen, daß folgende Aktionen die oben bescheinigte Konformität und die Eigenschaften des Produkts beeinträchtigen können:

Lesen Sie die nachstehenden Anleitungen und bewahren Sie diese gut auf;•
Beachten Sie alle am Drucker angebrachten Hinweise und Anleitungen;•
Den Drucker nicht auf eine wenig stabile Unterlage stellen, denn er könnte herunterfallen und stark beschädigt werden;•
Den Drucker nicht auf weiche Unterlagen stellen und nicht in Räumen aufstellen, in denen die erforderliche Belüftung nicht gewährleistet ist;•
Den Drucker derart aufstellen, dass die verschiedenen Kabel desselben nicht beschädigt werden;•
Den Drucker an eine Stromleitung mit den auf dem Druckeretikette angegebenen Eigenschaften anschließen;•
Es ist sicherzustellen, dass die den Drucker speisende Stromleitung über einen Erdleiter verfügt und durch einen Differenzialschalter abgesichert ist;•
Wenn ein Verlängerungskabel verwendet wird ist sicherzustellen, dass die Gesamtaufnahme der angeschlossenen Geräte nicht den zulässigen Höchststrom •
der Verlängerung;
Die Belüftungsschlitze nicht abdecken;•
Keine Gegenstände in den Drucker einführen, da diese einen Kurzschluss auslösen oder zu Beschädigungen führen können, die den einwandfreien Druckerbetrieb •
beeinträchtigen;
Keine eigenmächtigen Eingriffe am Drucker vornehmen, ausgenommen die ausdrücklich im Anwenderhandbuch aufgeführten Wartungseingriffe;•
Sicherstellen, dass am Aufstellort des Druckers eine leicht zugängliche Steckdose vorhanden ist, deren Leistung nicht unter 15 Ampere liegen darf;•
Den Drucker regelmäßig warten und reinigen, damit keine Schmutzablagerungen den einwandfreien und sicheren Betrieb der Einheit beeinträchtigen.•
Im falle daß jebrauch von seriel kable, zusammenbau wird empfhlen von das ferrite über die endesite der dasselbe kable.•

Le rogamos que preste mucha atención a las siguientes acciones que pueden comprometer la conformidad arriba certifi cada, y obviamente las caraterísticas del
producto:

Lea y conserve las siguientes instrucciones;•
Respete los avisos e instrucciones indicadas en la impresora;•
No coloque la impresora sobre una superfi cie inestable; podría caerse o averiarse seriamente;•
No coloque la impresora sobre superfi cies blandas o ambientes que no garanticen la ventilación necesaria;•
Coloque la impresora de manera tal que los cables a ella conectados no se averíen;•
Utilice el tipo de alimentación eléctrica indicada en la etiqueta de la impresora;•
Asegurarse que la instalación eléctrica que alimenta la impresora posea un conductor de tierra y que esté protegida por un interruptor diferencial;•
Si para la alimentación de la impresora se utiliza una extensión, asegurarse que la absorción total de los aparatos conectados no sea mayor a la corriente máxima •
admitida por el tipo de extensión y que;
No obstruya las aberturas de ventilación;•
No introduzca objetos dentro de la impresora, pueden causar cortocircuitos o dañar partes que podrían comprometer el buen funcionamiento de la impresora;•
No efectúe personalmente operaciones de reparación a la impresora, excepto aquellas de mantenimiento ordinario indicadas expresamente en el manual del •
usuario;
Asegurarse que en el sitio de trabajo en el cual se quiere instalar la impresora exista una toma de corriente de fácil acceso y de capacidad no inferior a los 15A;•
Efectuar periódicamente el mantenimiento ordinario de la impresora con el propósito de evitar acumulaciones de suciedad que puedan comprometer el correcto •
y seguro funcionamiento.
Si se utiliza lo serial cable, se necesita el montaje de una ferrite sobre la parte terminal del mismo cable.•

TK300II

TK300II

SETUP

Appendix

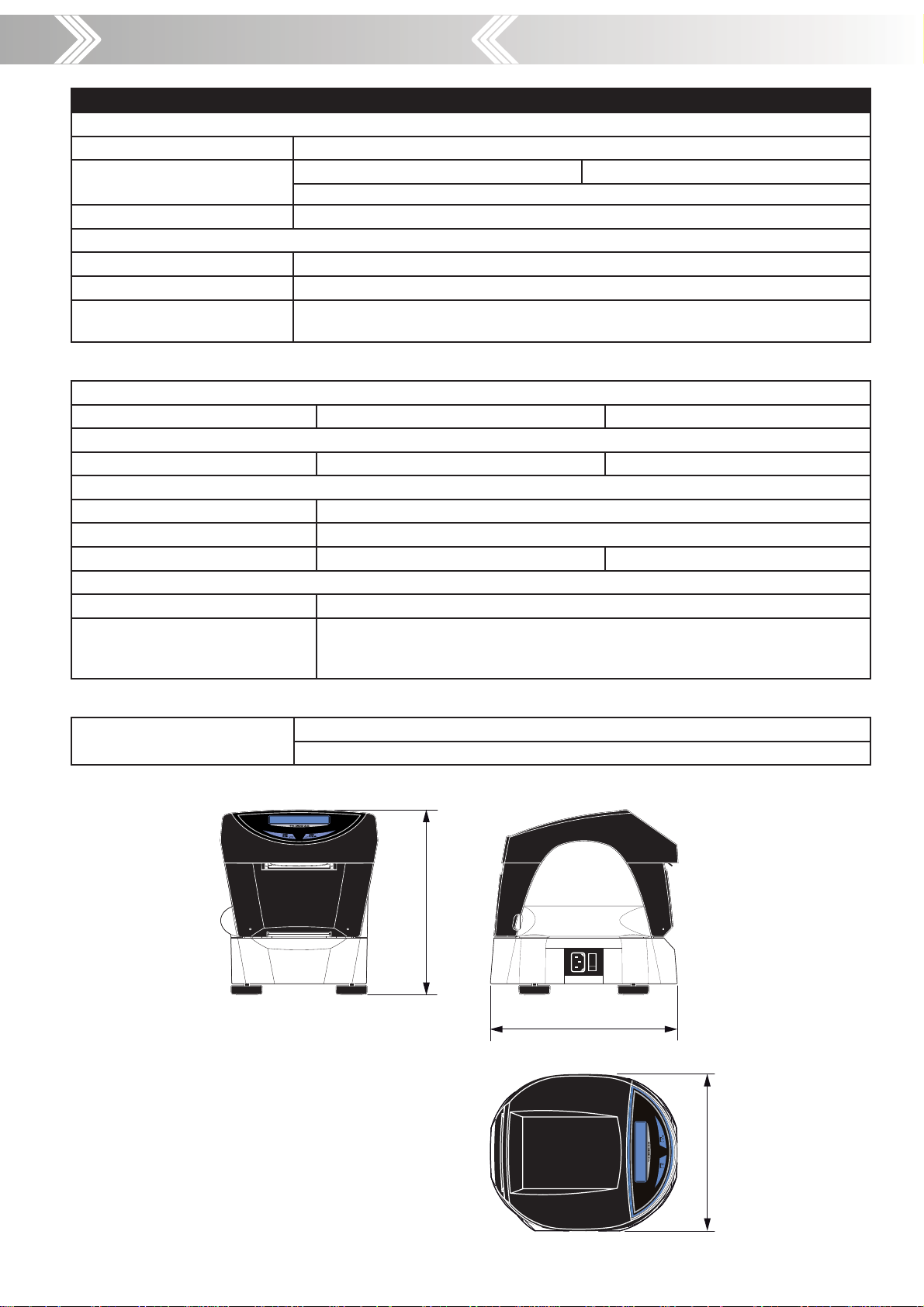

A.1 Technical specifi cations
A.2 Advanced functions

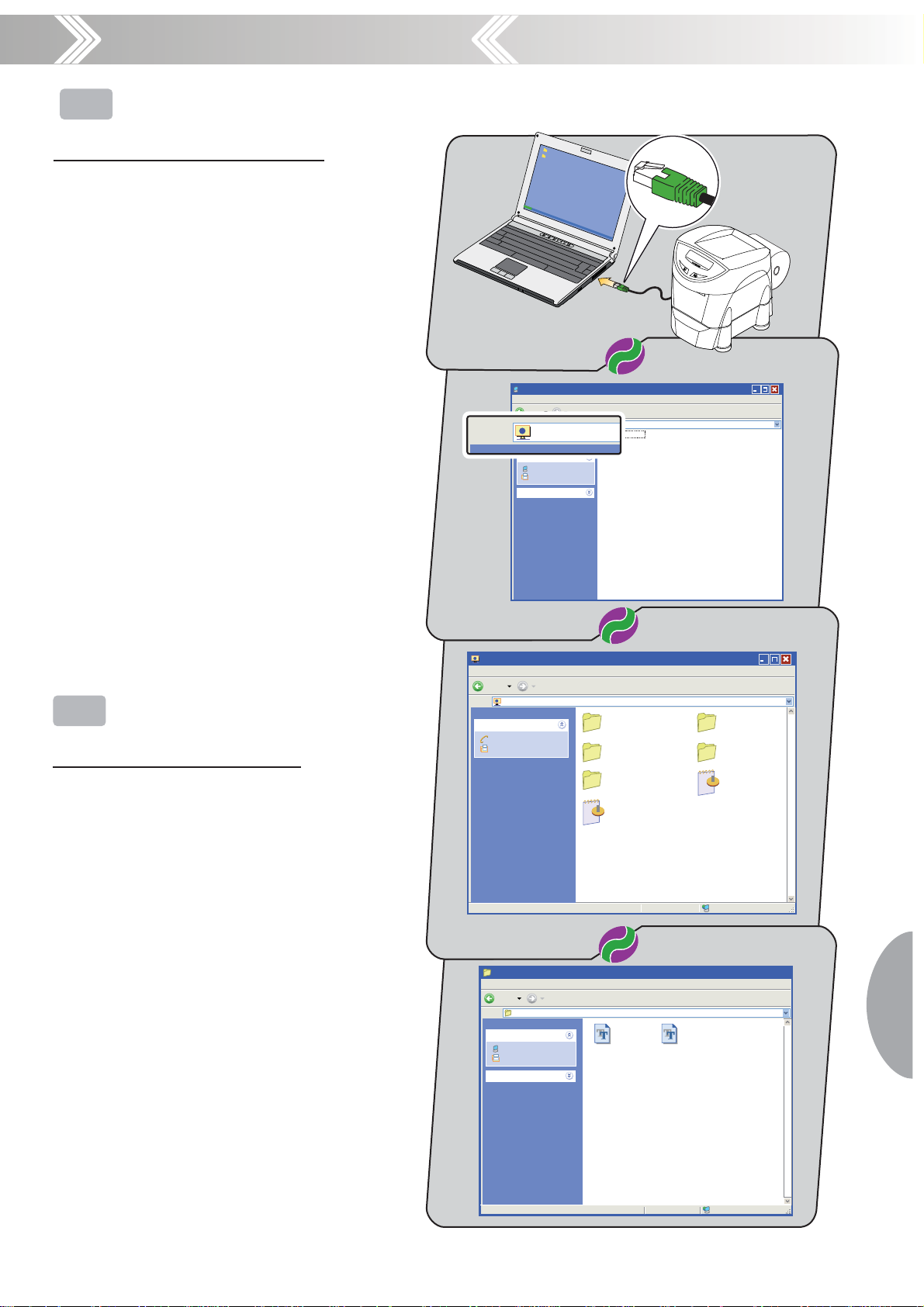

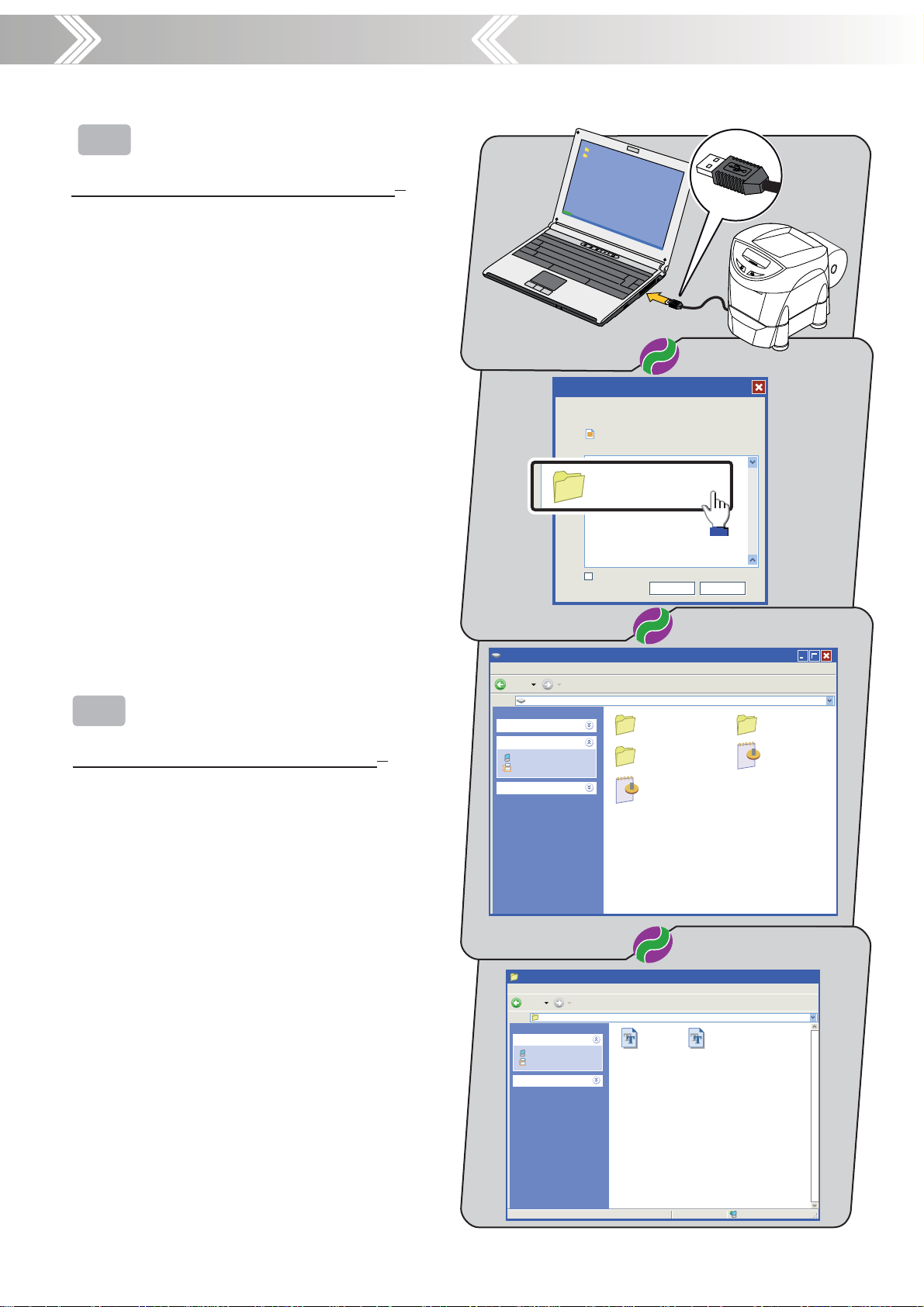

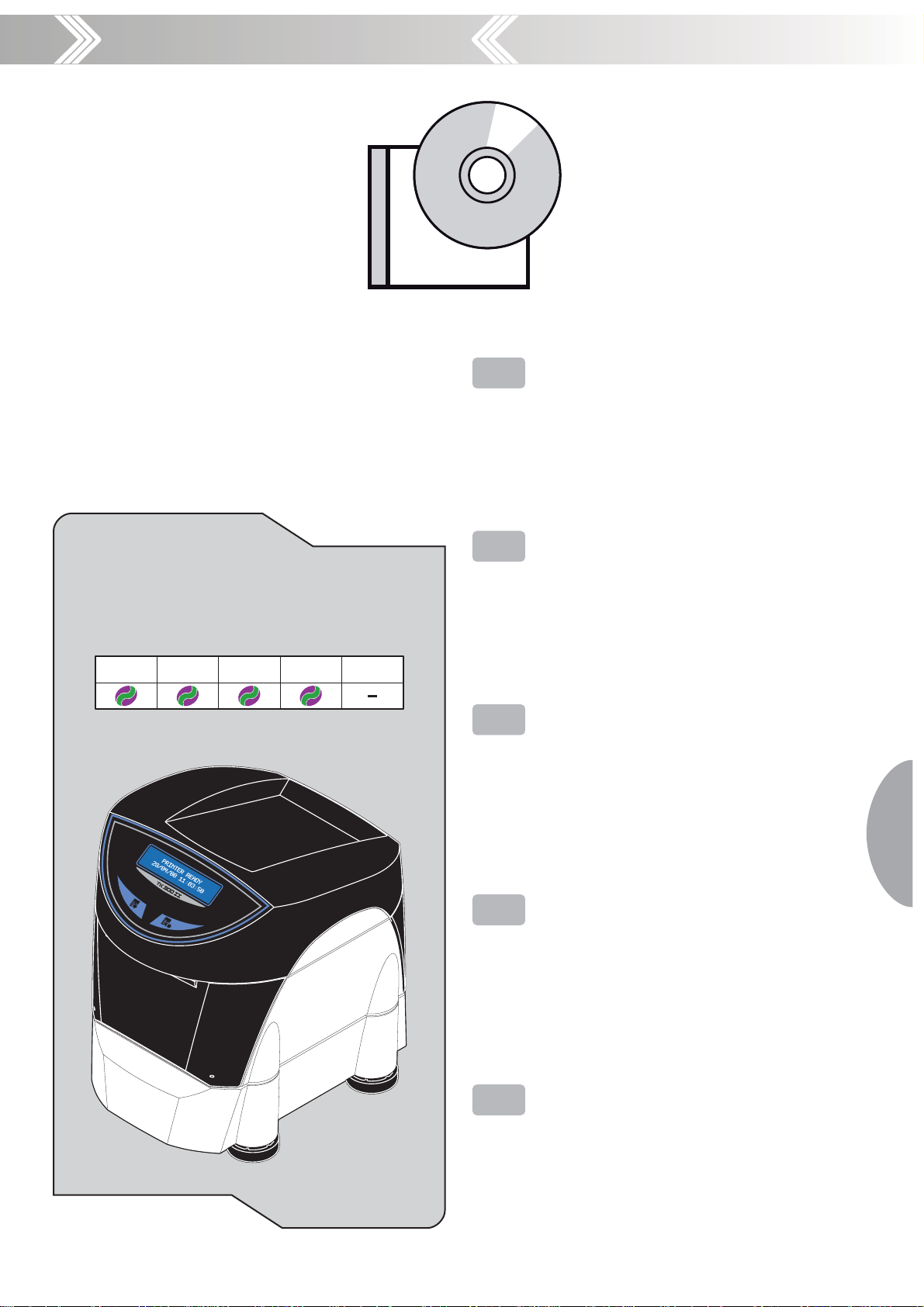

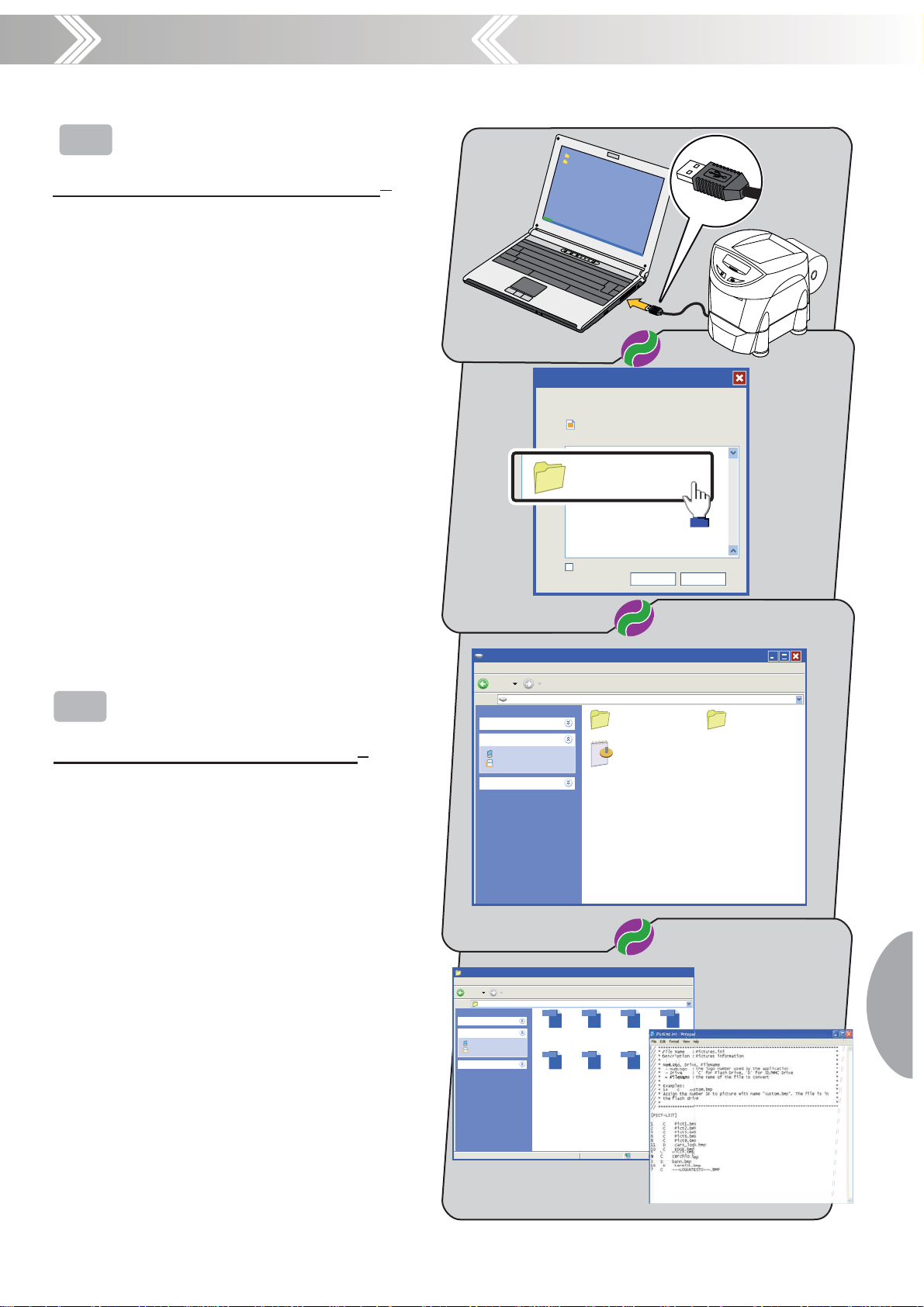

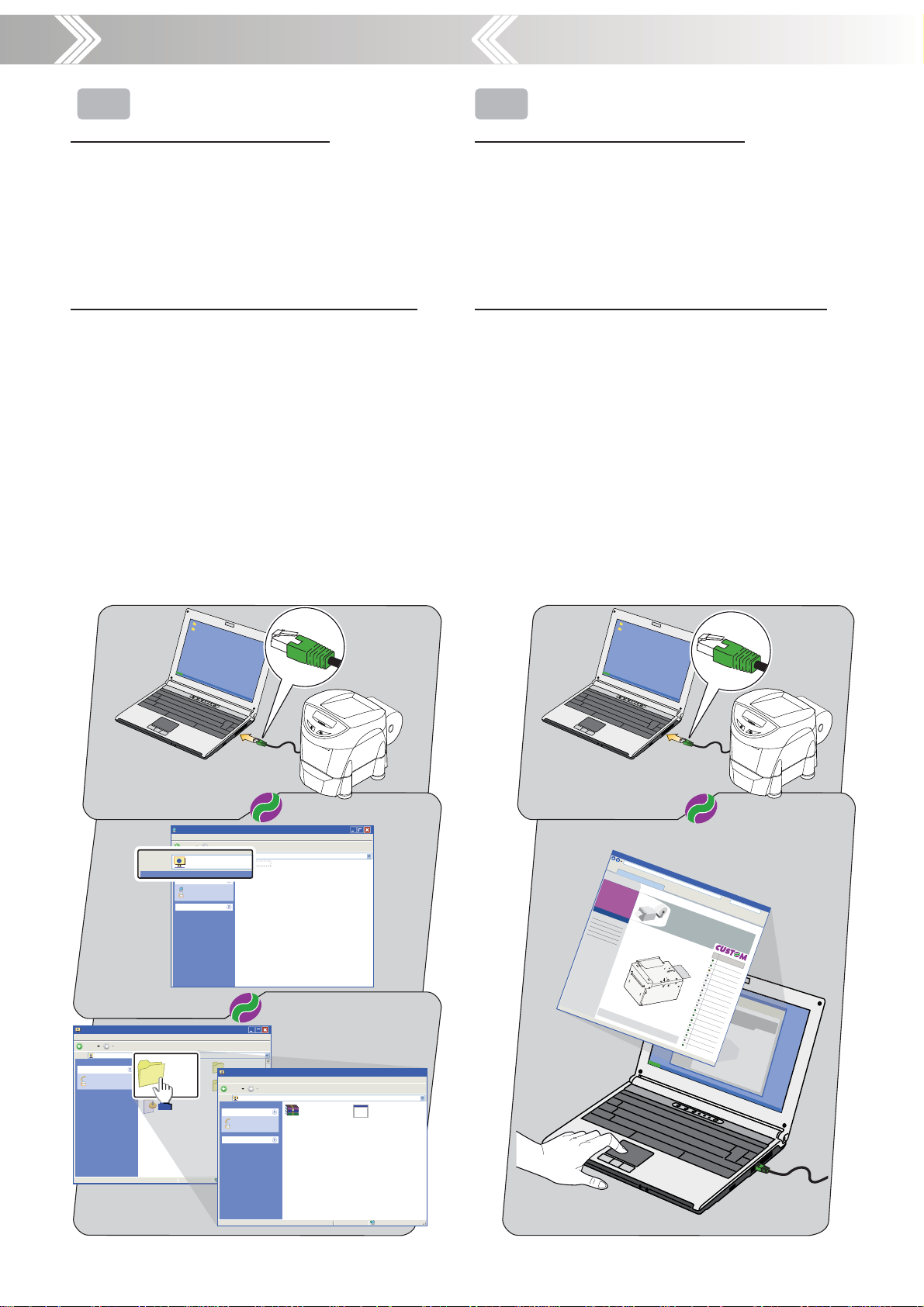

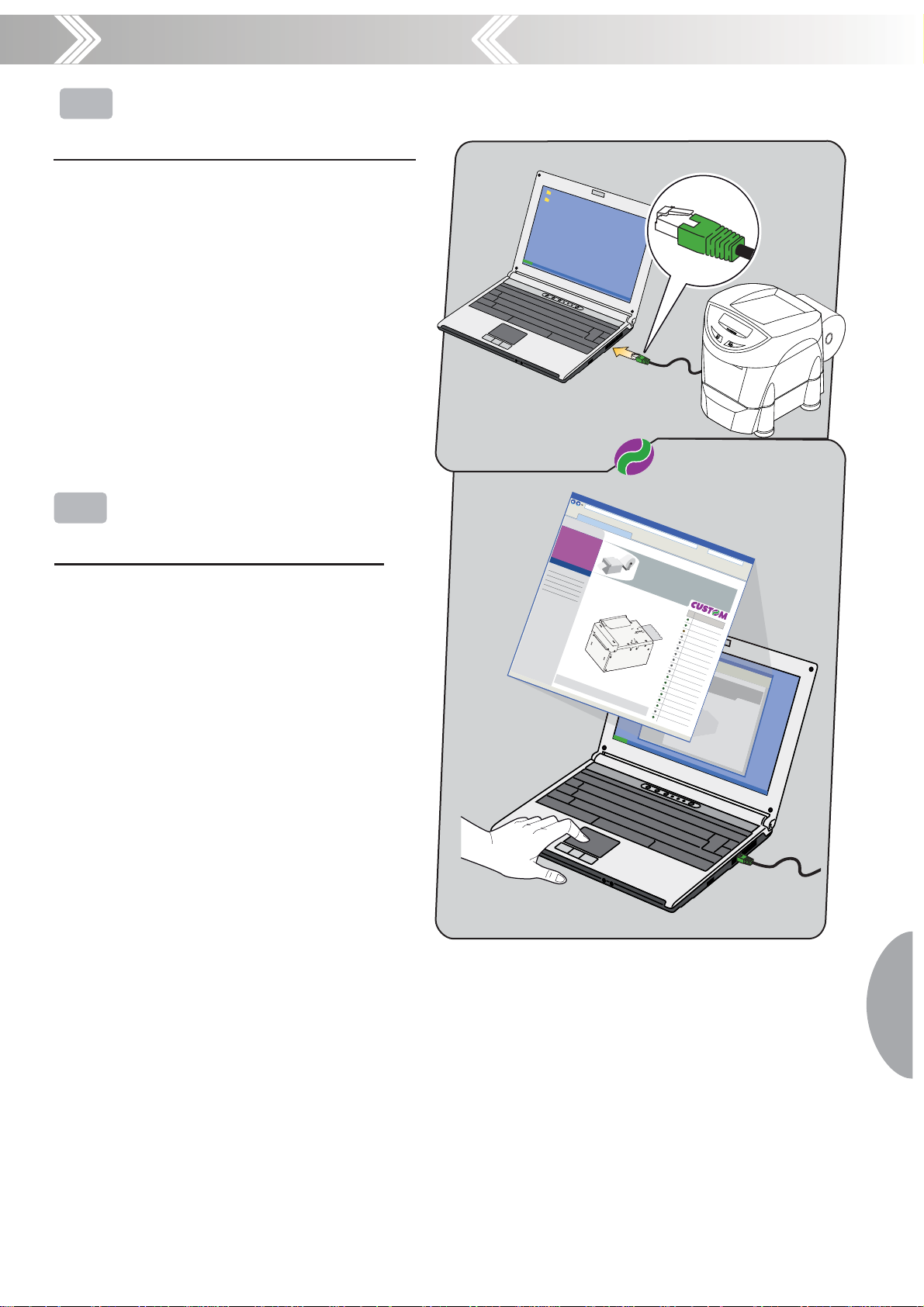

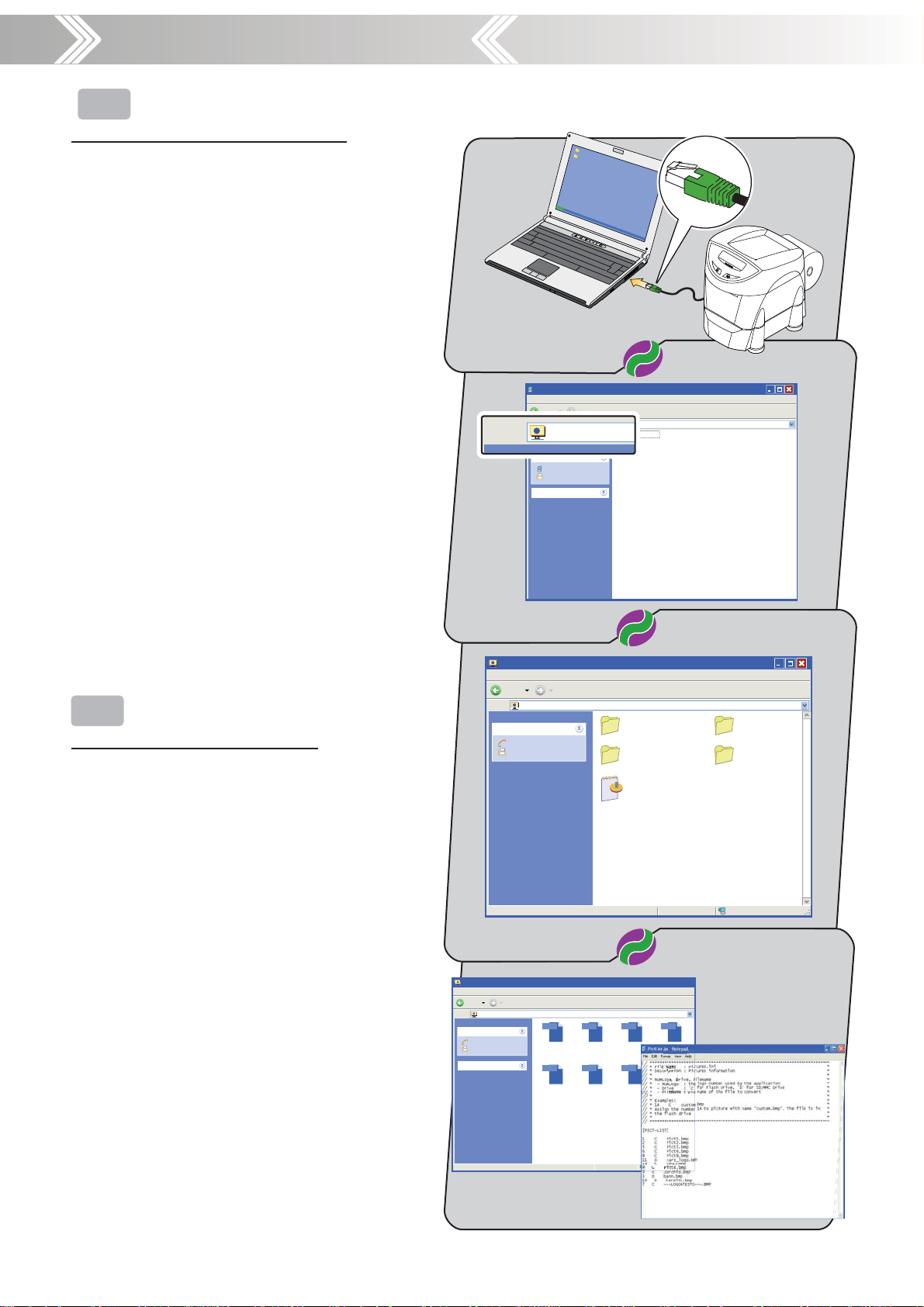

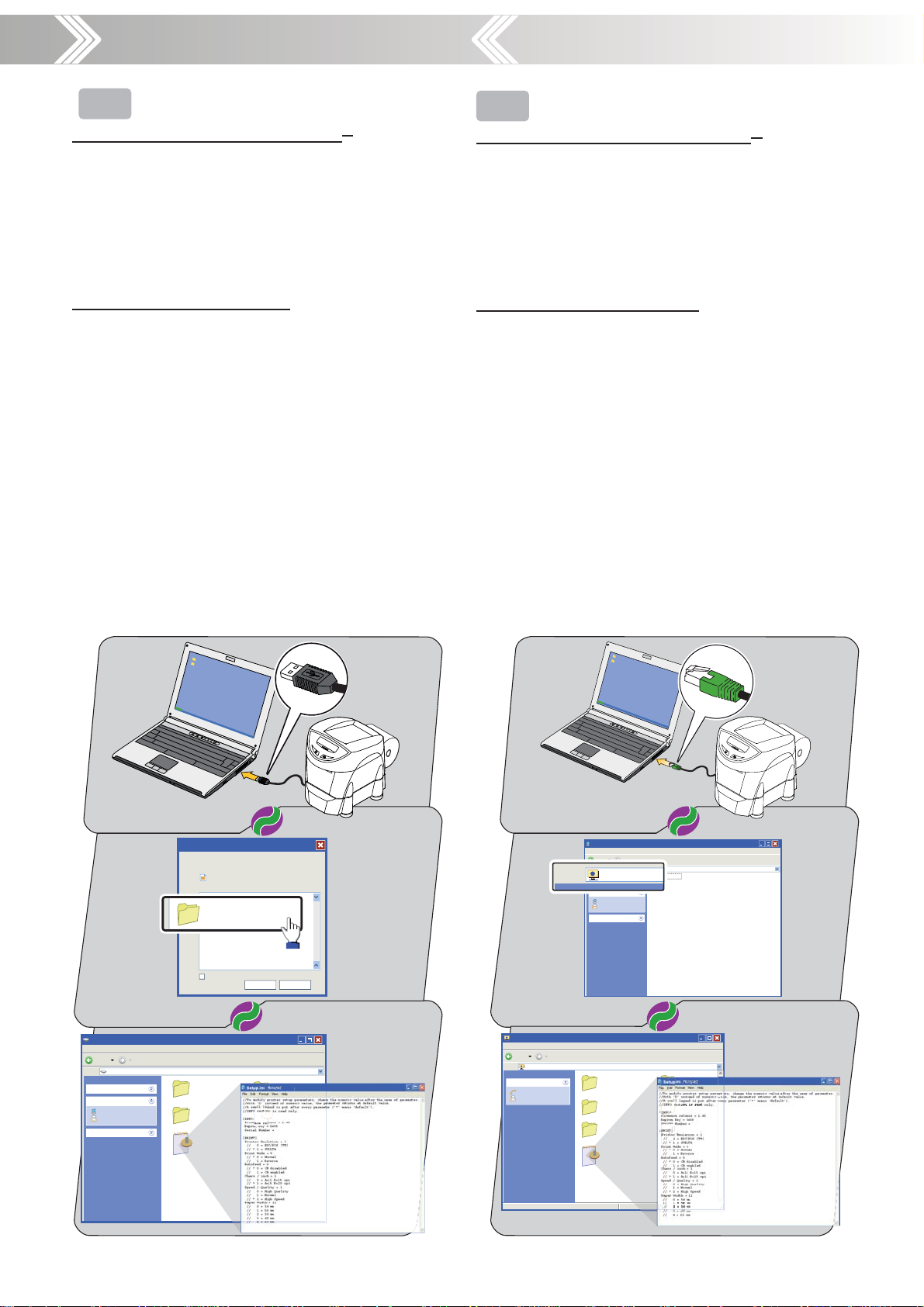

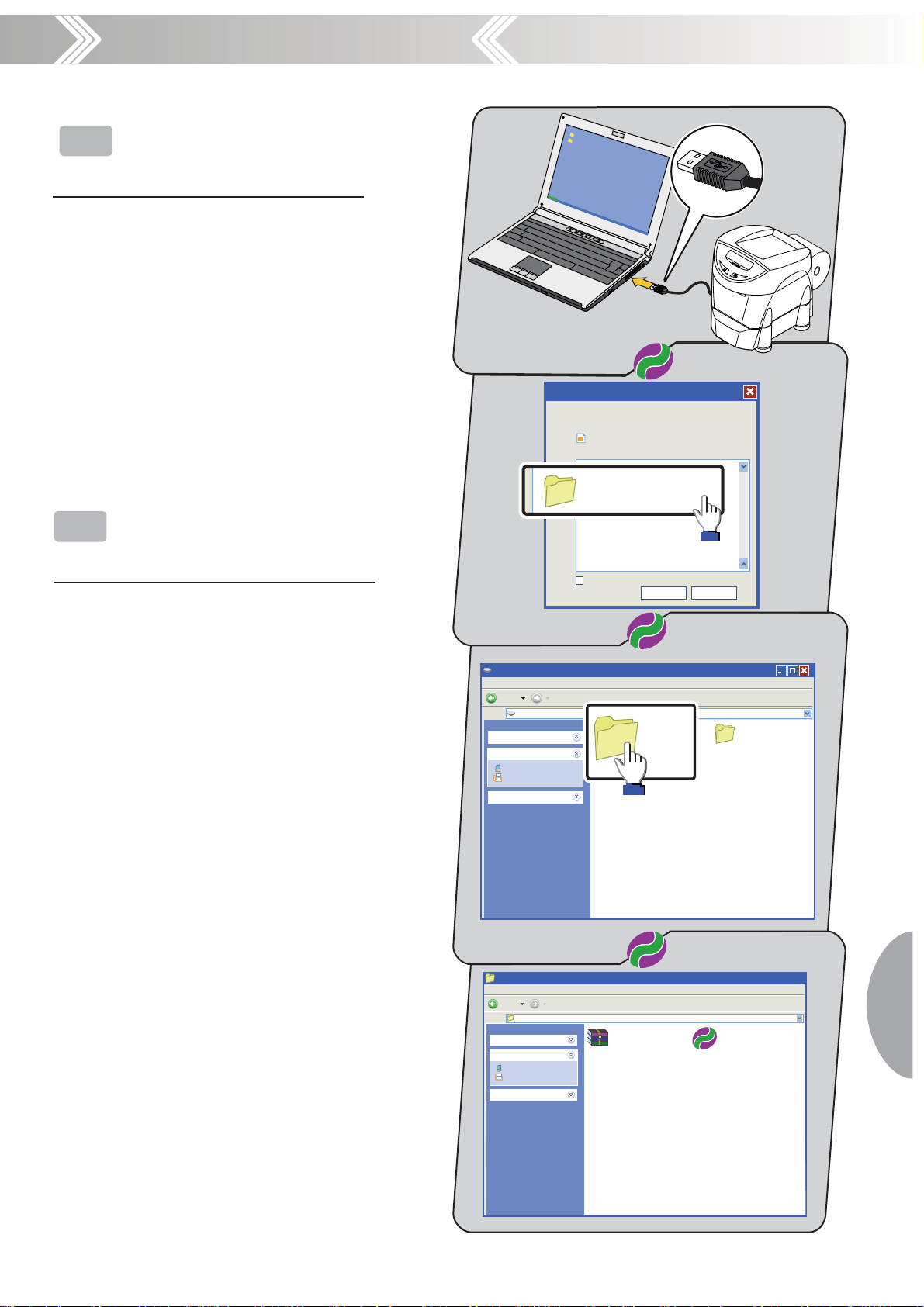

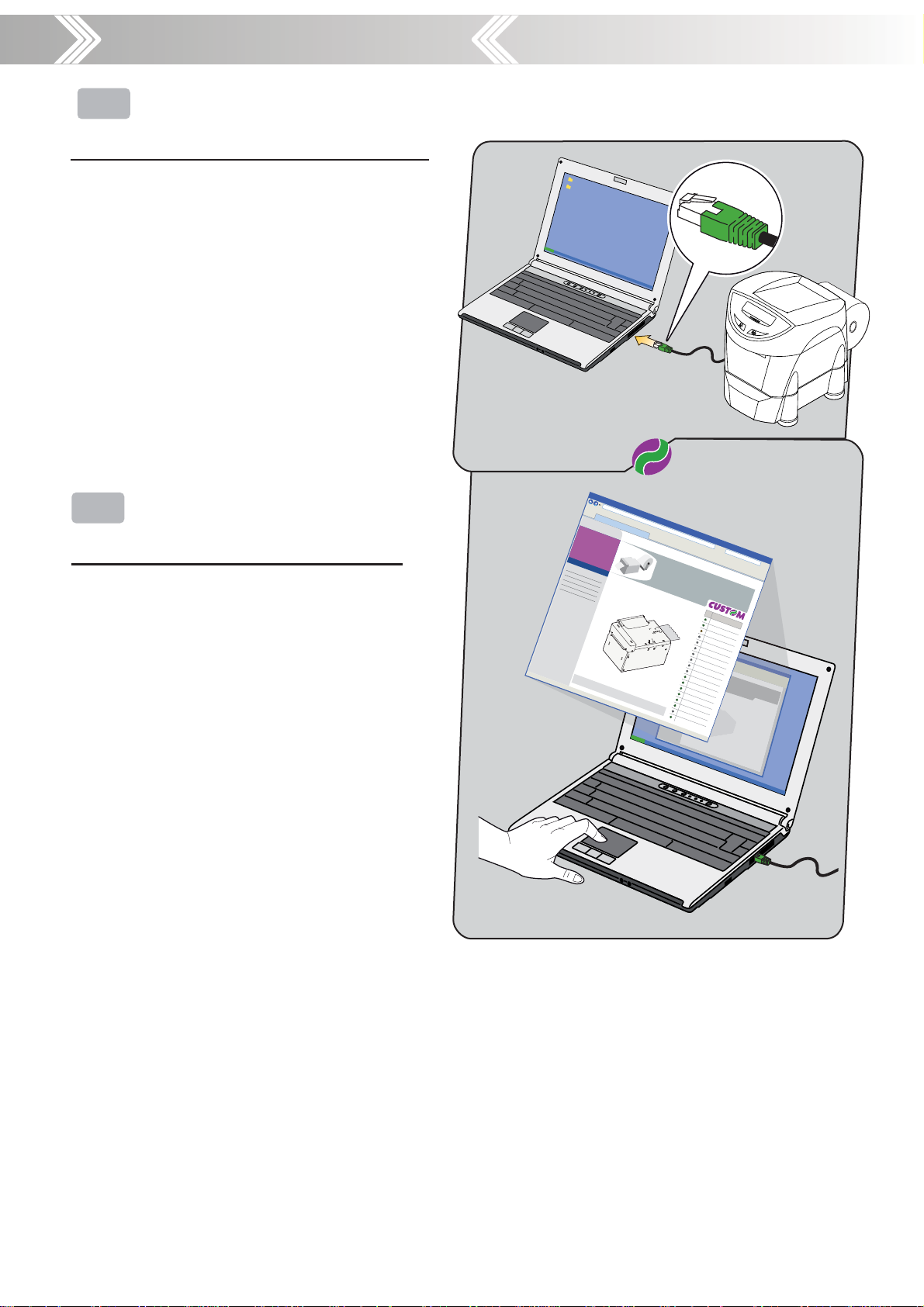

Installation
for drivers

Appendix

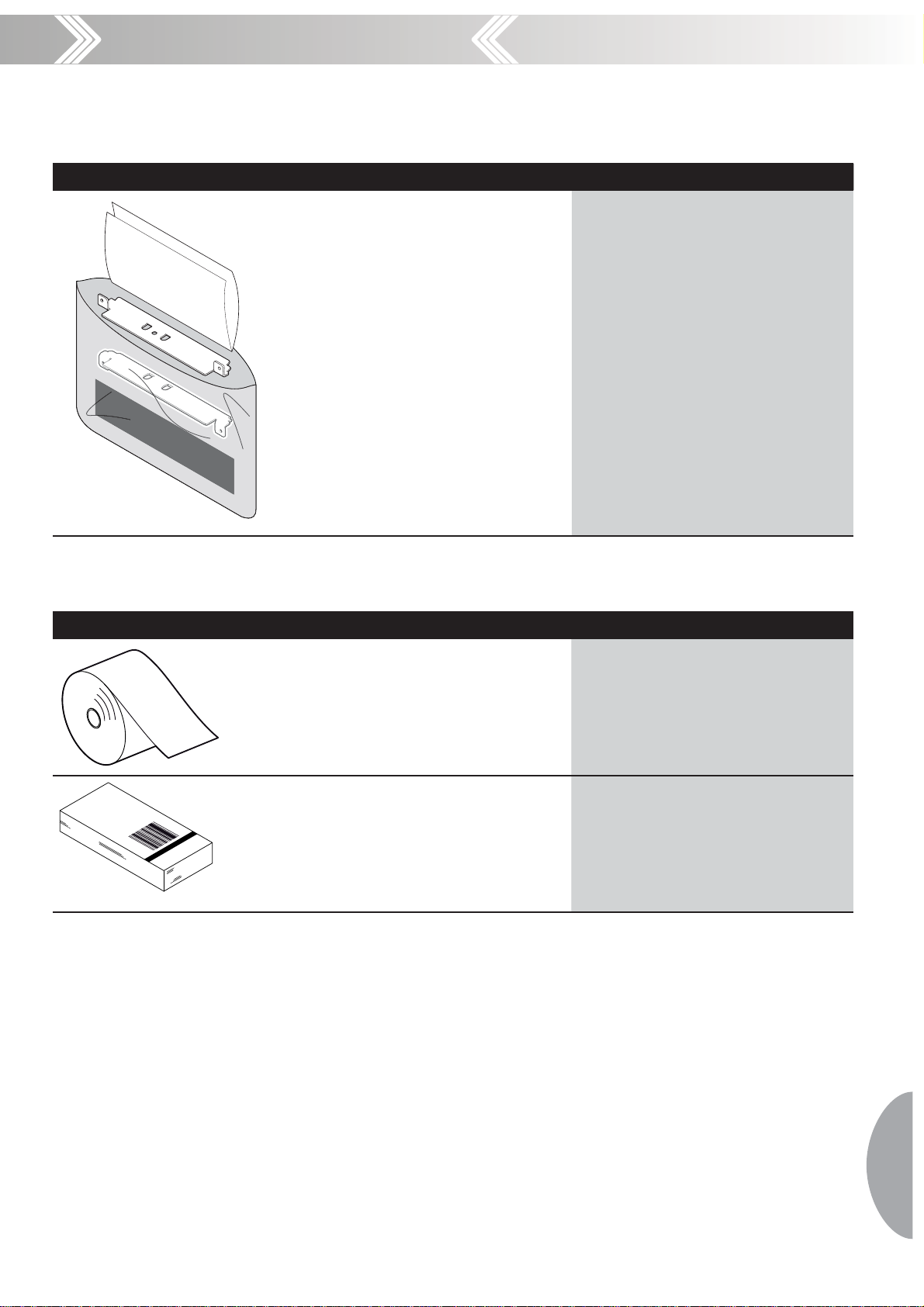

B.1 Accessories and spare parts

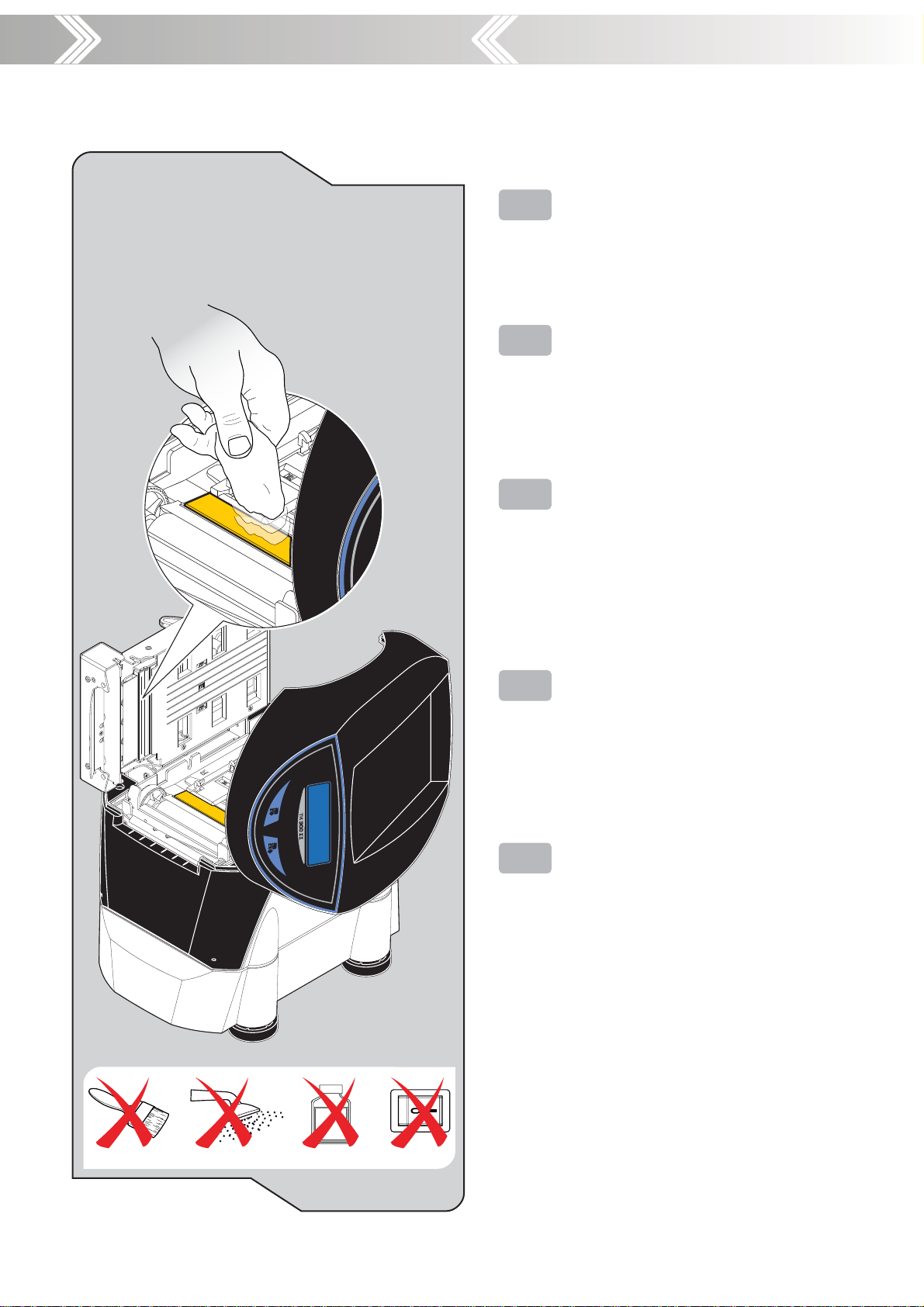

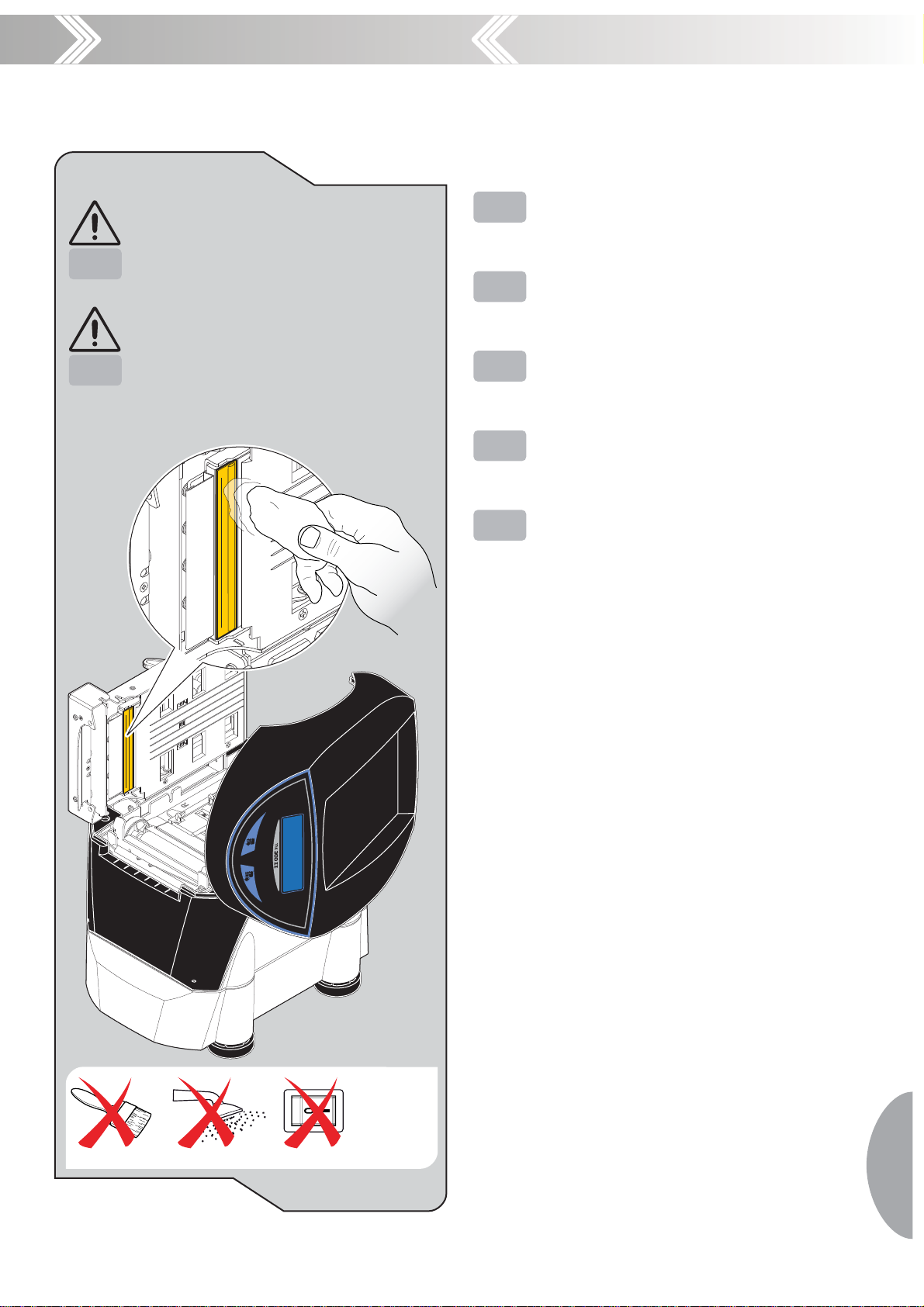

B.2 Cleaning

P

300

P

80

2

P

K

D

OK

CUTTER

TEST...

.......

.......

.......

.......

OK

PRINTER

HEAD R

av.....

.......

.......

..624

HEAD VO

LTAGE [

V] = 24

,29

HEAD TE

MPERATU

RE [ C]

26

POWER O

N COUNT

ER = 28

PAPER P

RINTED

[cm] =

[]

40

CUT COU

NTER

573

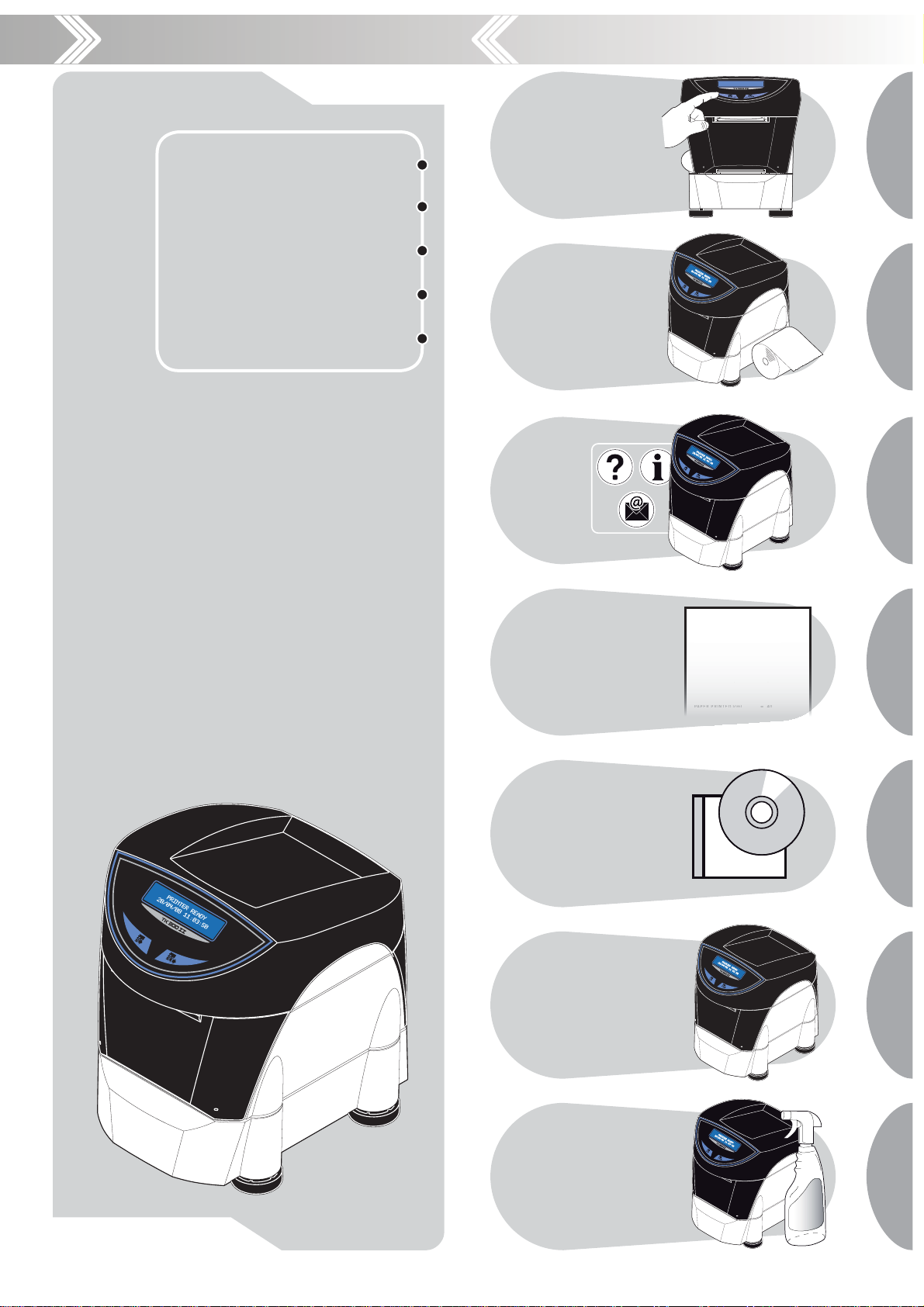

Table of contents

Indice

Table des matières

Inhaltsverzeichnics

Indice

SETUP

PRINTER READY

28/04/08 11:03:50

PRINTER READY

28/04/08 11:03:50

PRINTER SETUP

RINTER TYPE .............................KPM

RINTING HEAD TYPE.................KPA

INTERFACE...................................RS23

ROGRAM MEMORY TEST..........O

YNAMIC RAM TEST....................OK

EEPROM TEST..............................

PRINTER READY

28/04/08 11:03:50

Installation
for drivers

Windows / Linux

PRINTER READY

28/04/08 11:03:50

Appendix

A.1 Technical specifi cations
A.2 Advanced functions

PRINTER READY

28/04/08 11:03:50

Appendix

B.1 Accessories and spare parts

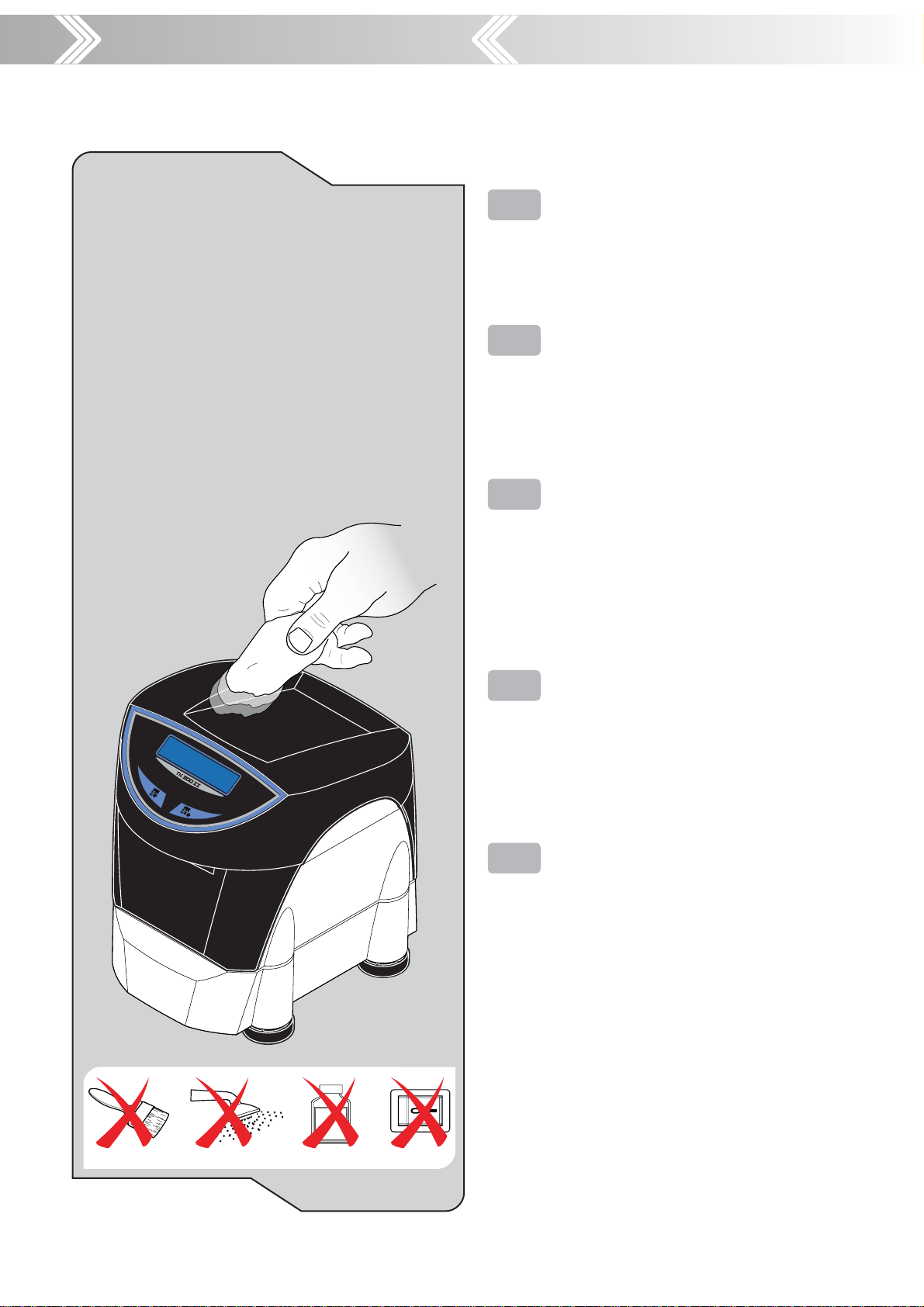

B.2 Cleaning

<1>

TK300II

TK300II

BLANK PAGE

<2>

TK300II

TK300II

PRINTER READY

28/04/08 11:03:50

GB

I

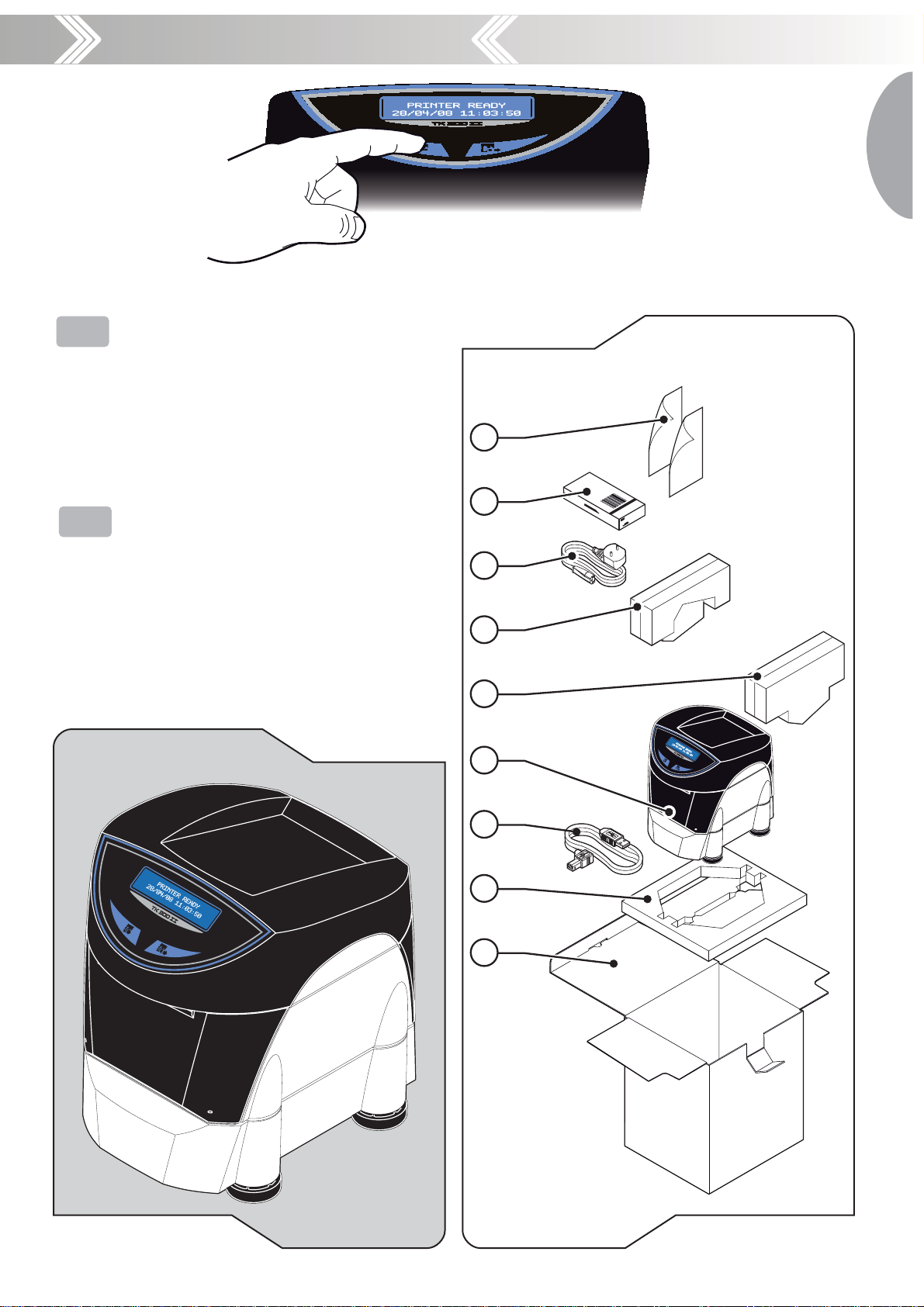

UNPACKING THE PRINTER

Installation instructions1.
FanFold module2.
Power supply cable3.
Laterals foam packing shell4.
Printer5.
USB cable6.
Bottom foam packing shell7.
Box8.

DISIMBALLO DELLA STAMPANTE

Fogli avvertenze1.
Modulo FanFold2.
Cavo di alimentazione3.
Imballi sagomati di protezione laterale4.
Stampante5.
Cavo USB6.
Vassoio di protezione inferiore7.
Scatola8.

1

2

3

4

4

PRINTER READY

28/04/08 11:03:50

5

PRINTER READY

28/04/08 11:03:50

6

7

8

<3>

TK300II

TK300II

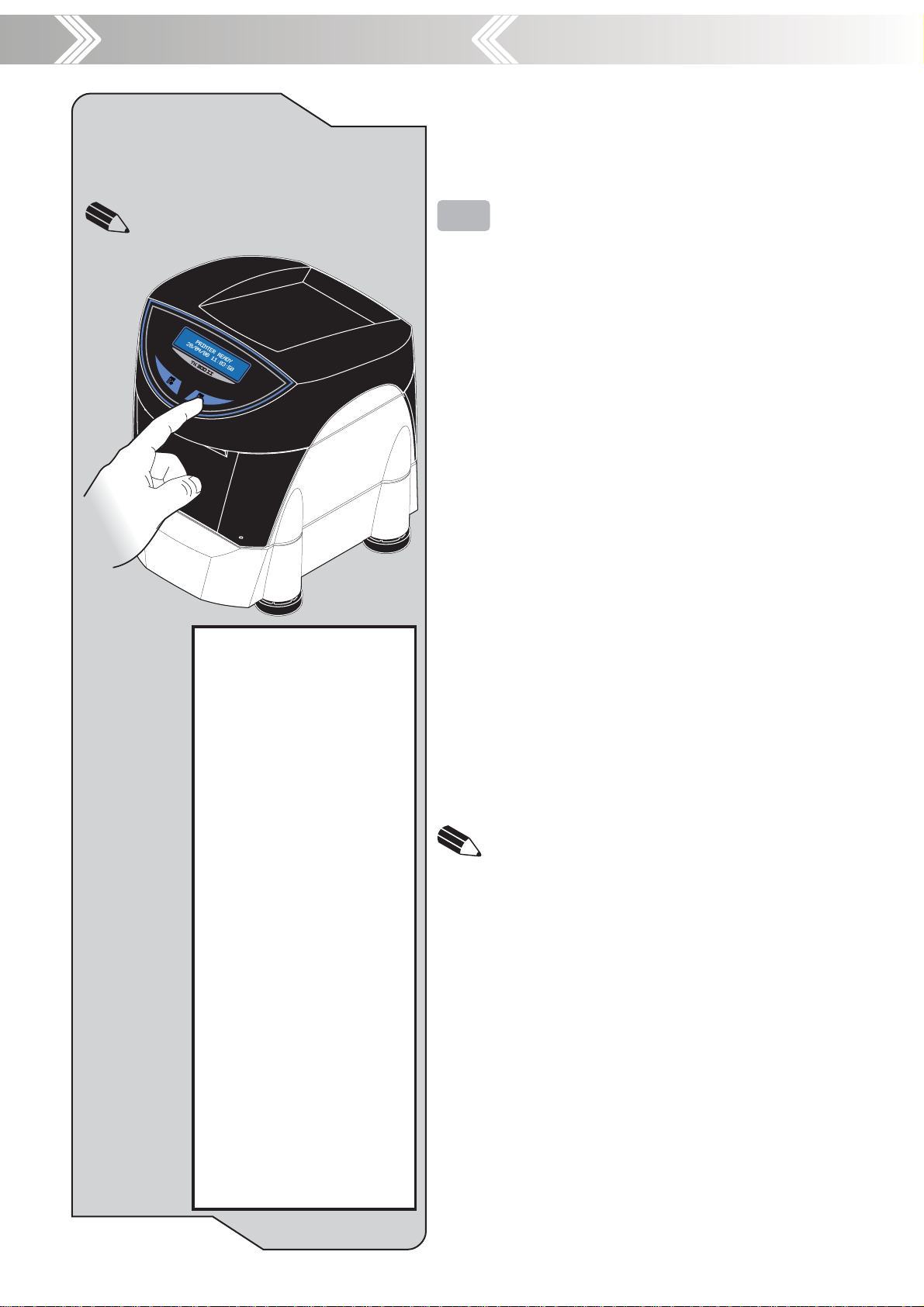

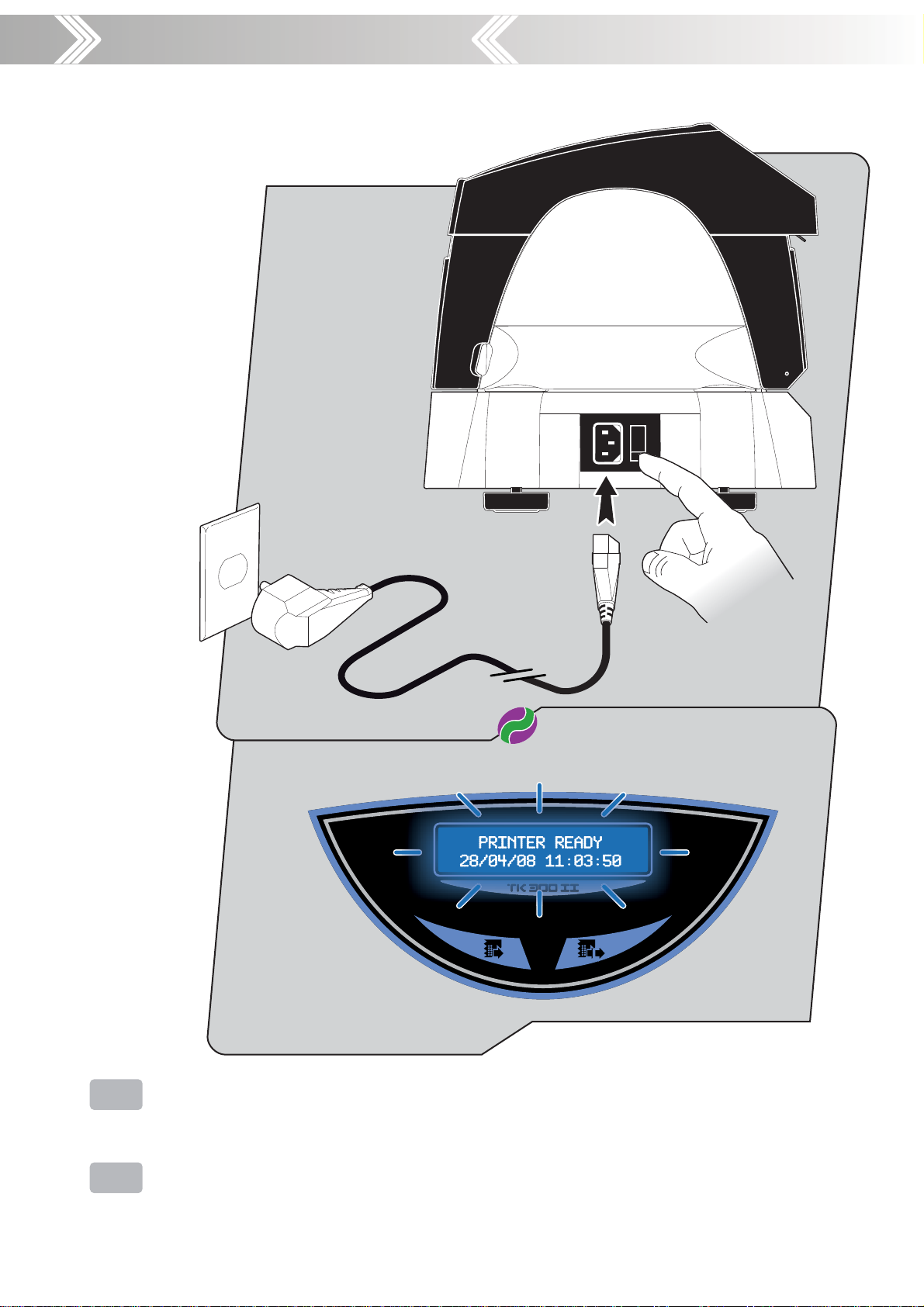

Switch printer ON/OFF•
Accendere/Spegnere la stampante•
Brancher/Éteindre l’imprimante•
Den Drucker einwieden/ausschlaten•
Encender/Apagar la impresora•

GB

I

PRINTER READY

28/04/08 11:03:50

Switch printer On pressing key On/Off•
The display turn on; the standby message “PRINTER READY” and the date/time values will •
be displayed on the printer
The printer is ready.•

Accendere la stampante premendo il tasto On/Off.•
Il display si accende e visualizza sul display il messaggio di stand by “PRINTER READY”, la •
data e l’ora.
La stampante è pronta per stampare.•

<4>

TK300II

TK300II

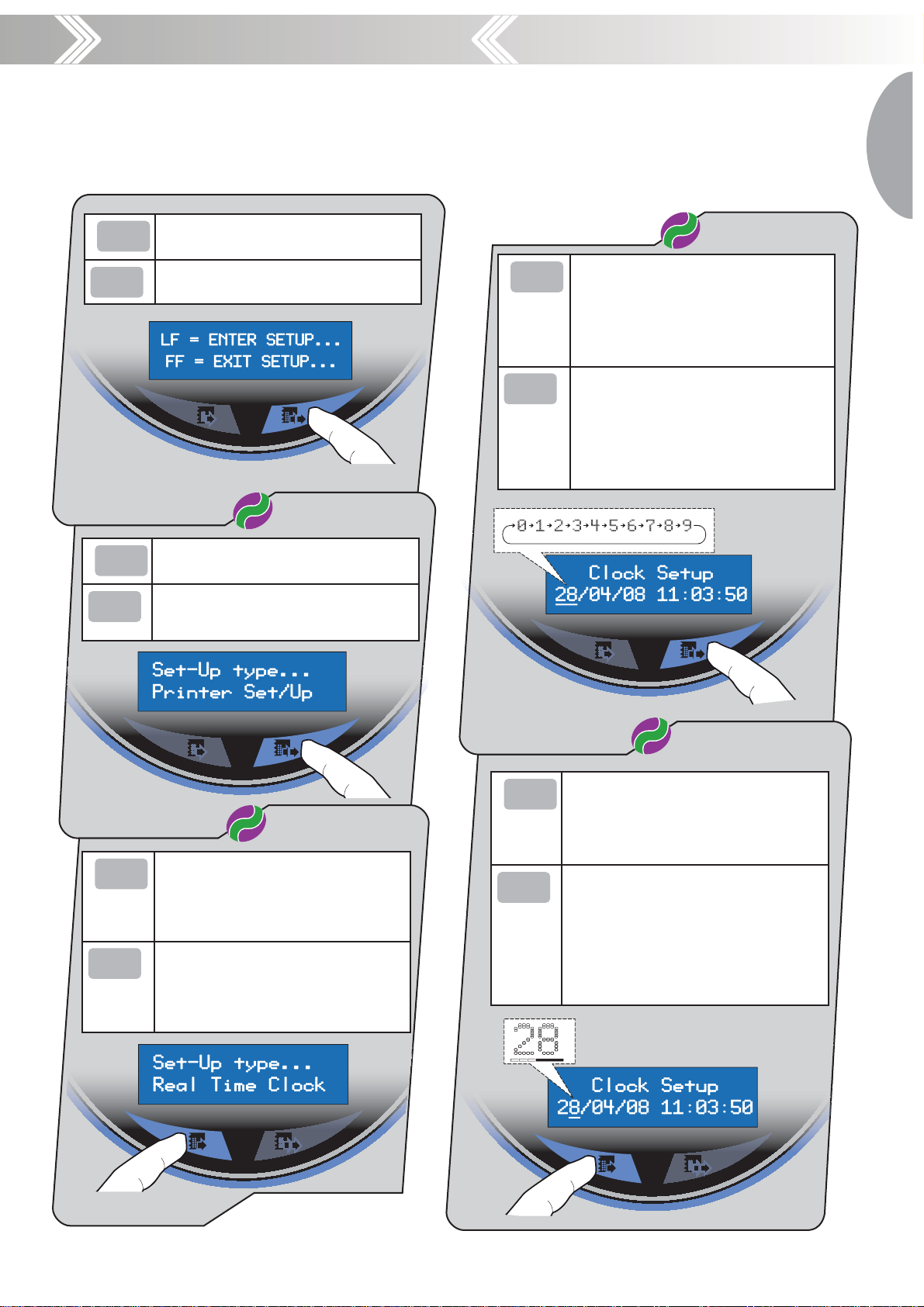

Clock Setup

28/04/08 11:03:50

10 2 3 4 5 6 7 8 9

LF = ENTER SETUP...

FF = EXIT SETUP...

Set-Up type...
Printer Set/Up

Clock Setup

28/04/08 11:03:50

28

28

Set-Up type...
Real Time Clock

Calendar clock regulation•
Regolazione dell’orologio calendario•
Reglage du montre-calendrier•
Uhrzeit und kalender einstellung•
Ajuste del reloj calendario•

GB

I

GB

I

Press the LF LINE FEED key to enter in 1.
the clock confi guration.

Premere il tasto LF LINE FEED per en-1.
trare nella modalità di confi gurazione.

Press the LF LINE FEED key to select 2.
the Real Time Clock settings.

Premere il tasto LF LINE FEED per 2.
selezionare la regolazione del Real
Time Clock.

GB

I

The highlighted digit indicates the digit 4.
to be modifi ed. Press LF LINE FEED
key to modify the value; every single key
pressure increases of 1 his value. Once
the max selectionable value is reached
the counting starts again from 0.

La cifra sottolineata indica la posizione 4.
da modifi care. Premere il tasto LF LINE
FEED per modificare il valore; ogni
pressione del tasto incrementa il valore
di 1 unità. Raggiunto il valore massimo
selezionabile il valore successivo riparte
da “0”.

GB

I

Press the FF FORM FEED key to con-3.
fi rm the selection. The date/time values
will be displayed on the printer. Follow
the instructions printed on the paper for
the key functionality .

Premere il tasto FF FORM FEDED per 3.
confermare la scelta. La stampante
visualizza sul display la data e l’ora
impostata ed esegue la stampa con le
indicazioni per la funzionalità dei tasti.

GB

I

Press FORM FEED key to move the cur-5.
sor on the next digit; if the cursor position
is on the latest digit, press the FF FORM
FEED key to exit and save the date/time
entered. Then the printer is ready.

Premere il tasto FF FORM FEED per 5.
spostare la selezione alla cifra suc­cessiva; se la selezione è sull’ultima
cifra, premendo nuovamente il tasto FF
FORM FEED si termina la procedura di
regolazione e viene impostata l’ora e la
data immesse. La stampante è quindi
pronta a stampare.

<5>

TK300II

TK300II

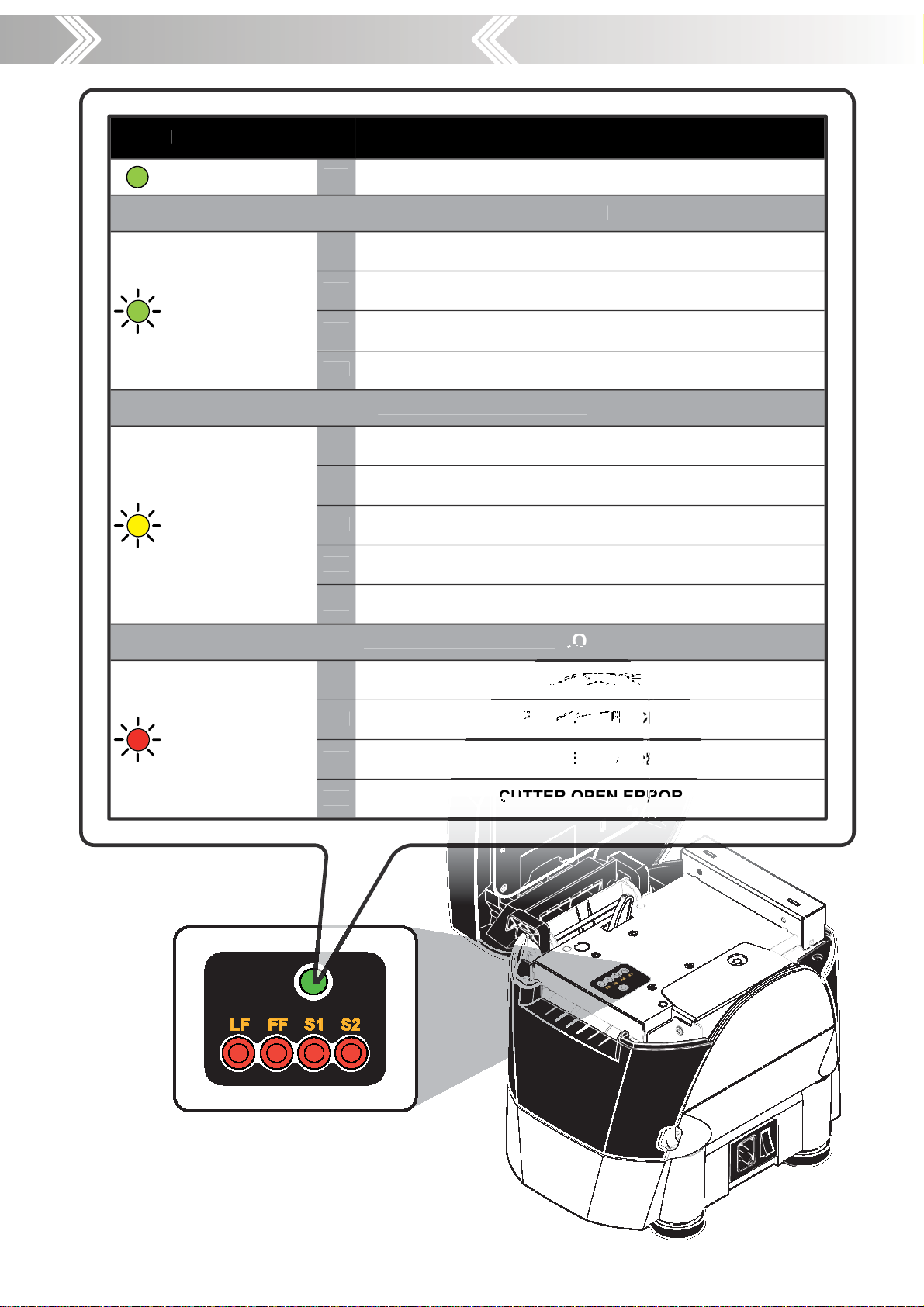

E

N

)

D

X

W

D

X

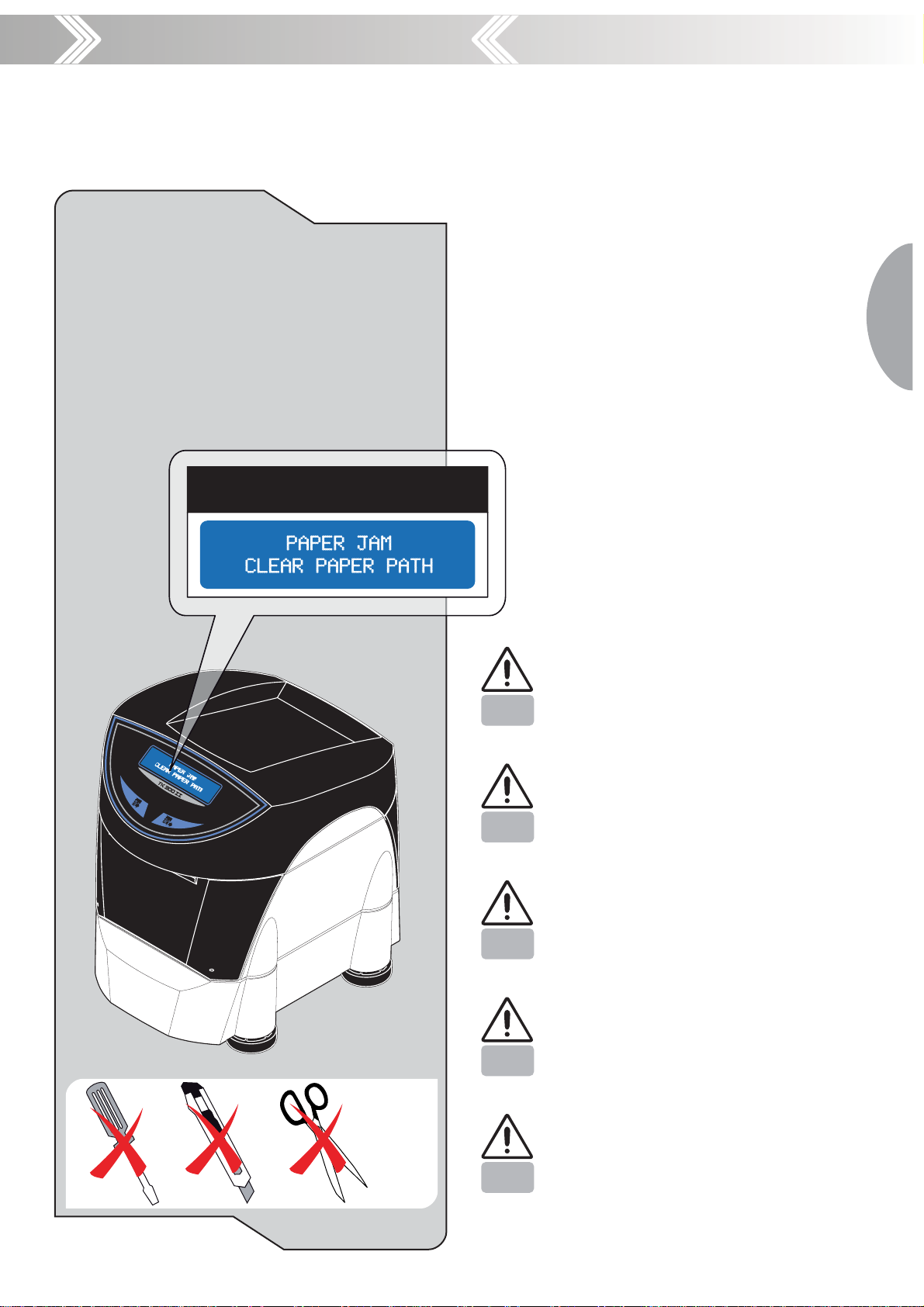

JAM

X 4

T

X 5

N

X 6 EX

X 4

D

N

X 5

ER OR

X 6

S

TATUS LE

REE

REEN

YELLO

ON

RINTER ON : NO ERROR

COMMUNICATION STATU

ECEPTION ERRORS (parity, frame error, overrun error

3

ISINTERPRET COMMAN

COMMAND RECEPTION TIME OUT

RECOVERING ERROR

HEADING OVER TEMPERATURE

3

POWER SUPPLY VOLTAGE INCORREC

ESCRIPTIO

ATA RECEIV

APER EN

3

COVER OPE

<6>

TK300II

TK300II

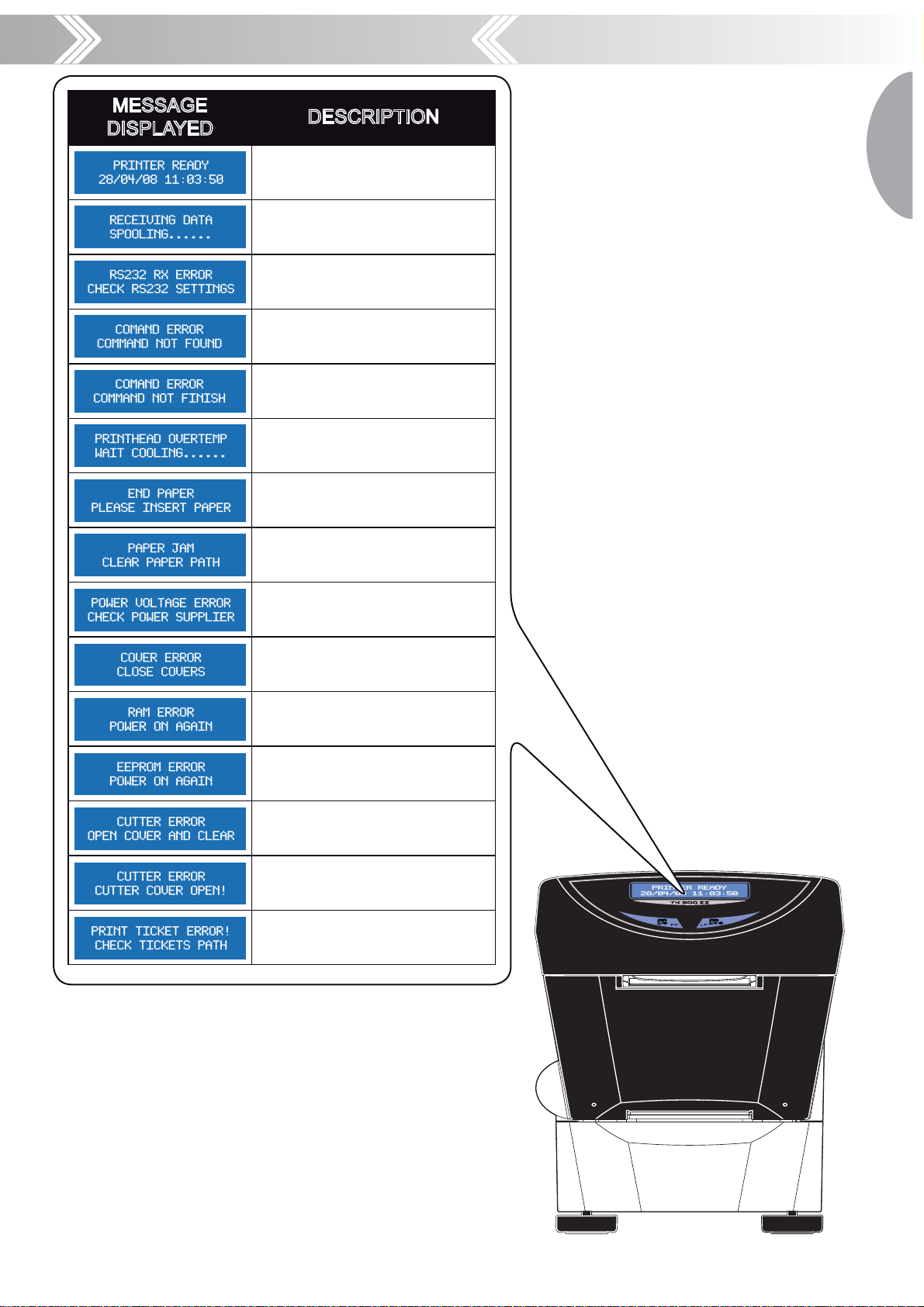

MESSAGE

DISPLAYED

PRINTER READY

28/04/08 11:03:50

RECEIVING DATA

SPOOLING......

RS232 RX ERROR

CHECK RS232 SETTINGS

COMAND ERROR

COMMAND NOT FOUND

COMAND ERROR

COMMAND NOT FINISH

PRINTHEAD OVERTEMP

WAIT COOLING......

END PAPER

PLEASE INSERT PAPER

PAPER JAM

CLEAR PAPER PATH

DESCRIPTION

Printer ON: no error

Data receive

Reception errors (parity,
frame error, overrun error)

Misinterpret command

Command reception
time out

Heading over temperature

Paper end

Paper jam

POWER VOLTAGE ERROR

CHECK POWER SUPPLIER

COVER ERROR

CLOSE COVERS

RAM ERROR

POWER ON AGAIN

EEPROM ERROR

POWER ON AGAIN

CUTTER ERROR

OPEN COVER AND CLEAR

CUTTER ERROR

CUTTER COVER OPEN!

PRINT TICKET ERROR!

CHECK TICKETS PATH

Power supply voltag
incorrect

Cover opened

RAM error

EEPROM error

Cutter error

Cutter open error

Notch alignment error

PRINTER READY

28/04/08 11:03:50

<7>

TK300II

TK300II

1

2

3 4 2 1

PRINTER READY

28/04/08 11:03:50

GB

I

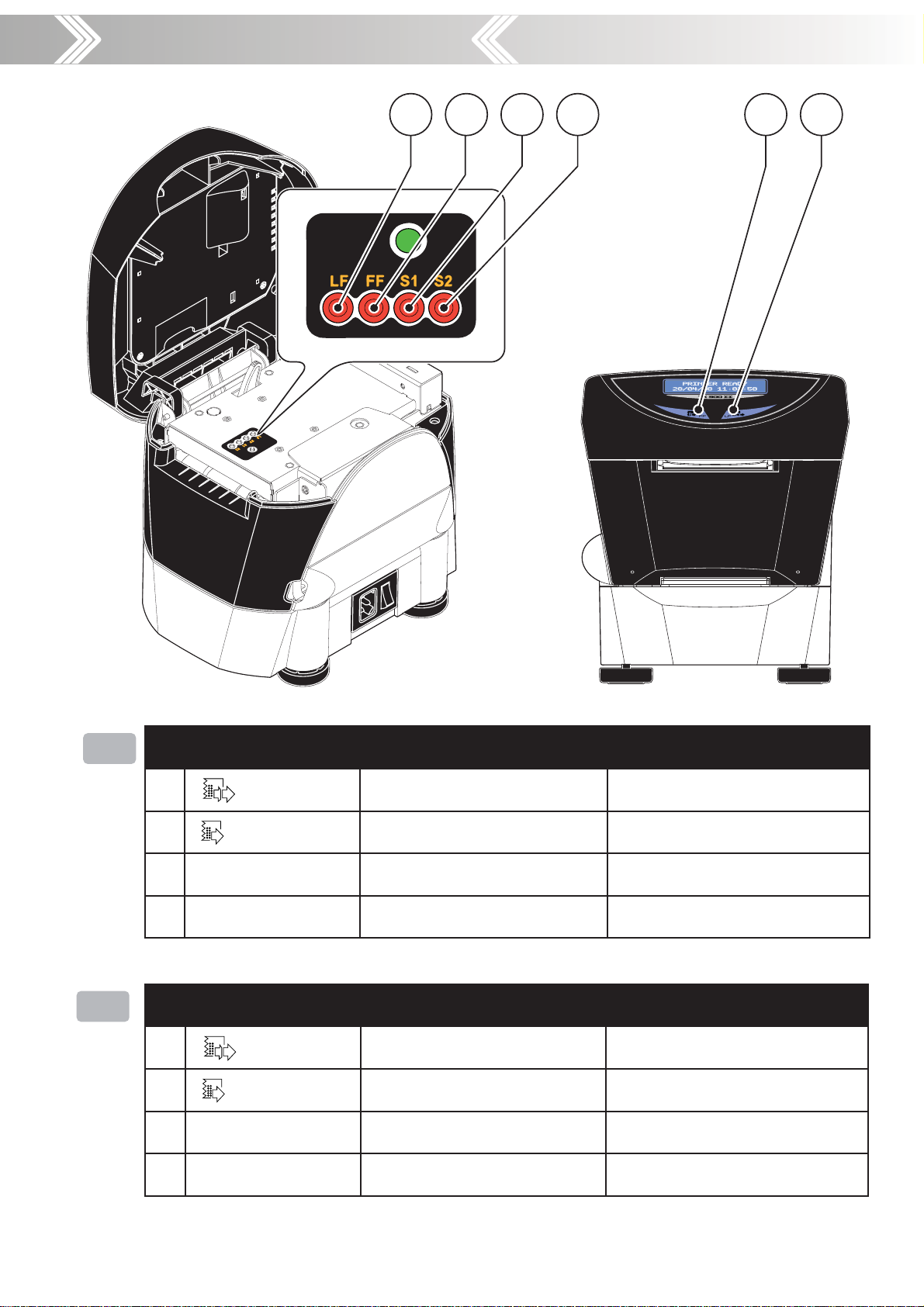

KEY STAND BY

1

2

3S1

4S2

1

2

3S1

4S2

LF LINE FEED

FF FORM FEED

TASTO STAND BY

LF LINE FEED

FF FORM FEED

Advance the paper

Advance the paper by a pre-set

length and perform the cut

-

- Enter programming mode

Esegue l’avanzamento della carta

Esegue l’allineamento del ticket

e il taglio della carta

-

- Entra nella modalità di programmazione

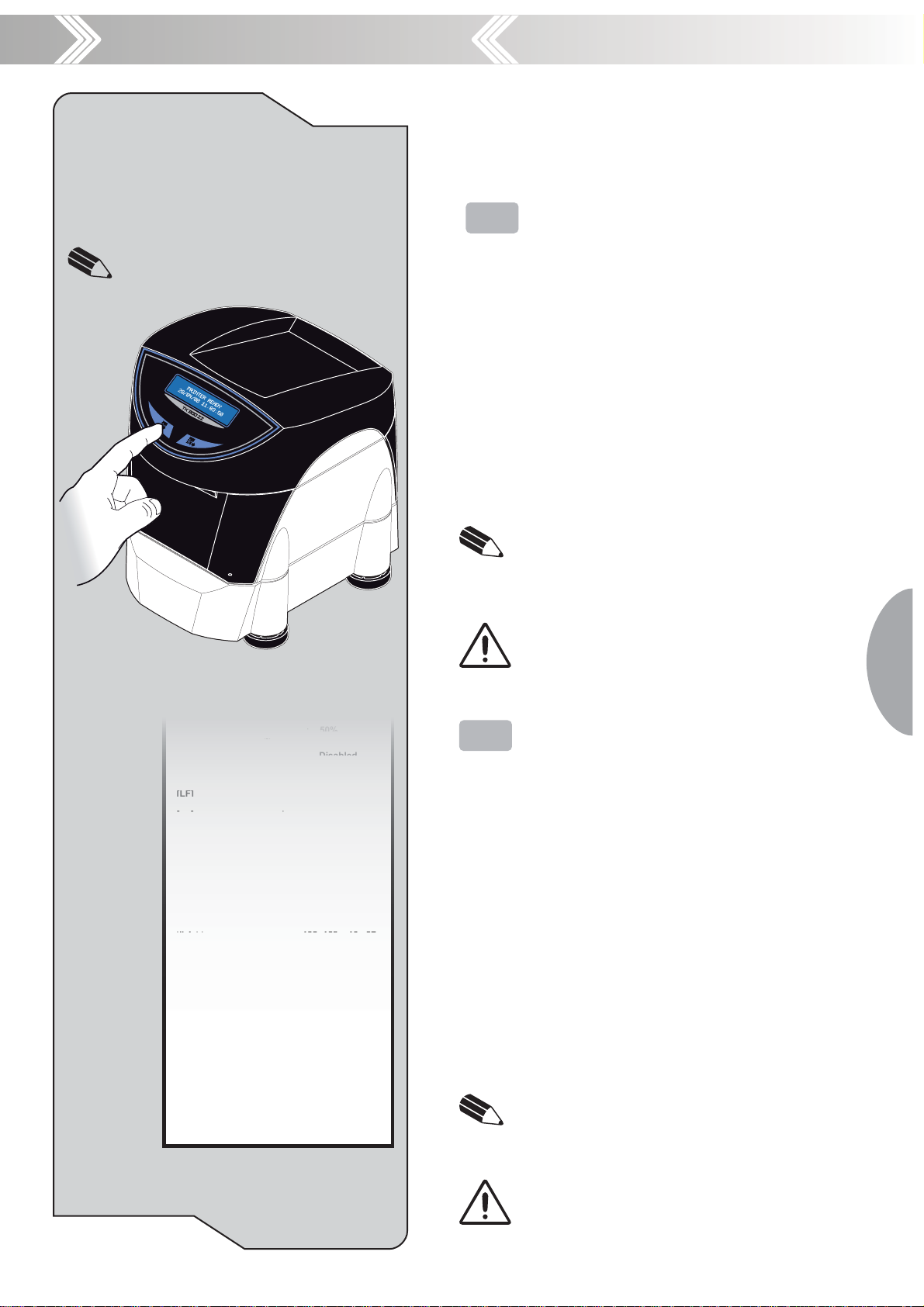

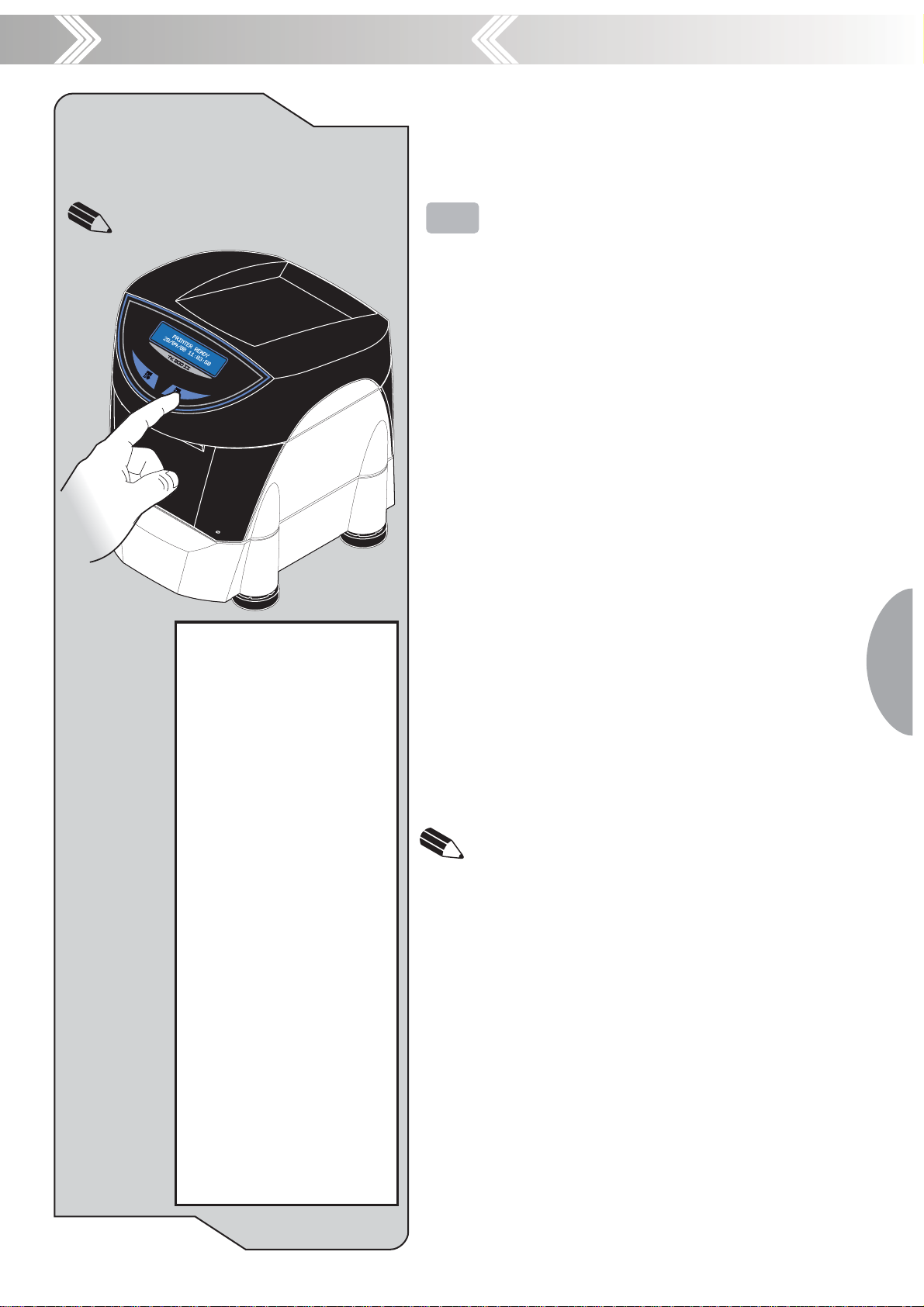

POWER ON

(push for a few seconds)

Enter SETUP

and print SETUP report

Perform the font test

Start self-calibration of the notch sensor

and perform the paper characterization

ACCENSIONE

(premere il tasto per alcuni secondi)

Entra nel SETUP

e stampa rapporto SETUP

Esegue il font test

Inizializza il sensore di notch e

caratterizza la carta

<8>

TK300II

TK300II

OR

GB

I

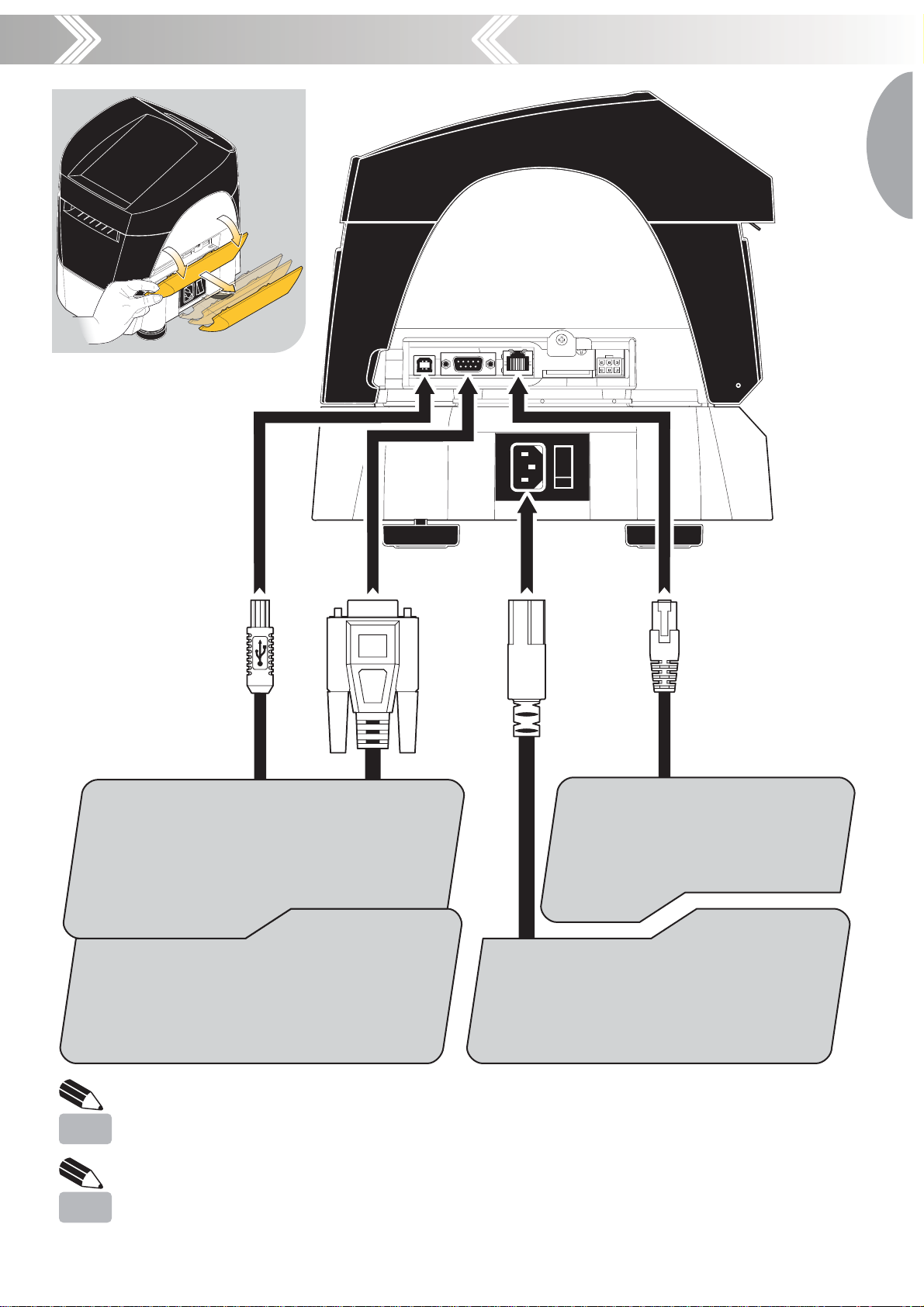

Insert serial interface connector •
Inserire il connettore di interfaccia seriale •
Introduire le connecteur d’interface en série •
Den seriellen Schnittstellenverbinder einsetzen •
Introducir el conectador de interfaz serial •

Insert USB connector •
Inserire il connettore USB •
Introduire le connecteur USB •
Den USB Verbinder in die Buchse stecken •
Introducir el conectador USB •

(1)

OR

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

(1)

Insert the power supply cable•
Inserire il cavo di alimentazione•
Introduire le câble de l’alimentateur adéquat•
Das Kabel in das spezielle Speisegerät stecken•
Conectar el cable del alimentador•

Insert ethernet connector •
Inserire il connettore ethernet •
Introduire le connecteur d’ethernet •
Den ethernet verbinder einsetzen •
Introducir el conector de ethernet •

N O T E:

(1)

If serial and USB connectors are inserted, communication port is USB.

(2)

Only for models with Ethernet interface.

N O T A:

(1)

Se i connettori seriale e USB sono inseriti, la porta di comunicazione è la USB.

(2)

Solo nei modelli con interfaccia Ethernet

(2)

(2)

(2)

(2)

(2)

<9>

TK300II

TK300II

N

T

)

)

+

N

N

-

D

D

ed

ed

r

R

C.

R

S

S

C.

dy

n

ed

dy

d

a

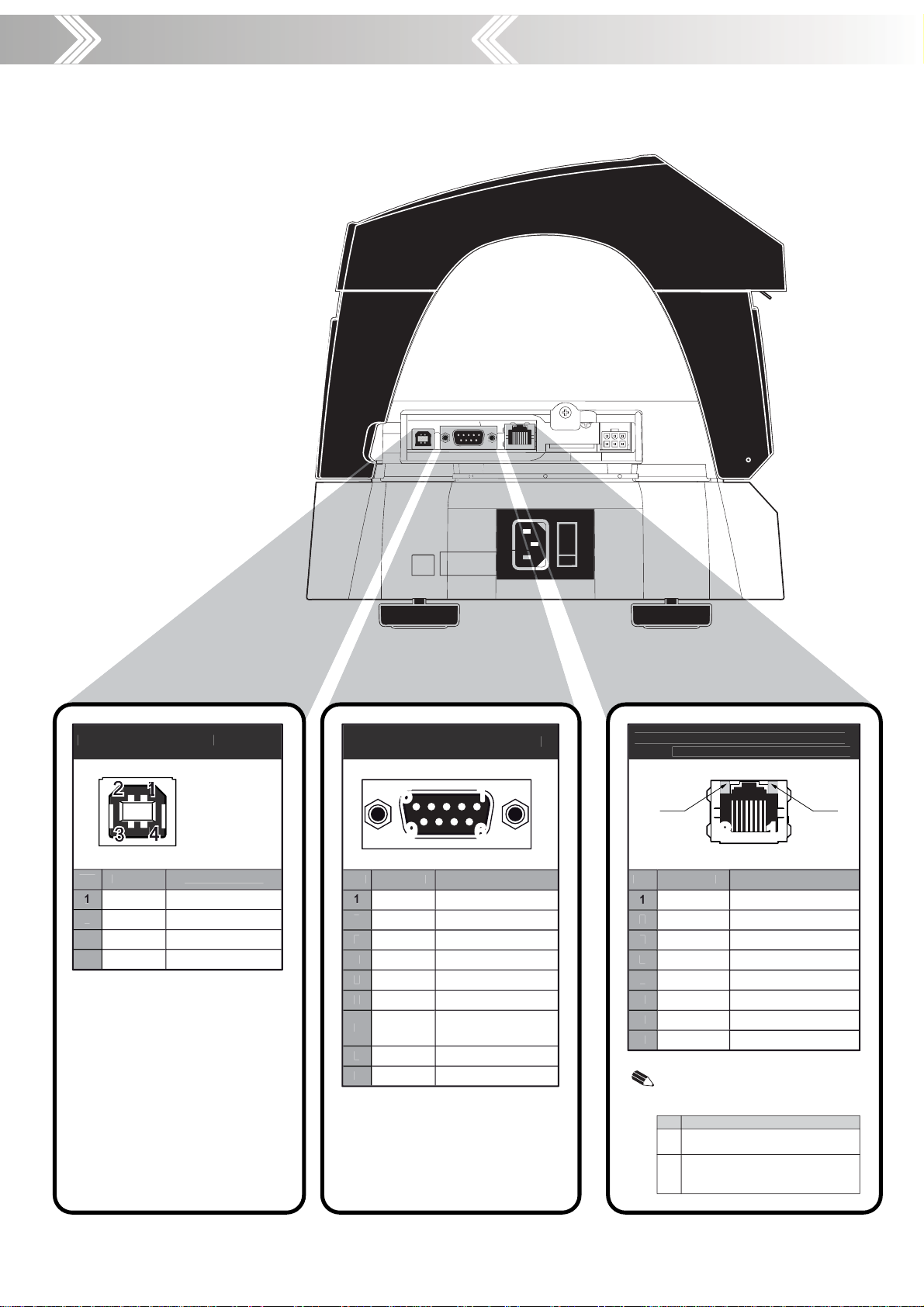

Connector.•
Connettore.•
Connecteur.•
Schnittstellen.•
Conectador.•

J5 - USB Connector

USB 2.0 compatible

SIGNAL

VBUS (in

-

D +

ND

ESCRIPTIO

VBUS (in

round signal

B 1.1 POR

ata -

ata

J9 - RS232 Serial Connector

1
6

ESCRIPTION

ata terminal rea

Data transmission

Data receptio

t connect

Ground signal

ata terminal rea

lear to sen

eady to receive dat

Ready to send

Not connected

IN

5

7

5

9

SIGNAL

DT

TX

N.

ND

DT

T

RT

N.

J16 - RJ45 Ethernet Connecto

nly for models with Ethernet interface

“Sx”

LED

(*)

“Dx”

LED

1188

SIGNAL

PI

ETX+

TX-

4 VT

5

ERX

N

N

(*)

NOTE

: The functionality of two leds, Sx
and Dx, are specified in the
following table:

LED HW version 2.00 or later
Sx Link (yellow color): the led light on
when a connection is active
Dx Rx/Tx (green color): the led light on
when occurs a data reception or
transmission

ESCRIPTIO

+

TX-

Not connect

Not connected

Not connected

t connect

(*)

<10>

TK300II

TK300II

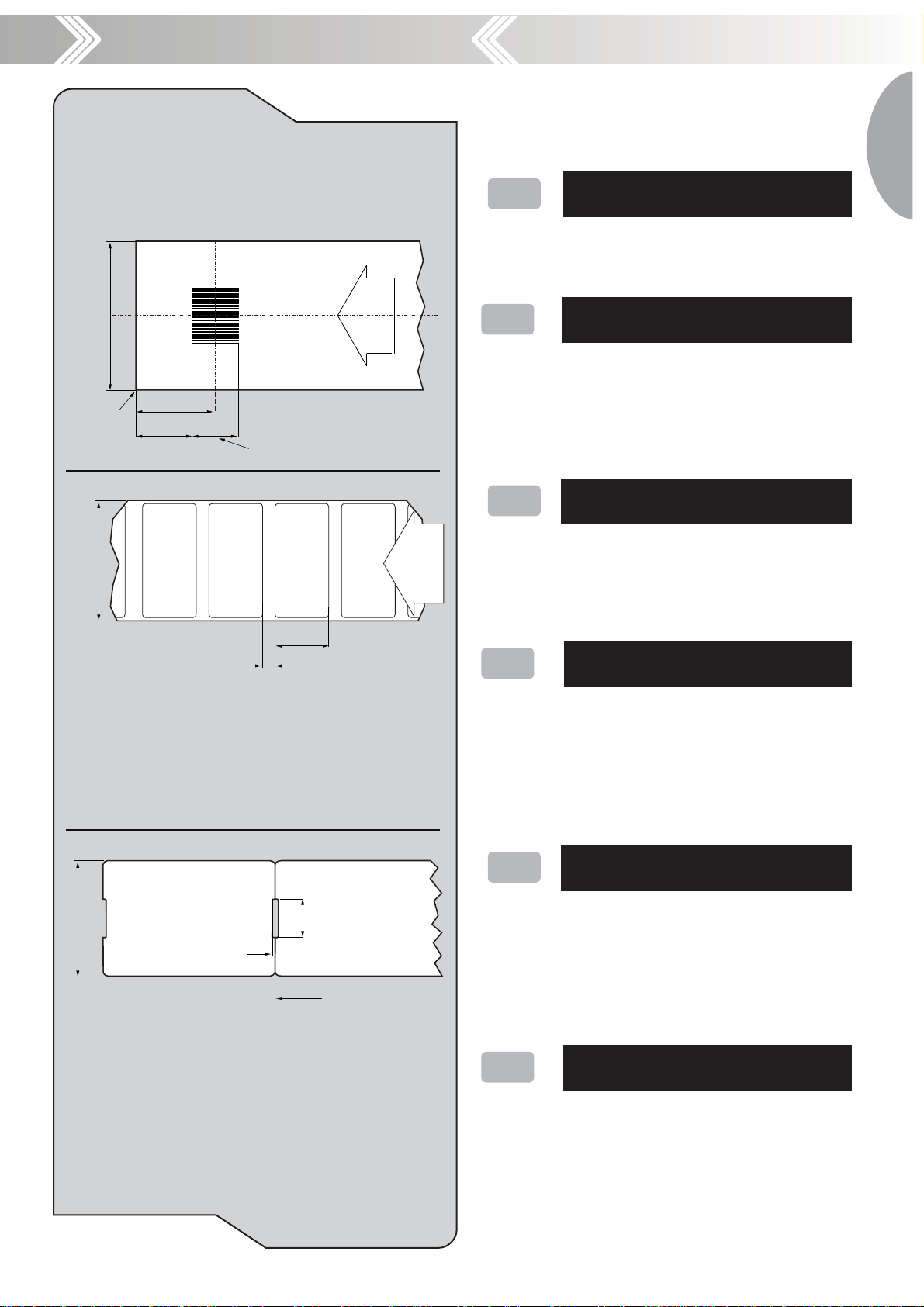

Paper specifi cation•
Caratteristiche della carta•
Caractéristiques du papier•
Papier spezifi kation•
Caracteristicas del papel•

GB

Place the barcode on the heat sensitive side of the •
ticket, 25mm far from the margin;;
L = paper width used (from 54mm to 82.5mm).•

TICKET WITH BARCODE

(only for models with barcode reader)

L

Margin of

ticket

35 mm

25mm 20mm

L

Used for notch alignment

with negative distance

direction

Barcode minimum width

W

Ticket margin

feed

of paper

NON HEAT SENSITIVE SIDE

direction

Paper axis

feed

of paper

I

Barcode posizionato sul lato non termico alla di-•
stanza di 25mm dal bordo;
L = larghezza della carta (variabile da 54mm a •

82.5mm).

GB

If the notch position from the margin is negative, •
the notch is outside the printable ticket (for exam­ple on paper with labels);
L = paper width used (from 54mm to 82.5mm);•
W = minimum managed length 25.4mm (1’’).•

I

Se la distanza della tacca dal bordo è negativa, la •
tacca non è all’interno del biglietto stampabile;
L = larghezza della carta (variabile da 54mm a •

82.5mm.
W = lunghezza minima gestita 25.4mm (1’’).•

BIGLIETTO CON BARCODE

(solo per modelli con lettore di barcode)

TICKET WITH LABELS

BIGLIETTO CON ETICHETTE

GB

The printer manages tickets with central or lateral •

L

H

D

Ticket margin

gap;
Set the “Notch position” with “Transparent Center” •
or “Transparent side” value;
L = paper width used (from 54mm to 82.5mm);•
H = minimum height managed (2mm);•
D = minimum width managed (10mm)•

I

Impostando il parametro “Notch position” sul valore •
Trasparent Center o Trasparent Side, è possibile
utilizzare ticket con gap (foro) centrale o laterale;
L = larghezza della carta (variabile da 54mm a •

82.5mm.
H = altezza minima gestita 2mm;•
D = larghezza minima 10mm•

TICKET WITH GAP

BIGLIETTO CON GAP

<11>

TK300II

TK300II

Paper specifi cation•
Caratteristiche della carta•
Caractéristiques du papier•
Papier spezifi kation•
Caracteristicas del papel•

Notch

Sensor axis

left side

Sensor axis

left center

Ticket axis /

Central

sensor axis

mm

mm

0

0

+1

+1

5

5

+1

+1

mm

mm

9

9

0

0

D1 = 25.4mm

L

33.75mm

33.75mm

22.5mm

DminDmin

+1

+1

mm

mm

9

9

0

0

DminDmin DminDmin DminDminDminDmin

+1

+1

mm

mm

9

9

0

0

33.75mm33.75mm

22.5mm

+1

+1

mm

mm

9

9

0

0

NON-THERMAL SIDENON-THERMAL SIDE

direction

of

paper feed

GB

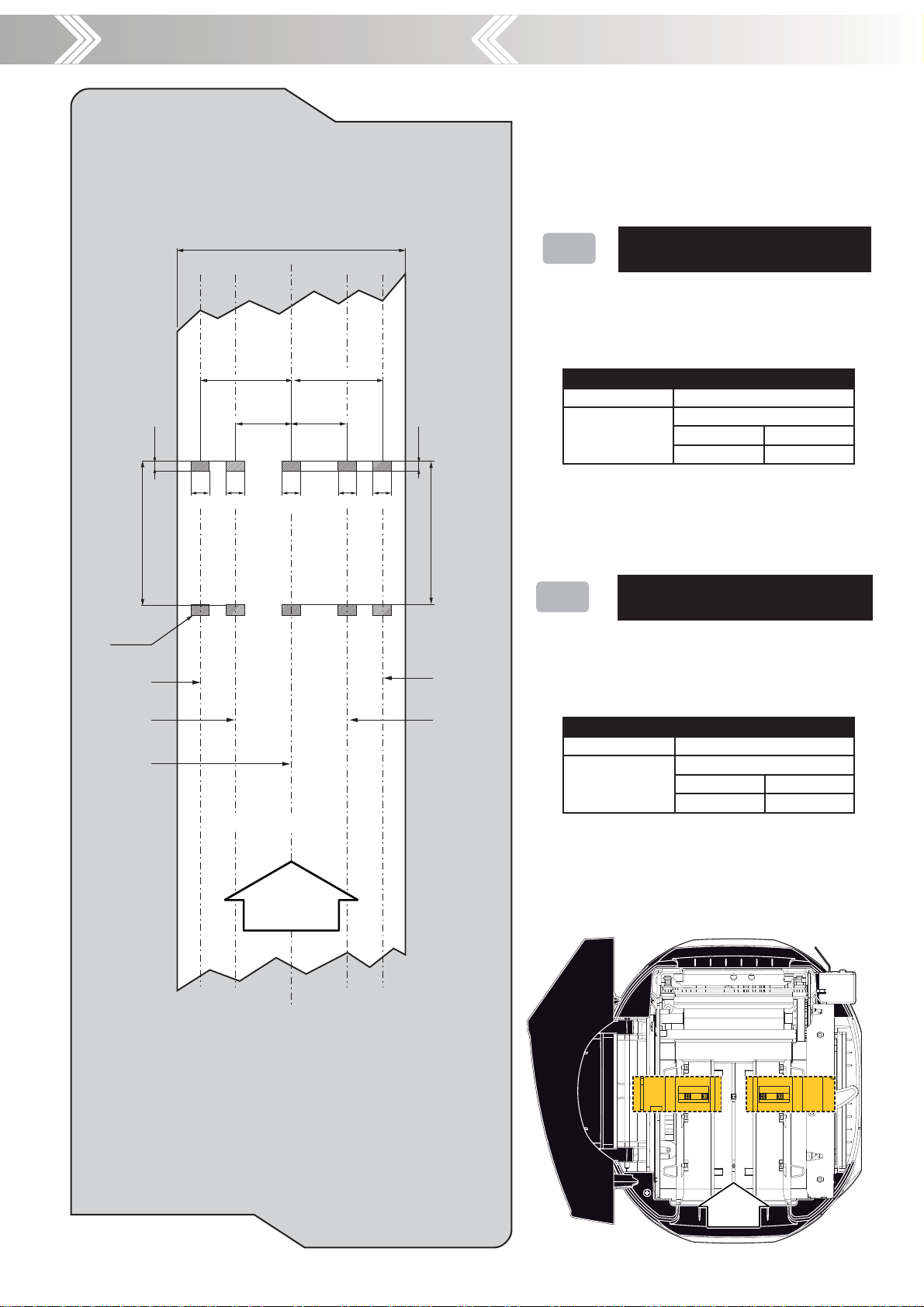

TICKET WITH NOTCH

“Notch Position” parameter sets the positions •
for the notch as follow:

notch can be places on heat sensitive side or •
non sensitive side:

Ticket side Notch position

Heat sensitive Up Center
Non heat

mm

mm

0

0

+1

+1

5

5

+1

+1

mm

mm

9

9

0

0

sensitive

L = paper width used (from 54mm to •

82.5mm);

Low Center

Left Side Left Center

Right Side Right Center

Dmin = minimum notch dimensions;•
D1 = minimum notch to notch distance.•

D1 = 25.4mm

I

BIGLIETTO CON TACCA DI
ALLINEAMENTO

La tacca sarà posizionata in base al settaggio •
del parametro “Posizione Notch”:

Sensor axis
right side

Sensor axis
right center

tacca posizionata sul lato termico o sul lato •
non termico del biglietto:

Lato biglietto Posizione Notch

Lato termico Up Center
Lato

non termico

Low Center

Left Side Left Center

Right Side Right Center

L = larghezza della carta (variabile da 54mm •
a 82.5mm);
Dmin = dimensione minima tacca;•
D1 = distanza minima inter-tacca.•

<12>

direction

of

paper feed

RL

TK300II

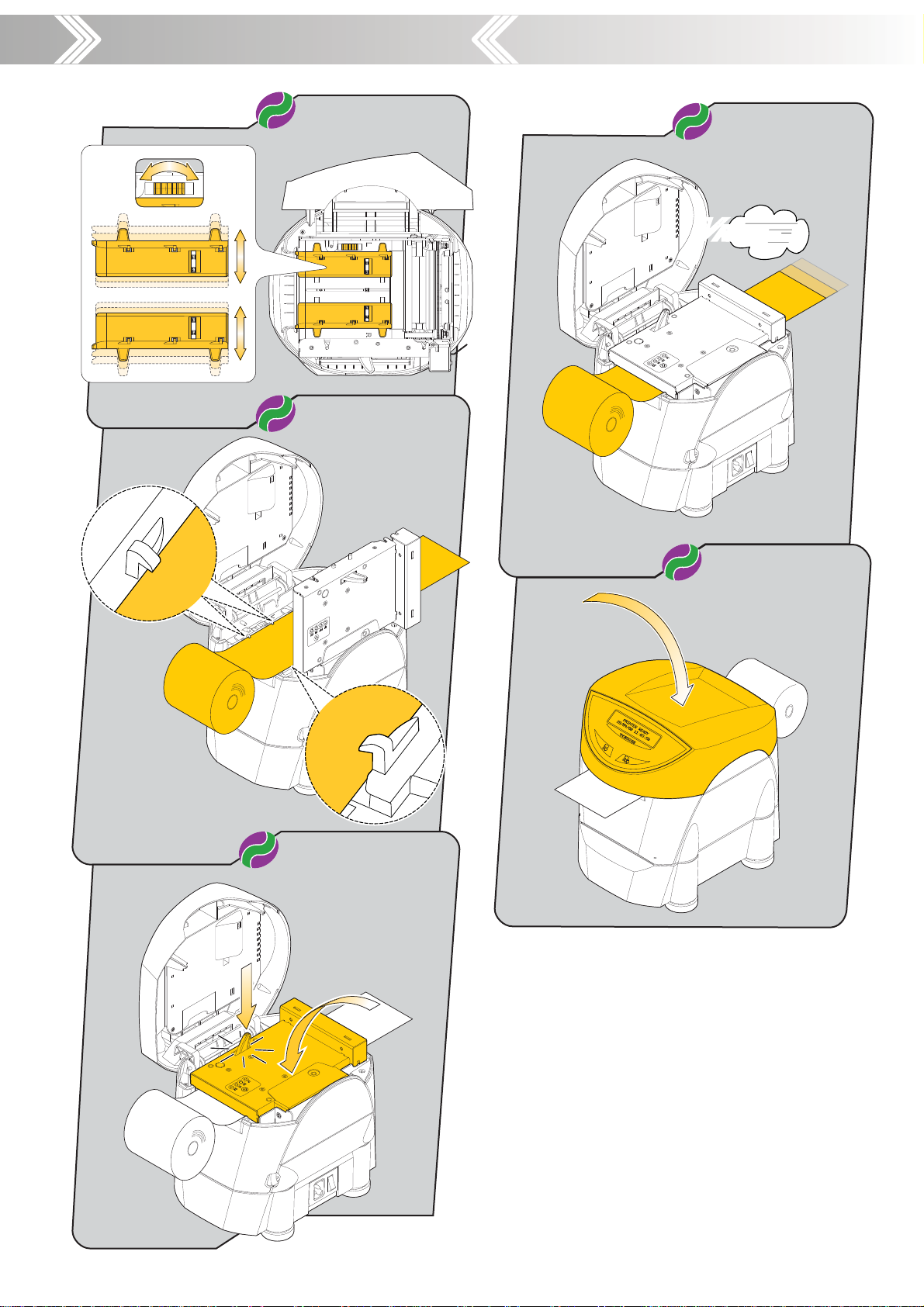

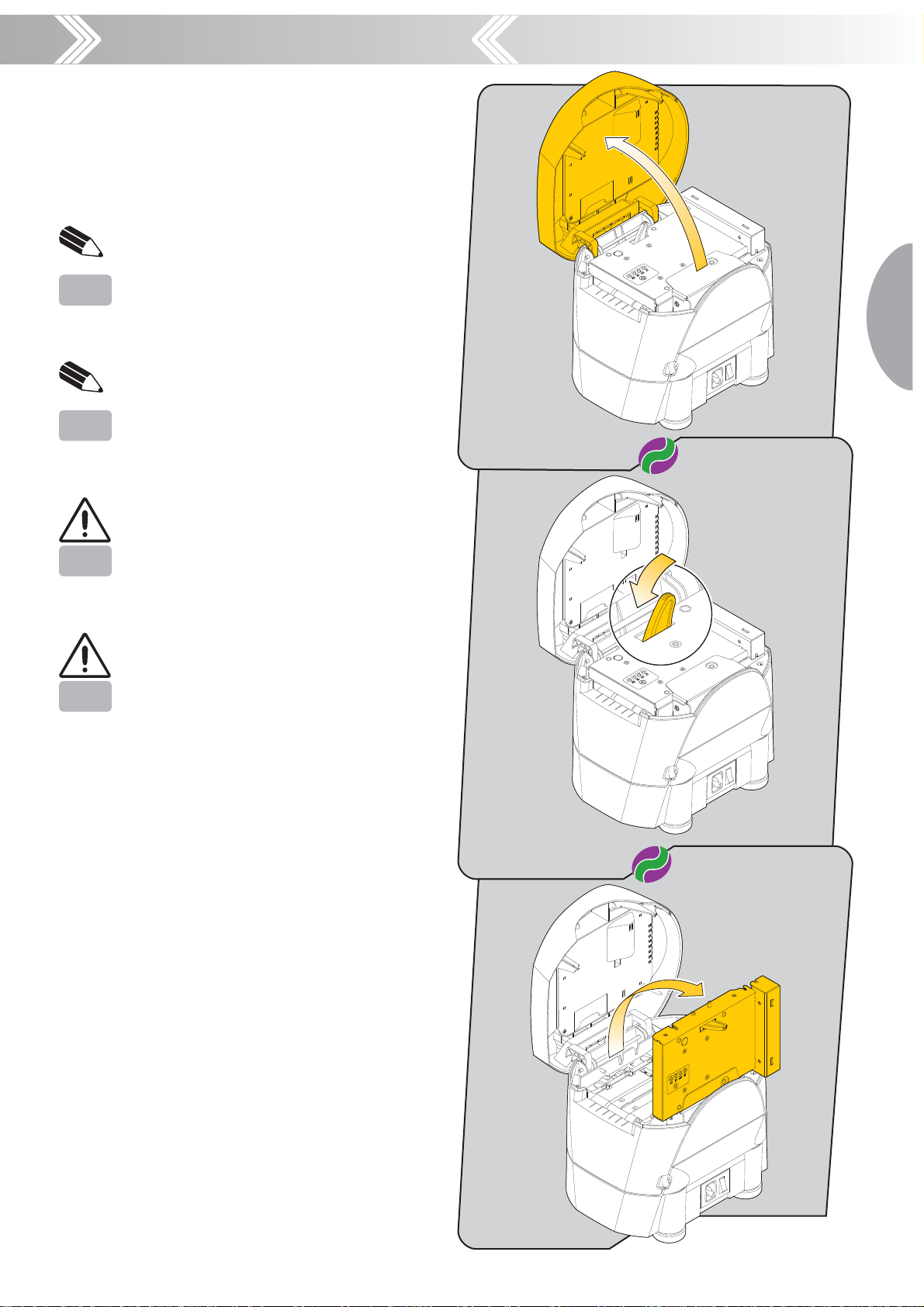

Paper roll insertion•
Inserimento del rotolo carta•
Introduire le rouleau de papier•
Einsetzen der Papierrolle •
Introducir el rollo de papel•

GB

I

TK300II

N O T E:

Inspect inside the printer every paper change,
and verify that there aren’t paper off-cuts on
the cutter compartment; if this event happens
remove the paper off-cuts before execute any
other operation with tweezers.

N O T E:

Ad ogni cambio carta ispezionare l’interno della
stampante e verifi care che non vi siano ritagli di
carta nel vano cutter; nel caso si verifi chi questa
condizione rimuoverli, utilizzando una pinzetta,
prima di effettuare qualsiasi altra operazione.

GB

I

A T T E N T I O N ! ! !

During maintenance operations of paper
change pay attention to not work near the
cutter blade with the fi nger, (see the enlarge-
ment view below) because the rotary cutter
blade exposes its sharp part.

A T T E N Z I O N E ! ! !

Durante l’operazione di ordinaria manutenzione
del cambio carta fare attenzione a non avvicina­re le dita alla lama del cutter esposta e nei pressi
della lama stessa in quanto elemento affi lato.

<13>

TK300II

TK300II

V

RRR

<14>

TK300II

TK300II

Paper jam•
Inceppamento carta•
Bourrage de papier•
Papierstau•
Atasco de papel•

DISPLAY

PAPER JAM

CLEAR PAPER PATH

GB

I

F

B E W A R E:

In case of paper jam do not operate over
the printer with any kind of instruments,
like scissors, screwdriver, cutter, etc. etc.,
on any account.

A T T E N Z I O N E:

In caso di inceppamento, non agire asso­lutamente sulla stampante con nessun tipo
di strumento, come forbici, cacciaviti, cutter,
ecc. ecc.

A T T E N T I O N:

Au cas où le massicot s’éntrave, ne pas
agir absolument sur l’imprimante avec
n’importe quel type d’instrument, comme
ciseaux, turnevis, cutter, etc. etc.

<15>

D

E

A C H T U N G:

Für den fall, der automatiche schneidema­chine klemmt (led rot blinked), nicht handeln
völlig, über das drucker mit keine sorte von
schere, schraubenzieher, cutter, etc. etc.

A T E N C I Ó N:

En el caso de atranque , no actuar en ab­soluto sobre la impresora con ningun tipo de
herramientas ,como tijeras, destornillador,
cutter, etc.

TK300II

TK300II

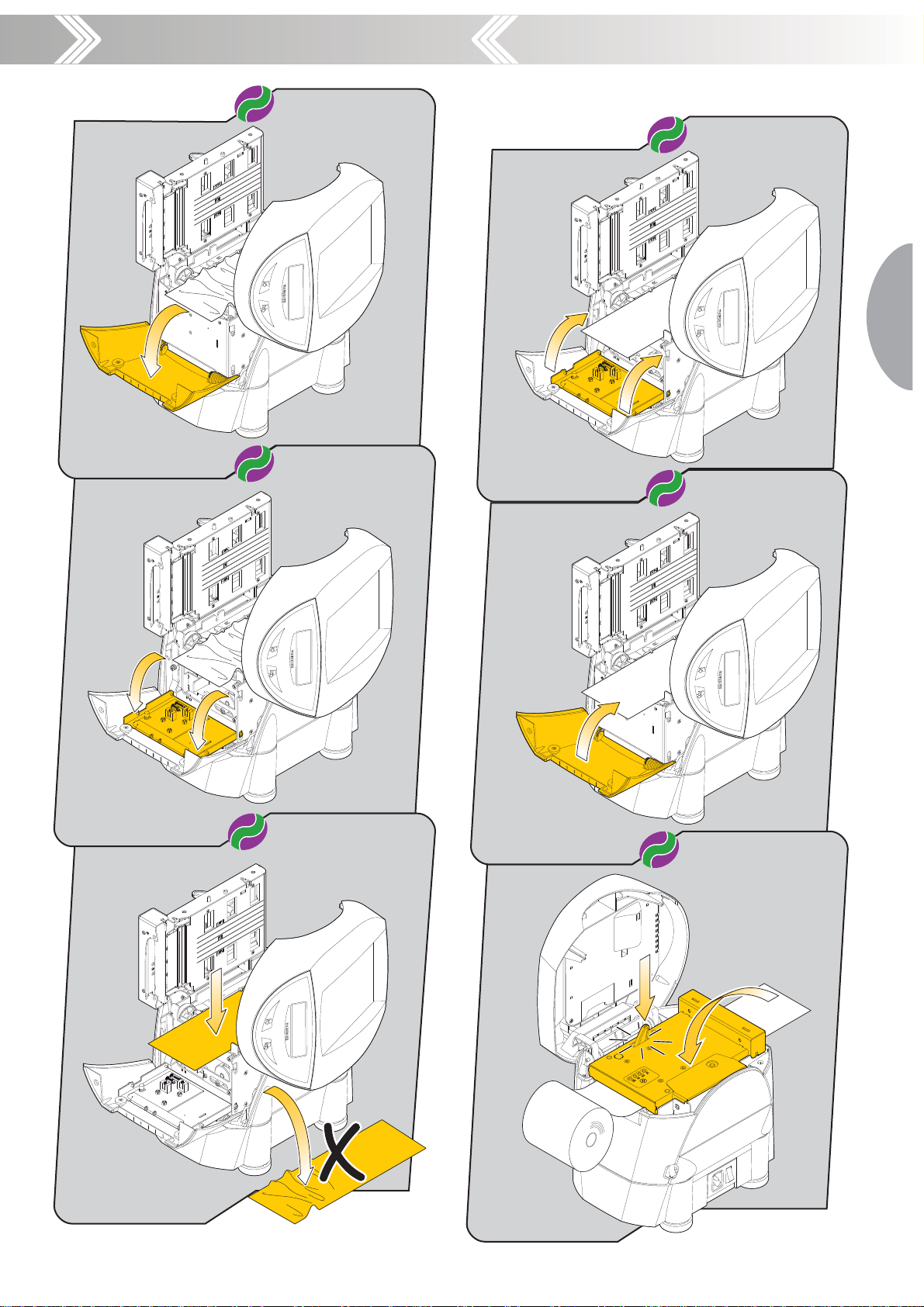

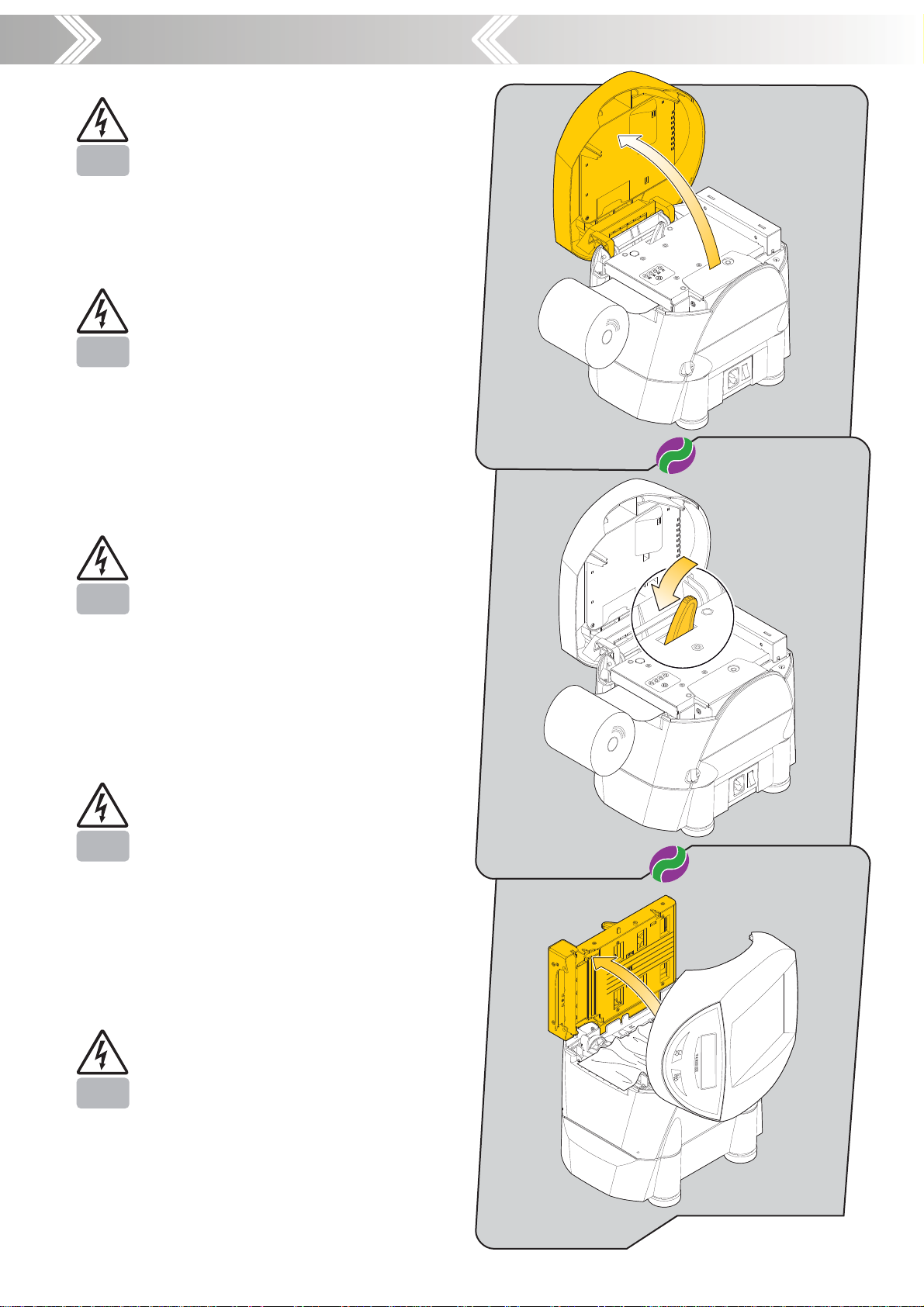

B E W A R E:

In case of cutter jam: open the printer cover;
open the front cover and the cutter cover;

GB

I

remove the damaged paper and replace it
with a new one; remove scraps of paper in
the printer; close the cutter cover and the
front cover; close the print cover.
If the problem persists, please contact the
customer service.

A T T E N Z I O N E:

In caso di inceppamento della taglierina:
aprire la parte superiore della stampante;
aprire il coperchio anteriore e il coperchio
della taglierina; sostituire la carta danneg­giata con carta integra; eliminare eventuali
residui di carta lungo il percorso della taglie­rina; chiudere il coperchio della taglierina
e il coperchio anteriore; chiudere la parte
superiore della stampante.
Se il problema non si risolve contattare il
servizio assistenza tecnica.

D

A T T E N T I O N:

En cas du coincement du massicot: ouvrir
le coté supérieur de l’imprimante; ouvrir

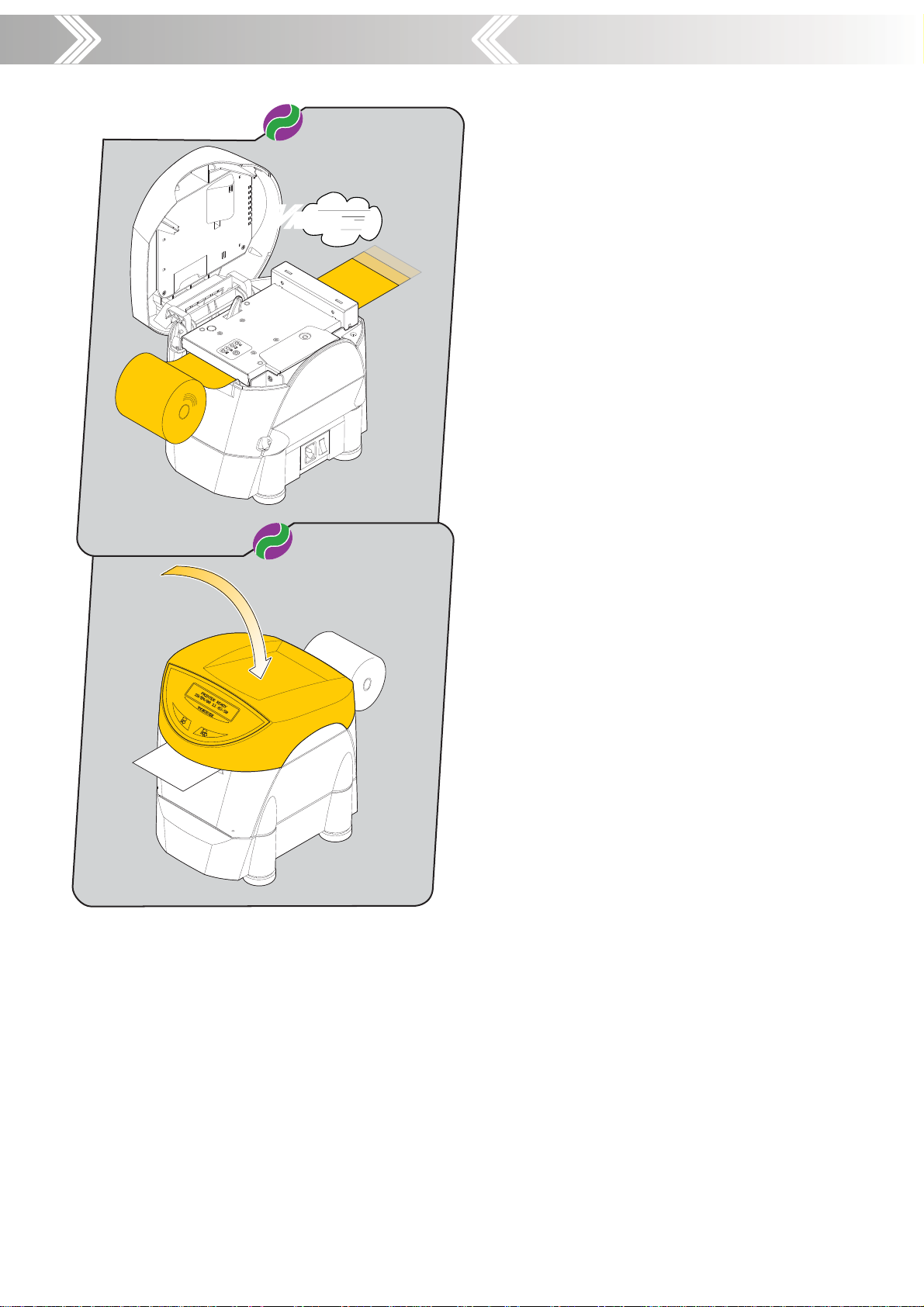

F

le couvercle antérieur et le couvercle du
massicot; remplacer le papier endommagé
avec le papier intact; éliminer les residus
du papier dans le trajet du massicot; fermer
le couvercle du massicot et le couvercle
antérieur; fermer le coté supérieur de
l’imprimante.
Si le problème persiste contactez le service
assistance technique clients.

A C H T U N G:

Im Falle eines Staus im Schneidwerk:
Öffnen Sie den Druckerdeckel; Öffnen Sie
dann die Front- und die Cutter-Abdeckung.
Entfernen Sie alle eventuell vorhanden
Papierschnipsel aus dem Schneidwerk.
Entfernen Sie alles zerknitterte Papier und
legen Sie glattes Papier neu ein. Schließen
Sie die Cutter- und die Front-Abdeckung.
Schließen Sie den Druckerdeckel. Sollte
das Problem nicht behoben sein, kontak­tieren Sie bitte den Kundendienst.

E

A T E N C I Ó N:

En caso de atascamiento del cùter:
Abrir la parte superior de la impresora;
abrir la compuerta anterior y la compuerta
del cùter; sostituir el papel dañado por uno
integro; eliminar eventuales residuos de
papel en el carrete del cùter; cerrar la com­puerta del cùter y la compuerta anteriore;
cerrar la parte superior de la impresora. Si
el problema non se resuelve contactar al
servicio de asistencia tecnica

<16>

TK300II

TK300II

<17>

TK300II

TK300II

V

RRR

<18>

TK300II

TK300II

Customer Service Department

Customer Service Department

e-mail: [e-mail]

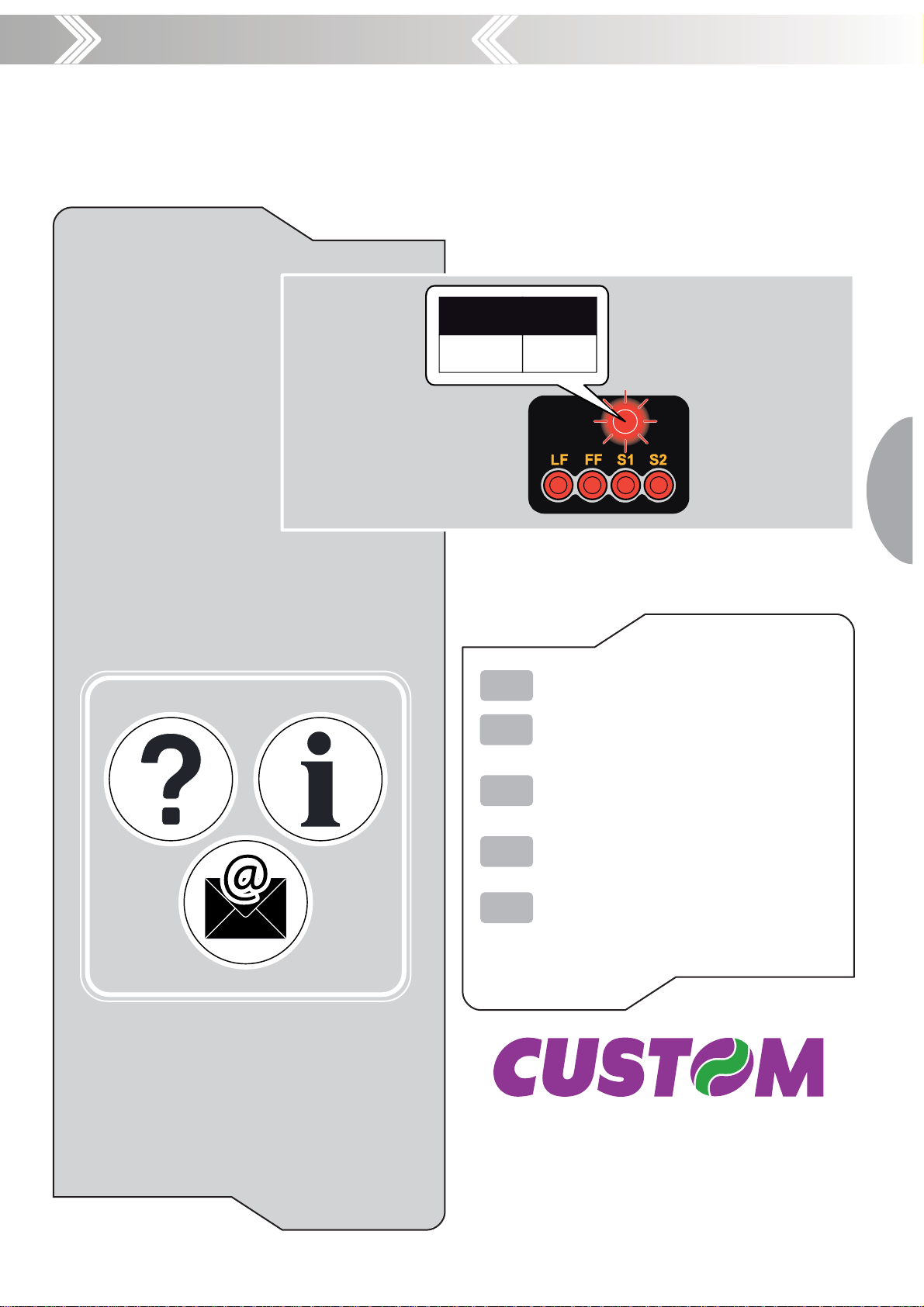

STATUS

LED

GB

F

D

E

COLOUR

I

REDFLASHING

Contact Customer Service if the LED with
the printer on, still blinking on red light.

Contattare l’Assistenza tecnica se il led
(a stampante accesa) lampeggia prolun­gatamente sul colore rosso.

Contacter le Service après-vente si le
LED, avec l’imprimante allumée, continue
à clignoter sur la couleur rouge.

Kontaktieren sie den Kundendienst, wenn die
Led (mit den drucker ein) immer noch blinkt
uber die farbe rot.

Llamar al Servicio de Asistencia Técnica
si el led, con la impresora encendida,
sigue par padeando sobre el color rojo.

<19>

www.custom.biz

TK300II

TK300II

BLANK PAGE

<20>

TK300II

TK300II

Printer
setup

Printer
setup

NOTE:

See chapter 1 for FEED key functions.

PRINTER READY

28/04/08 11:03:50

PRINTER SETTINGS

PRINTER TYPE .............................KPM300

Barcode Reader..............................Not Present

RFID Module...................................Not Present

Paper Guide Type...........................6 sensors

PRINTING HEAD TYPE.................KPA80

INTERFACE...................................RS232

PROGRAM MEMORY TEST..........OK

DYNAMIC RAM TEST....................OK

EEPROM TEST..............................OK

CUTTER TEST...............................OK

PRINTER HEAD Rav.....................561

HEAD VOLTAGE [ V] = 24.29
HEAD TEMPERATURE [°C] = 30
POWER ON COUNTER = 1843
PAPER PRINTED [cm] = 76930
CUT COUNTER = 5507

Printer Emulation.......................: ESC/POS (TM)

RS232 Baud Rate
RS232 Data Length
RS232 Parity
RS232 Handshaking
Busy Condition

USB Mass Storage....................: Enabled

USB Address Number

Print Mode.................................: Normal

Autofeed
Chars / inch

Speed / Quality..........................: Normal

Paper Width...............................: 82 mm

Paper Threshold........................: 60%

Notch Position ...........................: Low Side

Notch Threshold
Notch Distance [mm]
Ticket Locking

PaperEnd Buffer Clear..............: Disabled

Print Density..............................: 0%

[LF] enter Printer Setup
[FF] enter Ethernet Setup
[S1] enter Clock Setup
[S2] skip Setup

(1)

..................: 115200 bps

(1)

...............: 8 bits/chr

(1)

..........................: None

(1)

..............: Xon/Xoff

(2)

.......................: RxFull

(3)

............: 7

(4)

.................................: CR disabled

(4)

............................: A=15 B=20 cpi

(5)

.....................: 50%

(5)

..............: +20.0

(5)

........................: Disabled

GB

1 Go into SETUP mode by pressing the LINE FEED key

during printing power up.

2 The printer should print all list of the parameters:

Printer Emulation: • SVELTAD, ESC/POSTM.
RS232 Baud Rate:• 115200D, 57600, 38400, 19200,

9600, 4800, 2400, 1200.

RS232 Data length: • 7, 8D bits/car.
RS232 Parity:• NoneD, even, odd.
RS232 Handshaking:• XON/XOFFD, Hardware.
Busy condition: • RXFullD,OffLine/RXFull.
USB Mass Storage:• DisabledD, Enabled.
USB Address Number:• 0D, 1, 2, 3, 4, 5, 6, 7, 8, 9.
Print mode:• NormalD,Reverse.
Autofeed:• CR disabledD, CR enabled.
Chars/Inch: •

200dpi model: A=1 1 B=15cpiD, A=15 B=20cpiD.
300dpi model: A=16 B=23cpiD, A=23 B=30cpiD.

Speed/Quality:• Normal, High quality, High SpeedD.
Paper width• : 54mm, 56mm, 58mm, 60mm, 62mm,

64mm, 66mmD, 68mm, 70mm, 72mm, 74mm, 76mm,
78mm, 80mm, 82mm.

Paper Threshold•

80%, 90%.

Notch Position•

Side, Right Side, Left Center, Right Center.

Notch Threshold•

80%, 90%.

Notch Distance Sign•
Notch Distance [mm x 10]•
Notch Distance [mm x 1]•
Notch Distance [mm x .1]
Ticket Locking •

(1)

: 30%, 40%, 50%, 60%D, 70%,

(2)

:

DisabledD, Low Center, Up Center, Left

(3)

: 30%, 40%D, 50%, 60%, 70%,

(4)

: +D , -

(4)(5)

: 0D,1,2,3,4,5,6,7,8,9.

(4)(5)

: 0D,1,2,3,4,5,6,7,8,9.

(4)(5)

(4)

: DisabledD, Enabled.

: 0D,1,2,3,4,5,6,7,8,9.

PaperEnd Buffer Clear: • DisabledD, Enabled.
Print Density:• -50%, -37%, -25%, -12%, 0D,+12%,

+25%, +37%, +50%.

General note:

The parameters marked with the symbol •
values.
Settings remain active even after the printer has been turned •
off.

(1)

Note

: This parameter indicates the threshold value under the

sensor detect the paper.

(2)

Note

: This parameter sets which sensor is used as notch sen-

sor. There are two sensor operating mode: refl ection or
transparence.

(3)

Note

: This parameter is used to detect the presence of the notch.

In order to better identify the optimum threshold for the
paper being used, a paper characterization function is also
available in the SETUP.

(4 )

Note

: If the “Notch Position” parameter is set to “Disabled” this

parameter doesn’t appear in the “Printer Setup” report.

(5 )

Note

: The “Notch distance” parameter represents the distance

in mm from the upper margin of the ticket to the black
mark on the ticket. For example, to set notch distance to
15 mm, modify the following parameters in order to obtain
the desired values as indicated: Notch Distance [mm x
10]=1; Notch Distance [mm x 1]=5; Notch Distance [mm
x .1]=0.

D

are the default

<21>

TK300II

TK300II

Printer
setup

Printer
setup

NOTA:

Vedere capitolo 1 per le funzioni del tasto FEED.

PRINTER READY

28/04/08 11:03:50

PRINTER SETTINGS

PRINTER TYPE .............................KPM300

Barcode Reader..............................Not Present

RFID Module...................................Not Present

Paper Guide Type...........................6 sensors

PRINTING HEAD TYPE.................KPA80

INTERFACE...................................RS232

PROGRAM MEMORY TEST..........OK

DYNAMIC RAM TEST....................OK

EEPROM TEST..............................OK

CUTTER TEST...............................OK

PRINTER HEAD Rav.....................561

HEAD VOLTAGE [ V] = 24.29
HEAD TEMPERATURE [°C] = 30
POWER ON COUNTER = 1843
PAPER PRINTED [cm] = 76930
CUT COUNTER = 5507

Printer Emulation.......................: ESC/POS (TM)

RS232 Baud Rate
RS232 Data Length
RS232 Parity
RS232 Handshaking
Busy Condition

USB Mass Storage....................: Enabled

USB Address Number

Print Mode.................................: Normal

Autofeed
Chars / inch

Speed / Quality..........................: Normal

Paper Width...............................: 82 mm

Paper Threshold........................: 60%

Notch Position ...........................: Low Side

Notch Threshold
Notch Distance [mm]
Ticket Locking

PaperEnd Buffer Clear..............: Disabled

Print Density..............................: 0%

[LF] enter Printer Setup
[FF] enter Ethernet Setup
[S1] enter Clock Setup
[S2] skip Setup

(1)

..................: 115200 bps

(1)

...............: 8 bits/chr

(1)

..........................: None

(1)

..............: Xon/Xoff

(2)

.......................: RxFull

(3)

............: 7

(4)

.................................: CR disabled

(4)

............................: A=15 B=20 cpi

(5)

.....................: 50%

(5)

..............: +20.0

(5)

........................: Disabled

1 Entrare nel SETUP tenendo premuto il tasto LINE FEED

I

durante la fase di accensione della stampante

2 La stampante stamperà la lista di tutti I parametri:

Printer Emulation: • SVELTAD, ESC/POSTM.
RS232 Baud Rate:• 115200D, 57600, 38400, 19200,

9600, 4800, 2400, 1200.

RS232 Data length: • 7, 8D bits/car.
RS232 Parity:• NoneD, even, odd.
RS232 Handshaking:• XON/XOFFD, Hardware.
Busy condition: • RXFullD,OffLine/RXFull.
USB Mass Storage:• DisabledD, Enabled.
USB Address Number:• 0D, 1, 2, 3, 4, 5, 6, 7, 8, 9.
Print mode:• NormalD,Reverse.
Autofeed:• CR disabledD, CR enabled.
Chars/Inch: • A=11 B=15 cpi, A=15 B=20 cpiD.

modello 200dpi: A=1 1 B=15cpiD, A=15 B=20cpiD.
modello 300dpi: A=16 B=23cpiD, A=23 B=30cpiD.

Speed/Quality:• Normal, High quality, High SpeedD.
Paper width• : 54mm, 56mm, 58mm, 60mm, 62mm,

64mm, 66mmD, 68mm, 70mm, 72mm, 74mm, 76mm,
78mm, 80mm, 82mm.

Paper Threshold•

80%, 90%.

Notch Position•

Side, Right Side, Left Center, Right Center.

Notch Threshold•

80%, 90%.

Notch Distance Sign•
Notch Distance [mm x 10]•
Notch Distance [mm x 1]•
Notch Distance [mm x .1]•
Ticket Locking •

(1)

: 30%, 40%, 50%, 60%D, 70%,

(2)

:

DisabledD, Low Center, Up Center, Left

(3)

: 30%, 40%D, 50%, 60%, 70%,

(4)

: +D , -

(4)(5)

: 0D,1,2,3,4,5,6,7,8,9.

(4)(5)

: 0D,1,2,3,4,5,6,7,8,9.

(4)(5)

(4)

: DisabledD, Enabled.

: 0D,1,2,3,4,5,6,7,8,9.

PaperEnd Buffer Clear: • DisabledD, Enabled.
Print Density:• -50%, -37%, -25%, -12%, 0D,+12%,

+25%, +37%, +50%.

Note generali:

I valori indicati con il simbolo •
fautl.
I settaggi eseguiti rimangono attivi anche dopo lo spegnimento •
della stampante.

(1)

Nota

: Questo parametro indica il valore di soglia sotto il quale il

sensore riconosce la carta.

(2)

Nota

: Questo parametro permette di impostare il sensore uti-

lizzato come sensore di notch. I sensori possono essere
utilizzati in modalità a rifl essione o a trasparenza.

(3)

Nota

: Questo parametro è utilizzato per identifi care la presenza

del notch. Nel Setup è anche presente una funzione di
caratterizzazione carta per meglio identifi care il valore
ottimale di soglia da settare per il tipo di carta utilizzata.

(4 )

Nota

: Se il parametro “Notch Position” è “Disabled”, questo

parametro non compare nel rapporto di Setup.

(5 )

Nota

: Il parametro “Notch distance” rappresenta la distanza in

mm tra il margine superiore del biglietto e la tacca nera
sul biglietto. Per esempio, per impostare una distanza
di notch di 15 mm, occorre modifi care i parametri come
segue: Notch Dist. [mm x 10]=1; Notch Dist. [mm x 1]=5;
Notch Dist. [mm x .1]=0.

D

sono quelli impostati di de-

<22>

TK300II

TK300II

Ethernet
setup

h Po

siti

on ..

.:

Side

h Th

old

h Di

stan

ce [[mm]

]

0

Buf

fer

Clea

r...

...:

bled

%

r Pr

inte

r Se

tup

r Et

hern

et S

etup

p

p

ddre

ss

168

10.

37

7

Ethernet
setup

(only for models with Ethernet interface)

NOTE:

See chapter 1 for FEED key functions.

PRINTER READY

28/04/08 11:03:50

GB

1 Go into ETHERNET SETUP mode by pressing the

FORM FEED key after printing the Setup report.

2 The printer should print all list of the ethernet pa-

rameters:

DHCP Client:• DisabledD, Enabled.
FTP Server:• DisabledD, Enabled
IP Address: • printer IP network address; the

network administrator assigns it.
Subnet Mask: • this parameter identifi es the lo-
cal network address.
Default gateway: • this parameter identifi es the
Gateway IP address used to send applications
to the external network.
Mac address: • this is the number, provided by
the constructor, that identifi es the printer; this
number is univocal. This parameter can’t be
modifi ed by set up.

General note:

The parameters marked with the symbol •
default values.
Settings remain active even after the printer has •
been turned off.

ATTENTION: Any changes to network parameters will inter­rupt browser connection!!! If the server not responding you
MUST reconnect to the new IP address set.

D

are the

........................

rint Density..............................: 0

S1]enter Clock Setu

S2]kip Setup

DHCP Client........................ :

TP Server ........................ :

........................... :

ubnet Mask ...................... : 255. 255. 240. 0

Default Gateway.................. : 192. 168. 1. 23

AC Address .................... : 00-0E-E2-67-07-04

or advanced printer setup please connect

to the site http://192.168.10.3

DHCP Client........................ :

........

isabled

nabled

.

isabled

1

I

Entrare nel SETUP ETHERNET premendo il tasto
FORM FEED dopo la stampa del rapporto di Se­tup.

2 La stampante stamperà la lista di tutti i parametri

ethernet:

DHCP Client: • DisabledD,Enabled.
FTP Server: • DisabledD,Enabled.
IP Address: • Indirizzo IP in rete della stampante;

questo numero viene assegnato dall’ammini­stratore di rete.
Subnet Mask: • Maschera di sottorete; questo
parametro identifi ca l’indirizzo della rete locale.
Default gateway: • Indirizzo del gateway pre­defi nito; questo parametro indica l’indirizzo IP
del gateway utilizzato per inviare i pacchetti
all’esterno della rete locale.
Mac address: • Indirizzo MAC; è il numero iden­tifi cativo fi sico della macchina che viene fornito
dal costruttore ed è univoco. Questo parametro
non è modifi cabile da setup.

Note generali:

I valori indicati con il simbolo •
di defautl.
I settaggi eseguiti rimangono attivi anche dopo lo spe-•
gnimento della stampante.

ATTENZIONE: Ogni modifi ca sui parametri di confi gurazione
della rete interrompono la connessione!!! Se il server non
risponde è necessario ricollegarsi al nuovo indirizzo IP.

D

sono quelli impostati

<23>

TK300II

TK300II

BLANK PAGE

<24>

TK300II

TK300II

Installation for

drivers

Installation for

drivers

Win 2K Win 2K3 Win XP Win VISTA Linux

PRINTER READY

28/04/08 11:03:50

GB

I

F

1 Download the SW from the web site:
www.custom.biz

2

Use the following procedure to install the printer SW:

From the START menu, press Enter and key-in •
the path where the SW was saved on your PC,
then click OK.
Follow the instructions that appear on the screen •
to install the driver.

1

Prelevare il SW dal sito Internet: www.custom.biz

2 Installare il software della stampante come indi-

cato nella seguente procedura:

Nel menù Avvio selezionate Esegui e digitate il •
percorso del SW, precedentemente salvato sul
vostro PC, fate click su OK.
Lasciatevi poi guidare dalle istruzioni che com-•
paiono sullo schermo per installare il driver.

1 Télécharger le logiciel à partir du site Internet:
www.custom.biz

2 Installer le logiciel de l’imprimante selon la pro-

cédure suivante :

Dans le menu Démarrer, sélectionner Effectuer •
et taper le parcours du logiciel, précédemment
sauvegardé sur votre PC, puis cliquer sur OK.
Laissez-vous ensuite guider par les instructions qui •
apparaissent sur l’écran afi n d’installer le driver.

<25>

1 Die SW von der Internet-Seite downloaden:

D

www.custom.biz
2 Die Drucker-Software wie nach dem folgenden

Verfahren installieren:

Im START-Menü Ausführen anklicken und den •
Verlauf der SW eingeben, die zuvor in Ihrem PC
gespeichert wurde. OK anklicken.
Nun die auf dem Monitor angezeigten Anleitun-•
gen befolgen, um den Driver zu installieren.

1

E

Descargar el SW del sito Internet: ww.custom.biz

2 Instalar el software de la impresora siguiendo

las indicaciones como sigue:

En el menù Start seleccionar Enter y digitar el •
recorrido del SW, precedentemente almacenado
en vuestro PC, hacer clic sobre OK.
Seguir las instrucciones que aparecen en pan-•
talla para instalar el driver.

TK300II

TK300II

BLANK PAGE

<26>

TK300II

TK300II

Appendix

A.1 TECHNICAL SPECIFICATIONS

A.1.1 Technical specifi cations for the printer

Appendix

MODEL

AVAILABLE INTERFACES

Ticket presence, head temperature, cover open, black mark detector in 6 positions

SENSORS

PRINTING DRIVER WindowsTM 2K, XP, LINUX
RECEIVE BUFFER 64 Kbytes
FLASH MEMORY 16 Mbytes
EMULATION ESC/POSTM, SVELTA
PRINTER SPECIFICATION
Resolution 203 dpi (8 dot/mm) 304 dpi (12 dot/mm)
Print method Thermal fi xed head
Printing mode Normal, 90°, 180°, 270°
Printing format Height/width from 1 to 8, bold, reverse, underlined, italic

Character fonts

Graphics memory Logos dynamic management (max 2 MB graphics memory
Memory card SD/MMC

Printing speed

Head life 100 Km / 100M pulses
MCBF 2 000 000 cutter number
MTBF
Character set 3

Character density 11 cpi 15 cpi 20 cpi 16 cpi 23 cpi 30 cpi
Number of column 35 45 64 53 68 96
Character (L x H mm) 2,25 x 3 1,75 x 3 1,25 x 3 1,5 x 2 1,2 x 2 0,8 x 2

PAPER SPECIFICATIONS

Type of paper
Recommended types of paper from 70 g/m

Paper width from 54mm to 82.5mm (2mm step)
External roll diameter Max 300 mm
Internal roll core diameter 25 mm (+1mm)
Core thickness 2 mm (+1mm)
Paper end Not attached to roll core
Core type Cardboard or plastic

(3)

(3)

and translucent gap / hole mark detector (setting by software), ticket presence on

output, cover open, cutter compartment open, external near paper end

200 dpi 300 dpi

USB (communication speed: 12 Mbit/sec)

RS232 (communication speed: from 1200 to 115200 bps)

ETHERNET (communication speed: 10 Mbit/sec)

ESC/POSTM emulation: PC437, PC850, PC860, PC863,

PC865, PC858 (euro), 2 TrueType fonts

SVELTA emulation: 20 embedded fonts, 2 TrueType fonts

Capacity = max 2 Gbytes

High Quality =

Normal =

High Speed =

Thermal paper (heat-sensitive side on outside of roll)

120 mm/sec
200 mm/sec
250 mm/sec

550 000 hours

Fan-fold thermal paper with notch

2

to 255 g/m

High Quality =

High Speed =

2

(2)

Normal =

(1)

(2)

120 mm/sec
150 mm/sec
200 mm/sec

GB

NOTE:

(1)

Only for printer models equipped with Ether-

net interface.

(2)

It is possible to install more TrueType fonts.

(

3)

Only for printer models equipped with SD/MMC.

(4)

Electronic board.

<27>

NOTA:

(1)

Solo per i modelli si stampante dotati di

interfaccia Ethernet.

I

(2)

E’ possibile installare ulteriori font TrueType.

(3)

Solo per i modelli dotati di SD/MMC.

(4)

Scheda elettronica.

TK300II

Appendix

Appendix

TK300II

MODEL 200 dpi 300 dpi

ELECTRIC SPECIFICATIONS

Power supply 220 Vac ± 10%
Medium consumption
Standby consumption 9 W

ENVIROMENTAL SPECIFICATIONS

Operating temperature 0-50°C
Operating humidity 10-85% Rh
Storage temperature/humidity

(w/o paper)

A.1.2 Technical specifi cations for barcode reader

ELECTRIC SPECIFICATIONS
Barcode reader model MR008 CX002
ELECTRICAL CHARACTERISTICS
Scan rate 270 scans/sec 200 scans/sec
OPTICAL CHARACTERISTICS

Sensor Linear CCD Sensor
Light Source Red Leds, 639 nm
Ambient Light (Fluorescent lamp) 1500 LUX MAX 3000 LUX MAX

PERFORMANCE

Resolution 5 mil. (0.127 mm)

Readable Barcode

(Referred to a standard CUSTOM receipt (L=10cm, Density = 12,5% dots on)

ALL UPC/EAN/JAN , Code 39, Code 39 Full ASCII, Code 128,Code 93,
Interleave 25, Industrial 25, Matrix 25, China Postage, CODABAR/NW7,

35 W 51 W

-20 °C – 70 °C / 10% - 90% Rh

Code 1 1,MSI/PLESSEY, Code 32, PDF417, DATAMATRIX

A.1.3 Technical specifi cations (only for printer model with RFID reader/writer)

Supported transponders ISO159693 (icode)

ISO1443-MIFARE® (MIFARE Ultralight, MIFARE 1K, MIFARE 4K)

A.1.4 Dimensions

PRINTER READY

28/04/08 11:03:50

254

257

<28>

216

TK300II

Appendix

Appendix

TK300II

A.2 ADV ANCED FUNCTIONS

A.2.1 EMBEDDED WEB SERVER (only for models with Ethernet interface)

GB

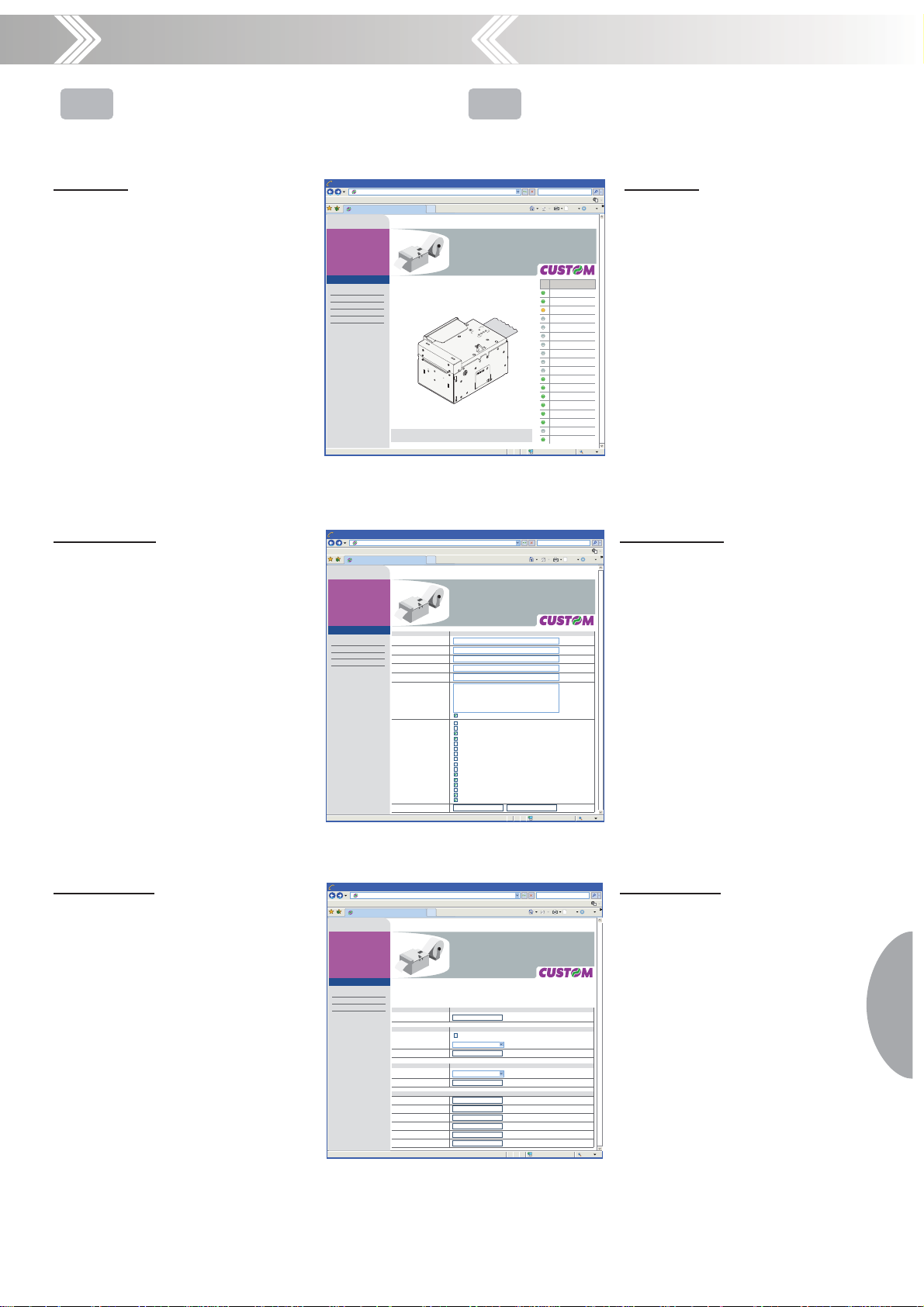

TK300II is equipped with an Embedded Web Server that
allows to execute some operations on printers, through
a clear web interface, including:

monitoring the printer status;•
setting operating parameters;•
confi guring network settings;•
managing the logos;•
confi guring the email service to make diagnostics •
and maintenance operations easier;
download printing drivers.•

Connection check

Before entering in the Embedded Web Server, check
that:

the printer is connected and turned on;•
the printer has a network connection based on the •
IP protocol;
the following door are opened (if a Firewall is •
present on computer): 9100 (or differently set up).
15000, 15001, 15002;
have a Web browser on the computer;•
the printer is connected to the network and its IP •
address and its Subnet Mask are set up in a correct
way. To check the setting of this parameters, open a
new terminal window and type “ping” on the com­mand bar followed by the IP address of the printer.

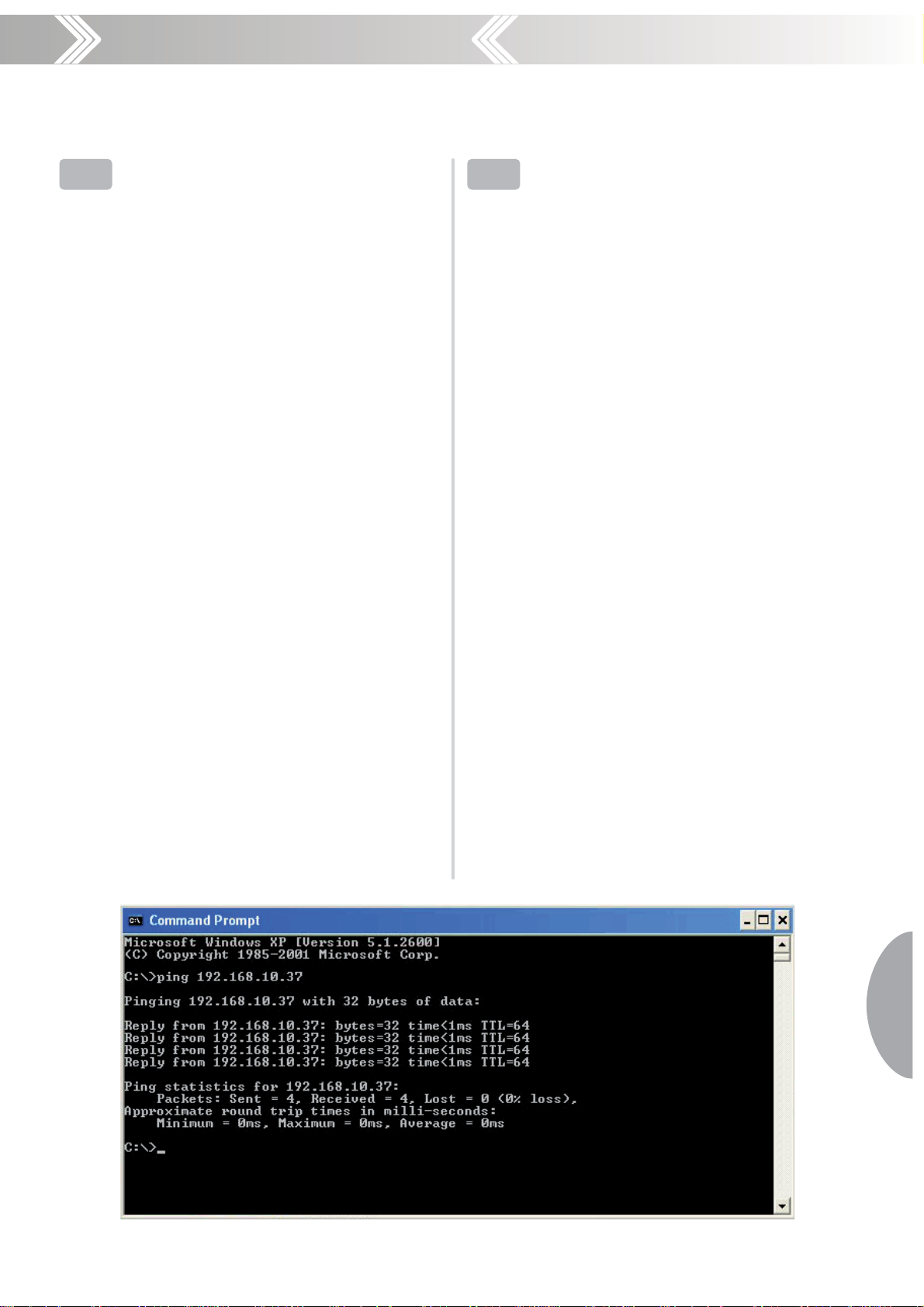

The picture shows an example of a positive result
after the “ping” command. Otherwise, if connection
isn’t possible, to its IP address, will appear an over­due request mistake.

I

I modelli di KPM300H con interfaccia Ethernet, sono do­tati di un Web Server interno che permette, tramite una
semplice interfaccia Web, di eseguire sulla stampante
alcune attività tra cui:

monitorare lo stato della stampante;•
impostare i parametri di funzionamento;•
confi gurare i parametri di rete;•
gestire i loghi memorizzati nella stampante;•
confi gurare il servizio di invio email per semplifi care •
le operazioni di diagnostica e manutenzione;
scaricare i drivers di stampa.•

Verifi ca connessione

Prima di accedere al Web Server interno accertarsi che:

la stampante sia collegata e accesa;•
la stampante disponga di una connessione in rete •
basata su protocollo IP;
siano aperte da Firewall (se presente) le seguenti •
porte: 9100 (o diversamente impostata). 15000,
15001, 15002;
disporre sul computer di un browser Web;•
la stampante sia collegata alla rete e che l’indirizzo •
IP e la Subnet Mask assegnati, siano impostati cor­rettamente. Per eseguire una verifi ca del settaggio
di questi parametri lanciare dal sistema operativo la
fi nestra del terminale testuale e sulla linea comandi
digitare “ping” seguito dall’indirizzo IP della stam­pante. Nella schermata riportata in fi gura, viene
mostrato un esempio di esito positivo dopo il lancio
del comando “ping”. Se invece la connessione
all’indirizzo IP specifi cato fallisce, viene riportato un
errore di richiesta scaduta.

Example: ping 192. 168. 10. 37

Esempio: ping 192. 168. 10. 37

<29>

TK300II

TK300II

Appendix

Appendix

GB

Embedded Web Server access

(1)

To enter the Embedded Web Server, type the IP address
assigned to the printer into Web browser. For example, if
IP address of the printer is 192.168.10.37, type in the Web
browser:

http://192.168.10.37

On the screen will appear the default page that corresponds
to the section “Device Info”, shown in picture.

(1)

Note

: To know the IP address of the printer, print the Set­up report (see the paragraph “Setup”) or use “Locator” (see
par.A.2.2).

The Embedded Web Server has 3 sections present in every
Web page as horizontal command bar in the upper part of the
page.
These sections are:

Device Info•
Printer Settings•

Printer Support•
To enter reserved pages related to some sections and some
confi guration services, it is required the identifi cation of the
user and password. To make registration and to obtain the
access to the restricted areas, insert the user name and the
password as indicated in the following table:

I

Accesso al Web Server interno

(1)

Per accedere al Web Server interno, digitare l’indirizzo IP
assegnato alla stampante nel browser Web. Se l’indirizzo IP
della stampante è, ad esempio, 192.168.10.37, immettere nel
browser Web:

http://192.168.10.37

Verrà visualizzata la pagina interna predefi nita che corrisponde
alla sezione “Device Info”, mostrata in fi gura.

(1)

Nota

: Per conoscere l’indirizzo IP della stampante, stampare
il rapporto di Setup (vedi par.“Setup”) o usare “Locator” (vedi
par.A.2.2).

Il Web Server interno dispone di 3 sezioni riportate in ciascu­na pagina web sotto forma di barra comandi orizzontale nella
parte superiore della pagina. Tali sezioni sono:

Device Info•
Printer Settings•

Printer Support•
Per accedere alle pagine riservate relative ad alcune sezioni e
ad alcuni servizi di confi gurazione della stampante, sarà richie-
sta l’identifi cazione a livello di utente e password. Per eseguire
la registrazione ed ottenere l’accesso a queste pagine, inserire
il nome utente e la password indicate nella seguente tabella:

User Name Custom
Password AlwaysOn

Note: Respect capital and small letters.

KPM300-H - Windows Internet Explorer

e

e

File Edit View Favorites Tools Help

Done Locale intranet 100 %

Custom Web Site

DEVICE INFO

RealTime Status

Model Information

Printer Parameter

Network Settings

Advanced Status

http://192.168.10.37/index.htm

KPM300-H

Nota: Rispettare le lettere minuscole e maiuscole.

DEVICE INFO │ PRINTER SETTINGS │ PRINTER SUPPORT

KPM300H

Ticket Printer

14:35 03‐09‐08

14:35 03‐09‐08

User Name Custom
Password AlwaysOn

ToolsPage

Cover Open

Cover Open

Paper End

Near Paper End

Paper rolling

Paper End

Ticket Out

LF key pressed

FF key pressed

S1 key pressed

S2 key pressed

Over temperature

Supply Voltage error

Cutter error

Cutter Open

Memories Error

Paper Jam

Notch Search...

Notch Error

<30>

TK300II

TK300II

Appendix

Appendix

GB

Embedded Web Server sections

Device info

In the “Device Info” section, it is possible
to display in real time the printer operat­ing status using the following tools:

RealTime Status (in this page, it •
is possible to monitor in real time
and to confi gure some parameters.
The printer picture in the centre
of the page and the colour of the
lights and the text will signal every
change of operating state of the
printer).
Model Information.•
Printer Parameter.•
Network Settings.•
Advanced Status.•

Printer settings

The confi guration tools of the restricted
“Printer Setting section, are:

Printer Setup.•
Network Setup.•
Email Setup (with this tool, it is pos-•
sible to confi gure the automatically
delivery of service email in order
to inform the user when a change
occurs to operating status of the
printer).
Email Log.•

With these tools, it is possible to set up
the same parameters of the printer that
are confi gurable in the printer’s Set-up
mode (see the paragraph “Setup”).

I

Le sezioni del Web Server interno

KPM300-H - Windows Internet Explorer

e

e

http://192.168.10.37/index.htm

File Edit View Favorites Tools Help

KPM300-H

Custom Web Site

DEVICE INFO

RealTime Status

Model Information

Printer Parameter

Network Settings

Advanced Status

Done Locale intranet 100 %

KPM300-H - Windows Internet Explorer

e

e

File Edit View Favorites Tools Help

Custom Web Site

PRINTER SETTINGS

Printer Setup

Network Setup

Email Setup

Email Log

Done Locale intranet 100 %

DEVICE INFO │ PRINTER SETTINGS │ PRINTER SUPPORT

http://192.168.10.37/index.htm

KPM300-H

DEVICE INFO │ PRINTER SETTINGS │ PRINTER SUPPORT

KPM300H

Ticket Printer

14:35 03‐09‐08

14:35 03‐09‐08

KPM300H

Ticket Printer

E-Mail Service Settings

SMTP Server Address

smtp.custom.it

SMTP Server Port

25

E-mail To

[e-mail]

E-mail From

[e-mail]

E-mail Subject

test

Testo libero

E-mail Message

Include Printer Status

when Paper End is detected

when Near Paper End is detected

on Printer Power On

when Near Paper End is detected

on Cut

on LF key pressed

on FF key pressed

Send e-mail event

on S1 key pressed

on S2 key pressed

on Cut error

on Paper Jam

on Notch Align error

on Autoload

on Head Over Temperature error

on Supply Voltage error

Reset e-mail settings... Save e-mail settings

Cover Open

Cover Open

Paper End

Near Paper End

Paper rolling

Paper End

Ticket Out

LF key pressed

FF key pressed

S1 key pressed

S2 key pressed

Over temperature

Supply Voltage error

Cutter error

Cutter Open

Memories Error

Paper Jam

Notch Search...

Notch Error

Device info

Nella sezione “Device Info” è pos-

ToolsPage

sibile visualizzare lo stato di funzio­namento della stampante tramite i
seguenti strumenti:

RealTime Status (in questa pagina •
è possibile monitorare e confi gurare
in tempo reale alcuni parametri con­trollati. Le immagini della stampante
e il colore delle spie accese segna­lano ogni cambiamento dello stato di
funzionamento della macchina).

Model Information.•

Printer Parameter.•

Network Settings.•

Advanced Status.•

Printer Settings

Gli strumenti di confi gurazione della

ToolsPage

sezione “Printer Settings”, sono:

Printer Setup.•

Network Setup.•

Email Setup (con questo stru-•

mento è possibile confi gurare l’invio
automatico di email di servizio per
comunicare all’utente il verifi carsi di
un nuovo evento interno alla stam­pante).

Email Log.•

Con gli strumenti di questa sezione
è possibile impostare tutti i parametri
della stampante e i parametri Ether­net, confi gurabili anche tramite la mo-
dalità Setup (vedi paragrafo “Setup”).

Printer support

The tools of the “Printer Support” sec­tion, are:

Download Driver.•
Advanced Function (in this restrict-•
ed page, it is possible to test some
function for demonstrative and serv­ice purpose, as printing a test page,
the font/logos test, executing the
self-calibration of the notch sensors
and the ticket alignment).
Pictures settings.•
Fonts settings.•

KPM300-H - Windows Internet Explorer

e

e

http://192.168.10.37/index.htm

File Edit View Favorites Tools Help

KPM300-H

Custom Web Site

PRINTER SUPPORT

Download Driver

Advanced Function

Picture Settings

Done Locale intranet 100 %

DEVICE INFO │ PRINTER SETTINGS │ PRINTER SUPPORT

KPM300H

Ticket Printer

Advanced Function

Warning : Use these function only when the printer is in standby!

All functions below, if used while the printer is executing a print job from communication port, may corrupt the printout.

Print Test Page

Logo Description

Logo Test

Font Description

Font Test

Notch Autoset

Characterize Paper

Align icket to print

Align ticket to cutter

Cut Paper

Reset To Factory Default

Test Page

Exec Test Page

Logo Test

Print all Logos

Exec Logo Test

Font Test

ESC/POS - 11 CPI

Exec Font Test

Advanced Function

Exec Notch Autoset

Exec Paper Characterization

Exec Align

Exec Align to cut

Exec Paper Cut

Reset To Factory Default

<31>

Printer support

Gli strumenti della sezione “Printer

ToolsPage

Support” sono:

Download Driver.•

Advanced Function (in questa •

pagina riservata è possibile eseguire
alcuni test a scopo dimostrativo o
manutentivo tra cui la stampa della
pagina prova, del test dei font/loghi,
l’autocalibrazione dei sensori di notch
e l’allineamento del biglietto).

Pictures settings.•

Fonts settings.•

TK300II

TK300II

Appendix

A.2.2 LOCATOR

GB

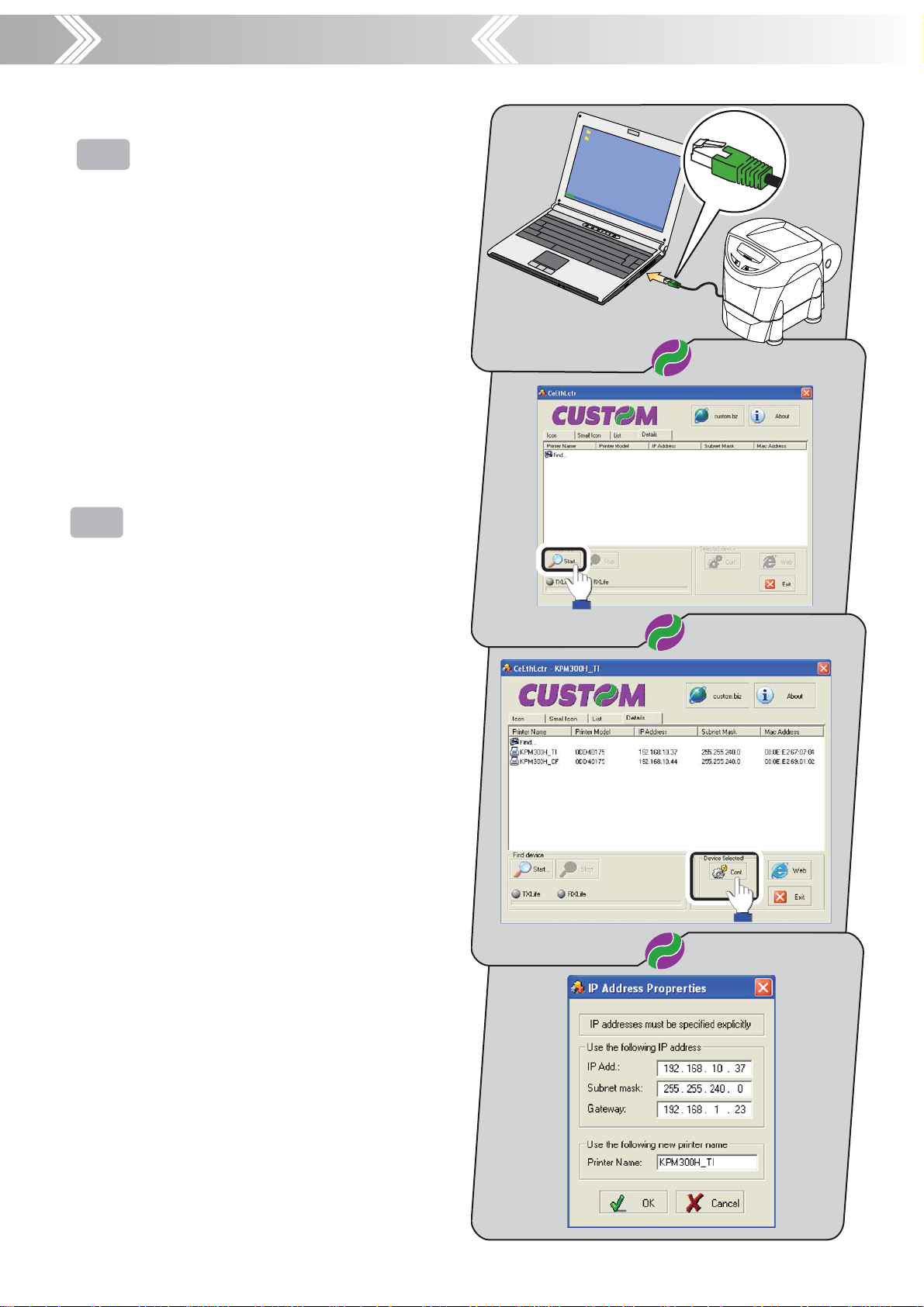

“Locator” is an external software available for
TK300II models with Ethernet interface.
It is able to execute a search of the printers connect­ed to the network, without knowing the IP addresse
of each printer.

For each printer detected, “Locator” allows to confi g-
ure the following parameters:

IP Address.•
Subnet Mask.•
Gateway.•
Printer friendly name.•

Appendix

I

“Locator” è un software esterno disponibile per i
modelli di TK300II dotati di interfaccia Ethernet.
Il software serve ad eseguire una operazione di
ricerca delle stampanti connesse alla rete, anche
senza conoscerne gli indirizzi IP delle singole stam­panti.

Per ogni stampante rintracciata in rete, il software
permette di confi gurarne i seguenti parametri:

IP Address.•
Subnet Mask.•
Gateway.•
Printer friendly name.•

<32>

TK300II

TK300II

Appendix

A.2.3 DRIVERS DOWNLOAD

GB

Drivers download from USB Mass Storage

To install printing drivers from USB Mass Storage, pro­ceed as follows:

Connect the printer to a computer by an USB cable.•
Open printer’s Flash Disk and enter the internal •
folders.
Open the “Driver” folder.•
Copy printer drivers into the “Driver” folder.•

Appendix

Note : To download drivers from USB Mass Storage,
enable “USB Mass Storage” parameter into printer Set­up (see paragraph “Printer Setup”).

I

Download dei drivers da USB Mass Storage

Per installare i driver nella stampante tramite Mass
Storage, procedere come segue:

Collegare la stampante ad un computer tramite •
cavo USB.
Aprire il Flash Drive della stampante e accedere •
alle cartelle interne.
Aprire la cartella “Driver”.•
Installare il driver d’aggiornamento direttamente •
nella cartella “Driver”.

Nota : Per installare i driver da Mass Storage, abilitare il
parametro “USB Mass Storage” nel Set-up della stam­pante (vedi par. “Printer Setup”).

FLASHDRIVE (F:)

File

View Favorites Tools Help

Edit

Back

Address

F:\

File and Folder Tasks

Other Places

My Computer

My Documents

Details

FLASHDRIVE (F:)

Windows can perform the same action each time you
insert a disk or connect a device with this kind of file:

Pictures

What do you want Windows to do?

Open folder to view files
using Windows Explorer

Open folder to view files
using Windows Explorer

Always do the selected action.

OK Cancel

Driver Pictures

Driver

PicList.ini

<33>

Driver

File

Edit

Back

Address

F:\Driver

File and Folder Tasks

Other Places

My Computer

My Documents

Details

View Favorites Tools Help

KPM300H CUPSDrv-1.00.tar.qz Kpm300h_rel_111_Win2K_2K3...

TK300II

TK300II

Appendix

: Custom

S

es

WebPag

i

Appendix

GB

Drivers download from FTP Server

(for models with Ethernet interface)

To install printing drivers, proceed as follows:

Connect to network the printer and the computer.•
Type in the address bar • “ftp://” followed by the IP
address

(2)

of the printer.
Copy printing driver from the “Driver” folder to a •
local folder and install it.

Drivers download from Embedded Web Server

(for models with Ethernet interface)

To download printing driver proceed as follows:

Connect to the network the printer and the computer.•
Enter into the Embedded Web Server.•
Enter the “Printer Support” section.•
Enter page related to “Download Driver” tool.•
Chose the printing driver and click on “Download •
fi le >>”.

(1)

Note

: To download drivers from FTP Server, en­able “FTP Server” parameter into printer Set-up (see
paragraph “Ethernet Setup”).

(2)

Note

: To know the IP address of the printer, print
the Set-up report of the printer (see paragraph “Ether­net Setup”) or use “Locator” (see par.A.2.2).

(1)

I

Download dei drivers da FTP Server

(solo per modelli con interfaccia Ethernet)

Per installare i driver di stampa, procedere come segue:

Collegare la stampante e il computer alla rete.•
Digitare nella barra degli indirizzi • “ftp://” seguito
dall’indirizzo IP

(2)

della stampante.
Copiare il driver d’aggiornamento dalla cartella “Dri-•
ver” in una cartella locale e installarlo.

Download dei drivers da Embedded Web Server

(solo per modelli con interfaccia Ethernet)

Per installare i driver di stampa, procedere come segue:

Collegare la stampante e il computer alla rete.•
Accedere al Web Server interno.•
Entrare nella sezione “Printer Support”.•
Cliccare su “Download Driver”•
Scegliere il driver da installare e cliccare su “Downlo-•
ad fi le >>”.

(1)

Nota

: Per installare i driver tramite FTP Server, abilita­re il parametro “FTP Server” nel Set-up della stampante
(vedi paragrafo “Ethernet Setup”).

(2)

Nota

: Per conoscere l’indirizzo IP della stampante,
stampare il rapporto di Setup (vedi par. “Ethernet Setup”)
o usare “Locator” (vedi par.A.2.2).

(1)

ftp://192.168.10.37/

File

Edit

Back

Address

Other Places

Internet Explorer

e

e

My Documents

View Favorites Tools Help

ftp://192.168.10.37

Address

Driver

SMTP

MTP

PicList.ini

My computer

File

Back

Address

File and Folder Tasks

Other Places

Details

Driver

t.in

Edit

View Favorites Tools Help

ftp://192.168.10.37

ftp://192.168.10.37

My Computer

My Documents

Pictures

tur

ftp://192.168.10.37/Driver/

File

Edit

WebPage

Back

Address

Other Places

Internet Explorer

e

e

My Documents

Details

Local IntranetUser : Custom

ocal Intranet

Local Disk (C:)

VOLUME (D:)

FLASH DRIVE (F:)

View Favorites Tools Help

e

ftp://192.168.10.37/Driver/

KPM300H CUPSDrv-1.00.tar.qz Kpm300h_rel_111_Win2K_2K3...

Local IntranetUser : Custom

<34>

Network Settings

Advanced Status

Printer Parameter

RealTime Status

Model Information

DEVICE INFO

KPM300-H - Windows Internet Explorer

KPM300-H

Custom Web Site

http://192.168.10.37/index.htm

DEVICE INFO │ PRINTER SETT

INGS │ PRINTER SUPPORT

KPM300H

Ticket Printer

Notch Search...

Notch Error

Paper Jam

Memories Error

Cutter Open

Cutter error

FF key pressed

S1 key pressed

S2 key pressed

Over temperature

Supply Voltage error

Ticket Out

LF key pressed

Cover Open

Cover Open

Paper End

Near Paper End

Paper rolling

Paper End

TK300II

TK300II

Appendix

netene

bmp

bmp

bmp

bmp

p

p

bmp

bmp

A.2.4 LOGOS MANAGEMENT

GB

Appendix

Logos management from USB Mass Storage

(1)

To add a new logo to the printer from USB Mass
Storage, proceed as follows:

Connect the printer to a computer by an USB •
cable
Open printer’s Flash Disk and enter the inter-•
nal folders.
Copy the new logo into the “Pictures” folder•

(2)

Add to the confi guration fi le “PictList.ini”, a •
line with a number associated to the logo (to
be used with printer’s commands), a letter for
the memory unit and the logo fi le name, as
indicated in the instructions written inside the
“PictList.ini” fi le

(1)

Note

: To manage logos from USB Mass Stor­age, enable “USB Mass Storage” parameter into
printer Set-up (see paragraph “Printer Setup”).

(2)

Note

: In models with SD/MMC card, it is possi­ble to store the new logo both on SD/MMC and on
Flash Disk.

FLASHDRIVE (F:)

Windows can perform the same action each time you
insert a disk or connect a device with this kind of file:

Pictures

What do you want Windows to do?

Open folder to view files
using Windows Explorer

Open folder to view files
using Windows Explorer

Always do the selected action.

OK Cancel

I

Gestione dei loghi da USB Mass Storage

Per aggiungere un nuovo logo alla stampante da
USB Mass Storage, procedere come segue:

Collegare la stampante ad un PC tramite cavo •
USB
Aprire il Flash Drive della stampante e accede-•
re alle cartelle interne.
Copiare il nuovo logo direttamente nella cartel-•
la “Pictures”

(2)

.
Aggiungere al fi le di confi gurazione “PictList.•
ini” una riga contenente un numero associato
al logo (da utilizzare tramite i comandi), la let­tera corrispondente all’unità di memorizzazio­ne e il nome del fi le, così come indicato nelle
istruzioni contenute nello stesso fi le “PictList”.

(1 )

Nota

: Per gestire i loghi da Mass Storage, abi­litare il parametro “USB Mass Storage” nel Set-up
della stampante (vedi par. “Printer Setup”).

(2)

Nota

: Nei modelli con SD/MMC, è possibile me-

morizzare il nuovo logo anche su SD/MMC, invece
che sul Flash Disk.

(1)

Address

Pictures

File

Edit

Back

Address

File and Folder Tasks

Other Places

My Computer

My Documents

Details

FLASHDRIVE (F:)

File

View Favorites Tools Help

Edit

Back

F:\

File and Folder Tasks

Other Places

My Computer

My Documents

Details

View Favorites Tools Help

F:\Pictures

Driver Pictures

PicList.ini

PSDPsPSDPsPSDPsPSD

Ps

CERCHIO.BMP EDGE.bmp ---LOGOATE... Pict1.bmp

PSDPsPSDPsPSDPsPSD

Ps

Pict5.bmp Pict6.bmp Pict7.bmp Pict8.bmp

Local IntranetUser: Custom

<35>

TK300II

TK300II

Appendix

ranet

net

D

SD

E..

ict

c

bmp

bmp

p

bmp

p

p

bm

bmp

bmppp

bmp

GB

Logos management from FTP Server

(for models with Ethernet interface)

To add a new logo to the printer from FTP Server,
proceed as follows:

Connect to the network the printer and the •
computer.
Type in the address bar • “ftp://” followed by the
IP address of the printer

(2)

.
Copy the new logo into the “Pictures” folders •
Add to the confi guration fi le “PictList.ini”, a line •
with a number associated to the logo (to be
used with printer’s commands), a letter for the
memory unit and the logo fi le name, as indicat-
ed in the instructions written inside the “PictList.
ini” fi le.

(1)

Note

: Enable “FTP Server” parameter into printer

Set-up (see paragraph “Ethernet Setup”).

(2)

Note

: To know the IP address of the printer, print
the Set-up report of the printer (see paragraph “Eth­ernet Setup”) or use “Locator” (see par.A.2.2).

(3)

Note

:In models with SD/MMC, it is possible to
store the new logo on SD/MMC too.

(1)

(3)

Appendix

.

My computer

File

View Favorites Tools Help

Edit

Back

Address

Address

ftp://192.168.10.37

ftp://192.168.10.37

File and Folder Tasks

Other Places

My Computer

My Documents

Details

Local Disk (C:)

VOLUME (D:)

FLASH DRIVE (F:)

ATTENTION: The confi guration fi le “PictList.ini” on
the printer’s Flash Disk, has to be modifi ed even if
the new added logo is stored on SD/MMC (only for
models with SD/MMC).

I

Gestione dei loghi da FTP Server

(solo per modelli con interfaccia Ethernet)

Per aggiungere un logo alla stampante tramite con­nessione ad un server FTP, procedere come segue:

Collegare la stampante e il computer alla rete.•
Digitare nella barra degli indirizzi • “ftp://” seguito
dall’indirizzo IP della stampante
Copiare il nuovo logo nella cartella “Pictures”•
Aggiungere al fi le di confi gurazione “PictList.•
ini” una riga contenente un numero associato al
logo (da utilizzare tramite i comandi), la lettera
corrispondente all’unità di memorizzazione e il
nome del fi le, così come indicato nelle istruzioni
contenute nello stesso fi le “PictList”.

(1)

Nota

:

Abilitare il parametro “FTP Server” nel Set-up

della stampante (vedi paragrafo “Ethernet Setup”).

(2)

Nota

: Per conoscere l’indirizzo IP della stampan­te, stampare il rapporto di Setup (vedi par. “Ethernet
Setup”) o usare “Locator” (vedi par.A.2.2).

(3)

Nota

: Nei modelli con SD/MMC, è possibile me-

morizzare i loghi anche su SD/MMC.

(1)

(2)

.

(3)

.

File

Address

ftp://192.168.10.37/Pictures/

File

View Favorites Tools Help

Edit

Back

Address

ftp://192.168.10.37/Pictures/

Other Places

Internet Explorer

e

e

My Documents

Details

ftp://192.168.10.37/

View Favorites Tools Help

Edit

Back

ftp://192.168.10.37

Other Places

Internet Explorer

e

e

My Documents

PSDPsPSDPsPSDPsPSD

Ps

CERCHIO.BMP EDGE.bmp ---LOGOATE... Pict1.bmp

PSDPsPSDPsPSDPsPSD

Ps

Pict5.bmp Pict6.bmp Pict7.bmp Pict8.bmp

Driver

SMTP

PicList.ini

Pictures

WebPage

Local IntranetUser : Custom

ATTENZIONE: Modifi care il fi le di installazione

Local IntranetUser : Custom

“PictList.ini” presente su Flash Disk, anche se il logo
è stato memorizzato su SD/MMC, invece che su
Flash Disk (solo per i modelli con SD/MMC).

<36>

TK300II

TK300II

Appendix

GB

Logos management from Embedded Web Server

(for models with Ethernet interface)

To manage logos from the Embedded Web Server, pro­ceed as follows:

Connect to the network the printer and the computer.•
Enter into the Embedded Web Server.•
Enter into the “Printer Support” section.•
Enter the page related to “Picture Settings” tool.•

(1)

.

Note

Add the new logo•

(1)

: In models with SD/MMC, it is possible to store

the new logo both on SD/MMC and on Flash Disk.

I

Gestione dei loghi da Embedded Web Server

(solo per modelli con interfaccia Ethernet)

Per la gestione dei loghi attraverso il Web Server interno,
procedere come segue:

Collegare la stampante e il computer alla rete.•
Accedere al Web Server interno.•
Entrare nella sezione “Printer Support”.•
Accedere alla pagina “Picture Settings”.•
Aggiungere il nuovo logo•

(1)

Nota

: Nei modelli con SD/MMC, è possibile memo-

rizzare il nuovo logo anche su SD/MMC, invece che sul
Flash Disk.

(1)

.

Appendix

KPM300-H - Windows Inter

http://192.168

net Explorer

.10.37/index.htm

KPM300-H

Custom Web Site

DEVICE INFO

│ PRINTER SETTI

Network Settings

Advanced Status

RealTime Status

Model Information

Printer Parameter

DEVICE INFO

NGS │ PR

KPM300H

Ticket Printer

INTER SUPPORT

Paper Jam

Notch Search...

Notch Error

Cutter Open

Memories Error

S2 key pressed

Over temperatur

Supply Voltage erro

Cutter erro

LF key pressed

FF key pressed

S1 key pressed

r

Cover Open

Cover Open

Paper End

Near Paper End

Paper rolling

Paper End

Ticket Out

e

r

<37>

TK300II

TK300II

Appendix

A.2.5 FONTS MANAGEMENT

GB

Appendix

Fonts management from USB Mass Storage

(1)

To add a new font to the printer from USB Mass
Storage, proceed as follows:

Connect the printer to a computer by an USB •
cable
Open printer’s Flash Disk and enter the inter-•
nal folders.
Copy the new logo into the “Fonts” folder•

(1)

Note

: To manage fonts from USB Mass Storage,

(2)

enable “USB Mass Storage” parameter into printer
Set-up (see paragraph “Printer Setup”).

(2)

Note

: In models with SD/MMC card, it is possi­ble to store the new font both on SD/MMC and on
Flash Disk.

FLASHDRIVE (F:)

Windows can perform the same action each time you
insert a disk or connect a device with this kind of file:

Pictures

What do you want Windows to do?

Open folder to view files
using Windows Explorer

Open folder to view files
using Windows Explorer

Always do the selected action.

OK Cancel

I

Gestione dei fonts da USB Mass Storage

Per aggiungere un nuovo font alla stampante da
USB Mass Storage, procedere come segue:

Collegare la stampante ad un PC tramite cavo •
USB
Aprire il Flash Drive della stampante e accede-•
re alle cartelle interne.
Copiare il nuovo font direttamente nella cartel-•

(2)

.

: Per gestire i loghi da Mass Storage, abili-

Nota

la “Fonts”

(1)

tare il parametro “USB Mass Storage” nel Set-up
della stampante (vedi par. “Printer Setup”).

(2)

Nota

: Nei modelli con SD/MMC, è possibile me-

morizzare il nuovo font anche su SD/MMC, invece
che su Flash Disk.

(1)

FLASHDRIVE (F:)

File

View Favorites Tools Help

Edit

Back

Address

F:\

File and Folder Tasks

Other Places

My Computer

My Documents

Details

F:\Fonts

File

Edit

Back

Address

Other Places

My Computer

My Documents

Details

View Favorites Tools Help

F:\Fonts

Driver Pictures

Fonts

Setup.ini

Vera

(TrueType)

VeraMono

(TrueType)

Piclist.ini

<38>

Local IntranetUser: Custom

TK300II

Appendix

GB

TK300II

Appendix

Fonts management from FTP Server

(1)

(for models with Ethernet interface)

To add a font logo to the printer from FTP Server,
proceed as follows:

Connect to the network the printer and the •
computer.
Type in the address bar • “ftp://” followed by the
IP address of the printer
Copy the new font into the “Font” folders •

(1)

Note

: Enable “FTP Server” parameter into printer

(2)

.

(3)

.

Set-up (see paragraph “Ethernet Setup”).

(2)

Note

: To know the IP address of the printer, print
the Set-up report of the printer (see paragraph “Eth­ernet Setup”) or use “Locator” (see par.A.2.2).

(3)

Note

:In models with SD/MMC, it is possible to
store the new font on SD/MMC too.

Address

My computer

File

View Favorites Tools Help

Edit

Back

Address

ftp://192.168.10.37

ftp://192.168.10.37

File and Folder Tasks

Other Places

My Computer

My Documents

Details

Local Disk (C:)

VOLUME (D:)

FLASH DRIVE (F:)

I

Gestione dei fonts da FTP Server

(solo per modelli con interfaccia Ethernet)

Per aggiungere un font alla stampante tramite con­nessione ad un server FTP, procedere come segue:

Collegare la stampante e il computer alla rete.•
Digitare nella barra degli indirizzi • “ftp://” seguito
dall’indirizzo IP della stampante
Copiare il nuovo font nella cartella “Font”•

(1)

Nota

: Abilitare il parametro “FTP Server” nel
Set-up della stampante (vedi paragrafo “Ethernet
Setup”).

(2)

Nota

: Per conoscere l’indirizzo IP della stampan-

te, stampare il rapporto di Setup (vedi par. “Ethernet
Setup”) o usare “Locator” (vedi par.A.2.2).

(3)

Nota

: Nei modelli con SD/MMC, è possibile me-

morizzare il nuovo font anche su SD/MMC.

(1)

(2)

.

(3)

.

ftp://192.168.10.37/

File

Edit

Back

Address

Other Places

Internet Explorer

e

e

My Documents

F:\Fonts

File

Edit

Back

Address

Other Places

My Computer

My Documents

Details

View Favorites Tools Help

ftp://192.168.10.37

View Favorites Tools Help

F:\Fonts

Vera

(TrueType)

Driver

SMTP

Fonts

Setup.ini

VeraMono

(TrueType)

Pictures

WebPage

Piclist.ini

Local IntranetUser : Custom

<39>

Local IntranetUser: Custom

TK300II

TK300II

Appendix

GB

Fonts management from Embedded Web Server

(for models with Ethernet interface)

To manage fonts from the Embedded Web Server,
proceed as follows:

Connect to the network the printer and the com-•
puter.
Enter into the Embedded Web Server.•
Enter into the “Printer Support” section.•
Enter the page related to “Fonts Settings” tool.•

(1)

.

Note

Add the new font •

(1)

: In models with SD/MMC, it is possible to
store the new font both on SD/MMC and on Flash
Disk.

I

Gestione dei fonts da Embedded Web Server

(solo per modelli con interfaccia Ethernet)

Appendix

KPM300-H - Windows Inter

http://192.168.10.37/index.htm

net Explorer

KPM300-H

Custom Web Site

DEVICE INFO

│ PRINTER SETTI

Printer Parameter

Network Settings

Advanced Status

DEVICE INFO

RealTime Status

Model Information

NGS │ PR

KPM300H

Ticket Printer

INTER SUPPORT

Per la gestione dei fonts attraverso il Web Server
interno, procedere come segue:

Collegare la stampante e il computer alla rete.•
Accedere al Web Server interno.•
Entrare nella sezione “Printer Support”.•
Accedere alla pagina “Fonts Settings”.•

(1)

.

Nota

Aggiungere il font logo•

(1)

: Nei modelli con SD/MMC, è possibile memo­rizzare il nuovo logo anche su SD/MMC, invece che
sul Flash Disk.

Notch Search...

Notch Error

Paper Jam

Cutter Open

Memories Error

Over temperatur

Supply Voltage error

Cutter error

S2 key press

FF key pressed

S1 key pressed

Ticket Out

LF key presse

Cover Open

Cover Open

Paper End

Near Paper End

Paper rolling

Paper End

d

ed

e

<40>

TK300II

TK300II

Appendix

La

[PRINT]

[NETWORK]

[INTERFACE]

[SVELTA]

A.2.6 FONTS MANAGEMENT

Appendix

GB

KPM300H permits the confi guration of default parame-
ters for printer and network setup by editing the “Setup.
ini” fi le on the fl ash drive.

This fi le contains all the confi gurable parameters •
listed in text format and divided into some sections.
The available values for every parameter, are •
listed after the parameter name. The value marked
with the symbol * is the default one.
To modify printer’s parameters, change the numer-•
ic value after the name of parameters.
To set the parameter to the default value, change •
the numeric value with the symbol D.
After editing printer’s parameter, simply save the •

“Setup.ini” fi le to make the modifi es activated.
The “Setup.ini” fi le permits the confi guration of the fol-
lowing parameters:

[PRINT]

Printer Emulation DHCP Client

Print Mode FTP Server

I

La KPM300H consente di confi gurare i parametri di de-
fault della stampante e della rete tramite la modifi ca del
fi le “Setup.ini” presente su fl ash drive.

Questo fi le contiene tutti i parametri confi gurabili elen-•
cati in formato testo e divisi in sezioni.
I possibili valori per ogni parametro sono elencati di •
seguito al nome del parametro stesso. Il valore indica­to dal simbolo * è il valore di default.
Per modifi care i parametri, cambiare il valore numeri-•
co che segue il nome del parametro.
Per impostare un parametro sul valore di setup, cam-•
biare il valore numerico con il simbolo D.
Dopo aver modifi cato i parametri, è suffi ciente salvare •

il fi le “Setup.ini” per rendere attive le modifi che.
Il fi le “Setup.ini” consente di confi gurare i seguenti para-
metri:

[NETWORK]

Autofeed FTP Server

Chars / inch Subnet Mask

Speed / Quality Default Gateway

Paper Width Domain Name System

Paper Threshold TCP Printer Port

Notch Position MAC Address

Notch Threshold

Notch Distance [mm]

Ticket Locking

PaperEnd Buffer Clear

Print Density

[INTERFACE]

RS232 Baud Rate Ticket X Dimension

RS232 Data Length Ticket Y Dimension

RS232 Parity Notch Distance

RS232 Handshaking Notch Width

[SVELTA]

Busy Condition Barcode Timeout

USB Mass Storage Ticket Offset X

USB Address Number Ticket Offset Y

Note: To know the available values for every param­eter, see par. “Printer Setup” and “Ethernet Setup”.

Nota: Per conoscere i possibili valori per ogni parametro,
vedere i paragrafi “Printer Setup” e “Ethernet Setup”.

<41>

TK300II

TK300II

Appendix

s

nts

i

anet

s

WebPage

.ini

Appendix

GB

Setup mode from USB Mass Storage

To confi gure printer and network parameters from
USB Mass Storage, proceed as follows:

Connect the printer to a computer by an USB cable.•
Open printer’s Flash Disk.•
Open the “Setup.ini” fi le.•
Modify the parameters.•
Save and close the “Setup.ini” fi le.•

Setup mode from FTP Server

(2)

(for models with Ethernet interface)

To confi gure printer and network parameters from
FTP Server, proceed as follows:

Connect to the network the printer and the computer.•
Type in the address bar • “ftp://” followed by the IP
address of the printer

(3)

.
Open the “Setup.ini” fi le.•
Modify the parameters.•
Save and close the “Setup.ini” fi le.•

(1)

Note

: Enable “USB Mass Storage” parameter into

printer Set-up (see paragraph “Printer Setup”).

(2)

Note

: Enable “FTP Server” parameter into printer

Set-up (see paragraph “Ethernet Setup”).

(3)

Note

: To know the IP address of the printer, print
the Set-up report of the printer (see paragraph “Ether­net Setup”) or use “Locator” (see par.A.2.2).

(1)

I

Modalità Setup da USB Mass Storage

Per confi gurare i parametri della stampante e di rete da
USB Mass Storage, procedere come segue:

Collegare la stampante ad un PC tramite cavo USB.•
Aprire il Flash Drive della stampante.•
Aprire il fi le “Setup.ini”.•
Modifi care i parametri.•
Salvare e chiudere il fi le “Setup.ini”.•

Modalità Setup da FTP Server

(2)

(solo per modelli con interfaccia Ethernet)

Per confi gurare i parametri della stampante e di rete tramite
connessione ad un server FTP, procedere come segue:

Collegare la stampante e il computer alla rete.•
Digitare nella barra degli indirizzi • “ftp://” seguito
dall’indirizzo IP della stampante
Aprire il fi le “Setup.ini”.•
Modifi care i parametri.•
Salvare e chiudere il fi le “Setup.ini”.•

(1)

Nota

: Abilitare il parametro “USB Mass Storage” nel

Set-up della stampante (vedi par. “Printer Setup”).

(2)

Nota

: Abilitare il parametro “FTP Server” nel Set-up

della stampante (vedi paragrafo “Ethernet Setup”).

(3)

Nota

: Per conoscere l’indirizzo IP della stampante,
stampare il rapporto di Setup (vedi par. “Ethernet Setup”)
o usare “Locator” (vedi par.A.2.2).

(1)

(3)

.

FLASHDRIVE (F:)

File

Edit

Back

Address

File and Folder Tasks

Other Places

My Computer

My Documents

Details

View Favorites Tools Help

F:\

FLASHDRIVE (F:)

Windows can perform the same action each time you
insert a disk or connect a device with this kind of file:

Pictures

What do you want Windows to do?

Open folder to view files
using Windows Explorer

Open folder to view files
using Windows Explorer

Always do the selected action.

Driver

Fonts

etup.ini

Setup.ini

OK Cancel

Pictures

iclist.ini

Piclist.ini

<42>

ftp://192.168.10.37/

File

Edit

Back

Address

Other Places

Internet Explorer

e

e

My Documents

Address

View Favorites Tools Help

ftp://192.168.10.37

My computer

File

View Favorites Tools Help

Edit

Back

Address

ftp://192.168.10.37

ftp://192.168.10.37

File and Folder Tasks

Other Places

My Computer

My Documents

Details

Driver

SMTP

Fonts

etup.in

Setup.ini

Local Disk (C:)

VOLUME (D:)

FLASH DRIVE (F:)

Local IntranetUser : Custom

Pictures

WebPage

Piclist.ini

TK300II

TK300II

Appendix

B.1 ACCESSORIES AND SPARE P ARTS

B.1.1 ACCESSORIES

COMPONENT CODE

Appendix

B.1.2 SPARE PARTS

Kit for “BURSTER” confi guration

COMPONENT CODE

Thermal paper roll 80 mm,
Øext.=180, Øcore=25mm, 165gr.

PCXSP-TK300II-BUSTER

RCT80X180-25MM-165GR

FANFOLD module 155x65 neutral 255gr. RCTFF-B-155-65-255GR-N

<43>

TK300II

TK300II

Appendix

B.2 CLEANING

B.2.1 OUTSIDE CLEANING

Appendix

GB

I

F

To clean the machine, use a pneumatics air
or soft cloth.
First remove the mains plug from the wall socket
Do not use alcohol, solvents, or hard brushes.
Do not let water or other liquids get inside
the machine.

Per pulire la macchina, utilizzare aria com­pressa o un panno morbido..
Prima di ogni operazione, scollegare il cavo di
alimentazione elettrica dalla presa di rete.
Non utilizzare alcol, solventi o spazzole dure.
Assicurarsi che acqua o altri liquidi non pene­trino all’interno della stampante.

Pour nettoyer la machine, utiliser un sys­tème pneumatique ou un chiffon souple.
Avant d’effectuer toute opération, débrancher
la câble de l’alimentation électrique de la prise
de réseau.
Ne pas utiliser de l’alcool, des solvants, ni des
brosses dures.
Vous assurer que ni l’eau ni aucun autre
liquide ne pénètrent dans l’imprimante.

.

D

E

Zum Reinigen der Maschine einen Pressluft
oder einen weichen Lappen benutzen.
Zuersten den Hauptstecker aus der Netz­steckdose ziehen.
Keinen Alkohol, Lösungsmittel oder harte
Bürsten verwenden.
Darauf achten, dass kein Wasser oder andere
Flüssigkeiten in die Maschine eindringen.

Para limpiar la máquina, utilice una neuma­tica o un paño suave.
Antes de cualquier operación, desconécta
el cable de alimentación eléctrica de la toma
de red.
No utilice alcohol, solventes o cepillos duros
Asegúrese de que agua u otros líquidos no
penetren dentro de la impresora.

.

Alcohol, solvent

ON

<44>

TK300II

TK300II

Appendix

B.2.2 CLEANING THE PRINTING HEAD (VOID)

Appendix

GB

I

ATTENTION!
Do not touch the head heating line with bare hands
or metal objects. Do not perform any operation in­side the printer immediately after printing because
the head and motor tend to become very hot.

ATTENZIONE!
Non toccare la linea di riscaldamento della testina
a mani nude o con oggetti metallici. Non fare nes­suna operazione all’interno della stampante subito
dopo la stampa, perché la testina ed il motore
sono parti che possono raggiungere temperature
molto elevate.

GB

I

F

D

E

Clean the printing head heating line using a
non-abrasive cloth moistened with isopropyl
alcohol.

Pulire la linea di riscaldamento della testina
di stampa con un panno anti-graffi o imbevuto
di alcool isopropilico.

Néttoyer la ligne de chauffage de la tete
d’impression avec un chiffon anti-égratignure
imbibé d’alcool isopropylique.

Reinigung der Druckkopf-Thermozeile unter
Verwendung eines nicht kratzenden mit iso­propyl Alkohol befeuchteten Tuches.

Debe limpiarse la cabeza de impresion con
un pañuelo anti-rasguño imbebado de alcohol
isopropílico.

ON

<45>

TK300II

Appendix

Appendix

TK300II

B.2.3 CLEANING THE BARCODE READING (only for models with barcode readers)

GB

I

F

To clean the machine, use a pneumatics air
or soft cloth.
First remove the mains plug from the wall socket
Do not use alcohol, solvents, or hard brushes.
Do not let water or other liquids get inside
the machine.

Per pulire la macchina, utilizzare aria com­pressa o un panno morbido..
Prima di ogni operazione, scollegare il cavo di
alimentazione elettrica dalla presa di rete.
Non utilizzare alcol, solventi o spazzole dure.
Assicurarsi che acqua o altri liquidi non pene­trino all’interno della stampante.

Pour nettoyer la machine, utiliser un sys­tème pneumatique ou un chiffon souple.
Avant d’effectuer toute opération, débrancher
la câble de l’alimentation électrique de la prise
de réseau.
Ne pas utiliser de l’alcool, des solvants, ni des
brosses dures.
Vous assurer que ni l’eau ni aucun autre
liquide ne pénètrent dans l’imprimante.

.

Zum Reinigen der Maschine einen Pressluft

D

oder einen weichen Lappen benutzen.
Zuersten den Hauptstecker aus der Netz­steckdose ziehen.
Keinen Alkohol, Lösungsmittel oder harte
Bürsten verwenden.
Darauf achten, dass kein Wasser oder andere
Flüssigkeiten in die Maschine eindringen.

Para limpiar la máquina, utilíce una neuma-

E

tica o un paño suave.
Antes de cualquier operación, desconécta
el cable de alimentación eléctrica de la toma
de red.
No utilíce alcohol, solventes o cepillos duros
Asegúrese de que agua u otros líquidos no
penetren dentro de la impresora.

.

Alcohol, solvent

ON

<46>

TK300II

TK300II

Appendix

B.2.4 CLEANING THE ROLLER

Appendix

GB

I

F

To clean the roller, use a a medium-stiff
brush to avoid them being scratched.
First remove the mains plug from the wall
socket.
Do not use alcohol or solvents.
Do not let water or other liquids get inside
the machine.

Per pulire i rulli, utilizzare una spazzola con
setole semi-rigide in modo da non segnare la
loro superfi cie.
Prima di ogni operazione, scollegare il cavo di
alimentazione elettrica dalla presa di rete.
Non utilizzare alcol o solventi.
Assicurarsi che acqua o altri liquidi non pene­trino all’interno della stampante.

Pour nettoyer le rouleaux, utiliser une
brosse avec soie semi-rigide pour ne pas
abimer la surface.
Avant chaque opération, déconnecter le cable
d’alimentation du réseau.
Ne pas utiliser alcool ou dissolvant.
S’assurer que ni de l’eau ni d’autres liquides
ne s’introduisent dans l’imprimante.

Alcohol, solvent

ON

D

Zur Reinigung der Andruckrolle benutzen
Sie bitte nur eine mittelharte Buerste, um ein
Zerkratzen zu vermeiden.
Zunaechst den Stecker aus der Steckdose
entfernen. Keinen Alkohol oder Loesungsmit­tel verwenden.
Es ist zu verhindern, dass Wasser oder ande­re Fluessigkeiten in die Maschine geraten.

Para limpiar los rollo utilizar un cepillo de

E

limpieza de manera que no se dañe su su­perfi cie.
Ante todo, desconnectar la fuente de alimen­tación desde el enchufe en la pared .
No se utilize alcohol u solventes.
Estar seguro que ni agua ni otros líquidos
penetran dentro de la impresora.

<47>
