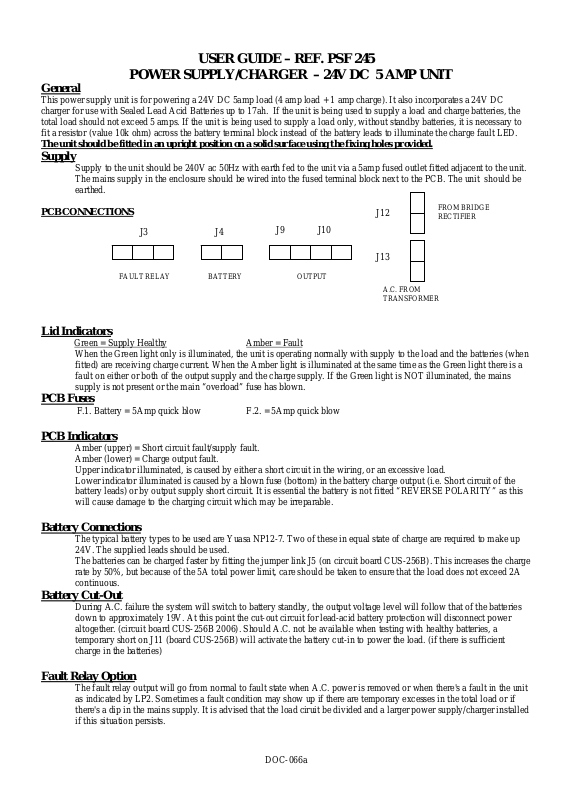

USER GUIDE – REF. PSF 245
POWER SUPPLY/CHARGER – 24V DC 5 AMP UNIT
General
This power supply unit is for powering a 24V DC 5amp load (4 amp load + 1 amp charge). It also incorporates a 24V DC
charger for use with Sealed Lead Acid Batteries up to 17ah. If the unit is being used to supply a load and charge batteries, the
total load should not exceed 5 amps. If the unit is being used to supply a load only, without standb y batteries, it is n e cessary to
fit a resistor (value 10k ohm) across the battery terminal block instead of the battery leads to illuminate the charge fault LED.
The unit should be fitted in an upright position on a solid surface using the fixing holes provided.
Supply
Supply to the unit should be 240V ac 50Hz with earth fed to the unit via a 5amp fused outlet fitted adjacent to the unit.
The mains supply in the enclosure should be wired into the fused terminal block next to the PCB. The unit should be
earthed.
PCB CONNECTIONS
J3 J4
J9 J10
J12
J13
A.C. FROM
TRANSFORMER
Lid Indicators
Green = Supply Healthy Amber = Fault
When the Green light only is illuminated, the unit is operating normally with supply to the load and the batteries (when
fitted) are receiving charge current. When the Amber light is illuminated at the same time as the Green light there is a
fault on either or both of the output supply and the charge supply. If the Green light is NOT illuminated, the mains
supply is not present or the main “overload” fuse has blown.
PCB Fuses
F.1. Battery = 5Amp quick blow F.2. = 5Amp quick blow
PCB Indicators
Amber (upper) = Short circuit fault/supply fault.
Amber (lower) = Charge output fault.
Upper indicator illuminated, is caused by either a short circuit in the wiring, or an excessive load.
Lower indicator illuminated is caused by a blown fuse (bottom) in the battery charge output (i.e. Short circuit of the
battery leads) or by output supply short circuit. It is essential the battery is not fitted “REVERSE POLARITY” as this
will cause damage to the charging circuit which may be irreparable.
Battery Connections
The typical battery types to be used are Yuasa NP12-7. Two of these in equal state of charge are required to make up
24V. The supplied leads should be used.
The batteries can be charged faster by fitting the jumper link J5 (on circuit board CUS-256B). This increases the charge
rate by 50%, but because of the 5A total power limit, care should be taken to ensure that the load does not exceed 2A
continuous.
Battery Cut-Out
During A.C. failure the system will switch to battery standby, the output voltage level will follow that of the batteries
down to approximately 19V. At this point the cut-out circuit for lead-acid battery protection will disconnect power
altogether. (circuit board CUS-256B 200 6) . Sh ould A.C. not be available when testing with healthy batteries, a
temporary short on J11 (board CUS-256B) will activate the battery cut-in to power the load. (if there is sufficient
charge in the batteries)
Fault Relay Option
The fault relay output will go from normal to fault state when A.C. power is removed or when there's a fault in the unit
as indicated by LP2. Sometimes a fault condition may show up if there are temporary excesses in the total load or if
there's a dip in the mains supply. It is advised that the load ciruit be divided and a larger power supply/charger installed
if this situation persists.
FROM BRIDGE
RECTIFIER
DOC-066a
