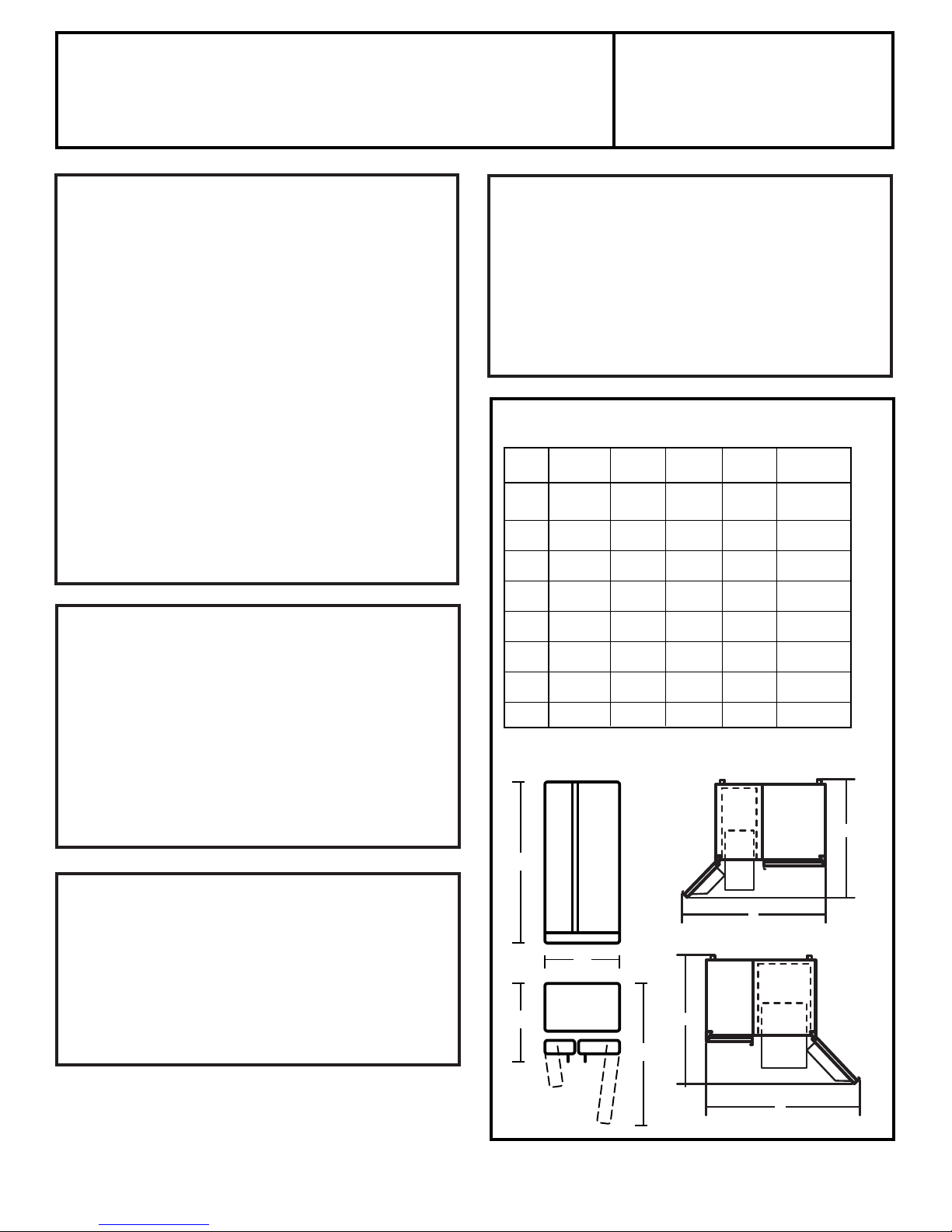

CustomCool 21, 23, 25, 27, 29 Owner's Manual And Installation

Download

200D2600P008 49-60152-1 07-01 JR

La section française commence à la page 40

La sección en español empieza en la página 74

Safety Instructions . . . . . . . . . . . .2–4

For Australia and New Zealand . . .35

Operating Instructions

Additional Features . . . . . . . . . . . . .11

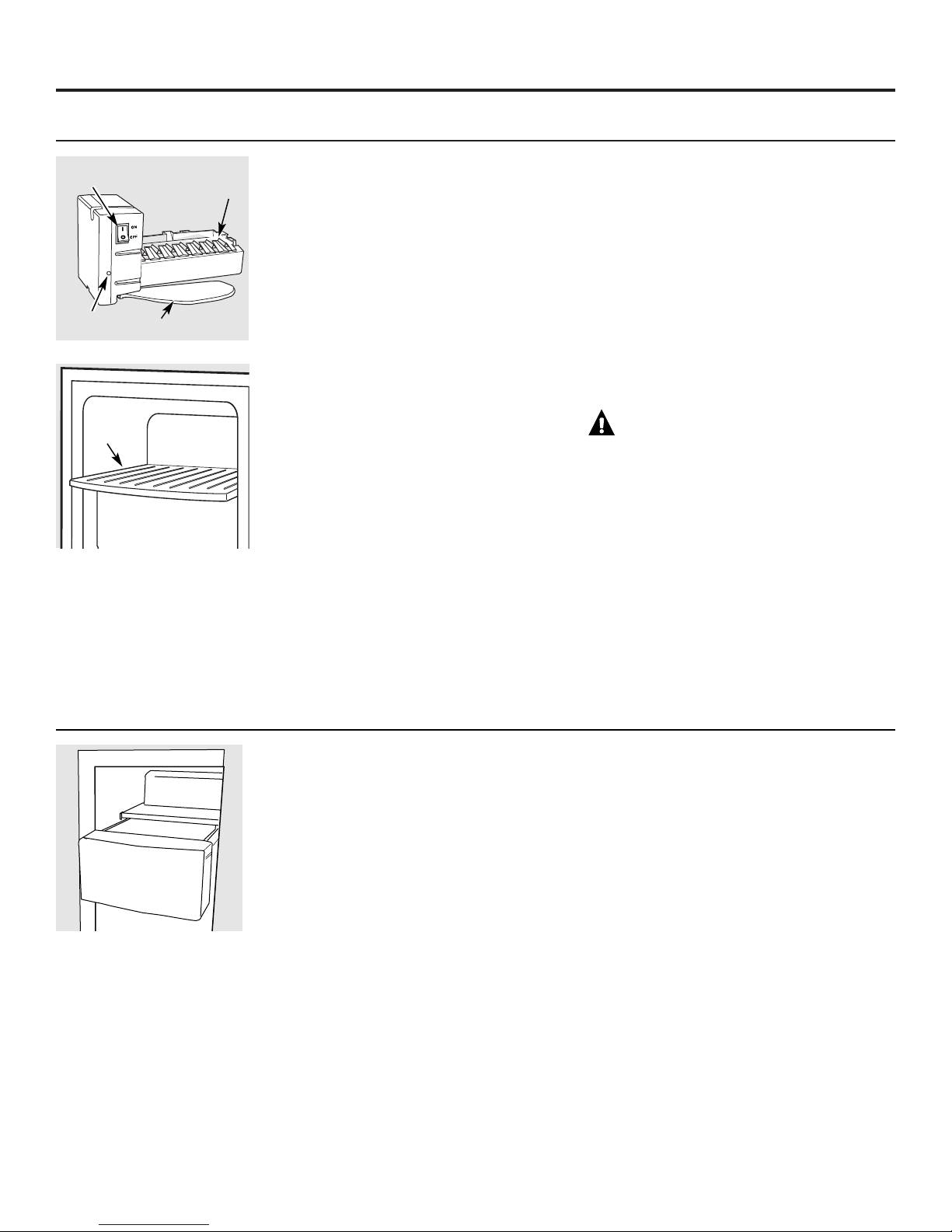

Automatic Icemaker . . . . . . . . . . . .13

Care and Cleaning . . . . . . . . . . .15, 16

Crispers and Pans . . . . . . . . . . . . . . .12

CustomCool™ . . . . . . . . . . . . . . . .6, 7

Ice and Water Dispenser . . . . . .14, 15

Refrigerator Doors . . . . . . . . . . . . . .11

Replacing the Light Bulbs . . . . . . .17

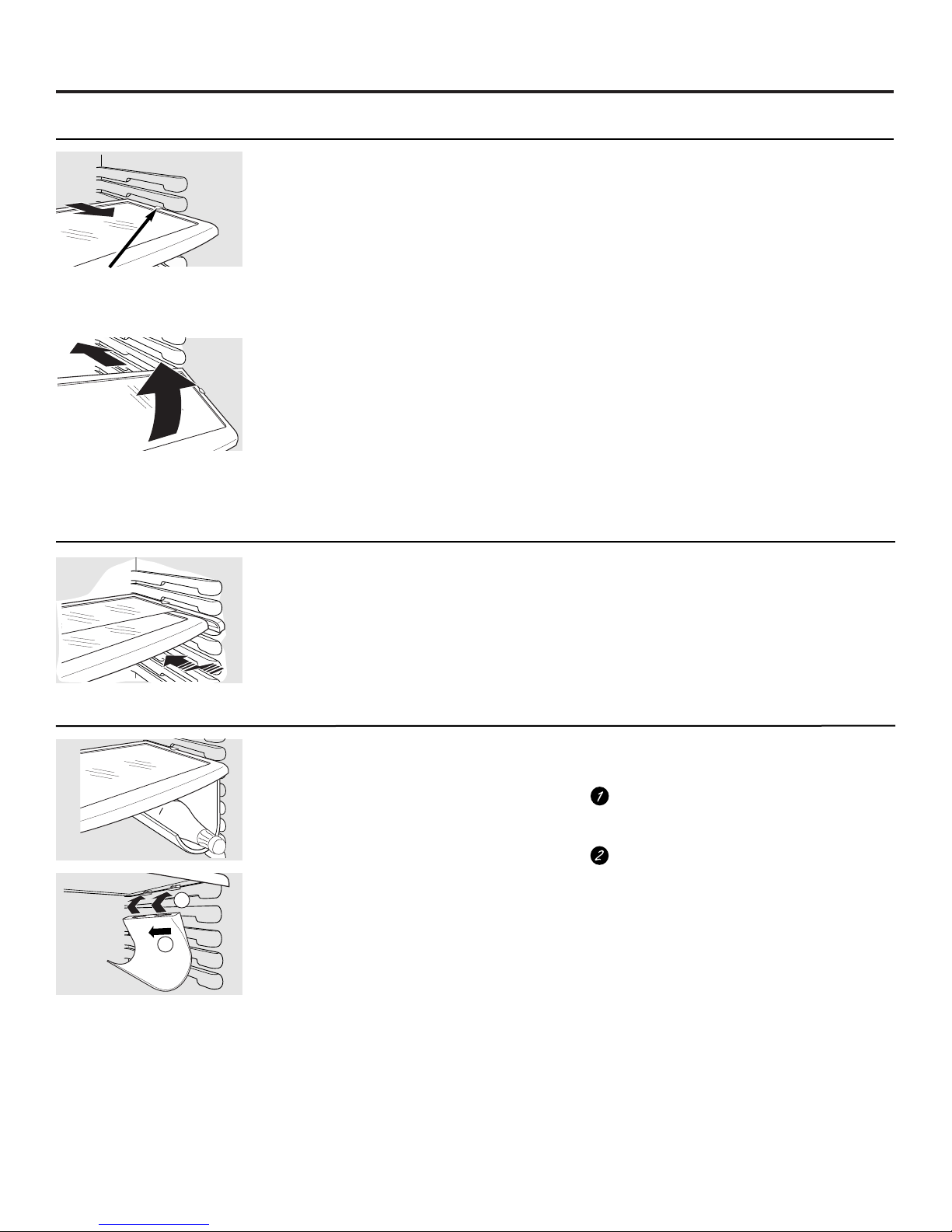

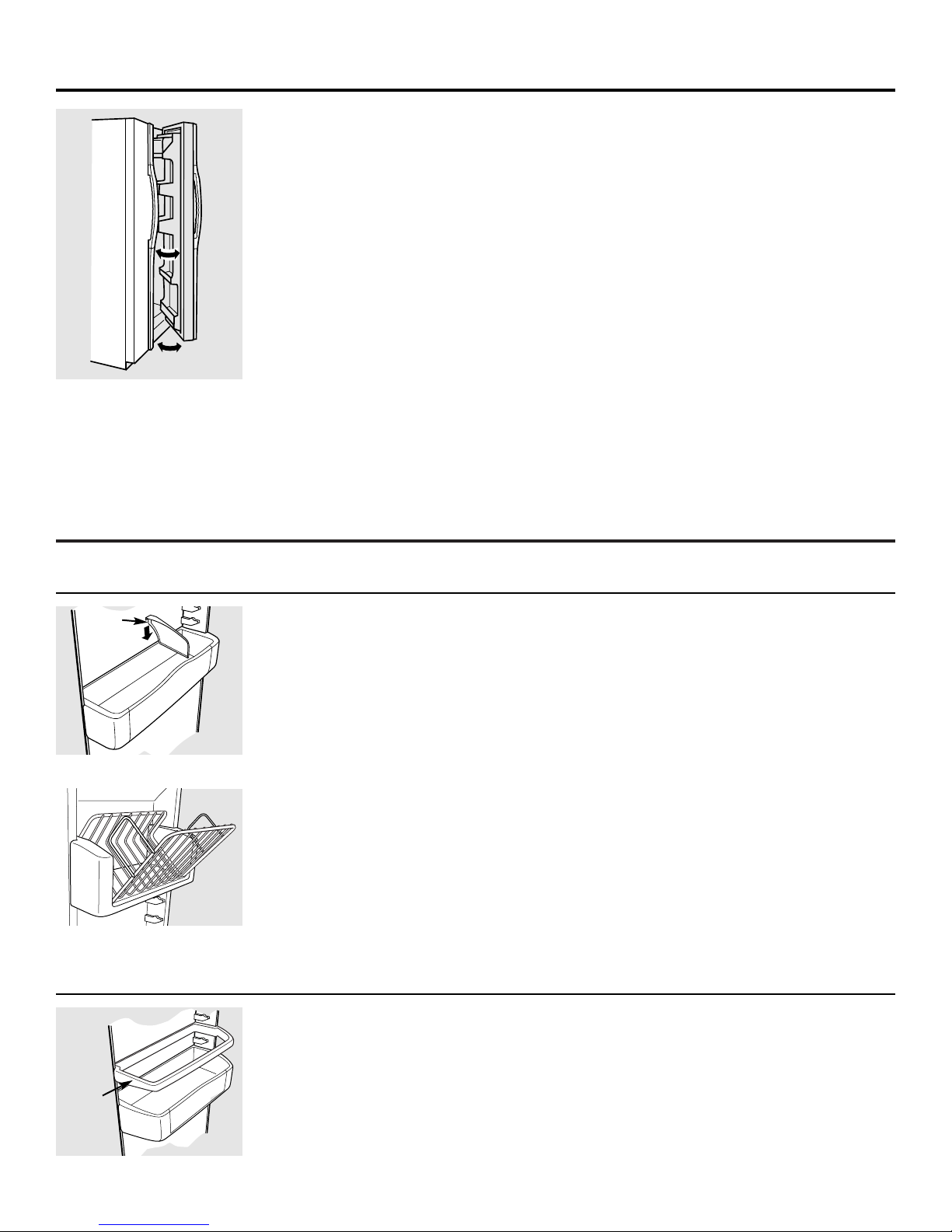

Shelves and Bins . . . . . . . . . . . . . .9, 10

Temperature Controls . . . . . . . . . . .5

Water and FreshSaver™ Filters . . . .8

Installation Instructions

For Australia and

New Zealand . . . . . . . . . . . . . . . .36–38

Preparing to Install

the Refrigerator . . . . . . . . . . . . .24, 25

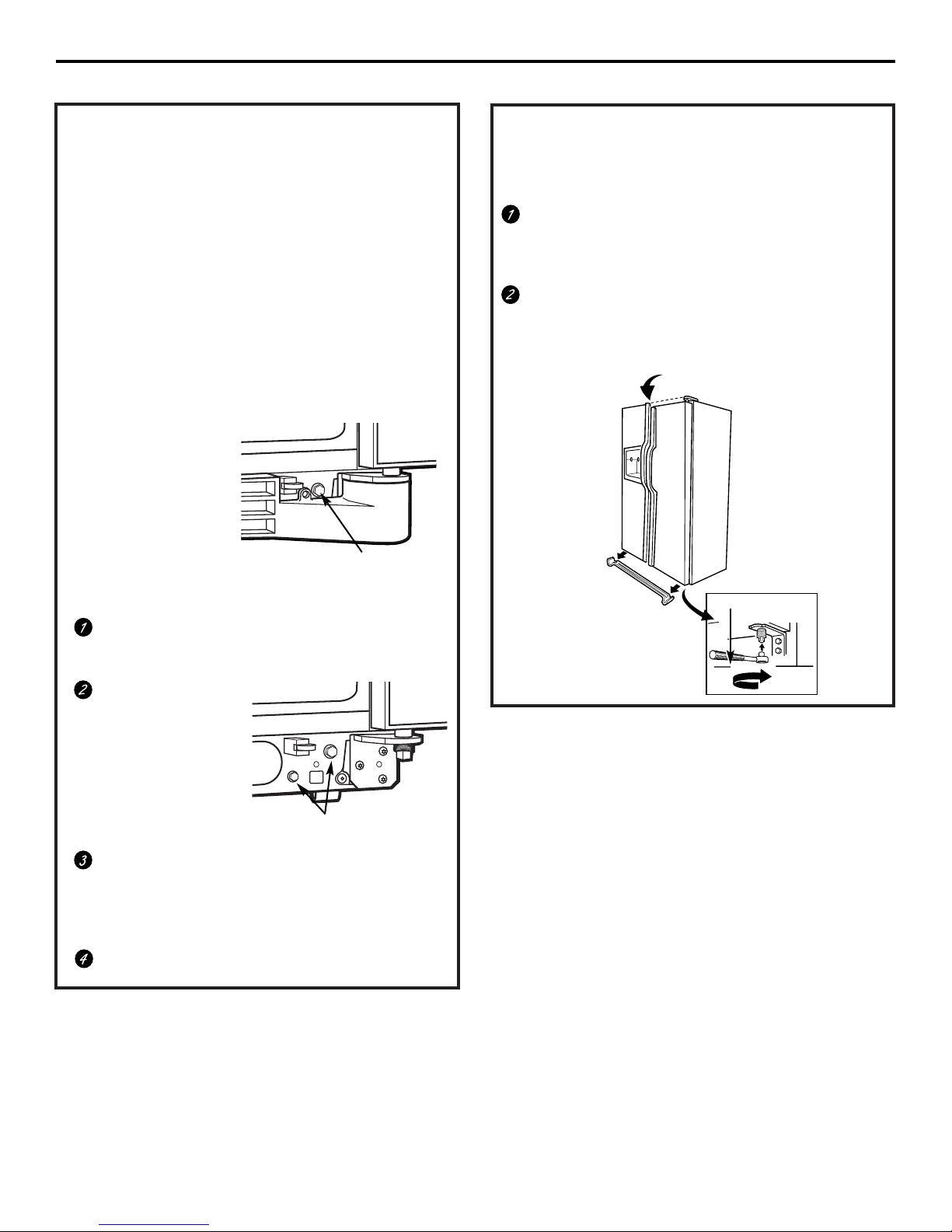

Removing and Replacing Doors . . .23

Trim Kits and Panels . . . . . . . . .18–22

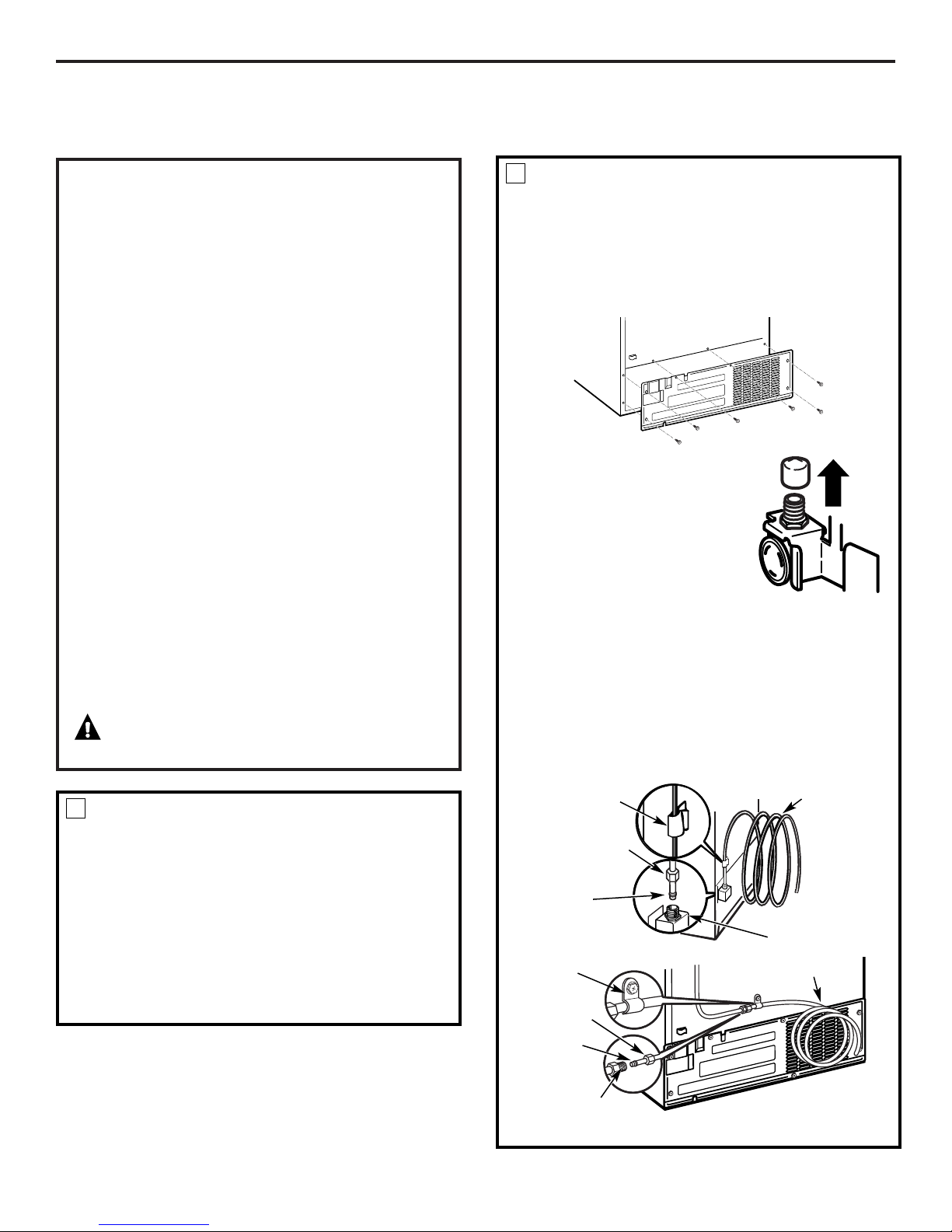

Water Line Installation . . . . . . .26–30

Troubleshooting Tips . . . . . .32–34

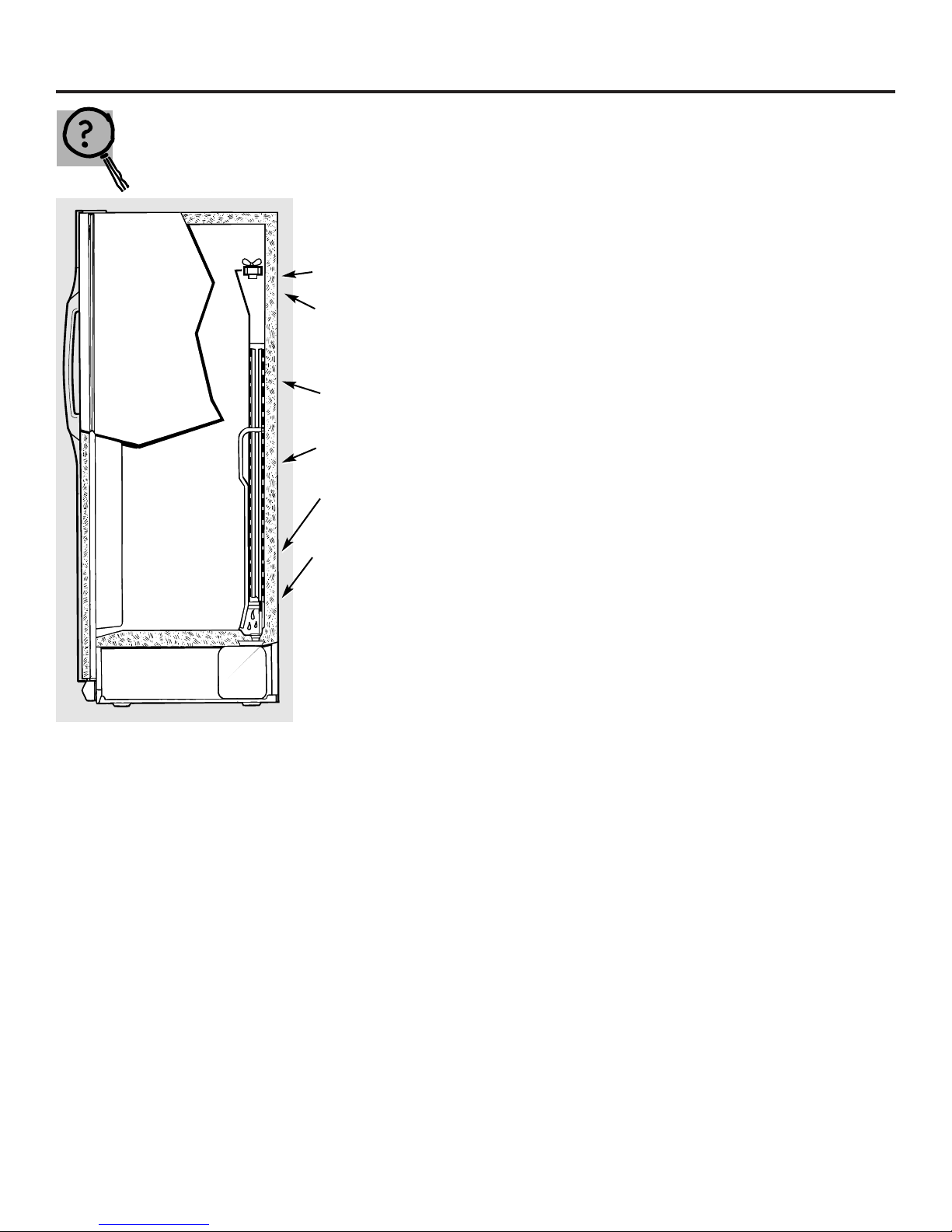

Normal Operating Sounds . . . . . . .31

Réfrigérateurs

Côte à Côte

Frigoríficos

Lado a Lado

Models 21, 23, 25, 27, and 29

Write the model and serial numbers here:

Model # __________________________

Serial # __________________________

Find these numbers on a label inside the refrigerator compartment at the top on the right.

Owner’s Manual

and Installation

Manuel d’utilisation

et d’installation

Manual del propietario

e instalación

Refrigerators

Side by Side

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

Use this appliance only for its intended purpose as described in this Owner’s Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

■

■This refrigerator must be properly installed

and located in accordance with the Installation Instructions before it is used. Also see the

How to

Connect Electricity

section.

■

■Do not attempt to stand on top of the refrigerator.

Doing so may result in bodily injury or damage to the refrigerator.

■

■Do not allow children to play with the refrigerator

or tamper with the controls.

■

■Do not allow children to climb, stand or hang on

the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

■

■Do not touch the cold surfaces in the freezer

compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.

■

■Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

■

■In refrigerators with automatic icemakers, avoid

contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the icemaker. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

■

■Installation of the icemaker must be done by

a qualified service technician.

■

■Keep fingers out of the “pinch point” areas;

clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

■

■Unplug the refrigerator before cleaning and

making repairs.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

■

Before replacing a burned-out light bulb, the refrigerator should be unplugged

in order to avoid contact with a live wire filament. (A burned-out lightbulb may break when being replaced.)

NOTE: Setting either or both controls to 0 (off) does not remove power to the light circuit.

■

■Do not refreeze frozen foods which have

thawed completely.

■

■Always clean the

CustomCool™

Tray after

thawing food.

DANGER! RISK OF CHILD ENTRAPMENT

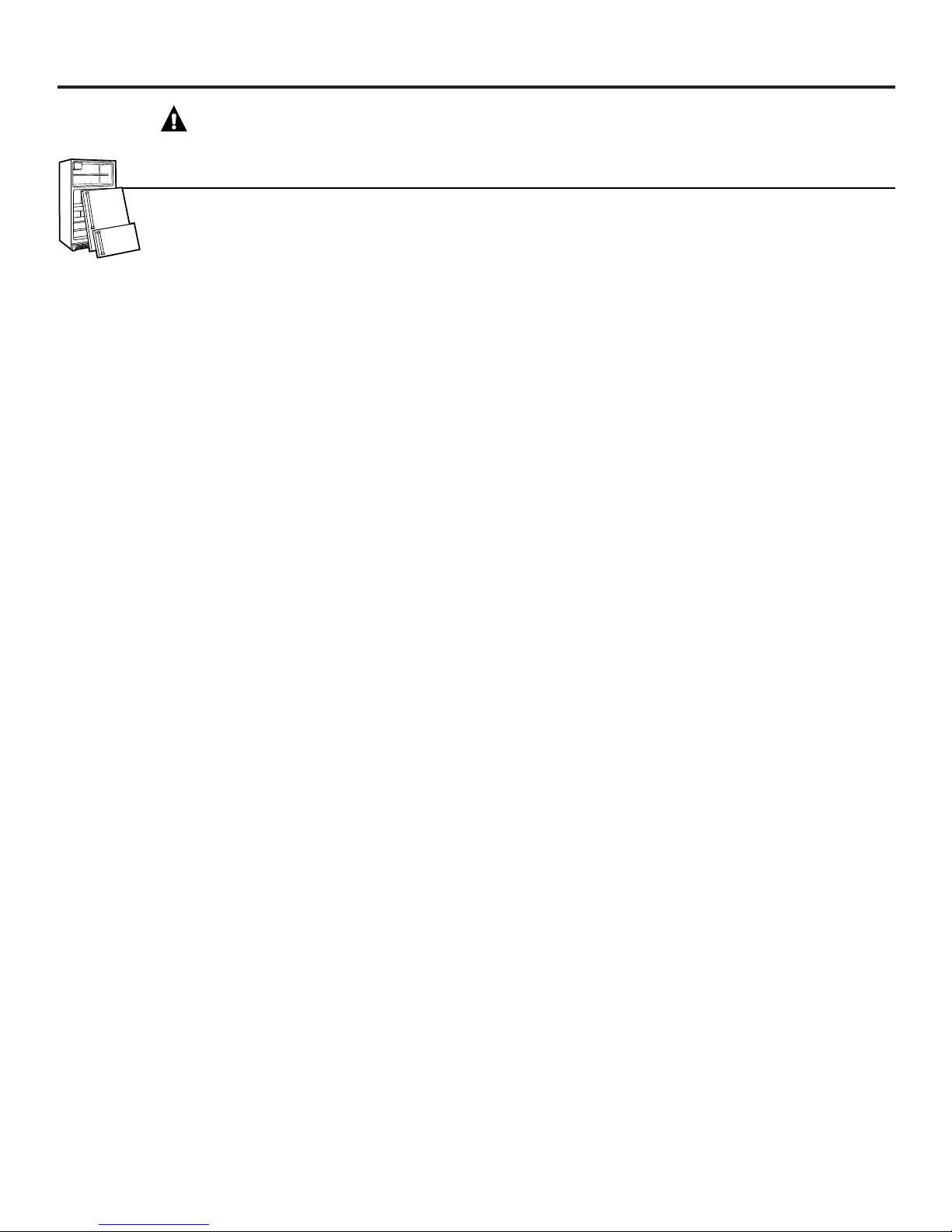

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous…even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■Take off the doors and discard separately.

■Leave the shelves in place so that children may not

easily climb inside.

■If the refrigerator has a lock, make it unusable.

CFC Disposal

Your old refrigerator may have a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone.

If you are throwing away your old refrigerator, make sure the CFC refrigerant is removed for proper disposal by a qualified servicer. If you intentionally release this CFC refrigerant you can be subject to fines and imprisonment under provisions of environmental legislation.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

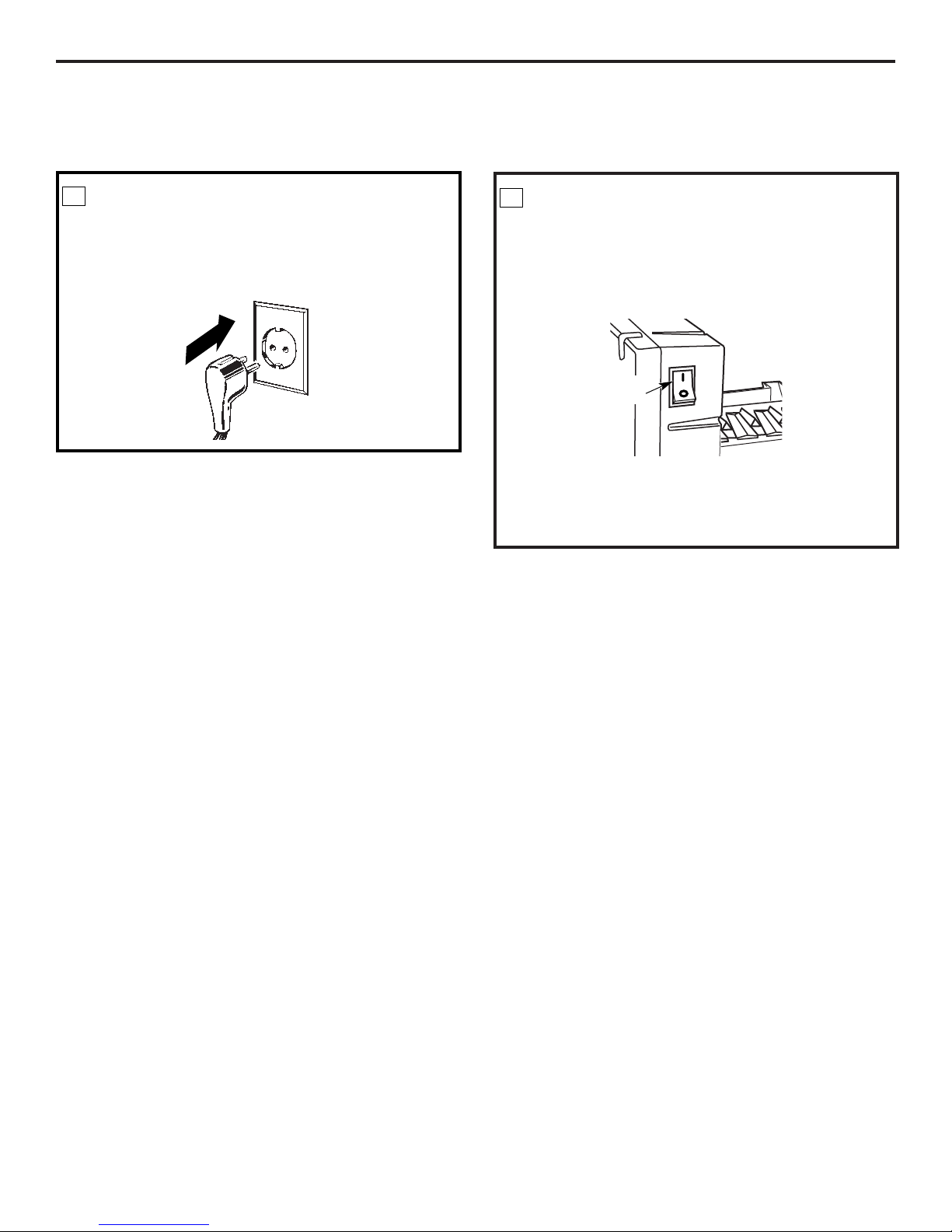

HOW TO CONNECT ELECTRICITY

The power cord of this appliance is equipped with an earthing plug which mates with a standard earthed wall outlet to minimize the possibility of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly earthed.

Where an unearthed wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly earthed wall outlet.

The refrigerator should always be plugged into its own individual electrical outlet. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. Please refer to the rating plate on the refrigerator for the correct voltage, wattage and frequency. If the product plug does not fit your outlet, the product should be fitted with a new plug.

IMPORTANT: The refitting of electric plugs and cables should be done by a qualified technician or service agent. In some countries the refitting of electric plugs and cables is only permitted when the work is completed by a qualified technician.

If the power supply cord becomes damaged, it must be replaced by a qualified service agent in order to avoid a safety hazard.

Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.

Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

Mains lead replacement

If the mains lead on your refrigerator needs replacing at any time, it must be replaced by a special lead which is obtainable from your local dealer. A charge will be made for the replacement of the mains lead if you have damaged the lead.

The refrigerator must be positioned so that the plug is accessible.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Insure proper earthing exists before using.

Earthing plug

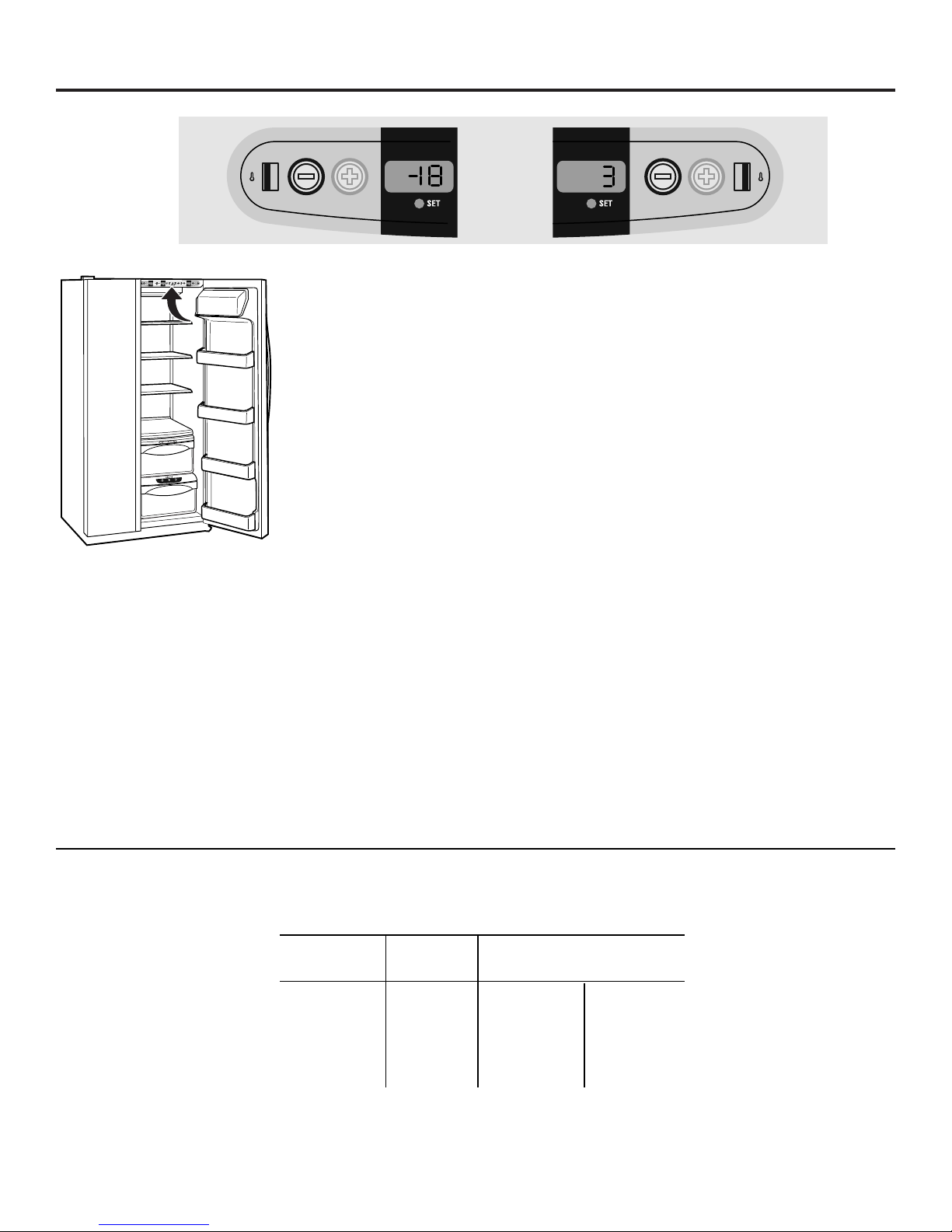

About the temperature controls on CustomCool™ models.

(for other models, see next page)

The temperature controls are preset in the factory at 3°C for the refrigerator compartment and -18°C for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.

The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.

Setting either or both controls to O (off) stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.

To change the temperature,

press and release the + or –

pad. The

SET

light will come on and the display will show the set temperature. To change the temperature, tap either the + or – pad until the desired temperature is displayed. Refrigerator temperatures can be adjusted between 1°C and 7°C and the freezer temperatures can be adjusted between -21°C and -14°C.

Once the desired temperature has been set, the temperature display will return to the actual refrigerator and freezer temperatures after 5 seconds. Several adjustments may be required. Each time you adjust controls, allow 24 hours for the refrigerator to reach the temperature you have set.

To turn the cooling system off,

tap the + pad for either

the refrigerator or the freezer until the display shows

(off).

To turn the unit back on,

press the – pad for either

the refrigerator or freezer. The

SET

light will illuminate on the side you selected. Then press the – pad again (on the side where the

SET

light is illuminated) and it

will go to the preset points of

-18°C

for the freezer and

3°C

for the refrigerator. Setting either or both controls to O (off) stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

Ambient Room Temperature Limits

This refrigerator is designed to operate in ambient temperatures specified by its Temperature Class which is marked on the rating plate.

Temperature Symbol Ambient Temperature Class Maximum Minimum

ExtendedTemperate SN 32°C 10°C

Temperate N 32°C 16°C Subtropical ST 38°C 18°C Tropical T 43°C 18°C

NOTE: Internal temperature may be affected by such factors as the location of the refrigerator, ambient temperature and frequency of door openings. Adjust temperature controls as required to compensate for these

factors.

About the temperature controls.

The temperature controls are preset in the factory at 5 for both the refrigerator and freezer compartments. allow 24 hours for the temperature to stabilize to the preset settings.

Several adjustments may be required. Each time you adjust controls, and allow 24 hours after each adjustment for the refrigerator to reach the temperature you have set.

Setting either or both controls to 0 stops cooling in both the freezer and refrigerator compartments but does not shut off electrical power to the refrigerator.

Control settings will vary based on personal preferences, usage, and operating conditions and may require more than one adjustment.

NOTE: The refrigerator is shipped with protective film covering the temperature

controls. If this film was not removed during installation, remove it now.

Ambient Room Temperature Limits

This refrigerator is designed to operate in ambient temperatures specified by its Temperature Class which is marked on the rating plate.

Temperature Symbol Ambient Temperature Class Maximum Minimum

ExtendedTemperate SN 32°C 10°C

Temperate N 32°C 16°C Subtropical ST 38°C 18°C Tropical T 43°C 18°C

factors.

Empty the pan. Place the Chill/Thaw tray in the pan with the metal plate facing down to chill and store items, or with the metal plate facing up to thaw items. Place the items on the tray and close the pan completely.

Select the

ExpressThaw™

ExpressChill™

SelectTemp™

pad. The display and

SET

light will come on. Tap the pad until the light appears next to the desired setting. Use the chart to determine the best setting to use.

■ To stop a feature before it is

finished, tap that feature’s pad until no options are selected and the display is off.

■ During

ExpressThaw™

and

ExpressChill™

, the display on the controls will count down the time in the cycle.

■ After the

ExpressThaw™

cycle is

complete, the pan will reset to the

MEAT

setting (-1°C) to help preserve

thawed items until they are used.

■ The displayed actual temperature of

the

CustomCool

pan may vary slightly

from the

SET

temperature based on

usage and operating environment.

NOTE:

For food safety reasons, it is recommended that foods be wrapped in plastic wrap when using

ExpressThaw™

. This will help contain meat juices and improve thawing performance.

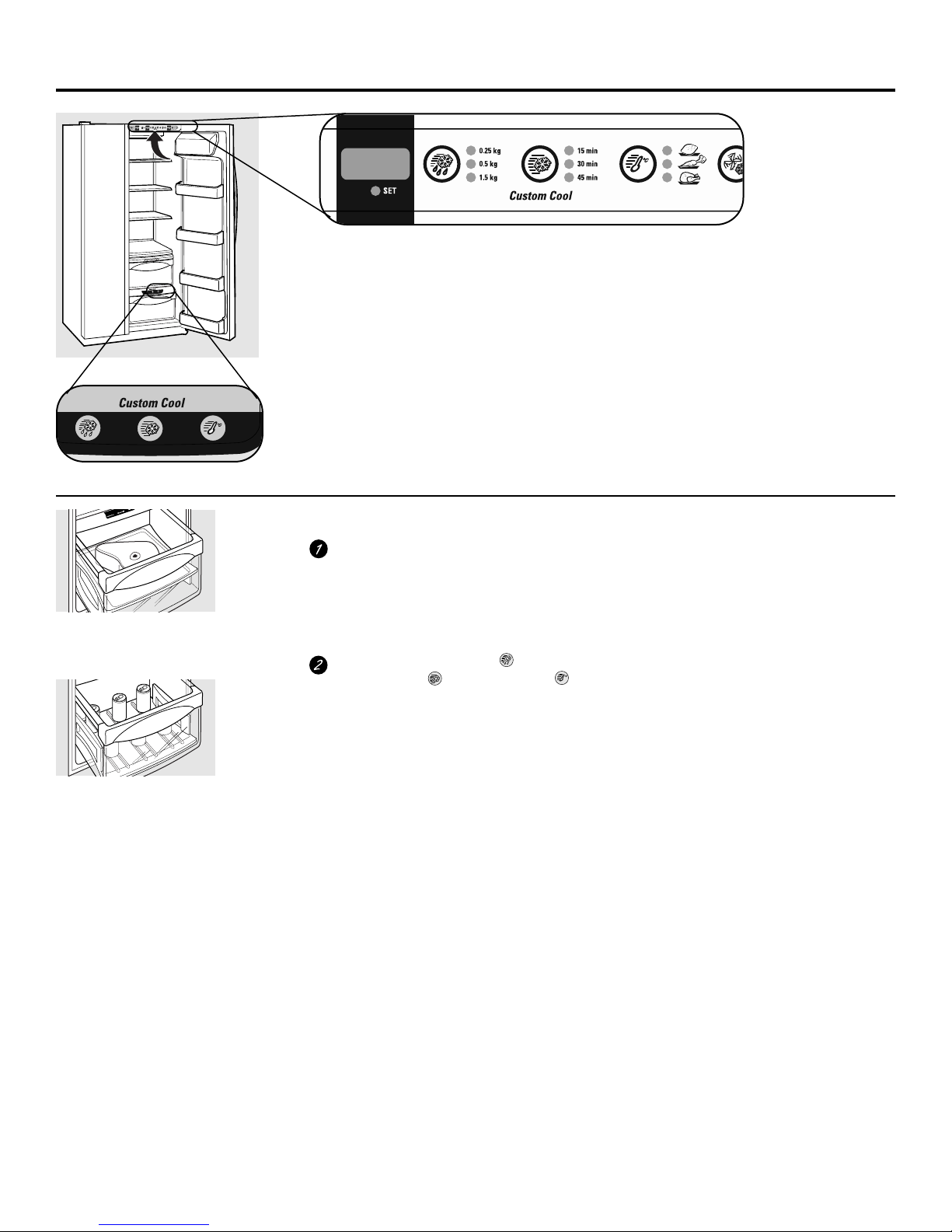

About CustomCool

™

(on some models)

The

CustomCool™

feature is a system of dampers, a fan, a temperature thermistor, and a heater. Depending on the function selected, a combination of these will be used to quickly chill items, thaw items or hold the pan at a specific temperature.

The pan is tightly sealed to prevent the pan’s temperature from causing temperature fluctuations in the rest of the refrigerator.

The controls for this pan are located at the top of the refrigerator with the temperature controls.

How to Use

How it Works

ExpressThaw™

ExpressChill™

About CustomCool

™

(on some models)

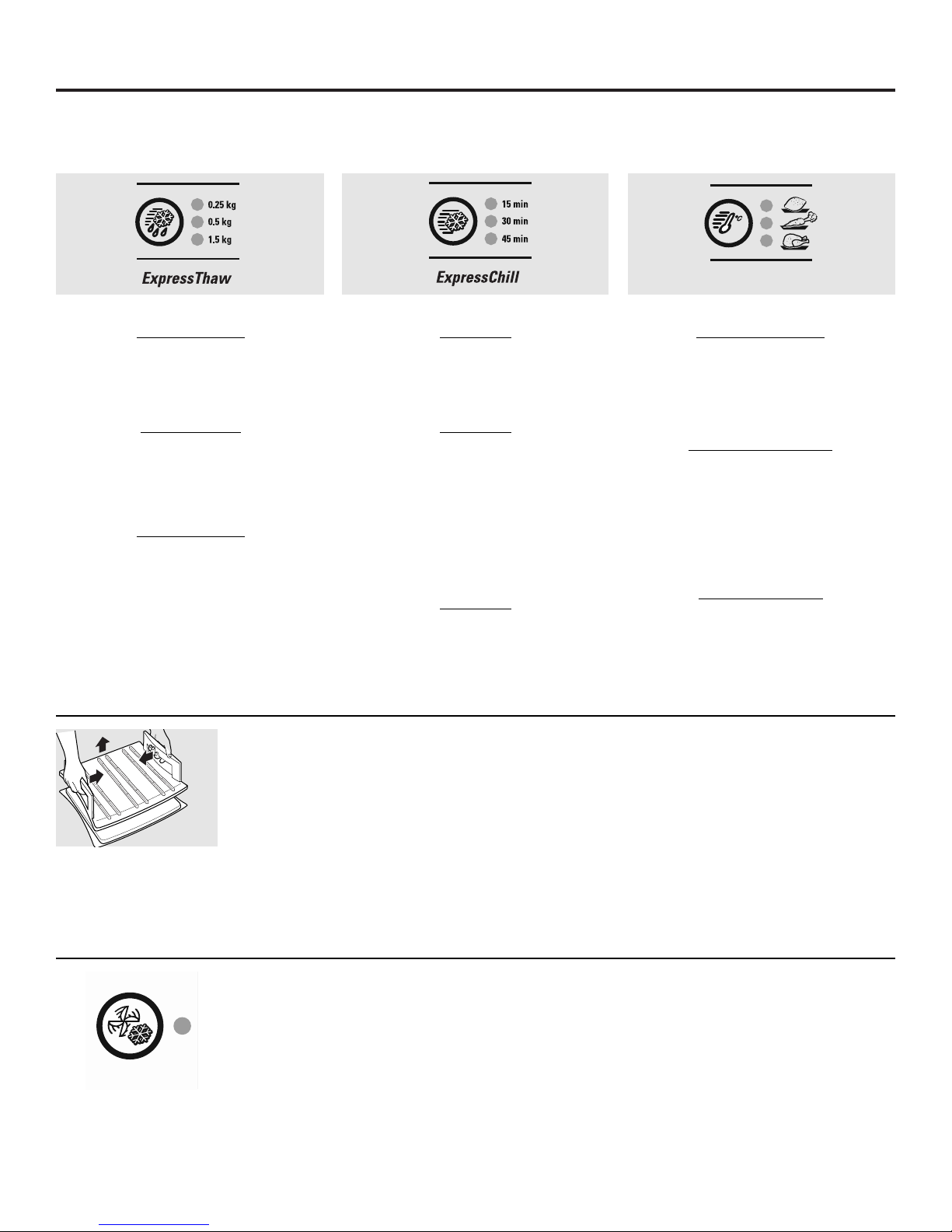

CustomCool™ Chart

NOTE: Results may vary depending on packaging, starting temperature, and other food traits.

To clean the Chill/Thaw tray,

disassemble the metal tray from the plastic stand by lightly pushing in on the handles of the plastic stand and removing the metal tray. Both the metal tray and the plastic stand are dishwasher safe.

To reassemble the tray,

place the plastic stand upside down (handles on bottom) on a solid surface. Place the metal plate on top of the stand matching up the curved side of the plate with the curved side of the stand. Insert one side of the plate into the notches on the stand. Push in on the handle on the other side of the stand while pushing that end of the plate down and into place. You should hear the plate “click” into place.

About the CustomCool™ Pan Rack and Tray

Disassembling the

Chill/Thaw

tray

0.25 kg (4 hours)

■ Hamburgers (0.2 kg)

■ Individually Wrapped

Filet Mignon (0.2 kg)

0.5 kg (8 hours)

■ Chicken Breasts (0.7 kg)

■ Minced Beef (0.7 kg)

■ Steak (0.7 kg)

1.5 kg (12 hours)

■ Chicken Breasts (1.4 kg)

■ Minced Beef (1.4 kg)

■ Steak (1.4 kg)

15 Minutes

■ 1 Beverage Can (355 ml)

■ 2 Small Juice Boxes

(175–240 ml each)

30 Minutes

■ 2 to 6 Beverage Cans (355 ml each)

■ 2 Plastic 590 ml Bottles of Beverage

■ 4 to 6 Small Juice Boxes

(175–240 ml each)

■ 3 Foil Juice Packets

■ Wine (750 ml bottle)

45 Minutes

■ 2 Liter of Beverage

■ 1.9 Liters of Juice

■ Gelatin – 1 package

Citrus Setting (6°C)

■ Oranges, Lemons, Limes, Pineapple,

Cantaloupe

■ Beans, Cucumbers, Tomatoes,

Peppers, Aubergine, Squash

Produce Setting (1°C)

■ Strawberries, Raspberries, Kiwifruit,

Pears, Cherries, Blackberries, Grapes, Plums, Nectarines, Apples

■ Asparagus, Broccoli, Corn,

Mushrooms, Spinach, Cauliflower, Kale, Green Onion, Beetroot, Onions

Meat Setting (-1°C)

■ Raw Meat, Fish and Poultry

When you need the refrigerator cooled in a hurry, press this pad to cool the refrigerator at the maximum rate. This feature will continue to operate for eight hours after being activated.

Turbo Cool

SelectTemp

About the water and FreshSaver™filters.

Water Filter Cartridge

(on some models)

The water filter cartridge is located in the back upper right corner of the refrigerator compartment.

When to Replace the Filter

There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.

The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.

Installing the Filter Cartridge

If you are replacing the cartridge, first remove the old one by slowly turning it to the left.

Do not

pull down on the cartridge.

A small amount of water may drip down.

Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.

Lining up the arrow on the cartridge and the cartridge holder, place the top of the new cartridge up inside the holder.

Do not

push it up into the holder.

Slowly turn it to the right until the filter cartridge stops.

DO NOT OVERTIGHTEN.

As you turn the cartridge, it will automatically raise itself into position. Cartridge will rotate about 1/4 turn.

Run water from the dispenser for 3 minutes (about six liters) to clear the system and prevent sputtering.

Press and hold the

RESET WATER FILTER

pad

on the dispenser for 3 seconds.

NOTE:

A newly-installed water filter cartridge

may

cause water to spurt

from the dispenser.

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.

Replacement Filters:

To order additional filter cartridges, contact your local distributor.

Place the top of the cartridge up inside the cartridge holder and slowly turn it to the right.

Filter Bypass Plug

Cartridge Holder

FreshSaver™Filter

(on some models)

This filter is located inside the fresh produce drawer. The filter should last approximately eight years.

About the shelves and bins.

Refrigerator Door Bins and Freezer Door Tilt-Out Bins

Large Bins

The larger refrigerator door bins and freezer tilt-out door bins are adjustable.

To remove:

Lift the front of the bin straight up,

then lift up and out.

To replace or relocate:

Engage the back side of the bin in the molded supports of the door. Then push down on the front of the bin. Bin will lock in place.

Small Bins

To remove:

Lift the front of the bin straight up

then out.

To replace:

Position the bin above the rectangular molded supports on the door. Then slide the bin down onto the support to lock it in place.

The snugger

helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the snugger near the rear and move it back and forth to fit your needs.

Not all features are on all models.

Refrigerator bin

Freezer tilt-out bin

Snugger

Bottle Retainer

The bottle retainers are adjustable and keep tall items from tipping over.

To remove:

Lift the front of the retainer straight

up, then lift it up.

To replace or relocate:

Engage the back of the bottle retainer in the molded supports on the door. Then push down on the front of the bottle retainer.

Bottle retainer

About the refrigerator doors.

Refrigerator Doors

The refrigerator doors may feel different than the ones you are used to. The special door opening/closing feature makes sure the doors close all the way and are securely sealed.

When opening and closing the door you will notice a

stop

position. If the door is opened past

this

stop

point, the door will remain open to allow you to load and unload food more easily. When the door is only partially open it will automatically close.

The resistance you feel at the

stop

position will

be reduced as the door is loaded with food.

When the door is only partially open it will automatically close.

Beyond this stop the door will stay open.

About the shelves and bins.

Not all features are on all models.

QuickSpace™Shelf

This shelf splits in half and slides under itself for storage of tall items on the shelf below.

This shelf can be removed and replaced or relocated just like Slide-Out Spillproof Shelves.

On some models, this shelf can not be used in the lowest position.

Slide-Out Spillproof Shelf

The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.

To remove:

Slide the shelf out until it reaches the stop, then press down on the tab and slide the shelf straight out.

To replace or relocate:

Line the shelf up with the supports and slide it into place. The shelf can be repositioned when the door is at 90° or more. To reposition the shelf, slide the shelf past the stops and angle downward. Slide shelf down to the desired position, line up with the supports and slide into place.

Make sure you push the shelves all the way back in before you close the door.

Press tab and pull shelf forward to remove

Removable Beverage Rack

The beverage rack is designed to hold a bottle on its side. It can be attached to any slide-out shelf.

To install:

Line up the large part of the slots on the top of the rack with the tabs under the shelf.

Then slide the rack back to lock it in place.

About the shelves and bins.

Slide-Out Freezer Shelves

To remove,

slide out to the

stop

position, lift the

front past the stop position, and slide out.

Make sure you push the shelves all the way back in before you close the door.

Deep Freezer Baskets

To remove,

push the basket all the way to the back of the freezer. Lift up until the back pins are disengaged. Lift the entire basket up and pull out.

Make sure you push the baskets all the way back in before you close the door.

WARNING: Poor performance may occur if freezer baskets are not used. Storage of items in the freezer without using baskets may result in poor temperature performance due to restrictions of air flow within the freezer compartment.

Fixed Freezer Shelves

To remove,

lift the shelf up at the left side and then bring the shelf out.

Not all features are on all models.

Freezer Baskets

To remove

, slide out to the

stop

position, lift the

front past the stop position, and slide out.

Make sure you push the baskets all the way back in before you close the door.

Loading the Freezer Compartment

Load so that at least 15 mm of space remains clear between stacks of packages and 15 mm to 25 mm of space between the top of any stack and any shelf or basket above it. Packages may hang over the front of shelves but must remain 15 mm from doors.

■Food to be frozen must not be placed

in direct contact with food in storage. If food is to be frozen every day, it may be necessary to reduce the quantity to be frozen.

■If a quantity of food needs to be frozen,

set the freezer control to its coldest setting. After the food is frozen, reset the freezer control to its initial position.

■Food is most quickly frozen on the middle

three shelves of the freezer compartment and most slowly in the freezer door shelves.

■Do not store commercially quick-frozen

food longer than the time recommended by the food manufacturers.

■If the power to the appliance is shut off for

an extended time or if the refrigerating system fails, do not open the doors unless absolutely necessary. When it is necessary, close them as quickly as possible so the frozen food will stay frozen as long as possible.

■The freezer door storage shelves marked

with a two-star label are only appropriate for the storage of previously frozen food.

Effervescent drinks should not be stored in the freezer compartment.

Freezer Performance

This Refrigerator/Freezer has an overall “Four Star” rating.

Freezer performance is classified by star ratings defined by ISO 8561 STANDARD AND SUMMARY BELOW:

However, these limited areas have a two star rating as permitted by the standard:

CODE

FREEZING–LOAD TEMP. (FOOD TEMPERATURE)

Below -6°C.

Below -12°C.

Below -18°C.

Models Location of Freezer Shelves

21, 23 with Bottom freezer basket and bottom dispenser 2 door shelves, top freezer door shelf.

25 with Shelf above the ice bucket, top freezer dispenser door shelf and bottom 2 door shelves.

25 without Shelf above the ice bucket, top freezer dispenser door shelf and bottom 2 door shelves.

27 with Shelf above the ice bucket, top freezer dispenser door shelf and bottom 2 door shelves.

29 with Bottom 2 freezer door shelves. dispenser

About the freezer compartment.

About crisper removal.

Not all features are on all models.

Crisper Removal

Crispers can easily be removed by pulling the drawer straight out and lifting the drawer up and over the

stop

location.

If the door prevents you from taking out the drawers, first try to remove the door bins. If this does not offer enough clearance, the refrigerator will need to be rolled forward until the door opens enough to slide the drawers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out.

About the crispers and pans.

Not all features are on all models.

Fruit and Vegetable Crispers

Excess water that may accumulate in the bottom of the drawers should be wiped dry.

On some models

the bottom drawer has a cover that slides back as the drawer is opened. This allows full access to the drawer. As the drawer is closed, the cover will slide forward into its original position.

Adjustable Humidity Crispers

Slide the control all the way to the (high) setting to provide high humidity recommended for most vegetables.

Slide the control all the way to the (low) setting to provide lower humidity levels recommended for most fruits.

Convertible Meat Pan

The convertible meat pan has its own cold air duct to allow a stream of cold air from the freezer compartment to flow to the pan.

The variable temperature control

regulates the air

flow from the Climate Keeper™.

Set the control to the (coldest) setting to store fresh meats.

Set the control to (cold) to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. The cold air duct is turned off. Variable settings between these extremes can be selected.

About the automatic icemaker.

A newly-installed refrigerator may take 12 to 24 hours to begin making ice.

Automatic Icemaker

The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

To access the icemaker:

Pull the shelf above the ice drawer straight out. Always be sure to replace the shelf.

If the refrigerator is operated before the water connection is made to the icemaker, set the power switch in the O position.

When the refrigerator has been connected to the water supply, set the power switch to the

position.

The icemaker will fill with water when it cools to –10°C. A newly-installed refrigerator may take 12 to 24 hours to begin making ice cubes.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the feeler arm.

When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will become cloudy, taste stale and shrink.

If ice cubes get stuck in the icemaker, the green power light will blink. To correct this, set the power switch to Oand remove the cubes. Set the power switch to Ito restart the icemaker. After the icemaker has been turned on again, there will be a delay of about 45 minutes before the icemaker resumes operation.

NOTE: In homes with lower-than-average water pressure, you may hear the icemaker cycle multiple times when making one batch of ice.

WARNING:

Connect to potable water

supply only. Installation of the icemaker must be

done by a qualified service technician.

Pull the upper freezer shelf straight out to access the icemaker. Always be sure to replace the shelf. The shelf can be used for storage.

Ice Storage Drawer

To access ice,

pull the drawer forward.

To remove the drawer,

pull it straight out and lift

it past the

stop

location.

Icemaker

Feeler Arm

Power Switch

Green Power Light

Ice Drawer

Shelf

Important Facts About Your Dispenser

■Do not add ice from trays or bags to

the storage drawer. It may not crush or dispense well.

■Avoid overfilling glass with ice and use of

narrow glasses. Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.

■Beverages and foods should not be

quick-chilled in the ice storage drawer. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.

■To keep dispensed ice from missing

the glass, put the glass close to, but not touching, the dispenser opening.

■Some crushed ice may be dispensed even

though you selected

CUBED ICE.

This happens occasionally when a few cubes accidentally get directed to the crusher.

■After crushed ice is dispensed, some water

may drip from the chute.

■Sometimes a small mound of snow will form

on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.

CAUTION: Some products such as water ices should not be consumed too cold.

About the ice and water dispenser

(on some models)

To Use the Dispenser

Select

CUBED ICE , CRUSHED ICE

WATER .

Press the glass gently against the top of the dispenser pad/cradle.

The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly.

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser pad/cradle for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.

CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.

Locking the Dispenser

(on some models)

Press the

LOCK CONTROL

pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.

Dispenser Light

(on some models)

This pad turns the

night

light

in the dispenser on and off. The light also comes on when the dispenser pad/cradle is pressed. If this light burns out, it should be replaced with a 6 watt 12V maximum bulb.

Door Alarm

(on some models)

To set the alarm, press this pad until the indicator light comes on. This alarm will sound if either door is open for more than 3 minutes. The light goes out and the beeping stops when you close the door.

Spill Shelf

Care and cleaning of the refrigerator.

Cleaning the Outside

The dispenser drip area,

beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.

The dispenser pad/cradle (on dispenser models)

. Before cleaning, open the freezer door part way to prevent dispensing of ice or water when cleaning. On models with a dispenser pad, the pad can be removed before cleaning. Simply peel the pad away from the back of the dispenser. Clean the pad/cradle with a warm water and baking soda solution–about 15 ml of baking soda to 1 liter of water. Rinse thoroughly and wipe dry.

The door handles and trim.

Clean with a cloth dampened with soapy water. Dry with a soft cloth.

Keep the outside clean.

Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

Cleaning the Inside

To help prevent odors,

leave an open box of baking soda in the refrigerator and freezer compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution— about 15 ml of baking soda to one liter of water. This both cleans and neutralizes odors. Rinse and wipe dry.

Use of any cleaning solution other than that which is recommended, especially those that contain petroleum distillates, can crack or damage the interior of the refrigerator.

Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter.

Do not wash any plastic refrigerator parts in the dishwasher.

Ice Storage Drawer on Dispenser Models

To remove:

Set the icemaker power switch to the

0 (off)

position. Pull the drawer straight out and then lift past the

stop

position.

To replace:

When replacing the drawer, be sure to press it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the drawer back again.

Rotate

Drive Mechanism

Dispenser drip area.

Removing the dispenser pad (on some models)

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of 15 ml of baking soda to 1 liter of water. Leave the doors open.

Set the icemaker power switch to the 0 position and shut off the water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified servicer drain the water supply system to prevent serious property damage due to flooding.

Care and cleaning of the refrigerator.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line.

Preparing for Vacation

Preparing to Move

Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator.

Be sure the refrigerator stays in an upright position during moving.

Replacing the light bulbs.

Setting the controls to O (off) does not remove power to the light circuit.

Refrigerator Compartment—Upper Light

Unplug the refrigerator.

The bulbs are located at the top of the compartment, inside the light shield. Remove the screw at the front of the light shield.

To remove the light shield, press in on the tabs on the sides of the shield and slide forward and out.

After replacing the bulb with an appliance bulb of the same or lower wattage, replace the light shield and screw. When replacing the light shield, make sure that the tabs at the back of the shield fit into the slots at the back of the light shield housing.

Plug the refrigerator back in.

Refrigerator Compartment—Lower Light

This light is located above the top drawer.

Unplug the refrigerator.

Remove the convertible meat drawer control knob by pulling straight out.

Lift the light shield up and pull it out.

After replacing the bulb with an appliance bulb of the same or lower wattage, replace the shield and the knob.

Plug the refrigerator back in.

Freezer Compartment

Unplug the refrigerator.

Remove the shelf just above the light shield. (The shelf will be easier to remove if it is emptied first.) On some models, a screw at the top of the light shield will need to be removed.

To remove the light shield, press in on the sides, and lift up and out.

Replace the bulb with an appliance bulb of the same or lower wattage, and reinstall the light shield. When reinstalling the light shield, make sure the top tabs snap securely into place. Replace the screw (on some models).

Reinstall the shelf and plug the refrigerator back in.

Dispenser

Unplug the refrigerator.

The bulb is located on the dispenser under the control panel. Remove the lightbulb by turning it counterclockwise.

Replace the bulb with a bulb of the same size and wattage.

Plug the refrigerator back in.

Tabs

Trim kits and decorator panels.

Read these instructions completely and carefully.

Before You Begin

Some models are equipped with trim kits that allow you to install door panels.

Panels less than 6 mm thick

When installing wood panels less than 6 mm thick, you need to create a filler panel, such as 3 mm cardboard, that will fit between the face of the door and the wood panel. If you are installing the pre-cut decorator panels, pre-cut filler panels are included in the kit. The combined thickness of the decorator or wood panel and the filler panel should be 6 mm.

For Built-In Style models

19 mm or Raised Panel

A raised panel design screwed or glued to a 6 mm thick backing, or a 19 mm routed board can be used. The raised portion of the panel must be fabricated to permit clearances of at least 5.1 cm from the handle side for fingertip clearance.

Panels thicker than 6mm, up to 19 mm max, will require that the outer 8 mm of panel perimeter be no thicker than 6 mm.

Weight limitations for custom panels: Refrigerator Door 17 kg max. Freezer Door 13 kg max.

5.1 cm Clearance Handle Side

Appearance Panel

Refrigerator Door

6 mm Thick Backing

19 mm

Panels 6 mm thick or less

Panels thicker than 6 mm

6 mm max

19 mm

8 mm

The areas at the top of the panels need to be cut out of the panels. The shaded areas indicate areas that must be routed out about 4 mm on the back side of panels 6 mm thick or more. For panels less than 6 mm thick, these areas can be cut out of the filler panels.

Example of Routing

6 mm

4 mm

2.9 cm

Front

Depth of material to be routed out

Freezer Panel Without Dispenser

Freezer Panel With Dispenser

Refrigerator Panel

Cut out

8 mm

2.5 cm

2.9 cm

6.4 cm

5.2 cm

28.6 cm

36.8 cm

95.6 cm

170.9 cm

3 mm

FRONT

8 mm

2.5 cm

10.3 cm

2.9 cm

6.4 cm

5.2 cm

28.6 cm

45.4 cm

36.8 cm

85.4 cm

3 mm

Cut out

FRONT

8 mm

2.5 cm

5.2 cm

28.6 cm

95.6 cm

170.9 cm

3 mm

Cut out

49.5 cm

FRONT

Dimensions for Custom Wood Panels

Inserting the door panels.

Loosen the Top Trim on the Freezer and Refrigerator Doors.

Using a T-20 Torx driver, loosen the two screws attaching the Top Trim about 6 mm.

Insert the Freezer Panel and Refrigerator Panel.

Lift the Top Trim up 6 mm and carefully push the freezer panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel. Repeat for refrigerator panel.

If your model has a dispenser and/or a Refreshment Center, this step only applies to the top panels.

Insert the Bottom Panel.

Carefully push the panel in until it slides into the slot behind the door handle. Push the filler panel (required with some door panels) in behind the decorator panel.

Hand tighten the two screws on the Top Trim.

Cut-Out

Top Trim Screws

Top Freezer Panel

Bottom Freezer Panel

Tape Liner

Side Trim

Refrigerator Panel

Read these instructions completely and carefully.

Install the Side Trim.

These pieces are tucked inside the refrigerator door handle.

Do not remove the protective film on the outside of the Side Trim until the Side Trim is installed.

Fit the bottom of the Side Trim under the Bottom Trim as illustrated.

Hold the Side Trim against the front face of the decorator panels and fit the Side Trim under the Top Trim. Make sure the Side Trim is fitted correctly and that you are satisfied with the appearance of all the parts before pulling the tape liner.

Secure the Side Trim.

Place one hand between the two pieces of tape liner and hold the Side Trim firmly against the panels and the side of the door.

Pull the top tape liner up about 80 mm, pressing the trim with your hand as the adhesive is exposed to the door. Then pull the bottom tape liner down about 80 mm. Follow the tape with your hand, pressing the trim adhesive against the door.

Continue pulling the tape liner loose, alternating between the top and bottom and pressing the Side Trim against the door.

Remove the Protective Film From the Outside of the Side Trim.

Side Trim

Bottom Trim

Tape Liner

Top Trim

Installing and removing previously installed decorator panels.

Removing the Handles

In order to remove the decorator panels and replace with new panels you need to remove the handles. A T-20 Torx driver is needed.

Loosen and remove the 2 screws in the Top Trim.

Loosen and remove the 2 screws in the bracket that attaches the Handle to the top of the Door.

Grip the Handle firmly and slide upwards. The keyhole slots on the Handle slide off the buttons on the door.

Open the door and slide out the decorator panels.

Read these instructions completely and carefully.

Top Trim Screws

Bracket Screws

Slots

Slot

Button

Buttons

Bracket

Inserting the Door Panels

Before installing the decorator panels, make sure they have been routed out in the proper areas as shown in the beginning of this section. Slide in the panels to perform a trial fit before fastening down the Handle and Top Trim.

Slide the keyhole slots on the Handle down onto the buttons mounted to the face of the door. Slide the Handle downward until the bracket at the top of the Handle fits flush on the top of the door.

Replace the two screws in the bracket that attach the Handle to the top of the Door and tighten the screws to 5.1 N-m torque.

Replace the Top Trim making sure it fits over the Side Trim and that the locating tabs fit the inside of the Handle profile.

Replace the Top Trim screws and tighten to

3.4 N-m torque.

Installing the Handles

Once the panels are fitted properly, install the Handle and Top Trim.

Removing and replacing the doors.

When installing or moving the refrigerator, the doors may need to be removed in order to fit the refrigerator through a doorway.

Removing the Doors

Make sure the doors are closed and the refrigerator is unplugged.

Disconnect water line and wiring harness.

Near the lower hinge on the freezer side, push in on the collars at each end of the coupling, and pull the water line tubing from the coupling. Also, disconnect wiring harness. Pull the water line and the harness through the lower rail.

Remove the hinge covers and the hinges.

In order to access the hinges, the hinge covers need to be removed. Remove the cover by grasping it on the sides, near the back of the cover. Push back on the cover and lift up at the back, then the front.

NOTE: DO NOT use a screwdriver to remove the cover. BE CAREFUL not to break the rear retaining tab on the hinge cover. Remove the hinges using a Torx T-20.

Remove the doors.

Carefully rotate the door to 90°. Guiding the disconnected water line and wiring harness, lift the door straight up.

NOTE: Not lifting the door straight up may damage the bottom hinge. Place doors on a protected surface.

NOTE: Be careful not to pinch the water tubing and the wire harness at the bottom of the door.

NOTE: Do not allow the connector to contact the floor. Hard contact can damage the connector. See “Replacing the Doors.”

Replacing the Doors

Place doors on bottom hinges.

With the door at 90°, lower the door straight down onto the bottom hinge. Carefully close the door.

NOTE: Not lowering the door straight down onto the bottom hinge may damage the hinge.

NOTE: Do not allow the connector to contact the floor. Hard contact can damage the connector.

Replace top hinges and hinge covers.

Reinstall the top hinges using a Torx T-20. Replace the hinge covers. If the doors are not level, adjust the bottom

right hinge with a 7/16″open ended wrench.

Reconnect water line and wiring harness.

Insert water tubing back into coupling, making sure the tubing is pushed far enough into the coupling so that you no longer see the mark on the tubing. Reconnect the wiring harness.

Turn on the water supply and plug the refrigerator back in.

Hinge Cover

Door

Hinge Pin

Wire Harness

Collars

Connector

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT

–

Save these

instructions for local inspector’s use.

•

IMPORTANT

–

Observe all

governing codes and ordinances.

• Note to Installer –Be sure to leave these

instructions with the Consumer.

• Note to Consumer –Keep these instructions

for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Refrigerator Installation

15 minutes

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

• Do not install the refrigerator where the temperature

will go below 16°C because it will not run often enough to maintain proper temperatures.

•Do not install the refrigerator where the temperature

will go above 37°C because it will not perform properly.

• Install it on a floor strong enough to support it fully

loaded.

REFRIGERATOR LOCATION

Installation

Refrigerator

Instructions

Models 21, 23, 25, 27 & 29

Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections:

CLEARANCES

If the refrigerator has an icemaker, it will have to be connected to a cold water line. An approved water supply kit is available at extra cost from your local distributor.

Maximum permissible inlet water pressure–8.3 bars. Minimum permissible inlet water pressure–1.4 bars.

Installation of the icemaker must be done by a qualified service technician.

WATER SUPPLY TO THE ICEMAKER

(ON SOME MODELS)

21′and 23′ 25′, 27′, and 29′

• Sides 4 mm 4 mm

• Top 25 mm 25 mm

• Back 13 mm 25 mm

29 27 25 23 21

A* 1733 mm 1733 mm 1733 mm 1733 mm 1733 mm

B 908 mm 908 mm 908 mm 908 mm 908 mm

C** 912 mm 879 mm 879 mm 738 mm 738 mm

D 1261 mm 1271 mm 1271 mm 1156 mm 1156 mm

E 1273 mm 1255 mm 1247 mm 1232 mm 1214 mm

F 1051 mm 1093 mm 1099 mm 989 mm 986 mm

G 1386 mm 1381 mm 1381 mm 1361 mm 1355 mm

H 1140 mm 1150 mm 1149 mm 1023 mm 994 mm

*Height does not include hinge. **Depth includes handle.

DIMENSIONS

The rollers have 3 purposes:

■

Rollers adjust so the door closes easily when opened

about halfway. [Raise the front about 5/8″(16 mm) from

the floor.]

■

Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.

■

Rollers allow you to move the refrigerator away from the wall for cleaning.

Final leveling adjustments should be made after the refrigerator has been installed.

To adjust the rollers on 25′, 27′, and 29′ models:

■

Turn the roller adjusting screws

clockwise to raise

the refrigerator,

counterclockwise to

lower it. Use a 3/8″

hex socket or wrench, or an adjustable wrench.

To adjust the rollers on 21′and 23′ models:

Remove the base grille by opening the doors, removing the screws at each end, and pulling it straight out.

Turn the front roller adjusting screws

clockwise to raise

the refrigerator,

counterclockwise to

lower it. Use a 3/8″

hex socket or wrench, or an adjustable wrench.

These models also have rear adjustable rollers so you can align the refrigerator with your kitchen cabinets.

Use a long-handled 5/16″socket wrench to turn the

screws for the rear rollers—clockwise to raise the refrigerator, counterclockwise to lower it.

Replace the base grille.

ROLLERS

Roller adjusting screw

Installation Instructions

Roller adjusting screws

After leveling, make sure that doors are even at the top.

To make the doors even, adjust the refrigerator door.

Using a 7/16″socket wrench, turn the door adjusting

screw to the right to raise the door, to the left to lower it. (A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)

After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

To remove the base grille, open the doors, remove the screw at each end of the base grille and then pull the grille straight out.

7/16″Socket Wrench

Raise

DOOR ALIGNMENT

Installation Instructions

DIMENSIONS AND SPECIFICATIONS

(for Built-In Style models)

178.4 cm

91.4 cm

61 cm

61 cm Cabinet

Water Electrical

19 mm Airspace 13 mm Gap + 6 mm Wall Plates)

63.5 cm Countertop

Installation Instructions

The water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these recommendations carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the O (off) position.

Do not install the icemaker tubing in areas where temperatures fall below freezing.

When using any electrical device (such as a power drill) during installation, be sure the device is insulated or wired in a manner to prevent the hazard of electric shock.

All installations must be in accordance with local plumbing code requirements.

Installation of the icemaker must be done by a qualified service technician.

WARNING! Connect to potable

water supply only.

BEFORE YOU BEGIN

INSTALLING THE WATER LINE

Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown.

Insert the end of the tubing into the water valve connection as far as possible. While holding the tubing, tighten the fitting.

Fasten the tubing into the clamp provided to hold it in a vertical position. You may need to pry open the clamp.

On models using the refrigeration connection at the water valve, remove the plastic flexible cap.

CONNECT THE TUBING TO THE REFRIGERATOR

(CONT.)

Some models have the refrigerator connection at the end of tubing located outside the compressor compartment access cover. On other models the compressor compartment access cover must be removed in order to access the refrigerator connection at the water valve.

Reattach the access cover.

NOTES:

• Before making the connection to the refrigerator,

be sure the refrigerator power cord is not plugged into the wall outlet.

• We recommend installing a water filter if your

water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator.

CONNECT THE TUBING TO THE REFRIGERATOR

Typical Compression Nut

Tubing Clamp

Tubing

Ferrule (sleeve)

Refrigerator Connection

Tubing

Tubing Clamp

Typical Compression Nut

Ferrule (sleeve)

Refrigerator Connection

One of the illustrations below will look like the connection on your icemaker.

INSTALLING THE WATER LINE (CONT.)

Installation Instructions

Set the icemaker power switch to the lposition. The icemaker will not begin to operate until it reaches its operating temperature of -9°C or below. It will then begin operation automatically if the icemaker power switch is in the lposition.

NOTE: In lower water pressure conditions, the water valve may turn on up to 3 times to deliver enough water to the icemaker.

START THE ICEMAKER

Power switch

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

TURN THE WATER ON AND PLUG IN THE REFRIGERATOR

Normal operating sounds.

These sounds are normal and are due mostly to highly efficient operation.

The new high efficiency compressor runs faster and will have a higher pitch hum or pulsating sound while operating.

The fans circulating air inside the freezer and refrigerator compartments which keep the temperatures uniform throughout.

The fans operating at a high speed. This happens when the refrigerator is first plugged in, when the doors are opened frequently, or when a large amount of food is added to the refrigerator or freezer compartments.

Water dropping on the defrost heater causing a sizzling, hissing or popping sound during the defrost cycle.

The flow of refrigerant through the freezer cooling coils sounds like boiling water or a gurgling noise.

Cracking or popping of cooling coils caused by expansion and contraction during defrost and refrigeration following defrost.

Water dripping as it melts from the evaporator and flows to the drain pan during the defrost cycle.

Icemaker

The icemaker water valve will buzz when the icemaker fills with water. If the power switch is in the

l (on)

position it will buzz even if it has not yet been hooked up to

water. Keeping the power switch in the

l (on)

position before it is hooked up to

water can damage the icemaker. To prevent this, set the power switch to the

0 (off)

position. This will stop the buzzing.

The sound of cubes dropping into the bin and water running in pipes as icemaker refills.

Before you call for service…

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Refrigerator does not

Refrigerator in defrost cycle. • Wait about 30 minutes for defrost cycle to end.

operate

Either or both controls set • Set the controls to a temperature setting. to O (off).

Refrigerator is unplugged. • Push the plug completely into the outlet.

The fuse is blown/circuit •Replace fuse or reset the breaker. breaker is tripped.

The refrigerator is in •Unplug the refrigerator and plug it back in. showroom mode.

Vibration or rattling

Rollers need adjusting. •See

Rollers.

(slight vibration is normal)

Normal when refrigerator •Wait 24 hours for the refrigerator to completely is first plugged in. cool down.

Often occurs when large •This is normal. amounts of food are placed in refrigerator.

Door left open. • Check to see if package is holding door open.

Hot weather or frequent • This is normal. door openings.

Temperature controls set • See

About the controls.

at the coldest setting.

Refrigerator or freezer

Temperature control not set • See

About the controls.

compartment too warm

cold enough.

Warm weather or frequent • Set the temperature control one step colder. door openings. See

About the controls.

Door left open. • Check to see if package is holding door open.

Frost or ice crystals

Door left open. • Check to see if package is holding door open.

on frozen food

Too frequent or too long

(frost within package

door openings.

is normal)

Divider between

Automatic energy saver •This helps prevent condensation on the outside.

refrigerator and freezer

system circulates warm

compartments

liquid around front edge

feels warm

of freezer compartment.

Automatic icemaker

Icemaker power switch • Set the power switch to the on position.

does not work

is in the off position.

Water supply turned off or •See

Installing the water line.

not connected.

Freezer compartment too warm. • Wait 24 hours for the refrigerator to completely cool down.

Piled up cubes in the storage • Level cubes by hand. bin cause the icemaker to shut off.

Ice cubes stuck in icemaker. •Turn off the icemaker, remove cubes, and turn the (Green power light on icemaker back on. icemaker blinking).

Motor operates for long periods or cycleson and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.)

Problem Possible Causes What To Do

Ice cubes have

Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes.

odor/taste

Food transmitting odor/taste •Wrap foods well. to ice cubes.

Interior of refrigerator •See

Care and cleaning.

needs cleaning.

Small or hollow cubes

Water filter clogged. •Replace filter cartridge with new cartridge or with plug.

Slow ice cube freezing

Door left open. • Check to see if package is holding door open.

Temperature control not set •See

About the controls.

cold enough.

Cube dispenser does not

Icemaker turned off or •Turn on icemaker or water supply.

work

water supply turned off.

Ice cubes are frozen to • Remove cubes. icemaker feeler arm.

Irregular ice clumps in •Break up with fingertip pressure and discard storage container. remaining clumps.

•Freezer may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form.

Dispenser is

LOCKED

. •Press and hold the

LOCK CONTROL

pad for 3 seconds.

Water has poor taste/odor

Water dispenser has not been •Dispense water until all water in system is replenished. used for a long time.

Water in first glass is

Normal when refrigerator •Wait 24 hours for the refrigerator to completely

warm

is first installed. cool down.

Water dispenser has not been •Dispense water until all water in system is replenished. used for a long time.

Water system has been drained. •Allow several hours for replenished supply to chill.

Water dispenser does

Water supply line turned • See

Installing the water line.

not work

off or not connected.

Water filter clogged. • Replace filter cartridge or remove filter and install plug.

Air may be trapped in the •Press the dispenser arm for at least two minutes. water system.

Dispenser is

LOCKED

. •Press and hold the

LOCK CONTROL

pad for 3 seconds.

Water spurting from

Newly-installed filter cartridge. •Run water from the dispenser for 3 minutes (about

dispenser

six liters).

Water is not dispensed

Water in reservoir is •Call for service.

but icemaker is working

frozen.

Refrigerator control setting •Set to a warmer setting. is too cold.

No water or ice cube

Supply line or shutoff • Call a plumber.

production

valve is clogged.

Water filter clogged. •Replace filter cartridge or remove filter and install plug.

Dispenser is

LOCKED

. •Press and hold the

LOCK CONTROL

pad for 3 seconds.

CUBED ICE was selected

Last setting was •A few cubes were left in the crusher from the previous

but CRUSHED ICE CRUSHED ICE.

setting. This is normal.

was dispensed

Before you call for service…

Problem Possible Causes What To Do

Orange glow in

Defrost heater is on. •This is normal.

the freezer

Refrigerator has odor

Foods transmitting •Foods with strong odors should be tightly wrapped. odor to refrigerator. • Keep an open box of baking soda in the refrigerator;

replace every three months.

Interior needs cleaning. • See

Care and cleaning.

Door not closing properly

Door gasket on hinge side •Apply paraffin wax to the face of the gasket. sticking or folding over.

A door bin is hitting a shelf • Move the door bin up one position. inside the refrigerator.

Moisture forms on

Not unusual during •Wipe surface dry.

outside of refrigerator

periods of high humidity.

Moisture collects inside

Too frequent or too

(in humid weather, air

long door openings.

carries moisture into refrigerator when doors are opened)

Interior light does

No power at outlet. • Replace fuse or reset the breaker.

not work

Lightbulb burned out. •See

Replacing the lightbulbs.

Water on kitchen floor or

Cubes jammed in chute. • Poke ice through with a wooden spoon.

on bottom of freezer

Hot air from bottom

Normal air flow cooling motor.

of refrigerator

In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures.

Refrigerator never

Adaptive defrost keeps •This is normal. The refrigerator will cycle off after the

shuts off but the

compressor running during door remains closed for 2 hours.

temperatures are OK

door openings.

Refrigerator beeping

Door open. • Close door.

Food isn’t thawing/chilling

Packaging. • Increase time or re-package in plastic.

Wrong weight selected. • Select a larger weight.

Item with high fat content. • Select a larger weight.

Not using Chill/Thaw tray. • Place items on tray and allow space in between items for

better air flow.

Actual temperature not

Unit just plugged in. •Allow 24 hours for system to stabilize.

equal to Set temperature

Door open for too long. • Allow 24 hours for system to stabilize.

Warm food added to refrigerator. • Allow 24 hours for system to stabilize.

Defrost cycle is in process. • Allow 24 hours for system to stabilize.

Select Temp feature is

Refrigerator compartment •This is normal. In order to minimize energy usage, the

not working

temperature control is set

Select Temp

feature is disabled when the refrigerator

at warmest setting. temperature control is set at the warmest setting.

Special Safety Instructions for Australia and New Zealand.

(in addition to other information in Owner’s Manual)

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of personal injury or damage to property, follow basic safety precautions when using this refrigerator, including the following:

When using any Electrical Product, basic precautions should always be followed, including the following:

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE REFRIGERATOR. KEEP THE INSTRUCTIONS HANDY FOR FUTURE REFERENCE.

■

IMPORTANT:

Always operate the refrigerator from a power source of the same Voltage, Frequency and Rating as indicated on the refrigerator identification plate. Operate the refrigerator from an Earthed (Grounded) 3 pin power outlet fully accessible when the refrigerator is located in its normal operating position.

■

■Close supervision is necessary when any electrical

product is used by or operated near children or infirm persons; young children should be supervised to ensure that they do

not

play with the

refrigerator.

■

IMPORTANT:

Do not operate the refrigerator with a damaged Supply cord or Plug. If it is damaged it must be replaced by the manufacturer, distributor or its service agent or a similarly qualified person in order to avoid a hazard. Special tools are required to replace the Supply flexible cord.

■

WARNING:

Avoid the use of extension cords. If it is necessary to use an extension cord, prior to its use, make sure the extension cord is safe to use, capable of handling the electrical load of the product (refer Product identification plate) and has been checked and tested by your electricity supplier or a qualified technician.

To avoid becoming entangled in the cord,

never

lay it through or along a walkway or thoroughfare

■

■Do

not

allow the cord to hang over the edge of a bench top where it may be grabbed by children or become entangled with the user.

Special Installation Instructions for Australia and New Zealand.

Installing the Water Line

For Australian and New Zealand installation, read these instructions completely and carefully.

■

IMPORTANT:

Government legislation and Codes in most States and Territories of Australia require installation by a licensed plumber. The installation must conform to Australian Standard AS 3500.1 Water supply.

■

■Water hammer (water banging in the pipes) in

house plumbing can cause damage to the refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

■

■To prevent burns and refrigerator damage, do

not hook up the water line to the hot water line.

■

■If you use your refrigerator before connecting the

water line, make sure the icemaker power switch is set to the Oposition.

■

■Do not install the icemaker tubing in areas where

the temperatures fall below freezing.

Before You Begin

For models fitted with an icemaker, a

water supply

kit

(containing flexible tubing and fittings) is

supplied with the refrigerator.

The water pressure must be between 138 and 827 kPa on models without a water filter fitted and between 275 and 827 kPa on models with a water filter fitted.

Turn

Off

the water and open a low tap to drain the

water from the pipe.

Complying with the plumbing codes, install a suitable branch fitting (not supplied) to the cold water supply.

Extend the branch to a suitable location adjacent to the refrigerator when it is located in its operating position. Terminate the branch with a shutoff valve (not supplied).

IMPORTANT:

The shut-off valve should be accessible (such as in an adjacent cupboard, as close to the wall as possible) when the refrigerator is in its normal operating position.

If your water supply pressure is higher than 690 kPa during the day (if so, it may reach higher levels at night), install a suitable Pressure limiting valve (not supplied), after the shut-off valve, making sure the “flow arrows” on the body of the device face the same direction as the water flow.

If necessary, assemble a suitable fitting (not supplied) to the up-stream end of the shutoff valve (or pressure limiting valve) for attachment of the fitting supplied with the water supply kit.

NOTE:

PTFE tape should be used for a water tight

seal when assembling all the above fittings.

not

turn the water supply Onat this time.

Shut Off the Main Water Supply

Attach the fitting with the male thread supplied with the water supply kit to the shutoff valve (or pressure limiting valve, if fitted), and tighten.

NOTE:

PTFE tape should be used for a water tight

seal when assembling all the above fittings.

Route the tubing through a hole drilled in the side of the cupboard as close to the wall as possible.

Make sure there is sufficient length of tubing [approximately 240 cm coiled into 3 turns of approximately 25 cm] to allow the refrigerator to move out from the wall after installation.

Insert and push the end of the tubing into the fitting as far as possible.

With the free end of the tubing located in a suitable container, turn the main water supply Onand flush out the tubing until the water is clear.

Turn

Off

the shutoff valve after approximately 1 litre

of water has been flushed through the tubing.

Connecting the Tubing to the Shutoff Valve

Before making the connection to the refrigerator, be sure the power is turned OFF and the power cord is disconnected from the Power Outlet.

If your refrigerator does not include a water filter, we recommend installing one in the water line near the refrigerator if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve.

Remove the refrigerator access cover.

Remove the plastic flexible cap from the water valve (refrigerator connection).

Attach the fitting with the female thread supplied with the water supply kit to the water valve and tighten.

Insert and push the end of the tubing into the fitting as far as possible.

Fasten the tubing into the clamp provided to hold it in position. You may need to pry open the clamp.

Connecting the Tubing to the Refrigerator

Special Installation Instructions for Australia and New Zealand.

Installing the Water Line (continued)

Turn the water Onat the shutoff valve.

Tighten any connection that leaks.

Replace the access cover and tighten all screws (on some models).

Turn the Water On

Plug in the refrigerator to the Power Outlet and turn On.

IMPORTANT:

Always operate the Refrigerator from a power source of the same Voltage, Frequency and Rating as indicated on the Refrigerator Identification Plate. Operate the Refrigerator from an Earthed (Grounded) 3 Pin Power Outlet fully accessible when the refrigerator is located in its normal operating position.

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall.

Push the refrigerator back to the wall making sure the power cord and the water line tubing are not trapped, entangled or squashed by the refrigerator (including the wheels) or wall.

Plug In the Refrigerator

Set the icemaker power switch to theIposition.

The icemaker will not begin to operate until it reaches its operating temperature of -9° C or below. It will then begin operation automatically if the icemaker power switch is in the Iposition.

NOTE:

In lower water pressure conditions, the water valve may turn on up to 3 times to make sure enough water reaches the icemaker.

Start the Icemaker

Power switch

Notes.

CustomCool 21, 23, 25, 27, 29 Owner's Manual And Installation

Specifications and Main Features

Frequently Asked Questions

User Manual
