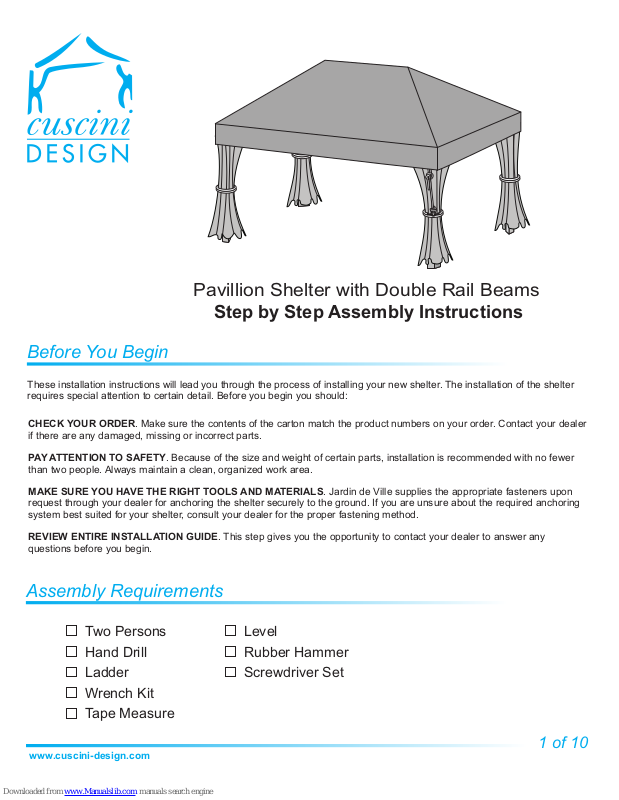

Cuscini Design KC21, Pavillion Shelter with Double Rail Beams Step By Step Assembly Instructions

Pavillion Shelter with Double Rail Beams

Step by Step Assembly Instructions

Before You Begin

These installation instructions will lead you through the process of installing your new shelter. The installation of the shelter
requires special attention to certain detail. Before you begin you should:

CHECK YOUR ORDER. Make sure the contents of the carton match the product numbers on your order. Contact your dealer
if there are any damaged, missing or incorrect parts.

PAY ATTENTION TO SAFETY. Because of the size and weight of certain parts, installation is recommended with no fewer
than two people. Always maintain a clean, organized work area.

MAKE SURE YOU HAVE THE RIGHT TOOLS AND MATERIALS. Jardin de Ville supplies the appropriate fasteners upon
request through your dealer for anchoring the shelter securely to the ground. If you are unsure about the required anchoring
system best suited for your shelter, consult your dealer for the proper fastening method.

REVIEW ENTIRE INSTALLATION GUIDE. This step gives you the opportunity to contact your dealer to answer any
questions before you begin.

Assembly Requirements

Two Persons
Hand Drill
Ladder
Wrench Kit
Tape Measure

www.cuscini-design.com

Level
Rubber Hammer
Screwdriver Set

1

of 10

Part List

4x P1

Triangular Corner Post

4x P2

Corner Post Cover

Supplied with rectangular models

2x B1

12’ or 14’ Side Beam

2x B2

10’ Side Beam

6x S1

Roof Side Spoke (punched hole at one end)

4x S2

1x S3

Roof Corner Spoke (punched hole at one end)

Roof Middle Support Spoke (both ends with punched holes)

KC01

4x LA3002

16x 002

Post End Plate

Plate Screw 1/4” x 1-3/4”

KC06

16x 003

16x 007

16x 012

Carriage Bolt - 5/16” x 2”

5/16” x 1-1/2" Flat Washer

5/16” Nylon Lock Nut

Supplied with extended models

2x S4

Mid Roof Support

KCLA3003

LA3003

1x

6x 040

Mid Roof
Support Bracket

Self-tapping Screw #8-3/4”

Supplied with square models

4x B2

10’ Side Beam

4x S1

4x S2

Roof Side Spoke (punched hole at one end)

Roof Corner Spoke (punched hole at one end)

KC04

4x PL102

8x 025

8x 013

Plastic Corner Beam Inserts

Metal Screw #8-3/4”

Metal Screw #8-1”

KC09

4x PL014

8x 002

4x 072

4x 005

Self-tapping Screw #8-1”

9/32” x 5 Flat Washer/8”

DIVERS

Pulleys included
with curtains

K.PL101

K.APL001

Velcro Strips (shipped with decorative curtains)

www.cuscini-design.com

Corner Post Top Cover

Cover Screw - 1/4” x 1-3/4”

K.PL106

040

#8 Square Head Screwdriver Bit*

#10 Square Head Screwdriver Bit*

* Provided for European countries only

Self-taping Screw #8-3/4”

Roof Cover
Hook

KC10

2x PL104

16x 062

6x 040

KC21

1x PL105

8x 062

4x 040

Supplied with rectangular models

Roof Joint
Box (2 pieces)

Bottom

Joint Cover Screw #7-3/4”

Self-tapping Screw #8-3/4”

Top

Supplied with square models

Roof Joint
Box (2 pieces)

Bottom

Joint Cover Screw #7-3/4”

Self-tapping Screw #8-3/4”

Top

2

of 10

Getting Started

1

2

Note these

holes are

unused.

PL014

P1

Secure the base plates to the bottom of
each of the aluminum corner posts using metal bolts

[KC01.002]

post, secure the plastic cover using bolts

[KC09.002]

all four corner posts.)

On a flat surface, assemble all the beams together by inserting the
plastic corners at each end. Once fully inserted, lock in
place the plastic corners with supplied screws , as shown
in view A-A. You may use pieces of the cardboard shipping box to
protect the frame from scratches.

[KC04.PL102]

Post end

with holes

002

[KC01.LA3002]

[P1]

as shown in the diagram. On the end of the

[KC09.PL014]

as shown in the left diagram. (Repeat step for

[KC04.025]

P1

LA3002

002

View A-A

3

Sticker

Markers

B1

B2

B2

B1

Attach all side spokes to the beams of the structure with the
(6) self-tapping screws . Each side spoke
should be centered between sticker markers on the beams as
shown in view B-B. NOTE that the punched hole end of the spoke
should be facing downwards and away from the beam. (Repeat
step on all sides of the structure.)

View B-B

Top View

[S1]

[(KC10 or KC21).040]

S1

Drilling
Location

040

Profile View

A-A

Cardboard

S1

PL102

025

Hole used
in step 14

B-B

The punched hole
should be on this
end facing downwards.

www.cuscini-design.com

3

of 10

Assembling the Roof

4

L

Make sure the frame is well levelled and that corners are set at right
angles as shown in the left hand diagram. Forcing the diagonal in
both direction to be equal will ensure corners are set at right angles.
Consult the table below for external frame dimensions.

[D]

5a

W

D

Set frame at right
angles before
continuing assembly.

Top View

RECTANGULAR MODEL (see 5b for square model)

View C-C

S2

C-C

Raise

Spokes

See ANNEX 1 for measurements

Center Spoke

S3

Secure the punched end
of each spokes over the
joint box protrusions.

PL104

View C-C

Insert the corner spokes by simply wedging one end into the
one-inch slot of each corner. Then raise the spoke assembly to fit
inside the plastic joint box as shown in View C-C.
Install as well the center support at this time with the punched
holes facing downwards. Fit the punched end of the spokes securely
over the joint box protrusions before installing the joint box cap using
screws . (Repeat step on other side of the structure).

www.cuscini-design.com

[KC10.062]

[S2]

[KC10.PL104]

[S3]

D-D

062

PL104

Center Spoke

View D-D

S3

4

of 10

Assembling the Roof

5b

SQUARE MODEL (see 5a for rectangular model)

S2

S1

Insert the corner spokes by simply wedging one end into the
one-inch slot of each corner. Then raise the spoke assembly to fit
inside the plastic joint box as shown in View C-C. Fit
the punched end of the spokes securely over the joint box protrusions
before installing the joint box cap using screws .

Assembled Roof Framework

C-C

Raise

Spokes

Some spokes
omitted for clarity

[S2]

[KC21.PL105]

[KC21.062]

View C-C

Secure the punched end
of each spokes over the
joint box protrusions.

PL105

View C-C

062

PL105

View D-D

6

www.cuscini-design.com

EXTENDED MODEL (models with a center spoke greater than 6' long)[S3]

Locate the center distance of the roof and install the mid support ribs to the beams following instructions
from step 3 (view B-B). Then fix the other end of the mid ribs to the center spoke with bracket

[KCLA3003.LA3003] [KCLA3003.040]

S3

S4

View E-E

Cross-sectional view

and screws as shown in view E-E.

LA3003

Fix the bracket first
on then fix

[S4]

040

[S3]

supports on it.

Center Distance

B-B

[S4]

E-E

5

of 10

Installing the Corner Posts

7

8

P1

P1

Circular
Mark

PL014

Lay the roof cover over the top of the frame.

003

Corner Top Cover

Bottom View

012

Lock-Nut

Flat Washer

007

Post cover and roof truss not shown for clarity

005

Flat Washer

072

Attach one of the four corner posts to each corner of the structure using bolts ,
washers and lock-nuts as shown in the left diagram. This step may
require a second person or a ladder to lift the roof assembly in order to fix all four corner posts

[P1] [S2]
[KC09.PL014] [KC09.072] [KC09.005]

screws are installed underneath the plastic covers at the circular mark location.

P1

[KC06.007] [KC06.012]

. See diagrams below for assembly steps. Attach all corner spokes to the plastic covers

with the (4) self-tapping screws and flat washers . The

P1

[P1] [KC06.003]

(TOP VIEW)

www.cuscini-design.com

6

of 10

Archoring the Shelter

9

Make sure the structure is well aligned and levelled with the floor
as shown in the diagram below. Consult the section below for
recommendations on the type of anchorage required for fixing
the structure on the floor.

Remaining holes in

[LA3002]

plate are

used for fixing the structure

on the floor

W

L

D

level

See ANNEX 2 for measurements

Dimensions given from center to center
of plates [LA3002]

Structure Anchorage System Recommendations

OPTION A

WOOD DECK/FLOOR

Requirements:
8 (2 per plates) of each

- 5/16" x 2" wood screws

- 5/16" washers

WOOD

Requirements:
8 (2 per plates) of each

- 3/8" x 1-1/2" expansion anchor
* use 1/2" cement drill bit

OPTION B

CONCRETE/CEMENT FLOOR

CONCRETE

SOIL

PAVER/GRASS

This anchoring system is the recommended solution for
anchoring your tent on other surfaces than wood or concrete
such as paver or grass. Consult your dealer for more
information on this fastening method.

www.cuscini-design.com

7

of 10

Final Frame Assembly

centerline

10

11

Step 12

Sides

Step 11

Corners

K.PL106

The roof awning fabric is attached to the structure with the

[MISC K.PL106]

hooks provided. The hooks are inserted and
secured in place in the beam slots as shown in the diagram
below. Install first two hooks in each corners (Step 11) then
work your way around the sides installing hooks between
each eyelets (Step 12). Once all the hooks are positioned
correctly secure them to the beams with the self-tapping
screws (Step 12 View F-F).

K.PL106

[040]

B1
B2

B1

When installing the roof cover and hooks at each corner the elastic and hooks are
placed as shown in the left diagram above. This step will ensure that the elastic remains in position when tension
is applied. Once the roof cover is in place, verify that its corner is aligned with the corner of the structure as shown
in the right diagram above.

B2

[MISC K.PL106] make sure that

Eyelet

12

K.PL106

040

View F-F

F-F

Complete securing the awning fabric to the structure by installing
remaining hooks on all fours sides as shown in the
diagram. Work your way progressively around the structure to produce an
even tension in the elastic.

[MISC K.PL106]

www.cuscini-design.com

8

of 10

Installing the Roof Fabric

13

14

K.PL101

Plastic Pulley

P2

To complete the post assembly, snap together the corner posts

and corner post covers using a rubber hammer as

[P1] [P2]

shown in the diagrams above. Repeat step for each corner.

Snap Pulley
in place

P2

P1

Top View

P1

P2

Metallic

Eyelet

Curtain

(Exterior Side)

013

Zipper
(Interior Side)

Profile View

Curtain
Exterior Side

Install plastic pulleys by snapping them in each
metallic curtain eyelet. Pulleys should be facing towards the
curtain side on which the zipper is located (see above steps).
Then install each curtain sections into the provided beam slots
as shown by left hand diagram. After installing all pulleys, block
the access with the screws as shown in the
diagram. Repeat step for each corner. See next step (15) for
curtain installation example.

[MISC K.PL101

[KC04.013]

]

www.cuscini-design.com

9

of 10

Installing the Curtains

15

Install the decorative curtains on the interior or exterior
rail of the beams and . If you have purchased
optional curtains (mosquito netting, transparent plastic
or acrylic fabric) install them on the inside rail of the
beams.

[B1] [B2]

Velcro Strips

Bottom Groove

12” (30.5cm) apart

outside rail

curtains on inside rail

curtains on outside rail

Optional decorative curtains

(installed using velcro strips

on bottom beam groove)

The optional decorative curtains are installed using
velcro strips inserted 12” (30.5cm)
apart in the bottom groove of the beams. Repeat on all
four corners.

[MISC K.APL001]

inside rail

TOP VIEW

Coordinates

Cuscini Design inc.

12015 rue Arthur-Sicard
Mirabel, Quebec
Canada
J7J 0E9

Tel: [phone]
Fax: [phone]

www.cuscini-design.com

10

of 10

Annex 1 - Step 4 Measurements

Dimensions given below are measured about the
exterior edges of the frame assembly.

External

Dimension

W 116 5/8 (296.0) W 116 5/8 (296.0)

L 116 5/8 (296.0) L 143 3/4 (365.0)

D 165 (419.0) D 185 1/8 (470.0)

External

Dimension

W 116 5/8 (296.0) W 107 3/4 (273.5)

L 166 3/8 (422.5) L 155 3/4 (395.5)

D 203 1/4 (516.0) D 189 1/2 (481.0)

External

Dimension

W 116 5/8 (296.0) W 131 3/4 (334.5)

L 239 3/4 (609.0) L 179 3/4 (456.5)

10x10 Model

inches (cm)

10x14 Model

inches (cm)

10x20 Model*

inches (cm)

External

Dimension

External

Dimension

External

Dimension

10x12 Model

inches (cm)

9x13 Model
inches (cm)

11x15 Model

inches (cm)

D 266 1/2 (677.0) D 222 3/4 (566.0)

External

Dimension

W 143 3/4 (365.0) W 143 3/4 (365.0)

L 215 3/4 (548.0) L 239 3/4 (609.0)

D 259 1/4 (658.5) D 279 1/2 (710.0)

External

Dimension

W 179 3/4 (456.5)

L 239 3/4 (609.0)

D 299 3/4 (761.0)

12x18 Model*

inches (cm)

15x20 Model

inches (cm)

External

Dimension

* Extended models

12x20 Model*

inches (cm)

www.cuscini-design.com

of 10

Supp.

Annex 2 - Step 9 Measurements

L

Single Shelter

W

Dimensions given below are from center to center of plates [LA3002]. For double shelter arrangements, a
distance of 10.5" is required between adjacent plate centers to allow sufficient space for installation of the gutter
system (see Annex 3 for details).

Interna l

Dimension

Interna l

Dimension

D

10x10 Model

inches (cm)

W 111 5/8 (283.5) W 111 5/8 (283.5)

L 111 5/8 (283.5) L 138 3/4 (352.4)

D 157 7/8 (401.0) D 178 1/8 (452.4)

10x14 Model

inches (cm)

W 111 5/8 (283.5) W 102 3/4 (261.0)

L 161 3/8 (409.9) L 150 3/4 (382.9)

D 196 1/4 (498.5) D 182 3/8 (463.2)

Arrangement

Interna l

Dimension

Interna l

Dimension

10x12 Model

inches (cm)

9x13 Model
inches (cm)

Double Shelter

Arrangement

10.5"

Interna l

Dimension

W 111 5/8 (283.5) W 126 3/4 (321.9)

L 234 3/4 (596.3) L 174 3/4 (443.9)

D 260 (660.4) D 215 7/8 (548.3)

Interna l

Dimension

W 138 3/4 (352.4) W 138 3/4 (352.4)

L 210 3/4 (535.3) L 234 3/4 (596.3)

D 252 3/8 (641.0) D 272 3/4 (692.8)

Interna l

Dimension

W 174 3/4 (443.9)

L 234 3/4 (596.3)

D 292 5/8 (743.3)

10x20 Model*

inches (cm)

12x18 Model*

inches (cm)

15x20 Model

inches (cm)

Interna l

Dimension

Interna l

Dimension

* Extended models

11x15 Model

inches (cm)

12x20 Model*

inches (cm)

www.cuscini-design.com

of 10

Supp.
