Cusamintercom Video door phone User Manual

www.cusamintercom.com

0

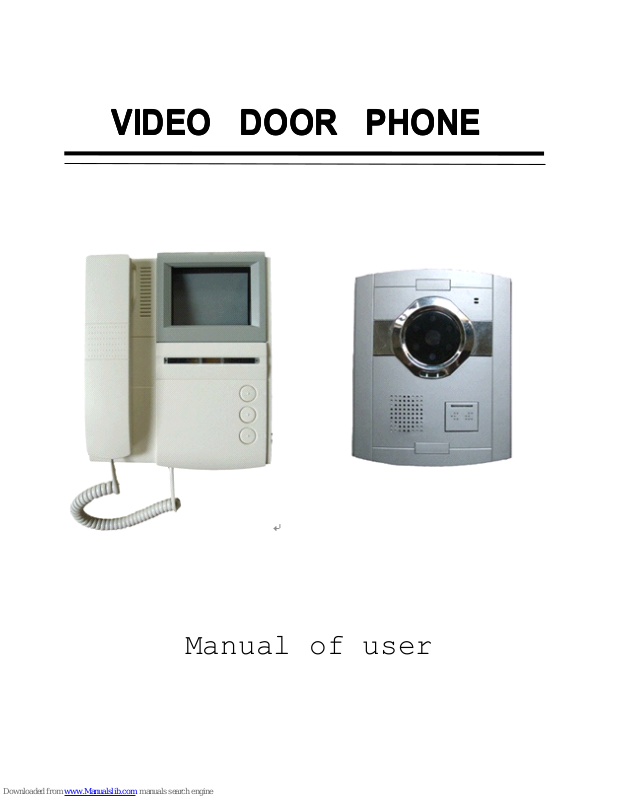

VIDEO

DOOR

PHONE

Manual of user

www.cusamintercom.com

1

Contents

Section Description page

1 F eatures …………………………………………… . …………… . … . 2-5

1.1 Main p roduct s …………… . ……………………………………… 3

1.2 Description of indoor phone ………… . …………… ...................4

1.3 Description of door station ……………… ……………… ..........5

2 Operation instruction …………………………………………… . … ...6-8

2.1 Talking to visitors …………………………………………… .....6

2.2 Checking outside the front door …………………………… . … ..6

2.3 Operating indoor phone handset panic alarm( may choose ) … . … ..6

2.4 Opening front door automatically ……………… . ……… . …… ..7

2.5 Maintaining …………………………………………… ...........7-8

3 Installation of indoor phone handset …… ... ……………………… ...8-15

3.1 Installation of door station ……………………………………… 9

3.2 System Connection diagram …………………………… .......9-13

3.3 Specifications ………………………………………………… .14

3.4 Picture interference problems ………………………… .............15

www.cusamintercom.com

2

1. Features

1. One door station can up to four indoor phones.

2 . Easy installation using supplied connection cable.

3 . Compact Infrared LED is compactly designed, it can be used at night, or

in dark places without adding any extra lighting .

4. High resolution black and white 4 ″ picture(or other size picture)or color

TFT LCD.

5. Connection layout:4wires

6 . Low power consumption.

7 . Trans m ission line distance is far. ( ≥ 100m)

8 . Two kinds of unlock way (able chose one kind of them)

www.cusamintercom.com

3

1.1 Main P roduct s

www.cusamintercom.com

4

1.2 Description of indoor phone

Location

Description

Function

1

4 ″ /7 ″ Indoor phone

Screen

Identify Visitor

2

Power Light

Indicates Power On

3

Monitor Button

View Picture On Indoor

phone4Call/Alarm( Alarm may

choose ) Button

Activate Alarm

5

Unlock Button

Operate Electric Door Lock

6

Microphone

Speak to Visitor

7

Talk Button

Telephone conversation

8

Brightness

Adjust brightness of Indoor

phone

9

Contrast Adjustment

Adjust contrast of Indoor

phone

10

Receiver

Listen to Visitor

www.cusamintercom.com

5

1.3 Description of Door station

Location

Description

Function

1

Camera Lens

Sends Picture

To

Monitor

2

Night Vision Light

(LED Light)

Illuminates Area In Darkness

3

Speaker

Enables

You

To

Speak

To

Visitor

4

Door Bell Button

Pressing Gives Ding Dong

Sound

5

Microphone

Enables Visitor

To

Speak

To

You

www.cusamintercom.com

6

2. Operating Instructions

2.1 Talking to Visitors

1. When a visitor presses the call button located on the door station, the

indoor phone will we give a ding dong sound and activate the indoor

phone screen. The indoor phone screen will display a picture of the

visitor automatically.

2. Pick up the handset receiver and talk button in the indoor phone, and

then speak to the visitor, the picture will automatically switch off after

about 40s.To reactivate the picture, press the monitor button.

3. After you have finished speaking to the visitor, replace the receiver onto

the indoor phone , the picture will switch off automatically.

2.2 Checking Outside the Front Doo

4. Press monitor button in the indoor phone, screen will automatically display a

picture, with a view outside of your front door. After you finished viewing the area,

pleass press monitor button again to switch off the picture.

2.3 Operating Monitor Handset Panic Alarm (may choose)

5.While you press alarm button, it will have Sirens sound from the door station until

the button is repress.

www.cusamintercom.com

7

2.4 Opening Front Door Automatically

6. After communicating with visitor, press the door lock button. This will unlock the

electronic lock for 6 ~10s.If the door is opened within a period of time, the lock will

automatically lock again. Press the button again to unlock.

Note

To

be able to use the electronic lock release function, your door must be

fitted with an electronic lock, and wired according to the instructions within

this installation manual.

2.5 Maintaining

1. Do not put indoor phone near a stove, high temperature

or

humidity, this

will cause the unit to malfunction.

2. Do not put indoor phone near devices that generate strong magnetic

fields, like televisions, speakers.

3. Do not drop indoor phone

or

door station and avoid excessive force.

4. Do not use wet hands when answering

or

operating the indoor phone.

V olatile, corrosive liquids

or

paint thinner should not be used to clean the

indoor phone

or

door station.

www.cusamintercom.com

8

5. Do no t try to disassemble the products by yourself,If the products have

problem,please contact with the suppliers.

6. Keep picture clear by cleaning door station lens window frequently with

a soft cloth.

3. Installation of indoor phone

When you install indoor phone onto a wall, ensure surface is flat. The

indoor phone screen center should be installed at between1.45-

1.50meters, a nd fixed by screws.

Attention:

1) The wire length can't more than 20 meters if don't use shield line and

enhanced signal equipment.

2)

To

have best talking purpose, we advice use 4 × 0.75mm

2

copper line

between outdoor station and indoor phone.

Remarks

When choosing a location to install the  indoor phone, install it onto a non-

inflammable surface. Avoid near excessive humidity, strong magnetic,

dangerous chemicals, and direct sunlight place.

www.cusamintercom.com

9

3.1 Installation of door station

When install the door station, ensure that it is located in dry place. It is

important that the door station

or

the electronics do not get wet. The door

station should be i nstalled at between1.45-1.50meters.

3.2 S ystem C onnection diagram

111

tototo

111

system

(one

outdoor

station

connect

with

one

indoor

phone)

Indoor

phone

DDD

oor

station

www.cusamintercom.com

10

111

tototo

444

system

(one

outdoor

station

connect

with

four

indoor

phones)

Indoor

phone

DDD

oor

station

www.cusamintercom.com

11

222

tototo

111

system

(two

outdoor

stations

connect

with

one

indoor

phone)

DDD

oor

station

Indoor

phone

DDD

oor

station

1.3 Description of Door station

www.cusamintercom.com

12

222

tototo

444

system

(two

outdoor

stations

connect

with

four

indoor

phones)

DDD

oor

station

Indoor

phone

DDD

oor

station

www.cusamintercom.com

13

Wiring

Option

NO.

I ndoor phone/ D oor station

Connect wires

C onnection terminations

1

AWM

Red

V+(+15v)

2

— — —

Black

GND

3

××××

Green

Vi(video)

4

· · · · · ·

Yellow

A(audio)

5

Lock

Electronic Lock

6

Lock

Electronic Lock

www.cusamintercom.com

14

3.3 Specification

Door

station

Technical

Parameter

Working power

DC15V ± 10%

Static Current

≤ 12mA

Working current

≤ 180mA

Camera

1/ 3 ″ CCD/CMOS

Viewing angel

92. 8 °

Min illumination

0.1LUX

Lens

F=3.6

Environmental Temperature

-2 5 ℃ ～ +70 ℃

Humidity

45% to 95%

Indoor

phone

Technical

Parameter

Working power

DC15V ± 10%

Static current

≤ 35mA

Working current

≤ 500mA

Kinescope

4 ″ flat tube (B/W)

Color display

4 ″ color LCD display

Resolution

L ess than 450 points.

Environmental Temperature

-1 0 ℃ ～ 55 ℃

Humidity

45% to 95%

www.cusamintercom.com

15

3.4 Picture Interference Problems

Indoor phone picture is indecipherable light directed into the camera lens. Picture interrupted

or

blurred due to cable noise, if call button on camera

housing is pressed

or

intercom communications.

Picture interrupted

or

blurred due to radio wave jamming when a

automobile

or

motorcycle passes.

Picture interrupted

or

blurred due to speaker magnetic field, caused by

handset receiver being too close to monitor.

The above problems are normal and do not mean the unit is damaged,

broken and needs repairing.
