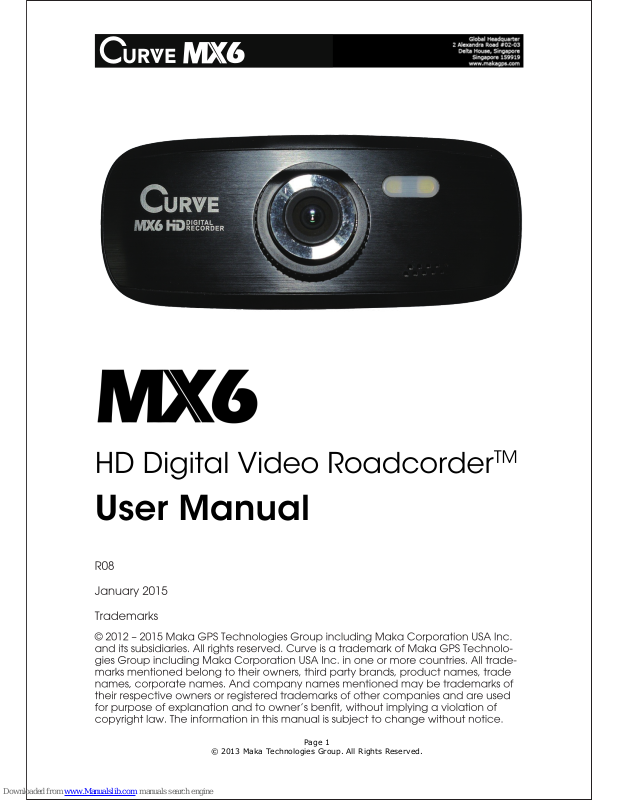

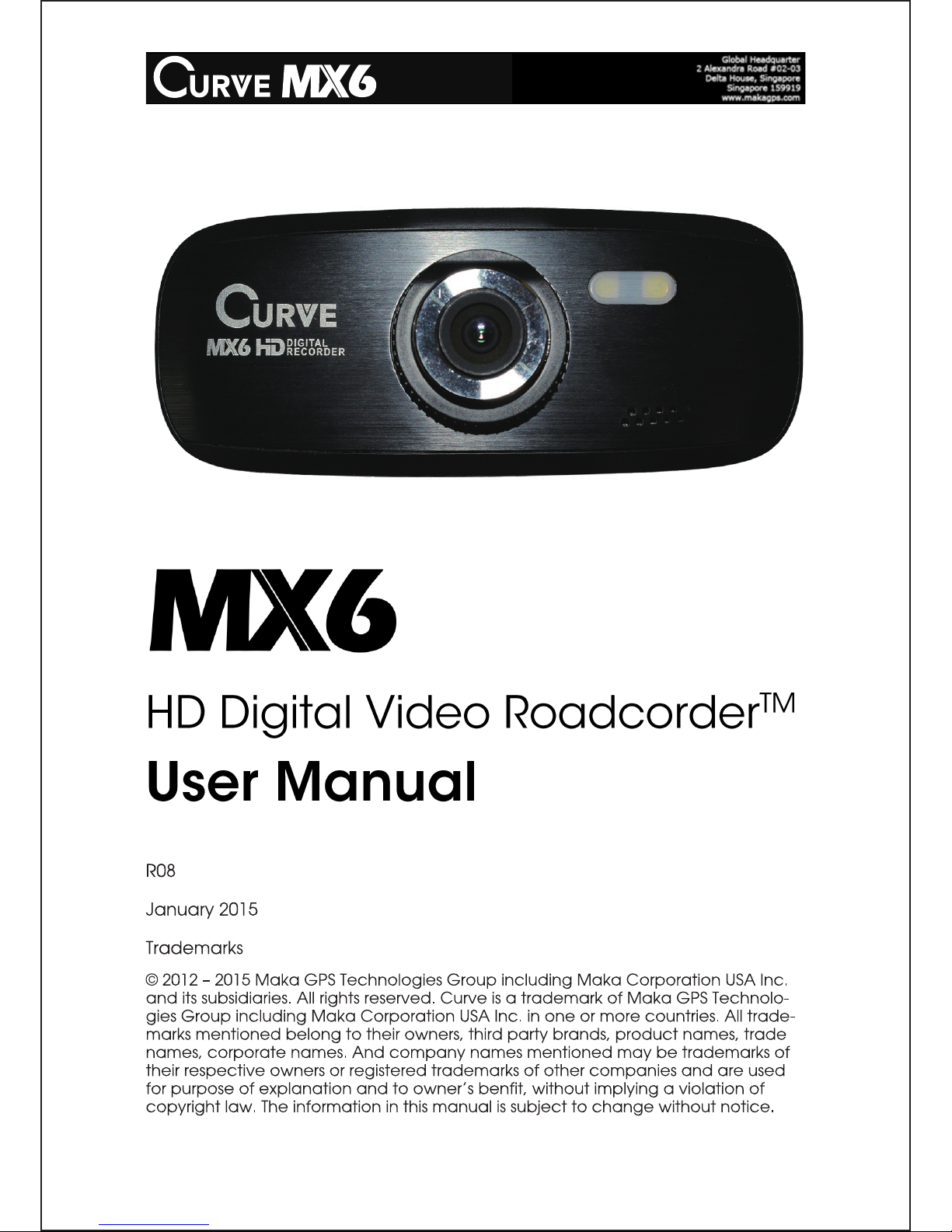

Curve MX6 User Manual

Page 1

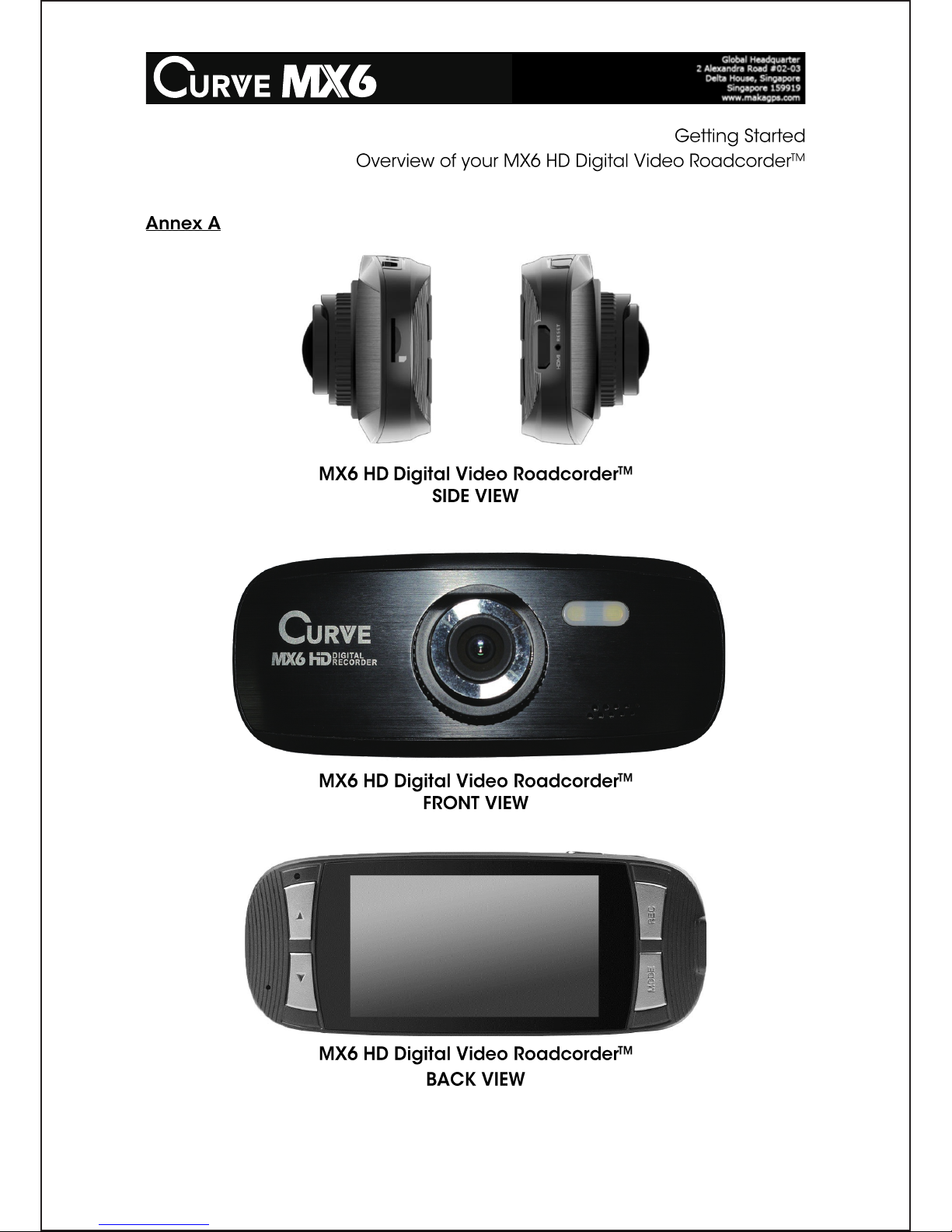

Page 2

Page 4

#

MX6 HD Digital

Roadcorder

TM

Feature

Description

3 USB Interface

Charge or connect your device to your PC for file transfer.

4 AV-Output

Allow you to connect your DVR to another device that

supports AV-Input. For instance, you will be able to

view your video footages on a TV (supports AV-Input).

5 MicroSD/ TF Slot

Slot in your microSD card here. Support up to max. 32GB microSD card.

6 HDMI Port

Allow you to connect your device to a TV that has a

HDMI port. You will be able to display High definition

video footages on the TV.

7

Microphone

Record and play sound.

8

Camera Lens

CMOS Sensor Lens

9 Reset Button

Insert the end of a small paper clip or stylus into the

hole. This will allow you to restart the system when

device has no response.

10

&

11

Navigation Buttons – Up & Down arrows

Press any arrow keys to go up or down through the

items shown on the device screen.

Under Video Mode – allow you to zoom in and out during/ before recording

Under Camera Mode – allow you to zoom in and out before taking a photo

Under Playback Mode – scroll up and down for your respective photos or videos

12 Record Button

With MX6 HD Digital RoadcorderTM, you can take both

still photos and videos. It also works as a “OK” button in setting menu.

Under Video Mode – press button to record video

Under Camera Mode – press button one time to take

a still picture

Under Playback Mode – use this button to select the

video you wish to view

Page 5

#

MX6 HD Digital

Roadcorder

TM

Feature

Description

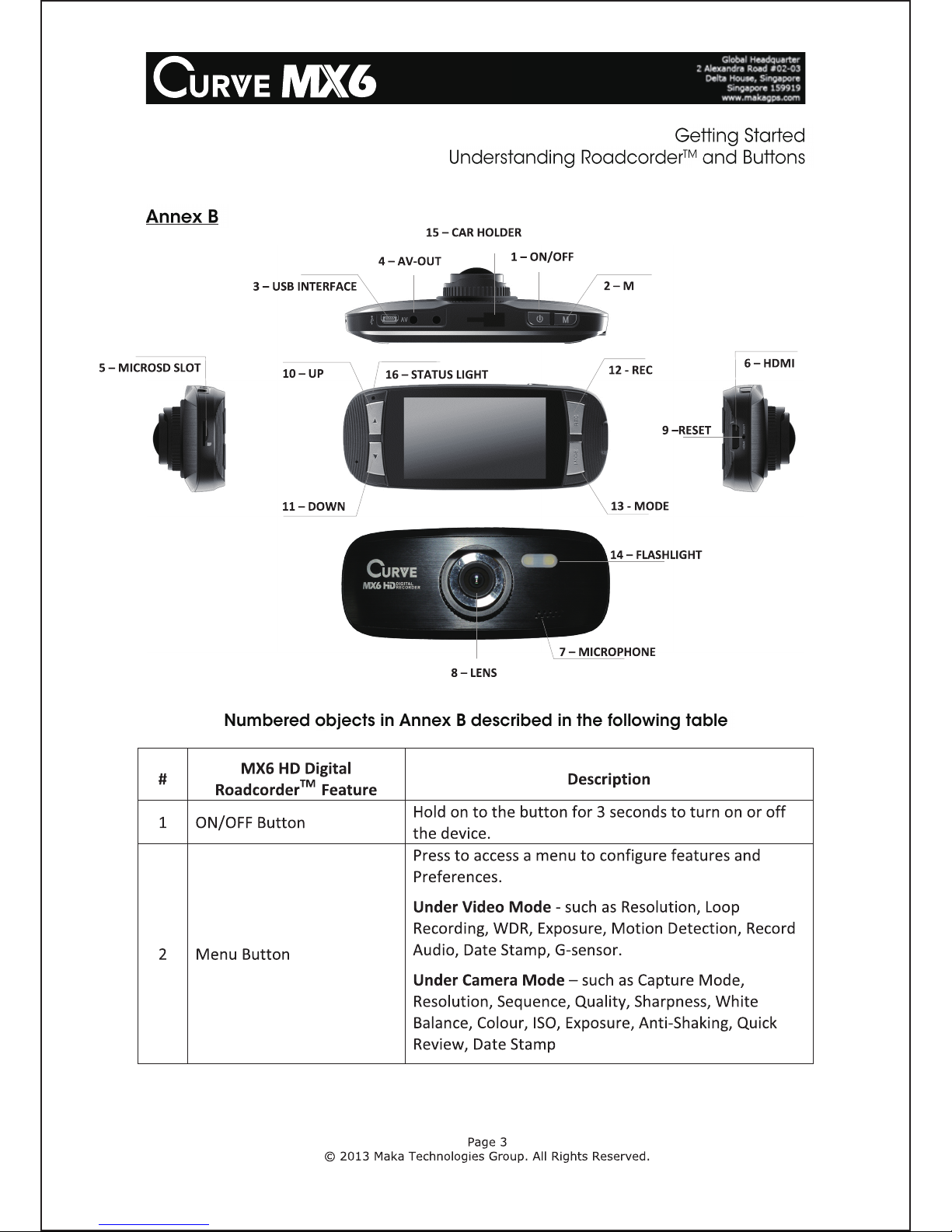

13 Mode Button

Toggle between Video Mode/Camera Mode/Playback

Mode.

It is also a shortcut key to mute your microphone. Hold on to Mode button for 3 seconds to mute or unmute feature.

Note: When the device is muted, the microphone icon will be crossed out with a red line.

14 Flashlight

An LED flash on the back gives you extra light when

you need it.

15 Car Holder

Connect your window suction to MX6 HD Digital RoadcorderTM.

16 Status Light

Indicate power status.

When lit: Blue: Power OFF while battery is charging.

Note: Once battery is fully charged, status light will disappear.

Red (steady): Power ON while battery is not charging.

Pink (steady): Power ON while battery is charging.

Note: Pink status light will be lit when you sync your files to your computer via USB. Please be reminded that charging of battery via computer is not possible.

Red (flashing): Recording Mode ON while battery is not charging.

Red & Blue (flashing): Recording Mode ON while

battery is charging.

Page 6

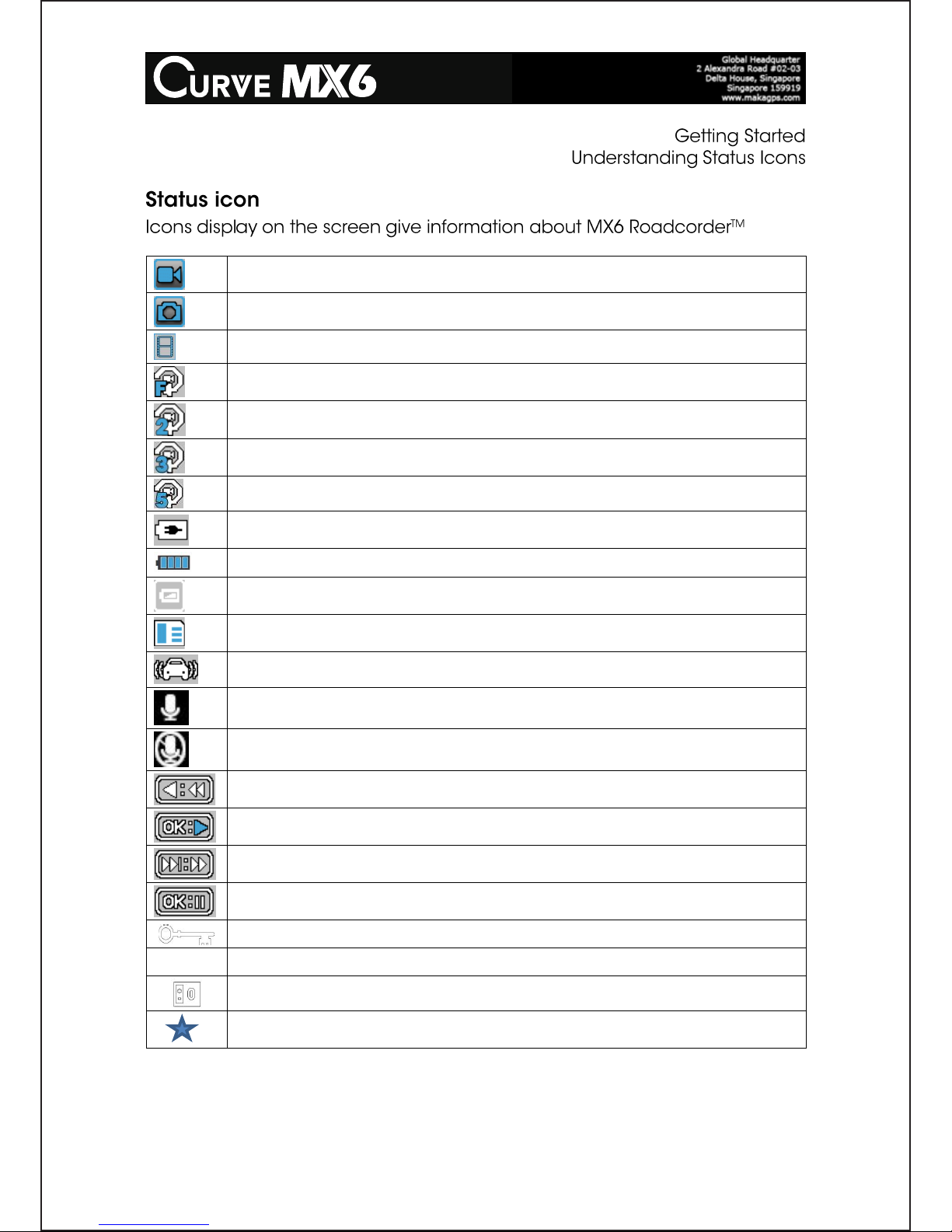

Video Recording Mode

Camera Mode

Playback Mode

Motion Detector Mode

Loop Recording: 2 minutes time frame

Loop Recording: 3 minutes time frame

Loop Recording: 5 minutes time frame

Battery Status: Charging

Battery Status: Fully Charged

Battery Status: Low

MicroSD Card/ TF Card: Card has been inserted

G sensor

Microphone: On

Microphone: Mute

Playback Mode: Rewind

Playback Mode: Play

Playback Mode: Fast Forward

Playback Mode: Pause

File locked: Click on [M] to activate lock file during recording

1080FHD Video Resolution available in 1080FHD/ 720P/ WVGA/ VGA

Exposure status: +0.0

Photo Quality: Fine/ Normal/ Economy

Page 7

※

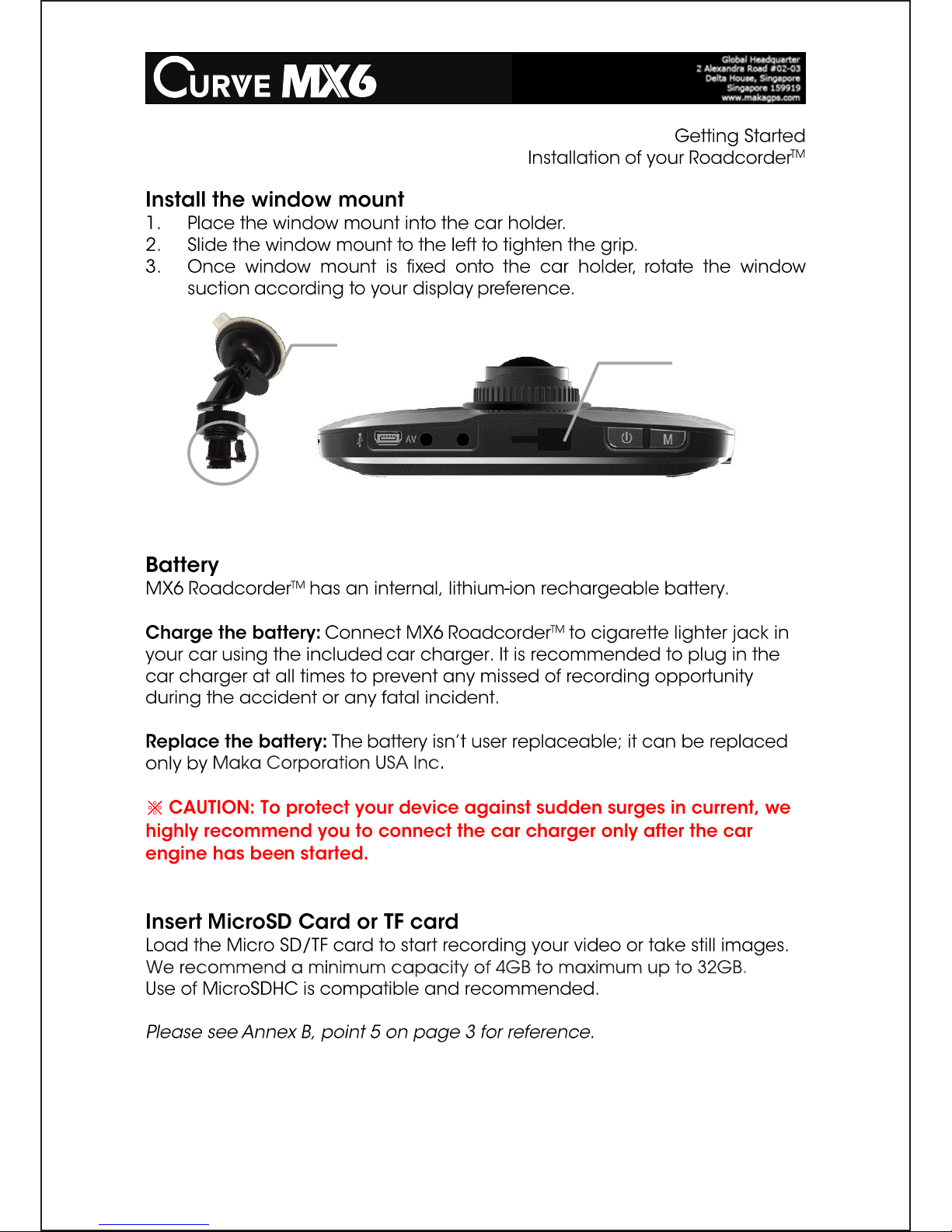

CAR HOLDER

WINDOW SUCTION

WINDOW MOUNT

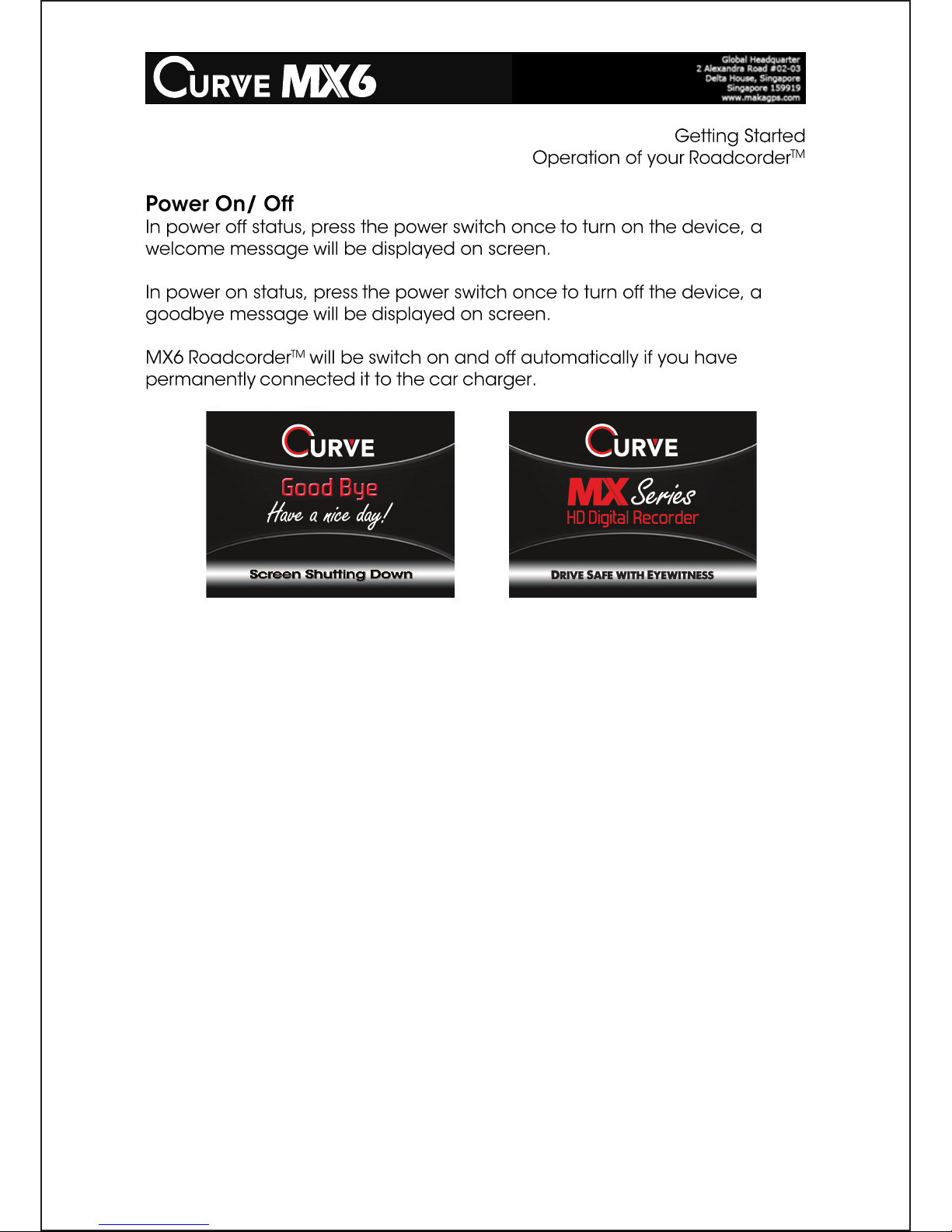

Page 8

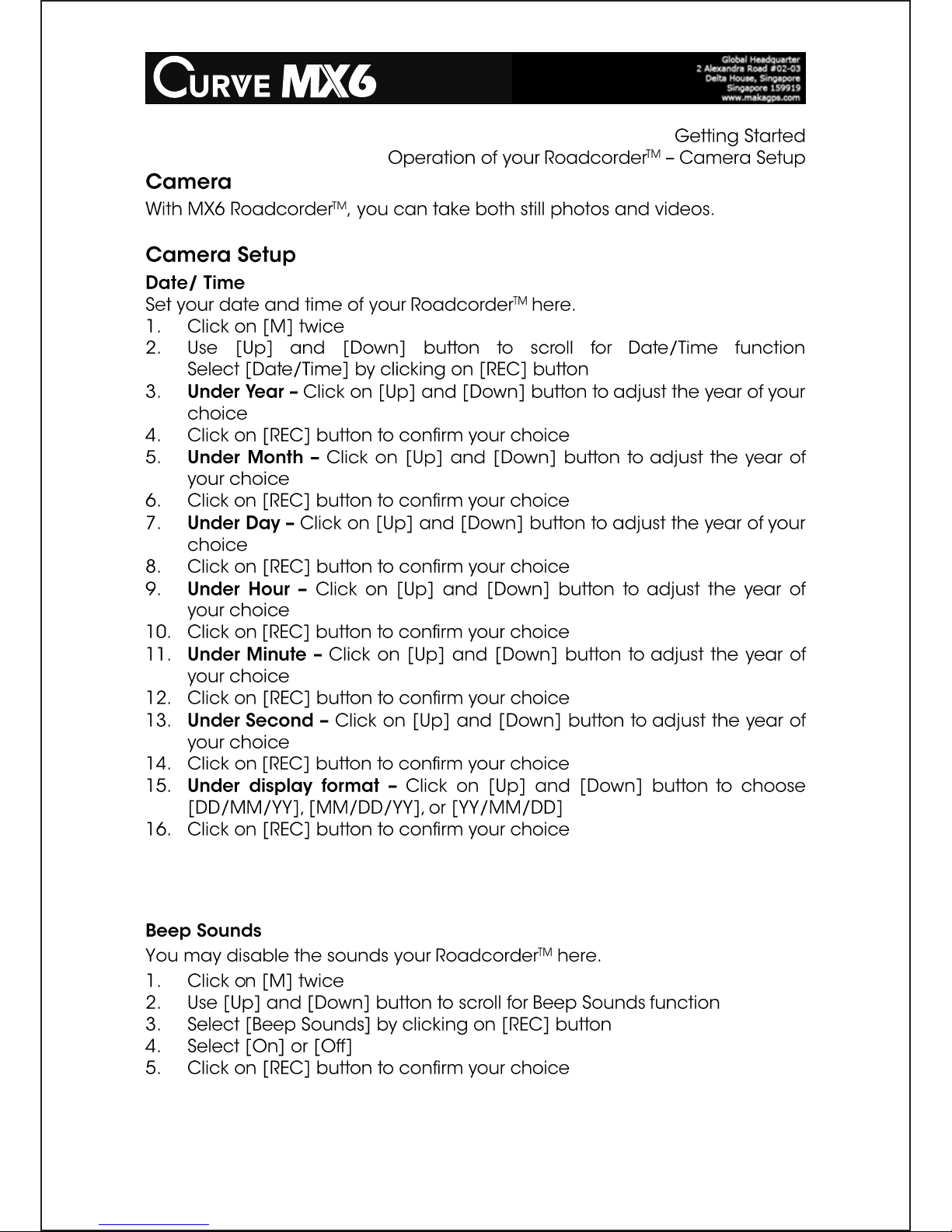

Page 9

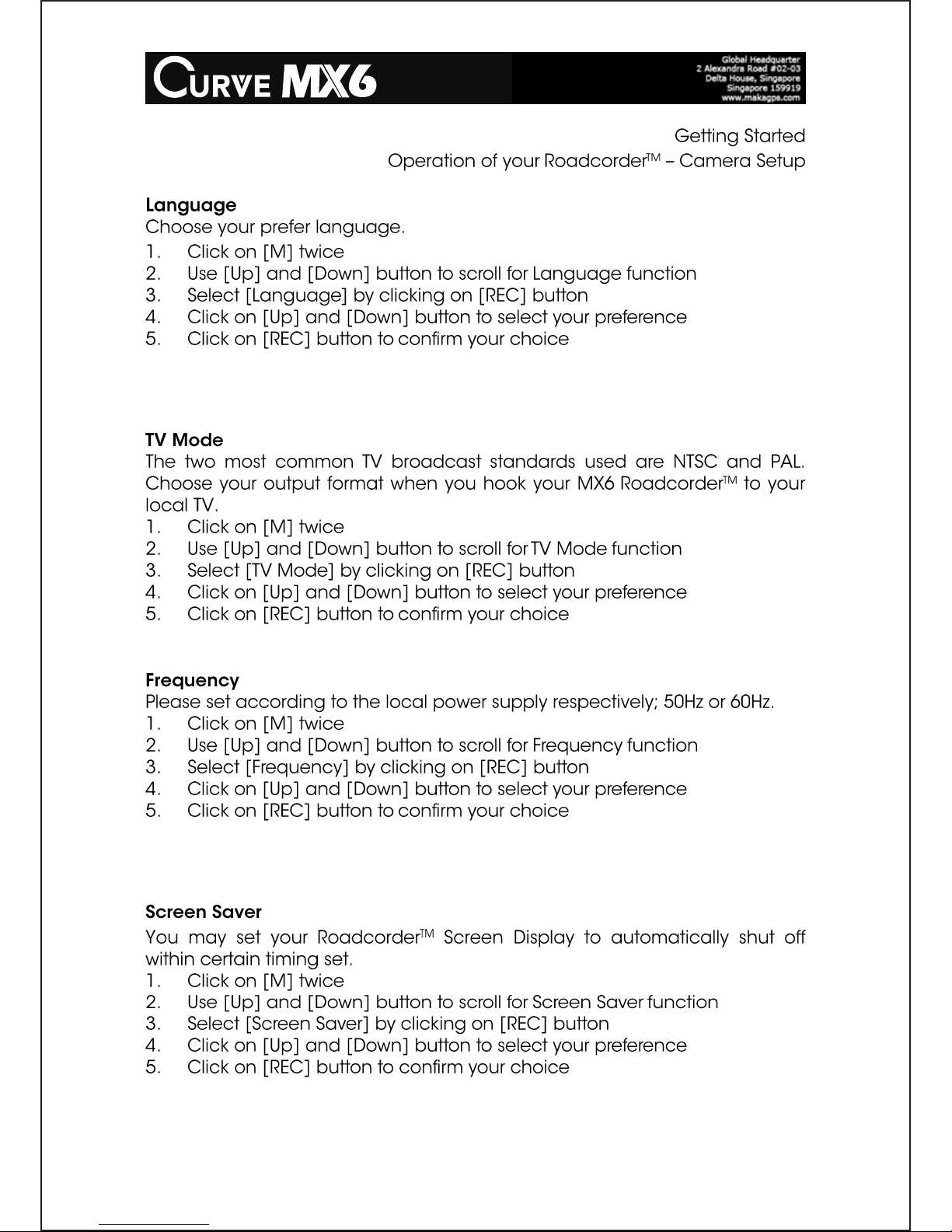

Page 10

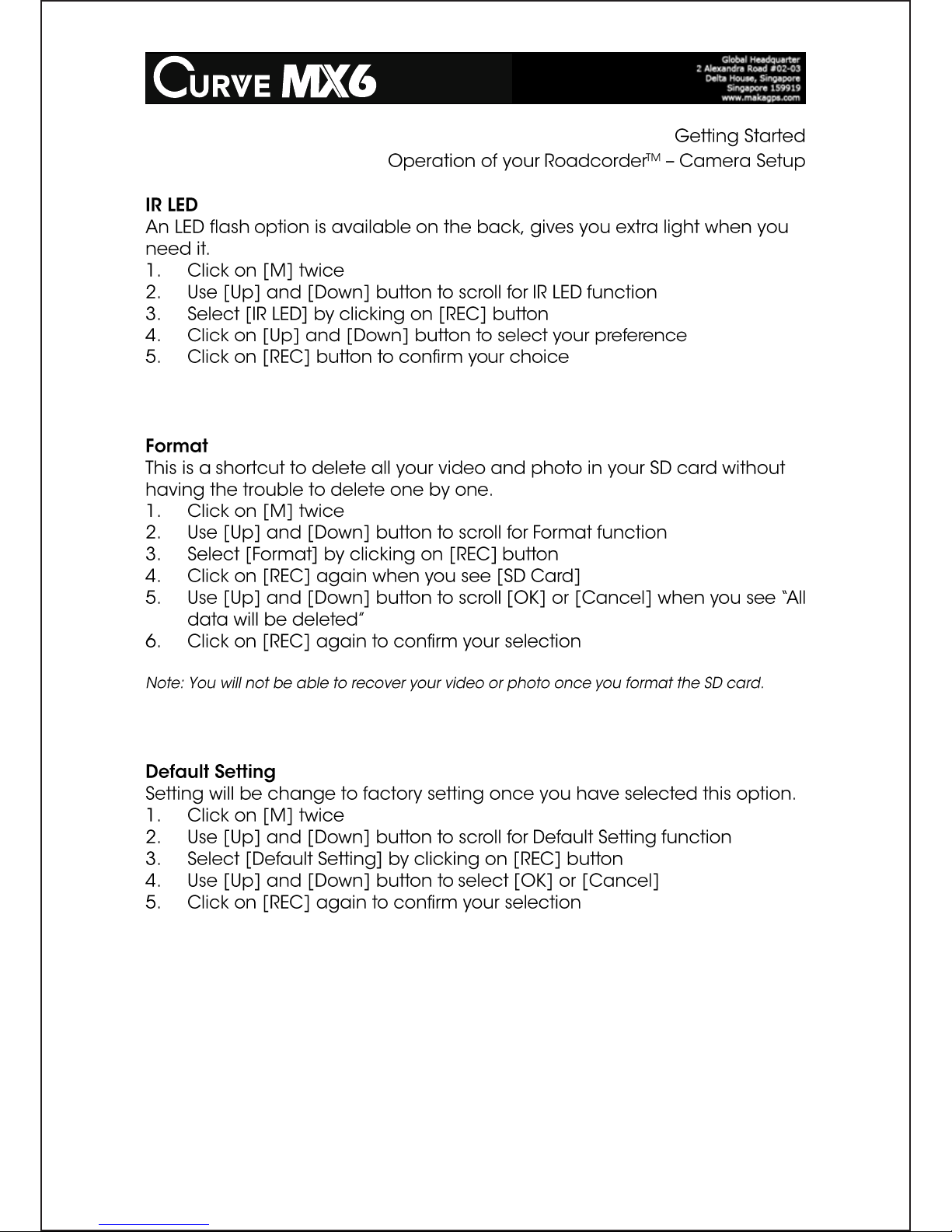

Page 11

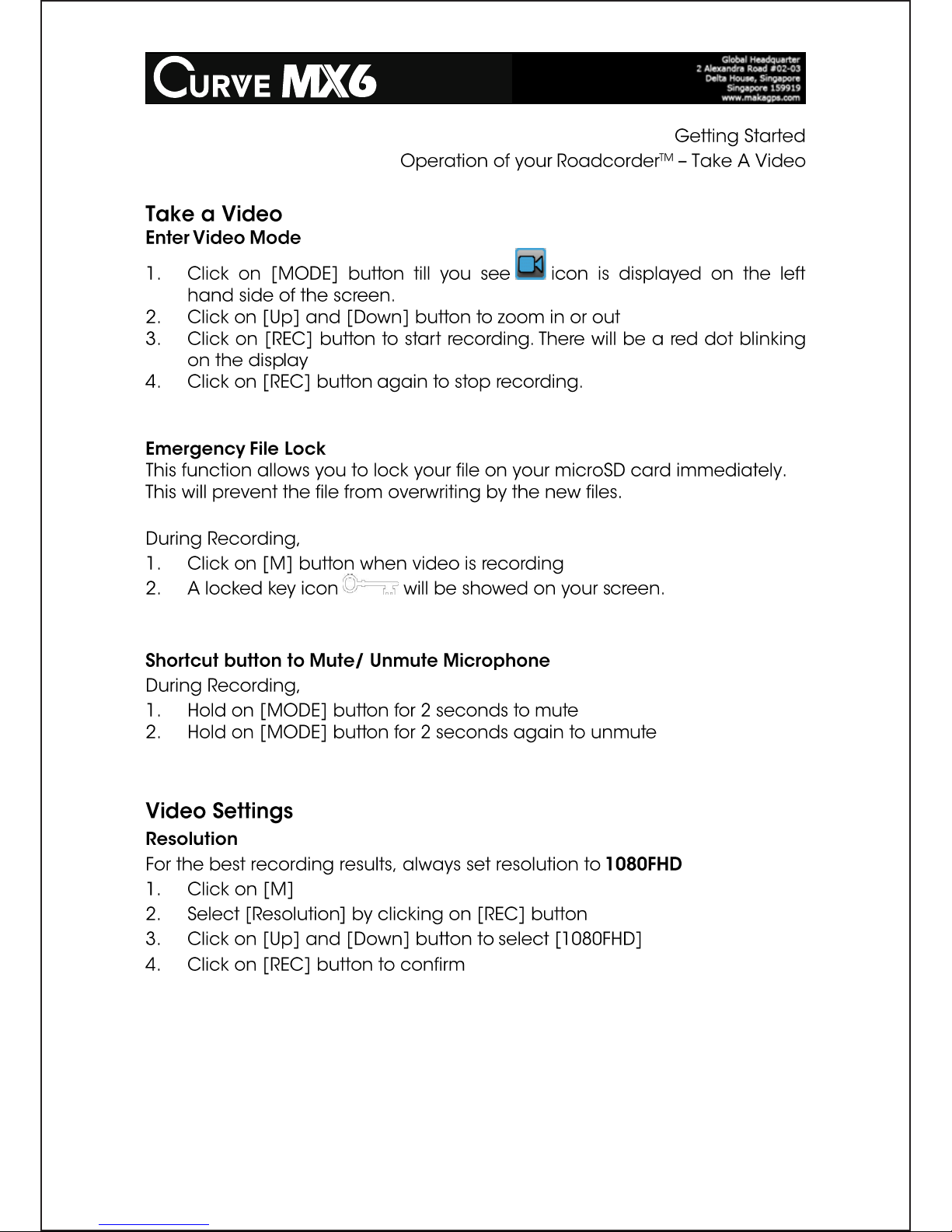

Page 12

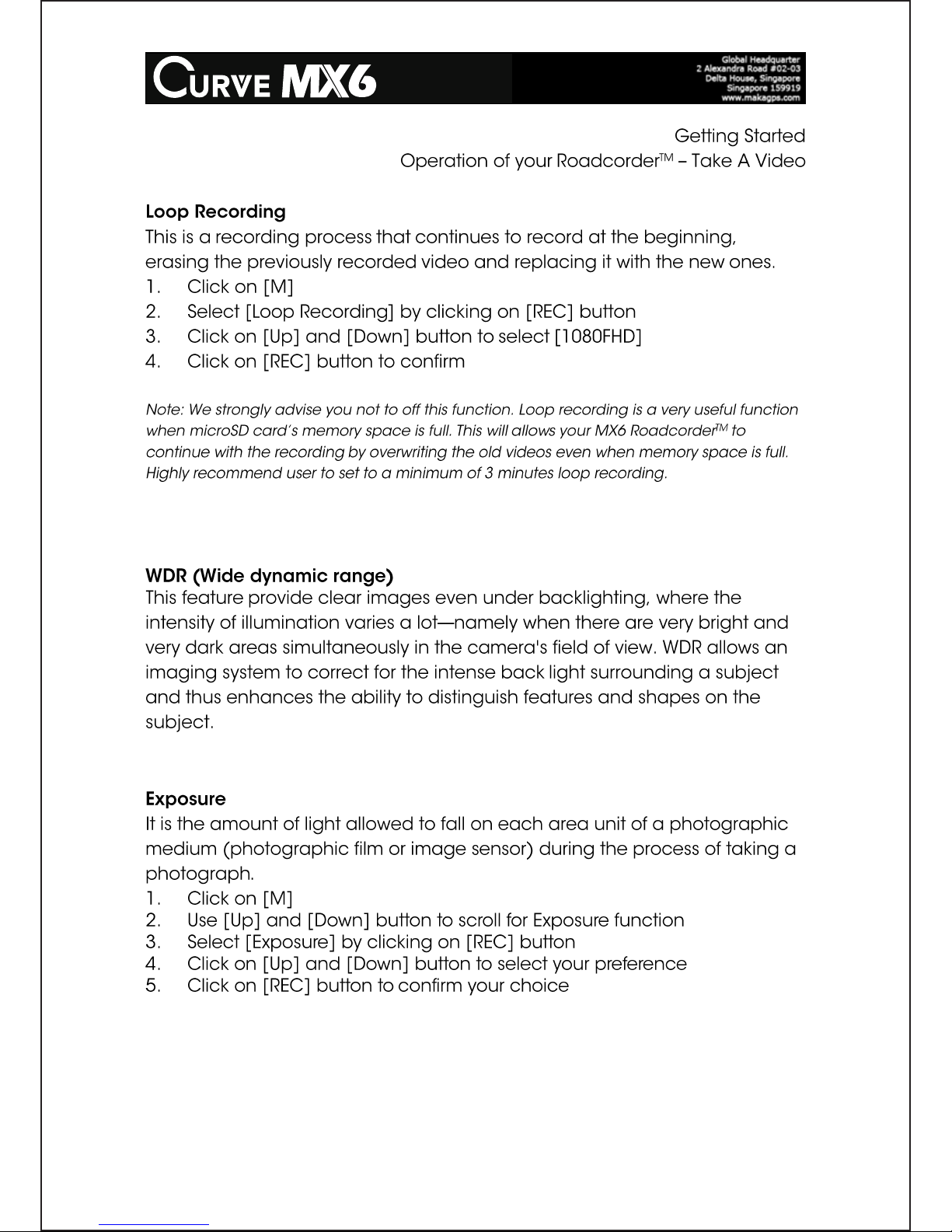

Page 13

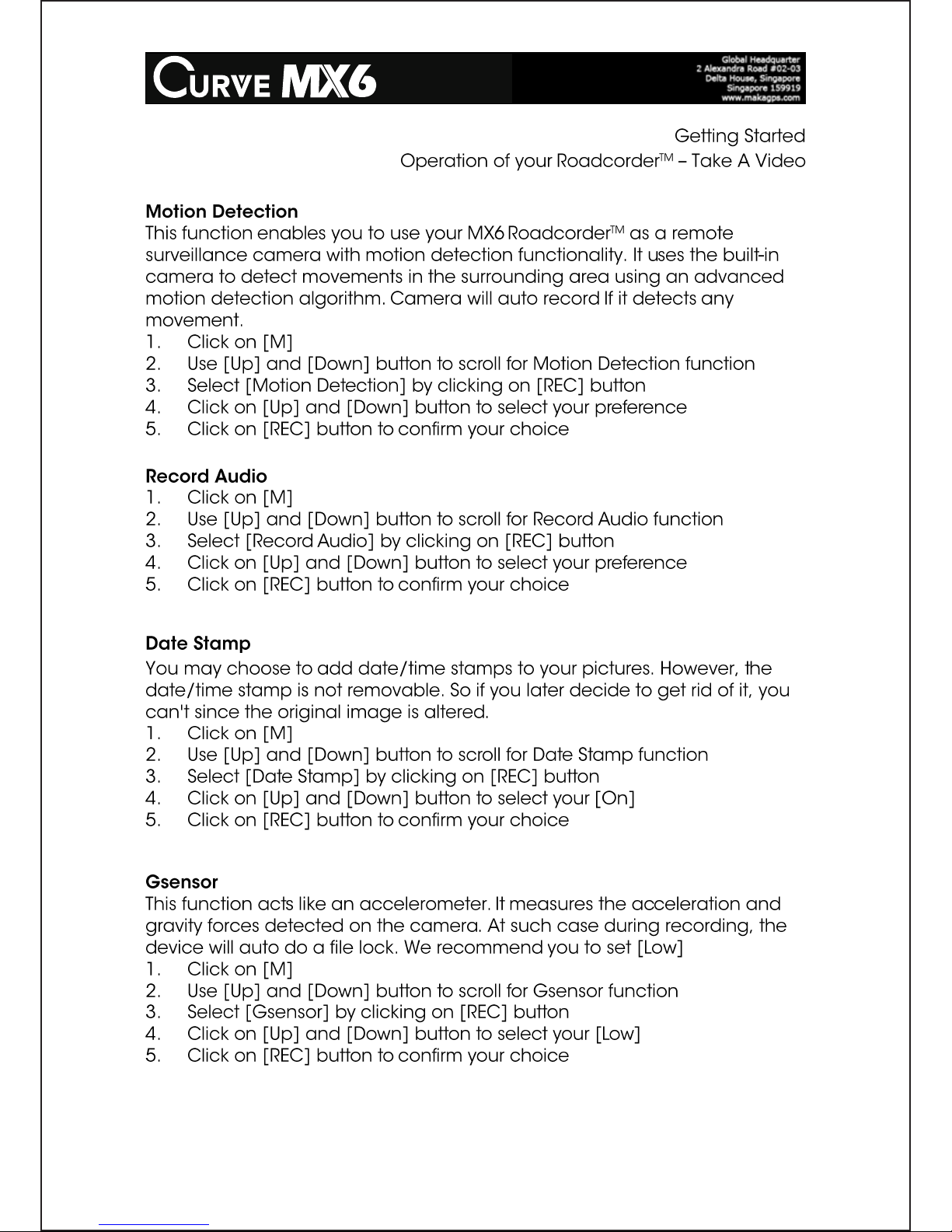

Page 14

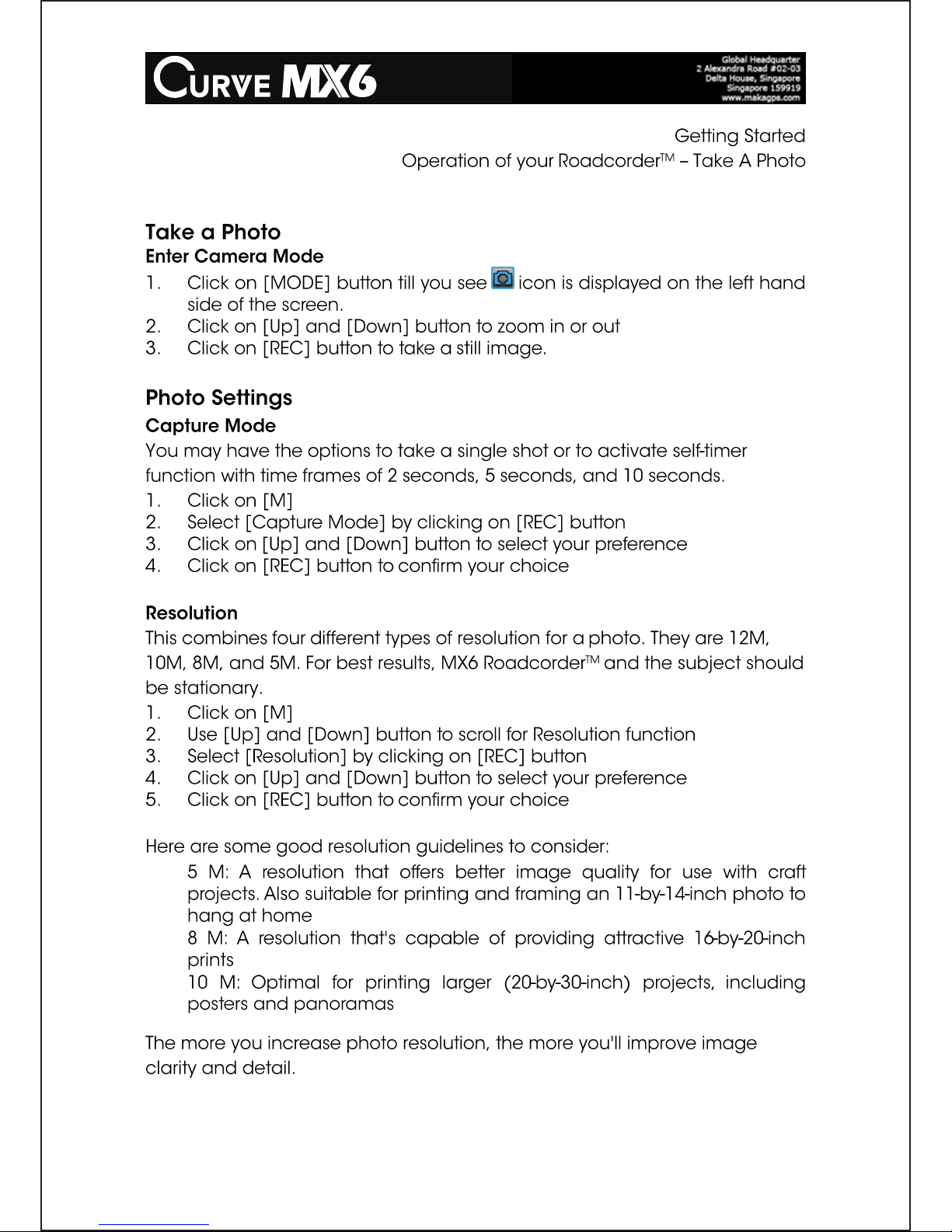

Page 15



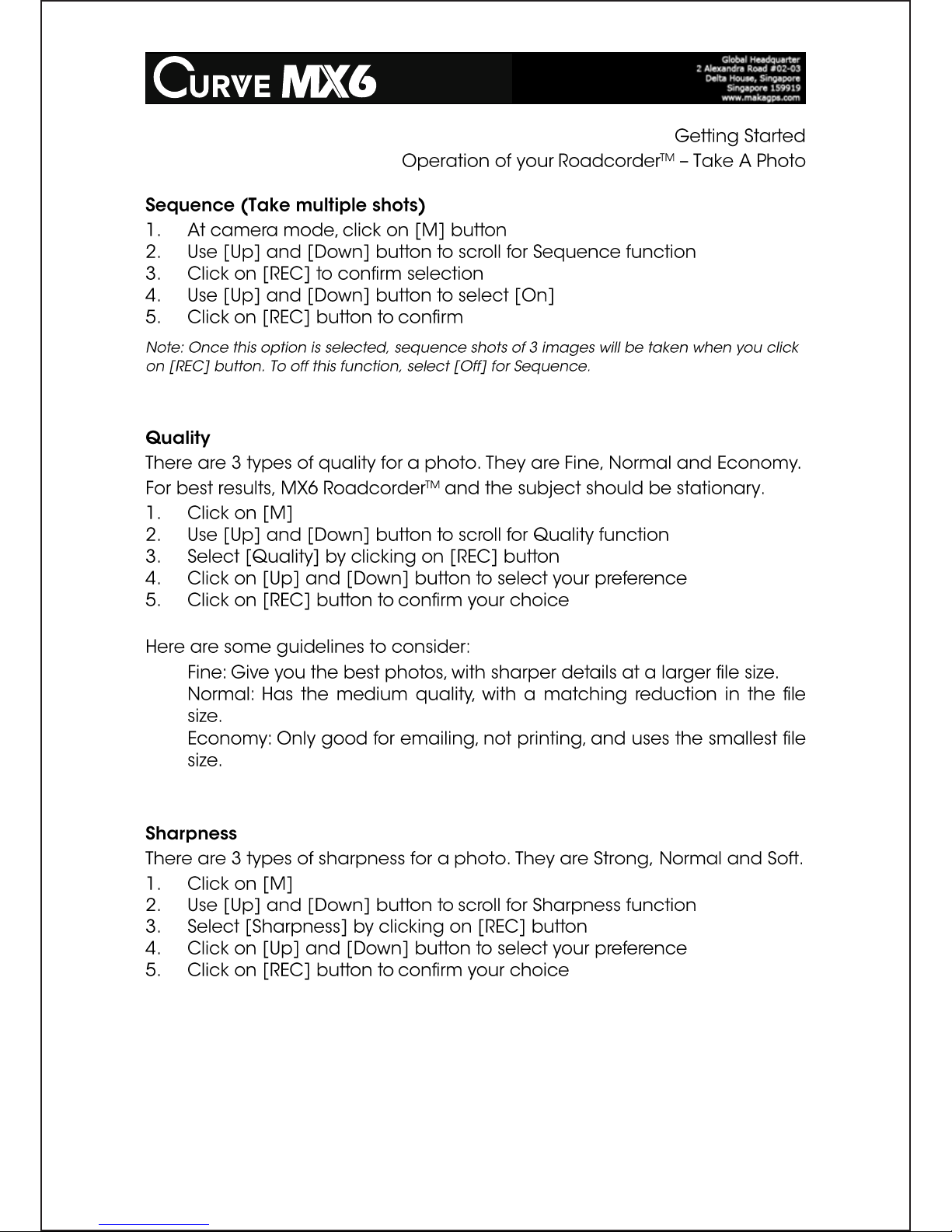

Page 16

 



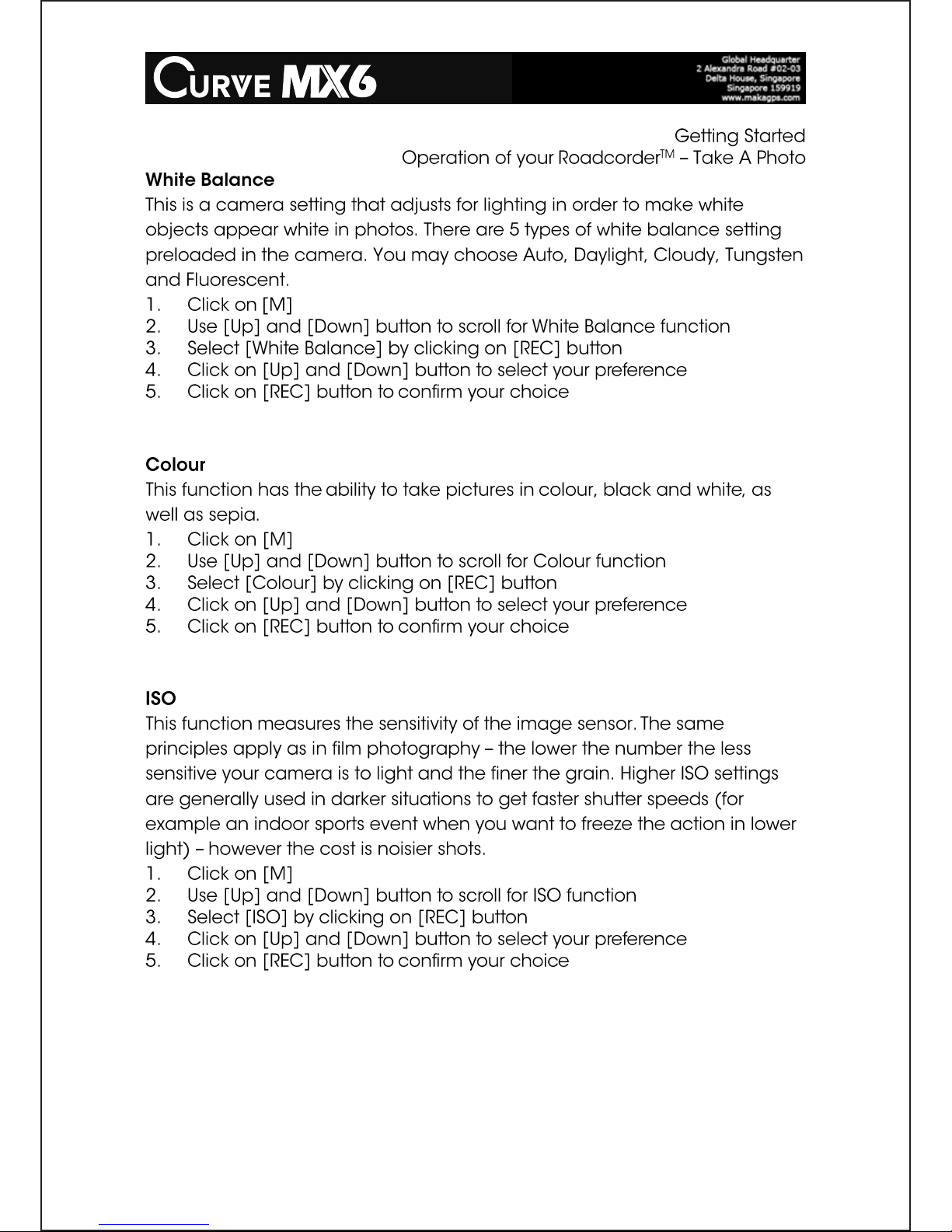

Page 17

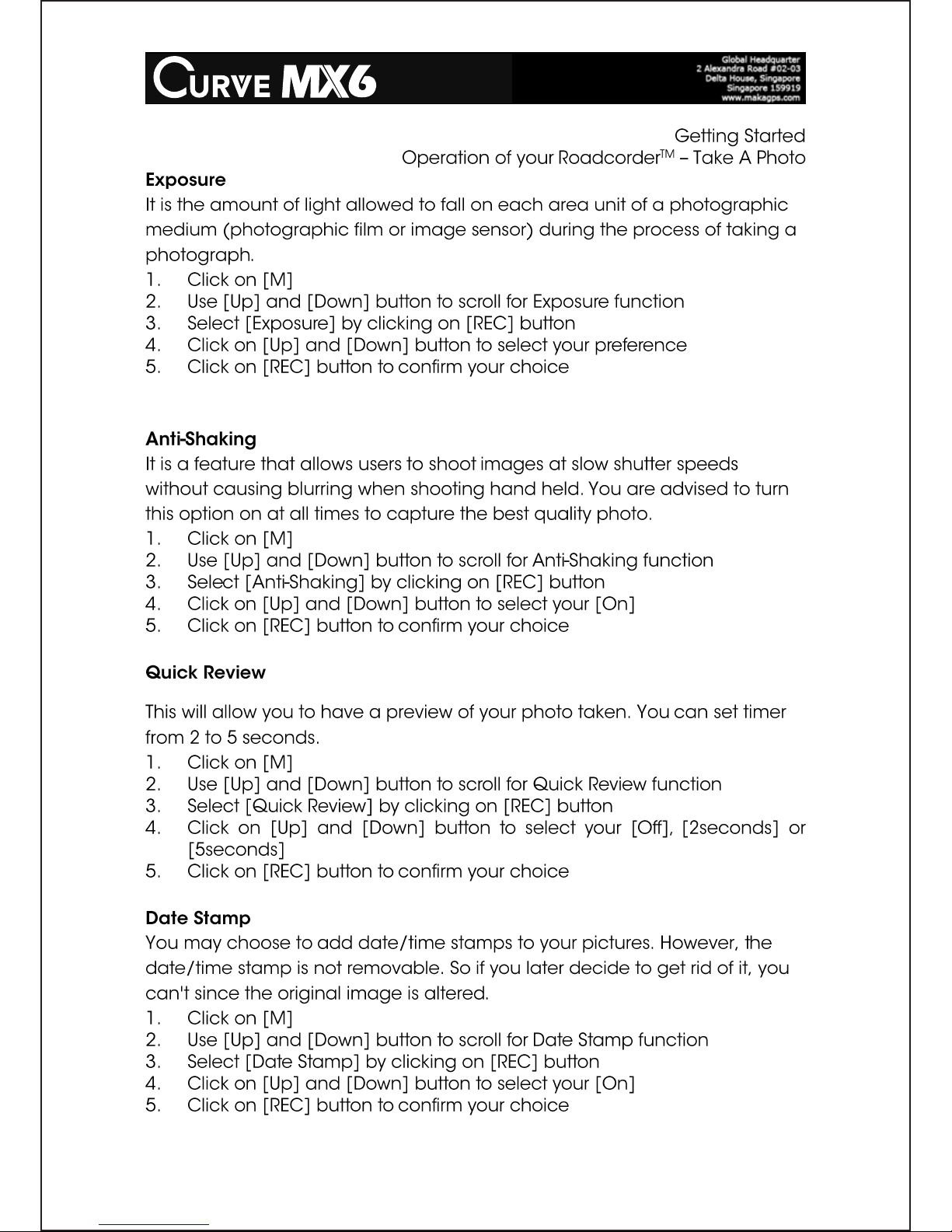

Page 18

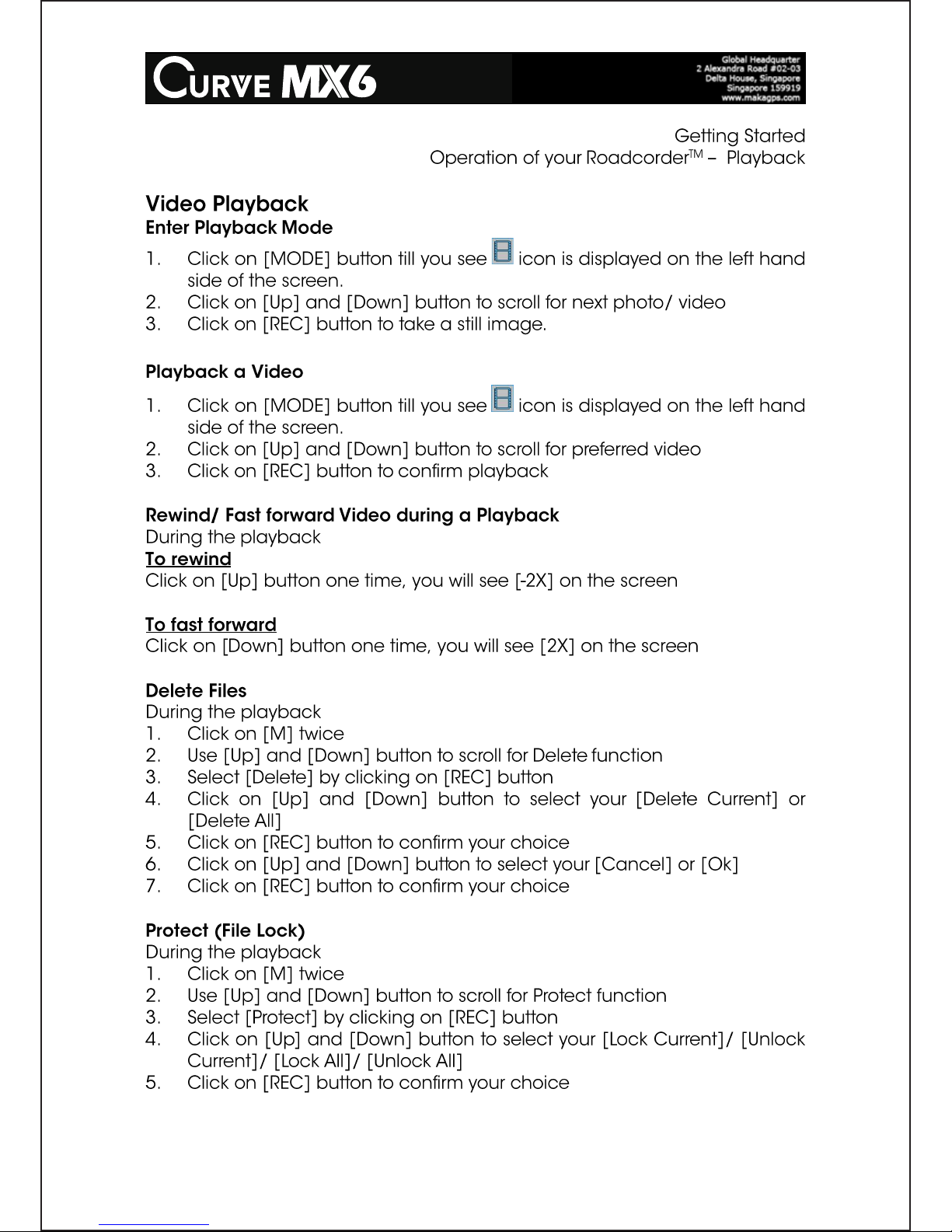

Page 19

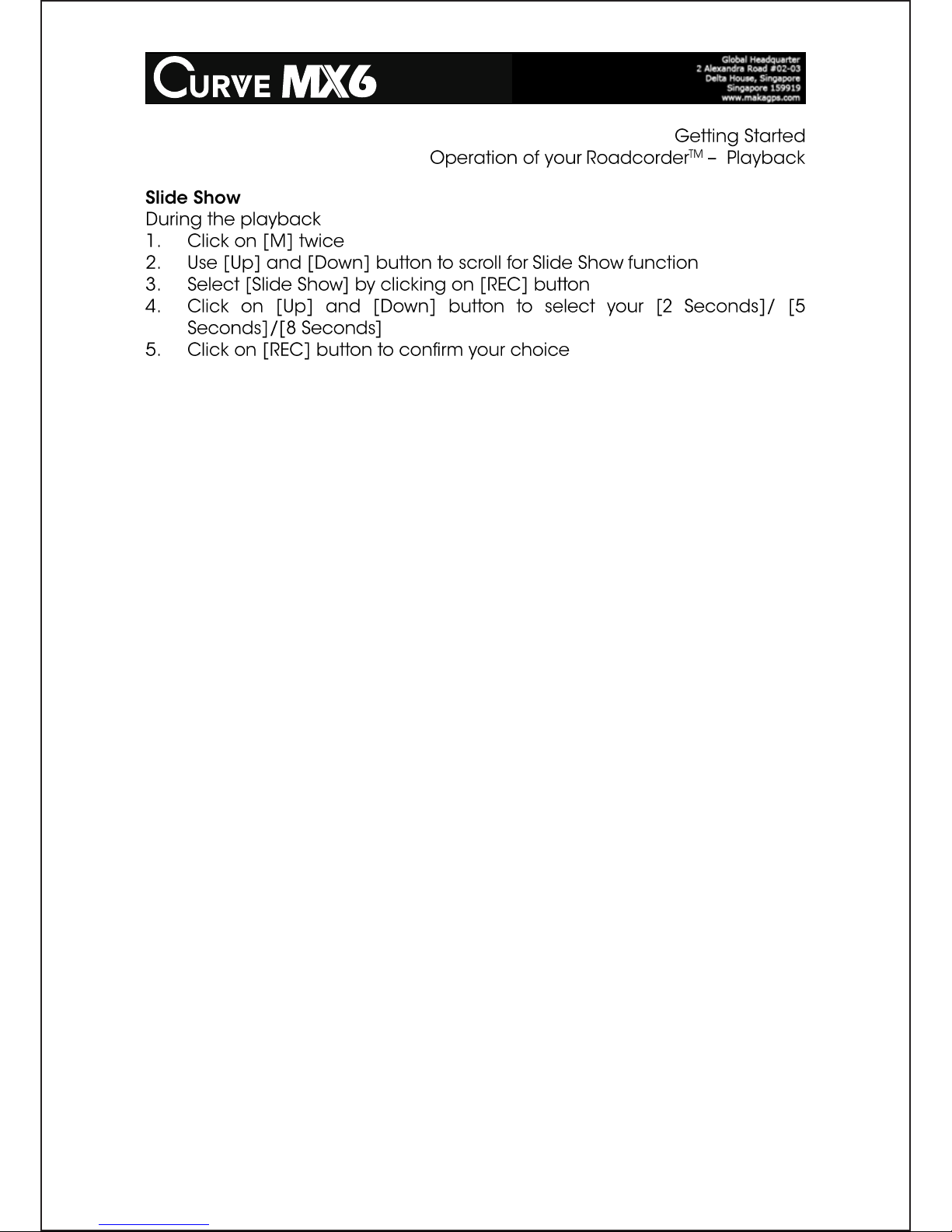

Page 20

Page 21

Chipset

NT96650

Storage

DDR3 128M

Video Resolution

1080HFD 1920×1080 /1080P 1440×1080 /720P 1280

×

720/ WVGA 848×480/VGA 640×480/QVGA 320×240

File Format

Image: JPG

Video : MOV

Power-off File Recovery

Function

Support

Motion Detection Support

Date time mark Support

Memory Card Support up to 32G MicroSD/ TF Card

Language System

English/French/ Spanish/ Portuguese/ German/

Italian/ Simplified Chinese/ Traditional Chinese/ Russian/ Japanese

HDMI

Support

AV-OUT Support

TV Standard

NTSC/PAL

USB

Support

Audio Recording

Support

Page 22

Question Reason Solution

The captured image is

not stored

1. MicroSD card might be

full.

2. Image is not saved

before the power outage.

Make sure to stop recording before

shutting down.

All buttons are invalid

Procedural error or faulty

operation

Press RESET button to restart the

DVR.

Device cannot be turn on

Device might be low in battery.

Charge the Battery.

Screen Auto power-off

1. Screen Saver function

is enabled.

2. Low Battery.

1. Click on [M] twice to the setup

page and change [Screen Saver] to off.

2. Charge the battery

Unable to take pictures or record videos

MicroSD card might be full.

Check your microSD card’s memory

space. Delete files if required.

Auto stop recording in

video mode

Use a compatible SDHC

microSD card for HD video

recording.

Get a microSD card that has

minimum of Class 10 speed.

Encounter “file error”

when trying to playback pictures or

videos

MicroSD card might be

corrupted. There bad sectors in the card.

Reformat the microSD card.

No image is displayed

on a high-definition TV screen

1. Cable plug might not be

plugged in properly.

2. Wrong TV Input mode

1. Ensure AV/ HDMI cable is plug

into the TV properly.

2. Refer to the back panel of your

TV to track the correct TV input. Make sure you have selected the correct input.

Hazy Images

Lens might be dirty.

Check if there are fingerprints or

dust on the lens. Clean it with a

micro fabric cloth if necessary.

Supply light cannot be

turn on

Device might be low in

battery. Supply light will not be able to on when

power is insufficient.

Charge the Battery. There are horizontal

stripes interference on

the image

This could be due to wrong

light frequency setting.

Please set according to the local

power supply respectively; 50Hz or

60Hz. For SG/MY: 50hz
