CURTIS STC595 User Manual

OWNER'S MANUAL

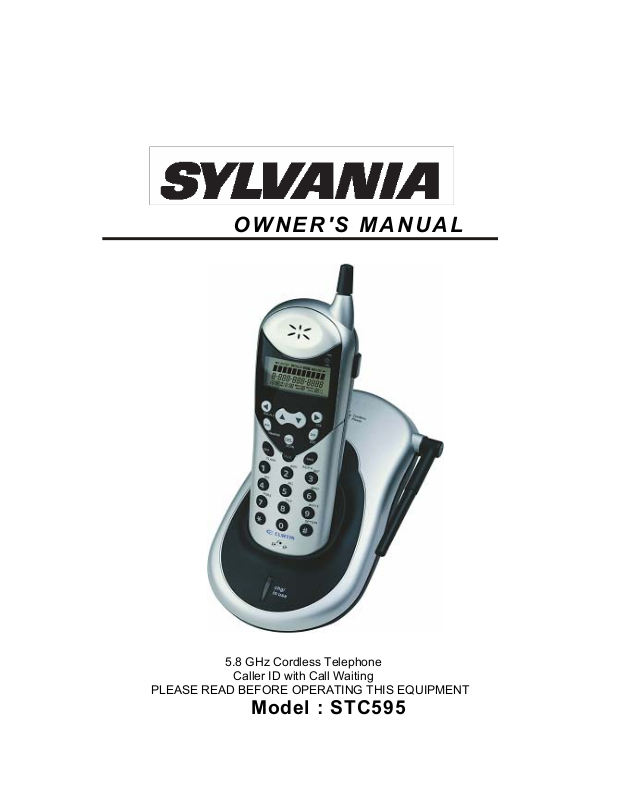

5.8 GHz Cordless Telephone Caller ID with Call Waiting

PLEASE READ BEFORE OPERATING THIS EQUIPMENT

Model : STC595

Contents

Safety Instructions ...................................................................................................3

HANDSET CONTROLS ..........................................................................................5

BASE UNIT Controls ...............................................................................................8

Getting Started .........................................................................................................9

Belt Clip Installation ............................................................................................10

Cordless Telephone Operation ................................................................................ 11

Preparing for Use ...............................................................................................11

Receiving Calls .................................................................................................. 11

Placing Calls ...................................................................................................... 12

Redial Feature ...................................................................................................12

Headset Volume Control ....................................................................................13

Using Headset Feature ......................................................................................13

Caller ID System Operation .....................................................................................14

Caller ID System ................................................................................................14

Viewing Caller Information during Incoming Calls ...............................................14

Caller ID with Call Waiting .................................................................................. 15

Message Waiting ............................................................................................... 15

One-Touch Voice Mail Dialing ............................................................................15

Caller List ..........................................................................................................16

Viewing the Caller List ................................................................................16

Placing a Call from the Caller List ................................................................16

Storing Caller ID Records into the DIRECTORY (PHONE BOOK)................ 17

Deleting Caller ID Records ..........................................................................17

Deleting a Single Record in the Caller List ...................................................17

Deleting all Records in the Caller List ..........................................................17

Name and Telephone Number DIRECTORY (PHONE BOOK) .......................... 18

Viewing the DIRECTORY (PHONE BOOK) ................................................18

Storing Phone Numbers ............................................................................. 18

Telephone Keypad Characters ................................................................... 19

Placing Calls from the DIRECTORY (PHONE BOOK) ................................ 20

Editing a Stored Number in the DIRECTORY (PHONE BOOK) .................. 20

Deleting a Stored Number in the DIRECTORY (PHONE BOOK) ................21

Deleting all Stored Number in the DIRECTORY (PHONE BOOK) ............... 21

Preferred Calls ............................................................................................22

Blocked Calls ..............................................................................................22

Contents

Outgoing Calls .........................................................................................22

Function Settings ..................................................................................................23

A. Setting the Ringer Level ..........................................................................24

B. Changing the Language ..........................................................................24

C. Turning the First Ring ON or OFF ............................................................25

D. Setting the Time and Date .......................................................................25

E. Adjusting the Contrast .............................................................................26

F. Setting the PBX Number .........................................................................26

G. Changing the Flash Time ........................................................................26

H. Changing the Pause Time .......................................................................27

I. Programming One-Touch Voice Mail Dialing ...........................................27

J. Deleting Message Waiting Indication .......................................................28

K. Setting the Area Code .............................................................................28

Multi-Handset System Operation ...........................................................................29

Prepare for Use .............................................................................................29

Transfer Call .................................................................................................29

Security System ....................................................................................................30

Recharging the BATTERY PACK ..........................................................................31

Changing the BATTERY PACK .............................................................................31

Problem Solving ....................................................................................................32

Technical I information ..........................................................................................34

FCC Requirements ...............................................................................................35

Safety Instructions

To reduce the risk of fire, electric shock and/or injury, always follow these basic safety precautions when using your cordless telephone equipment.

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the telephone.

3. Do not use this telephone near a bathtub, wash bowl, kitchen sink, or laundry tub, in a Wet basement, near a swimming pool, or anywhere else where there is water.

4. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning.

5. Do not use the telephone to report a gas leak in the vicinity of the leak.

6. Use only the power cord and BATTERY PACK indicated in the Owner’s Manual. Do not dispose of the BATTERY PACK in a fire. The BATTERY PACK may explode. Check with local codes for possible special disposal instructions.

7. Operate this telephone using the electrical voltage as stated on the BASE UNIT or in the Owner’s Manual. If you are not sure of the voltage in your home, consult your dealer or local power company.

8. Unplug this telephone from the wall outlet before cleaning or replacing the BATTERY PACK. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning.

9. Place this telephone on a stable surface. Serious damage and/or injury may result if the telephone falls.

10. Do not cover the slots and openings on this telephone. This telephone should never be placed near or over a radiator or heat register. This telephone should not be placed in a built-in installation unless proper ventilation is provided.

11. Do not place anything on the power cord. Install the telephone where no one will step or trip on the cord.

12. Do not overload wall outlets or extension cords as this can increase the risk of fire or electric shock.

13. Never push any objects through the slots in the telephone. They could touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the telephone.

14. To reduce the risk of electric shock, do not take this telephone apart. If service or

repair work is required on this telephone, take it to a qualified service representative. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used.

15. Unplug this telephone from the wall outlet and consult a qualified service representative in any of the following situations.

A. When the power supply cord is frayed or damaged. B. If liquid has been spilled into the telephone. C. If the telephone has been exposed to rain or water.

IMPORTANT SAFETY INSTRUCTIONS

Safety Instructions

D. If the telephone does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions. Improper adjustment may require extensive work by a qualified technician to restore the

telephone to normal operation. E. If the telephone has been dropped or the case has been damaged. F. If the telephone exhibits a distinct change in performance.

16. Never install telephone wiring during a lightning storm.

17. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

18. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.

19. Use caution when installing or modifying telephone lines.

Battery Safety

CAUTION: Danger of explosion if BATTERY PACK is incorrectly replaced. Replace only with the same or equivalent type. To reduce the risk of fire or personal injury, read and follow these instructions:

1. Use only the following type and size of BATTERY PACK:

3.6VDC, 600mAh Rechargeable Ni-MH BATTERY PACK

2. Do not dispose of the BATTERY PACK in a fire. It may explode. Check with local codes

for possible special disposal instructions.

3. Do not open or mutilate the BATTERY PACK. Released electrolyte from a BATTERY

PACK is corrosive and may cause damage to the eyes or skin. Electrolyte may be toxic if swallowed.

4. Exercise care in handling the BATTERY PACK to prevent shorting the BATTERY PACK

with conductive materials such as rings, bracelets and keys. The BATTERY PACK or conductor may overheat and cause burns.

5. Charge the BATTERY PACK provided with (or identified for use with) this telephone only

in accordance with the instructions and limitations specified in this manual.

6. Observe proper polarity orientation between the BATTERY PACK and BATTERY

CHARGER.

ATTENTION:

SAVE THESE INSTRUCTIONS

The telephone that you have purchased contains a rechargeable BATTERY PACK. The BATTERY PACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this BATTERY PACK into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

HANDSET Controls

1. OGCall (Outgoing call) button ( number(see page 22 for detail)

2. Voice Mail/Menu (Manual) Button: (Voice Mail) Press to automatically dial the Voice Mail Post Code in your area to access your Voice Mail message. (Menu)Press to access the special functions operation in STANDBY mode. (For special functions see pages 23~28. )

3. Scan/Del (Delete) Button: (Scan) Press to change the operating channel when you hear interference. (Del) Press to delete items or individual characters.

4. Flash/Edit Button: (Flash) Press to answer a call if you have Call Waiting. (Edit) Press to edit listed items.

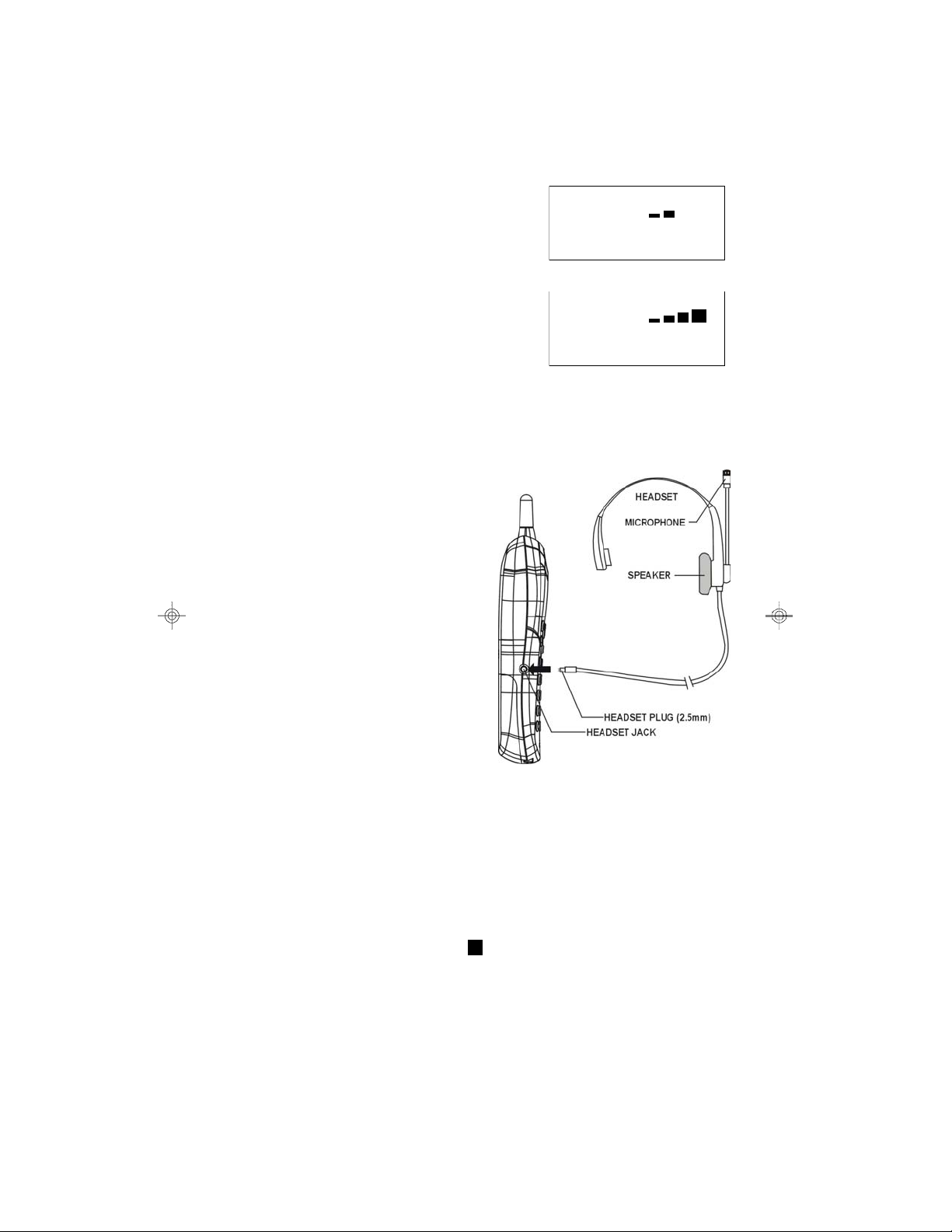

5. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication. (See page 13 for detail.)

6. TELEPHONE KEYPAD Buttons: Allows you to make a call depending on pressed button. (For TELEPHONE KEYPAD characters, see page 19.).

7. Temporary Tone (*) Button: Press to temporarily change the DIALING mode from PULSE to TONE for Rotary Service Users. (Press once before entering numbers to access the answering system or electronic banking services, etc.).

8. New Call/Msg Waiting ( Message Waiting ) LED Indicator: (New Call) Red LED blinks to indicate that you have a new Caller ID call stored in memory. (Message Waiting) Green LED blinks when receiving a Message Waiting signal, if you have subscribed to a Voice Mail message service from your local telephone company. (See page 15.).

9. Large LCD Screen: Shows call information, phone status, prompts and DIRECTORY (PHONE BOOK) items.

10. Vol (Volume) button( a comfortable listening level. (see page 13 for detail)

11. Dir (Directory)/ESC (Escape) Button: (Dir) Press to access names and numbers stored in the DIRECTORY (PHONE BOOK) (See pages 18 to 22 for details.).(Esc) Press to cancel the ongoing operation and return to STANDBY mode.

12. SCROLL UP

Trans (Transfer call) button(

another enrolled in the system (see page 29 for detail)

13. Re (Redial)/Pa (Pause)/Save Button: (Re) Press to redial the last number you dialed.

(Pa) Press to insert a pause while dialing. (You will need the Re/Pa/Save button to dial numbers which use an alternative Long Distance Access Code.) (Sa) Press and hold down to save the changes on the listed items.

14. Talk Button: Press to answer an incoming call or to place a call. Press to end a call.

): Press and to view the last outgoing call

 ): During TALK mode, press to adjust the receiver volume to

 - DOWN  Button: Press to move around the large LCD Screen.

 ): Press to transfer a call from this Handset to

15. Option (#) Button: (Option) Press to change the displayed telephone number into 7,

10, or 11 digit DIALING mode during Caller ID callback.

16. Microphone:

17. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We

recommend cleaning the CHARGE CONTACTS periodically with a damp cloth.

BASE UNIT Controls

1. POWER-IN CONNECTION JACK

2. TELEPHONE LINE CONNECTION JACK

3. BASE UNIT ANTENNA

4. PAGE Button: Press to page the HANDSETS.

5. CHARGE TERMINALS: For charging the HANDSET BATTERY PACK. For best performance, clean the CHARGE TERMINALS periodically with a damp cloth.

6. TONE/PULSE Select Switch

7. IN USE/CHARGE LED Indicator: (IN USE) Lights up to indicate that the HANDSET is in TALK mode. (CHARGE) Lights up when the HANDSET is placed on the BASE UNIT for charging.

Getting Started

Connecting Your Phone

This section is a reference guide to the basic functions and operations of your cordless telephone. For more detailed descriptions of the operations and features of this telephone, refer to the Contents on page 1.

1. Carefully remove your cordless telephone from its shipping carton. If there is any visible damage, do not attempt to operate this equipment. Return it to the place of purchase.

2. Check to be sure you have all items that come with this cordless telephone system. You should have a HANDSET, BASE UNIT, AC ADAPTOR, BATTERY PACK, TELEPHONE LINE CORD, BELT CLIP and Owner’s Manual.

3. Insert the small plug on the end of the AC ADAPTOR into the POWER-IN CONNECTION JACK at the bottom of the BASE UNIT.

4. Plug the AC ADAPTOR into a 120V AC wall outlet.

USE ONLY WITH CLASS 2 POWER SOURCE

5. Insert one plug of the TELEPHONE LINE CORD into the house TELEPHONE JACK and the other end into the TELEPHONE LINE CONNECTION JACK at the bottom of the BASE UNIT. (If you have an older 4-prong TELEPHONE JACK, you will need an RJ-11C TELEPHONE JACK ADAPTOR. This adaptor is available at the same place you purchased your telephone.)

6. We recommend not placing this unit next to appliances. Doing so may cause

interference

9V DC, 300mA for the BASE UNIT 9V DC, 100mA for the CHARGER UNIT

Getting Started

7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR inside the BATTERY COMPARTMENT.

8. Place the BATTERY PACK inside the BATTERY COMPARTMENT.

9. Slide the HANDSET BATTERY COMPARTMENT COVER firmly into place in its closed position.

10. IMPORTANT: Before initial use, charges the HANDSET for 12 hours. Place the HANDSET on the BASE UNIT or CHARGER UNIT with TELEPHONE KEYPAD face up, sure that the CHARGER UNIT LED indicator lights up.

11. TONE/PULSE Select Switch:

A. If your home is equipped with a tone dialing

system, set the TONE/PULSE Select Switch to the TONE position.

B. If you have a rotary dialing system, set the TONE/PULSE Select Switch to

the PULSE position.

C. If you are not sure which system you have, set the TONE/PULSE Select

Switch to the TONE position. Press the Talk button on the HANDSET and make a call. If the call connects, leave the switch as is; otherwise set to the PULSE position.

12. Set the date and time on the HANDSET. (See page 25 for details.)

Belt Clip Installation

With the back of the HANDSET facing up, insert one side of the BELT CLIP HOOK into the matching slot at the top side of the HANDSET. Press down on the opposite side of the BELT CLIP until the other hook locks into the slot on the side of the

HANDSET.

CAUTION: The cordless telephone operates

at a frequency that causes interference to nearby TVs and VCRs or Microwave; the base phone should not be placed near, or on top of a TV ,VCR or Microwave. If interference is experienced, moving the cordless telephone farther away from the TV/VCR/Microwave will often reduce or eliminate the interference.

and make

BELT CLIP HOOK

Cordless Telephone Operation

Preparing for Use

Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require recharging of the BATTERY PACK more often.

1. Place the HANDSET on the BASE UNIT/CHARGER UNIT for 12 hours.

2. After 12 hours, remove the HANDSET from the BASE UNIT/CHARGER UNIT.

Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require more frequent charging of the BATTERY PACK.

NOTE: Depending on the frequency of use, once the HANDSET is fully charged, it

remains functional for approximately 4 hours of continuous use and approximately 4 days when the HANDSET is off the BASE UNIT or CHARGER UNIT in STANDBY mode.

If your have a more than one HANDSET, please see page 29 for multi-HANDSET system for preparing.

Receiving Calls

1. When the phone rings, the LCD Screen will show “RING….” If you have Caller ID, the LCD Screen will show the Caller ID information after the first ring.

2. With the HANDSET off the BASE UNIT/CHARGER UNIT, press the Talk button. Start your

conversation. The Call Timer starts to count.

3. To end your conversation, either press the Talk button or place the HANDSET on the

BASE UNIT. If you place the HANDSET on the BASE UNIT CHARGE CRADLE, you

activate the AUTOMATIC STANDBY feature.

NOTE: The Call Timer will start to count once you press the Talk button.

Minutes

TALK

min sec

01 4 5

Call Timer Display

NOTE: While the 5.8GHz frequency is inherently clearer, we suggest that you do not

use this phone within 20 feet of a working microwave. The microwave produces frequencies in this range which may cause interference. This interference is normal for all 5.8 GHz phones and should not be considered a product defect.

01 4 5

Seconds

+ 27 hidden pages
