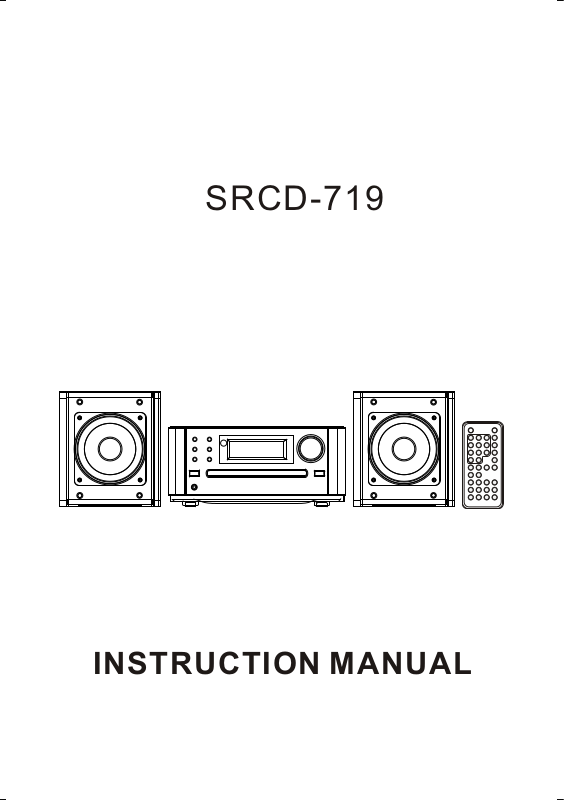

Curtis SRCD-719 User Manual
SRCD-719
INSTRUCTION MANUAL
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION
CORD, RECEPTACLE OR OTHEROUTLET ULESS THE BLADES CAN BE FULLY INSERTED
TO PRESENT BLADE EXPOSURE.
TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT FULLY I NSERT.
CAUTION
RISK OF ELECTRIC SHOCKRISK OF ELECTRIC SHOCK
DO NOT OPEN
DO NOT OPENDO NOT OPEN
The lightning flash with arrowhead symbol,within an equilateral triangle is intended to
alert the user to the presence
of uninsulated' dangerous vo-
ltage' within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
Warning : To reduce the risk of
electric shock do not remove
cover (or back),no user servic-
eable parts inside refer servi-
cing to qualified service pers-
onnel.
The exclamation point within
an equilateral triangle is int-
ended to alert the user to the
presence of important opera-
ting and maintenance (servi-
cing) instructions in the liter-
ature accompany-ing the ap-
plicance.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc tions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other app aratus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug h as two blades with one wider than the other. A grounding type plug has two blades and a thir d grounding prong. The wide blade or the third prong are provided for your safety. If the pro vided plug does not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus comb ination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has b een spilled or objects have fallen into the apparatus, the apparatus has been exposed to ra in or moisture, does not operate normally, or has been dropped.
15) This appliance shall not be exposed to dripping or splashing water and that no object filled
with liquids such as vases shall be placed on apparatus.
1
Quick View
To get the maximum enjoyment and performance from this product, please read this manual and
familiarize yourself with the functions and controls before attempting to operate it. Correct usage will
assure years of trouble free performance and listening pleasure.
Front View
1. POWER button
2. CD/MP3 button
3. TUNER button
4. SKIP REW button
5. SKIP FWD button
6. STOP button
7. PLAY/PAUSE button
8. Phones
9. CD Door
10. EJECT button
11. VOLUME +/- button
12. SENSOR
13. LCD Display
2
Remote Control
1. POWER button
2. KEY PAD
3. Track/Tune REW button
4. Track/Tune Forward button
5. CD/MP3 button
6. TUNER/BAND button
7. INTRO button
8. PROG. button
9. MEMO button
10. ESP button
11. MP3 Mode button
12. MP3 Clear button
13. MP3 Enter button
14. COLOUR button
15. Display button
16. M-DOWN button
17. RDM button
18. REP.M-UP button
19. STOP button
20. PLAY/PAUSE button
21. TONE button
22. VOL – button
23. VOL+ button
24. MUTE button
25. EJECT button
3
Getting Started
Unpacking your
RCD719 MP3 Micro System
Carefully remove your CD micro system from its
packaging. You may wish to store the
packaging for future use.
Box Contents:
- CD/MP3 micro system
- 2 speakers (speaker cables attached)
- Remote control
- AM Loop Antenna
- User Guide
AC CONNECTION
Plug the power cord into an AC outlet having
120v,60Hz only. Connecting this unit to other
power sources may damage the unit.
NOTES:
*The AC polarized plug helps to minimize
the possibility of electric shock. If the
polarized plug does not fit into a
nonpolarized AC outlet, do not file or cut
the wide blade; it is the user`s
responsibility to have an electrician
replace the obsolete outlet.
*The power cord should be unplugged
from the outlet when the unit is not going
to be used for a long period of time.
Installation
Speaker Connection
1. Unwind the cable from each speaker.
2. At the rear of the CD micro system there
are two speaker sockets.
3. Plug the speaker located on the left into the
socket marked ‘L’ and coloured white.
4. Plug the speaker located on the right into
the socket marked ‘R’ and coloured red.
5. For optimal stereo effect, place the
speakers approximately 1.5m apart.
AC Power Connection
1. Connect the mains plug to a mains supply
socket and switch on the supply.
2. At the front of the CD micro system unit,
press the STANDBY button.
3. The LCD display will light up.
Antenna
The FM antenna is attached to the back of the
unit. Unwind the wire. Positioning is described
in the Radio section.

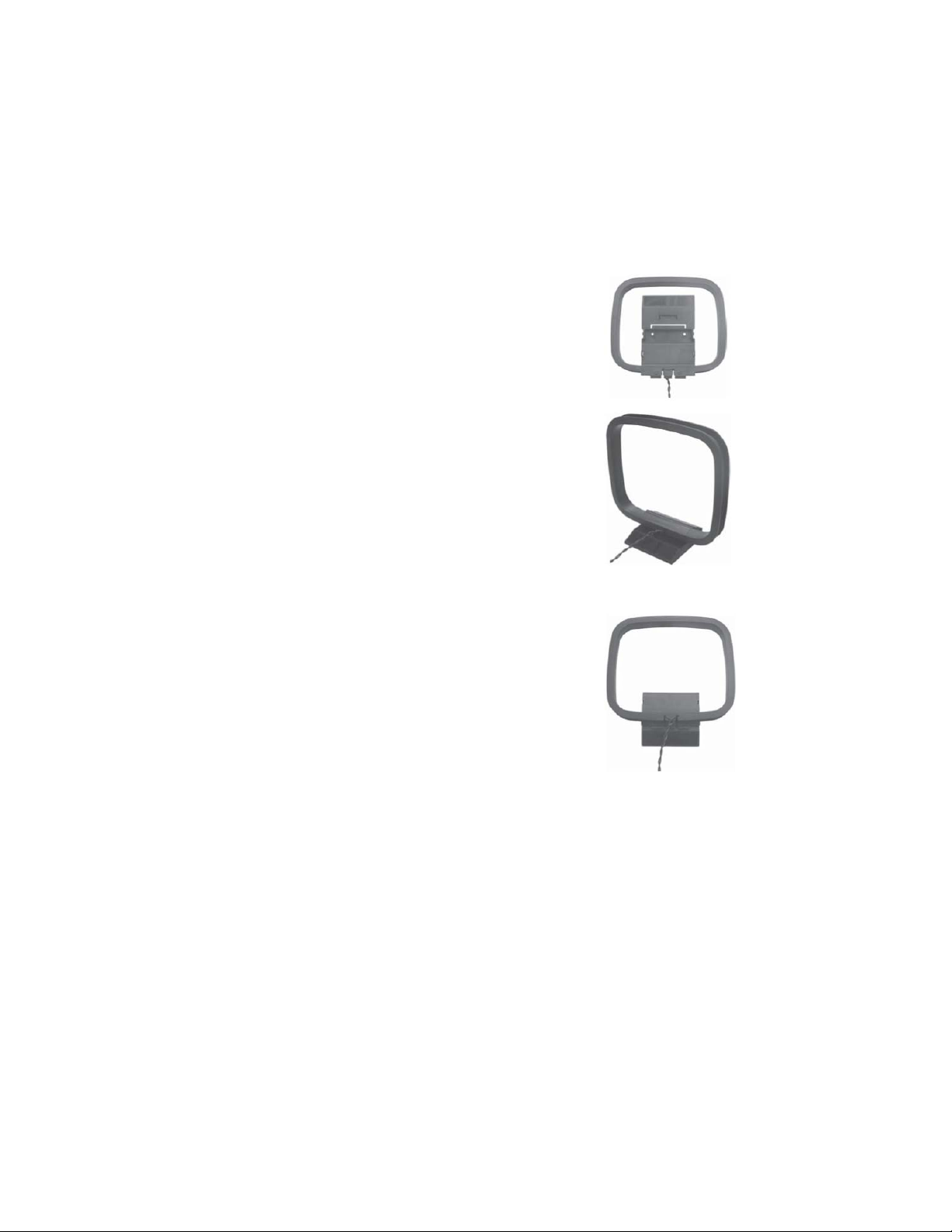

antenna is a separate loop aerial that
The AM
plugs into the back of the unit at the socket
‘AM ANT.’. Its assembly is described in
marked
the Radio section.
