SDVD8737
Page 2
Table Of Contents
Safety Precaution 1
Package 3
Main Features 3
Main Unit Controls 4
System Connection 5
The Remote Control 10
Basic operation 12
System Setup 22
Specification 24
Troubleshooting 25
Safety Precaution
Thank you for choosing our portable DVD player. It includes a 7” wide screen and a DVD
player. The unit applies the latest state of art electronics and is designed for use at home,
in hotels and in offices etc for relaxation. The compact size makes carrying easier as
well as installation. Please read the manual carefully prior to use and keep it well for later
consultation.
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
1) Please read the instruction manual carefully and follow all the requirements of safe
operation to operate the device.
2) Do not use this unit near water. Do not place over the unit any container with liquid
inside.
3) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid
detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel, servicing is required when the unit
has been damaged in any way, such as power supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the unit, exposed to moisture, does not
operate normally. Don't try to repair the machine by yourself because of the danger of
high voltage and electric shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as they may
cause the unit to malfunction.
1
Page 3
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Package
7 '' LCD Monitor & DVD Player
Remote Control with battery
Audio/Video Cable
AC/DC Power Adapter
Cigarette Lighter Adapter
User Manual
Earphone
DC+Audio/Video Cable
Carry Bag
Mounting Straps
Main Features
High brightness color 7” LCD screen
Compatible with disc of DVD, VCD, MP3, MP4, CD, JPEG, etc.
Built-in stereo speaker
Support PAL or NTSC system
Support Multi-language OSD, speed forward/backward, repeat function
Zoom in/out function
1
1
1
1
1
1
2
1
1
2
32
Page 4
Main Unit Controls
System Connection
ON OFF
12
A
B
15
3
4
OK
5678
1. Open knob
2. Power ON/OFF switch
3.SETUP button
4. MODE button
5.
6.OK button Function same as
“ ENTER ”on Remote control
7. Play/Pause
8. STOP button
Monitor View
ON OFF
1
2
3
4
5
Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the
main unit, then plug the other end into the AC power receptacle. Please refer to the
following illustration.
9
10
DC OUT
11
AV OUT
AV OUT
DC OUT
12
13
14
CLOSE
9. DC IN 9-12V
10.DC OUT
11. AV OUT
16
If using car cigarette lighter adaptor to connect to the power:
Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug
the other end into the car cigarette lighter socket. See illustration below.
12. Earphone jack
13. Volume knob
AV OUT
DC OUT
14. SD card slot
15. USB Port
16. Rating Label Position
Notice:
1.2.Car cigarette lighter adaptor is available to use only when the car cigarette
lighter with DC 12V negative grounding.
The mains plug is used as the disconnect device, the disconnect device should
remain readily operable.
BRIGHTNESS
1. Power ON/OFF
2. Volume knob
3. Earphone jack
DC OUT
AV OUT
CLOSE
6
4. AV i n
5. DC IN 9-12V
6. Brightness Knob
4
5
Page 5
Connecting to the monitor
In Car Installation
The unit can also be connected to the external LCD monitor.
Connect the unit to power by AC/DC adapter or cigarette lighter adapter.
Then connect the unit DC OUT jack to DC IN 9-12V Jack of the LCD Monitor by a DC/AV
cable. Also use this DC/AV cable to connect the AV OUT jack of the unit to AV IN
jack of the Monitor.
Please refer to the illustration below.
DC OUT
AV OUT
ON OFF
1. Fit the headrest mount to the DVD Player / Monitor as required.
NOTE: Both the headrest mounts are the same, there is no difference for
DVD Player or Monitor.
The DVD player will fit to the mount
C
A
E
UP
front
in this position, as shown below.
D
B
A
B
F
Turn the headrest and player around so the backs are facing you.
Slide the vertical straps A and B through the
strap lock upon the back of the DVD player,
back
or monitor, as shown.
Fold and secure the horizontal straps on to
the back of the mount until the velcro attaches.
Ensure the DVD player or monitor is mounted
centrally.
Note: You're advised to supply both units the power by the cigarette lighter adapter
only. The AC/DC adapter is used to supply power of one unit only and as the charger
to charge the main unit if it's with built-in battery.
Turn the headrest and player around so the front is facing you.
Bring straps C, D, E & F in front of the DVD
Player and attach to the velcro as shown.
76
Page 6
2. Fitting the Headrest Mount to the headrest
Fit the straps around the headrest and
engage the 2 trident clips.
Ensure clips are securely fastened.
Connecting with external Speaker

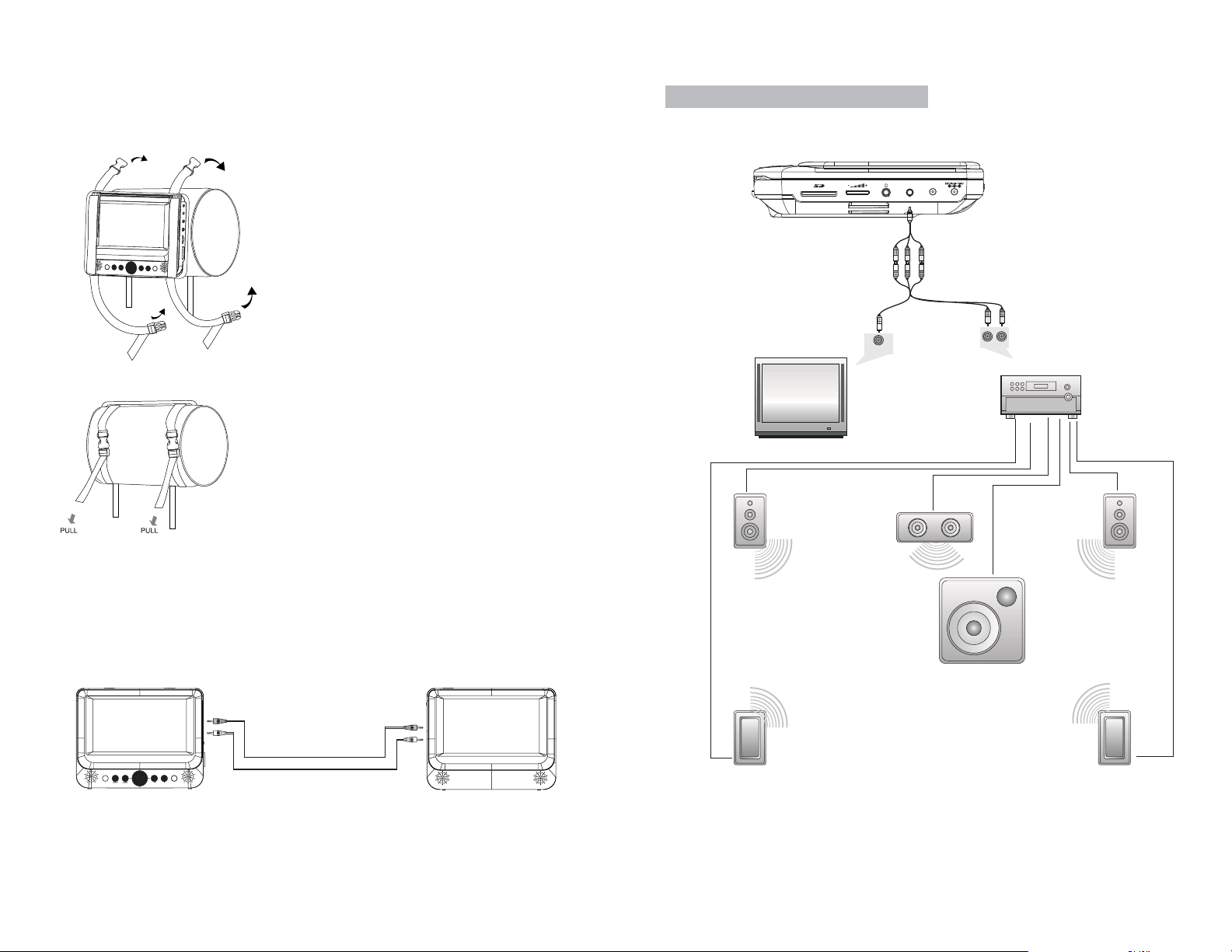

The unit can be connected with external speaker. Please see the following illustration.
DC OUT
AV OUT
AV CABLE
Not supplied
Pull the straps tight using the adjustment.
Tuck the loose ends into the strap tidy.
NOTE:
For SDV48-AM installation it is recommended that the DVD Player
is on the LEFT headrest, to ensure a neat cable run to the monitor,
as shown below.
A
B
VIDEO IN
AUDIO IN
AMPLIFIER
TV
Center speaker
Left front speaker
SUBWOOFER
Left rear speaker Right rear speaker
Notice:There is no 5.1 channel in the unit, however, after connecting to APM it is available to
output audio in 5.1 channel
.
Right front speaker
8
9
Page 7
The Remote Control
1
2
3
4
5
6
7
8
9

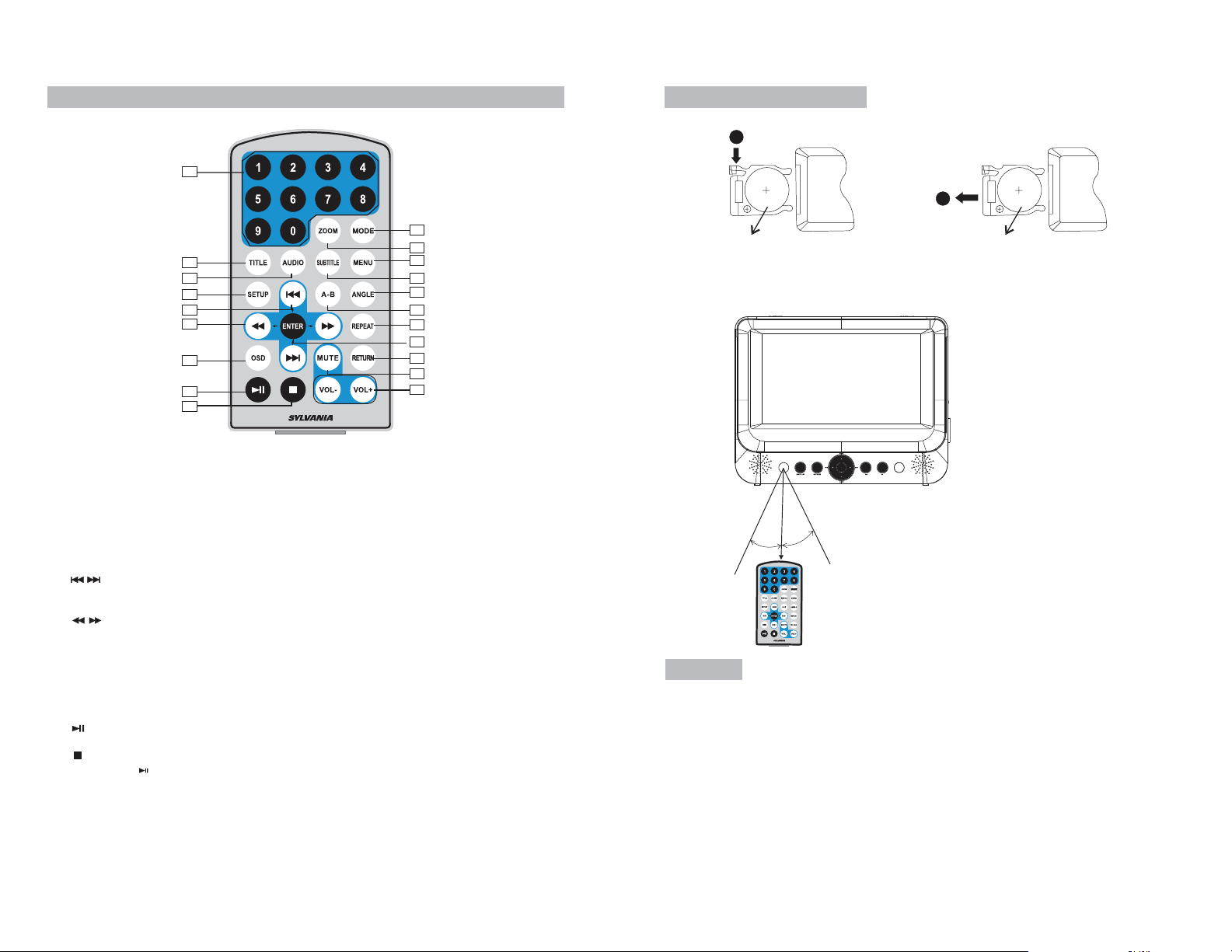

1. Number button
2. TITLE ( To display title information)
3. AUDIO (To select audio language)
4. SETUP (To go to or exit setup menu)
5. button (To go to previous/next
chapter or scene during playing)
6. button (To scan
forward/backward at 2, 4, 8, 16,
or 32 times )
7.OSD ( To display disc information
during playing such as elapsed and
remaining time)
8. Play/pause
9. Stop ( press once to stop playback,
then press to resume playback from
the point where you stopped; press stop
button twice to stop playback completely)
10. MODE (To select the source refer to P17)
10
11
12
13
14
15
16
20
17
18
19
11. ZOOM(To zoom in/out the image during
the playback)
12. Menu (To enter or exit menu root)
13. Subtitle (To select subtitle language
when playing DVD disc)
14. Angle (To change viewing angle when
playing disc with multi-angle)
15. A-B (Repeat a specific portion from
point A to B, press it again to cancel
repeat playing)
16. Repeat (To repeat playing title,
chapter or track)
17. Return (To return to the main menu)
18. MUTE(To turn to mute)
19. VOL +/- (To adjust the volume)
20: Enter ( To confirm,f
“ OK ”Button on uint
unction same as
)
The Use of Remote Control
Please put the battery into the remote control as per below illustration.
1
2
CR2025 CR2025
When using remote control, make sure the infrared window is pointed to infrared receiving
window of the machine. The distance between machine and remote control must be within 3
metres. Please refer to the following illustration.
0
0
30
30
Notice
1.To avoid falling off or place near damp environment.
2.To avoid infrared receiving window of the unit being under direct sunlight.
3.Please use a new battery to replace old one if the remote control doesn't work.
10 11
Page 8
Basic Operation
DVD
MPEG4

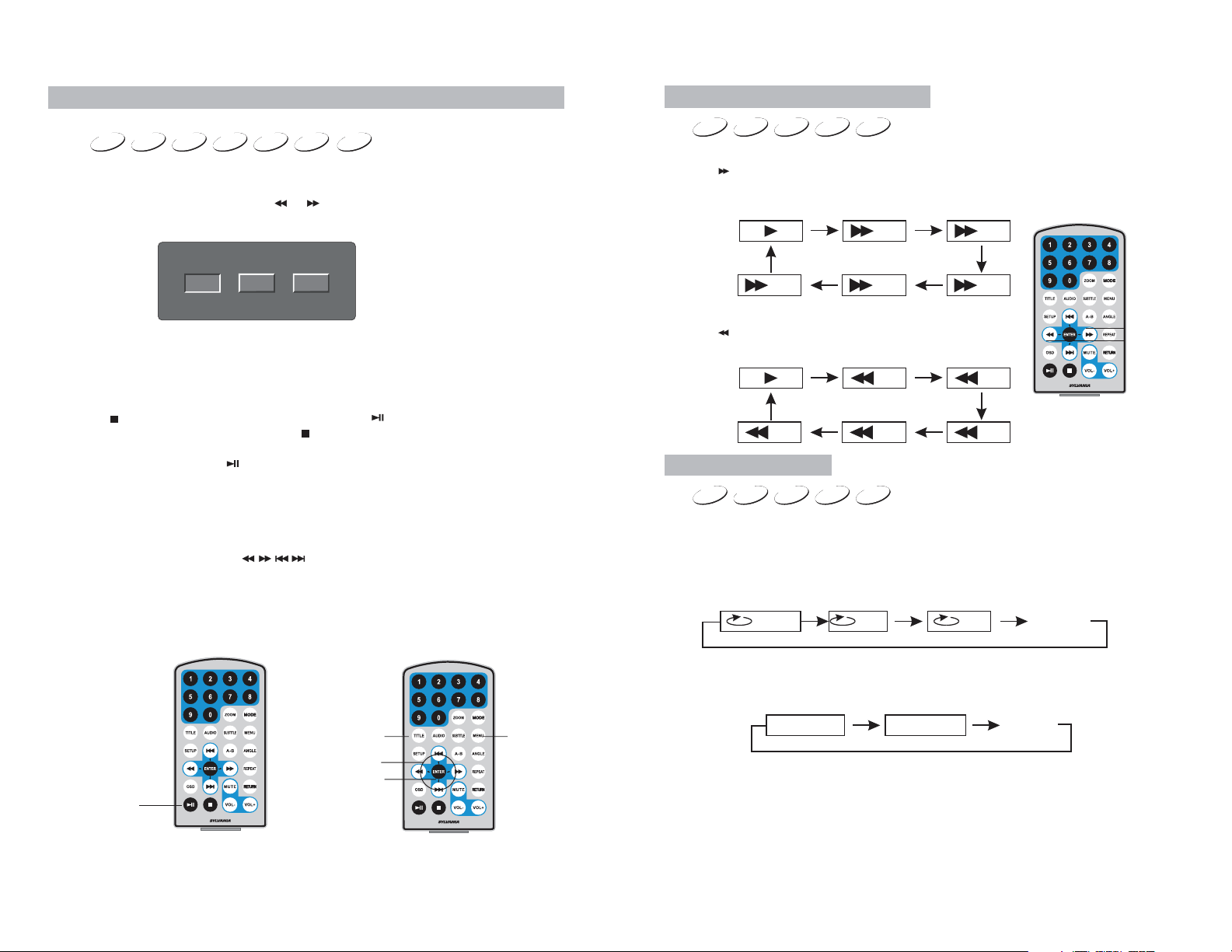

Playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3.
In the Source Mode ,you can press " "," ",to select and "ENTER" key to enter the
1.
source you want.
VCD CD MP3 Xvid
SVCD
Fast forward and fast backward
DVD
MPEG4
When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or
backward.
1. Press , the unit will search forward. Press it repeatedly ,the unit will play at 2, 4, 8, 16,
32 times of speed.
SVCD
VCD CD
2X 4X
DVD
SD USB
2. Open the disc door and insert a disc into the door with the label side facing
up.
3. Close the disc door. The unit will load the disc and start playing.
4. Press to once to stop playback; then press to resume playback from
the point where you stoped; press twice to stop playback completely).
5. During playback, press to pause; press it again to resume playback.
6. When the playing is finished, please turn off the power by sliding ON/OFF
switch to OFF.
7. For some DVD disc with Title or Chapter menu, press “ MENU” button to
enter menu page, and use to select. Press ENTER to confirm.
Note: Please do not disconnect USB devices or plug out SD/MMC cards
while they are working with the unit. Functional failure may occur in
case of wrong operations.
Title
Menu
8X16X32X
2. Press , the unit will search backward. Press it repeatedly ,
the unit will play at 2, 4, 8, 16, 32 times of speed.
Search forward
Search backward
2X 4X
8X16X32X
Repeat playing
DVD
MPEG4
When playing disc of DVD, MPEG4, SVCD, VCD, CD, user can repeat playing one
chapter, title or all the whole disc.
For DVD disc, press “repeat” button, user can repeat playing one Chapter; press it
again to repeat playing Title; press it the third time to repeat playing the whole disc.
Chapter Title All
For MP3 disc, press “repeat” to repeat playing present file; press it again to repeat
playing the folder; press it the third time to cancel repeat playing.
VCD CD
SVCD
Repeat one Repeat folder
Repeat off
Repeat off
play/pause
Cursor button
ENTER
12 13
Page 9

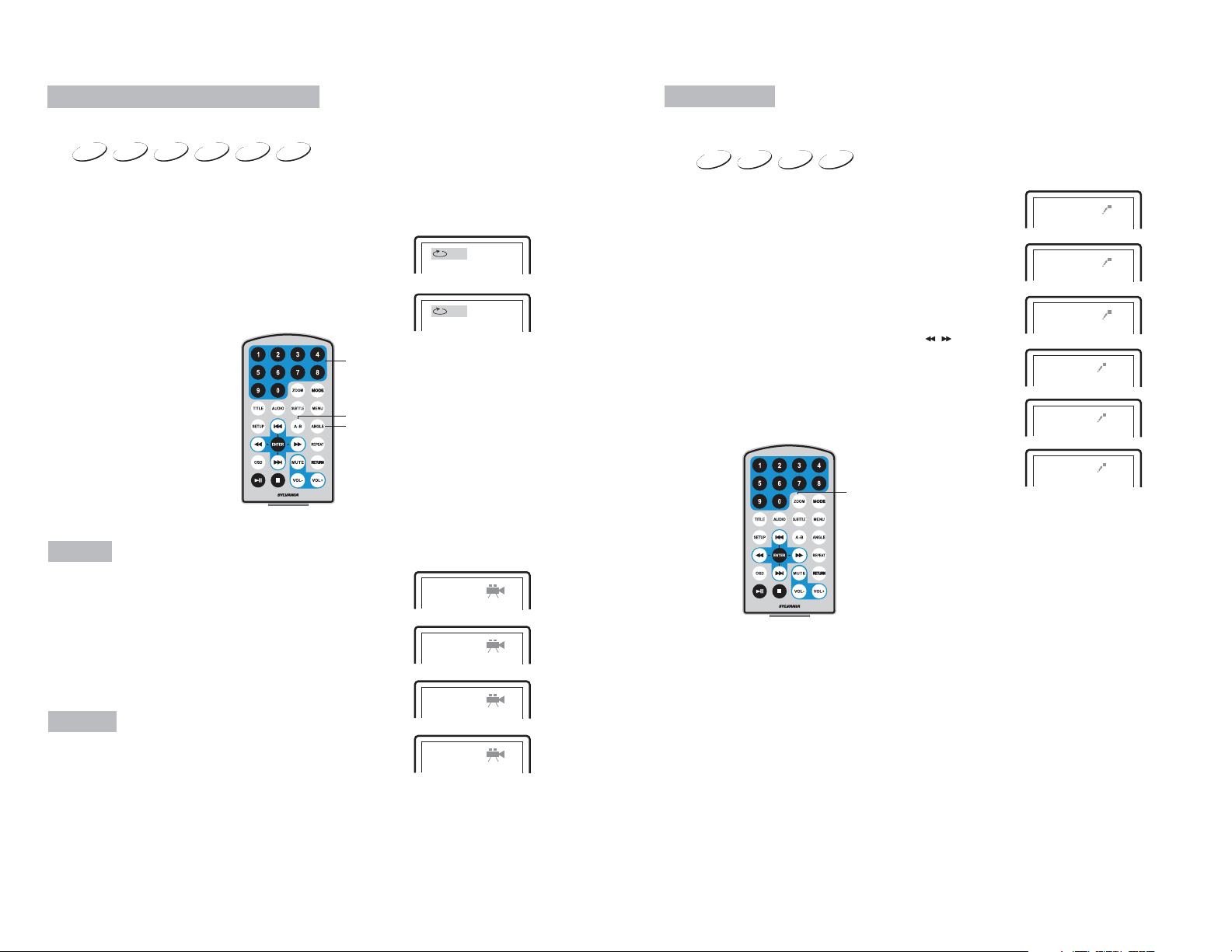

Repeat playing of favorite scene
Zoom in/ out
DVD
MPEG4
SVCD
MP3CDVCD
When playing disc of DVD, MPEG4, SVCD, VCD, CD, Mp3, user can repeatedly
play a specific section.
During playback, press “A-B” button at a point A, then press
this button again in point B, the unit will automatically repeat
playing the part between A-B
Press it the third time, the unit will return to normal playback.
Number
A-B
Angle
A
AB
Angle
During playing DVD disc with multi-angle, press “Angle”
button, the followings will be displayed on screen:
1 /4
DVD
MPEG4
SVCD
VCD
When playing disc of DVD, MPEG4, SVCD, VCD,
user can zoom in or zoom out the image .
During playback, press “Zoom ” button, the image will be
enlarged; press it again the image will be enlarged again;
press it fourth time, the image will zoom out, press it
repeatedly and the image will return to normal status.
When the image is enlarged, user can press to move
the image.
Zoom in/out
2X
3X
4X
1 /2X
1 /3X
1 /4X
Press number buttons to select the angle you desire
To return to normal playing, please press “Angle” .
The unit will play the disc in the default angle.
Notice
The function is available only for discs with multi-angle.
14 15
2 /4
3 /4
4 /4
Page 10

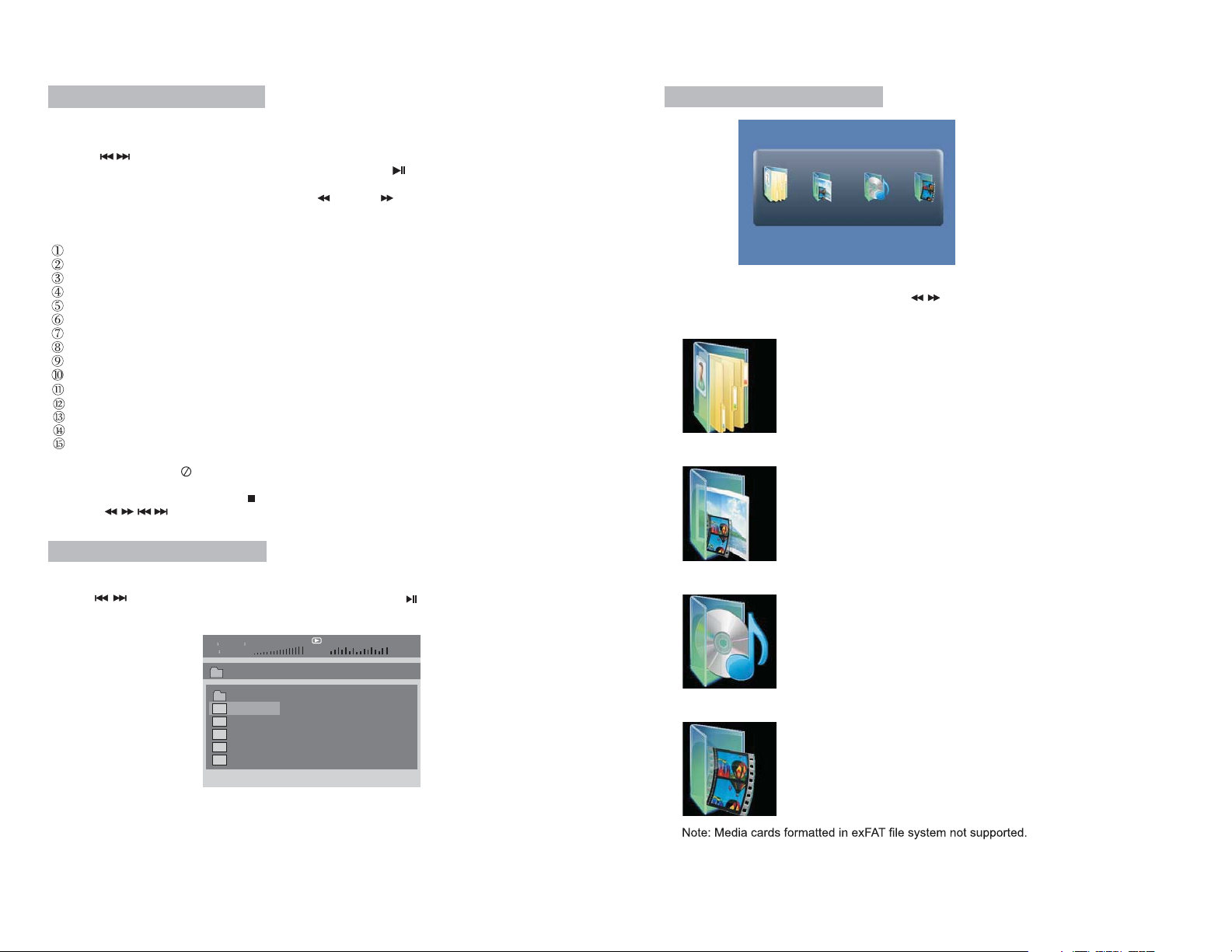

Playing JPEG file in data disc
1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press “MENU” to browse JPEG files.
3. Press to select a JPEG file and press “ENTER ” button to confirm.
Note: you can press MENU to return to the folder list. Press or “ ENTER ” to preview
the file selected
4. To rotate the picture counter-clockwise, press “ ”; Press “ ” to rotate the picture
clockwise
5. Press OSD button when viewing pictures, you can select different refresh mode as
follows:
. from top to bottom
. from bottom to top
. from left side to right side
. from right side to left side
. from left top to right bottom
. from right top to left bottom
. from left bottom to right top
. from right bottom to left top
. from horizontal center to both sides
. from vertical center to both sides
. From top and bottom to center.
. from right and left to center.
. from four window's top side to bottom side.
. from four window's left side to right side.
. from 4 edges to center.
SD/MMC/USB main menu
After Enter the SD/MMC or USB, the system will show Main Menu which includes 4
Function ICONS. You can select them by " and press “ENTER” key to confirm."
Browser Mode
Detail explanation please refer to P18
6. During viewing files, " " may appear when pressing or "Subtitle" or "Audio"
or "A-B" or "Title" etc; in this situation these options are unavailable to operate.
"Angle”
7. When viewing JPEG files, press " " , pictures will be displayed in thumbnail mode,
press or “ENTER” button to select one picture to view
Playing MP3 files in data disc
1.Place MP3 disc into the disc door .
Press “ ” or “ENTER” button to choose a MP3 file; Press “ ” or “ ENTER” button to play
the file selected.
/
00 36 03 43
Dir 001
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
16 17
Photo Mode
Detail explanation please refer to P18 -19
Music Mode
Detail explanation please refer to P19
Movie Mode
Detail explanation please refer to P20
Page 11

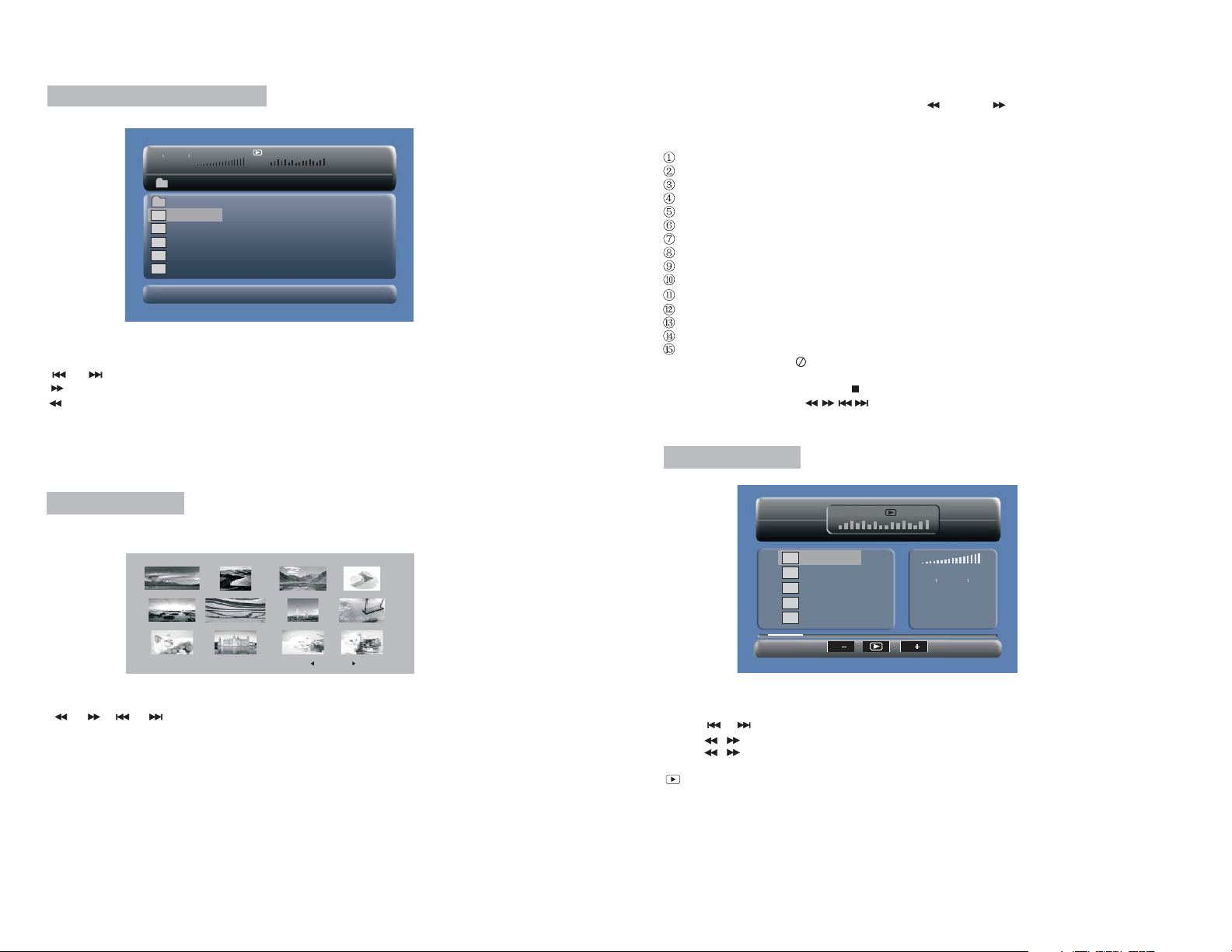

Browser mode
00 00 03 43
001/008
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
In the Browser Mode ,the system will show the list of file and folder.
" "," “,”ENTER”key:select and play
" " :Enter the folder
" " :Quit the folder
Note : if you want to return to the Main Menu , first, the system must be in
List of file and folder status, and you can press"RETURN" KEY to return
to the Main Menu.
When playing JPEG :
1.To rotate the picture counter-clockwise, press " “; Press " " to rotate the picture
clockwise
2. Press OSD button when viewing pictures, you can select different refresh mode as
follows:
. from top to bottom
. from bottom to top
. from left side to right side
. from right side to left side
. from left top to right bottom
. from right top to left bottom
. from left bottom to right top
. from right bottom to left top
. from horizontal center to both sides
. from vertical center to both sides
. from top and bottom to center.
. from right and left to center.
. from four window's top side to bottom side.
. from four window's left side to right side.
. from 4 edges to center.
3. During viewing files, " " may appear when pressing " Angle " or "Subtitle" or "Audio"
or "A-B" or "Title" etc; in this situation these options are unavailable to operate.
4. When viewing JPG files, press " " or "RETURN" key , pictures will be displayed in
thumbnail mode, press or “ENTER” button to select one picture to view.
Note : If want to return the Main Menu , you can Press "Return" key in the thumbnail mode.
Music mode
Photo mode
Slide Show Menu Prev Next
In the Photo Mode , the System will show the thumbnail Mode first.
“ ”,“ ”,“ ”,“ ”,“ENTER”:select and play.
Slide Show : play the JPEG
Menu : Enter the Help Menu.
Prev : Page Up.
Next : Page Down.
18 19
128Kbps
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
P P
00 00 03 43
001/008
Repeat Off
In the Music Mode , the system will show the list of music file, like
Mp3 and so on.
Press " "," ",”ENTER”,select and play.
Press" / " to fastward/backward Mp3 during playing.
Press" / " to select the bottom function when in “stop” status.
Page-: Page Up.
:play
Page+:Page Down
Note: Press "Return" Key to Return to the Main Menu
Page 12

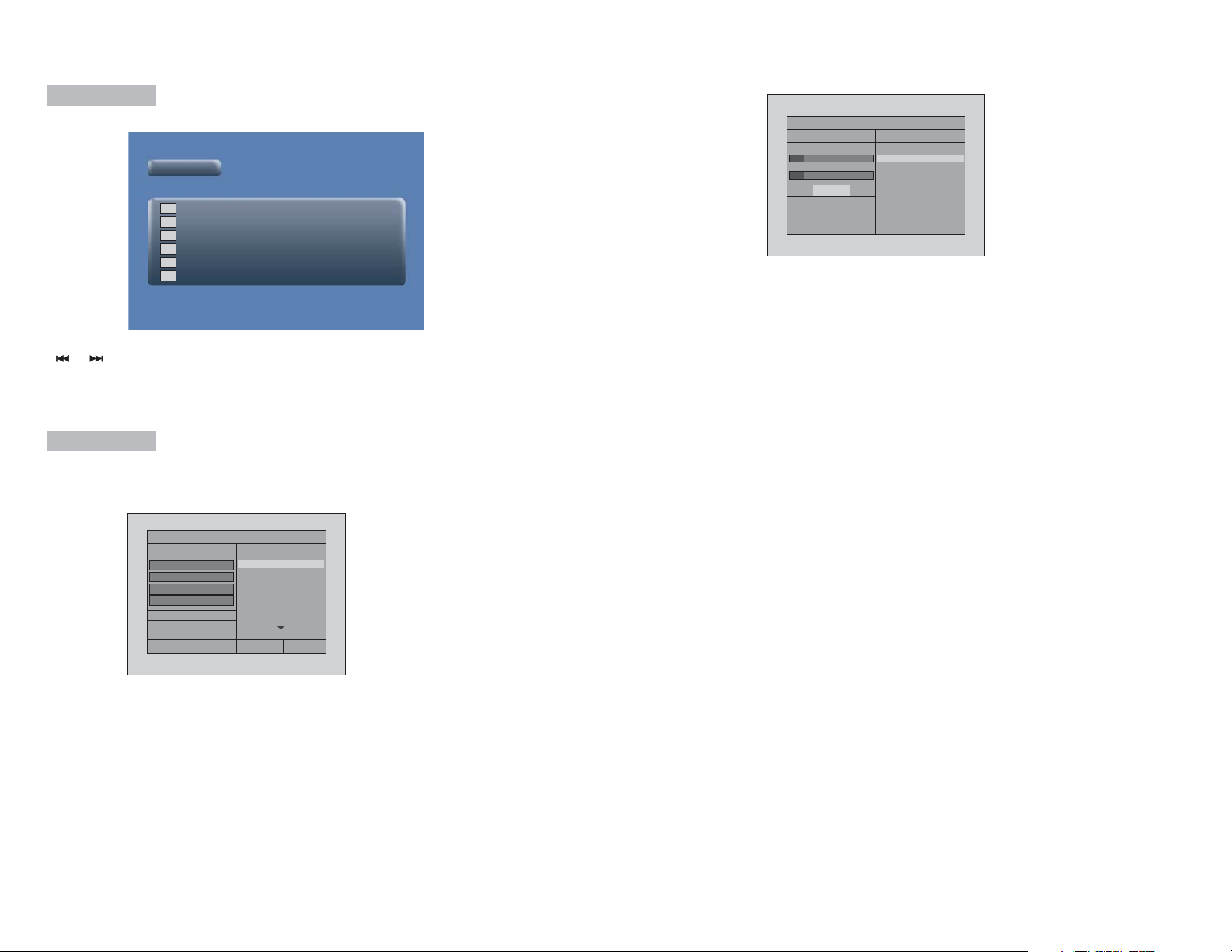

Movie mode
001/006
AVI
MOVIE01
AVI
MOVIE02
AVI
MOVIE03
AVI
MOVIE04
AVI
MOVIE05
AVI
MOVIE06
In the Movie Mode ,the system will show the list of Movie file, like AVI,Mp4 and so on.
“ ”,“ ”,“ENTER” Key :Select and Play.
When playing movie you can press "MENU" and "Return" Key to back to the list of movie
file status. And if you want to Return to the Main Menu, Please Press "Return" key in list
of Movie file status.
CD RIPPING
During playing the CD/HDCD disc, you can enter CD Ripping function. By pressing
subtitle button, DVD player will be able to change the CD format into MP3 format,
and then store it in the USB.
Ripping
Track Progress
Total Progress
SUMMARY
Now ripping
Trac k 01/01
CD RIP
Selected track
Trac k 01 9%
Cancel
During the changing, you can select CANCEL to stop the changing.
Options
Spee d Norma l
Bitr ate 128 kbps
Crea te Id3 Yes
Devi ce USB 1
SUMMARY
Selected Track 0
Selected Time 00:00
Start Exit Selected all Selected nono
CD RIP
Track 0 1 03:36
Track 0 2 03:36
Track 0 3 03:36
Track 0 4 03:36
Track 0 5 03:36
Track 0 6 03:36
Track 0 7 03:36
Trac k
Speed: In this item, you can set the rip speed: Normal or Fast.
Bitrate: In this item, you can set the bitrate. It has 3 choices,128Kbps, 96 Kbps and
112 Kbps.
Create ID3: In this item, you can create ID3.
Device: This item indicates whether USB is connected with DVD player.
Exit: Exit to the previous menu.
Select all: Select all the files in the disc for changing and storing.
Select none: unselect all the files in the disc.
Start: Move the cursor to the item and press Enter button, the changing begins.
20
21
Page 13

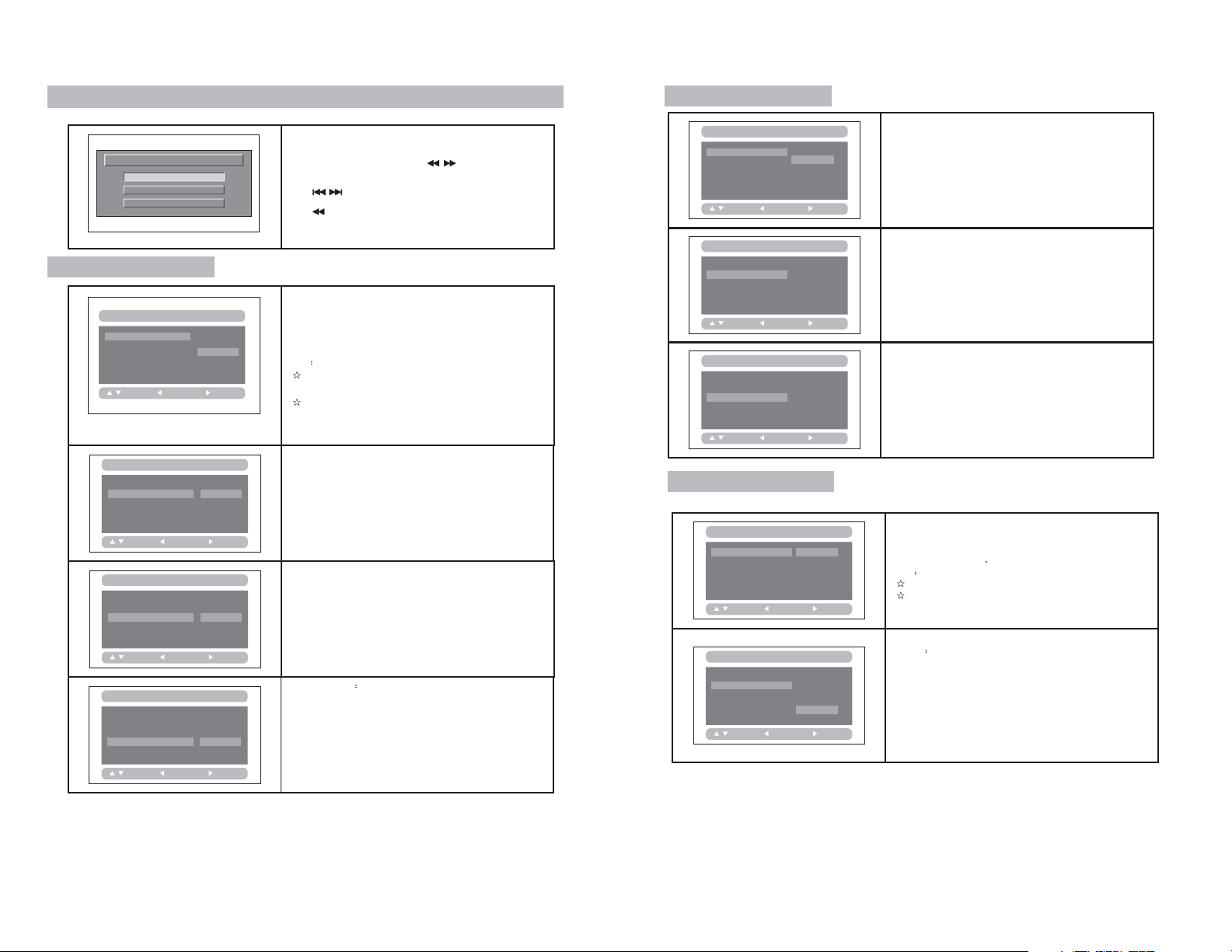

System Setup
Video Setup Page
Setup Menu -- Main Page
General Setup
Video Setup
Preference Setup
General Setup Page
General Setup
TV Dis play Wi de
Angl e Mark ON
OSD La ng ENG
Screen Saver ON
:Move
:Return
General Setup
TV Dis play Wi de
Angl e Mark ON
OSD La ng ENG
Screen Saver ON
:Move
:Return
General Setup
TV Dis play Wi de
Angl e Mark ON
OSD La ng ENG
Screen Saver ON
:Move
:Return
General Setup
TV Dis play Wi de
Angl e Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return
Normal/PS
Normal/LB
Wide
:Entry
On
Off
:Entry
English
French
German
Italian
:Entry
On
Off
:Entry
Press”Setup”button,the main menu will be displayed on the
screen
In the General Setup Page, Press button to highlight this
item.
Press ENTER button to access.
Press button to select the setting.
Press ENTER button to confirm your selection.
Press button to exit.
TV display:
Enter this option,user can set screen display format
(Nomal/PS,Nomal/LB,Wide)
The default is "Wide"
Note
The function depends on the display ratio with which the
DVD disc is recorded.
Please choose “Wide(16:9)"when using a16:9 wide screen
TV set
Angle Mark:
Enter this option to set the angle during playback.
Optional setting: ON, OFF
The default is: ON
OSD Language:
In the option user can set OSD menu language(English,
French,German,Italian).
The default:English
Screen Saver
Enter this option to set whether to activate the screen saver
function.
The default is ON.
Video Setup
TV Type NTSC
Qual ity
Panel Quality
:Move
:Return :Entry
Video Setup
TV Type NTSC
Qual ity
Panel Quality
:Move
:Return
Video Setup
TV Type NTSC
Qual ity
Panel Quality
:Move
:Return
Preference Page
Preference Setup
Audi o ENG
Subt itle Of f
Disc M enu ENG
Parental
Defa ult
:Move
:Return
Preference Setup
Audi o ENG
Subt itle Of f
Disc M enu ENG
Parental
Defa ult
:Move
:Return
PAL TV
NTSC TV
English
French
German
Italian
English
French
German
Italian
Off
:Entry
:Entry
:Entry
:Entry
TV Type:
Enter this option to select TV type(PAL,NTSC)
The default is NTSC.
Set the Video Quality of AV OUT
Set the Video Quality of PANEL
Audio:
Enter this option, user can select your preferred audio
language for DVDs.
The default is English
Note
The audio language depend on the material on each disc.
User can also change the audio language during playback
by pressing the Audio button.
Subtitle
Select your preferred language to show the subtitles
on the screen.
The default is OFF
The subtitle languages depend on the
information available on each disc,You can also change the
subtitle language during playback by press the SUBTITLE
button.
22
23
Page 14
Preference Setup
Audi o ENG
Subt itle Of f
Disc M enu ENG
Parental
Default
:Move
:Return
Preference Setup
Audi o ENG
Subt itle Of f
Disc M enu ENG
Parental
Default
:Move
:Return
Preference Setup
Audi o ENG
Subt itle Of f
Disc M enu ENG
Parental
Default
:Move
:Return
English
French
German
Italian
:Entry
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 ADULT
:Entry
Reset
:Entry
Disc Menu
This function allows you to choose the menu language
stored on the disc.
The default is English.
Note: the disc menu languages depend on the
information available on the disc.
Parental:
Enter this option to set the parental control level to some
unsuitable disc scenes being watched by the children.
Optional parental control levels: KID SAFE, G, PG, PG 13,
PGR, R, Nc17, ADULT.
The default of this option is ADULT.
The default password:8888.
Default:
Select this item and press ENTER button to reset
all settings to the original factory settings.
Specification
Compatible disc: DVD/VCD/CD/Mp3/MPEG4
Signal system: PAL/NTSC
Panel size: 7 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature: 0~40°C
Weight( ): 0.36 / 0.7 kgs
Monitor/DVD Player
Dimensions ( (W x D x H):
Monitor/DVD Player) 212x166.5x25
/212x 167x 40 mm
Troubleshooting
PROBLEM SOLUTION
No sound or
distorted sound
Can't advance
through a movie
The icon
appears on
screen
Picture is distorted
No forward or
reverse scan
Owing to continuous improvement, no prior notice will be given regarding changes on above
feature and spec.
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The feature or action cannot be completed at
this time because:
1. The disc's software restricts it.
2. The disc's software doesn't support the
feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number
that is out of range.
The disc might be damaged. Try another disc;
It is normal for some distortion to appear during
forward or reverse scan.
Some discs have sections that prohibit rapid
scanning or chapter skip;
If you try to skip through the warning information
and credits at the beginning of a movie, you
won't be able to. This part of the movie is often
programmed to prohibit skipping through it.
24
25
Loading...
