SDVD7003D
Table Of Contents
Safety Precaution 1
Package 3
Main Features 3
Main Unit Controls 4
System Connection 5
Safety Precaution
Basic operation 7
System Setup 10
Specification 13
Troubleshooting 14
Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to
rain or moisture.
1) Please read the instruction manual carefully and follow all the requirements of
safe operation to operate the device.
2) Do not use this unit near water. Do not place over the unit any container with
liquid inside.
3) Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning: Unplug the system, use only wet cloth to clean. Do not use liquid
detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel, servicing is required when the
unit has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the unit, exposed to
moisture, does not operate normally. Don't try to repair the machine by yourself
because of the danger of high voltage and electric shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as they
may cause the unit to malfunction.
1
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Package
DVD player
AC/DC Power Adapter
User Manual
Car Adapter
1
1
1
1
Main Features
High brightness color 7 LCD screen
Compatible with disc of DVD,MP3,CD,JPEG,etc.
Built-in stereo speaker
Built-in rechargeable Lithium polymer battery
Support PAL/NTSC system
Support Multi-language OSD,speed forward/backward,repeat function
32
Main Unit Controls
System Connection

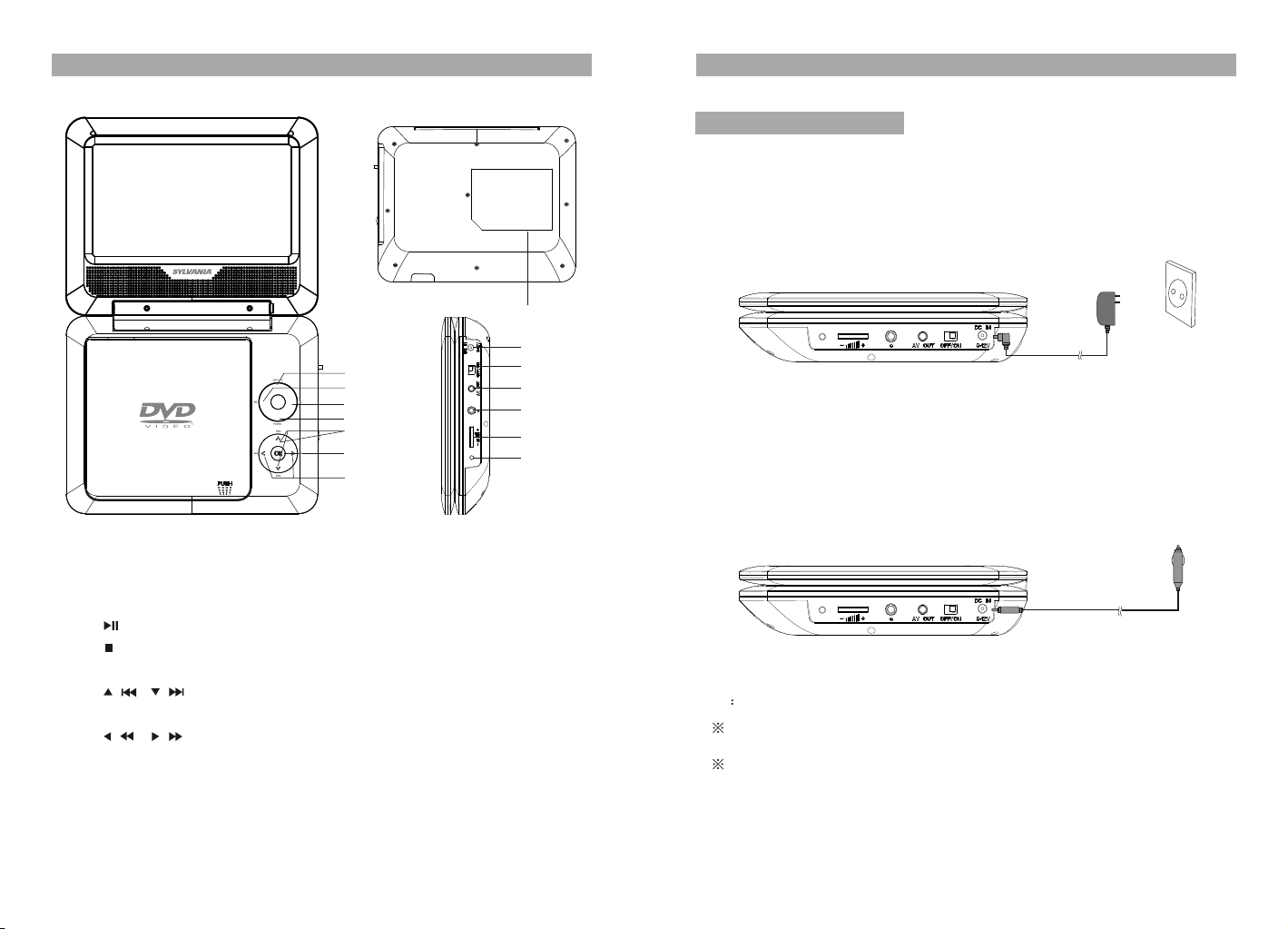

Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN9-12V jack on the right of
the machine, then plug the other end into the AC power receptacle.
Please refer to the following illustration.
14
8
1
2
3
4
5
6
7
10
12
13
9
11
If using car cigarette lighter adaptor to connect to the power: Plug one end of the
cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end
into the car cigarette lighter socket. See illustration below.
1. SETUP Button
2. PLAY/PAUSE Button
3. STOP Button
4. FUNCTION Button
5. ( ), ( ) BUTTON
6. OK BUTTON
7. ( ), ( ) BUTTON
8. DC IN 9-12V
9. Power ON/OFF Switch
10. AV OUT
11. Headphone Jack
12. Volume Knob
13. Charge indicator light
14. Rating Label Position
Note
Car cigarette lighter adaptor is available to use only when the car cigarette
lighter with DC 12V negative grounding.
The mains plug is used as the disconnect device, the disconnect device
should remain readily operable.
54
Connecting with external speaker
AV CABLE
(Not Supplied)
AUDIO INVIDEO IN
AMPLIFIRE
TV
Centre speaker
Left front speaker
SUBWOOFER
Left rear speaker
Right front speaker
Right rear speaker
Note There is no 5.1 channel in the unit,however,after connecting to
APM it is available to output audio in 5.1 channel.
6
Basic Operation
Playing disc of DVD,CD,MP3
DVD
1.Connect the unit to the power;
2.Open the unit and adjust the monitor to the best position for viewing.
3.Turn on the unit by sliding the ON/OFF switch to ON.
4.Open the disc door and insert a disc into the door with the label side facing up.
5.Close the disc door. The unit will load the disc and start playing.
6.During playback,press[ ] to pause;press it again to resume playback.
7.When playing disc of DVD,CD,Press[ ] ,the unit will search forward. Press it
repeatedly, the unit will play at 2,4,8,16,32 times of speed.press[ ],the unit will
search backward. Press it repeatedly,the unit will play at 2,4,8,16,32 times of speed
8.Press[ ] once to stop playback; then press[ ] to resume playback from the
point where you stopped; press[ ] twice to stop playback completely.
9.When the playing is finished, please turn off the power by sliding ON/OFF switch
to OFF.
MP3CD
Virtual Remote Operation
1.Press "FUNCTION " button when disc is playing, you will see a virtual
remote control as below, and the playback will be paused.
2.The virtual key is shown on
the left of the menu, and the
current playback status is
displayed on the right.
3.Use the / / / button to
SRH
TT
OSD
choose the icon, when the icon
is selected, you can see the
description at the bottom.
SEARCH
4.Press OK button, the selected virtual key will be activated, "OK=Selected
function" icon will be shown at top left for 10 seconds, in these 10 seconds
you just need to press OK button to change the style of the function. If the
icon disappear, the OK key will not work. (For Search, Return, Mute, the
icon won't be shown).
5.You can also press "FUNCTION" button to close virtual remote menu
without any operation. The player will resume playing after the menu exit.
Note:
1.When the disc is in the submenu, press the function key can go back the
title menu.
2.Stop or no disc state, the "FUNCTION" is invalid.
7
M
ADO
ZOOM
Subtitle Off
Repeat Off Mute Off
SUB
Angle Mark Null
SLOW
ANGLE
Virtual Remote Operation
1.SRH (Search): Press the"SRH" key ,you can see the number bar below, Use
left/right key to move the cursor, press ok to confirm , when playing DVD, you can
change the chapter and the title, press the "T/C " icon change the item you want
to change. When playing CD, you can select the track. Note: To select the title,
you need to enter two numbers.
2.M(Menu):to enter or exit menu root
3.ZOOM:When playing DVD discs ,you can zoom in, press the "ZOOM" button
and ok button to change the image size according the following sequence:
x2 x3 x4, when playing JPEG file, you can zoom in and zoom out, press the
"ZOOM" button and ok button to change the image size according the
following sequence: 100% 125% 150% 200% 75% 50%.
4.TT(Title): to display title information
5.ADO( Audio): to select audio language
6.SUB(Subtitle): to select subtitle language when playing DVD disc
7.OSD: Display the disc information during playing DVD/CD. Such as elapsed
time and remaining time.
8. ( Repeat): When playing disc of DVD/CD/MP3, you can change the repeat
style by press repeat button. For different type of disc, it change according
different sequence.
DVD:
MP3:
CD:
9.Slow: You can press slow key to change the playing speed slowly during
playing DVD. Then press OK repeatedly to change the playback speed
according the following sequence: 1/2 1/4 1/8 1/16.
10. (Return): to return to the main menu
11. (MUTE): to turn mute
12.Angle: When playing a DVD disc with multi-angles, press "Angle" button
and OK button to change the display angle.
Note: The function is available only for disc with multi-angle.
Chapter
one
Track
0 1 2 3 4 5 6 7 8 9
Title
folder
All
OK
All
T/C
Repeat off
Playing JPEG file
1.Place a JPEG disc into the tray,the unit will start reading and playing.
2.Press [ ] and OK button to select a JPEG file from the menu.
3.Press [ ] to rotate the picture clockwise.
4.Press [ ] to reverse the picture horizontally and press [ ] to reverse the
picture vertically.
Function operation:
Press "FUNCTION" key you will see the toolbar as below:
Press the / to move the cursor to select functions.
Press "OK" to select the function.
: Return, to return to the main menu.
: To repeat one, repeat all.
: To zoom in/out the image during playback.
Press "FUNCTION" to exit the toolbar.
Play Mp3 file
1.Place a Mp3 disc into the disc door.
2.Press[ ] to select the file; Press OK button to play the file selected.
00 36 03 43
Dir 001
\Ctyy\
......
Mp3
TRACK01
Mp3
TRACK02
Mp3
TRACK03
Mp3
TRACK04
Mp3
TRACK05
Function operation:
Press "FUNCTION" then you will see the toolbar as below:
0 1 2 3 4 5 6 7 8 9 OK
Press the / to move the cursor to select functions,
Press the number key to select the track.
Press "OK" to select the function.
:MUTE, to turn mute.
: To select repeat one, repeat folder, repeat off.
Press "FUNCTION" to exit the toolbar
8
9
System Setup
General Setup
Setup Menu -- Main Page
General Setup
Video Setup
Preference Setup
General Setup Page
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return
General Setup
:Return :Entry
Normal/PS
Normal/LB
Wide
:Entry
On
Off
Press Setup button, the main menu will be
displayed on the screen
In the General Setup Page,Press
button to highlight this item.
Press OK button to access.
Press button to select the setting.
Press OK button to confirm your selection.
Press button to exit.
TV display:
Enter this option,user can set screen display
format(Nomal/PS,Nomal/LB,Wide)
The default isWide
Note
The function depends on the display ratio
with which the DVD disc is recorded.
Please chooseWide(16:9)when using
a 16:9 wide screen TV set.
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting:ON,OFF
The default is:ON
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
Video Setup Page
Video Setup
TV Type NTSC
Panel Quality
:Move
Video Setup
TV Type NTSC
Panel Quality
:Move
Preference Page
On
Off
:Return :Entry
PAL
NTSC
:Return
:Return
:Entry
:Entry
Screen Saver
Enter this option to set whether to activate
the screen saver function.
The default is ON.
TV Type:
Enter this option to select TV type(PAL,NTSC)
The default is NTSC.
Set the Video Quality of PANEL
General Setup
TV Display Wide
Angle Mark ON
OSD Lang ENG
Screen Saver ON
:Move
:Return :Entry
English
French
German
Italian
OSD Language:
In the option user can set OSD menu
language(English,French,German,Italian).
The default:English
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
:Return :Entry
English
French
German
Italian
Audio:
Enter this option,user can select your preferred
audio language for DVDs.
The default is English.
Note
The audio language depend on the material
on each disc.
User can also change the audio language
during playback by pressing the Audio button.
1110
Preference Setup
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
Audio ENG
Subtitle Off
Disc Menu ENG
Parental
Default
:Move
:Return :Entry
Preference Setup
:Return :Entry
Preference Setup
:Return
Preference Setup
:Return :Entry
English
French
German
Italian
Off
English
French
German
Italian
1 KID SAFE
2 G
3 PG
4 PG 13
5 PGR
6 R
7 NC 17
8 ADULT
:Entry
Reset
Subtitle
Select your preferred language to show the
subtitles on the screen.
The default is OFF
The subtitle languages depend on the
information available on each disc,You can
also change the subtitle language during
playback by press the SUBTITLE button.
Disc Menu
This function allows you to choose the menu
language stored on the disc.
The default is English.
Note:the disc menu languages depend on the
information available on the disc.
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG,PG 13,PGR, R, Nc17, ADULT.
The default of this option is ADULT.
Make continuously pressing "FUNCTION"
button on the unit 4 times to be the password
Default:
Select this item and press OK button to reset.
all settings to the original factory settings.
Specification
Compatible disc: DVD+R/RW, DVD-R/RW, CD-DA, CD-R/RW, MP3,JPEG
Signal system: PAL/NTSC
Panel size: 7 inch
Picture resolution: 480x234(RGB)
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80 dB
Dynamic range: Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature: 0 ~40
Weight : 0.7 kg
Dimensions (W x D x H): 213 x 180 x 40.5 mm
Battery Type: Li Polymer
Note:
1.The quality and speed for reading JPEG photos depend on the resolution and
compression ratio of the photos. Some JPEG photo may not be played due to the
disc quality and the formats.
2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality
on burning conditions.
Rechargeable battery use
The unit utilizes long-life Li polymer battery for portable power supply. The battery
has no Memory Effect and thus can be recharged safely regardless of whether the
battery is fully or partially discharged.It is enough to recharge no longer than 4H each
time.fully recharged battery can last about 2.5 hours with earphones on.
Precautions related to Battery Recharge
The battery can be only recharged when turning power to OFF state,and keep
continuous power supply,the red light will be on,and the light will turn yellow when it
is fully charged.
Using and Maintaining Rechargeable Battery
1. The normal working temperature is: 0 ~40 ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing, it's normal, while avoid long time playing and
unattended;
4. Avoid having the unit collide with any objects, and place away from all possible
heat sources or damp areas.
Caution:Danger of explosion if battery is incorrectly replaced.Replace only with the
same or equivalent type.
1312
Main PCB
Bat
tery
ery
Batt
Before to discard EOL unit, please remove the waste battery by below steps:
a. Pull out the screws on the bottom cover by the screwdriver to unpack the unit.
b. Pull out the screws on the Main PCB board by the screwdriver to unpack the
PCB board and then the battery can be seen.
c. Remove the battery socket from the board.
Troubleshooting
PROBLEM SOLUTION
No sound or
distorted sound
Can't advance
through a movie
The icon
appears on
screen
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The feature or action cannot be completed at
this time because:
1. The disc's software restricts it.
2. The disc's software doesn't support the
feature (e.g., angles)
3. The feature is not available at the moment.
4. You've requested a title or chapter number
that is out of range.
Picture is
distorted
No forward or
reverse scan
The disc might be damaged. Try another disc;
It is normal for some distortion to appear during
forward or reverse scan.
Some discs have sections that prohibit rapid
scanning or chapter skip;
If you try to skip through the warning information
and credits at the beginning of a movie, you
won't be able to. This part of the movie is often
programmed to prohibit skipping through it.
1514
Loading...
