Curtis SDPF808 User Manual

SDPF808

Table of Contents

1

3

3

Main unit control

System connection

control

Using Your Digital Picture Frame
on the remote control

4

4

5

6

6

7

9

9

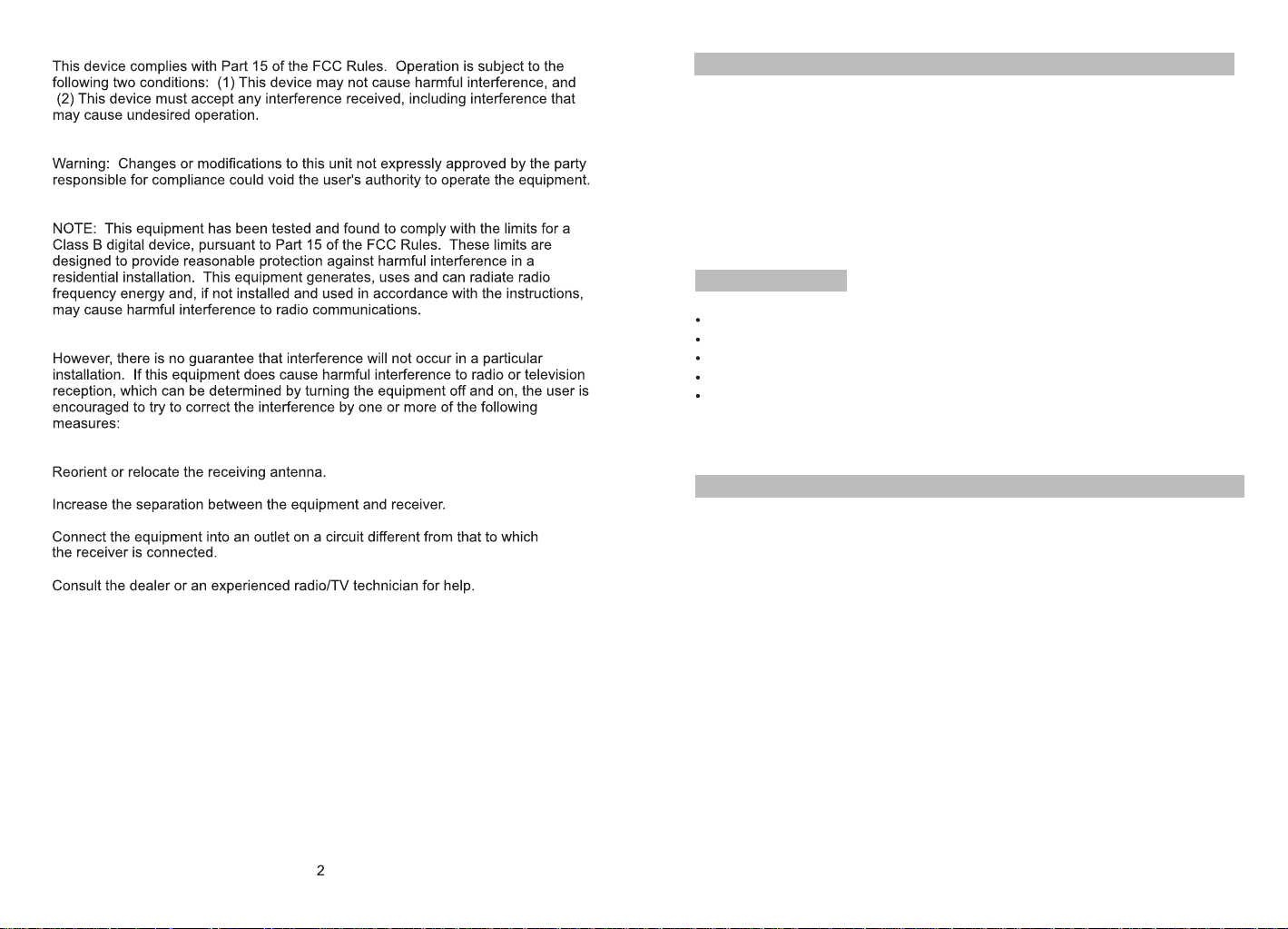

Introduction

Congratulations on your purchase of Digital Photo Frame, model DM804A.
Before operating the units, please read this manual thoroughly, and retain it for future
reference. This manual will help you use many of the exciting and useful features that
will make your Digital Photo Frame viewing more enjoyable.

This Digital Photo Frame lets you view digital pictures directly from your camera's
memory cards. You will be able to create a slideshow using multiple transition effects or
display one picture at a time.

This Digital Photo Frame is compatible with the following popular memory card
formats: USB, SD,MultiMedia Card, and Memory Stick.

Package Contents

Power Adaptor
Digital Photo Frame
User's Manual
Remote Control
Stand

Installing Your Unit

Locate the removable easel and place in the corresponding holes at the back of the unit.
Plug in the AC adaptor into power outlet. Plug the other end into the unit.
After the content is stored on the target flash device. Insert the device into the correct

slot.
Note: Please ensure that you have one photo file loaded onto the memory card.

3

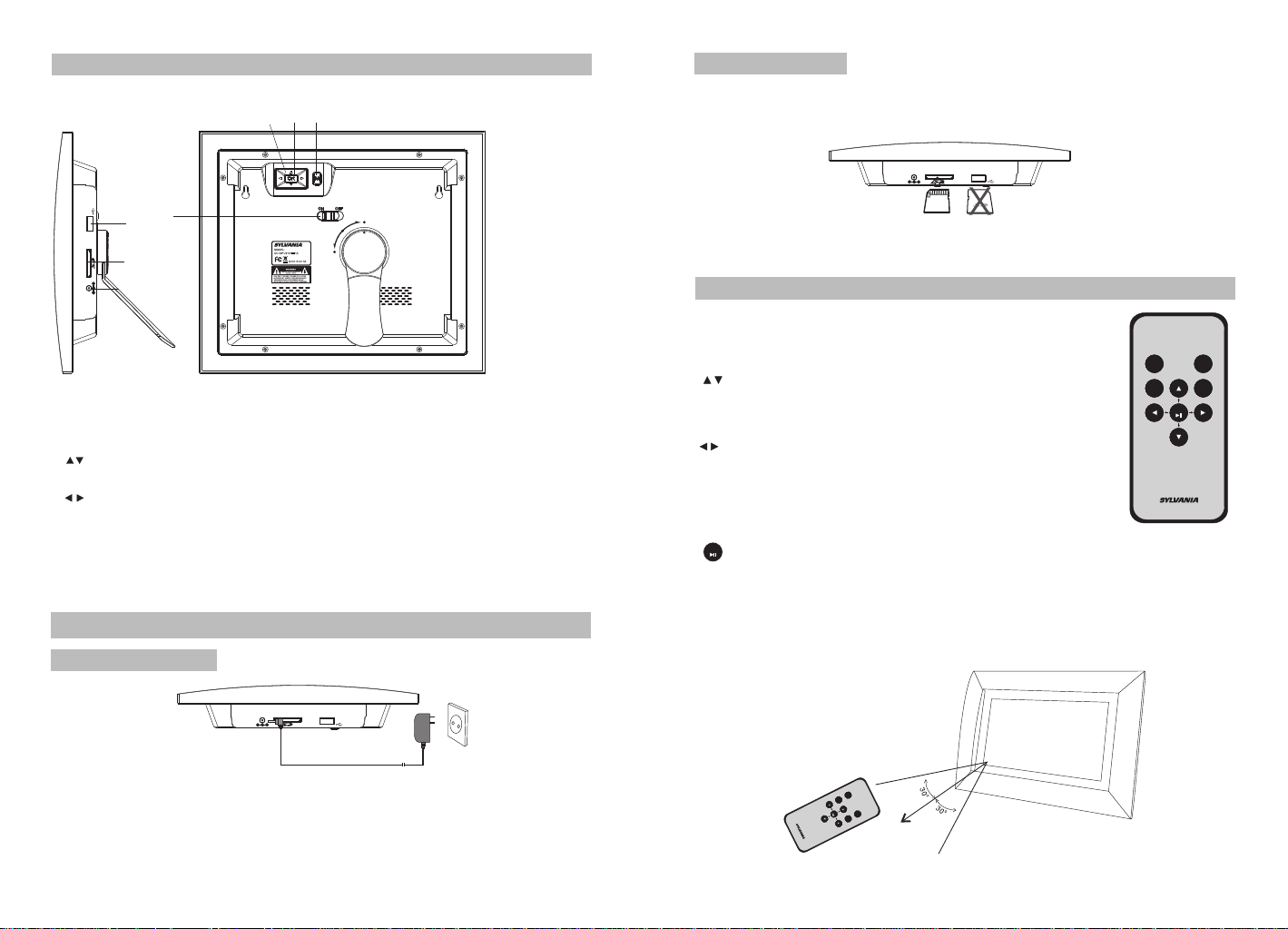

Main Unit Controls

Using your SD card

6 7

5

4

3

SDPF808

2

1

DC IN 5V

1. DC in 5V 2.SD card slot

3. USB port 4. ON/OFF :turn on and turn off the unit

5. :Use this button to move cursor up and down when at setting menu, and at main
menu,you can use this button to select media device.
: Use this button to move cursor left and right when at setting menu and main menu.
when playing JPEG files,press it to play prev/next JPEG file.

6.OK:To confirm.

7.M:Press it to return the main menu at once.

System Connection

Power connection

Upon using an SD card, insert it to the corresponding slot flatly with the label side backward.

DC IN 5V

Note: Please do not disconnect USB device or plug out SD/MMC/MS card while they are working
with the unit. Functional failure may occur in case of wrong operations.

Using Your Remote Control

Button Description and Function:
Setup: To enter into setup menu

:

Use this button to move cursor up and down when at
setting menu, and at main menu,you can use this
button to select media device.

:

Use this button to move cursor left and right when at
setting menu and main menu. when playing JPEG files,
press it to play prev/next JPEG file.

Esc: Return to the previous step.

OK

: To confirm and play/pause.

ZOOM: when the picture is displaying,press is repeatedly can zoom out the picture
by 125%,150%,175%,200%,225%,250%.

ROTATE: when displaying pictures,press it to rotate the picture 90°,180°,270°,0°.

ESC

OK

ROTATE

SETUP ZOOM

DC IN 5V

Plug one end of the supplied AC/DC power adaptor into the DC input jack of the machine,
then plug the other end into the AC power receptacle. Please refer to the illustration above.

4

E

SC
Z
O

OM

ROT

OK

ATE
S
E
TUP

5

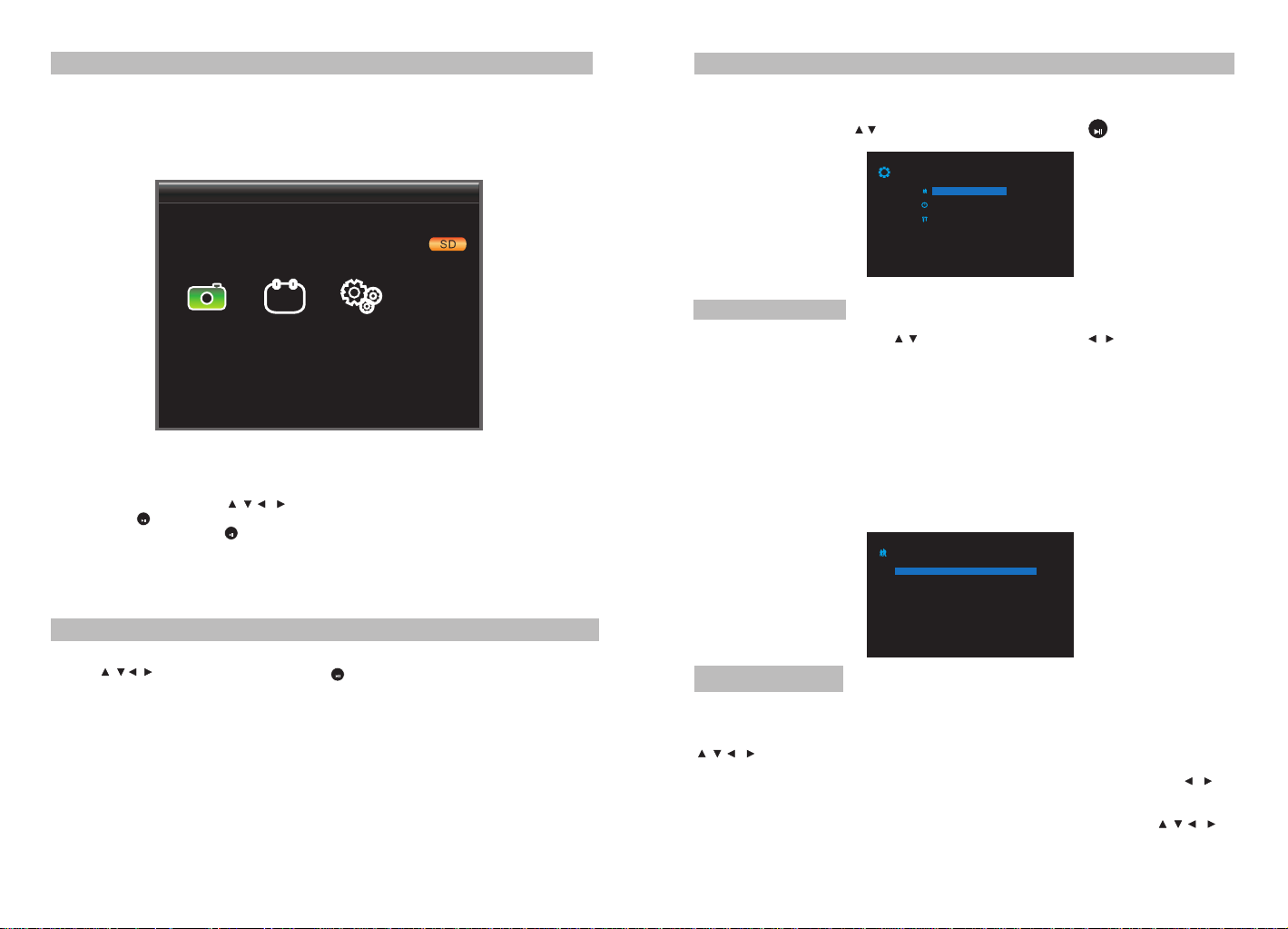

Using Your Digital Picture Frame on the remote control

Make sure you have at least one image file on your memory cards or USB flash drive.
Switch on the frame and insert memory cards into the unit, it will automatically start

slideshow.

Press “Esc” button on the remote control, until it display the main menu.

USB

SETUP

Press “Setup” button on the remote control to enter setup menu when you are at other
menu.

In the Setup menu, press button to highlight the item. Press button to access.
Press ESC to exit.

SETUP

Photo Setup
Calendar Setup

System Setup

OK

1616


Calendar

Press “Esc” button repeatedly, cursor position will move to SD/MMC/MS-USB media device.
Using the directional arrows ,highlight the desired SD/MMC/MS-USB media

device.press button to select one device,then you can enter into PHOTO/CALENDER
/SET UP interface by press button.

OK

OK

Browsing Images

When displaying the pictures,you can press “Esc” button to return to thumbnail.And you
can use to select the picture,press button to browse the picture,
you have selected.

Setting

OK

PHOTO SETUP

In the Photo Setup menu, press to highlight the item. Press to change
the settings. Press ESC to return the Setup menu.

Display Mode: Select image display mode (Slideshow,Thumbnail,Browse Mode)
Display Ratio:Select image display size(Fit to Screen,Crop to Fill,Full Screen)
Slideshow time:Select the duration of time (5Sec,15Sec,30Sec,60Sec,5Min,15Min)
Slideshow Repeat : Select the manner of repeating photos (Once,Repeat)
Transition effect: Adjust the transition effect between eachimage in a slideshow. Optional

effect includes Random/Snake/Partition/Erase/Blinds/Random lines/Grid/Gross/Rect
/Spital/Close.

Photo Setup

Display Mode
Display Ratio
Slide Show Time
SlideShow Repeat
Transition effect

Calendar Setup

Display Mode : Select calendar display mode (Calendar/Digital Clock/Analog Clock)
Set Date : When the cursor position moving to the Icon,using the directional arrows

to adjust the date.
Clock Mode : When the cursor position moving to the Icon,using the directional to

adjust the Clock Mode(24hr,12hr).
Set Time :When the cursor position moving to the Icon,using the directional

to adjust the time.

Slideshow
Fit to Screen
5Sec
Repeat
Random

6

7

Calendar Setup

Display Mode
Set Date
Clock Mode
Set Time

Calendar
01-01-2010
24hr
00:03

System setup

Language: Select the on screen display language English/Deutsch/French/Italian.

Backlight: you can adjust the Backlight (between 1,2,3,4,5).

Brightness:Adjust screen brightness(between 0,1,2,3,4,5,6)

Contrast: Adjust screen contrast(between 0,1,2,3,4,5,6)

Saturation : Adjust screen saturation (between 0,1,2,3,4,5,6)

Power On : When the cursor position moving to the Icon,using the directional “ ”to
select the unit auto Power on mode(on/off),

Auto Boot Time : When the cursor position moving to the Icon,using the directional
“ ” to select the unit auto Power on time.

Power Off : When the cursor position moving to the Icon,using the directional “ ”to
select the unit auto Power off mode(on/off),

Auto Shut Time : When the cursor position moving to the Icon,using the directional
to select the unit auto Power off time.

Auto-Power Frequency : When the cursor position moving to the Icon,using the
directional “ ”to select the unit Auto-Power Frequency mode(Everyday/Mon.to
Fri./Weekend/Once),

Default : When the cursor position moving to the Icon, pressing “ ” to show
the dialog,and select “YES”,press“ ” to revert to the factory settings.

Ver : When the cursor position moving to the Icon, pressing “ ” to show the
dialog of the software version number.

OK

System Setup

Language
Backlight
Brightness
Contrast
Saturation
Power On
Auto Boot Time
Power Off

English
5
3
3
5
Off
00
Off

OK

OK

Troubleshooting

Symptom

Digital Photo
Frame doesn't
power on

No photo files
on the memory
card

The file doesn't
play.

The power connector
to the unit is not
securely inserted.

Card is wrongly
inserted

Incompatible file
format

Specifications

Type
Resolution
Output
Input
Working Temperature
Display Mode
File Format

Cards
Dimension
Weight

Cause Corrective Actions

Make sure you connect the AC adaptor to the frame
properly. When you connect the AC adaptor to the
frame and power on the unit, even without a memory
card, you should see the main menu. If you don't see
it, check if the power is connected to the
Digital Photo Frame and make sure it is securely
attached.

Verify if the way you inserted the card is
correct. Make sure the front label of the
memory card is facing AWAY from the front
of the unit. Do not force the memory card
into the slot.

Make sure there is at least one supported
image file on the memory card.
Compatible photo format: JPEG

8 inch Digital Photo Frame
800*600 Pixel
5V 1.0 A
AC100-240V~50/60Hz

0-40°C

4:3
JPEG
SD/MMC/MS

260*220*50 mm

0.85 kg

8

9
