Curtis SCR1344 User Manual

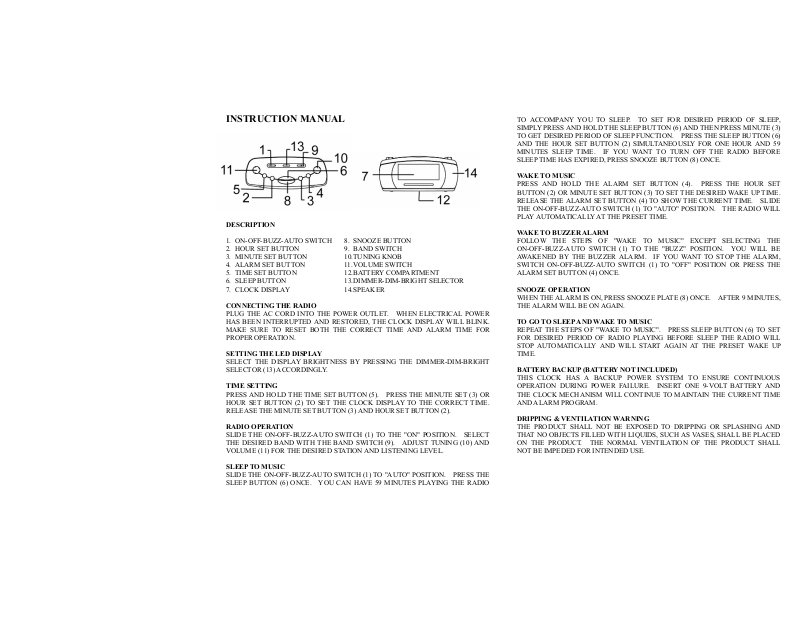

INSTRUCTION MANUAL

DESCRIPTION

1. ON-OFF-BUZZ-AUTO SWITCH 8. SNOOZE BUTTON

2. HOUR SET BUTTON 9. BAND SWITCH

3. MINUTE SET BUTTON 10. TUNING KNOB

4. ALARM SET BUTTON 11. VOLUME SWITCH

5. TIME SET BUTTON 12. BATTERY COMPARTMENT

6. SLEEP BUTTON 13. DIMMER-DIM-BRIGHT SELECTOR

7. CLOCK DISPLAY 14. SPEAKER

CONNECTING THE RADIO

PLUG THE AC CORD INTO THE POWER OUTLET. WHEN ELECTRICAL POWER
HAS BEEN INTERRUPTED AND RESTORED, THE CLOCK DISPLAY WILL BLINK.
MAKE SURE TO RESET BOTH THE CORRECT TIME AND ALARM TIME FOR
PROPER OPERATION.

SETTING THE LED DISPLAY

SELECT THE DISPLAY BRIGHTNESS BY PRESSING THE DIMMER-DIM-BRIGHT
SELECTOR (13) ACCORDINGLY.

TIME SETTING

PRESS AND HOLD THE TIME SET BUTTON (5). PRESS THE MINUTE SET (3) OR
HOUR SET BUTTON (2) TO SET THE CLOCK DISPLAY TO THE CORRECT TIME.
RELEASE THE MINUTE SET BUTTON (3) AND HOUR SET BUTTON (2).

RADIO OPERATION

SLIDE THE ON-OFF-BUZZ-AUTO SWITCH (1) TO THE "ON" POSITION. SELECT
THE DESIRED BAND WITH THE BAND SWITCH (9). ADJUST TUNING (10) AND
VOLUME (11) FOR THE DESIRED STATION AND LISTENING LEVEL.

SLEEP TO MUSIC

SLIDE THE ON-OFF-BUZZ-AUTO SWITCH (1) TO "AUTO" POSITION. PRESS THE
SLEEP BUTTON (6) ONCE. YOU CAN HAVE 59 MINUTES PLAYING THE RADIO

TO ACCOMPANY YOU TO SLEEP. TO SET FOR DESIRED PERIOD OF SLEEP,
SIMPLY PRESS AND HOLD THE SLEEP BUTTON (6) AND THEN PRESS MINUTE (3)
TO GET DESIRED PERIOD OF SLEEP FUNCTION. PRESS THE SLEEP BUTTON (6)
AND THE HOUR SET BUTTON (2) SIMULTANEOUSLY FOR ONE HOUR AND 59
MINUTES SLEEP TIME. IF YOU WANT TO TURN OFF THE RADIO BEFORE
SLEEP TIME HAS EXPIRED, PRESS SNOOZE BUTTON (8) ONCE.

WAKE T O M US IC

PRESS AND HOLD THE ALARM SET BUTTON (4). PRESS THE HOUR SET
BUTTON (2) OR MINUTE SET BUTTON (3) TO SET THE DESIRED WAKE UP TIME.
RELEASE THE ALARM SET BUTTON (4) TO SHOW THE CURRENT TIME. SLIDE
THE ON-OFF-BUZZ-AUTO SWITCH (1) TO "AUTO" POSITION. THE RADIO WILL
PLAY AUTOMATICALLY AT THE PRESET TIME.

WAKE TO BUZZER ALARM

FOLLOW THE STEPS OF "WAKE TO MUSIC" EXCEPT SELECTING THE
ON-OFF-BUZZ-AUTO SWITCH (1) TO THE "BUZZ" POSITION. YOU WILL BE
AWAKENED BY THE BUZZER ALARM. IF YOU WANT TO STOP THE ALARM,
SWITCH ON-OFF-BUZZ-AUTO SWITCH (1) TO "OFF" POSITION OR PRESS THE
ALARM SET BUTTON (4) ONCE.

SNOOZE OPERATION

WHEN THE ALARM IS ON, PRESS SNOOZE PLATE (8) ONCE. AFTER 9 MINUTES,
THE ALARM WILL BE ON AGAIN.

TO GO TO SLEEP AND WAKE TO MUSIC

REPEAT THE STEPS OF "WAKE TO MUSIC". PRESS SLEEP BUTTON (6) TO SET
FOR DESIRED PERIOD OF RADIO PLAYING BEFORE SLEEP THE RADIO WILL
STOP AUTOMATICALLY AND WILL START AGAIN AT THE PRESET WAKE UP
TIME.

BATTERY BACKUP (BATTERY NOT INCLUDED)

THIS CLOCK HAS A BACKUP POWER SYSTEM TO ENSURE CONTINUOUS
OPERATION DURING POWER FAILURE. INSERT ONE 9-VOLT BATTERY AND
THE CLOCK MECHANISM WILL CONTINUE TO MAINTAIN THE CURRENT TIME
AND ALARM PROGRAM.

DRIPPING & VENTILATION WARNING

THE PRODUCT SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND
THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED
ON THE PRODUCT. THE NORMAL VENTILATION OF THE PRODUCT SHALL
NOT BE IMPEDED FOR INTENDED USE.
