Curtis RCR2025 User Manual
Important Safeguards
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Caution: To reduce the risk of electric shock, do not remove cover (or back). No
user serviceable parts inside. Refer servicing to qualified service
personnel.
This symbol indicates “dangerous voltage” inside the product
that presents a risk of electric
shock or personal injury.
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture.
The apparatus must not be exposed to dripping or splashing. Objects filled with
liquids, such vases or drinking glasses, must never be placed on the apparatus.
This symbol indicates that this product incorporates double insulation between hazardous
mains voltage and user accessible parts. When
servicing use only identical replacement parts.
This symbol indicates important instructions accompanying
the product.
IMPORTANT SAFETY INSTRUCTIONS
1.Read all the safety and operating instructions before the television is operated.
2.Retain the safety and operating instructions for future reference.
3.Adhere to all warnings on the television and in the operating instructions.
4.Follow all operating and use instructions.
5.Do not use this apparatus near water.
6.Clean only with dry cloth.
7.Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8.Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9.Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specified by the manufacturer.
i
Important Safeguards
12.Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or
when unused for long periods of time.
14.Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15.If an outside antenna or cable system is connected to the product, be sure the
antenna or cable system is grounded so as to provide some protection against
voltage surges and built-up static charges. Section 810 of the National Electrical
Code, ANSI/NFPA No. 70-1984 (Section 54 of Canadian Electrical Code, Part 1)
provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of
grounding conductors, location of antenna-discharge unit, connection to grounding electrode. See following example.
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNINT
ELECTRIC
SERVICE
EQUIPMENT
NEC-NATIONAL ELECTRICALCODE
(NEC SECTION 810-21)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
16.Mains plug is used as the disconnect device. It shall remain readily operable
and should not be obstructed during intended use.
ii
2
You are welcome to use RCA color TV
Thank you for your purchasing RCA color TV product which adopts English display, we hope
RCA TV bring you new pleasure in your audio and visual entertainment. To enjoy the various
functions offered by the unit, please read this manual thoroughly before using the unit.
Contents
Overview 4
External connection 6
Remote control 8
Basic operation10
Menu Basic operation12

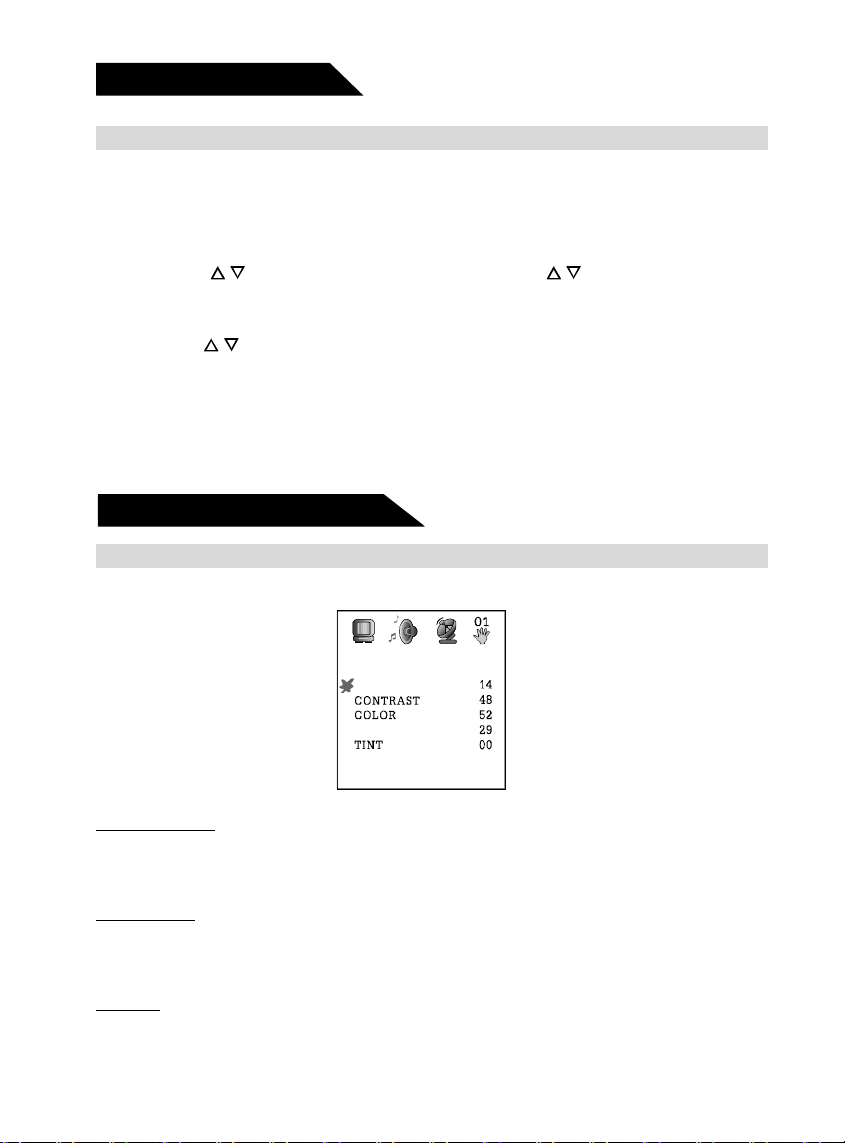

Using the PICTURE menu12
Using the SOUND menu13
Using the TUNING menu14
Using the FUNCTION menu15
Picture defects and countermeasures (AIR reception)18
Troubleshooting19
Appendix
Receiving systems table20
Functions table20
Specifications table20
Dimensions and Weights table20
Accessories21
Remote control table21
3
Overview
POWER INDICATOR
Overview of the function keys
Dear customer, please observe the function keys on the TV and refer to the following
diagram to learn every function key.
POWER SWITCH
4
IR RECEIVER WINDOW
HEADPHONE OUTPUT JACK
Overview
AV1
AV2
Overview of the back AV jacks
Please observe the AV jacks on the back of TV, and refer to the following diagram to
learn the function of every AV jack.
Y Input Jack
Video
Output Jack
Antenna Jack
SVHS
Input Jack
Audio
Input Jack
Video
Input Jack
Audio
Output Jack
C
b
Input Jack
C
r
Input Jack
Side AV and Headphone jacks
Please sure whether your TV has side AV and headphone jacks, if it has, please refer
to the following diagram to learn the function of every side jack.
VIDEO INPUT
L
AUDIO INPUT
R
5
External connection
Antenna connection
The antenna input impedance used in this model is 75ohm, just connect 75ohm coaxial cable of VHF/UHF antenna to the antenna jack on the back of TV directely. If you
use 300 ohm flat feeder, you need connect it with one 300ohm/75ohm converter first,
then connect the converter into the antenna jack.
Note:
It is recommended to use 75ohm coaxial cable to eliminate interference and
noise caused by radio wave.
Do not bind the antenna cable and power cord together.
Connect to Audio equipment
Connect this unit with the audio input terminal (pinhole) of a stereo system, then you
may enjoy quality sound at the same time of enjoying quality picture.
(White) (Red)
（
White) (Red)
VID EO OU TPU T
L AU D IO O UT PUT
R AU DIO O U TPUT
To external equipment input
Stereo System
6
To AUDIO output (Red)To VIDEO output (Yellow)(White
)
VTR without S-VIDEO
(Yellow)
Connect to video equipment (VCD, DVD) and headphone jack
VTR without S-VIDEO terminal
Connect back AV jacks as the following figure shown:
S-terminal has the same AUDIO IN jack as AV1, but you can not input AV signal from
these two terminals at the same time. YUV has the same AUDIO IN jack as AV2, but
you can not input AV signal from these two terminals at the same time.
VTR with YCbCr terminal、、
(Green) To Y output
(blue) To Cb output
VTR with S-VIDEO terminal
(red) To Cr output
(Green)
(blue)
(red)
To Audio output (red)
(white)
(red)
(white)
(yellow)
(white)
(red)
(white)
To Video output (yellow)
To Audio output(red)
(white)
To Audio output(red)
To S-VIDEO output
TO SVHS socket
(white)
(red)
(yellow) To Video output
(white) To Audio output
(yellow)
(white)
If your model has side AV jacks or headphone jack, please connect as the following figure shown:
(White)
(Red)
Headphone
7
