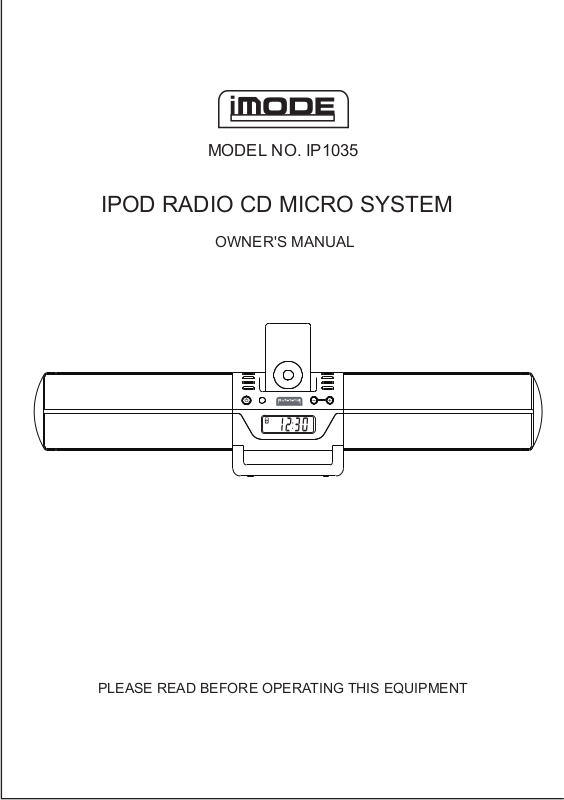

IPOD RADIO CD MICRO SYSTEM
MODEL NO. IP1035
OWNER'S MANUAL
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
1
CA UT IO N: TO RED UC E TH E RI SK O F EL EC TR IC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEA BLE PARTS INSID E. REFER SERVICING TO QUALIFIED SERVICE PERSONN EL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DANGEROUS VOLTAGE:
The lightning flash with arrowhead
symbol, within an equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
ATTENTION:
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance (servicing) instructions in
the literature accompanying the
appliance.
DANGER:
Invisible and hazardous laser
radiation when open and interlock failed or defeated. Avoid
direct exposure to beam.
FCC WARNING:
This equipment may generate or use
radio frequency energy. Changes or
modifications to this equipment may
cause harmful interference unless the
modifications are expressly approved in
the instruction manual. The user could
lose the au t hority t o oper a te thi s
equipment if an unauthorized change or
modification is made.
SURGE PROTECTORS:
It i s re comme nded t o us e a s urge
protector for AC connection. Lightning
and power surges ARE NOT covered
under warranty for this product.
LASE R SAFE T Y: Thi s unit
employs a laser. Only qualified
service personnel should attempt
to s ervic e thi s dev i ce du e to
possible eye injury.
CAUTION: USE OF
CONTROLS, ADJUSTMENTS
OR PERFORMANCE
PROCEDURE HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
INFORMATION:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
des i g ned t o prov i de rea s onabl e
protection against harmful interference
in a reside n tial inst a llatio n . T his
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
instal lati on. If this eq uipment do es
cause harmful interference to radio or
tel e visi o n re cept i on, w hich can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
* Reorient or rel ocate the receiving
antenna.
* Increase the separation between the
equipment and receiver.
* Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
* Consult the dealer or an experienced
radio/TV technician for help.
SAFETY INSTRUCTIONS
2
Before using the unit, be sure to read all operating instructions carefully . Please note that these
are general precautions and may not pertain to
your unit. For example, this unit may not have
the capability to be connected to an outdoor
antenna.
1. READ INSTRUCTIONS
All the safety and operating instructions should
be read before the product is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be
retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating
instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by
the product's manufacturer as they may cause
hazards.
7. WATER AND MOISTURE
Do not use this product near water–for example:
near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming
pool.
8. ACCESSORIES
Do not place this product on an unstable cart,
stand, tripod, bracket or table.
The product may fall, causing
serious injury and serious damage to the product. Use only
with a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the
product. Any mounting of the product should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the
manufacturer.
8A. An appliance and cart combination should be
moved with care. Quick stops, excessive force
and uneven surfaces may cause the appliance
and cart combination to overturn.
9. VENTIL ATION
Slots and openings in the cabinet and in the
back or bottom are provided for ventilation, to
ensure reliable operation of the product and to
protect it from overheating. These openings
must not be blocked or covered. The openings
should never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This
product should never be placed near or over a
radiator or heat source. This product should not
be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have
been adhered to.
10. POWER SOURCES
This product should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your home, consult your appliance
dealer or local power company. For products
intended to operate from battery power, or other
sources, refer to the operating instructions.
11. GROUNDING OR POLARIZ ATION
This product is equipped with a polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that
they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from
the appliance.
13. LIGHTNING
To protect your product from a lightning storm,
or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system.
This will prevent damage to the product due to
lightning and power-line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme
care should be taken to keep from touching
such power lines or circuits as contact with them
might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords
as this can result in a risk of fire or electric
shock.
16. OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product
through openings as they may touch dangerous
SAFETY INSTRUCTIONS
PORTABLE CART WARNING
(symbol provided by RETAC)
3
voltage points or short out parts that could result in
fire or electric shock. Never spill or spray any type
of liquid on the product.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the product, be sure the antenna system is grounded so
as to provide some protection against voltage
surges and built-up static charges. Section 810
of the National Electric Code, ANSI/NFPA 70,
provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge product, size of grounding conductors,
location of antenna discharge product, connection to grounding electrodes and requirements
for grounding electrodes.
18. SERVICING
Do not attempt to service this product yourself
as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
19. REPLACEMENT P ARTS
When replacement parts are required, be sure
the service technician uses replacement parts
specified by the manufacturer or those that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
20. SAFET Y CHECK
Upon completion of any service or repairs to this
product, ask the service technician to perform
safety checks to determine that the product is in
proper operating condition.
21. WAL L OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
22. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled or objects have
fallen into the product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions, as an adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the product to its
normal operation.
e. If the product has been dropped or the
cabinet has been damaged.
f. When the product exhibits a distinct change
in performance this indicates a need for
service.
23. HEAT
The product should be situated away from heat
sources such as radiators, heat registers, stoves
or other products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable
entry as practical.
ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
NEC - NATIONAL ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT
GROUND
CLAMP
S2898A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
SAFETY INSTRUCTIONS
4
Power Sources
This portable audio system is designed to operate on
DC 12V (use 120V AC/DC 12V adaptor)
AC Operation
Please note that this unit is equipped with a polarized AC plug which has one blade wider than the
other. This is a safety feature to reduce the likelihood of electric shock. This polarized AC plug will
only fit in a polarized AC outlet. If you find that you cannot insert this plug into your outlet, you may
have an obsolete non-polarized outlet. Please do not try to defeat this safety feature by using a
non-polarized adapter or by filing the wider blade to make it fit into your outlet. If this plug does not
fit into your outlet, you should con
tact a qualified licensed electrician
to replace your obsolete outlet.
PREPARATION FOR USE
AC Plug
AC Outlet
Unwind the AC cord of the power adaptor and extend it to its full length. Insert the small end of the
DC socket into the DC jack on the rear of the unit. Insert the other end of the AC cord into any
convenient 120V AC, 60Hz household outlet.
LOCATION OF CONTROLS
1. IPOD BUTTON
2. FUNCTION BUTTON
3. MEM/CLK SET BUTTON
4. PRESET EQ BUTTON
5. POWER BUTTON
6. IR SENSOR
7. PLAY/PAUSE M+ BUTTON
8. STOP/BAND BUTTON
9. SKIP/TUNE UP BUTTON
10. SKIP/TUNE DOWN BUTTON
11. VOLUME UP BUTTON
12. VOLUME DOWN BUTTON
13. LCD DISPLAY
5
MAIN UNIT (FRONT VIEW):
1
2
3
4
5
6
7
8
9
10
11
12
13
LOCATION OF CONTROLS
14. AUX2 IN RIGHT CHANNEL
15. AUX2 IN LEFT CHANNEL
16. AUX1 IN LEFT CHANNEL
17. AUX1 IN RIGHT CHANNEL
18. AUX OUT LEFT CHANNEL
19. AUX OUT RIGHT CHANNEL
20. AM ANTENNA JACK
21. DC INPUT JACK
22. IPOD VIDEO OUT
23. DBBS SWITCH
24. SPEAKER STAND RELEASE BUTTON (Press to release)
25. AM ANTENNA
26. FM ANTENNA
6
MAIN UNIT (REAR VIEW):
15
14
17
16
25
19
22
20
21
18
23
26
24
LOW HIGH
MID
LOCATION OF REMOTE CONTROLS
27. POWER BUTTON
28. IPOD BUTTON
29. STOP/BAND BUTTON
30. MENU/MEMORY/CLOCK SET BUTTON
31. SKIP BACKWARD BUTTON
32. SHUFFLE BUTTON
33. REPEAT/MEMORY DOWN BUTTON
34. ALBUM UP BUTTON
35. PLAYLIST UP BUTTON
36. ALBUM DOWN BUTTON
37. PLAYLIST DOWN BUTTON
38. FUNCTION BUTTON
39. PLAY/PAUSE/MEMORY UP BUTTON
40. MENU UP BUTTON
41. SKIP FORWARD BUTTON
42. SELECT BUTTON
43. SLEEP BUTTON
44. MENU DOWN BUTTON
45. VOLUME UP BUTTON
46. MUTE BUTTON
47. VOLUME DOWN BUTTON
48. EQ BUTTON
REMOTE:
S TAND BY
M+
SHUFFLE
BAND
FUNCTION
iP od
MEM/CLK SET
MENU
MENU
SELECT
V OL
EQ
MUTE
SLEEP
ALBUM PLAYLIST
MENU
M-
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
7
POWER SOURCES
BATTERIES
NOTE:
The button cell battery contains mercury, don't put in the trash. Recycle or
dispose as hazardous waste.
NOTE:
You may need to remove a protective covering from the remote's battery
compartment before using the remote control.
8
(FOR REMOTE CONTROL)
iPod mini 3 4GB, and 6GB
iPod (fourth generation)
4 20GB, and U2 Special Edition
5 40GB
iPod with color display
6 20GB, 30GB, and U2 Special Edition
7 40GB
iPod nano 8 1GB, 2GB, and 4GB
iPod with video (fifth generation)
9 30GB
10 60GB, and 80GB
iPod Inserts
Model # iPod Capacity
OPERATING INSTRUCTIONS
9
Setting up your micro system
Checking FM/AM Radio reception
Your micro system has an external loop antenna for AM radio. To
improve reception, you need to rotate your AM antenna.
Unwind the external FM wire antenna and extend it to its full length
to improve FM reception.
Unpacking And Set Up
•
•
•
Placement of the System
The system should be placed on a stable, level surface such as a
table, desk, or shelf, convenient to an AC outlet, away from direct
sunlight, and sources of excess heat, dust, moisture, humidit
y,
vibration, or strong magnetic fields.
Remove the main unit and the remote control unit
from the display carton. Remove all packing materials from the
components.
Unwind the AC power cord of power adaptor and extend it to its full
Unwind the external FM wire antenna and extend it to its full length.
• Insert AM antenna to AM antenna jack of the unit.
length.
OPERATING INSTRUCTIONS
10
1. Plug the AC Power cord into a power outlet and insert DC socket to DC
jack of the unit.
2. Press the POWER button on the main unit or remote control to turn the
system "On".
3. If necessary, press the FUNCTION button to select the Radio mode and
the frequency will be shown in display.
4. To switch between FM and AM bands press the STOP/BAND button on
the front panel or remote.
5. Automatic Tuning - Depress and hold the SKIN/TUNE UP or DN buttons
until the display begins to move, then release the buttons. The tuner will
scan up or down the band until it finds the first strong station, and then
stop on that station. Repeat this process until the tuner stops on your
desired station.
6. If you tune to an FM Stereo station the "(ST)" indicator appears in the
display.
7. Manual Tuning - Press the SKIP/TUNE UP or DN buttons repeatedly
until the display is showing the frequency of your desired station. Use the
manual tuning method to tune to weaker stations that are bypassed during
Automatic Tuning.
T
1. With the power off.
2. Press and hold the MEM/CLK
3. Press the SKIP/TUNE UP or DN Buttons to set the unit to the 24 hour
4. Press the MEM/CLK
5. Press the SKIP/TUNE UP or DN Buttons to set the current hour, then press
the MEM/CLK again; the minute digits will blink. Press the SKIP/TUNE UP
6. Press the MEM/CLK Button to confirm the time.
Using your radio
OPERATING INSTRUCTIONS
11
Programming radio station presets:
You can program as many as 10 FM and 10 AM radio station presets.
To program a radio station:
1.
2. Press the FUNCTION Button one or more times until
on the display
3. Press the BAND Button to select AM or FM.
4. Press and hold one of the SKIP/TUNE UP or DN Buttons to select a radio
5.
6. Press one of the SKIP/TUNE UP or DN Buttons to select the preset number
7. Press the MEM/CLK Button to store the station with the preset number you
8. Repeat Steps 4 through 7 to program additional presets.
To tune to a radio station preset:
1.
2. Press the FUNCTION button one or more times until
the display.
3. Press the STOP/BAND Button to select
4. Press the M– or M+ Button one or more times until the preset number you
want appears on the display.
To select an equalizer mode:
To select volume sound
Press the VOLUME UP
MUTE Function
Press the MUTE Button (Remote) to muting the speaker sound, press again to
cancel.
To select DBBS
Slide the DBBS switch to select high/mid/low bass sound.
or DN Buttons to increase or decrease volume sound.
Y
* Classic
* Jazz
* Rock
OPERATING INSTRUCTIONS
12
To start Sleep function :
1. Press the SLEEP button and "90" will appear and set the unit to turn off
after 90 minutes. Each time you press the SLEEP button, the length of
time decreases by 10 minutes.
2. After five seconds, the Sleep function will activate and the SLEEP
indicator will light solid. Pressing the SLEEP button again unit "OFF"
appears and turns off the sleep function.
Listening to your iPod
1. When the iPod is docked and in standby mode, press the IPOD Button
on the unit to play it. The iPod icon will appear on the display.
2. Press the PLAY/PAUSE Button to play the iPod.
3. Press the SKIP/TUNE UP or DN Buttons to skip next/previous song.
4. Press & hold the SKIP/TUNE UP or DN Buttons to fast-forward or
fast-rewind during playback.
5. During playback, press once/twice the REPEAT Button to play repeatedly
(repeat 1 or all).
6. During playback, press SHUFFLE Button to play Shuffle or Random mode
and press again to cancel.
7. Press the STOP Button to stop playing.
Charging your iPod
When you docked your iPod and it recharges (until fully charged).
Note: iPod Shuffles will NOT charge.
OPERATING INSTRUCTIONS
13
Video Out
You will need a television or other video device that has a composite video input.
Securely dock the iPod.
Connect the yellow RCA cable (Not Included) into the rear video out jack on the unit.
Connect the other end of the yellow RCA cable to the video device.
For Movie Output
Press the IPOD Button on the unit.
Switch on the iPod Movie.
On the Main Menu choose Video then select Video Setting.
At the TV Out section set it to “ON”.
Switch back to movie library and play the movie of your choice.
For Photo View
Press the IPOD
Album & Playlist (For iPod only)
ALBUM: - Press the ALBUM UP/DN Buttons to increase or decrease the album
number.
PLAYLIST: - Press the PLAYLIST UP/DN Buttons to cycle up or down through the
playlists on an iPod.
Button on the unit.
Switch on the iPod Photo.
On the Main Menu choose Photo then select Slide Show Settings.
At TV Out section set it to “ON”.
Go to Photo Library and then press play. The slideshow will play on your device.
Note: The RCA Video input connector on a television is usually color coded yellow to
match the color on the AV cable.
Note: When playing movies, the audio will only playback on the unit speakers.
Note: RCA Cable is not included.
AUX In:
The
the unit speakers.
Make sure that your radio is turned of
Plug the other end of the audio cable into the
Perss the FUNCTION button to AUX 1 or AUX 2 and display will appears AUX 1 or AUX 2.
Turn on the external audio device and use the device's controls to control playback.
Note: 3.5mm audio cable is not included.
14
PROBLEM SOLUTION
POSSIBLE CAUSE
GENERAL
No sound is heard.
Power is not on.
VOLUME Control is set
to minimum.
Mute is on.
Press the POWER button.
Adjust the VOLUME
Control.
Press Mute on remote.
RADIO
Station has not been
tuned properly.
FM reception is weak.
Wrong function is
selected.
Press the FUNCTION
button to the radio
position.
No sound is heard.
Tune station pr operl y.
Extend the FM cord.
TROUBLESHOOTING GUIDE
iPod does not
dock properly
Using no or wrong iPod insert. Make sure the dock insert is the
proper fit for your iPod.
iPod didn’t install properly . Remove your iPod from the dock
and check for obstruction on the
connectors in the dock and on your
iPod . Then reseat it in the dock.
iPod does not
respond to the
unit
iPod is not installed properly. Remove your iPod from the dock
and check for obstruction on the
connectors in the dock and on your
iPod . Then reseat it in the dock.
iPod is locked up. Please make sure your iPod is
working properly before docking into
the unit. Please refer to your iPod
manual for details.
iPod didn’ t
charge up
iPod is not installed properly . Remove your iPod from the dock
and check for obstruction on the
connectors in the dock and on your
iPod . Then reseat it in the dock.
Loading...
