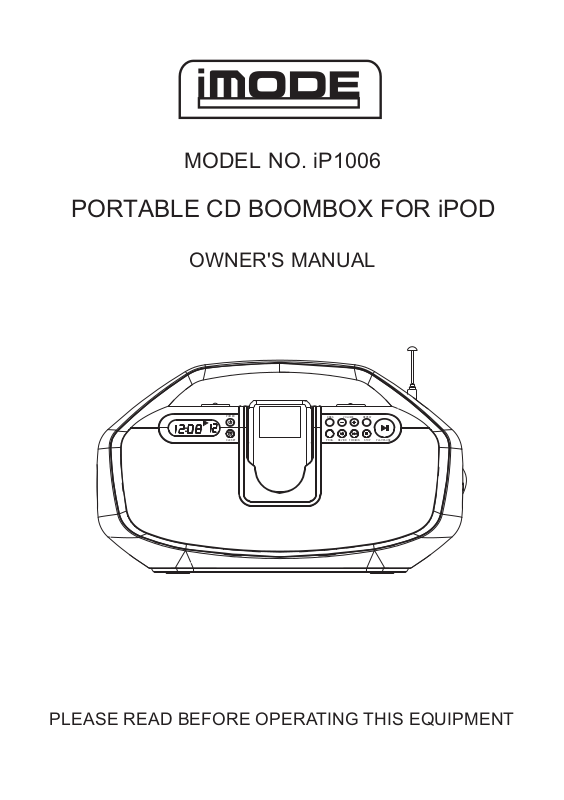

MODEL NO. iP1006
PORTABLE CD BOOMBOX FOR iPOD
OWNER'S MANUAL
POWER
CLK SET
DBBS
VOLUME
REV/HR FWD/MIN
REPEAT
PLAY/PAUSE
STOPPROG.
PLEASE READ BEFORE OPERATING THIS EQUIPMENT
SAFETY INSTRUCTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOTREMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
DANGEROUS VOLTAGE:
The lightning flash with arrowhead
symbol, within an equilateral triangle is intended to alert the user to
the presence of uninsulated dangerous voltage within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
ATTENTION:
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance (servicing) instructions in
the literature accompanying the
appliance.
DANGER:
Invisible and hazardous laser
radiation when open and interlock failed or defeated. Avoid
direct exposure to beam.
FCC W ARNING:
This equipment may generate or use
radio frequency energy. Changes or
modifications to this equipment may
cause harmful interference unless the
modifications are expressly approved in
the instruction manual. The user could
lose the authority to operate this
equipment if an unauthorized change or
modification is made.
SURGE PROTECTORS:
It is recommended to use a surge
protector for AC connection. Lightning
and power surges ARE NOT covered
under warranty for this product.
INFORMATION:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
in a residential installation. This
equipment generates, uses and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one or more
of the following measures:
* Reorient or relocate the receiving
* Increase the separation between the
* Connect the equipment into an outlet
* Consult the dealer or an experienced
LASER SAFETY: This unit
employs a laser. Only qualified
service personnel should attempt
to service this device due to
possible eye injury.
CAUTION: USE OF
CONTROLS, ADJUSTMENTS
OR PERFORMANCE
PROCEDURE HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
antenna.
equipment and receiver.
on a circuit different from that to which
the receiver is connected.
radio/TV technician for help.
2
SAFETY INSTRUCTIONS
Before using the unit, be sure to read all operating instructions carefully. Please note that these
are general precautions and may not pertain to
your unit. For example, this unit may not have
the capability to be connected to an outdoor
antenna.
1. READ INSTRUCTIONS
All the safety and operating instructions should
be read before the product is operated.
2. RETAIN INSTRUCTIONS
The safety and operating instructions should be
retained for future reference.
3. HEED WARNINGS
All warnings on the product and in the operating
instructions should be adhered to.
4. FOLLOW INSTRUCTIONS
All operating and use instructions should be followed.
5. CLEANING
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a dry cloth for cleaning.
6. ATTACHMENTS
Do not use attachments not recommended by
the product's manufacturer as they may cause
hazards.
7. WATER AND MOISTURE
Do not use this product near water–for example:
near a bathtub, washbowl, kitchen sink or laundry tub; in a wet basement; or near a swimming
pool.
8. ACCESSORIES
Do not place this product on an unstable cart,
stand, tripod, bracket or table.
The product may fall, causing
serious injury and serious damage to the product. Use only
with a cart, stand, tripod, bracket or table recommended by the
manufacturer or sold with the
product. Any mounting of the product should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the
manufacturer.
8A. An appliance and cart combination should be
moved with care. Quick stops, excessive force
and uneven surfaces may cause the appliance
and cart combination to overturn.
9. VENTILATION
Slots and openings in the cabinet and in the
back or bottom are provided for ventilation, to
ensure reliable operation of the product and to
protect it from overheating. These openings
must not be blocked or covered. The openings
should never be blocked by placing the product
PORTABLE CART WARNING
(symbol provided by RETAC)
on a bed, sofa, rug or other similar surface. This
product should never be placed near or over a
radiator or heat source. This product should not
be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is
provided or the manufacturer's instructions have
been adhered to.
10. POWER SOURCES
This product should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of power
supply to your home, consult your appliance
dealer or local power company. For products
intended to operate from battery power, or other
sources, refer to the operating instructions.
11. GROUNDING OR POLARIZATION
This product is equipped with a polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the
power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into
the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.
12. POWER-CORD PROTECTION
Power-supply cords should be routed so that
they are not likely to be walked on or pinched by
items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from
the appliance.
13. LIGHTNING
To protect your product from a lightning storm,
or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system.
This will prevent damage to the product due to
lightning and power-line surges.
14. POWER LINES
An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme
care should be taken to keep from touching
such power lines or circuits as contact with them
might be fatal.
15. OVERLOADING
Do not overload wall outlets and extension cords
as this can result in a risk of fire or electric
shock.
16. OBJECT AND LIQUID ENTRY
Never push objects of any kind into this product
through openings as they may touch dangerous
3
SAFETY INSTRUCTIONS
voltage points or short out parts that could result in
fire or electric shock. Never spill or spray any type
of liquid on the product.
17. OUTDOOR ANTENNA GROUNDING
If an outside antenna is connected to the product, be sure the antenna system is grounded so
as to provide some protection against voltage
surges and built-up static charges. Section 810
of the National Electric Code, ANSI/NFPA 70,
provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge product, size of grounding conductors,
location of antenna discharge product, connection to grounding electrodes and requirements
for grounding electrodes.
ANTENNA
LEAD IN
WIRE
GROUND
CLAMP
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ELECTRIC
SERVICE
EQUIPMENT
NEC - NATIONAL ELECTRICAL CODE
S2898A
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
18. SERVICING
Do not attempt to service this product yourself
as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
19. REPLACEMENT PARTS
When replacement parts are required, be sure
the service technician uses replacement parts
specified by the manufacturer or those that have
the same characteristics as the original part.
Unauthorized substitutions may result in fire,
electric shock or other hazards.
20. SAFETY CHECK
Upon completion of any service or repairs to this
product, ask the service technician to perform
safety checks to determine that the product is in
proper operating condition.
21. WALL OR CEILING MOUNTING
The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
22. DAMAGE REQUIRING SERVICE
Unplug the product from the wall outlet and refer
servicing to qualified service personnel under
the following conditions:
a. When the power-supply cord or plug is
damaged.
b. If liquid has been spilled or objects have
fallen into the product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions, as an adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the product to its
normal operation.
e. If the product has been dropped or the
cabinet has been damaged.
f. When the product exhibits a distinct change
in performance this indicates a need for
service.
23. HEAT
The product should be situated away from heat
sources such as radiators, heat registers, stoves
or other products (including amplifiers) that produce heat.
24. NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the
NEC that provides guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of cable
entry as practical.
4
POWER SOURCE
AC Operation:
Unwind the AC power cord and extend it to
its full length. Insert the small plug of the AC
power cord to the unit. Insert the AC plug of
the cord into any convenient 120V 60Hz
household outlet.
Please note that this unit is equipped with a
polarized AC plug which has one blade wider
than the other. This is a safety feature to
reduce the likelihood of electric shock. This polarized AC plug will only fit in a polarized
AC outlet. If you find that you cannot insert this plug you’re your outlet, you may have an
obsolete non-polarized outlet. Please do not try to defeat this safety feature by using a
non-polarized adaptor or by filling the wider blade to make it fit into your outlet. If this plug
does not fit into your outlet, you should contact a qualified licensed electrician to replace
your obsolete outlet.
DC Operation:
Install eight (8) “C” size batteries (not included) into the battery compartment on the bottom of the unit as the polarity marking inside the battery compartment.
Note: when the AC cord is plug in the unit. Battery power will be cut off automatically.
Protect Your Furniture:
This model is equipped with non-skid rubber ‘feet’ to prevent the product from moving
when you operate the controls. These ‘feet’ are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture.
However certain types of oil based furniture polishes, wood preservatives, or cleaning
sprays may cause the rubber ‘feet’ to soften, and leave marks or a rubber residue on
the furniture. To prevent any damage to your furniture we strongly recommend that you
purchase small self-adhesive felt pads, available at hardware stores and home
improvement centers everywhere, and apply these pads to the bottom of the rubber
‘feet’ before you place the product on fine wooden furniture.
AC Plug
AC Outlet
Changing the Remote Battery
WARNING: Danger of explosion if the remote control’s
batteries are incorrectly installed. Replace only with the
same or equivalent battery.
1.
Push the Release Button and pull out the Battery Compartment to
access the battery.
2.
Replace the old battery with an equivalent new battery (CR 2025).
3.
The positive side of the battery, as indicated by a plus symbol,
must be facing up when inserted into the remote.
5
LOCATION OF CONTROLS
POWER
CLK SET
DBBS
REPEAT
VOLUME
REV/HR FWD/MIN
PLAY/PAUSE
STOPPROG.
6
LOCATION OF CONTROLS
POWER – Press the button to turn unit on / off.
1
LCD Display – View the Time, iPod Indicator, and Radio Frequency through this Liquid Crysta
2
Display.
CLK SET – Use the button in conjunction with the FWD/MIN and REV/HR buttons to setting the
3
clock.
iPod Docking Station – Connect your iPod, iPod mini, iPod nano.
4
DBBS – Press the button to activate the Dynamic Bass Boost System.
5
VOLUME – Press the VOLUME +/- buttons to increase or decrease the volume.
6
REPEAT – Press the REPEAT button to activate REP. (repeat one song), or REP. ALL (repeat all songs).
7
FM Antenna – The FM Antenna is extendable and adjustable. An AM Antenna is built into the
8
Radio.
PLAY/PAUSE – Press the button to play / pause an iPod / CD play.
9
STOP – Press the button to stop iPod / CD playback.
10
FWD / MIN. – Press the button to skip to the next track and hold the button to search forward
11
through a song. When clock setting, using the button to adjust the minute time.
TUNING – Turn the TUNING dial to increase or decrease the radio frequency.
12
REV / HR – Press the button to skip to the previous track and hold the button to search
13
backwards through a song. When clock setting, using the button to adjust the hour time.
PROG.(program) – Use the button to program a specified order on CD mode.
14
CD OPEN – Toggle the CD OPEN switch to open the CD door.
15
CD Door – Open using the CD OPEN switch.
16
AC Connector – Plug in the detachable AC cord here.
17
Battery Compartment (8 - C Batteries) – The Battery Compartment allows the unit to run of DC
18
Power (Batteries Not Included).
AC Cord (120V / 60 Hz) – The detachable AC cord provides power to the unit.
19
AUX-In – Use the AUX-In jack to connect a first generation iPod shuffle or other digital audio
20
device to the unit.
AUX-Out – Use the AUX-Out jack to connect the unit to external audio and sound to external audio
21
speakers.
AM-FM-CD-IPOD/AUX – Use the AM/FM/CD/IPOD-AUX switch to adjust the mode between AM/
22
FM/CD/IPOD-AUX.
7
LOCATION OF REMOTE CONTROLS
WARNING:Danger of explosion
if battery are incorrectly installed.
Replace only with the same or
equivalent battery.
The button cell battery contains
mercury. Do not put in trash,
instead recycle or dispose of as
hazardous waste.
Feature Defined
24
STOP – Press the button to stop iPod / CD playback.
25
POWER – Press the button to turn unit on / off.
26
MEMU / PROG – Press the MENU button to enter the menu on the iPod or use the button to program
as specified order on CD mode.
27
REPEAT – Press the Repeat Button once to repeat an individual song on a docked iPod or CD
single track. Press the Repeat Button twice to repeat an album / playlist on a docked iPod or entire CD.
28
ALBUM – Press up on the ALBUM button to increase the album number, or press down on the
ALBUM button to decrease the album number.
29
DBBS – Press the button to activate the Dynamic Bass Boost System.
30
PLAY/PAUSE – Press the button to play / pause an iPod / CD playing.
31
VOLUME – Press the VOLUME +/- buttons to increase or decrease the volume.
32
Navigation Controls / SELECT – Use the Navigation Controls to move through an iPod menu
system. Press the SELECT button to select a song, photo, or video on your iPod.
33
PLAYLIST – Press up on the PLAYLIST buttons to cycle up through the playlists on an iPod, or
press down on the PLAYLIST button to cycle down through the playlists on an iPod.
34
SHUFFLE – Press the SHUFFLE button to randomly play songs on an iPod.
8
OPERATING INSTRUCTIONS
Setting the Clock
1. Power off the unit.
2. Press and hold the CLK SET button.
3. While holding the CLK SET button, press the REV / HR button to cycle up
through the hours. Press the FWD / MIN button to cycle up through he minutes.
4. Release the CLK SET button to set the specified time.
How to using radio
1. Press the POWER button to power on the unit and the DISPLAY will be light.
2. Slide the AM / FM / CD / IPOD-AUX switch to select AM or FM Bands.
3. Adjust the VOLUME control on the control panel of the unit as desired.
4. Tune a station by turning the TUNING control on the right side of the unit.
5. Turn off the unit, press the POWER button to off power.
Antennas AM - If reception is weak, turn the unit to improve reception. FM - If
reception is weak, adjust FM Antenna length and the angle to improve reception.
AUX IN-Connecting Other Digital Audio Devices
1. Use a line-in cord to connect an iPod shuffle or other audio device to the AUX-IN/
LINE IN port.
2. Slide AM / FM / CD / IPOD-AUX switch to IPOD-AUX position. Turn on the
external audio device and use the deviceʼs control playback.
Notes: If use AUX mode, make sure the docking compartment not connect any iPod.
AUX OUT-Connecting Other External Amplifier
1. To connect an external amplifier, connect a 3.5mm mini jack connection cable
(not included) to the AUX OUT jack on the rear of unit to the AUX IN/LINE IN
jack on the external amplifier.
2. Plays the Radio or Music as above procedure.
BBS (Bass Boost System) Function
Press the BBS button (remote control) to “Bass Boost” playing and press again the
button to cancel the BBS playing.
Bass boost
You can switch the bass boost function on and off using the BBS button.
9
OPERATING INSTRUCTIONS
To Place an Insert for Your iPod
1. Select the insert for your iPod. Using the correct insert ensures the proper fit for
your iPod.
2. Locate the numbered Bracket that fits the iPod that will be docked Each included
Bracket has a number on it, indicating which iPod model that bracket is compatible
with. See the separate bracket chart page to identify which bracket is needed.
3. During power off mode, gently press the iPod insert into the dock.
4. Carefully place your iPod into the dock.
5. To remove/replace an insert, first remove your iPod, then grip the insert and pull
gently upwards.
Listening to your iPod
1. When the iPod is docked, press the POWER button to turn on the unit and slide AM /
FM / CD / IPOD-AUX switch to IPOD-AUX position. The iPod icon will appear on
the display.
2. Press the PLAY/PAUSE Button to play the iPod.
3. Press the FWD / MIN or REV / HR buttons to skip next / previous song.
4. Press & hold the FWD / MIN or REV / HR buttons to fast-forward or fast-rewind
during playback.
5. During playback, press once / twice the REPEAT button to play repeatedly (single
song / album or playlist).
6. Press the STOP Button to stop playing.
Charging your iPod
When you docked your iPod and it recharges (until fully charged).
Note: iPod Shuffles will NOT charge.
10
OPERATING INSTRUCTIONS
Listening to a CD
1. Press the POWER Button to turn on your unit.
2. Slide the CD OPEN button to open the CD door. Place a CD with the label side up
into the CD center spindle and close the CD door. Slide AM / FM / CD / IPOD-AUX
switch to CD position and CD track "--" appears on the display.
3. Press the PLAY / PAUSE Button to start playback.
4. During playback: Press the PLAY/PAUSE button to pause playback and press the
button again to resume playback.
5. During playback: Press one of the FWD / MIN or REV / HR buttons to go to the
next or previous track on the CD. Press and hold one of the FWD / MIN or REV /
HR buttons to fast forwarding or fast rewinding for a track on the CD.
6. Press the STOP Button to stop playback.
To set up a CD program (program up to 20 tracks):
1. During CD playback, press the STOP button to stop playing.
2. Press the PROG Button. "01" appears on the display.
3. Press the FWD / MIN or REV / HR buttons one or more times to select the first
track you want to program.
4. Press the PROG button to confirm your selection.
5. Repeat step 3 and 4 to add more tracks to your program list.
6. When you have finished setting, press the PLAY/PAUSE Button to begin
programmed playback.
7. To cancel a CD program: Press the STOP Button twice or turn off your unit.
To Repeat a track or an entire CD:
1. During CD playback, press the REPEAT button once and "REP" will appear on
display. The selected track will play repeat one track.
2. Press the REPEAT Button twice and "REP ALL" will appear on the display. All
tracks of the disc will be play repeated.
3. To stop the disc play, press the STOP button control.
4. Cancel repeat playing, you press the repeat button until the (REP /ALL ) icon
disappear to cancel repeat playing.
NOTES: This operation also applies to CD program playback.
11
CARE AND MAINTENANCE
Caring for Compact Discs
Treat the disc carefully. Handle the disc only by its edges.
1.
Never allow your fingers to come in contact with the
shiny, unprinted side of the disc.
Do not attach adhesive tape, stickers, etc. to the disc label.
2.
Clean the discs periodically with a soft, lint-free, dry cloth. Never use detergents or
3.
abrasive cleaners to clean the disc. If necessary, use a CD cleaning kit. If a disc skips or
gets stuck on a section of the disc, it is probably dirty or dam-aged (scratched). When
cleaning the disc, wipe in straight lines from the center of the disc to the outer edge of
the disc. Never wipe in circular motions.
4.
This unit is designed to play only discs bearing the identification logo as
shown here. Other discs may not conform to the CD standard and may
not play properly.
Discs should be stored in their cases after each use to avoid damage.
5.
Do not expose discs to direct sunlight, high humidity, high temperatures, or dust, etc.
6.
Prolonged exposure or extreme temperatures can warp the disc.
Do not stick or write anything on either side of the disc. Sharp writing instruments or
7.
the ink may damage the surface.
Cleaning the Unit
1.
To prevent fire or shock hazard, disconnect your unit from the AC power source when
cleaning.
2.
The finish on your unit may be cleaned with a dust cloth and cared for as other furniture.
Use caution when cleaning and wiping the plastic parts.
3.
Mild soap and a damp cloth may be used on the front panel.
To clean the lens
1.
If the lens get dirty, your player may skip or may not play a CD
2.
Open the CD door.
3.
Use a camera lens blower/brush to blow on the lens once or twice, brush the dust or
particles off the lens, then blow again.
4.
To remove fingerprints, use a dry cotton swab to wipe from the middle to outer edge
of the lens.
12
TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
No sound is heard.
No sound is heard.
All or part of the CD
will not play.
POSSIBLE CAUSE
GENERAL
Power is not on.
VOLUME Control is set
to minimum.
RADIO
Station has not been
tuned properly.
FM reception is weak.
Wrong function is
selected.
CD
CD is inserted
incorrectly.
CD is scratched.
Press the POWER button.
Adjust the VOLUME
Control.
Tune station properly.
Extend the FM antenna.
Slide the FUNCTION
knob to the
radio position.
Make sure that the CD is
placed in the tray with the
label side up.
Try another CD.
13
CD is dirty
CD is warped
Condensation has formed
inside your CD player.
Function swtich is not
set to CD.
CD compartment not
closed
Clean the CD with
soft cloth
Try another CD.
Remove the CD and leave
the CD tray open for about
one hour to let the CD player
dry out.
Set Function switch to CD
Close CD compartment
door.
TROUBLESHOOTING GUIDE
PROBLEM SOLUTION
iPod® does not
dock properly
®
iPod
does not
respond to the
unit
iPod® didnít
charge up
POSSIBLE CAUSE
Using no or wrong iPod® insert. Make sure the dock insert is the
proper fit for your iPod
®
didnít install properly. Remove your iPod® from the dock
iPod
and check for obstruction on the
connectors in the dock and on your
®
. Then reseat it in the dock.
iPod
iPod® is not installed properly. Remove your iPod® from the dock
and check for obstruction on the
connectors in the dock and on your
®
. Then reseat it in the dock.
iPod
®
iPod
is locked up. Please make sure your iPod® is
working properly before docking into
the unit. Please refer to your iPod
manual for details.
iPod® is not installed properly. Remove your iPod® from the dock
and check for obstruction on the
connectors in the dock and on your
®
. Then reseat it in the dock.
iPod
®
.
®
Power Requirement:
Frequency Range:
Power Consumption:
SPECIFICATION
AC 120V 60Hz
DC 12V (1.5V x 8 “C” SIZE, UM - 2 BATTERIES)
FM 87.5 - 108 mHz
AM 530 - 1710 kHz
23 W
14
Loading...
