Curtis DVB102UK User Manual

DIGITAL TERRESTRIAL RECEIVER

USER’S MANUAL

DVB102UK

Please read this User Manual carefully to ensure proper use
of this product and keep this manual for future reference.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE OR INJURY TO

PERSONS, PLEASE CAREFULLY READ ALL SAFETY INSTRUCTIONS.

THE SEPARATE OPERATING MANUAL MAY CONTAIN ADDITIONAL SAFETY

THIS PRODUCT IS DESIGNED FOR DOMESTIC USE ONLY. COMMERCIAL OR

ANY OTHER USE MAY INVALIDATE THE GUARANTEE AND MIGHT BE

TO PREVENT ELECTRIC SHOCK, DO NOT REMOVE ANY COVER

Do not expose this product to dripping or splashing or place any objects filled with
liquids, such as vases, on the product.
Never put a naked flame source such as lighted candles on or near the product.
Pull the mains plug out of the wall socket and disconnect the external aerial during
thunderstorms.
If anything goes wrong, don't try and fix it yourself, get a qualified service agent to
carry out any repairs or maintenance.
Save these instructions for future reference.

We have designed and made this product to meet European safety standards, but as with
any electronic equipment you must take care.

Here is some good advice to help you stay safe and get the best results
Install or locate this product only in accordance with the installation instructions found in

the instruction book supplied separately.
Use this product only for its intended purpose as described in the operating instructions
supplied separately.
Children and the infirm must be closely supervised by a competent person. If the product
includes small parts, do not let children play with it.
Examine the product thoroughly: if it is damaged in any way notify the retail store where
you purchased it.
For products supplied with a mains adapter or a detachable mains cord, if the adapter
or its leads get damaged, it must be replaced with an adapter of the same type and rating.
To save power, disconnect from the mains when you are not using the product unless the
function of the product requiresa continuous power supply.
If the mains switch does not disconnect the product from the mains: The mains plug
shall be the main disconnect device and shall be operable at all times.
Avoid harsh conditions such as wet or damp places, rain, high humidity, strong vibration,
extremely high or low temperatures, strong sunlight and places that are very dusty.
DO NOT install or use this product if you have spilt liquids in it, if it is damaged in any way, if
it has been dropped or if it does not work normally. Disconnect from the mains and seek
expert advice.

DO NOT leave the product unattended while it is operating unless it is designed to do so.
DO NOT store this product outdoors or expose to rain or moisture.
DO NOT use this product near water, for example near a kitchen sink, in a bathroom or near

a swimming pool unless specified in the operating instructions.
DO NOT remove outer panels or covers from the product. Repairs must only be undertaken
by a qualified service person.
DO NOT place the product or mains lead near a hot surface such as a gas or electric cooker
or fire.

DO NOT operate the product when room humidity is excessive.
Power supply
Make sure the voltage marked on the rating plate on the rear of the product matches
the supply in your area.

An incorrect supply voltage is dangerous and may result in a fire or damage to the product.
The manufacturer accepts no responsibility for any damage or injury resulting from
connecting to any voltage other than that specified on the rating plate located on the back of
the product. See the instruction book for exact voltage range.

WARNINGS

INSTRUCTIONS.

DANGEROUS.

Mains plug and mains lead

We have fitted this equipment with a standard mains plug.
If you cut off the mains plug or fit a different type, destroy the old plug, as it is dangerous to
insert it into a live power outlet.
If a fuse is fitted to the plug, remove the fuse before throwing the plug away.
Carefully follow the wiring instructions supplied with a new mains plug.
Never use a fused mains plug without the fuse cover.
If the mains lead becomes damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person with an approved mains lead of the same type and rating
to avoid a hazard.
Make sure the mains lead cannot be walked on crushed, chafed or cut and that it is routed
in such a way as to reduce the risk of a tripping hazard.
Do not let the mains lead hang over edge of a table or counter or come into contact with hot
surfaces.
Do not immerse the mains lead or mains plug in water or any other liquid.

Mains plug wiring for the UK

In a re wirable plug the wires in the mains lead of this equipment must be connected as
follows.

The wire coloured brown must be connected to the terminal that is marked with the letter L.

The wire coloured blue must be connected to the terminal that is marked with the letter N.

There is no green or green and yellow wire. Do not connect anything
To the Earth terminal which is marked E, or with a symbol.

You must make sure the mains lead is firmly secured under the cord clamp.

Mains fuse

UK standard (BS1363) plugs must be fitted with a BS1362 standard fuse rated at 3A or 5A.

Ventilation

Allow at least a 10cm gap all around. Don't obstruct the ventilation slots with soft
furnishings. Overheating will increase the risk of fire.

Cleaning

Disconnect the mains supply and use only a lightly dampened soft cloth. Do not use
chemical solvents or strong detergents as these may damage the cosmetic finish.
Never allow water droplets to remain on the screen as moisture can cause permanent
discoloration. Greasy marks must
be removed using a commercially available cleaner for LCD screens.

Batteries

Remove batteries when the remote control is not to be used for a long time. Batteries left in
the product may cause damage through deterioration and corrosive leakage, invalidating
the guarantee. To protect the environment, use local recycling facilities for disposal. Never
throw batteries on a fire! Danger of explosion.

Wall or stand mounting

Products that may be mounted on a stand or wall must be securely attached in accordance
with the installation instructions. Never fit non-approved stands or legs.
For wall mounting, always ensure the area to be drilled is free from electrical wires, water
and gas pipes, by using a suitable locator device.

Table of Contents

Panel Illustration..................................................1

Remote Controller ..........................................................2

Connections....................................................................4

User Interface

Troubleshooting ...........................................................23

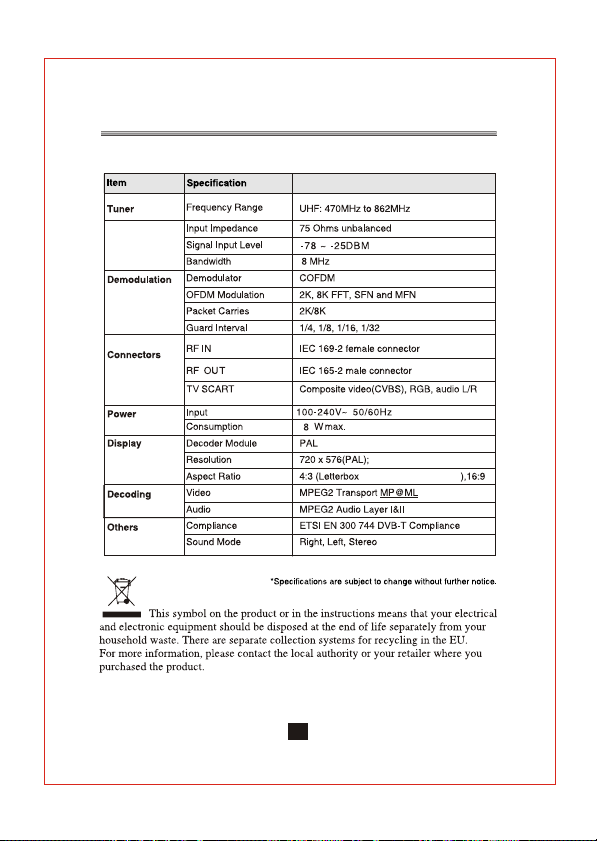

Specifications..................................................................24

..................................................................5

1. Front panel

1

1. REMOTE CONTROL SENSOR: Used to receive the signal from the remote
control.

2. USB JACK(Optional): Used to connect to an external USB 2.0 device.

Note: Not all receivers have the USB Jack.

1 2 3 4

1. RF IN : This socket connects to your external aerial.

2. RF OUT: This socket will bypass the RF signal to either your

TV or another video system.

3. TV SCART: This socket connects to your TV.

4. MAINS CABLE: This is used to connect to your main power supply.

1

Remote Controller

Remote Key Function:

12

13

14

15

16

17

18

19

20

21

14. AUDIO:Used to select the audio language.

15. MENU:Used to open the main menu or return to the previous menu.

16. EPG: Used to display information about the program being viewed and what's on next.

17. VOL-: Used to move around the menu screens or changing the volume in non-menu state.

18. CH- :Used to move around the menu screens or selecting the channels in non-menu state.

19. TEXT: Used to open the interactive digital teletext if available.

20. PAUSE: Used to pause or playback the program being viewed .

21.PAGE-:Used to page down, when there are pages(i.e.channel list).

1. MUTE Used to turn the sound on or off.

2. NUMBER KEYS:Used to select channel numbers or

input numbers in menus.

3.TV/RADIO: Used to switch between TV channels and
Radio stations.

4. INFO Used to display information about the channel
being viewed or further information about the program

3

when in normal play mode.

4

5. SUBTITLE: Used to switch between different subtitles

5

that are broadcasted

6. EXIT: Used to clean all menus and return to non-menu

state for playing.

7. CH+: Used to move around the menu screens or
selecting the channels in non-menu state.

8. VOL+:Used to move around the menu screens or
changing the volume in non-menu state.

9. OK: Used to confirm a selection within a menu.

10

10. COLOR KEYS(RED/ GREEN/ YELLOW/ BLUE):

Used to operate differnt functions in teletext.

11

11. PAGE+:Used to page up, when there are pages
(i.e.channel list).

12.STANDBY Used to switch the set top box to on or
standby.

13. FAV: Used to switch access your favourite channels.

Note: SUBTITLE/TEXT/AUDIO may not be available for all channels.

2

Installing the Batteries

Remove the battery cover from the remote control and put 2XAAA
size batteries inside the compartment.The diagram inside the
battery compartment shows the correct way to install
the batteries.

1.Open the cover

N

PE

O

2.Install batteries

3.Close the cover

N
E
P

O

Using the Remote Control

To use the remote control, point it towards the front of the digital set
top box The remote control has a range of up to 7 metres from the
set top box at an angle of up to 60 degrees.

The remote control will not operate if its path is blocked.

Sunlight or very bright light will decrease the sensitivity
of the remote control.

3

Connections

Caution: Make sure to check the voltage specification of the wall

outlet is the same rating with the receiver. To prevent the risk of
electric shock, do not open the cover or the back of the receiver.

TV

Note: When connecting the receiver to other equipment, e.g., TV,
VCR and amplifier, make sure to refer to relevant user manual for
instruction. Also, make sure you disconnect all the equipments from

the mains supply before the connection.

4

User Interface

The 'Exit ' key will remove all digital menus.
The exception to this is for persistent banners i.e. encrypted service
etc and for service locked/censorship PIN entry OSDs.
All menus will automatically be removed after 30 seconds unless
otherwise stated.
The menus use a 256-colour palette.
The menus will currently support just English language.

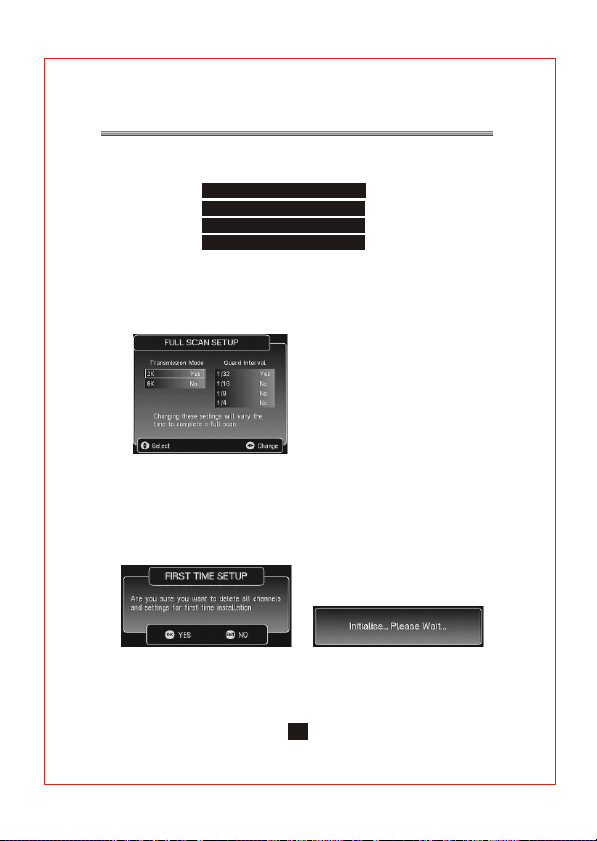

1)Welcome Screen

When the STB is powered up for the first time or is brought out of
standby with no services, then a welcome screen will be displayed.
This will tell the user to press the OK key to start a full frequency
service scan.

2) Volume Control

A bar is to be displayed when volume is changed by pressing Vol+ or
Vol-. The bar will disappear after a predefined time following the last
Vol+ or Vol- key press.Automatically removed after 2 seconds.

3) Mute Symbol

Pressing the Mute key mutes the sound and a symbol is displayed,
Automatically removed after 2 seconds.

4) Screen Freeze

Pressing the Pause key to Freeze the Screen and a pause symbol is
displayed. Press the Pause key again to exit Freezing.

5) Direct Digit Entry

When the user initiates a channel change using the number keys,
The user can press the OK key to force the channel change before
all 3 digits have been entered. If all 3 digits are entered then the
channel change will occur.
5 seconds after the last key press, the channel change will be
initiated if all digits have not been entered.

6) TV/Radio Switch

Press TV/Radio button on the remote to toggle between TV channels
and Radio stations, then you can change among the TV channels or
Radio stations by pressing CH+/- buttons. This mode can be
removed later if you select a channel by Direct Digit Entry or Service
Organiser.

OK

Press to set-up services on your receiver

5

3

7) Digital Information

When viewing a digital program, a single press of the info key will bring
up the first level of program information shown below. This shows the
time, logical channel number, channel name and 'Now' program
information. It also shows the current favourite list that is been
used/selected. The information banner appears at the bottom of the
screen.

Now Information Next Information

7.1) Small Now Information

The user can scroll through information for other channels in the
currently selected favourites list or the full service list if a favourites list
is not enabled. This is done using the up and down keys. Whilst
information for other channels is displayed the actual channel being
viewed will not change. The OK key will jump to the new channel. After
a channel change, the information banner will be removed after 4
seconds. In addition the user can toggle between 'Now' and 'Next'
information using the left and right keys. To display 'Next' information
from the 'Now' banner, the user presses the right key. This OSD will be
semi-transparent.

7.2) Small Next Information

The user can return from 'Next' to 'Now' Information using the left
arrow key.
A second press of the INFO key will bring up the extended program
information, and example is shown below.

7.3) Large Now Information

Again, the user will be able to scroll through information for other channels
whilst still watching the current program by using the P+/P- keys. In addition,
the left and right cursor keys will toggle extended info for 'Now' and “Next”. A
third press of the info key clears all on screen information. This OSD will be
semi-transparent.

Large Information

6

Icons are used to notify the user of some information about the displayed
event:

SUB DVB subtitles are available for this event.
TXT An MHEG application is available for this event.
CA This event is encrypted. Even if a CAM module is decrypting the
event.
SUB DVB subtitles are NOT available for this event.
TXT An MHEG application is NOT available for this event.
CA This event is NOT encrypted.

If none of the above are being displayed then if the service is audio or
data only, the following will be displayed.

TXT Service is data/txt only.
Service is audio only.

Event can be classified by the broadcaster and will show an icon to tell
the user the age restrictions.

18 The event has an adult content age rating. Broadcast age
rating 18+.
15 The event is not suitable for children under the age of 15.
Broadcast age rating 15-17.
12 The event is not suitable for children under the age of 12.
Broadcast age rating 12-14.

6 The event is not suitable for children under the age of 6.
Broadcast age rating 6-11.

0

The event is suitable for all ages. Broadcast age rating 0-5.
The event has NOT been given an age rating and may contain

?

unsuitable content.

7

8) Channel Change OSD

This is the graphic seen after using P+/P- or when a direct digit entry
channel change is completed. It times out after 4 seconds If P+/P- is
used then the new service will be the next/previous service in the
currently selected favourites list. If no favourites list is selected/
enabled then the full service list will be used. Direct digit entry will
tune to a service using its LCN. This may not be in a favourite list.
This OSD will be semi-transparent and will automatically timeout
after 3 seconds.
This banner will stay persistent when no video can be watched on the
TV. This banner will also display the current favourite list enabled and
if the service is new or removed. The following messages will be
displayed under various circumstances:

Channel Change Banner

This service is encrypted

This is a audio only service No Signal

9) Audio

Pressing the audio key will display the following menu. This menu
displays all the audio streams available on the current service. The
selection is done using the up/down keys. Pressing the OK key
selects the new audio. This selection is only valid until power-down
or service change. This menu will be automatically removed after 5
seconds.

Audio menu

No services are stored in the receiver

This is a data/MHEG only service

8

Subtitle menu

10) Subtitle

Pressing the subtitle key will display the following menu. This menu
displays all the subtitle streams available on the current service and
a subtitle off option. The selection is done using the up/down keys.
Pressing the OK key selects the new subtitle language. This
selection is only valid until power-down or service change. Enhanced
subtitle streams are indicated by an ICON. This menu will be
automatically removed after 5 seconds.

11) Data Service Loading

If the Teletext key is pressed on a service that contains an MHEG
data application and data services have been enabled in the
languages menu, then before the application has been fully loaded,
this display will be presented.

The graphic is displayed in the center of the screen.
This will be automatically removed when the MHEG application
acquires the display or will timeout after 60 seconds if the MHEG
application fails to launch.

12) TV Guide

Pressing the EPG key displays the following guide menu. The guide
contains all the channels in the service list rather than just the
favourites list. This allows the user to view the now and next event
information for every service as well as the extended information for a
selected event.
Also a video/audio preview is given which shows the program that is
currently being watched if the user selects the ''INFO'' button the
preview will change to show the user what is currently been shown on a
selected/highlighted service.

The user can scroll through the service list, select between now or
next information and also use the RED key to add a timer
programming event.If the video cannot be displayed then one of the
following messages will be displayed in the preview area:

ENCRYPTED SERVICE DATA SERVICE
AUDIO SERVICE CENSORED SERVICE
PARENTAL LOCKED NO SERVICE
NO SIGNAL

An icon will be displayed if the service has been added or removed by
the broadcaster.
This menu is full screen.

9

13) Main Menu

The Main Menu contains the following options.

1. Service Organiser

Accessed from the main menu, the service list contains the details of
the services that have been added into the system. The list can be
scrolled through using up and down. The selected channel appears
with a white border. Channels can be tuned by using the 'OK' key.
Channels can be deleted with the 'Red' button(however, a full-scan
will delete and re-add channels). the user will be asked for the PIN
number each time they delete a channel. The 'Green' button is used
to allow service re-ordering. The 'Yellow' will allow the user to edit
the service name.

The UHF column showing the frequency channel that the service is on,
will only be present on a terrestrial system.

EPG menu

Service Organiser

Main Menu

PIN requested for deletion

10

2. Favourites

(1).Select main menu.
(2).Scroll to favourites.
(3).Press green button to create favourite list.
(4).Press yellow to show edit list.
(5).Sroll up/down to select channel.
(6).Press OK to add to list.
(7).Repeat process to add further channels.

2.1) Favourites Edit

Accessed from the favourites menu. The order of the Favourite list
determines the order the programs appear when the user surfs up and
down the channels with the P+/P- keys. The full service list and the
favourite list can be scrolled through using up and down. The two lists
are selected by using the left/right keys. The selected channel appears
with a white border. The favourite list can be re-ordered using the
'Green' key. The favourite list name can be changed by pressing the
'Yellow' key which will bring up the edit menu.

Favourite Menu Favorite Edit

Depending on which list the user has selected the help will Change:
Left List (Service List)

Right List (Favourite List)

Left List Help Info

To re-order a favourite service the user must select the required service
using the up/down key and then use the green key to enter re-order mode.
When the green re-order is selected the user will be presented with
another help:

Right List Help Info

11

2.2) Name Editor

This name editor menu is used for allowing the user to rename a
favourite group. The character selection is done by moving the
highlight around a character matrix and using OK to choose the
character. The new name is displayed at the top of the menu. 'CAPS'
is used to toggle the letters between upper-case and lower-case and
'Delete' is used to backspace/delete the last character. When
complete the 'Green' key saves the new name and exits the menu.
The 'Yellow' key will cancel the current edit and return to previous
menu with no name change.

Re-order Menu

Favourite Name Edit Menu

3. Timer Programming

This menu is arrived by selecting the timer programming option in the
main menu.

Note: The DVR option is not available with this model.

3.1) Enter Details

When the OK key is pressed, the following menu is displayed:

Timer Details Edit Menu

Timer Programming Menu

Enter PIN to remove parental locking

12

The options are:

CN Three digit channel number.
Date Start date in DD/MM/YYYY format.
Time Start time in HH:MM format.
Duration Duration in HH:MM format.
DVR Set to Yes if to save event to internal hard drive if DVR

option enabled.
Repeat Event repeat mode. Options are No, Weekly, Daily, Mon­ Fri and Mon-Sat.
Subtitles This Options are Yes to use the current subtitle language
mode as set in the “languages” menu. No will turn off
subtitles during the timed event if enabled in the “languages”
menu.

When the user presses 'OK', the entered items are validated. If
an error is detected a message is displayed such as:

Error message that can occur:
ERROR -Time overlaps with another entry
ERROR -Invalid service
ERROR -Invalid date
ERROR - Invalid time
ERROR - Invalid duration
ERROR - Current time not available

3.2) Viewing Restrictions

When the user presses 'OK' and the items are validated successfully,
the TV will check if censorship is enabled or the channel is parentally
locked.

If the service is parentally locked, the TV will ask the user to enter the
PIN number to remove viewing restrictions with the following menu:

If the PIN is not entered before a timeout, or it is cancelled, then the
event will NOT be added and the display will return to the enter details
menu.

If the censorship level has been set above no-block then the TV will
ask the user to enter the PIN number to remove viewing restrictions
with the following menu:

Enter PIN to remove censorship locking

The restricted program added in the timer list

13

If the PIN is not entered before a timeout or it is skipped then the event
will still be added and viewing restrictions will apply to the event
depending on its censorship level. This is because the censorship
value of the event is not known at the time of entering the timed event.

Timer entries that have had a valid PIN entered are displayed with an
icon at the end of the line.

4. Setup Menu

This menu options allow the user to set up the system.

Setup Menu

4.1) Languages

This menu allows the user to set-up default languages for subtitles,
data services and audio. The values are used on power up. In addition,
the 'Data Services' and 'Audio' values are used on channel change.
The subtitle value is also used on a channel change, but only if it hasn't
been over-ridden by the subtitle key.

The options are:
Subtitles Selects the default text language to be used for DVB subtitles.
The options are OFF, English, Welsh and Gaelic.
Data Services Selects the default text language to be sued for MHEG
data services. The options are OFF, English, Welsh and
Gaelic.
Audio Selects the default audio language to be used on power-up
and service change. The options are English, Welsh and Gaelic.
OSD Selects the default text language to be used in the menus and
off-air service information. This options just English currently.

4.2) TV Setup

The TV menu will have the following options:

Languages Menu

14

TV Setup Menu

The options are:
Television type Selects the type of tube that the set-top-box is
connected to. The options are 4:3 and 16:9.
Widescreen This option is only available when 4:3 is selected in
the shape option. It is used to select what the user
requires to be displayed for 16:9 transmissions.
The options are Letterbox, Center Cutout and Full
Frame.
Standard This option sets the SCART output mode.
The options are CVBS, RGB.

4.3) Parental control
The default Parental control PIN is “0000”.

4.3.1) Viewing a Locked Cannel

Selecting a channel that is locked results in the following OSD being
displayed:

Entering a valid PIN will give access to the required service. Locking is
on a per-channel basis, so if the user switches to another locked
channel they will have to re-enter the PIN to view it. The channel will
remain unlocked until power-down. If the PIN is not entered then this
OSD will be displayed at all normal viewing times. i.e. After leaving the
menus this display will return.

4.3.2) Parental Locking via Menu Selection

The PIN must be entered to access the Parental Control menu:

Enter PIN for locked channel

Enter PIN to access Menu

Parental Control Menu

15

System benefit from being supplied with a default PIN and a master
PIN. The master PIN is intended to be used to over-ride the user
supplied PIN if it is lost or forgotten.

4.3.3) Parental Control Menu

Entering a valid PIN gives access to a sub menu that provides options
to change the PIN, Lock and Unlock services or adjust Censorship.

The Censorship option allows the user to select a blocking age on
service programs.
The options are:

Block

Total block. Will block all service events.

18

Age rating 18. Will block service events with age rating 18+.

15

Age rating 15. Will block service events with age rating 15+.

12

Age rating 12. Will block service events with age rating 12+.

6 Age rating 6. Will block service events with age rating 6+.

OFF No block. Will not block any service events.

When “Change PIN” or “Lock/Unlock Services” is selected then the
help will change to the following:

4.3.4) Censorship

The Television has a global censorship rating, which is set to the
Censorship block level in the above menu at power-up. If the user tries
to watch a program that has a broadcast rating above the global rating,
the user must raise the global censorship rating of the TV to match the
broadcast program.
The following OSD is displayed when a censored program is
encountered:

Enter PIN to view the censored service

The limit is raised to that of the broadcast program until the TV is put
into standby. If the PIN is not entered then this OSD will be displayed
at all normal viewing times. i.e. After leaving the menus this display
will return.

Change PIN

16

4.3.5) Parental Locking Change PIN

Selecting the option to change the PIN takes the user to a further sub
menu that handles the confirmation and storing of the new PIN.
The menu prompts for a new PIN. The select option allows the user to
edit the numbers being entered. As each number is entered, the “-” in
the display is replaced by a “-”. Pressing the OK key causes the
confirmation input line to be highlighted and the process to be repeated.
If the entered numbers are not identical, “Numbers no identical” is
displayed in the gray area.

4.3.6) Parental Control Lock/Unlock Services

Selecting the Lock/Unlock Services option gives access to the service
locking menu ad shown below. The program list is displayed and the
user can scroll through it, using the up and down keys. The 'Select' key
is used to lock and unlock access.
The 'LOCK' Icon indicates that the channel is locked.

4.4) Service Setup

Lock or Unlock Services

4.4.1) Full Scan Add New Services

When the 'Full Scan Add New Services' option is selected, the end of
the service list is displayed. When new services are found , they are
displayed at the end of the existing list in a highlighted yellow colour.
During the scan a progress bar is displayed and a message giving the
estimated time remaining to complete the scan.
When the scan is complete the progress bar will show 100% and a
message stating how many new services have been found is
displayed.

Full Scan Add New Services

17

Service Setup Menu

Show how many services added

4.4.2) Full Scan Replace Existing Services

When 'Full Scan Replace Existing Services' option is selected, the
same as the 'Full Scan Add New Services' menu is displayed except
that the existing services in the system are deleted before the scan
starts.

Full Scan Replace Existing Services

4.4.3) Manual Scan

This menu allows the user to manually tune in services.This menu
will have different parameters.

Editable options are:
Channel Sets the required UHF channel. This will automatically
fill in the frequency entry.

Frequency Overrides and set the frequency in kHZ.
Tx Mode Selects the required transmission mode. The options are

2K and 8K.

Guard Interval Selects the required guard interval. The options are 1/4,

1/8, 1/16, and 1/32.

Scan Starts or stops a service scan.

Information:
Modulation The modulation type of the locked stream. The values can

be QPSK, QAM16 or QAM64.
FEC The FEC rate of the locked stream. The values can be 1/2,
2/3, 3/4, 5/6 or 7/8.

Network ID The network id of the locked stream.
Transport ID The transport id of the locked stream.
Services Found Number of services found on the locked stream after

a scan.
Services Added Number of services added to the system after a scan.
If some of the services found are already stored then
they will not be re-added.

Manual Scan Menu

18

Signal Level Bar indicator to show the current signal level.
This bar will have 3 colours to distinguish how good the
signal is: RED=Bad, YELLOW=Medium and GREEN=Good.
Text also displayed to state if the FE(Front-End) is locked.

Quality Bar indicator to show the current bit-error-ratio and text
displaying the quality. This bar also have 3 colours
indicating:
GREEN No front end errors.
YELLOW Errors detected but corrected.
RED Un-correctable errors.

Before a scan is started or when a scan is started and waiting for SI
information the in formation parameters will be filled with “----” (dashes) .

When changing the connection settings, the FE connection settings
will be changed and the bars updated to show the current FE
information.
To start a service scan the SCAN option must be selected and
toggled to “Started”. The user must then wait for the service
information to be found and displayed.
While waiting for the service information and the services to be
added the following will be displayed in the preview windows:

After the scan has completed the scan option will automatically
toggle back to “Stopped”.
The quarter screen preview will show the first service from the new
services that have been added, along with the service name and
provider name of the previewing service.
The user can then skip through the found services by using the P+
and P- keys.
If no new services are added then the preview window will stay
blanked and no service or provider name will be displayed. The
following will be displayed in the preview windows:

PLEASE WAIT …

NO SERVICES ADDED

19

If the video can't be displayed then one of the following messages will
be displayed in the preview area:

ENCRYPTED SERVICE

PARENTAL LOCKED

AUDIO SERVICE

NO SIGNAL

4.4.4) Full Scan Setup

When the “Full Scan Setup” option is selected, and option list will be
displayed allowing the user to modify what parameters will be used
during the full scan procedure. Depending on the platform Front-End
This menu will have different parameters.

The options are:
Transmission Mode:
2K Yes/No
8K Yes/No
Guard Interval:
1/32 Yes/No
1/16 Yes/No
1/8 Yes/No

Full Scan Setup Menu
The default settings will be for the UK DTT network which is 'Yes' for
2K TX mode and 1/32 guard interval.

4.4.5) First Time Setup

This menu used to delete all channels and setting to the first time
installation, include Language, TV set, Service, Parental Control set,
and then show the First time welcome screen.

1/4 Yes/No

Press OK key to delete all channels and settings, the following menu
will be displayed:

First Time Setup

After initialize, the welcome screen will show.

20

4.5) Check For Download

The option allows the user to update the software.

4.5.1) Update by USB

This menu for the SW upgrading by a special SCART to USB adapter.

4.5.2) Update by OAD (Over Air Download)
(1)Notification

This menu is displayed when a new over air download is detected after
power-up. This allows the user to select whether to start the download
now or download later by adding the event to the timer programming table.
If the event cannot be added, then an error message will be displayed.
The user can refuse the download at this time by pressing exit (however,
the download may be re-detected and indicated at next power-up).
Some downloads may be signaled as high priority which means the
manufacturer of the receiver wants the user to perform the download.
In this case the download will automatically start when detected or
after leaving standby.
If a download is not available when manually checking for a download
or the download becomes not available while the above menu is being
shown, then the following menu will be displayed.

Download Available No Download

Check For Download

21

(2) Progress

During the download progress a message will be displayed which
details to the user any message that the manufacturer requires this
message is broadcast as part of the download and isn't hard-coded
into the interface. The message may describe new features of the
download or a contact number in case of download failure. A
progress bar and a time remaining countdown is displayed during
the download.
If the download fails the following error message will be displayed.

Downloading

If the television uses one FLASH chip, the new images is download
into another memory space and then written to FLASH when the new
images has been verified.

During this period the user must not turn off the receiver and the
following message is displayed. While this message is displayed the
television will not respond to any key presses.

(3) Download message after restart

When the receiver restarts after a download, the following menu will
be displayed. This can contain either a success or failure message
and any other information about the new software.

Don't Switch Off the Receiver

4.6) Technical Information

The Technical Information screen displays the hardware version
number and software version numbers. The software version numbers
depend on what modules are built into the software.

4.7)Antenna Setup

This menu allows the user to enable or disable the antenna power for
an external active which requires 5V power supply.
The message "Antenna Overload" will be displayed and the 5V power
will be disabled automatically if it is short circuit to ground.

Download Fail

Download Completed

22

Troubleshooting

If you experience problems with this receiver or its installation, in the
first instance please read carefully the relevant sections of this User
Manual and this Troubleshooting section.

The Scart interface not
connect hard

23

Reconnect the STB
and the TV set

Specifications

Center Cutout, Full Frame

24
