INSTRUCTION MANUAL
SLIMLINE DISHWASHER
CDW45W13 / CDW45S14
Intensive
3h
Normal
1/2
Half Load
On/Off
6h
ECO
9h
1 Hour
Rapid
3 in 1
Delay Program
Start
Pause
Contents
Safety Warnings ............................................................................................................................ 5
Unpacking ..................................................................................................................................... 8
Installation .................................................................................................................................... 9
Location .......................................................................................................................................................................9
Product Overview ....................................................................................................................... 13

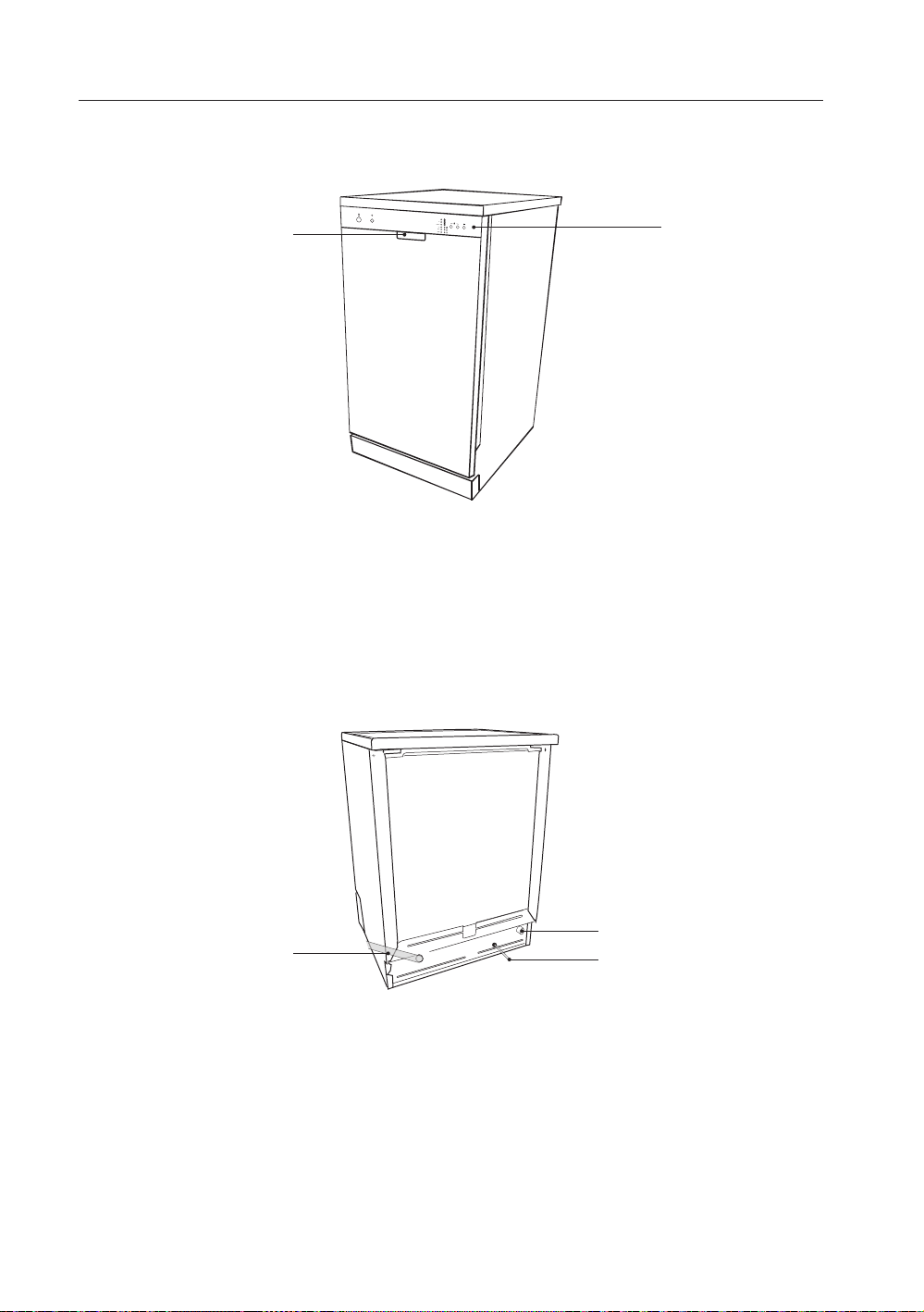

Front View ................................................................................................................................................................13
Rear View .................................................................................................................................................................. 13
Internal View............................................................................................................................................................14
Control Panel ...........................................................................................................................................................15
Before Operating ........................................................................................................................ 16
To Open the Door .................................................................................................................................................. 16
To Close the Door .................................................................................................................................................. 16
Items Not Suitable for Use in the Dishwasher ............................................................................................. 16

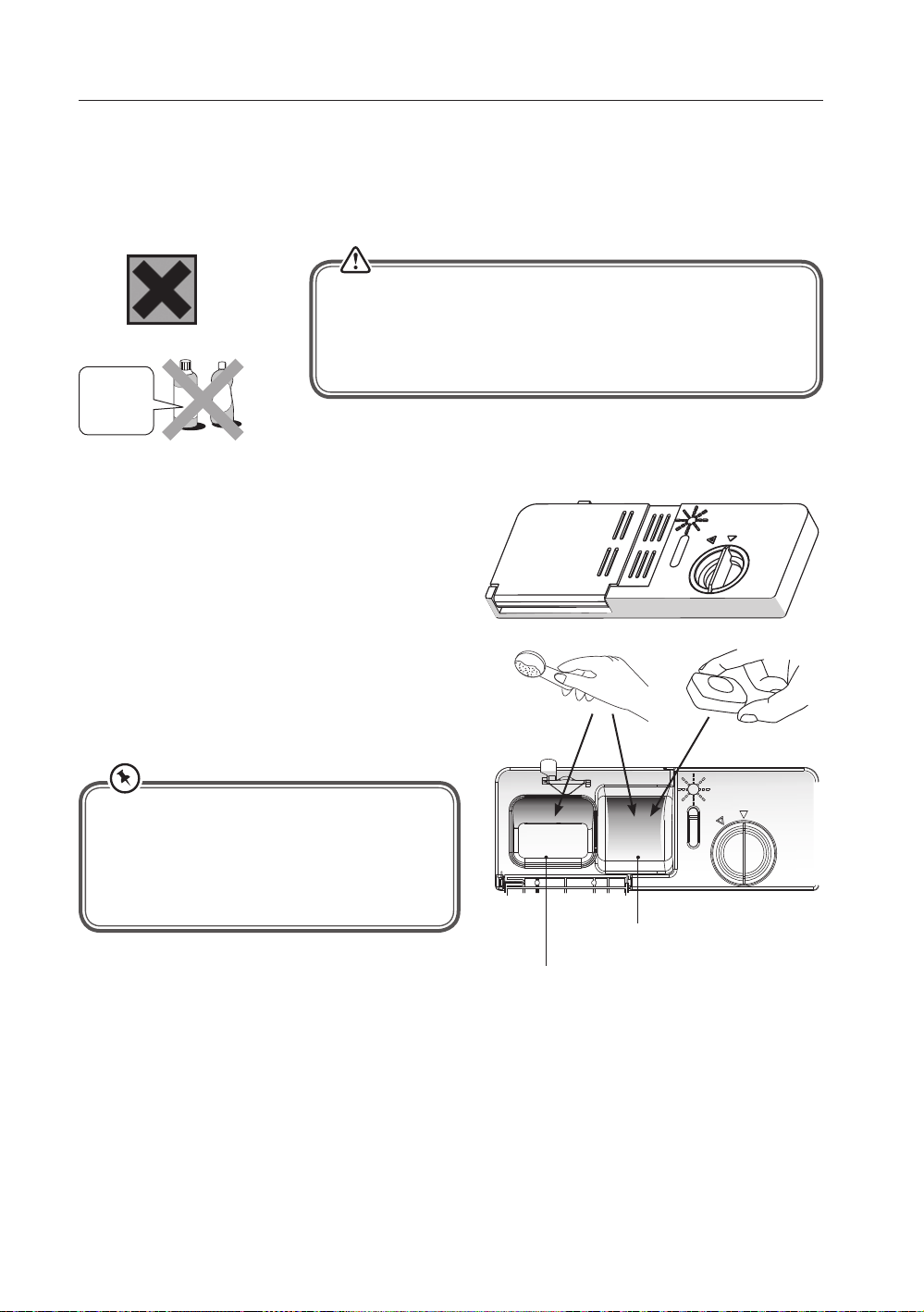

Adding Detergent or Detergent Tablet ..................................................................................... 17
Adding Rinse Aid ........................................................................................................................ 18
Adjusting the Rinse Aid Reservoir ................................................................................................................... 18

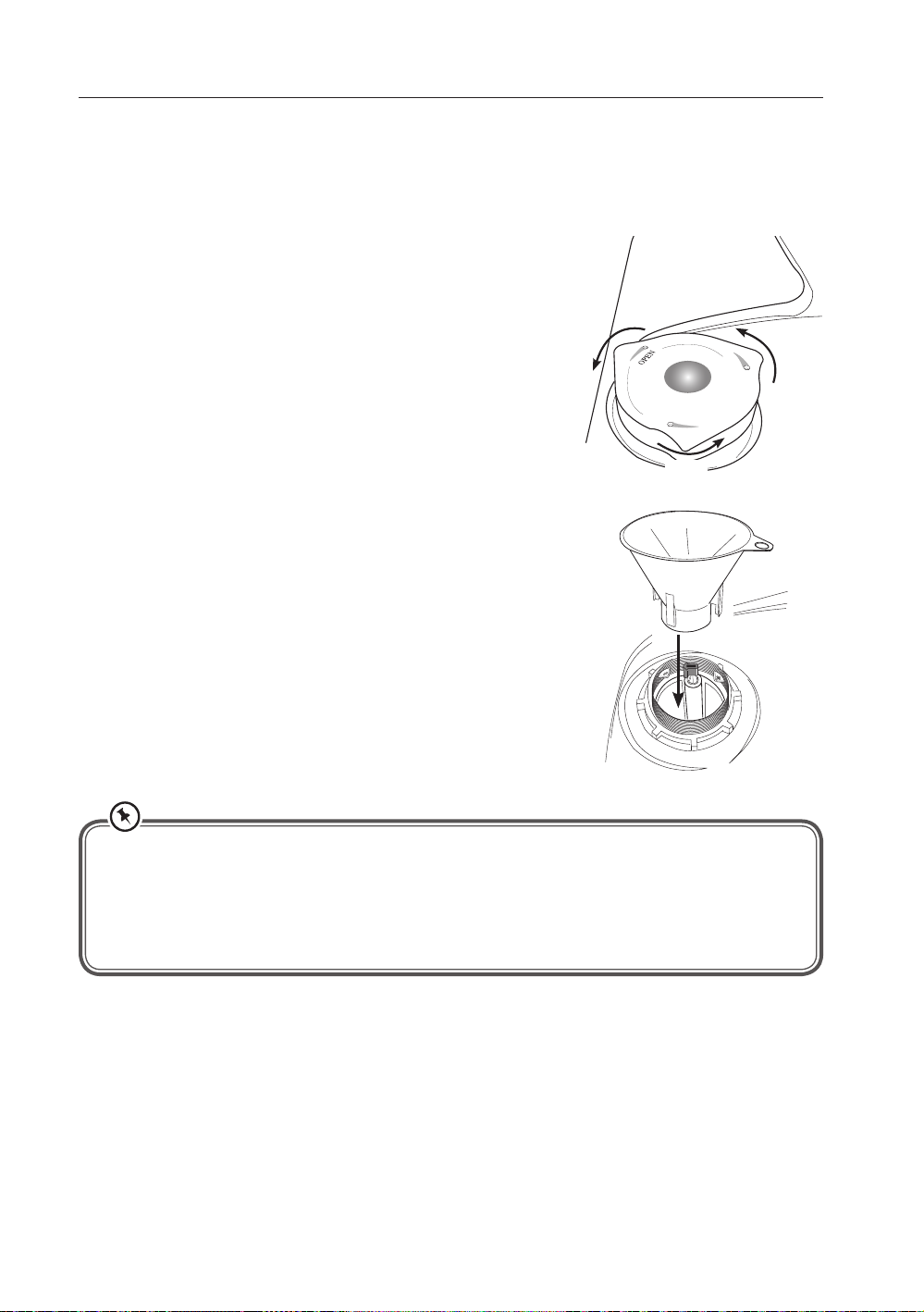

Adding Salt .................................................................................................................................. 19
Adjusting Salt Consumption ............................................................................................................................. 20

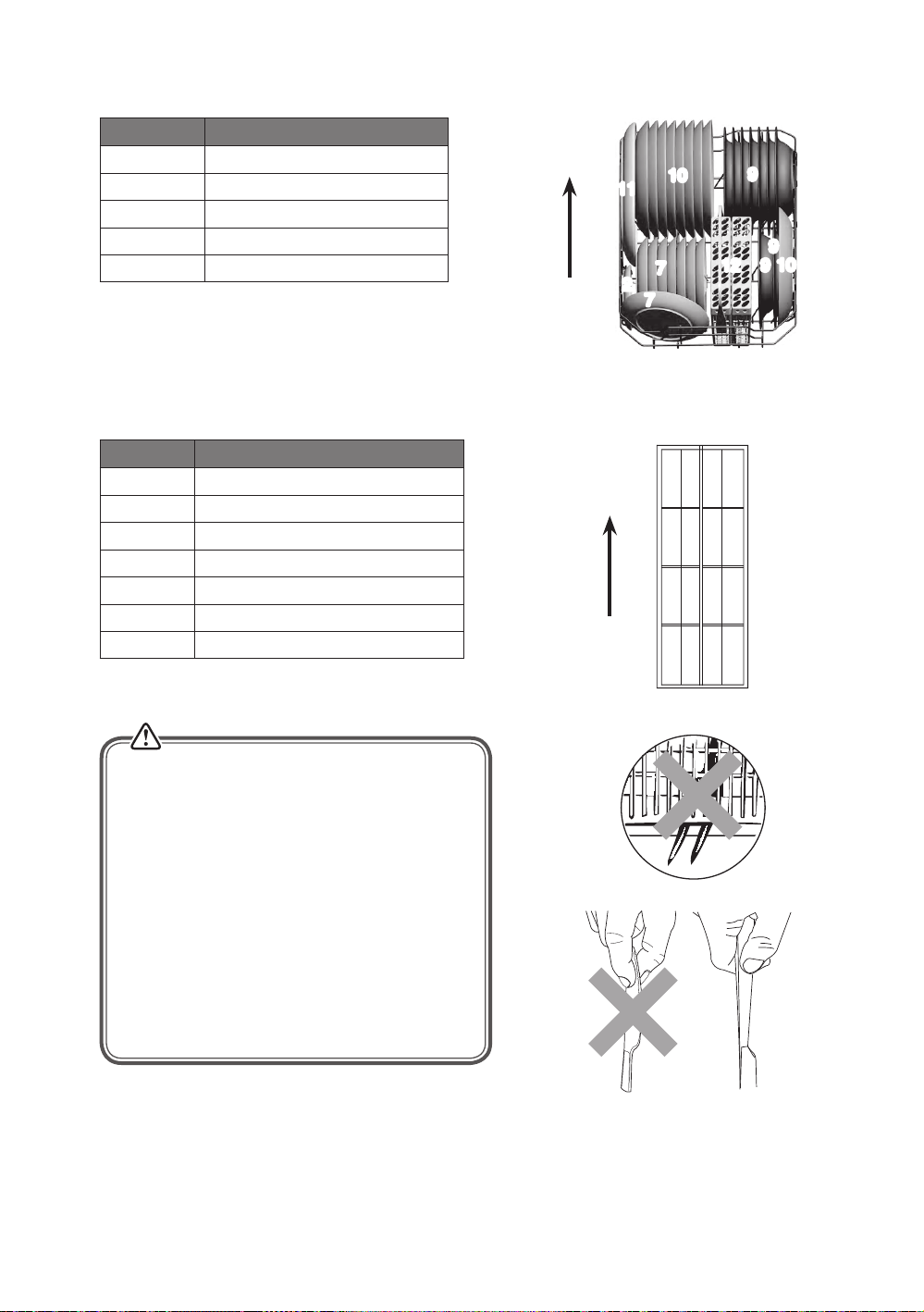

Loading the Dishwasher ............................................................................................................21
Before Loading the Dishwasher .......................................................................................................................21
Upper Basket ........................................................................................................................................................... 22
– Adjusting the Upper Basket ...........................................................................................................................22
– Loading the Upper Basket for 9 Place Settings ......................................................................................22
– Hinged Cup Rack ............................................................................................................................................... 23
Lower Basket ........................................................................................................................................................... 23
– Hinged Spikes ..................................................................................................................................................... 23
– Loading the Dishwasher Basket for 9 Place Settings ............................................................................24
Cutlery Basket ......................................................................................................................................................... 24
Operation .................................................................................................................................... 25
Starting a Wash Cycle ........................................................................................................................................... 25
Changing a Programme ......................................................................................................................................25
At the End of a Programme ...............................................................................................................................25
Switching O the Unit ......................................................................................................................................... 26
Unloading the Dishwasher ................................................................................................................................26
Delay Start ................................................................................................................................................................ 26
Half Load ................................................................................................................................................................... 26
Child Lock ................................................................................................................................................................. 26
Wash Cycle Table ......................................................................................................................... 27
Cleaning After Use ...................................................................................................................... 28
External Care ........................................................................................................................................................... 28
– The Door and the Door Seal .......................................................................................................................... 28
– The Control Panel ..............................................................................................................................................28
Internal Care ............................................................................................................................................................ 28
– Filtering System .................................................................................................................................................28
– Spray Arms ........................................................................................................................................................... 29
Frost Precaution .........................................................................................................................29
Moving the Dishwasher .............................................................................................................29
Maintenance After a Prolonged Period of Non-Operation .....................................................30
Hints and Tips ............................................................................................................................. 30
Technical Problems ............................................................................................................................................... 30
General Problems .................................................................................................................................................. 31
Disposal of the Dishwasher ....................................................................................................... 32
Disposal of Packing Material ..................................................................................................... 32
Specications .............................................................................................................................. 33
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the dishwasher and keep
them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make
sure to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of
obstructions.
• Choose a location for your dishwasher away from heat sources such as
radiators or fires.
• Young children should be supervised to ensure that they do not play
with the dishwasher.
• Keep mains cable out of reach of children.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Keep the appliance and its cord out of reach of children less than 8
years old.
• Keep children away from detergents and rinse aids. These may cause
chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• Switch off water and power and unplug before fitting or removing
tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never use a damaged machine.
• If the mains cable is damaged, it must be replaced by the manufacturer,
its service agent or a qualified technician in order to avoid a hazard.
• Keep the power unit, mains cable and plug away from water.
• Never exceed the maximum capacities.
• 2 people are required to lift this dishwasher.
• Only use the dishwasher for its intended domestic use.
• This appliance is intended for indoor household use and similar
applications such as:
- farm houses and by clients in hotels, motels and other residential
type environment;
- bed and breakfast type environment;
- catering and similar non-retail applications.
5
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
• Do not sit or stand on the door or dish rack.
• Do not move your dishwasher by holding the door or its edges. Hold
the dishwasher around its sides or base when moving it.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are
properly in place. Open the door very carefully when there is a
programme running, as there is a risk of hot water spraying out of the
appliance.
• Do not place any heavy objects on the open door. The appliance could
tip.
• When loading items to be washed:
1. Locate sharp items so that they will not damage the door seal;
2. Warning: Knives and other utensils with sharp points must be loaded
in the basket with the points downwards or placed horizontally.
• Do not allow plastic items to come into contact with heating element.
• Check that the detergent receptacle is empty after completion of the
wash cycle.
• Do not wash plastic items unless they are marked dishwasher safe or
equivalent.
• Use only detergent and rinse aids designed for an automatic
dishwasher.
• Other means for disconnection from the supply must be incorporated
in the fixed wiring with at least 3mm contact separation in all poles.
• The door should not be left in the open position since this could
present a tripping hazard.
• For energy saving, always remember to switch the dishwasher off
when you have finished using it. The dishwasher should not be left
unattended when in use.
• Remove the door to the washing compartment when removing an old
dishwasher from service or discarding it.
• During installation, the power supply cord must not be excessively or
dangerously bent or flattened.
• Do not tamper with controls.
• The appliance is to be connected to the water mains using new hose
sets.
• The maximum number of place settings to be washed is 9.
6
• The maximum permissible inlet water pressure is 1Mpa, and the
minimum permissible inlet water pressure is 0.04Mpa.
Earthing Instructions
WARNING: THIS APPLIANCE MUST BE EARTHED.
• This appliance is equipped with a mains cable having an
equipment-earthing conductor and an earthing plug.
• The plug must be plugged into an appropriate outlet that is
installed and earthed in accordance with local standards and
requirements.
• Improper connection of the equipment-earthing conductor could
result in a risk of electric shock.
• The wires in the cord are coloured as follows:
• Green and Yellow = Earth,
• Blue = Neutral,
• Brown = Live.
• Check with a qualified electrician or service representative if you
are in doubt whether the appliance is properly earthed or the plug
does not fit correctly.
• Never modify the plug provided with the appliance.
7
Thank you for purchasing your new Currys Essentials Dishwasher.
We recommend that you spend some time reading this instruction manual in order that you fully
understand all the operational features it offers. You will also find some hints and tips to help you resolve
any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
1/2
Intensive
3h
Normal
Half Load
On/Off
6h
Eco
9h
1 Hour
Rapid
Delay
Program
Start
3 in 1
Pause
The Main Unit
Detergent Measuring Spoon
(1 full spoon = 20g (approx.))
Cutlery Basket
Measuring Cup
(approx 60ml)
This product has been wet tested to ensure correct
operation. As a result some water may remain inside
the unit. This is normal and safe. Remove any water
droplets from the exterior if necessary.
Water Supply Hose
Condensation Strip
U-shape Hose HolderSalt Funnel
If items are missing, or damaged please contact Partmaster (UK only).
Tel: 0844 800 3456 for assistance.
8
1/2
Intensive
Normal
Half Load
On/Off
Eco
1 Hour
Rapid
3 in 1
3h
6h
Delay
Program
Start
Pause
9h
3030
level
level
level
level
580
850
855
620
min.100
80
455
450
Installation
INSTALLATION
Location
When selecting a position for your dishwasher you
should make sure the installation surface is flat
and firm, and the room is well ventilated. Avoid
locating your dishwasher near a heat source, eg.
cooker, boiler or radiator. Extreme cold ambient
temperatures may also cause the appliance not to
perform properly. This dishwasher is not designed
for use in a garage or outdoors.
Do not cover the dishwasher. When installing,
ensure that free space is left at the sides.
All parts removed must be saved to do the
reinstallation in the future. Ensure the dishwasher
is unplugged and empty. We recommend that 2
people handle the dishwasher during installation.
1. Please ensure the dishwasher is installed by a
qualified technician. Refer to the tools required.
2. Ensure there is clearance each side of the unit
to allow slight sideways movement for servicing
when required. Good levelling is essential for
correct closure and sealing of the door. When
the unit is correctly levelled, the door should
not catch the inner liner on either side of the
cabinet. The adjustable feet may be loosened
or tightened in order to obtain the optimum
levelling of the unit.
If required, the worktop of the dishwasher can
units in mm
be removed. The height without the worktop
is 820 mm, the minimum dimensions required
to accommodate the dishwasher within fitted
kitchen furniture units.
9
INSTALLATION
3. Do not connect the unit to the mains socket
before installation. Ensure you are not installing
the unit right in front of the mains socket. This
is to avoid potential damage to the back of the
unit.
4. The condensation strip must be fitted to
the underside of the worktop above your
dishwasher to protect it against any moisture. Its
purpose is to protect your worktop’s underside
from steam rising from the dishwasher.
• Ensure the surface is clean prior to sticking
the condensation strip to the underside of
the worktop.
• Remove the backing paper from the
condensation strip.
10
• Stick the condensation strip to the underside
of the worktop.
Failure to attach the condensation strip
could result in damage to the underside
of your worktop!
5. The worktop can be removed by removing
the fixing screws located at the rear of the
dishwasher. After removing the screws, lift and
push the worktop forward to release the lugs
from the front section of the dishwasher. The
polystyrene block and the lugs should be saved
for future use.
Leave some space
Stick the Condensation Strip
under the worktop, where you
want to install the dishwasher.
Remove
Remove
Unscrew
Remove
INSTALLATION
6. Position the dishwasher next to a water tap and
a drain. Ensure the water inlet and drain hoses
are not kinked or squashed. The unit must not
stand on the mains cable.
7. Make sure your plumbing is suitable for use with
the dishwasher. If in doubt contact a qualified
plumber. This unit MUST BE connected to COLD
WATER MAINS using the new water inlet hose.
OLD HOSE SETS MUST NOT BE RE-USED. The
water pressure from the water mains needs to
be at a minimum of 0.04 MPa and a maximum of
1.00MPa.
• Connect one end of the safety water supply
hose to your dishwasher, and then connect
the other end of the hose to your water
mains. Please ensure the black rubber seal is
in place.
• After connecting the hose, turn on your water
mains and check for leaks.
• Connect the dishwasher to the mains socket.
You may use a Y-adaptor (not included) for an
additional water feed for another appliance,
for example a washing machine. This is only
applicable for cold water mains. A Y-adaptor
is available from most DIY stores.
• Do not bend your drain hose.
water mains
Y-Adaptor
(not included)
safety water supply hose
Connect
to another
appliance if
required.
11
Loading...
